12
Specialty Products
DSI-03/DSRPI-03
These merchandisers are manufactu red t o meet ANSI/N ational Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
40427
ETL Listed
1 of 12
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 36
Evaporator (F) 18
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel 750
Conventional 865
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
DEFROST DATA
Frequency Hrs 8
OFFTIME
Temp Term °F 54
Failsafe Minutes 50
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.
GPM PSI
NA NA
NA NA
NA NA
PHYSICAL DATA
4ft 1.2
5ft 1.5
6ft 1.8
GLYCOL REQUIREMENTS
12
Specialty Products
DSI-03/DSRPI-03
Engineering
CROSS SECTION DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
2 of 12
12
Specialty Products
DSI-03/DSRPI-03
Engineering
CROSS SECTION DSI-03-6’X10’
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
Plan View DSI-03-6’X10’
Engineering
3 of 12
12
Specialty Products
DSI-03/DSRPI-03
Engineering
CROSS SECTION DSI-03-6’X18’
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
Plan View DSI-03-6’X18’
Engineering
4 of 12
12
DSRP
Specialty Products
DSI-03/DSRPI-03
DSRPI-03
DSRPI-15-SC-6x6 6' W0900022
DSRPI-03-REM-6x14 6' x 14' W0900023
DSRPI-03-REM-6x20 6' x 20' W0900024
DSRPI-03-6X12 (Northgate #14) 6' x 12' W0900025
18' W0900006
20' W0900007
22' W0900008
24' W0900009
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
5 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
6 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
7 of 12

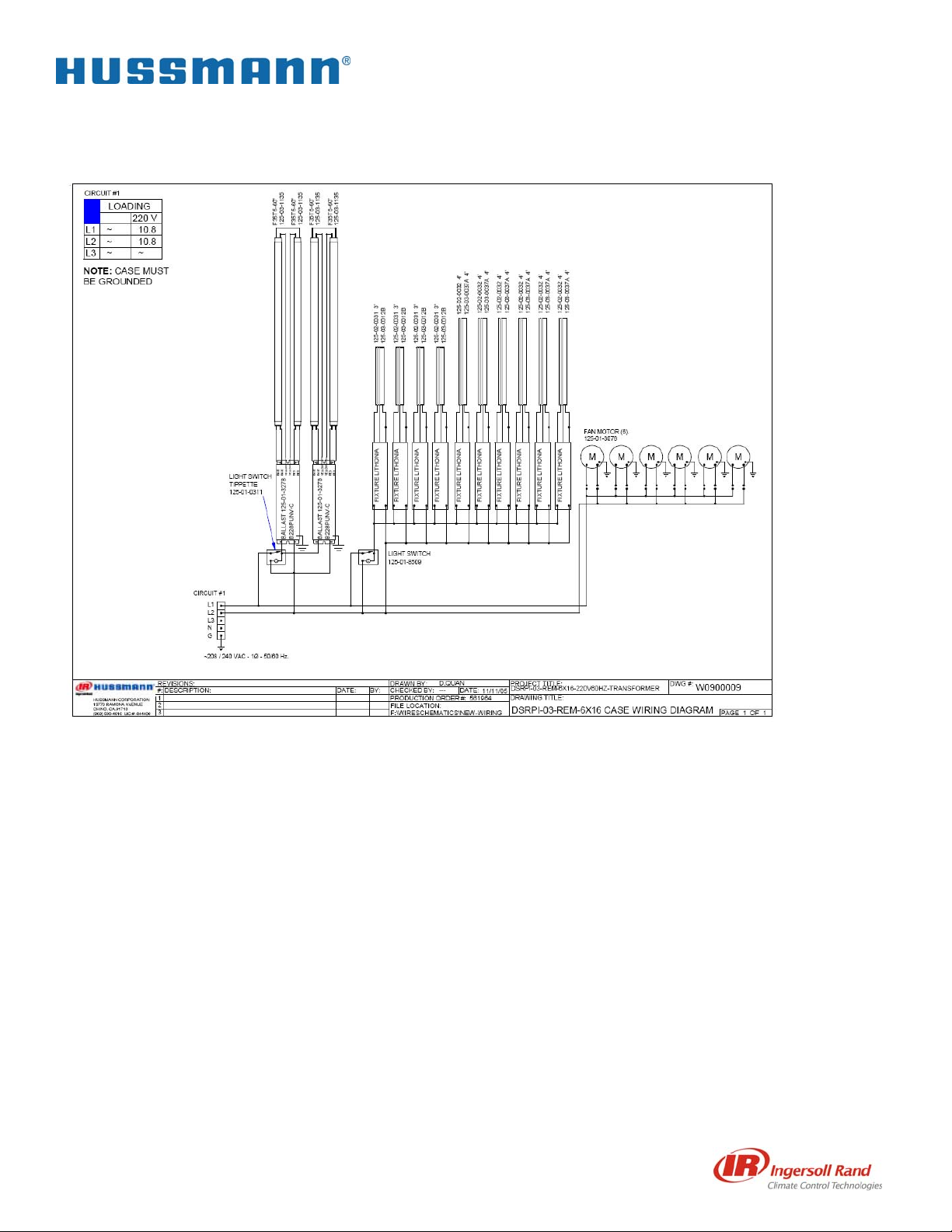

12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
8 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
9 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
10 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
11 of 12
12
Specialty Products
DSI-03/DSRPI-03
DSI-03/DSRPI-03
Technical Data Sheet
Rev C
12 of 12
