Hussmann D5X-EP Specifications
C
B
D
A
C
D
D
G
E
F
P/N_0463870_G
D5X-EP
Technical Data Sheet
P/N 0463870_G
NSF
®
Certified
March 2010
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part # Description Wiring Item #
FAN ASSEMBLIES
4 Ft, 8 Ft, 10 Ft† & 12 Ft
A. 12W Standard Fan Assembly (1)
0047000 Fan Motor, Evaporator
(MO.4410103)
0461805 Fan Blade (FB.4780446)
12W Energy Efficient Fan Assembly (1)
0477655 Fan Motor, Evaporator
(MO.4410546)
0461805 Fan Blade (FB.4780446)
6 Ft and 10 Ft
† Only
A. 7W Standard Fan Assembly (1)
0058698 Fan Motor, Evaporator
(MO.4410102)
0142780 Fan Blade (FB.0142780)
7W Energy Efficient Fan Assembly (1)
0477654 Fan Motor, Evaporator
(MO.4410545)
0142780 Fan Blade (FB.0142780)
†10 Ft uses both.
Item Part # Description Wiring Item #
T
HERMOSTATS
B. Optional Adjustable Refrigeration Thermostat (2)
LAMPS AND BALLASTS
C. Ballast, Electronic (3)
0480130 2 lamps (BA.4481676)
0480131 3 lamps (BA.4481654)
0480132 4 lamps (BA.4481677)
D. Fluorescent Lamp (4)
Replace with like fixtures
LED F
IXTURES AND POWER SUPPLY
E. 0501213 Power Supply (EP.4481861) (5)
F. LED Canopy Fixture (6)
Replace with like fixtures — See Page 5.
G. LED Shelf Fixture (7)
Replace with like fixtures — See Page 5.
©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

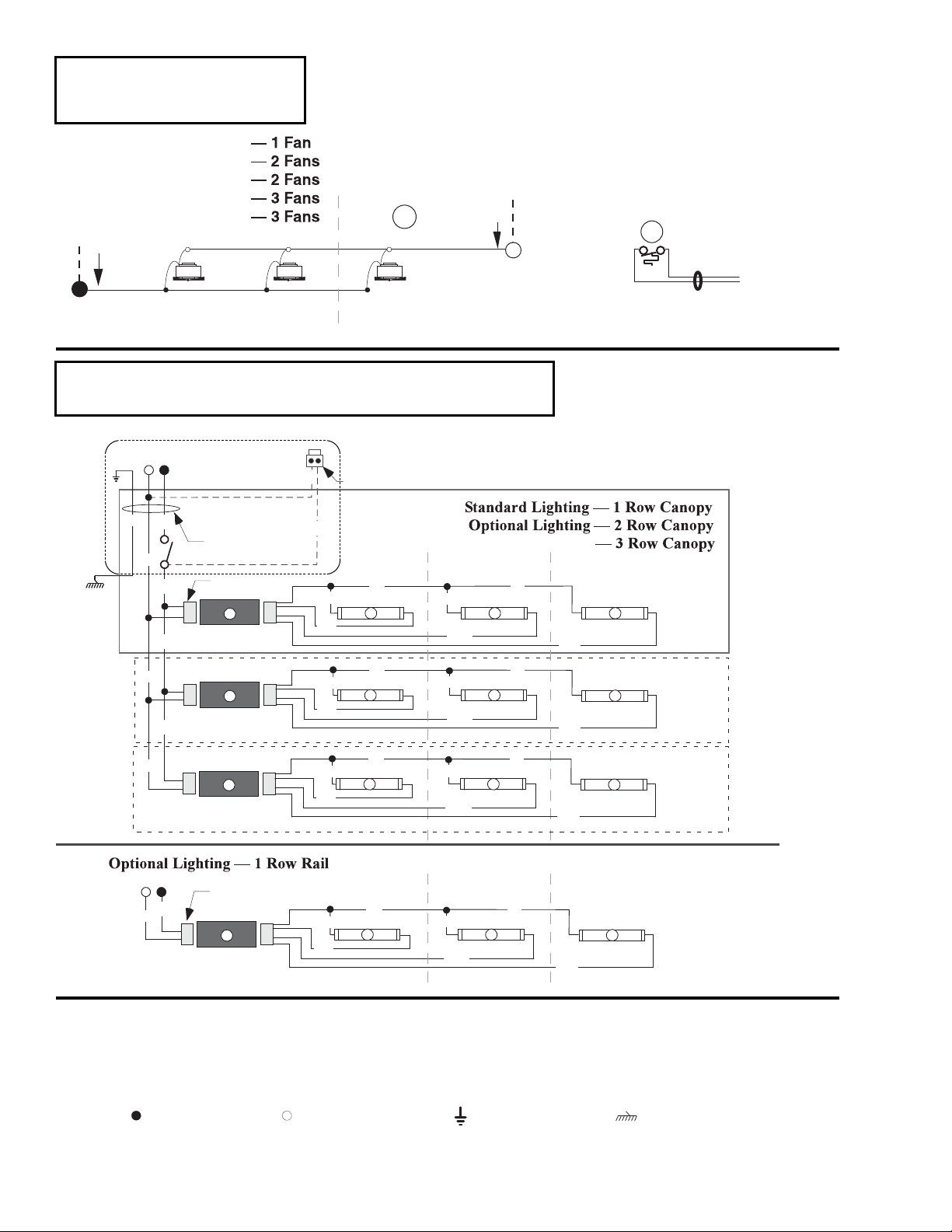

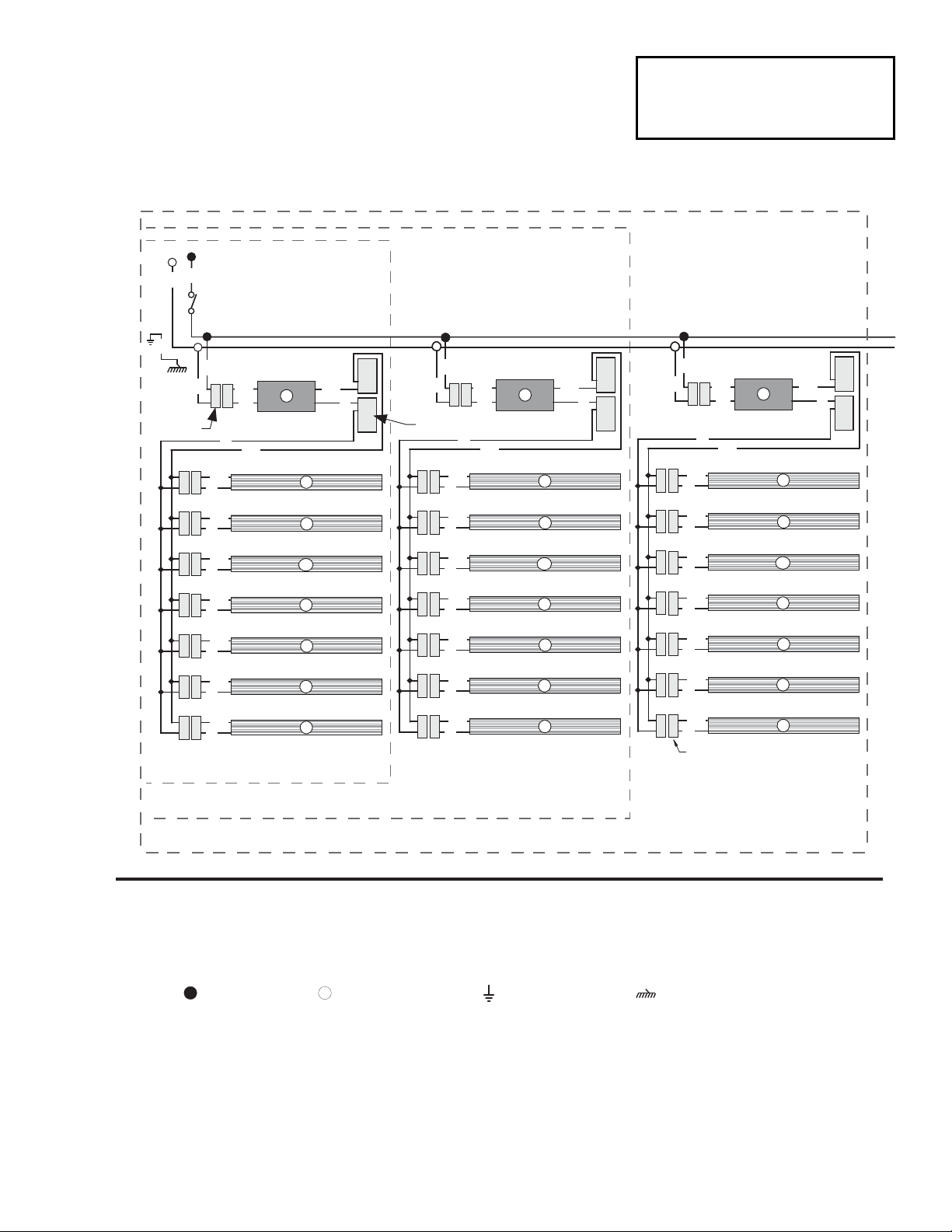

Note: Rev. G adds EcoShine LED (page 4) and parts (page 5), and revises Btu note (page 3), and canopy wiring diagram
(page 6). Other changes marked by underline or circle.
NOTE: Case-to-Case Electrical Connections
are made IN FRONT OF SPLASHGUARD.
4 3/4 (120)
Splashguard
31 5/8
(804)
42
(1064)
A
41 1/2
(1054)
3 In.
(77 mm)
Required
Air Gap
Refrigeration
Outlet
Electrical
Stub Up Area
6 x 6
(152x152)
Waste Outlet
Waste Outlet
FRONT
26 1/4
(665)
B
D
8 (203)
4 1/2 (115)
12 1/8 (307)
41 1/2
(1054)
43 7/8
(1114)
C
Wireway
4 3/4 (120)
26 1/2
(673)
4 1/4 (108)
24
(612)
33 1/2
(851)
Electrical
Field
Connection
30 1/4
(768)
2 of 9
D5X-EP Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
Engineering
Plan Views
Dimensions shown as in. and (mm).
Dairy & Delicatessen
10-2004
D5X
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)
3
/8
Merchandiser Suction Line (in.)
7
/8
4 ft 6 ft 8 ft 10 ft 12 ft
General
(A) Case Length (without ends or partitions) 48 3/8 (1229) 72 3/8 (1838) 96 3/8 (2448) 120 1/2 (3061) 144 1/2 (3670)
(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.) Optional view end with bumper adds 3
3
/4 in. [95 mm]).
Maximum O/S dimension of case back to front
(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42(1064) 42 (1064)
Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)
Back of case to O/S edge of front leg 30 1/
4 (768) 30
1
/
4 (768) 30
1
/
4 (768) 30
1
/
4 (768) 30
1
/
4 (768)
Distance between edges of external legs and center legs NA 29
1
/
2 (750) 41
1
/
2 (1054) 29
1
/
2 (750) 41
1
/
2 (1054)
Distance between edges of center legs NA NA NA 43
7
/8 (1114) 43 7/8 (1114)
Distance between front legs and splashguard 2
3
/4 (70) 2 3/4 (70) 2 3/4 (70) 2 3/4 (70) 2 3/4 (70)
Electrical Service (Electrical Field Wiring connection point)
(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)
Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612) 24 (612)
Length of electrical wireway 26
1
/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)
(C) RH End of case to LH end of wireway 42
1
/8 (1070) 66 1/8 (1680) 90 1/8 (2289) 114 1/4 (2902) 138 1/4 (3511)
Waste Outlets (One each end)
(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)
RH End of case to the center of RH waste outlet 12
1
/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)
Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)
Schedule 40 PVC drip pipe 1
1
/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)
Refrigeration Outlet
Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)
RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)
Wireway
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75°F and 55% R.H.
D5X-EP UNLIT LIT PEG*
Discharge Air °F 32 30 30
Evaporator °F 28 26 26
Unit Sizing °F 26 24 24
Btu/hr/ft
‡
— Unlit Shelves
‡‡
D5X-EP Parallel Conventional
U
NLIT 1235 1305
P
EG* 1385 1465
* Hussmann Peg Shelves (Deli only).
‡
Optional energy efficient motors reduce the
refrigeration load by 27 Btu/hr/ft.
‡‡
Add 10 Btu/hr/ft per shelf row for LED fixtures.
Add 20 Btu/hr/ft per shelf row for fluorescent lamps.
DEFROST DATA
Frequency Hr 8
Defrost Water (lb/ft/day) 10.5
(± 15% based on case configuration and
product loading).
OFFTIME D5X-EP
Time (minutes) 30
ELECTRIC OR GAS Not Recommended
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO** D5X-EP
19°F / 9°F
Indoor Unit Only, Pressure Defrost
Termination** 48°F
**Use a Temperature Pressure Chart to
determine PSIG conversions.
Estimated Charge ** D5X-EP
4 ft 1.9 lb 30 oz 0.9 kg
6 ft 2.8 lb 45 oz 1.3 kg
8 ft 3.7 lb 59 oz 1.7 kg
10 ft 4.7 lb 75 oz 2.1 kg
12 ft 5.1 lb 82 oz 2.3 kg
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
3 of 9
P/N 0463870_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Impact
Excel
D5X-EP
Dairy & Delicatessen
Dimensions shown as in. and (mm).
Multi-deck, 5 Display Levels
31 5/8 (804)
4 3/4 (120)
30 1/4 (768)
42 (1064)
33 1/2 (851)
30 1/4
(768)
61
(1549)
42
(1064)
FAN
C
O
I
L
D5X-EP
3 In. (77 mm)
Required
Air Gap
81 3/4
(2077)
7 1/4 (183)
26 1/4 (665)
6
(152)
Electrical
Case to Case
Connections
17 1/8
(436)
21 1/4
(540)
23 5/8
(600)
3 5/8
(92)
50 7/8
(1292)
Refrigeration
Outlet
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.
