Hussmann CW2EGE Specifications

B

C

D

E

A

P/N_0518267_A

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

F

AN ASSEMBLIES AND THERMOSTATS

A. 12W High Efficiency Standard

End Compartment Fan Assembly (1)
0477655 Fan Motor (MO.4410546)
0377253 Fan Blade (FB.4780616)

embossing away from motor

B. 0398558 Standard Non-Adjustable (2)

Defrost Thermostat
(CT.4481088)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. Ballast, Electronic (3)

0135966 1 lamp (BA.4480883)

D. 0039764 Lamp Starter (EP.4481081) (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

CW2EGE

Technical Data Sheet

P/N 0518267_A

NSF

®

Certified

November 2010

©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.

CW2EGE

General

Maximum O/S dimension of case back to front (includes bumper) 40 3/

4 (1035)

Total width of case 81

1

/2 (2070)

Width at front of case 317/

8 (810)

Front of case to O/S edge of front base rail 12

5

/8 (321)

Back of case to O/S edge of front base rail 28 1/8 (714)

RH edge of case to O/S edge of LH base rail 68 7/

8 (1749)

LH edge of case to O/S edge of LH base rail 12

5

/8 (321)

Rear to front of canopy 13 (330)

Width of canopy 25 5/

8 (651)

Width of base rail 2

1

/8 (54)

Access area between front base rail and splashguard 8 1/8 (206)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 7 (178)

RH edge of case to center of knockout 503/4 (1289)

Length of electrical raceway 22 (559)

Waste Outlet

RH edge of case to the center of waste outlet 38

5

/8 (981)

Center of waste outlet to outside of front base rail 3

7

/8 (98)

Water Seal

Center of case to center of pipe connection 32 (813)

Schedule 40 PVC drip pipe 1 1/4 (32)

Water seal outlet must clear front skid rail.

CW2EGE Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

2 of 7

C

L

Front of

Case

81 1/2 (2070)

68 7/8 (1749)

25 5/8

(651)

32 (813)

12 5/8

(321)

Waste Outlet
& Water Seal

50 3/4

(1289)

Access Area

32

(813)

35 1/8

(892)

40 3/4

(1035)

38 5/8

(981)

31 7/8

(810)

CW2EGE

29 1/2

(749)

Convertible Island End

11-2010

Engineering

Plan Views

Dimensions shown as inches and (mm).

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)

1

/2

Merchandiser Suction Line (in.) 1 1/8

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

CW2EGE

Discharge Air (°F) 28

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/case* CW2EGE

Parallel 4600

Conventional 5100

*Energy efficient motors are standard on the

CW2EGE.

DEFROST DATA

CW2EGE
Frequency (hr) 6
Defrost Water (lb/case/day) 8

(± 15% based on a case configuration and

product loading).

OFFTIME CW2EGE

Temp Term (°F) 48°
Failsafe (minutes) 45

E

LECTRIC OR GAS

Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CW2EGE

CI/CO (Temp °F)* 17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Estimated Charge (lb)***

CW2EGE 1.7 lb 18 oz 1.1 kg

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately 0.5 lb (8 oz / 0.2 kg).

3 of 7P/N 0518267_A

48

(1219)

Front

of

Case

16 in. Shelf

12 in. Shelf

13

(330)

5

(127)

28 1/4 (718)

6 3/8 (162)

26

(660)

7

(178)

3 7/8

(98)

8 1/2

(216)

12 5/8

(321)

28 1/8

(714)

40 3/4

(1035)

FAN

COIL

24 1/8 (613)

5 (127)

21

(533)

8 1/4 (210)

7

(178)

Dimensions shown as inches and (mm).

Convertible Island End, 2 Display Levels

Excel CW2EGE

Convertible Island End

CW2EGE

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.

CW2EGE Technical Data Sheet

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

4 of 7

Electrical Data

CW2EGE

Number of Fans—12W 2

Amperes Watts

Evaporator Fan

120V 60Hz Standard 0.60 50

120V 50Hz Standard

230V 60Hz Export NA

230V 50Hz Export NA

120V 60Hz Energy Efficient

(See Note 1 below)

230V 60Hz Energy Efficient

Cycling Anti-sweat Heaters None

Minimum Circuit Ampacity

120V 60Hz Standard 0.80

120V 50Hz Standard

230V 60Hz Export NA

230V 50Hz Export NA

120V 60Hz Energy Efficient

(See Note 1 below)

230V 60Hz Energy Efficient

Maximum Over Current Protection 120V 20

Maximum Over Current Protection 230V 15

208V Electric Defrost Heaters None

Standard Lighting (T-8 Fluorescent)

1 Row Canopy 0.80 40

Optional Lighting (T-8 Fluorescent)

Additional 1 Row Canopy

Additional 2 Row Canopy

(See Note 2 below)

Optional Shelf Lighting (T-8 Fluorescent)

1 Rows of Shelves 0.80 40

2 Rows of Shelves 1.60 80

Note 1: All CW2 end compartments are equipped with energy efficient fan motors as standard.

Note 2: CW2 end compartments are not available with 2 row canopy lighting due to space constraints.

Excel

CW2EGE

Convertible Island End

5 of 7P/N 0518267_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Excel CW2EGE

Convertible Island End

ESTIMATED SHIPPING WEIGHT

4

CW2EGE End Case

700 (318)

4

Actual weights will vary according to optional kits included.

Product Data

Recommended Usable Cube

1

(Cu Ft/Case) 18.47 ft3 /case (1.72 m3 /case)

ARI Total Display Area

2

(Sq Ft/Case) 18.3 ft2/case (5.58 m2 /case)

Shelf Area 3(Sq Ft/Case) 30.56 ft2/case (9.31 m2 /case)

1

ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

2

Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

3

Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product
Reference Guide. The standard shelf complement for this model is (1) row of 12-inch shelf and (1) row of 16-inch shelf.

CW2EGE Technical Data Sheet

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

= 120V P

OWER = 120V NEUTRAL = Field GROUND

= Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

2

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

To
Condensing
Unit

}

Light Blue

3

2 Fans

120V NEUTRAL

B

ROWN BAND

120V POWER

Fans

1

B

ROWN BAND

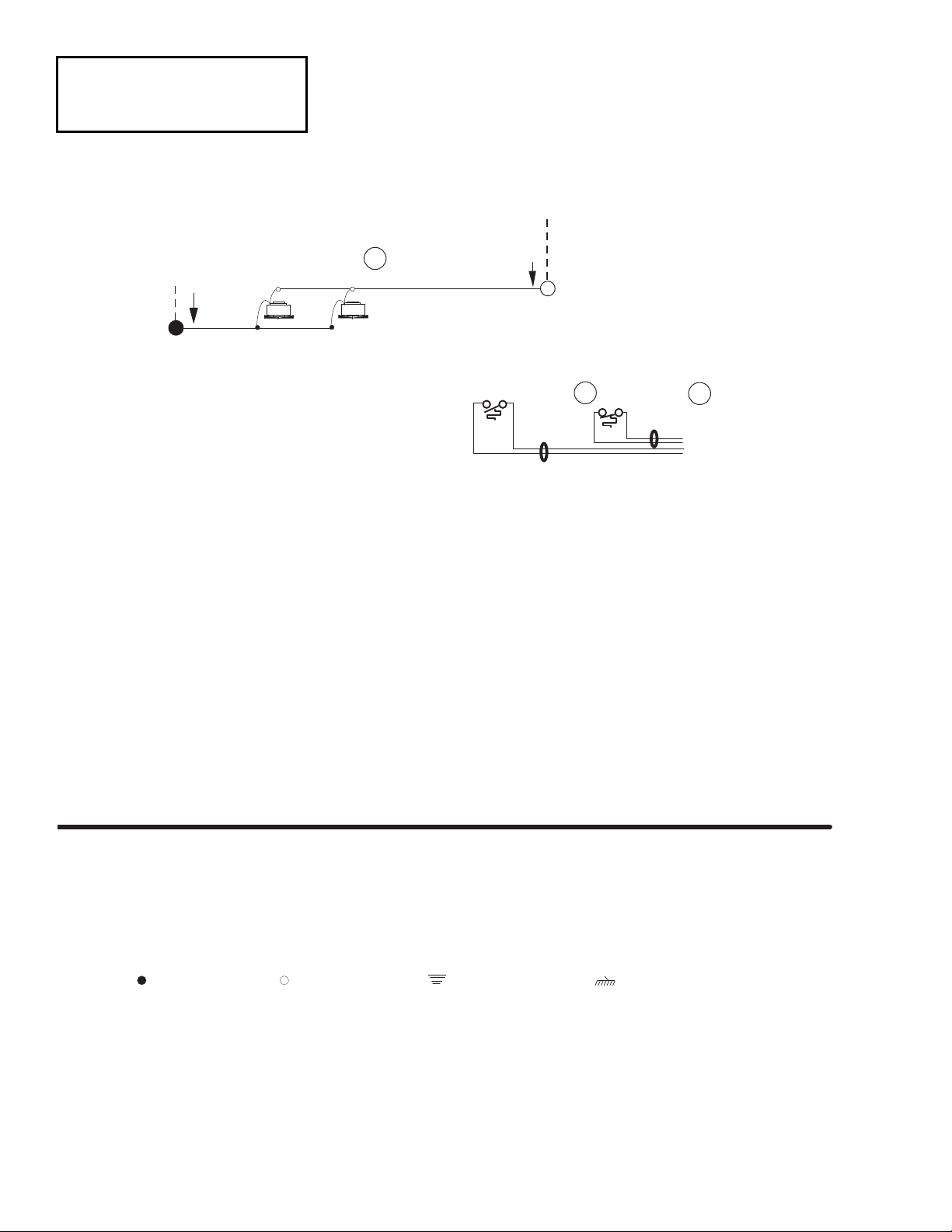

Fan Wiring

Offtime Defrost

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

6 of 7

7 of 7P/N 0518267_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

5

55

5

5

5

3

3

3

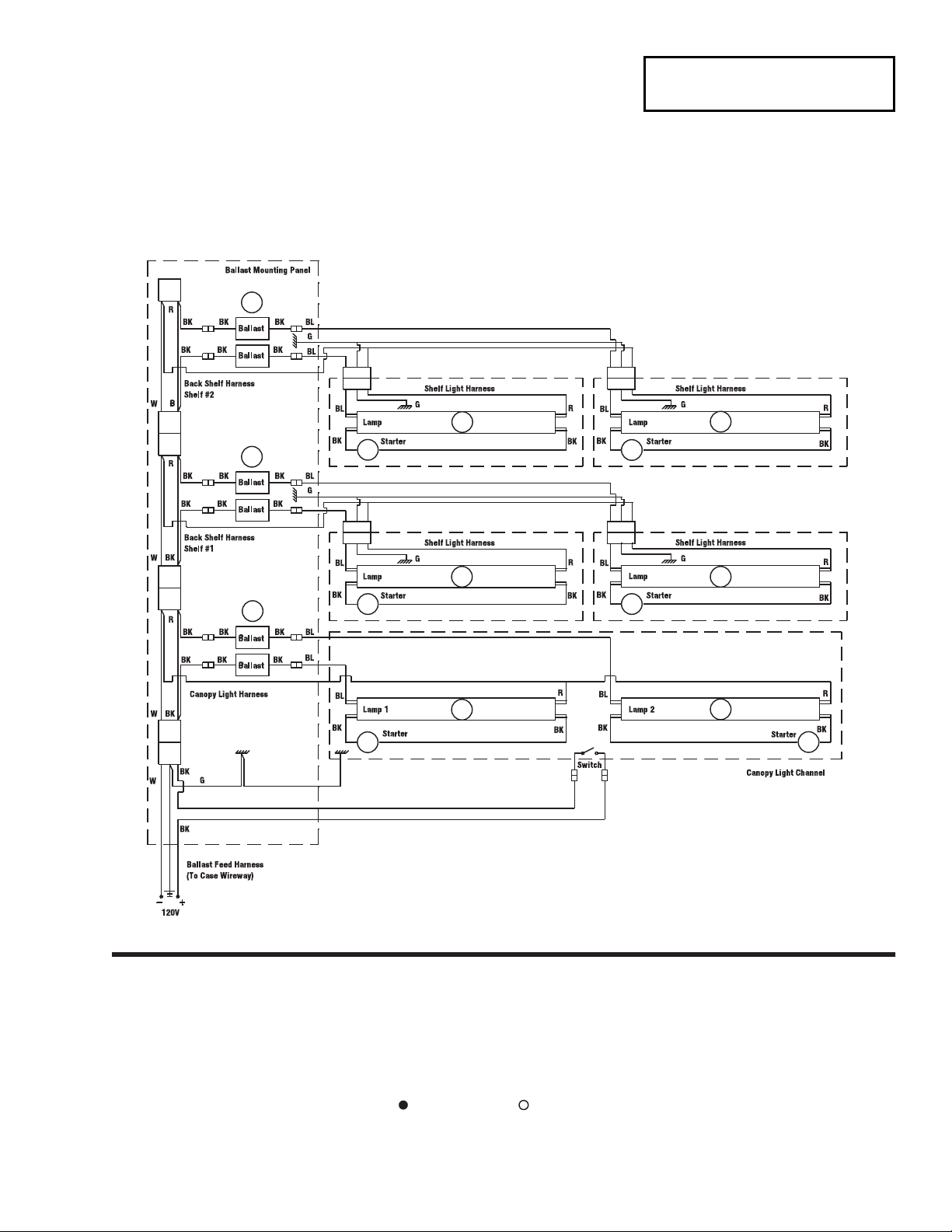

CW2EGE END COMPARTMENT

LIGHTING SCHEMATIC

(Standard canopy lighting and
optional shelf lighting are shown)

4

4

4

4

4

4

= 120V POWER

= 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

R = Red Y = Yellow G = Green BL = Blue BK = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Light Circuits
