Hussmann CIDM-I, CIDM-E Installation And Operation Manual

Download

Manual

Installation

& Operation

REV. 0508

/CHINO

CIDM (-E, -I)

CIDM-E

CIDM-I

P/N IGIC-CIDM-0508

INSTALLATION & OPERATION GUIDE

General Instructions

This equipment is to be installed to comply with the applicable NEC, Federal, State , and Local Plumbing and Construction Code h a ving j urisdict i o n .

Table of Contents

General Instructions.....................................................2

Cut and Plan Views ......................................................3

Installation .....................................................................4

Location ..................................................................................... 4

Uncrating the Stand ................................................................... 4

Exterior Loading ......................................................................... 4

Setting and Joining .................................................................... 4

Leveling .....................................................................................4

Joint Trim ................................................................................... 5

After Joint Trim ........................................................................... 5

Plumbing .......................................................................5

Waste Outlet and P-TRAP ......................................................... 5

Installing Condensate Drain....................................................... 5

Refrigeration .................................................................6

Refrigerant Type ........................................................................ 6

Piping ......................................................................................... 6

Refrigeration Lines ..................................................................... 6

Control Settings ......................................................................... 6

Access to TX Valves and Drain Lines ........................................ 6

Electronic Expansion Valve (Optional) ....................................... 6

Thermostatic Expansion Valve Location .................................... 6

Measuring the Operating Superheat.......................................... 6

T-STAT Location ........................................................................ 6

Electrical........................................................................7

Wiring Color Code ..................................................................... 7

Electrical Circuit Identication .................................................... 7

Electrical Service Receptacles (When Applicable) .................... 7

Field Wiring and Serial Plate Amperage .................................... 7

Ballast Location .........................................................................7

Finishing Touches ........................................................7

Plexiglass Joining Instructions ................................................... 7

Parts List .................................................................................... 7

Instructions ................................................................................7

Weldon #40 (2-Part) Cement - Mixing Instructions .................... 7

User Information ........................................................... 8

Stocking ..................................................................................... 8

Case Cleaning ........................................................................... 8

Cleaning Glass and Mirrors ....................................................... 8

Plexiglass and Acrylic Care ....................................................... 9

Cleaning ..................................................................................... 9

Antistatic Coatings ..................................................................... 9

Installing Perimeter Plexiglass ................................................... 9

Maintenance .................................................................. 9

Replacing Fluorescent Lamps ................................................... 9

Tips and Troubleshooting .......................................................... 9

Electrical Wiring Diagrams ........................................ 10

Wiring Diagrams ......................................................... 11

Sporland Omnistat Time Clock Program Settings ..23

Appendices .................................................................25

Appendix A. - Temperature Guidelines - Refrigerated ............. 25

Appendix B. - Application Recommendations - Refrigerated ... 25

Appendix C. - Field Recommendations - Refrigerated ............ 26

Appendix D. - Recommendations to User - Refrigerated ........ 27

Keep this booklet with the case at all times for future reference.

This Booklet Contains Information on:

CIDME / CIDMI Refrigerated Self-Service Island Display including 4’ Crown and 3’ Center Modules available as standard refrigerated med temp.

Shipping Damage

All equipment should be thoroughly examined for shipping damage before and during unloading.

This equipment has been carefully inspected at our factory and the carrier has assumed responsibility for safe arrival. If damaged, either apparent or concealed, claim must be made to the carrier.

Apparent Loss or Damage

If there is an obvious loss or damage, it must be noted on the freight bill or express receipt and signed by the carrier’s agent; otherwise, carrier may refuse claim. The carrier will supply necessary claim forms.

Concealed Loss or Damage

When loss or damage is not apparent until after equipment is uncrated, a claim for concealed damage is made. Make

request in writing to carrier for inspection within 15 days, and retain all packaging. The carrier will supply inspection report and required claim forms.

Shortages

Check your shipment for any possible shortages of material. If a shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an inspection. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment.

Hussmann Chino Product Control

The serial number and shipping date of all equipment

has been recorded in Hussmann’s les for warranty and

replacement part purposes. All correspondence pertaining to warranty or parts ordering must include the serial number of each piece of equipment involved, in order to provide the customer with the correct parts.

IGIC-CIDM-0508

/CHINO

A publication of HUSSMANN® Chino 13770 Ramona Avenue • Chino, California 91710 (909) 628-8942 FAX (909) 590-4910 (800) 395-9229

Rev. 0508

29 1/2”

6”

9”

19 5/16”

6 3/16”

2 7/8”

11”

3 11/16” 40 13/16”

48 3/16”

CIDM

ISLAND

3 11/16”

CIDME

34 7/8”

3 1/16”

12 13/16”

27’

36’

33’

30 3/8”

10’

Elec

Ref.

26 1/8”

25 1/8”

23 1/16”

21 1/8”

23 1/8”

Ref.

Drain

CIDMI

Cut and Plan Views

It is the contractor’s responsibility to install case(s) according to local construction and

health codes

Do not use cam locks to pull cases together.

Installation

IGIC-CIDM-0508

Location

The refrigerated merchandisers have been designed for use only in air conditioned stores where temperature and humidity are maintained at or below 75°F and 55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or windows (etc.) to create air currents around the merchandiser, as this will impair its correct operation.

Product temperature should always be maintained at a constant and proper temperature. This means that from the time the product is received, through storage, preparation and display, the temperature of the product must be controlled to maximize life of the product.

Uncrating the Stand

Place the xture as close to its permanent position as

possible. Remove the top of the crate. Detach the walls from each other and remove from the skid. Unbolt the case from

the skid. The xture can now be lifted off the crate skid. Lift only at base of stand!

Exterior Loading

These models have not been structurally designed to support excessive external loading. Do not walk on their tops; This could cause serious personal injury and damage

to the xture.

Setting and Joining

The sectional construction of these models enable them to be joined in line to give the effect of one continuous display. A joint trim kit is supplied with each joint.

Leveling IMPORTANT! IT IS IMPERATIVE THAT CASES BE LEVELED FROM FRONT TO BACK AND SIDE TO SIDE PRIOR TO JOINING. A LEVEL CASE IS NECESSARY TO INSURE PROPER OPERATION, WATER DRAINAGE, GLASS ALIGNMENT, AND OPERATION OF THE HINGES SUPPORTING THE GLASS. LEVELING THE CASE CORRECTLY WILL SOLVE MOST HINGE OPERATION PROBLEMS.

NOTE: A. To avoid removing concrete ooring, begin lineup

leveling from the highest point of the store oor.

B. When wedges are involved in a lineup, set them rst.

All cases were leveled and joined prior to shipment to

insure the closest possible t when cases are joined in the eld. When joining, use a carpenters level and shim legs

accordingly. Case must be raised correctly, under legs where support is best, to prevent damage to case.

1. Check level of oor where cases are to be set.

Determine the highest point of the oor; cases

will be set off this point.

2. Set rst case, and adjust legs over the highest part of the oor so that case is level. Prevent damage - case

must be raised under leg or by use of 2x6 or 2x4 leg brace. Remove side and back leg braces after case is set.

3. Set second case as close as possible to the rst case, and level case to the rst using the instructions

in step one.

4. Apply masking tape 1/8” in from edge of case in base and center air discharge. (See diagram).

5. Apply liberal bead of case joint sealant (butyl) to

dotted area shown in (Fig.2, #1) of rst case. Apply

heavy amount to cover entire shaded area.

DO NOT USE PERMAGUM!

6. Slide second case up to rst case snugly, by using alignment pins. Then, level second case to the rst

case so that the bumper and plexiglass perimeters line up.

7. To compress silicone at joint, use two Jurgenson wood clamps. Make sure case is level from front to back and side to side on inside bulkheads at joint.

8. Make sure cases are tightly joined together in the appropriate locations (See diagram). Cases are joined by turning the camlocks with the supplied Allen wrench. This will lock the sections of the CIDM together. Remove clamps after this has been done.

9. Apply bead of silicone to top of bulkheads and slip on stainless steel bulkhead cap. Also apply silicone to seam between overhead light tubes.

10. VERY IMPORTANT! Apply liberal amounts of black

silicone to area under interior of pans and ll all

voids.

11. Use nger to smooth silicone as thin as possible at

masking tape on inside and outside of rear mullion (apply additional silicone if necessary). Remove tape applied on line #3.

Rev. 0508

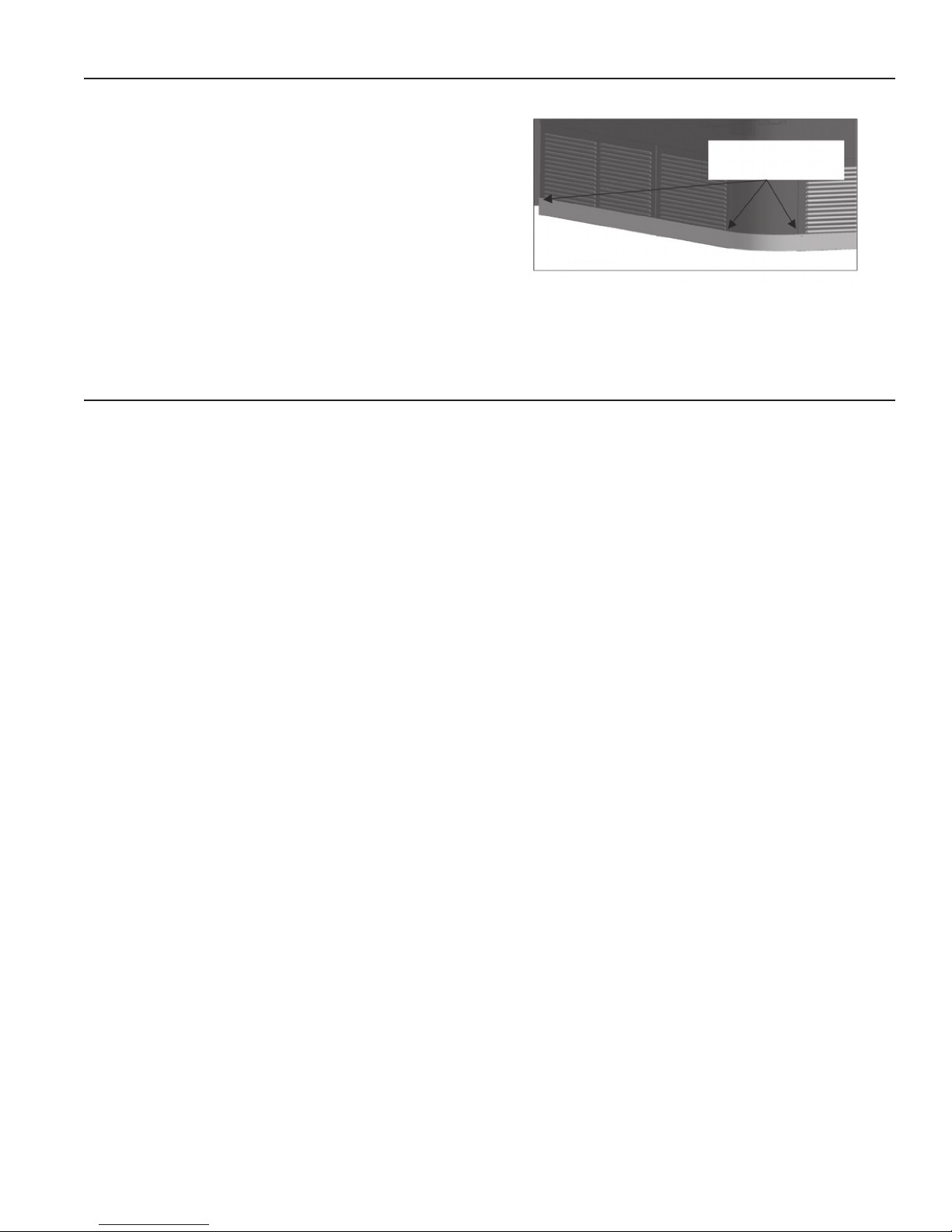

Fasten using #8 self-

drilling Phillips screws

Seal to floor with NSF

approved Silicon

Figure 1

Installation (Cont'd)

Joint Trim

After cases have been leveled and joined, and refrigeration, electrical, and wasted piping work completed, install the splashguards. Fasten along the top edge, or center, with #10 X 3/3” sheet metal screws.

DO NOT SEAL JOINT TRIM TO FLOOR!

After Joint Trim

Case to Floor sealing After case has been leveled and joints are properly covered

and sealed, install toe kick covers. Two covers are supplied with case and are to be wrapped around case and tight to

oor. Fasten covers with selfdrilling screws to case. Run a bead of NSF approved silicon, to seal covers to oor.

(Figure 1)

Plumbing

Waste Outlet and P-TRAP

The waste outlet is located off the center of the case on one side allowing drip piping to be run lengthwise under

the xture.

A 1-1/2” P-TRAP and threaded adapter are supplied with

each xture. The P-TRAP must be installed to prevent air leakage and insect entrance into the xture.

NOTE: PVC-DWV solvent cement is recommended.

Follow the manufacturer’s instructions.

Installing Condensate Drain

Poorly or improperly installed condensate drains can seriously interfere with the operation of this refrigerator, and result in costly maintenance and product losses. Please follow the recommendations listed below when installing condensate drains to insure a proper installation:

1. Never use pipe for condensate drains smaller than the nominal diameter of the pipe or P-TRAP supplied with the case.

2. When connecting condensate drains, the P-TRAP must be used as part of the condensate drain to prevent air leakage or insect entrance. Store

plumbing system oor drains should be at least 14”

off the center of the case to allow use of the P-TRAP

pipe section. Never use two water seals in series in any one line. Double P-TRAPS in series will cause a lock and prevent draining.

3. Always provide as much down hill slope (“fall”) as possible; 1/8” per foot is the preferred minimum. PVC pipe, when used, must be supported to maintain the 1/8” pitch and to prevent wrapping.

4. Avoid long runs of condensate drains. Long runs make it impossible to provide the “fall” necessary for good drainage.

5. Provide a suitable air break between the ood rim of the oor drain and outlet of condensate drain. 1” is

ideal.

6. Prevent condensate drains from freezing:

a. Do not install condensate drains in contact with

non-insulated suction lines. Suction lines should be insulated with a nonabsorbent insulation

material such as Armstrong’s Armaex.

b. Where condensate drains are located in dead

air spaces (between refrigerators or between a refrigerator and a wall), provide means to prevent freezing. The water seal should be insulated to prevent condensation.

Refrigeration

TIME CLOCK T-STAT

BALLASTS

IGIC-CIDM-0508

Refrigerant Type

The standard refrigerant will be R-22 unless otherwise

specied on the customer order. Check the serial plate on

the case for information.

Piping

The refrigerant line outlets are located under the case.

Locate rst the electrical box, the outlets are then on the

same side of the case but at the opposite end. Insulate suction lines to prevent condensation drippage.

Refrigeration Lines

NOTE: The standard coil is piped at 5/8” (suction); however,

Refrigerant lines should be sized as shown on the refrigeration legend furnished by the store.

Install P-TRAPS (oil traps) at the base of all suction line vertical risers.

Pressure drop can rob the system of capacity. To keep the pressure drop to a minimum, keep refrigerant line run as short as possible, using the minimum number of elbows. Where elbows are required, use long radius elbows only.

Control Settings

See the “Case Specs” section of this guidebook for the appropriate settings for your merchandiser. Maintain these parameters to achieve near constant product temperatures.

Product temperature should be measured rst thing in

the morning, after having been refrigerated overnight. For all multiplexing, defrost should be time terminated. Loadmaster valves are not recommended. Defrost times

should be as directed in the Case Specications section

of this guide. The number of defrosts per day should never change. The duration of the defrost cycle may be adjusted to meet conditions present at your location.

Access to TX Valves and Drain Lines Mechanical - Remove product from end of case. Remove

product racks. Remove refrigeration and drain access panels (labeled). TX valve (mechanical only) and drain are located under each access panel at end of the case.

Electronic - The Electronic Expansion valve master and slave cylinder(s) are located within the electrical access panel(s).

Electronic Expansion Valve (Optional)

A wide variety of electronic expansion valves and case controllers can be utilized. Please refer to EEV and controller manufacturers information sheet. Sensors for electronic expansion valves will be installed on the coil inlet, coil outlet, and in the discharge air. (Some supermarkets require a 4th sensor in the return air). Case controllers will be located in the electrical raceway or under the case.

Liquid Suction

3/8” O.D. 5/8” O.D.

the store tie-in may vary depending on the number of coils and the draw the case has. Depending on the case setup, the connecting point in the store may be 5/8”, 7/8”, or 11/8”. Refer to the particular case you are hooking up.

Thermostatic Expansion Valve Location

This device is located on the same side as the refrigeration stub. A Sporlan balanced port expansion valve model is furnished as standard equipment, unless otherwise

specied by customer.

Expansion Valve Adjustment

Expansion valves must be adjusted to fully feed the evaporator. Before attempting any adjustments, make sure the evaporator is either clear or very lightly covered

with frost, and that the xture is within 10°F of its expected

operating temperature.

Measuring the Operating Superheat

1. Determine the suction pressure with an accurate pressure gauge at the evaporator outlet.

2. From a refrigerant pressure temperature chart, determine the saturation temperature at the observed suction pressure.

3. Measure the temperature of the suction gas at the thermostatic remote bulb location.

4. Subtract the saturation temperature obtained in step No. 2 from the temperature measured in step No. 3.

5. The difference is superheat.

6. Set the superheat for 5°F - 7°F.

T-STAT Location

T-STATS are located within the electrical raceway. Refer to diagram below.

Rev. 0508

BEFORE SERVICING

ALWAYS DISCONNECT ELECTRICAL

POWER AT THE MAIN DISCONNECT

WHEN SERVICING OR REPLACING ANY

ELECTRICAL COMPONENT.

This includes (but not limited to) Fans, Heaters

Thermostats, and Lights.

Electrical

Wiring Color Code

CASE MUST BE GROUNDED

NOTE: Refer to label illustrated above that is afxed to case

to determine the actual conguration as checked in the

“TYPE INSTALLED” boxes.

Electrical Circuit Identication

Standard lighting for all models will be full length uorescent

lamps located within the case at the top. The switch controlling the lights, the plug provided for

digital scale, and the thermometer are located at the rear of the case mullion.

The receptacle that is provided on the exterior back of these

models is intended for computerized scales with a ve amp

maximum load, not for large motors or other high wattage

Finishing Touches

appliances. It should be wired to a dedicated circuit.

Electrical Service Receptacles (When Applicable)

The receptacles located on the exterior of the merchandiser are intended for scales and lighted displays. They are not intended nor suitable for large motors or other external appliances.

Field Wiring and Serial Plate Amperage

Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than

specied. Field wiring from the refrigeration control panel to

the merchandisers is required for refrigeration thermostats. Most component amperes are listed in the “Case Specs” section, but always check the serial plate.

Ballast Location

Ballasts are located within the access panel that runs the length of the top of the case. Refer to diagram on page 6.

Plexiglass Joining Instructions

Note: All cases in a line up are set, leveled and joined together

in the factory to ensure proper alignment and tight joints between the cases. To obtain equally tight joints between cases, it is critical to use the GE 1200 silicone (supplied with cases) for sealing case joints. Only the use of silicone allows case joints to pull up tight! DO NOT USE PERMAGUM! Use of permagum will cause large gaps at case joints.

Parts List

• 1” Plastic rod 3/16” diameter

• Acrylic Solvent Cement (IPS weldon #40 or comparable)

• Masking tape and duct tape (not supplied)

Instructions

1. Prepare front plexiglass for cement application by placing masking tape, a maximum 1/16 of an inch

from the seam, on both sides front and back. Tape is to protect plexiglass from cement spill over. Scarring will occur if cement touches clear plexiglass.

2. Separate front plexiglass pieces enough to apply a bead of #40 cement down one edge inside of seam and plastic rod area.

3. Realign front plexiglass and push together tightly.

Insert the plastic rod until ush with top of plexiglass.

4. Apply tape (2” duct tape recommended) across face of seam to secure plexiglass from shifting while cement dries (approximately 1 hour).

5. With a little silicone, attach the plex clip over the joint in the glass.

Weldon #40 (2-Part) Cement - Mixing Instructions

1. Bring Parts “A” and “B” to room temperature before mixing.

2. Add Part “A” to Part “B”. They have been premeasured at the factory.

3. Stir slowly and evenly, as to avoid air bubbles. Mix for 1-3 minutes.

Finishing Touches (Cont'd)

Acrylic Cement

Plastic Rod

Masking Tape

4. Apply cement with applicator to one or both surfaces. Join immediately.

5. Apply just enough pressure to remove any air bubbles. Do not squeeze joint so hard as to force cement out of the joint - A dry joint may result.

6. Allow approximately 4 hours to dry (at 70° F).

IGIC-CIDM-0508

User Information

Stocking

Improper temperature and lighting will cause serious product loss. Discoloration, dehydration and spoilage can be controlled with proper use of the equipment and handling of product. Product temperature should always be maintained at a constant and proper temperature. This means that from the time the product is received, through storage, preparation and display, the temperature of the product must be controlled to maximize life of the product. Hussmann cases were not designed to “heat up” or “cool down” product - but rather to maintain an item’s proper temperature for maximum shelf life. To achieve the protection required always:

1. Minimize processing time to avoid damaging temperature rise to the product. Product should be at proper temperature.

2. Keep the air in and around the case area free of foreign gasses and fumes or food will rapidly deteriorate.

3. Maintain the display merchandisers temperature controls as outlined in the refrigerator section of this manual.

4. Do not place any product into these refrigerators until all controls have been adjusted and they are operating at the proper temperature. Allow merchandiser to operate a minimum of 6 hours before stocking with any product.

5. When stocking, never allow the product to extend beyond the recommended load limit. Air discharge

and return air ow must be unobstructed at all

times to provide proper refrigeration.

6. Avoid the use of supplemental ood or spot lighting.

Display light intensity has been designed for maximum visibility and product life at the factory.

The use of higher output uorescent lamps (H.O.and

V.H.O.),will shorten the shelf life of the product.

Case Cleaning

Long life and satisfactory performance of any equipment are dependent upon the care given to it. To insure long life, proper sanitation and minimum maintenance costs, the refrigerator should be thoroughly cleaned frequently. SHUT OFF FAN DURING CLEANING PROCESS. It can be unplugged within the case, or shut off case at the source. The interior bottom may be cleaned with any domestic soap or detergent based cleaners. Sanitizing solutions will not harm the interior bottom, however, these solutions should always be used according to the manufacturer’s directions. It is essential to establish and regulate cleaning procedures.

This will minimize bacteria causing discoloration which

leads to degraded product appearance and signicantly

shortening product shelf life.

Soap and hot water are not enough to kill this bacteria. A sanitizing solution must be included with each cleaning process to eliminate this bacteria.

1. Scrub thoroughly, cleaning all surfaces, with soap and hot water.

2. Rinse with hot water, but do not ood.

3. Apply the sanitizing solution according to the manufacturer’s directions.

4. Rinse thoroughly.

5. Dry completely before resuming operation.

Cleaning Glass and Mirrors

Only use a soft cloth and mild glass cleaner for cleaning any glass or mirrored components. Be sure to rinse and/or dry completely.

Never use hot water on cold glass surfaces! It may shatter and cause serious injury! Allow glass surfaces

to warm rst.

Rev. 0508

BEFORE SERVICING

Always disconnect electrical power at the main

disconnect when servicing or replacing any

electrical component.

This includes (but not limited to) Fans, Heaters,

Thermostats and Lights.

This lamp has been treated to resist breakage and must be

replaced with a similarly treated lamp in order to maintain

compliance with NSF Standards. NSF CODE 4.28.1

Contact HUSSMAN Chino for replacement.

1-800-395-9229 X 2131

FOR PROMPT SERVICE

When contacting the factory,

be sure to have the Case Model and Serial

Number handy. This information is on a plate

located on the case itself.

CLEANING PRECAUTIONS

When cleaning:

• Do not use high pressure water hoses

• Do not introduce water faster than waste outlet can drain

• NEVER ON A SELF CONTAINED UNIT WITH AN EVAPORATOR FAN

• NEVER USE A CLEANING OR SANITIZING SOLUTION THAT HAS AN OIL BASE (these will dissolve the butyl sealants) or an AMMONIA BASE (this will corrode the copper componets of the case)

TO PRESERVE THE ATTRACTIVE FINISH:

• DO USE WATER AND A MILD DETERGENT FOR THE EXTERIOR ONLY

• DO NOT USE ABRASIVES OR STEEL WOOL SCOURING PADS (these will mar the finish)

User Information (Cont'd)

Maintenance

Replacing Fluorescent Lamps

Fluorescent lamps are furnished with a shatterproof protective coating. The same type of lamp with protective coating must be used if replaced.

T-5 Bulbs

Please note: T-5 lights must be turned off and on after bulb replacement.

Plexiglass and Acrylic Care

Improper cleaning not only accelerates the cleaning cycle but also degrades the quality of this surface. Normal daily

bufng motions can generate static cling attracting dust to

the surface. Incorrect cleaning agents or cleaning cloths can cause micro scratching of the surface, causing the plastic to haze over time.

Cleaning

Hussmann recommends using a clean damp chamois, or a paper towel marketed as dust and abrasive free with 210® Plastic Cleaner and Polish available by calling Sumner Labs at 1-800-542-8656. Hard, rough cloths or paper towels will scratch the acrylic and should not be used.

Antistatic Coatings

The 210® has proven to be very effective in not only cleaning and polishing the Plexiglass surface, but also providing anti-static and anti-fog capabilities. This product also seals pores and provides a protective coating.

Installing Perimeter Plexiglass

1. If necessary, remove Boston cart bumper

2. Loosen screws holding Boston onto case. If a piece of front plexiglass has to be removed, gently slide it upwards taking care not to damage foam located on inside of glass.

or blades need servicing, always replace fan blades with the raised embossed side of the blade TOWARD THE MOTOR.

Copper Coils

The copper coils used in Hussmann merchandisers may

be repaired in the eld. Materials are available from local

refrigeration wholesalers. Hussmann recommends using #15 Sil-Fos for repairs.

Tips and Troubleshooting

Before calling for service, check the following:

1. Check electrical power supply to the equipment for connection.

2. Check xture loading. Overstocking case will affect

its proper operation.

Evaporator Fans

The evaporator fans are located at the center front of these merchandisers directly beneath the display pans. Should fans

CIDM

IGIC-CIDM-0508

Electrical Wiring Diagrams

CIDME CIDME w OMNISTAT W0300008 CIDMI-3 W0300007 CIDMI-3 w OMNISTAT W0300009 CIDM-I-R CIDM-I-SC CIDM-I-R Hot Gas CIDM-I-R Hot Gas CIDM-E-R W0300021 CIDM-I-3-R Insert Case

4’X3’

14’ 14’ 14’ 10’

3’

W0300006

W0300017 W0300018 W0300019 W0300020

W0300022

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

MOMO KIMURA

MEK

PAGE OF1

03/03/04

A Removed C-units std T-Stat 7/14/04 MEK

B Updated dwg; revised current loads 8/10/07 JR

7-11

W0300006

CID MINI

~208 / 240 VAC - 60 Hz

DEFROST TIMER

PARAGON ERC-2

120~240V - 50/60 Hz.

125-01-0722

ZONE SENSOR

EVAP. SENSOR

ERC-2 DISPLAY UNIT

EVAP FAN MOTORS

(2) GE-9W CW W

125-01-0615A

.6A @ 120VAC

LIGHT SWITCH

TOGGLE

125-01-0307

INSIDE PERIMETER LIGHTS

(2) 125-03-1075 F15/T8/SPX30

(1) 125-03-1071 F17/T8/SPX30

~208 / 240 VAC - 60 Hz

CONDENSER FAN

~208 VAC

PRESSURE

SAFETY

ZONEEVAP.

DEF. COMM. COMP.

ALARM

FAN

H4H2H3

ZONE SENSOR IS LOCATED BEHIND

THE TOP FRONT DISCHARGE AND IS

ATTACHED TO THE FRONT CAD

SUPPORT STANDARD.

EVAP. SENSOR IS LOCATED ON THE

SECOND RUN OF THE COIL COMING

AWAY FROM THE CAD. WARNING

DO NOT PLACE ON SUCTION LINE

OF THE COIL.

OUTSIDE PERIMETER LIGHTS

(3) 125-03-1071 F17/T8/SPX30

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

"7-11 OPTION"

DEFROST INDICATOR

ORANGE PILOT LIGHT

"OPTIONAL"

CIRCUIT #1

CIRCUIT #2

L1L2N

SAFETY

SWITCH

FLOAT SWITCH

FISHER™ EVAPOWAY™

DM15WW-3D

1500W 6.25A @ ~ 240 VAC

125-01-0765A

CONDENSING UNIT

CONDENSING UNIT- COPELAND

F9AM-A103-CFV-140

9.5A 1857 W@ 230VAC

225-03-0121

LIGHT CIRCUIT= .91A, 98W

RED # 14

BLK # 14

WHITE # 14

GREEN # 14

RED # 14

BLK # 14

GREEN # 14

SWITCH

125-01-0271

CIRCUIT #1 1973W

NOTE:

CASE MUST

BE GROUNDED

11.4

9.5

10.2

8.3

208 V 240 V

CIRCUIT #2 1500W @ 240VAC,

1127W @ 208VAC

NOTE: CASE MUST

BE GROUNDED

6.3

5.4

208 V 240 V

Wiring Diagrams

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

Raymond Twohy

PAGE OF1

02/02/05

A Updated dwg, revised loads, cond fan wiring change 6/27/07 JR

7-11

W0300008

CIDM-E w/ OMNI STAT

~208 / 240 VAC - 50/60 Hz

L3NG

INSIDE PERIMETER LIGHTS

(2) 125-03-1075

F15/T8/SPX30

(1) 125-03-1071 F17/T8/SPX30

OUTSIDE PERIMETER LIGHTS

(3) 125-03-1071 F17/T8/SPX30

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

EVAP FAN MOTORS

(2) GE-9W CW W

0.6A @ 120 V

125-01-0615A

DEFROST TIMER

OMNI-STAT 230V -

50/60 Hz.

125-01-2300

POWER SWITCH

CONDENSER FAN

~208 VAC

* PROD. TEMP. SENSOR LOCATED

ON EXTERNAL CAD WALL NEXT TO

THERMOSTAT PROBE

** AIR TEMP. SENSOR LOCATED ON

TOP CENTER CAD DIVIDER

MOTOR START SWITCH

SQUARE "D" 55447

125-01-0271

OMNI STAT PN952911-230VAC

POWER

SUPPLY

230 Vac

PROD.

TEMP.

AIR

TEMP.

1 23

4 5

678

CONDENSING UNITS - COPELAND®

F9AM-A103-CFV-140 / 1 H.P. / R-22

RLA= 9.5 1857W

MCC= 13.7

LRA= 43.3

225-03-0121

CONDENSING UNIT

LIGHT CIRCUIT= .91A, 98W

CRTL PRSR DUAL

225-01-0706B

BLK # 14

RED # 14

WHT # 14

RED # 14

BLK # 14

RED # 14

MCA= 7.8A

MOP= 15A

SAFETY

SWITCH

FLOAT SWITCH

FISHER™ EVAPOWAY™

DM15WW-3D

1500W @ ~ 240 VAC

6.25A

125-01-0765A

~208 / 240 VAC - 50/60 Hz.

BUNDLE

PURPLE

LABELED

EVAP PAN

CIRCUIT

L1 L2

BLACK # 14

RED # 14

BLK # 14

RED # 14

CIRCUIT #2 1500W @ 240VAC,

1127W @ 208VAC

NOTE: CASE MUST

BE GROUNDED

6.3

5.4

L1L2L3

208 V 240 V

TERMINAL BLOCK

125-01-0295

CIRCUIT #1

NOTE:

CASE MUST

BE GROUNDED

208 V 240 V

CIRCUIT #1 1973W

NOTE:

CASE MUST

BE GROUNDED

10.4

10.7

9.2

9.5

208 V 240 V

Case Parameters:

•

Defrost Settings

6 times/day 30mins

Off time

Max air temp measured at honeycomb 55F~60F

•

Temperature Range 45mins out of defrost

26F~31F rear wall

29F~33F honeycomb

•

Air Flow Measured with a Jr.

250~325 FPM rear wall

180~230 FPM Honeycomb

180~250 Shelves

150~200 Deck

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

MOMO KIMURA

MEK

PAGE OF1

05/24/04

A Updated dwg; revised current loads 8/13/07 JR

CIDM

W0300007

CIDM 3FT INSERT

~208 / 240 VAC - 60 Hz

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

DEFROST TIMER

PARAGON ERC-2

120~240V - 50/60 Hz.

125-01-0722

ZONE SENSOR

EVAP. SENSOR

ERC-2 DISPLAY UNIT

EVAP FAN MOTORS

(2) 4W .29A @ 120VAC

0392457

LIGHT SWITCH

TOGGLE

125-01-0307

F25/T8/SPX30

(2) 125-03-1072

F25/T8/SPX30

(2) 125-03-1072

~208 / 240 VAC - 60 Hz

ZONEEVAP.

DEF. COMM. COMP.

ALARM

FAN

H4H2H3

ZONE SENSOR IS LOCATED BEHIND

THE TOP FRONT DISCHARGE AND IS

ATTACHED TO THE FRONT CAD

SUPPORT STANDARD.

EVAP. SENSOR IS IN THE FRONT

CENTER AREA OF THE COIL.

WARNING DO NOT PLACE ON

SUCTION LINE OF THE COIL.

SAFETY

SWITCH

FLOAT SWITCH

FISHER™ EVAPOWAY™

DM15WW-3D

1500W 6.25A @ ~ 240 VAC

125-01-0765A

SWITCH

125-01-0271

CONDENSING UNIT

CONDENSING UNIT- COPELAND

F9AM-A103-CFV-140

9.5A 1857 W@ 230VAC

225-03-0121

LIGHT CIRCUIT= .93A, 100W

RED # 14

BLK # 14

WHITE # 14

GREEN # 14

RED # 14

BLK # 14

GREEN # 14

CIRCUIT #1 1965W

NOTE:

CASE MUST

BE GROUNDED

11.0

9.5

10.1

8.6

208 V 240 V

CIRCUIT #2 1500W @ 240VAC,

1127W @208VAC

NOTE: CASE MUST

BE GROUNDED

6.3

5.4

208 V 240 V

Wiring Diagrams (Cont'd)

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

Raymond Twohy

PAGE OF1

02/02/05

7-11

W0300009

CIDM-I w/ OMNI STAT

A Updated dwg, revised loads, cond fan wiring change 6/27/07 JR

~208 / 240 VAC - 50/60 Hz

L3NG

EVAP FAN MOTORS

(2) 4W SP CW

.29A @ 120 V

0392457

DEFROST TIMER

OMNI-STAT 230V -

50/60 Hz.

125-01-2300

POWER SWITCH

CONDENSER FAN

~208 VAC

* PROD. TEMP. SENSOR LOCATED

ON EXTERNAL CAD WALL NEXT TO

THERMOSTAT PROBE

** AIR TEMP. SENSOR LOCATED ON

TOP CENTER CAD DIVIDER

MOTOR START SWITCH

SQUARE "D" 55447

125-01-0271

OMNI STAT PN952911-230VAC

POWER

SUPPLY

230 Vac

PROD.

TEMP.

AIR

TEMP.

1 23

4 5

678

CONDENSING UNITS - COPELAND®

F9AM-A103-CFV-140 / 1 H.P. / R-22

RLA= 9.5 1857 W

MCC= 13.7

LRA= 43.3

225-03-0121

CONDENSING UNIT

LIGHT CIRCUIT= .93A, 100W

CRTL PRSR DUAL

225-01-0706B

BLK # 14

RED # 14

WHT # 14

RED # 14

BLK # 14

RED # 14

MCA= 7.8A

MOP= 15A

SAFETY

SWITCH

FLOAT SWITCH

FISHER™ EVAPOWAY™

DM15WW-3D

1500W @ ~ 240 VAC

6.25A

125-01-0765A

~208 / 240 VAC - 50/60 Hz.

BUNDLE

PURPLE

LABELED

EVAP PAN

CIRCUIT

L1 L2

BLACK # 14

RED # 14

BLK # 14

RED # 14

CIRCUIT #2 1500W @ 240VAC,

1127W @ 208VAC

NOTE: CASE MUST

BE GROUNDED

6.3

5.4

L1L2L3

208 V 240 V

TERMINAL BLOCK

125-01-0295

F25/T8/SPX30

(2) 125-03-1072

F25/T8/SPX30

(2) 125-03-1072

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

CIRCUIT #1

NOTE:

CASE MUST

BE GROUNDED

208 V 240 V

CIRCUIT #1 1965W

NOTE:

CASE MUST

BE GROUNDED

10.4

10.1

9.2

8.9

208 V 240 V

Case Parameters:

•

Defrost Settings

6 times/day 30mins

Off time

Max air temp measured at honeycomb 55F~60F

•

Temperature Range 45mins out of defrost

26F~31F rear wall

29F~33F honeycomb

•

Air Flow Measured with a Jr.

250~325 FPM rear wall

180~230 FPM Honeycomb

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

01/23/06

1 2

F:\WIRESCHEMATICS\NEW-W IRING

7-11 (2006)

W0300017

CIDM-I w/ OMNI STAT - 14FT-REMOTE

~208 / 240 VAC - 1Ø - 50/60 Hz

POWER SWITCH

SWITCH

SQUARE "D" 55447

125-01-0271

EVAP FAN MOTORS

(2) 4W SP CW

125-01-3142-A

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

LIGHT

SWITCH

125-01-8509

WHITE

BLACK

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

CAP OFF WIRE

WHITE

BLACK

BROWN

YELLOW

RED

BLUE/WHITE

BLUE

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

BLACK

WHITE

F15/T8/SPX30 (2) 125-03-0007

F25/T8/SPX30 (2) 125-03-1072

M M M

EVAP FAN MOTORS

(2) 9W CW

125-01-3076

TERMINAL

BLOCK

125-01-0295

BLUE/WHITE

115 V

2.6

208 V

17.5

240 V

19.3

NOTE: CASE MUST BE GROUNDED

CIRCUIT #1

Defrost control located on out top canopy.

•

Run 5 14gage wires and 2 sensors from base to outer canopy.

Black (Power L1)

Orange (Power L2)

White (Neutral)

Blue (Compressor)

Green (Ground)

Keep line voltage cables at least

1/8” away from probe wires.

•

Cover wires through CAD and lower compressor compartment.

Case Parameters:

•

Defrost Settings

6 times/day 30mins

Off time

Max air temp measured at honeycomb 55F~60F

• Temperature Range 45mins out of defrost

26F~31F rear wall

29F~33F honeycomb

•

Air Flow Measured with a Jr.

250~325 FPM rear wall

180~230 FPM Honeycomb

Electrical Specs.

Circuit 1 (208~230, 20A, 1ph, 50/60hz, 4Wire)

•

Condensing unit

Copeland (F9AM-A103-CFV-140)

Hussmann (225-03-0121)

R-22

6.3 lbs

208~230 Vac oMax. Fuse 20 Amps

•

Evaporator Fans

Hussmann (0392457)

115 Vac

Fused Protected 15 Amp

•

Ballast

Fulham (LH3-120-L)

Hussmann (125-01-3266)

115 Vac oFused Protected 15 Amp

•

Lights

Hussmann (125-03-1072)

Must be replaced with coated lights

•

Case Control

Sporlan OMNI STAT (952911)

Hussmann (375-03-6725-M)

208~230 Vac

Circuit 2 (208~230, 20A, 1ph, 50/60hz, 3Wire)

•

Condensate Pan

Hussmann (125-01-0765A)

208~230 Vac

Max. Fuse 20 Amps

602722

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

01/23/06

1 2

F:\WIRESCHEMATICS\NEW-W IRING

7-11

W0300010

CIDM-I w/ OMNI STAT

* PROD. TEMP. SENSO

ERNAL CAD

WHITE

BLACK

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

CAP OFF WIRE

WHITE

BLACK

BROWN

YELLOW

RED

BLUE/WHITE

BLUE

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

BLACK

WHITE

F15/T8/SPX30 (2) 125-03-0007

F25/T8/SPX30 (2) 125-03-1072

BLUE/WHITE

LIGHT BALLAST DETAIL

Wiring Diagrams (Cont'd)

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

01/23/06

1 2

F:\WIRESCHEMATICS\NEW-W IRING

7-11 (2006)

W0300018

CIDM-I w/ OMNI STAT - 14FT-REMOTE

~208 / 240 VAC - 1Ø - 50/60 Hz

DEFROST TIMER

OMNI-STAT 230V -

50/60 Hz.

375-03-6725-M

CONDENSING UNIT

VVJAF-020H-CFV-020

COPELAND

R-404A, 18.3 AMP @ 230 VAC

(1) 225-03-0051 2 HP

YELLOW

BLACK

START & RUN

CAPACITORS

RED

POWER SWITCH

POTENCIAL

RELAY

EXTERNAL

PROTECTOR

LUE

COMPRESSOR

MOTOR

CONDENSER FAN

~208 VAC

PRESSURE

SAFETY

* PROD. TEMP. SENSOR LOCATED

ON EXTERNAL CAD WALL NEXT TO

THERMOSTAT PROBE

** AIR TEMP. SENSOR LOCATED ON

TOP CENTER CAD DIVIDER

SWITCH

SQUARE "D" 55447

125-01-0271

OMNI STAT PN952911-230VAC

POWER

SUPPLY

230 Vac

PROD.

TEMP.

AIR

TEMP.

1 2 3 4

5 678

EVAP PAN

2000W

125-01-0500

EVAP FAN MOTORS

(2) 4W SP CW

125-01-3142-A

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

LIGHT

SWITCH

125-01-8509

CONDENSATE EVAP. PAN

SAFETY

SWITCH

FLOAT SWITCH

WHITE

BLACK

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

CAP OFF WIRE

WHITE

BLACK

BROWN

YELLOW

RED

BLUE/WHITE

BLUE

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

BLACK

WHITE

F15/T8/SPX30 (2) 125-03-0007

F25/T8/SPX30 (2) 125-03-1072

M M M

EVAP FAN MOTORS

(2) 9W CW

125-01-3076

TERMINAL

BLOCK

125-01-0295

BLUE/WHITE

115 V

2.6

208 V

17.5

240 V

19.3

NOTE:

CASE MUST BE GROUNDED

CIRCUIT #1

Defrost control located on out top canopy.

•

Run 5 14gage wires and 2 sensors from base to outer canopy.

Black (Power L1)

Orange (Power L2)

White (Neutral)

Blue (Compressor)

Green (Ground)

Keep line voltage cables at least

1/8” away from probe wires.

•

Cover wires through CAD and lower compressor compartment.

Case Parameters:

•

Defrost Settings

6 times/day 30mins

Off time

Max air temp measured at honeycomb 55F~60F

• Temperature Range 45mins out of defrost

26F~31F rear wall

29F~33F honeycomb

•

Air Flow Measured with a Jr.

250~325 FPM rear wall

180~230 FPM Honeycomb

Electrical Specs.

Circuit 1 (208~230, 20A, 1ph, 50/60hz, 4Wire)

•

Condensing unit

Copeland (F9AM-A103-CFV-140)

Hussmann (225-03-0121)

R-22

6.3 lbs

208~230 Vac oMax. Fuse 20 Amps

•

Evaporator Fans

Hussmann (0392457)

115 Vac

Fused Protected 15 Amp

•

Ballast

Fulham (LH3-120-L)

Hussmann (125-01-3266)

115 Vac oFused Protected 15 Amp

•

Lights

Hussmann (125-03-1072)

Must be replaced with coated lights

•

Case Control

Sporlan OMNI STAT (952911)

Hussmann (375-03-6725-M)

208~230 Vac

Circuit 2 (208~230, 20A, 1ph, 50/60hz, 3Wire)

•

Condensate Pan

Hussmann (125-01-0765A)

208~230 Vac

Max. Fuse 20 Amps

602722

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

01/23/06

1 2

F:\WIRESCHEMATICS\NEW-W IRING

7-11

W0300010

CIDM-I w/ OMNI STAT

* PROD. TEMP. SENSO

ERNAL CAD

WHITE

BLACK

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

CAP OFF WIRE

WHITE

BLACK

BROWN

YELLOW

RED

BLUE/WHITE

BLUE

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BALLAST 125-01-3273

MAGNETE

B432PUNVHP-A

BLUE

BLUE/WHITE

RED

YELLOW

BROWN

BLACK

WHITE

F15/T8/SPX30 (2) 125-03-0007

F25/T8/SPX30 (2) 125-03-1072

BLUE/WHITE

LIGHT BALLAST DETAIL

Wiring Diagrams (Cont'd)

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

03/06/07

123

ENG\WIRESCHEMATICS\NEW-W IRING

CIDM-I-REMOTE-14FT-115V-HOT GAS

W0300019

CIDM-I-REMOTE-14FT-115V-HOT GAS

~115 VAC - 1Ø - 50/60 Hz

FAN MOTORS

(2) 4W SP CW

0392457

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

BLACK

WHITE

FAN MOTORS

(4) 4W CW

00001212

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

M M

F25T8-36"

125-03-1072

F25T8-36"

125-03-1072

F25T8-36"

125-03-1072

F25T8-36"

125-03-1072

F25T8-36"

125-03-1072

F25T8-36"

125-03-1072

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

CIRCUIT#1

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

SWITCH

TOGGLE

15 AMP

125-01-0306

M M

SWITCH

TOGGLE

15 AMP

125-01-0306

######

PAGE 1 OF 1

L1L2L3

115 V

14.3

NOTE:

CASE MUST BE GROUNDED

CIRCUIT #1

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

D.QUAN

PAGE OF1

03/06/07

123

ENG\WIRESCHEMATICS\NEW-W IRING

CIDM-I-REMOTE-10FT-115V-HOTGAS

W0300020

CIDM-I-REMOTE-10FT-115V-HOT GAS

~115 VAC - 1Ø - 60 Hz

FAN MOTORS

(2) 4W

0392457

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

BLACK

WHITE

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

M M

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

15 AMP FUSE

125-01-3282

FUSE HOLDER

125-01-3283

BLACK

WHITE

FAN MOTORS

(4) 9W CW

00001212

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F15T8-18"

125-03-1075

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F17T8-24"

125-03-1071

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

F32T8-48"

125-03-1073

M M

CIRCUIT#1

M MM M

L2L3N

GL1N

SWITCH TOGGLE

15 AMP

125-01-0306

SWITCH TOGGLE

15 AMP

125-01-0306

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

115 V

L1 8.5L2L3

NOTE: CASE MUST BE GROUNDED

CIRCUIT #1

######

PAGE 1 OF 1

Wiring Diagrams (Cont'd)

Rev. 0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

JESSE RIOS

PAGE OF

10/18/07

CIDM

W0300021

CIDM-E-R

EVAP FAN MOTORS

(2) 125-01-0615A

.6A 49W@ 120VAC

LIGHT SWITCH

TOGGLE

125-01-0307

INSIDE PERIMETER LIGHTS

(2) 125-03-1075 F15/T8/SPX30

OUTSIDE PERIMETER LIGHTS

(4) 125-03-1071

F17/T8/SPX30

BALLAST 125-01-3266

FULHAM LH3-120-L

LIGHT CIRCUIT= .91A 98W

BALLAST 125-01-3267

FULHAM LH4-120-L

~120 VAC - 60 Hz.

MCA= 1.14A

MOP= 15A

~120 VAC - 60 Hz.

MCA= 1.4A

MOP= 15A

BLK # 14

WHT # 14

TAG ORANGE

BLK # 14

WHT # 14

TAG BROWN

CIRCUIT #1 196W

2.1

120 V

Wiring Diagrams (Cont'd)

IGIC-CIDM-0508

DATE:

PROJECT TITLE:

DRAWING #:

DRAWN BY:

PRODUCTION ORDER #:

DRAWING TITLE:

DATE:

Hussmann Corporation, Int'l.

13770 Ramona Avenue

Chino, CA. 91710

(909)-590-4910 Lic.#: 644406

REVISIONS:

#: DESCRIPTION:

CHECKED BY:

BY:

FILE LOCATION:

JESSE RIOS

PAGE OF

10/18/07

CIDM

W0300022

CIDM-I-3-R

LIGHT SWITCH

TOGGLE

125-01-0307

LIGHTS

(4) 125-03-1072

F25/T8/SPX30 36"

LIGHT CIRCUIT= .93A 100W

BALLAST 125-01-3267

FULHAM LH4-120-L

~120 VAC - 60 Hz.

MCA= 1.17A

MOP= 15A

~120 VAC - 60 Hz.

MCA= .65A

MOP= 15A

BLK # 14

WHT # 14

TAG ORANGE

BLK # 14

WHT # 14

TAG BROWN

BALLAST 125-01-3266

FULHAM LH3-120-L

INCOMING POWER

~120 VAC -60 Hz

GFCI DUPLEX

125-01-3178-BLK

NOTE FOR GFCI PROTECTION: IF MORE THAN ONE

SINGLE RECEPTACLE IS USED IN CONJUNCTION WITH

A GFCI DUPLEX RECEPTACLE "DOWNSTREAM" ON

THE LOAD SIDE, THE SUM OF ALL RECEPTACLES

SHOULD NOT BE MORE THAN 15A

LOAD SIDE POWER

~120 VAC -60 Hz

125-01-0443

BLK # 14

WHT # 14

GRN # 14

ALL SINGLE

RECEPTACLES TO BE

TIED TO DUPLEX

GFCI RECEPTACLE

BUNDLE

YELLOW

RECEPTACLE

CIRCUIT

CIRCUIT # 2

EVAP

FAN MOTOR

(2) 0392457

4W .29A @ 120VAC

CIRCUIT #1 108W

1.5

120 V

CIRCUIT #2 RECEPTACLE

15.0

120 V

Wiring Diagrams (Cont'd)

Rev. 0508

Sporland Omnistat Time Clock Program Settings

LIST OF PARAMETERS

Display Parameter Type Min Max Unit Default

PS PASSWORD F 0 199 - 22 22

/ PROBE PARAMETERS

/C ambient probe calibration (x 0.1°C/°F) F -127 127 °C/°F 0.0 0.0

/2 Measurement stability C 1 15 - 4 4 /4 probe display: /5 °C/°F (0=°C, 1=°F) C 0 1 ag 0 1

r REGULATOR PARAMETERS

rd Regulating differential (hysteresis 0=0.5 °C/ °F) F 0 19 °C/°F 2 8 r1 Minimum allowable set C -50 r2 °C/°F -50 26°F r2 Maximum allowable set Cr1 127 °C/°F 60 C r1 127 °C/°F 60 32°F r3 Enabling Ed alarm: max duration of defrost is reached (0 = no, 1 = yes) C 0 1 ag 0 0 r4 Automatic variation of the Set-Point with closed curtain-switch (A4=4) C -20 20 °C/°F 3 NU*

c COMPRESSOR PARAMETERS

c0 Delay in the compressor start-up after switch-on C 0 15 min 0 1 c1 Minimum time between two following compressor start-ups C 0 15 min 0 1 c2 Compressor shutdown minimum time C 0 15 min 0 1 c3 Compressor operation minimum time C 0 15 min 0 2 c4 Safety compressor (0 = OFF, 100 = ON) C 0 100 min 0 10

cc Continuous cycle duration C 0 15 hours 4 2 c6 Alarm delay after continuous cycle C 0 15 hours 2 6

d DEFROST PARAMETERS

d0 defrost type (0 = heater, 1 = hot gas, 2 = time resistance, 3 = time hot gas) C 0 3 ag 0 2 d1 Time interval between two defrost cycles F 0 199 hours 8 4

dt End defrost temperature F -50 127 °C/°F 4 60

dP Max defrost duration or effective duration if d0=2 or 3 F 1 199 min 30 25

d4 Defrost after start-up (0 = no, 1 = yes) C 0 1 ag 0 0 d5 Delay defrost after control Switch-On or from digital input (A4 or A5=4) C 0 199 min 0 0 d6 Block temperature display during defrost (0 = no, 1 = yes) C 0 1 ag 1 1 dd Dripping time after defrost F 0 15 min 2 0 d8 Alarm delay after defrost F 0 15 hours 1 2 d9 defrost priority over compressor protection (0 = no, 1 = yes) C 0 1 ag 0 0

d/ Temperature defrost probe display F - - °C/°F - -

dC Time base (0=hours/min, 1=min/s) Only for dl and dP C 0 1 ag 0 0

A ALARM PARAMETERS

A0 Alarms and fans differential (0=0.5 °C/°F) C 0 19 °C/°F 0 0 AL Low temperature alarm (max. variation as to the Set-Point). AL=0 excluded Low temperature alarm F 0 127 °C/°F 0 0 AH High temperature alarm (max. variation as to the Set-Point). AH=0 excluded High temperature alarm F 0 127 °C/°F 0 0 Ad Temperature alarm delay C 0 199 min 0 0 A7 Measurement delay time for the input “delayed alarm” (A4 or A5=2) C 0 199 min 0 NU*

F FAN PARAMETERS

F0 Management of fans: 0=fans ON, specic phases excluded (F2, F3 and Fd) 1 = fans ON (dependent

on parameter F1) specic phases excluded

F1 Fan power on temperature F -50 127 °C/°F 5 N/A F2 Fans OFF when the compressor is OFF (0 = no, 1 = yes) C 0 1 ag 1 N/A F3 Fans OFF during defrost (0 = no, 1 = yes) C 0 1 ag 1 N/A Fd Stop after dripping ON for each F0 value F 0 15 min 1 N/A

H OTHER SELECTIONS

H0 Serial address C 0 199 - 1 1 H1

Selection of the alarm relay operation 0=alarm ON, energized relay, 1= alarm ON, disenergized relay

H2 0=disabled buttons, 1=enabled buttons C 0 1 ag 1 0 H5 Identication code for programming key (programmed by supervisor) F -99 199 - - -

T External parameter programming C -99 99 - 0 0

*show the set value

NU*: not used parameter, leave the default value

0 = regulation probe, 1 = product food probe (second probe)

Please contact Sporlan Valve Company for further information. www.sporIan.com

C 0 1 ag 0 1

C 0 1 ag 0 N/A

C 0 1 ag 1 1

Value

CIDM

IGIC-CIDM-0508

Sporland Omnistat Time Clock Program Settings (Cont'd)

SAFETY STANDARD: in compliance with the European laws.

Installation precautions

• the connection cables should be suitable for up to 195°F operation;

Caution: Low voltage and probe wiring must be properly separated from high voltage wiring

DISPLAY

During normal working conditions, the display shows the value measured by the air regulation probe or by the second

probe (parameter /4). In case of active alarm, the temperature ashes alternatively to the code alarm.

ALARMS AND SIGNALS

Alarm code Description

E0 fault air regulation probe

E1 evaporator product/food probe fault digital input alarm

IA immediate external alarm (A4 and A7 parameters)

LO low temperature alarm (AL, Ad and A0 parameters)

HI high temperature alarm (AH, Ad and A0 parameters)

EE data acquisition failure (see the manual for the default procedure)

Ed timeout-ended defrost (dt, dP and r3 parameters)

dF defrost in progress

OPERATING INSTRUCTIONS ON THE DISPLAY

• LED Button indicates compressor ON;

• LED Button indicates defrosting ON;

• LED Button indicates presence of alarms. The blinking indicates that controller is waiting for a time delay to expire.

SET POINT (desired temperature value)

• Press the SET button for one second to display the Set-Point value;

• After few seconds, the set value blinks;

• Press UP or DOWN to increase or decrease the set-point value; press the button once/more to

conrm the new value.

MANUAL DEFROST

Besides the automatic defrost; it is possible to activate a manual defrost by pressing the button for more than 5 seconds (it occurs only in the appropriate temperature conditions).

ACCESS AND MODIFICATION OF THE FREQUENT PARAMETERS (F TYPE)

1) Press the button for more than 5 seconds (in case of alarm, rst silence the buzzer);

2) the display displays PS;

3) Press or to show the parameter whose value has to be changed; press to display the associated value;

Press or to change the value;

5) Press to temporarily conrm the new value and go back to display the parameter code; In order to modify the other parameters, start back from point 3.

Storage of the new values: press at least for 5 seconds to store the new value and exit the "PARAMETERS MODIFICATION" procedure. For timing parameters only: switch off and switch on the controller in order to make them immediately effective without waiting for the following cycle. To exit without modifying any parameter: do not press any button for at least 60 seconds (TIME OUT).

Rev. 0508

Appendices

Appendix A. - Temperature Guidelines - Refrigerated

The refrigerators should be operated according to the

manufacturer’s published engineering specications for entering air temperatures for specic equipment applications.

Table 1 shows the typical temperature of the air entering the food zone one hour before the start of defrost and one hour after defrost for various categories of refrigerators. Refer to Appendix C for Field Evaluation Guidelines.

Table

Type of Refrigerator

I. OPEN DISPLAY A. Non frozen:

1) Meat 28°F

2) Dairy/Deli 32°F

3) Produce a. Processed 36°F b. Unprocessed 45°F B. Frozen 0°F C. Ice Cream -5°F II. CLOSED DISPLAY A. Non frozen:

1) Meat 34°F

2) Dairy/Deli 34°F

3) Produce a. Processed 36°F b. Unprocessed 45°F B. Frozen 0°F C. Ice Cream -5°F

Single Deck Multi Deck Service Case Reach-In

I. Open Display Styles II. Closed Display Styles

Hot

1.0 Hot cases are tested to maintain all hot food at 140°

- 150°F. These cases are not designed to heat up or cook food. It is the user’s responsibility to stock the hot food cases immediately after the cooking of the food with a pulp temperature of at least 150° to 160°F.

Appendix B. - Application Recommendations Refrigerated

Typical Entering Air Temperature

1.0 Temperature performance is critical for controlling bacteria growth. Therefore, the following recommendations are included in the standard.

They are based on conrmed eld experience

over many years.

1.1 The installer is responsible for following the installation instructions and recommendations provided by Hussmann for the installation

of each individual type refrigerator.

1.2 Refrigeration piping should be sized according to the equipment manufacturer’s recommendations and installed in accordance with normal refrigeration practices. Refrigeration piping should be insulated according to Hussmann’s recommendations.

1.3 A clogged waste outlet blocks refrigeration. The installer is responsible for the proper installation of the system which dispenses condensate waste through an air gap into the building indirect waste system.

1.4 The installer should perform a complete start-up evaluation prior to the loading of food into the refrigerator, which includes such items as:

a) Initial temperature performance, Coils should

be properly fed with a refrigerant according to manufacturer’s recommendations.

b) Observation of outside inuences such

as drafts, radiant heating from the ceiling

and from lamps. Such inuence should be

properly corrected or compensated for.

c) At the same time, checks should be made of

the store dry-bulb and wet-bulb temperatures to ascertain that they are within the limits prescribed by Hussmann.

d) Complete start-up procedures should include

checking through a defrost to make certain of its adequate frequency and length without substantially exceeding the actual needs. This should include checking the electrical or refrigerant circuits to make sure that defrosts are correctly programmed for all the refrigerators connected to each refrigeration system.

e) Recording instruments should be used to

check performance.

Hot Food

1.0 The installer should perform a complete start-up evaluation prior to the loading of food into the hot food case, which includes such items as:

a) Initial temperature performance, Griddles and

Hot Wells.

b) Observation of outside inuences such

as drafts, radiant heating from the ceiling

and from lamps. Such inuence should be

properly corrected or compensated for.

c) Complete start-up procedures should include:

1. Heat / display lamps are lighting

2. Indicator lamps on control panel(s) are working

3. Auto-ll is functioning properly (Service cases)

4. Hot Griddles are functioning.

Appendices (Cont'd)

IGIC-CIDM-0508

Appendix C. - Field Recommendations - Refrigerated

Recommendations for eld evaluating the

performance of retail food refrigerators and hot cases

1.0 The most consistent indicator of display refrigerator performance is temperature of the air entering the product zone (Refrigerated see

Diagram 1, Appendix A). In practical use, the

precise determination of return air temperature

is extremely difcult. Readings of return air

temperatures will be variable and results will be inconsistent. The product temperature alone is not an indicator of refrigerator performance.

NOTE: Public Health will use the temperature of the product in

determining if the refrigerator will be allowed to display potentially hazardous food. For the purpose of this evaluation, product temperature above the FDA Food Code 1993 temperature for potentially hazardous food

will be the rst indication that an evaluation should

be performed. It is expected that all refrigerators will keep food at the FDA Food Code 1993 temperature for potentially hazardous food.

1.1 The following recommendations are made for the purpose of arriving at easily taken and understood data which, coupled with other observations, may be used to determined whether a display refrigerator is working as intended:

a) INSTRUMENT - A stainless steel stem-type

thermometer is recommended and it should have a dial a minimum of 1 inch internal diameter. A test thermometer scaled only in Celsius or dually scaled in Celsius and Fahrenheit shall be accurate to 1°C (1.8°F). Temperature measuring devices that are scaled only in Fahrenheit shall be accurate to 2°F. The thermometer should be checked for proper calibration. (It should read 32°F when the stem is immersed in an ice water bath).

b) LOCATION - The probe or sensing element

of the thermometer should be located in

the airstream where the air rst enters the

display or storage area, and not more than 1 inch away from the surface and in the center of the discharge opening.

c) READING - It should rst be determined

that the refrigerator is refrigerating and has operated at least one hour since the end of the last defrost period. The thermometer reading should be made only after it has been allowed to stabilize, i.e., maintain a constant reading.

d) OTHER OBSERVATIONS - Other

observations should be made which may indicate operating problems, such as unsatisfactory product, feel/appearance.

e) CONCLUSIONS - In the absence of any

apparent undesirable conditions, the refrigerator should be judged to be operating properly. If it is determined that such condition is undesirable, i.e., the product is above proper temperature, checks should be made for the following:

1. Has the refrigerator been loaded with warm product?

2. Is the product loaded beyond the “Safe Load Line” markers?

3. Are the return air ducts blocked?

4. Are the entering air ducts blocked?

Is a dumped display causing turbulent air ow and

mixing with room air?

6. Are spotlights or other high intensity lighting directed onto the product?

7. Are there unusual draft conditions (from heating/ air-conditioning ducts, open doors, etc.)?

8. Is there exposure to direct sunlight?

9. Are display signs blocking or diverting airow?

10. Are the coils of the refrigerator iced up?

11. Is the store ambient over 75°F, 55% RH as set forth in ASHRAE Standard 72 and ASHRAE Standard 117?

12. Are the shelf positions, number, and size other than recommended by Hussmann?

13. Is there an improper application or control system?

14. Is the evaporator fan motor/blade inoperative?

15. Is the defrost time excessive?

16. Is the defrost termination, thermostat (if used) set too high?

17. Are the refrigerant controls incorrectly adjusted?

18. Is the air entering the condenser above design

conditions? Are the condenser ns clear of dirt,

dust, etc.?

19. Is there a shortage of refrigerant?

20. Has the equipment been modied to use

replacements for CFC- 12, CFC-502 or other

refrigerant? If so, have the modications been

made in accordance with the recommendations of the equipment manufacturer? Is the refrigerator charged with the proper refrigerant and lubricant? Does the system use the recommended compressor?

Rev. 0508

Appendices (Cont'd)

Appendix D. - Recommendations to User Refrigerated

1.0 Hussmann Corporation provides instructions and recommendations for proper periodic cleaning. The user will be responsible for such cleaning, including the cleaning of low temperature equipment within the compartment and the cooling coil area(s). Cleaning practices, particularly with respect to proper refrigerator unloading and warm-up, must be in accordance with applicable recommendations.

1.1 Cleaning of non frozen food equipment should include a weekly cleaning of the food compartment as a minimum to prevent bacteria growth from accumulating. Actual use and products may dictate more frequent cleaning. Circumstances of use and equipment design must also dictate the frequency of cleaning the display areas. Weekly washing down of the storage compartment is also recommended, especially for equipment subject to drippage of milk or other liquids, or the collection of vegetable, meat, crumbs, etc. or other debris or litter. Daily cleaning of the external areas surrounding the storage or display compartments with detergent and water will keep the equipment presentable and prevent grime buildup.

1.2 Load levels as dened by the manufacturer must

be observed.

1.3 The best preservation is achieved by following these rules:

a) Buy quality products. b) Receive perishables from transit equipment

at the ideal temperature for the particular product.

c) Expedite perishables to the store’s storage

equipment to avoid unnecessary warm-up and prolonged temperature recovery. Food store refrigerators are not food chillers nor can they reclaim quality lost through previous mishandling.

d) Care must be taken when cross

merchandising products to ensure that potentially hazardous vegetable products are not placed in non refrigerated areas.

e) Display and storage equipment doors should

be kept closed during periods of inactivity.

f) Minimize the transfer time of perishables

from storage to display.

g) Keep meat under refrigeration in meat cutting

and processing area except for the few moments it is being handled in processing. When a cut or tray of meat is not to be worked on immediately, the procedure should call for returning it to refrigeration.

h) Keep tools clean and sanitized. Since

mechanical equipment is used for fresh meat processing, all such equipment should be cleaned at least daily and each time a different kind of meat product comes in contact with the tool or equipment.

i) Make sure that all refrigeration equipment is

installed and adjusted in strict accordance with the manufacturer’s recommendations.

j) See that all storage and refrigeration

equipment is kept in proper working order by routine maintenance.

For further technical information, please log on to http://www.hussmann.com/products/CIDM.htm

IGIC-CIDM-0508

Service Record

Last service date: By:

_______________ __________________________________________________________________________________________________

/Chino

Additional copies of this publication may be obtained by contacting:

Hussmann® Chino 13770 Ramona Avenue • Chino, California 91710 (909) 628-8942 FAX (909) 590-4910 (800) 395-9229

The MODEL NAME and SERIAL NUMBER is required in order to provide you with the correct parts and information for your particular unit.

They can be found on a small metal plate on the unit. Please note them below for future reference.

MODEL:

SERIAL NUMBER:

Hussmann CIDM-I, CIDM-E Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
