Hussmann CIDM Specifications
9
Specialty Products
CIDM
CIDM
Technical Data Sheet
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 26
Evaporator (F) 18
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel 1500
Conventional 1725
Btu/hr/ft*
Parallel 2450
Conventional 2818
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
These merchandisers are manufactu red t o meet ANSI/N ational Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
40427
ETL Listed
ETL Sanitation
Frequency Hrs 4
OFFTIME
Temp Term °F 54
Failsafe Minutes 25
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
4ft 1.2
5ft 1.5
6ft 1.8
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.
GLYCOL REQUIREMENTS
GPM PSI
NA NA
NA NA
NA NA
Center
Crown
DEFROST DATA
PHYSICAL DATA
40427
Rev F
1 of 9
9
Engineering
CROSS SECTION
Specialty Products
CIDM
2 of 9
CIDM
Technical Data Sheet
Rev F
UNITS WITH SLANTED
SHELVES
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 24
Evaporator (F) 18
MUST HAVE 25° FAN BLADE
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel 1500
Conventional 1725
Btu/hr/ft*
Parallel 2450
Conventional 2818
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
Frequency Hrs 2
OFFTIME
Temp Term °F 54
Failsafe Minutes 15
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
4ft 1.2
5ft 1.5
6ft 1.8
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.
GLYCOL REQUIREMENTS
GPM PSI
NA NA
Center
Crown
DEFROST DATA
PHYSICAL DATA
9
Engineering
Plan View
Specialty Products
CIDM
CIDM
Technical Data Sheet
Rev F
CIDM-E S/C w OMNISTAT W0300008
CIDM-I S/C w OMNISTAT W0300009
CIDM-E S/C w MR4 1H24199

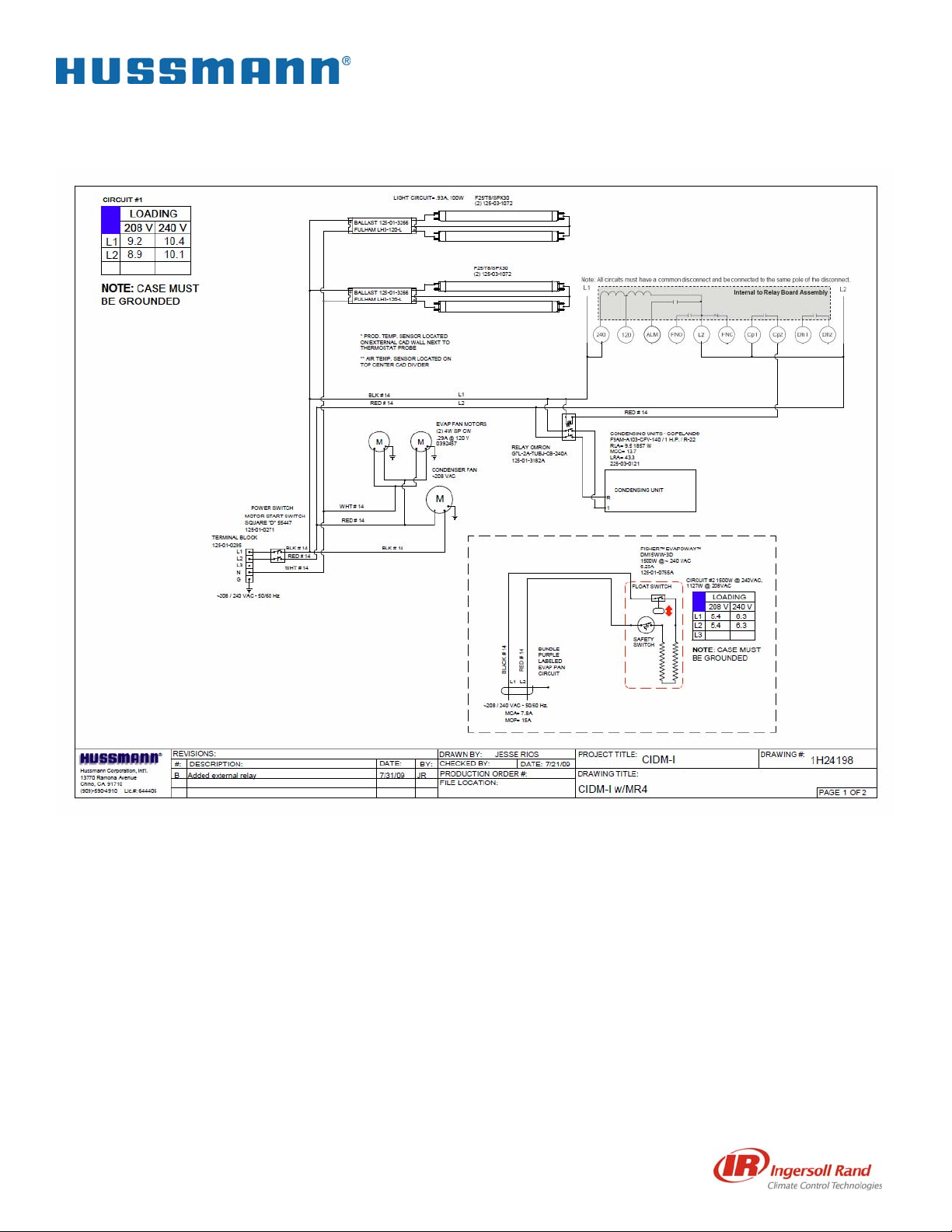

CIDM-I S/C w MR4 1H24198
3 of 9
