P/N0473381F
C5X-E
Technical Data Sheet
P/N 0473381_F
NSF
®
Certified
March 2010
©2010 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Item Part # Description Wiring Item #
FAN ASSEMBLIES
8 Ft & 12 Ft
A. 25W Standard Fan Assembly (1)
0501486 Fan Motor, Evaporator
(MO.4410702)
0501484 Fan Blade (FB.4780657)
25W Energy Efficient Fan Assembly (1)
0501485 Fan Motor, Evaporator
(MO.4410701)
0501484 Fan Blade (FB.4780657)
6 Ft Only
A. 7W Standard Fan Assembly (1)
0058698 Fan Motor, Evaporator
(MO.4410102)
0142780 Fan Blade (FB.0142780)
7W Energy Efficient Fan Assembly (1)
0477654 Fan Motor, Evaporator
(MO.4410545)
0142780 Fan Blade (FB.0142780)
Item Part # Description Wiring Item #
T
HERMOSTATS
B. 0411744 Standard Non-adjustable (2)
Defrost Thermostat
(CT.0411744)
C. Optional Adjustable Refrigeration Thermostat (3)
L
AMPS AND BALLASTS
D. Ballast, Electronic (4)
0480130 2 lamps (BA.4481676)
0480131 3 lamps (BA.4481654)
0480132 4 lamps (BA.4481677)
E. Fluorescent Lamp (5)
Replace with like fixtures
LED F
IXTURES AND POWER SUPPLY
F. 0501213 Power Supply (EP.4481861) (6)

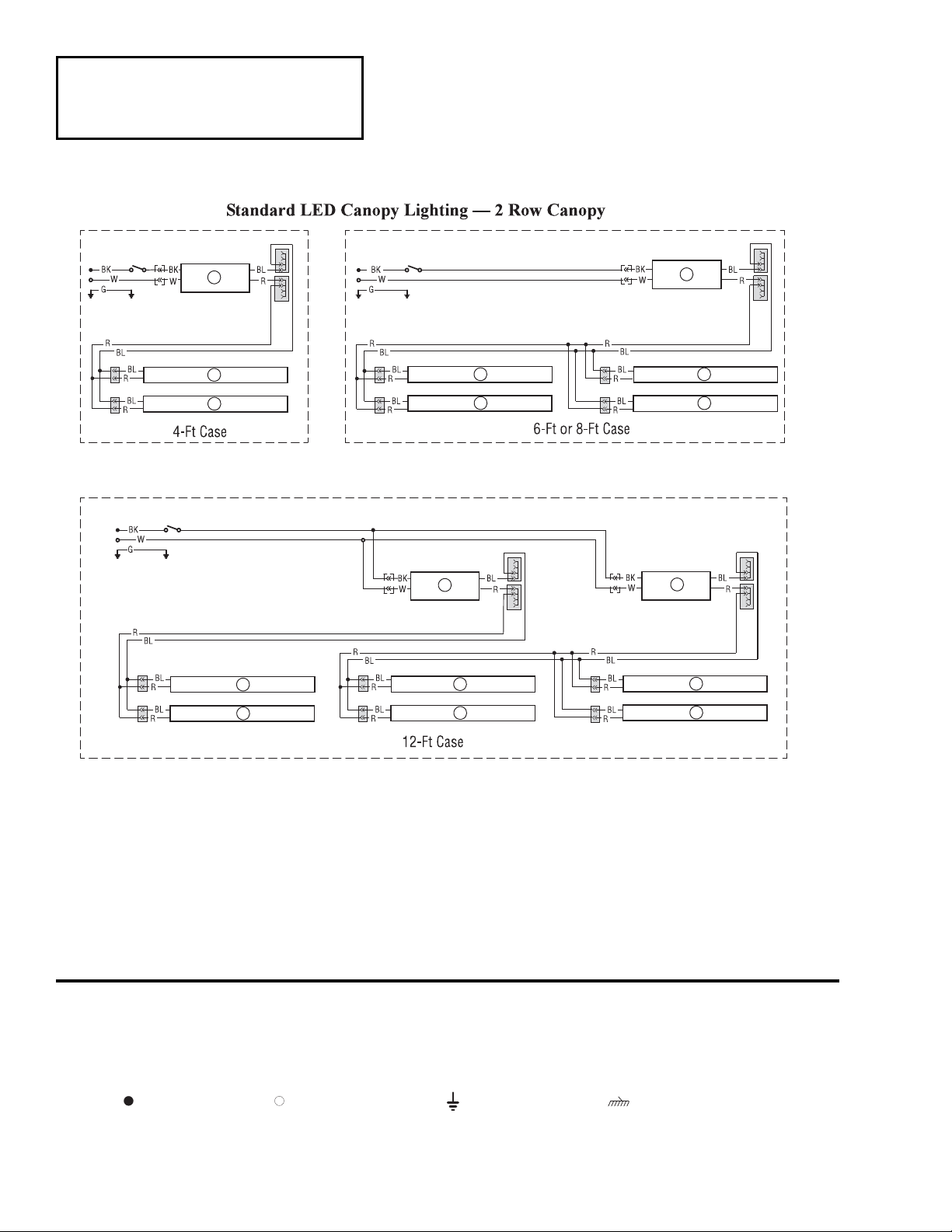

G. LED Canopy Fixture (7)
Replace with like fixtures — See Page 5.
H. LED Shelf Fixture (8)
Replace with like fixtures — See Page 5.
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Note: Revision F adds Btu note (page 3), EcoShine LED (page 4) and parts (page 5), and revises canopy wiring diagram
(page 6). Other changes marked by bar, underline or circle.
2 of 9
C5X-E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
Engineering
Plan Views
Dimensions shown as in. and (mm).
Convertible
09-2005
6 ft 8 ft 12 ft
General
(A) Case Length (without ends or partitions) 72 3/8 (1838) 96 3/8 (2448) 144 1/2 (3670)
(Each end and insulated partition adds 1 1/
2 in. (38 mm) to case line up.) Optional view end with bumper adds 3
3
/
4 in. [95 mm]).
Maximum O/S dimension of case back to front
(includes bumper) 42 (1064) 42 (1064) 42 (1064)
Back of case to front of splashguard 33 1/
2 (851) 33
1
/
2 (851) 33
1
/
2 (851)
Back of case to O/S edge of front leg 30
1
/4 (768) 30 1/4 (768) 30 1/4 (768)
Distance between edges of external legs and center legs 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)
Distance between edges of center legs NA NA 43 7/8 (1114)
Distance between front legs and splashguard 2 3/4 (70) 2 3/4 (70) 2 3/4 (70)
Electrical Service (Electrical Field Wiring connection point)
(B) RH End of case to center of stub up area 60 1/
4 (1530) 84
1
/
4 (2140) 132
3
/
8 (3363)
Back of case to center of stub up area 24 (612) 24 (612) 24 (612)
Length of electrical wireway 26
1
/2 (673) 26 1/2 (673) 26 1/2 (673)
(C) RH End of case to LH end of wireway 66 1/
8 (1680) 90
1
/
8 (2289) 138
1
/
4 (3511)
Waste Outlets (One each end)
(D) RH End of case to the center of LH waste outlet 60
1
/
4 (1530) 84
1
/
4 (2140) 132
3
/
8 (3363)
RH End of case to the center of RH waste outlet 12
1
/8 (307) 12 1/8 (307) 12 1/8 (307)
Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)
Schedule 40 PVC drip pipe 1 1/
4 (32) 1
1
/
4 (32) 1
1
/
4 (32)
Refrigeration Outlet
Back of case to center of refrigeration outlet 26
1
/
4 (665) 26
1
/
4 (665) 26
1
/
4 (665)
RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203)
NOTE: Case-to-Case Electrical Connections
are made IN FRONT OF SPLASHGUARD.
4 3/4 (120)
Splashguard
31 5/8
(804)
42
(1064)
A
41 1/2
(1054)
3 In.
(77 mm)
Required
Air Gap
Refrigeration
Outlet
Electrical
Stub Up Area
6 x 6
(152x152)
Waste Outlet
Waste Outlet
FRONT
26 1/4
(665)
B
D
8 (203)
4 1/2 (115)
12 1/8 (307)
41 1/2
(1054)
43 7/8
(1114)
C
Wireway
4 3/4 (120)
26 1/2
(673)
4 1/4 (108)
24
(612)
33 1/2
(851)
Electrical
Field
Connection
30 1/4
(768)
C5X
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.)
3
/8
Merchandiser Suction Line (in.)
7
/8
Wireway
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75°F and 55% R.H.
C5X-E Meat Produce Dairy
Discharge Air (°F) 29 31 31
Evaporator (°F) 21 24 24
Unit Sizing (°F) 19 22 22
Btu/hr/ft
‡
— Unlit Shelves
‡‡
C5X-E Parallel Conventional
M
EAT 1690 1795
P
RODUCE 1630 1730
D
AIRY 1570 1670
‡
Optional energy efficient motors reduce the
refrigeration load by 57 Btu/hr/ft (8 ft and 12 ft
models) and 18 Btu/hr/ft (6 ft models).
‡‡
Add 10 Btu/hr/ft per shelf row for LED fixtures.
Add 20 Btu/hr/ft per shelf row for fluorescent lamps.
DEFROST DATA
C5X-E
Frequency Hrs 6
Defrost Water (lb/ft/day) 10.50
(± 15% based on case configuration and product
loading).
O
FFTIME
C5X-E
Temp Term °F 48
Failsafe Minutes 35
ELECTRIC OR GAS Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO* C5X-E
Meat Produce Dairy
14°F / 4°F 17°F / 7°F 17°F / 7°F
Indoor Unit Only, Pressure Defrost
Termination* 48°F
*Use a Temperature Pressure Chart to determine
PSIG conversions.
Estimated Charge ** C5X-E
6 ft 2.2 lb 35 oz 1.0 kg
8 ft 3.1 lb 50 oz 1.4 kg
12 ft 4.5 lb 72 oz 2.0 kg
**This is an average for all refrigerant types. Actual
refrigerant charge may vary by approximately half a
pound.
3 of 9
P/N 0473381_F
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
31 5/8 (804)
4 3/4 (120)
30 1/4 (768)
42 (1064)
33 1/2 (851)
30 1/4
(768)
61
(1549)
42
(1064)
FAN
C
O
I
L
C5X-E
3 In. (77 mm)
Required
Air Gap
81 3/4
(2077)
7 1/4 (183)
26 1/4 (665)
Refrigeration
Outlet
6
(152)
Electrical
Case to Case
Connections
17 1/8
(436)
21 1/4
(540)
23 5/8
(600)
3 5/8
(92)
50 7/8
(1292)
Impact
Excel
C5X-E
Meat, Produce, Dairy &
Delicatessen
Dimensions shown as in. and (mm).
Multi-deck, 5 Display Levels
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for
construction, materials & cleanability.
Electrical Data
6 ft 8 ft 12 ft
Number of Fans—25W — 2 3
Number of Fans—7W 4 — —
Amperes Watts
6 ft 8 ft 12 ft 6 ft 8 ft 12 ft
Evaporator Fan
120V 60Hz Standard 2.00 2.46 3.69 156 180 270
120V 50Hz Standard 2.20 2.66 3.99 168 206 309
230V 60Hz Export 1.00 1.32 1.98 156 200 300
230V 50Hz Export 1.12 1.52 2.28 168 228 342
120V 60Hz Energy Efficient 0.76 1.20 1.80 56 72 108
230V 60Hz Energy Efficient 0.40 0.60 0.90 56 72 108
Minimum Circuit Ampacity
120V 60Hz Standard 2.20 2.66 3.89
120V 50Hz Standard 2.40 2.86 4.19
230V 60Hz Export 1.20 1.52 2.18
230V 50Hz Export 1.32 1.72 2.48
120V 60Hz Energy Efficient 0.96 1.40 2.00
230V 60Hz Energy Efficient 0.60 0.80 1.10
Maximum Over Current Protection 120V 20 20 20
Maximum Over Current Protection 230V 15 15 15
Standard Lighting (T-8 Fluorescent)
1 Row Canopy 0.51 0.51 0.77 59 59 85
Optional Lighting (T-8 Fluorescent)
Additional 1 Row Canopy 0.51 0.51 0.77 59 59 85
Additional 2 Row Canopy 1.02 1.02 1.54 118 118 170
Additional 3 Row Canopy 1.53 1.53 2.31 177 177 255
1 Row Rail Light 0.51 0.51 0.77 59 59 85
1 Row of Shelves 0.51 0.51 0.77 59 59 85
4 Rows of Shelves 2.04 2.04 3.08 236 236 340
5 Rows of Shelves 2.55 2.55 3.85 295 295 425
6 Rows of Shelves 3.06 3.06 4.62 354 354 510
EcoShine Multi-deck — Normal CRI—120VAC, 50/60Hz
2 Row Canopy (Front & Rear) 0.41 0.55 0.82 49 66 98
1 Row of Shelves 0.15 0.20 0.29 18 24 35
4 Rows of Shelves 0.58 0.78 1.17 70 93 140
5 Rows of Shelves 0.73 0.97 1.45 87 116 174
6 Rows of Shelves 0.88 1.17 1.74 105 140 209
EcoShine Multi-deck — High CRI —120VAC, 50/60Hz
2 Row Canopy (Front & Rear) 0.47 0.63 0.93 56 75 112
1 Row of Shelves 0.18 0.23 0.35 21 28 42
4 Rows of Shelves 0.70 0.93 1.40 84 112 168
5 Rows of Shelves 0.88 1.17 1.75 105 140 210
6 Rows of Shelves 1.05 1.40 2.10 126 168 252
AlwaysBright Multi-deck —120VAC, 50/60Hz
2 Row Canopy (Front & Rear) 0.55 0.71 1.08 66 85 130
1 Row of Shelves 0.19 0.23 0.38 23 28 45
4 Rows of Shelves 0.68 0.93 1.40 82 112 168
5 Rows of Shelves 0.83 1.13 1.69 99 136 203
6 Rows of Shelves 0.96 1.33 2.00 115 160 240
120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting
230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52
4 of 9
C5X-E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
Impact
Excel
C5X-E
ESTIMATED SHIPPING WEIGHT
4
Case Solid End
6 ft 8 ft 12 ft (each)
lb (kg) 1000 (454) 1200 (544) 1400 (635) 100 (45)
4
Actual weights will vary according to optional kits included.
5 of 9
P/N 0473381_F
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Impact
Excel
C5X-E
Meat, Produce, Dairy &
Delicatessen
Product Data
Recommended Usable Cube
1
(Cu Ft/Ft) 9.39 ft3 /ft (0.87 m3 /m)
AHRI Total Display Area
2
(Sq Ft/Ft) 4.44 ft2/ft (1.35 m2 /m)
Shelf Area 3(Sq Ft/Ft) 9.88 ft2/ft (3.01 m2 /m)
1
Computed using AHRI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]
2 AHRI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft
3
/ft [m3/m]
3
Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
4
Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is (4) rows of 22-inch shelves.
PARTS LIST (Continued from Page 1)
Note: Always*Bright lamps will be replaced with the latest generation of EcoShine lamps.
Item Part # Description
LED FIXTURES AND POWER SUPPLY
F. 0501213 Power Supply (EP.4481861) (6)
G. EcoShine LED Canopy Fixture (7)
4441720 Front 48-inch 2900K HCRI
4441722 Front 48-inch 3500K HCRI
4441724 Front 48-inch 3500K
4441726 Front 48-inch 4100K
4441721 Rear 48-inch 2900K HCRI
4441723 Rear 48-inch 3500K HCRI
4441725 Rear 48-inch 3500K
4441727 Rear 48-inch 4100K
4441712 Front 36-inch 2900K HCRI
4441714 Front 36-inch 3500K HCRI
4441716 Front 36-inch 3500K
4441718 Front 36-inch 4100K
Item Part # Description
G.
(CONTINUED) EcoShine LED Canopy Fixture
4441713 Rear 36-inch 2900K HCRI
4441715 Rear 36-inch 3500K HCRI
4441717 Rear 36-inch 3500K
4441719 Rear 36-inch 4100K
H. EcoShine LED Shelf Fixture (8)
4441590 48-inch 2900K HCRI
4441591 48-inch 3500K HCRI
4441592 48-inch 3500K
4441593 48-inch 4100K
4441586 36-inch 2900K HCRI
4441587 36-inch 3500K HCRI
4441588 36-inch 3500K
4441589 36-inch 4100K
C5X-E Technical Data Sheet
Defrost
Termination
Thermostat
Refrigeration
Thermostat
Dark Blue
3
To
Condensing
Unit
}
Light Blue
2
2, 3 & 4 Fans
120V NEUTRAL
BROWN BAND
120V POWER
Fans
1
B
ROWN BAND
6 ft
8 ft
12 ft
5
5
4
4
5
5
5
5
Optional
Two Ro w
Canopy
Connector
BL
BL
W
G
R
BL
W
R
R
R
BL
BL
R
BL
R
R
R
BK
BK
Orange or Tan Band
5
4
55
Connector
W
BK
BL
BL
R
BL
R
R
R
6 ft or 8 ft 12 ft4 ft
BK
6 ft or 8 ft 12 ft
Ballast Plug for Optional Light Rail (if applied)
W
B
Field Connections
Case
Ground
Bar
4 ft
5
4
55
Optional
Two Ro w
Canopy
W
BL
BL
R
BL
R
R
R
R = Red Y = Yellow G = Green BL = Blue BK = Black W = White
= 120V P
OWER = 120V NEUTRAL = FIELD GROUND
= CASE GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Fan Wiring
Offtime Defrost
Light Circuits — Fluorescent Fixtures
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
6 of 9
R = Red Y = Yellow G = Green BL = Blue BK = Black W = White
= 120V P
OWER = 120V NEUTRAL = FIELD GROUND
= CASE GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
7 of 9
P/N 0473381_F
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
5
4
5
5
5
5
BK
W
BL
BL
R
BL
R
BL
R
BL
W
R
W
R
BK
R
BL
BL
R
4
BK
BL
BL
BL
BL
BL
R
R
R
R
R

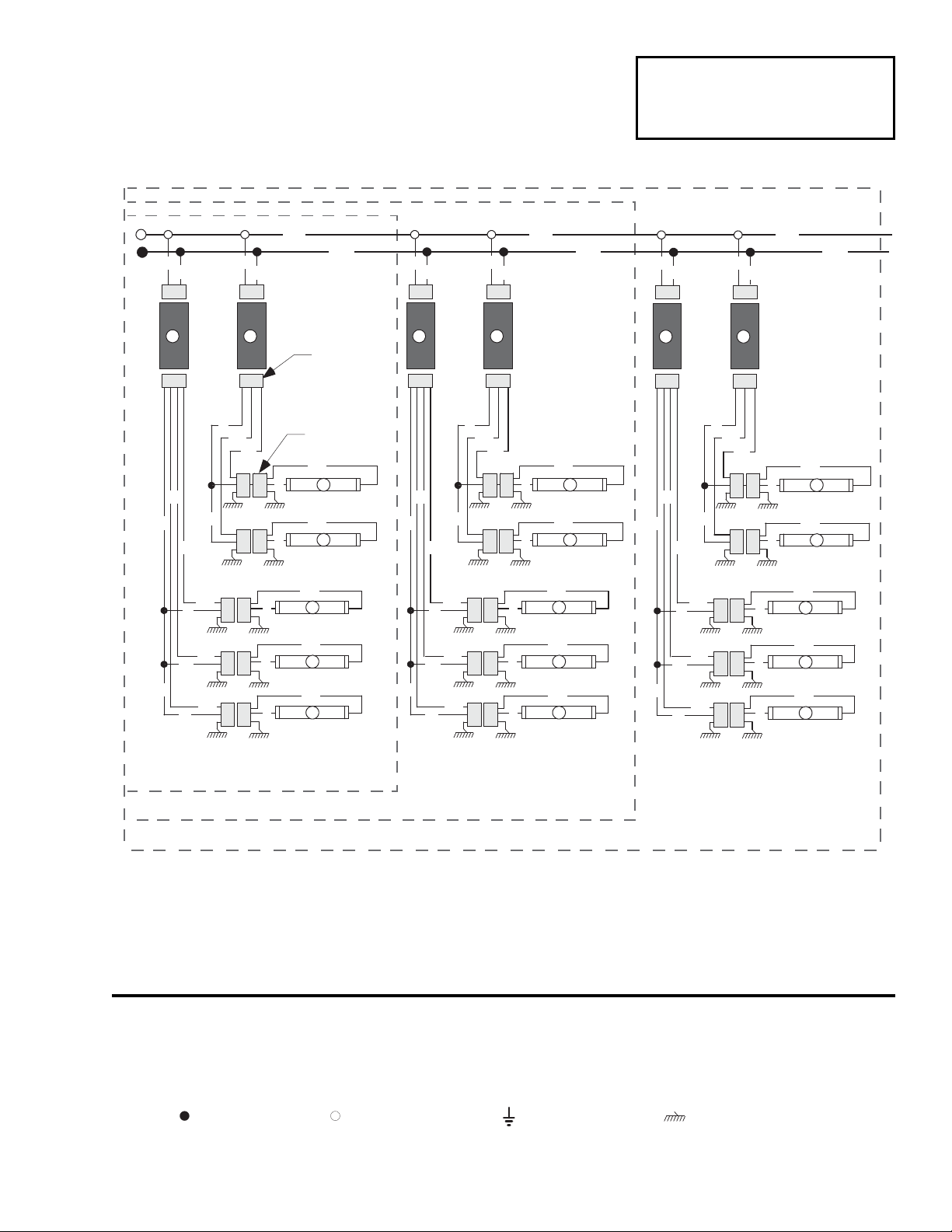

Optional Shelf Harness and Light Circuits for Five Rows of Shelves
Connector
5
4
5
5
5
5
BK
W
Connector
6 ft or 8 ft case
12 ft case
BL
BL
R
BL
R
BL
R
BL
W
R
W
R
BK
R
BL
BL
R
4
BK
BL
BL
BL
BL
BL
R
R
R
R
R
5
4
5
5
5
5
BK
W
BL
BL
R
BL
R
BL
R
BL
W
R
W
R
BK
R
BL
BL
R
4
BK
BL
BL
BL
BL
BL
R
R
R
R
R
4 ft case
Optional Shelf Lighting
Fluorescent Fixtures
C5X-E Technical Data Sheet
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900
8 of 9
7
7
7
7
7
7
7
7
7
7
7
7
6
6
6
6
Optional Canopy Lighting
LED Fixtures
R = Red Y = Yellow G = Green BL = Blue BK = Black W = White
= 120V P
OWER = 120V NEUTRAL = FIELD GROUND
= CASE GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
9 of 9
P/N 0473381_F
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
8
8
8
8
8
8
8
R
BL
6
BK
BK
W
W
BL
R
G
4 ft case
6 ft or 8 ft case
12 ft case
(TYP)
Shelf Light
Plug & Receptacle
BK
Connector
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
8
8
8
8
8
8
8
R
BL
6
BK
BK
W
W
BL
R
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
R
BL
8
8
8
8
8
8
8
R
BL
6
BK
BK
W
W
BL
R
W
Connector
Optional Shelf Harness and LED Light Circuits for 3, 4, 5, 6 & 7 Rows of Shelves
Optional Shelf Lighting
LED Fixtures
R = Red Y = Yellow G = Green BL = Blue BK = Black W = White
= 120V P
OWER = 120V NEUTRAL = FIELD GROUND
= CASE GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Loading...
