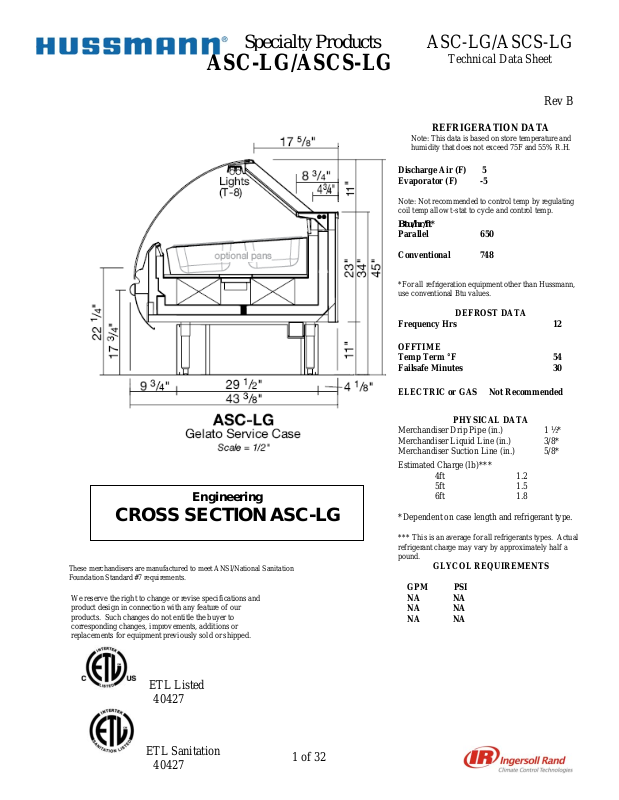

32
Specialty Products
ASC-LG/ASCS-LG
CROSS SECTION ASC-LG
These merchandisers are manufactu red t o meet ANSI/N ational Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
40427
ETL Listed
Engineering
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
Discharge Air (F) 5
Evaporator (F) -5
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel 650
Conventional 748
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
DEFROST DATA
Frequency Hrs 12
OFFTIME
Temp Term °F 54
Failsafe Minutes 30
ELECTRIC or GAS Not Recommended
Merchandiser Drip Pipe (in.) 1 ½*
Merchandiser Liquid Line (in.) 3/8*
Merchandiser Suction Line (in.) 5/8*
Estimated Charge (lb)***
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.
GPM PSI
NA NA
NA NA
NA NA
PHYSICAL DATA
4ft 1.2
5ft 1.5
6ft 1.8
GLYCOL REQUIREMENTS
ETL Sanitation
40427
1 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
Engineering
CROSS SECTION ASCS-LG
These merchandi s ers a re manufactured to meet ANSI/Na tional Sanitat i on
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
CUL Listed
UL Sanitation
2 of 32
32
Specialty Products
ASC-LG/ASCS-LG
Engineering
PLAN VIEW ASC-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
3 of 32
32
Specialty Products
ASC-LG/ASCS-LG
Engineering
PLAN VIEW ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
4 of 32
32
LEDGE LIGHTS
(1) FP28T5/830
CAP
WIRE
CANOPY L IGHTS
(2) F32T8-SPX30
NOSE LIGHTS
(1) F32T8-S PX30
CAP
WIRE
Specialty Products
ASC-LG/ASCS-LG
AIR SWEEP
WARMER WIRE
125-01-3032
180w@~115V
ELECT. T-S TAT
JOHNSON C ONTROLS
A320ABC-1C
225-01-3355A
240V
COM
120V
NC
C
NO
+
_
SENSOR
REAR CHAN NEL
WARME R WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
4 FT.
SENSOR
LOADING
17.6
L1
17.6
L2
~
L3
~
L1
~
L2
120 V
~
L3
NOTE: CASE MUST
BE GROUNDED
EVAPORATO R FAN
(1) CONAIR - ~ 115V
00001212
M
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
DRAIN HE ATER
(1) 120W / ~240 V
DEFROST HEATERS
(6) 300W / ~240VAC
BACK COI L
FRONT COIL
BALLAST 125-01-3266
FULHAM LH3-120-L
L
L1
G
N
~ 115 VAC - 1Ø
CIRCUIT # 1
BALLAST 125-01-3266
FULHAM LH3-120-L
LIGHT SWITCH
1 +225-01-2046,+225 -01-2045, -125-01-0709 08/21/03 D.Q.
2
3
BALLAST 125-01-3266
FULHAM LH3-120-L
L
WARMER
SWITCH
OPTIONAL
SOLENOID
VALVE
DELAY RELAY
208 VOLT COIL
MARS 90342
25-01-1342
4
REFRIGERAT ION
07/18/01
H:\WIRESCHEMATICS\NEW-WIRING
FAN & HE ATER DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
CIRCUIT #2
TO DEFROST PANEL
DEFROST HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
600-22-0050
3
DEFROST
ASC-LG CASES
4' GELATO CASE - ELECTRIC DEFROST
RELAY OMRON
208V COIL
G7L-2A-TUBJ-CB-AC240
125-01-3182A
L2L1
G
208V
W0150015
11
5 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP21T5/830
BALLAST 125-01 -3266
FULHAM LH3-120-L
L
LIGHT SWIT CH
CANOPY LIGHTS
(4) F25T8-SPX30
BALLAST 125-01 -3266
FULHAM LH3-120-L
26.3
26.3
~
~
~
~
NOTE: CASE MUST
BE GROUNDE D
REAR CHANNEL
WARMER WIRE
RAYCH EM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
6 FT.
DELAY RELAY
MARS 90249Q
225-01-2045
M
M
EVAPORAT OR FAN
(2) GE 9W - ~115V
00001212
DRAIN HEATER
SAFETY KLI XON
20420D42-452-36 2
L48-18
600-22-0050
SENSOR
+
SENSOR
_
240V
COM
~ 115 VAC - 1Ø
DRAIN HE ATER
(1) 180W / ~115 V
ELECT. T-S TAT
JOHNSON CONTROLS
A320ABC-1C
NCCNO
120V
225-01-3355A
BUNDLE COLOR
BLACK / WHITE
DEFROST HEATE RS
(6) 450W / ~115VAC
BACK COIL
FRONT COIL
LOADING
L1
L2
L3
FAN & HEATER DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-1 5
225-01-2046
FULHAM LH3-120-L
L1
L2
120 V
L3
NOSE LIGHTS
(2) F25T8-SPX30
BALLAST 125-01 -3266
FULHAM LH3-120-L
BALLAST 125-01 -3266
~115 VAC - 1Ø
BUNDLE COLOR
ORANGE
1
1 +225-01-2046,+225 -01-2045, -125-01-0709 08/21/03 D.Q.
2
2
3
3
~115 VAC - 1Ø
BUNDLE LABELED
DEFROST
07/18/01
H:\WIRESCHEMATICS\NEW-W IRING
~115 VAC - 1Ø
ASC-LG CASES
6' GELATO CASE - ELECTRIC DEFROST
BUNDLE LABEL ED
DEFROST HEATERS
W0150016
1
1
6 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP28T5/830
BALLAST 125-01-3266
FULHAM LH3-120-L
L
CANOPY LIGHTS
(4) F32T8-SPX30
BALLAST 125-01-3266
LIGHT SWITCH
CIRCUIT #1
LOADING
115 V
208 V
~
~
~
240 V
~
~
~
EVAPORAT OR FAN
(2) GE 9W - ~115V
00001212
NOSE LIGH TS
(2) F32T8-SPX30
ELECT. T-STAT
JOHNSON CONTROLS
A320ABC-1C
225-01-3355A
240V
COM
120V
NC
C
NO
L1 5.4
~
L2
L3
~
NOTE: CASE MUST BE GROUNDED
SENSOR
+
_
SENSOR
M
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
8 FT.
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
DELAY RELAY
MARS 90249Q
225-01-2045
M
FAN DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
CIRCUIT #2 Defrost
LOADING
115 V
208 V
L1 ~
~
L2
L3
~
NOTE: CASE MUST BE GROUNDED
DEFROST HEATER
SAFETY K LIXON
20420D42-452-362
L48-18
600-22-0050
240 V
19.7
21.4
19.7
21.4
~
~
DRAIN HEATER
(1) 240W / ~208 V
125-02-1104
DEFROST HEATERS
(6) 600W / ~208VAC
125-02-1105
BACK COIL
FRONT COIL
CIRCUIT#1
L1
G
N
~ 115 VAC - 1Ø
1
1 +225-01-2046,+225-01-2045, -125-01-0709 08/21/03 D.Q.
2
2 REDESIGNED SCHEMATIC TO WORK 03/30/04 MEK
3
3 REDESIGNED AND REVISED 01/17/07 D.Q.
07/17/01
H:\W IRESCH EMATICS \NEW- WIRING
7 of 32
To Defrost
Contactor
208 Volt
CIRCUI T#2
ASC-LG CASES
Defrost
Termination
8' GELATO CASE - ELECTRIC DEFROST
W0150017
11
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP21T5/830 +
(1) FP28T5/830
BALLAST 125-01-3266
FULHAM LH3-120-L
L
~115 VAC - 1Ø
CAP
BALLAST 125-01-3266
FULHAM LH3-120-L
LIGHT S WITCH
BUNDLE COLOR
ORANGE
CANOPY LIGHTS
(4) F25T8-SPX30 +
(2) F32T8-SP X30
BALLAST 125-01-3266
FULHAM LH3-120-L
LOADING
L1
23.1
L2
NOSE LIGHTS
(2) F25T8-SPX30 +
(1) F32T8-SPX30
CAP
BALLAST 125-01-3266
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
FULHAM LH3-120-L
23.1
L3
~
L1
20.0
20.0
L2
240 V 208 V
~
L3
NOTE: CASE MUST
BE GROUNDED
FAN & HEATER DELAY
KLIXON THER MODISK
3NT-01F-D1460 F35-15
225-01-2046
~115 VAC - 1Ø
LOADING
L1
2.2
L2
2.2
L3
~
L1
~
L2
~
120 V
L3
~
NOTE: CASE MUST
BE GROUNDED
REAR CH ANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
10 FT.
DELAY RELAY
MARS 90249Q
225-01-2045
BUNDLE LABELED
DEFROST
M
M
M
EVAPORATOR FAN
(3) GE 9W - ~115V
00001212
DRAIN HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
600-22-0050
SENSOR
+
_
240V
~ 115 VAC - 1Ø
DRAIN HE ATER
(1) 300W / ~208 V
~208 / 240 VAC - 1Ø
ELECT. T-ST AT
SENSOR
JOHNSON CONTROLS
A320AB C-1C
NCCNO
120V
COM
225-01-3355A
BUNDLE COLOR
BLACK / WHITE
DEFROS T HEATERS
(6) 750W / ~208VAC
BACK COIL
BUNDLE LABELED
DEFROS T HEATER S
FRONT COIL
1
1 +225-01-2046,+225-01-2045, -125-01-0709 08/21/03 D.Q.
2
2
3
3
07/17/01
H:\WIRESCHEMAT ICS\NEW-WIRING
8 of 32
ASC-LG CASES
10' GELATO CASE - ELECTRIC DEFROST
W0150018
11
32
LEDGE LIGHTS
(3) FP28T5/830
CAP
CANOPY LIGHTS
(6) F32T8-SPX30
Specialty Products
ASC-LG/ASCS-LG
NOSE L IGHTS
(3) F32T8-SPX30
LOADING
L1
L2
L3
L1
L2
240 V 208 V
L3
NOTE: CASE MUST
BE GROUNDED
FAN & HE ATER DELA Y
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
CAP
29.4
29.4
~
25.5
25.5
~
LOADING
L1
2.5
L2
2.5
L3
~
L1
~
L2
~
120 V
L3
~
NOTE: CASE MUST
BE GROUNDE D
REAR CHANNE L
WARMER W IRE
RAYCHEM
10BUT-CR- 10W
125-01-0767
10W/FT @~115V
12 FT.
DELAY RELAY
MARS 90249Q
225-01-2045
M
M
M
M
EVAPORATOR FA N
(4) GE 9W - ~115V
00001212
DRAIN HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
600-22-0050
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
SENSOR
ELECT. T-STAT
+
SENSOR
_
JOHNSON CONTROLS
A320ABC-1C
NCCNO
240V
120V
COM
225-01-3355A
BUNDLE COLOR
BLACK / WHITE
~ 115 VAC - 1Ø
DRAIN HEATER
(1) 360W / ~208 V
DEFROST HEATERS
(6) 960W / ~208VAC
BACK CO IL
FRONT COIL
BALLAST 125-01-3266
FULHAM LH3-120-L
L
~ 115 VAC - 1Ø
BALLAST 125-01-3266
FULHAM LH3-120-L
LIGHT SWITCH
BUNDLE COLOR
ORANGE
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
~115 VAC - 1Ø
1
1 +225-01-2046,+225-01-2045, -125-01-0709 08/21/03 D.Q.
2
2
3
3
BUNDLE LABELED
DEFROS T
07/16/01
H:\WIRESCHEMATIC S\NEW-WIRING
BUNDLE LABELED
DEFROST HEATERS
~208 / 240 VAC - 1Ø
ASC-LG CASES
12' GELATO CASE - ELECTRIC DEFROST
W0150019
11
9 of 32
32
LOADING
208 V
115 V
L1 2.5
L2
L3
NOTE: CASE MUST BE GROUNDED
8.5
8.5
~
~
~
240 V
9.8
9.8
~
LEDGE LIGHTS
(1) FP28 T5/830
CAP
BALLAST 125-01-3266
FULHAM LH3-12 0-L
L
LIGHT SWITCH
L1
L2
L3
N
G
~208 / 240 VAC - 1Ø - 50/60 Hz
CANOPY LIGHTS
(2) F32T8-SPX30
BALLAST 125-01-3266
FULHAM LH3-12 0-L
Specialty Products
ASC-LG/ASCS-LG
NOSE LI GHTS
(1) F32 T8-SPX30
ZONE SENSOR EVAP. SENS OR
DISPLAY
DEFROST TIMER
PARAGON ERC-2
120~240V - 50/60 Hz.
125-01-0722
C-UNIT
CAP
POWER
SWITCH
EVAPORATOR
FAN
(1) 4½" AXIA L
MOTOR
M
REAR CHA NNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT @~115V
4 FT.
BALLAST 125-01-3266
FULHAM LH3-12 0-L
L
WARMER
SWIT CH
H1
H3
H2
H4
ALARM
ZONEEVAP.
FAN
DEF.
COMM.
COMP.
DRAIN H EATER
(1) 120W / ~115 V
125-01-30 33
ASC-LG/ASCS-LG
PRESSURE
SAFETY
CONDEN SING UNIT
COPELAND
EJAL-A075-CAV-001
225-03-0219
Technical Data Sheet
CONDENSER FAN
M
BLACK
EXTERNAL
PROTECTOR
1
C
2
3
R
RED
HOT GAS 4-WAY
SOLENOID A LCO
225-01-0664
S
START
CAPACITOR
C
S
R
YELLOW
COMPRESSOR
MOTOR
POTENCIAL
RELAY
5
E
U
L
B
Rev B
21
1 REPLACED 8045-00 + TI MER +TSTAT BY ERC-2 10/30/01 AE C
2 CONVERTED TO HOT GAS DEFROST 11/09/01 AEC
3 REPLACED BY-PASS VALVE WITH SOL.+RELAY 01/08/02 AEC
07/10/01
H:\WIRESCHEMAT ICS\NEW-WIRING
10 of 32
ASC-LG CASES
HOT GAS DEFROST
4' GELATO CASE - SELF CONTAINED
W0150020
11
32
LEDGE LIG HTS
(2) FP21T5/830
BALLAST 125-01-3266
FULHAM LH3-120-L
L
CANOPY LIGHTS
(4) F25T8-SPX30
BALLAST 125-01-3266
LIGHT SWITCH
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LOADING
5
E
U
L
B
208 V
0.0
0.0
0.0
21
240 V
0.0
0.0
0.0
NOSE LIGHTS
(2) F25T8-SPX30
DISPLAY
DEFROST TIMER
PARAGON ERC-2
120~240V - 50/60 Hz.
125-01-0722
C-UNIT
POWER
SWITCH
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
6 FT.
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
FULHAM LH3-120-L
EVAPORATOR FA NS
(2) 4½" AXIAL MOTOR
ZONE SENSOR EVAP. SENSOR
ZONEEVAP.
H1
H3
FAN
H2
H4
ALARM
COMM.
COMP.
DEF.
M
M
DRAIN HEATER
(1) 180W / ~115 V
M
PRESSURE
SAFETY
CONDENS ING UNIT
COPELAND 1 1/4 HP
EJAL-A103-CAV-011R
225-03-0 124
CONDENSER FAN
RELAY MARS
90249Q
225-01- 2045
BLACK
1
C
2
3
S
R
RED
R
HOT GAS BYPASS
SOLENOID VALVE
ALCO 200RB-3T3 -AMG
225-01-3206
EXTERNAL
PROTECTOR
C
115 V
L1 12.7
0.0
L2
L3
0.0
NOTE: CASE MUST BE GROUNDED
POTENCIAL
RELAY
START
CAPACITOR
S
YELLO W
COMPRESSOR
MOTOR
L1
L2
L3
N
G
POWER REQUIRED : ~115 VAC - 18.0 MCA - 60 Hz. - 1Ø - 3 WIRE
1 CONVERTED TO HOT GAS DEFROST 11/09/01 AEC
2
3
07/10/01
H:\WIRESCHEMAT ICS\NEW-WIRING
ASC-LG CASES
HOT GAS DEFROST
6' GELATO CASE - SELF CONTAINED
W0150021
11
11 of 32
32
LOADING
115 V
~
~
208 V
6.7
6.7
~
LEDGE LIGHTS
(2) FP28T5/830
L1 3.4
L2
L3
NOTE: CASE MUST BE GROUNDED
240 V
5.9
5.9
~
CANOPY LIGHTS
(4) F32T8-SPX30
Specialty Products
ASC-LG/ASCS-LG
NOSE LIGHTS
(2) F32T8- SPX30
DEFROST TIMER
PARAGON ERC-2
120~240V - 50/60 Hz.
125-01-0722
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
8 FT.
C-UNIT
POWER
SWITCH
ZONE SENSOR EVAP. SENSOR
ZONEEVAP.
H1
H3
FAN
H2
H4
ALARM
COMM.
COMP.
DEF.
EVAPORATOR FANS
(2) 4½" AXIAL MOTOR
M
ASC-LG/ASCS-LG
Technical Data Sheet
M
CONDENSER FAN
C-UNIT
DJAL-0150-CAV-001
00007577 1 1/2 hp
PRESSURE
SAFETY
M
BLACK
EXTERNAL
PROTECTOR
1
C
2
3
S
R
RED
SCR
START
CAPACITOR
RUN CAPACITOR
YELLOW
COMPRESSOR
MOTOR
POTENCIAL
RELA Y
5
E
U
L
B
Rev B
21
BALLAST 125-01-3266
FULHAM LH3-120-L
L
LIGHT SWITCH
L1
L2
L3
N
G
POWER REQUIRED : ~208 VAC - 11.6 MCA - 60 Hz. - 1Ø - 4 WIRE
1 CONVERTED TO HOT GAS DEFROST 11/09/01 AEC
2 ADDED OMRON RELAY TO AVOID FEEDBACK 06/17/01 AEC
3 CORRECTED WIRING LINES TO CLOCK 06/27/02 AEC
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
L
WARMER
SWITCH
DRAIN HEATER
(1) 240W / ~208 V
07/10/01
ASC-LG CASES
HOT GAS 4-WAY
SOLENOID ALCO
225-01-0664
W0150022
HOT GAS DEFROST
H:\WIRESCHEMAT ICS\NEW-WIRING
8' GELATO CASE - SELF CONTAINED
1
1
12 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
BALLAST 125- 01-3266
FULHAM LH3-120-L
NOSE LIGHTS
(2) F25T 8-SPX30 +
(1) F32T 8-SPX30
CANOPY LIGHTS
(4) F25T 8-SPX30 +
(2) F32T 8-SPX30
LEDGE LIGHT S
(2) FP21T5/830 +
(1) FP28T5/830
CAP
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
L
LIGHT SW ITCH
L1
L2
L3
N
G
POWER REQUIRED : ~208 VAC - 15.0 MCA - 60 Hz. - 1Ø - 4 WIRE
ZONE SENSOR EVAP. SENSOR
CONDENSER FAN
M
DEFROST TIMER
PARAGON ERC-2
120~240V - 50/60 Hz.
125-01 -0722
C-UNIT
POWER
SWITCH
EVAPORATOR FANS
(3) 4½" AXIAL MOTOR
MM
CAP
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT @~115V
10 FT.
BALLAST 125- 01-3266
BALLAST 125- 01-3266
FULHAM LH3-120-L
FULHAM LH3-120-L
L
WARMER
SWITCH
M
H1
H3
H2
H4
ALARM
ZONEEVAP.
FAN
COMM.
COMP.
DEF.
DRAIN HE ATER
(1) 300W / ~208 V
PRESSURE
SAFETY
RELAY MARS
90249 Q
225-01-2045
BLACK
1
C
2
3
S
R
RED
R
HOT GAS BYPASS
SOLENOID V ALVE
ALCO 200RB-3T 3-AMG
225-01-3206
C
EXTERNAL
PROTECTOR
START
CAPACIT OR
RUN CAPACITOR
S
COMPRESSOR
MOTOR
CONDENSING UNIT
COPELAND 1 HP
EJAL-A100-CA V-001
# TBD
POTENCIAL
RELAY
5
E
U
L
B
YELLOW
21
1 CONVERTED TO HOT GAS DEFROST 11/09/01 AEC
2
3
07/09/01
H:\WIRESCHEMATICS\NEW -WIRING
13 of 32
ASC-LG CASES
HOT GAS DEFROS T
10' GELATO CASE - SELF CONTAINED
W0150023
1
1
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
CANOPY LIGHTS
(6) F32T8 -SPX30
LEDGE LIGHTS
(3) FP28T5/830
CAP
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
L
LIGHT SWIT CH
L1
L2
L3
N
G
POWER REQUIRED : ~208 VAC - 17.0 MCA - 60 Hz. - 1Ø - 4 WIRE
BALLAST 125-01-3266
FULHAM LH3-120-L
NOSE LIGHTS
(3) F32T 8-SPX30
START
CAPACITOR
S
COMPRES SOR
MOTOR
CONDENS ING UNIT
COPELAND 1¼ HP
EJAL-A103-CAV-001
# TBD
POTENCIAL
RELAY
5
RUN CAPACITOR
YELLOW
21
E
U
L
B
ZONE SENSOR EVAP. SENSOR
CONDENSER FAN
M
DEFROST TIMER
PARAGON ERC-2
120~240V - 50 /60 Hz.
125-01-07 22
C-UNIT
POWER
SWITCH
EVAPORATOR FA NS
(4) 4½" A XIAL MOTOR
M
MM M
CAP
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT @~115V
12 FT.
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
L
WARMER
SWITCH
H1
H3
H2
H4
ALARM
ZONEEVAP.
FAN
DEF.
COMM.
COMP.
DRAIN HEATER
(1) 360W / ~208 V
PRESSURE
SAFETY
RELAY MARS
90249Q
225-01-2045
BLACK
1
C
2
3
S
R
RED
R
HOT GAS BYPASS
SOLENOID VALVE
ALCO 200RB-3T 3-AMG
225-01-32 06
EXTERNAL
PROTECTO R
C
1 CONVERTED TO HOT GAS DEFROST 11/09/01 AEC
2
3
07/09/01
H:\WIRESCHEMATI CS\NEW-W IRING
14 of 32
ASC-LG CASES
HOT GAS DEFROST
12' GELATO CASE - SELF CONTAINED
W0150024
1
1
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(1) FP28T5/830
CAP
BALLAST 125-01-3266
FULHAM LH3-120-L
L
LIGHT SWITCH
CANOP Y LIGHTS
(2) F32T8-SPX30
BALLAST 125-01-3266
FULHAM LH3-120-L
NOSE LI GHTS
(1) F32T8-SPX30
BALLAST 125-01-3266
CAP
FULHAM LH3-120-L
LOADING
L1
17.6
L2
17.6
L3
~
L1
~
L2
~
120 V
L3
~
NOTE: CASE MUST
BE GROUNDED
FAN & HEATER DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
IJ1
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~1 15V
4 FT.
DELAY RELAY
MARS 90249Q
225-01-204 5
DRAIN HEATER
(1) 360W / ~115 V
125-01-30 30
EVAPORATOR FAN
(1) GE 9W - ~115 V
00001212
M
DRAIN HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
600-22-0050
NJ2J3
J3 N L
SENSOR
ELECT. T-STAT
JOHNSON CONTROLS
A320ABC-1C
225-01-3355A
+
SENSOR
_
NCCNO
240V
120V
COM
L1
L2
L3
N
G
POWER RE QUIRED : ~115 VAC - 50/60 Hz. - 1Ø - 3 WIRE
1
1 ADDED 225-01-2046, DELETE 125-01-0709 08/15/03 D.Q.
2
2
3
3
07/19/01
H:\WIRESCHEMATICS\NEW -WIRING
ASC-LG CASES
4' GELATO CASE - KOOLGAS™ DEFROST
W0150025
1
1
15 of 32
32
LEDGE LIGHT S
(2) FP 21T5/8 30
CANOPY L IGHTS
(4) F25T8-S PX30
Specialty Products
ASC-LG/ASCS-LG
LOADING
4.5
L1
4.5
NOSE LIGHTS
(2) F25T8-SPX30
L2
~
L3
~
L1
~
L2
120 V
~
L3
NOTE: CASE MUST
BE GROUNDED
FAN & HEATER DELAY
KLIXON THERMODISK
3NT-01F-D 1460 F35-15
225-01-2046
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0 767
10W/FT@~115V
6 FT.
EVAPORATOR FAN
(2) GE 9W - ~115V
00001212
ASC-LG/ASCS-LG
Technical Data Sheet
DRAIN HEATER
M
M
(1) 360W / ~115 V
125-01-3030
Rev B
BALLAST 125-01-3266
FULHAM LH3-120-L
L
LIGHT SW ITCH
L1
L2
L3
N
G
POWER REQUIRED : ~115 VAC - 50/60 Hz. - 1Ø - 3 WIRE
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
1
1
1 ADDED 225-01-2046, DELETE 125-01 -0709 08/15/03 D.Q.
2
2
2
3
3
3
DRAIN HEATER
SAFETY KLIXON
20420D42 -452-362
L48-18
600-22-0050
DELAY RELA Y
MARS 9 0249Q
225-01-204 5
BALLAST 125-01-3266
FULHAM LH3-120-L
IJ1
07/19/01
H:\WIRESCHEMATICS\NEW -WIRING
NJ2J3
ASC-LG CASES
6' GELATO CASE - KOOLGAS™ DEFROST
J3 N L
SENSOR
ELECT. T-STAT
JOHNSON CO NTROLS
A320ABC -1C
225-01-3355A
+
SENSOR
_
NCCNO
240V
120V
COM
W0150026
11
16 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP28T5/830
BALLAST 12 5-01-3266
FULHAM LH3-120-L
L
LIGHT SWITCH
CANOPY LIGHTS
(4) F32T8-SPX30
BALLAST 12 5-01-3266
FULHAM LH3-120-L
NOSE LIGHTS
(2) F32T8-SPX30
FAN & HEATER DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
LOADING
4.5
L1
L2
4.5
L3
~
L1
~
L2
~
120 V
L3
~
NOTE: CAS E MUST
BE GROUNDED
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
8 FT.
EVAPORATOR FAN
(2) GE 9W - ~115V
00001212
M
DRAIN HEATER
(1) 360W / ~115 V
125-01- 3030
M
DRAIN HEATER
SAFETY KLI XON
20420D42-452-362
L48-18
600-22- 0050
DELAY RELAY
MARS 90249Q
225-01-2045
BALLAST 12 5-01-3266
FULHAM LH3-120-L
BALLAST 12 5-01-3266
FULHAM LH3-120-L
IJ1
NJ2J3
J3 N L
SENSOR
ELECT. T-STAT
JOHNSO N CONTROLS
A320ABC-1C
225-01-3 355A
+
SENSOR
_
NCCNO
240V
COM
120V
L1
L2
L3
N
G
POWER REQUIRED : ~115 VAC - 50/60 Hz. - 1Ø - 3 WIRE
1
1
1 ADDED 225-01-2046, DEL ETE 125-01-0709 08/15/03 D.Q.
2
2
2
3
3
3
07/19/01
H:\W IRESCH EMATICS \NEW- WIRING
ASC-LG CASES W0150027
8' GELATO CASE - KOOLGAS™ DEFROST
1
1
17 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP21T5/83 0 +
(1) FP28T5/83 0
BALLAST 125-01-3266
FULHAM LH3-120-L
L
LIGHT SWITCH
BALLAST 125-01-3266
FULHAM LH3-120-L
NOSE LIGH TS
(2) F25T8-SPX30 +
(1) F32T8-SPX30
BALLAST 125-01-3266
FULHAM LH3-120-L
FAN & HEAT ER DELAY
KLIXON TH ERMODISK
3NT-01F-D1460 F35-15
225-01-2046
CAP
BALLAST 125-01-3266
FULHAM LH3-120-L
IJ1
LOADING
L1
5.6
L2
5.6
L3
~
L1
~
L2
~
120 V
L3
~
NOTE: CASE MUST
BE GROUNDED
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
10 FT.
DELAY RELAY
MARS 90249Q
225-01-2045
EVAPORATOR FAN
(3) GE 9W - ~115V
00001212
M M M
DRAIN HEATER
(1) 360W / ~115 V
125-01-3030
DRAIN HEATER
SAFETY KLIXON
20420D42-4 52-362
L48-18
600-22-0050
NJ2J3
J3 N L
SENSOR
ELECT. T-STAT
JOHNSO N CONTROLS
A320ABC-1C
225-01-3355 A
+
SENSOR
_
NCCNO
240V
120V
COM
CANOPY LIGHTS
(4) F25T8-SPX30 +
(2) F32T8-SPX30
CAP
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
BALLAST 125-01-3266
FULHAM LH3-120-L
L1
L2
L3
N
G
POWER REQUIRED : ~115 VAC - 50/60 Hz. - 1Ø - 3 WIRE
1 ADDED 225-01-2046, DELETE 125-01-0709 08/15/03 D.Q.
1
1
2
2
2
3
3
3
07/19/01
H:\WIRESCHEMATICS\NEW-WIRING
ASC-LG CASES
10' GELATO CASE - KOOLGAS™ DEFROST
W0150028
1
1
18 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(3) FP28T5/830
BALLAST 125- 01-3266
FULHAM LH3-120-L
L
LIGHT SWI TCH
CANOPY LIGHTS
(6) F32T8-SPX30
CAP
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
BALLAST 125- 01-3266
FULHAM LH3-120-L
NOSE LIG HTS
(3) F32T8-SPX30
BALLAST 125- 01-3266
FULHAM LH3-120-L
LOADING
L1
L2
L3
L1
L2
120 V
L3
NOTE: CASE MUST
BE GROUNDED
FAN & HE ATER DELAY
KLIXON THERMODISK
3NT-01F-D1460 F35-15
225-01-2046
CAP
BALLAST 125- 01-3266
FULHAM LH3-120-L
IJ1
5.6
5.6
~
~
~
~
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
12 FT.
DELAY RELAY
MARS 90249Q
225-01-2045
EVAPOR ATOR FAN
(4) GE 9W - ~115V
00001212
M M M M
DRAIN HEATER
(1) 400W / ~115 V
125-01-3026
DRAIN HEATER
SAFETY KLIXON
20420D42 -452-362
L48-18
600-22-0050
NJ2J3
J3 N L
SENSOR
ELECT. T-STAT
JOHNSON CONTROLS
A320ABC-1C
225-01-3355 A
+
SENSOR
_
NCCNO
240V
120V
COM
L1
L2
L3
N
G
POWER REQUIRED : ~ 115 VAC - 50/60 Hz. - 1Ø - 3 WIRE
1
1 ADDED 225-01-2046, DELETE 125-01-0709 08/15/03 D.Q.
2
2
3
3
07/19/01
H:\WIRESCHEMATICS\NEW -WIRING
ASC-LG CASES
12' GELATO CASE - KOOLGAS™ DEFROST
W0150029
11
19 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
20 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
21 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
22 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
RJ-45 NETWORK JACK
125-01-0200
125-01-0203
125-01-0204
DUPLEX
(1) 125-01-0096
SWITCH
125-01-0311
W G BK
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
CANOP Y LIGHT S
F32T8-48"
125-03-0241
BALLAST 125-01-3266
L
L1
G
~ 115 VAC - 1Ø
CIRCUIT # 1
FULHAM LH3-120-L
N
F32T8-48"
125-03-0241
AIR SWEEP FA N
(1) ~115V
125-01-2012
M
AIR SWEEP
HEATER
125-01-3033
120w@~115V
L
125-01-8509
20 AMP
TOGGLE
SWITCH
OPTIONAL
ELECT. T-ST AT
JOHNS ON CONT ROLS
A320ABC-1C
225-01-3355A
OPTIONAL
SOLENOID
VALVE
240V
+
_
COM
SENSOR
120V
NC
C
NO
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
4 FT.
SENSOR
DELAY RELAY
115 VOLT COIL
MARS 90342
25-01-1342
CIRCUI T #1
LOADING
115 V
L1
L2
L3
NOTE: CASE MUST
BE GROUNDED
EVAPORATOR FAN
(1) ~115V
00001212
#.#
#.#
#.#
#.#
#.#
2.8
M
FAN & HEATE R DELAY
KLIXON THERMODI SK
3NT-01F-D1460 F35-15
225-01-2046
NEUTRAL
HOT
4
REFRIGERATION
~ 115 VAC - 1Ø
TAG: BROWN
4
REFRIGERATI ON
CIRCUIT #2
LOADING
115 V
17.7
L1
#.#
L2
#.#
L3
NOTE: CASE MUST
BE GROUNDED
DRAIN HEATER
(1) 120W / ~115 V
125-01-3033
DEFROST HEATER
SAFETY KLI XON
20420D42-452-362
L48-18
600-22-0050
NEUTRAL
HOT
3
~ 115 VAC - 1Ø
TAG: PURPLE
CIRCUIT # 2
3
DEFROS T
DEFRO ST
#.#
#.#
#.#
RELAY
115V COIL
125-01-3182
HOT
NEUTRAL
~ 115 VAC - 1Ø
DEFROST HEATERS
(2) 900W / ~115VAC
125-01-3002
BACK COIL
FRONT COIL
12/15/05
602590
F:\WIRESCHEMAT ICS\NEW-WIRING
23 of 32
GELSONS#4
ASC-LG-4-REM
W0150061
11
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
24 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
25 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
26 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
27 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
28 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
29 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LIGHT SWITCH
125-01-0311
15 AMP FUSE
125-01-3282
FUSE HOLDER
125-01-3283
LEDGE LIGHTS
(1) FP28T5/830
BALLAST 125-01-326 6
FULHAM LH3-120-L
L
LIGHT CIRCUIT
BUNDLE COLOR
ORANGE
CIRCUIT #1
~ 115 VAC - 1Ø - 60 Hz
CANOPY LIGHTS
(2) F32T8-S PX30
CAP
WIRE
BALLAST 125-01-326 6
NOSE LIGH TS
(1) F32T8-SPX30
FULHAM LH3-120-L
CAP
WIRE
AIR SWEEP HEATER
120W @ 115 V A C
125-01-3033
ANTI-SWE AT
SWITCH
125-01-0311
BALLAST 125-01-326 6
FULHAM LH3-120-L
L1
N
G
CIRCUIT#2
~115 VAC - 60 Hz. - 1Ø 3 WIRE
CIRCUIT #1
LOADING
115 V
208 V 240 V
L1 3.0
L2
L3
NOTE: CASE MUST BE GROUNDED
REAR CHANNE L
WARMER W IRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
4 FT.
KLIXON THERM ODISK
3NT-01F-D1460 F35- 15
OPEN 35 F-CLOSE 20 F
225-01-2046
2
4
5
RELAY
115 VOLT COIL
225-01-2045
EVAPORATOR FAN
(1) CONAIR - ~115V
00001212
M
4
DEFROST HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
OPEN 48F-CLOSE 30F
600-22-0050
361
2
5
CONTACTOR
00
COIL: 115 VAC
125-01 -8523
ELECT. T-ST AT
JOHNSON CO NTROLS
A320ABC-1C
225-01-3355A
AIR SWEE P
FAN MOTOR
(1) 125-01-2012-A
M
L
SOLENOID
VALVE
SENSOR
240V
+
_
COM
SENSOR
120V
NC
C
NO
CIRCUIT # 2
LOADING
115 V
208 V 240 V
L1 19.0
L2
L3
NOTE: CASE MUST BE GROUNDED
120W 115 VAC - DRAI N HEATER - 125-01-3033
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
300W 115 VAC - DEFR OST HEATER-BACK COIL - 125-02-1103
1
1
2
2
3
3
H:\W IRESCH EMATICS \NEW- WIRING
07/18/01
4' GELATO CASE - ELECTRIC DEFROST
ASC-LG CASES
W0150083
11
30 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
LEDGE LIGHTS
(2) FP21T5/830
BALLAST 125-01-32 66
FULHAM LH3-120-L
L
LIGHT SWITCH
CANOP Y LIGHTS
(4) F25T8-SPX30
BALLAST 125-01-32 66
FULHAM LH3-120-L
BALLAST 125-01-32 66
FULHAM LH3-120-L
NOSE LIGHTS
(2) F25T8-SPX30
BALLAST 125-01-32 66
FULHAM LH3-120-L
ELECT. T-ST AT
JOHNSON CONTROLS
A320AB C-1C
225-01-3355A
240V
_
COM
SENSOR
120V
NC
C
NO
REAR CHANNEL
WARMER WIRE
RAYCHEM
10BUT-CR-10W
125-01-0767
10W/FT@~115V
6 FT.
+
DELAY RELAY
MARS 90249Q
225-01-2045
SENSOR
FAN & HEATER DELAY
KLIXON THERMODIS K
3NT-01F-D1460 F35-15
225-01-2046
EVAPORATOR FAN
(2) GE 9W - ~115V
00001212
M
M
CIRCUIT #1
LOADING
115 V
208 V
L1 1.9
~
L2
L3
~
NOTE: CASE MUST BE GROUNDED
240 V
~
~
~
~
~
~
DEFROST HEATER
SAFETY KLIXON
20420D42-452-362
L48-18
600-22-0050
DRAIN HEATER
HE-30-62"
(1) 180W / ~208 V
125-02-1101
CIRCUIT #2
LOADING
115 V
208 V
L1 ~
~
L2
L3
~
NOTE: CASE MUST BE GROUNDED
DEFROS T HEATERS
HE-31- 62"
(6) 450W / ~208VAC
125-02-1102
BACK COIL
RELAY OMRON
G7L-2A-TUBJ-CB-120A
125-01-3182
13.9
13.9
~
FRONT COIL
240 V
16.0
16.0
~
L1
G
N
~ 115 V AC - 1Ø
L1
C
Case
ON
115V
1
1
2
2
3
3
D
Case
ON
115V
07/18/01
H:\WIRESCHEMAT ICS\NEW-WIRING
ASC-LG CASES
6' GELATO CASE - ELECTRIC DEFROST
L2
W0150049
11
31 of 32
32
Specialty Products
ASC-LG/ASCS-LG
ASC-LG/ASCS-LG
Technical Data Sheet
Rev B
32 of 32
Loading...
