Husqvarna Z 560x, 967 669702-00 Operator's Manual

115 92 55-26 Rev. A

Operator Manual

Z 560x / 967 669702-00

Please read the operator manual carefully and

make sure you understand the instructions

before using the machine.

Gasoline containing a maximum of 10% ethanol

(E10) is permitted for use in this machine. The

use of gasoline with more than 10% ethanol

(E10) will void the product warranty.

English

WARNING! The rollover protection
system's capabilities may be impaired by
damage if the mower is overturned or if
alteration to the ROPS occurs. If these
conditions take place, the total structure MUST
be replaced.

When this product is worn out and no longer
used, return it to the reseller or other party for
recycling.

To implement improvements, specications

and designs can be altered without prior

notication.

Note that no legal demands can be placed
based on the information contained in these
instructions.

Use only original parts for repairs. The use of
other parts voids the warranty.

Do not modify or install non-standard
equipment to the unit without consent from the

manufacturer. Modications to the unit may

cause unsafe operations or damage the unit.

WARNING! Failure to follow cautious
operating practices can result in dangerous
injury to the operator or other persons. The
owner must understand these instructions,
and must let only approved persons who
understand these instructions to operate the
mower.

Each person operating the mower must be of
sound mind and body and must not be under

the inuence of mind altering substances.

WARNING! Engine exhaust, some of its
constituents, and certain vehicle components
contain or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm.

WARNING! Battery posts, terminals
and related accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and birth defects
or other reproductive harm. Clean your hands
after handling.

WARNING! Engine exhaust and certain
vehicle components contain or emit chemicals
considered to cause cancer, birth defects,
or other reproductive system damage. The
engine exhaust contains carbon monoxide,
which is an odorless, colorless, poisonous gas.
Do not use the machine in enclosed spaces.

©2017 All rights reserved.

Orangeburg SC. Printed in U.S.A.

CONTENTS

INTRODUCTION............................................... 4

Driving and Transport on Public Roads ....... 4

Towing ......................................................... 4

Operating ..................................................... 4

SYMBOLS AND DECALS ................................. 6

SAFETY ............................................................ 7

Protecting Children ...................................... 7

Personal Safety Equipment ......................... 8

Slope Operation ........................................... 8

Safe Handling of Gasoline ........................... 9

Transport ................................................... 10

Towing ....................................................... 10

Spark Arrestor ............................................ 10

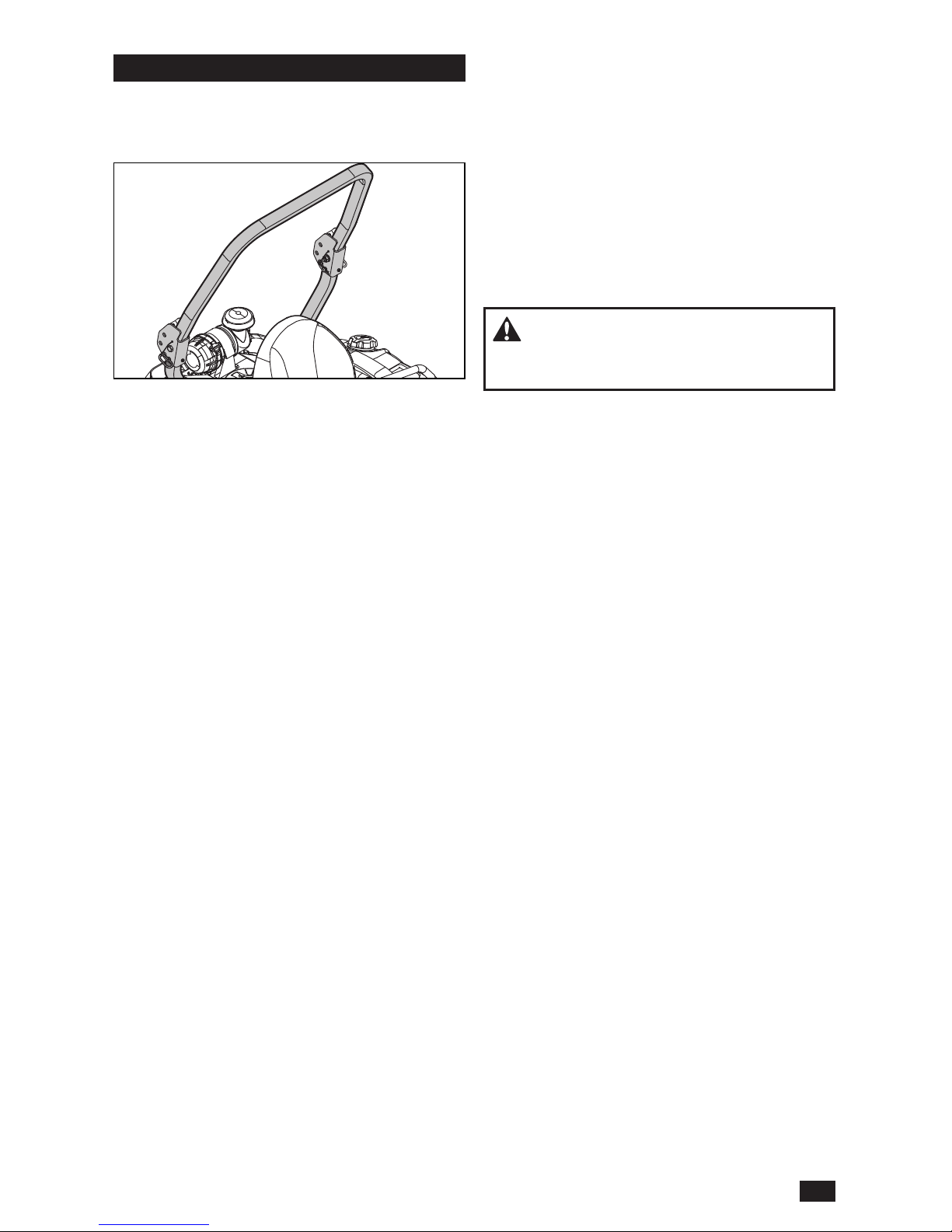

Rollover Protection System ........................11

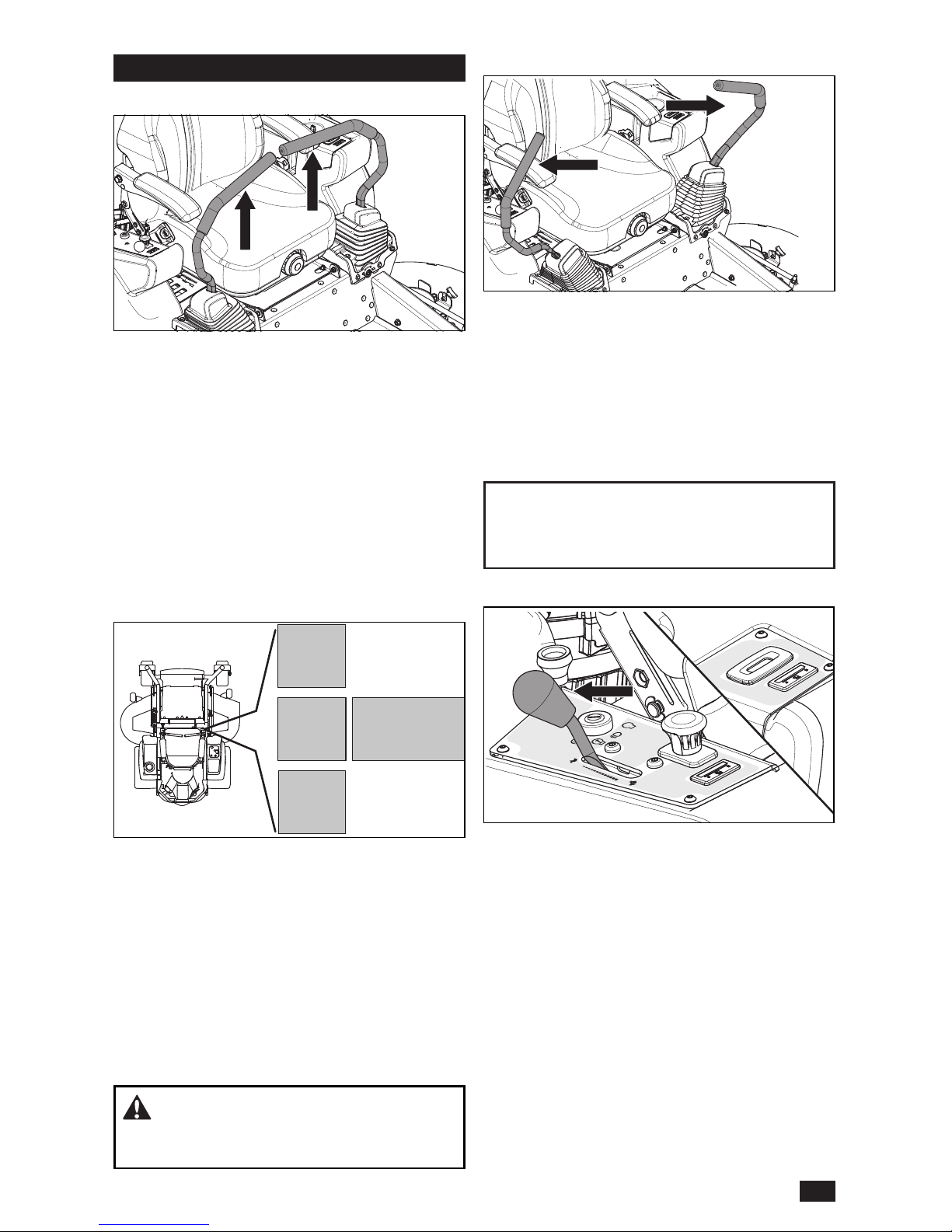

CONTROLS .................................................... 12

Steering Control Levers ............................. 13

Park Brake ................................................. 13

Throttle Control .......................................... 13

Ignition Switch ........................................... 14

Choke Control ............................................ 14

Blade Switch .............................................. 14

Service Meter ............................................ 14

Fuel Gauges .............................................. 14

Fuses ......................................................... 14

Fuel Shut Off Valve .................................... 15

Seat Adjustment ........................................ 15

Cutting Height ............................................ 15

Fuel Tanks ................................................. 15

Tracking ..................................................... 16

OPERATION ................................................... 17

Training ...................................................... 17

Steering ..................................................... 17

Operating on Hills ...................................... 18

Moving Machine By Hand .......................... 19

MAINTENANCE .............................................. 20

Battery ....................................................... 22

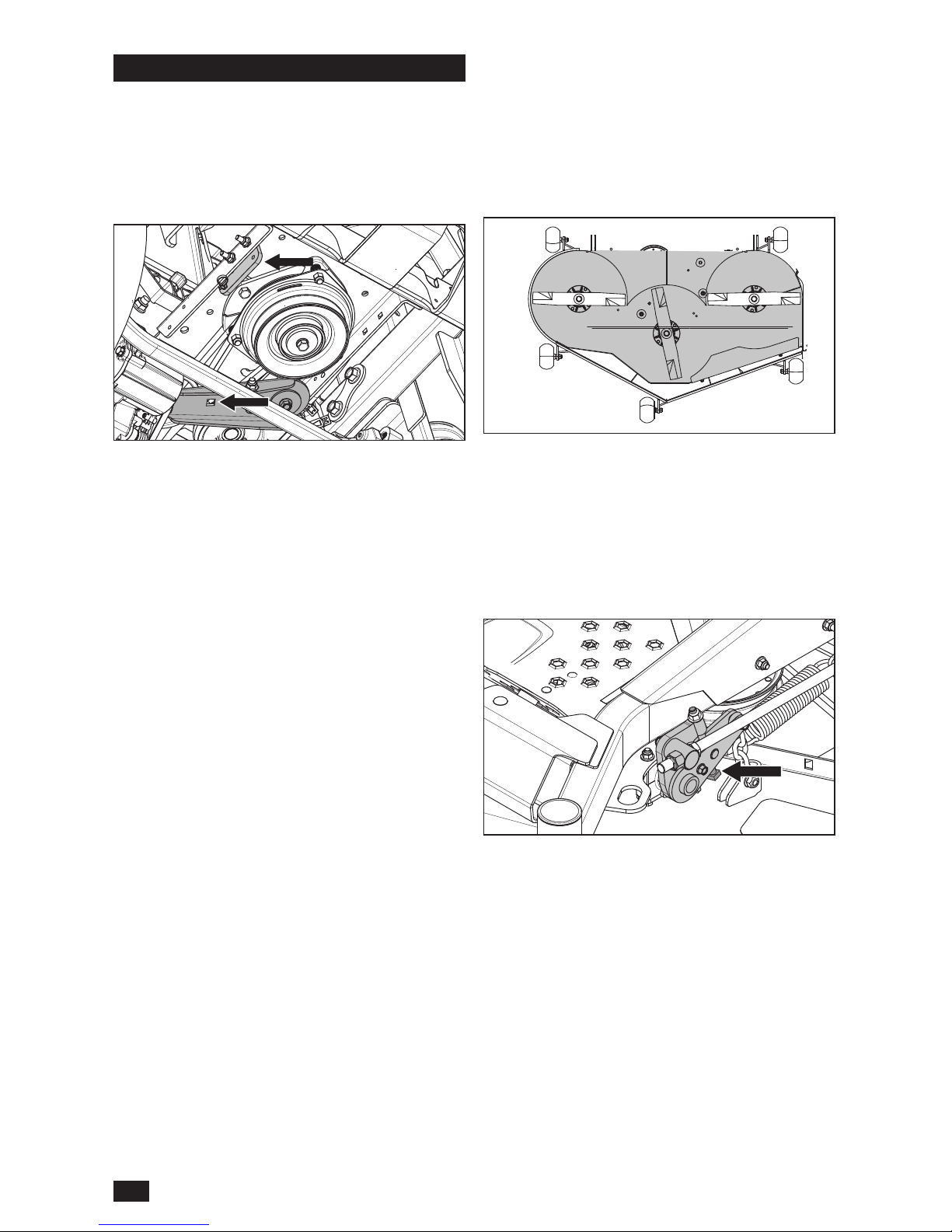

Deck Maintenance ..................................... 23

Cutting Blades ........................................... 23

V-belts ........................................................ 23

Adjusting the Mower Deck ......................... 24

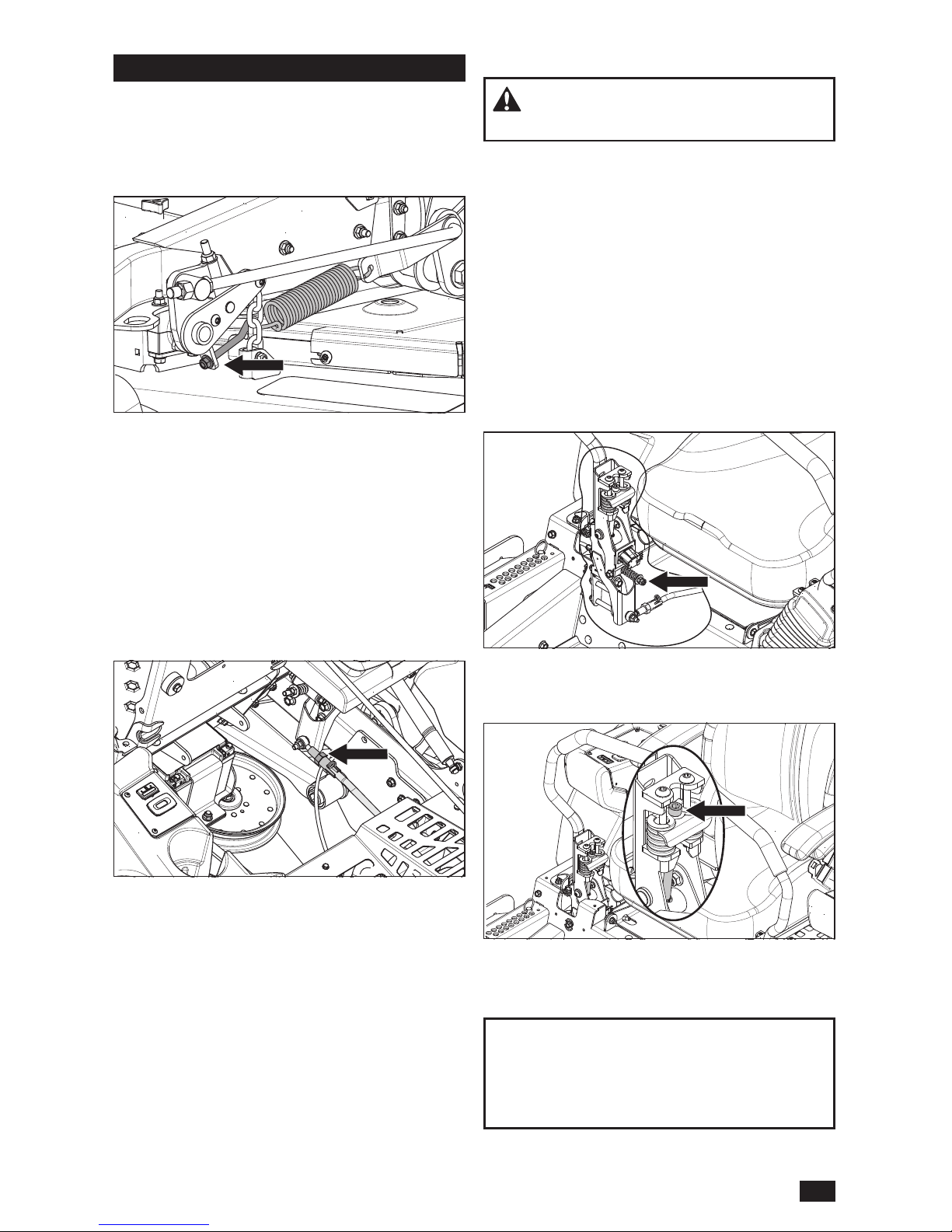

Deck Lift Spring ......................................... 25

Neutral Adjustment .................................... 25

Park Brake ................................................. 25

Tire Pressures ........................................... 25

Safety System ........................................... 26

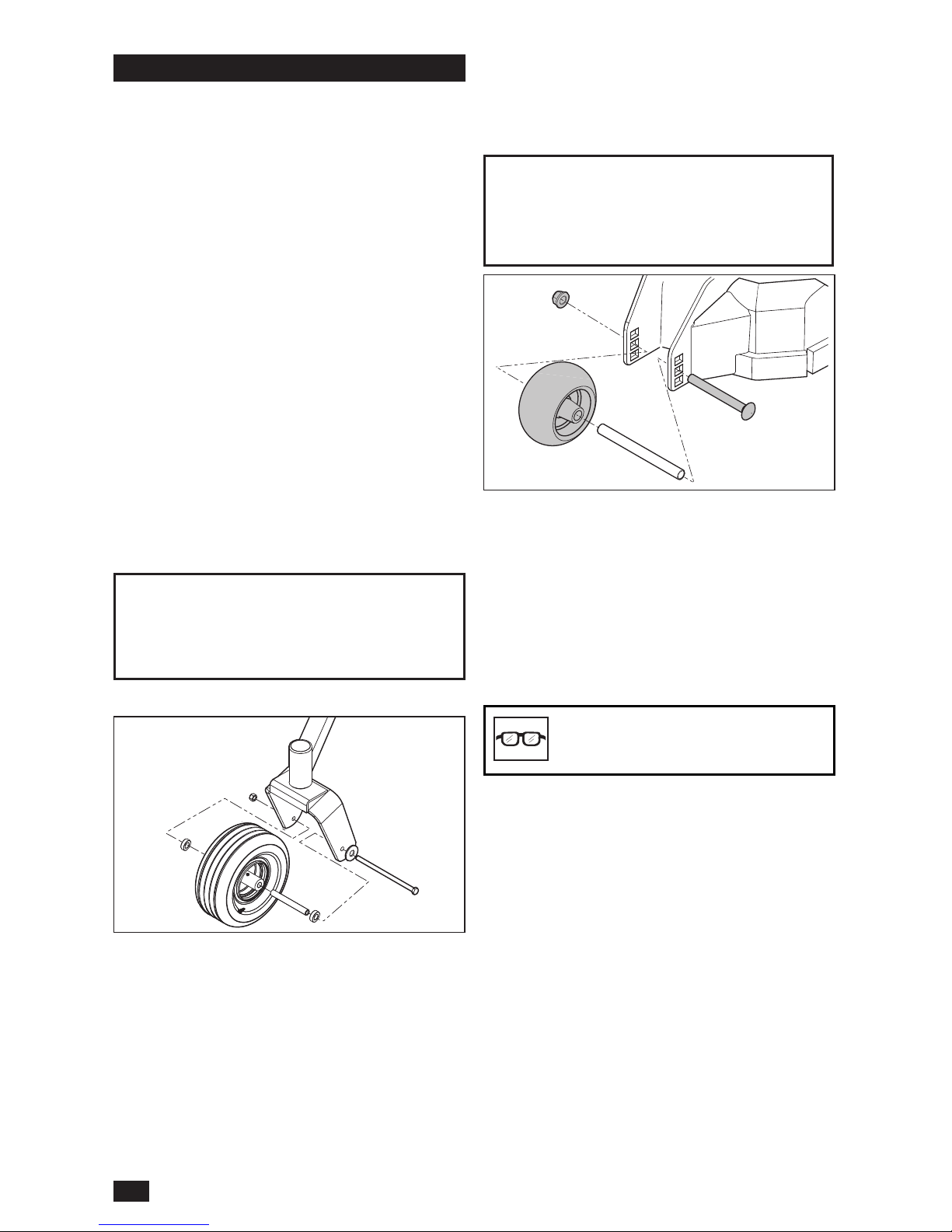

Caster Wheels ........................................... 26

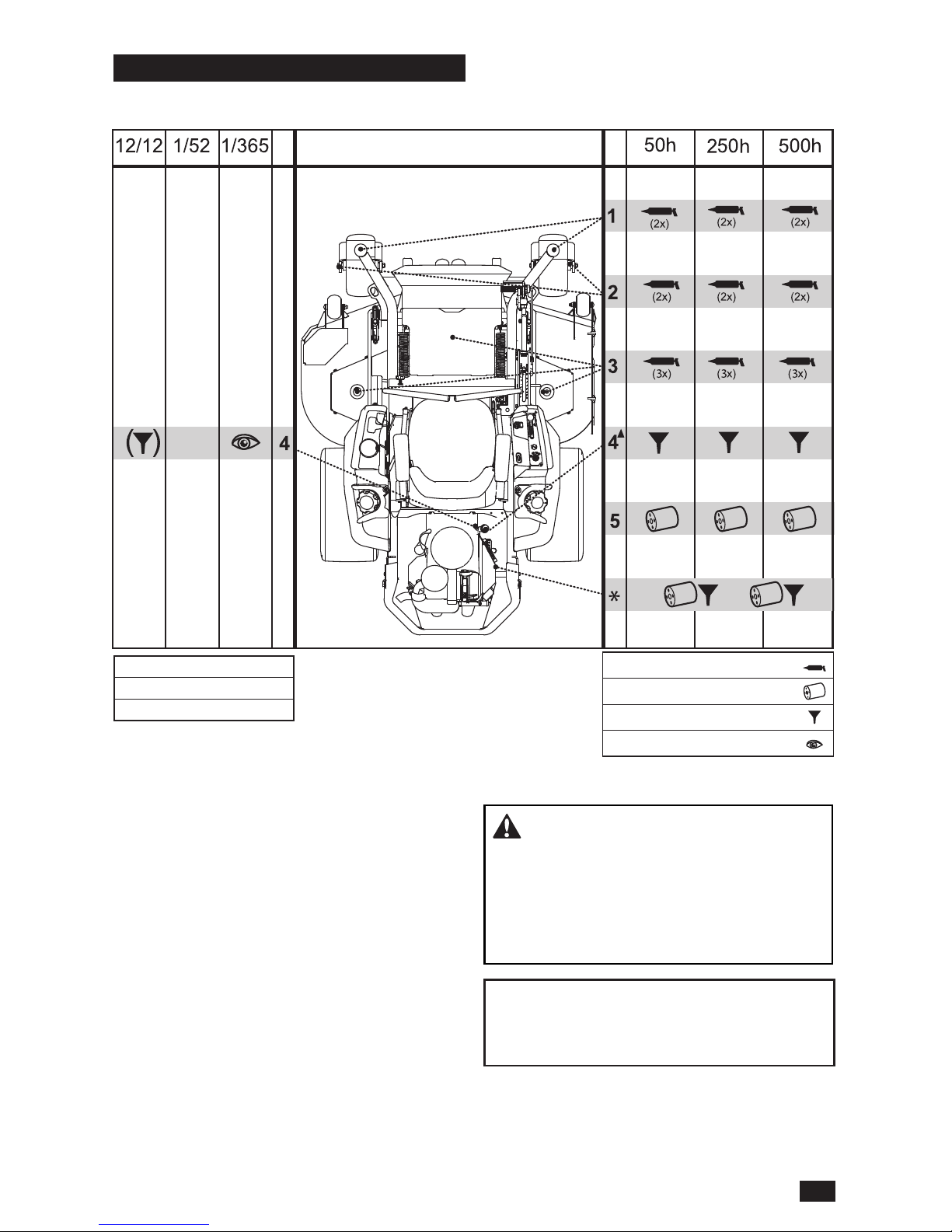

LUBRICATION ................................................ 27

Engine oil ................................................... 28

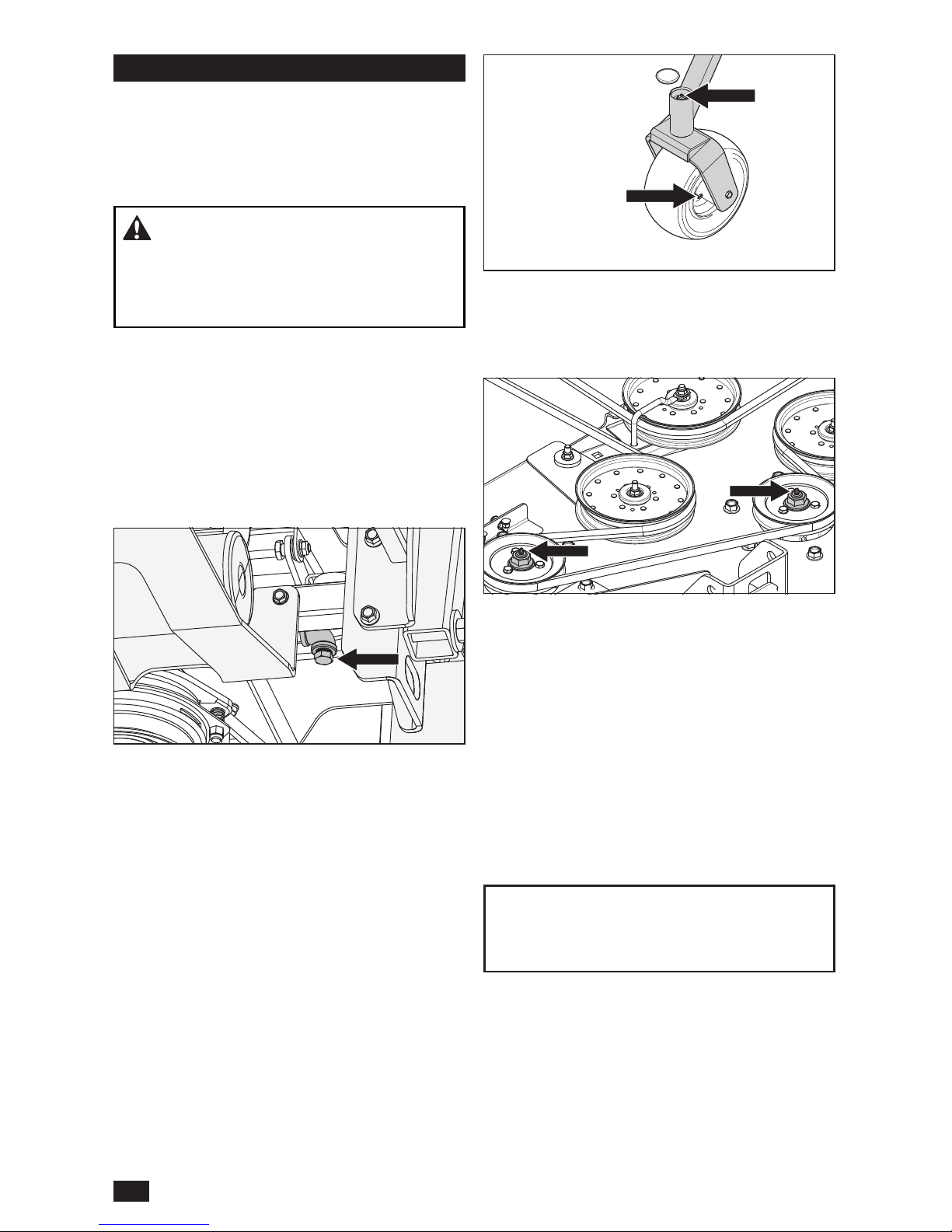

Wheel and Deck Zerks .............................. 28

Transaxle Fluid Change ............................. 28

TROUBLESHOOTING .................................... 30

STORAGE ....................................................... 31

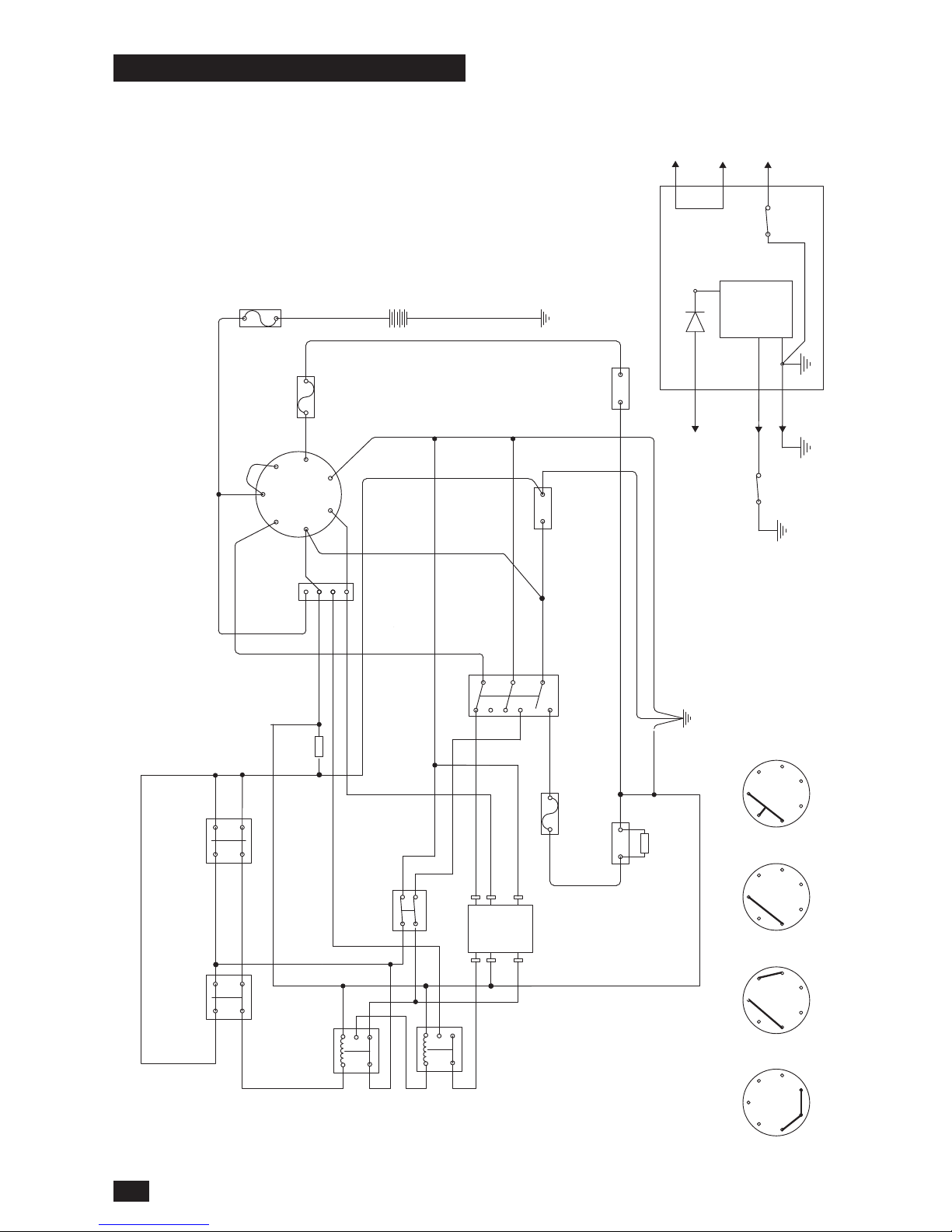

SCHEMATIC ................................................... 32

CONFORMITY ................................................ 33

EC Declaration Of Conformity ................... 33

TECHNICAL DATA .......................................... 34

SERVICE JOURNAL ....................................... 37

Congratulations

Thank you for purchasing a Husqvarna ride­on mower. This machine is built for superior

efciency to rapidly mow primarily large areas. A

control panel that the operator can easily access
and a hydrostatic transmission regulated by
steering controls each contribute to the machine’s
performance.

This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use,
service, maintenance) by all who operate this
machine is important for the safety of the operator
and others. It can also largely increase the life
span of the machine and increase its resale
value.

If you sell your machine, be sure to give the
operator manual to the new owner.

The last chapter of this operator manual supplies
a Service Journal. Make sure that service and
repair work are documented. A correctly kept
service journal reduces service costs for the
maintenance and affects the machine’s resale
value. Please contact your dealer for more
information. Take the operator manual along
when the machine is taken to your dealer for
service.

General

In this operator manual, left and right, rearward
and forward are used in relation to the machine’s
usual driving direction.

Continuous dedication to make our products

better requires that specications and design are

subject to change without notice.

Driving and Transport on Public Roads

Check applicable road trafc regulations before

transporting on public roads. If the machine is
transported, you must always use approved
fastening equipment and make sure that the
machine is correctly attached. DO NOT operate
this machine on public roadways.

Towing

If machine is equipped with a tow hitch, use much
more care when towing. Do not let children or
others in or on the towed equipment. Make wide

turns to avoid jack-kning. Travel slowly and leave

more distance to stop.

Do not tow on sloped ground. The weight of the
towed equipment can cause loss of traction and
loss of control.

Obey the manufacturer's recommendation for
weight limits for towed equipment. Do not tow
near ditches, canals, and other dangerous areas.

Operating

This machine is constructed only for mowing
grass on lawns and even ground without
obstacles such as stones, tree stumps, etc. The
machine can also be used for other tasks when
equipped with special accessories supplied by
the manufacturer. Operating instructions for the
accessories are supplied with delivery. All other
types of uses are incorrect. The manufacturer’s
directions concerning operation, maintenance,
and repairs must be carefully followed.

Lawn mowers and all power equipment, can
be potentially dangerous if used incorrectly.
Safety requires good judgment, careful use in
accordance with these instructions and common
sense.

The machine must only be operated, maintained,
and repaired by persons who know the machine’s
special qualities and who are also knowledgeable
about the safety instructions. Use only approved
repair parts to maintain this machine.

Accident prevention regulations, other general
safety regulations, occupational safety rules, and

trafc regulations must be followed without fail.

Unauthorized modications to the design of the

machine can absolve the manufacturer from
liability for resulting personal injury or damage to
property.

4

INTRODUCTION

Good Service

Husqvarna's products are sold throughout the
world and only in specialized retail stores with
complete service. This ensures that you as a
customer receive only the best support and
service. Before the product is delivered, the
machine has, for example, been inspected and

adjusted by your retailer. See the certicate in the

Service Journal in this operator manual.

When you need spare parts or support in
service questions, warranty issues, etc., consult
the following professional:

Manufacturing Number

The machine’s manufacturing number can be

found on the printed plate afxed to the engine

compartment.

Stated on the plate, from the top are:

• The machine’s type designation (I.D.).

• The manufacturer’s type number (Model).

• The machine’s serial number (Serial no.)

Please have the type designation and serial
number available when ordering spare parts.

This manual belongs to the machine with the
manufacturing number:

Engine Transmission

The engine’s manufacturing number is stamped
on one of the valve covers.

The plate states:

• The engine’s model.

• The engine’s type.

• Code

Please have these available when ordering spare
parts.

The wheel motors and hydrostatic pumps have a

barcode decal afxed at the rear.

5

INTRODUCTION

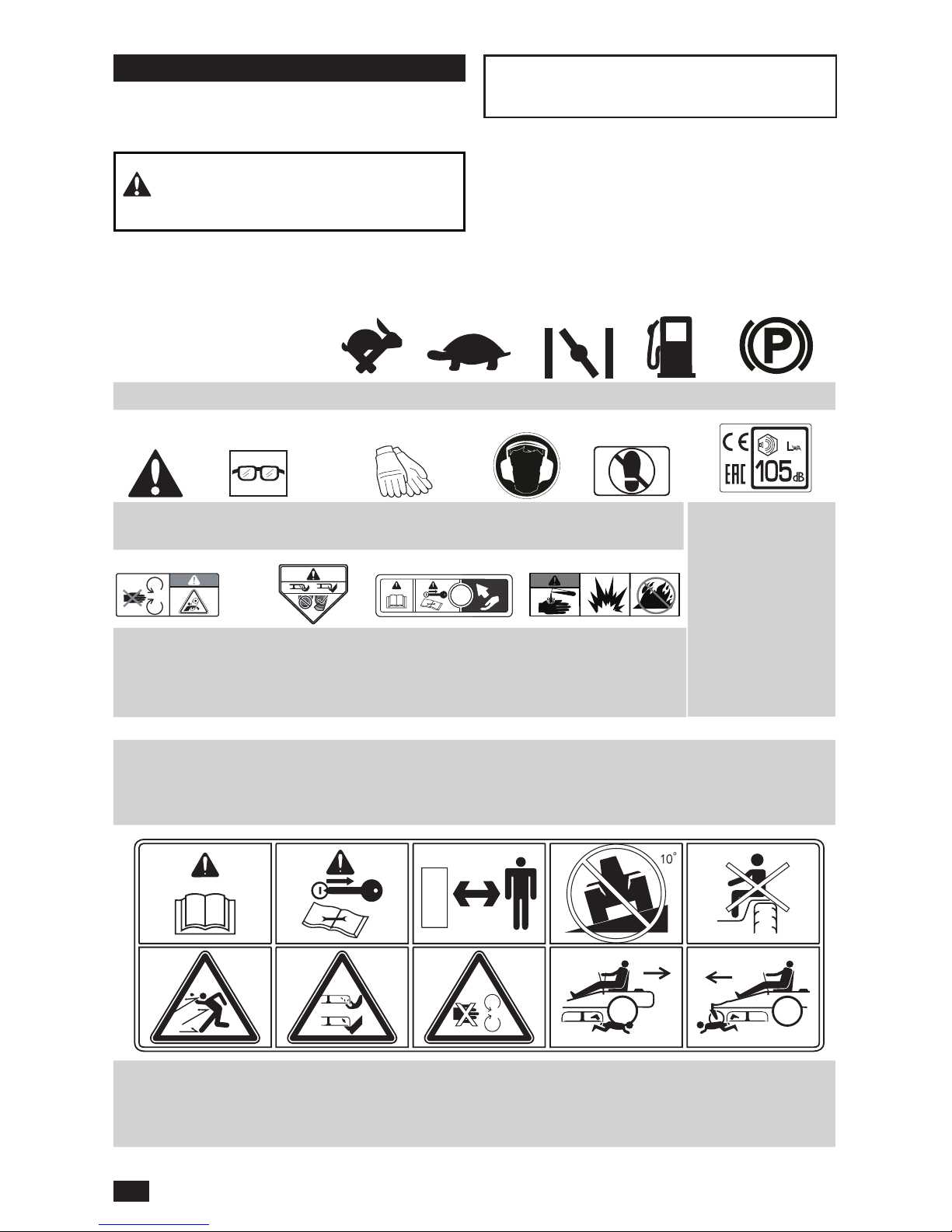

Reverse Neutral Fast Slow Choke Fuel Park Brake

Danger Use protective

glasses

Use protective

gloves

Wear hearing

protection

Do not

stand here

Read Operator

Manual

Shut off engine,

remove key before

maintenance

or repair

Keep a safe

distance from

the machine

Use on slopes no

greater than 10° No passengers

Whole body
exposure to

thrown objects

Severing of ngers

and toes

Do not open or

remove safety

shields wIth engine

running

Careful backing up,

watch for

other people

Careful going

forward, watch for

other people

These symbols are found on the machine and in
the operator manual. Study them carefully until
you know what they mean.

WARNING! Xxxx xxxxxx xxxxx xxxx

xxxxxxxxx xxxxxx xxxxxxxxx.

Used in this publication to tell the reader of a
risk of personal injury or death, particularly if the
reader neglects to obey the instructions in the
manual.

IMPORTANT INFORMATION Xxxx xxxxxx

xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx.

Used in this publication to tell the reader of a
risk of material damage, particularly if the reader
neglects to obey the instructions in the manual.
Used also when there is a possibility for misuse or
misassembly.

R N

Warning!

Do not

touch parts

Warning!

Do not use without

deector or

grass catcher

Warning!

Use caution when

lifting the cover

Warning!

Battery acid is

corrosive, explosive

and ammable

Noise emissions to
the surroundings
in accordance
with the European
Union’s directive.
The machine’s
emission is stated
in the chapter
TECHNICAL DATA
and on decals.

6

SYMBOLS AND DECALS

Safety Instructions

These instructions are for your safety. Read them
carefully.

WARNING! THIS CUTTING MACHINE
CAN AMPUTATE HANDS AND FEET AND
THROW OBJECTS. FAILURE TO OBEY
THE FOLLOWING SAFETY INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.

WARNING! CHILDREN CAN BE
SERIOUSLY INJURED OR KILLED BY THIS
EQUIPMENT. Carefully read and obey all the
safety instruction that follow.

IMPORTANT INFORMATION The American
Academy of Pediatrics recommends that
children be a minimum of 16 years of age
before operating a riding lawn mower.

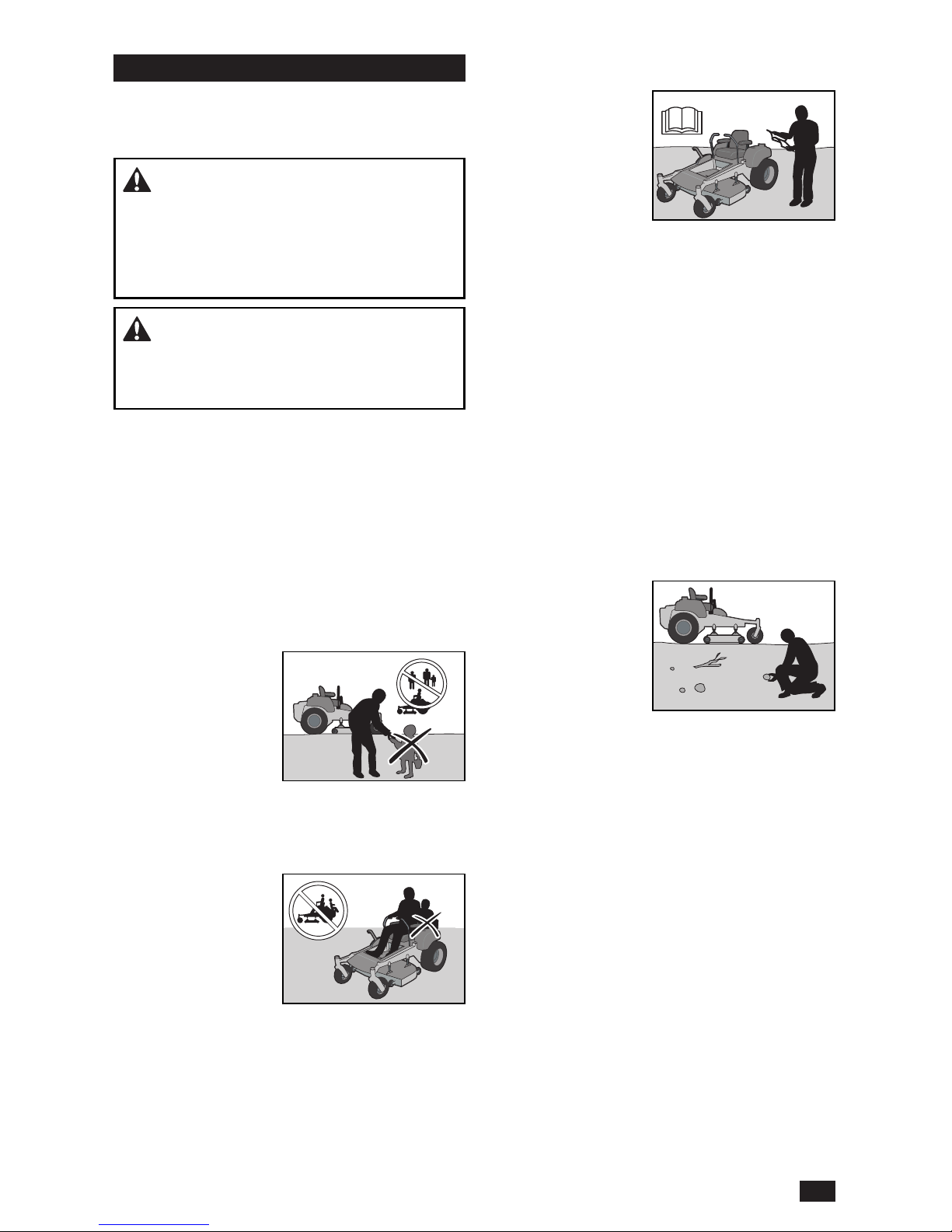

Protecting Children

Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
frequently attracted to the machine and the
mowing activity. Do not think that children will
stay where you last saw them.

• Keep children out
of the mowing area
and in the watchful
care of a responsible
adult other than the
operator.

• Be alert and turn
machine off if a child
enters the area.

• Before and while backing, look behind and
down for small children.

• Do not carry
children, even with
the blades shut off.
They can fall off and
be seriously injured
or interfere with safe
machine operation.
Children who have
been given rides in the past can suddenly come
into the mowing area to ride again and be run
over or backed over by the machine.

• Do not let children to operate the machine.

• Use extreme care when going near blind

corners, shrubs, trees, or other objects that can
block your view of a child.

General Operation

• Read, understand,
and obey all
instructions on the
machine and in
the manual before
starting.

• It is recommended
that someone knows
that you are mowing and can give aid if there is
an injury or accident.

• Those who operate, maintain, and/or service
this machine must rst read and understand this

Operator Manual. Local laws can regulate the
age of the user. The owner is responsible for
training the users of this equipment.

• The owner and operator of this equipment
can prevent accidents and is responsible for
accidents or injuries occurring to themselves,
other persons and/or property.

• Do not put hands or feet near rotating parts
or under the machine. Keep away from the
discharge opening at all times.

• Only let responsible adults, who are familiar
with the instructions, to operate the machine.

• Clean the area of
objects such as
rocks, toys, wire,
etc., which could
be picked up and
thrown by the
blades.

• Be sure the area
is has no bystanders before operating. Stop
machine if someone enters the area.

• Do not mow in reverse unless fully necessary.
Always look down and behind before and while
backing.

• Do not point discharged material toward
someone. Avoid discharging material against a
wall or obstruction. Material can ricochet back
toward the operator. Stop the blades when
going across gravel surfaces.

• Do not operate machine without the full grass
catcher, discharge guard, or other safety
devices in place and working.

• Slow down before turning.

• Always turn off blades, move the steering

control lever out to the park brake position, stop
engine and remove keys before dismounting.

• Do not carry passengers. The machine is only
intended for use by one person.

• Operate the machine only in daylight or good
articial light.

7

SAFETY

• Disengage blades when not mowing. Shut off
engine and wait for all parts to come to a full
stop before cleaning the machine, removing
the grass catcher or unclogging the discharge
guard.

• Do not operate the machine while under the
inuence of alcohol or drugs.

• Look for trafc when operating near or going

across roadways.

• Use more care when loading or removing the
machine into a trailer or truck.

• Always wear eye protection when operating
machine.

WARNING! When using the machine,
approved personal protective equipment must
be used. Personal protective equipment cannot
remove the risk of injury but it will reduce the
degree of injury if an accident does occur.
Speak to your retailer for aid in choosing the
right equipment.

• Wear correct Personal Protective Equipment
(PPE) while operating this machine, including
(at a minimum) sturdy footwear, eye protection,
and hearing protection. Do not mow in shorts
and/or footwear with open toes.

• Data shows that operators age 60 years and
above are involved in a large percentage of
riding mower-related injuries. These operators
must evaluate if they can safely operate the

riding mower sufciently to protect themselves

and others from serious injury.

• Obey the manufacturer’s recommendation for
wheel weights or counterweights.

• Keep machine free of grass, leaves or other
debris buildup which can touch hot exhaust or
engine parts and burn. Do not let the mower
deck plow leaves or other debris that can cause
a buildup to occur. Clean oil or fuel spillage
before operating or storing the machine.

• Let machine cool before storage.

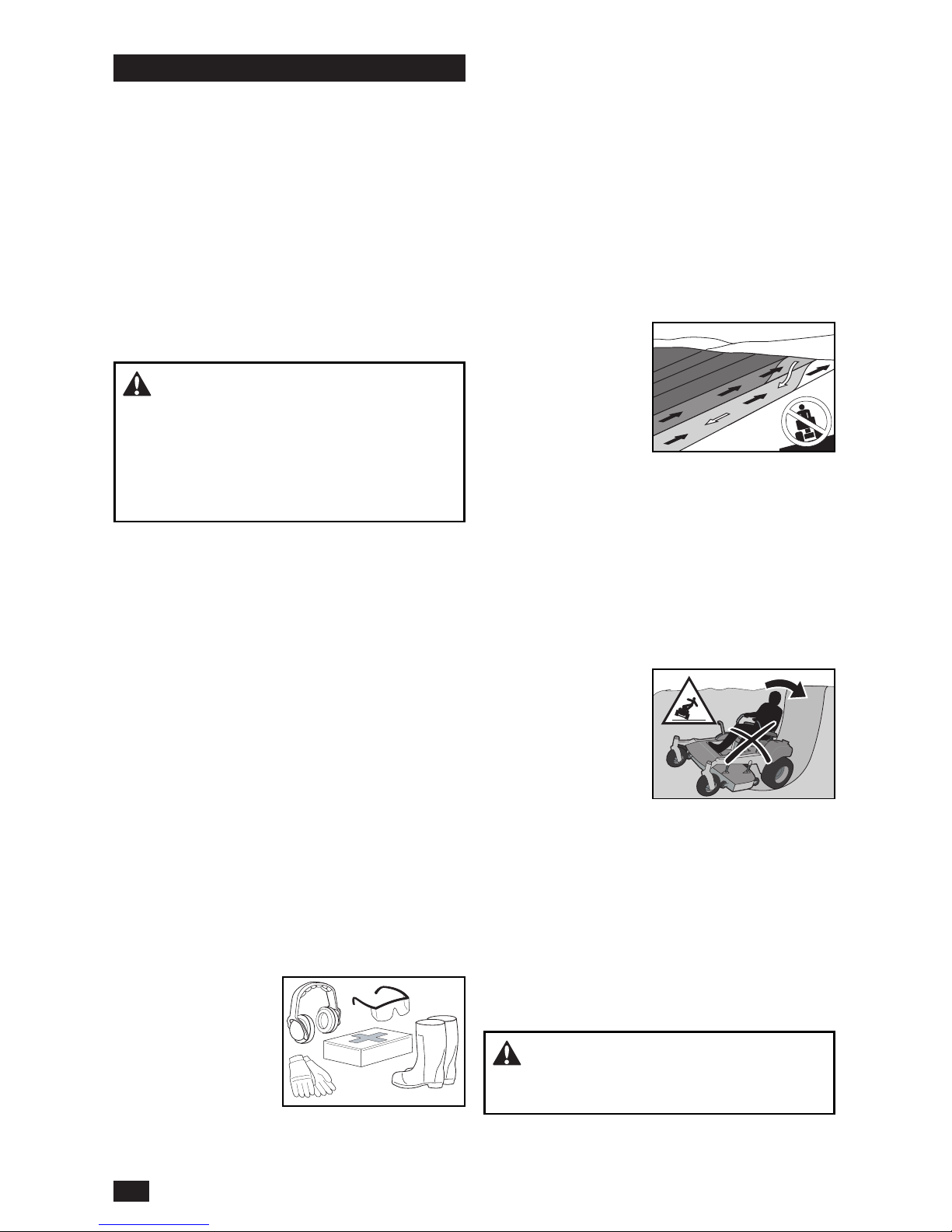

Personal Safety Equipment

• Make sure that rst

aid equipment is
near at hand when
using the machine.

• Do not use the
machine when
barefoot.

• Always wear
protective shoes or boots. Steel toe caps are
recommended.

• Always wear approved protective glasses or a
full visor when assembling or driving.

• Always wear gloves when handling the blades.

• Do not wear loose clothing that can become

caught in moving parts.

• Use ear protectors to avoid damage to hearing.

Slope Operation

Slopes are a major cause related to loss of
control and tip-over accidents, which can result in
severe injury or death. Operation on slopes
requires more care. If you cannot back up the
slope or if you feel uneasy on it, do not mow it.

• Mow up and down
slopes (10 degrees
maximum), not
across.

• Look for holes, ruts,
bumps, rocks, or
other hidden objects.
Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.

• Select a low ground speed so it will not be
necessary to stop while on the slope.

• Do not mow on wet grass. Tires can lose
traction.

• Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
continue slowly straight down the slope.

• Move slowly and
gradually on slopes.
Do not make
sudden changes in
speed or direction,
which could cause
machine to roll over.

• Use more care while
operating machine with grass catchers or other
attachments; the stability of the machine can be
effected.

• Do not use on steep slopes.

• Do not try to stabilize the machine by putting a

foot on the ground.

• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly
roll over if a wheel is over the edge or the edge
caves in.

WARNING! Do not drive up or down hills
with slopes greater than 10 degrees. Do not
drive across slopes.

8

SAFETY

Safe Handling of Gasoline

To avoid personal injury or damage to property,
use care in handling gasoline. Gasoline is very

ammable and the vapors are explosive.

WARNING! The engine and the exhaust
system become very hot during operation.
There is a risk for burns if touched. Let engine
and exhaust system to cool before refueling.

• Do not fuel the
machine indoors.

• Extinguish all
cigarettes, cigars,
pipes, and other
sources of ignition.

• Use only approved
gasoline containers.

• Do not remove gas cap or add fuel with
the engine running. Let engine cool before
refueling.

• Do not keep the machine or fuel container
where there is an open ame, spark or pilot light

such as on a water heater or other appliance.

• Before you start refueling, keep the risk of static
electricity to a minimum by touching a metal
surface.

• Do not ll containers in a vehicle or on a truck

or trailer bed with plastic liner. Always put
containers on the ground away from the vehicle

when lling.

• Do not put too much fuel in the tank. Replace

gas cap and tighten securely.

• Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.

• Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock­open device.

• If fuel is spilled on clothing, change clothing
immediately.

• Do not start the engine near spilled fuel.

• Do not use gasoline as a cleaning agent.

• If leaks occur in fuel system, the engine must

not be started until problem has been resolved.

• Check the fuel level before each use and leave
space for the fuel to expand, because the heat
from the engine and the sun can otherwise

cause the fuel to expand and overow.

General Maintenance

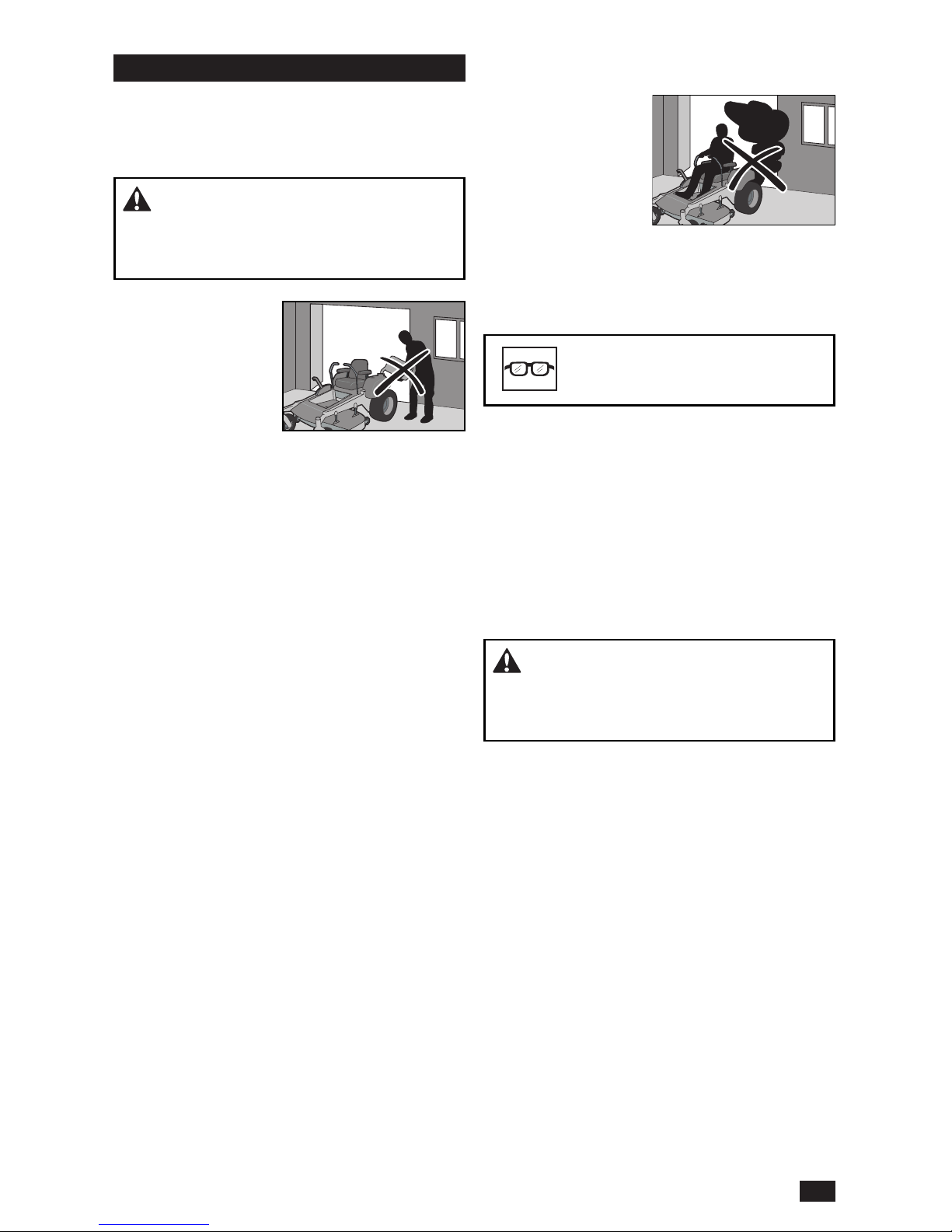

• Do not use the
machine indoors or
in spaces lacking
correct ventilation.
The exhaust
fumes contain
carbon monoxide,
an odorless and
poisonous lethal gas.

• Make sure that the equipment is in good
condition and that all nuts and bolts, especially
those fastening the blade attachments, are
correctly tightened and torqued.

CAUTION! Use protective glasses
for maintenance work.

• Maintain or replace safety and instruction labels
as necessary.

• Do not interfere with the intended operation
of or reduce the protection given by a safety
device. Check their operation regularly. DO
NOT operate a machine with a safety device
that does not operate correctly.

• Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts when
necessary.

WARNING! The engine must not

be started when the driver’s oor plate or

protective plates for the mower deck’s drive
belt is removed.

• Do not change the settings of engine controllers
and avoid running the engine at overly high
engine speeds. If you run the engine too fast,
machine components could be damaged.

• To reduce the risk of re, keep machine free of

grass, leaves or other debris buildup. Clean oil
or fuel spills and remove fuel-soaked debris. Let
machine cool before storing.

• Stop to do an inspection of the equipment if you
run over or into anything. If necessary, make
repairs before starting.

• Do not make adjustments or repairs with the
engine running.

• The blades are sharp and can cause cuts and
gashes. Wrap blades or use protective gloves
when handling them.

• Check the park brake’s operation regularly.
Adjust and service as necessary.

• Do not work with the starter circuit if there is
spilled fuel.

9

SAFETY

• Make sure that the fuel ller cap is mounted
tightly and no ammable substances are kept in

an open vessel.

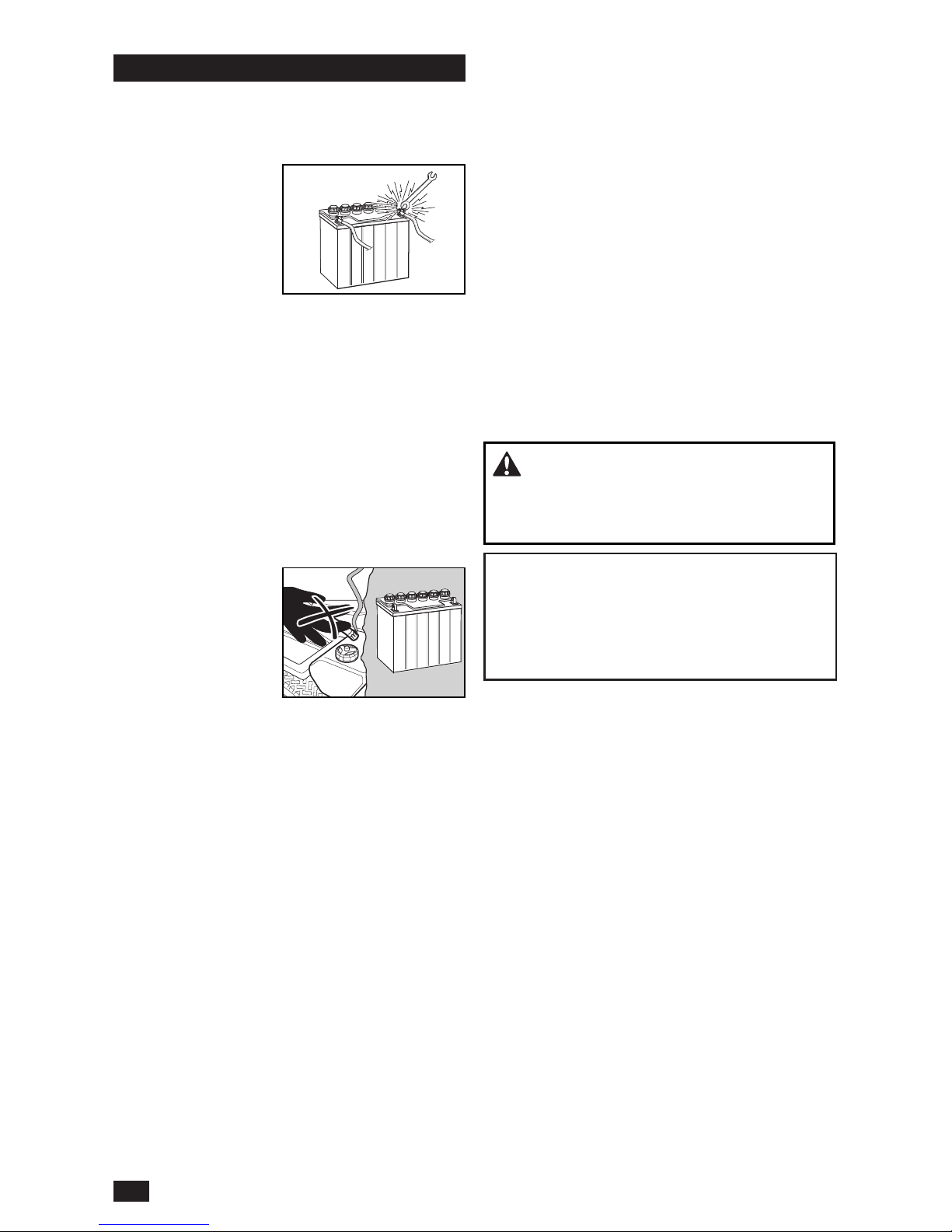

• Sparking can occur
when working with
the battery and the
heavy cables of the
starter circuit. This
can cause battery

explosion, re or eye

injury. Sparking will
not occur after the grounding cable (normally
negative, black) is removed from the battery.

• Disconnect the grounding cable from the battery
rst and reconnect it last.

• Do not make a bridge short circuit across the

starter relay to run the starter.

• Be very careful when handling battery acid.
Acid on skin can cause serious corrosive burns.
If you spill battery acid on your skin, rinse
immediately with water.

• Acid in the eyes can cause blindness, contact a
doctor immediately.

• Be careful when
servicing the battery.
Explosive gases form
in the battery. Do
not do maintenance
on the battery when
smoking or near

open ames or

sparks. The battery can explode and cause
serious injury or damage.

• The machine is tested and approved only
with the equipment originally supplied or
recommended by the manufacturer. Only use
approved repair parts for the machine.

• The mulch blades must only be used in familiar
areas when higher quality mowing is necessary.

• Regularly clean the deck and the underside of
the deck. Avoid spraying engine and electrical
components with water.

Transport

• The machine is heavy and can cause serious
crushing injuries. Be more careful when it is
loaded on or removed from a vehicle or trailer.

• Use full width ramps for loading machine into a
trailer or truck.

• The two front and rear tie down straps must
be used and directed down and out from the
machine.

• Check and abide by local trafc regulations

before transporting the machine on roads.

• Use an approved trailer to transport the
machine. Turn off the fuel supply. Fasten the
machine down with approved devices such as
bands, chains or straps.

• Do not tow this machine, it can cause damage
to the drive system.

• Do not tow trailers, etc. with this mower. They
can jackknife or overturn, causing damage to
the mower and possible serious injury to the
operator.

• Load the unit onto truck or trailer by driving up
ramps of sufcient strength using a slow speed.

Do not lift! The machine is not intended to be
lifted by hand.

• When loading or removing this machine, do not
use more than the maximum recommended
operation angle of 10 degrees.

WARNING! Use extreme care when
loading the machine into a truck or trailer using
ramps. There is the possibility of serious injury
or death if the machine falls off the ramps.

IMPORTANT INFORMATION The park brake

is not sufcient to lock the machine in place

during transport. Make sure the machine is
correctly fastened to the transport vehicle.
Always reverse the machine onto the transport
vehicle to avoid tipping it over.

Towing

If machine is equipped with a tow hitch, use much
more caution when towing. Do not let children or
others in or on towed equipment.

Make wide turns to avoid jack-kning. Travel

slowly and leave more distance to stop. Do not
tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.

Follow the manufacturer’s recommendation for
weight limits for towed equipment. Do not tow
near ditches, canals, and other hazards.

Spark Arrestor

This mower is equipped with an internal
combustion engine and must not be used on
or near unimproved forested, bush covered
or grassy lands unless the engine’s system is
equipped with a spark arrestor meeting applicable
local or state laws. Federal laws apply on federal
lands. If a spark arrestor is used, it must be
maintained in good working order by the operator.

A spark arrestor for the mufer is available

through your authorized Husqvarna dealer.

10

SAFETY

Rollover Protection System

The Rollover Protection System (ROPS)
increases the basic weight of the unit by 73 lbs.

• Do not use ROPS as a lifting, attaching or
anchoring point.

• Do not use ROPS for wrecking or towing.

• Do not exceed Max GVW: 2200 lbs.

• Read the operator manual before use.

• Securely fasten the seat belt if the unit has a

ROPS.

• Be certain the seat belt operates correctly
and can be released quickly in the event of an
emergency.

• Keep folding ROPS in the raised and locked
position and use the seat belt when operating
the machine.

• Lower a folding ROPS temporarily only when
absolutely necessary. Do NOT wear the seat
belt when the ROPS is folded down.

• Check carefully for overhead clearance (i.e.
before driving under trees, electrical wires,
through doorways) while loading into a truck or
trailer.

• Keep the ROPS in safe operating condition by
periodically inspecting for damage and keeping
all mounting fasteners tight. Check all bolts,
including on the seat belt, for correct torque
before each use.

• Check the ROPS structure for damage before
each use. If any part of the ROPS is damaged,
the entire ROPS must be replaced.

• DO NOT remove the ROPS.

• Where possible, avoid operating the unit near

ditches, embankments and holes.

• Reduce speed when turning, crossing slopes
and on rough, slick or muddy surfaces. Stay off
slopes too steep for safe operation.

• Watch where you are going, especially at row
ends, on roads and around trees.

• Do not permit others to ride.

• Operate mower smoothly, no jerky turns, starts

or stops.

• When mower is stopped, engage park brake
securely.

• ROPS bar is NOT intended for use in sub zero
temperatures.

WARNING! Please note that there is NO
roll over protection when the ROPS is folded
down.

11

SAFETY

2

3

4

5

12

11

10

9

8

7

1

6

13

14

15

2

5

3

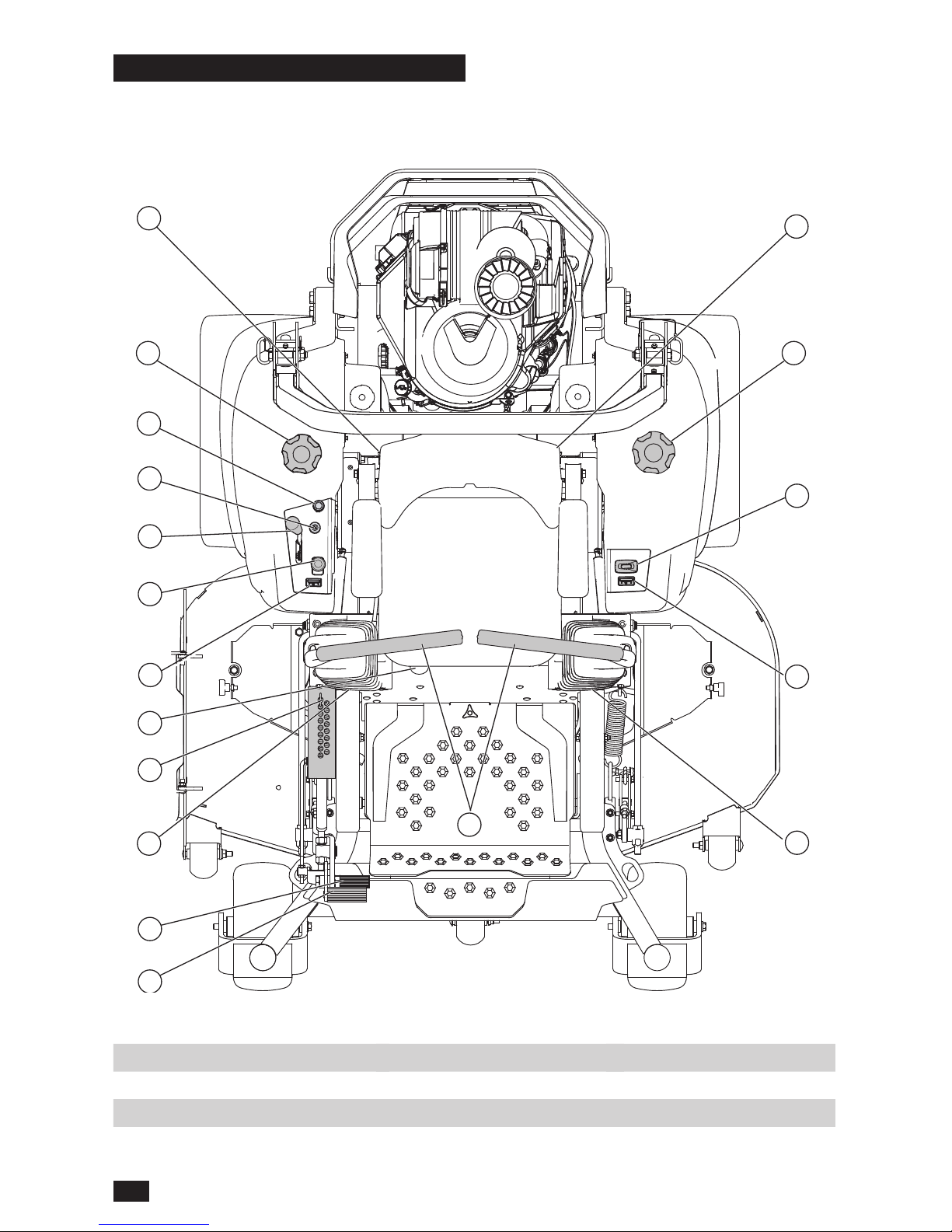

This operator manual describes the Husqvarna

Zero Turn Rider. The rider is tted with a four-

stroke overhead valve engine.

Transmission from the engine is made via
belt-driven hydraulic pumps. Using the left and

right steering controls, the ow is regulated and

thereby the direction and speed.

1. Steering / park brake controls

2. Tracking controls

3. Fuel gauges

4. Service meter

5. Fuel tank caps

6. Fuses

7. Fuel tank selector

8. Choke control

9. Ignition switch

10. Throttle control

11. Blade switch

12. Seat adjustment lever

13. Deck height pin

14. Deck lift pedal

15. Deck release pedal

12

CONTROLS

Steering Control Levers

The machine’s speed and direction are
continuously variable using the two steering
controls. The steering controls can be moved
forward or backward about a neutral position.
There is a neutral position, which is locked if the
steering controls are moved out.

When the two controls are in the neutral position
(N), the machine stands still. Equally moving
the two controls forward or backward moves the
machine in a straight line forward or backward.

For example, to turn right while moving forward,
move the right control towards the neutral
position. The rotation of the right wheel is reduced
and the machine turns to the right.

Forward

Neutral

Reverse

Park

Brake

Zero turn can be achieved by moving one control
backward (behind the neutral position) and
carefully moving the other steering control forward
from its neutral position. The rotation direction
when zero turning is determined by which
steering control is moved backward behind the
neutral position. If the left steering control is pulled
backward, the machine turns to the left. Use more
care when using this maneuver.

If the steering controls are in uneven positions

when standing still or do not t in the slots for

moving the controls out, they can be adjusted.

WARNING! The machine can turn very
rapidly if one steering control is moved much
further forward than the other.

Park Brake

The park brake is integrated with the steering
control levers. Move the two levers out from the
neutral position to engage the park brake.

To release the park brake, pull the two steering
control levers inwards to the neutral position at
the same time. Do not operate the unit without
the two levers being inwards out of the engaged
position or machine components could be
damaged.

IMPORTANT INFORMATION Failure to bring

the steering / park brake controls inward at the
same time will cause the unit's safety system to
shut the unit down.

Throttle Control

The throttle control regulates the engine speed
and the rate of rotation of the blades, assuming
the blade switch is pulled out.

To increase or decrease the engine speed, the
control is moved forward or back respectively.

Avoid idling the engine for long periods, as there
is a risk of fouling the spark plugs. USE FULL
THROTTLE WHEN MOWING, for best mower
performance and battery charging.

13

CONTROLS

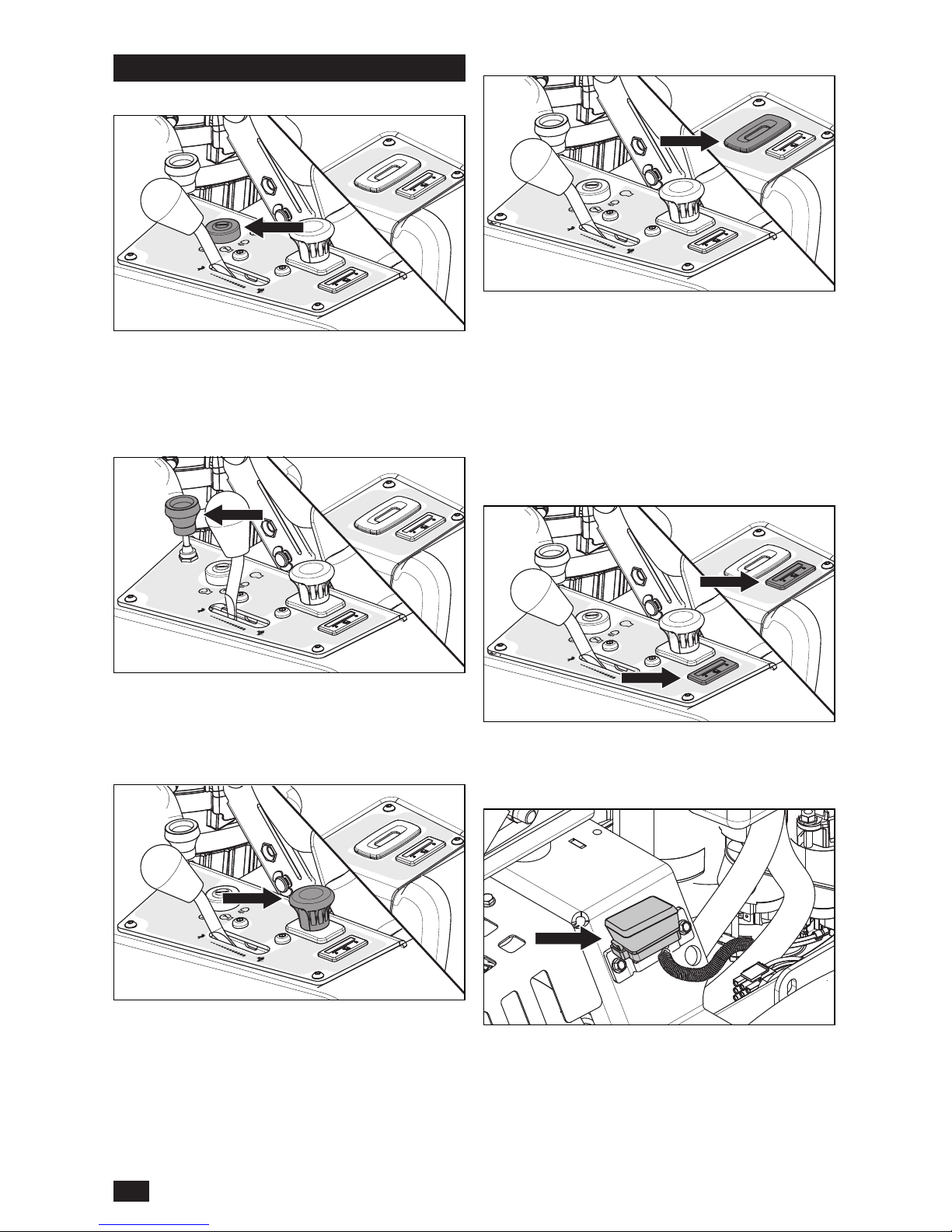

Fuses

Fuses are located on the left hand side of the
machine and are accessed by tilting the seat

forward. Fuses are at pin fuses type as used in

automobiles. The 20 A is the primary fuse. The

7.5 A is for the mower deck coupling. The 10 A is
for accessories.

Blade Switch

To engage the mower deck, pull the knob out;
mower blades are disengaged when the knob is
pressed down.

Service Meter

The service meter is located on the left hand
control panel and shows the total operating time
with the blades engaged.

After every 50 hours of operation, an oil can icon
will appear and stay on for two hours, before
an automatic reset occurs. To manually reset

the meter, turn the key off and on ve times at

one second intervals. To service the engine and
mower, see the Service Journal of this manual.

Choke Control

The choke control is used for cold starts to
provide the engine with a richer fuel mixture.

For cold starts, pull the control up.

Ignition Switch

The ignition switch is used to start and stop the
engine. On models equipped with headlights, turn
the key clockwise to ACCESSORY for headlight
use.

Fuel Gauges

Fuel gauges for each fuel tank are located the
right and left control panels.

14

CONTROLS

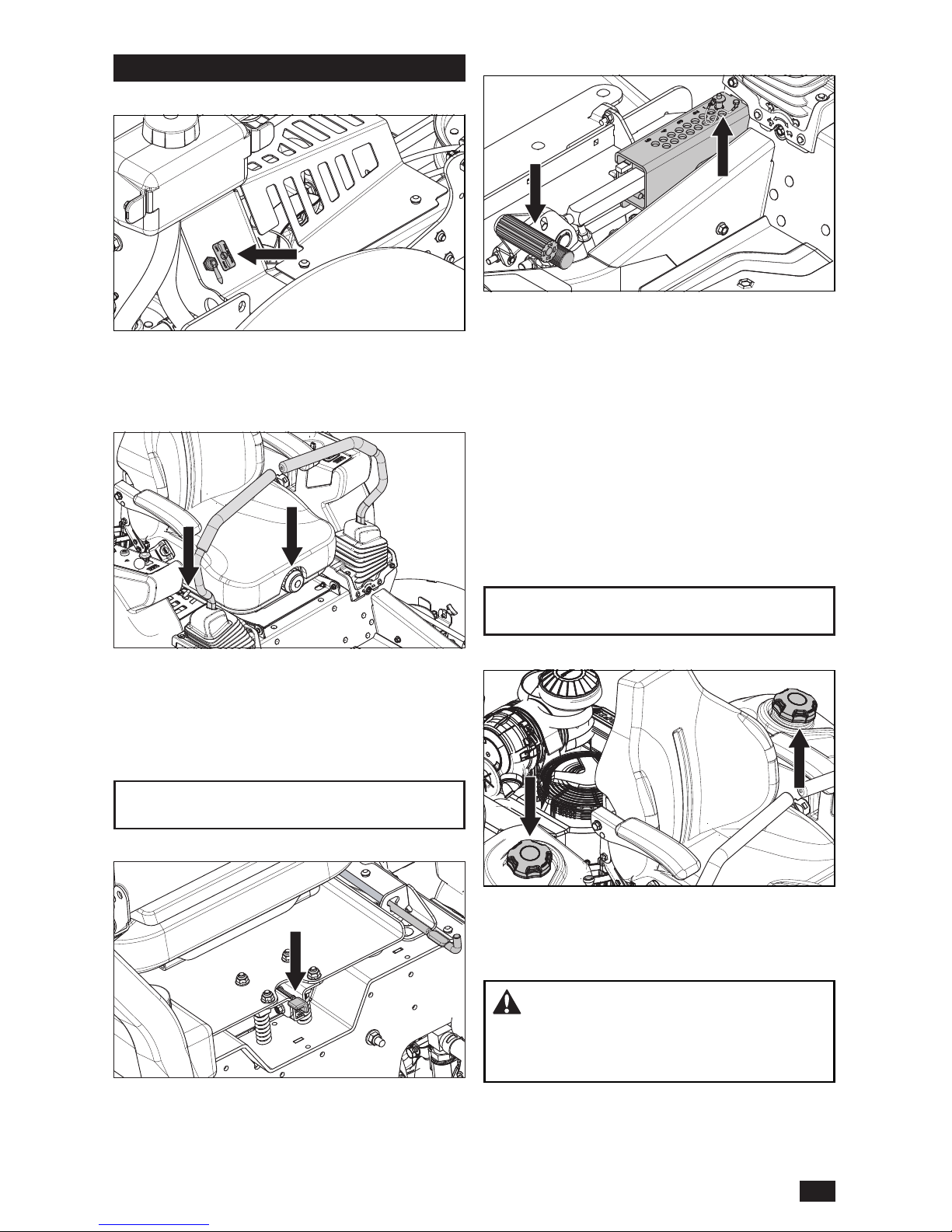

Fuel Shut Off Valve

The fuel shut off valve is located at the right rear
of the seat. The valve has three positions: right
tank, left tank and OFF.

Cutting Height

The cutting height pedals release the deck lift and
set the desired deck height. Apply pressure to
the lift pedal (lower) and rotate foot to also apply
pressure to the release pedal (upper), unlocking
the deck lift.

For transport, push the lift pedal forward until the
deck lift latches in the transport (highest) position.

The cutting height can be set from 25.4 mm - 127
mm. To set the deck cutting height, press the
button on the top of the height pin to remove it.
Slip the height pin into the hole for the desired
cutting height.

Release deck height control pedal by pushing it
forward.

IMPORTANT INFORMATION Always raise the
deck to the highest position for transport.

Seat Adjustment

The seat can be adjusted lengthways with the
lever located at the right hand side of the seat.
When making adjustments the lever is moved
upward.

Adjustments may be made to seat suspension by
turning the center knob.

IMPORTANT INFORMATION Seat must not

be adjusted while unit is in motion.

Seat Release

The seat can be rotated forward to access the
mower battery and hydro gears. Pull up on the
latch lever to release the seat. Raise the seat until
the rod engages.

Fuel Tanks

Read the safety instructions before refueling. The
capacity for each tank is six gallons (22.7 liters).

Regularly check the gas cap gasket for damage
and keep the cap properly tightened.

WARNING! Fill to bottom of ller neck.

Do not overll. Wipe off spilled oil or fuel. Do

not store, spill or use gasoline near an open

ame.

The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix). Environmentally
adapted alkylate gasoline can be used. See

15

CONTROLS

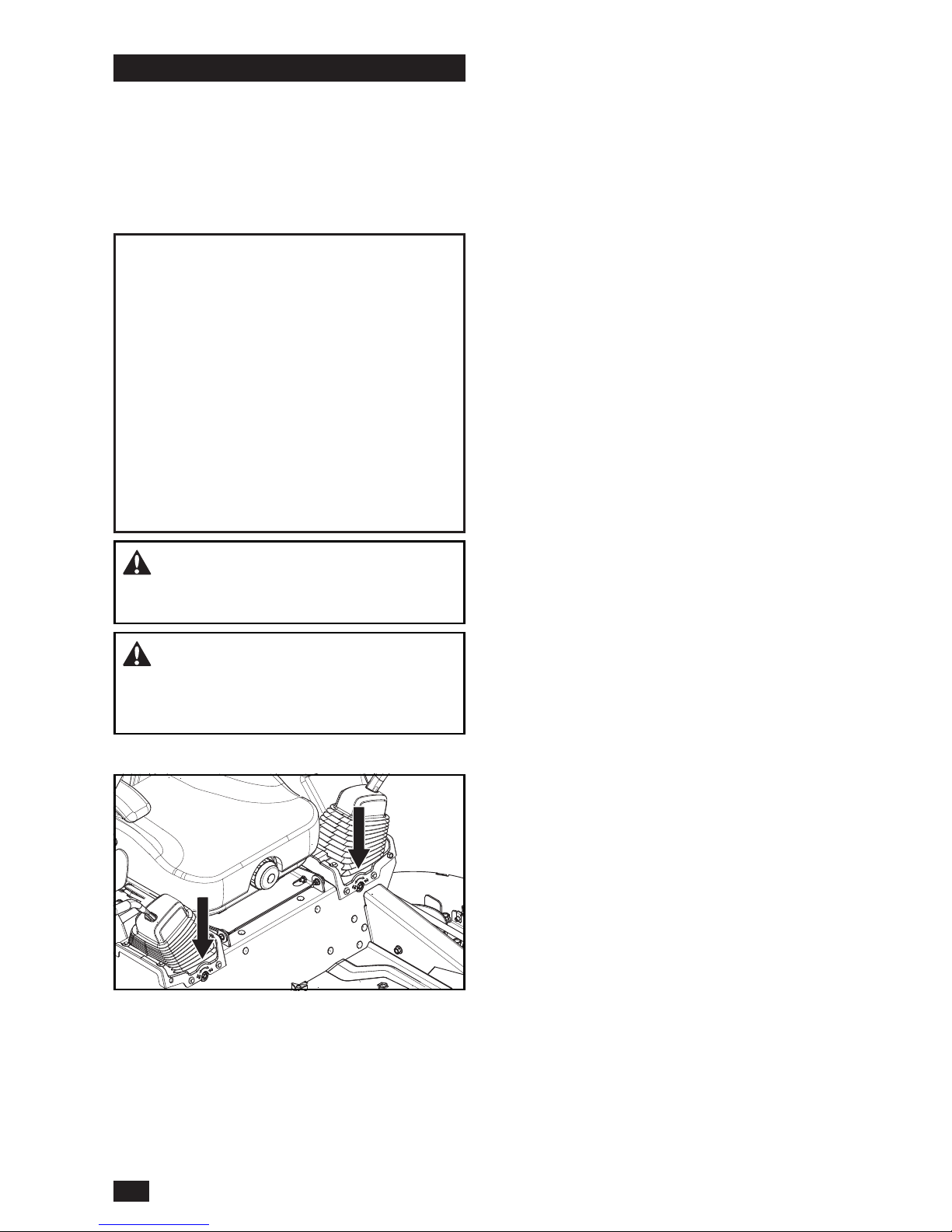

Tracking

If the mower is not tracking straight, check the air
pressure in the two rear tires. Recommended air
pressure for the rear tires is 15 psi (1 bar).

1. Tracking adjustments are made using the

tracking bolts. The bolts act as limiting devices
for the motion control levers when in the full­forward position.

Technical Data concerning ethanol fuel. Methanol
fuel is not allowed. Do not use E85 alcohol based
fuel. Damage to the engine and components may
occur.

When operating in temperatures below 0°C, use
fresh, clean winter grade gasoline to help insure
good cold weather starting.

IMPORTANT INFORMATION Experience
indicates that alcohol blended fuels (called
gasohol, ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system must be emptied before storage of 30
days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel the next
season. See Storage for more information. Do
not use engine or carburetor cleaners in the
fuel tank or permanent damage may occur.

WARNING! Gasoline is highly ammable.
Observe caution and ll the tank outdoors (see

the safety section).

WARNING! The engine and the exhaust
system, become very hot during operation.
There is a risk for burns if touched. Let engine
and exhaust system to cool before refueling.

2. For preliminary tracking adjustment, move
unit to an open, unobstructed area such as an

empty parking lot or open eld.

3. Back the bolts out until ush with nut.

4. Test operate unit by driving it at full throttle
and the full forward position on the two
steering control levers. Gradually turn in the
tracking bolt on the right hand side until the
unit noticeably starts drifting right.

5. Drive forward at full throttle with the two
steering control levers in the full forward
position. Gradually turn in the left hand
tracking bolt until unit tracks straight.

16

CONTROLS

Read the Safety section and following pages, if
you are unfamiliar with the machine.

Training

Due to unique steering capabilities, zero turn
mowers are far more maneuverable than typical
riding mowers.

Review this section fully before trying to move the

mower under its own power. When rst operating

the mower or until becoming comfortable with
controls, use a reduced throttle speed and
reduced ground speed. DO NOT move control
levers to the furthest forward or reverse positions
during initial operation.

First time users must become familiar with the
mower’s movement on a hard surface, such as
concrete or blacktop BEFORE trying to operate
on turf. Until the operator becomes comfortable
with the mower controls and zero turn, overly
aggressive maneuvers can damage turf.

Steering

To move forward and rearward

The direction and speed of the mower’s
movements are effected by the movement of
the control lever(s) on each side of mower. The
left lever controls the left wheel. The right lever
controls the right wheel.

First time users must push the mower (see
Moving Machine By Hand in the Operation

section) to an open, at area without other

persons, vehicles or obstacles nearby. To move
the unit under its own power, the operator must
sit in the seat and start the engine (see Before
Starting in the Operation section). Adjust the
engine speed to idle but do not engage the
blades. Pull control levers inward. As long as the
control levers have not been moved forward or
rearwards, the mower will not move.

Slowly move the two control levers forward
slightly. This will let the mower start moving
forward in a straight line. Pull the control levers
back to the neutral position and stop the mower
from moving.

Pull back slightly on control levers, allowing the
mower to move rearwards. Push the control
levers forward to the neutral position to stop the
mower from moving.

To turn to the right

While moving in a forward direction, pull the right
lever back towards the neutral position while
maintaining the position of the left lever, this will
slow the rotation of the right wheel and cause the
machine to turn in that direction.

To turn to the left

While moving in a forward direction pull the left
lever back towards the neutral position while
maintaining the position of the right lever, this will
slow the rotation of the left wheel and cause the
machine to turn in that direction.

To zero turn

While moving in a forward direction, rst pull the

two control levers back until the mower stops or
slows dramatically.

Then by alternating one lever slightly to the
forward position and the other in the reverse
position, complete the turn.

WARNING! Make sure the work area is
free of stones and other objects that could be
thrown by the rotating blades.

Roll Bar

Operate the unit with the roll bar in the raised and
locked position and use the seat belt. There is
no rollover protection when the roll bar is down.
If it is necessary to lower roll bar, do not wear the
seat belt. Raise the roll bar as soon as clearance
permits.

WARNING! The seat belt must be used
when the roll bar is in upright position.

Before Starting

WARNING! Make sure the work area is

free from of stones and other objects that could
be thrown by the rotating blades.

1. Read the sections on Safety and Controls

before starting the machine.

2. Perform the daily maintenance before

starting (see Maintenance Schedule in the
Maintenance section).

3. Check that there is sufcient fuel in the fuel

tank.

4. Adjust the seat to the desired position.

The following conditions must be fullled before

the engine can be started:

• The blade switch must be pressed down into
the disengaged position.

• The two steering / park brake controls must be
in the locked (outer) position.

Starting the Engine

1. Sit on the seat.

2. Raise the mower deck to the transport
position by pushing the lift pedal forward.

17

OPERATION

3. Disengage the mower blades by pressing the
blade switch down.

4. Move the steering / park brake controls to the
locked (outer) position.

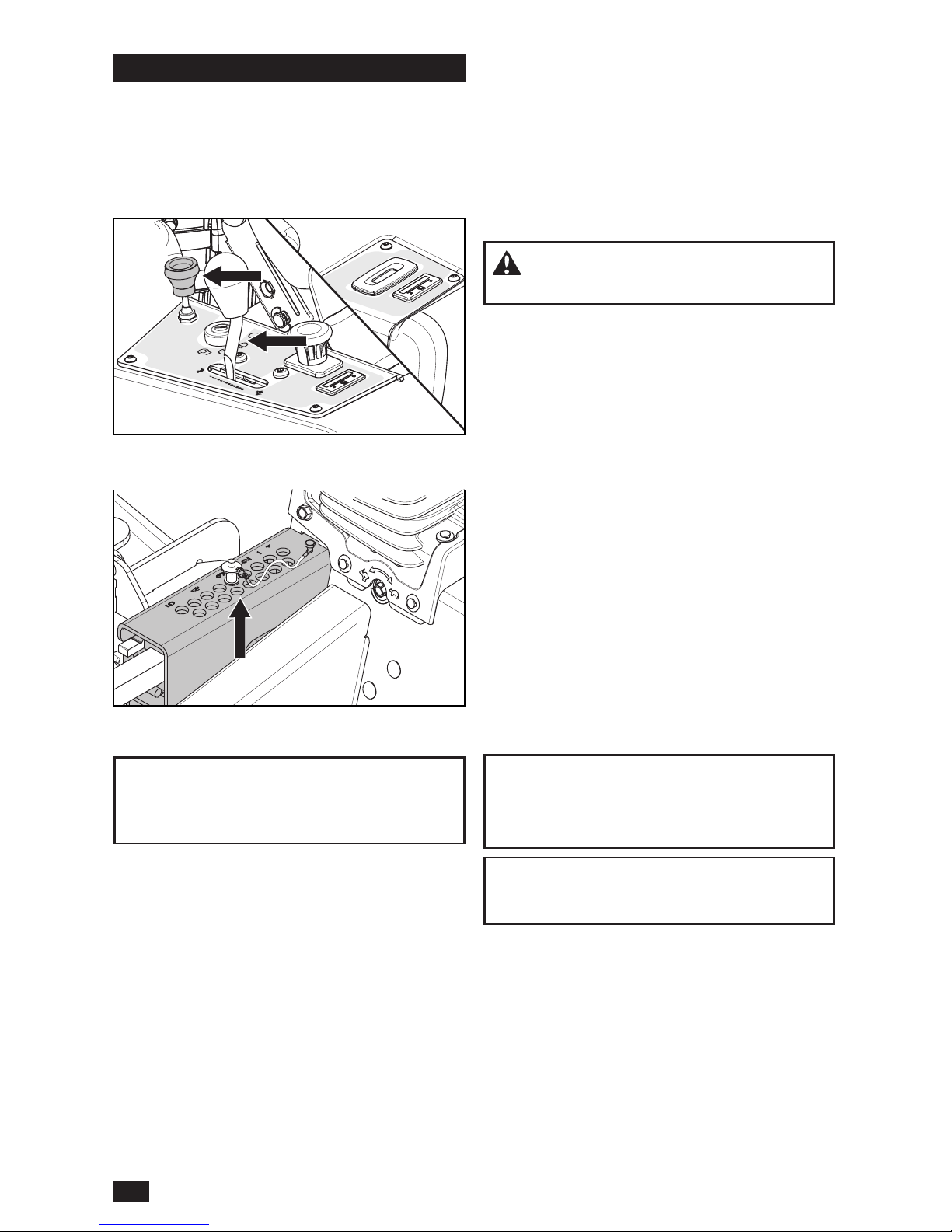

5. Move throttle control to the middle position. If
the engine is cold, pull the choke control up.

6. Set the fuel tank valve to the desired tank.

7. Set the deck height pin in the desired position.

8. Press in and turn the ignition key to the start
position.

IMPORTANT INFORMATION Do not run the

starter for more than ve seconds each time. If

the engine does not start, wait approximately
ten seconds before retrying.

9. When the engine starts, immediately release
the ignition key back to the run position.
Slowly push in the choke control knob, if it
was used to start a cold engine.

10. Set the engine speed with the throttle. Allow
the engine to run at a moderate speed,
approximately mid throttle, for a short time
before use. USE FULL THROTTLE WHEN
MOWING (no choke).

Running

1. Release the park brake by pulling the steering
/ park brake controls in to the neutral position
at the same time.

NOTE: The mower is equipped with an
operator presence system. If the operator

tries to leave the seat with the engine running,

without rst engaging the park brake, the

engine will shut off.

2. Release deck height control by pushing the
pedal forward to lower the deck to selected
setting.

3. Move throttle control to full throttle.

4. Engage the mower deck by pulling the blade
switch up.

WARNING! Make sure that no one is

near mower when engaging blade switch.

5. Pull control levers inward and slowly move
the two control levers slightly forward to move
forward in a straight line.

Stopping the Engine

1. Move the throttle to the minimum position
(tortoise symbol).

2. Move the steering / park brake controls at the
same time out to the park brake position.

3. Release the mower deck by pressing the
blade switch down.

4. Raise the mower deck by pressing the foot
pedals forward to the transport position.
If the engine has been worked hard, allow it to
idle at least sixty seconds to attain a normal
operating temperature before stopping. To
prevent fouling the spark plugs, avoid idling
the engine for longer periods.

5. Turn the ignition key to the stop position and
remove the key. Always remove the key when
leaving the mower to prevent unauthorized
use.

IMPORTANT INFORMATION When stopping

and leaving the machine, the two steering /
park brake controls must be moved out to the
locked position at the same time.

IMPORTANT INFORMATION Leaving the
ignition switch in a position other than OFF will
cause the battery to be discharged.

Operating on Hills

Read the Safety Instructions Driving on Slopes
in the Safety section.

• Use the slowest speed possible before starting
up or down hills.

• If stopping is fully necessary, pull steering / park
brake controls into the neutral position and push
outward to engage the park brake.

• Pull the steering / park brake controls back to
the center of the mower and push forward to
regain forward movement.

18

OPERATION

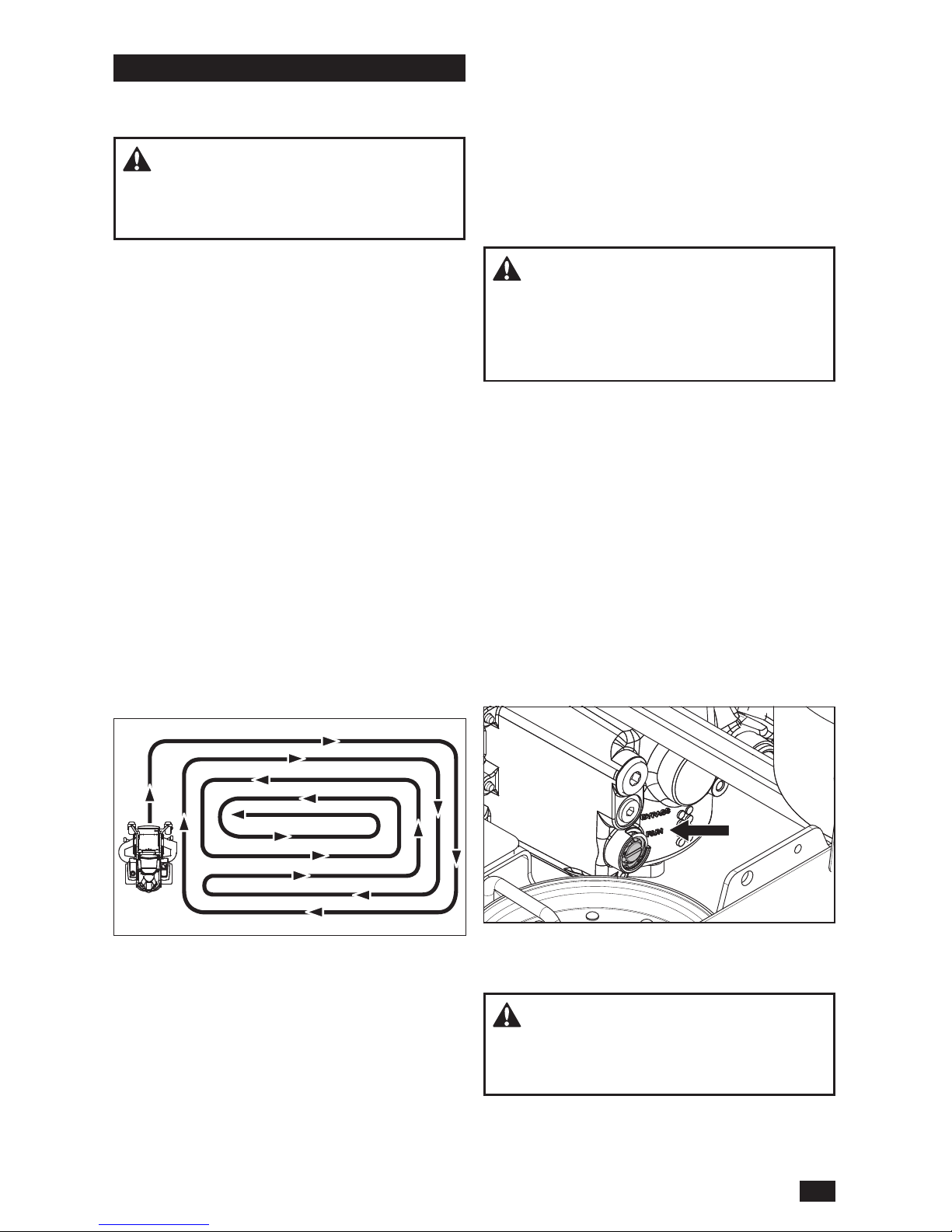

Mowing Tips

• Find and ag rocks and other xed objects to

avoid collisions.

• Begin with a high cutting height and reduce
it until the desired mowing result is attained.
Cut the average lawn to 63.5 mm during the
cool season and over 76.2 mm during the hot
months. For healthier and better looking lawns,
mow often after moderate growth.

• For best cutting performance, mow grass over

15.2 cm in height twice. Make the rst cut

relatively high; the second to the desired height.

• The mowing result will be best with a high
engine speed (the blades rotate rapidly) and
low speed (the rider moves slowly). If the grass
is not too long and dense, the driving speed can
be increased without negatively affecting the
mowing result.

• When mowing large areas, start by turning to
the right so that clippings will discharge away
from shrubs, fences, driveways, etc. After one
or two rounds, mow in the opposite direction

making left hand turns until nished.

• The nest lawns are obtained by mowing

often. The lawn becomes more even and the
grass clippings more evenly distributed over
the mown area. The total time taken is not
increased as a higher operating speed can be
used without poor mowing results.

• Avoid mowing wet lawns. The mowing result
is poorer because the wheels sink into the soft
lawn, clumps build, and grass clippings fasten
under the cowling.

• Hose the mower deck underside with water
after each use. When cleaning, the mower deck
shall be raised into the transport position. Make
sure the mower is cooled and the engine is off.

• Use compressed air to clean top surface of
the deck. Avoid ooding water on top surface,

engine and electrical components.

• When the mulching kit is used, it is important
that the mowing interval is frequent.

WARNING! Do not make adjustments

unless:

• the engine is stopped,

• the ignition key is removed,

• the park brake is engaged

Moving Machine By Hand

Bypass Valves

Bypass valves are used to release the system so
the machine may be moved by hand when not
running.

Hydro Pumps

When pushing or pulling the mower, engage
the bypass valve on each transaxle. Access to
the valves is from the lower rear of the unit. the
bypass valves are located on the front, inner
sides of the transaxles. Set the deck to the lowest
position when accessing the pump valves. To
disengage each pump, turn the slot on the pump
valve 45O clockwise from the RUN position to the
BYPASS position.

Load the machine into truck or trailer by driving up
ramps in low gear. DO NOT LIFT! The machine is
not intended to be lifted by hand.

WARNING! Use extreme caution when
loading the machine into a truck or trailer using
ramps. There is the possibility of serious injury
or death if the machine falls off the ramps.

• Try not to stop or change speed on hills.

• Make all turns slowly.

WARNING! Do not drive the rider on
terrain that slopes more than 10 degrees. Mow
slopes up and down, never side to side. Avoid
sudden directional changes.

19

OPERATION

Maintenance Schedule

Following is a list of maintenance procedures
that must be performed on the machine. For
those points not described in this manual, visit an
authorized service workshop. An annual service

MAINTENANCE

DAILY

AT

LEAST

ONCE
EACH

YEAR

MAINTENANCE

INTERVAL

IN HOURS

BEFORE AFTER 50 250 500

CHECK

Park brake for adjustment

● ● ● ● ●

Engine’s oil level (every refueling)

■

Safety system

●

For fuel and oil leakages

♦

For damage

♦ ♦ ♦ ♦

For loose hardware (screws, nuts)

●

For mower deck damage

●

Tire pressures

● ● ● ●

Battery connections

● ● ● ●

CLEAN

Engine’s cooling air intake

■

Under the mower deck

● ● ● ●

Around the engine

♦ ♦ ♦ ♦

Around belts, belt pulleys

♦ ♦ ♦ ♦

Engine’s cooling air intake

2)

■ ■ ■ ■

Air cleaner foam pre-lter

2)

■ ■

Air cleaner paper lter cartridge

2)

■ ■

ALSO

Inspect mufer/spark arrestor

♦ ♦ ♦ ♦

Start the engine & blades, listen for unusual sounds

♦

Sharpen

3)

/ Replace mower blades

● ● ● ●

1)

First change after 8-10 hours. When

operating with a heavy load or at high ambient
temperatures, replace every 50 hours.

2)

In dusty conditions, cleaning and replacement

are required more often.

3)

Performed by authorized service workshop.

carried out by an authorized service workshop
is recommended to maintain your machine in
the best possible condition and to ensure safe
operation.

Read General Maintenance in the Safety
section.

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer’s manual

WARNING! Before performing service or

adjustment:

• Engage the park brake.

• Place the blade switch in the disengaged

position.

• Turn the ignition switch to OFF position and
remove the key.

• Make sure the blades and all moving parts
have stopped.

20

MAINTENANCE

MAINTENANCE

DAILY

AT

LEAST

ONCE
EACH

YEAR

MAINTENANCE

INTERVAL
IN HOURS

BEFORE AFTER 50 250 500

CHECK

Throttle and choke cables for adjustment

■

Mower deck for adjustment

● ●

Condition of belts, belt pulleys

● ●

Caster wheels (every 200 hours)

● ●

Hydraulic oil level

●

Engine valve clearance

3)

♦ ♦

CHANGE

Spark plugs

■ ■

Engine oil

1)

■ ■

Engine oil lter

■ ■

Fuel lter

■ ■

Paper air lter

2)

■ ■

Air cleaner foam pre-lter

2)

■

Air cleaner paper lter cartridge

2)

■ ■

Hydraulic oil (every 500 hours)

● ●

Hydraulic oil lter (every 500 hours)

● ●

ALSO

Dismantle and inspect starter 3) (every 500 hours)

♦

Perform the 500-hour service

3)

♦ ♦

1)

First change after 8-10 hours. When

operating with a heavy load or at high ambient
temperatures, replace every 50 hours.

2)

In dusty conditions, cleaning and replacement

are required more often.

3)

Performed by authorized service workshop.

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer’s manual

WARNING! Do not short battery
terminals by allowing a wrench or other objects
to contact the two terminals at the same time.
Before connecting battery, remove metal
bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected rst to

prevent sparks from accidental grounding.

CAUTION! Always wear eye
protection when around batteries.

IMPORTANT INFORMATION The mower is
equipped with a 12-volt negative grounded
system. The other vehicle must also be a
12-volt negative grounded system. Do not use
your mower to start other vehicles.

21

MAINTENANCE

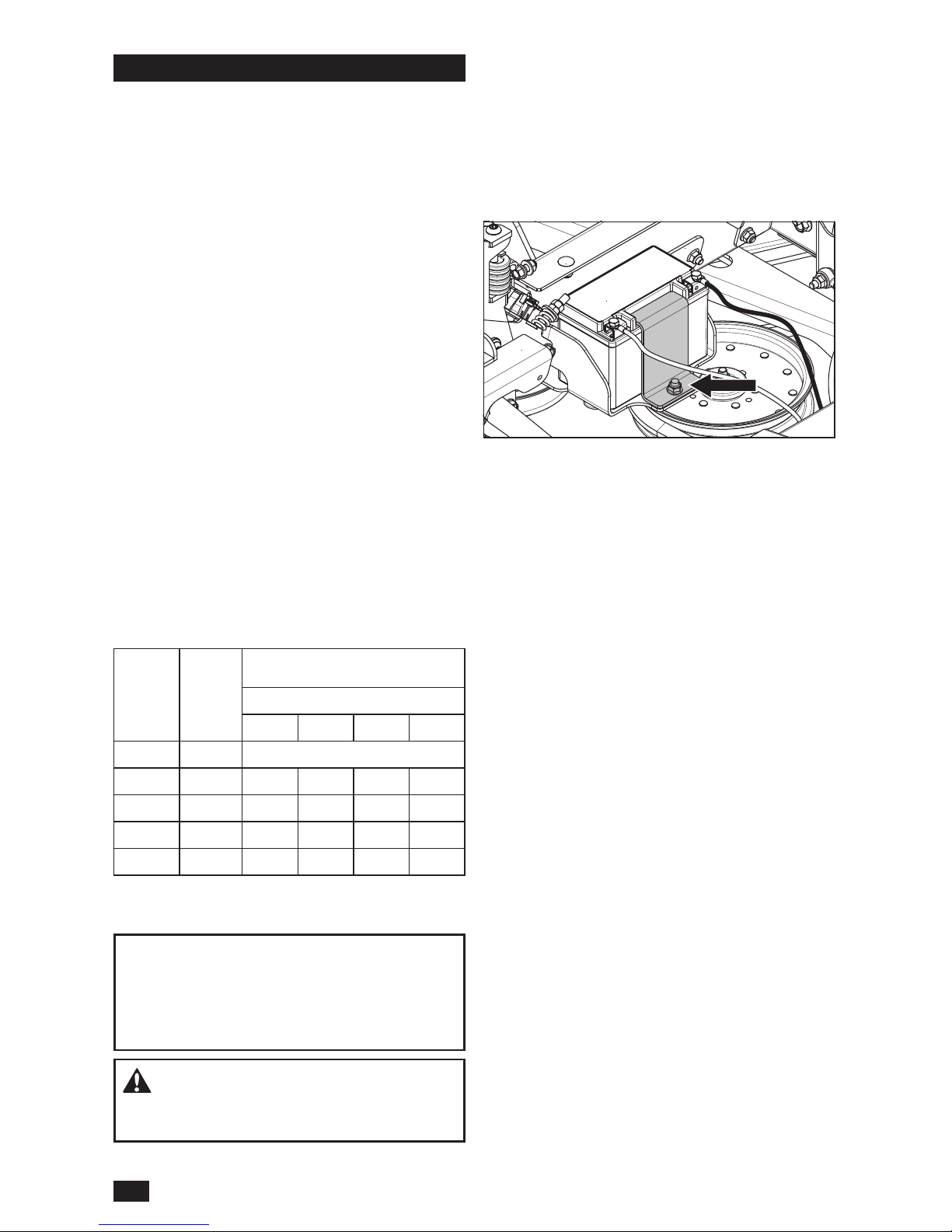

Battery

If the battery is too weak to start the engine, it
must be recharged.

Jumper Cable Use

1. Connect each end of the RED cable to the
POSITIVE (+) terminal on each battery, taking
care not to short against chassis.

2. Connect one end of the BLACK cable to the
NEGATIVE (-) terminal of the fully charged
battery.

3. Connect the other end of the BLACK cable
to a good CHASSIS GROUND on the mower
with the discharged battery, away from the
fuel tank and battery.

To remove cables, reverse order

1. Remove BLACK cable rst from chassis and
then from the fully charged battery.

2. Remove RED cable last from the two
batteries.

The mower is equipped with a maintenance
free battery and does not need servicing.
However, periodic charging of the battery with an
automotive type battery charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• See chart for charging times.

STD

BATTERY

STAT E

OF

CHARGE

APPROXIMATE CHARGING TIME*

TO FULL CHARGE AT 80O F

Maximum Rate at:

50 Amps 30 Amps 20 Amps 10 Amps

12.6V 100%

- FULL CHARGE -

12.4V 75% 20 min. 35 min. 48 min. 90 min.

12.2V 50% 45 min. 75 min. 95 min. 180 min.

12.0V 25% 65 min. 115 min. 145 min. 280 min.

11.8V 0% 85 min. 150 min. 195 min. 370 min.

*Charging time depends on battery capacity,

condition, age, temperature and efciency of charger

IMPORTANT INFORMATION Do open or
remove caps or covers. Adding or checking the
level of electrolyte is not necessary.

Always use two wrenches for the terminal
screws.

CAUTION! Lead-acid batteries generate

explosive gases. Keep sparks, ame and

smoking materials away from batteries.

Battery Removal

Corrosion and dirt on the battery and terminals
can cause the battery to lose power.

1. Lift and rotate the seat fully forward until
supported by the seat rod.

2. Remove the bolt and nut from the battery
bracket and remove the bracket from the
battery.

3. Using two wrenches, disconnect the BLACK
battery cable then the RED battery cable.

4. Carefully remove the battery from the mower.

Cleaning

5. Rinse the battery with plain water and dry.

6. Clean the terminals and battery cable ends
with a wire brush.

Replacing

7. Install the new battery with terminals in the
same position as the old battery.

8. Connect RED battery cable rst to positive (+)
battery terminal.

9. Connect BLACK grounding cable to negative
(-) battery terminal.

10. Fasten the battery in place with bracket
removed in Step 2.

22

MAINTENANCE

V-belts

Check every 100 hours of operation. Check for
severe cracking and large nicks.

NOTE: The belt will show some small cracks in

normal operation.

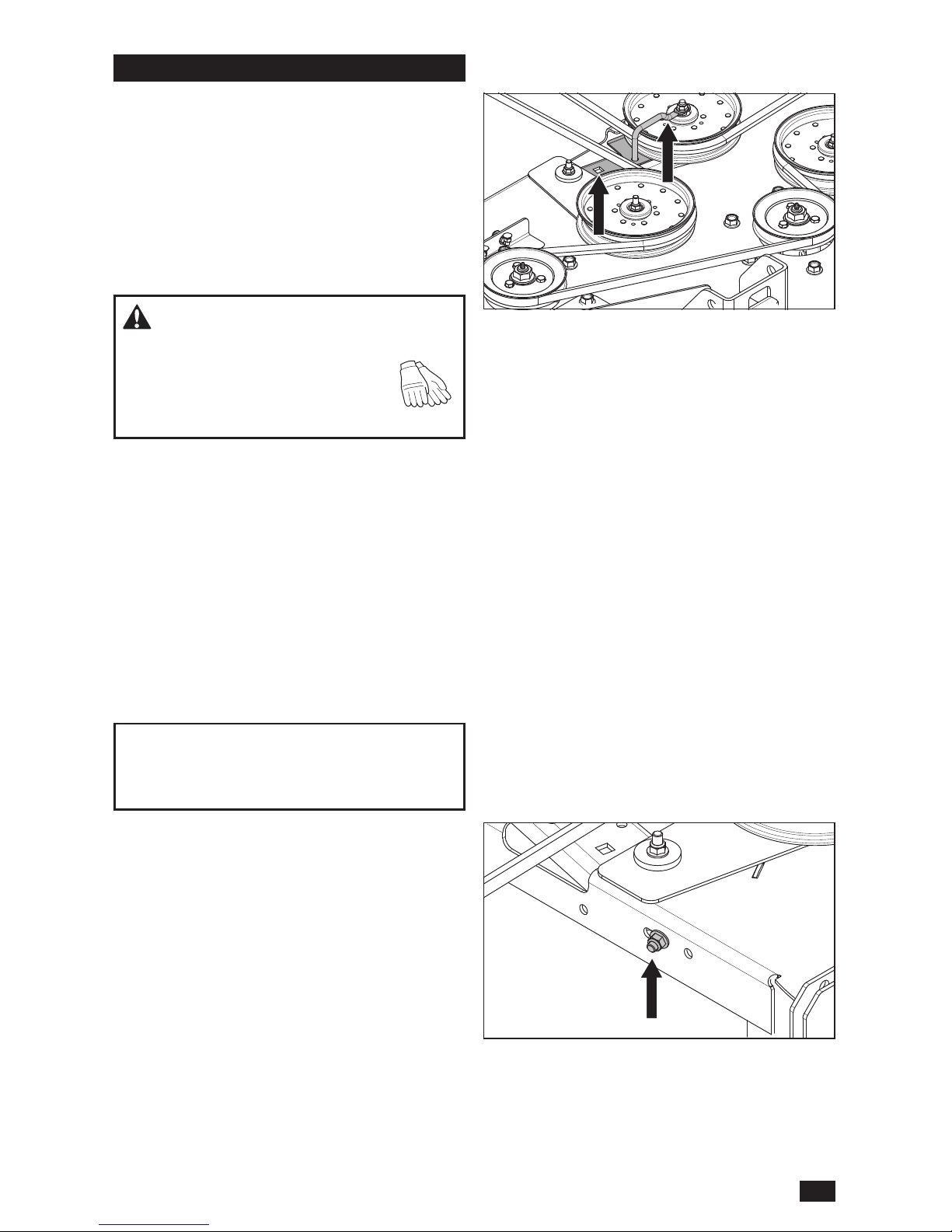

Deck Belt

Deck Belt Removal

Park the mower on a level surface and engage
the park brake. Lower the deck into the lowest
cutting position.

1. Remove foot plate and belt shields.

2. Remove dirt or grass that may have
accumulated around the cutter housings and
entire deck surface.

3. Remove the belt guide hardware with a 1/2"
wrench and set the belt guide aside.

4. With a 1/2" breaker bar and using the square
opening in the idler arm, shift the arm counter
clockwise to relieve the tension on the belt.

5. Carefully lift the belt over the top of the cutter
housing pulleys.

6. Remove the belt from around the electric
clutch on the engine shaft.

Deck Belt Installation

NOTE: For ease in installing the deck belt, refer to
the routing decal on the cutting deck.

1. Place the belt around all the pulleys except
the center spindle pulley.

2. With a 1/2" breaker bar, shift the idler arm
counter clockwise. When there is enough
slack, slip the belt onto the center spindle
pulley.

3. Reinstall the belt guide removed in Step 3
above.

4. Check belt routing to make sure it matches
the routing decal and that the belt does not
have twists.

5. Adjust belt tension by turning the eyebolt nut
until there is approximately 22.2 mm - 25.4
mm of threads showing outside the nut.

6. Belt tension must be set to 60-70 lbs.

7. Replace belt shields on the two mandrel
housings and secure with fasteners.

Cutting Blades

To attain the best mowing effect, it is important
that blades are well sharpened and not damaged.
Replace blades that have been bent or cracked
when hitting obstacles.

CAUTION! Blades are sharp. Protect
your hands with gloves and/or wrap blades with
a heavy cloth when handling.

The sharpening of blades should be
carried out by an authorized service
workshop.

Let the service workshop decide whether a blade
with large nicks can be repaired/ground or must
be replaced. Balance the blades after sharpening.
Check the blade mounts.

Blade Replacement

1. Remove blade bolt by turning it counter

clockwise.

2. Install new or resharpened blade with

stamped GRASS SIDE facing towards
ground/grass (down) or THIS SIDE UP facing
deck and cutter housing.

3. Install and tighten blade bolt securely.

4. Torque blade bolt to 90 ft-lbs (122 Nm).

IMPORTANT INFORMATION Special blade
bolt is heat treated. Replace with a Husqvarna
bolt if required. Do not use lower grade

hardware than specied.

Deck Maintenance

For all deck maintenance, make sure the mower
is on a level surface. Stop the engine and engage
the park brake. Remove the deck guards.

23

MAINTENANCE

Adjusting the Mower Deck

Leveling Deck

Adjust the deck while the mower is on a level

surface. Make sure the tires are inated to the

correct pressure. See Tire Pressures in this

section. If tires are under or over inated, the

deck cannot be properly adjusted. Faulty mower
deck adjustments will cause an uneven mowing
result.

Four bolts control the height and pitch of the
mower deck. Adjust the deck slightly higher in the
rear.

NOTE: To insure precision in the leveling

procedure, mower deck drive belt must be
installed prior to leveling the deck.

1. Wear heavy gloves. Turn each outer blade tip
to align with the deck side-to-side.

2. Measure from the oor surface up to the
bottom of the blade tip on the discharge
side of the mower deck. Record this
measurement. Move to the opposite side;
check that measurement is the same. If
adjustment is required, loosen the locknut
and adjust the bolt up until the two side
to side measurements are equal. Retain
measurement.

3. Turn the two outer blades to align with
the deck front to rear. Reposition the rear
mounting bolts up or down until the rear blade
tips are positioned 3.175 mm - 9.525 mm
higher in the rear than the front blade tips.

4. Conrm measurements once again. The
blade tip height must be equal side to side. In
the rear, the blade tips must be 3.175 mm -

9.525 mm higher than the front measurement.
In the front, blade tips must be equal from
side to side.

NOTE: This will place the mower deck in a

standard measurement position. Depending on
the type of grass being mowed or environmental
conditions, more adjustments may be required to
get the desired cut.

Pump Belt

The belts are not adjustable and need to be
replaced if they begin to slip from wear. Park the
mower on a level surface. Engage the park brake.

1. Remove the deck belt.

2. Remove clutch stop to access the belt.

3. Disconnect clutch wire.

4. With a 1/2" breaker bar and using the square
opening in the idler arm, shift the arm to
create slack in the belt.

5. Remove belt from the engine and pump
pulleys.

Reinstallation

1. Wrap the belt around the engine pulley and
then around the left pump pulley.

2. Route the belt around the inside of the idler
pulley.

3. With a 1/2" breaker bar and using the square
opening in the idler arm, shift the arm to
create slack in the belt.

4. While holding the idler back with the breaker
bar, wrap the belt around the right pump
pulley.

5. Replace and secure clutch stop. Reinstall the
deck belt.

6. Check the belt tension. To tighten the
belt, turn the nut on the idler eyebolt. The
recommended belt tension is 27 lb.

24

MAINTENANCE

Tire Pressures

All tires must be at 15 psi / 103 kPa / 1 bar.

IMPORTANT INFORMATION DO NOT add

a tire liner or foam ll material to the rear tires.
Excessive loads created by foam lled tires will

cause premature failures.

Only use O.E.M. specied tires.

Deck Lift Spring

When mowing 5.1 cm or lower, it may be
necessary to adjust the deck lift springs. Access
the springs by tilting the seat forward. Loosen the
nut to adjust the spring tension.

Park Brake

WARNING! Faulty adjustment will result

in reduced braking and can cause an accident.

Visually check that no damage is found on the
steering control levers, links or switches belonging
to the park brake. Do a standstill test and check

that there is sufcient braking action.

1. Make equal adjustments on the two park
brake controls. To make adjustments, remove
the rivet pins from the boot and slide the boot
up.

2. If the park brake position does not pass the
standstill test, or has needed maintenance,
it may need adjustment. The spring should
measure a compressed length of 12.7 mm
shorter than the free length. Tighten the nuts
holding the brake spring if necessary.

3. To change the park brake action, tighten
the pivot bolt until the desired braking feel is
correct.

Neutral Adjustment

Perform the adjustment with the machine parked
on level ground and the park brake engaged.

1. Raise the rear wheels of the machine and
support it with jack stands.

2. Start the engine. If the either wheel turns while
the machine's park brake is engaged, the
neutral linkage for the corresponding wheel
must be adjusted.

3. To access the control rod linkage, unlatch and
rotate the seat forward.

4. Remove and retain the pin from the front
coupler.

5. Turn the hex nut by hand in either direction
until the wheel stops turning.

6. Turn the hex again, counting the number of

turns with the at surfaces of the nut. Stop

turning when the wheel spins in the opposite
direction.

7. Turn the nut back, one half of the amount of
turns counted in Step 6.

8. Repeat with the opposite wheel if necessary.

25

MAINTENANCE

Caster Wheels

Check every 200 hours. Check that wheels rotate
freely.

To replace, remove nut and caster bolt. Pull the
wheel out of the fork. Install in reverse order.
Tighten caster bolt. Torque to 50 ft-lbs (67.8 Nm).

NOTE: Tire must rotate freely but axle spacers
must not. If wheels do not rotate freely take the

unit to the dealer for service.

Cleaning

CAUTION! Always wear eye

protection when cleaning and
washing.

Regular cleaning and washing, especially under
the mower deck, will increase the machine’s life­span. Make it a habit to clean the machine directly
after use (after it is cooled), before the dirt sticks.

Do not spray water on the top of the mower deck.
Use compressed air to clean the top side of
mower deck. Regularly clean deck and underside
of the deck with normal water pressure. Do not
use a high pressure washer or steam cleaner.
Avoid spraying engine and electrical components
with water.

Do not rinse hot surfaces with cold water. Let unit
cool before washing.

Hardware

Check daily. Inspect the entire machine for loose
or missing hardware.

Anti-scalp Rollers

Anti-scalp rollers keep the deck in the proper
position to help prevent scalping in most terrain
conditions. Do not adjust the rollers to support the
deck.

IMPORTANT INFORMATION Adjust anti-

scalp rollers with the mower on a at level

surface. To avoid deck damage, the anti-scalp
rollers must not be adjusted to support the
deck.

Anti-scalp rollers can be set in three positions.

• Upper 38 mm - 64 mm grass

• Middle 64 mm -102 mm grass

• Lower 102 mm - 127 mm grass

The rollers must be approximately 6.35 mm from
ground. Do not adjust the rollers to support the
deck.

Safety System

The machine is equipped with a safety system
that prevents starting or driving under the
following conditions.

The engine can only be started when:

• the mower deck is disengaged.

• the steering / park brake controls are in the

outer, locked neutral position, making sure
of full parking brake engagement for a safe
startup.

NOTE: If the steering / park brake controls are not
holding in the full outboard position, the tension

can be adjusted. (See Park Brake in this section).

Make daily inspections to make sure that the
safety system works by trying to start the engine
when one of the conditions is not met. Change
the conditions and try again.

Make sure the engine stops when the park brake
is not engaged and the operator leaves the
seated position.

Make sure the engine stops if the mower blades
are engaged and the driver leaves the seated
position.

IMPORTANT INFORMATION To drive, the
driver must sit in the seat and the steering /
park brake controls must be moved into the
engaged (outer) position. Otherwise the engine
will stop.

26

MAINTENANCE

Lubrication Schedule

General

Remove the ignition key to prevent accidental
movements during lubrication.

When lubricating with an oil can, it must be
lled with engine oil. When lubricating with
grease, unless otherwise stated, use high grade
molybdenum disulphide grease.

For daily use, the machine must be lubricated
twice weekly.

Wipe away excess grease after lubrication It
is important to avoid getting lubricant on the
belts or the drive surfaces on the belt pulleys.
If this happens, clean them with spirits. If the
belt continues to slip after cleaning, it must be
replaced. Gasoline or other petroleum products
must not be used to clean belts.

IMPORTANT INFORMATION Use minimal
lubrication and remove excess lubricant so that
is does not come into contact with belts or belt
pulley drive surfaces.

WARNING! Escaping hydraulic oil

under pressure can have sufcient force to

penetrate the skin, causing serious injury. If

injured by escaping uid, see a doctor at once.

Serious infection or reaction can develop if
proper medical treatment is not administered
immediately.

*

Initial hydraulic oil and lter change at

100 hrs, every 400 hrs thereafter.

p Change engine oil every 50 hours.

12/12 Every year
1/52 Every Week
1/365 Every day

Lubricate with grease gun

Filter change

Oil change

Level check

27

LUBRICATION

Engine oil

NOTE: Change the engine oil when the engine
is warm. Refer to the engine owner’s manual

for the correct replacement oil and lter change

recommendations.

1. Park on a level surface. Engage the park
brake.

2. Clean the dirt and debris from the area around

the oil ll cap.

3. Remove the cap/dipstick.

4. Locate the drain hose at the right rear of the

engine below the mufer. Put an adequately

sized container under the end of the drain
hose and remove the oil drain plug.

5. Let the oil to fully drain from the engine.

6. Replace the drain hose plug and tighten
securely.

7. Fill the engine with new oil to the bottom of

the ll tube threads. Check the level with the

dipstick.

8. Replace the oil ll cap securely when the oil
level is FULL.

9. Refer to the Service Journal for oil checking
and changing intervals.

Wheel and Deck Zerks

Use only good quality bearing grease. Grease
from well-known brand names (petrochemical
companies, etc.) usually maintains a good quality.

Front Wheel Mount

Remove dust cap to expose zerk. Lubricate with
a grease gun until the grease is forced out around
the top washer.

WARNING! The engine drain plug is

located close to the mufer. To prevent burns,

the engine should be shut off and allowed to
cool slightly so the engine is still warm but the
surrounding surfaces and oil are not.

Front Wheel Bearings

Lubricate 3-4 strokes with a grease gun on each
set of wheel bearings.

Deck Spindles

10. Lower the cutting deck completely.

11. If a grease gun without rubber hose is used,
the foot plate must be removed to access the
center spindle.

12. Lubricate with a grease gun, 2-3 strokes per
spindle.

Transaxle Fluid Change

Fluid and Filter Change

The hydraulic drive is designed with an external

lter for ease of maintenance. To ensure
constant uid quality levels and longer life, an
oil lter change interval of every 400 hours is

recommended.

Drain old oil lters of all free-owing oil prior

to disposal. Place used oil in appropriate
containers and dispose of it in accordance with
laws in your area.

The following procedure is performed with the
pump installed in the vehicle. and the vehicle on
level ground.

1. Park on a level surface. Engage the park
brake.

2. Place an oil drain pan with a 8 quart capacity
beneath the oil reservoir.

3. Remove the oil lter cover and discard the
gasket.

28

LUBRICATION

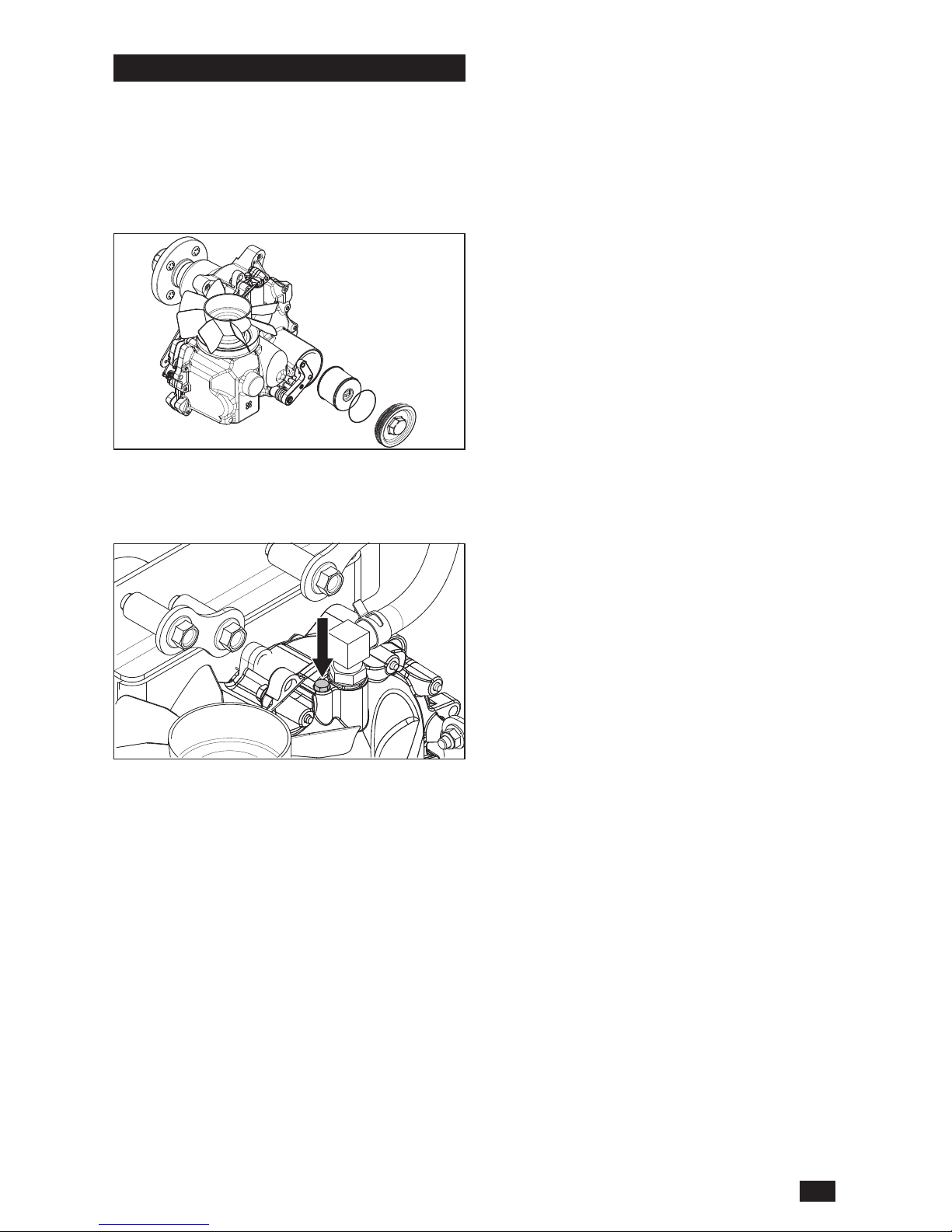

4. After the oil has drained remove the lter from
the housing.

5. Install a new lter and gasket into the lter
cover and install the assembly into the
transaxle, turning it three-quarters to one full

turn after the lter gasket contacts the lter

base surface.

6. Repeat the procedure the opposite side.

7. Remove the top port vent plug from the left
side and right side of the transaxles prior to

lling with oil.

8. Fill with 20W50 motor oil until the oil appears
at the bottom of each transaxles’ top port
with approximately 2 quarts (1.89 liters) per

transaxle, 4 quarts (3.78 liters) total.

9. Install the ll plugs into each transaxle as the
oil level reaches the port. Torque the top port
plugs to 180 in./lbs.

10. Continue to ll the transaxles through the
expansion tank until the FULL COLD line
is reached. This will take approximately 23
additional ounces (0..68 liter).

11. Reinstall the expansion tank cap by hand. Do
not overtighten.

Transmission Purging

Due to the effects air has on efciency in

hydrostatic drive applications, it is critical to purge
the system.

Perform the procedure rst with the vehicle drive

wheels off the ground, then repeated under
normal operating conditions.

Resulting symptoms in hydrostatic systems may
be:

• Noisy operation.

• Lack of power or drive after short term

operation.

• High operation temperature and excessive
expansion of oil.

• Shortened component life.

Purge procedures must be implemented if
the hydrostatic system has been opened for
maintenance or when more oil has been added to
the system.

Before starting, make sure the oil tank is at the

proper oil level. If not, ll to the specications

outlined above.

See Moving Machine By Hand in the Operation
section for bypass linkage adjustments.

1. Release the park brake.

2. With the bypass valve open and the engine
running at fast idle, slowly move the steering
controls in the forward and reverse directions

ve or six times. As air is purged from the unit,

the oil level will drop.

3. With the bypass linkage valve and the engine
running, slowly move the steering controls

in the forward and reverse directions ve or

six times. Check the oil level and add oil as
required after stopping the engine.

4. It may be necessary to repeat Steps 2 and 3
until all the air is completely purged from the
system. When the hydraulic drive operates
at normal noise levels and moves smoothly
forward and reverse at normal speeds, the
hydraulic drive is considered purged.

29

LUBRICATION

Problem / Cause

Engine will not start

Blade switch is engaged

Steering controls are not locked in the park
brake position

Dead battery

Contamination in the carburetor or fuel line

Fuel supply shutoff valve is closed or in the
wrong position

Clogged fuel lter or fuel line

Ignition system faulty

Starter does not turn the engine over

Dead battery

Battery terminal cable contacts are defective

Blown fuse

Fault in the starter safety circuit. See Safety
System in the Maintenance Section

Engine runs rough

Faulty carburetor

Clogged fuel lter or jet

Choke is engaged with a warm engine

Clogged ventilation valve on the fuel cap

Fuel tank nearly empty

Fouled spark plugs

Rich fuel mixture or fuel-air mixture.

Wrong fuel type

Water in fuel

Clogged air lter

Engine seems weak

Clogged air lter

Fouled spark plugs

Carburetor incorrectly adjusted

Air trapped in hydraulic system

Machine vibrates

Blades are loose

Blades are incorrectly balanced

Engine is loose

Engine overheats

Clogged air intake or cooling ns

Engine overloaded

Poor ventilation around engine

Defective engine speed regulator

Too little or no oil in the engine

Contamination in the fuel line

Fouled spark plugs

Battery not charging

Battery terminal cable contacts are defective

Charging lead is disconnected

Fault in engine charging system

Mower moves slowly, unevenly, or not at all

Park brake is engaged

Bypass valve on pump is open

Transmission drive belt is slack or off

Air trapped in hydraulic system

Mower deck not engaging

Drive belt for the mower deck is loose

Electromagnetic coupling contact is loose

Blade switch is faulty or loose from cable
contact

Blown fuse

Transaxle leaks oil

Damaged seals, housing, or gaskets

Air trapped in hydraulic system

Uneven mowing results

Unequal air pressures in tires

Bent blades

Suspension for the mower deck is uneven

Blades are dull

Driving speed too high

Grass is too long

Grass has collected under the mower deck

30

TROUBLESHOOTING

Winter Storage

The machine must be readied for storage at the
end of the mowing season, or if it will not be in
use for more than thirty days.

Fuel allowed to stand for long periods of time
(thirty days or more) can leave sticky residues
that can plug the carburetor and disrupt engine
function.

Fuel stabilizers are an permitted option as
regards to the sticky residues that can occur
during storage.

Add stabilizer to the fuel in the tank or in the
storage container. Always use the mixing ratios

specied by the manufacturer of the stabilizer.

Run the engine for at least ten minutes after
adding the stabilizer so that it reaches the
carburetor. Do not empty the fuel tank and the
carburetor if a stabilizer has been added.

To ready the machine for storage:

1. Thoroughly clean the machine, especially
under the mower deck. Touch up damage
to the paint and spray a thin layer of oil on
the underside of the mower deck to avoid
corrosion.

2. Inspect the machine for worn or damaged
parts and tighten nuts or screws that may
have become loose.

3. Change the engine oil; dispose of properly.

4. Empty the fuel tanks or add a fuel stabilizer.
Start the engine and let it run until the
carburetor is drained of fuel or the stabilizer
has reached the carburetor.

5. Remove the spark plug and pour about a
tablespoon of engine oil into the cylinder.
Turn over the engine so that the oil is evenly

distributed and then ret the spark plug.

6. Lubricate all grease zerks, joints, and axles.

7. Remove the battery. Clean, charge, and
store the battery in a cool place, but protect
it from direct cold.

8. Store the machine in a clean, dry place and
cover it for extra protection.

Service

When ordering spare parts, please specify the
purchase year, model, type, and serial number.

Always use genuine Husqvarna spare parts.

An annual check-up at an authorized service
workshop is a good way to ensure that the
machine performs its best the following season.

WARNING! Do not store an engine with
fuel in the tank indoors or in poorly ventilated
spaces where fuel vapor can come in contact

with open ames, sparks, or a pilot light

such as in a boiler, hot water tank, clothes
dryer, etc. Handle the fuel with care. It is very

ammable and can cause serious personal

injury and property damage. Drain the fuel
into an approved container outdoors and

store far away from open ame or sources of

ignition. Do not use gasoline for cleaning. Use
a degreaser and warm water.

31

STORAGE

Red / Blk

Blk / Yel

(Sol)

Electric

Clutch

Accessory

Outlet

Engine

Ground

Blk

Red

Blk

Blk

Blk

Wht

Red

Red

Red / Blk

Blk

Wht

Blk

Connector

Red

Blk

Red / Blk

Yel / Wht

Blk

Blk / Yel

Yel / Wht

Blk / Yel

Purple

Blk

Red / Blk

Diode

1N4004

Blk

Blk

Blk

Blk / Wht

Blk

Wht

Blk / Yel

Wht

Wht

Delay Timer

Wht

Grn / Wht

Red / Blk

Blk / Yel

Blk / Wht

Wht

Engine

Diode

1N4004

Service Meter

Red

PTO Switch

(Off)

Right Motion

Control Lever

(Parked)

Left Motion

Control Lever

(Parked)

Motion Control Switch Configuration: NC/NC

Seat Switch Configuration: NC/NC

Grn

Grn

Blk / Wht

Magneto

Wht

Wht

0.5 Sec

5

3

1

6

4

2

7.5 Amp

B

G

M

L

S

Y

A

20 AMP

T-3

T-4

T-6

T-5

T-2

T-1

Timer

K A

Seat

Unoccupied

Dbl

Blk

Relay 2

Lever Control

Relay 1

Sol Control

10 AMP

126

3

Key Switch Positions

Position 1 - Off Position 2 - Run / Lights Position 3 - Run Position 4 - Start

B

G

M

L

S

Y

A

B

G

M

L

S

Y

A

B

G

M

L

S

Y

A

B

G

M

L

S

Y

A

32

SCHEMATIC

EC Declaration Of Conformity

We, Husqvarna AB, SE 561 82 Huskvarna,
SWEDEN, declare under our sole responsibility
that the represented product:

complies fully with the following EU directives and
regulations:

Description Combustion-engine-powered ride-on lawn

mower with seated operator

Brand Husqvarna

Platform / Type / Model Z560X

Batch Serial number dating 2017 and onwards

Directive/Regulation Description

2006/42/EC “relating to machinery”

2014/30/EU “relating to electromagnetic compatibility”

2000/14/EC; 2005/88/EC “relating to outdoor noise”

Harmonized standards and/or technical

specications applied are as follows;

EN ISO 12100, ISO 14982, ISO 5395-1 & 3, ISO
3744, ISO 11094, EN 1032, ISO 21299

In accordance with directive 2000/14/EC, Annex
V, the declared sound values are stated in the
technical data section of this manual and in the
signed EC Declaration of Conformity.

The supplied combustion-engine-powered ride­on lawn mower with seated operator conforms to
the example that underwent examination.

CONFORMITY

ENGINE

Manufacturer Briggs & Stratton

Type Vanguard 810

Power

17.34 kW @ 2900

1)

Lubrication Pressure with oil lter

Fuel Min 87 octane unleaded (Max ethanol 10%, Max MTBE 15%)

Fuel tank capacity 45.42 litres

Cooling Air cooled

Air lter Cyclonic

Alternator 12v 15 amp @ 3600 rpm

Starter Electric

TRANSMISSION

Transmission HydroGear ZT5400

Steering control Dual levers, foam gripped

Speed forward 0-19.6 km/h

Speed reverse 0-8 km/h

Brakes Integrated Mechanical Park Brake

Front caster tires 13 x 6.5 Flat Free

Rear tires, turf pneumatic 24 x 12-12

Tire pressure 15 PSI / 103 kPa / 1 bar

FRAME

Cutting Width 152.4 cm

Cutting Height 2.5 cm - 12.7 cm

Number of Blades 3

Blade Length 53.34 cm

Anti-scalp roller 4 adjustable

Seat Husqvarna Commercial Suspension

Hinged Arm Rests Ye s

Service Meter Digital

Blade Engagement Clutch 250 ft/lbs

Deck Construction 7 gauge fabricated

Productivity

23, 472 m2/h

1)

The power rating as declared
by the engine manufacturer
is the average gross power

output at the specied

RPM of a typical production
engine for the engine
model measured using
SAE Standards for engine
gross power. Refer to the
engine manufacturer engine

specications.

34

TECHNICAL DATA

DIMENSIONS

Weight 594 kg

Base Machine Length 210 cm

Base Machine Height 127 cm

Base Machine Width 138.4 cm

Overall Width, Chute Up 162 cm

Overall Width, Chute Down 188 cm

Overall Height, ROPS up 183 cm

VIBRATION AND SOUND

Hand/Arm Vibration

1.27 m/s

2

Whole Body Hand/Arm

0.08 m/s

2

Sound Level, Measured 105 dB

Sound Level, Guaranteed 105 dB

35

TECHNICAL DATA

Standard 1/4" fasteners 9 ft/lb

Standard 5/16" fasteners 18 ft/lb

Standard 3/8" fasteners 33 ft/lb

Standard 7/16" fasteners 52 ft/lb

Standard 1/2" fasteners 80 ft/lb

HEX HEAD CAP SCREWS

The torque values shown must be used as a general guideline

when specic torque values are not given.

U.S. Standard Hardware

Grade SAE Grade 5 SAE Grade 8 Flangelock Screw

w/Flangelock Nut

Size ft./lbs Nm ft./lbs Nm ft./lbs Nm

Shank Size (Diameter in inches,

ne or coarse thread)

1/4 9 12 13 18

5/16 18 24 28 38 24 33

3/8 31 42 46 62 40 54

7/16 50 68 75 102

1/2 75 102 115 156

9/16 110 149 165 224

5/8 150 203 225 305

3/4 250 339 370 502

7/8 378 512 591 801

1-1/8 782 1060 1410 1912

** Grade 5 - Minimum commercial quality (lower quality not recommended)

Metric Standard Hardware

Grade Grade 8.8 Grade 10.9 Grade 12.9

Size ft./lbs Nm ft./lbs Nm ft./lbs Nm

Shank Size (Diameter in millimeters,

ne or coarse thread)

M4 1.5 2 2.2 3 2.7 3.7

M5 3 4 4.5 6 5.2 7

M6 5.2 7 7.5 10 8.2 11

M7 8.2 11 12 16 15 20

M8 13.5 18 18.8 25 21.8 30

M10 24 33 35.2 48 43.5 59

M12 43.5 59 62.2 84 75 102

M14 70.5 96 100 136 119 161

M16 108 146 147 199 176 239

M18 142 193 202 274 242 328

M20 195 264 275 373 330 447

M22 276 374 390 529 471 639

M24 353 478 498 675 596 808

M27 530 719 735 996 904 1226

Engine crankshaft bolt 50 ft/lb

Deck pulley bolts 150 ft/lb

Lug nuts 75 ft/lb

Blade bolt 90 ft/lb

Torque Specications

36

TECHNICAL DATA

DELIVERY SERVICE

Action Date, mtr reading, stamp, sign

Charge and connect the battery

r

Adjust the tire pressure of all wheels to 15 PSI (1 bar)

r

Mount the steering controls in the normal position

r

Connect the contact box to the cable for the seat’s safety switch

r

Check that the right amount of oil is in the engine

r

Adjust the position of the steering controls

r

Fill with fuel and open the fuel shut off valve

r

Start the engine

r

Check that there is drive to the two wheels

r

Check mower deck pitch and adjustment

r

Check:

Safety switch for the park brake

r

Safety switch for the mower deck

r

Safety switch in the seat

r

Safety switch in the steering controls

r

Park brake functionality and adjustment

r

Driving forward

r

Driving backward

r

Engaging the blades

r

Idle speed

r

Engine high idle speed

r

Inform the customer about:

Need and advantages of following the service schedule

r

Need and advantages of leaving the machine for service

r

Effects of service and maintaining a service journal on the
machine’s resale value

r

Application areas for mulching

r

Fill in the sales papers, etc.

Delivery service has

been carried out

No remaining notes

Certied:

37

SERVICE JOURNAL

AFTER 10 HOURS

Action Date, mtr reading, stamp, sign

Change the engine oil

r

Change the oil lter

r

Inspect hydraulic hoses

r

Inspect hydraulic belt

r

Inspect hydraulic lter

r

Check neutral position

r

Check safety system

r

Check seat belt

r

Check ROPS

r

Check fuel system for leaks

r

Inspect safety guards and shields

r

Check brake adjustment

r

DAILY SERVICE

Action Date, mtr reading, stamp, sign

Clean debris from mower

r

Check engine oil level

r

Check the tire pressures

r

Check underside of deck

r

Inspect deck pulleys

r

Check/clean the engine’s cooling air intake

r

Check safety system

r

Check seat belt

r

Check ROPS

r

Check fuel system for leaks

r

Inspect safety guards and shields

r

Check brake adjustment

r

38

SERVICE JOURNAL

50-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Clean debris from mower

r

Check engine oil level

r

Check the tire pressures

r

Check underside of deck

r

Inspect deck pulleys

r

Check/clean the engine’s cooling air intake

r

Check safety system

r

Check seat belt

r

Check ROPS

r

Check fuel system for leaks

r

Inspect safety guards and shields

r

Check brake adjustment

r

39

SERVICE JOURNAL

250-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Grease ttings (caster pivots and caster wheels)

r

Inspect dampers

r

Inspect frame

r

Inspect throttle and choke cables

r

Inspect hardware

r

Check the tire pressures

r

Change the engine oil and lter

r

Change air lter

r

Inspect spark plug

r

Inspect fuel lter

r

Check engine RPM

r

Clean underside of deck

r

Check blade pitch

r

Grease blade spindles

r

Inspect spindle bearings

r

Inspect deck belt and blades

r

Inspect idler arm bearings

r

Inspect deck idler pulleys

r

Inspect hydraulic lter

r

Inspect hydraulic drive belt

r

Inspect hydraulic hoses

r

Check neutral position

r

Inspect battery connections

r

Check safety system

r

Check seat belt

r

Check ROPS

r

Check fuel system for leaks

r

Inspect safety guards and shields

r

Check brake adjustment

r

40

SERVICE JOURNAL

500-HOUR SERVICE

Action Date, mtr reading, stamp, sign

Grease ttings (caster pivots and caster wheels)

r

Inspect dampers

r

Inspect frame

r

Inspect throttle and choke cables

r

Inspect hardware

r

Check the tire pressures

r

Change the engine oil and lter

r

Change air lter

r

Inspect spark plug

r

Inspect fuel lter

r

Check engine RPM

r

Clean underside of deck

r

Check blade pitch

r

Grease blade spindles

r

Inspect spindle bearings

r

Inspect deck belt and blades

r

Inspect idler arm bearings

r

Inspect deck idler pulleys

r

Change hydraulic oil level

r

Change hydraulic lter

r

Replace hydraulic drive belt

r

Inspect hydraulic hoses

r

Check neutral position

r

Inspect battery connections

r

Load test battery

r

Clean electrical connections

r

Inspect the clutch

r

Check safety system

r

Check seat belt

r

Check ROPS

r

Check fuel system for leaks

r

Inspect safety guards and shields

r

Check brake adjustment

r

41

SERVICE JOURNAL

AT LEAST ONCE EACH YEAR

Action Date, mtr reading, stamp, sign

Clean the engine’s cooling air intake

r

Replace the air cleaner’s foam pre-lter

r

Replace the air lter’s paper cartridge

r

Change the engine oil

r

Replace the engine oil lter

r

Check/adjust the cutting height

r

Check/adjust the park brake

r

Clean/Change the spark plugs

r

Inspect spark plug

r

Check the engine valve clearance

r

42

SERVICE JOURNAL

2017-12-15
