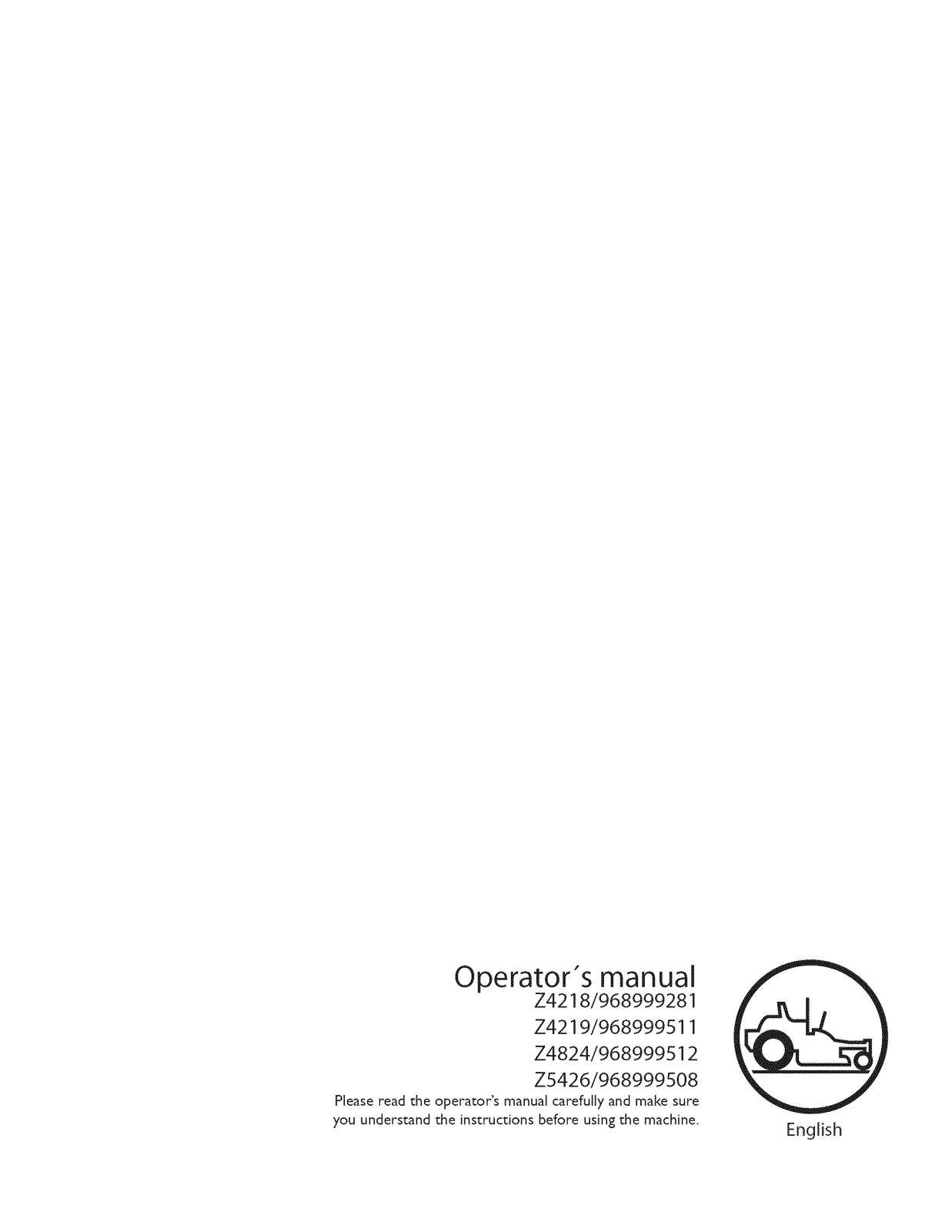

Husqvarna Z5426-968999508, Z4824-968999512, Z4219-968999511, Z4218-968999281, 968999512 Owner’s Manual
...
Operator's manual
Z4218/968999281
Z4219/968999511
Z4824/968999512
Z5426/968999508
Please read the operator's manual carefully and make sure
you understand the instructions before using the machine.
English
OPERATOR'S MANUAL
RIDER
Z SERIES

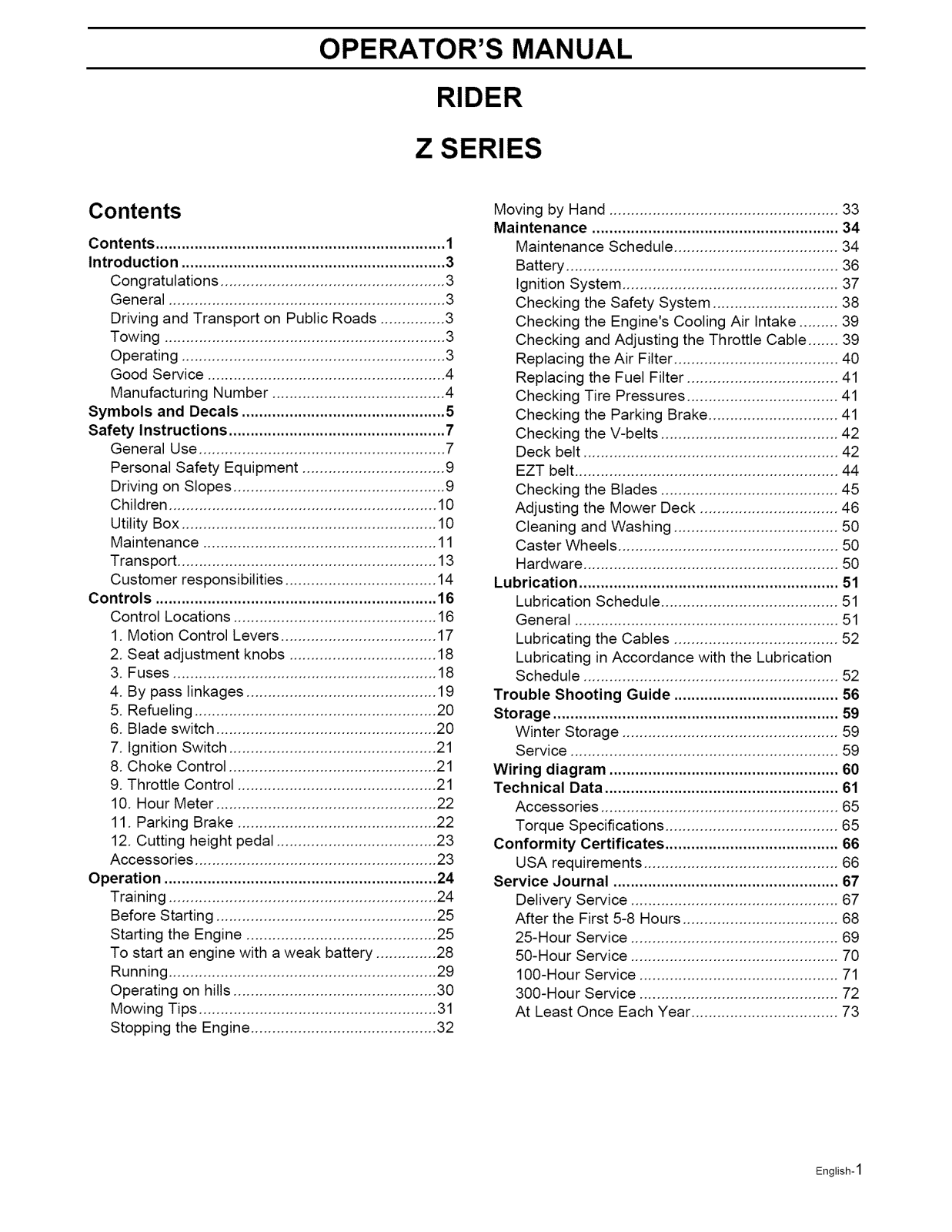

Contents
Contents ................................................................... 1
Introduction ............................................................. 3
Congratulations .................................................... 3
General ................................................................ 3
Driving and Transport on Public Roads ............... 3
Towing ................................................................. 3
Operating ............................................................. 3
Good Service ....................................................... 4
Manufacturing Number ........................................ 4
Symbols and Decals ............................................... 5

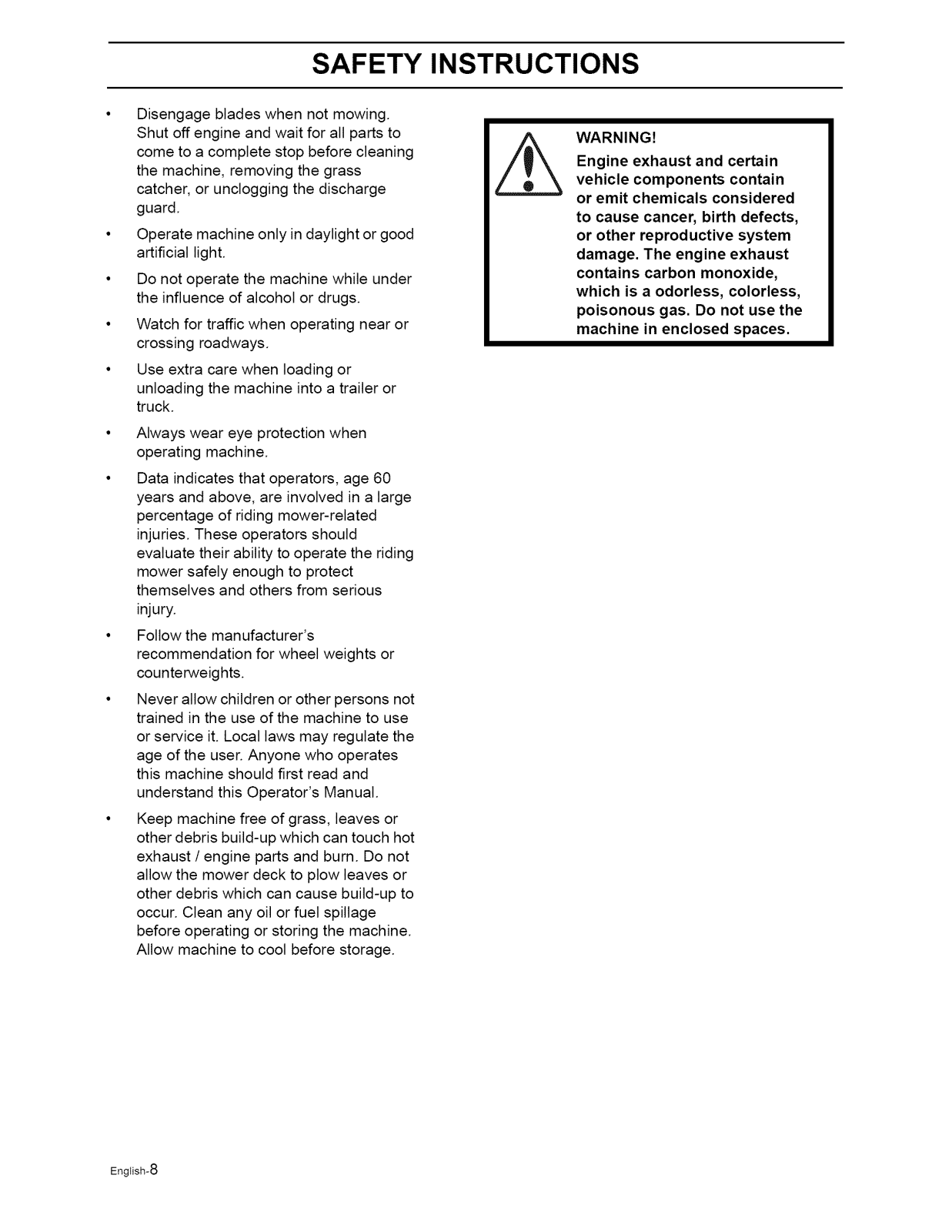

Safety Instructions .................................................. 7

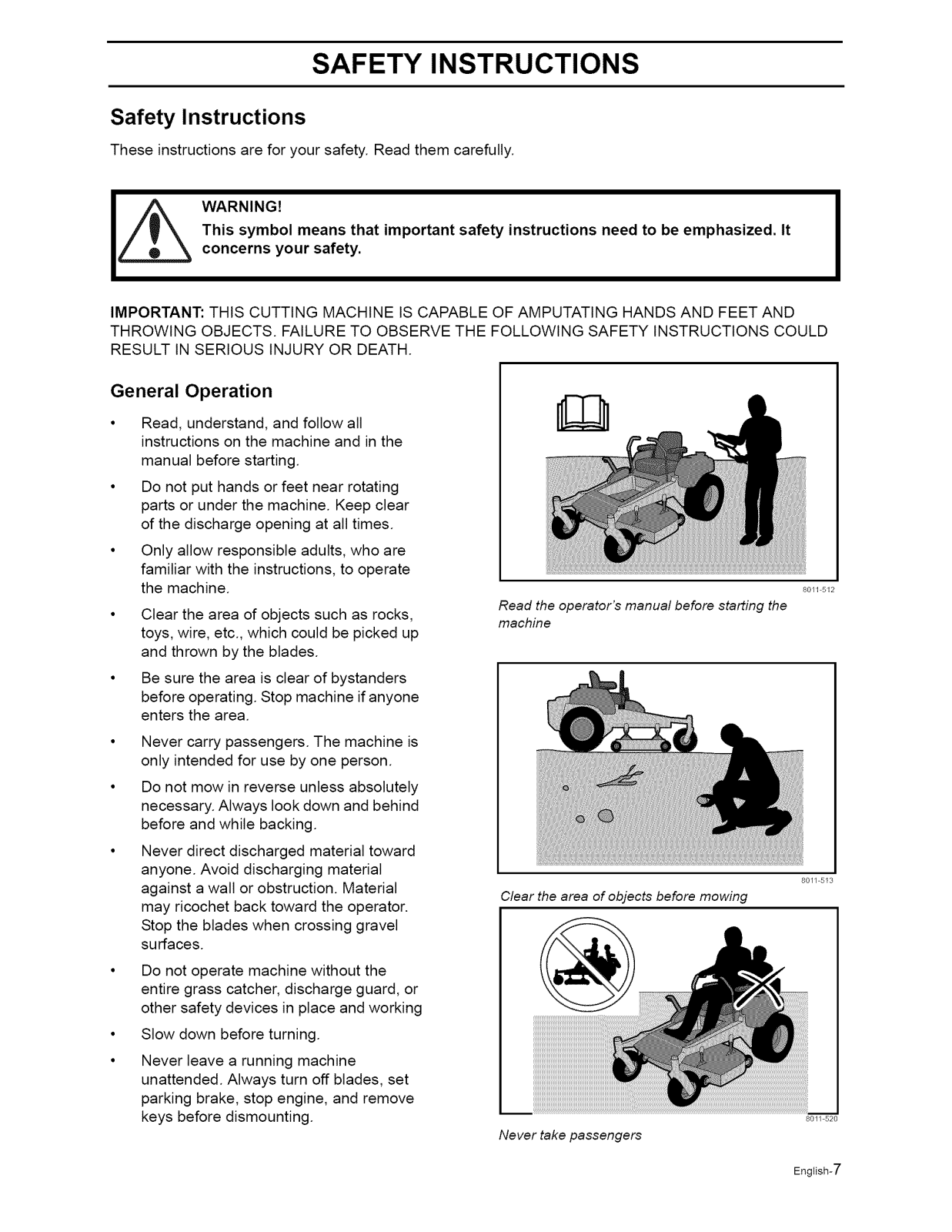

General Use ......................................................... 7

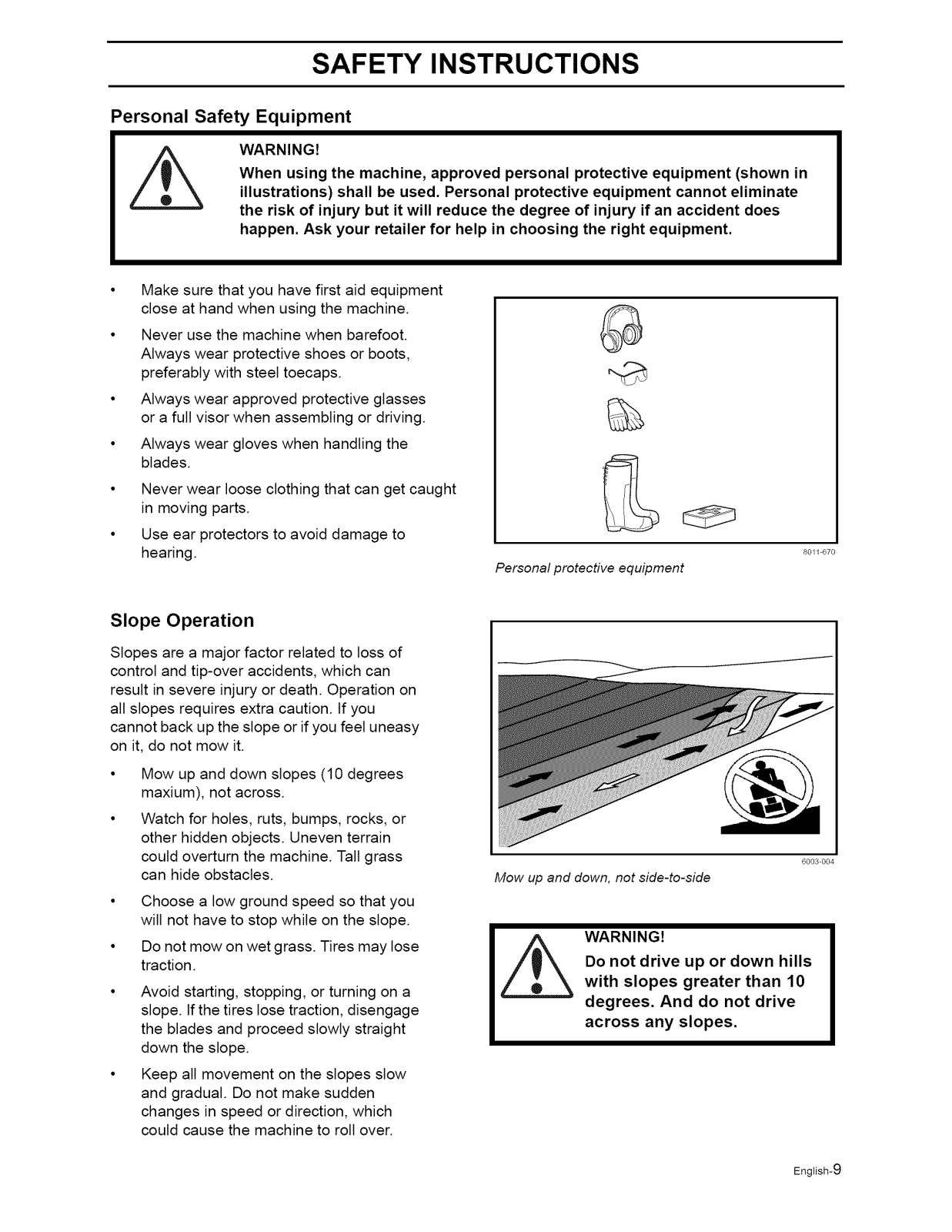

Personal Safety Equipment ................................. 9
Driving on Slopes ................................................. 9
Children .............................................................. 10
Utility Box ........................................................... 10
Maintenance ...................................................... 11

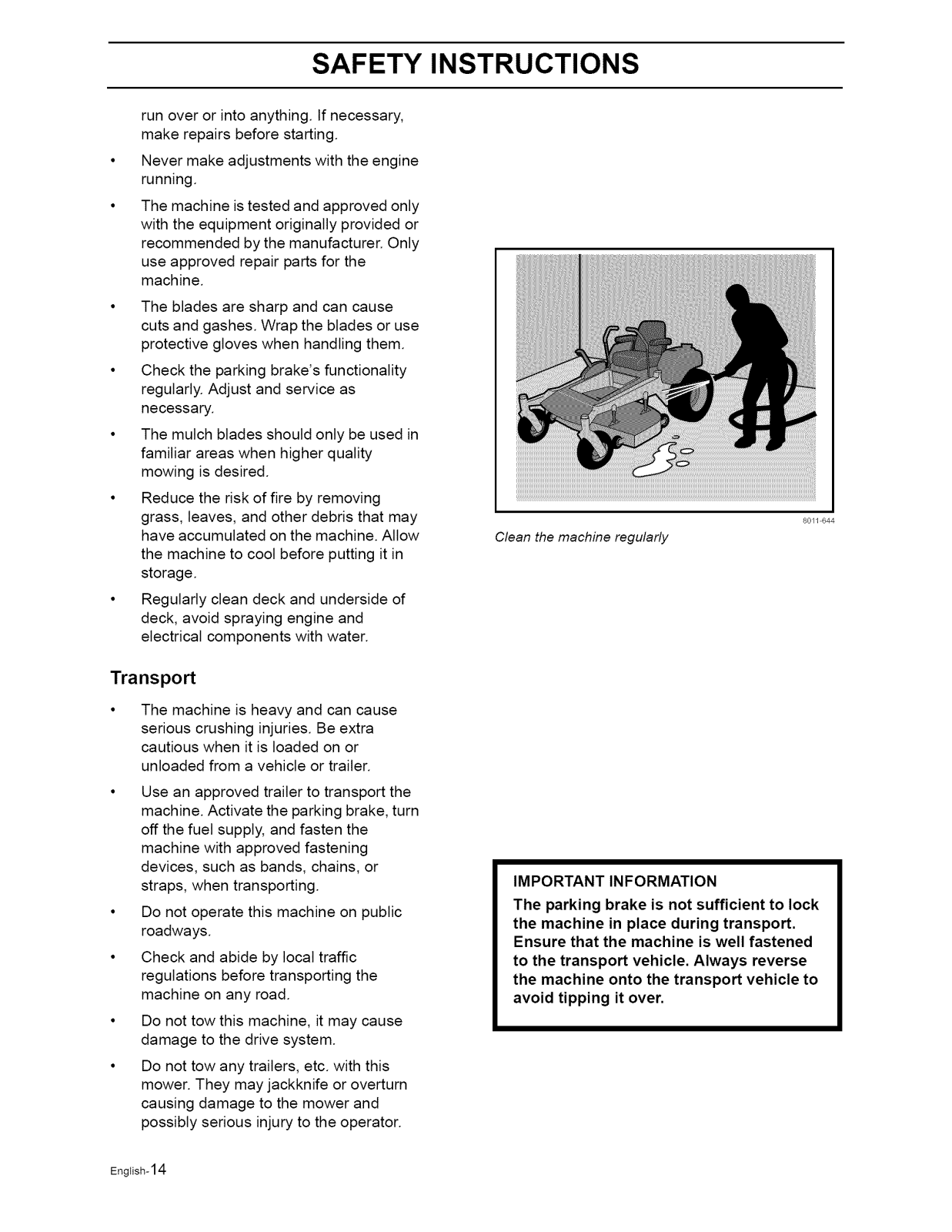

Transport ............................................................ 13

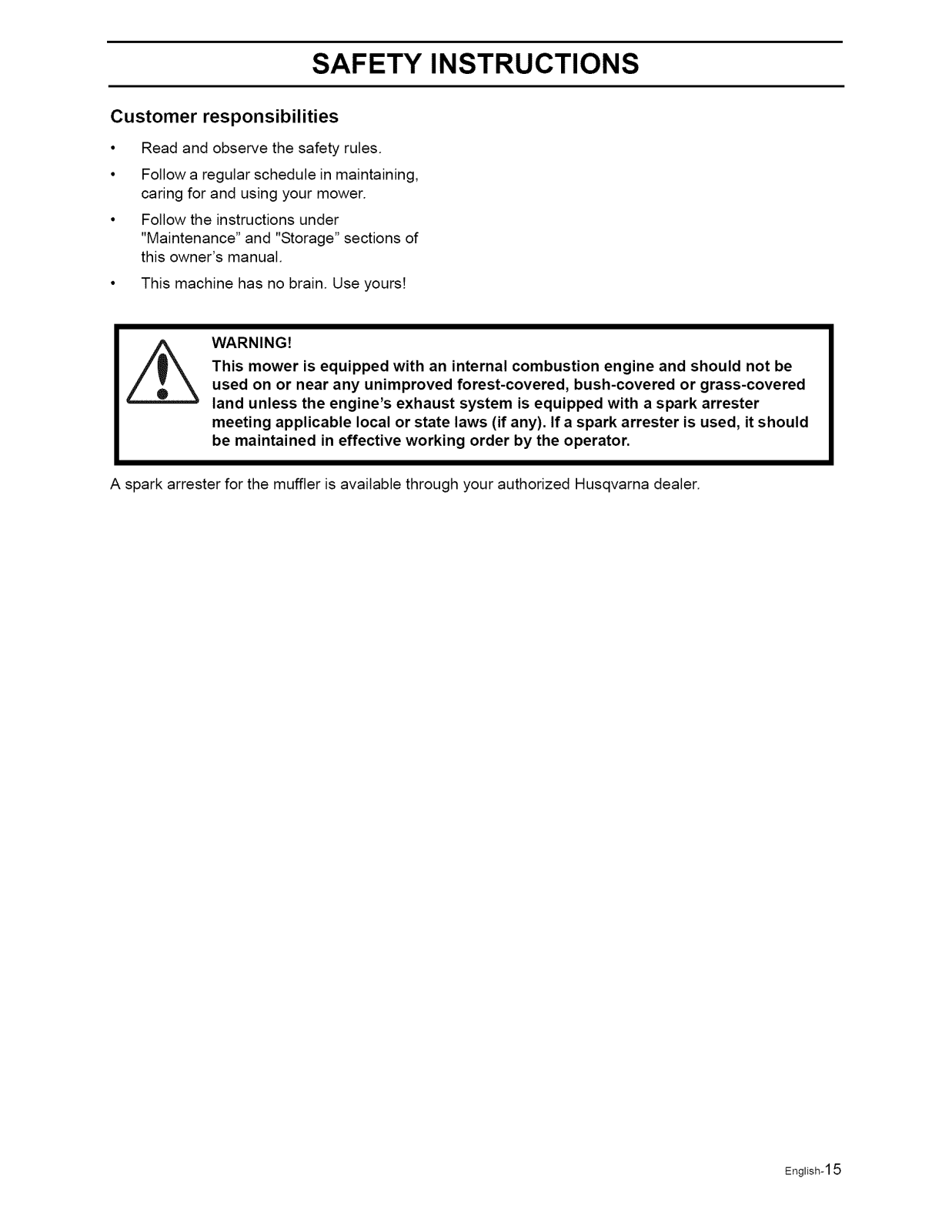

Customer responsibilities ................................... 14

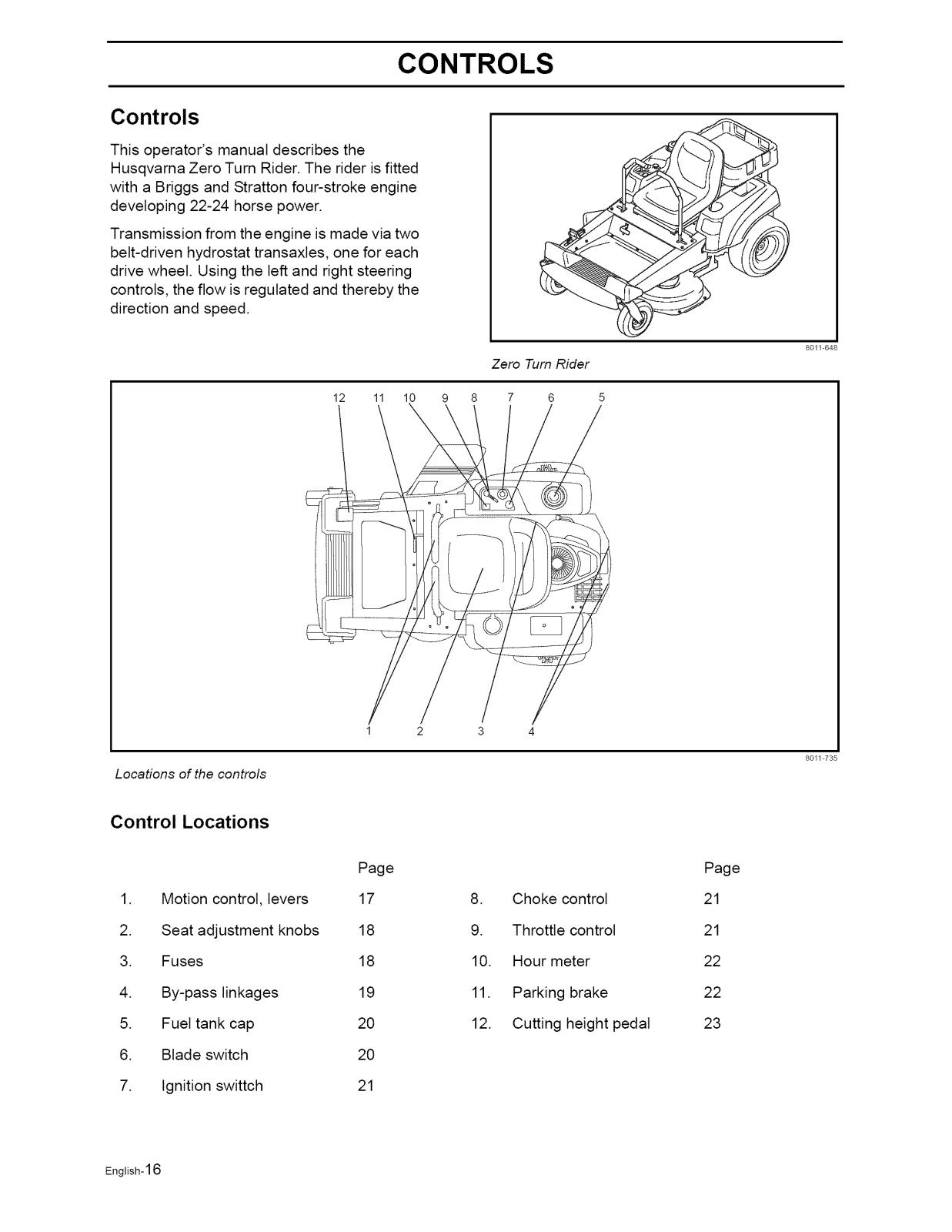

Controls ................................................................. 16
Control Locations ............................................... 16

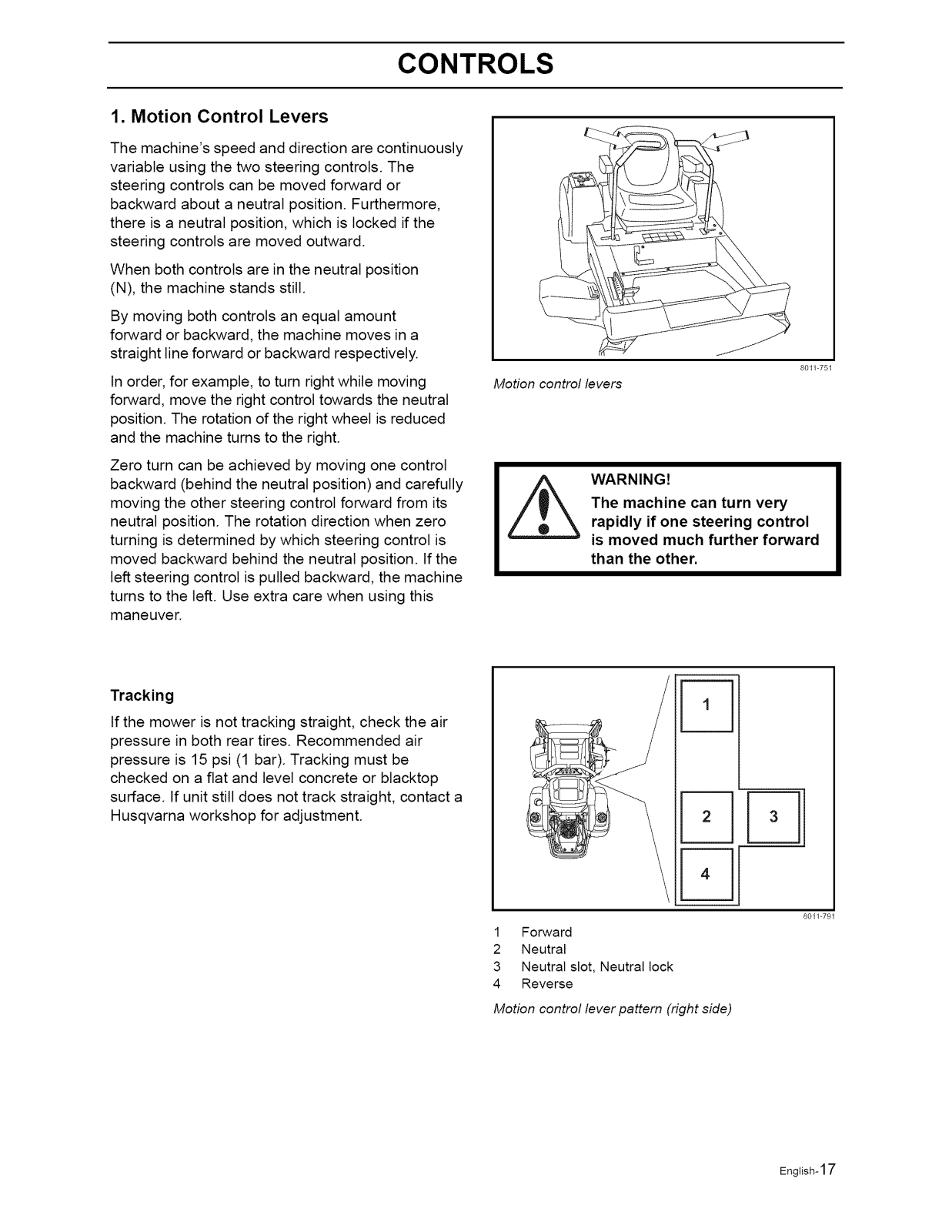

1. Motion Control Levers .................................... 17

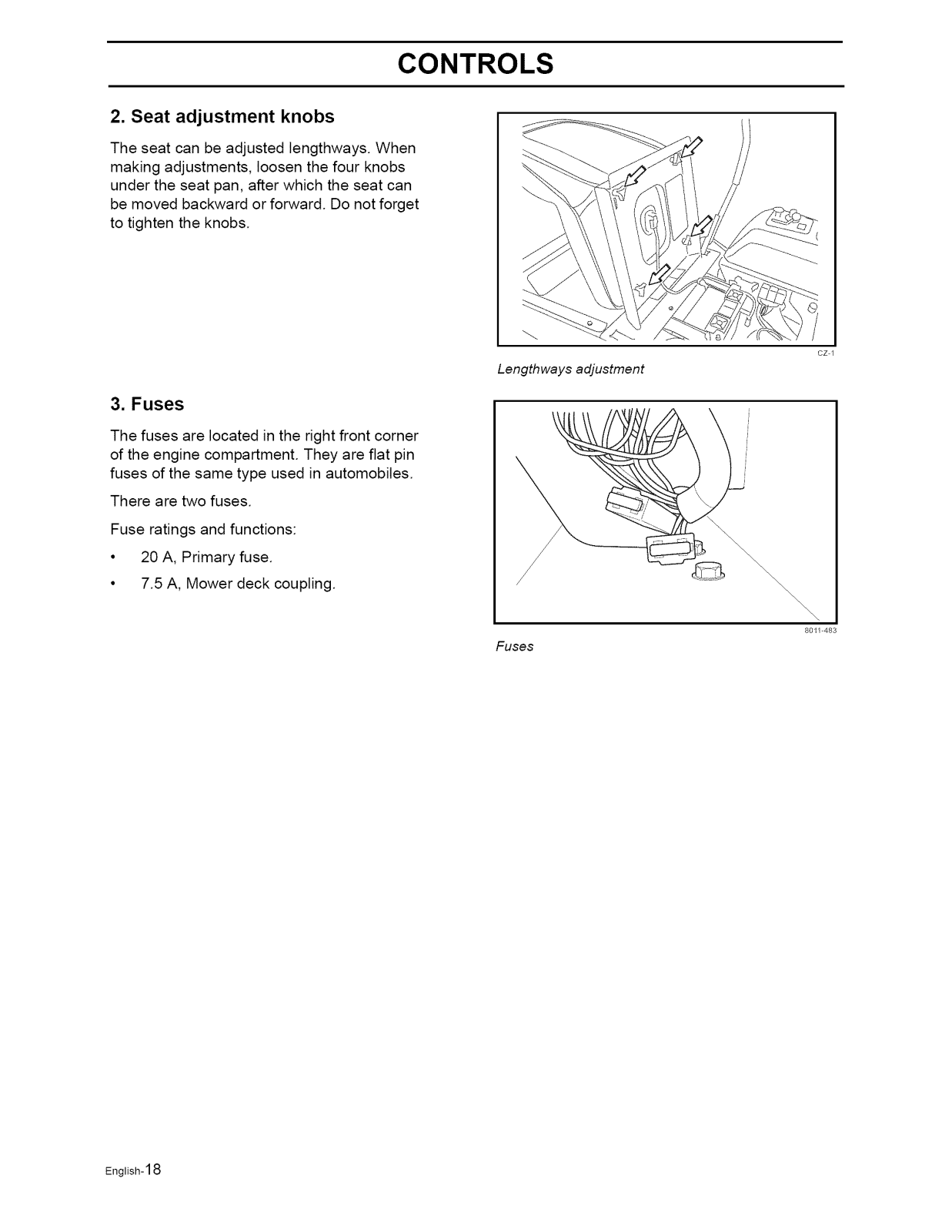

2. Seat adjustment knobs .................................. 18
3. Fuses ............................................................. 18
4. By pass linkages ............................................ 19

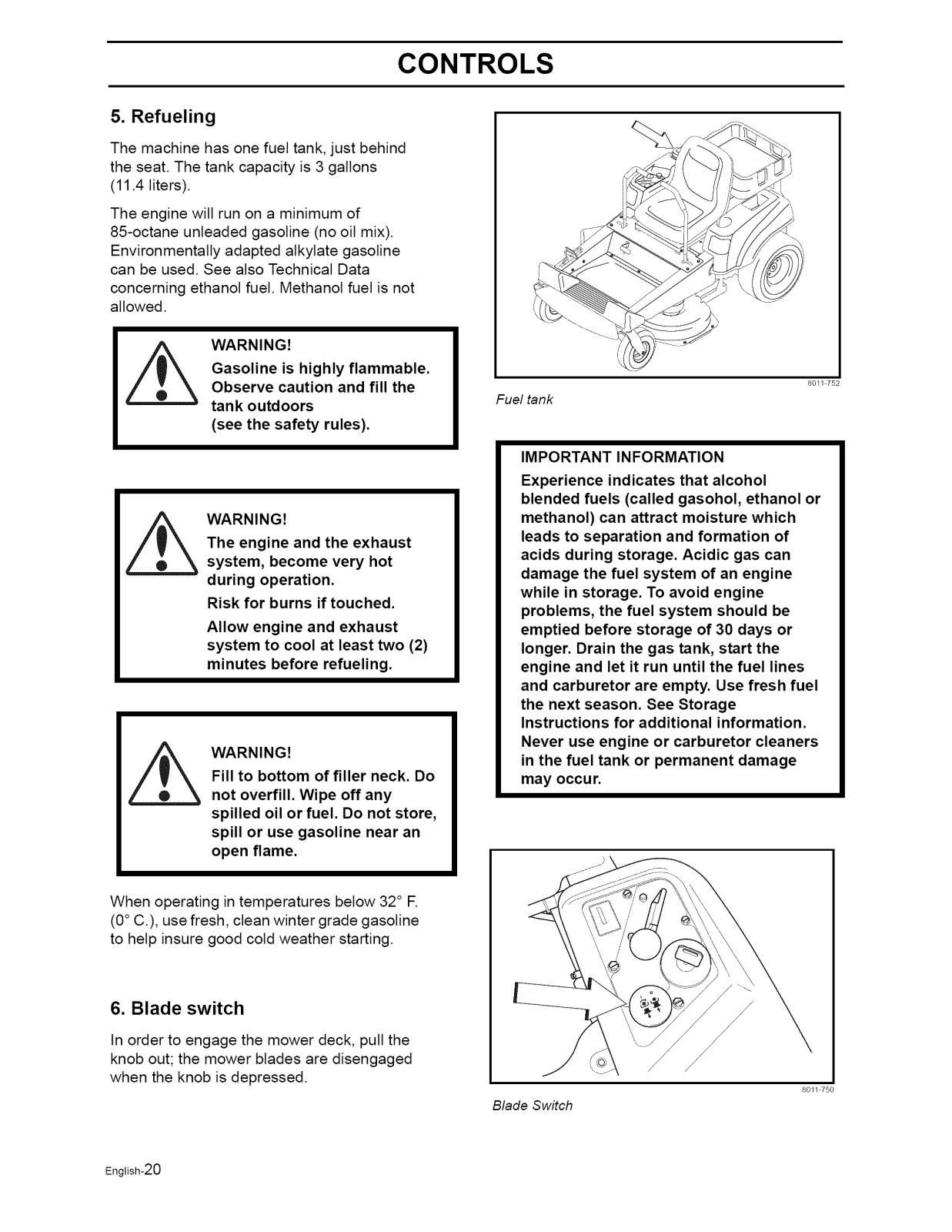

5. Refueling ........................................................ 20
6. Blade switch ................................................... 20

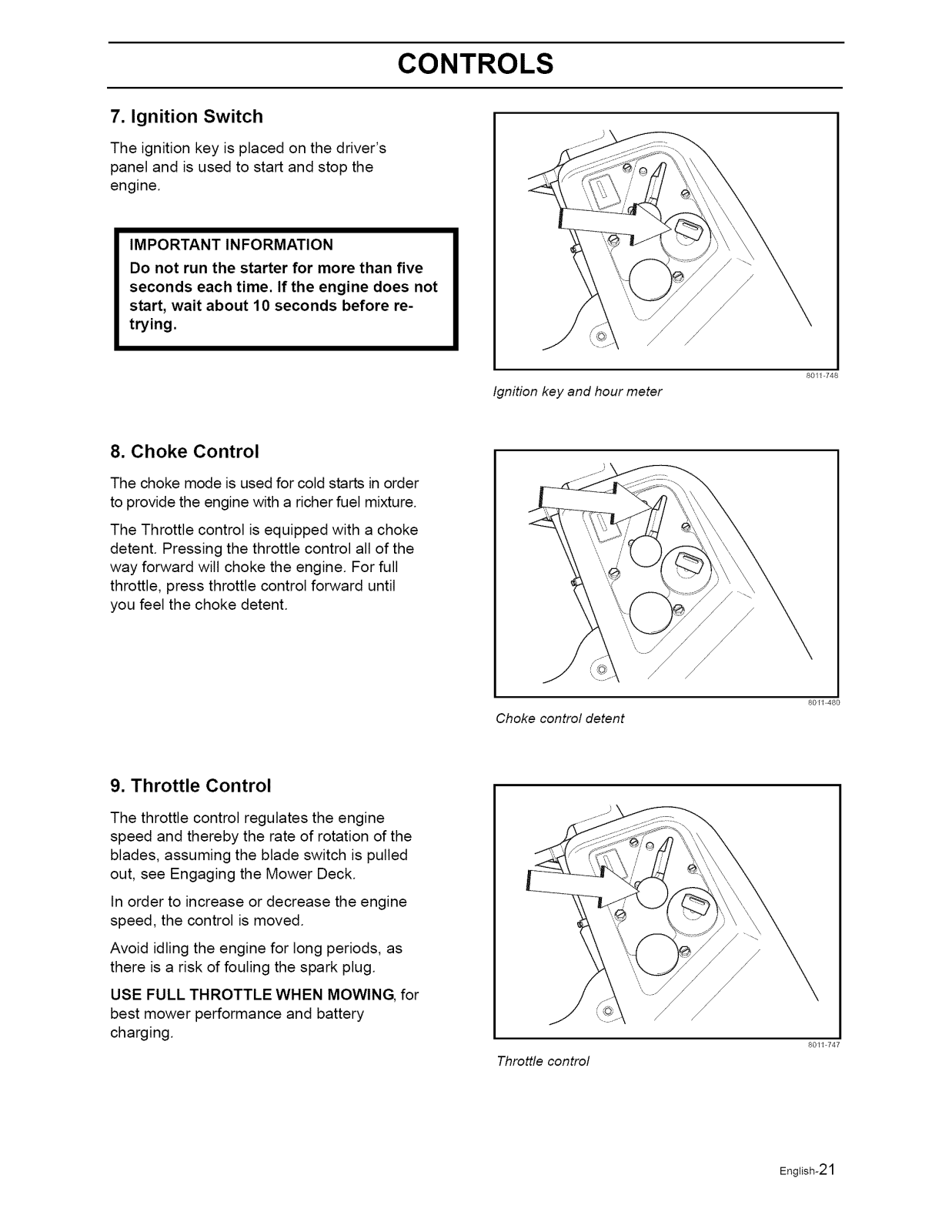

7. Ignition Switch ................................................ 21
8. Choke Control ................................................ 21
9. Throttle Control .............................................. 21

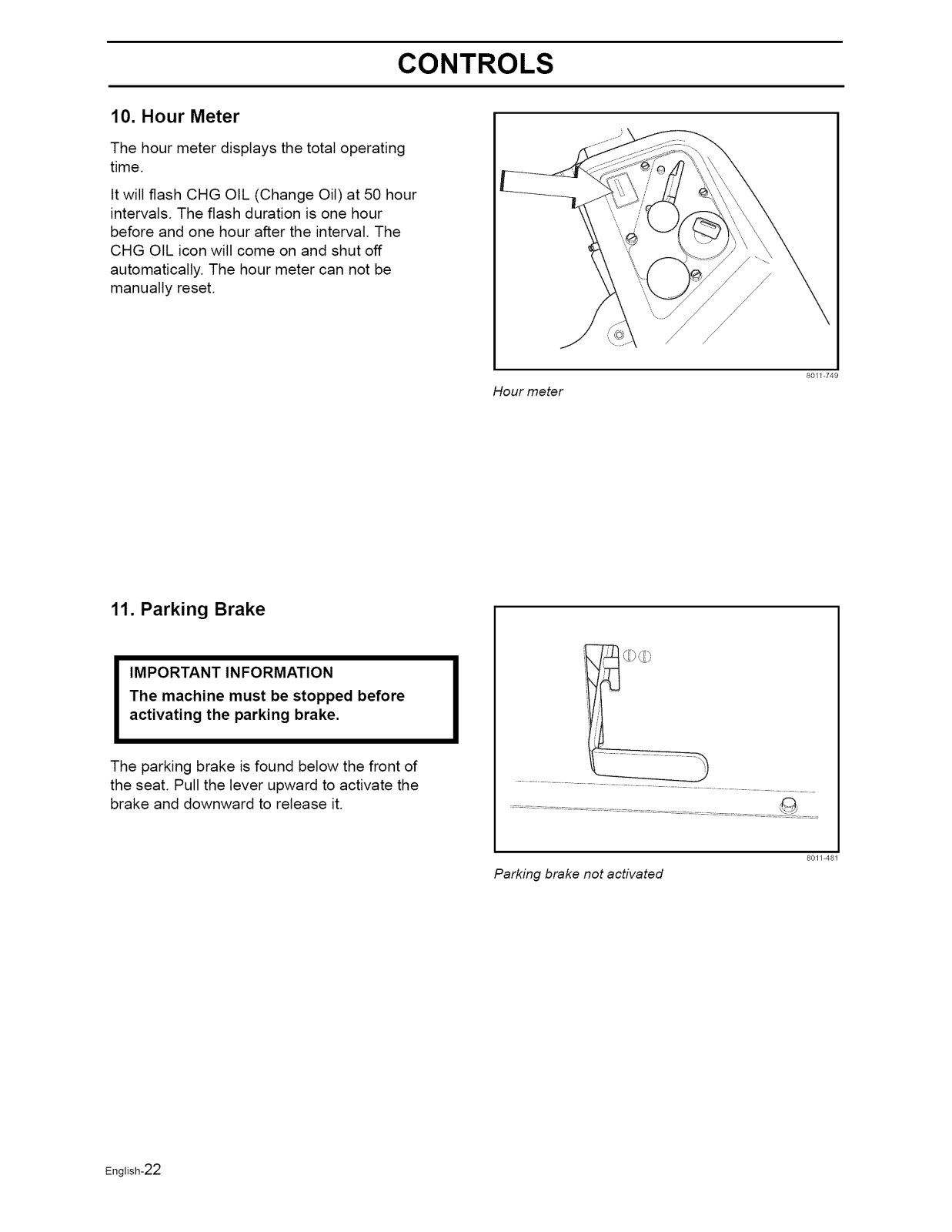

10. Hour Meter ................................................... 22
11. Parking Brake .............................................. 22
12. Cutting height pedal ..................................... 23
Accessories ........................................................ 23

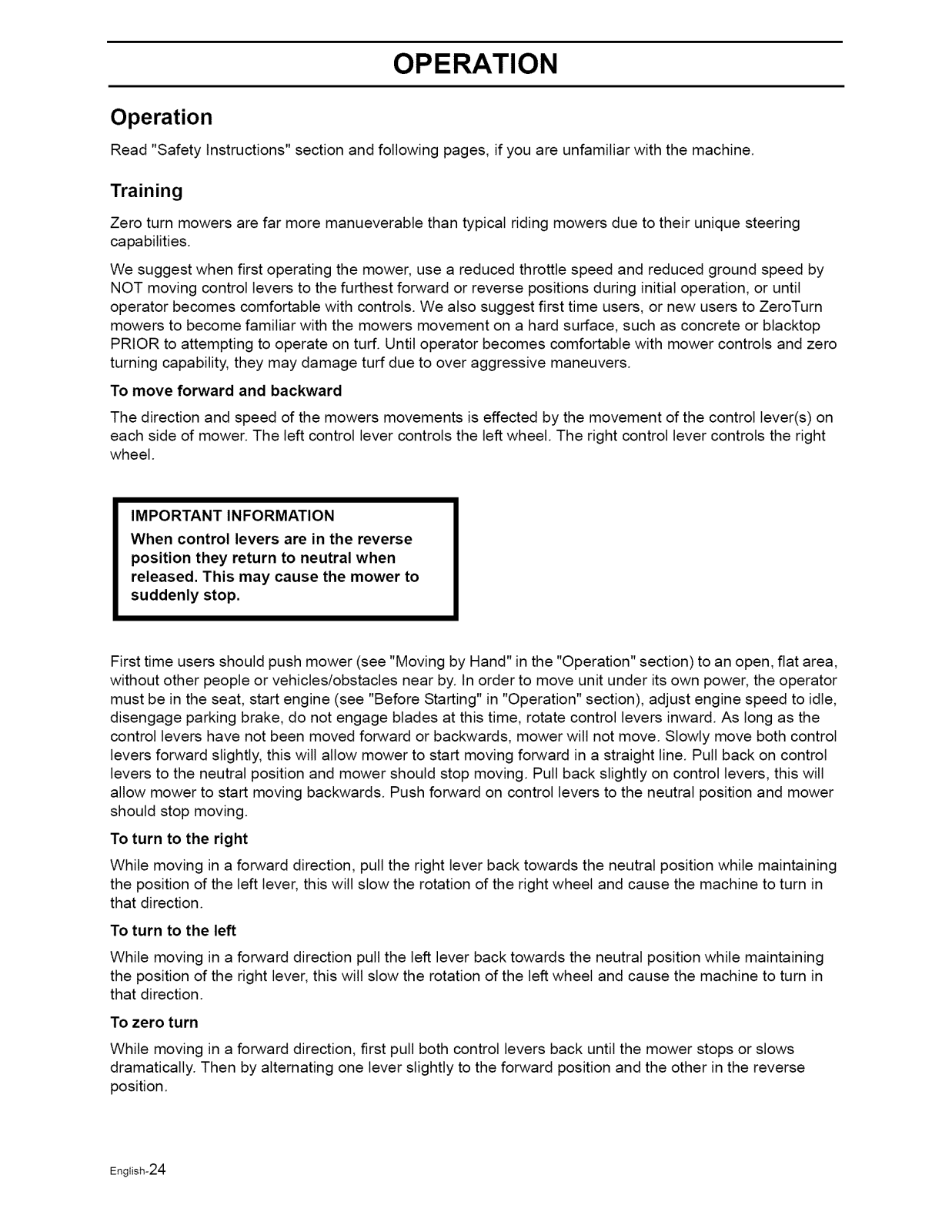

Operation ............................................................... 24
Training .............................................................. 24

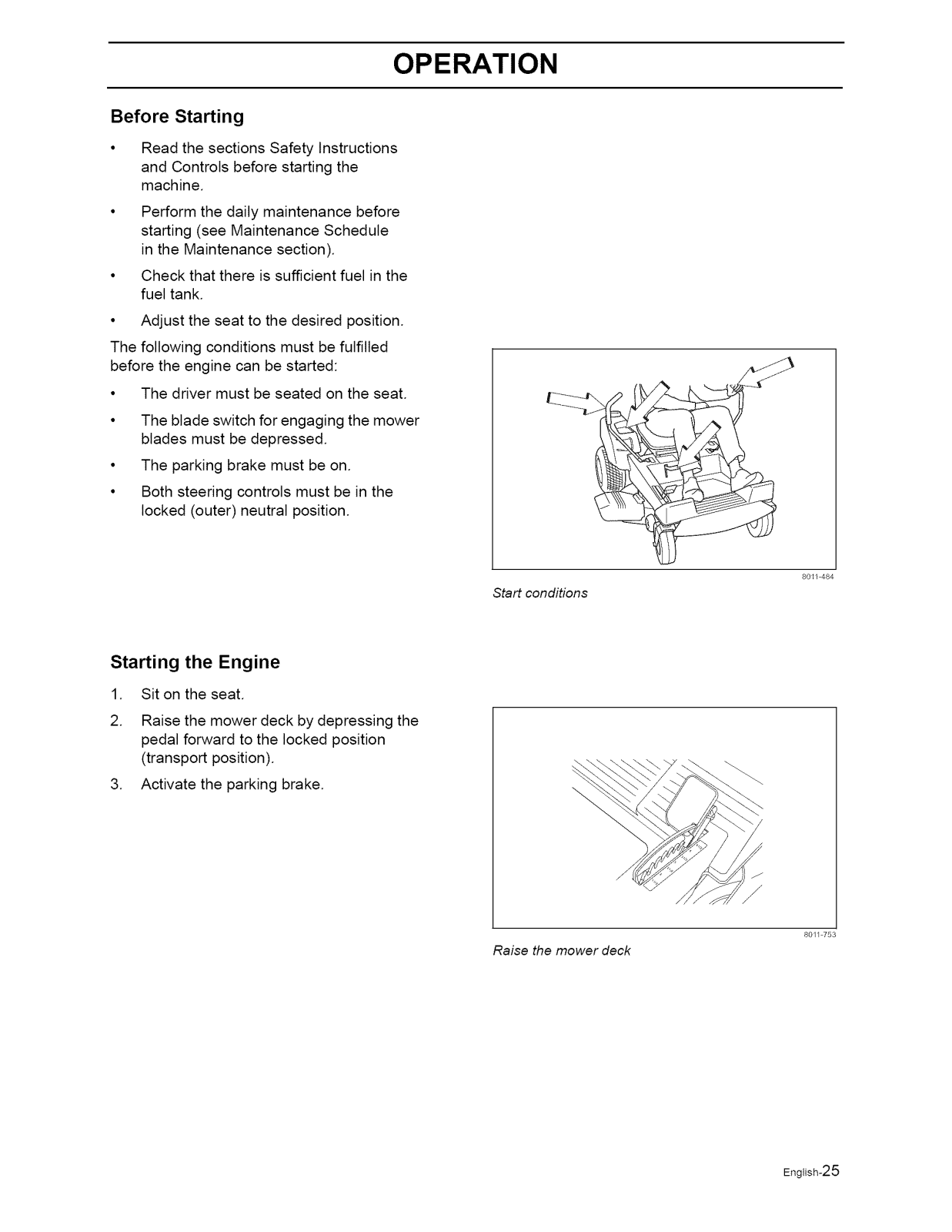

Before Starting ................................................... 25
Starting the Engine ............................................ 25

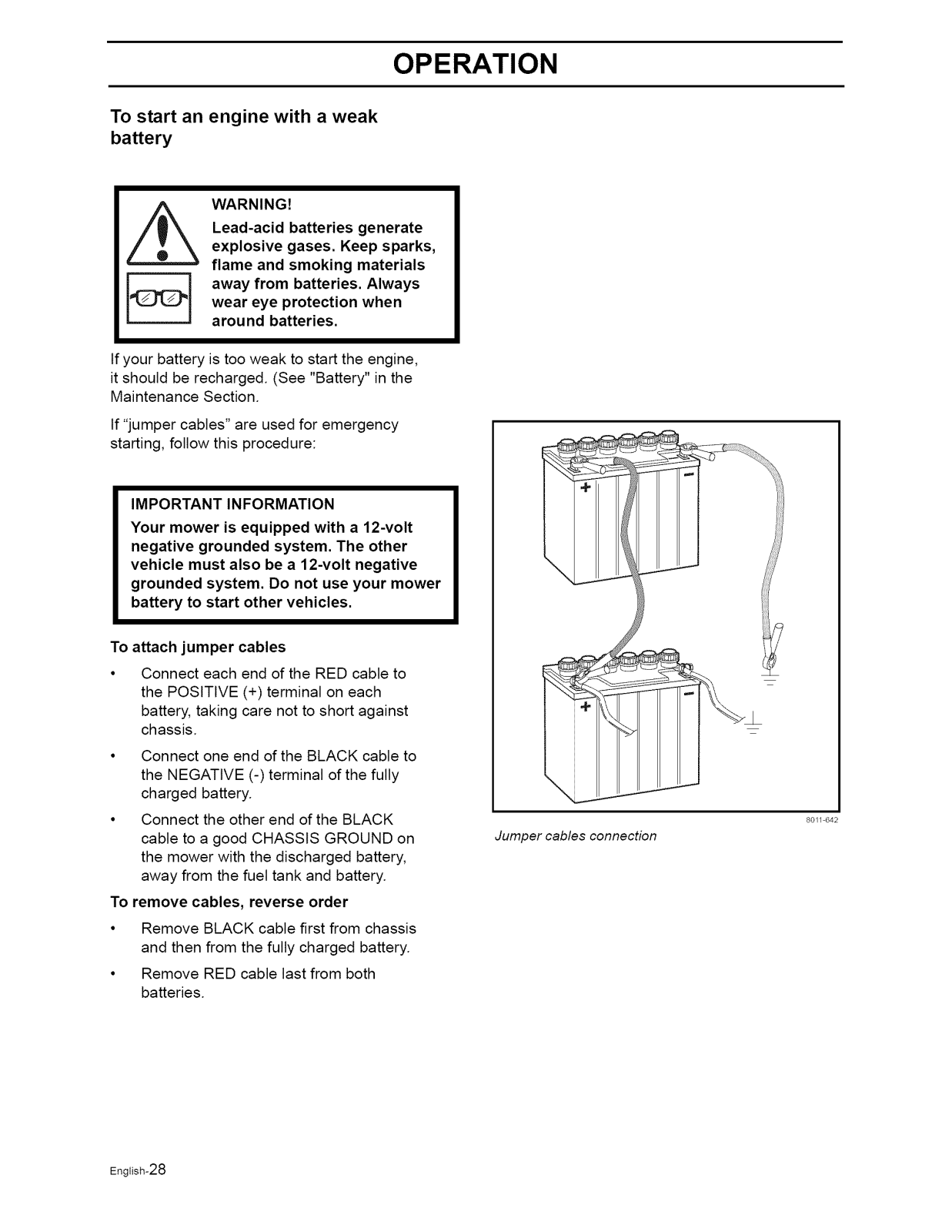

To start an engine with a weak battery .............. 28
Running .............................................................. 29

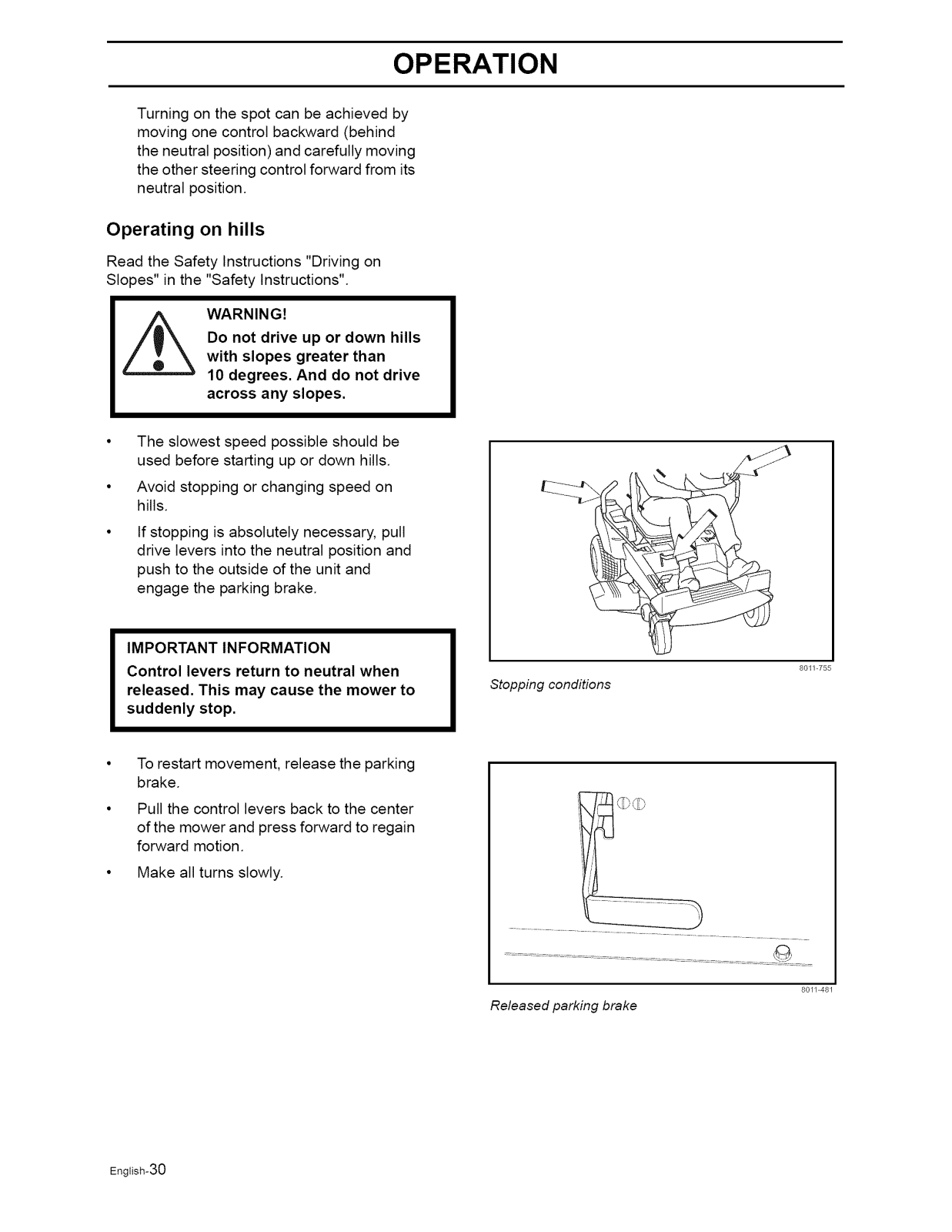

Operating on hills ............................................... 30

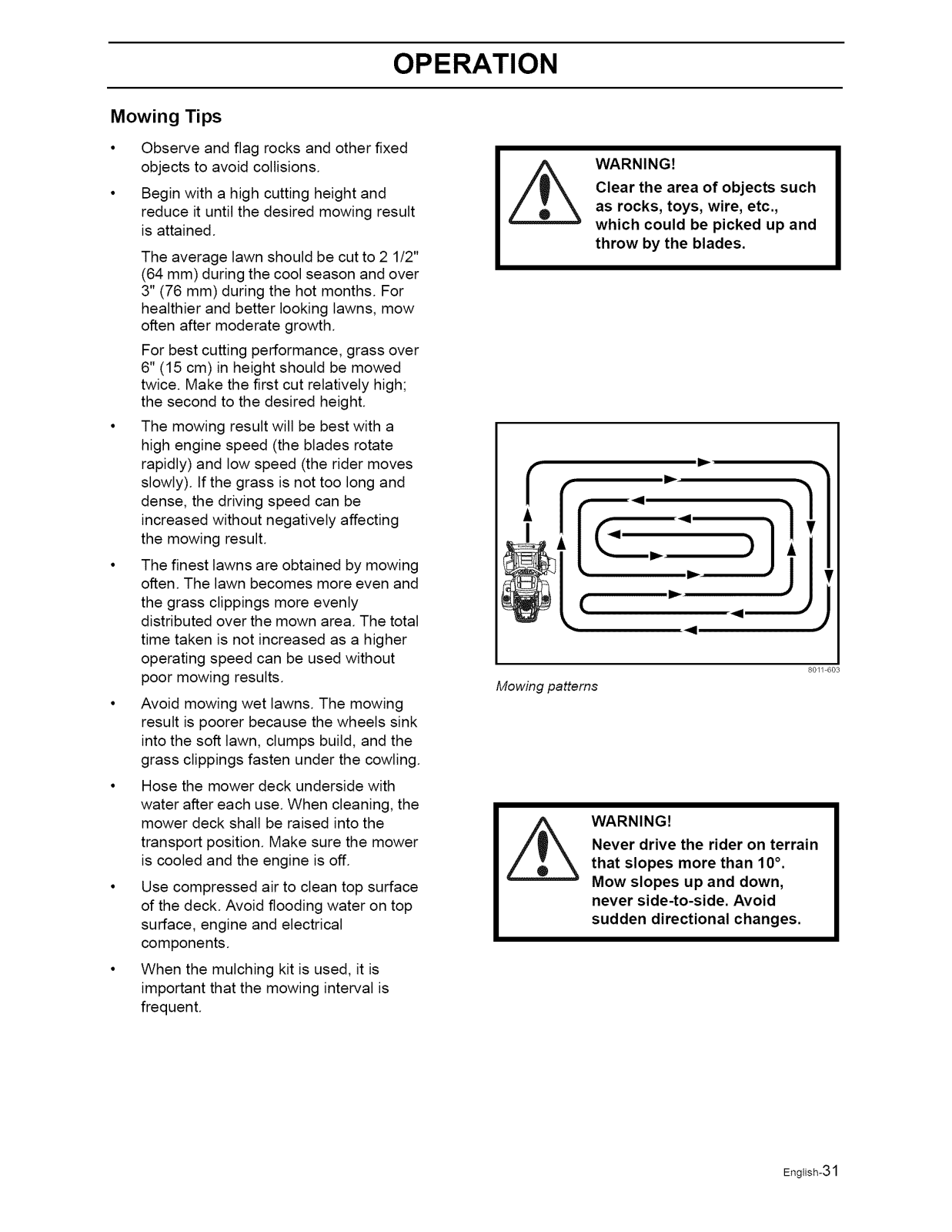

Mowing Tips ....................................................... 31
Stopping the Engine ........................................... 32

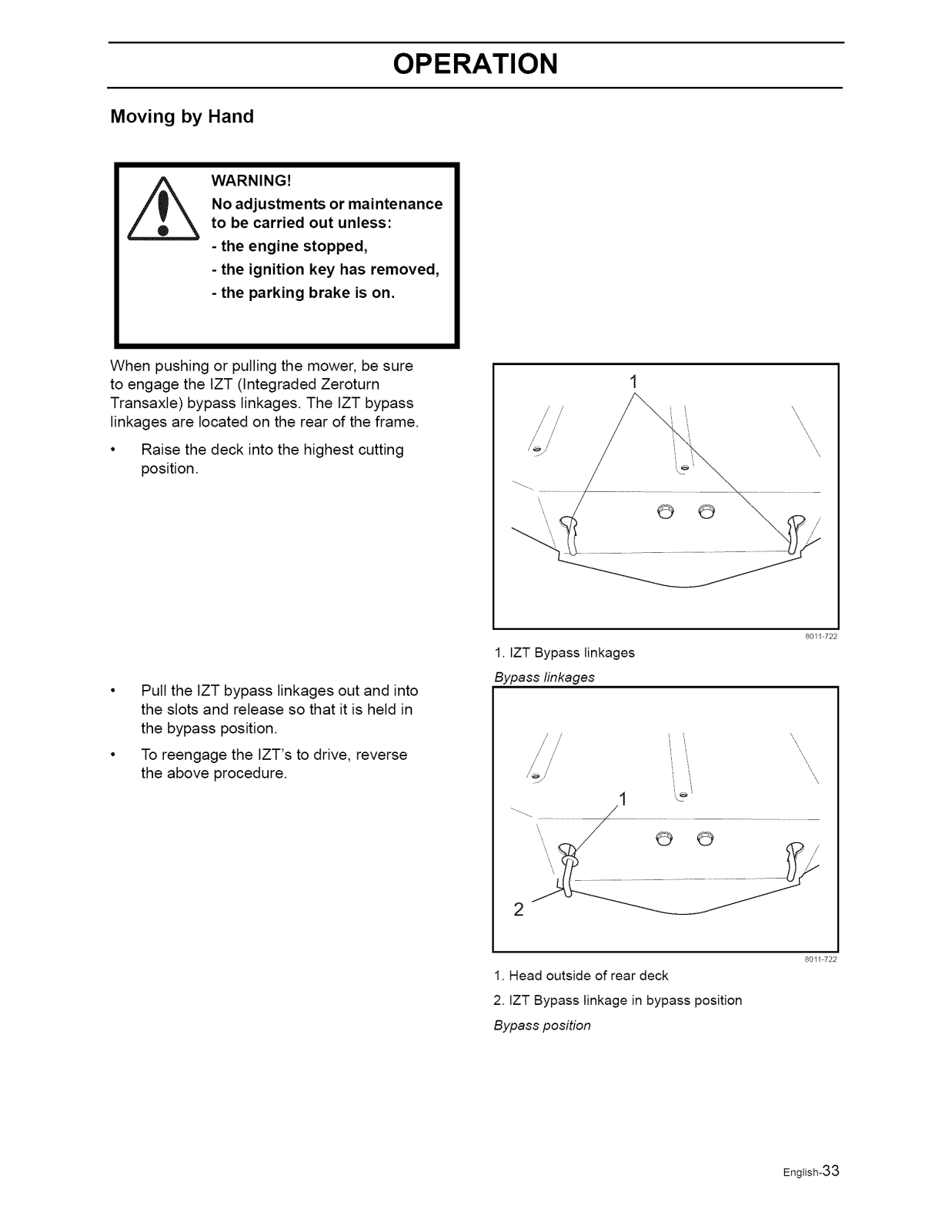

Moving by Hand ..................................................... 33
Maintenance ......................................................... 34

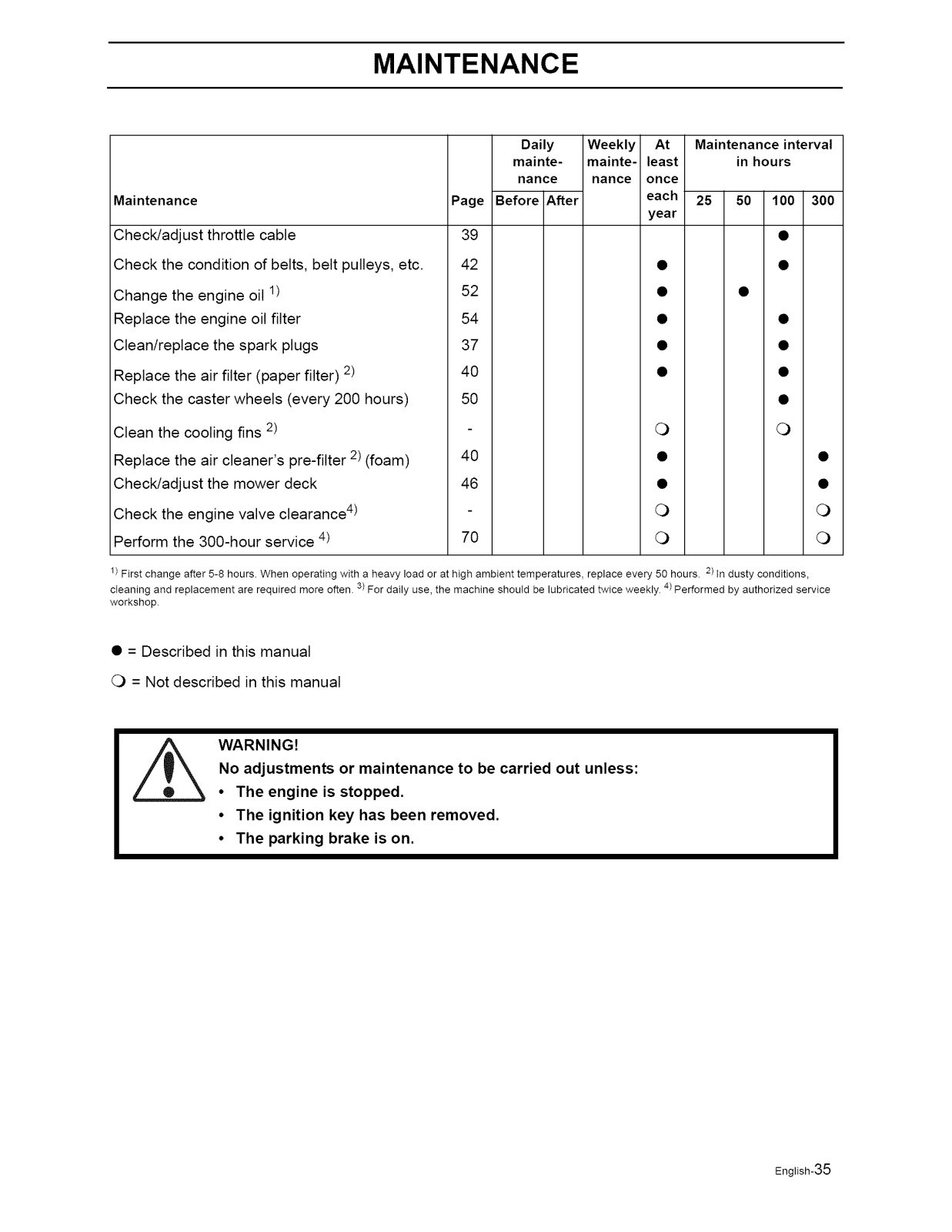

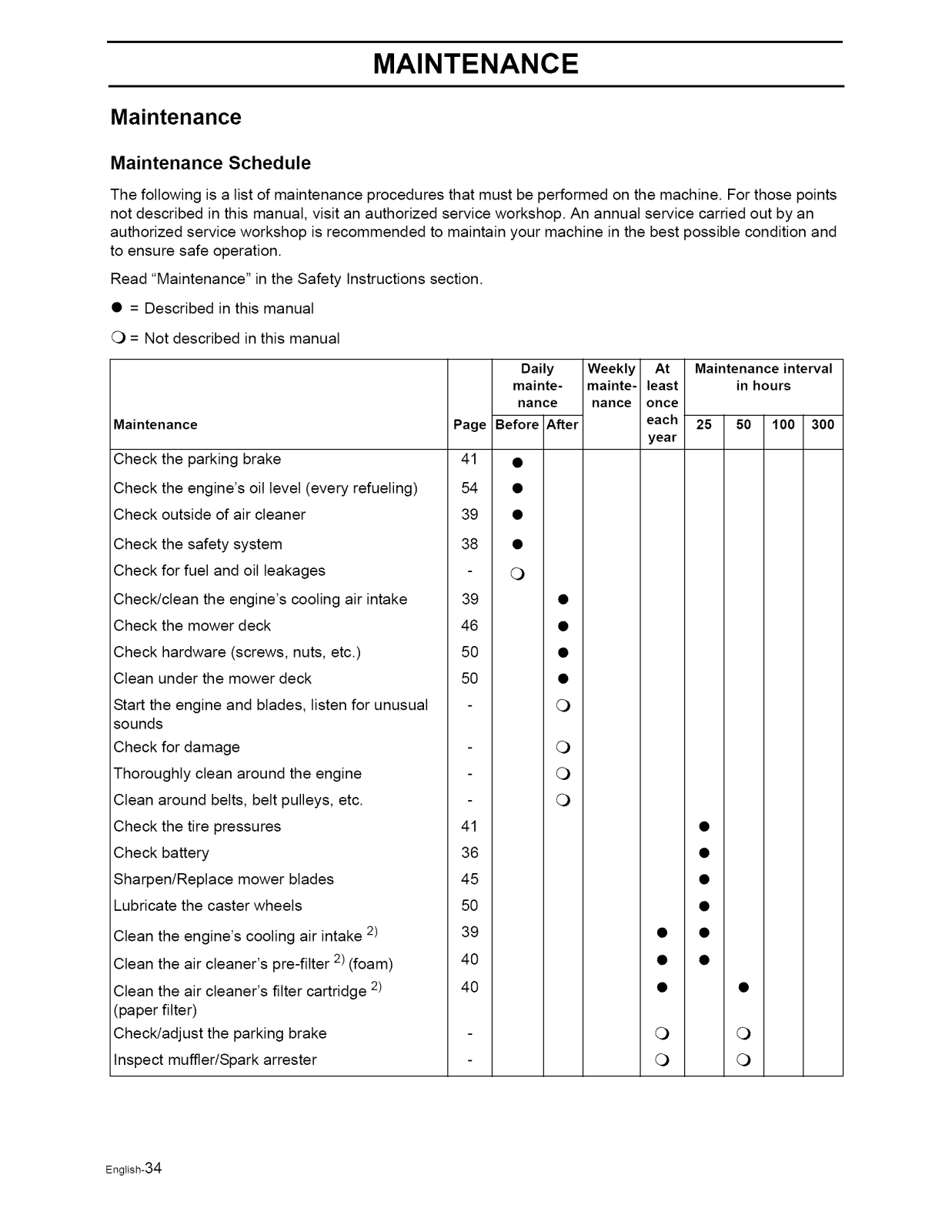

Maintenance Schedule ...................................... 34
Battery ............................................................... 36

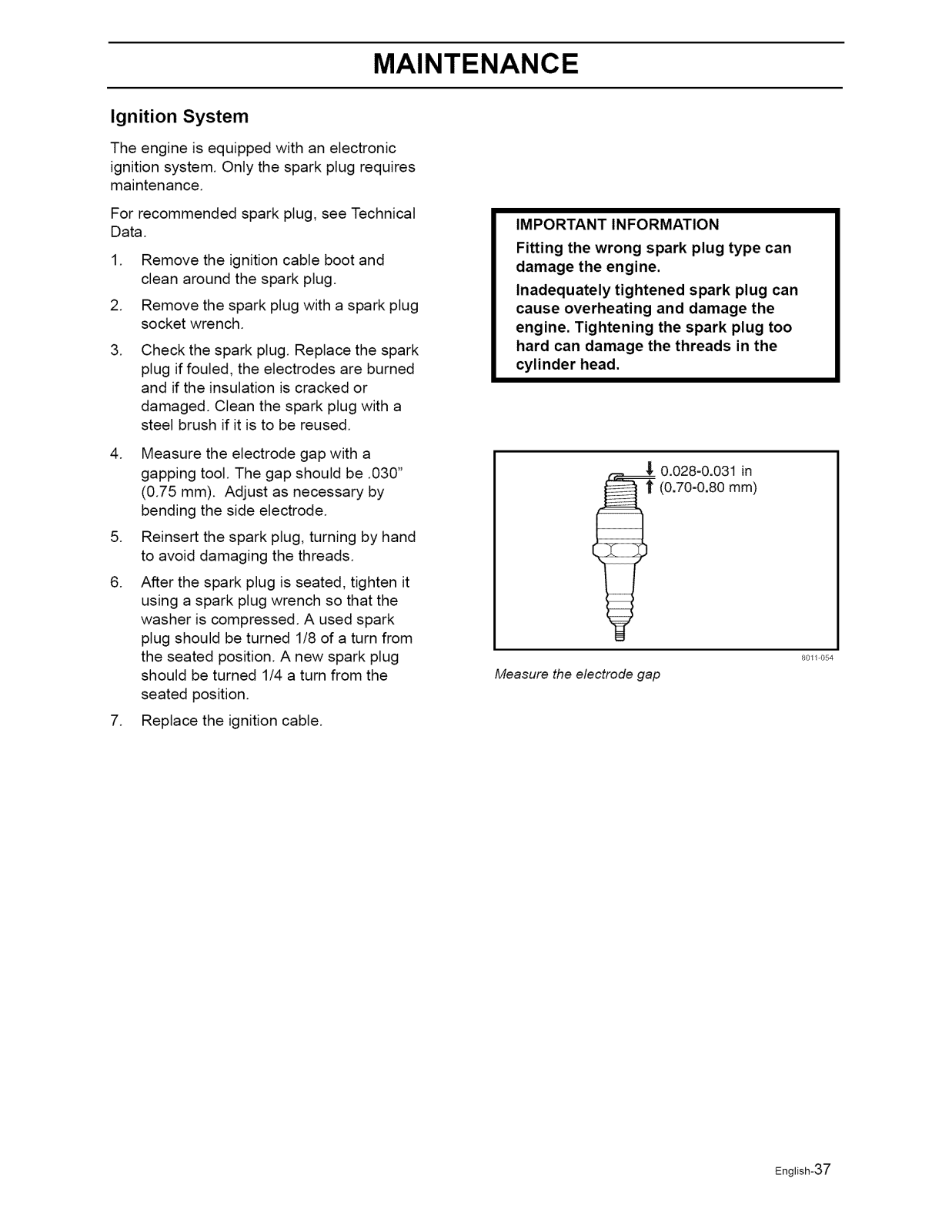

Ignition System .................................................. 37
Checking the Safety System ............................. 38
Checking the Engine's Cooling Air Intake ......... 39
Checking and Adjusting the Throttle Cable ....... 39

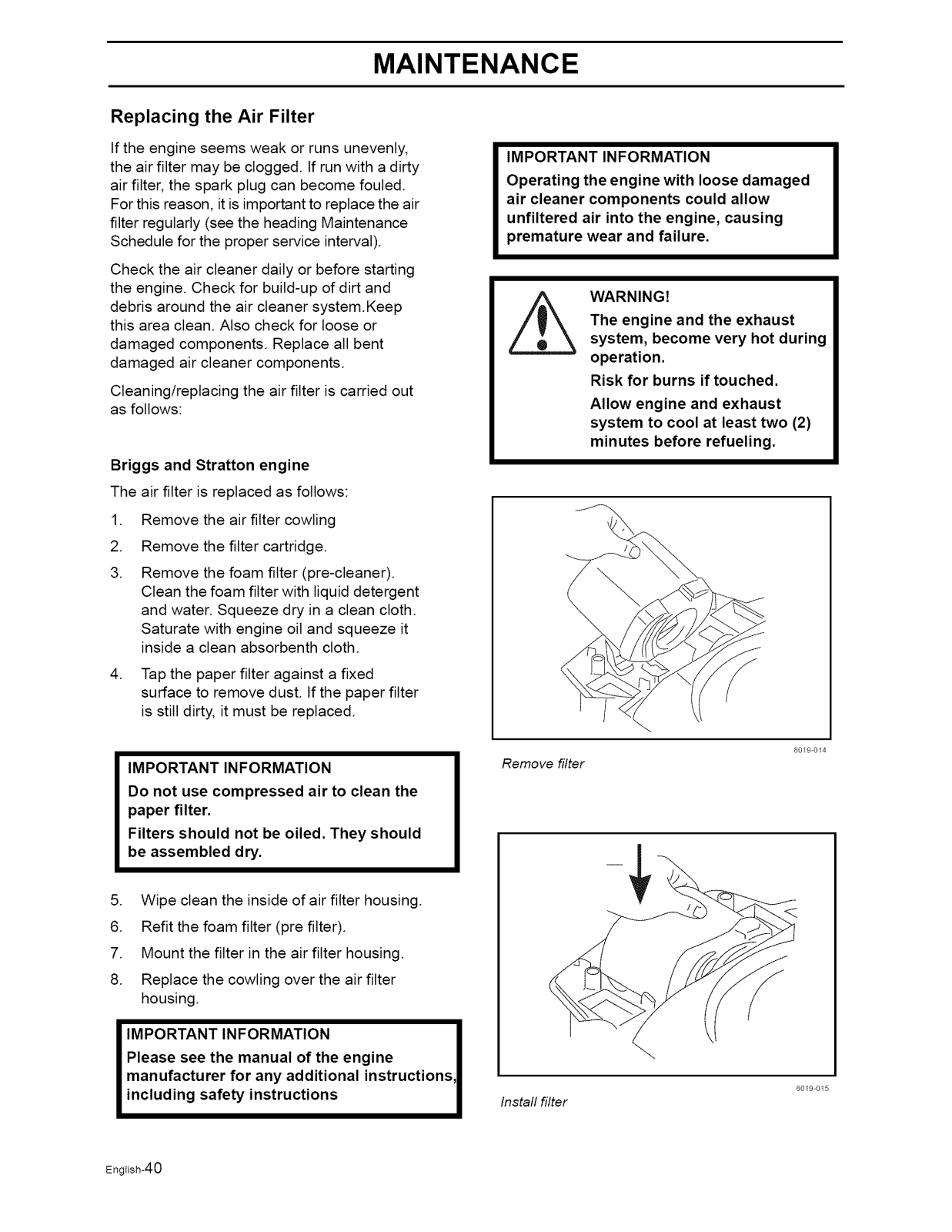

Replacing the Air Filter ...................................... 40

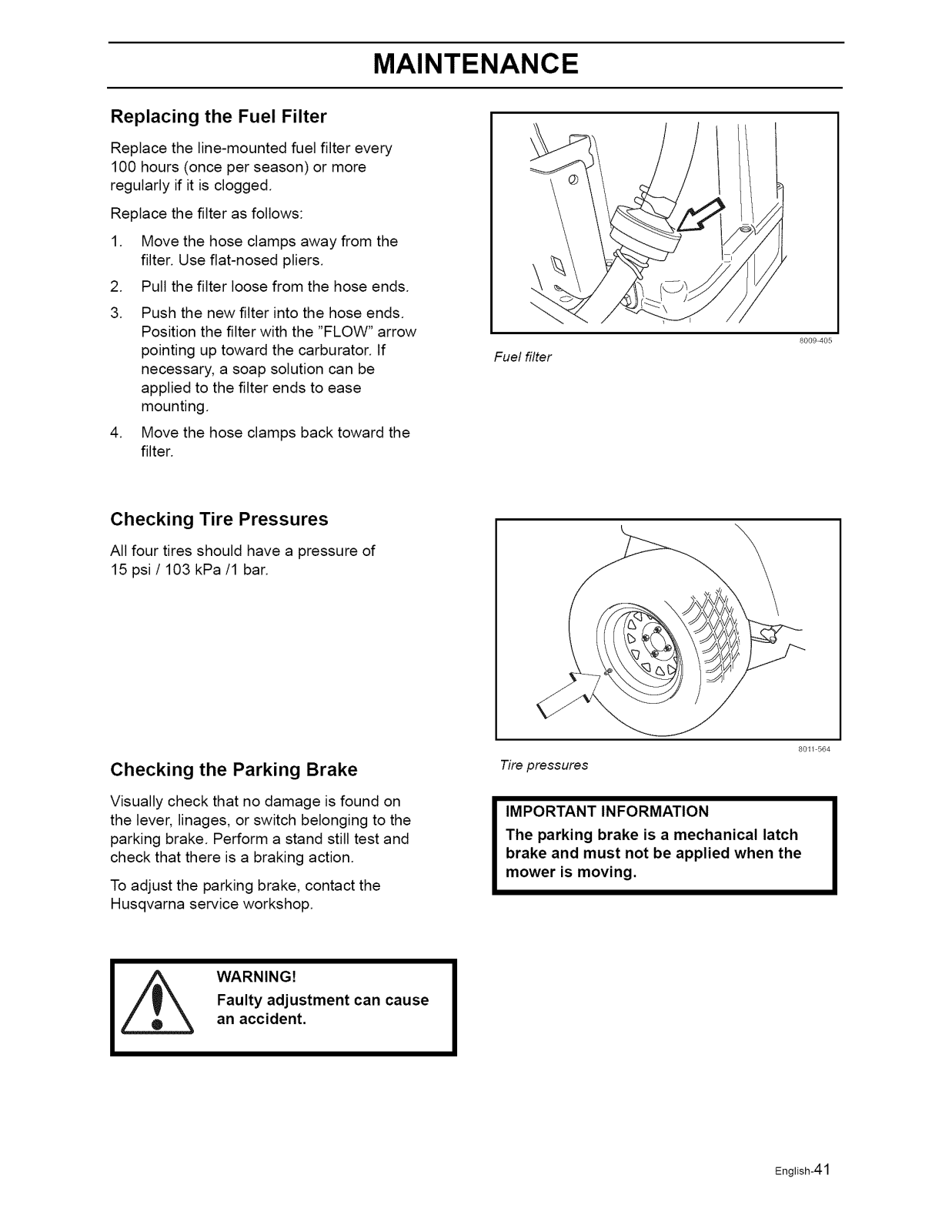

Replacing the Fuel Filter ................................... 41
Checking Tire Pressures ................................... 41
Checking the Parking Brake .............................. 41

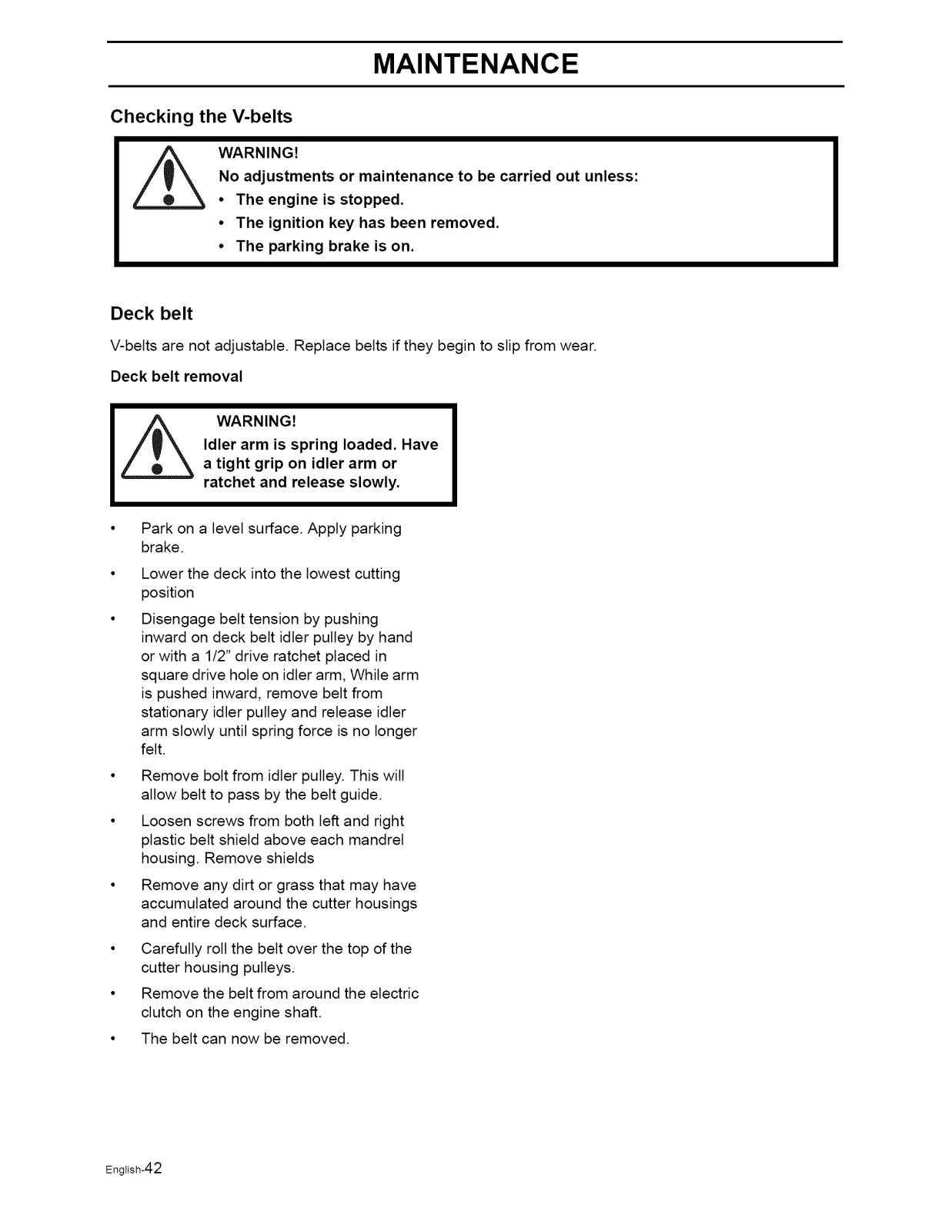

Checking the V-belts ......................................... 42
Deck belt ........................................................... 42

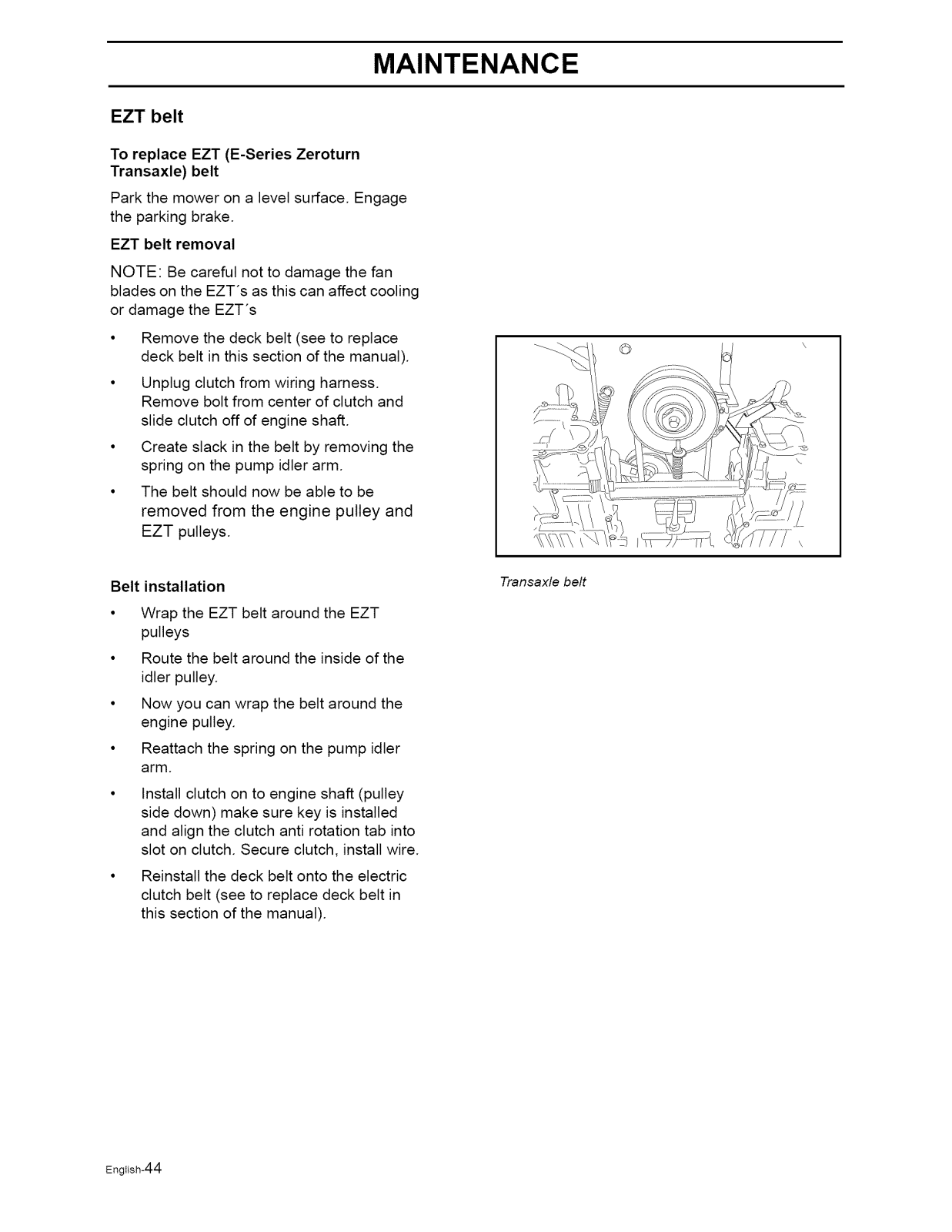

EZT belt ............................................................. 44
Checking the Blades ......................................... 45

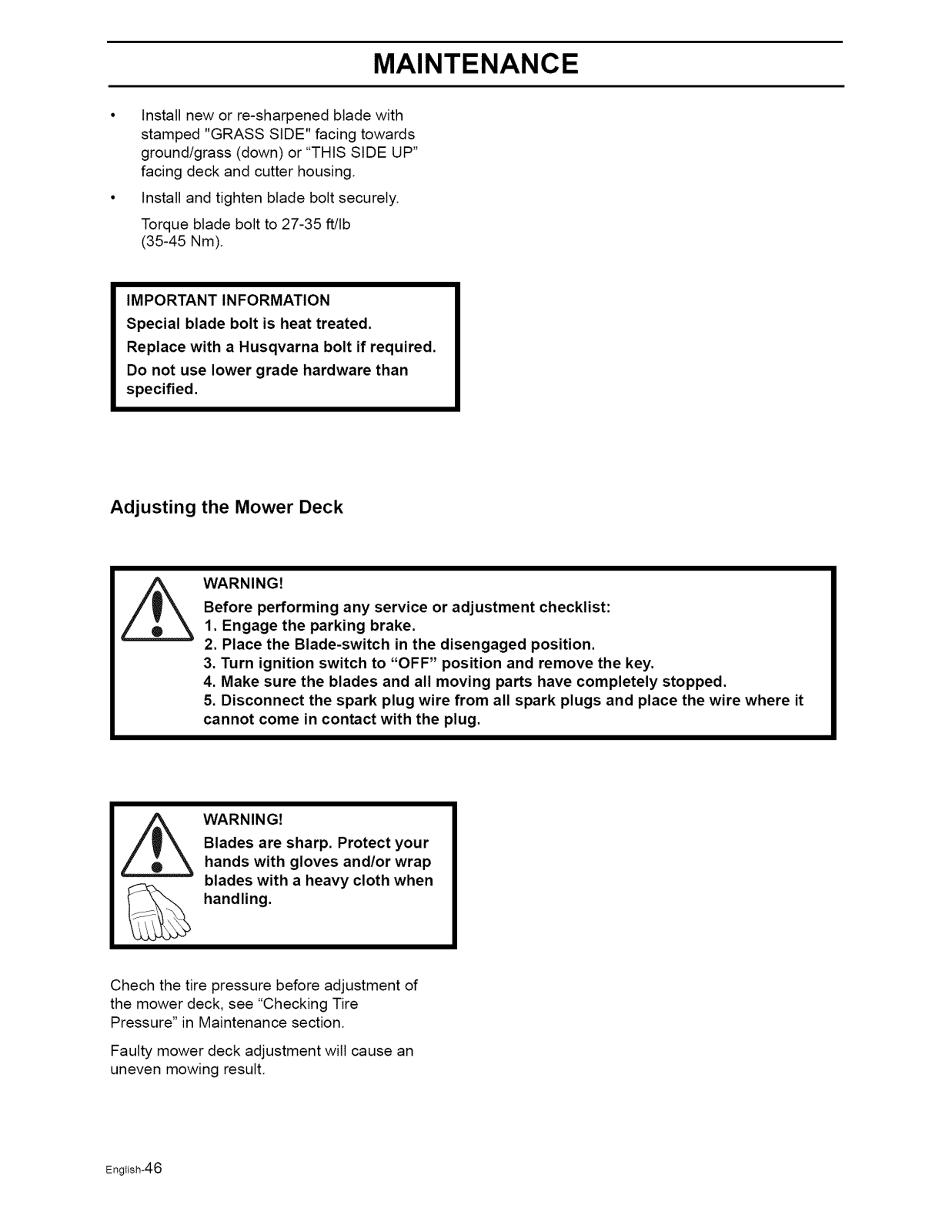

Adjusting the Mower Deck ................................ 46

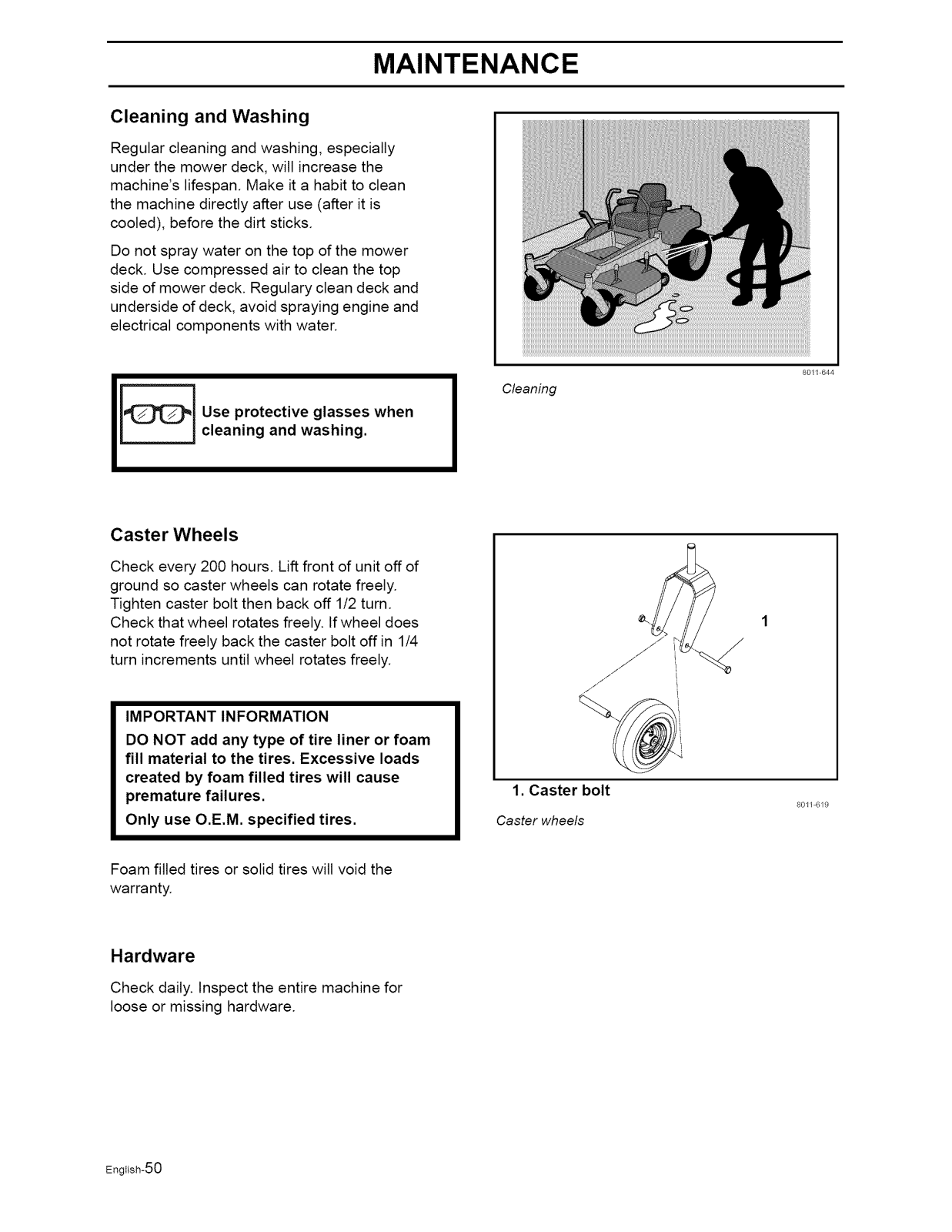

Cleaning and Washing ...................................... 50
Caster Wheels ................................................... 50
Hardware ........................................................... 50
Lubrication ............................................................ 51

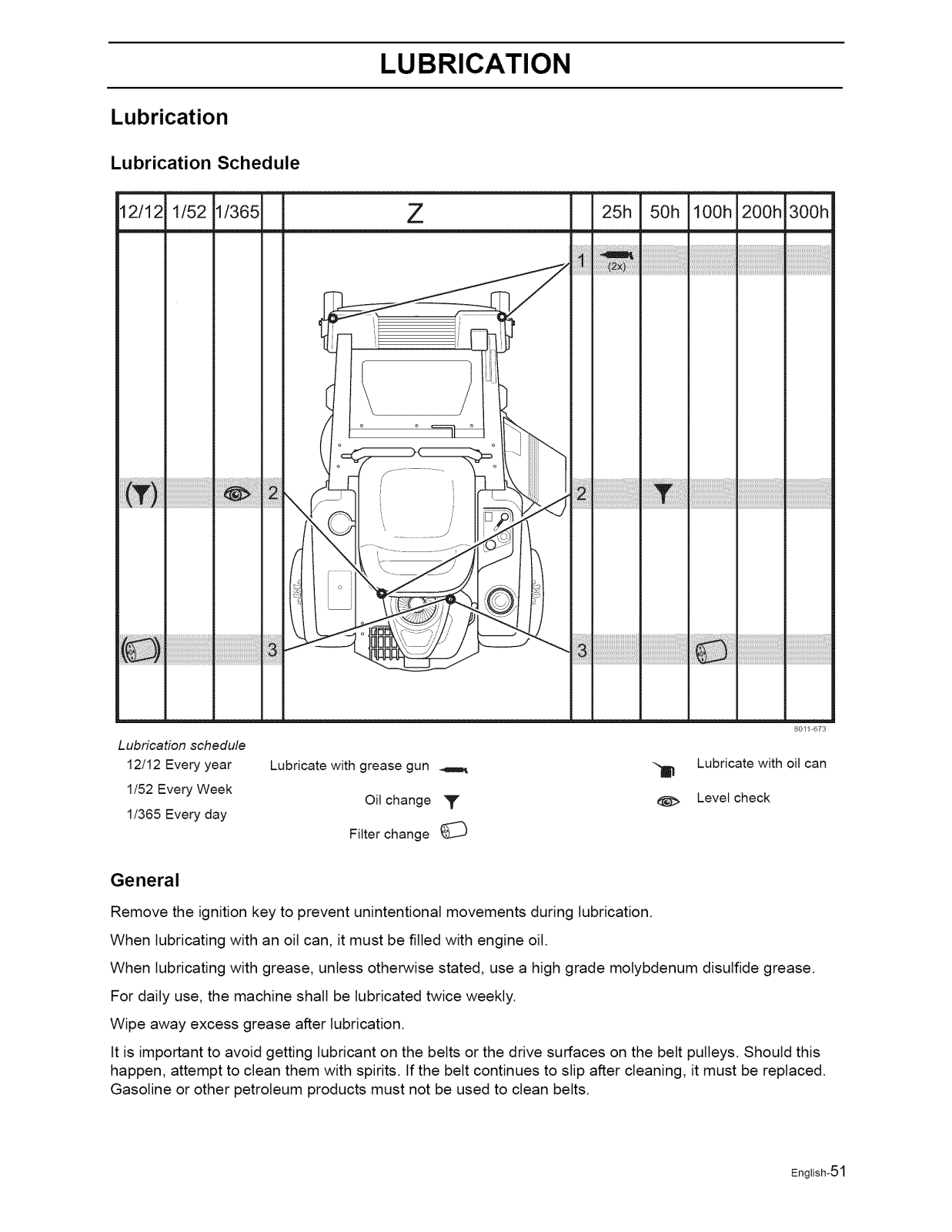

Lubrication Schedule ......................................... 51
General ............................................................. 51
Lubricating the Cables ...................................... 52
Lubricating in Accordance with the Lubrication
Schedule ........................................................... 52

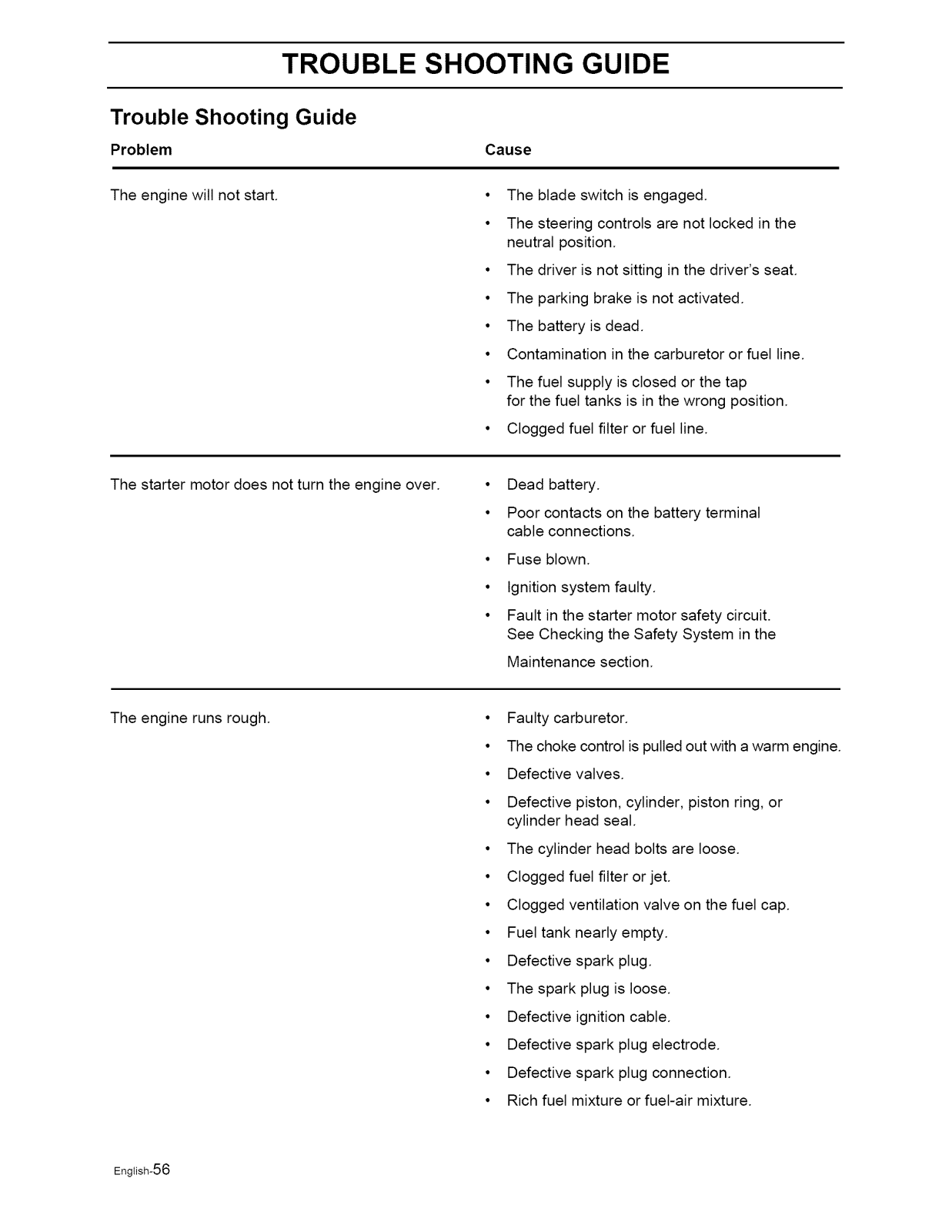

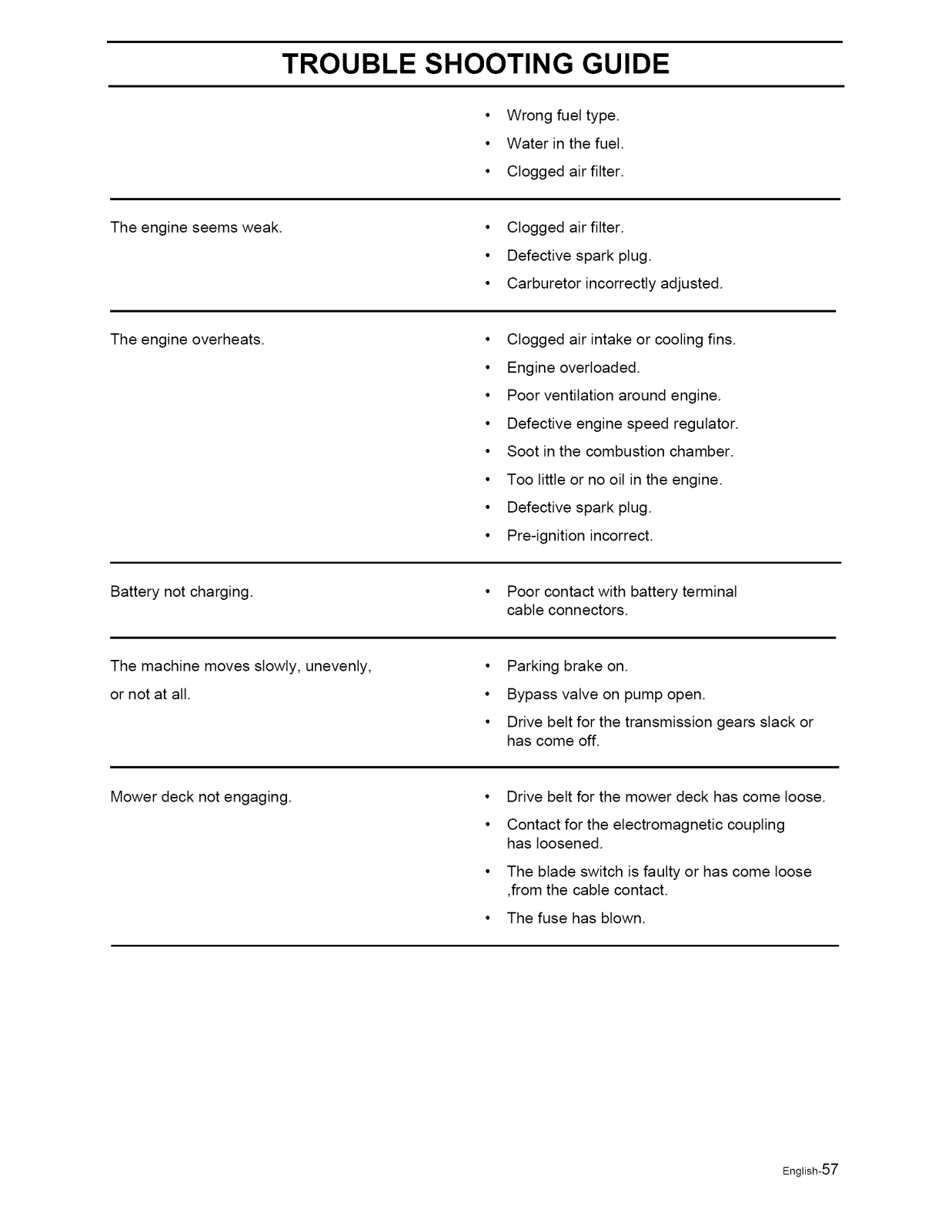

Trouble Shooting Guide ...................................... 56

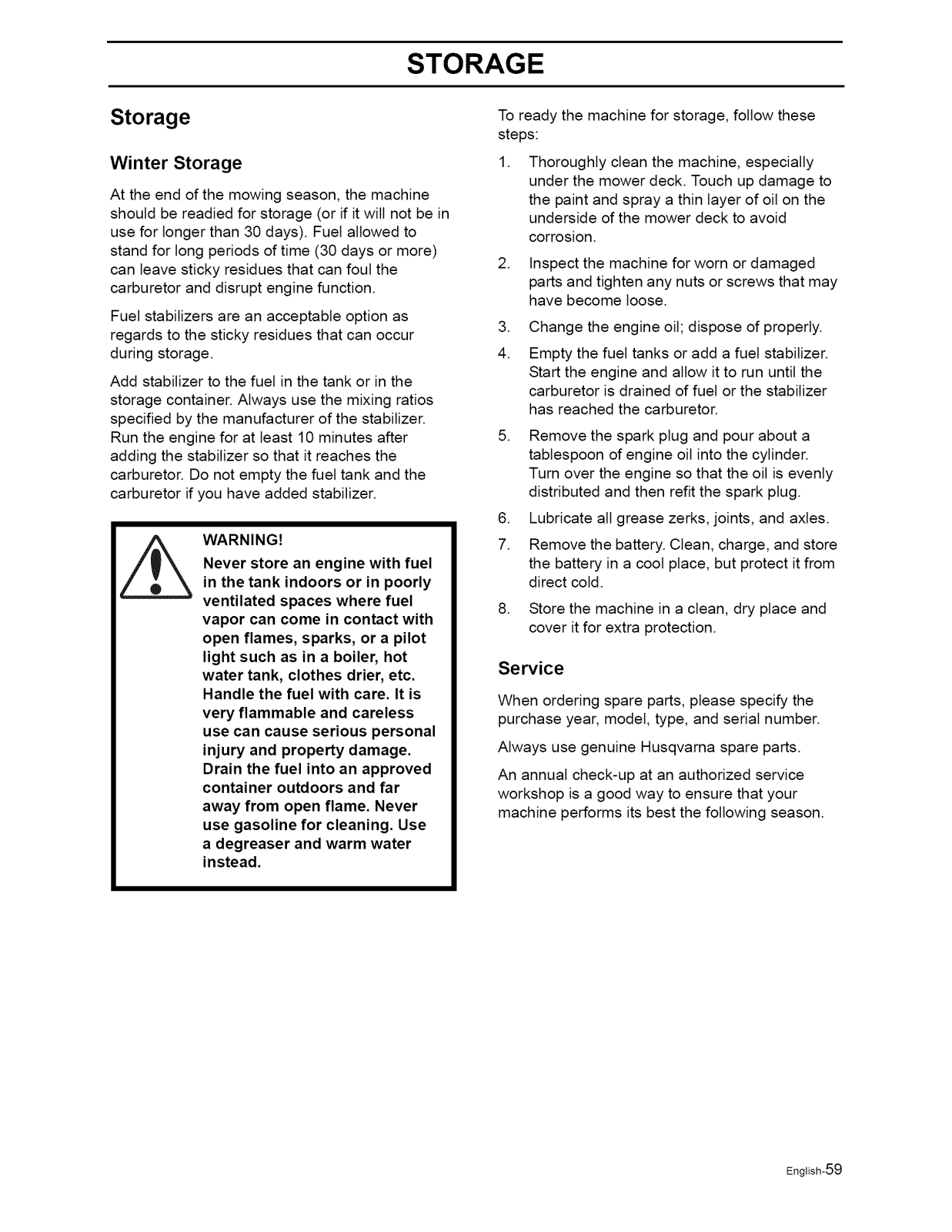

Storage .................................................................. 59
Winter Storage .................................................. 59
Service .............................................................. 59

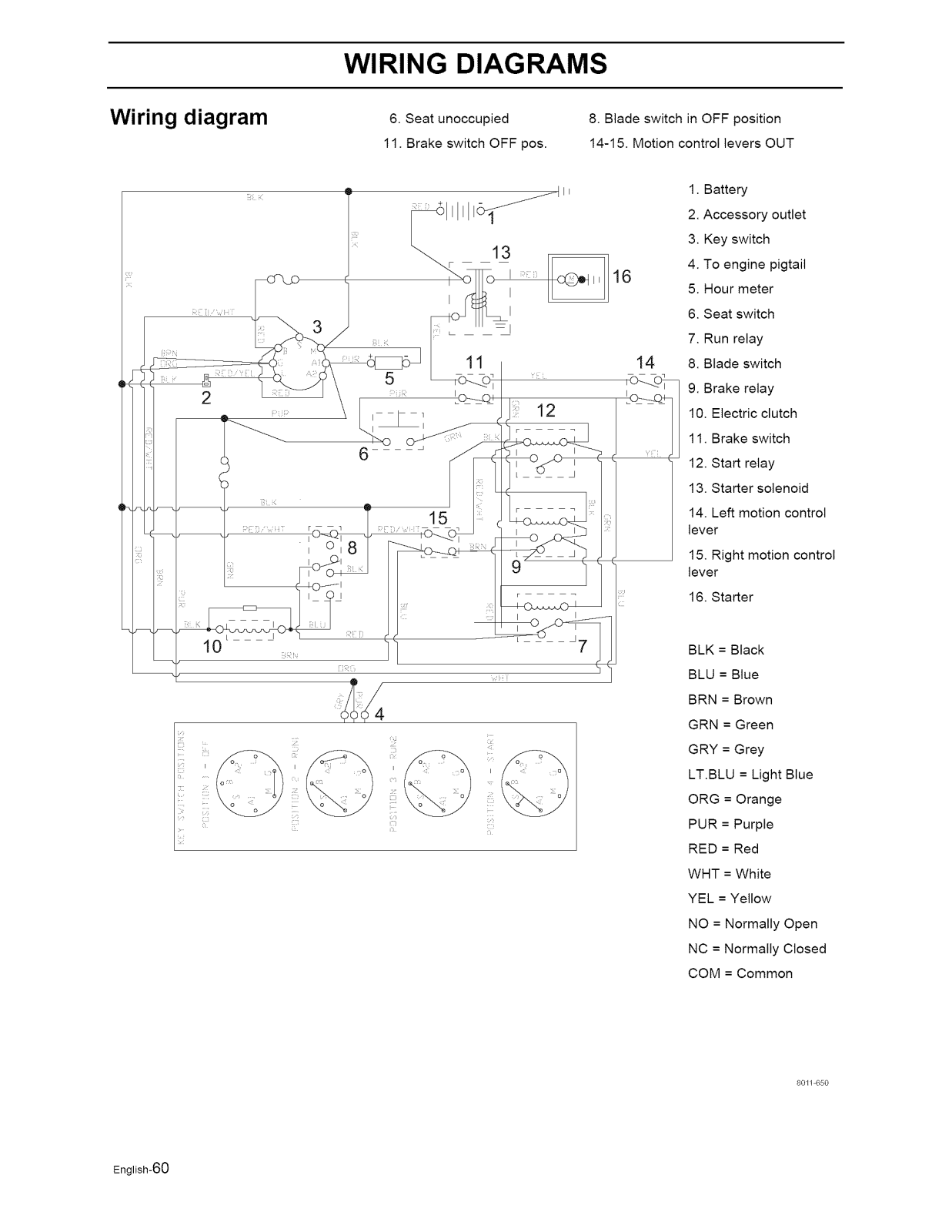

Wiring diagram ..................................................... 60

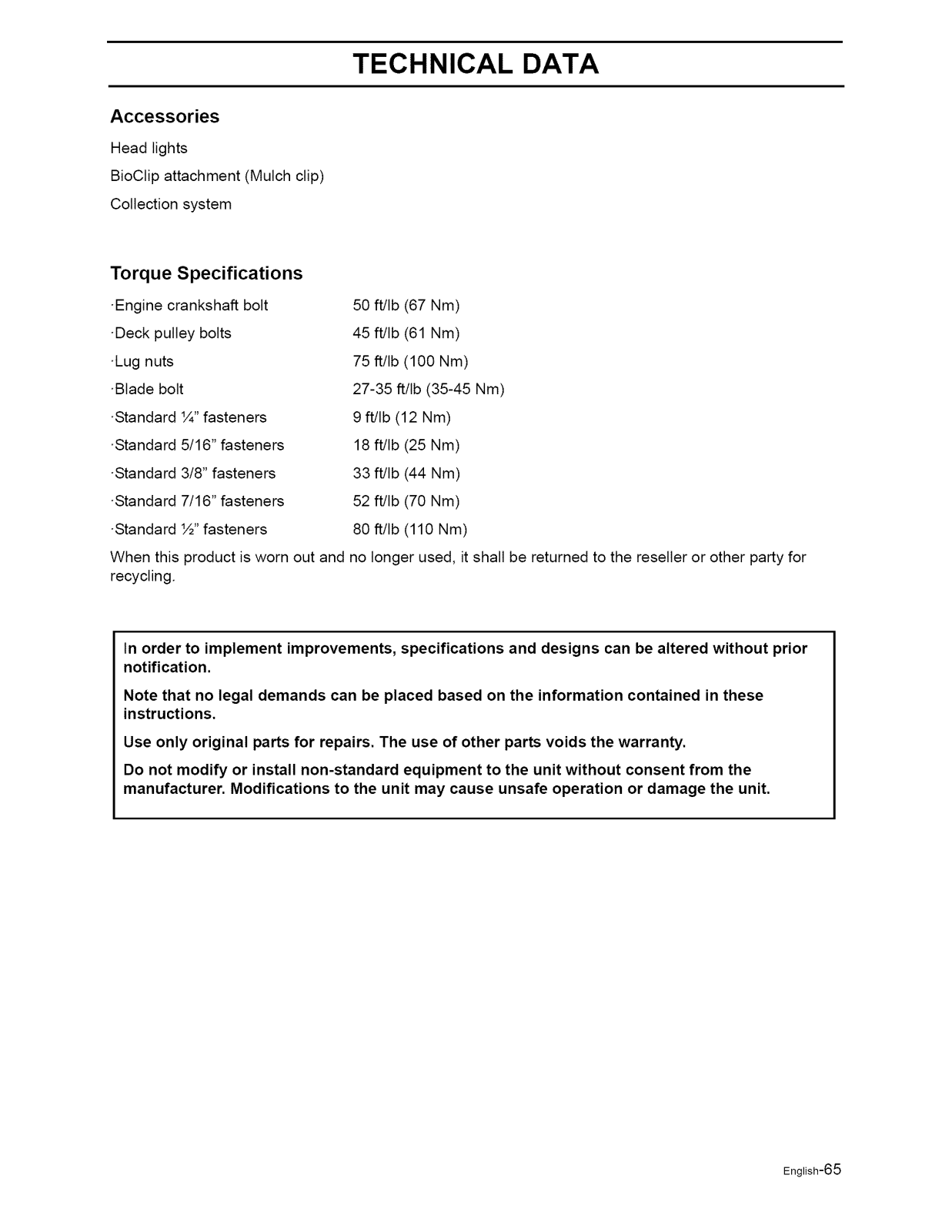

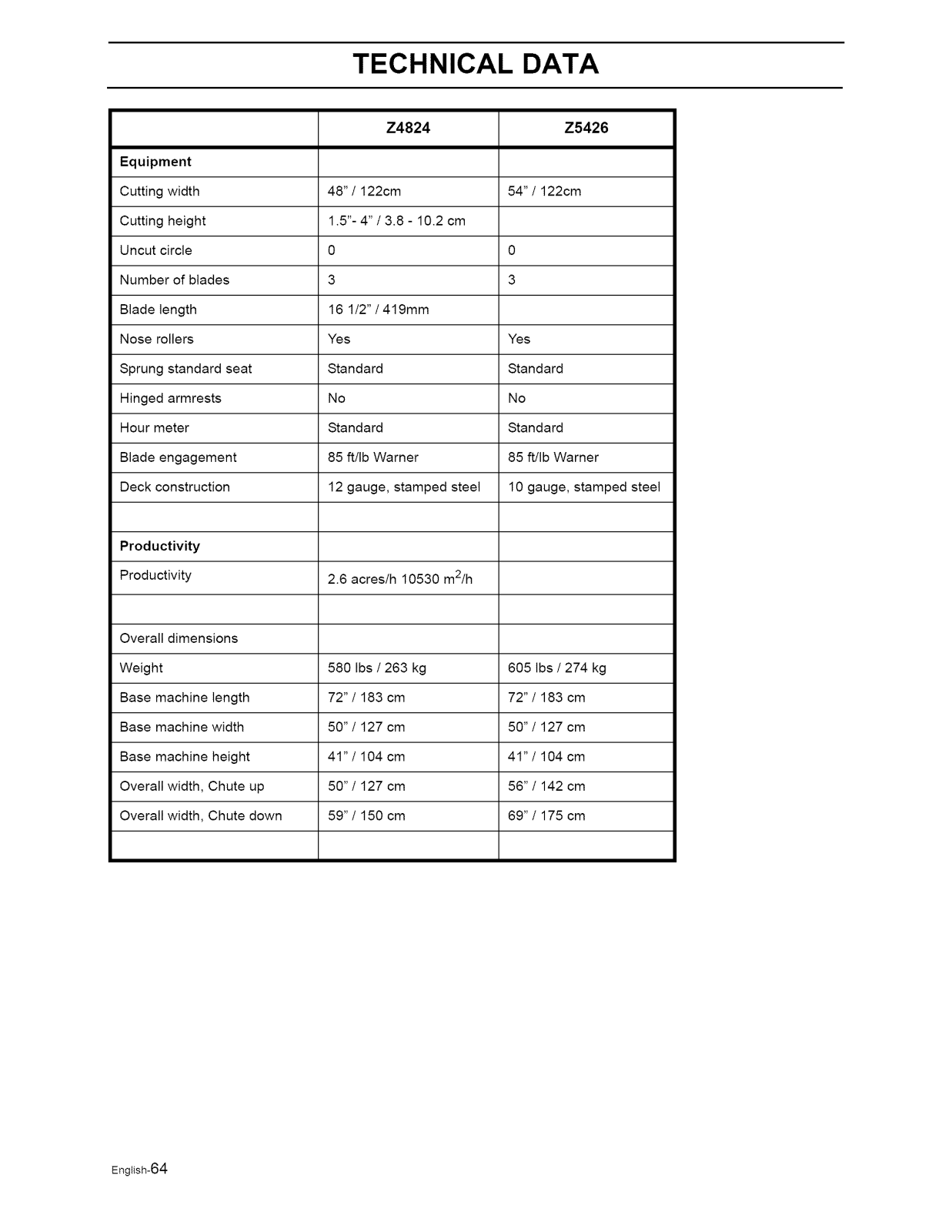

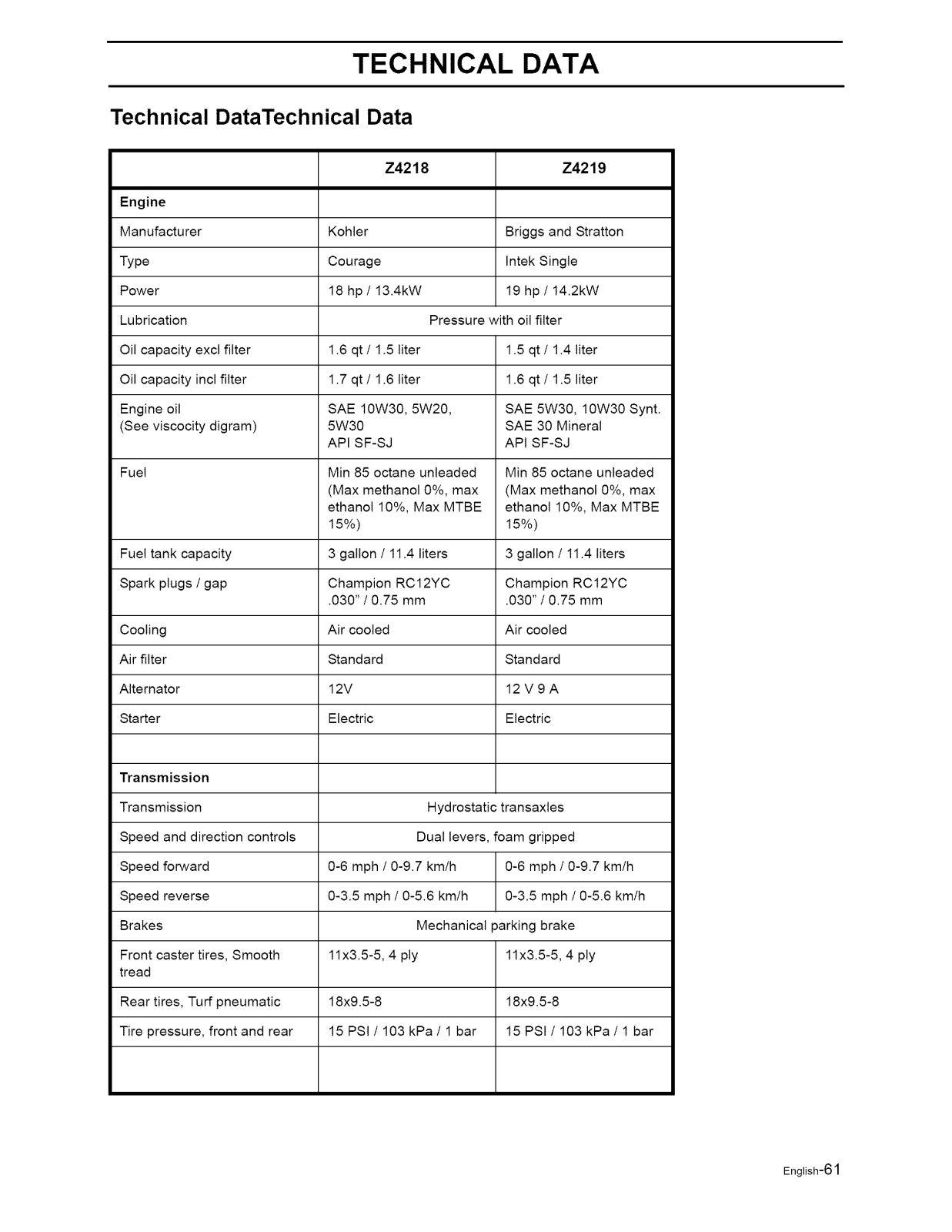

Technical Data ...................................................... 61
Accessories ....................................................... 65
Torque Specifications ........................................ 65
Conformity Certificates ........................................ 66
USA requirements ............................................. 66

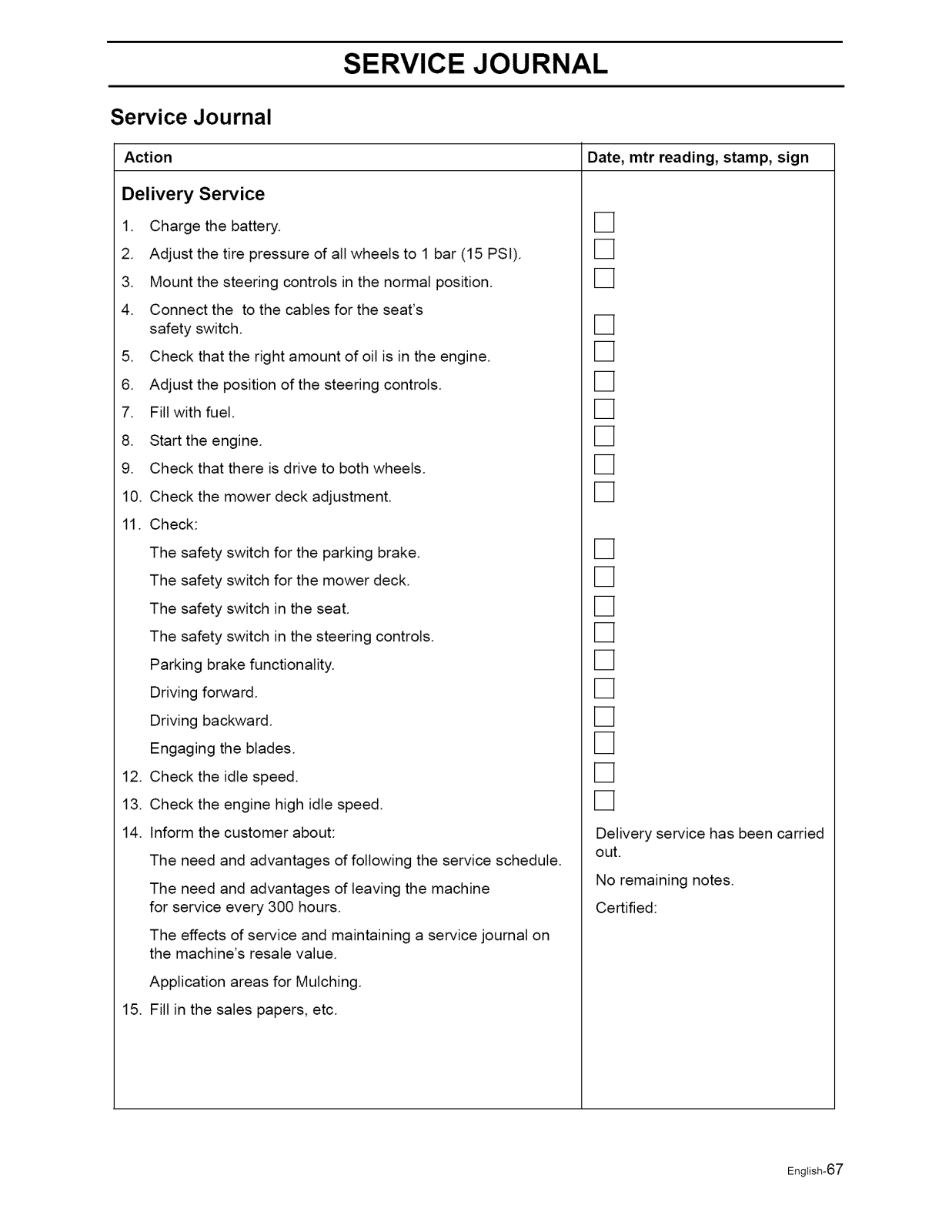

Service Journal .................................................... 67
Delivery Service ................................................ 67
After the First 5-8 Hours .................................... 68

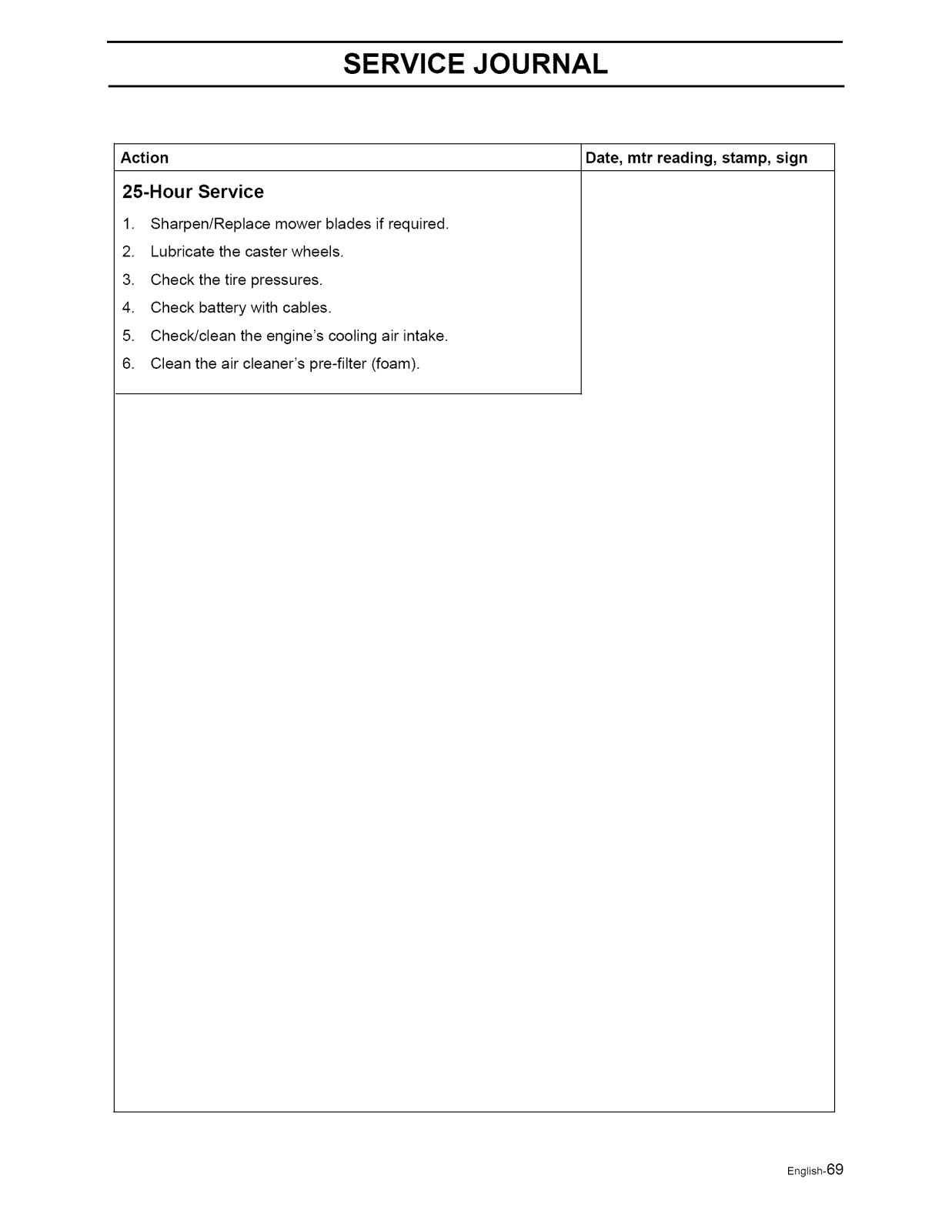

25-Hour Service ................................................ 69
50-Hour Service ................................................ 70

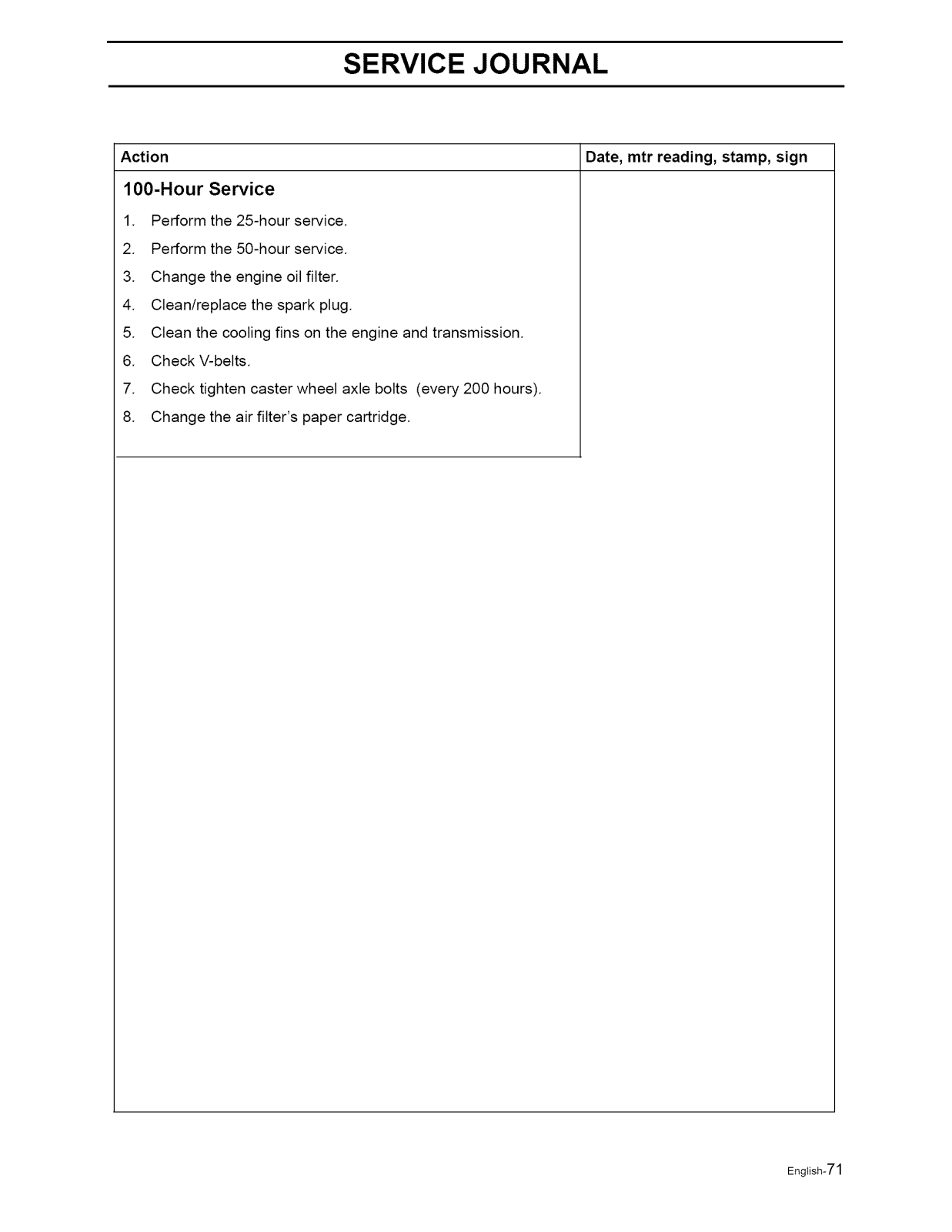

100-Hour Service .............................................. 71

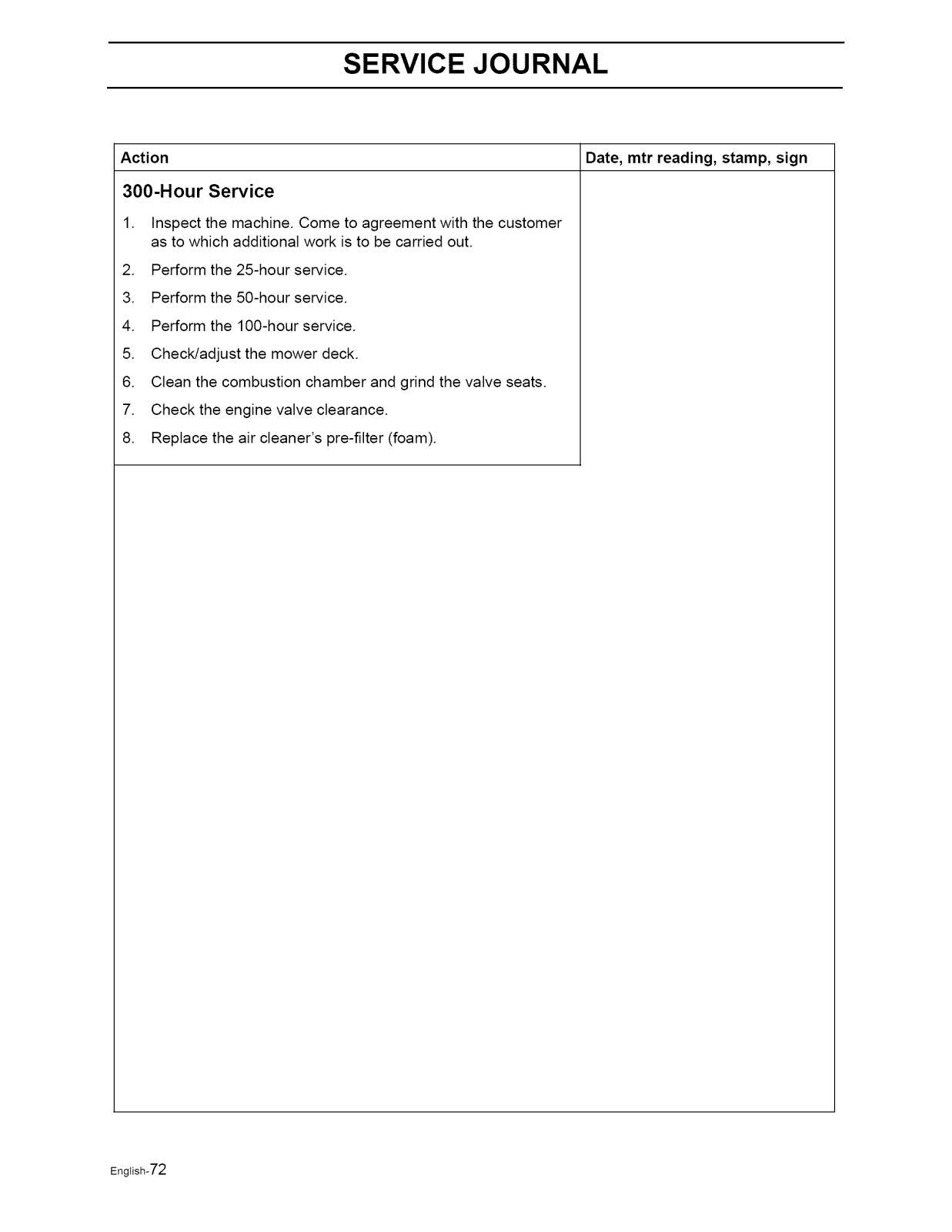

300-Hour Service .............................................. 72

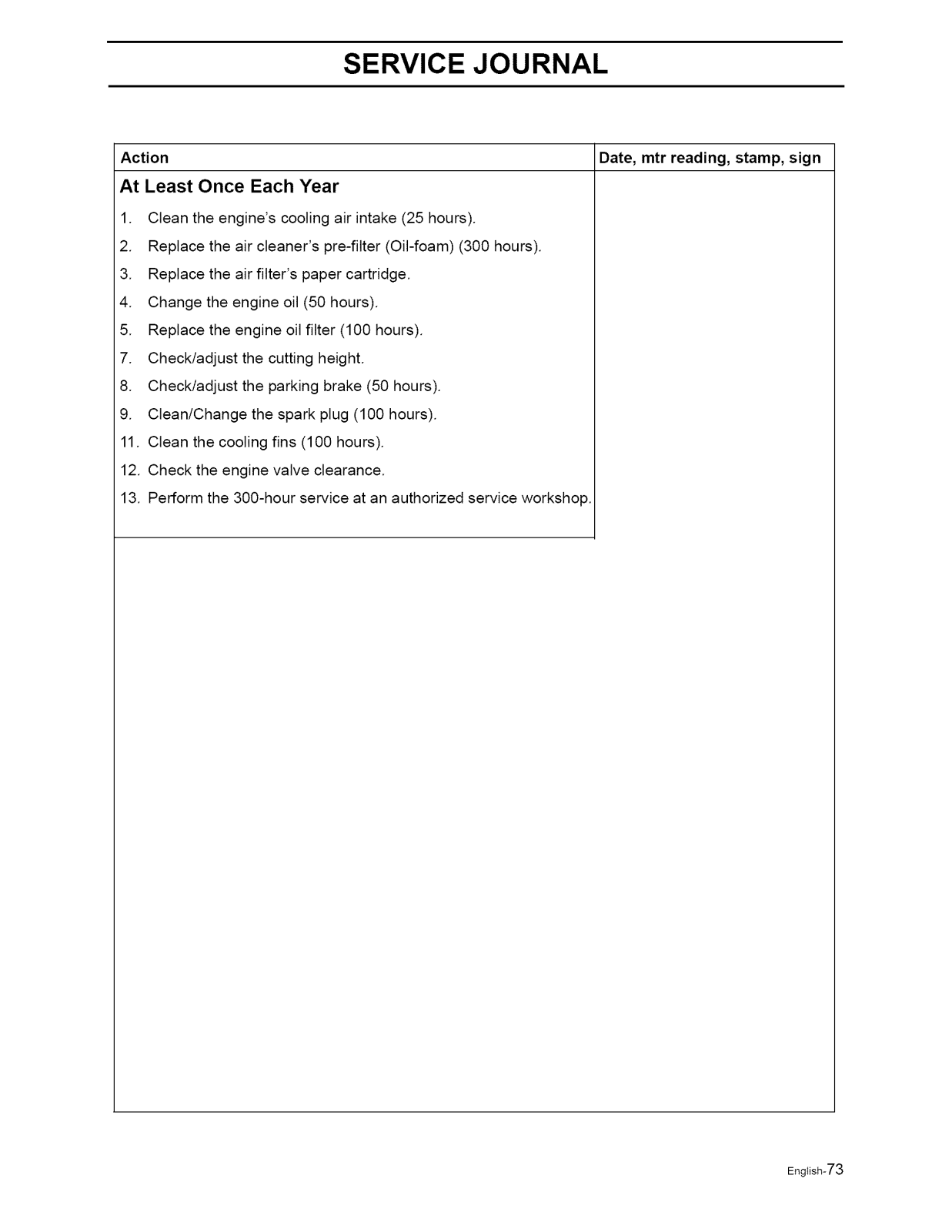

At Least Once Each Year .................................. 73
English-1

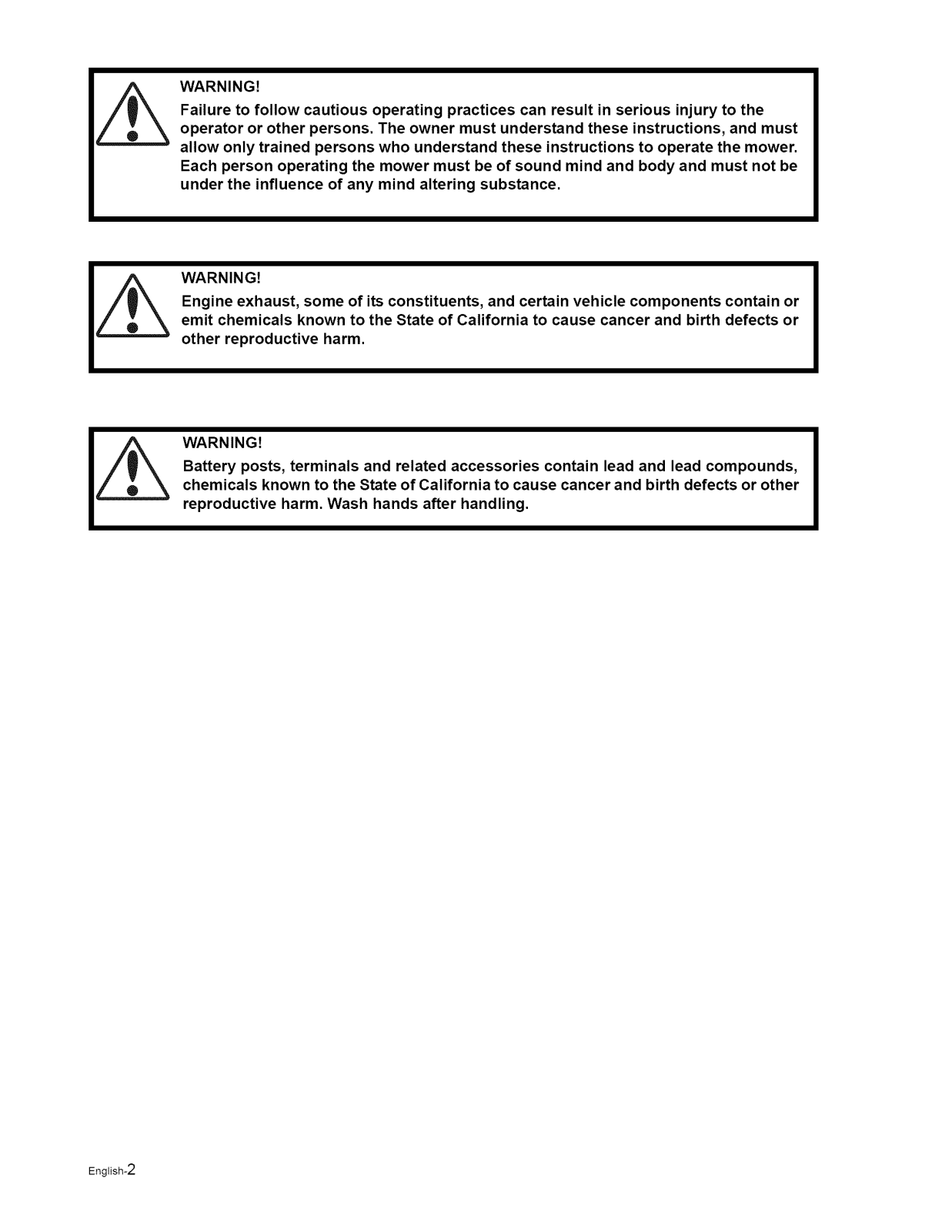

WARNING!
Failure to follow cautious operating practices can result in serious injury to the
operator or other persons. The owner must understand these instructions, and must
allow only trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and must not be
under the influence of any mind altering substance.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
English-2

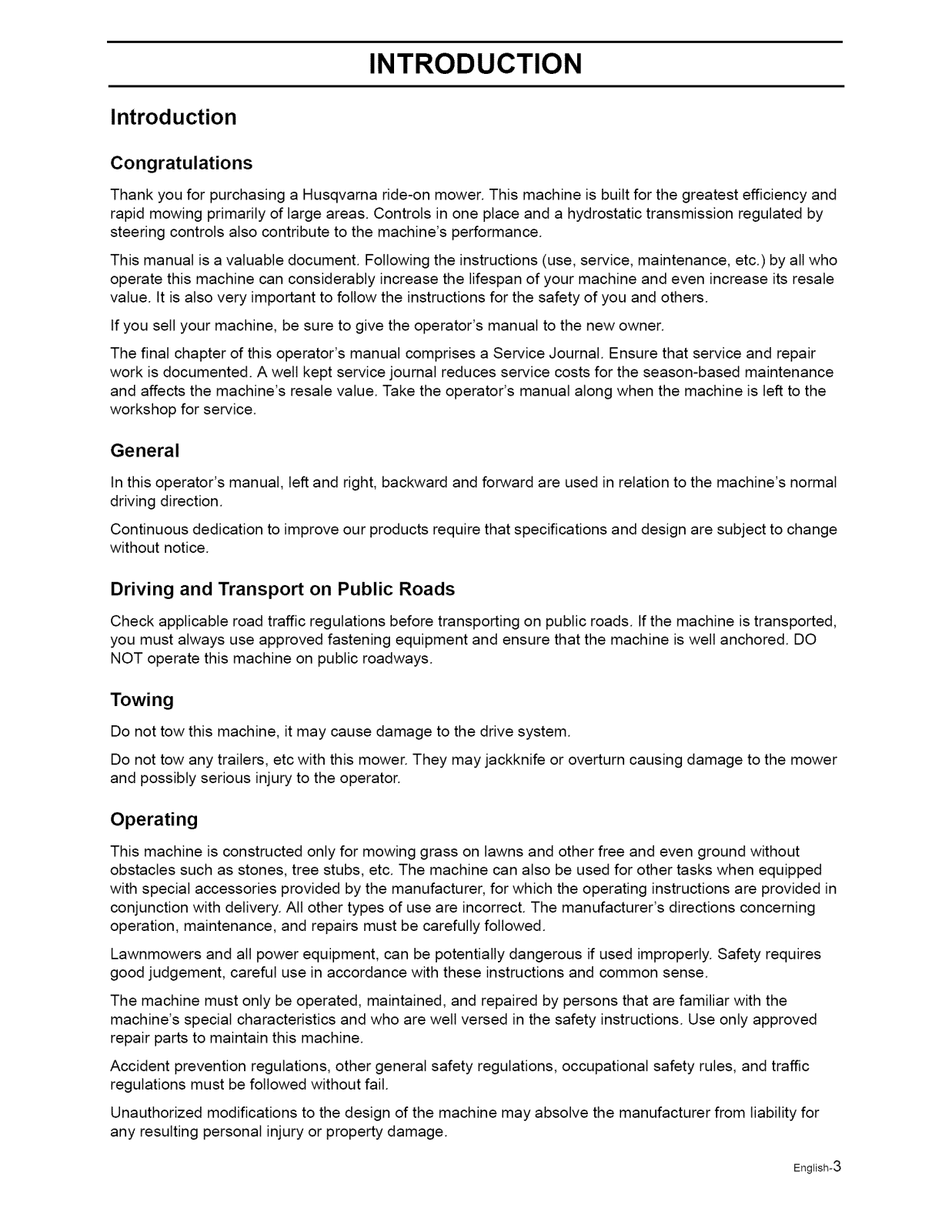

INTRODUCTION
Introduction
Congratulations
Thank you for purchasing a Husqvarna ride-on mower. This machine is built for the greatest efficiency and
rapid mowing primarily of large areas. Controls in one place and a hydrostatic transmission regulated by
steering controls also contribute to the machine's performance.
This manual is a valuable document. Following the instructions (use, service, maintenance, etc.) by all who
operate this machine can considerably increase the lifespan of your machine and even increase its resale
value. It is also very important to follow the instructions for the safety of you and others.
If you sell your machine, be sure to give the operator's manual to the new owner.
The final chapter of this operator's manual comprises a Service Journal. Ensure that service and repair
work is documented. A well kept service journal reduces service costs for the season-based maintenance
and affects the machine's resale value. Take the operator's manual along when the machine is left to the
workshop for service.
General
In this operator's manual, left and right, backward and forward are used in relation to the machine's normal
driving direction.
Continuous dedication to improve our products require that specifications and design are subject to change
without notice.
Driving and Transport on Public Roads
Check applicable road traffic regulations before transporting on public roads. If the machine is transported,
you must always use approved fastening equipment and ensure that the machine is well anchored. DO
NOT operate this machine on public roadways.
Towing
Do not tow this machine, it may cause damage to the drive system.
Do not tow any trailers, etc with this mower. They may jackknife or overturn causing damage to the mower
and possibly serious injury to the operator.
Operating
This machine is constructed only for mowing grass on lawns and other free and even ground without
obstacles such as stones, tree stubs, etc. The machine can also be used for other tasks when equipped
with special accessories provided by the manufacturer, for which the operating instructions are provided in
conjunction with delivery. All other types of use are incorrect. The manufacturer's directions concerning
operation, maintenance, and repairs must be carefully followed.
Lawnmowers and all power equipment, can be potentially dangerous if used improperly. Safety requires
good judgement, careful use in accordance with these instructions and common sense.
The machine must only be operated, maintained, and repaired by persons that are familiar with the
machine's special characteristics and who are well versed in the safety instructions. Use only approved
repair parts to maintain this machine.
Accident prevention regulations, other general safety regulations, occupational safety rules, and traffic
regulations must be followed without fail.
Unauthorized modifications to the design of the machine may absolve the manufacturer from liability for
any resulting personal injury or property damage.
English-3
INTRODUCTION

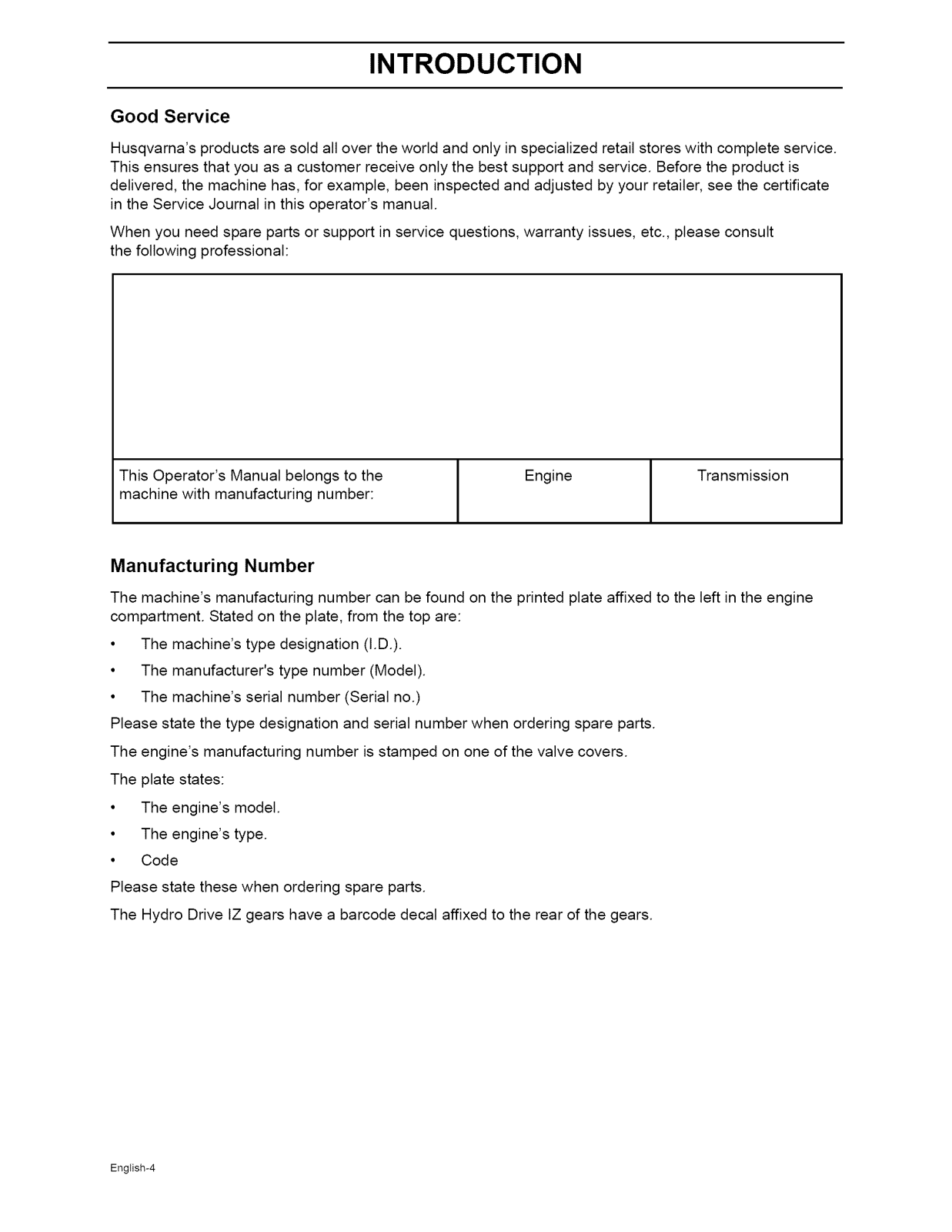

Good Service
Husqvarna's products are sold all over the world and only in specialized retail stores with complete service.
This ensures that you as a customer receive only the best support and service. Before the product is
delivered, the machine has, for example, been inspected and adjusted by your retailer, see the certificate
in the Service Journal in this operator's manual.
When you need spare parts or support in service questions, warranty issues, etc., please consult
the following professional:
This Operator's Manual belongs to the
machine with manufacturing number:
Engine
Transmission
Manufacturing Number
The machine's manufacturing number can be found on the printed plate affixed to the left in the engine
compartment. Stated on the plate, from the top are:
• The machine's type designation (I.D.).
• The manufacturer's type number (Model).
• The machine's serial number (Serial no.)
Please state the type designation and serial number when ordering spare parts.
The engine's manufacturing number is stamped on one of the valve covers.
The plate states:
• The engine's model.
• The engine's type.
• Code
Please state these when ordering spare parts.
The Hydro Drive IZ gears have a barcode decal affixed to the rear of the gears.
English-4

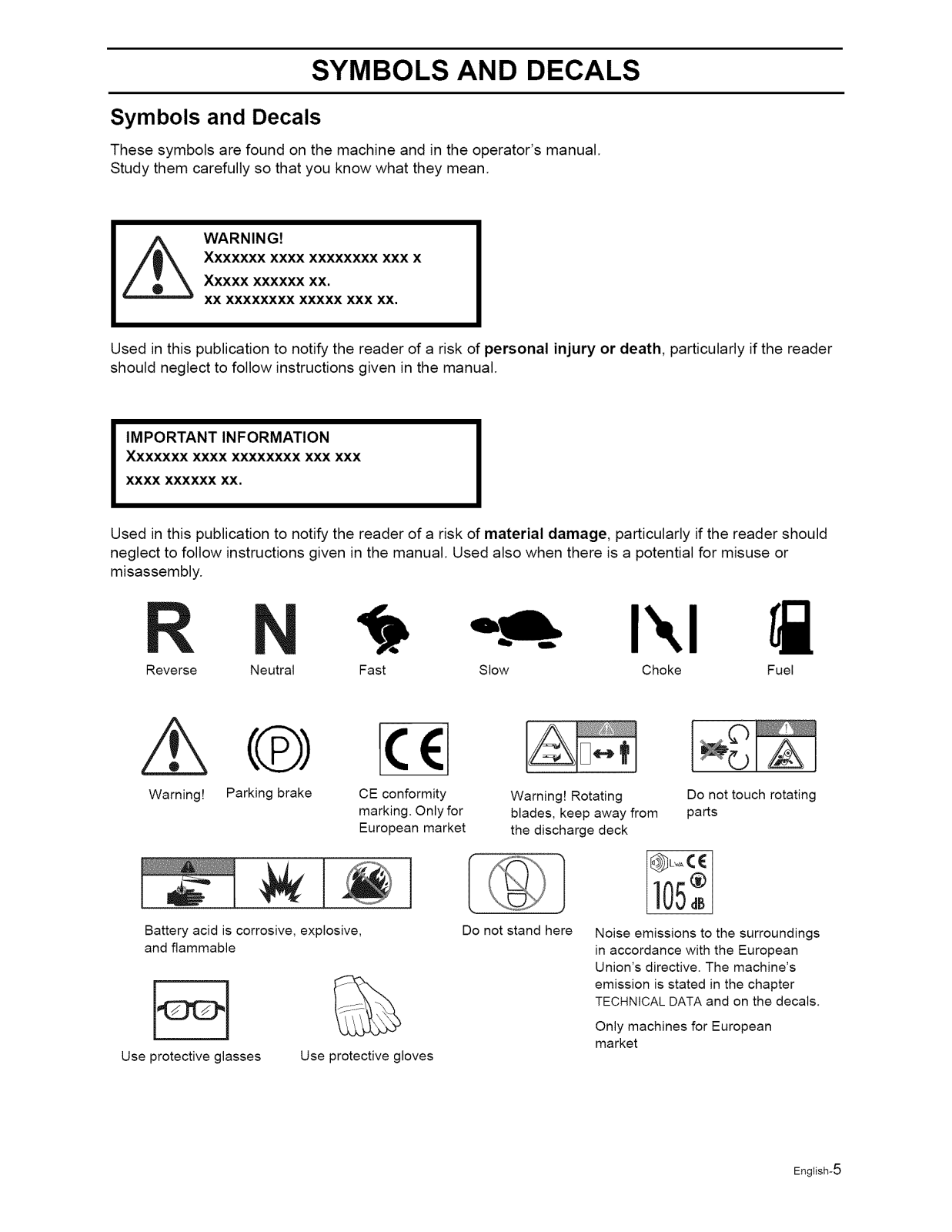

SYMBOLS AND DECALS
Symbols and Decals
These symbols are found on the machine and in the operator's manual.
Study them carefully so that you know what they mean.
WARNING!
Xxxxxxx XXXX XXXXXXXX XXX X
Xxxxx XXXXXX XX.
XX XXXXXXXX XXXXX XXX XX,
Used in this publication to notify the reader of a risk of personal injury or death, particularly if the reader
should neglect to follow instructions given in the manual.
IMPORTANT INFORMATION
Xxxxxxx XXXX XXXXXXXX XXX XXX
XXXX XXXXXX XX.
Used in this publication to notify the reader of a risk of material damage, particularly if the reader should
neglect to follow instructions given in the manual. Used also when there is a potential for misuse or
misassembly.
Reverse Neutral Fast Slow Choke Fuel
Warning! Parking brake
Battery acid is corrosive, explosive,
and flammable
Use protective glasses
Use protective gloves
CE conformity
marking. Only for
European market
%
Warning! Rotating Do not touch rotating
blades, keep away from parts
the discharge deck
Do not stand here
Noise emissions to the surroundings
in accordance with the European
Union's directive. The machine's
emission is stated in the chapter
TECHNICAL DATA and on the decals.
Only machines for European
market
English-5

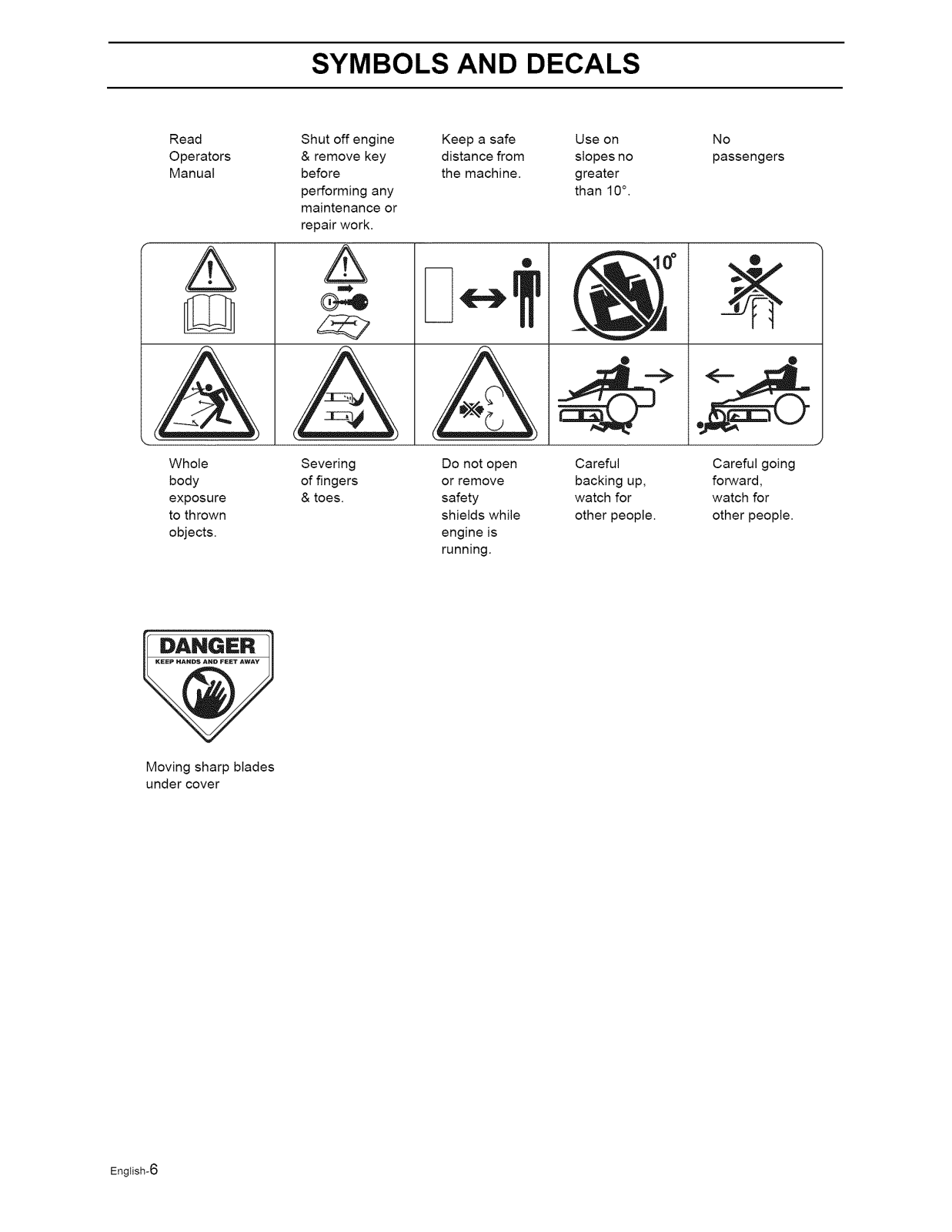

SYMBOLS AND DECALS
Read
Operators
Manual
A
A i
Whole
body
exposure
to thrown
objects.
Shut off engine
& remove key
before
performing any
maintenance or
repair work.
A
A
Severing
of fingers
& toes.
Keep a safe Use on
distance from slopes no
the machine, greater
than 10°.
A
Do not open
or remove
safety
shields while
engine is
running.
Careful Careful going
backing up, forward,
watch for watch for
other people, other people.
No
passengers
DANGER
Moving sharp blades
under cover
English-6
SAFETY INSTRUCTIONS
Safety Instructions
These instructions are for your safety. Read them carefully.
Z_ ARNING!
This symbol means that important safety instructions need to be emphasized. It
concerns your safety.
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND
THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR DEATH.
General Operation
Read, understand, and follow all
instructions on the machine and in the
manual before starting.
Do not put hands or feet near rotating
parts or under the machine. Keep clear
of the discharge opening at all times.
Only allow responsible adults, who are
familiar with the instructions, to operate
the machine.
Clear the area of objects such as rocks,
toys, wire, etc., which could be picked up
and thrown by the blades.
Be sure the area is clear of bystanders
before operating. Stop machine if anyone
enters the area.
Read the operator's manual before starting the
machine
80/I 512
Never carry passengers. The machine is
only intended for use by one person.
Do not mow in reverse unless absolutely
necessary. Always look down and behind
before and while backing.
Never direct discharged material toward
anyone. Avoid discharging material
against a wall or obstruction. Material
may ricochet back toward the operator.
Stop the blades when crossing gravel
surfaces.
Do not operate machine without the
entire grass catcher, discharge guard, or
other safety devices in place and working
Slow down before turning.
Never leave a running machine
unattended. Always turn off blades, set
parking brake, stop engine, and remove
keys before dismounting.
80// 513
Clear the area of objects before mowing
Never take passengers
English-7
SAFETY INSTRUCTIONS
Disengage blades when not mowing.
Shut off engine and wait for all parts to
come to a complete stop before cleaning
the machine, removing the grass
catcher, or unclogging the discharge
guard.
Operate machine only in daylight or good
artificial light.
Do not operate the machine while under
the influence of alcohol or drugs.
Watch for traffic when operating near or
crossing roadways.
Use extra care when loading or
unloading the machine into a trailer or
truck.
• Always wear eye protection when
operating machine.
• Data indicates that operators, age 60
years and above, are involved in a large
percentage of riding mower-related
injuries. These operators should
evaluate their ability to operate the riding
mower safely enough to protect
themselves and others from serious
injury.
• Follow the manufacturer's
recommendation for wheel weights or
counterweights.
• Never allow children or other persons not
trained in the use of the machine to use
or service it. Local laws may regulate the
age of the user. Anyone who operates
this machine should first read and
understand this Operator's Manual.
• Keep machine free of grass, leaves or
other debris build-up which can touch hot
exhaust / engine parts and burn. Do not
allow the mower deck to plow leaves or
other debris which can cause build-up to
occur. Clean any oil or fuel spillage
before operating or storing the machine.
Allow machine to cool before storage.
WARNING!
Engine exhaust and certain
vehicle components contain
or emit chemicals considered
to cause cancer, birth defects,
or other reproductive system
damage. The engine exhaust
contains carbon monoxide,
which is a odorless, colorless,
poisonous gas. Do not use the
machine in enclosed spaces.
English-8
SAFETY INSTRUCTIONS
Personal Safety Equipment
WARNING!
When using the machine, approved personal protective equipment (shown in
illustrations) shall be used. Personal protective equipment cannot eliminate
the risk of injury but it will reduce the degree of injury if an accident does
happen. Ask your retailer for help in choosing the right equipment.
Make sure that you have first aid equipment
close at hand when using the machine.
Never use the machine when barefoot.
Always wear protective shoes or boots,
preferably with steel toecaps.
Always wear approved protective glasses
or a full visor when assembling or driving.
Always wear gloves when handling the
blades.
Never wear loose clothing that can get caught
in moving parts.
Use ear protectors to avoid damage to
hearing.
80/1 670
Personal protective equipment
Slope Operation
Slopes are a major factor related to loss of
control and tip-over accidents, which can
result in severe injury or death. Operation on
all slopes requires extra caution. If you
cannot back up the slope or if you feel uneasy
on it, do not mow it.
Mow up and down slopes (10 degrees
maxium), not across.
Watch for holes, ruts, bumps, rocks, or
other hidden objects. Uneven terrain
could overturn the machine. Tall grass
can hide obstacles.
Choose a low ground speed so that you
will not have to stop while on the slope.
Do not mow on wet grass. Tires may lose
traction.
Avoid starting, stopping, or turning on a
slope. If the tires lose traction, disengage
the blades and proceed slowly straight
down the slope.
Keep all movement on the slopes slow
and gradual. Do not make sudden
changes in speed or direction, which
could cause the machine to roll over.
J
6003 004
Mow up and down, not side-to-side
English-9
SAFETY INSTRUCTIONS
Use extra care while operating machine
with grass catchers or other attachments;
they can affect the stability of the
machine. Do not use on steep slopes.
Do not try to stabilize the machine by
putting your foot on the ground.
Do not mow near drop-offs, ditches, or
embankments. The machine could
suddenly roll over if a wheel is over the
edge or if the edge caves in.

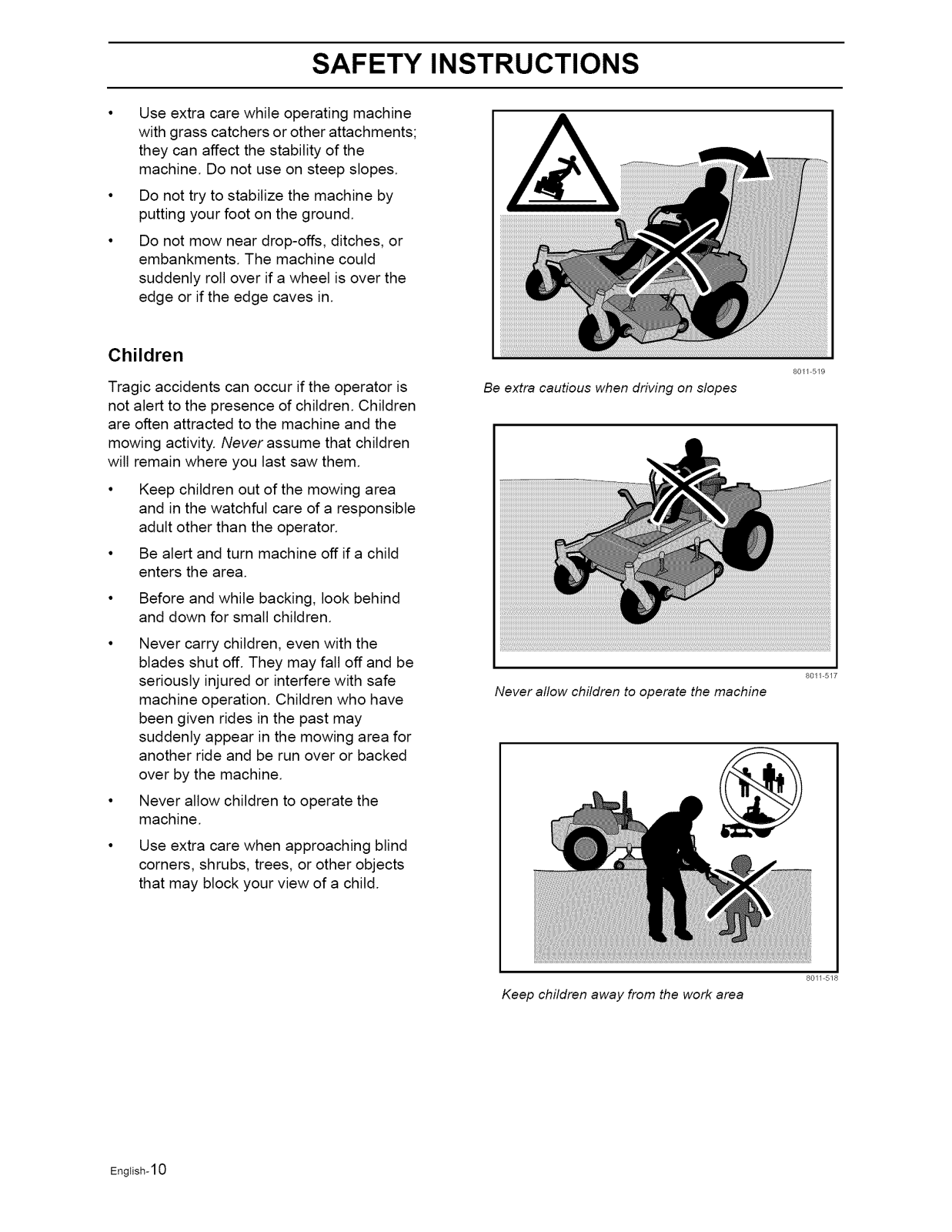

Children
Tragic accidents can occur if the operator is
not alert to the presence of children. Children
are often attracted to the machine and the
mowing activity. Never assume that children
will remain where you last saw them.
• Keep children out of the mowing area
and in the watchful care of a responsible
adult other than the operator.
• Be alert and turn machine off if a child
enters the area.
• Before and while backing, look behind
and down for small children.
• Never carry children, even with the
blades shut off. They may fall off and be
seriously injured or interfere with safe
machine operation. Children who have
been given rides in the past may
suddenly appear in the mowing area for
another ride and be run over or backed
over by the machine.
• Never allow children to operate the
machine.
801/ 5/9
Be extra cautious when driving on slopes
801/ 5/7
Never allow children to operate the machine
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may block your view of a child.
English-10
80// 5/8
Keep children away from the work area
SAFETY INSTRUCTIONS
Maintenance

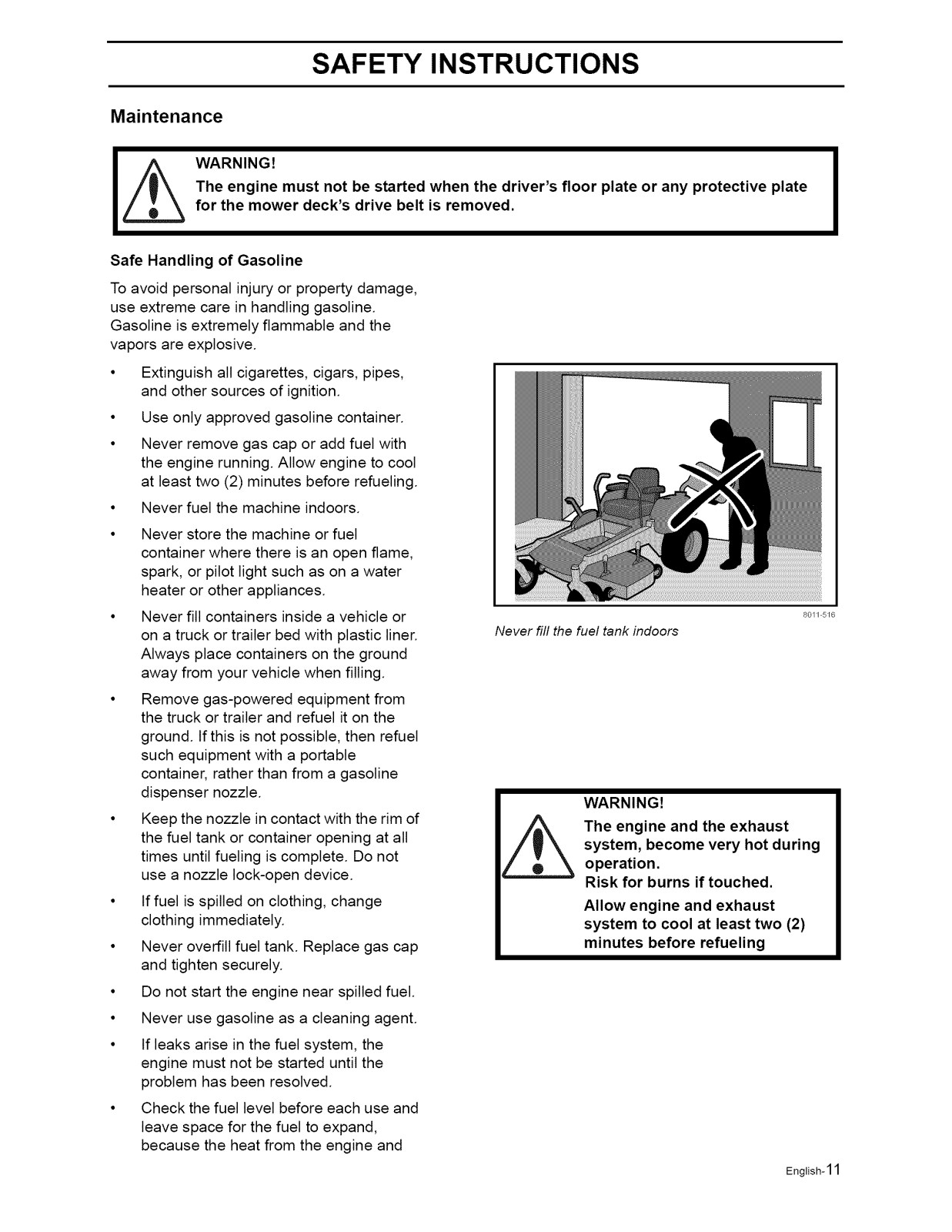

The engine must not be started when the driver's floor plate or any protective plate
/_ WARNING!
Safe Handling of Gasoline
To avoid personal injury or property damage,
use extreme care in handling gasoline.
Gasoline is extremely flammable and the
vapors are explosive.
Extinguish all cigarettes, cigars, pipes,
and other sources of ignition.
Use only approved gasoline container.
Never remove gas cap or add fuel with
the engine running. Allow engine to cool
at least two (2) minutes before refueling.
Never fuel the machine indoors.
Never store the machine or fuel
container where there is an open flame,
spark, or pilot light such as on a water
heater or other appliances.
Never fill containers inside a vehicle or
on a truck or trailer bed with plastic liner.
Always place containers on the ground
away from your vehicle when filling.
Remove gas-powered equipment from
the truck or trailer and refuel it on the
ground. Ifthis is not possible, then refuel
such equipment with a portable
container, rather than from a gasoline
dispenser nozzle.
Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until fueling is complete. Do not
use a nozzle lock-open device.
If fuel is spilled on clothing, change
clothing immediately.
Never overfill fuel tank. Replace gas cap
and tighten securely.
Do not start the engine near spilled fuel.
Never use gasoline as a cleaning agent.
If leaks arise in the fuel system, the
engine must not be started until the
problem has been resolved.
Check the fuel level before each use and
leave space for the fuel to expand,
because the heat from the engine and
for the mower deck's drive belt is removed.
80/I 516
Never fill the fuel tank indoors
English-11
SAFETY INSTRUCTIONS
the sun may otherwise cause the fuel to
expand and overflow.
General Maintenance
Never operate machine in a closed area.
Keep all nuts and bolts tight to be sure
the equipment is in safe working
condition.
Never tamper with safety devices. Check
their proper operation regularly.
Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage and remove any fuel-soaked
debris. Allow machine to cool before
storing.
If you strike a foreign object, stop and
inspect the machine. Repair, if
necessary, before restarting.
Never make any adjustments or repairs
with the engine running.
Check grass catcher components and
the discharge guard frequently and
replace with manufacturer's
recommended parts, when necessary.
Mower blades are sharp. Wrap the blade
or wear gloves, and use extra caution
when servicing them.
Check brake operation frequently. Adjust
and service as required.
Maintain or replace safety and instruction
labels, as necessary.
Do not modify safety equipment. Check
regularly to be sure it works properly.
The machine must not be driven with
defective or unmounted protective

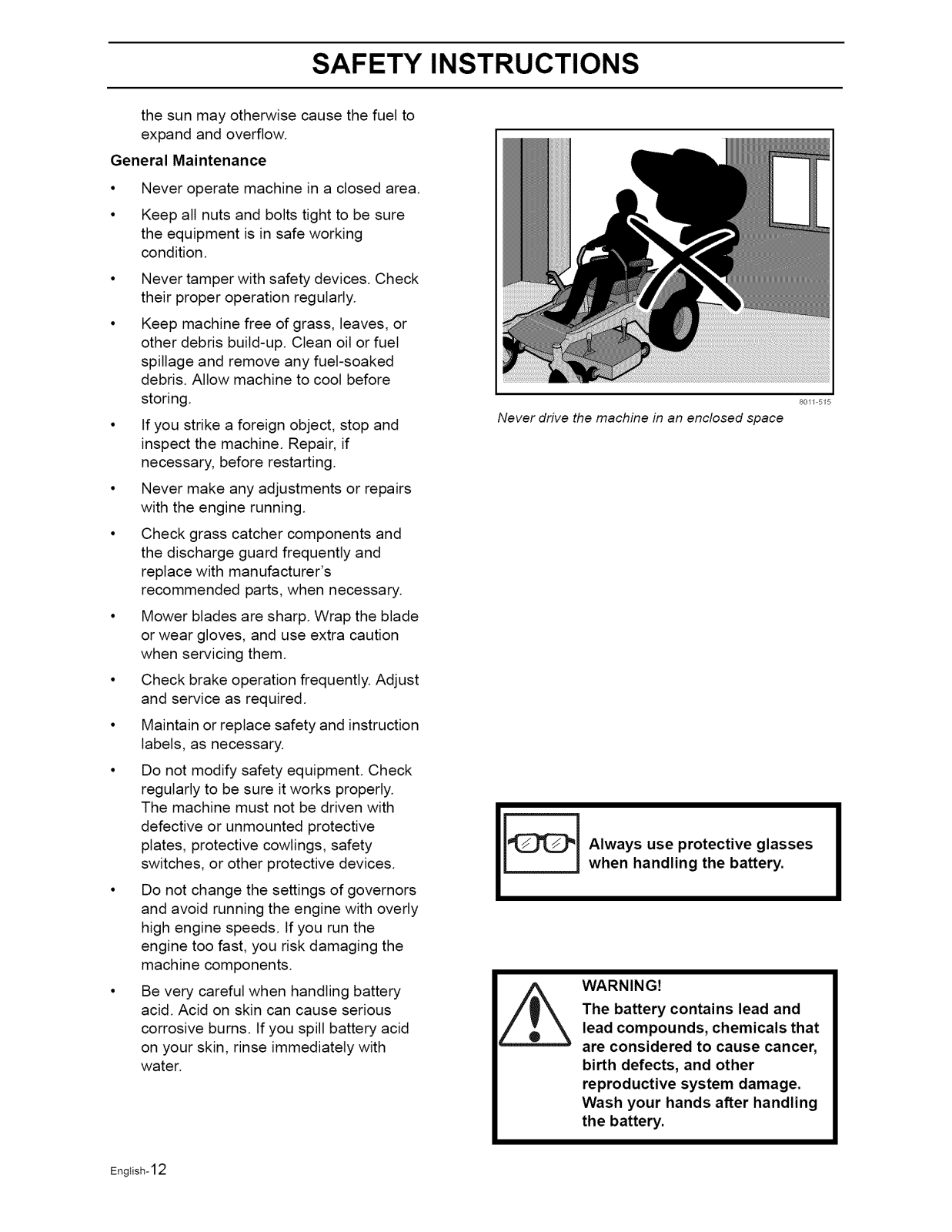

plates, protective cowlings, safety
switches, or other protective devices.
Do not change the settings of governors
and avoid running the engine with overly
high engine speeds. If you run the
engine too fast, you risk damaging the
machine components.
Be very careful when handling battery
acid. Acid on skin can cause serious
corrosive burns. If you spill battery acid
on your skin, rinse immediately with
water.
Never drive the machine in an enclosed space
Always use protective glasses
when handling the battery.
The battery contains lead and
_ ARNING!
lead compounds, chemicals that
are considered to cause cancer,
birth defects, and other
reproductive system damage.
Wash your hands after handling
the battery.
80/1 5E5
English-12
SAFETY INSTRUCTIONS

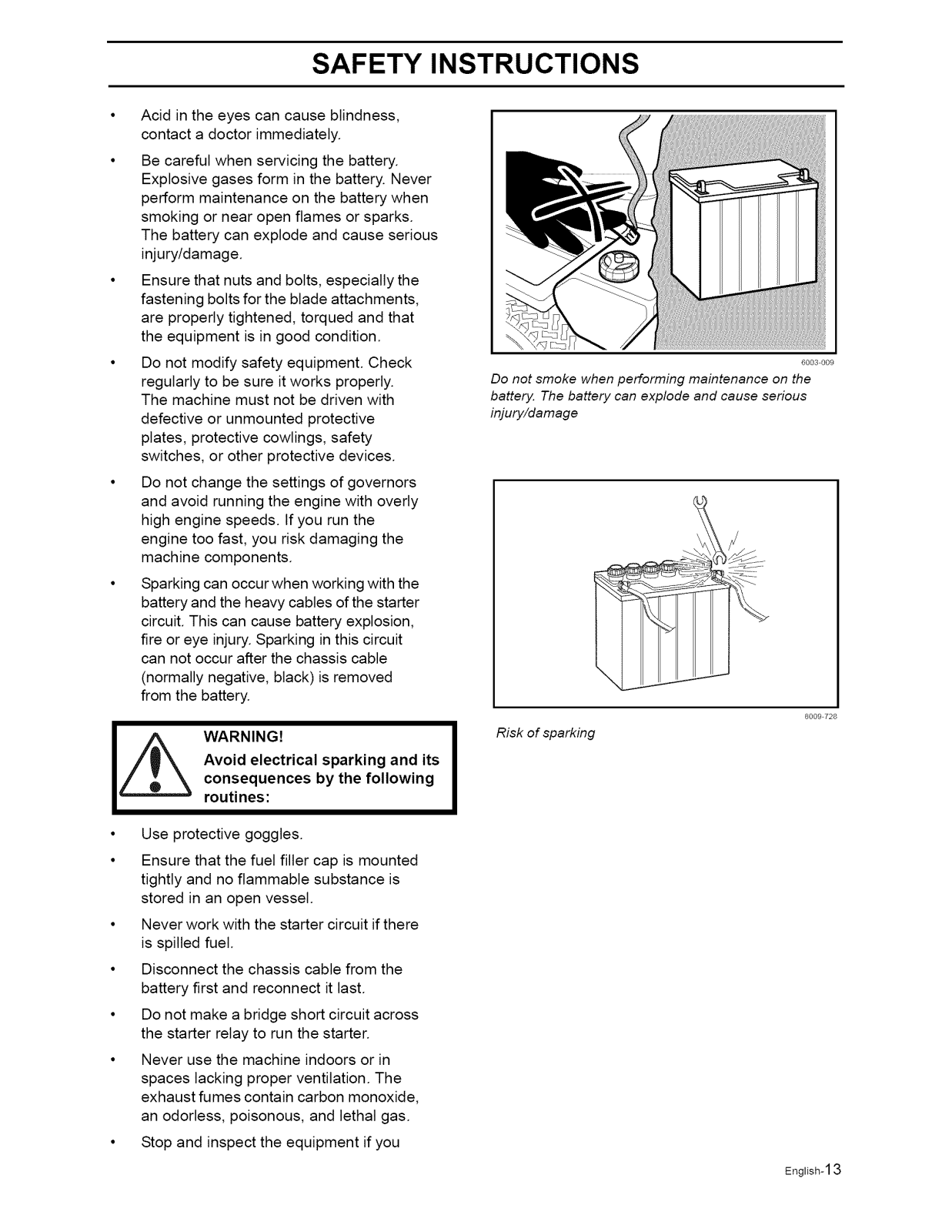

Acid in the eyes can cause blindness,
contact a doctor immediately.
Be careful when servicing the battery.
Explosive gases form in the battery. Never
perform maintenance on the battery when
smoking or near open flames or sparks.
The battery can explode and cause serious
injury/damage.
Ensure that nuts and bolts, especially the
fastening bolts for the blade attachments,
are properly tightened, torqued and that
the equipment is in good condition.
Do not modify safety equipment. Check
regularly to be sure it works properly.
The machine must not be driven with
defective or unmounted protective
plates, protective cowlings, safety
switches, or other protective devices.
Do not change the settings of governors
and avoid running the engine with overly
high engine speeds. If you run the
engine too fast, you risk damaging the
machine components.
Sparking can occur when working with the
battery and the heavy cables of the starter
circuit. This can cause battery explosion,
fire or eye injury. Sparking in this circuit
can not occur after the chassis cable
(normally negative, black) is removed
from the battery.
WARNING!
Avoid electrical sparking and its
IzL
consequences by the following
routines:
6003 009
Do not smoke when performing maintenance on the
battery. The battery can explode and cause serious
injury/damage
8009 728
Risk of sparking
• Use protective goggles.
• Ensure that the fuel filler cap is mounted
tightly and no flammable substance is
stored in an open vessel.
• Never work with the starter circuit if there
is spilled fuel.
• Disconnect the chassis cable from the
battery first and reconnect it last.
• Do not make a bridge short circuit across
the starter relay to run the starter.
• Never use the machine indoors or in
spaces lacking proper ventilation. The
exhaust fumes contain carbon monoxide,
an odorless, poisonous, and lethal gas.
• _op and inspect the equipment if you
English-13
SAFETY INSTRUCTIONS
run over or into anything. If necessary,
make repairs before starting.
Never make adjustments with the engine
running.
The machine is tested and approved only
with the equipment originally provided or
recommended by the manufacturer. Only
use approved repair parts for the
machine.
The blades are sharp and can cause
cuts and gashes. Wrap the blades or use
protective gloves when handling them.
Check the parking brake's functionality
regularly. Adjust and service as
necessary.
The mulch blades should only be used in
familiar areas when higher quality
mowing is desired.
Reduce the risk of fire by removing
grass, leaves, and other debris that may
have accumulated on the machine. Allow
the machine to cool before putting it in
storage.
Regularly clean deck and underside of
deck, avoid spraying engine and
electrical components with water.
80/1 644
Clean the machine regularly
Transport
The machine is heavy and can cause
serious crushing injuries. Be extra
cautious when it is loaded on or
unloaded from a vehicle or trailer.
Use an approved trailer to transport the
machine. Activate the parking brake, turn
off the fuel supply, and fasten the
machine with approved fastening
devices, such as bands, chains, or
straps, when transporting.
Do not operate this machine on public
roadways.
Check and abide by local traffic
regulations before transporting the
machine on any road.
Do not tow this machine, it may cause
damage to the drive system.
Do not tow any trailers, etc. with this
mower. They may jackknife or overturn
causing damage to the mower and
possibly serious injury to the operator.
IMPORTANT INFORMATION
The parking brake is not sufficient to lock
the machine in place during transport.
Ensure that the machine is well fastened
to the transport vehicle. Always reverse
the machine onto the transport vehicle to
avoid tipping it over.
English-14
SAFETY INSTRUCTIONS
Customer responsibilities
• Read and observe the safety rules.
• Follow a regular schedule in maintaining,
caring for and using your mower.
• Follow the instructions under
"Maintenance" and "Storage" sections of
this owner's manual.
• This machine has no brain. Use yours!
WARNING!
This mower is equipped with an internal combustion engine and should not be
used on or near any unimproved forest-covered, bush-covered or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any). If a spark arrester is used, it should
be maintained in effective working order by the operator.
A spark arrester for the muffler is available through your authorized Husqvarna dealer.
English-15
CONTROLS
Controls
This operator's manual describes the
Husqvarna Zero Turn Rider. The rider is fitted
with a Briggs and Stratton four-stroke engine
developing 22-24 horse power.
Transmission from the engine is made via two
belt-driven hydrostat transaxles, one for each
drive wheel. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.
12 11 10 9 8 7 6 5
80E/ 648
Zero Turn Rider
Locations of the controls
Control Locations
1. Motion control, levers
2. Seat adjustment knobs
3. Fuses
4. By-pass linkages
5. Fuel tank cap
6. Blade switch
7. Ignition swittch
English-16
Page
17
18
18
19
2O
2O
21
8. Choke control
9. Throttle control
10. Hour meter
11. Parking brake
12. Cutting height pedal
80/1 735
Page
21
21
22
22
23
CONTROLS
1. Motion Control Levers
The machine's speed and direction are continuously
variable using the two steering controls. The
steering controls can be moved forward or
backward about a neutral position. Furthermore,
there is a neutral position, which is locked if the
steering controls are moved outward.
When both controls are in the neutral position
(N), the machine stands still.
By moving both controls an equal amount
forward or backward, the machine moves in a
straight line forward or backward respectively.
In order, for example, to turn right while moving
forward, move the right control towards the neutral
position. The rotation of the right wheel is reduced
and the machine turns to the right.
801/ 751
Motion control levers
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position, tf the
left steering control is pulled backward, the machine
turns to the left. Use extra care when using this
maneuver.
Tracking
If the mower is not tracking straight, check the air
pressure in both rear tires. Recommended air
pressure is 15 psi (1 bar). Tracking must be
checked on a flat and level concrete or blacktop
surface, tf unit still does not track straight, contact a
Husqvarna workshop for adjustment.
WARNING!
The machine can turn very
rapidly if one steering control
is moved much further forward
than the other.
4
80E/ 791
1 Forward
2 Neutral
3 Neutral slot, Neutral lock
4 Reverse
Motion control lever pattern (right side)
English-17
CONTROLS
2. Seat adjustment knobs
The seat can be adjusted lengthways. When
making adjustments, loosen the four knobs
under the seat pan, after which the seat can
be moved backward or forward. Do not forget
to tighten the knobs.
3. Fuses
The fuses are located in the right front corner
of the engine compartment. They are flat pin
fuses of the same type used in automobiles.
There are two fuses.
cz /
Lengthways adjustment
Fuse ratings and functions:
• 20 A, Primary fuse.
• 7.5 A, Mower deck coupling.
\\\\\\\\\\\
801/ 483
Fuses
English-18

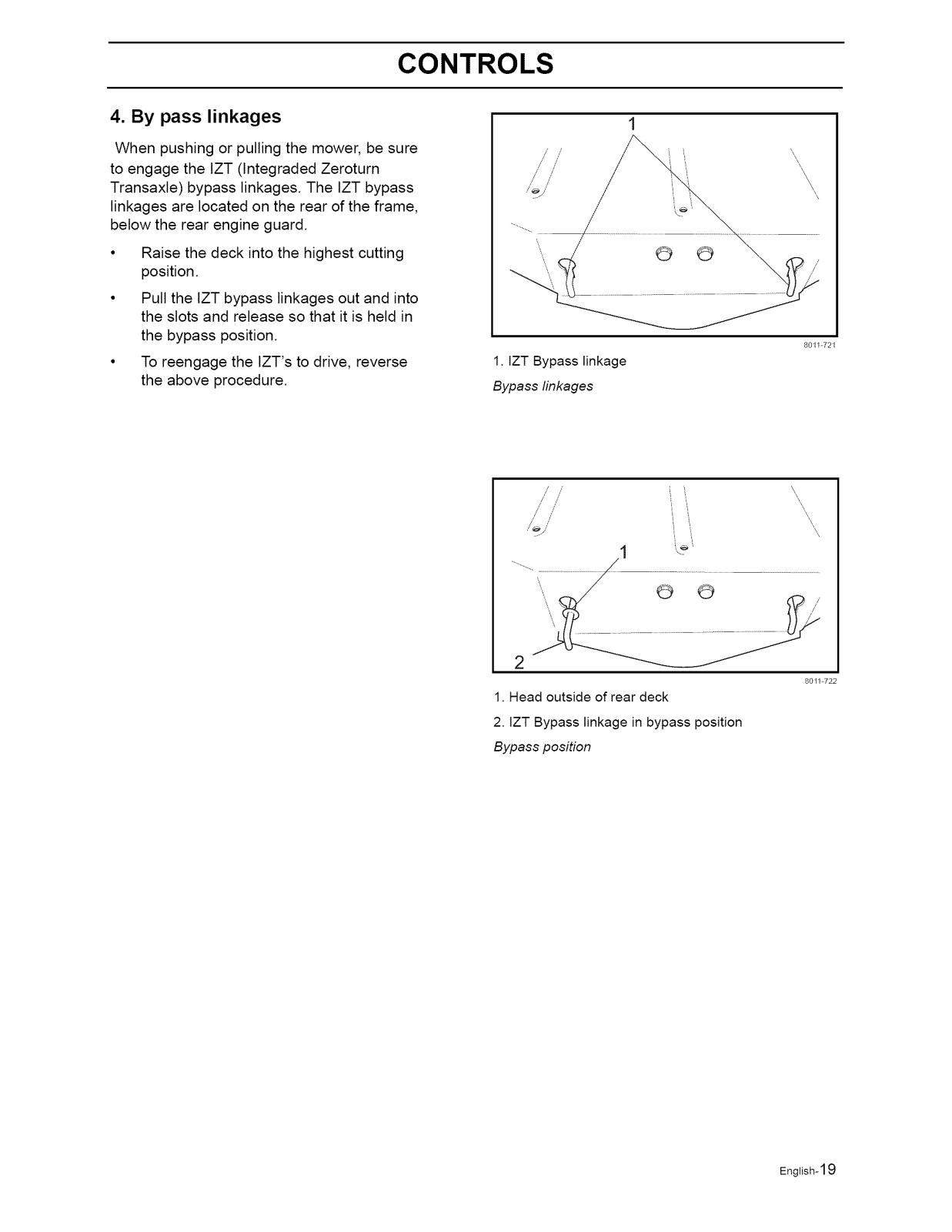

4. By pass linkages
CONTROLS
When pushing or pulling the mower, be sure
to engage the IZT (lntegraded Zeroturn
Transaxle) bypass linkages. The IZT bypass
linkages are located on the rear of the frame,
below the rear engine guard.
Raise the deck into the highest cutting
position.
Pull the IZT bypass linkages out and into
the slots and release so that it is held in
the bypass position.
To reengage the lZT's to drive, reverse
the above procedure.
i/ //
1. IZT Bypass linkage
Bypass linkages
/ ' 'i iii
© ©
'\
\
\
\
\
\
\
\
\
\\
8011 721
\
\\
\\
2
1. Head outside of rear deck
2. IZT Bypass linkage in bypass position
Bypass position
80/1 722
English-19
CONTROLS
5. Refueling
The machine has one fuel tank, just behind
the seat. The tank capacity is 3 gallons
(11.4 liters).
The engine will run on a minimum of
85-octane unleaded gasoline (no oil mix).
Environmentally adapted alkylate gasoline
can be used. See also Technical Data
concerning ethanol fuel. Methanol fuel is not
allowed.
WARNING!
Gasoline is highly flammable.
Observe caution and fill the
tank outdoors
(see the safety rules).
WARNING!
The engine and the exhaust
system, become very hot
during operation.
Risk for burns if touched.
Allow engine and exhaust
system to cool at least two (2)
minutes before refueling.
Z_ WARNING!
Fill to bottom of filler neck. Do
not overfill. Wipe off any
spilled oil or fuel. Do not store,
spill or use gasoline near an
open flame.
80/1 752
Fuel tank
IMPORTANT INFORMATION
Experience indicates that alcohol
blended fuels (called gasohol, ethanol or
methanol) can attract moisture which
leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
the next season. See Storage
Instructions for additional information.
Never use engine or carburetor cleaners
in the fuel tank or permanent damage
may occur.
When operating in temperatures below 32° R
(0°C.), use fresh, clean winter grade gasoline
to help insure good cold weather starting.
6. Blade switch
In order to engage the mower deck, pull the
knob out; the mower blades are disengaged
when the knob is depressed.
English-20
801/ 750
Blade Switch
CONTROLS
7. Ignition Switch
The ignition key is placed on the driver's
panel and is used to start and stop the
engine.
IMPORTANT INFORMATION
Do not run the starter for more than five
seconds each time. If the engine does not
start, wait about 10 seconds before re-
trying.
8. Choke Control
The choke mode is used for cold starts in order
to provide the engine with a richer fuel mixture.
80/1 748
Ignition key and hour meter
The Throttle control is equipped with a choke
detent. Pressing the throttle control all of the
way forward will choke the engine. For full
throttle, press throttle control forward until
you feel the choke detent.
9. Throttle Control
The throttle control regulates the engine
speed and thereby the rate of rotation of the
blades, assuming the blade switch is pulled
out, see Engaging the Mower Deck.
In order to increase or decrease the engine
speed, the control is moved.
Avoid idling the engine for long periods, as
there is a risk of fouling the spark plug.
80El 480
Choke control detent
USE FULL THROTTLE WHEN MOWING, for
best mower performance and battery
charging.
8011 747
Throttle control
English-21
CONTROLS
10. Hour Meter
The hour meter displays the total operating
time.
It will flash CHG OIL (Change Oil) at 50 hour
intervals. The flash duration is one hour
before and one hour after the interval. The
CHG OIL icon will come on and shut off
automatically. The hour meter can not be
manually reset.
80/1 749
Hour meter
11. Parking Brake
IMPORTANT INFORMATION
The machine must be stopped before
activating the parking brake.
The parking brake is found below the front of
the seat. Pull the lever upward to activate the
brake and downward to release it.
801/ 481
Parking brake not activated
English-22

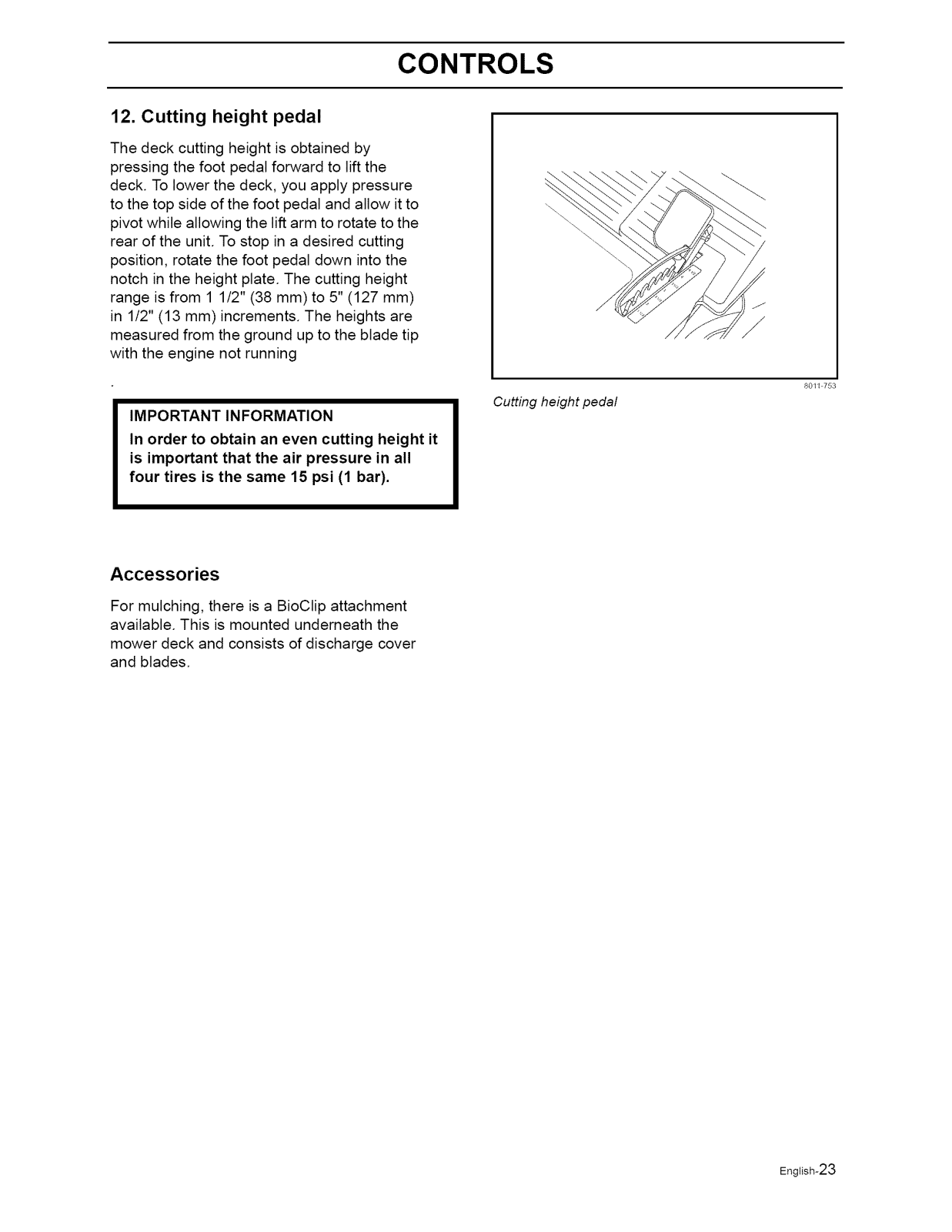

Loading...
