Page 1
WH4817EFQ/968999252
WH5219EFQ/968999253
Parts manual
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
English
Page 2
MODEL NUMBER _______________________________
SERIAL NUMBER _______________________________
DA TE PURCHASED _____________________________
DEALER ADDRESS _____________________________
NOTES:
©2005 Husqvarna. All rights reserved.
Beatrice, NE. Printed in U.S.A.
2
Page 3
CONTENTS
POWER UNIT ....................................4-5
HYDRAULIC ASSEMBLY....................6-7
FRAME ASSEMBL Y ...........................8-9
17 HP & 19 HP ENGINES ..................10-11
HANDLE ASSEMBL Y .........................12-13

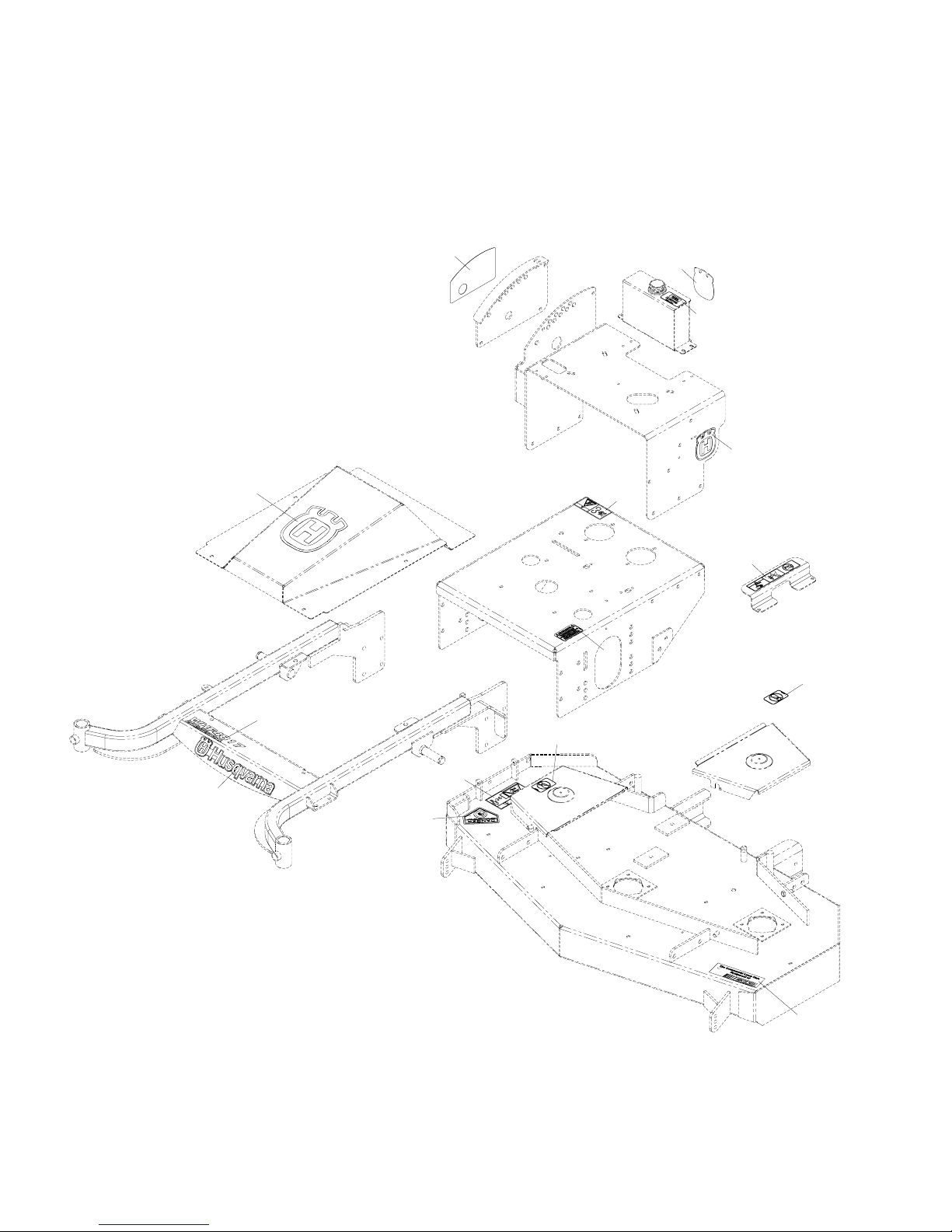

DECALS.............................................14-15
48” DECK ASSEMBLY .......................16-17
52” DECK ASSEMBLY .......................18-19
WIRING ASSEMBL Y ...........................20-21
WIRING SCHEMA TIC.........................22
NOTE: ALL F ASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
3
Page 4

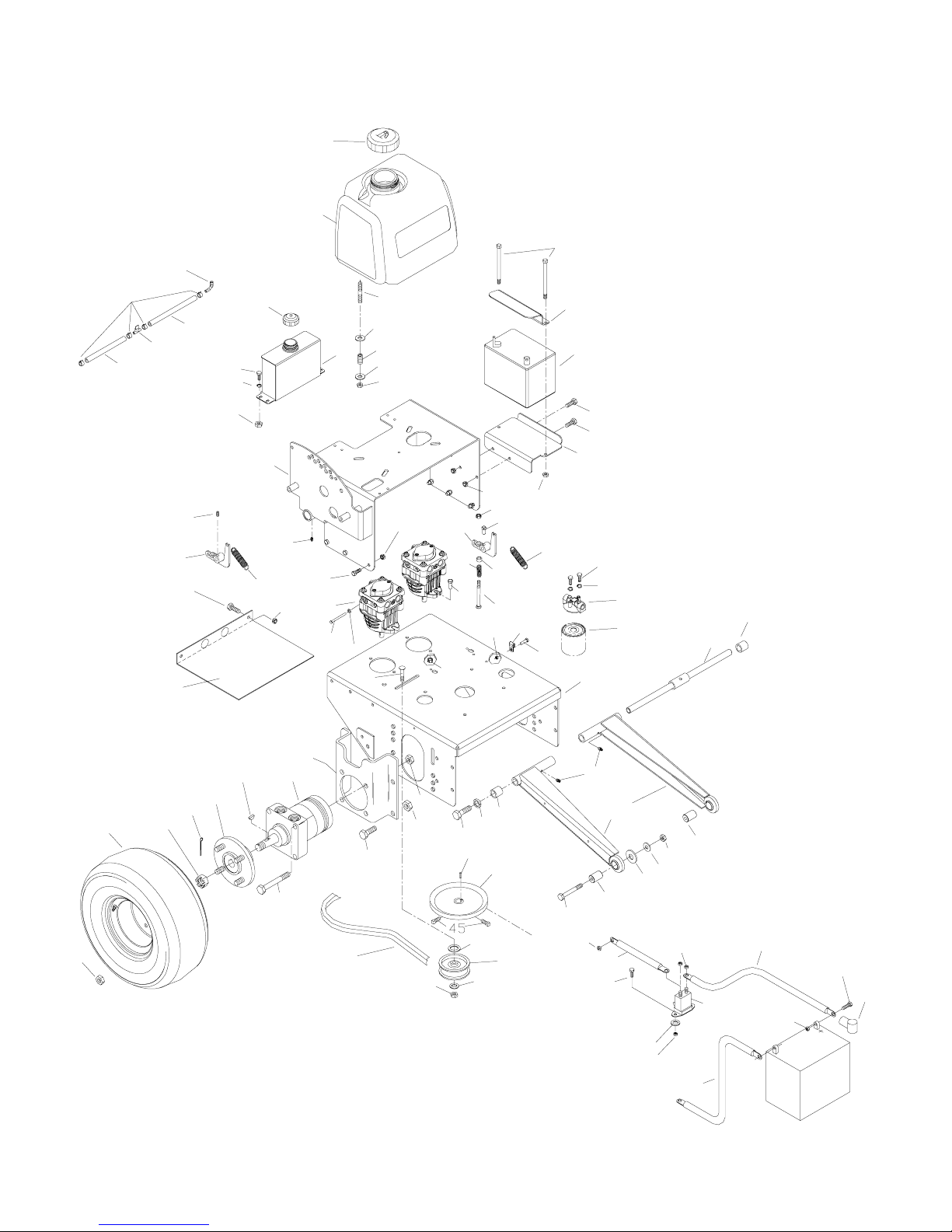

POWER UNIT
1
2
16
3
4
5
6
5
54
22
50
23
10
7
8
9
21
68
65
19
24
57
70
14
58
67
12
13
12
11
65
46
46
25
22
72
46
61
48
66
43
51
73
65
17
18
19
19
20
70
8
55
52
53
26
27
28
29
37
56
38
42
36
41
38
39
34
71
59
59
46
43
49
31
4
28
69
32
HUB DOWN
44
33
45
6838
47
74
GROUND TO
LEFT REAR
ENGINE BOLT
35
44
30
TO ST ARTER
63
52
40
10
45
46
61
62
30
60
63
50
64
15
Page 5
POWER UNIT
ITEM PART NO. QTY. DESCRIPTION
1 ...... 539106188 ....1.... FUEL CAP
2 ...... 539105630 ....1.... FUEL T ANK
3 ...... 539102650 ....1.... FUEL FITTING
4 ...... 539912222 ....4.... HOSE CLAMP
5 ...... 539932956 .... 2 .... HOSE 10”
6 ...... 539916325 ....1.... FUEL V AL VE
7 ...... 539101202 ....1.... OIL CAP
8 ...... 539990580 ....5.... HCS, 1/4C X 3/4
9 ...... 539990598 ....4.... WASHER, 1/4
10 .... 539990761 ....6 .... NUT, 1/4,
....................................... CENTER LOCK
11 .... 539102502 ....4 .... STUD
12 .... 539990692 ....8 .... WASHER, 5/16
13 .... 539102845 ....4 .... SPRING
14 .... 539105985 ....1 .... OIL T ANK
15 .... 539990184 ....2 .... NUT, 5/16,
....................................... CENTER LOCK
16 .... 539105826 ....2 .... HCS, 5/16C X 7
17 .... 539105942 ....1 .... BATTERY STRAP
18 .... 539102436 ....1 .... BA TTER Y, DRY
19 .... 539990134 ....8 .... HCS, 3/8C X 3/4
20 .... 539105943 ....1 .... BA TTERY TRA Y
21 .... 539105590 ....1 .... TANK SUPPORT
22 .... 539105913 ....2 .... PUMP ARM
23 .... 539104547 ....1 .... BELT SHIELD
24 .... 539108246 ....2 .... PUMP
....................................... W/POPPETS
25 .... 539101224 ....2 .... SPRING
26 .... 539101165.....1.... FILTER HEAD
27 .... 539102606 ....1 .... FILTER
28 .... 539105806 ....2 .... SPACER
29 .... 539106446 ....1 .... STRUT SHAFT
30 .... 539105641 ....2 .... SPACER, FRONT
31 .... 539101177.....2.... KEY , METRIC
32 .... 539102228 ....2 .... PULLEY
33 .... 539919078 ....1 .... IDLER PULLEY
34 .... 539101228 ....1 .... BELT
35 .... 539105577 ....2 .... STRUT
36 .... 539101109.....2.... HUB
37 .... 539101173.....8.... LUG NUT
38 .... 539103527 ....2 .... HYD. MOTOR
........ 539103664 ....1.... SEAL KIT
ITEM PART NO. QTY. DESCRIPTION
39 .....539106491 ....2.... MOTOR MOUNT
40 .....539990053 ....2.... IT LOCKWASHER, 1/4
41 .....539101332 ....8.... HCS 1/2C X 2 3/4
42 .....539990297 ....2.... COTTER PIN
43 .....539102717 ....4.... SET SCR. 5/16 X 5/8
44 .....539990550 ....4.... WASHER, 1/2
45 .....539990517 ....3.... WASHER, 3/8
46 .....539990546 ....14.. NUT, 3/8,
....................................... CENTER LOCK
47 .....539990629 ....2.... HCS, 3/8C X 2 1/4
48 .....539976979 ....2.... NUT , 3/8C, NYLOC
49 .....539990646 ....2.... HCS, 1/2 X 1
50 .....539976934 ....4.... HCS, 5/16C X 3/4
51 .....539106492 ....2.... HCS, 3/8C X 2 3/4
52 .....539990072 ....4.... HCS, 1/4C X 5/8
53 .....539990052 ....2 .... LOCKWASHER, 1/4
54 .....539105079 .... 2 .... SET SCREW,
....................................... 5/16-18 X 5/8
55 .....539105647 .... 1.... REAR DECK
56 .....539105805 ....2.... TIRE /WHEEL ASM.
.........539105535 ....1.... TIRE
.........539912234 ....1.... VALVE
.........539104628 ....1.... RIM
57 .....539102233 ....2.... CLEVIS P IN
58 .....539102234 ....2.... PUSH NUT
59 .....539101331 ....16.. NUT , 1/2C, NYLOC
60 .....539101714 ....1.... SOLINOID
61 .....539976978 ....3.... NUT , 1/4, NYLOC
62 .....539102758 ....1.... NEGATIVE CABLE
63 .....539103306 ....2.... POSITIVE CABLE
64 .....539102759 ....4.... INSULAT OR
65 .....539990717 ....8.... NUT , 5/16C, NYLOC
66 .....539923515 ....2.... SPACER
67 .....539100145 ....1.... RHSNB, 3/8C X 2
68 .....539976998 ....3.... ZERK
69 .....539990254 ....2 .... LOCKWASHER, 1/2
70 .....539916159 ....2.... SPRING , PUMP
71 .....539990622 ....8.... HFCS, 1/2C X 1 1/4
72 .....539990582 ....4.... HCS, 3/8C X 1
73 .....539109867 ....1.... CLAMP
74 .....539108120 ....1.... NUT, 1/4, THIN NYLOC
5
Page 6

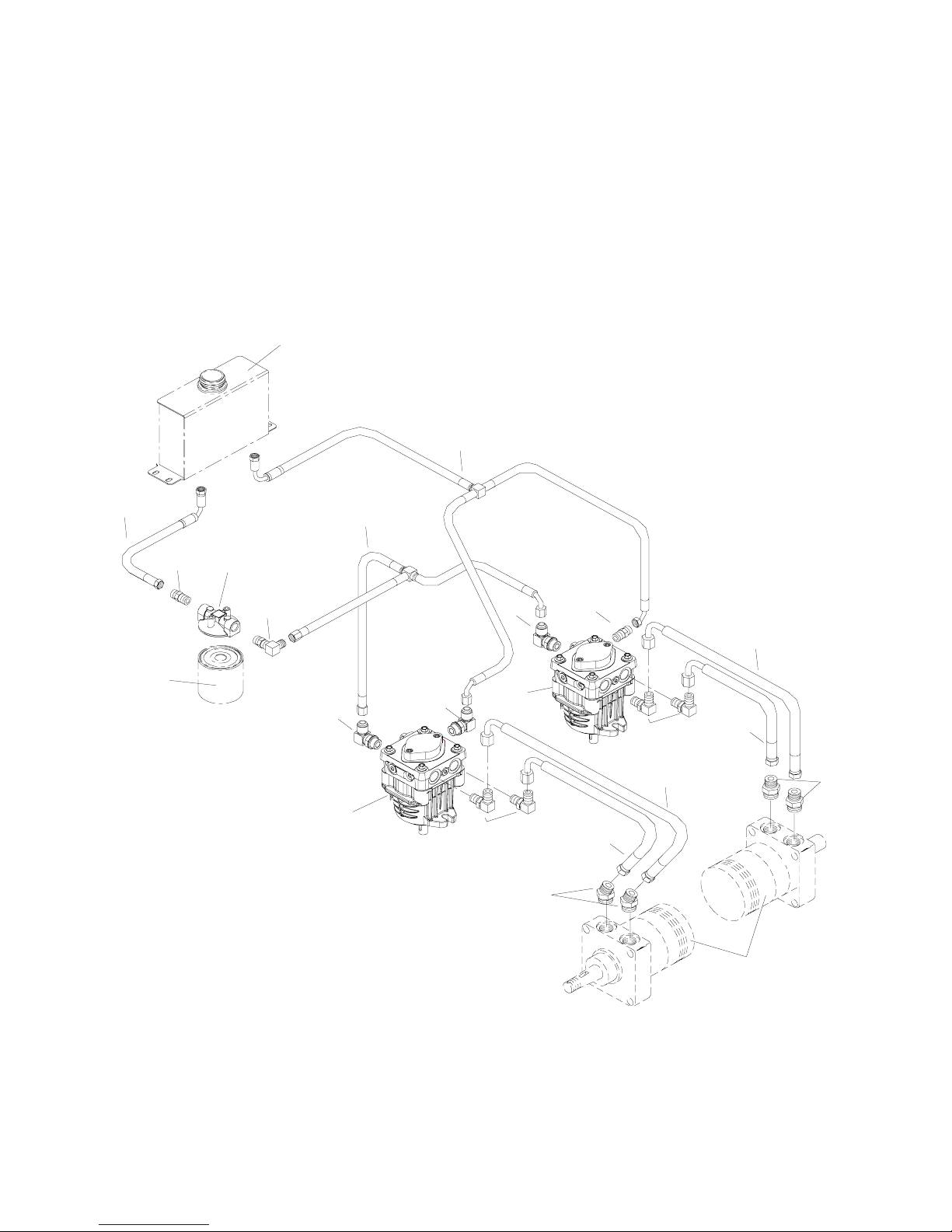

HYDRAULIC ASSEMBL Y
11
4
9
8
13
12
6
10
6
6
6
14
14
5
7
1
5
1
1
2
1
3
15
6
Page 7
HYDRAULIC ASSEMBL Y
ITEM PART NO. QTY DESCRIPTION
1 ........ 539101245........4 ........ HOSE
2 ........ 539101243........ 2........ 45 DEGREE ELBOW
3 ........ 539101239........2 ........ STRAIGHT CONNECTOR
4 ........ 539102229........1 ........ TEE HOSE
5 ........ 539101242........ 4........ 90 DEGREE ELBOW
6 ........ 539101238........ 4........ 90 DEGREE ELBOW
8 ........ 539103316........2 ........ STRAIGHT CONNECTOR
9 ........ 539101248........1 ........ HOSE
10 ...... 539102230........1 ........ TEE HOSE
11 ...... 539105985........1........ OIL T ANK
12 ...... 539101165........1 ........ FIL TER HEAD
13 ...... 539102606........1 ........ FILTER
14 ...... 539108246........2 ........ PUMP, 10A W/.031 POPPETS
15 ...... 539103527........2 ........ HYD. MOTOR
.......... 539103664........1........ SEAL KIT
7
Page 8

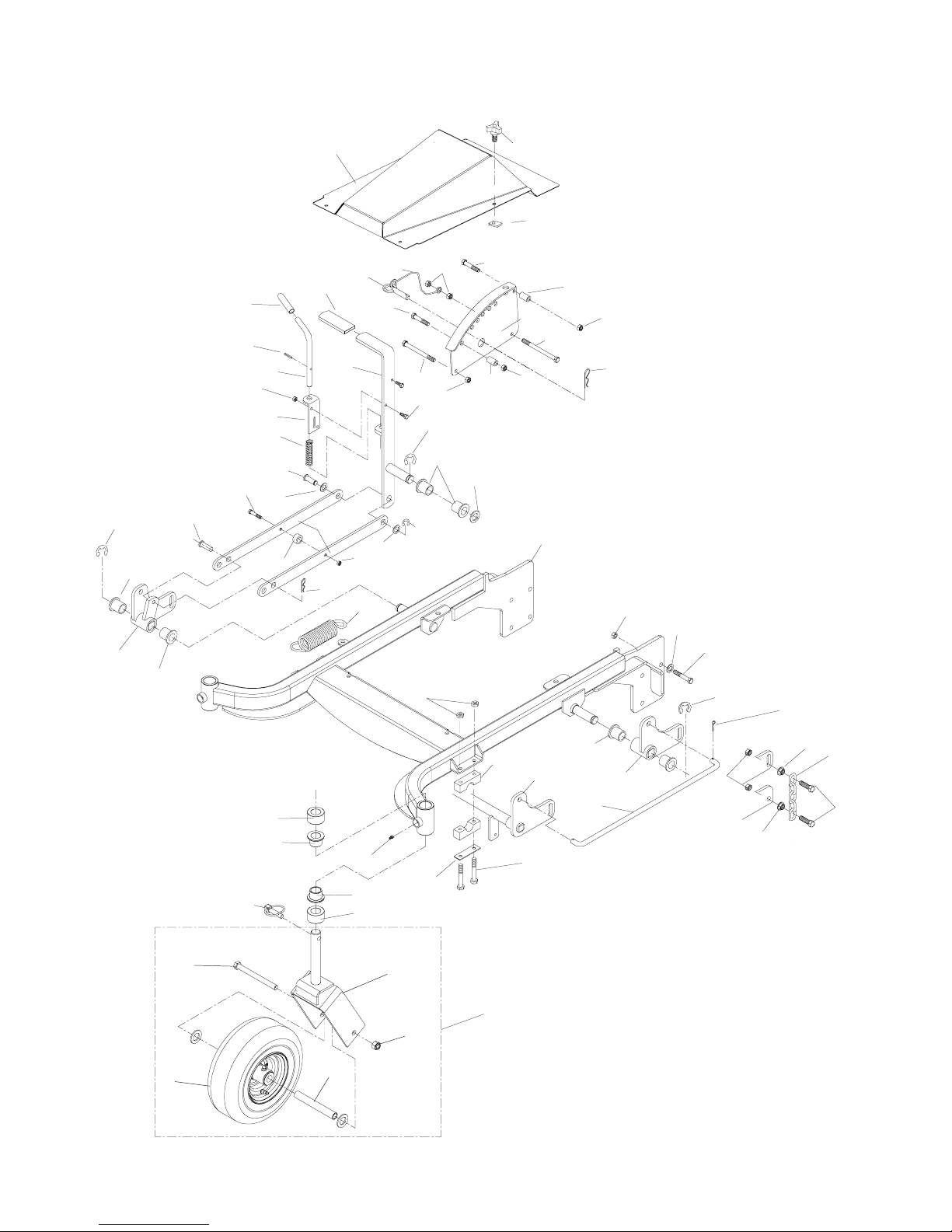

FRAME ASSEMBL Y
20
15
23
7
54
39
43
50
40
17
1
19
18
41
34
57
42
2
3
4
6
8
9
10
11
12
13
38
52
22
39
5
13
9
29
19
16
14
1
1
20
15
21
24
15
48
47
51
55
53
46
53
55
56
49
45
25
28
44
27
31
26
15
30
32
33
34
20
35
22
35
36
37
8
Page 9
FRAME ASSEMBL Y
ITEM PART NO. QTY DESCRIPTION
1 ......... 539990546 ..........5 .........NUT , 3/8,
.....................................................CENTER LOCK
2 ......... 539102563 ..........1 .........LANY ARD
3 ......... 539102526 ..........1 .........LIFT PIN
4 ......... 539102515 ..........1 .........GRIP
5 ......... 539105604 ..........1 .........LIFT LEVER
6 ......... 539101050 ..........1 .........GRIP
7 ......... 539106532 ..........1 .........PIN
8 ......... 539104523 ..........1 .........PIN
9 ......... 539990761 ..........3 .........NUT , 1/4,
.....................................................CENTER LOCK
10 .......539103534 .......... 1 ......... PIN MOUNT
11........ 539101058 ..........1 .........SPRING
12 .......539105060 .......... 1 ......... CLEVIS PIN
13 .......539991043 .......... 6 ......... BUSHING , 5/8,
.....................................................MACHINE
14 .......539105069 .......... 1 ......... E-RING , 5/8
15 .......539101232 .......... 6 ......... BUSHING , 7/8,
.....................................................FLANGED
16 .......539990580 .......... 2 ......... HCS 1/4C X 3/4
17 .......539104530 .......... 2 ......... SPACER
18 .......539976989 .......... 1 ......... HAIRPIN, 2 1/2
19 .......539990591 .......... 2 .........HCS, 3/8C X 4 1/2
20 .......539101802 .......... 3 ......... E-RING , 7/8
21 .......539923787 .......... 1 ......... BUSHING,
.....................................................MACHINE
22 .......539990654 .......... 4 ......... CO TTE R PIN ,
.....................................................5/32 x 1 1/4
23 .......539977703 .......... 1 ......... CLEVIS PIN,
.....................................................3/8 X 1 1/8
24 .......539107032 .......... 1 ......... BELLCRANK,
.....................................................RIGHT
25 .......539990184 .......... 4 ......... NUT , 5/16,
.....................................................CENTER LOCK
26 .......539107030 .......... 1 ......... LIFT ARM, FRONT
27 .......539104808 .......... 4 ......... PILLOW BLOCK
28 .......539104807 .......... 2 ......... REINF . PLA TE
29 .......539102642 .......... 1 ......... SPRING
30 .......539108358 .......... 2 ......... LINK, DECK LIFT
31 .......539991046 .......... 4 .........HCS, 5/16C X 2 1/2
ITEM PART NO. QTY DESCRIPTION
32 .......539107031 .......... 1 ......... BELLCRANK, LEFT
33 .......539100143 .......... 8 ......... HCS, 7/16C X 1
34 .......539990839 .......... 16........ NUT, 7/16C,
.....................................................CENTER LOCK
35 .......539102582 .......... 8 ......... NUT, 7/16C, WHIZ
36 .......539102641 .......... 4 ......... LIFT CHAIN
37 .......539101175........... 8 .........HCS, 7/16C X 1 1/2
38 .......539106622 .......... 2 ......... FLAT LINKAGE
39 .......539990588 .......... 3 ......... HCS, 3/8C X 2
40 .......539105582 .......... 1 ......... HEIGHT ADJ. PLA TE
41 .......539106595 .......... 1 ......... FRAME
42 .......539106064 .......... 1 ......... HOOD
43 .......539104411...........4 .........KNOB
44 .......539106685 .......... 2 ......... CASTER ASSEMBL Y ,
.....................................................COMPLETE
45 .......539101331 .......... 1 ......... NUT, 1/2C, NYLOC
46 .......539105543 .......... 1 ......... SPACER
47 .......539101907 .......... 1 .........HCS, 1/2C X 5 1/2
48 .......539106993 .......... 1 ......... TIRE, COMPLETE
........... 539106995 .......... 1 .........TIRE
........... 539106994 .......... 1 .........RIM
........... 539912234 .......... 1 .........VAL VE STEM
........... 539102484 .......... 2 .........BEARING, FLANGE
........... 539105307 .......... 1 .........BEARING, ROLLER,
.....................................................3 1/4
........... 539103300 .......... 1 .........ZERK
49 .......539106588 .......... 1 ......... FORK, CASTER
50 .......539104763 .......... 4 ......... U-CLIP
51 .......539101874 .......... 2 ......... LYNCH PIN, 7/16
52 .......539923515 .......... 1 ......... SPACER
53 .......539106656 .......... 4 ......... BUSHING , CASTER
54 .......539100266 .......... 1 .........HCS, 1/4C X 1 1/4
55 .......539106598 .......... 4 ......... SPACER
56 .......539976998 .......... 2 ......... ZERK
57 .......539104864 .......... 8 .........WASHER, 7/16
9
Page 10
11

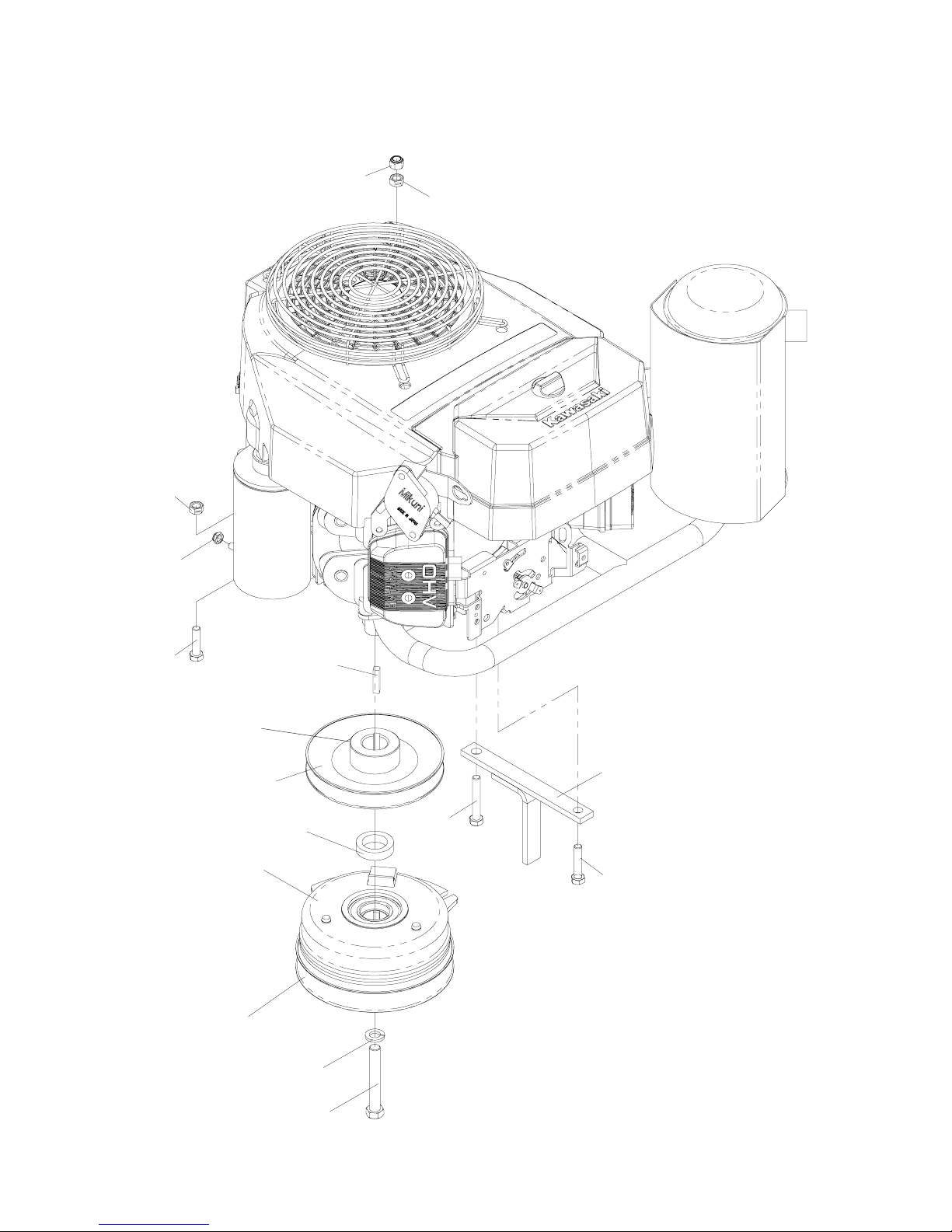

17 HP AND 19 HP ENGINES
13
11
10
6
LARGER DIAMETER HUB
MUST BE FACING UP
4
5
2
1
8
3
7
PULLEY SIDE DOWN
12
9
10
Page 11
17 HP AND 19 HP ENGINES
ITEM PART NO. QTY DESCRIPTION
1 ........ 539109245........1 ........ CLUTCH, 125 FT/LBS
2 ........ 539109703........1 ........ SPACER
3 ........ 539106819........1 ........ TIE DOWN, CLUTCH
4 ........ 539101995........1 ........ KEY, 1/4” SQ. X 1 1/8”
5 ........ 539105610........1 ........ PULLEY, PUMP
6 ........ 539990627........2 ........ HCS, 5/16-18 X 1 1/4
7 ........ 539976935........1 ........ HCS, 5/16-18 X 1 1/2
8 ........ 539976937........1 ........ HCS, 5/16-18 X 2
9 ........ 539923388........1 ........ HCS, 7/16-20 X 3
10 ...... 539108120........1 ........ NUT, 1/4C, THIN NYLOC
11 ...... 539990184........4........ NUT, 5/16C, CENTER LOCK
12 ...... 539990247........1 ........ LOCKWASHER, 7/16
13 ...... 539990717........1 ........ NUT, 5/16, NYLOC
.......... 539110662........1........ LOWER HARNESS (NOT SHOWN)
11
Page 12

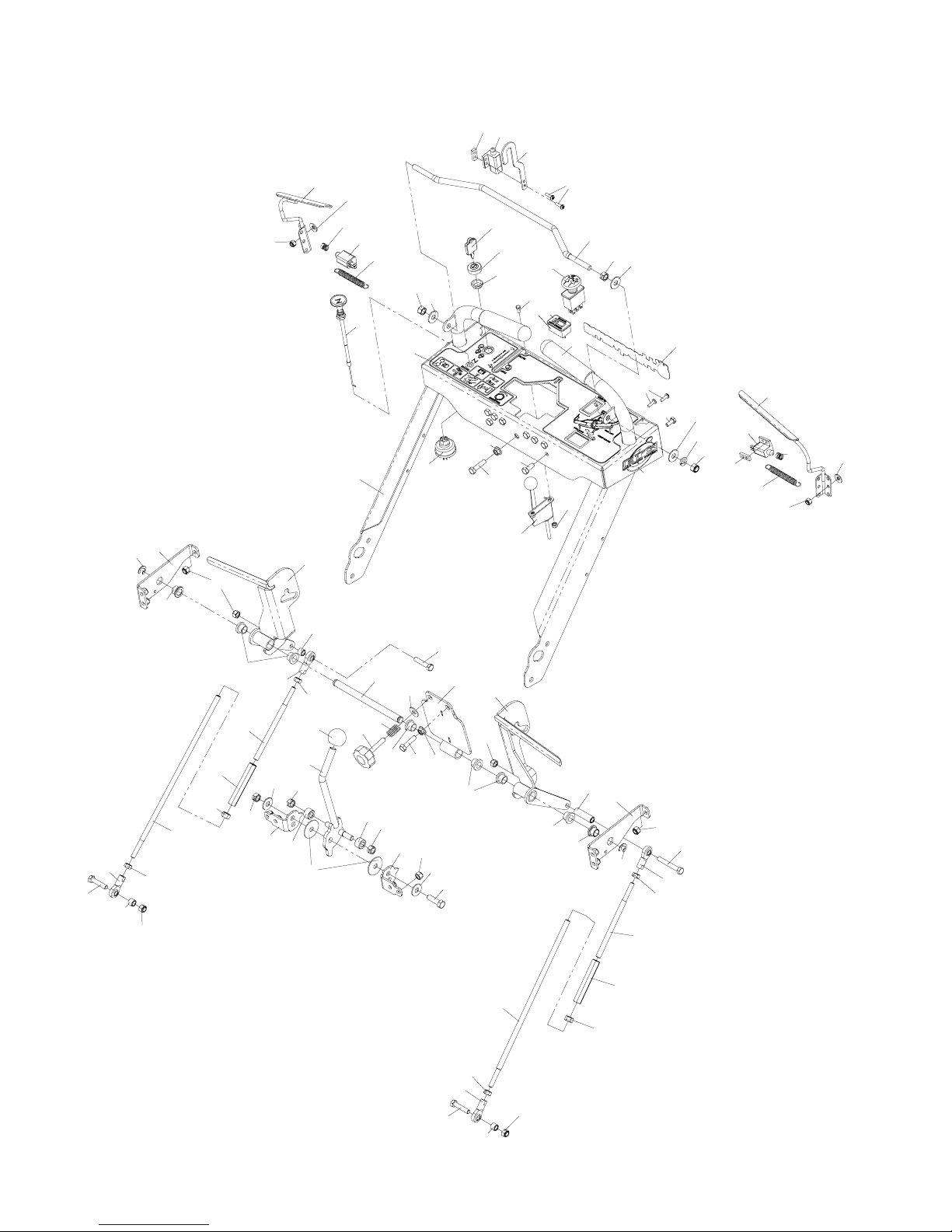

HANDLE ASSEMBL Y
29
28
9
51
17
40
38
20
36
27
19
55
62
61
60
41
30
22
44
23
31
6
57
41
12
48
39
32
58
52
54
30
45
41
53
15
52
46
47
50
21
3
59
15
16
37
2
58
33
15
57
10
42
47
24
48
5
53
52
41
49
1
2
4
52
16
32
34
56
35
15
33
57
10
39
41
54
8
13
57
11
7
25
14
26
11
43
55
52
63
39
54
29
36
27
18
51
38
40
48
35
34
56
54
39
52
32
12
Page 13
HANDLE ASSEMBL Y
ITEM PART NO. QTY. DESCRIPTION
1 ...... 539109808 ....1.... HANDLE
2 ...... 539109809 ....2.... BRACE
3 ...... 539112289.....1.... DRIVE LEVER, LEFT
4 ...... 539112291.....1.... DRIVE LEVER,
....................................... RIGHT
5 ...... 539109816 ....1.... TRACKING PLA TE
6 ...... 539109822 ....1.... BAIL
7 ...... 539102998 ....2.... WASHER, FRICTION
8 ...... 539100147 ....1.... KNOB, SHIFT
9 ...... 539109817 ....1.... ARM, NEUTRAL
10 .... 539109614 ....2 .... PLA TE, FRICTION
11 .... 539109612 ....2 .... ROLLER
12 .... 539104787 ....1 .... DECAL , HUSQV ARNA
13 .... 539109820 ....1 .... LEVER, GROUND
....................................... SPEED
14 .... 539109821 ....1 .... SHAFT, CROSS
15 .... 539100032 ....6 .... BUSHING , NYLON
....................................... FLANGED
16 .... 539110552.....2.... BUSHING , FLANGED
17 .... 539109828 ....1 .... OP, RIGHT
18 .... 539109826 ....1 .... OP, LEFT
19 .... 539110666.....1.... DECAL, CONSOLE
20 .... 539102733 ....1 .... CONTROL, CHOKE
21 .... 539102732 ....1 .... CABLE, THROTTLE
22 .... 539101768 ....1 .... SWITCH, CLUTCH
23 .... 539110074.....1.... HOURMETER
24 .... 539101770 ....1 .... SWITCH, IGNITION
25 .... 539103003 ....1 .... KNOB, ADJUSTMENT
26 .... 539101224 ....1 .... SPRING
27 .... 539977250 ....2 .... SPRING
28 .... 539101080 ....1 .... SWITCH, N.C.
29 .... 539102678 ....3 .... PLATE, TAPPED
30 .... 539976952.....6.... SCREW, #10-24 X 5/8,
....................................... MACHINE
31 .... 539105842 ....2 .... GRIP
32 .... 539102827 ....3 .... SP ACER, PULLEY
33 .... 539109615 ....2 .... LINKAGE, SHORT
34 .... 539109773 ....2 .... LINKAGE, LOWER
ITEM PART NO. QTY. DESCRIPTION
35 .... 539109149 ....2 .... TURNBUCKLE, 3/8
36 .... 539923408 ....2 .... SWITCH N.C.
37 .... 539106599 ....2 .... DECAL, ETS
38 .... 539110509.....2.... SPRING , SWITCH
39 .... 539102590 ....4 .... BALL E ND, RIGHT
40 .... 539990598 ....2 .... WASHER, 1/4
41 .... 539990517 ....5 .... WASHER, 3/8
42 .... 539990692 ....1 .... WASHER, 5/16
43 .... 539990118.....1.... LOCKWASHER, 3/8
44 .... 539990411.....2.... HCS, #10-24 X 1/2
45 .... 539990072 ....2 .... HCS, 1/4-20 X 5/8
46 .... 539976934 ....10 .. HCS, 5/16-18 X 3/4
47 .... 539100469 ....2 .... HCS, 5/16-18 X 1 1/4
48 .... 539976935 ....3 .... HCS, 5/16-18 X 1 1/2
49 .... 539976941 ....1 .... HCS, 3/8-16 X 1 1/4
50 .... 539976977 ....2 .... NUT , #10-24, NYLOC
51 .... 539976978 ....2 .... NUT , 1/4-20, NYLOC
52 .... 539990717 ....14 .. NUT , 5/16-18, NYLOC
53 .... 539990585 ....2 .... NUT , 5/16-18
54 .... 539990223 ....4 .... NUT , 5/16-24
55 .... 539976979 ....2 .... NUT , 3/8-16, NYLOC
56 .... 539990155 ....2 .... NUT , 3/8-24
57 .... 539990546 ....4 .... NUT , 3/8-16,
....................................... CENTER LOCK
58 .... 539101949 ....2 .... E-RING , 1/2”
59 .... 539109023 ....1 .... SPACER
60 .... 539103177 ....1 .... NUT, IGNITION
....................................... SWITCH
61 .... 539103178 ....1 .... CAP, IGNITION
....................................... SWITCH NUT
62 .... 539104812 ....1 .... KEY, P ADDED GRIP
63 .... 539101721 ....1 .... HCS, 5/16-18 X 2 3/4
........ 539110663.....1 .... UPPER HARNESS
....................................... (NOT SHOWN)
........ 539976856 ....3.... PLASTIC TIE
....................................... (NOT SHOWN)
13
Page 14
DECALS
8
6
1
12
4
5
4
3
2
13
2
11
7
10
9
14
Page 15
DECALS
ITEM PART NO. QTY DESCRIPTION
1 ........ 539105744........1 ........ DECAL, EURO DANGER, BELT DRIVES
2 ........ 539105743........2 ........ DECAL, EURO NO STEP
3 ........ 539105745........1 ........ DECAL, EURO BATTERY WARNING
4 ........ 539104789........2 ........ DECAL, SMALL CROWN
5 ........ 539105301........1 ........ DECAL, MOBIL
6 ........ 539105803........ 1 ........ DECAL, CROWN
7 ........ 539200732........1 ........ DECAL, HUSQV ARNA
8 ........ 539105629........1 ........ DECAL, CUT HEIGHT
9 ........ 539105071........1 ........ DECAL, NASCAR
10 ...... 539913010........ 1 ........ DECAL, CPSC
11 ...... 539105746........1........ DECAL, EURO SEVERING
12 ...... 539101881........1 ........ DECAL, PROP 65
13 ...... 539110658........1 ........ DECAL, WHF4817
.......... 539110659 ........1........ DECAL, WHF5219
15
Page 16

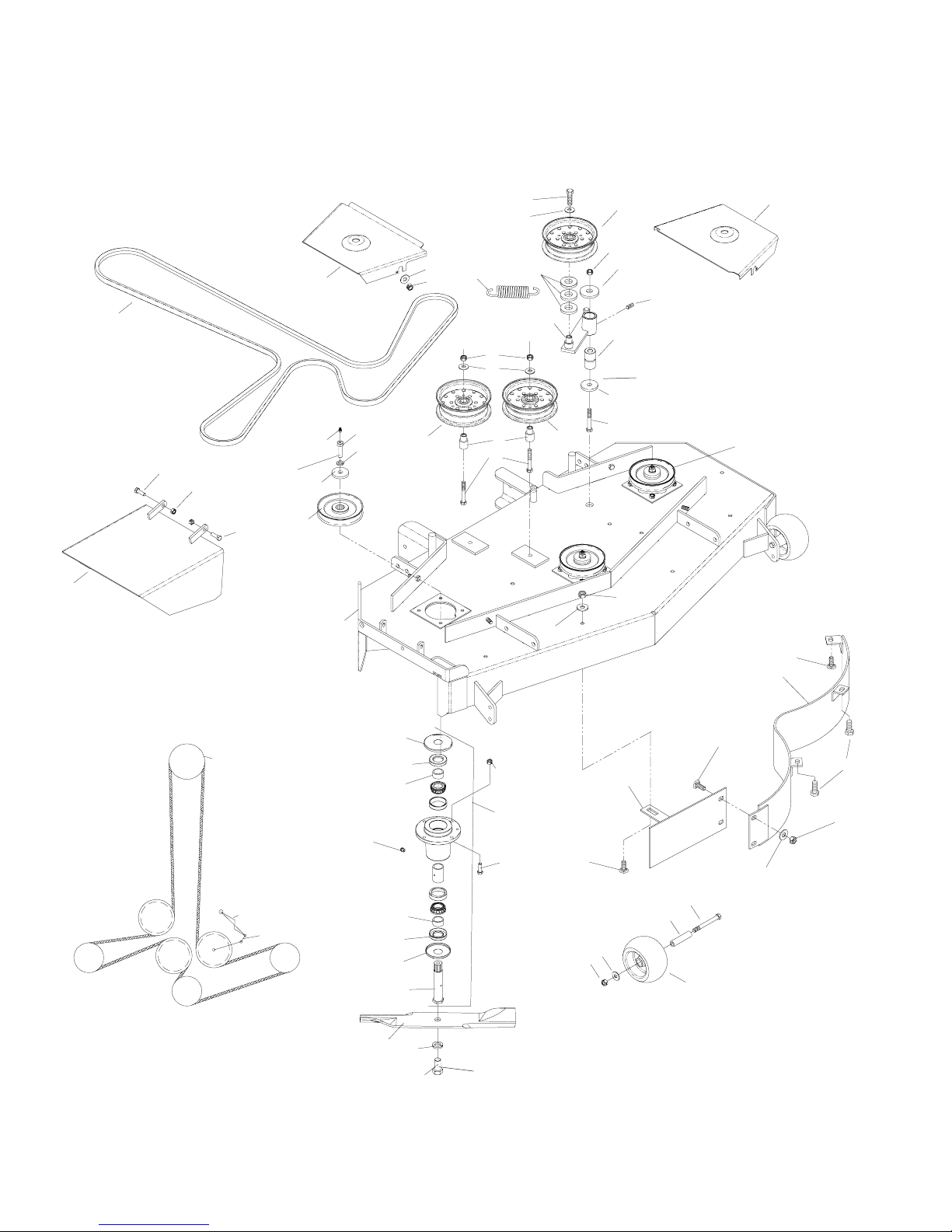

48”DECK
27
25
33
32
TORQUE TO
45 FT/LBS
3 PLACES
33
14
28
31
38
13
44
35
4
35
36
11
5
37
31
10
24
36
35
THIS SUPPORT WASHER
6
GOES UNDER THE DECK
2
45
13
15
29
26
12
HUBS ARE TO BE F ACING
DOWN ON PULLEYS
1
32
30
39
42
41
BELT ROUTING
ELECTRIC CLUTCH
ON THE ENGINE
SPRING
IDLER ARM
22
21
18
17
16
32
33
43
42
42
34
32
39
9
18
17
20
36
35
19
3
40
23
TORQUE TO 90 FT/LBS
3 PLACES
8
7
16
Page 17
48”DECK
ITEM PART NO. QTY DESCRIPTION
1 ........ 539106504........3 ........ HEAVY WASHER
2 ........ 539112120........3 ........ HCS 7/16-20 X 1 1/2, SPECIAL
3 ........ 539100340........3 ........ BLADE 16 1/4”
4 ........ 539101331........1 ........ NUT, 1/2-13, NYLOC
5 ........ 539991043........3 ........ BUSHING , MACHINE
6 ........ 539102243........ 1........ SUPPORT WASHER
7 ........ 539102643........2 ........ ANTI-SCALP ROLLER
8 ........ 539102698........2 ........ BUSHING
9 ........ 539102754........2 ........ HCS, 3/8-16 X 3 1/2
10 ...... 539103230........1 ........ IDLER ARM
11 ...... 539103256........1........ SPRING
12 ...... 539103257........2 ........ IDLER PULLEY
13 ...... 539103258........1 ........ IDLER PULLEY (TALL)
14 ...... 539107276........3 ........ PULLEY
15 ...... 539103295........2 ........ IDLER BUSHING
16 ...... 539108773........3 ........ SPINDLE ASSEMBL Y (COMPLETE)
17 ...... 539108754........2 ........ SHAFT SEAL
18 ...... 539108758........2 ........ SPACER
19 ...... 539108760........1 ........ SPINDLE
20 ...... 539108449........1 ........ DUST CAP, BOTTOM
21 ...... 539108450........1 ........ DUST CAP, TOP
22 ...... 539977326........ 1 ........ GREASE POPET
23 ...... 539103299........3 ........ HCS, 5/8-18 X 1 1/4
24 ...... 539103427........1 ........ PIVOT BUSHING
25 ...... 539109243........1 ........ BELT, 48”
26 ...... 539103433........1 ........ HCS, 1/2-13 X 3 1/4
27 ...... 539104546........ 1........ DEFLECTOR CHUTE
28 ...... 539108902........1 ........ SHIELD, RIGHT
29 ...... 539990637........2 ........ HCS, 3/8-16 X 2 1/2
30 ...... 539106576........ 1 ........ DECK W/DECALS
31 ...... 539976998........1 ........ ZERK
32 ...... 539990184........20 ...... NUT, 5/16 CENTER LOCK
33 ...... 539990209........14 ...... HCS, 5/16-18 X 1
34 ...... 539976934........2 ........ HCS, 5/16-18 X 3/4
35 ...... 539990517........9 ........ W ASHER, 3/8
36 ...... 539990546........8 ........ NUT, 3/8-16, CENTER LOCK
37 ...... 539990550........1 ........ W ASHER, 1/2
38 ...... 539990582........1 ........ HCS 3/8-16 X 1, SERR. HD.
39 ...... 539990692........6 ........ W ASHER, 5/16
40 ...... 539990333........3 ........ LOCKWASHER, 5/8
41 ...... 539105448........1 ........ BAFFLE, MAIN
42 ...... 539990799........4 ........ RHSNB 5/16-18 X 5/8
43 ...... 539105444........1 ........ BAFFLE, CENTER
44 ...... 539108904........1 ........ SHIELD, LEFT
45 ...... 539990247........3 ........ LOCKWASHER, 7/16
17
Page 18

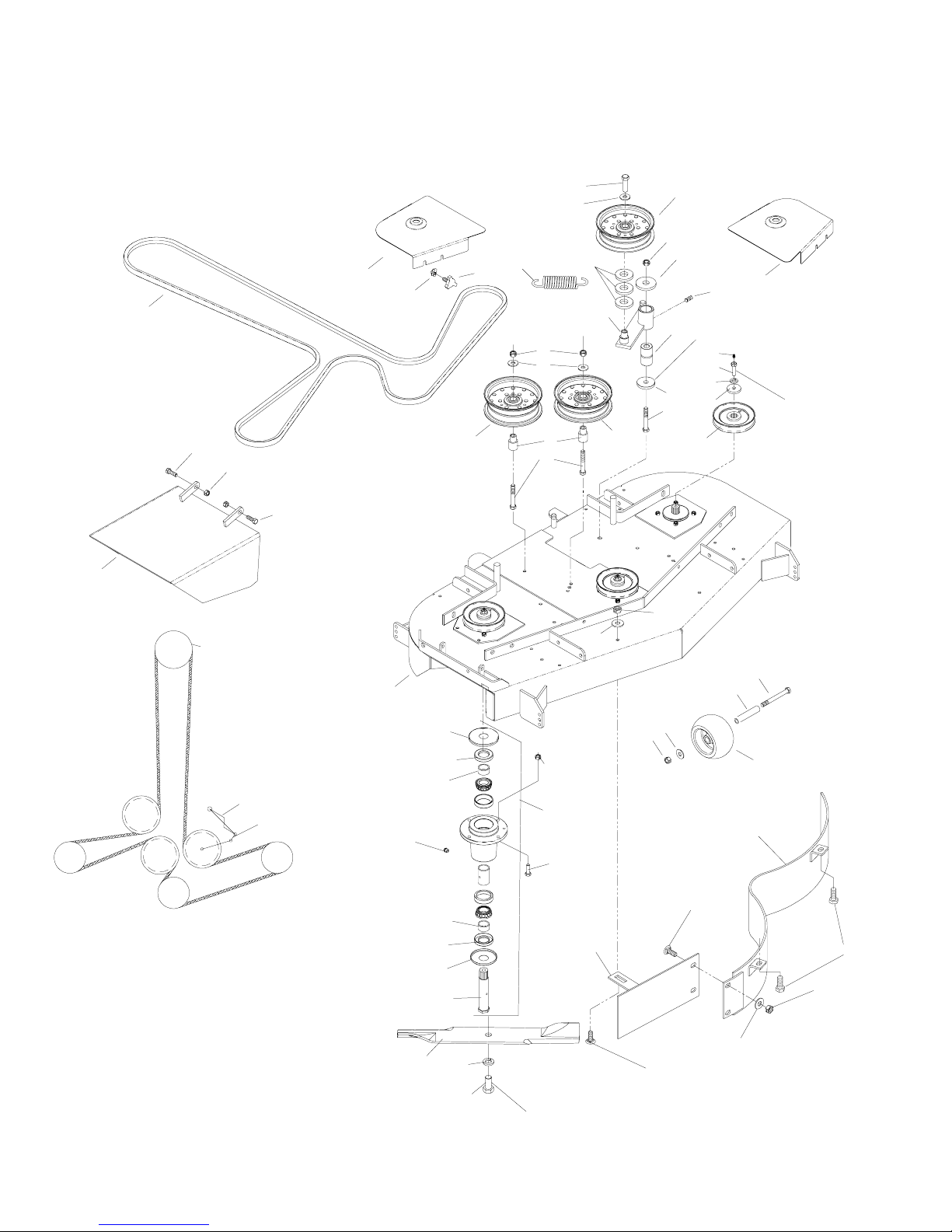

52”DECK
27
BELT ROUTING
25
33
32
33
ELECTRIC CLUTCH
ON THE ENGINE
28
30
41
13
40
11
36
35
29
15
35
38
5
46
10
12
13
4
37
31
THIS SUPPORT WASHER
24
GOES UNDER THE DECK
31
2
47
6
1
26
14
32
8
39
TORQUE TO
45 FT/LBS
3 PLACES
9
SPRING
IDLER ARM
22
21
17
32
36
35
7
18
16
43
33
44
34
17
18
45
20
19
32
46
3
42
23
TORQUE TO 90 FT/LBS
3 PLACES
44
18
Page 19
52”DECK
ITEM PART NO. QTY DESCRIPTION
1 ........ 539106504........3 ........ HEAVY WASHER
2 ........ 539112120........3 ........ HCS 7/16-20 X 1 1/2, SPECIAL
3 ........ 539100341........3 ........ BLADE 18”
4 ........ 539101331........1 ........ NUT, 1/2-13, NYLOC
5 ........ 539991043........3 ........ BUSHING, MACHINE
6 ........ 539102243........ 1........ SUPPORT WASHER
7 ........ 539102643........2 ........ ANTI-SCALP ROLLER
8 ........ 539102698........2 ........ BUSHING
9 ........ 539102754........2 ........ HCS, 3/8-16 X 3 1/2
10 ...... 539103230........1 ........ IDLER ARM
11 ...... 539105192........1........ SPRING
12 ...... 539103257........2 ........ IDLER PULLEY
13 ...... 539103258........1 ........ IDLER PULLEY (TALL)
14 ...... 539107277........3 ........ PULLEY
15 ...... 539103295........2 ........ IDLER BUSHING
16 ...... 539108773........3 ........ SPINDLE, COMPLETE
17 ...... 539108754........2 ........ SHAFT SEAL
18 ...... 539108758........2 ........ SPACER
19 ...... 539108760........1 ........ SPINDLE
20 ...... 539108449........1 ........ DUST CAP, BOTTOM
21 ...... 539108450........1 ........ DUST CAP, TOP
22 ...... 539977326........ 1 ........ GREASE POPET
23 ...... 539103299........3 ........ HCS, 5/8-18 X 1 1/4
24 ...... 539103427........1 ........ PIVOT BUSHING
25 ...... 539109242........1 ........ BELT
26 ...... 539103433........1 ........ HCS, 1/2-13 X 3 1/4
27 ...... 539107312........ 1........ DEFLECTOR CHUTE
28 ...... 539108908........1 ........ SHIELD, RIGHT
29 ...... 539990637........2 ........ HCS, 3/8-16 X 2 1/2
30 ...... 539106582........ 1 ........ DECK W/DECALS
31 ...... 539976998........1 ........ ZERK
32 ...... 539990184........19 ...... NUT, 5/16-18, CENTER LOCK
33 ...... 539990209........14 ...... HCS, 5/16-18 X 1
34 ...... 539976934........2 ........ HCS, 5/16-18 X 3/4
35 ...... 539990517........5 ........ W ASHER 3/8 FLAT
36 ...... 539990546........5 ........ NUT, 3/8-16 CENTER LOCK
37 ...... 539990550........1 ........ W ASHER, 1/2
38 ...... 539990582........1 ........ HCS, 3/8-16 X 1, SERR. HD.
39 ...... 539108910........1 ........ SHIELD, LEFT
40 ...... 539104411........6 ........ KNOB
41 ...... 539104763........6 ........ U-CLIP
42 ...... 539990333........3 ........ LOCKWASHER, 5/8
43 ...... 539105457........1 ........ BAFFLE, MAIN
44 ...... 539990799........3 ........ RHSNB, 5/16-18 X 5/8
45 ...... 539105453........1 ........ BAFFLE, CENTER
46 ...... 539990692........5 ........ W ASHER, 5/16
47 ...... 539990247........3 ........ LOCKWASHER, 7/16
19
Page 20

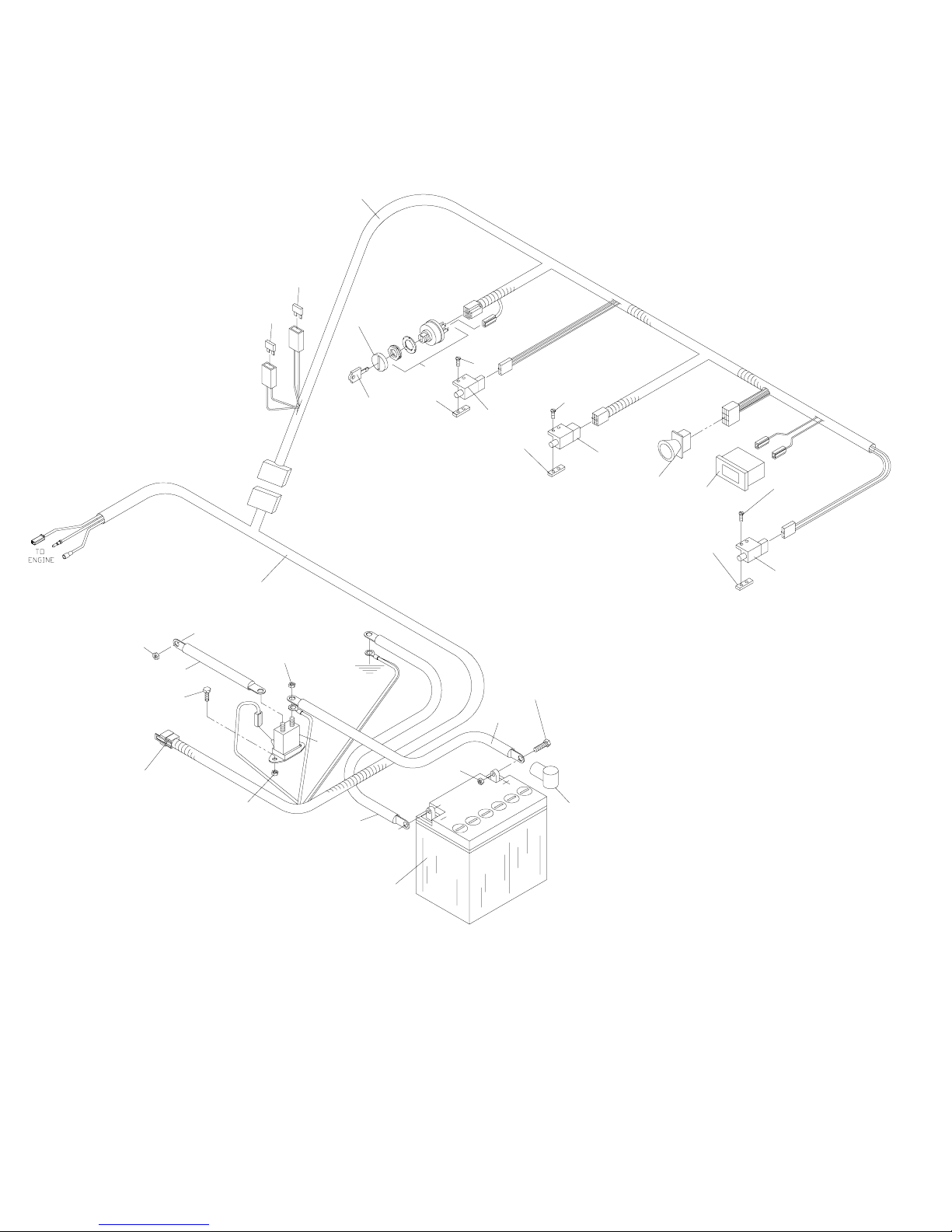

WIRING ASSEMBLY
1
4
20
TO
ELECTRIC
CLUTCH
TO
STARTER
14
13
12
3
23
GROUND TO
LEFT REAR
ENGINE BOLT
11
15
22
9
5
9
10
TO NEUTRAL
SWITCH
25
2
24
9
21
6
10
RIGHT
OPERATOR
PRESENCE
10
5
LEFT
OPERAT OR
PRESENCE
17
16
19
8
18
7
20
Page 21
WIRING ASSEMBLY
ITEM PART NO. QTY DESCRIPTION
1 ........ 539110663........1 ........ UPPER HARNESS
2 ........ 539101768........1 ........ CLUTCH SWITCH
3 ........ 539102086........1 ........ FUSE 20 AMP
4 ........ 539101771........1 ........ FUSE 7.5 AMP
5 ........ 539923408........2 ........ SWITCH N. C.
6 ........ 539101770........1 ........ IGNITION SWITCH
.......... 539103177........1........ NUT , SWITCH
7 ........ 539102463........1 ........ BATTERY
8 ........ 539102758........1 ........ NEG. CABLE
9 ........ 539976952........ 6........ SCREW #10-24
10 ...... 539102678........3 ........ TAPPED PLATE
11 ...... 539976978........2........ NUT 1/4
12 ...... 539990372........2 ........ NUT 1/4 LOCK
13 ...... 539990072........2 ........ HCS 1/4 X .625
14 ...... 539102757........1 ........ POS. CABLE
15 ...... 539101714........1 ........ SOLINOID
16 ...... 539103306........1 ........ POS. CABLE LONG
17 ...... 539976934........2 ........ HCS 5/16 X .750
18 ...... 539102759........1 ........ INSULATOR
19 ...... 539990184........2 ........ NUT 5/16 CTR. LOCK
20 ...... 539108120........1 ........ NUT 1/4 THIN NYLOC
21 ...... 539104812........1 ........ KEY
22 ...... 539103178........1 ........ COVER
23 ...... 539110662........1 ........ LOWER HARNESSS
24 ...... 539110074........1 ........ HOUR METER
25 ...... 539101080........1 ........ 2 POLE SWITCH
21
Page 22
22

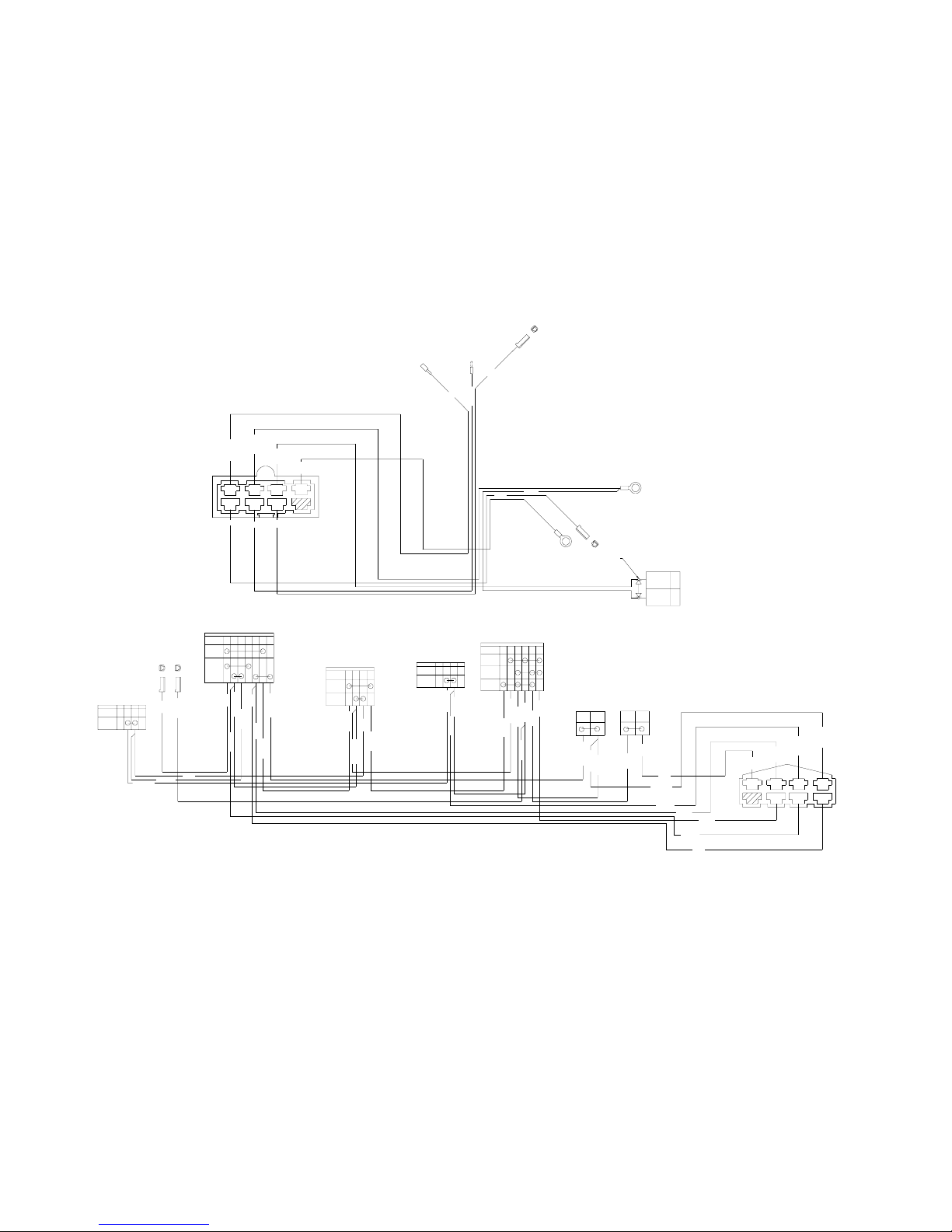

WIRING SCHEMATIC
WHITE
NEUTRAL
TRAVEL
NEUTRAL LOCK BAIL SWITCH
ELECTRIC CLUTCH SWITCH
GREEN
WHITE
BLACK
BLUE
ON
RED
YELLOW
RED
ORANGE
4
OFF
1M5
2
N.C.
N.O.
736
IGNITION SWITCH
Q1
CLUTCH
7.5 AMP FUSE
ORANGE
923408 N.C.
WHITE
RIGHT OP SWITCH
BLACK
RED
YELLOW
WHITE
1
4
2
3
R
FREE
PRESS
NC
NO
101080
BROWN
FREE
I1
BLUE
BLACK
WHITE
BLACK
S
5
GREEN
START
2
O
RUN
OFF
TERM.
YELLOW
GREEN
GREY
321
G
L
MA
B
4
GREY
RED
WHITE
BLUE
BLACK
VIOLET
RED
BLUE
VIOLET
WHITE
RED
IGNITION (+)
20. AMP FUSE
22G1
RED
BLUE
KILL
FUEL SOLENOID
RED
WHITE
VIOLET
RED
GRAY
VIOLET
BLUE
WHITE
VIOLET
WHITE
GRAY
DIODE
BATTERY (+)
BLACK
BLUE
START
BLACK
RED
RED
WHITE
GROUND
2
CLUTCH
CONNECTOR
A1
REGULATOR
LEFT OP SWITCH
923408 N.C.
FREE
I
GREEN
BROWN
RED
HOUR METER
RED
2
1
BLACK
-+
110662 LOWER HARNESS
110663 UPPER HARNESS
Page 23
23
Page 24
110586R03
08/10/05
Loading...
