Husqvarna M-ZT5 Owner's Manual
Gasoline containing up to 10% ethanol
(E10) is acceptable for use in this
machine. The use of any gasoline
exceeding 10% ethanol (E10) will void
the product warranty.
Operator Manual
M-ZT52 / 967177006
Please read the operator manual carefully and make sure
you understand the instructions before using the machine.
To implement improvements, specifications and designs can be altered without prior notification.
Note that no legal demands can be placed based on the information contained in these instructions.
Use only original parts for repairs. The use of other parts voids the warranty.
Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modifications to the unit may cause unsafe operations or damage the unit.
When this product is worn out and no longer used, it should
be returned to the reseller or other party for recycling.
©2013 All rights reserved.
Orangeburg, SC Printed in U.S.A.
CONTENTS
INTRODUCTION ............................................................... 5
Driving and Transport on Public Roads ...................... 5
Towing .........................................................................5
Operating ....................................................................5
Good Service .............................................................. 6
Manufacturing Number ......................................... 6
SYMBOLS AND DECALS .................................................. 7
SAFETY ............................................................................. 9
Safety Instructions ...................................................... 9
Personal Safety Equipment ......................................11
Slope Operation ........................................................11
Safe Handling of Gasoline ........................................ 13
General Maintenance ............................................... 14
Transport ................................................................... 16
Towing .......................................................................16
Spark Arrestor ...........................................................16
Rollover Protection System (ROPS) .......................... 17
CONTROLS ..................................................................... 18
Control Locations ......................................................18
Motion Control Levers ...............................................19
Parking Brake ........................................................... 20
Ignition Switch ..........................................................20
Blade Switch ............................................................. 20
Throttle Control ......................................................... 21
Hour Meter ................................................................ 21
Fuel Shut Off Valve ................................................... 21
Tracking Knob .......................................................... 22
Fuses ........................................................................ 22
Cutting Height Adjuster ............................................ 23
Seat Adjustment Lever .............................................23
Hydro Release Levers .............................................. 23
Refueling ...................................................................24
OPERATION ....................................................................25
Training .....................................................................25
Steering ....................................................................25
Roll Bar and Safety Belt ............................................ 26
Before Starting .......................................................... 26
Starting the Engine ................................................... 27
Jumper Cables Use ............................................ 29
Running ....................................................................30
Operating on Hills ..................................................... 31
Stopping the Engine ................................................. 32
Mowing Tips .............................................................33
Moving Machine By Hand ........................................ 34
MAINTENANCE ...............................................................35
Battery ......................................................................37
Safety System ........................................................... 38
Tire Pressures ........................................................... 38
Parking Brake ........................................................... 38
Deck Belt .................................................................. 39
Pump Belt ................................................................. 40
V-belts .......................................................................40
Cutting Blades .......................................................... 41
Adjusting the Mower Deck .......................................42
Leveling deck .....................................................42
Anti-scalp Rollers ......................................................43
Caster Wheels ..........................................................43
Hardware .................................................................. 43
Cleaning ...................................................................44
ZT-3400 Powertrain ................................................... 44
LUBRICATION ................................................................. 45
Lubrication Schedule ................................................45
Engine Oil Change ...................................................46
Wheel and Deck Zerks ............................................. 46
Front Wheel Mount .............................................. 46
Front Wheel Bearings .........................................46
Deck Spindle ......................................................47
Transaxle (Transmission) Fluid Change .................... 48
Transmission Purging.......................................... 49
TROUBLESHOOTING GUIDE ......................................... 50
STORAGE .......................................................................52
Winter Storage .......................................................... 52
Service ...................................................................... 52

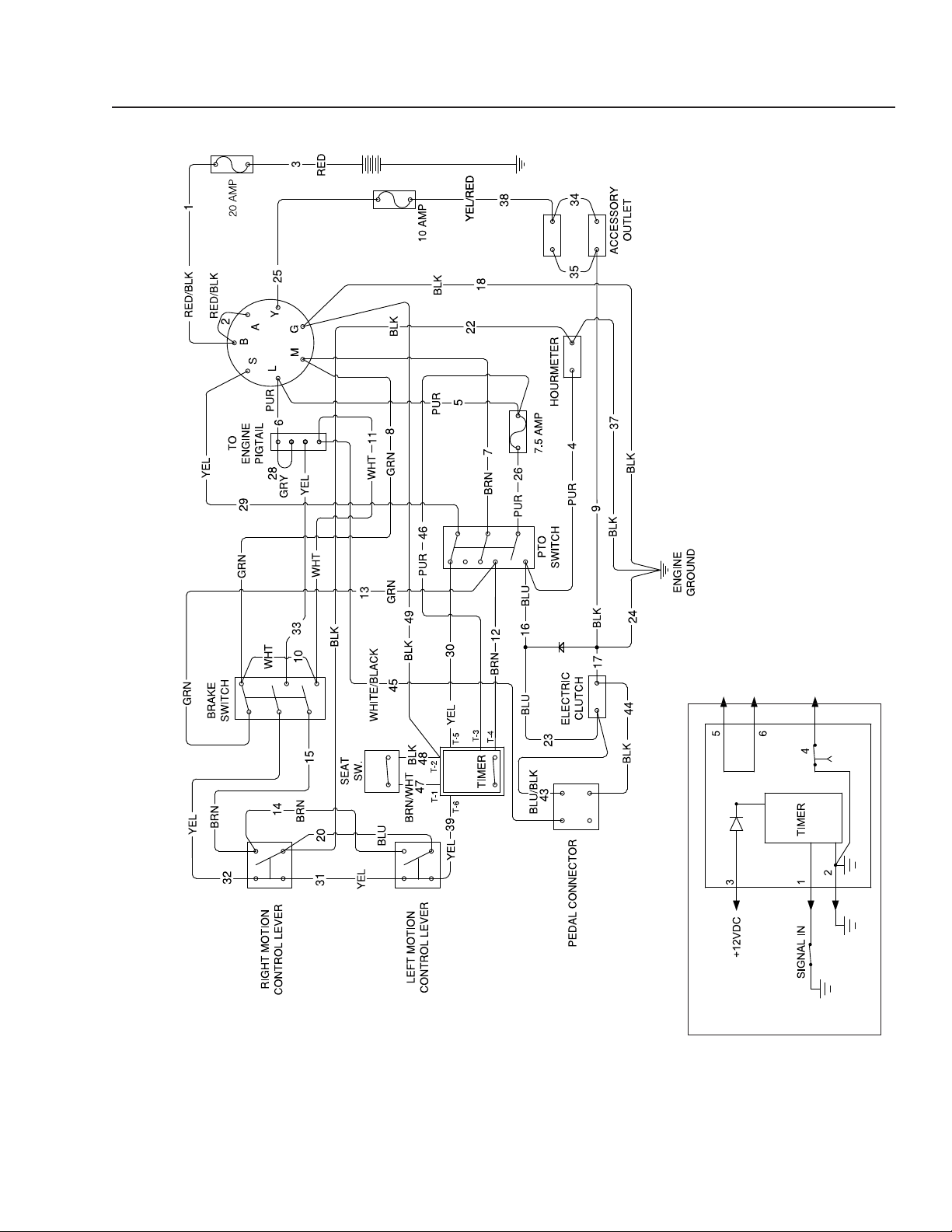

WIRING DIAGRAM ..........................................................53
TECHNICAL DATA ..........................................................54
Torque Specifications ...............................................54
CONFORMITY CERTIFICATES ........................................56
SERVICE JOURNAL ........................................................ 57
WARNING!
Failure to follow cautious operating practices can result in serious injury to the operator
or other persons. The owner must understand these instructions, and must allow only
trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and must not be
under the influence of any mind altering substance.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to cause cancer and birth defects or other reproductive harm. Wash
hands after handling.
INTRODUCTION
Congratulations
Thank you for purchasing a Husqvarna ride-on
mower. This machine is built for superior efficiency
to rapidly mow primarily large areas. A control panel
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine’s performance.
This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use, service,
maintenance) by all who operate this machine is
important for the safety of the operator and others.
It can also considerably increase the life span of the
machine and increase its resale value.
If you sell your machine, be sure to give the operator
manual to the new owner.
The final chapter of this operator manual provides a
Service Journal. Ensure that service and repair work
are documented. A well-kept service journal reduces
service costs for the maintenance and affects the
machine’s resale value. Please contact your dealer
for more information. Take the operator manual along
when the machine is taken to your dealer for service.
General
In this operator manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.
Continuous dedication to improve our products require
that specifications and design are subject to change
without notice.
Driving and Transport on Public Roads
Check applicable road traffic regulations before
transporting on public roads. If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored. DO NOT operate this machine on public
roadways.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on the towed equipment. Make wide turns to avoid
jack-knifing. Travel slowly and allow extra distance to
stop.
Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.
Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Operating
This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc. The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer. Operating
instructions for the accessories are provided with
delivery. All other types of uses are incorrect. The
manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.
Lawn mowers and all power equipment can be
potentially dangerous if used improperly. Safety
requires good judgment, careful use in accordance
with these instructions and common sense.
The machine must only be operated, maintained,
and repaired by persons familiar with the
machine’s special characteristics and who are also
knowledgeable about the safety instructions. Use only
approved repair parts to maintain this machine.
Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic
regulations must be followed without fail.
Unauthorized modifications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage.
INTRODUCTION
Good Service
Husqvarna’s products are sold all over the world
and only in specialized retail stores with complete
service. This ensures that you as a customer receive
only the best support and service. Before the product
is delivered, the machine has, for example, been
inspected and adjusted by your retailer. See the
certificate in the Service Journal in this operator
manual.
When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
This manual belongs to the machine with the
manufacturing number:
Manufacturing Number
The machine’s manufacturing number can be found
on the printed plate affixed to the right side in the
engine compartment. Stated on the plate, from the top
are:
The machine’s type designation (I.D.).
The manufacturer’s type number (Model).
The machine’s serial number (Serial no.)
Please have the type designation and serial number
available when ordering spare parts.
The engine’s manufacturing number is stamped either
on one of the valve covers or an affixed serial plate.
The plate states:
The engine’s model.
The engine’s type.
Code
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
Engine Transmission
6
SYMBOLS AND DECALS
These symbols are found on the machine and in the
operator manual.
Study them carefully so that you know what they
mean.
WARNING!
Xxxx xxxxxx xxxxx xxxx xxxxxxxxx
xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx
xxxxxx.
Used in this publication to notify the reader of a risk
of personal injury or death, particularly if the reader
should neglect to follow instructions given in the
manual.
IMPORTANT INFORMATION
Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx
xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.
Used in this publication to notify the reader of a risk
of material damage, particularly if the reader should
neglect to follow instructions given in the manual.
Used also when there is a potential for misuse or
misassembly.
R N
Reverse Neutral Fast Slow Choke Fuel
Warning! Parking Brake CE conformity marking. Only
for European market
Use protective glasses
Use protective gloves
Do not stand here
7
Read Operator Manual
SYMBOLS AND DECALS
Shut off engine and
remove key before
performing any
maintenance or
repair work
Keep a safe
distance from the
machine
Use on slopes no
greater than 10° No passengers
Whole body
exposure to
thrown objects
Moving sharp blades under cover
Severing of fingers
and toes
Do not open or
remove safety
shields while
engine is running
Battery acid is corrosive, explosive and flammable
Careful backing up,
watch for
other people
Careful going forward,
Warning! Rotating blades,
keep away from the
discharge deck
watch for
other people
Do not touch parts
8
SAFETY
Safety Instructions
These instructions are for your safety. Read them
carefully.
WARNING!
THIS CUTTING MACHINE IS CAPABLE
OF AMPUTATING HANDS AND FEET
AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY
INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
General Operation
• Read, understand, and follow all instructions on
the machine and in the manual before starting.
• It is recommended that someone be aware that
you are mowing and can provide help in case of
injury or accident.
• Do not put hands or feet near rotating parts or
under the machine. Keep clear of the discharge
opening at all times.
• Only allow responsible adults, who are familiar
with the instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blades.
• Be sure the area is clear of bystanders before
operating. Stop machine if anyone enters the area.
• Never carry passengers. The machine is only
intended for use by one person.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
• Never direct discharged material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the
operator. Stop the blades when crossing gravel
surfaces.
• Do not operate machine without the entire grass
catcher, discharge guard, or other safety devices
in place and working
• Slow down before turning.
• Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.
• Disengage blades when not mowing. Shut off
engine and wait for all parts to come to a complete
stop before cleaning the machine, removing the
grass catcher, or unclogging the discharge guard.
WARNING!
This symbol means that important safety
instructions need to be emphasized. It
concerns your safety.
8011-512
Read the operator manual before starting the machine
8011-513
Clear the area of objects before mowing
9
SAFETY
• Operate machine only in daylight or good artificial
light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck.
• Always wear eye protection when operating
machine.
• Wear proper Personal Protective Equipment
(PPE) while operating this machine, including (at
a minimum) sturdy footwear, eye protection, and
hearing protection. Do not mow in shorts and/or
footwear with open toes.
• Data indicates that operators age 60 years and
above are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.
• Follow the manufacturer’s recommendation for
wheel weights or counterweights.
• Anyone who operates this machine must first read
and understand this Operation Manual. Local laws
may regulate the age of the user.
• Keep machine free of grass, leaves or other debris
buildup which can touch the hot exhaust or engine
parts and burn. Do not allow the mower deck to
plow leaves or other debris, causing buildup to
occur.
• Clean any oil or fuel spillage before operating or
storing the machine.
• Allow machine to cool before storage.
8011-520
Never take passengers
WARNING!
Engine exhaust and certain vehicle
components contain or emit chemicals
considered to cause cancer, birth
defects, or other reproductive system
damage. The engine exhaust contains
carbon monoxide, which is an odorless,
colorless, poisonous gas. Do not use the
machine in enclosed spaces.
10
SAFETY
Personal Safety Equipment
WARNING!
When using the machine, approved
personal protective equipment (shown
in illustrations) shall be used. Personal
protective equipment cannot eliminate
the risk of injury but it will reduce the
degree of injury if an accident does
happen. Ask your retailer for help in
choosing the right equipment.
• Make sure that you have first aid equipment close
at hand when using the machine.
• Never use the machine when barefoot.
• Always wear protective shoes or boots, preferably
with steel toe caps.
• Always wear approved protective glasses or a full
visor when assembling or driving.
• Always wear gloves when handling the blades.
• Never wear loose clothing that can get caught in
moving parts.
• Use ear protectors to avoid damage to hearing.
Slope Operation
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution.
If you cannot back up the slope or if you feel uneasy
on it, do not mow it.
• Mow up and down slopes (10 degrees maximum),
not across.
• Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
• Choose a low ground speed so that you will not
have to stop while on the slope.
• Do not mow on wet grass. Tires may lose traction.
• Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.
• Keep movement on the slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause machine to roll over.
• Use extra care while operating machine with grass
catchers or other attachments; they can affect the
stability of the machine.
8011-670a
Personal protective equipment
WARNING!
Do not drive up or down hills with slopes
greater than 10 degrees. Do not drive
across any slopes.
6003-004
Mow up and down, not side to side
11
SAFETY
• Do not use on steep slopes.
• Do not try to stabilize the machine by putting a
foot on the ground.
• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.
WARNING!
CHILDREN CAN BE INJURED BY THIS
EQUIPMENT. The American Academy
of Pediatrics recommends that children
be a minimum of 16 years of age before
operating a riding lawn mower. Keep
children out of the mowing area and in
the watchful care of a responsible adult
other than the operator.
8011-519
Be extra cautious when driving on slopes
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain out of the path
of danger.
• Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator.
• Be alert and turn machine off if a child enters the
area.
• Before and while backing, look behind and down
for small children.
• Never carry children, even with the blades shut
off. They may fall off and be seriously injured or
interfere with safe machine operation. Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block the
view of a child.
8011-518
Keep children away from work area
12
8011-517
Never allow children to operate the machine
SAFETY
Safe Handling of Gasoline
WARNING!
The engine and the exhaust system
become very hot during operation.
There is risk for burns if touched.
Allow engine and exhaust system to cool
before refueling.
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
• Use only approved gasoline container.
• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where
there is an open flame, spark, or pilot light such as
on a water heater or other appliance.
• Before beginning to refuel, minimize the risk of
static electricity by touching a metal surface.
• Never fill containers inside a vehicle or on a truck
or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when filling.
• Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.
• Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-open
device.
• If fuel is spilled on clothing, change clothing
immediately.
• Never overfill fuel tank. Replace gas cap and
tighten securely.
• Do not start the engine near spilled fuel.
• Never use gasoline as a cleaning agent.
• If leaks arise in fuel system, engine must not be
started until problem has been resolved.
• Check the fuel level before each use and leave
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overflow.
8011-516
Never fill the fuel tank indoors
WARNING!
The engine must not be started when
the driver’s floor plate or any protective
plate for the mower deck’s drive belt is
removed.
13
SAFETY
General Maintenance
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
• Never tamper with safety devices. Check their
proper operation regularly.
• Keep machine free of grass, leaves, or other
debris buildup. Clean oil or fuel spillage and
remove any fuel-soaked debris. Allow machine to
cool before storing.
• If the machine strikes a foreign object, stop and
inspect the machine. Repair, if necessary, before
restarting.
• Never make any adjustments or repairs with the
engine running.
• Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing
them.
• Check brake operation frequently. Adjust and
service as required.
• Maintain or replace safety and instruction labels,
as necessary.
• Do not modify safety equipment. Check regularly
to be sure it works properly. The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices.
• Do not change the settings of governors and
avoid running the engine with overly high engine
speeds. If the engine runs too fast, there is risk for
damaging the machine components.
• Be very careful when handling battery acid. Acid
on skin can cause serious corrosive burns. If
battery acid is spilled on skin, rinse immediately
with water.
• Acid in the eyes can cause blindness, contact a
doctor immediately.
• Be careful when servicing the battery. Explosive
gases form in the battery. Never perform
maintenance on the battery when smoking or near
open flames or sparks.
• The battery can explode and cause serious injury
or damage.
• Ensure that the equipment is in good condition
and that all nuts and bolts, especially those
fastening the blade attachments, are properly
tightened and torqued.
14
8011-515
Never drive the machine in an enclosed space
CAUTION!
Use protective glasses for
maintenance work.
WARNING!
The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive system
damage. Wash your hands after handling
the battery.
SAFETY
Sparking can occur when working with the battery
and the heavy cables of the starter circuit. This can
cause battery explosion, fire or eye injury. Sparking
in this circuit can not occur after the chassis cable
(normally negative, black) is removed from the battery.
WARNING!
Avoid electrical sparking and its
consequences by the following routines:
• Use protective goggles.
• Ensure that the fuel filler cap is mounted tightly
and no flammable substances are stored in an
open vessel.
• Never work with the starter circuit if there is spilled
fuel.
• Disconnect the negative cable from the battery
first and reconnect it last.
• Do not make a bridge short circuit across the
starter relay to run the starter.
6003-009
Do not smoke when performing maintenance on the battery.
The battery can explode and cause serious injury/damage.
• Never use the machine indoors or in spaces
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless,
poisonous, and lethal gas.
• Stop to inspect the equipment if the machine runs
over or into anything. If necessary, make repairs
before starting.
• Never make adjustments with the engine running.
• The machine is tested and approved only with the
equipment originally provided or recommended
by the manufacturer. Only use approved repair
parts for the machine.
• The blades are sharp and can cause cuts and
gashes. Wrap the blades or use protective gloves
when handling them.
• Check the parking brake’s functionality regularly.
Adjust and service as necessary.
• The mulch blades should only be used in familiar
areas when higher quality mowing is desired.
• Reduce the risk of fire by removing grass, leaves,
and other debris that may have accumulated on
the machine.
• Allow the machine to cool before putting it in
storage.
• Regularly clean deck and underside of deck,
avoid spraying engine and electrical components
with water.
8009-728
Risk of sparking
8011-514
Regularly clean deck
15
SAFETY
Transport
• The machine is heavy and can cause serious
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.
• Use an approved trailer to transport the machine.
Activate the parking brake, turn off the fuel supply,
and fasten the machine with approved fastening
devices, such as bands, chains, or straps, when
transporting.
• Do not operate this machine on public roadways.
• Check and abide by local traffic regulations
before transporting the machine on any road.
• Do not tow this machine: it may cause damage to
the drive system.
• Load the unit onto truck or trailer by driving up
ramps of suitable strength using a slow speed. Do
not lift! The machine is not intended to be lifted by
hand.
• When loading or unloading this machine, do not
exceed the maximum recommended operation
angle of 10O.
WARNING!
Use extreme caution when loading the
machine into a truck or trailer using
ramps. There is the possibility of serious
injury or death if the machine falls off the
ramps.
IMPORTANT INFORMATION
The parking brake is not sufficient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on towed equipment.
Make wide turns to avoid jack-knifing. Travel slowly
and allow extra distance to stop. Do not tow on sloped
ground. The weight of the towed equipment may
cause loss of traction and loss of control.
Follow the manufacturer’s recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Spark Arrestor
This mower is equipped with an internal combustion
engine and should not be used on or near any
unimproved forested, bush covered or grassy lands
unless the engine’s system is equipped with a spark
arrestor meeting applicable local or state laws (if any).
In the state of California the above is required by
law (Section 4442 of the California Public Resources
Code).
Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrestor for the muffler is available through
any authorized Husqvarna dealer.
WARNING!
Escaping hydraulic oil under pressure
can have sufficient force to penetrate the
skin, causing serious injury. If injured
by escaping fluid, see a doctor at once.
Serious infection or reaction can develop
if proper medical treatment is not
administered immediately.
WARNING!
This mower is equipped with an internal
combustion engine and should not
be used on or near any unimproved
forested, bush covered or grassy lands
unless the engine's system is equipped
with a spark arrester meeting applicable
local or state laws (if any). If a spark
arrestor is used, it should be maintained
in effective working order by the
operator.
16
SAFETY
Rollover Protection System (ROPS)
The ROPS increases the basic weight of the unit by 73
lbs/33 kg.
• Do not use ROPS as a lifting, attaching or
anchoring point.
• Do not use ROPS for wrecking or towing.
• Do not exceed Max GVW: 2822 lbs/1283 kg.
• Read machine’s operator manual before each
use.
• Securely fasten the seat belt if the unit has a
ROPS.
• Where possible, avoid operating the unit near
ditches, embankments and holes.
• Reduce speed when turning, crossing slopes and
on rough, slick or muddy surfaces.
• Stay off slopes too steep for safe operation.
• Watch where you are going, especially at row
ends, on roads and around trees.
• Do not permit others to ride.
• Operate the mower smoothly - no jerky turns,
starts or stops.
• When mower is stopped, set brakes securely and
use park brake.
• If any part of ROPS is damaged, the entire ROPS
must be replaced.
• Check all bolts including seat belt for correct
torque before each use.
• Check ROPS structure for damage before each
use.
• ROPS bar is NOT intended for use in sub zero
temperatures.
WARNING!
The rollover protection system's
capabilities may be impaired by damage
if the mower is overturned or if alteration
to the ROPS occurs. If these conditions
take place, the total structure MUST be
replaced.
17
CONTROLS
This operator manual describes the Husqvarna
Zero Turn Rider. The rider is fitted with a four-stroke
overhead valve engine.
Transmission from the engine is made via belt-driven
Control Locations
4
5
hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.
3
2
1
18
6
7
8
1. Motion control levers
2. Park brake
3. Tracking knob
4. Fuel tank - left
5. Hydro releases levers
6. Ignition switch
11
10
9
7. Hour meter
8. Throttle control
9. Blade switch
10. Deck lift
11. Deck release
CONTROLS
Motion Control Levers
The machine’s speed and direction are continuously
variable using the two steering controls. The steering
controls can be moved forward or backward about
a neutral position. Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward.
When both controls are in the neutral position (N), the
machine stands still.
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.
For example, to turn right while moving forward, move
the right control towards the neutral position. The
rotation of the right wheel is reduced and the machine
turns to the right.
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left. Use extra care when using this maneuver.
8065-105
Steering controls
WARNING!
The machine can turn very rapidly if one
steering control is moved much further
forward than the other.
1. Forward
2. Neutral
3. Neutral slot, Neutral lock
4. Reverse
Motion control lever pattern (right side)
8065-053
19
CONTROLS
Parking Brake
The parking brake is found on the left of the machine.
Pull the lever backward to activate the brake and push
forward to release it.
IMPORTANT INFORMATION
The machine must stand absolutely still when
applying the parking brake. Always set the
parking brake before dismounting. Release the
parking brake before moving the mower.
Ignition Switch
The ignition switch is placed on the control panel and
is used to start and stop the engine.
Push in and turn the key clockwise to start the engine.
On models equipped with headlights, turn the key
clockwise to ACCESSORY for headlight use.
8058-182
Parking brake
IMPORTANT INFORMATION
Do not run the starter for more than five
seconds each time. If the engine does not start,
wait about 10 seconds before retrying.
Blade Switch
To engage the mower deck, pull the blade switch knob
out. The mower blades are disengaged when the knob
is pressed down fully.
8058-043
Ignition switch
20
8058-043
Blade switch
CONTROLS
Throttle Control
The throttle control regulates the engine speed and
thereby the rate of rotation of the blades, assuming
the blade switch is pulled out, see Engaging the
Mower Deck.
In order to increase or decrease the engine speed,
the control is moved forward or back respectively.
Avoid idling the engine for long periods, as there is a
risk of fouling the spark plugs.
USE FULL THROTTLE WHEN MOWING, for best
mower performance and battery charging.
Hour Meter
The hour meter displays the total operating time with
the blade activated.
The display on the hour meter will turn on the oil can
icon after every fifty hours of use and will stay on
for two hours or until the meter is manually reset. To
manually reset the timer, turn the ignition key to the run
position and then engage and disengage the blade
switch five times at one second intervals.
8050-043
Throttle control
Fuel Shut Off Valve
The fuel shut off valve is centered behind the rear of
the seat. The valve is off when the handle tab is turned
perpendicular to the fuel line.
8050-043
Hour meter
8065-010
Fuel shut off valve in the CLOSED position.
21
Loading...
