Husqvarna L321AH-96794980100, 96794980100 Owner’s Manual

*DVROLQHFRQWDLQLQJXSWR HWKDQRO ( LVDFFHSW DEOHIRUXVHLQWKLVPDFKLQH 7KHXVHRIDQ\JDVROLQHH[ FHHGLQJ HWKDQRO ( ZLOOYRLGWKHSURGXFWZDUUDQW\

(VWD PĉTXLQD SXHGH XWLOL]DU JDVROLQD FRQ XQ FRQWHQLGR GH KDVWD HO GH HWDQRO ( (O XVR GH XQD JDVROLQD TXH VXSHUH HO GH HWDQRO ( DQXODUĉ OD JDUDQWõD GHO SURGXFWR

9RXV SRXYH] XWLOLVHU GH O HVVHQFH FRQWHQDQW MXVTX ćG ÿWKDQRO ( DYHF FHW DSSDUHLO / XWLOLVDWLRQ G HVVHQFH FRQWHQDQW SOXV GH G ÿWKDQRO DQQXOHUD OD JDUDQWLH GX SURGXLW

114 0

2SHUDWRU V 0DQXDO 0DQXDO GH 2SHUDULR 0DQXHO GH / 2SÿUDWHXU / $+

3OHDVH UHDG WKH RSHUDWRUċV PDQXDO FDUHIXOO\ DQG PDNH VXUH \RX XQGHUVWDQG WKH LQVWUXFWLRQV EHIRUH XVLQJ WKH PDFKLQH (QJOLVK (VSDÆRO

/LVH] WUýV DWWHQWLYHPHQW HW VR\H] FHUWDLQ GH FRPSUHQGH )UHQFK FHV LQVWUXFWLRQV DYDQW G XWLOLVHU FHWWH PDFKLQH

SAFETY RULES

		Children
	IMPORTANT! THIS CUTTING MACHINE IS
	CAPABLE OF AMPUTATING HANDS AND FEET
	AND THROWING OBJECTS. FAILURE TO				WARNING! Children can be seriously
	OBSERVE THE FOLLOWING SAFETY				injured or killed by this equipment.
	INSTRUCTIONS COULD RESULT IN SERIOUS				Carefully read and follow all of the
	INJURY OR DEATH.				safety instructions below.
		CHILDREN CAN BE INJURED BY THIS EQUIPMENT.

point out important safety precautions. The American Academy of Pediatrics recommends that It means CAUTION!!! BE COME children be a minimum of 12 year of age before operating ALERT!!! YOUR SAFE TY IS IN a pedestrian controlled lawn mower and a minimum of VOLVED. 16 years of age before operating a riding lawn mower.WARNING! Look for this symbol to

			WARNING! In order to prevent	Tragic accidents can occur if the op er a tor is not alert to
				the presence of children. Children are often attracted to
			accidental starting when setting up,
				the machine and the mowing activity. Never assume that
			transporting, adjusting or making
			repairs, always disconnect spark plug	children will remain where you last saw them.
			wire and place wire where it can not	• Keep children out of the mowing area and under the
			come in contact with plug.	watchful care of a responsible adult other than the
				operator.
		CAUTION! Muffler and other engine parts become		• Be alert and turn machine off if children enter the
		extremely hot during operation and remain hot after		area.
		engine has stopped. To avoid severe burns on		• Before and while walking backwards, look behind and
		contact, stay away from these areas.
				down for small children.
				• Never allow children to operate the machine.
				• Be particularly careful near corners, bushes, trees or
				other objects that block your view.
				General operation
			WARNING! Engine exhaust, some of its	• Read, understand, and follow all instructions on the
			constituents, and certain vehicle	machine and in the manual(s) before starting. Be
			components contain or emit chemicals	thoroughly familiar with the controls and the proper
			known to the State of California to
			cause cancer and birth defects or other	use of the machine before starting.
			reproductive harm.	• Do not put hands or feet near or under rotating parts.
				Keep clear of the discharge opening at all times.
			WARNING! Battery posts, terminals	• Only allow responsible individuals, who are familiar
			and related accessories contain lead	with the instructions, to operate the machine.
			and lead compounds, chemicals known	• Clear the area of objects such as rocks, toys, wire,
			to the State of California to cause
			cancer and birth defects or other	bones, sticks, etc., which could be picked up and
			reproductive harm. Wash hands after	thrown by blade. Stay behind the handle when the
			handling.	engine (motor) is running.
				• Be sure the area is clear of other people before
			WARNING! This lawn mower is	mowing. Stop machine if anyone enters the area.
			equipped with an internal combustion	• Do not operate machine bare footed or while wearing
			engine and should not be used on or
			near any unimproved forest-covered,	sandals. Al ways wear substantial footwear with good
			brush-covered or grass-covered land	ankle support while mowing.
			unless the engine’s exhaust system is	• Do not pull mower backwards unless absolutely
			equipped with a spark arrester meeting
				necessary. Always look down and behind before and
			applicable local or state laws (if any). If
			a spark arrester is used, it should be	while moving backwards.
			maintained in effective working order	• Never direct discharged material toward anyone.
			by the operator.
				Avoid discharging material against a wall or
	In the state of California the above is required by law			obstruction. Material may richochet back toward the
				operator. Stop blade when crossing gravel surfaces.
	(Section 4442 of the California Public Resources Code).
				• Do not operate the mower without proper guards,
	Other states may have similar laws. Federal laws apply on
				plates, grass catcher or other safety protective
	federal lands. A spark arrester for the muffler is available
				devices in place.
	through your nearest authorized service center.
	2 – English

SAFETY RULES

•See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.

•Stop blade when crossing gravel surfaces.

•Never leave a running machine unattended.

•Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge chute.

•Mow only in daylight or good artificial light.

•Do not operate the machine while under the influence of alcohol or drugs.

•Never operate machine in wet grass. Always be sure of your footing: keep a firm hold on the handle, walk, never run.

•Disengage drive system, if so equipped, before starting the engine (motor).

•If the equipment should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

•Always wear eye protection when operating machine.

•Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

•When loading or unloading this machine, do not exceed the maximum recommended operation angle of 15q.

•Wear proper Personal Protective Equipment (PPE) while operating this machine, including (at a minimum) sturdy footwear, eye protection, and hearing protection. Do not mow in shorts or open toed footwear.

Always let someone know you are outside mowing.

Slope operation

Slopes are a major factor related to slip & fall accidents, which can result in severe injury. All slopes require extra caution. If you feel uneasy on a slope, do not mow it.

Do:

•Mow across the face of slopes, never up and down.

•Remove obstacles such as rocks, tree limbs, etc.

•Watch for holes, ruts, bumps or hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.

Do not:

•Do not mow near drop-offs, ditches or embankments. You could lose your footing or balance.

•Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.

Safe handling of gasoline

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive.

•Extinguish all cigarettes, cigars, pipes and other sources of ignition.

•Use only an approved container.

•Never remove gas cap or add fuel with the engine running.

•Allow the engine to cool before refueling.

•Never refuel the machine indoors.

•Never store the machine or fuel container where there is an open flame, spark or pilot light such as a water heater or on other appliances.

•Never fill containers inside a vehicle, on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

•Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

•Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fuelling is complete. Do not use a nozzle lock-open device.

•If fuel is spilled on clothing, change clothing immediately.

•Never overfill the fuel tank.

•Replace gas cap and tighten securely.

General service

•Never run a machine inside a closed area.

•Never make adjustments or repairs with the engine (motor) running. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

•Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

•Never tamper with safety devices. Check their proper operation regularly. Never do anything to interfere with the intended function of a safety device or reduce the protection provided by a safety device.

•Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.

•Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

•Never attempt to make wheel height adjustments while the engine is running.

•Grass catcher components are subject to wear, damage, and de te ri o ra tion, which could expose moving parts or allow objects to be thrown. Frequently check components and replace with manufacturer’s recommended parts, when necessary.

•Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing them.

•Do not change the engine governor setting or overspeed the engine.

•Maintain or replace safety and instruction labels, as necessary.

English – 3

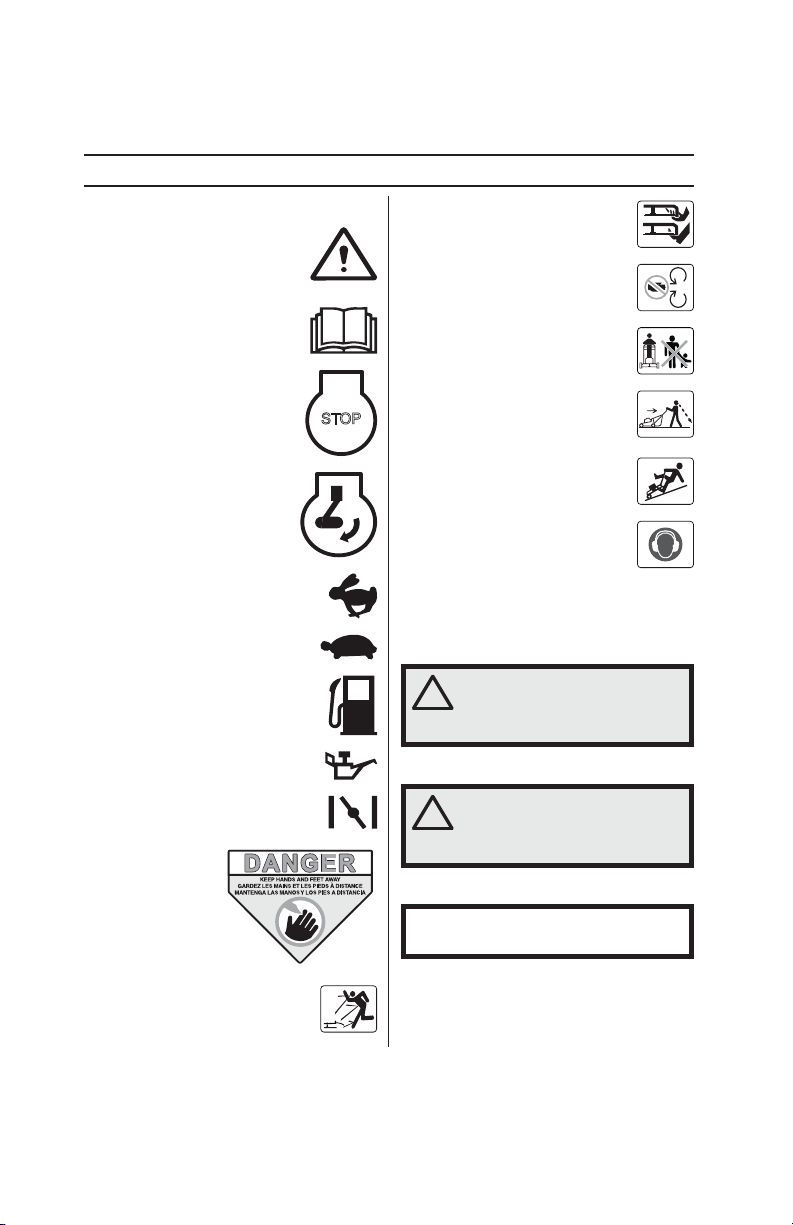

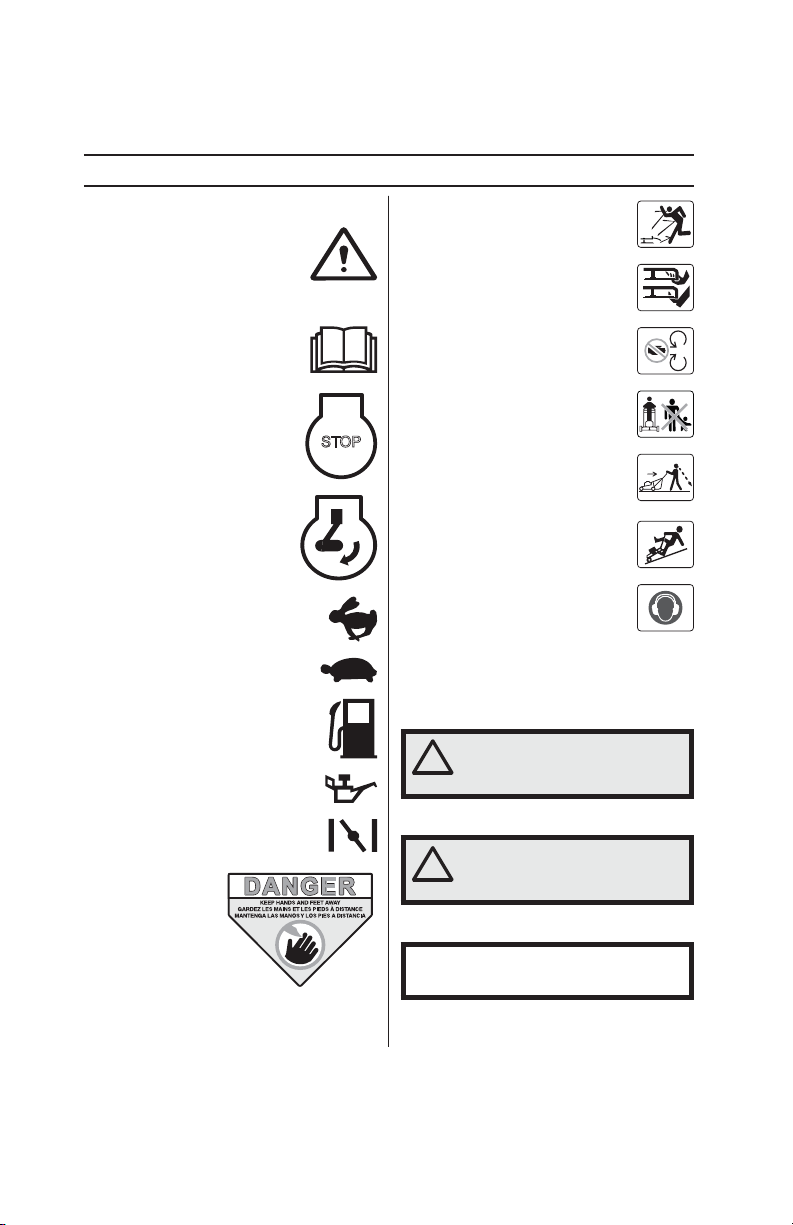

KEY TO SYMBOLS

Key to symbols

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

Stop the engine

Start the engine

Fast

Slow

Fuel

Oil

Choke

DANGER, Keep hands and feet away.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

Keep people and animals well away from the working area.

Before and while walking rearward, look STOP behind and down for small children, animals

or other risks that can cause you to fall.

Slope hazard.
Use approved hearing protection.
Explanation of warning levels
The warnings are graded in three levels.
WARNING!
	WARNING! Used if there is a risk of
	serious injury or death for the operator
	or damage to the surroundings if the
	instructions in the manual are not
	followed.
IMPORTANT!
	IMPORTANT! Used if there is a risk of
	injury to the operator or damage to the
	surroundings if the instructions in the
	manual are not followed.
CAUTION!
CAUTION! Used if there is a risk of damage to
materials or the machine if the instructions in the
manual are not followed.

4 – English

CONTENTS

Contents
SAFETY RULES
Children .................................................................	2
General operation ..................................................	2
Slope operation ......................................................	3
Safe handling of gasoline ......................................	3
General service ......................................................	3
KEY TO SYMBOLS
Key to symbols .......................................................	4
Explanation of warning levels ................................	4
CONTENTS
Contents ................................................................	5
PRESENTATION
Dear customer! ......................................................	6
Customer responsibilities .......................................	6
The Lawn mower ...................................................	6
Steps before using a new lawn mower ..................	7
WHAT IS WHAT?

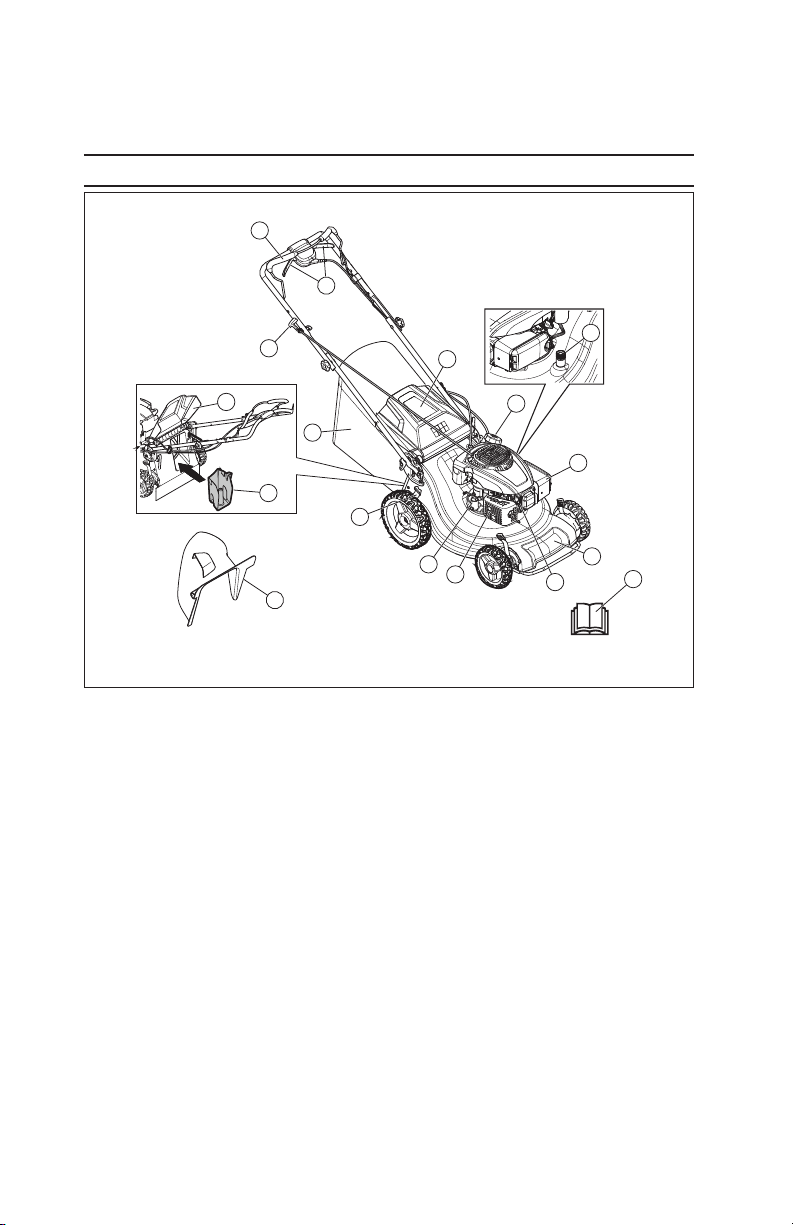

What is what on the lawn mower? .........................	8
MACHINE´S SAFETY EQUIPMENT
General ..................................................................	9
ASSEMBLING AND ADJUSTMENTS
General ..................................................................	10
Remove the lawn mower from the carton ..............	10

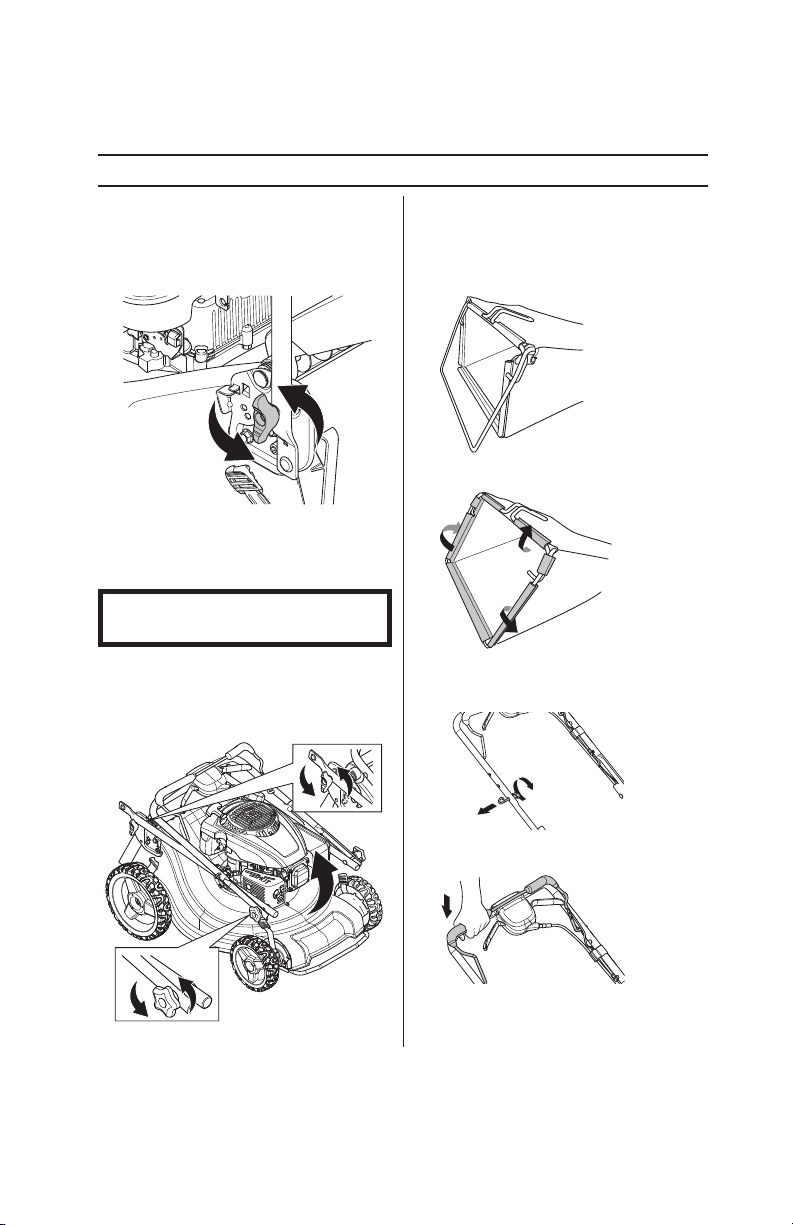

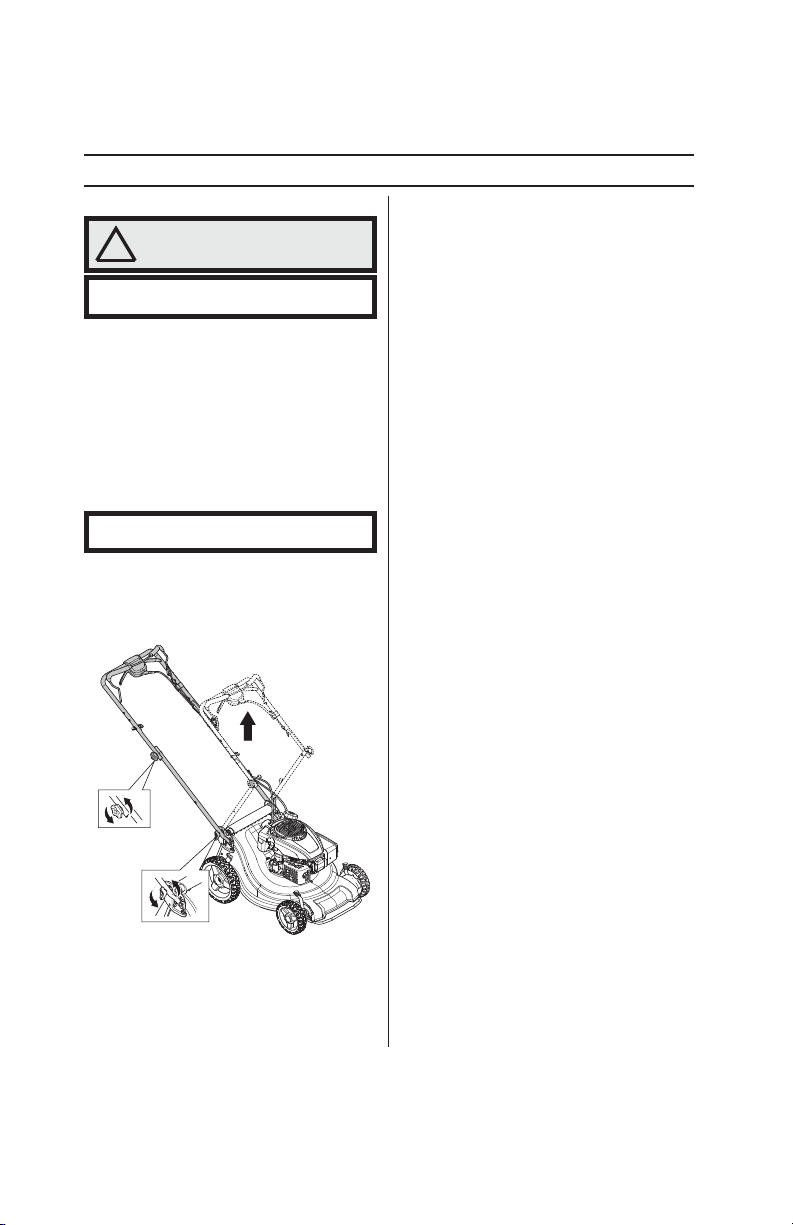

Handle ...................................................................	10
Grass catcher ........................................................	11
Starter handle ........................................................	11

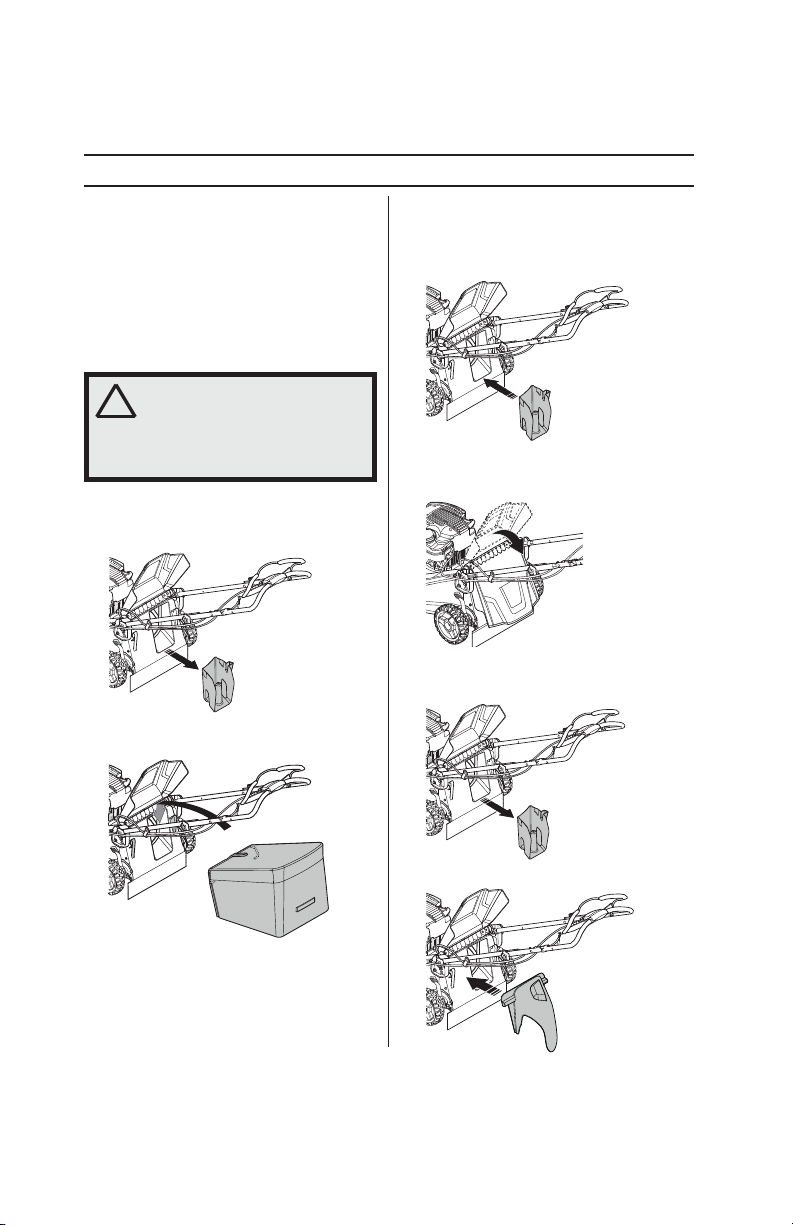

Convert the lawn mower ........................................	12
Cutting height .........................................................	13
Filling with oil .........................................................	13
FUEL HANDLING
General ..................................................................	14
Fueling ...................................................................	14
Transport and storage ............................................	14
OPERATING
Personal protective equipment ..............................	15
General safety precautions ....................................	15
Basic working techniques ......................................	17
Transport and storage ............................................	17
Starting and stopping .............................................	18
MAINTENANCE
General ..................................................................	20
Maintenance schedule ...........................................	20
General recommendations ....................................	21
General inspection .................................................	21
General lubrication .................................................	21
Cleaning .................................................................	21
Engine ....................................................................	22

Muffler ....................................................................	23
Spark plug ..............................................................	23
Air filter ...................................................................	23

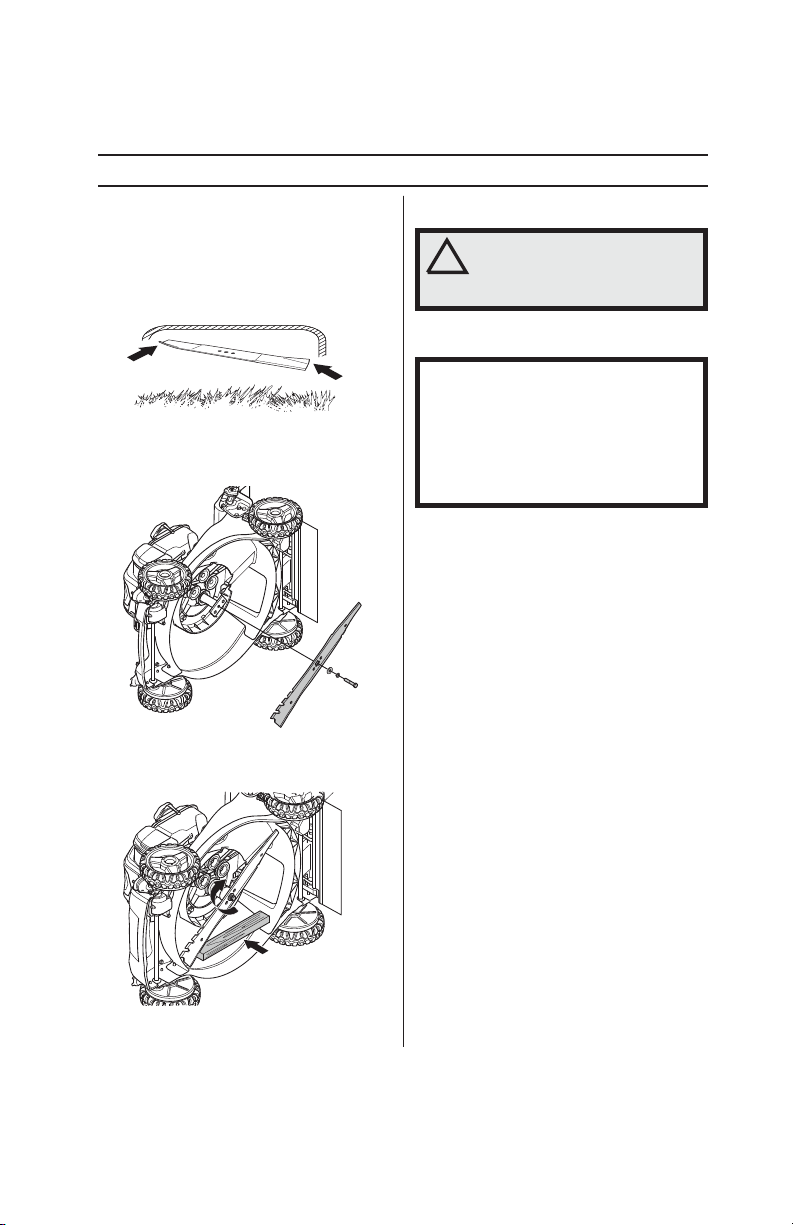

Blade ......................................................................	24
Drive belt ................................................................	26
TROUBLESHOOTING
Troubleshooting schedule ......................................	28

English – 5

PRESENTATION

Dear customer!

Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During over

300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and construction industry.

Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its' content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator's manual, so they will also know how to properly maintain and use it.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

For customer assistance, contact us at our website: www.husqvarna.com

Customer responsibilities

•Read and observe the safety rules.

•Follow the maintenance schedule in this manual. Any maintenance other than that described in this manual must be carried out by your servicing dealer (retailer).

The Lawn mower

Serial number:

Date of purchase:

The model and serial numbers will be found on a decal attached to the rear of the lawn mower housing. You should record both serial number and date of purchase and keep in a safe place for future reference.

Product specifications

	Gasoline Capacity and	1.1 Quarts / 1.04 Liters
	Type	(Unleaded Regular Only)
	Oil Type (API SG-SL)	SAE 30 (above 0°C /
		32°F) SAE 5W-30 (below
		0° / 32°F)
	Oil Capacity	18 Oz. / 0.53 l
	Spark Plug (Gap: 0.027’’ /	1413214
	0.69mm)
	Blade Bolt Torque	35-40 ft. Ibs. (47-54 Nm)

6 – English

PRESENTATION

Steps before using a new lawn mower

•Please read the operator’s manual carefully.

•Check that the cutting equipment is correctly fitted and adjusted. See instructions under the heading Assembly.

•Fill with fuel and oil in the engine. A container with sufficient oil quantity is supplied with the machine. See the instructions under the heading fuel handling.

		WARNING! Under no circumstances
		may the design of the machine be
		modified without the permission of the
		manufacturer. Always use genuine
		accessories. Non-authorized
		modifications and/or accessories can
		result in serious personal injury or the
		death of the operator or others.
		WARNING! A lawn mower is a
		dangerous tool if used carelessly or
		incorrectly and can cause serious, even
		fatal injuries. It is extremely important
		that you read and understand the
		contents of this operator’s manual.
		WARNING! Long-term inhalation of the
		engine’s exhaust fumes can represent
		a health hazard.
		WARNING! In order to prevent
		accidental starting when setting up,
		transporting, adjusting or making
		repairs, always disconnect spark plug
		wire and place wire where it can not
		come in contact with plug.
		WARNING! The muffler gets very hot in
		use and remains so for a short time
		afterwards. Do not touch the muffler if it
		is hot!

WARNING! Engine exhaust, some of itsconstituents, and certain vehicle

components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING! Battery posts, terminalsand related accessories contain lead

and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

WARNING! This lawn mower is

equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest authorized service center.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

English – 7

WHAT IS WHAT?

	1
		2
	3				10
			11
11				5
		4
					6
	14
		13
		12			8
			9		15
				7
	16

What is what on the lawn mower?		10	Wash-out port
1	Engine brake handle	11	Rear deflector
2	Drive control	12	Engine oil cap with dipstick
3	Starter handle	13	Cutting height control
4	Grass catcher	14	Mulch plug
5	Fuel cap	15	Operator’s manual
6	Air filter	16	Discharge chute

7Spark plug

8Drive cover

9Muffler

8 – English

MACHINE´S SAFETY EQUIPMENT

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine thathas faulty safety equipment! If your

machine fails any checks contact your service agent to get it repaired.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Engine brake handle

IMPORTANT! Federal regulations require an engine control to be installed on this lawn mower in order to minimize the risk of blade contact injury. Do not under any circumstances attempt to defeat the function of the operator control. The blade turns when the engine is running.

The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Checking the engine brake handle

•Start the engine and then release the brake handle. The engine should stop and the drive should disengage.

Rear deflector

The rear deflector, attached between the rear wheels of your mower, is provided to minimize the possibility that objects will be thrown out of the rear of the mower into the operator’s mowing position.

Inspecting the rear deflector

•Make sure the rear deflector is not damaged and that there are no visible defects such as cracks, or broken springs that force the door closed. Replace the deflector or springs if damaged.

Muffler

WARNING! Never use a machinewithout a muffler, or with a faulty muffler. A damaged muffler may

substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

•Check regularly that the muffler is complete and secured correctly.

English – 9

ASSEMBLING AND ADJUSTMENTS

General

WARNING! Prevent unintentional

starting by removing the ignition cable from the spark plug.

CAUTION! This lawn mower is shipped without oil or gasoline in the engine.

Remove the lawn mower from the carton

•Remove loose parts included with mower.

•Cut down two end corners of carton and lay end panel down flat.

•Remove all packing materials, except padding between upper and lower handle and padding holding the engine brake handle to upper handle.

•Roll the lawn mower out of the carton and make sure that no loose parts are left within the carton.

Handle

CAUTION! Take care not to damage the cables and wires when you unfold the handlebar.

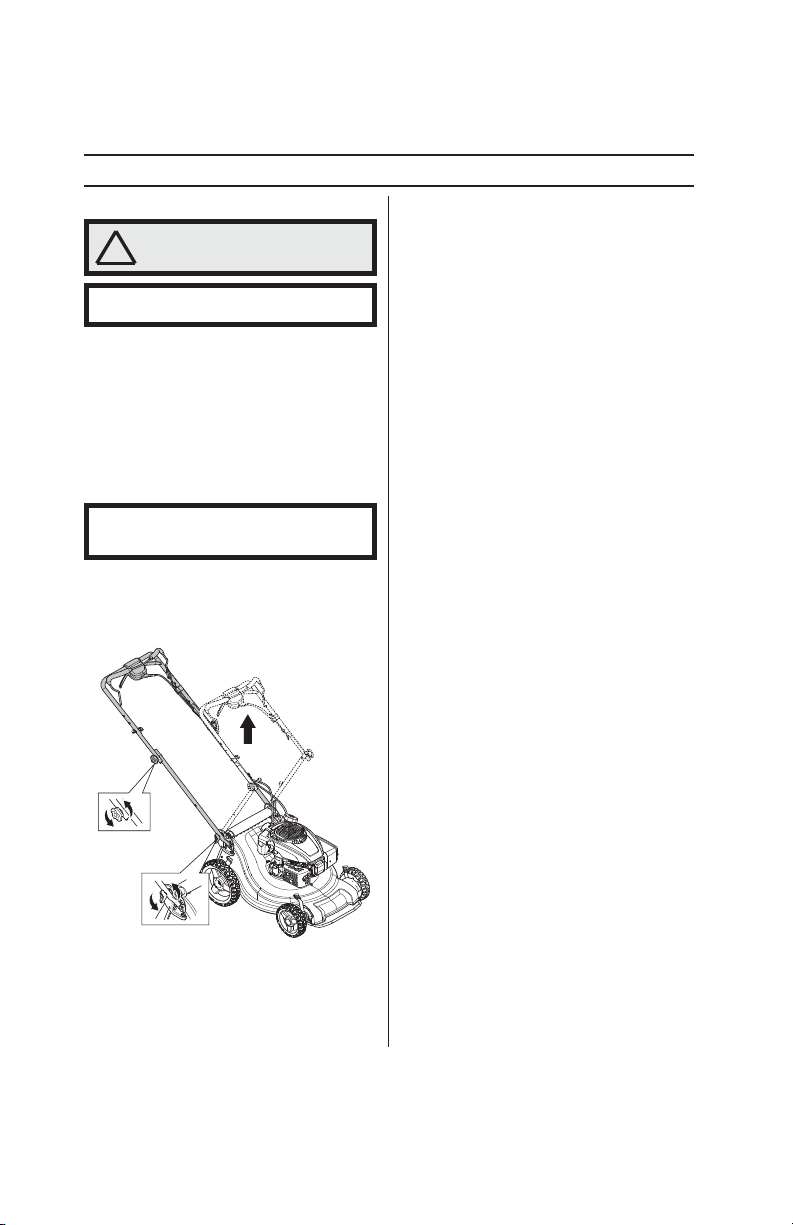

Operating position

1.Raise the lower handle section to operating position. Align the handle bar pins with a slot in the handle bracket to set a comfortable height position for the handle.

2.Tighten the lower handlebar knobs.

3.Remove protective padding, raise the upper handle section into place on the lower handle and tighten both upper knobs.

4.Remove any packing material from around engine brake handle.

10 – English

ASSEMBLING AND ADJUSTMENTS

Vertical handle storage

The handle can be set in a vertical storage position.

1Loosen the lower handle knobs.

2Rotate the handle and align the handle bar pins with the vertical slots on the handle bracket.

3 Retighten the knobs.

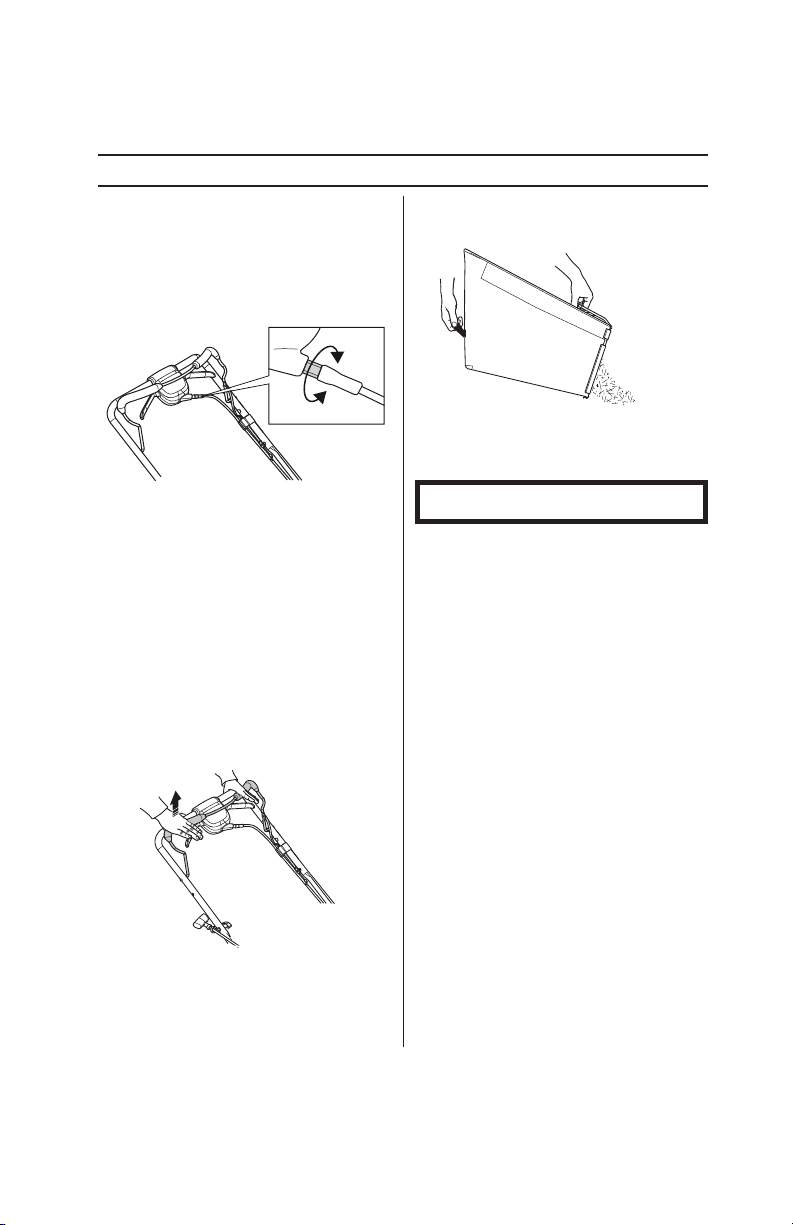

Storage/Transport position

The handle assembly can be folded to minimize space needed for transport and storage.

CAUTION! Take care not to damage the cables and wires when you fold the handlebar.

1Loosen the 2 handle knobs on the upper handle and allow handle to fold down to the rear.

2Loosen the 2 handle knobs on the lower handle and pivot entire handle assembly forward and allow it to rest on mower.

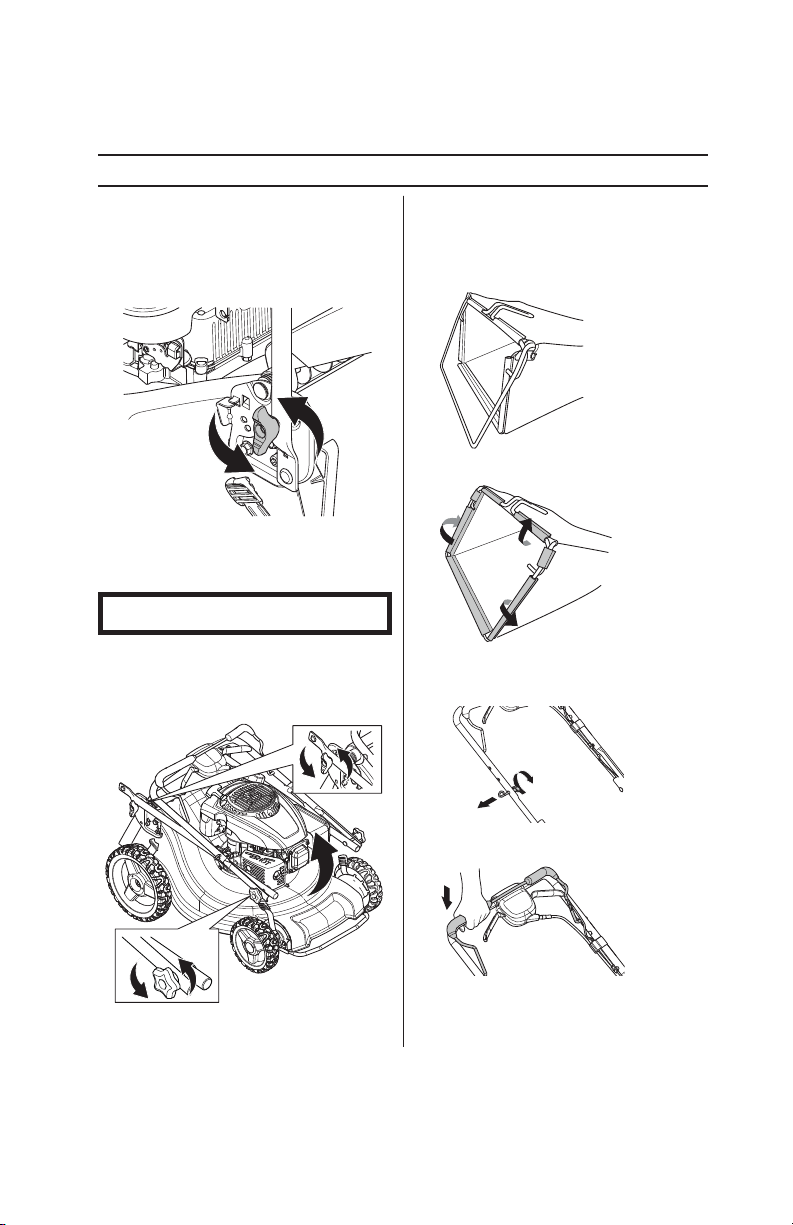

Grass catcher

Assembly of the catcher

1Put the grass catcher frame into the grass bag with the rigid part of the bag on the bottom. Make sure the handle of the frame is outside of the top of the bag.

2Secure the grass bag to the frame by using the quick-action clips.

Starter handle

Install starter handle

1 Loosen the T-knob.

2Hold the engine brake handle against the upper handle.

3Grip the starter handle, slowly pull the engine starter handle until the starter rope can slip into the loop of the rope guide.

4Tighten the T-knob.

English – 11

ASSEMBLING AND ADJUSTMENTS

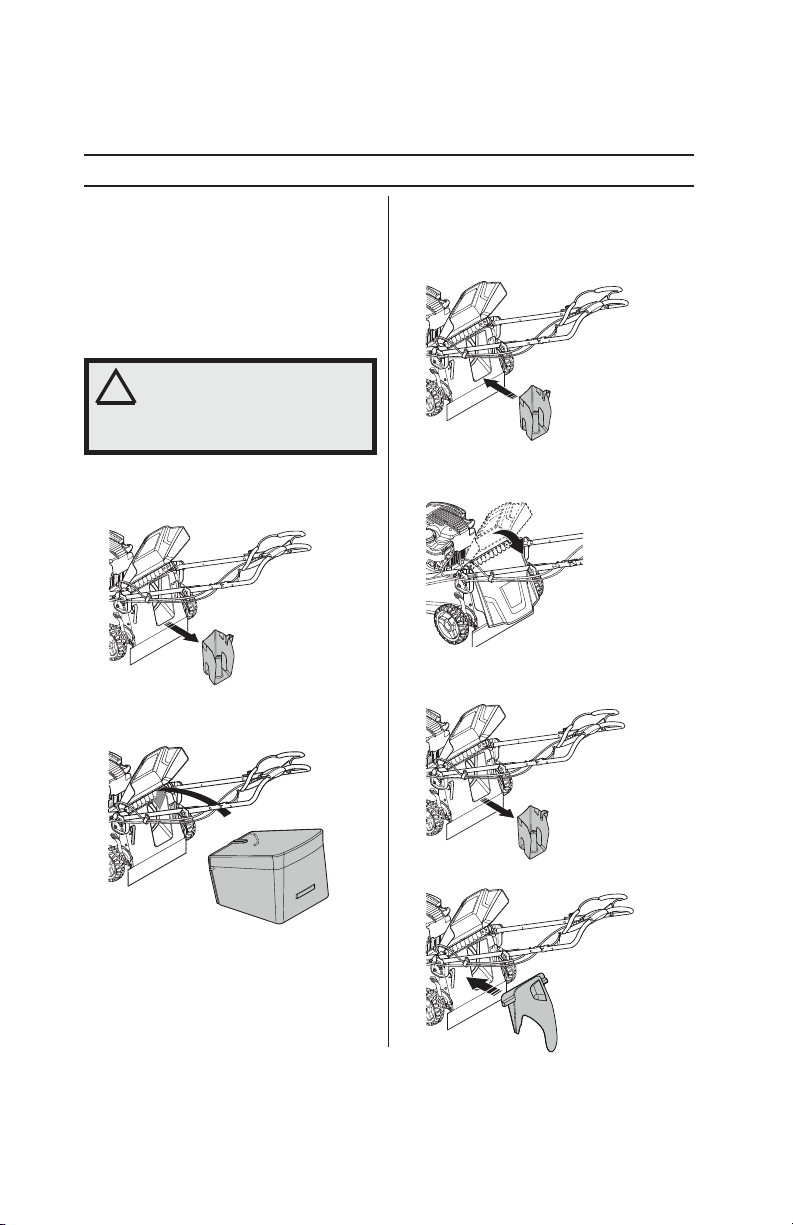

Convert the lawn mower

Your lawn mower was shipped ready to be used in mulching mode.

The mulching mode will recut the grass clippings many times, which will reduce the clippings in size so that as they fall onto the lawn they will disperse into the grass and not be noticed. In addition, the mulched grass will biodegrade quickly to provide nutrients for the lawn.

Use rear bagging to collect the grass clippings within the grass catcher.

WARNING! Do not run your lawn mowerwithout rear door closed or approved

grass catcher in place. Never attempt to operate the lawn mower with the rear door removed or propped open.

Rear bagging

1 Lift the back shield and remove the mulch plug.

2Lift the back shield and place the grass catcher frame hooks onto the grass bag brackets.

3Release the back shield and allow it to rest on top of the grass bag frame.

Mulching

1Lift the back shield and remove the grass bag (if equipped).

2Insert the mulch plug into the collector channel.

3Allow the back shield to close and ensure the back shield is firmly shut against the mulch plug.

Rear-side discharging

1Lift the back shield and remove the mulch plug or grass bag (if equipped).

2 Install the discharge chute.

12 – English

ASSEMBLING AND ADJUSTMENTS

3Close the back shield to allow the machine to discharge material to the left of the machine while cutting.

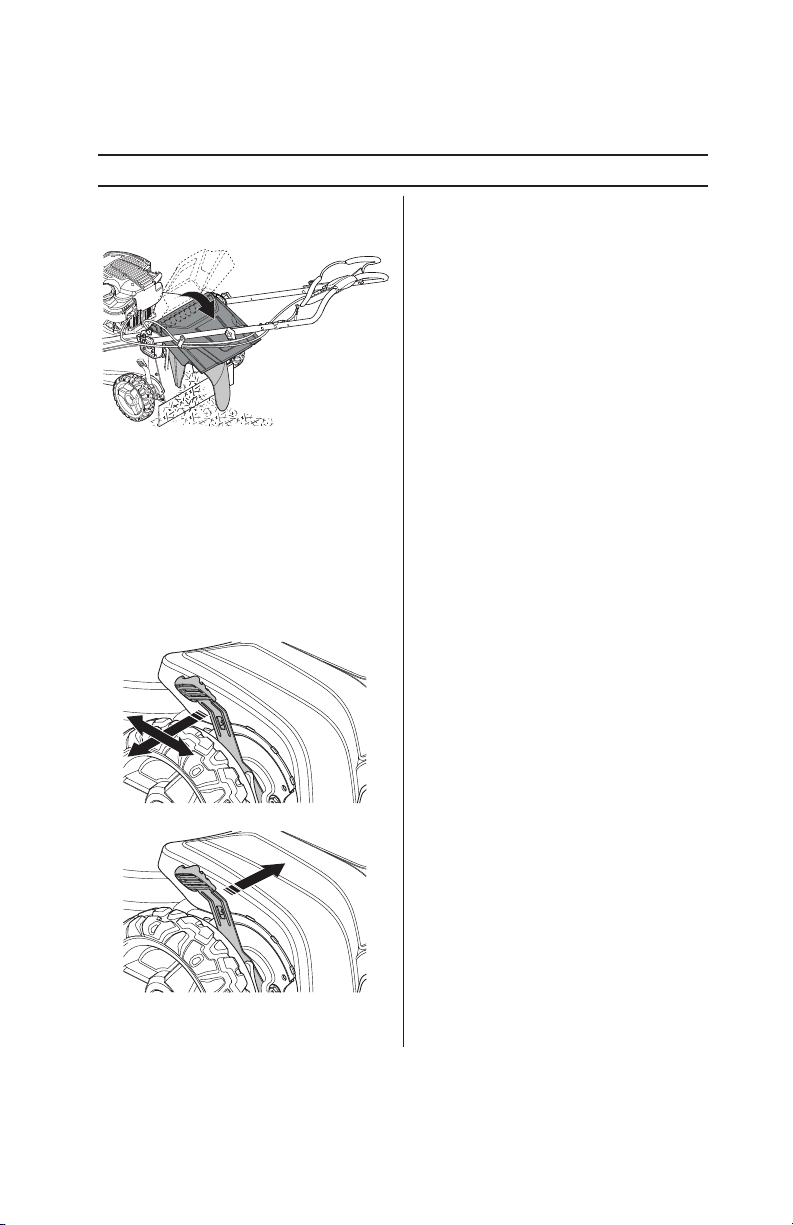

Cutting height

The cutting height can be adjusted to 9 (1-9) different positions.

Raise wheels for low cut and lower wheels for high cut. Adjust cutting height to suit your requirements. Medium position is best for most lawns.

•To change cutting height, squeeze height adjuster lever toward the wheel. Move the wheel up or down to suit your requirements. Set the same height at all four corners.

•The adjuster lever is spring loaded.

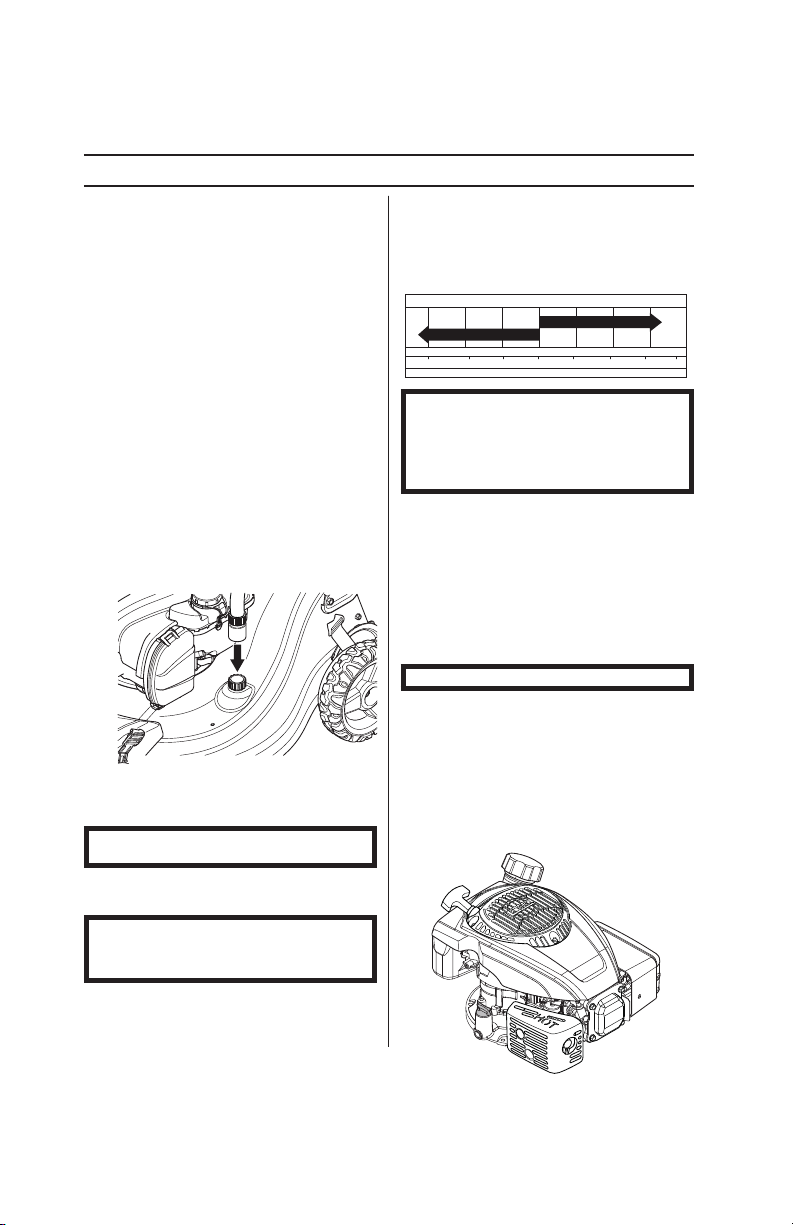

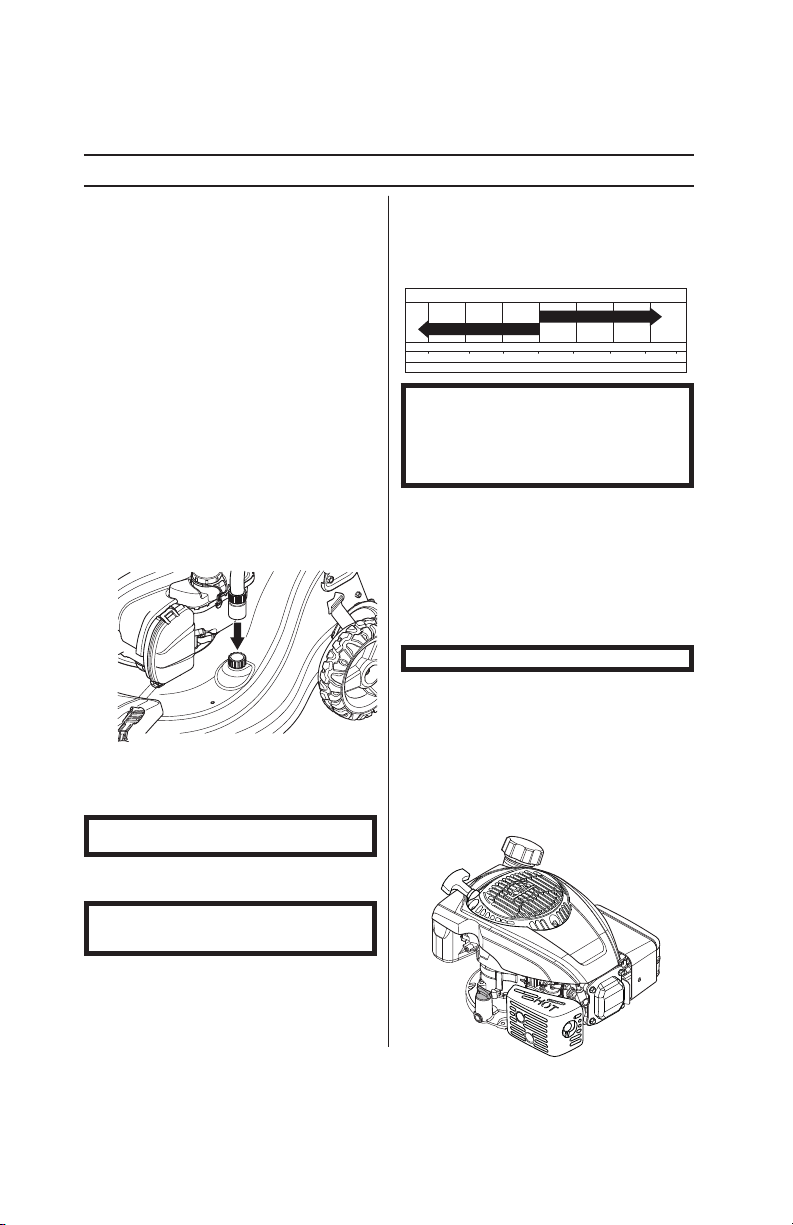

Filling with oil

•The oil tank is empty at delivery. Fill the oil slowly with the included oil. See instructions under the heading Maintenance.

English – 13

FUEL HANDLING

General

WARNING! Running an engine in aconfined or badly ventilated area can

result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fueling

•Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness

WARNING! Always stop the engine andlet it cool for a few minutes before

refueling. The engine should be switched off.

Use a fuel can at all times to avoid spillage.

Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quantities that can be used within

30 days to assure fuel freshness.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refueling. Negligence may lead to the start of a fire.

Never start the machine:

•If you have spilled fuel or engine oil on the machine, wipe off the spillage and allow remaining fuel to evaporate.

•If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.

•If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

14 – English

Engine oil

CAUTION! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine.

•See instructions in the section "Maintenance".

•The engine oil should be changed the first time after 5 hours running time. Never use oil intended for two-stroke engines.

Transport and storage

•Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.

•When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

•When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel.

•Fuel stabilizer is an acceptable alternative to avoid tacky deposits during storage. Add stabilizer to the fuel in the tank or the storage container. Always follow the mix ratio found on stabilizer container. Run the engine for at least 10 minutes after adding the stabilizer so that it will reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

CAUTION! Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of 30 days or longer. Empty the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

OPERATING

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

Always wear:

•Sturdy, non-slip boots or shoes.

•Heavy, long pants. Do not wear shorts sandals or go barefoot.

•Gloves must be worn when required, for example when fitting, inspecting or cleaning the blade.

•Wear ear protectors to avoid damage to hearing. Exposure to noise can cause hearing loss.

•Always wear safety glasses or eye shields while operating your lawn mower or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask over spectacles.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

•Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

•Keep in mind that the operator is responsible for accidents or hazards occuring to other people or their property.

•See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer.

•The machine must be kept clean. Signs and stickers must be fully legible.

•Maintain or replace safety and instruction labels, as necessary.

•Always disconnect the spark plug before performing maintenance or service.

Children

WARNING! Children can be seriouslyinjured or killed by this equipment.

Carefully read and follow all of the safety instructions below.

CHILDREN CAN BE INJURED BY THIS EQUIPMENT. The American Academy of Pediatrics recommends that children be a minimum of 12 year of age before operating a pedestrian controlled lawn mower and a minimum of 16 years of age before operating a riding lawn mower. Serious accidents may occur if you fail to be on your guard for children in the vicinity of the machine. Children are often attracted to the machine and mowing. Never assume that children will remain where you last saw them.

•Keep an eye out and shut off the machine if children enter the work area.

•Never use the machine if persons, especially children or pets, are in the immediate vicinity.

•Before and during reversing procedures, look behind you and down for small children.

English – 15

OPERATING

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces anelectromagnetic field during operation.

This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a

dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator’s manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modificationsand/or accessories may lead to serious

injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.

Always use genuine accessories.

16 – English

Work area safety

•Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.

•Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.

•Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.

•Do not mow wet grass. It is slippery, and tires can lose their grip so that the machine skids.

•Observe your surroundings to ensure that nothing can affect your control of the machine.

•Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.

•Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than

15 degrees.

•On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.

•Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

•A lawn mower is only designed to mow lawns. All other use is forbidden.

•Always let someone know you are outside mowing.

•Do not operate the mower without proper guards, plates, grass catcher or other safety protective devices in place.

•Wear personal protective equipment. See instructions under the heading "Personal protective equipment".

•Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.

•Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent blade or engine shaft can result in an imbalance and heavy vibration, which results in a great risk of the blade becoming loose.

•The brake handle must never be permanently anchored to the handle when the machine is running.

•Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.

•Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.

•Do not tilt the machine when the engine is running.

OPERATING

•Pay particular attention when pulling the machine towards you during work.

•Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

•Do not mow the lawn while walking backwards.

•The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.

•Never run with the machine when it is running. You should always walk with the lawn mower.

•Shut down the engine before changing the cutting height. Never make adjustments with the engine running.

•Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.

•If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the spark plug wire from the spark plug. Check that the machine is not damaged. Repair any damage.

•Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may richochet back toward the operator.

Basic working techniques

•Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.

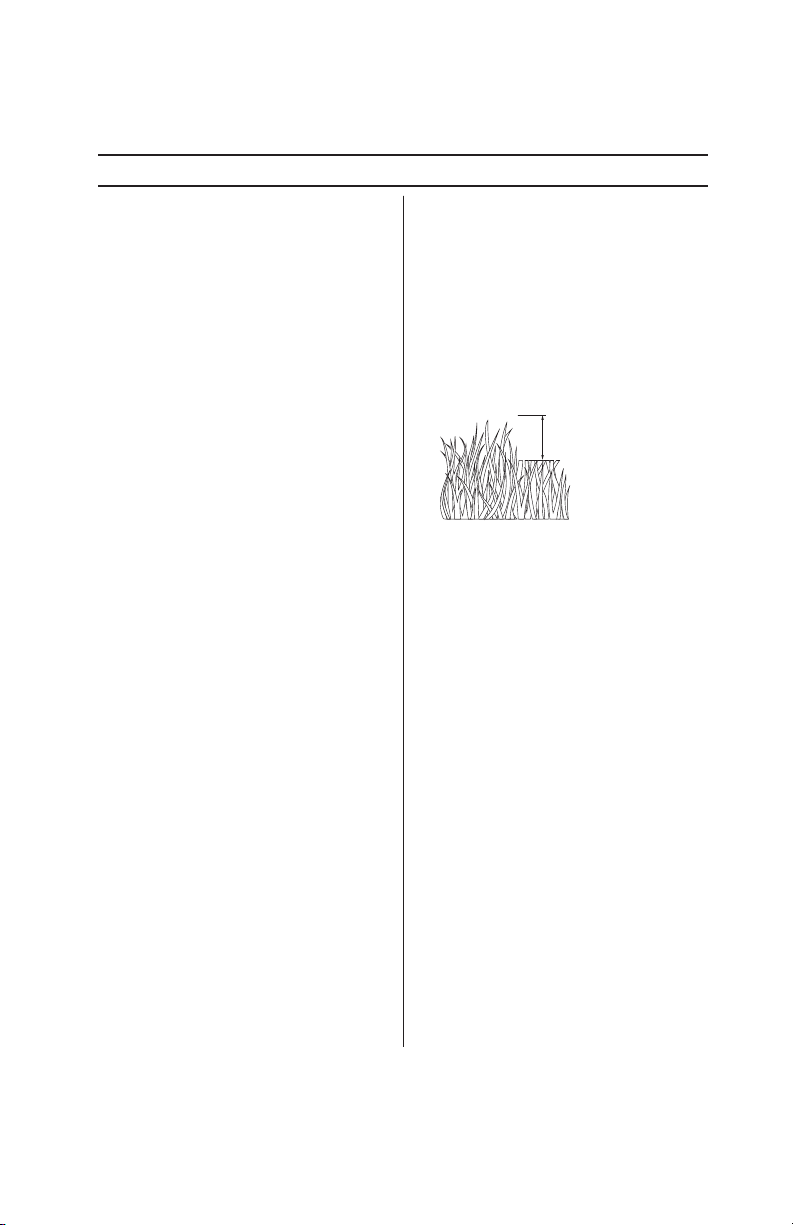

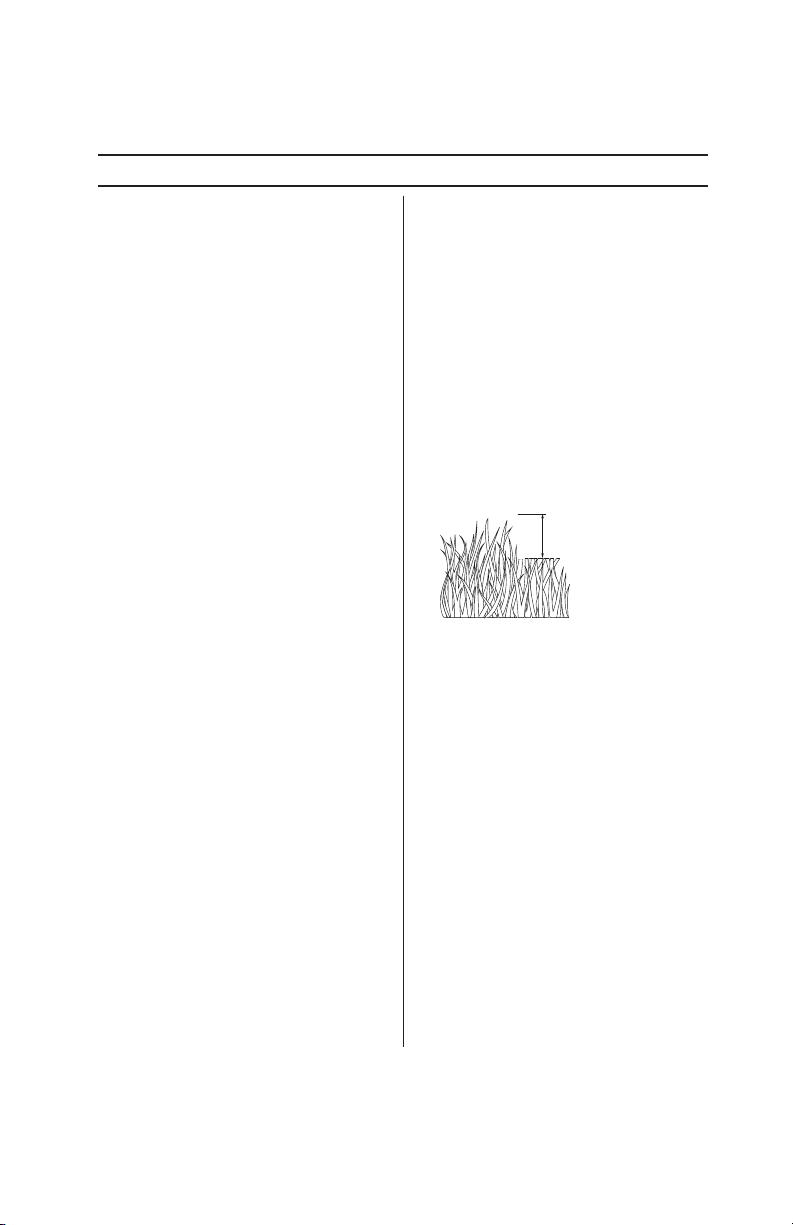

•Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.

MAX 1/3

•For extremely heavy cutting, reduce the width of cut by overlapping previously cut path and mow slowly.

•Cut in different directions each time in order to avoid stripes in the lawn.

•Before pulling the machine towards you, disengage the drive and push the machine forward approx. 3" (10 cm).

•Make sure to disengage the drive when approaching an obstacle.

Pores in cloth grass catchers can become filled with dirt and dust with use and the catcher will collect less grass. To prevent this, regularly hose the grass catcher off with water and let dry before using.

Slope operation

Mowing slopes can be dangerous. Do not use the lawn mower on slopes steeper than 15°. All slopes demand extra care. If you feel unsure, do not mow it.

Do:

•Mow across the face of slopes, never up and down.

•Exercise extreme caution when changing direction on slopes.

•Remove obstacles such as stones, branches, etc.

•Watch for holes, ruts, bumps or hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.

Do not:

•Do not mow too close to edges, ditches or banks.

•Avoid sudden changes in direction.

•Do not mow wet grass. It is slippery, and tires can lose their grip so that the machine skids.

Transport and storage

•Secure the equipment during transportation in order to avoid transport damage and accidents.

•Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.

•Store the machine and its equipment in a dry and frost proof place.

•When loading or unloading this machine, do not exceed the maximum recommended operation angle of 15°.

•Empty the fuel tank by running the machine until the tank is empty.

•Drain the engine oil as described under Changing the engine oil.

•Clean the machine. For more information, see the "Cleaning" section.

•Lubricate as shown in the Maintenance section of this manual.

•Tighten bolts and nuts.

•Replace or repair damaged components.

•Touch up all rusted or chipped paint surfaces, sand lightly before painting.

•Place the lawn mower in Transport position. See "Storage/Transport position" in the Assembly and adjustments section of this manual.

•Cover your unit with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe, which allows condensation to form and will cause your unit to rust. Never cover mower while engine and exhaust areas are still warm!

•For transport and storage of fuel, see the section "Fuel handling".

English – 17

OPERATING

Starting and stopping

Before starting

WARNING! Please read the operator’smanual carefully and make sure you

understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the heading "Personal protective equipment".

• Keep people and animals well away from the working area.

• Perform daily maintenance. See instructions in the section "Maintenance".

• Ensure the ignition lead sits correctly on the spark plug.

• Add oil if necessary. See instructions under the heading Maintenance.

• Add gasoline. See instructions in the section "Fuel handling".

• Disengage drive system, if so equipped, before starting the engine (motor).

Manual Start

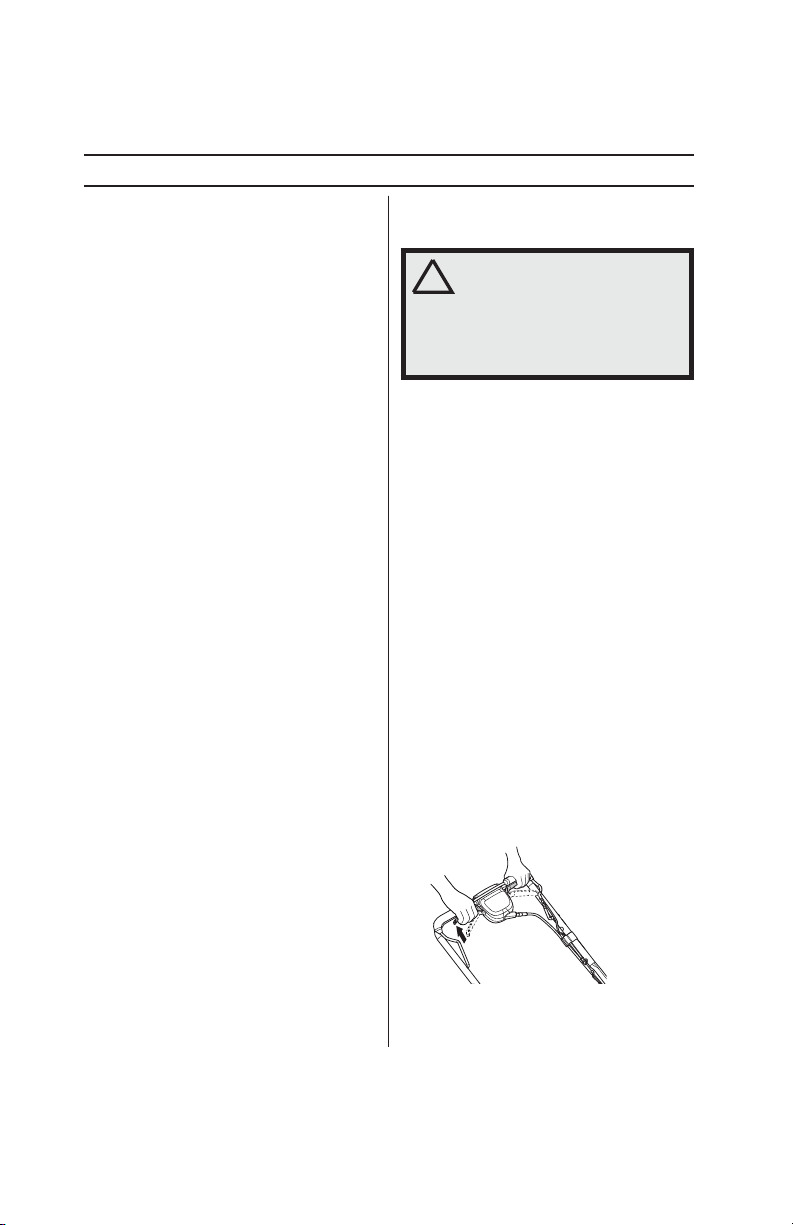

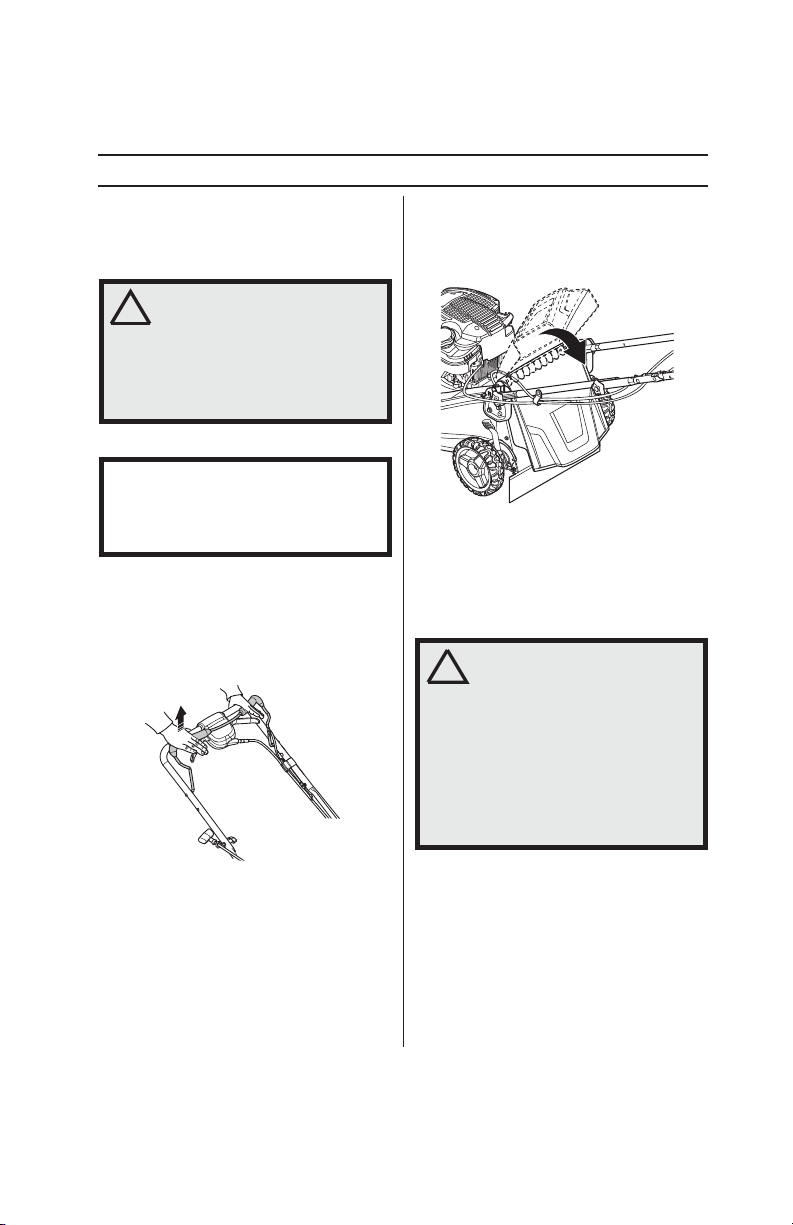

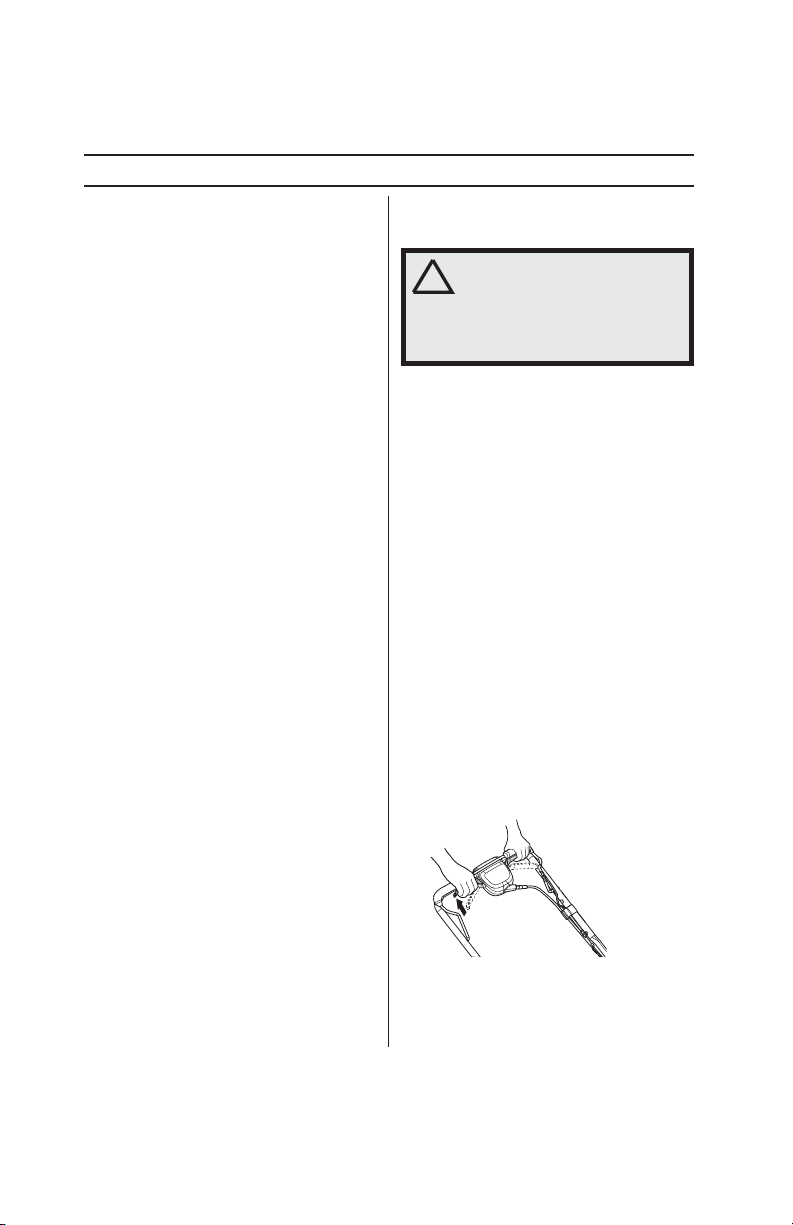

The engine brake handle must be held against the handlebar when the engine is started.

•Position yourself behind the machine.

•Grip the starter handle and pull quickly. Do not allow the starter rope to snap back. Never wrap the starter cord around your hand

Drive

•Self-propelling is controlled by holding the brake handle down to the handle and pulling one or both of the drive levers upwards toward the handle. The further toward the handle the drive levers are pulled, the faster the unit will travel.

•Forward motion will stop when either the the brake handle or the drive levers are released.

•To stop forward motion without stopping the engine, release the drive levers only. Hold the the brake handle down against handle to continue mowing without self-propelling.

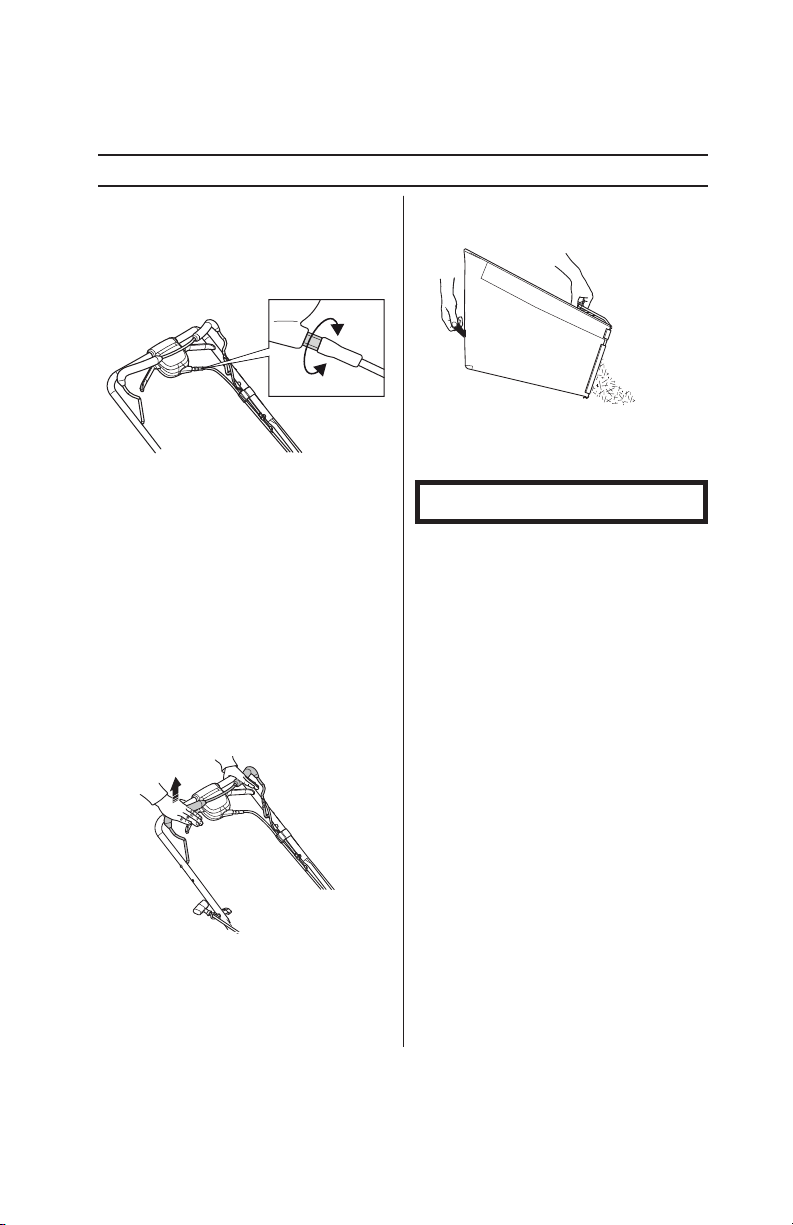

When the drive starts feeling slow you need to adjust the drive control cable. Finely adjust the cable using the adjuster screw.

•Turn off the engine. Always disconnect the spark plug before performing maintenance or accessing movable parts.

•To tension the wire and increase speed, turn the adjustment screw counterclockwise.

Make sure the drive control cable is not tensioned too tight. If the lawn mower starts to drive without the clutch lever is being operated, extend the wire.

•To extend the wire and reduce speed, screw the adjustment screw clockwise.

Stopping

•Stop the engine by releasing the engine brake handle. The drive is also disengaged when you release the engine brake handle.

18 – English

OPERATING

Emptying the grass catcher

•Lift up on grass catcher using the frame handle.

•Remove grass catcher with clippings from under lawn mower handle.

•Empty clippings from bag using both frame handle and bag handle.

CAUTION! Do not drag the bag when emptying, it will cause unnecessary wear.

English – 19

MAINTENANCE

General

manual. More extensive work must be carried out by an authorized service workshop.

Switch off the engine before carrying out any checks or maintenance. Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge chute. Prevent unintentional starting by removing the ignition cable from the spark plug. The starter key or battery must also be removed on machines with electric start.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

•Let your Husqvarna dealer regularly check the machine and make essential adjustments and repairs.

•Replace any damaged, worn or broken parts.

•Always use genuine accessories.WARNING! The user must only carry out the maintenance and service work described in this

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on average use of the machine, and may differ depending on the rate of your personal use.

Daily Maintenance	Before		After	Every	Every	Every	Before
	use		each use	10 hours	25 hours	100 hours	storage
Lawn mower
Tighten bolts and nuts.		X					X
Clean / Inspect Grass Catcher *		X	X				X
Check tires		X
Check drivewheels***		X
Clean the machine****			X				X
Clean under the drive cover***				X
Check the drive belt / Pulleys***					X
Check that the cutter is undamaged and					X3
not cracked. Replace the cutter if
necessary.

	General lubrication
	Clean and Recharge Battery **
	Engine
	Check the engine’s oil level	X5
	Change engine oil
	Clean the air filter. Replace if necessary.
	Check that the muffler is securely attached
	and not damaged.
	Replace the spark plug.
	Empty fuel tank or add Stabilizer
	* If so equipped
	** Machines equipped with electric start
	*** Power-Propelled machines
	**** Use a scraper to clean under deck

X
X	X4

X1,2

X2

X

X

X

Note 1: When operating with a heavy load or at high ambient temperatures, or other extreme conditions, service the machine more often. Note 2: Clean more often if conditions are exceptionally dusty. Note 3: Replace blades more often when mowing in sandy soil. Note 4: Charge the battery for max. 48 hours. Note 5: And after 5 hours of use.

20 – English

MAINTENANCE

General recommendations

The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain mower as instructed in this manual. Some adjustments will need to be made periodically to properly maintain your unit. At least once a season, check to see if you should make any of the adjustments described in the Maintenance section of this manual.

•At least once a year, replace the spark plug, clean or replace air filter element and check blade for wear. A new spark plug and clean/new air filter element assure proper air-fuel mixture and help your engine run better and last longer.

•Follow the maintenance schedule in this manual.

General inspection

•Check that nuts and screws are tight.

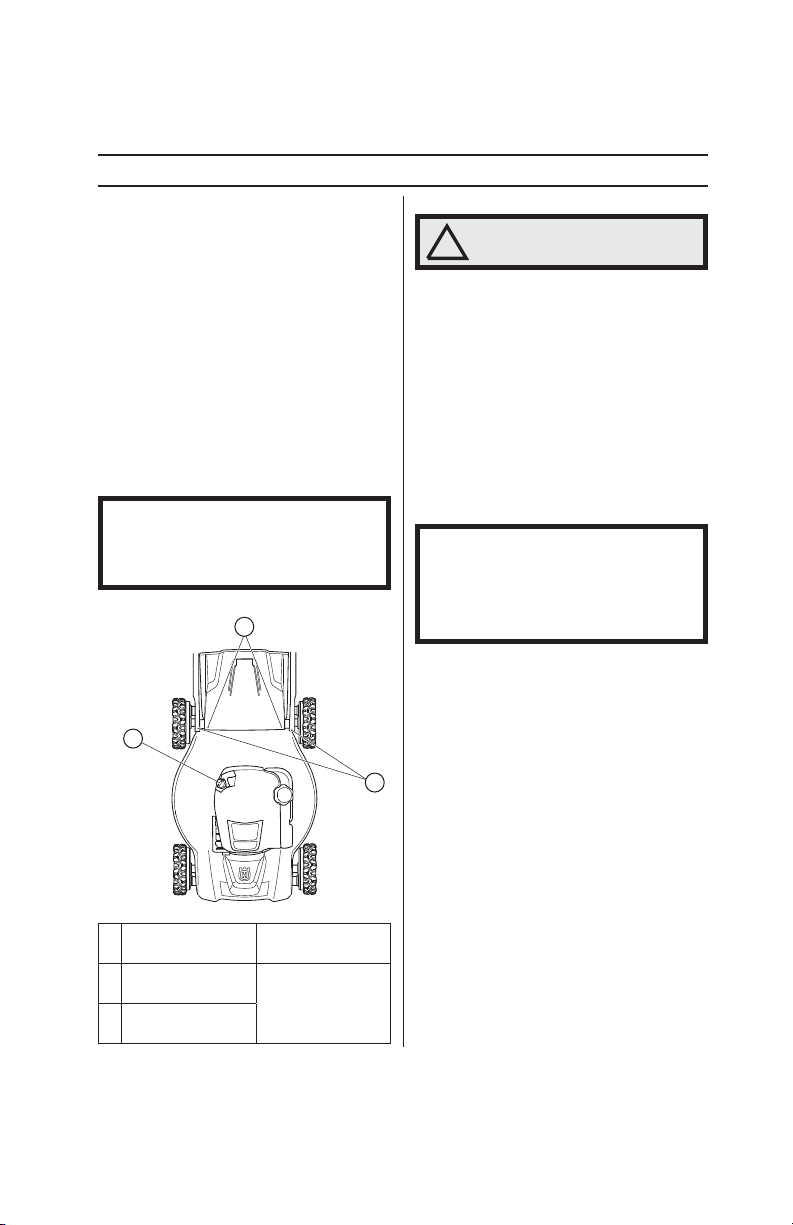

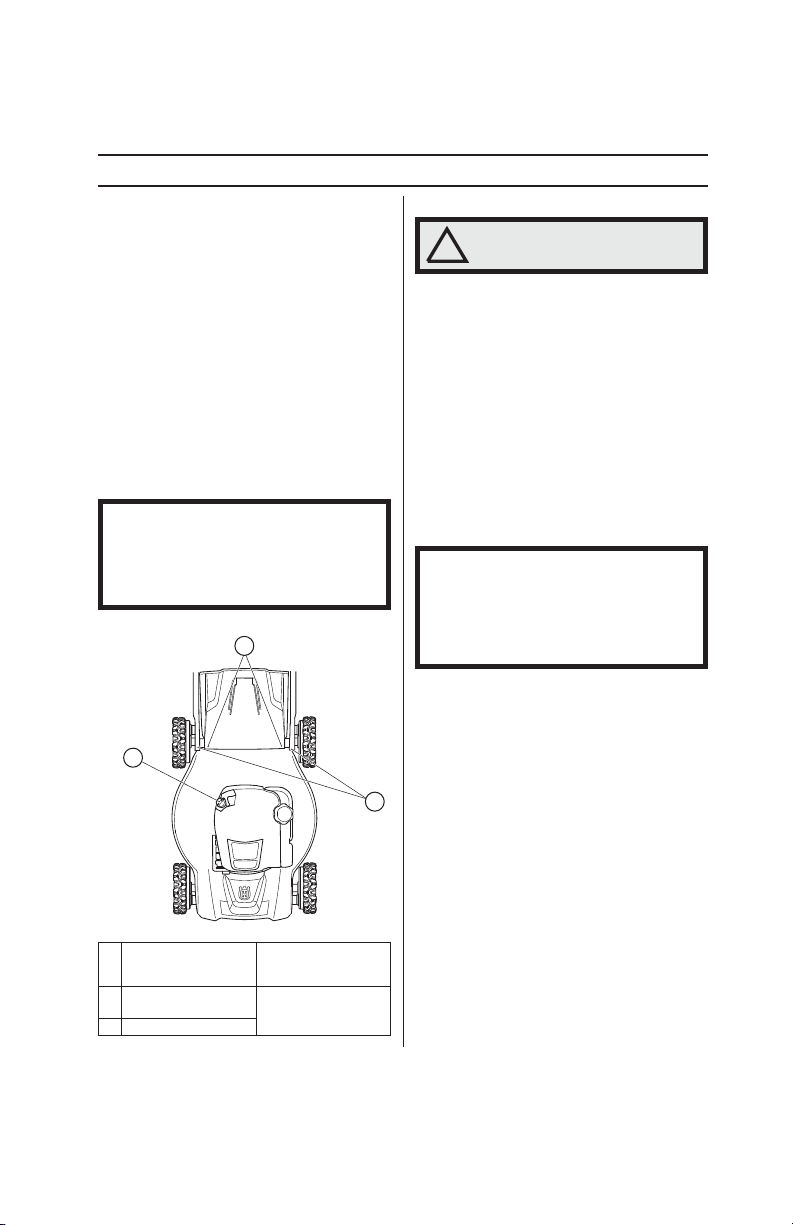

General lubrication

CAUTION! Do not oil or grease plastic wheel bearings. Viscous lubricants will attract dust and dirt that will shorten the life of the selflubricating bearings. If you feel they must be lubricated, use only a dry powdered graphite type lubricant sparingly.

Keep unit well lubricated.

2

1

3

	1	Engine oil	See "Engine" in
			section Maintenance
	2	Rear door hinge
			Spray lubricant
	3	Handle bar mounting
		bolts

Cleaning

WARNING! Always disconnect thespark plug before performing

maintenance or service.

• Brush leaves, grass and the like off of the lawn mower.

• Keep finished surfaces / wheels free of gasoline, oil, etc.

• Keep top of engine around starter clear and clean of grass clippings and chaff. This will help engine air flow and extend engine life.

• Clean the underside of your lawn mower by scraping to remove build-up of grass and trash.

• Do not use a high pressure washer to clean the machine.

• Never flush water directly on the engine.

• Clean the air intake on the starter. Check the starter and starter cord.

• When cleaning under the cutting cover, empty the fuel tank and put the machine on its side with the muffler down.

CAUTION! With the exception of the water washout port (if equipped), we do not recommend using a garden hose to clean the outside of your lawn mower unless the electrical system, muffler, air filter and carburetor are covered to keep water out. Water in engine can result in shortened engine life.

Drive wheels

Check wheels each time before you mow to be sure they move freely. Clean the wheels if not rotating freely.

1Remove the bolt.

2Remove wheels from wheel adjusters.

3Remove any trash or grass cuttings from inside the dust cover, pinion and/or drive wheel gear teeth.

4Replace the wheels.

If after cleaning, the drive wheels do not turn freely, contact a authorized service workshop.

Grass catcher

•Pores in cloth grass catchers can become filled with dirt and dust with use and the catcher will collect less grass. To prevent this, regularly hose the grass catcher off with water and let dry before using.

•Check the grass catcher frequently for wear or deterioration. Replace if necessary.

English – 21

MAINTENANCE

Gear cases

•To keep your drive system working properly, the gear cases and area around the drive should be kept clean and free of trash build-up. Clean under the drive cover twice a season.

•The gear cases are filled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case.

•Under normal usage the grass catcher is subject to deterioration and wear. Check the grass catcher frequently for wear or deterioration. Replace the bag only with grass bags that meet the manufacturer’s recommendations and specifications.

Water washout feature

Your lawn mower is equipped with a fitting that allows quick and easy cleaning of the underside of the housing. Note that water, grass and other debris will drain from beneath the mower housing during the washout process.

1Move the machine to an area of cut grass or another hard surface.

2Remove grass catcher or mulch plug from the lawn mower.

3Close the back shield.

4Connect a garden hose to the washout port fitting.

5Turn on water supply and check for leaks at the fitting.

6If no leaks are present, start engine and let engine run until the underside of the lawn mower is clean.

CAUTION! Do not engage the drive system during the washout process.

7Turn off the engine.

8Shut off water supply and remove hose from fitting.

IMPORTANT! Do not remove hose from fitting while engine is running. Water in engine can result in shortened engine life.

9Start engine and let engine run for a full minute to remove excess water from mower.

Engine

Lubrication

Use only high quality detergent oil rated with API service classification SG-SL. Select the oil’s SAE viscosity grade according to your expected operating temperature.

SAE VISCOSITY GRADES

										SAE 30
				5W-30
F	-20		0				30 32 40			60	80	100
C	-30		-20		-10		0		10	20	30	40

TEMPERATURETEMPERATURERANGE ANTICIPATED BEFORENEXTNEXTOILOILCHANGECHANGE

CAUTION! Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F / 0°C. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

•Change the oil after every 25 hours of operation or at least once a year.

•Check the engine oil level before starting the engine and after each 5 hours of continuous use. Tighten oil plug securely each time you check the oil level.

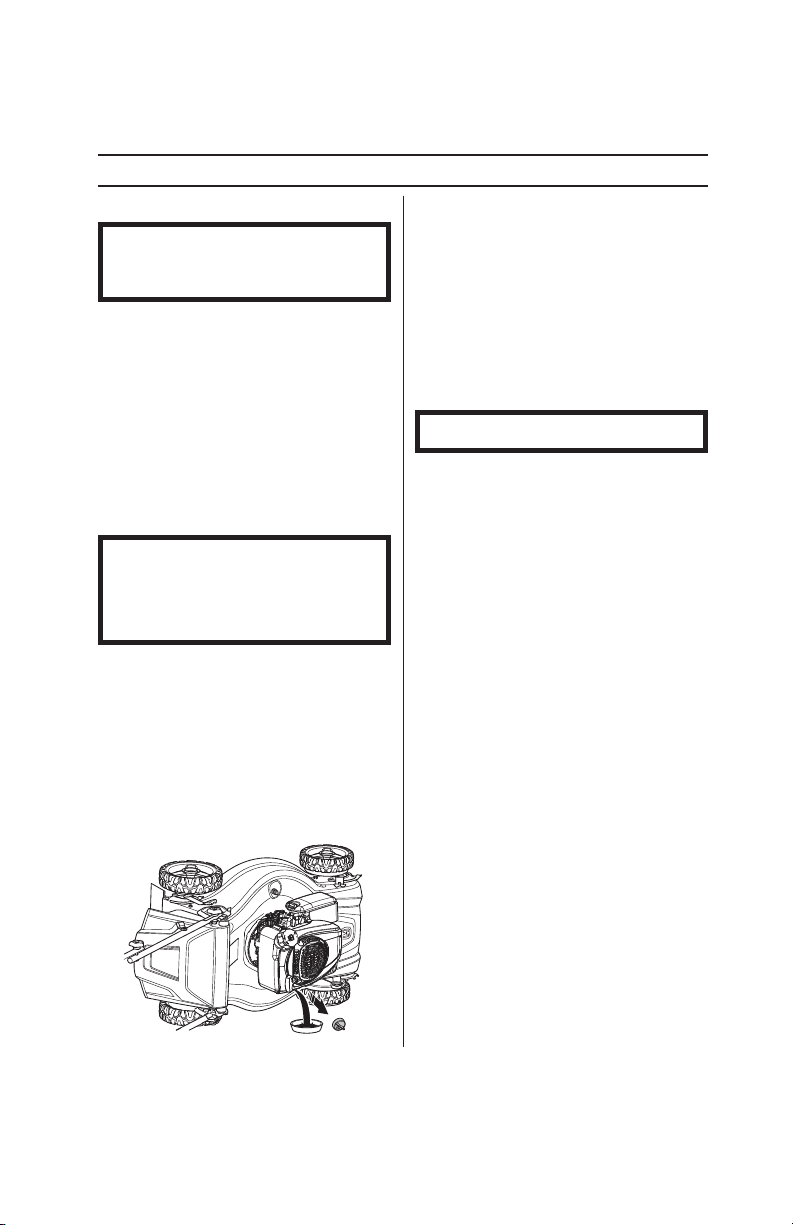

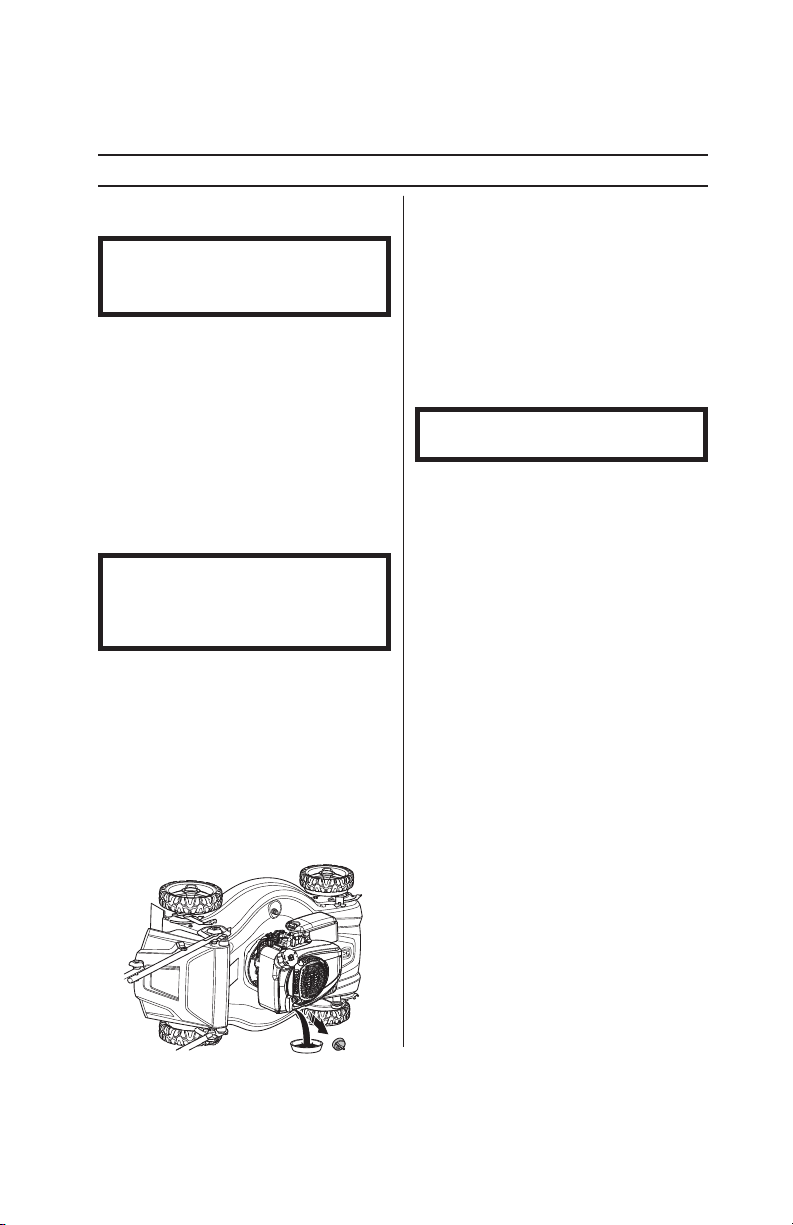

Oil level

Before starting for the first time

Your lawnmower is shipped without oil in the engine. You receive a container of oil with the unit. Slowly pour the entire container down the oil fill spout into the engine.

IMPORTANT! Do not overfill!

Check the engine’s oil level

The lawn mower should stand on flat ground when you check the oil level. Ensure the ignition lead has been removed from the spark plug before you open the oil filler cap.

1Check the oil level with the dipstick on the oil filler cap.

2Remove the oil cap and wipe the dipstick clean.

3Put the dipstick back in. The oil filler cap must be completely screwed down to give a correct picture of the oil level.

22 – English

MAINTENANCE

4If the oil level is low, fill using engine oil up to the upper level on the dipstick.

CAUTION! Initial oil fill requires only 15 oz. / 0.5 l due to residual oil in engine from the manufacturers 100% quality testing. When changing oil you may need

18 oz. / 0.6 l.

Add oil

1The lawn mower should stand on flat ground when you check the oil level. Ensure the ignition lead has been removed from the spark plug before you open the oil filler cap.

2Remove the oil cap and wipe the dipstick clean.

3Slowly pour oil down the oil fill spout, stopping evey few ounces to check the oil level with the dipstick.

4Stop adding oil when you reach the FULL mark on the dipstick. Wait a minute to allow oil to settle.

5Always be sure to retighten oil dipstick before starting engine.

6Refit cable to spark plug.

Oil change

CAUTION! The oil level must always be checked before starting the engine.

Change the oil after every 25 hours of operation or at least once a year. Clean more often if conditions are exceptionally dusty. Follow the maintenance schedule in this manual.

1Disconnect the spark plug wire from the spark plug.

2Always empty the fuel tank before you place the lawn mower on its side. Empty the fuel tank by running the machine until the tank is empty.

3Unscrew the oil filler cap.

4Place a suitable vessel in position to collect the oil as it drains.

5Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local gas station.

6If you have spilled fuel or engine oil on the machine, wipe off the spillage and allow remaining fuel to evaporate.

7Slowly pour oil down the oil fill spout, stopping evey few ounces to check the oil level with the dipstick. Do not overfill!

8Always be sure to retighten oil dipstick before starting engine.

9Reconnect to the spark plug wire.

Muffler

If the muffler is corroded or is damaged in any other way, it must be replaced because it may become a fire hazard and/or cause injury.

Spark plug

CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

•Replace spark plug at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in the "Product specification" section of this manual.

Air filter

Your engine will not run properly and may be damaged by using a dirty air filter. Replace the air filter cartridge every 100 hours of operation or every season, which ever occurs first. Service air cleaner more often under dusty conditions.

•Remove the air filter cover and take out the filter.

•Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

•An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.

•When reassembling, make sure that the filter completely seals against the filter holder.

English – 23

MAINTENANCE

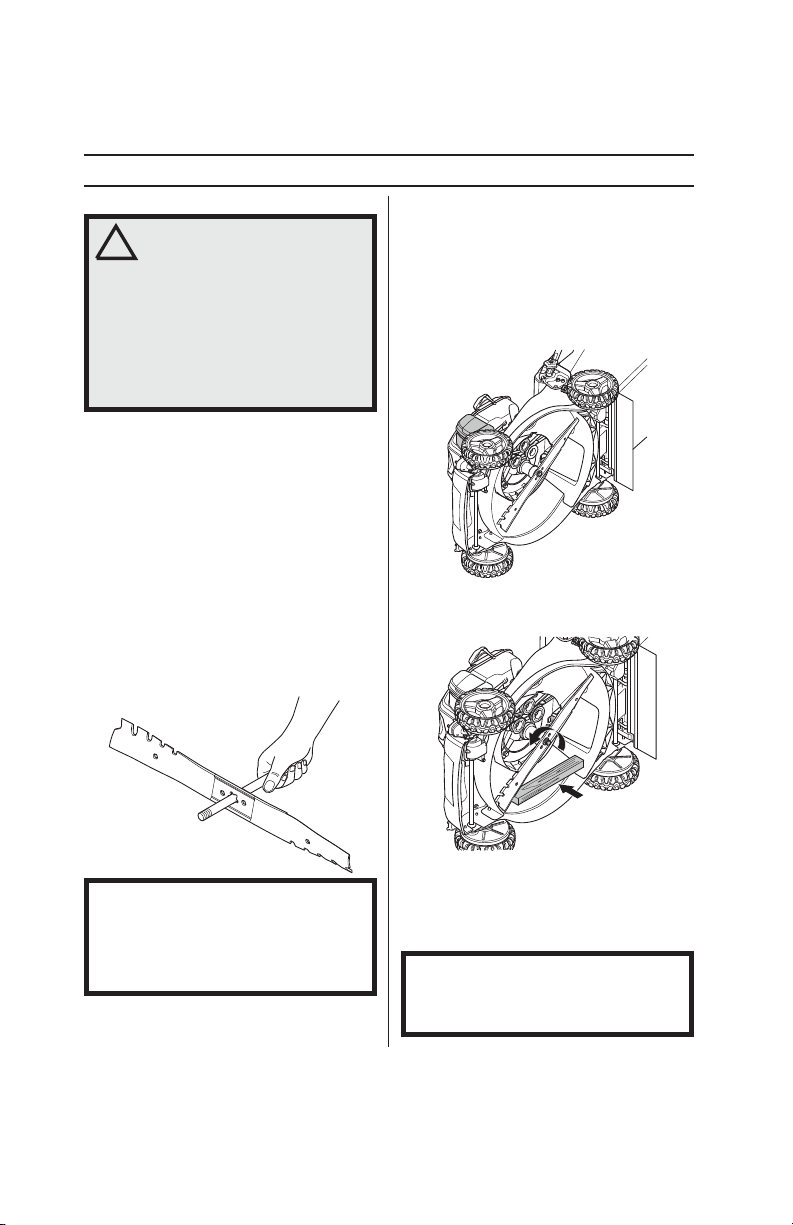

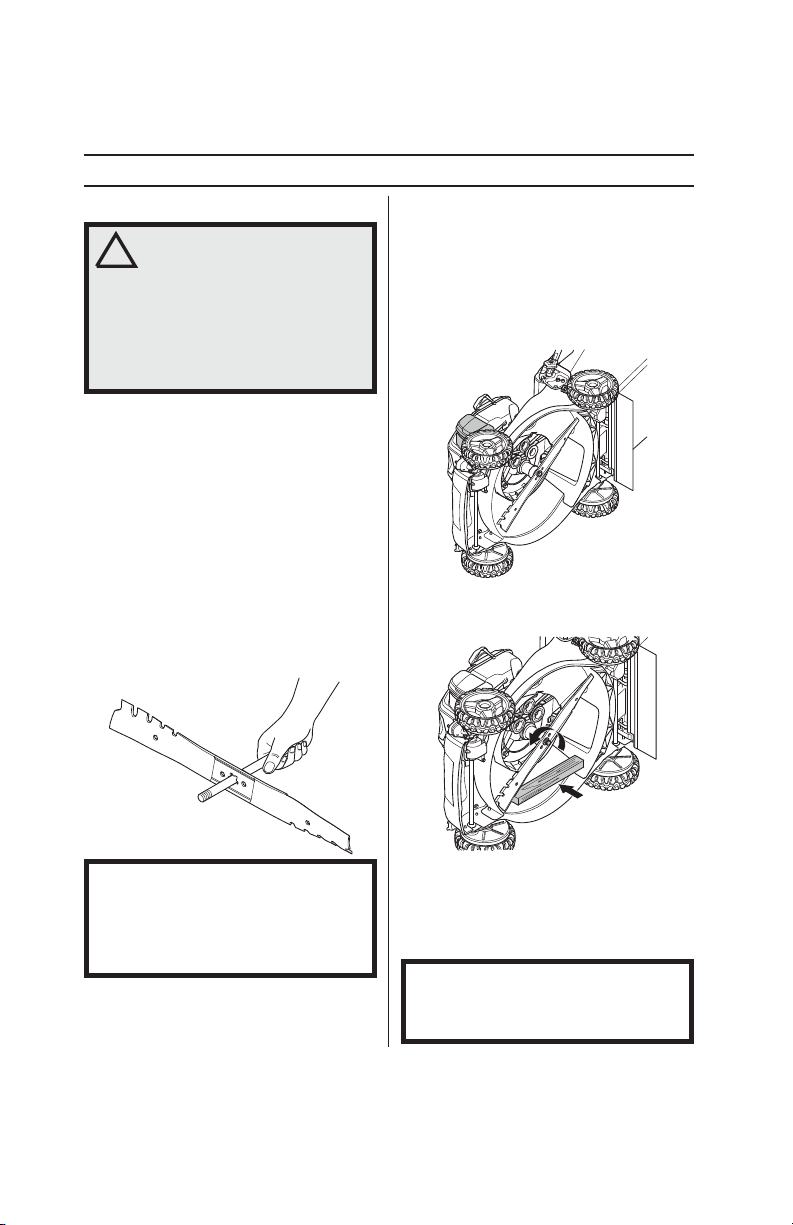

Blade

WARNING! Always wear heavy-duty

gloves when servicing and maintaining the blade. The blade is very sharp and cuts can occur very easily.

Always stop the engine before doing any work on the blade. This continues to rotate even after the throttle has been released. Ensure that the blade has stopped completely and disconnect the spark plug cap before you start to work on it.

• Check the blade for cracks or any other damage. A damaged blade must always be replaced.

• Always ensure the blade is well ground and balanced correctly. To check blade balance, you will need a 5/8" / 16 mm diameter steel bolt, pin, or a cone balancer. When using a cone balancer, follow the instructions supplied with balancer.

• Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

IMPORTANT! The blades should be balanced after sharpening. We do not recommend sharpening blade. Sharpening and balancing the blade should be conducted by an authorized service workshop.

Damaged blades should be replaced immediately. NEVER use a mower with a damaged blade.

Replacing the blades

1Always disconnect the spark plug before performing maintenance or service.

2Always empty the fuel tank before you place the lawn mower on its side. Empty the fuel tank by running the machine until the tank is empty.

3Turn lawn mower on its side. When the machine is tilted, make sure the air filter always is placed in the highest position.

4Use a wood block between blade and mower housing to prevent blade from turning when removing blade bolt.

5Remove the blade bolt by turning the bolt counterclockwise.

6Remove the old blade. Make sure the blade adapter is free of damage. Also check that the blade bolt is undamaged and that the engine shaft is not bent.

IMPORTANT! Use only a replacement blade approved by the manufacturer of your mower. Using a blade not approved by the manufacturer of your mower is hazardous, could damage your mower and void your warranty.

24 – English

MAINTENANCE

Assembly:

1Position the blade adapter on the engine crank shaft. Be sure key in adapter and crankshaft keyway are aligned and that the drive belt is inside the tab of the belt retainer.

2The blade must be mounted with the angled ends pointing up towards the engine.

3Install the blade bolt with the lock washer and hardened washer into blade adapter and crankshaft.

4Use block of wood between blade and lawn mower housing and tighten the blade bolt, turning clockwise.

5The bolt should be tightened with a torque of 35-40 ft. Ibs. / 47-54 Nm.

6Verify the spark plug wire is disconnected from the engine.

WARNING! Always disconnect sparkplug wire and place wire where it

cannot contact spark plug to prevent accidental starting.

7Pull the blade around by hand and make sure it rotates freely.

IMPORTANT!

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorized service workshop.

Always use genuine parts.

English – 25

MAINTENANCE

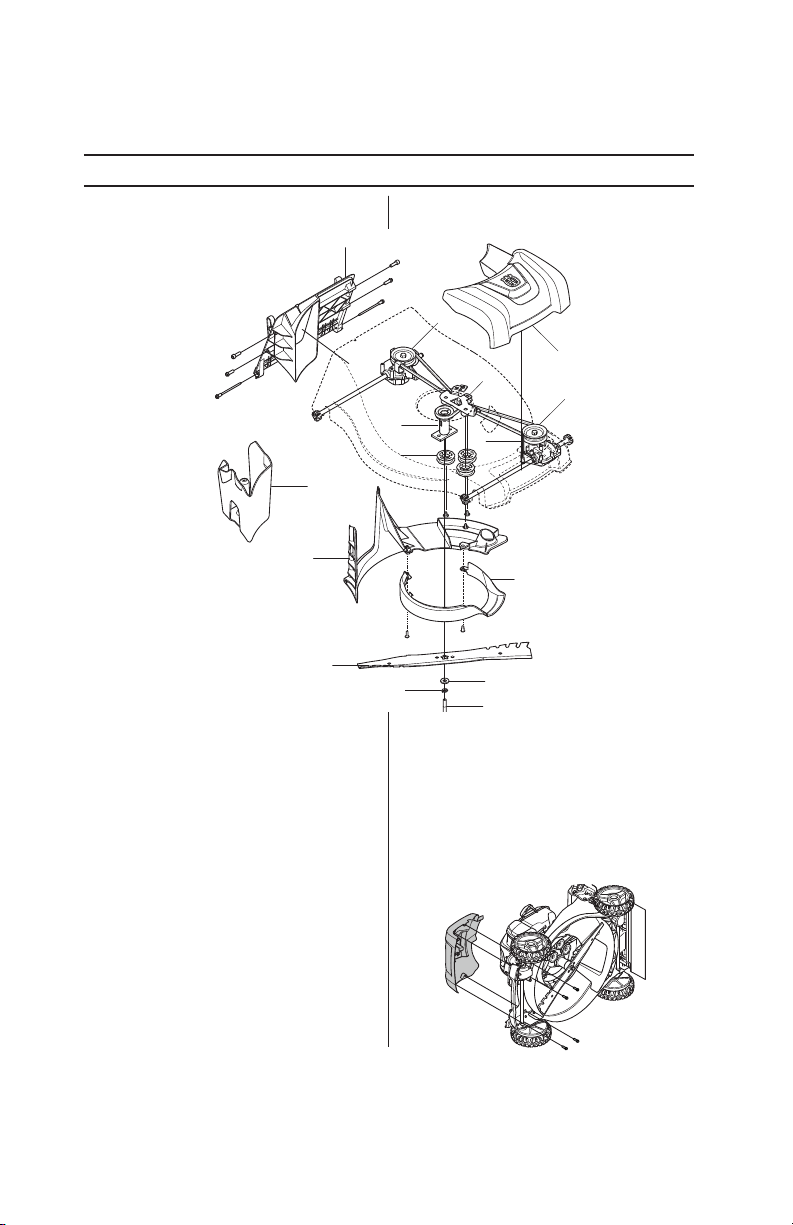

Drive belt

1Mulch plug

2Rear insert

3Transmission drive pulley

4Idler bracket

5Drive cover

6Blade adapter

7Idler pulleys

8Front belt keeper

9Stripper ring

10Blade

11Hardened washer

12Lock washer

13Blade bolt

14Belt cover

2

3

5

4 3

6

8

7

1

14

9

10

11 12

13

Remove the drive belt

•Empty the fuel tank by running the machine until the tank is empty.

•Always disconnect the spark plug before performing maintenance or accessing movable parts.

•Turn lawn mower on its side. Make sure air filter and carburetor is facing upward.

•Remove drive cover.

26 – English

MAINTENANCE

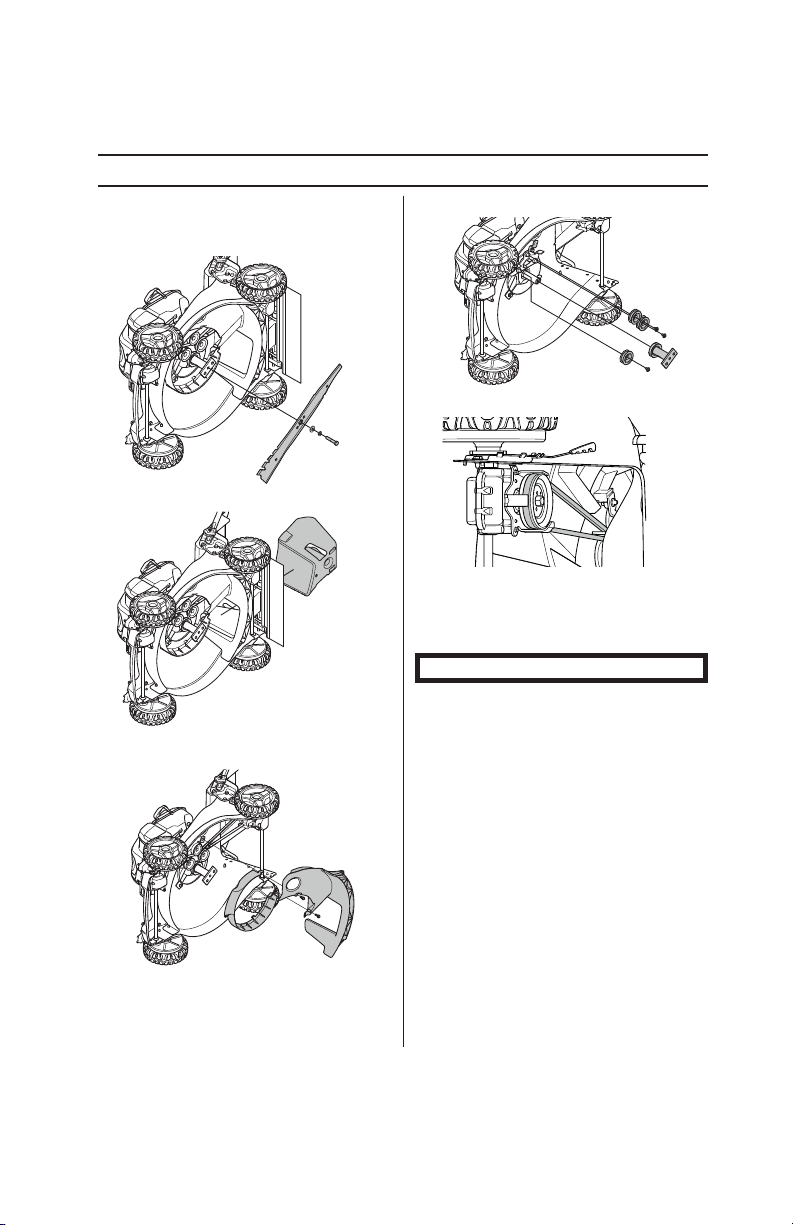

•Remove the blade bolt by turning the bolt counterclockwise. Remove blade and attaching hardware: bolt, lock washer and hardened washer.

•Remove the Mulching plug.

•Remove rear insert.

•Remove the belt cover and the stripper.

•Disconnect cable from rear transmission.

•Remove front belt keeper.

•Remove belt from front transmission pulley.

•Remove all 3 idler pulleys from idler assembly.

•Remove belt from blade adapter / engine pulley and idler assembly.

•Remove rear transmission pulley by clamping locking pilers to the input shaft of the transmission, beneath pulley, and loosen the pulley with a 9/16" box wrench.

•Remove the old drive belt.

Replace the drive belt.

IMPORTANT! Always use genuine parts.

•Place new belt on rear transmission pulley. Be sure the new belt is inside the tabs of the belt keeper.

•Reinstall rear transmission pulley. Route the other end of the new belt through hole in housing to front transmission pulley. Route new belt through idler assembly to blade adapter / engine pulley.

•Reinstall all 3 idler pulleys.

•Position the blade adapter / engine pulley on the engine crank shaft. Be sure key in blade adapter / engine pulley and crankshaft keyway are aligned and that the new belt is inside the tab of the belt retainer. Install new belt on front transmission pulley.

•Reinstall front belt keeper. Make sure the new belt is inside the front belt keeper.

•Reinstall drive cover.

•Reattach cable to rear transmission and reattach return spring to rear insert / rear transmission belt keeper.

•Reinstall rear insert.

•Reinstall the blade. See instructions in the section "Replacing the blades".

•Tighten spark plug.

English – 27
