For Husqvarna Parts Call 606-678-9623 or 606-561-4983
7
LLTTHH 114400
5.1998
PARTS LISTING
WR 05-15-98
954001192B
www.mymowerparts.com
22
21
24
42
43
40
28
25
44
44
34
26
29
19
20
19
20
41
30
31
32
33
49
39
35
36
36
50
51
70
2
3
4
15
16
1
6
9
7
8
45
D.C. AMPERES
46
55
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACT OR - - MODEL NO. LTH140 (954001192B)
ELECTRICAL
30
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144926 Battery 12 Volt 30 Amp
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
3 819091016 Washer 9/32 X 5/8 X 16 Ga
4 810040400 Washer Lock Hvy Helical 1/4
5 532121264 Caps Battery 20/25/30 Amp
6 873220400 Nut Fin Hex 1/4-20 Unc
7 532109238 Tube Plastic 12”
8 532144940 Case Battery
9 532109596 Clamp Hose Olive
15 532144935 Screw Cap Hex Nylon 3/8-16 x 1
16 532145355 Nut Nylon 3/8-16
19 810090400 Washer Lock 1/4
20 873350400 Nut Jam Hex 1/4-20 Unc
21 532136850 Harness Socket Light w/4152J
22 532004152 Bulb, Light # 1156
23 811150400 Washer, Lock Int. Tooth 1/4
24 532146136 Cable Battery 6ga 24" red
25 532148009 Cable Battery 6ga w/16 Ga. Wire 38"
26 532108824 Fuse 30 Amp Auto Green
28 532124773 Cable Ground 6ga 12"black
29 532121305 Switch Plunger Nc Gray
30 532144921 Switch Ign 3 pos
31 532140400 Nut Ignition
32 532141226 Cover Sw Key
33 532140401 Key Ign Molded Generic
34 532110712 Switch Light Blk Blk Red
35 532108236 Bracket Switch Clutch
36 817021008 Screw Hex Tapping # 10-24 X 1/2
39 532109553 Switch Interlock Clutch
40 532145493 Harness Ign Elec. Dash Yp 1995
41 871110412 Bolt Blk. Fin Hex 1/4-20 x 3/4
42 532131563 Cover Terminal Red
43 532145673 Solenoid
44 873510400 Nut Keps Hex 1/4-20 Unc
45 532122822 Ammeter Rectangular
46 532141940 Protection Wire Loop
49 811151000 Washer Lock Internal Tooth 5/8
50 532140404 Swtitch PTO 3 pdt deltg
51 532140405 Ring Retainer PTO
70 532140426 Harness Engine Koh. cmd l .15AR
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
31
www.mymowerparts.com
81
3
2
3
38
39
35
26
35
26
33
10
34
1
59
69
70
82
83
84
86
85
79
78
80
17
87
16
67
66
15
94
95
77
97
98
3
28
42
29
93
75
51
8
72
129
36
36
36
46
36
3
13
3
11
9
64
56
91
92
90
50
109
110
113
111
112
74
24
26
25
26
25
3
31
24
30
43
25
3
6
3
40
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. L TH140 (954001192B)
CHASSIS AND ENCLOSURES
32
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532145501 Chassis 11 ga
2 532140356 Drawbar
3 817490612 Screw, Thd., Roll. 3/8-16 x 3/4
6 532145206 Saddle
8 532126471 Clip Insulator .406 Mtg. Hole
9 532140452 Dashboard
10 872140608 Bolt, Carriage 3/8-16 UNC x 1
11 532145218 Dash Panel, LH
13 532145217 Dash Panel, RH
15 874180512 Screw, Machine 5/16-18 UNC x 3/4
16 873510500 Nut, Hex, Keps 5/16-18 UNC
17 532125454 Hood
24 874780616 Bolt Fin Hex 3/8-16 x 1 Gr.5
25 819131312 Washer 13/32 x 13/16 x 12 Gauge
26 873800600 Nut Lock Hex w/ins 3/8-16 UNC
28 532127325 Grille
29 532124251 Lens, Headlight, RH, Smoked
30 532143050 Fender
31 532139976 Bracket Fender
33 532147203 Footrest, LH
34 532147202 Footrest, RH
35 872110606 Bolt, Carriage 3/8-16 x 3/4
36 532108067 Nut Pal
38 532139886 Pivot Bracket Assembly, Rear, LH
39 532139887 Pivot Bracket Assembly, Rear, RH
40 532139977 Spacer Fender LT
41 532139978 Plate Extention Fender
42 532124250 Lens, Headlight, LH, Smoked
43 817490616 Screw Thdrol 3/8-16 x 1
46 532127316 Retainer
50 532145205 Support, Dash
51 873800400 Nut Lock w/insert 1/4-20 UNC
56 532145151 Dash Extension
59 532110436 Bushing Snap Split
60 872140606 Bolt rdhd sqnk 3/8-16 x 3/4
61 819171416 Washer 17/32 x 7/8 x 16 Ga
64 532145095 Dash Lower
66 532143049 Plate, Dash
67 819111116 Washer 11/32 x 11/16 x 16 Gauge
KEY PART
NO. NO. DESCRIPTION
69 532106784 Strap Assembly, Hinge, Rear
70 532104618 Strap Assembly, Hinge, Front
72 532126025 Support Assembly, Grille
74 873680600 Nut Crownlock 3/8-16 UNC
75 532123481 Bolt, Shoulder 1/4-20 UNC
77 874191008 Screw, Machine, Cross Pan Head
#10-24 x 1/2
78 810071000 Washer, Lock #10
79 532125004 Nut, Weld
80 532109808 Latch, Chute
81 532146525 Nut Wing Lck Nylon Notch 1/4-20
82 874981020 Screw, Machine, Cross Pan Head
#10-24 x 1-1/4
83 532007206 Spacer, Split #10 x 3/4
84 819070818 Washer 7/32 x 1/2 x 18 Gauge
85 873731000 Nut, Hex, Keps #10-24 UNC
86 532138886 Side Panel, RH
87 532125393 Side Panel, LH
90 819091216 Washer 9/32 x 3/4 x 16 Gauge
91 873220400 Nut, Hex, Fin. 1/4-20 UNC
92 810040400 Washer, Lock,Hvy Helical 1/4
93 532127321 Grill Assembly
94 532110357 Washer, Cap
95 532110356 Cap, Black
97 532110853 Pivot Bracket Assembly, LH
98 532110852 Pivot Bracket Assembly, RH
109 532141461 Bracket Extension Bumper
110 532143679 Plug Plastic
111 872140610 Bolt Carriage 3/8-16 x 1-1/4
112 819131316 Washer 13/32 x 13/16 x 16 Ga
113 532141460 Bumper Asm
129 819091016 Washer 9/32 x 5/8 x 16 Ga.
--- 532005479 Plug, Button
--- 532125085 Plug Dash
--- 532121794 Cover Access
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
29
28
88
86
87
51
32
61
30
52
61
58
32
45
59
42
42
19
31
81
38
61
49
19
27
37
41
42
40
44
48
4519
97
16
73
18
103
102
94
3
19
16
100
91
98
46
53
35
55
36
50
26
47
42
62
35
36
22
39
34
89
69
16
1
15
100
77
96
92
100
71
18
77
100
104
84
16
105
106
100
30
52
56
57
93
96
26
25
19
24
2
26
95
76
78
75
74
83
82
8
21
10
86
88
87
42
19
9
23
33
63
17
65
20
43
52
60
56
68
27
26

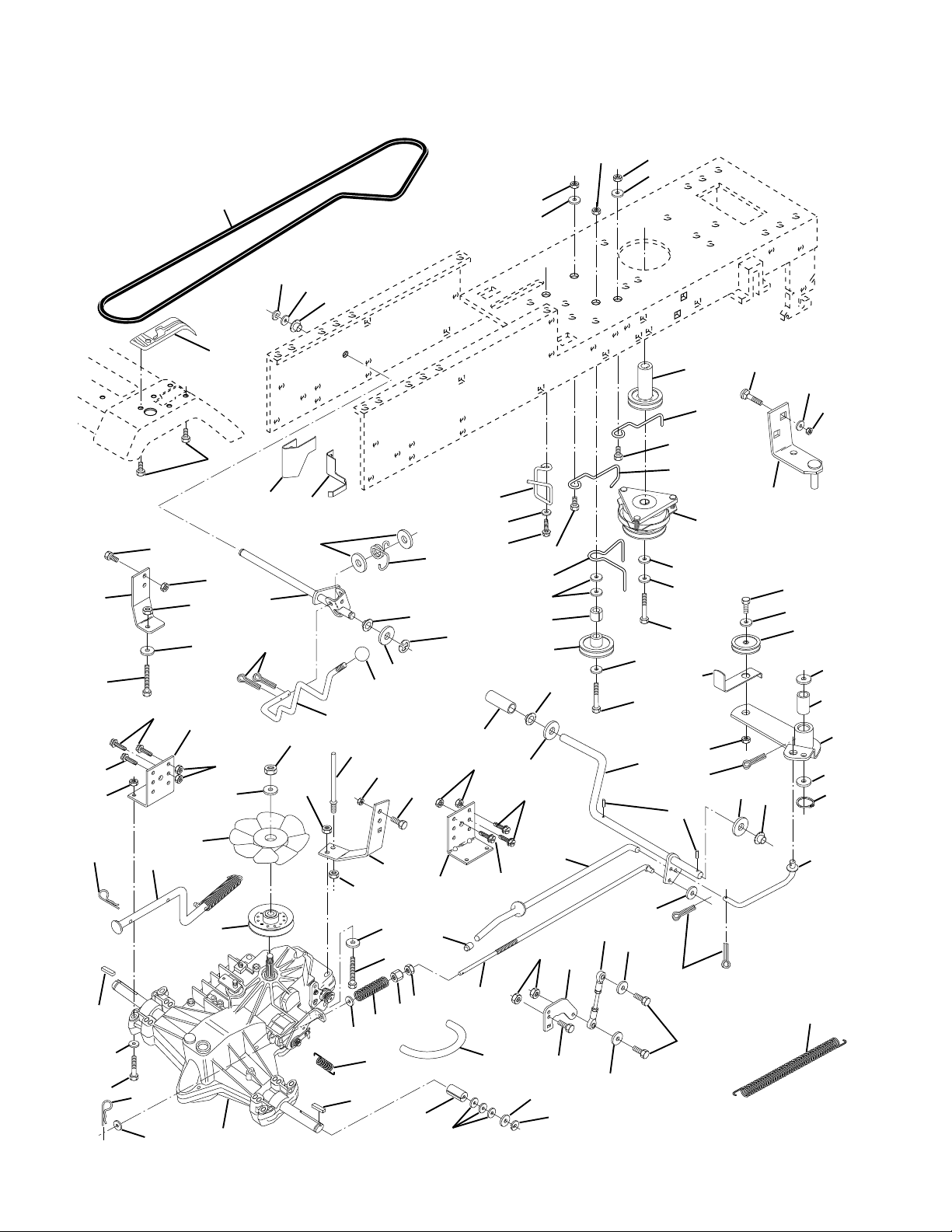

For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
DRIVE
34
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 532144436 Transaxle Assembly
2 532142431 Spring, Return, Brake
3 532143995 Pulley, Transaxle
8 532141003 Rod Shift Hydro LT
9 532137140 Clutch Elect 105 Ft/Lb
10 876020416 Pin Cotter 1/8 x 1 CAD
15 874780544 Bolt Fin Hex 5/16-18 Unc
16 873800500 Nut Lock Hex W/Ins. 5/16-18
Unc P
17 532126197 Washer 1-1/2 OD x 15/32
ID x .250
18 874780616 Bolt Fin Hex 3/8-16 Unc x 1
Gr.5
19 873800600 Nut Lock Hex W/Wsh 3/8-16
Unc
20 532125120 Bolt, Hex
21 532140845 Knob, Deluxe 1/2-13
22 532145627 Rod, Brake Hydro
23 532137141 Bracket Asm Mtg Cl
24 873350600 Nut
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532145204 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532130807 Bracket, Transaxle
31 532127275 Keeper Belt Lh
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
33 872140506 Bolt Carriage 5/16-18 x 3/4
34 532149001 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532123674 Pulley, Idler, Flat
39 874760644 Bolt
40 532124965 Spacer Split
41 532109070 Keeper, Belt Retainer
42 819131312 Washer 13/32 x 13/16 x 12
Gauge
43 819111012 Washer 11/31 x 5/8 x 12 Ga.
44 532105706 Bearing, Nylon
45 532110812 Washer, Hardened
46 812000039 Ring, Klip
47 532127783 Pulley, Idler, V-Groove
48 532123789 Bellcrank Assembly
49 532123205 Retainer, Belt
50 874760624 Bolt
51 873680600 Nut
52 873680500 Nut Crownlock 5/16-18 UNC
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 874760620 Bolt Fin Hex 3/8-16 x1-1/4
KEY PART
NO. NO. DESCRIPTION
57 532140294 V-Belt, Ground Drive
58 532140470 Keeper Belt Lh Hydro
0750.18/20"
59 532140312 Keeper, Center Span
60 532121218 Keeper Belt Engine
61 817490612 Screw Thdrol. 3/8-16 x 3/4 Ty.
TT
62 532123533 Cover, Pedal
63 532140189 Pulley, Engine
65 810040700 Washer
67 874760616 Bolt
68 532105730 Keeper Belt Engine
69 532142432 Screw
71 532140158 Strap Torque Lh Hydro 18/20" T
73 532140157 Strap Torque Rh Hydro
18/20"T
74 532121199 Spacer Split .80 x 1.70 Cad
13 UNC
75 532121749 Washer 25/32 x 1-1/4 x 16
Gauge
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16
Gauge
81 532140154 Shaft Asm. Cross Hydro 20"
Tires
82 532123782 Spring Torsion T/A
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532140548 Rod, Tie Hydro 20" Tires
86 532071208 Bushing Rod Strig. 629/632 ID
87 819212016 Washer 21/32 x 1-1/4 x 16 Ga.
88 812000008 Ring Klip #5304-62
89 532139988 Console, Shift
91 874780536 Bolt Fin Hex 5/16-18 x 2-1/4
92 874780524 Bolt Fin Hex 5/16-18 Unc x
1-1/2
94 532140462 Fan, Hydro 7"
93 532142564 Line Fuel Hydro 4"
95 532144643 Control Asm Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
97 532140469 Keeper Belt Rh Hydro 0750.18/
20"
98 873510600 Nut Keps Hex 3/8-16 Unc
100 819111216 Washer 11/32 x 3/4 x 16 Ga.
102 532141322 Washer Belleville .501D x
1.50D
103 873940800 Nut Hex Jam Toplock 1/2-20 unf
104 532140156 Arm, Control Hydro
105 871070516 Screw Cap Hex 5/16 x 18 x 1
106 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4
NOTE All component dimensions given in U. S. inches.
1 inch = 25.4 mm
35
www.mymowerparts.com
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
24
23
77
4
80
79
79
3
14
38
15
16
62
62
81
31
33
37
33
40
73
44
76
32
44
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
ENGINE
36
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532132753 Control Th/ch
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine Kohl 14 HP Model No.
4 532137350 Muffler LT Kohler
14 813280328 Nipple Pipe 3/8 Npt X 3-1/2"
15 813200300 Elbow Std 90° 3/8-18 Npt
16 811050600 Washer Lock Ext Tooth 3/8
23 532128953 Shield Heat Browning
24 817021008 Screw Hex Thd Cut
29 532137180 Kit Spark Arrestor
31 532109202 Fuel Tank Front 1 25
32 532140527 Cap Asm Fuel W/sym Vented
33 532123487 Hose Clamp
37 532101335 Fuel LIne
38 - - - - - - - - Plug Oil Drain (Order from Engine
40 532110436 Bushing Snap Split
44 817490612 Screw Hexwash Thdrol 3/8-16x3/4
45 - - - - - - - - Bolt, Hex (Order from Engine Mfg.)
62 810040500 Washer Lock Hvy Hlcl Spr 5/16
73 532128229 Bracket Support Tank Fuel
76 532128230 Strap Support Fuel Tank
77 819101216 Washer, Flat
79 532125398 Bolt Hex
80 874760508 Bolt, Fin Hex 5/16-18 X 5/8
81 873510400 Nut Keps Hex 1/4-20 Unc
PS1456
#10-24unc X 1/2
Mfg.)
Ty-tt
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
37
www.mymowerparts.com
5
9
5
7
7
9
4
3
32
43
6
43
8
17
18
19
22
21
20
8
27
62
23
11
12
24
29
25
5
8
10
12
11
11
33
35
34
38
40
39
1
41
37
36
37
15
8
6
9
46
46
8
6
9
2
47
14
13
47
16
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)

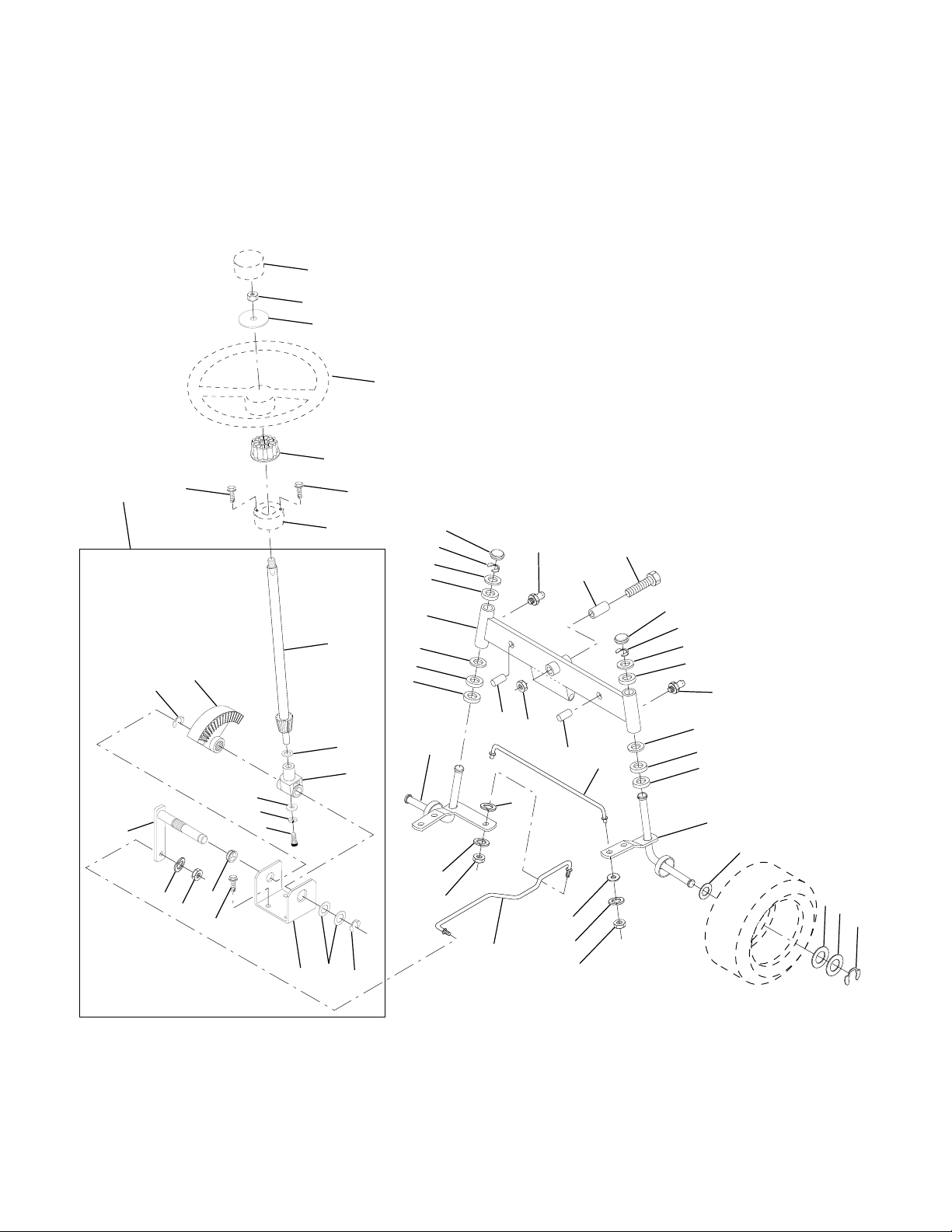

STEERING ASSEMBLY
38
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532124415 Wheel Steering
2 532142033 Axle Asm Fr LT W/gzks 38/42
3 532135227 Spindle Asm LH
4 532135228 Spingle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
7 819272016 Washer 27/32 X 1-1/4 X 16 Ga
8 812000029 Ring Klip #t5304-75
9 532124937 Bearing Col Strg
10 532130468 Link Drag Sol Ball Jt
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
12 873610600 Nut Fin 3/8-24 Unf
13 532110438 Spacer Bearing Axle Front
14 874011056 Bolt Hex 5/8-11 Unc X 3-1/2
15 873901000 Nut Lock Flange 5/8-11 Unc
16 532132624 Pin Axle 5/8 X 1 55/1 54 Lg
17 532128758 Shaft Asm Strg 18 31x3/4
18 532057079 Washer Thrust 515x 750x 033
19 532124035 Suport Shaft
20 532126684 Washer Shim 1/4 X 5/8 X 062
21 810040400 Washer Lock Hvy Helical 1/4
22 871070410 Screw Hex Socket 1/4-20 X 5/8
23 532127501 Shaft Asm Pittman
24 532109816 Nyliner Snap In
25 532124036 Bracket Steering
27 532136874 Gear Sector
29 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
32 532130467 Rod Tie Wire Form
33 819111216 Washer 11/32 x 12/16 x 16 Ga.
34 810040500 Washer, Lock, Hvy Hlcl Spr 5/16
35 873810500 Locknut 5/16-24 Unf
36 532145207 Bushing Strg. 3/4" Angle
37 817541008 Screw Slftp #10-24 x 1/2
38 532124416 Insert Cap Strg Wh Aut
39 532100712 Washer 53 X 2 25 X 160
40 873940800 Nut Hex Jam Taplock 1/2-20 Unf
41 532100711 Adapter Wheel Strg
43 532121749 Washer 25/32 X 1 1/4 X 16 Ja
46 532121232 Cap Spindle Fr Top
47 532124836 Fitting Grease
62 532149682 Kit, Steering Asm.
NOTE: All component dimensions given in U. s. inches.
1 inch = 25.4 mm
39
www.mymowerparts.com
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
18
11
2
6
22
21
5
10
5
14
1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
5REPAIR PARTS
TRACTOR - - MODEL NO. L TH140 (954001192B)
SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
532124185 Seat
2 532140551 Bracket Pivot Seat
3 874760616 Bolt, Hex 3/8-16unc x 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push in Hinged
6 873800600 Nut, Crownlock 3/8-16 Unc
7 532124181 Spring Seat Cprsn
8 817490616 Screw Hwsh Thdrol 3/8-16x1
9 819131614 Washer 13/32 X 1 X 14 Ga
10 532140552 Pan Seat
11 532120068 Knob Seat 1/2-13unc
12 532121246 Bracket Mounting Switch
KEY PART
NO. NO. DESCRIPTION
13 532121248 Bushing Snap
14 872050411 Bolt 1/4-20x1-3/8
15 532134300 Spacer Split
16 532121250 Spring Cprsn
17 532123976 Locknut 1/4 Gr. 5
18 532124238 Cap Spring Seat
21 532139888 Bolt, Shoulder 5/16-18 Unc
22 873800500 Nut, Lock Hex w/ins 5/16-18 UNC
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga
25 532127018 Bolt, Shoulder 5/16-18 X 62
NOTE All component dimensions given in U.S. inches.
1 inch = 25.4 mm
40
www.mymowerparts.com
1
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
DECALS
2
6
13
12
14
16
1
5
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
16 532145005 Decal Bat Ban/Poi P/L Symbols
- 532145246 Pad Footrest
- 532138311 Decal Lift Handle(Lift Handle)
- 532142341 Decal D-Bar Control Mnt. Hyd. Lt
- 532145247 Fastener Pop In Footrest (8 per)
- 532147921 Manual Owner's English
- 532147922 Manual Owner's French
Available accessories not included with tractor:
- LC06 Tire Chains
- LBD48 48" Snow blade
- CE42 42" Bagger
- LC05 33 lb. Weights (pairs)
- LSB42 42" Snow Thrower
- MK420 Mulching Kit
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532141446 Rim Asm Front 6"
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532141447 Rim Asm 8"rear White Service
9 532122082 Tire R Ts 20x10 -8C Service
10 532124926 Tube Rear (Service Item Only)
12 532124577 Cover Wheel 6"white
13 532124578 Cover Wheel 8"white
- - 532144334 Sealant, Tire (10 oz. Tube)
WHEELS & TIRES
7
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
5,8
1
2
6
12,13
7
4,10
3,9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
532138956 Decal Instruction Dash Eng/fr
2 532140863 Decal Ins Hood RH LTH140 Hydro
3 532140728 Decal Hood RH Husq
4 532140729 Decal Hood LH Husq
6 532140865 Decal Ins Hood LH LTH140 Hydro
7 532131582 Decal Fender Husqvarna
8 532133795 Decal Caution Fender Eng/fr
9 532101892 Decal Clutch/brake Eng/fr
10 532137259 Decal Warning MULT-LANGUAGE
11 532125989 Decal Grille Husqvarna"h"logo
12 532142337 Decal Sdl Cold Start Hyd. e/f
13 532140837 Decal Brake Parking Saddle
14 532136832 Decal VBelt Sch. 38" and 42" LT
3 84
11
10
41
www.mymowerparts.com
15
14
12
13
11
10
9
8
16
68
30
31
32
33
35
54
34
55
56
40
40
17
1
46
44
21
22
24
25
26
27
2
28
29
23
21
21
21
18
18
20
84
83
36
37
40
85
36
37
37
38
61
59
19
4
3
5
6
2
21
125
90
90
91
92
93
94
93
92
95
113
117
116
118
119
114
115
112
121
120
114
117
119
116
115
111
118
121
113
120
104
103
105
106
103
104
105
106
101
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
MOWER
102
www.mymowerparts.com
42
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. L TH140 (954001192B)
MOWER
KEY PART
NO. NO. DESCRIPTION
1 532144393 Deck Asm MWR 42"weldment
2 872140506 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532138017 Bracket Asm Fr Sway Bar 38/42
4 532138440 Bracket Asm Deck 42"sway Bar
5 532124670 Retainer Spring
6 532130832 Arm Suspension Rear
8 532850857 Bolt 3/8-24x1 25 Gr8 Patched
9 810030600 Washer Lock Hvy 3/8 Unplated
10 532140296 Washer Hard Blade Mower Vented
11 532134149 Blade Mower Mulching 42"
12 532129895 Bearing Ball #6204 (Mandrel)
13 532137645 Shaft Asm W/lower Bearing
14 532128774 Housing Mandrel Vented(machd)
15 532110485 Bearing Ball Mandrel
16 532140329 Stripper Mower Vented
17 872110618 Bolt Rdhd Sqnk 3/8-16 X 2-1/4
18 872140505 Bolt Carr 5/16-18 X 5/8
19 532132827 Bolt Shoulder
20 532136888 Baffle Vortex 42
21 873680500 Nut Crown Lock 5/16-18 UNC
22 532134753 Stiffener Bracket 42"deck
23 532131267 Bracket Deflector Mower 42"
24 532105304 Cap Sleeve 80x 112 Blk Mower
25 532123713 Spring Torsion Deflector 2 52
26 532110452 Nut Push Phos & Oil
27 532130968 Shield Deflector Mower 42" Blk
28 819111016 Washer 11/32 X 5/8 X 16 Ga
29 532131491 Rod Hinge 42"6 75 Wlg
30 532138776 Screw Thdrol Hex Hd Zinc Mwr.
31 532129963 Washer Spacer Mower Vented
32 532129861 Pulley Mandrel 42"
33 532137266 Nut 9/16top Lock Flng Cntr
34 872110622 Bolt Rdhd 3/8-16uncx2-3/4 Gr5
35 532133835 Fastner Christmas Tree
36 532131494 Pulley Idler Flat 3 060
37 819131316 Washer 13/32 X 13/16 X 16 Ga
38 532132823 Spacer Spring Stop Idler
40 873680600 Nut Crownlock 3/8-16 Unc
44 532140088 Guard Mandrel LH Black
46 532137729 Screw Thdrol 1/4-20x5/8
54 532133943 Washer Hardened
KEY PART
NO. NO. DESCRIPTION
55 532140084 Arm Idler 42"mower LT/YT
56 532122052 Spacer Retainer Pm Mower
59 532141043 Guard, Belt
61 532131950 Spring Ext. Elect
68 532144200 V-Belt Mower 42"
83 532120958 Washer Sintered
84 532144394 Keeper Belt Idler Fixed
85 872140618 Bolt Carriage 3/8 - 16 x 2-1/4
90 874760616 Bolt Fin Hex 3/8-16unc X 1
91 532132274 Bracket Asm Noseroller LH
92 873800600 Nut Lock 3/8-16 Unc
93 819171416 Washer 17/32 X 7/8 X 16 Ga
94 532132264 Roller Nose 38 & 42
95 532132273 Bracket Asm Noseroller RH
101 532136420 Cover Mulching 42” Blk
102 871161010 Screw
103 810071000 Washer Lock #10
104 819061216 Washer #10
105 532130758 Latch Asm Bagger
106 532125004 Nut Weld .327/.304 #10-24
111 532140353 Bracket Wheel Gauge Lh 42” Deck
112 532132262 Bracket Gauge Wheel Rh 42” Deck
113 817490512 Screw Thdrol 5/16 - 18 x 3/4 Tyt
114 873510500 Nut Keps 5/16 - 18 UNC
115 872110504 Bolt Carriage 5/16 - Unc x 1/2
116 532124842 Bolt Shld “A” 2.41 “B” 1.66
117 532105455 Wheel Gauge blk. 4.93
118 873930600 Nut Centerlock 3/8 - 16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
120 819171512 Washer 17/32 x 15/16 x 12 Ga.
121 532143723 Bracket
125 876020816 Pin Cotter 1/4 1 Plated
- - 532145452 Deck Serv 42" Elec Vent (Standard
Deck - Order Nose Roller, Gauge
Wheel and Mulcher Plate
components separately Key Nos.
90-95, 101-106 and 111-121)
- - 532130794 Mandrel Assembly (Includes Key
Numbers 8-10, 12-15, 31 and 33)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
15
20
16
17
18
20
20
15
20
4
5
6
2
3
1
6
5
4
7
8
10
21
22
23
24
25
26
27
28
29
30
37
41
35
36
40
38
12
11
31
32
31
32
19
19
13
13
13
13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)

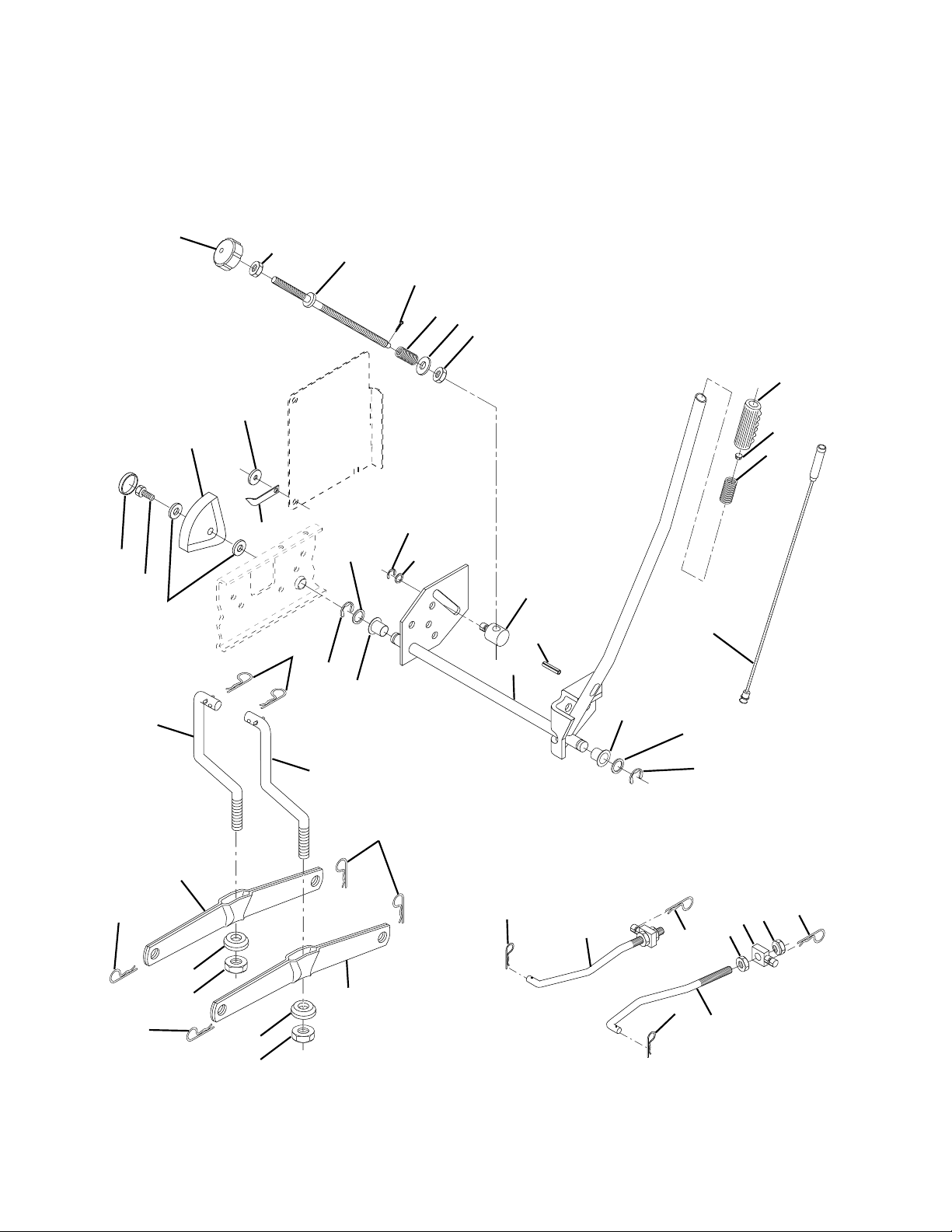

MOWER LIFT ASSEMBLY
44
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
MOWER LIFT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532136971 Wire Asm Inner W/plunger 17 32
2 532136968 Shaft Asm Lift 93 RH
3 532138284 Pin Groove 1 500 Zinc
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 X 1 X 21 Ga
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
10 532122512 Spring Cprsn 3 750 Oiled
11 532139865 Link Lift LH
12 532139866 Link Lift RH
13 532124670 Retainer Spring
15 532127218 Link Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873800800 Nut Lock W/wsh 1/2-13unc
19 532139868 Arm Suspension Rear
20 532124660 Retainer Spring
21 819151216 Washer 15/32 X 3/4 X 16 Ga
22 812000037 Ring Klip #t5304-37
23 532110807 Nut Special
24 819131016 Washer 13/32 X 5/8 X 16 Ga
25 532137150 Spring
26 876020308 Pin Cotter 3/32 X 1/2
27 532137167 Rod Adj Lift
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532110810 Trunnion Dp Stop Dbl Thds PLT
31 532140302 Bearing pvt. Lift Sphencal
32 873540600 Nut Crownlock 3/8-24
35 532120529 Washer Nylon .44 x .75 x 032
36 532138346 Pointer pnt height ind.
37 532123935 Plug hole Blk 1.485/1.515 Dia
38 817490512 Screw Thdrol 5/16-18 x 3/4 Tyt
40 819112410 Washer 11/32 x 1-1/2 10 Ga
41 532123934 Scale Ind. Hieght Black
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
HYDRO-GEAR TRANSAXLE - MODEL NO. 310-0750
46
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH140 (954001192B)
HYDRO-GEAR TRANSAXLE - MODEL NO. 310-0750
KEY PART
NO. NO. DESCRIPTION
1 532142930 Housing, Lower
2 532142931 Assembly, Upper Housing
3 532142932 Seal, Lip
4 532142928 Ring, Wire Retaining
5 532142933 Ring, Retaining
6 532142934 Bearing, Shaft Ball
7 532142935 Bearing, Cradle
8 532142936 Bearing, Thrust 30 x 52 x 13
9 532142937 Swashplate, Variable
13 532142938 Block, Cylinder Assembly
14 532142939 Arm, Trunnion
15 532142940 Seal, Lip
17 532142941 Guide, Slot
18 532142942 Shaft, Motor
19 532142943 Bearing, Thrust 42 x 68 x 16
23 532142944 Block, Cylinder Assembly
24 532142945 Seal, Lip 10 x 25 x 7
25 532142946 Actuator, Bypass
26 532142947 Center Section Assembly Kit
27 532142948 Seal, Lip 26 x 42 x 8
28 532142949 Ring, Retaining
29 532142950 Washer 26 x 35 x 1
34 532142951 Oil Filter Element
35 532142952 Arm, Bypass
36 532142953 Ring, Retaining
37 532142954 Arm, Actuating
38 532142955 Pin, Actuating
39 532142956 Bolt 5/16-24 x 1-3/4
40 532142957 Locknut, Hex 5/16-24 UNJC
41 532142958 Brake Rotor/Stator Kit
KEY PART
NO. NO. DESCRIPTION
43 532142884 Washer 7/16 x 7/8 x .060
44 532142959 Differential Assembly
52 532142960 Washer 3/4 x 1.5 x .03
53 532142961 Seal .75 x 1.25 x .250
54 532142962 O-Ring .103 x 2.987 ID
56 532142963 Shaft, Input
58 532142964 Bolt 1/4-20 x 1.38
59 532142965 Pin .5 OD x .43 ID x .750
62 532142966 Arm, Control
63 532142967 Puck, Dampener
64 532142920 Set Screw
68 532142969 Spring
69 532144610 Stud 5/16-24
83 532142971 Jack Shaft Assembly
85 532142972 Jack Shaft
88 532142973 Capscrew
89 532142974 Washer
90 532142975 Sleeve Bearing
91 532142976 Seal, Wiper
92 532142977 Spring, Block
93 532142978 Washer, Block Thrust
113 532142917 Cap, Vent Assembly
114 532142918 Fitting, O-Ring Assembly
119 532142980 Spacer
134 532144607 Nut, Castle 5/16-24
135 532144608 Pin, Cotter
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
47
www.mymowerparts.com
Loading...
