Ride Mower
LT18542 B
954571748
Illustrated Parts List
2004-02
I0402013
Repair Parts Manual
www.mymowerparts.com
www.mymowerparts.com
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

SCHEMATIC

A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
HOUR
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
BLACK
GROUNDING
CONNECTOR
METER
BLUE
(OPTIONAL)
FUEL LINE
BLACK
IGNITION
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT 3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT 5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM. THE LIGHTS ARE NOT CONNECTED TO THE BATTERY, BUT HAVE THEIR OWN ELECTRICAL SOURCE. BECAUSE OF THIS, THE BRIGHTNESS OF THE LIGHTS WILL CHANGE WITH ENGINE SPEED. AT IDLE THE LIGHTS WILL DIM. AS THE ENGINE IS SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
27
www.mymowerparts.com
22
21

REPAIR PARTS

TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

ELECTRICAL

42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
D.C. AMPERES
8
45
52
29
28
27
2
1
90
28
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
ELECTRICAL
KEY PART NO. NO. DESCRIPTION
1 532 16 34-65 Battery 2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 8 532 17 66-89 Box Battery 16 532 17 61-38 Switch Interlock 21 532 17 56-88 Harness Asm Light W/4152j 22 532 00 41-52 Bulb Light #1156 24 532 12 47-80 Cable Battery 6 Ga. 11" red 25 532 14 61-47 Cable Battery 6 Ga. 44" red w/16 wire 26 532 17 51-58 Fuse 27 873 51 04-00 Nut Keps Hex 1/4-20 unc 28 532 12 47-73 Cable Ground 6 Ga. 12" black 29 532 12 13-05 Switch Plunger Gray 30 532 17 55-66 Switch Ign Delta 33 532 14 04-01 Key Ign Molded Generic 40 532 17 97-20 Harness Ign. 41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2 42 532 13 15-63 Cover Terminal Red 43 532 17 88-61 Solenoid 45 532 12 14-33 Ammeter 52 532 14 19-40 Protection Wire Loop 90 532 18 04-49 Cover Terminal Battery
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
CHASSIS AND ENCLOSURES
31
209
209
10
30
18
17
259
212
28
10
5
5
261
260
258
39
166
208
206
60
9
209
208
207
64
74
26
26
143
38
144
144
60
26
26
142
37
209
14
145
37
1
13
208
11
209
142
2
209
38
14
chassis-husqy.stlt_22
30
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
CHASSIS AND ENCLOSURES
KEY PART NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping 2 532 17 65-54 Drawbar 5 532 15 52-72 Bumper 9 532 19 19-41 Dash 10 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1 11 532 17 49-96 Panel Dash Lh 13 532 18 17-19 Panel Dash Rh 14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 17 532 18 73-48 Hood 18 532 18 49-21 Bumper Hood 26 873 80 06-00 Nut Lock w/Insert 3/8-16 unc 28 532 18 52-92 Grille Lens Asm (Includes Key
Nos. 212, 258 and 261) 30 532 19 18-17 Fender 31 532 13 99-76 Bracket 37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 38 532 17 57-10 Bracket Asm Pivot Mower Rear 39 532 17 47-14 Bracket Pivot Hood 60 872 14 06-06 Bolt RDHD SQNK 3/8-16 x 3/4 64 532 15 47-98 Dash Lower Stlt 74 873 68 06-00 Nut Crownlock 3/8-16 142 532 17 57-02 Plate Reinforcement Stlt 143 532 18 66-89 Bracket Swaybar Chassis 144 532 17 55-82 Bracket Ft Rest 145 532 15 65-24 Rod Pivot Chassis Hood 166 532 17 18-75 Screw HwHd Hi-Lo #13-16 x 3/4 206 532 17 01-65 Bolt Shoulder 5/16-18 TT 207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2 TYTT 208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 TY-TT 209 817 00 06-12 Screw 3/8-16 x 3/4 212 532 18 35-48 Insert Lens Refl ect 258 532 18 52-14 Lens RH 259 532 18 52-13 Lens LH 260 532 18 54-29 Cover Lens 261 532 18 54-33 Insert, Grille
- - 532 00 54-79 Plug
- - 532 18 78-01 Plug Dome Plastic (Choke Hole)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

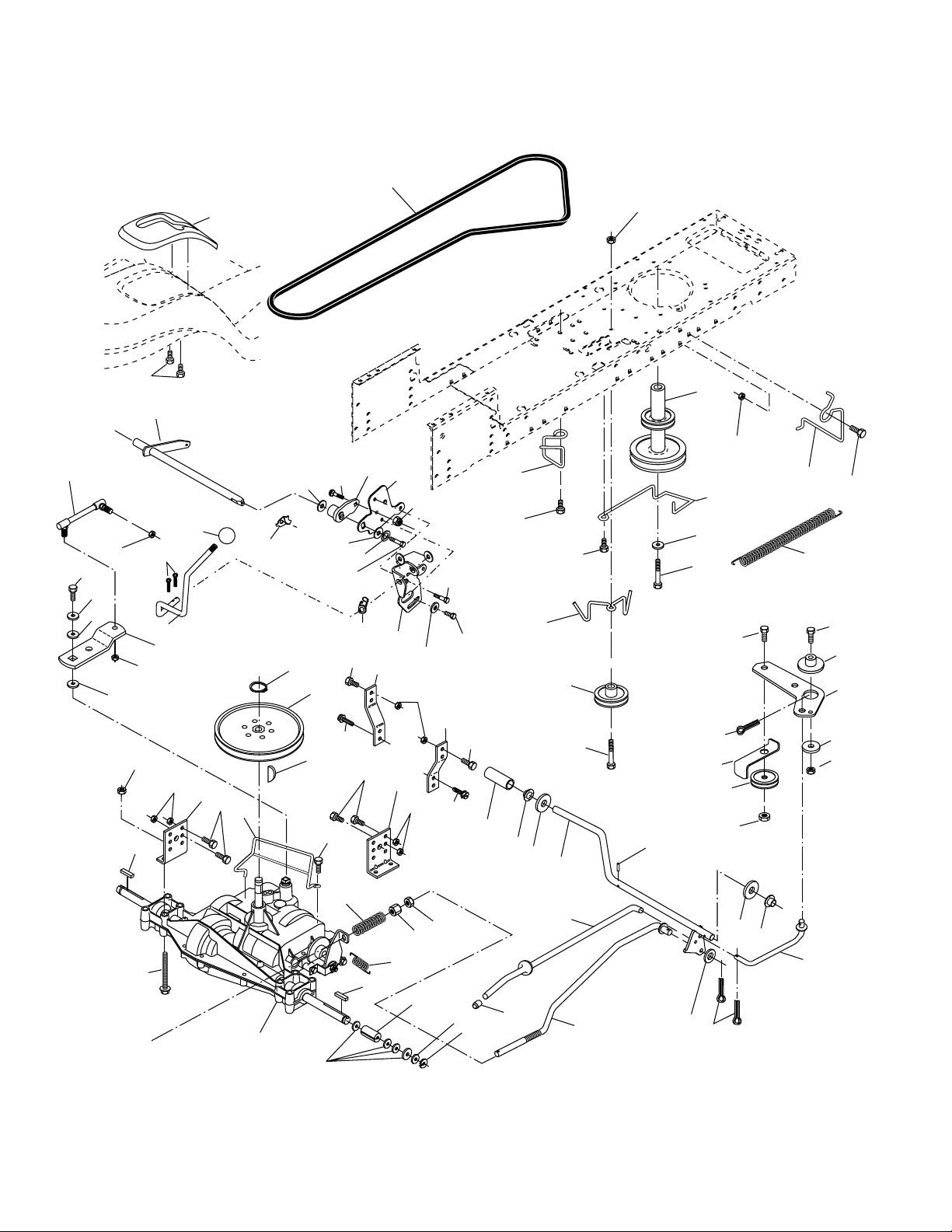

DRIVE

57
84
13
14
112
85
11
52
77
69
85
81
10
80
89
159
18
14
82
32
5
158
165
30
162
83
156
52
168
166
51
5
6
161
160
21
169
8
52
30
32
170
112
163
4
3
6
79
6
18
62
59
61
35
36
56
41
38
39
34
120
37
64
63
65
27
49
66
47
120
212
50
70
116
55
202
150
48
151 51
15
25
24
19
2
77
74
78
1
75
76
28
29
32
www.mymowerparts.com
22
26
27
36
35
drive-fender.stlt_41
53
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
DRIVE
KEY PART NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle, Peerless 206-545C
(Order Parts From Transaxle
Manufactuer) 2 532 14 66-82 Spring Return Brake T/a Zinc 3 532 12 36-66 Pulley Transaxle 18" tires 4 812 00 00-28 Ring Retainer # 5100-62 5 532 12 15-20 Strap Torque 30 Degrees 6 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYT 8 532 16 58-66 Rod Shift Fender Adjust STLT 10 876 02 04-16 Pin Cotter 1/8 x 1 Cad 11 532 10 57-01 Washer Plate Shf 388 Sq Hole 13 874 55 04-12 Bolt 1/4-28 unf Gr. 8 W/Patch 14 810 04 04-00 Washer Lock Hvy Helical 1/4 15 874 49 05-44 Bolt 5/16-18 Gr. 5 16 873 80 05-00 Nut Lock Hx W/Ins 5/16-18 unc Pl 18 874 78 06-16 Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5 19 873 80 06-00 Nut Lock 3/8-16 unc 21 532 10 69-33 Knob 22 532 13 08-04 Rod Brake Blk Zinc 26 840 24 873 35 06-00 Nut Hex Jam 3/8-16 unc 25 532 10 68-88 Spring Rod Brake 2 00 Zinc 26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga 27 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad 28 532 17 57-65 Rod Brake Parking LT/YT 29 532 07 16-73 Cap Brake Parking Black 30 532 17 49-73 Bracket Mtg Tran sax le 32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4 34 532 17 55-78 Shaft Asm Pedal Foot 35 532 12 01-83 Bearing Nylon Blk 629 Id 36 819 21 16-16 Washer 21/32 x 1 x 16 Ga 37 532 12 49-63 Pin Roll 3/16 x 1" 38 532 17 91-14 Pulley Composite 39 872 11 06-22 Bolt Rdhd 3/8-16 x 2-3/4 Gr. 5 41 532 17 55-56 Keeper Belt Idler Flat 47 532 12 77-83 Pulley Idler V Groove Plastic 48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl 49 532 12 32-05 Retainer Belt Style Spring 50 872 11 06-12 Bolt Carr. sh 3/8-16 x 1-1/2 Gr. 5 51 873 68 06-00 Nut Crownlock 3/8-16 unc 52 873 68 05-00 Nut Crownlock 5/16-18 unc 53 532 10 57-10 Link Clutch 55 532 10 57-09 Spring Return Clutch 6 75 56 817 06 06-20 Screw 3/8-16 x 1-1/4 57 532 13 08-01 V-Belt Ground Drive 95 25 59 532 16 96-91 Keeper Belt Span Ctr 61 817 12 06-14 Screw 3/8-16 x .875
KEY PART NO. NO. DESCRIPTION
62 532 12 48-72 Cover Pedal 63 532 17 54-10 Engine Pulley LT/YT 64 532 17 39-37 Bolt Hex 65 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16 66 532 15 47-78 Keeper Belt Engine Foolproof 69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 unc 70 532 13 46-83 Guide Belt Mower Drive RH 74 532 13 70-57 Spacer Axle 75 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga. 76 812 00 00-01 E-ring #5133-75 77 532 12 35-83 Key Square 2 0 x 1845/ 1865 78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga. 79 532 12 50-96 Key Woodruff #9 3/16 x 3/4 80 532 13 14-86 Arm Shift 81 532 16 55-94 Shaft Asm Cross Tapered DA/PR
18" 82 532 16 57-11 Spring Torsion T/a 83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga. 84 532 16 62-28 Transaxle Link 85 532 15 03-60 Nut Lock Center 1/4 - 28 FNTHD 89 532 19 18-18 Console Shift STLT 96 532 12 47-88 Retainer Spring 1" 112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga. 113 532 12 72-85 Strap Torque LT 116 872 14 06-08 Bolt Rdhd Sq Neck 3/8-16 x 1 120 873 90 06-00 Nut Lock Flg. 3/8-16 150 532 17 54-56 Spacer Retainer 151 819 13 32-10 Washer 13/32 x 2 x 10 Ga. 156 532 16 60-02 Washer Srrted 5/16 ID x 1.125 158 532 16 55-89 Bracket Shift Mount 159 532 18 39-00 Hub Shift 161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 162 873 68 04-00 Nut Crownlock 1/4-20 unc 163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 165 532 16 56-23 Bracket Pivot Lever 166 817 49 05-10 Screw 5/16-18 x 5/8 168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 169 532 16 55-80 Plate Fastening STLT/CRD 170 532 18 74-14 Keeper Belt T/A 197 532 16 96-13 Nyliner Snap-In 5/8" ID 198 532 16 95-93 Washer Nyl 7/8 Id x .105" Hyd 202 872 11 06-14 Bolt 3/8-16 x 1-3/4 Gr 5 212 532 14 52-12 Nut Hex Flg Lock
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

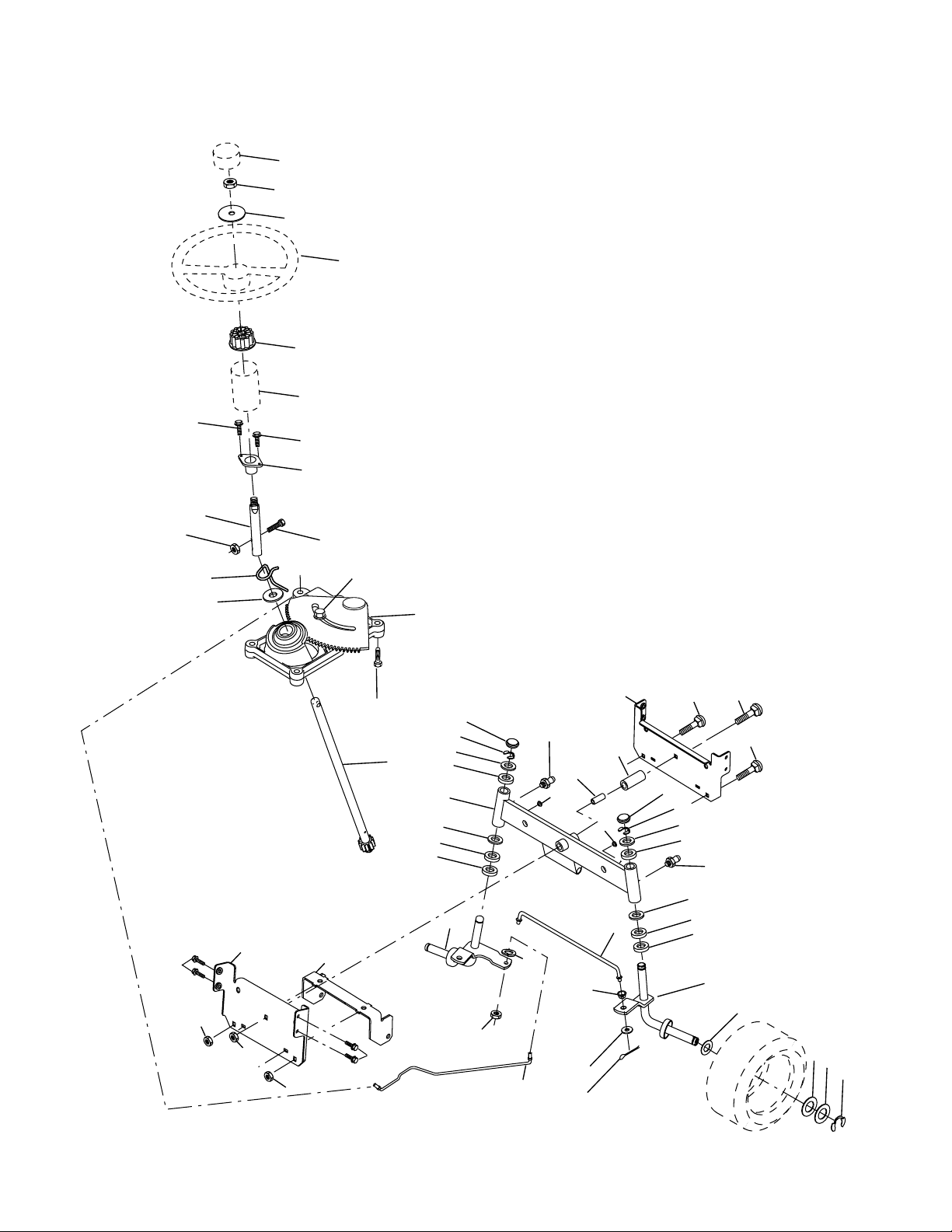

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
steering_pl.lt_42
44
51
91
43
68
29
15
15
54
88
71
29
17
82
29
15
46
8
6
9
2
7
9
5
3
40
47
65
85
11
10
68
13
46
8
85
32
26
28
30
6
9
67
67
67
47
7
9
5
4
43
43
95
8
34
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
STEERING ASSEMBLY
KEY PART NO. NO. DESCRIPTION
1 532 18 54-37 Wheel Steering 2 532 17 51-31 Axle Asm 3 532 16 98-40 Spindle Asm LH 4 532 16 98-39 Spindle Asm RH 5 532 12 49-31 Bearing Race Thrust Harden 6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga. 7 819 27 20-16 Washer 27/32 x 1-1/4 x 16 Ga. 8 812 00 00-29 Ring Klip #t5304-75 9 532 12 49-37 Bearing Col Strg Blk 10 532 17 51-21 Link Drag 11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8 12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf 13 532 13 65-18 Spacer Brg Axle Front 15 532 14 52-12 Nut Hex Flange Lock 17 532 18 06-41 Shaft Asm Strg 26 532 12 68-47 Bushing Link Drag Blk LR 28 819 13 14-16 Washer 13/32 x 7/8 x 16 Ga. 29 817 00 06-12 Screw 3/8-16 x 3/4 30 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad 32 532 13 04-65 Rod Tie Wire Form 19 75 Mech 36 532 15 50-99 Bushing Strg 37 532 15 29-27 Screw 38 532 16 66-26 Cap Wheel Steering 39 819 18 24-11 Washer 9/16 x 1-1/2 11 Ga. 40 873 54 06-00 Lock nut 41 532 15 99-45 Adaptor Wheel Strg 42 532 16 96-34 Boot Steering Shaft 43 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga. 44 532 18 06-40 Extension Steering Shaft LR/LT 46 532 12 12-32 Cap Spindle Fr Top Blk 47 532 18 32-26 Fitting Grease 51 873 54 04-00 Nut Crownlock 1/4-28 54 871 13 04-20 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 65 532 16 03-67 Spacer Brace Axle 67 872 11 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4 68 532 16 98-27 Axle, Brace 71 532 17 51-46 Steering Asm 82 532 16 98-35 Bracket Susp Chassis Front 85 532 13 38-35 Fastner Christmas Tree 88 532 17 51-18 Bolt Shoulder 7/16-20 91 532 17 55-53 Clip Steering 95 532 18 89-67 Washer Hardened
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
24
26
16
15
13
17
seat_lt.bolt_1
KEY PART NO. NO. DESCRIPTION
12
23
25
2
5
4
3
KEY PART NO. NO. DESCRIPTION
21
1 532 18 49-91 Seat 2 532 14 05-51 Bracket Pivot Seat 8 720 3 871 11 06-16 Bolt Fin Hex 3/8-16 unc x 1 4 819 13 16-10 Washer 13/32 x 1 x 10 Ga. 5 532 14 50-06 Clip Push-In 6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc 7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi 8 817 00 06-16 Screw 3/8-16 x 1 9 819 13 16-14 Washer 13/32 x 1 x 14 Ga. 10 532 18 24-93 Pan Seat 12 532 12 12-46 Bracket Mounting Switch 13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
www.mymowerparts.com
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20 x 1-1/2 15 532 13 43-00 Spacer Split 28 x 96 Yel Zinc 16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt 17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc 21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A 22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18 23 871 11 08-14 Bolt, Hex Black 24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga. 25 532 12 70-18 Bolt Shoulder 5/16-18 x 62 26 810 04 08-00 Washer Lock
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
36
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

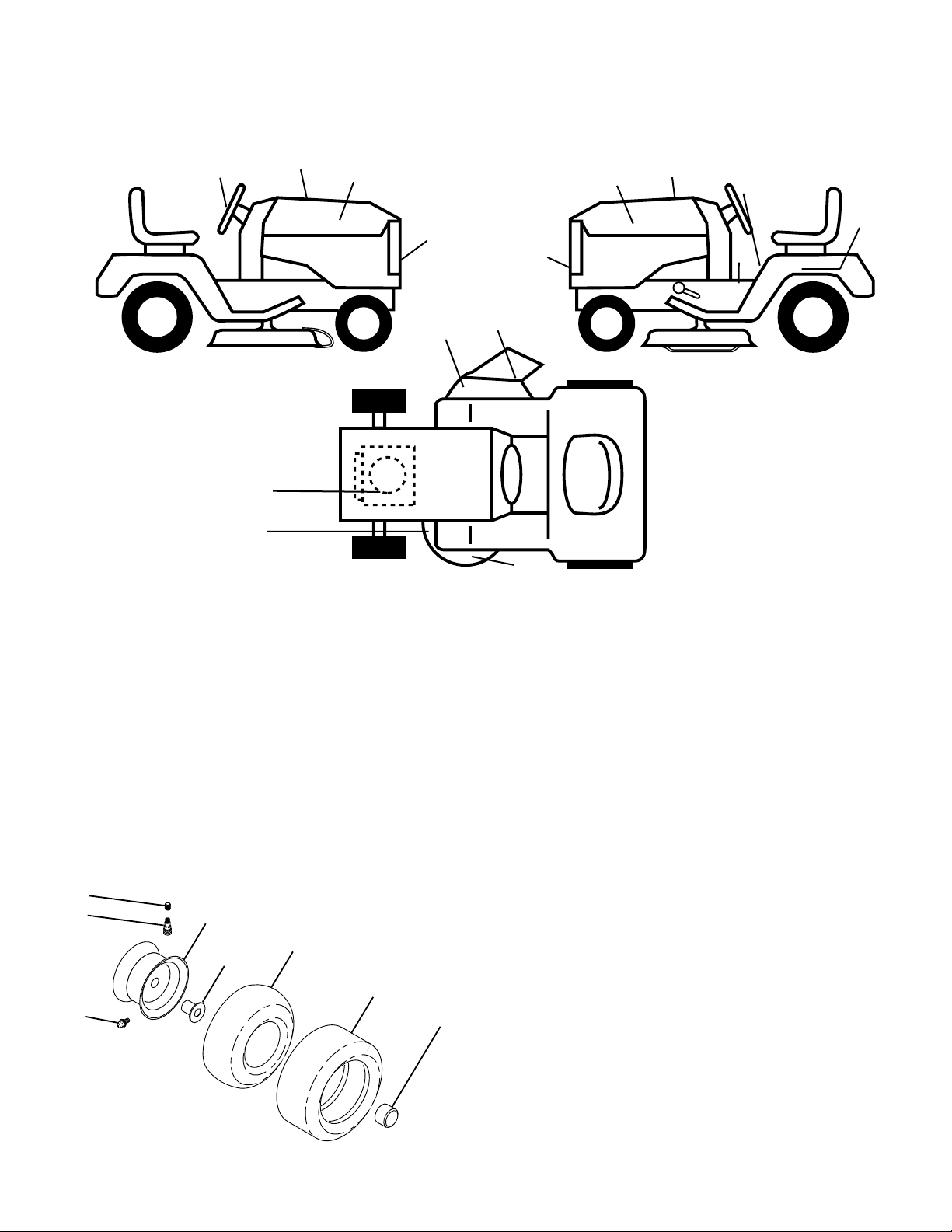

DECALS

12
14
KEY PART NO. NO. DESCRIPTION
1 532 15 63-69 Decal Oper. 2 532 18 92-86 Decal Replc Part 3 532 18 89-16 Decal Hood RH 4 532 18 89-17 Decal Hood LH 5 532 18 09-41 Decal Hood Cust. 6 532 18 91-23 Decal Engine 7 532 17 91-28 Decal Deck B 42 8 532 17 05-63 Decal Warning 9 532 18 92-85 Decal Side Panel
5
3
6
4
9
9
8
7
13
KEY PART NO. NO. DESCRIPTION
10 532 15 71-40 Decal Fender Danger Eng/Fr 12 532 18 89-25 Decal Steering Wheel 13 532 17 23-31 Decal Deck Heavy Duty 14 532 16 03-96 Decal V-Belt Schematic 20 532 14 50-05 Decal Bat Dan/Psn
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 18 82-53 Pad Footrest RH
- - 532 18 82-52 Pad Footrest LH
- - 532 19 18-70 Manual Owner's (English)
2
10
20
1
WHEELS & TIRES
1
2
6
5,8
KEY PART NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire 2 532 06 51-39 Stem Valve
4,10
7
3,9
11
wheel_1
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service 4 532 05 99-04 Tube Front (Service Item Only) 5 532 13 83-36 Rim Asm 6"front Silver Service 6 532 12 49-57 Fit ting Grease (Front Wheel Only) 7 532 12 49-59 Bear ing Flange (Front Wheel
Only) 8 532 13 83-37 Rim Asm 8"rear Silver Service 9 532 10 62-68 Tire R Ts 18 x 9 5-8 C Service 10 532 12 49-26 Tube Rear (Service Item Only) 11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
37
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

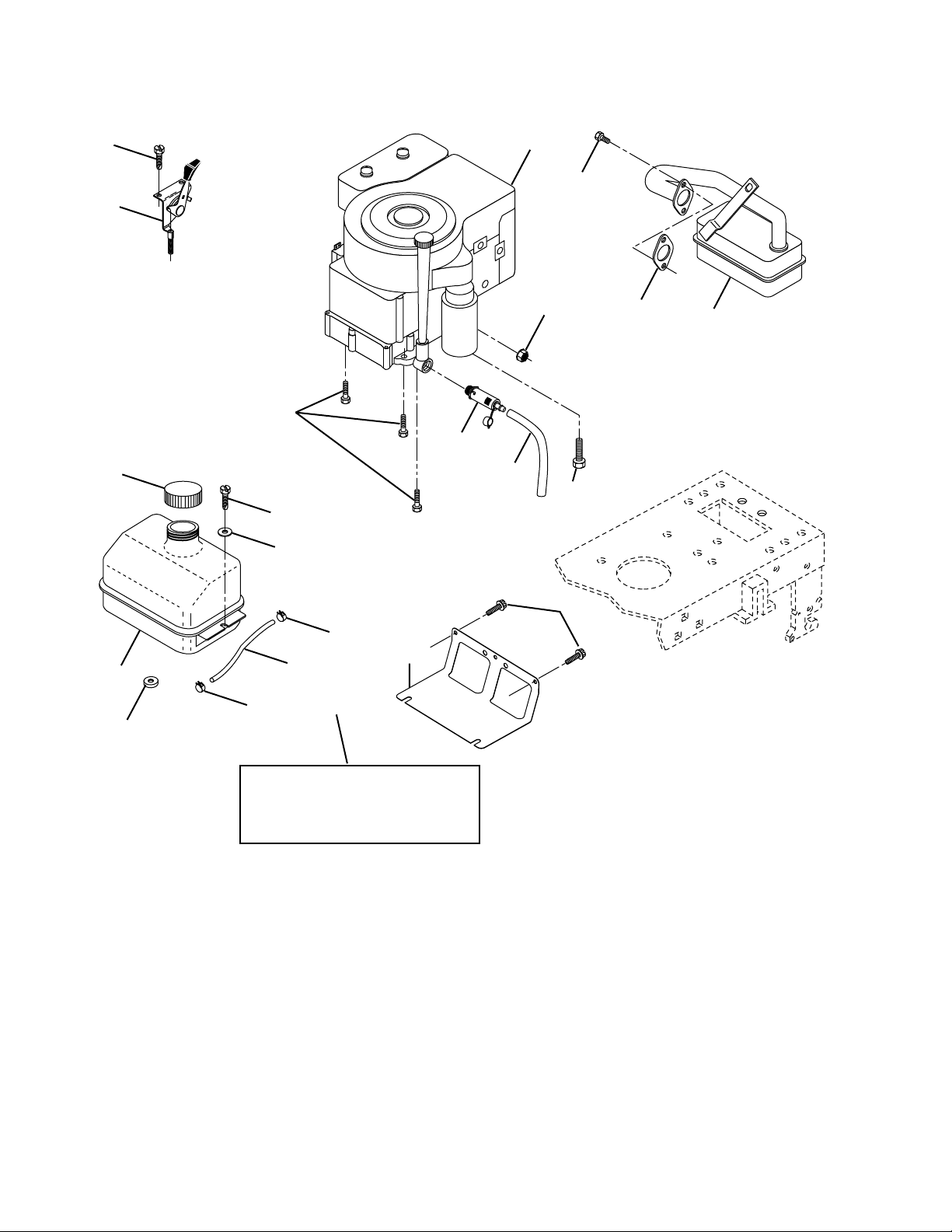

ENGINE

2
32
3
72
1
81
78
38
14
78
44
46
13
4
33
23
31
40
33
37
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART NO. NO. DESCRIPTION
1 532 17 05-51 Control Th/ch Flag 2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2 3 - - - - - - - - Engine, Briggs 31Q777
(Order parts from engine manu-
facturer) 4 532 13 73-52 Muffl er 13 532 16 52-91 Gasket Eng 14 532 14 84-56 Tube Drain Oil Easy 23 532 16 98-37 Shield Brn/Dbr Guard 29 532 13 71-80 Kit Spark Arrestor (Flat Scrn) 31 532 18 49-00 Tank Fuel Front 32 532 14 05-27 Cap Asm Fuel W/sym Vented 33 532 12 34-87 Clamp Hose Black
45
engine-bs.1cyl_49
KEY PART NO. NO. DESCRIPTION
37 532 13 70-40 Line Fuel 20" 38 532 18 16-54 Plug Drain Oil Easy 40 532 12 40-28 Bush ing Snap Nyl Blk Fuel Line 44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4 45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4 46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga. 72 532 18 39-06 Screw Socket Head 5/16-18 x 1 78 817 06 06-20 Screw 3/8-16 x 1-1/4 SMGML 81 873 51 04-00 Nut Keps Hex 1/4-20 unc
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
38
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

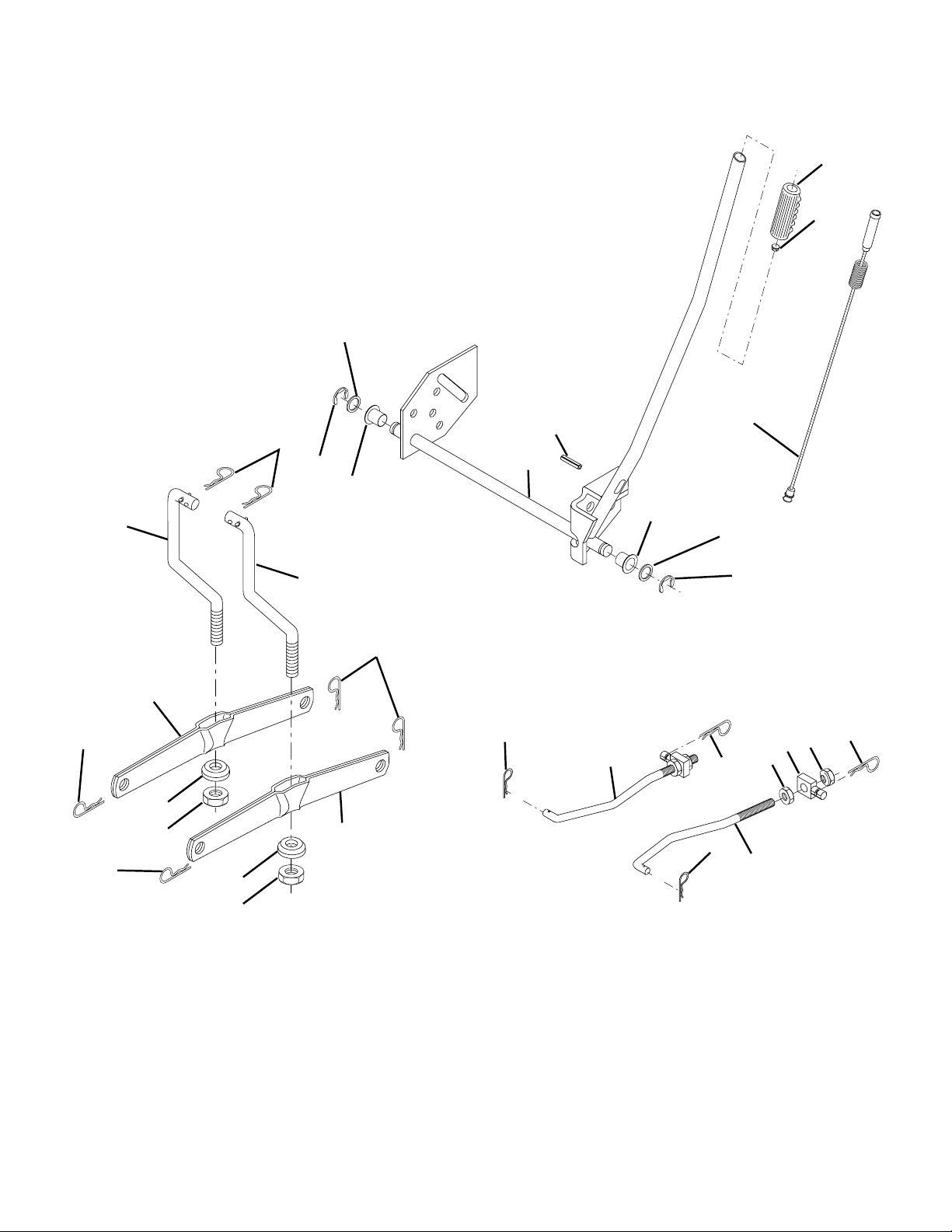

MOWER LIFT

5
7
8
13
13
11
19
31 32
31
13
4
12
19
3
1
2
6
6
5
4
13
20
15
17
16
18
20
20
20
15
32
KEY PART NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger LT 2 532 15 94-71 Shaft Asm Lift 3 532 10 57-67 Pin Groove 4 812 00 00-02 E Ring #5133-62 5 819 21 16-21 Washer PLTD 21/32 x 1 x 21 Ga. 6 532 12 01-83 Bearing Nylon Blk 629 Id 7 532 12 56-31 Grip Handle 8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH 12 532 13 98-66 Link Lift RH 13 532 12 46-70 Retainer Spring
www.mymowerparts.com
lift-rh.1piece_3
KEY PART NO. NO. DESCRIPTION
15 532 17 32-88 Link Front 16 873 35 08-00 Nut Jam Hex 1/2-13 unc 17 532 17 56-89 Trunnion 18 873 80 08-00 Nut Lock W/Wsh 1/2-13 unc 19 532 13 98-68 Arm Suspension Rear 20 532 16 35-52 Spring, Retainer 31 532 16 98-65 Bearing Pvt. Lift 32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
39
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48

MOWER DECK

152
42_clutch_mod_7
117
158
116
119
67
113
118
185
34
111
44
21
68
40
36
40
143
150
184
59
146
33
32
31
30
45
145
21
148
21
21
2
112
144
159
46
53
52
2
48
142
147
40
56
55
54
1
147
142
130
92
5
6
42_D_man-t-path_stlt_3
3
19
131
129
4
21
92
149
16
118
119
2
21
2
15
14
10
13
9
18
11
8
20
18
29
113
21
23
24
28
117
116
25
26
27
40
www.mymowerparts.com
REPAIR PARTS
TRACTOR - - MODEL NO. LT18542 (LT18542B), PRODUCT NO. 954 57 17-48
MOWER DECK
KEY PART NO. NO. DESCRIPTION
1 532 16 58-92 Deck Asm MWR 42"weldment 2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 3 532 13 80-17 Bracket Asm Fr Sway Bar 38/42 4 532 16 54-60 Bracket Asm Deck 42"sway Bar 5 532 12 46-70 Retainer Spring 6 532 17 80-24 Deck Sway Bar 8 532 85 08-57 Bolt 3/8 - 24 x 1.25 Gr. 8 9 810 03 06-00 Washer Lock Hvy 3/8 10 532 14 02-96 Washer Hard Blade Mower
Vented
(The following blades are avail-
able)
11 532 13 41-49 Blade Mower 42" (For mulching
mowers only)
- - 532 13 97-75 Blade, 42" Mulching Premium (For better wear when mulching)
- - 532 13 89-71 Blade, 42" Hi-Lift (For bagging or discharging)
13 532 13 76-45 Shaft Asm W/lower Bearing 14 532 12 87-74 Housing Mandrel Vented 15 532 11 04-85 Bearing Ball Man drel 16 532 17 44-93 Stripper Mower 18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 x 5/8 19 532 13 28-27 Bolt Shoulder 20 532 15 97-70 Baffl e Vortex 42 21 873 68 05-00 Nut Crownlock 5/16-18 unc 23 532 17 75-63 Bracket Defl ector Mower 42" 24 532 10 53-04 Cap Sleeve 80 x 112 Blk Mower 25 532 12 37-13 Spring Torsion Defl ector 2 52 26 532 11 04-52 Nut Push Phos & Oil 27 532 17 18-59 Shield Defl ector Mower 42" Blk 28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga. 29 532 13 14-91 Rod Hinge 42" 6 75 Wlg 30 532 17 39-84 Screw Thd Rolling 31 532 18 76-90 Washer Spacer 32 532 15 35-35 Pulley Mandrel 42" 33 532 17 83-42 Nut Toplock Flng 34 872 11 06-12 Bolt Rdhd 3/8-16 unc x 1-1/2 Gr. 5 36 532 13 14-94 Pulley Idler Flat 37 819 13 13-16 Washer 13/32 x 13/16 x 16 40 873 90 06-00 Nut Lock 3/8-16 unc 44 532 14 00-88 Guard Mandrel LH Black 45 532 12 47-88 Spring Retainer 1" Zinc/cad 46 532 13 77-29 Screw Hex Thd Cut 1/4-20 x 5/8 T
KEY PART NO. NO. DESCRIPTION
48 532 13 39-44 Washer Hardened Smaller 52 532 13 98-88 Bolt Shoulder 5/16-18 unc Blkz 53 532 18 49-07 Arm Asm Pad Brake 54 532 17 85-15 Washer Hardened 55 532 15 50-46 Arm Idler 42"mower LT/YT 56 532 16 57-23 Spacer Retainer Mower 59 532 14 10-43 Guard TUV Idler 67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk 68 532 14 49-59 V-Belt Mower 42" 92 873 80 06-00 Nut 3/8-16 unc 111 532 17 92-92 Bracket Wheel Guage LH 112 532 17 92-93 Bracket Wheel Guage RH 113 817 00 05-10 Bolt 5/16-18 Hex Whs-Hd Lck Ser. 116 532 12 48-42 Bolt Shoulder 117 532 16 57-46 Wheel Guage 118 873 93 06-00 Nut Lock 3/8-16 unc 119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga. 129 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga. 130 874 78 06-16 Bolt 3/8-16 x 1 Gr. 5 131 872 14 06-08 Bolt 3/8-16 x 1 142 532 16 58-90 Arm Spring Brake Mower 143 532 15 71-09 Bracket Arm Idler 42" 144 532 15 86-34 Keeper Belt 42" Clutch 145 532 16 58-88 Pulley Idler Flat 146 532 17 19-77 Bolt Carriage Idler 147 532 13 13-35 Spring Extension 148 532 16 90-22 Spring Return Idler 149 532 16 58-98 Retainer Spring Yellow 150 819 09 12-16 Washer 9/32 x 3/4 x 16 Ga. 152 532 16 96-76 Clutch Cable 42" 158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2 159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 184 819 13 14-10 Washer 13/32 x 7/8 x 10 Ga. 185 532 18 82-34 Head Asm. Cable Clutch
- - 532 13 07-94 Mandrel Assembly(Includes Hous­ing, Shaft and Shaft Hardware Only-Pulley not Included)
- - 532 17 14-91 Replacement Mower, Complete
(Std. Deck - Order separately
gauge wheel components key nos. 116-119)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
