Husqvarna CTH180 XP 02764 User Manual

CTH180 XP

Owner's Manual

02764

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING: In order to prevent ac ci den tal starting when setting up, trans port ing, ad just ing or making repairs, al ways dis con nect spark plug wire and place wire where it can not contact spark plug.

WARNING: Do not coast down a hill in neutral, you may lose control of the tractor.

WARNING: Tow only the attachments that are rec om mend ed by and comply with spec i ﬁ ca tions of the man u fac tur er of your tractor. Use common sense when towing. Operate only at the low est possible speed when on a slope. Too heavy of a load, while on a slope, is dan ger ous. Tires can lose trac tion with the ground and cause you to lose control of your tractor.

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.

• Only allow responsible adults, who are familiar with the in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while back ing.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

• Do not operate machine without the entire grass catcher, discharge guard, or other safety devices in place and working.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge guard.

• Operate machine only in daylight or good artiﬁ cial light.

• Do not operate the machine while under the inﬂ uence of alcohol or drugs.

• Watch for trafﬁ c when operating near or crossing road ways.

• Use extra care when loading or unloading the machine into a trailer or truck.

• Always wear eye protection when operating machine.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel weights or counterweights.

• Keep machine free of grass , leaves or other debris build-up which can touch hot exhaust / engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the machine to roll over.

• Use extra care while operating machine with grass catchers or other at tach ments; they can affect the stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot on the ground.

• Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or if the edge caves in.

2

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to

Never

the ma chine and the mowing activity. children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

assume that

IV. TOWING

• Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.

• Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equipment.

• On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely ﬂ ammable and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there is an open ﬂ ame, spark, or pilot light such as on a water heater or other appliances.

• Never ﬁ ll containers inside a vehicle or on a truck or trailer bed with plastic liner. Always place containers on the ground away from your vehicle when ﬁ lling.

• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immediately.

• Never overﬁ ll fuel tank. Replace gas cap and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage and remove any fuelsoaked debris. Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine run ning.

• Check grass catcher components and the discharge guard frequently and replace with manufacturer's recommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as required.

• Maintain or replace safety and instruction labels, as necessary.

• Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Al ways look down and behind before and while backing.

• Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

3

PRODUCT SPECIFICATIONS

Gasoline Capacity 2.0 Gallons and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F)

Oil Capacity: W/ Filter: 3.8 Pints W/O Filter: 3.2 Pints

Spark Plug: Champion RCJ8Y (Gap: .030")

Ground Speed (MPH): Forward: 0 – 5.5 Reverse: 0 – 2.4

Tire Pressure: Front: 14 PSI Rear: 10 PSI

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35 MIN. CCA: 280 CASE SIZE: U1R

Blade Bolt Torque: 27-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and per for mance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trained tech ni cians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor prop erly. Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tractor.

• Follow the instructions under the "Maintenance" and "Stor age" sec tions of this own er's man u al.

WARNING: This tractor is equipped with an internal com bus tion engine and should not be used on or near any un im proved forest-covered, brush-covered or grass-cov ered land unless the en gine's exhaust system is equipped with a spark arrester meeting ap pli ca ble local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

UNASSEMBLED PARTS

Steering Wheel

Steering Wheel Insert

(1) Washer 17/32 x 1-3/16 x 12 Gauge

(1) Bolt

(2) Hex Bolts 1/4-20 x 3/4

Seat

(2) Keps Nut 1/4-20

Steering

Wheel

Adapter

Steering Sleeve

Key

(2) Keys

Slope Sheet

(1) Oil Drain Tube For Future Use

5

ASSEMBLY

0

2

8

1

8

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard wrench sizes are listed.

(2) 7/16" wrenches Utility knife (1) 3/4" wrenches Tire pressure gauge (1) 3/4" socket w/drive ratchet Pliers When right or left hand is mentioned in this man ual, it means

when you are in the operating po si tion (seated be hind the steer ing wheel).

TO REMOVE TRACTOR FROM CAR TON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons from carton.

• Cut along dotted lines on all four panels of carton. Remove end panels and lay side panels ﬂ at.

• Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRAC TOR FROM SKID

ATTACH STEERING WHEEL (See Fig. 1)

• Remove locknut and large ﬂ at wash er from steering shaft.

• Position front wheels of the tractor so they are pointing straight forward.

• Slide the steering sleeve over the steering shaft.

• Position steering wheel so cross bars are horizontal (left to right) and slide onto steering wheel adapter.

• Secure steering wheel to steering shaft with locknut and large ﬂ at wash er pre vi ous ly removed. Tight en securely.

• Snap steering wheel insert into cen ter of steering wheel.

• Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO ROLL OFF SKID.

STEERING WHEEL INSERT

LOCK NUT

LARGE FLAT WASHER

STEERING

STEERING WHEEL

STEERING SHAFT

STEERING SLEEVE

WHEEL ADAPTOR

FIG. 1

CONNECT BATTERY (See Figs. 2)

CAUTION: Do not short battery terminals by allowing a wrench or any other object to con tact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected ﬁ rst to prevent sparking from accidental ground ing.

• If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY" in the Maintenance section of this manual for charg ing instructions).

• Remove battery cover.

• Remove terminal protective caps and discard.

• First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) terminal with remaining hex bolt and keps nut. Tighten securely.

• Replace battery cover.

Open battery cover for:

• Inspection for secure connections (to tighten hardware).

• Inspection for corrosion.

• Testing battery.

• Jumping (if required).

• Periodic charging .

6

ASSEMBLY

BATTERY COVER

NEGATIVE CABLE

DISCARD TERMINAL PROTECTIVE CAPS

HEX BOLT

KEPS NUT

POSITIVE CABLE (RED)

(BLACK)

02591

FIG. 2

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and ﬂ at washer securing seat to cardboard packing and set aside for assembly of seat to tractor.

• Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor.

• Pivot seat and pan forward and assemble adjustment knob and ﬂ at washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its ad just ed position.

• Raise seat and tighten adjustment knob securely.

SEAT

SEAT PAN

SHOUL DER BOLT

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op er a tion section for location and function of con trols)

• Press lift lever plunger and raise attachment lift lever to its highest po si tion.

• Release parking brake by de press ing clutch/brake ped al.

• Place freewheel control in "trans mis sion dis en gaged position" (See “TO TRANS PORT” in the Op er a tion section of this manual).

• Roll tractor forward off skid.

• Remove banding holding the deﬂ ector shield up against tractor.

TO DRIVE TRAC TOR OFF SKID (See Op er a tion section for location and function of con trols)

WARNING: Before star t ing, read, un der stand and fol low

all in struc tions in the Op er a tion section of this man u al. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other peo ple and objects.

• Be sure all the above assembly steps have been completed.

• Check engine oil level and ﬁ ll fuel tank with gasoline.

• Place freewheel control in "trans mis sion en gaged" po si tion (see "TO TRANSPORT" in Op er a tion section of this manual).

• Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.

• Place motion control lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever to its highest position.

• Start the engine. After engine has started, move throttle control to idle position.

• Release parking brake.

• Slowly move the mo tion control lever for ward and slowly drive tractor off skid.

• Apply brake to stop trac tor, set park ing brake and place motion con trol lever in neutral po si tion.

• Turn ignition key to "STOP" position.

Continue with the in struc tions that follow.

FLAT WASH ER

AD JUST MENT KNOB

02464

FIG. 3

7

02306

0259

2

ASSEMBLY

TO INSTALL BAGGER COM PO NENTS TO TRAC TOR (See Figs. 4A-4D)

• Remove discharge chute from rear of tractor. Unhook the two (2) straps and pull chute out and away from tractor.

• Remove the two (2) 3/8 nuts and ﬂ at washers from the bolts at the tractor back plate.

DISCHARGE CHUTE

3/8 NUT

FLATWASHER

FIG. 4A

• Using the nuts and ﬂ at washers removed from tractor back plate, install the bagger support tube to the back plate as shown. Tighten securely.

SUP PORT TUBE

FLAT WASHER

3/8 NUT

0

2277

NOTE: The strap hook must go through the discharge chute only. Do not allow the hook to enter the slot in the tractor back plate. This will allow the dis charge chute to ﬂ oat with the mower deck when moving on uneven terrain.

DIS CHARGE CHUTE

HOOK

BACKPLATE SLOT

FIG. 4D

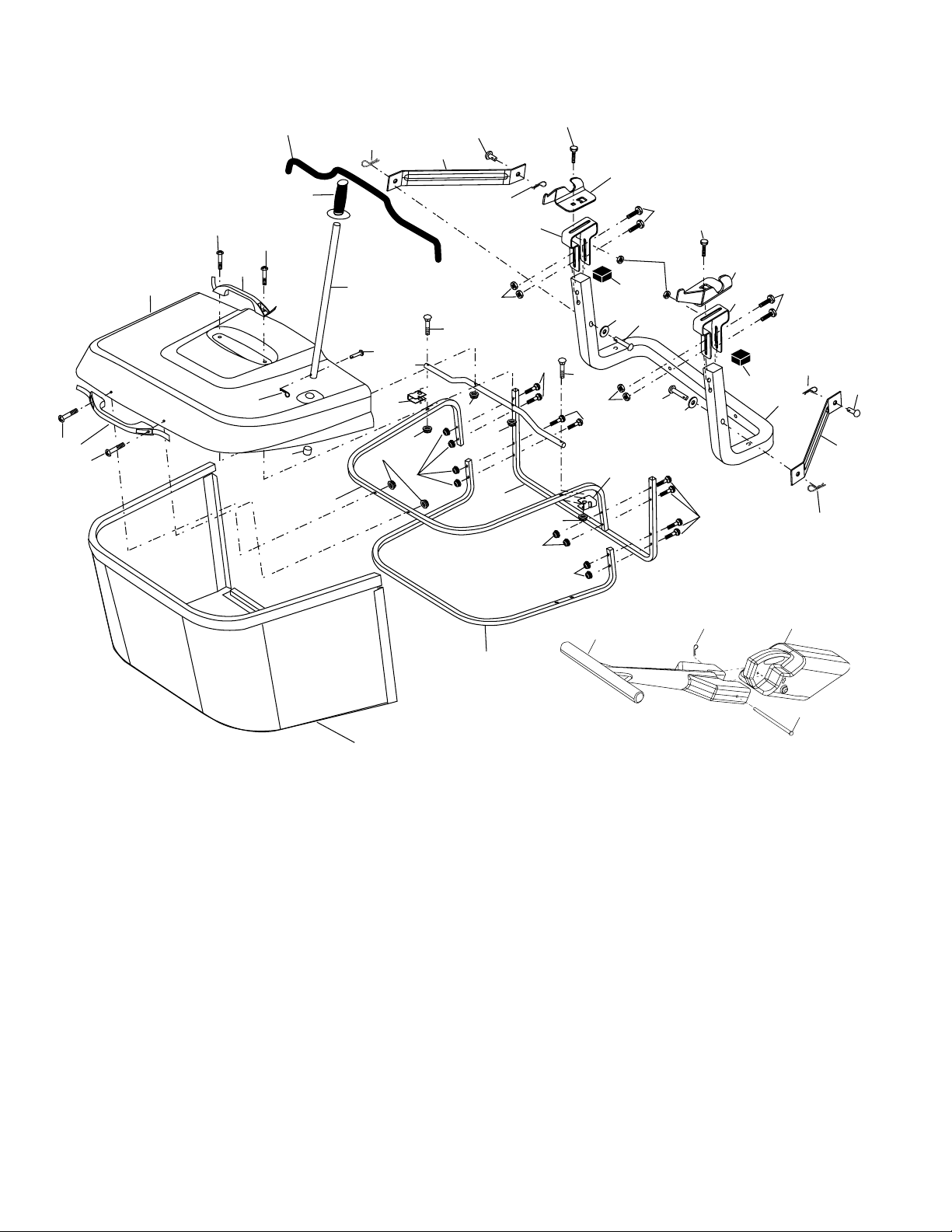

TO ASSEMBLE BAGGER (See Figs. 5 & 6)

NOTE: For ease of assembly, you may wish to obtain the

assistance of another person when putting the bagger to geth er.

• Holes in front bagger tube are at an angle. Place front bagger tube against lower bagger tube and check for proper hole alignment before assembling bolts.

• Assemble front and lower bagger tubes using four (4) 1/4 x 50,8mm carriage bolts and lock nuts supplied. Tighten se cure ly.

FRONT BAGGER TUBE

LOWER BAGGER TUBE

02330

BOLT

FIG. 4B

• Install the two upper support brack ets through the back plate and to the chas sis, install the clevis pin 10x17mm and secure with retainer spring.

• Assemble both support brackets to the outside of the baggger support tube install the clevis pin 10x50mm and secure with retainer spring.

• Replace discharge chute into rear opening of tractor. Secure the chute with the two hook straps.

CLEVIS PIN 10 X 17MM

CLEVIS PIN 10 X 50MM

SUPPORT BRACKET

13/32 FLAT WASHER

RETAINER SPRING

SUPPORT BRACKET

0

2813

1/4 X 2" CARRIAGE BOLTS

1/4 LOCK NUT

FIG. 5

• Slide front and lower bagger tube assembly into the bagger assemby.

• Assemble front and upper bagger tubes using four (4) 1/4 x 50,8mm carraige bolts and lock nuts supplied. Tighten se cure ly.

• Slip all the vinyl bindings over the bagger tubes

• Slide the bagger dump handle through the hole in the bagger top, install the clevis pin and secure with retainer spring.

• Push cap over end of bagger dump handle.

NOTE: For future use, the clevis pin may be removed in order to use the handle to clear the chute in the event it has become clogged.

FIG. 4C

8

ASSEMBLY

02214

DUMP HANDLE TUBE

RE TA IN ER SPRING

1/4 X 2" CARRIAGE BOLTS

1/4 LOCK NUT

FRONT BAGGER TUBE

CLEVIS PIN

CAP

02593

VINYL BINDING

FIG. 6

BAGGER ADJUSTMENT (See Fig. 7)

For proper bag function and appearance, it may be nec es sary to adjust the bagger assembly. There should be 6mm (1/4")-9mm (3/8") gap between the bagger top and fender and the bagger top surface should be even with the top surface of the fender. To adjust bagger position:

HORIZONTAL ADJUSTMENT

• Slightly loosen the nuts securing the bagger RH and LH hor i zon tal adjustment brackets. Loosen only enough so the brackets keep their position, but allow them to be moved.

• Move the brackets the amount forward or back ward you wish the bag assembly to move. Retighten the nuts securely.

TO ASSEMBLE AND INSTALL MULCHER PLUG (See Fig. 8)

• Remove spring retainer and pin from handle.

• Insert plug into handle. Make sure that the letter "A" on both the plug and handle are on the same side and that they can both be seen from the top when laying on the ground.

• Secure with pin and retainer spring provided. For in stal la tion see "To Convert Mower" in Section 5 of this manual.

HAN DLE

RE TA IN ER SPRING

PLUG

FIG. 8

A

VERTICAL ADJUSTMENT

• Slightly loosen the nuts securing the vertical adjustment brackets. Loosen only enough so the brackets keep their position, but allow them to be moved.

• Move the brackets the amount up or down you wish the bag assembly to move. Retighten the nuts securely.

• Reinstall the bagger as sem bly and check the bagger to fender ﬁ t. If necessary, repeat the procedure until proper ﬁ t is attained.

6MM (1/4") - 9MM (3/8")

TOP SURFACES EVEN

HOR I ZON TA L AD JUST MENT BRACKET

VERTICAL AD JUST MENT BRACK ET

02329

FIG. 7

9

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinﬂ ated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

• Reduce tire pressure to PSI shown in “PRODUCT SPEC I FI CA TIONS” section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Ser vice and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL BELTS

See the ﬁ gures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments sec tion of this manual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual.

✓

CHE CKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW TRAC TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE AND SATISFACTION FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been completed. ✓ No remaining loose parts in carton. ✓ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

✓ Seat is adjusted comfortably and tightened securely. ✓ All tires are properly inﬂ ated. (For shipping purposes,

the tires were overinﬂ ated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be properly inﬂ ated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY EXTRA ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:

✓ Engine oil is at proper level. ✓ Fuel tank is ﬁ lled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls - their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition. ✓ It is important to purge the transmission before op er -

at ing your tractor for the ﬁ rst time. Follow proper starting and transmission purging instructions (See “TO START ENGINE” and “PURGE TRANSMISSION” in the Op er a tion section of this manual).

10

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

REVERSE

ENGINE OFF

OVER TEMP

LIGHT

ATTACHMENT

CLUTCH ENGAGED

(Automatic Models only)

LIGHTS ON

FREE WHEEL

NEUTRAL

FUEL

ATTACHMENT

CLUTCH DISENGAGED

HIGH

ENGINE ON

OIL PRESSURE

LOW

ENGINE START

BATTERY

DANGER, KEEP HANDS

AND FEET AWAY

CHOKE

PARKING BRAKE

REVERSE

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

FAST

P

FORWARD

KEEP AREA CLEAR

SLOW

PARKING BRAKE

LOCKED

MOWER HEIGHT

15

SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

IGNITION

PARKING BRAKE

UNLOCKED

MOWER LIFT

15

Failure to follow instructions could result in serious injury or death. The safety alert symbol is used to identify safety information about hazards which can result in death, serious injury and/or property damage.

CAUTION when used without the alert symbol, indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

FIRE indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

11

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference.

LIGHT SWITCH POSITION

IGNITION

CLUTCH/BRAKE PEDAL

THROTTLE CONTROL

CHOKE CONTROL

HEIGHT ADJUSTMENT KNOB

AMMETER

SWITCH

0

60

AMPS

HOURMETER

ELAPSEDTIME

0000000000

HOURS 1/10

02768

ATTACHMENT CLUTCH SWITCH

LIFT LEVER PLUNGER

ATTACHMENT LIFT LEVER

PA RK IN G BRAKE

MOTION CONTROL LEVER

FREEWHEEL CONTROL

Our tractors conform to the safety standards of the American National Standards Institute.

AMMETER - Indicates charging (+) or discharging (-) of battery.

ATTACHMENT CLUTCH SWITCH - Used to engage the mower blades, or other attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to raise and lower the mower deck or other attachments mounted to your tractor.

CHOKE CONTROL - Used when starting a cold engine. CLUTCH/BRAKE PEDAL - Used for declutching and

brake. FREEWHEEL CONTROL - Disengages transmission for

pushing or slowly towing the tractor with the engine off. HEIGHT ADJUSTMENT KNOB - Used to adjust the mow er

cutting height.

FIG. 9

HOURMETER - Indicates hours of operation.

IGNITION SWITCH - Used for starting and stopping the

engine. LIFT LEVER PLUNGER - Used to release attachment lift

lever when changing its position. LIGHT SWITCH POSITION - Turns the headlights on and

off. MOTION CONTROL LEVER - Selects the speed and

di rec tion of tractor. PARKING BRAKE - Locks clutch/brake pedal into the

brake position.

THROTTLE CONTROL - Used to control engine speed. ing the tractor and starting the engine.

12

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 10)

Your tractor is equipped with an operator presence sens ing switch. When engine is running, any attempt by the op er a tor to leave the seat without ﬁ rst setting the parking brake will shut off the engine.

• Depress clutch/brake pedal into full “BRAKE” position and hold.

• Place parking brake lever in “ENGAGED” position and re lease pressure from clutch/brake pedal. Pedal should re main in “BRAKE” position. Make sure parking brake will hold tractor secure.

PARKING BRAKE "ENGAGED"

CHOKE CONTROL

THROTTLE CONTROL LEVER

"BRAKE" POSITION

CLUTCH/BRAKE PEDAL "DRIVE" POSITION

POSITION

02149

PUSH IN TO "DISENGAGE"

HEIGHT ADJUSTMENT KNOB

FIG. 10

STOPPING (See Fig. 10)

MOWER BLADES -

• To stop mower blades,move attachment clutch switch to “DIS EN GAGED” po si tion.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into full “BRAKE” position..

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/ BRAKE PEDAL IS DEPRESSED.

ENGINE -

• Move throttle control between half and full speed (fast) position.

NOTE: Failure to move throttle control between half and full speed (fast) position, before stop ping may cause engine to “backﬁ re”.

• Turn ignition key to “ Always remove key when leaving tractor to prevent un author ized use.

• Never use choke to stop engine.

STOP” position and remove key.

ATTACHMERNT CLUTCH SWITCH PULL OUT TO"EN GAGE"

IGNITION KEY

PARKING BRAKE "DISENGAGED" POSITION

MOTION CONTROL LEVER

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY TO BE DIS CHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot en gine exhaust gases may cause “browning” of grass. To eliminate this possibility, al ways stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com plete ly, as described above, before leav ing the operator's position; to empty grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 10)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the battery charging rate.

• Full throttle of fers the best bagging and mower per for mance.

TO USE CHOKE CONTROL (See Fig. 10)

Use choke control whenever you are starting a cold engine. Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD (See Fig. 10)

The direction and speed of movement is controlled by the motion control lever.

• Start tractor with motion control lever in neutral (N) position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT (See Fig. 10)

The cutting height is controlled by turning the height ad just ment knob in desired direction.

• Turn knob clockwise (

) to raise cutting height.

• Turn knob counterclockwise ( ) to lower cutting height.

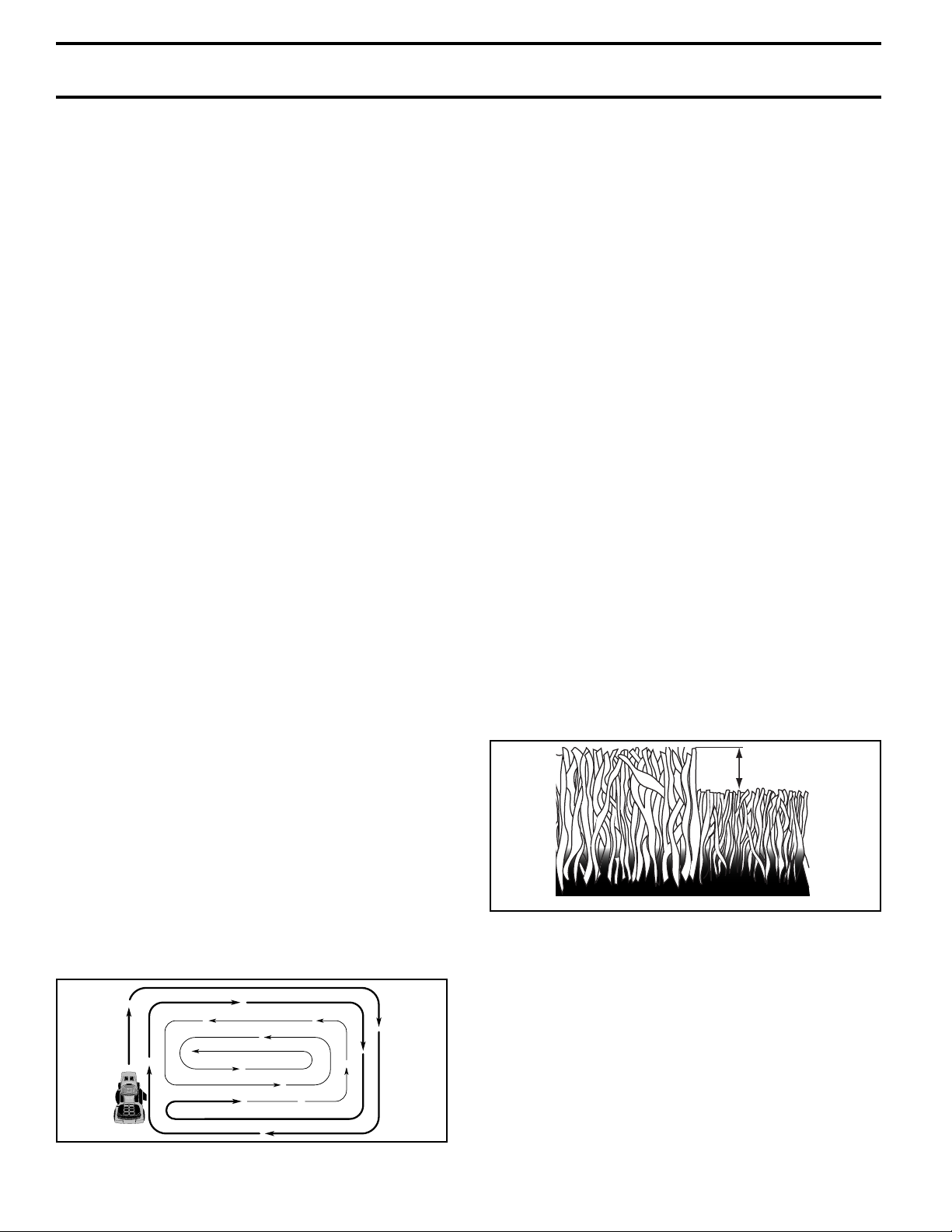

The cutting height range is approximately 1-1/2" to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are ap proxi mate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in height should be mowed twice. Make the ﬁ rst cut relatively high; the second to desired height.

13

OPERATION

02219

TO ADJUST GAUGE WHEELS (See Fig. 11)

Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.

NOTE:Adjust gauge wheels with tractor on a ﬂ at level surface.

• Adjust mower to desired cutting height (See “TO AD JUST MOWER CUT TING HEIGHT” in the Operation sec tion of this manual).

• With mower in desired height of cut po si tion, gauge wheels should be assembled so they are slightly off the ground. In stall gauge wheel in appropriate hole with shoulder bolt, 3/8 washer, and 3/8-16 locknut and tighten se cure ly.

• Repeat for opposite side installing gauge wheel in same adjustment hole.

LOCKNUT

3/8 WASHER

CAUTION: Do not operate the mower without either the en tire grass catcher, on mowers so equipped, or the deﬂ ector shield in place.

TO OPERATE ON HILLS

WARNING: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.

• Choose the slowest speed before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/ BRAKE PED AL IS DEPRESSED.

• To restart movement, slowly release parking brake and clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

SHOULDER BOLT

FIG. 11

TO OPERATE MOWER (See Fig. 12)

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitating or cutting off when operating your equipment on rough, rolling terrain or hills.

• Select desired height of cut.

• Lower mower with attachment lift control.

• Start mower blades by engaging attachment clutch control.

• TO STOP MOWER BLADES - disengage attachment clutch con trol.

AT TAC H MENT LIFT LEVER HIGH PO SI TION

LOW

ATTACHMERNT CLUTCH SWITCH PULL OUT TO"EN GAGE"

PUSH IN TO "DISENGAGE"

FIG. 12

POSITION

TO TRANSPORT (See Figs. 9 and 13)

When push ing or tow ing your trac tor, be sure to disengage transmission by placing freewheel control in free wheel ing po si tion. Free wheel control is located under the seat.

• Raise attachment lift to highest position with at tach ment lift control.

• Raise seat and pull freewheel control up and back into the slot and release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

Transmission Engaged

Transmission Disengaged

FIG. 13

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER AT TAC H MENTS

Tow only the attachments that are recommended by and comply with speciﬁ cations of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

14

OPERATION

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the factory, already ﬁ lled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil ﬁ ll cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overﬁ ll.

• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of ﬁ ller neck. Do not overﬁ ll. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open ﬂ ame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE GAS O LINE TO HELP INSURE GOOD COLD WEATHER START ING.

CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during stor age. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage In struc tions for ad di tion al information. Never use engine or car bu re tor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 9)

When starting the engine for the ﬁ rst time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged position.

• Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt. For a warm engine start attempt the choke control may not be needed.

NOTE: Before starting, read the warm and cold starting procedures below.

• Insert key into ignition and turn key clockwise to “START” position and release key as soon as engine starts. Do not run starter continuously for more than ﬁ fteen sec onds per minute. If the engine does not start after several attempts, push choke control in, wait a few minutes and try again. If engine still does not start, pull the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. Continue to push the choke control in small steps allowing the engine to accept small changes in speed and load, until the choke control is fully in. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly. This may require an engine warm-up period from several sec onds to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather, the trans mis sion should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neu tral. Re lease the parking brake and let the clutch/brake slowly return to operating po si tion.

• Allow one minute for transmission to warm up. This can be done during the engine warm up period.

• The attachments can be used during the engine warmup period after the transmission has been warmed up and may require the choke con trol be pulled out slight ly.

NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. See “TO ADJUST CARBURETOR” in the Service and Ad just ments section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disengage freewheel lever while the engine is run ning.

To ensure proper operation and performance, it is rec om mend ed that the transmission be purged before operating tractor for the ﬁ rst time. This procedure will remove any trapped air inside the transmission which may have de vel oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION RE QUIRE REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD BE PURGED AFTER REINSTALLATION BEFORE OPERATING THE TRACTOR.

15

mulcher_9

OPERATION

• Place tractor safely on level surface with engine off and parking brake set.

• Disengage transmission by placing freewheel control in freewheeling position (See “TO TRANSPORT” in this section of manual).

• Sitting in the tractor seat, start engine. After the engine is running, move throttle control to slow position. With motion control lever in neutral (N) po si tion, slowly disengage clutch/brake pedal.

• Move motion control lever to full forward position and hold for ﬁ ve (5) seconds. Move lever to full reverse position and hold for ﬁ ve (5) seconds. Repeat this procedure three (3) times.

NOTE: During this procedure there will be no movement of drive wheels. The air is being removed from hydraulic drive system.

• Move motion control lever to neutral (N) position. Shutoff engine and set parking brake.

• Engage transmission by placing freewheel control in driving position (See “TO TRANSPORT” in this sec tion of manual).

• Sitting in the tractor seat, start engine. After the engine is running, move throttle control to half (1/2) speed. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal.

• Slowly move motion control lever forward, after the tractor moves approximately ﬁ ve (5) feet, slowly move motion control lever to reverse position. After the tractor moves approximately ﬁ ve (5) feet return the motion control lever to the neutral (N) position. Repeat this procedure with the motion control lever three (3) times.

• Your transmission is now purged and now ready for normal op er a tion.

MOWING TIPS

• Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim ming.

• Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the machine. This will result in a more even dis tri bu tion of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until ﬁ nished (See Fig. 14).

• If grass is extremely tall, it should be mowed twice to reduce load and possible ﬁ re hazard from dried clip pings. Make ﬁ rst cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

• Always operate engine at full throttle when mow- ing to assure better mowing performance and proper dis charge of material. Regulate ground speed by se lect ing a low enough gear to give the mower cut ting per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed that will suit the terrain and give best performance of the at tach ment being used.

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH. CLEAN AFTER EACH USE.

• The spe cial mulch ing blade will recut the grass clip pings many times and reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed. Also, the mulched grass will biodegrade quick ly to provide nutrients for the lawn. Always mulch with your highest engine (blade) speed as this will pro vide the best recutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet grass tends to form clumps and interferes with the mulch ing action. The best time to mow your lawn is the early afternoon. At this time the grass has dried the newly cut area will not be exposed to direct sunlight.

• For best results, adjust the mower cutting height so that the mower cuts off only the top one-third of the grass blades (See Fig. 15). For ex tremely heavy mulch ing, re duce your width of cut on each pass and mow slow ly.

MAX 1/3

FIG. 15

• Cer tain types of grass and grass con di tions may re quire that an area be mulched a second time to com pletely hide the clippings. When doing a sec ond cut, mow across (perpendicular) to the ﬁ rst cut path.

• Change your cutting pattern from week to week. Mow north to south one week then change to east to west the next week. This will help prevent matting and graining of the lawn.

FIG. 14

00272

16

OPERATION

02306

TO DUMP BAGGER (See Fig.16)

Your tractor is equipped with a Dump Bag Alarm. To turn off the alarm disengage the attachment clutch switch.

• Position tractor in location you wish to dump bag ger.

• Place motion control lever in Neu tral po si tion and set parking brake.

• Raise dump handle to its highest position. Pull handle forward to raise bagger and dump clippings.

• To continue mowing, be sure bag ger is down and in proper operating po si tion which will allow mower to

operate.

MULCHER PLUG

2331 0

FIG. 17

BAGGING (See Fig.18)

• Place deck into the high cut po si tion.

• Remove the rear discharge deﬂ ector or mulching plug.

• Insert the discharge chute into the opening in the backplate and onto the mower deck adaptor.

• Attach the chute to the tractor by hooking the two straps to the ﬂ ange of the chute.

NOTE: The strap hook must go through the discharge chute only. Do not allow the hook to enter the slot in the tractor back plate. If it does, the discharge chute will not ﬂ oat with the mower deck when mowing on uneven terrain.

• Install bagger onto tractor.

02207

FIG. 16

TO CONVERT MOWER (See Fig.17)

(Converting to mulching or rear dis charg ing will require a mulcher plug and discharge deﬂ ector)

MULCHING (Requires mulcher plug)

• Place deck into the high cut po si tion.

• Remove bagger or optional rear dis charge de ﬂ ec tor.

• Unhook the two (2) straps and re move discharge chute

• Insert mulcher plug and handle as sem bly through back plate and onto the mower deck chute adap tor.

• Secure the plug assembly by con nect ing the two straps over the han dle and hook into the holes pro vid ed .

• Replace bagger or optional rear dis charge de ﬂ ec tor to allow mower to operate.

You are now ready to begin mulching.

DISCHARGE CHUTE

HOOK

BACKPLATE SLOT

FIG. 18

REAR DISCHARGING (optional accessory re quired)

• Place deck into the high cut position.

• Remove bagger and mulching plug (if installed).

• Depress rear door and install dis charge chute through opening in backplate and slide over deck adaptor.

• Attach the chute by hooking the two straps into the holes in the ﬂ ange of the chute.

NOTE: The strap hook must go through the discharge chute only. Do not allow the hook to enter the slot in the tractor back plate. If it does, the discharge chute will not ﬂ oat with the mower deck when mowing on uneven terrain.

• Install the discharge deﬂ ector to the backplate by screw ing the four (4) wing screws into the threaded inserts located in the backplate.

• Tighten the wing screws securely.

17

MAINTENANCE

MAINTENANCE SCHEDULE

FILL IN DATES AS YOU COMPLETE REGULAR SERVICE

Check Brake Operation

Check Tire Pressure

Check Operator Presence and Interlock Systems

T

Check for Loose Fasteners

R A

Sharpen/Replace Mower Blades

C

Lubrication Chart

T

Check Battery Level

0

Clean Battery and Terminals

R

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

Change Engine Oil (without oil filter)

E

Clean Air Filter

N G

Clean Air Screen

I

Inspect Muffler/Spark Arrester

N

Replace Oil Filter (If equipped)

E

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year you should replace the spark plug, clean or replace air ﬁ lter, and check blades and belts for wear. A new spark plug and clean air ﬁ lter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

BEFORE STORAGE

EVERY 8 HOURS

EVERY 25 HOURS

EVERY 50 HOURS

3

4

1,2

2

1

3 - Replace blades more often when mowing in sandy soil. 4 - Not required if equipped with maintenance-free battery. 5 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum.

Do not overtighten.

EVERY SEASON

EVERY 100 HOURS

5

,

2

SERVICE DATES

LUBRICATION CHART

➀ SPINDLE ZERK

➀ FRONT WHEEL

BEARING ZERK

➀ STEERING

SECTOR GEAR TEETH

maint_sch-tractore.new1

➀ SPINDLE ZERK

➀ FRONT WHEEL

BEARING ZERK

➁ ENGINE

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

➀ General Purpose Grease

➁ Refer to Maintenance “ENGINE” Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS. IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONLY A DRY, POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

18

MAINTENANCE

TRACTOR

Al ways ob serve safe ty rules when per form ing any main te nance.

BRAKE OPERATION

If tractor requires more than ﬁ ve (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake must be checked and adjusted, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See “PROD UCT

SPEC I FI CA TIONS” section of this man ual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock sys tems are work ing properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the clutch/brake

pedal is fully depressed and attachment clutch control is in the disengaged position.

• When the engine is running, any attempt by the op er a tor

to leave the seat without ﬁ rst setting the parking brake should shut off the engine.

• When the engine is running and the at tach ment clutch

is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

• When the engine is running and the bagger or optional

deﬂ ector are not installed the mower should not op er ate.

BLADE CARE

For best results mower blades must be kept sharp. Replace bent or damaged blades.

IMPORTANT: THE BLADES ON YOUR MOW ER ARE NOT THE SAME AND MUST BE INSTALLED ON THE CORRECT SIDE. IT IS SUG GEST ED THAT YOU WORK ON ONE BLADE AT A TIME TO ENSURE PROP ER ASSEMBLY OF COMPONENTS.

CAUTION: Use only a replacement blade approved by the manufacturer of your tractor. Using a blade not approved by the manufacturer of your tractor is hazardous, could damage your tractor and void your warranty.

02223

6 STAR PATTERN BLADE W/LEFT HAND THREAD ED BOLT

5 STAR PATTERN BLADE W/RIGHT HAND THREAD ED BOLT

FIG.19

5 STAR PATTERN BLADE

The center of this blade has a ﬁ ve (5) star pattern. The bolt that attaches this blade has nor mal Right Hand threads that loosens by turn ing ( ) counterclockwise and tight ens by turning ( ) clockwise.

TRAILING

BLADE BOLT RIGHT HAND THREADED

FLAT WASHER

LOCK WASHER

EDGE

RH

5 STAR CENTER HOLE

BLADE

MANDREL ASSEMBLY

5 STAR PATTERN

FIG.20

6 STAR PATTERN BLADE

The center of this blade has a 6 star pattern. The bolt at tach ing this blade has Left Hand threads that loosens by turning ( ) clockwise and tight en by turning ( ) coun ter - clock wise.

LH

TRAILING EDGE

MANDREL ASSEMBLY

6 STAR PATTERN

BLADE

BLADE BOLT LEFT HAND THREADED

FLAT WASHER

6 STAR CENTER HOLE

LOCK WASHER

19

FIG. 21

MAINTENANCE

BLADE REMOVAL

• Raise mower to highest position to allow access to

blades.

• Remove blade bolt, lock washer and ﬂ at washer se-

cur ing blade.

• Install new or resharpened blade with trail ing edge up

towards deck as shown.

IMPORTANT: To ensure proper as sem bly, center hole in blade must align with star on mandrel assembly.

• Reassemble blade bolt, lock washer and ﬂ at washer

in exact order as shown.

• Tighten blade bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat treated

BATTERY

Your tractor has a battery charging system which is suf ﬁ cient for normal use. However, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is main te nance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Remove battery cover.

• Disconnect BLACK battery cable ﬁ rst then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “CONNECT BATTERY” in the

As sem bly sec tion of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not ad just able. Re place belts if they begin to slip from wear.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and ﬂ uid main te nance is not required for the life of the transaxle. Should the transaxle ever leak or require servicing, contact your near est au tho rized ser vice center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classiﬁ cation SG-SL. Select the oil’s SAE viscosity grade according to your expected operating temperature.

SAE VISCOSITY GRADES

SAE 30

5W-30

-20 0 30 40

F

C

-30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

-20 0

-10

32

60

10

20 30 40

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and after each eight (8) hours of operation. Tighten oil ﬁ ll cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Fig. 22)

Determine temperature range expected before oil change. All oil must meet API service classiﬁ cation SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil ﬁ ll cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

• Remove yellow cap from bottom ﬁ tting of drain valve and install the drain tube onto the ﬁ tting.

OIL DRAIN VALVE

80

oil_visc_chart1_e

100

TRANSAXLE COOLING

The transmission fan and cooling ﬁ ns should be kept clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent pos si ble damage to seals, do not use high pressure water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and clean.

• Inspect cooling ﬁ ns for dirt, grass clippings and other materials. To prevent damage to seals, do not use compressed air or high pressure sprayer to clean cooling ﬁ ns.

20

CLOSED AND LOCKED POSITION

YEL LOW CAP

FIG. 22

63

4

2

0

DRAIN TUBE

MAINTENANCE

• Unlock drain valve by pushing inward and turning coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the bottom ﬁ tting of the drain valve.

• Reﬁ ll engine with oil through oil ﬁ ll dipstick tube. Pour slowly. Do not overﬁ ll. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man u al.

• Use gauge on oil ﬁ ll cap/dipstick for checking level. For accurate reading, insert dipstick into the tube and push down ﬁ rmly into place before removing. Keep oil up to, but not over, the “FULL” line on dipstick. Push dipstick down ﬁ rmly into the tube when ﬁ nished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or compressed air to re move dirt and stubborn dried gum ﬁ bers. See engine manual.

AIR FILTER

Your engine will not run properly using a dir ty air ﬁ lter. Clean the foam pre-cleaner after every 25 hours of op er a tion or every season. Service paper cartridge every 50 hours of operation or every season, whichever occurs ﬁ rst. See engine manual.

MUFFLER

Inspect and replace corroded mufﬂ er and spark arrester (if equipped) as it could create a ﬁ re hazard and/or damage.

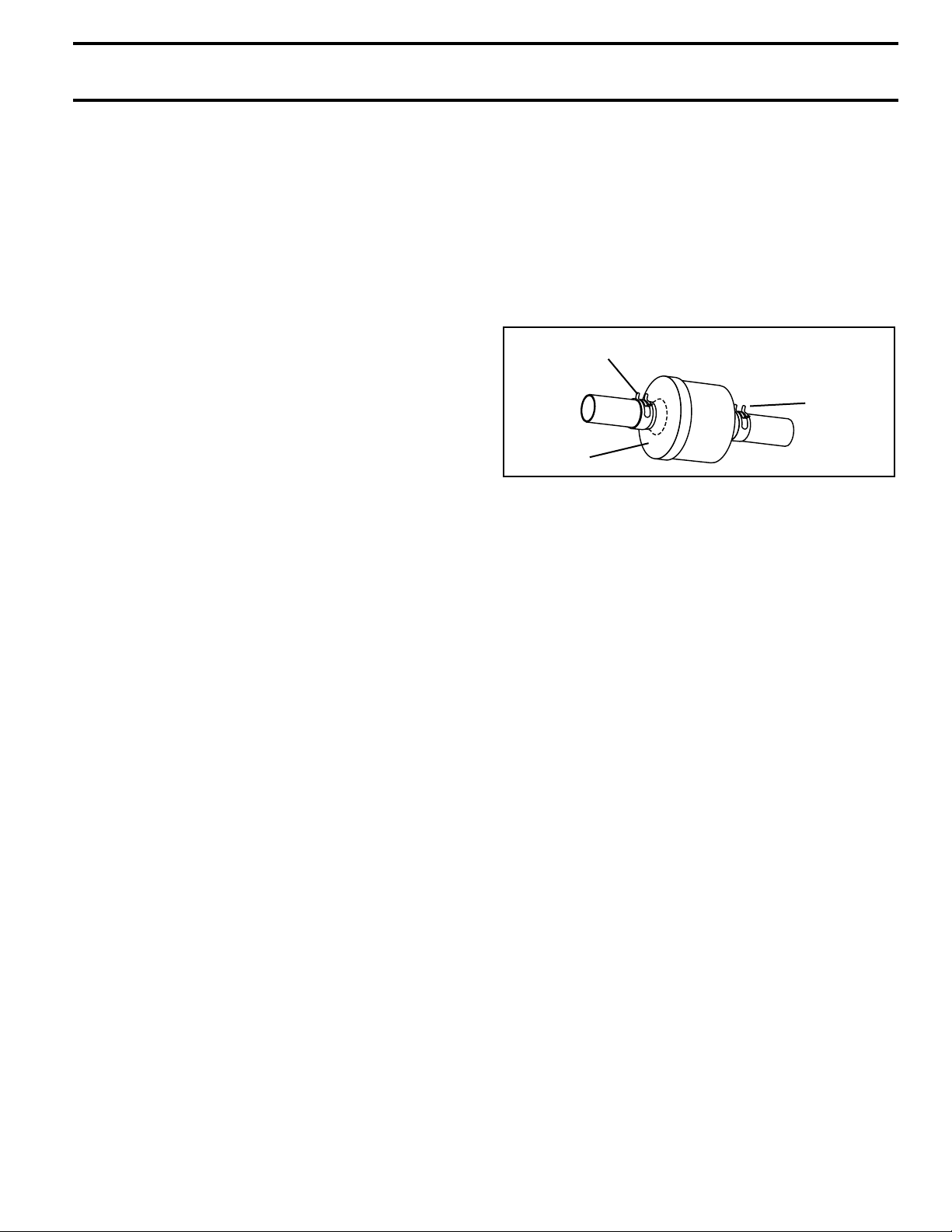

IN-LINE FUEL FILTER (See Fig. 23)

The fuel ﬁ lter should be replaced once each season. If fuel ﬁ lter becomes clogged, ob struct ing fuel ﬂ ow to car bu re tor, re place ment is re quired.

• With engine cool, remove ﬁ lter and plug fuel line sec tions.

• Place new fuel ﬁ lter in position in fuel line with arrow pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FUEL FILTER

FIG. 23

00667

CLEANING

• Clean engine, battery, seat, ﬁ nish, etc. of all foreign matter.

• Keep ﬁ nished surfaces and wheels free of all gasoline, oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure washer to clean your tractor unless the engine and transmission are covered to keep water out. Water in engine or transmission will shorten the useful life of your tractor. Use compressed air or a leaf blower to remove grass, leaves and trash from tractor and mower.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs ﬁ rst. Spark plug type and gap setting are shown in “PROD UCT SPECIFICATIONS” section of this manual.

ENGINE OIL FILTER

Replace the engine oil ﬁ lter every season or every other oil change if the tractor is used more than 100 hours in one year. See engine man u al.

21

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 24)

Mower will be eas i er to re move from the right side of trac tor.

• Place attachment clutch control in “DISENGAGED” po si tion.

• Move attachment lift lever forward to lower mower to its lowest position.

• Roll belt off clutch pulley.

• Disconnect anti-sway bar from chassis bracket by re mov ing re tain er spring.

• Disconnect suspension arms from rear deck brackets by removing retainer springs.

• Disconnect front links from deck by removing retainer springs.

• Raise lift lever to raise suspension arms. Slide mower out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE MOWER DECK IS TO BE MOUNTED ON THE TRACTOR, REMOVE THE FRONT LINKS.

RETAINER SPRING

TO INSTALL MOWER (See Fig. 24)

Be sure tractor is on level surface and mower suspension arms are raised with attachment lift control. Engage park ing brake.

• Slide mower under tractor.

IMPORTANT: Check belt for proper routing in all mower pulley grooves.

• Install belt into clutch pulley groove.

• Install left front link into the left hand front mower bracket (retain with single loop retainer springs as shown).

• Slide right side of mower back and install right front link into right hand front mower bracket (retain with single loop retainer springs).

• Place the suspension arms on mower pins, if nec es sary, rock and raise front of mower to align mower pins with the holes in suspension arms. Retain with double loop retainer spring, loop down as shown.

• Connect anti-sway bar to chassis bracket under left footrest and retain with double loop retainer spring.

• Raise deck to highest position.

SUSPENTION ARMS

CLUTCH PULLEY

RETAINER SPRING

FRONT LINKS

RETAINER SPRINGS

ANTI SWAY BAR

FIG. 24

22

SERVICE AND ADJUSTMENTS

01268

01267

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inﬂ ated (See “PROD UCT SPECIFICATIONS” section of this manual). If tires are over or underinﬂ ated, you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 25 and 26)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height from bot tom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other.

• If adjustment is necessary, make adjustment on one side of mower only.

• To raise one side of mower, tighten lift link ad just ment nut on that side.

• To lower one side of mower, loosen lift link ad just ment nut on that side.

NOTE: Three full turns of adjustment nut will change mower height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE OF MOWER TO GROUND

00598

BOTTOM EDGE OF MOWER TO GROUND

• If links are not equal in length, adjust one link to same length as other link.

• To lower front of mower loosen nut “E” on both front links an equal number of turns.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links.

• To raise front of mower, loosen nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns. The two front links must remain equal in length.

• When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trunnion on both front links.

• Recheck side-to-side adjustment.

MANDREL

"D"

FIG. 27

“A”

GROUND LINE

“A”

FIG. 25

SUSPENSION ARM

01553

LIFT LINK ADJUSTMENT NUT

FIG. 26

FRONT-TO-BACK ADJUSTMENT (See Figs. 27 and 28)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS NECESSARY, BE SURE TO AD JUST BOTH FRONT LINKS EQUAL LY S O MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position.

Check adjustment on right side of tractor. Measure dis tance “D” directly in front and behind the mandrel at bottom edge of mower housing as shown.

• Before making any necessary adjustments, check that both front links are equal in length.

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "E"

NUT "F"

TRUNNION

01156

FRONT LINKS

FIG. 28

23

SERVICE AND ADJUSTMENTS

02232_Hydro

TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 29)

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See “TO REMOVE MOW ER” in this section of this manual).

• Remove screws from RH mandrel cover and remove cover.

• Remove screws from LH mandrel cover and remove cover.

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal. See belt routing decal located on right mandrel cover.

• Make sure belt is in all pulley grooves and in side all belt guides.

• Install left and right mandrel covers and tighten se cure ly. Make sure belt is in mandrel pulley cover.

• Install mower (see "To install mower" in this section of this manual).

LH MANDREL COVER

RH MAN DREL COVER

BELT

The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, the brake needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE

• Depress clutch/brake pedal all the way down and en gage parking brake.

• Measure distance between brake operating arm and nut “A” on brake rod.

• If distance is other than 1-9/16", loosen jam nut and turn nut “A” until distance becomes 1-9/16". Retighten jam nut against nut “A”.

• Engage transmission by placing freewheel control in “trans mis sion engaged” position.

• Road test tractor for proper stopping distance as stated above. Readjust if nec es sary. If stopping distance is still greater than ﬁ ve (5) feet in high est gear, further main te nance is nec es sary. Replace brake pads or contact a qualiﬁ ed service center.

WITH PARKING BRAKE “ENGAGED”

NUT “A”

JAM NUT

1-9/16"

OPERATING ARM

MANDREL PULLEY

IDLER PULLEY

MANDREL PULLEY

IDLER PULLEY

FIG. 29

TO CHECK AND ADJUST BRAKE (See Fig. 30)

Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle.

If tractor requires more than ﬁ ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed.

TO CHECK BRAKE

• Park tractor on a level, dry concrete or paved surface, depress clutch/brake pedal all the way down and engage parking brake.

• Disengage transmission by placing freewheel control in “transmission disengaged” position. Pull freewheel con trol out and into the slot and release so it is held in the disengaged position.

DO NOT TOUCH THIS NUT. IF FURTHER BRAKE AD JUST MENT IS NECESSARY CONTACT YOUR NEAR EST AU THO RIZED SERVICE CENTER/DEPARTMENT

FIG. 30

TO REPLACE MOTION DRIVE BELT (See Fig. 31)

Park the tractor on level surface. En gage parking brake. For as sis tance, there is a belt installation guide decal on bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See “TO RE MOVE MOWER” in this section of manual).

NOTE: Observe entire motion drive belt and position of all belt guides and keepers.

• Disconnect clutch wire harness.

• Remove clutch locator.

• Remove belt from clutching idler and all stationary idlers.

• Remove belt downward from engine pulley and around electric clutch.

• Pull belt slack toward rear of trac tor. Carefully remove belt up wards from trans mis sion input pulley and over cooling fan blades.

24

SERVICE AND ADJUSTMENTS

02239

00

663

BELT INSTALLATION -

• Carefully work new belt down around transmission cooling fan and onto the input pulley.

• Pull belt toward front of tractor and roll belt around electric clutch and onto engine pulley.

• Install belt through all stationary idlers and clutch ing idler.

• Reinstall clutch locator and tighten nut securely.

• Reconnect clutch harness.

• Make sure belt is in all pulley grooves and in side all belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this sec tion of manual).

CLUTCH LOCATOR

CLUTCH WIRE HAR NESS

TRANS MIS SION IN PUT PULLEY

02201

ELECTRIC CLUTCH

CLUTCHING IDLER

STATIONARY IDLERS

FIG. 31

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or replacement, it should be purged after reinstallation and before operating the tractor. See “PURGE TRANS MIS SION” in the Operation section of this manual.

TRANSAXLE MOTION CONTROL LE VER NEUTRAL ADJUSTMENT(See Fig. 32)

The motion control lever has been pre set at the factory and adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel, and lightly tighten.

• Start engine and move motion control lever until tractor does not move forward or backward.

• Hold motion control lever in that position and turn engine off.

• While holding motion control lever in place, loosen the adjustment bolt.

• Move motion control lever to the neutral (N) (lock gate) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to ad just ment bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satisﬁ ed.

MOTION CONTROL LEVER

NEUTRAL LOCK GATE

ADJUSTMENT BOLT

FIG. 32

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steer ing wheel and reassemble per instructions in the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toe-in or camber, contact your nearest authorized service center/department.

TO REMOVE WHEEL FOR REPAIRS (See Fig. 33)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

• Replace washers and snap retaining ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

WAS H ERS

RE TA IN ING RING

AXLE COVER

SQUARE KEY (REAR WHEEL ONLY)

25

FIG. 33

SERVICE AND ADJUSTMENTS

02141

TO START ENGINE WITH A WEAK BATTERY (See Fig. 34)

WAR NING: Lead-acid batteries gen- er ate ex plo sive gases. Keep sparks, ﬂ ame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the MAINTENANCE sec tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable ﬁ rst from chassis and then from the fully charged battery.

• RED cable last from both batteries.

TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 35)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD

HEADLIGHT WIRE CONNECTOR

FIG. 35

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and ad just ment should not be necessary. If adjustment is necessary, see engine manual.

02614

WEAK OR DEAD BATTERY

FULLY CHARGED BATTERY

FIG. 34

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the grill.

• Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO AD JUST CARBURETOR

The carburetor has been preset at the factory and ad just ment should not be necessary. However, minor ad just ment may be required to compensate for differences in fuel, temperature, altitude or load. If the carburetor does need adjustment, see engine manual.

26

STORAGE

Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.

WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open ﬂ ame or spark. Allow the engine to cool before storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thor oughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See “CLEANING” in the Main te nance section of this manual).

• Inspect and replace belts, if necessary (See belt re place ment instructions in the Service and Adjustments section of this manual).

• Lubricate as shown in the Maintenance section of this man ual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require recharging.

• To help prevent corrosion and power leakage during long periods of storage, battery cables should be dis con nect ed and battery cleaned thoroughly (see “TO CLEAN BATTERY AND TERMINALS” in the Maintenance sec tion of this manual).

• After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into cylinder(s).

• Turn ignition key to “START” position for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE AND EXHAUST AREAS ARE STILL WARM.

27

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine ﬂ ooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air ﬁ lter. 5. Clean/replace air ﬁ lter.

6. Dirty fuel ﬁ lter. 6. Replace fuel ﬁ lter.

7. Water in fuel. 7. Empty fuel tank and carburetor, reﬁ ll tank with fresh gasoline and replace fuel ﬁ lter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service Adjustments section.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start 1. Dirty air ﬁ lter. 1. Clean/replace air ﬁ lter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel ﬁ lter. 4. Replace fuel ﬁ lter.

5. Stale or dirty fuel. 5.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

Engine will not turn over 1. Brake pedal not depressed. 1. Depress brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery. start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air ﬁ lter. 4. Clean/replace air ﬁ lter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel ﬁ lter. 7. Replace fuel ﬁ lter.

8. Stale or dirty fuel. 8.

9. Water in fuel. 9. Empty fuel tank and carburetor, reﬁ ll tank with fresh gasoline and replace fuel ﬁ lter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/ﬁ ns. 11. Clean engine air screen/ﬁ ns.

12. Dirty/clogged mufﬂ er. 12. Clean/replace mufﬂ er.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments section.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Empty fuel tank and reﬁ ll tank with fresh, clean gasoline.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

28

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not when operator leaves seat corrected, contact an authorized service center/ with attachment clutch department. engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes. grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction. rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes. grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Switch is “OFF”. 1. Turn switch “ON”. (if so equipped) 2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Motion drive belt worn, damaged, or broken. 2. Replace motion drive belt.

3. Air trapped in transmission during shipment 3. Purge transmission. or servicing.

Engine “backﬁ res” when 1. Engine throttle control not set between half and 1. Move throttle control between half and full speed turning engine “OFF” full speed (fast) position before stopping engine. (fast) position before stopping engine.

Mower will not operate 1. Bagger or optional rear discharge deﬂ ector 1. Check bagger or optional rear discharge

is not installed correctly. deﬂ ector for proper installation

29

SERVICE NOTES

30

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

SCHEMATIC

AMMETER

BLACK

RED

B

G

L

(OPTIONAL)

A

WHITE

S

M

AI

A2

ORANGE

RED

FUSE

PTO (DISENGAGED)

RED

BLACK

BATTERY

RED

CG

F

H

B

E

A

D

SEAT SWITCH

(NOT OCCUPIED)

CLUTCH / BRAKE

(PEDAL UP)

SOLENOID

WHITE

RED

FBI BUZZER

ELECTRIC CLUTCH

BLACK

DIODE

STARTER

M

BLACK

FBI

SWITCH

BAG

INTERLOCK

BLACK

IGNITION SWITCH

CIRCUITPOSITION

OFF

M+G+A1

B+A1RUN/LIGHT

B+A1RUN

B+S+A1START

“MAKE”

NONE

A2+L

NONE

BLUE

BLUE RED

CARBURATOR SOLENOID

(IF SO EQUIPPED)

WIRING INSULATED CLIPS NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR

WIRING.

02766

GROUNDING

CONNECTOR

HOUR

METER

(OPTIONAL)

BLACK

FUEL LINE

RED

BROWN

87A

RELAY

G

H

87

30

FC

E

D

BLACK

CHARGING SYSTEM OUTPUT 16 AMP DC @ 3600 RPM

REGULATOR

8586

HEADLIGHTS

B

A

85 86

IGNITION

UNIT

87

30

87A

TWIN CYL. ENGINES)

RELAY

SPARK

PLUGS GAP

(2 PLUGS ON

ALTERNATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

BLACK

PTO SWITCH

CIRCUITPOSITION

OFF

NON-REMOVABLE

CONNECTIONS

C+G,B+H

C+F,B+E,A+DON

CONNECTIONS

BLACK

REMOVABLE

31

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

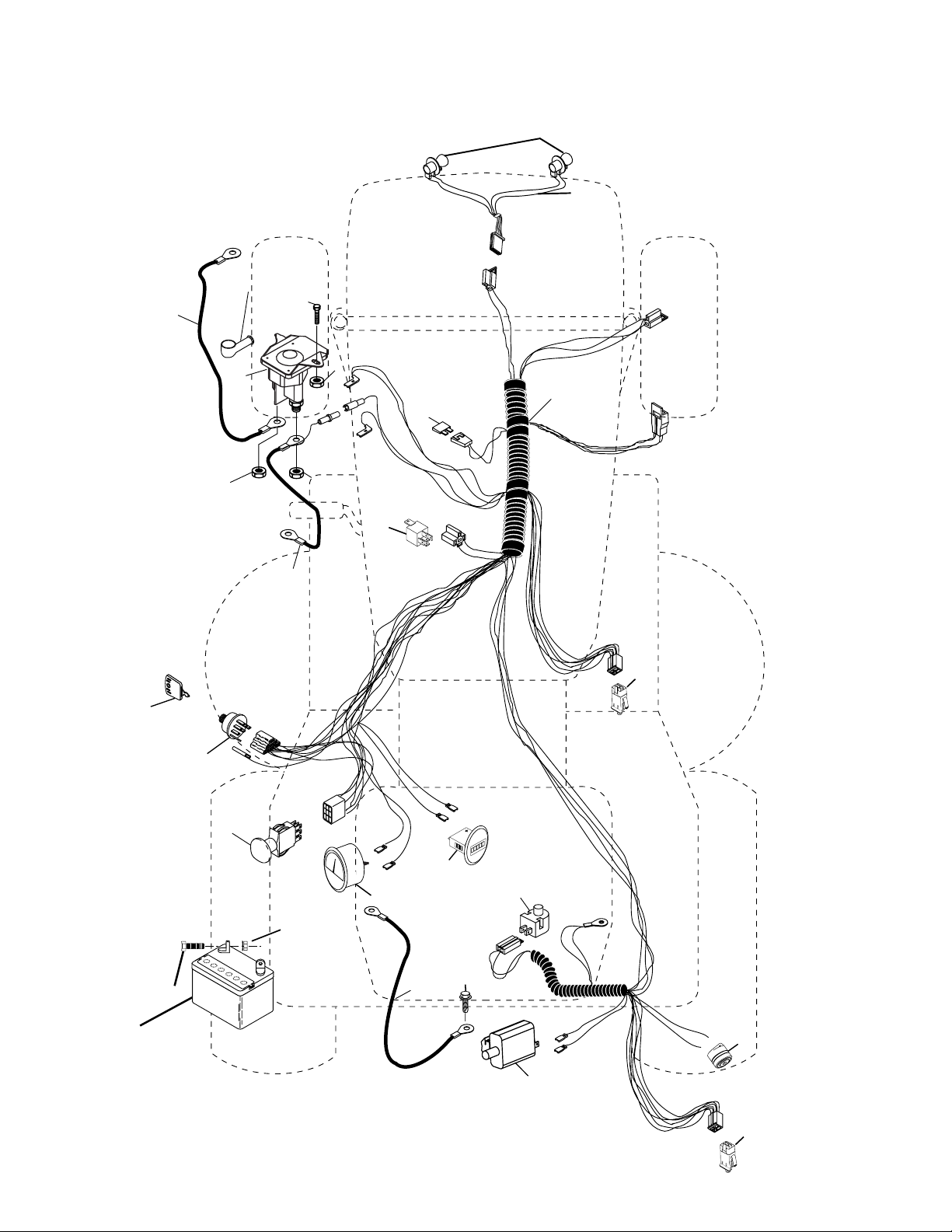

ELECTRICAL

22

21

33

24

27

43

42

41

27

40

26

27

81

25

16

30

50

0

6

0

AMPS

6

0

45

46

29

27

2

188039B

28

1

66

58

59

16

32

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

ELECTRICAL

KEY PART NO. NO. DESCRIPTION

1 532 14 49-27 Battery 2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 16 532 17 61-38 Switch Interlock 21 532 17 56-88 Harness Asm Light W/4152J 22 532 00 41-52 Bulb Light 24 532 12 47-80 Cable Starter 6 Ga. 11" Red 25 532 16 59-87 Cable Battery Crd 56" Red 26 532 17 51-58 Fuse 27 873 51 04-00 Nut Keps Hex 1/4-20 unc 28 532 12 77-25 Cable Ground 6 Ga. 18" Black 29 532 12 13-05 Switch Plunger Normal NC Gray 30 532 17 55-66 Switch Ignition 33 532 14 04-01 Key Ign 40 532 18 80-39 Harness Ign 41 871 11 04-08 Bolt Flk Fin Hex 1/4-20 unc x 1/2 42 532 13 15-63 Cover Terminal Red 43 532 19 25-07 Solenoid 45 532 17 75-00 Ammeter 46 532 17 75-01 Meter Hour Round 50 532 17 46-51 Switch PTO 58 532 16 94-19 Buzzer Crd 59 532 18 03-79 Switch FBI CRD 66 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt 79 532 17 52-42 Socket Asm. Bulb 81 532 10 97-48 Relay Asm

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

33

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

CHASSIS AND ENCLOSURES

42

43

266

173

185

172

179

187

189

209

175

186

198

188

187

170

207

188

171

209

189

164

209

3

265

26

190

209

29

278

256

165

17

24

161

89

30

278

28

25

171

184

209

26

25

69

31

209

9

24

278

54

58

54

155

278

213

214

11

209

3

26

209

8

64

209

154

209

8

35

10

33

209

3

162

24

26

6

1

13

145

37

209

35

37

278

209

205

24

163

2

209

38

34

205

38

26

chassis-stealth-CRD.stlt_3

34

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

CHASSIS AND ENCLOSURES

KEY PART NO. NO. DESCRIPTION

1 532 17 46-20 Chassis 2 532 18 03-84 Drawbar 3 817 06 06-12 Screw 3/8-16 x 3/4 6 532 18 44-19 Saddle 8 532 12 64-71 Clip Insulator 13/32 Mtg. Hole 9 532 19 58-86 Dash 10 872 14 06-08 Bolt, Carriage 3/8-16 x 3/4 11 532 16 72-03 Panel, Dash, L.H. 13 532 17 82-98 Panel, Asm. Dash R.H. 17 532 19 00-55 Hood 24 874 78 06-16 Bolt 25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga. 26 873 80 06-00 Nut 28 532 18 28-73 Grille 29 532 18 82-12 Light box Asm.

(Includes key nos. 258 & 259) 30 532 19 73-76 Fender 31 532 16 51-56 Bracket, Fender Support 33 532 18 10-57 Footrest, L.H. 34 532 18 10-58 Footrest, R.H. 35 872 11 06-06 Bolt 37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT 38 532 18 17-48 Bracket Asm Pivot Mower Rear 54 532 19 25-12 Screw WSHD Hex 10-32 x 5/8 58 532 18 98-76 Duct Air Engine 64 532 18 43-40 Bracket Dash Lower 69 532 14 24-32 Screw Hex Wsh 89 532 19 73-77 Console 145 532 15 65-24 Rod Pivot Chassis/Hood 154 532 18 39-25 Bracket Dash RH 155 532 18 39-26 Bracket Dash LH 161 532 16 46-55 Bumper Extrusion 162 532 18 03-82 Bracket Exten Chassis Lh CRD

KEY PART NO. NO. DESCRIPTION

163 532 18 03-83 Bracket Exten Chassis Rh CRD 164 532 16 56-05 Support Battery CRD 165 532 18 11-00 Cover Battery 170 532 17 88-62 Backplate Asm CRD 171 872 14 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5 172 819 13 20-16 Washer 13/32 x 1-1/4 x 16 Ga. 173 873 51 06-00 Nut, Keps Hex 3/8-16 unc 175 532 18 82-03 Door Trap 179 532 18 82-02 Rod Pivot FBI CRD 184 532 17 46-62 Bracket Actuator Bagger CRD 185 532 18 11-01 Knob Rod Brake Parking 186 532 16 07-93 Latch Asm Mulch/Bagger 187 532 12 50-04 Nut Weld 188 819 06 12-16 Washer #10 189 810 07 10-00 Washer Lock #10 190 871 08 10-10 Screw Pan Hd Phillip 10-24 x 5/8 198 532 16 89-37 Nut, Push 205 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2 209 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4 213 532 17 75-87 Skirt Grille LH 214 532 17 75-86 Skirt Grille RH 256 532 18 13-61 Cover Fender Rack CRD 258 532 16 18-42 Lens RH 259 532 16 18-41 Lens LH 265 532 18 57-04 Seal RH Side Bagger 266 532 18 57-03 Seal LH Side Bagger 278 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex 279 532 18 82-10 Bezel Dual

- - - 532 19 39-35 Plug Switch Light

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

35

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

DRIVE

183

95

16

96

199

183

81

180

16

84

16

57

255

199

169

183

35

38

197

171

36

199

214

47

52

207

186

163

51

172

167

10

14

51

185

199

243

120

254

183

187

202

182

261

26 51

181

151

51

260

171

50

150

48

63

179

178

179

168

166

62

184

180

26

40

38

42

39

35

56

177

42

36

159

161

207

112

171

21

8

36

35

14

163

82

165

158

162

83

156

187

20

34

65 17

66

37

9

258

183

263

43

259

50

27

49

47

263

76

78

75

74

drive-hydro_CRD_Laser_9

255

30

16

30

77

1

15

263

77

16

96

258

22

252

25

24

263

73

71

29

19

200

28

215

263

252

55

27

36

35

53

36

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

DRIVE

KEY PART NO. NO. DESCRIPTION

1 - - - - - - - Transaxle Hydro Gear 321-0510

(Order parts from transaxle manu-

facturer) 8 532 16 56-19 Rod, Shift Fender Adjust Lt 9 532 18 02-20 Clutch Ele 10 876 02 04-16 Pin, Cotter 1/8 x 1 14 810 04 04-00 Washer, Lock Hvy Helical 15 874 49 05-44 Bolt Hex FGHD 5/16-18 x Gr. 5 16 873 80 05-00 Nut, Lock Hex w/Ins 5/16-18 unc 17 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250 19 873 80 06-00 Nut Lock Hex w/Ins 3/8-16 unc 20 532 17 39-37 Bolt, Hex 7/16-20 x 4 Gr. 5 21 532 12 12-74 Knob Duckhead 1/4-13 unc Blk 22 532 17 56-07 Rod, Brake 24 873 35 06-00 Nut 25 532 19 20-36 Spring, Rod, Brake 26 819 13 13-16 Washer 13/32 x 7/8 x 16 Ga. 27 876 02 04-12 Pin, Cotter 1/8 x 3/4 28 532 17 57-65 Rod, Parking Brake 29 532 07 16-73 Cap, Parking Brake 30 532 16 95-92 Bracket, Mfg. Transaxle 34 532 17 55-78 Shaft, Asm Pedal Foot CRD 35 532 12 01-83 Bearing, Nylon 36 819 21 16-16 Washer 21/32 x 1 x 16 Ga. 37 532 12 49-63 Pin, Roll 3/16 x 1" 38 532 16 59-36 Pulley Flat Composite 3.06" 39 874 76 06-44 Bolt Fin Hex 3/8-16 unc x 2-3/4 40 532 12 49-65 Spacer, Split 395 x 59 Bzp 42 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga. 43 819 11 10-12 Washer 11/32 x 5/8 x 12 Ga. 47 532 12 77-83 Pulley, Idler, V Groove Plasitc 48 532 15 44-07 Bellcrank Clutch Grnd Drv 49 532 12 32-05 Retainer, Belt Style Spring 50 872 11 06-12 Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 51 873 68 06-00 Nut, Crownlock 3/8-16 unc 52 873 68 05-00 Nut Crownlock 5/16-18 53 532 10 57-10 Link, Clutch 7.66 55 532 10 57-09 Spring, Return, Clutch 56 817 06 06-20 Screw 3/8-16 x 1-1/4 57 532 17 01-40 V-Belt Kev 112" 0650 CRD 62 532 12 35-33 Cover, Pedal 63 532 18 03-97 Pulley, Engine 65 810 04 07-00 Washer 66 532 15 47-78 Keeper, Belt Engine F-Proof 71 532 16 91-83 Strap, Torque, Lh 73 532 16 91-82 Strap, Torque, Rh 74 532 13 70-57 Spacer, Split 75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga. 76 812 00 00-01 Ring, E 77 532 12 35-83 Key, Square 78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga. 81 532 17 00-06 Asm, Shaft 82 532 16 57-11 Spring, Torsion

KEY PART NO. NO. DESCRIPTION

83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga. 84 532 17 00-07 Link, Transaxle 95 532 17 00-15 Control Asm Bypass Hydro 96 532 12 47-88 Spring, Retainer 1” 112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga. 120 873 90 06-00 Nut Lock Flg. 3/8-16 unc 150 532 16 58-50 Bushing, Bellcrank Grnd Dr 151 819 13 32-10 Washer 13/32 x 2 x 10 Ga. 156 532 16 60-02 Washer Srrted 5/16ID x 1.125 158 532 16 55-89 Bracket Shift Mount 159 532 18 39-00 Hub Shift 161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 162 873 68 04-00 Nut Crownlock 1/4-20 unc 163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 165 532 16 56-23 Bracket Pivot Lever 166 817 49 05-10 Screw 5/16-18 x 5/8 167 532 16 55-88 Bracket Support Shift CRD 168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 169 532 16 55-80 Plate Fastening Lt 171 817 49 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-Tt 172 532 17 02-71 Shaft Asm Shifter Frt CRD 177 532 16 59-32 Keeper Flat Idler 3.06" CRD 178 532 16 59-33 Keeper Belt Idler 1.88" CRD 179 532 12 09-58 Washer Sintered 180 532 16 56-30 Pulley, Idler, Flat 1.88"CRD 181 532 18 02-11 Bracket Idler Ground Drive CRD 182 532 18 26-82 Keeper Belt 2.5" Od V-Idler CRD 183 532 18 60-07 Pulley V-Idler 2.50" Od CRD 184 817 49 06-44 Screw Hexwsh Thdrol 3/8-16 x 2-

3/4 185 532 17 00-08 Link Shift 186 532 16 56-14 Hub Tapered Round CRD 187 817 58 05-20 Screw Thdrol 5/16-18 x 1.25 197 532 16 96-13 Nyliner Snap-In 5/8 199 532 16 96-12 Bolt Shoulder 5/16-18 unc 200 872 14 05-08 Bolt RDHD SQNK 5/16-18 x 1 202 872 11 06-14 Bolt Carr. Sh. 3/8-16 x 1-3/4 Gr. 5 207 532 16 98-45 Washer Nylon Rear 214 532 17 56-09 Shaft Asm. Brake 215 532 17 56-52 Rod Brake Hydro 243 532 19 07-36 Bracket Anti-Rotation 252 819 13 16-16 Washer 13/32 x 1 x 16 Ga. 254 817 00 06-16 Screw 3/8-16 x 1 255 532 17 56-08 Brace Shaft Brake Mtg. 258 532 17 80-62 Clip Retainer 259 532 18 02-12 Bracket Pulley IDL Hydro Grd. Dr. 260 532 18 17-81 Bracket Idler Chassis 261 532 13 14-94 Pulley Idler ﬂ at 263 817 00 06-12 Screw HXWSH THDROL

3/8-16 x 3/4 Blk

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

37

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

STEERING ASSEMBLY

38

12

39

1

41

42

37

91

43

68

29

37

36

88

71

68

29

17

82

46

8

6

2

87

5

3

11

13

65

32

67

46

8

6

67

87

5

4

43

40

43

29

15

10

33

34

35

95

8

steering_stealth_prem_11

38

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

STEERING ASSEMBLY

KEY PART NO. NO. DESCRIPTION

1 532 19 36-51 Steering Wheel 2 532 18 47-06 Front Axle Assembly 3 532 16 98-40 Spindle Assembly, L.H. 4 532 16 98-39 Spindle Assembly, R.H. 5 532 12 49-31 Bearing, Race, Thrust, Hardened 6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga. 8 812 00 00-29 Ring, Klip 10 532 17 51-21 Link, Drag 11 810 04 06-00 Washer, Lock 12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf 13 532 13 65-18 Spacer Axle 15 532 14 52-12 Nut Hex Flange Lock 17 532 17 78-83 Shaft Assembly, Steering 29 817 00 06-12 Screw 3/8-16 x 3/4 32 532 17 18-88 Rod, Tie 33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga. 34 810 04 05-00 Washer Lock Hvy Hlcl Spr 5/16 35 873 54 05-00 Crownlock Nut 5/16-24 unf 36 532 14 52-07 Bushing, Steering 37 532 15 29-27 Screw TT #I0-32 x 5 x 3/8 Flange 38 532 19 36-52 Cap Wheel Steer 39 819 18-38-12 Washer 9/16 ID x 2 /8 OD 12 G. 40 873 54 06-00 Nut Crownlock 3/8-24 41 532 18 67-37 Adaptor, Steering Wheel 42 532 19 01-12 Boot, Steering 43 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga. 46 532 19 56-02 Cap, Spindle 65 532 16 03-67 Spacer Axle 67 872 11 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4 68 532 16 98-27 Brace Axle 71 532 17 51-46 Steering Asm. 82 532 16 98-35 Bracket Susp. Chassis Front 87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14 88 532 17 51-18 Bolt Shoulder 7/16-20 unc 91 532 17 55-53 Clip Steering 95 532 18 89-67 Washer

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

39

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

SEAT ASSEMBLY

1

8

9

7

5

6

22

14

9

7

10

24

16

15

13

17

seat_lt.knob_7(CRD)

12

11

25

2

5

4

3

21

KEY PART NO. NO. DESCRIPTION

1 532 18 87-15 Seat 2 532 14 05-51 Bracket Pnt Pivot Seat (blk ) 3 871 11 06-16 Bolt Fin Hex 3/8-16 x 1 Blk 4 819 13 16-10 Washer Flat 13/32 x 1 x 10 Ga. 5 532 14 50-06 Clip Push In Hinged 6 873 80 06-00 Nut Lock Hex w/Insert 3/8-16 7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi 8 817 00 06-16 Screw 3/8-16 x 1.5 9 819 13 16-14 Washer 13/32 x 1 x 14 Ga. 10 532 18 24-93 Pan Pnt Seat 11 532 16 63-69 Knob Seat Adj. Wingnut 12 532 12 12-46 Bracket Pnt Mounting Switch

KEY PART NO. NO. DESCRIPTION

13 532 12 12-48 Bushing Snap Blk Nyl 50 Id 14 872 05 04-12 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 15 532 12 12-49 Spacer Split 16 532 12 37-40 Spring Cprsn 17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc 21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A 22 873 80 05-00 Nut Hex Lock w/Ins 5/16-18 24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga. 25 532 12 70-18 Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

40

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

DECALS

3

14

12

21

7

17

1

KEY PART NO. NO. DESCRIPTION

1 532 14 54-98 Decal Read Owner’s Manual Sym 3 532 18 89-21 Decal Hood 5 532 18 89-25 Decal Wheel Steering 7 532 19 11-57 Decal Panel Side 8 532 16 88-69 Decal Tick Mark 9 532 18 89-32 Decal Fender Logo 10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn 11 532 18 21-66 Decal Mower Cut Finger Symbol 12 532 15 97-37 Decal Brake/Clutch Symbol Lt

14

5

9

20

3

7

8

11

+

_

90N

MAX

150N

MAX

10

KEY PART NO. NO. DESCRIPTION

14 532 15 97-36 Decal Chassis Hot Mufﬂ er 17 532 14 08-37 Decal Saddle Brake Parking 20 532 16 69-60 Decal Bypass Fender CRD 21 532 16 62-86 Decal Hex Belt Sch 92 CRD

- - 532 18 04-35 Decal rear plate CRD Symbols

- - 532 18 26-21 Decal Bagger Frame

- - 532 18 10-90 Pad Footrest RH

- - 532 18 10-91 Pad Footrest LH

- - 532 19 56-41 Manual Owner's (Eng)

WHEELS & TIRES

1

2

6

5,8

KEY PART NO. NO. DESCRIPTION

1 532 05 91-92 Cap Value Tire 2 532 06 51-39 Stem Value

4,10

7

3,9

11

3 532 10 62-22 Tire F Ts 15 x 6.0 - 6 Service 4 532 05 99-04 Tube Inner Front #35060 5 532 13 83-36 Rim Asm 6" front Silver Service 6 532 12 49-57 Fitting Grease 7 532 12 49-59 Bearing Flange 8 532 13 83-37 Rim Asm 8" rear Silver Service 9 532 12 20-82 Tire R Ts 20 x 10-8 Service 10 532 12 49-26 Tube Rear 9.5 x 8 Service 11 532 17 50-39 Cap Axle Blk 1 50 x 1 00

- - 532 14 43-34 Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

wheel_1

41

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

ENGINE

2

1

32

31

25

14

38

105

44

46

33

29

3

13

81

105

101

33

37

45

23

8

10

6

5

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART NO. NO. DESCRIPTION

1 532 17 83-85 Control Throttle 2 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex 3 - - - - - - - - - - Engine Kawa FH531V

(Order parts from engine manu-

facturer) 4 532 14 97-23 Mufﬂ er Twin Lo-Twin 5 532 17 60-67 Tube, Exhaust Lh 6 532 17 60-68 Tube, Exhaust Rh 8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems 10 532 14 66-29 Shield Browning Intek 13 - - - - - - - - - - Gasket Mufﬂ er

(Order parts from engine manu-

facturer) 14 532 14 84-56 Tube Drain Oil Easy 23 532 16 98-37 Shield Brn/Dbr Guard 25 532 19 15-96 Choke Control

4

engine-kawasaki_8

KEY PART NO. NO. DESCRIPTION

29 532 13 71-80 Kit Spark Arrestor (Flat Scrn) 31 532 18 55-34 Tank Fuel 2.00 32 532 14 05-27 Cap Asm Fuel W/sym Vented 33 532 12 34-87 Clamp Hose Blk 37 532 13 70-40 Line Fuel 38 - - - - - - - - - - Plug Drain Oil Easy

(Order parts from engine manu-

facturer) 44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4 45 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4 46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga. 81 873 5104-00 Nut Keps Hex 1/4-20 unc 101 532 18 43-62 Nut Flange M8-1.25 105 817 12 06-16 Screw 3/8-16 x 1 SMGML TAP/R

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

42

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

MOWER LIFT

37

38

11

29

40

41

36

28

13

12

27

25

24

23

7

8

49

5

4

6

30

3

50

26

6

2

1

5

4

13

19

13

31

13

32

31 32

19

KEY PART NO. NO. DESCRIPTION

1 532 15 94-61 Washer Asm Inner Spring W/

Plunger 2 532 15 94-76 Shaft Asm. Lift 3 532 18 88-22 Pin Groove 4 812 00 00-02 E Ring #5133-62 5 819 21 16-21 Washer 21/32 x 1 x 21 Ga. 6 532 12 01-83 Bearing Nylong 7 532 12 56-31 Grip Handle Fluted 8 532 12 45-26 Button Plunger Black 11 532 16 58-29 Link Asm Lift L.H. 12 532 16 58-31 Link Asm Lift R.H. 13 532 12 46-70 Retainer Spring 15 532 17 32-88 Link Front 16 873 35 08-00 Nut Jam Hex 1/2-13 unc 17 532 17 56-89 Trunnion Blk Zinc 18 873 80 08-00 Nut Lock w/wsh 1/2-13 unc 19 532 13 98-68 Arm Suspension Mower 20 532 16 35-52 Retainer Spring

20

15

20

16

15

20

18

17

lift-rh.1piece_9

KEY PART NO. NO. DESCRIPTION

23 532 11 08-07 Nut Special 24 819 13 10-16 Washer 13/32 x 5/8 x 16 Ga. 25 532 13 71-50 Spring 26 532 16 94-84 Retainer Clip 27 532 13 71-67 Rod Adj Lift 28 873 35 06-00 Nut Hex Jam 3/8-16 unc 29 532 13 80-57 Knob Inf 3/8-16 Unc Blk w/sym 30 532 15 02-33 Trunnion Inﬁ n Height 31 532 16 98-65 Bearing, Pvt. Lift. 32 873 54 06-00 Nut Crownlock 3/8-24 36 532 15 50-97 Pointer Height Indicator 37 532 12 39-35 Plug Hole Blk 1.485/1.515 Dia 38 817 06 05-16 Screw 5/16-18 x 1 40 819 11 24-10 Washer 11/32 x 1-1/2 x 10 Ga. 41 532 12 39-34 Scale Ind Height Blk 49 532 14 52-12 Nut hex Flange Lock 50 532 11 04-52 Nut Push Phos & Oil

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

43

REPAIR PARTS

2

34

21

117

119

116

118

2

21

35

118

117

116

119

21

34

116

117

119

2

118

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

MOWER

116

23

124

33

31

41

36

84

124

41

36

40

21

32

26

2

25

21

18

40

164

38

32

68

36

5

21

117

119

36

32

36

46

3

21

6

4

19

1

41

35

36

22

44

33

32

31

55

164

27

30

39

30

28

61

30

21

24

21

30

131

21

124

130

13

2

15

46

2

11

8

10

9

20

14

69

16

46

45

44

118

2

107cm_deck-elect.(CRD)

REPAIR PARTS

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

MOWER

KEY PART NO. NO. DESCRIPTION

1 532 16 91-60 Housing Asm. Mower 2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4 3 532 16 55-69 Bracket Asm. S-Bar Chass 4 532 16 91-67 Bracket Bar Sway Deck 5 532 12 46-70 Retainer Spring 6 532 16 55-57 Bar Sway 8 532 18 17-12 Bolt 3/8-24 x 1.25 Gr. 8 Patched 9 810 03 06-00 Washer Lock Hvy 3/8 Unplated 10 532 14 02-96 Washer Hard Blade Mower 11 532 18 05-83 Blade 107cm LH 13 532 13 76-45 Shaft Asm. W/Lower Bearing 14 532 12 87-74 Housing Mandrel Vented (Machd) 15 532 11 04-85 Bearing Ball Mandrel 16 532 18 05-84 Blade 3-1 Rh 18 872 11 06-06 Bolt Carriage 3/8-16 x 3/4 19 532 13 28-27 Bolt Shoulder 5/16-18 Thd Form 20 532 18 17-13 Bolt 3/8-24 x 1.25 Gr. 8 Ptch Lhthd 21 873 68 05-00 Nut Crown Lock 5/16-18 22 532 16 91-65 Bracket Idler Sprt RR 23 532 16 91-66 Bracket Idler Sprt RF 24 532 16 91-70 Bracket Suspension LF 25 532 16 91-71 Bracket Suspension RF 26 532 16 52-37 Brace Support Susp Frt CRD 27 532 16 91-72 Bracket Asm. Susp RR 28 532 16 91-68 Bracket Asm. Susp LR 30 532 17 39-84 Screw Thd Rolling Dod.PT Hex 31 532 18 76-90 Washer Spacer Mower Vented 32 532 17 57-07 Mandrel Pulleys 33 532 17 83-42 Nut Flg Top Lock 34 532 17 95-09 Bracket Gauge Wheel Lf

KEY PART NO. NO. DESCRIPTION

35 532 17 62-92 Bracket Gauge Wheel Rf 36 532 14 67-63 Pulley Idler V-Groove Dim 4.25 38 532 16 98-51 Spacer Hub Arm Idler 39 872 11 06-22 Bolt RhHd 3/8-16 unc x 2-3/4 Gr.5 40 873 68 06-00 Nut Crownlock 3/8-16 unc 41 873 90 06-00 Nut Flangelock 3/8-16 unc 44 532 17 55-38 Cover Mandrel Lh 45 532 17 55-39 Cover Mandrel Rh 46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8 55 532 16 98-49 Arm Idler 61 532 17 51-59 Spring Tension Belt 68 532 16 91-78 Hex-Belt Mower 69 532 16 54-82 Shaft Asm W/Lwr Brg Rh Thd CRD 84 532 15 60-85 Keeper Belt Idler 116 532 18 42-19 Bolt Shoulder 117 532 17 48-73 Wheel Gage Donut Wide 118 873 93 06-00 Nut Centerlock 3/8-16 unc 119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga. 124 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 130 872 11 05-06 Bolt Rdhdsqnk 5/16-18 unc x 3/4 131 532 16 56-61 Chute Bagger CRD 92cm 164 532 12 49-37 Bearing Col Strg. Black

-- 532 13 07-94 Mandrel Asm Service

-- 532 16 55-79 Mandrel Asm CRD Lh Threads VC

-- 532 17 58-40 Replacement Mower Complete (Std. Deck-Order separately gauge wheel components Key Nos. 116 - 119.)

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

45

REPAIR PARTS

34

15

33

35

3

6_mulc

h

plug (CRD)

TRACTOR- -MODEL NO. CTH180 XP (HAUCT18H42G), PRODUCT NO. 954 17 02-31

BAGGER

6

4

6

39

15

28

5

4

8

31

43

1

32

24

22

3

7

3

23

44

11

15

19

9

7

25

17

12

38

41

37

36

45

2

9

19

2

22

3

17

19

45

36

20

41

2

38

37

15

10

11

15

44

Bagger Asy (CRD)_8

21

KEY PART NO. NO. DESCRIPTION

1 532 16 52-49 Tube Handle Bagger CRD 2 872 14 04-16 Bolt Carriage 1/4-20 x 2.0 Gr. 5 3 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc 4 532 16 99-16 Handle Bagger w/Lvrs Blk CRD 5 874 98 10-24 Screw Pan Head #10-24 x 1.50 Blk 6 874 98 10-32 Screw Pan Hd 7 873 40 10-00 Nut Wiz Lock Hex Serr/Hd 10-24 8 532 18 10-95 Cover Bagger 9 872 14 04-18 Bolt Carriage 1/4-20 x 2.25 d x Gr. 5 10 532 18 12-82 Tube Support Bagger CRD 11 532 16 57-19 Bracket Support Upper Bag CRD 12 532 18 88-48 Bracket Pivot Lh 15 532 12 46-70 Retainer Spring 17 872 14 05-06 Bolt Rdhd Sht Sqnk 5/16 -18 unc x

3/4 19 873 90 05-00 Nut Lock Hex Flange 5/16-18 20 532 18 88-47 Bracket Pivot Rh 21 532 18 08-80 Bag Asm CRD 22 532 16 57-81 Bracket Side Bagger CRD 23 532 16 57-82 Tube Upper Bagger CRD

3

26

KEY PART NO. NO. DESCRIPTION

24 532 16 57-83 Tube Pivot Bagger CRD 25 532 18 01-24 Tube Front Bagger CRD 26 532 16 57-85 Tube Lower Bagger CRD 28 532 16 57-87 Grip Handle Black 31 532 16 94-84 Retainer Clip 32 532 12 68-75 Rivet Rd Hd Drilled 3/8 Dia 33 532 16 93-80 Plug Mulcher 107 CRD 34 532 16 55-70 Handle Mulcher 35 532 16 55-72 Pin Mulcher 36 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga. 37 532 17 54-01 Plug Support Bagger CRD 38 872 01 05-20 Bolt 5/16-18 x 2-1/2 39 532 18 09-85 Seal Trim 41 532 16 96-83 Bracket Pnt Adj Pvt Bagger CRD 43 532 17 40-83 Plug Tubing End 44 532 19 33-12 Pin Clevis 3/8 x 11/16 45 532 19 33-13 Pin Clevis 3/8 x 2.0

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

46

47

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser to be free from defects in material and workmanship from the date of purchase for the “Warranty Period” of the product as set forth below:

Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held prod uct.

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area

walks, and ground engaging commercial equipment.

2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for non com mer cial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated

Emission control system components necessary to comply with CARB-TIER-II and EPA regulations, except for those components which are part of engine systems manufactured by third party engine manufacturers for which the purchaser has received a separate warranty with product information supplied at time of purchase.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-professional, non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hovering trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems used for commercial, institutional, professional or income producing purposes or use.

Batteries have a one-year prorated limited warranty with 100% replacement during the ﬁ rst 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole prun-

ers, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvarna product used for commercial, institutional, professional, or income producing purposes or use except as otherwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase for defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed as stated by the manufacturer on the care label. The ﬁ t of the protective apparel/boot is not covered under warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.

.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor if a component fails because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty: (1)Normal customer maintenance items which become worn through normal regular use, including, but not limited to, belts, blades, blade adapters, bulbs, ﬁ lters, guide bars, lubricants, rewind springs, saw chain, spark plugs, starter ropes and tines; (2)Natural discoloration of material due to ultraviolet light; (3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective manufacturer’s warranty as provided in writing with the product information supplied at the time of pur- chase; all claims must be sent to the appropriate manufacturer; (4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for war- ranty should be sent to the manufacturer; and (5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations which are manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

WARRANTY STATEMENT

This warranty shall be inapplicable to defects resulting from the following: (1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust, corrosion, or any adverse reaction due to incorrect storage or use habits; (2)Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruc tion sheet furnished by Husqvarna; (3)Alterations or modiﬁ cations that change the intended use of the product or affects the product’s per formance, operation, safety, or durability, or causes the product to fail to comply with any applicable laws; or: (4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PUR CHAS ER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RE SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NO TICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur, the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly ﬁ lled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase in order to conﬁ rm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty service. This proof must include date purchased, model number, serial number, and complete name and address of the selling dealer.

To obtain the beneﬁ t of this warranty, the product believed to be defective must be delivered to an authorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational problem or failure. The product must be delivered at the owner’s expense. Pick-up and delivery charges are not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

532 19 56-41 1.24.05 RD Printed in U.S.A.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Husqvarna CTH180 XP 02764 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY RULES

TABLE OF CONTENTS

UNASSEMBLED PARTS

ASSEMBLY

OPERATION

MAINTENANCE

SERVICE AND ADJUSTMENTS

STORAGE

TROUBLESHOOTING POINTS

SERVICE NOTES

WARRANTY STATEMENT

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
