Operator's

2008-01

Ride Mower

2246 LS 96043004300

Manual

O0802010

Operator's Manual

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

• Do not operate machine without the entire grass catcher,

WARNING: In order to prevent ac­ ci den tal starting when setting up,
trans port ing, ad just ing or making re­pairs, al ways dis con nect spark plug
wire and place wire where it can not
contact spark plug.

WARNING: Do not coast down a hill
in neutral, you may lose control of the
tractor.

WARNING: Tow only the attachments
that are rec om mend ed by and com­ply with spec i fi ca tions of the man u ­fac tur er of your tractor. Use common
sense when towing. Operate only at
the low est possible speed when on a
slope. Too heavy of a load, while on
a slope, is dan ger ous. Tires can lose
trac tion with the ground and cause you
to lose control of your tractor.

WARNING

Engine exhaust, some of its con stit u ents, and cer­ tain vehicle com po nents contain or emit chem i cals
known to the State of Cal i for nia to cause can cer and
birth de fects or oth er re pro duc tive harm.

discharge guard, or other safety devices in place and
working.

• Slow down before turning.

• Never leave a running machine unattended. Always
turn off blades, set parking brake, stop engine, and
remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge guard.

• Operate machine only in daylight or good artificial
light.

• Do not operate the machine while under the influence
of alcohol or drugs.

• Watch for traffic when operating near or crossing
road ways.

• Use extra care when loading or unloading the machine
into a trailer or truck.

• Always wear eye protection when operating ma­chine.

• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-re­lated injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel
weights or counterweights.

• Keep machine free of grass , leaves or other debris
build-up which can touch hot exhaust / engine parts
and burn. Do not allow the mower deck to plow leaves
or other debris which can cause build-up to occur.
Clean any oil or fuel spillage before operating or
storing the machine. Allow machine to cool before
storage.

WARNING

Battery posts, terminals and related ac ces so ries
contain lead and lead compounds, chem i cals known
to the State of Cal i for nia to cause can cer and birth
defects or oth er re pro duc tive harm. Wash hands
after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the
machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at
all times.

• Only allow responsible adults, who are familiar with
the in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operat­ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while back­ ing.

• Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction.
Material may ricochet back toward the operator. Stop
the blades when crossing gravel surfaces.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel uneasy on it,
do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine.
Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have
to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope.

• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction,
which could cause the machine to roll over.

• Use extra care while operating machine with grass
catchers or other at tach ments; they can affect the
stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot
on the ground.

• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over if a wheel is over
the edge or if the edge caves in.

2

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

III. CHILDREN

Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the ma chine and the mowing activity. Never assume that
children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the
area.

• Before and while backing, look behind and down for
small children.

• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a
child.

IV. TOWING

• T ow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.

• F ollow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equip­ment.

• On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there
is an open flame, spark, or pilot light such as on a water
heater or other appliances.

• Never fill containers inside a vehicle or on a truck or
trailer bed with plastic liner. Always place containers
on the ground away from your vehicle when filling.

• Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment with a portable container,
rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immedi­ately.

• Never overfill fuel tank. Replace gas cap and tighten
securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the equipment
is in safe working condition.

• Never tamper with safety devices. Check their proper
operation regularly.

• Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage and remove any
fuel-soaked debris. Allow machine to cool before
storing.

• If you strike a foreign object, stop and inspect the
machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine
run ning.

• Check grass catcher components and the discharge
guard frequently and replace with manufacturer's rec­ommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service
as required.

• Maintain or replace safety and instruction labels, as
necessary.

• Be sure the area is clear of bystanders before operat­ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.
Al ways look down and behind before and while back­ing.

• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.

• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the
area.

• Before and while backing, look behind and down for
small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have
to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the
tires lose traction, disengage the blades and proceed
slowly straight down the slope.

• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.

• Do not turn on slopes unless necessary , and then, turn
slowly and gradually downhill, if possible.

3

PRODUCT SPECIFICATIONS

Gasoline Capacity 2.5 Gallons
and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)

Oil Capacity: W/ Filter: 64 oz
W/O Filter: 60 oz

Spark Plug: Champion QC12YC
(Gap: .040")

Ground Speed (MPH): Forward: 0 – 5.5
Reverse: 0 – 2.4

Charging System: 16 AMPS @ 3600 RPM
Battery: AMP/HR: 28

MIN. CCA: 230
Case Size: U1R

Blade Bolt Torque: 45-55 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor .
It has been designed, engineered and manu fac tured to give
you the best possible dependability and performance.

Should you experience any problem you cannot easily rem­edy , please contact your nearest authorized servicecenter/
de part ment We have competent, well-trained tech ni cians
and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will
enable you to assemble and maintain your tractor prop erly.
Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for
and using your tractor.

• Follow the instructions under “Maintenance” and “Stor ­ age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal com­ bus tion engine and should not be used on or near any un­ im proved forest-covered, brush-covered or grass-cov ered
land unless the en gine’s exhaust system is equipped with
a spark arrester meeting ap pli ca ble local or state laws (if
any). If a spark arrester is used, it should be maintained
in effective working order by the operator.

In the state of California the above is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply
on federal lands.

A spark arrester for the muffler is available through your
nearest authorized service center/department.

TABLE OF CONTENTS

SAFETY RULES .........................................................2-3

PRODUCT SPECIFICATIONS .......................................4

CUSTOMER RESPONSIBILITIES .................................4

ASSEMBL Y .................................................................5-6

OPERATION .............................................................7-13

MAINTENANCE SCHEDULE ...................................... 14

MAINTENANCE ..................................................... 14-17

SERVICE AND AD JUST MENTS ............................18-23

STORAGE ....................................................................24

TROU BLE SHOOT ING ............................................25-26

REPAIR PARTS ......................................................27-42

4

UNASSEMBLED PARTS

Key

Slope Sheet

(1) Oil Drain Tube

(2) Keys

ASSEMBLY

Y our new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
When right or left hand is mentioned in this man ual, it means when you are in the operating po si tion (seated be hind the

steer ing wheel).

TO REMOVE TRACTOR FROM CAR TON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons
from carton.

• Cut along dashed lines on all four panels of carton.
Remove end panels and lay side panels flat.

• Check for any additional loose parts or cartons and
remove.

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a com­fortable position is reached which allows you to press
clutch/brake pedal all the way down.

• Release lever to lock seat in position.

CHECK BATTERY (See Fig. 1)

• Lift seat pan to raised position and open battery box
door.

• If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BA TTERY" in Maintenance section of this manual
for charging in struc tions).

SEAT PAN

LABEL

BATTERY
BOX DOOR

TERMINAL

02021

FIG. 1

TERMINAL

A

FIG. 2

NOTE: You may now roll or drive your tractor off the skid.

Follow the ap pro pri ate instruction on the next page to
remove the tractor from the skid.

WARNING: Before start ing, read, un der stand and fol low
all in struc tions in the Op er a tion section of this man u al. Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other peo ple and objects.

5

ASSEMBLY

TO ROLL TRACTOR OFF SKID (See Op­ er a tion section for location and function of
con trols)

• Raise attachment lift lever to its highest po si tion.

• Release parking brake by de press ing brake ped al.

• Place freewheel control in dis en gaged po si tion to dis­ en gage trans mis sion (See “TO TRANS PORT” in the
Op er a tion section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRAC TOR OFF SKID (See Op­ er a tion section for location and function of
con trols)

• Be sure all the above assembly steps have been com­pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "trans mis sion engaged"
position (see "TO TRANSPORT" in Operation section
of this manual).

• Sit on seat in operating position, depress brake pedal
and set the parking brake.

• Raise attachment lift lever to its highest position.

• Remove key from bag and start the engine (see "TO
ST ART" in the Operation section of this manual). After
engine has started, move throttle control to idle (slow)
position.

• Release parking brake.

• Slowly depress forward drive pedal and drive tractor
off skid.

• Apply brake to stop tractor and set park ing brake.

• Turn ignition key to "STOP" position.

Continue with the in struc tions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important
for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

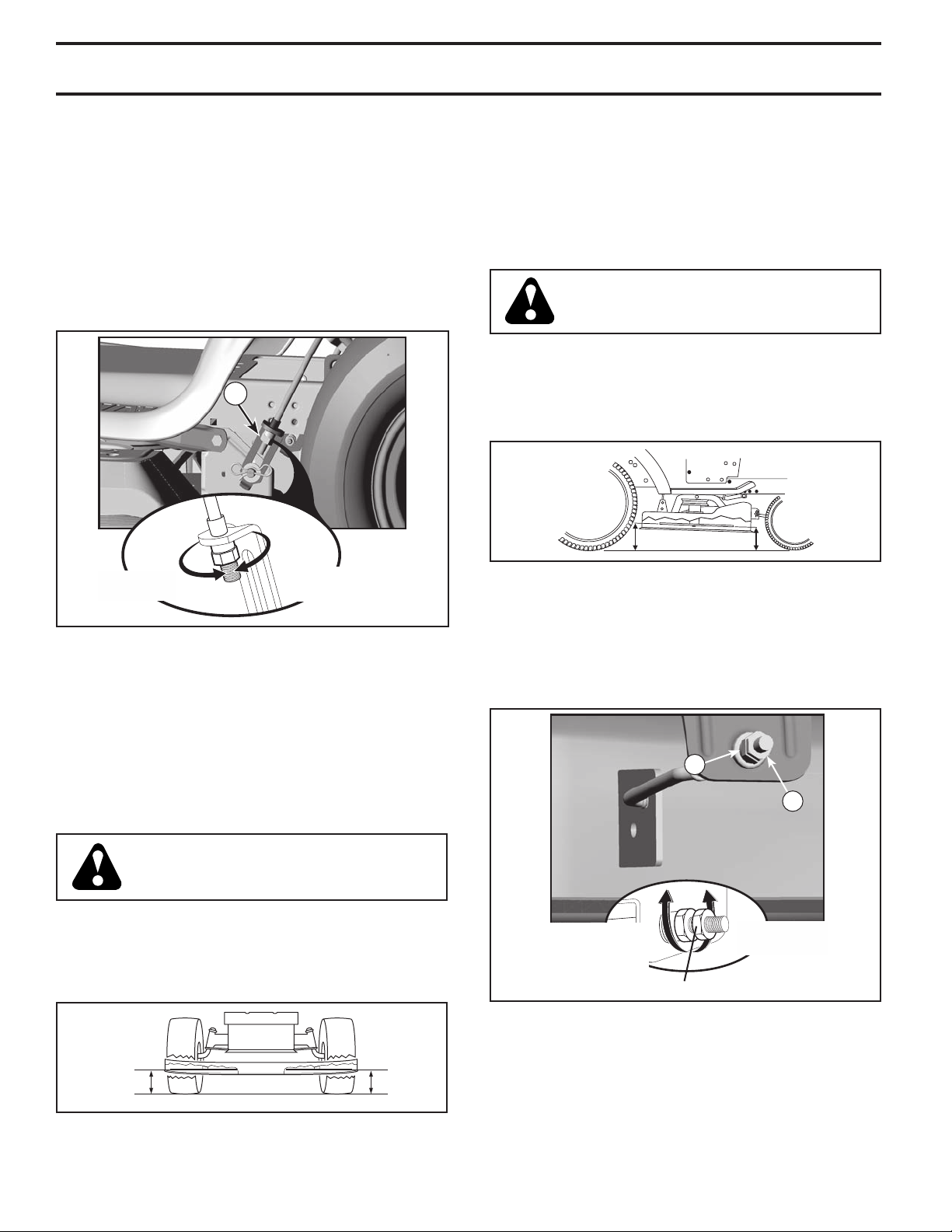

CHECK DECK LEVELNESS

For best cutting results, mower housing should be prop­erly leveled. See “TO LEVEL MOWER HOUSING” in the
Service and Adjustments section of this manual.

✓CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE
WISH TO ASSURE THAT YOU RECEIVE THE BEST PER­FORMANCE AND SA TISFACTION FROM THIS QUALITY
PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been com plet ed.
✓ No remaining loose parts in carton.

✓ Battery is properly prepared and charged.
✓ Seat is adjusted comfortably and tightened securely.
✓ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure free wheel control is in

“transmission engaged” position (see “TO TRANS­ PORT” in the Operation section of this man u al).

WHILE LEARNING HOW TO USE YOUR TRACTOR, P AY
EXTRA A TTENTION TO THE FOLL OWING IMPORTANT
ITEMS:

✓ Engine oil is at proper level.
✓ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls, their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition.
✓ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the
Operation and Maintenance sections in this manual).

✓ It is important to purge the transmission before op-

er at ing your tractor for the first time. Follow proper
starting and transmission purging instructions (See
“TO ST ART EN GINE” and “PURGE TRANSMISSION”
in the Op er a tion section of this manual).

CHECK FOR PROPER POSITION OF ALL
BELTS

See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
sec tion of this manual. Verify that the belts are routed
cor rect ly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor , check to see that
the brake is operating properly . See “TO CHECK BRAKE”
in the Service and Adjustments section of this manual.

6

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

REVERSE

ENGINE OFF

LIGHTS ON

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

NEUTRAL

REVERSE

OPERATION

SYSTEM (ROS)

FUEL

HIGH

ENGINE ON

BATTERY

ATTACHMENT

CLUTCH ENGAGED

REVERSE

LOW

ENGINE START

DANGER, KEEP HANDS

AND FEET AWAY

CHOKE

PARKING BRAKE

FORWARD

DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.

FAST

MOWER HEIGHT

CRUISE CONTROL

KEEP AREA CLEAR

(SEE SAFETY RULES SECTION)

SLOW

15

SLOPE HAZARDS

IGNITION SWITCH

MOWER LIFT

CLUTCH/BRAKE

PEDAL

15

Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform­ation about hazards which can
result in death, serious injury
and/or property damage.

CAUTION when used without the alert symbol,
indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.

FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.

7

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.

M

B

A

D

N

Q

C

P

H

G

E

F

K

J

L

FIG. 3

Our tractors conform to the applicable safety standards of the American National Standards Institute.

(A) ATT ACHMENT LIFT LEVER - Used to raise and lower
the mower or other attachments mounted to your trac tor.

(B) BRAKE PEDAL - Used for brak ing the tractor and
start ing the engine.

(C) PARKING BRAKE - Locks clutch/brake pedal into the
brake position.

(D) THROTTLE/CHOKE CONTROL - Used for starting
and controlling engine speed.

(E) ATTACHMENT CLUTCH SWITCH - Used to engage
the mow er blades, or other at tach ments mounted to your
tractor.

(F) IGNITION SWITCH - Used for starting and stopping
the engine.

(G) REVERSE OPERATION SYSTEM (ROS) "ON"
POSITION - Allows operation of mower or other powered

attachment while in reverse.

(H) LIGHT SWITCH - Turns the headlights on and off.
(J) CRUISE CONTROL LEVER - Used to set forward

movement of tractor at desired speed without holding the
forward drive pedal.

(K) FORWARD DRIVE PEDAL - Used for forward
movement of tractor.

(L) REVERSE DRIVE PEDAL - Used for reverse
movement of tractor.

(M) FREEWHEEL CONTROL - Disengages transmission
for pushing or slowly tow ing the trac tor with the engine off.

(N)CHOKE CONTROL - Used when starting a cold engine.
(P) SERVICE REMINDER / HOUR METER - Indicates

when service is required for the engine and mower.

(Q) 12-VOL T POWER PORT - Used for 12 volt accessories.

8

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result
in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor
or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide
vision safety mask worn over spectacles.

HOW TO USE YOUR TRAC TOR

TO SET PARKING BRAKE(See Fig. 4)

Your tractor is equipped with an operator presence sens­ ing switch. When engine is running, any attempt by the
op er a tor to leave the seat without first setting the parking
brake will shut off the engine.

• Depress brake pedal (B) all the way down and hold.

• Pull parking brake lever (C) up and hold, re lease pres­ sure from brake pedal (B), then release parking brake
lever. Pedal should re main in brake position. Make
sure parking brake will hold tractor secure.

C

B

FIG. 4

STOPPING (See Fig. 5)

MOWER BLADES -

• To stop mower blades,move attachment clutch lever
to “DIS EN GAGED” po si tion.

ENGINE -

• Move throttle control between half and full speed (fast)
position.

NOTE: Failure to move throttle control between half and
full speed (fast) position, before stop ping may cause engine
to “backfire”.

• Turn ignition key to “STOP” position and remove key.
Always remove key when leaving tractor to prevent
un author ized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHER THAN "STOP" WILL CAUSE THE BA TTERY
TO BE DIS CHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot en gine exhaust gases may
cause “browning” of grass. To eliminate this possibility, al­ ways stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com­ plete ly, as described above, before leav­ ing the operator's position; to empty
grass catcher, etc.

TO USE THROTTLE CONTROL - D (See Fig. 6)

Always operate engine at full speed (fast).

• Operating engine at less than full speed (fast) reduces
engines operating efficiency.

• Full speed (fast) of fers the best bagging and mower
per for mance.

TO USE CHOKE CONTROL (See Fig. 6)

Use choke control whenever you are starting a cold engine.
Do not use to start a warm engine.

• To engage choke control (N), pull knob out. Slowly
push knob in to disengage.

FIG. 5

GROUND DRIVE -

• To stop ground drive, depress brake pedal into full
“BRAKE” position.

IMPORTANT: FORWARD AND REVERSE DRIVE PEDALS
RETURN TO NEUTRAL POSITION WHEN NOT DEPRESSED.

D

F

N

FIG. 6

9

OPERATION

TO MOVE FORWARD AND BACKWARD
(See Fig. 7)

The direction and speed of movement is controlled by the
forward and reverse drive pedals.

• Start tractor and release parking brake.

• Slowly depress forward (K) or reverse (L) drive pedal to
begin movement. Ground speed increases the further
down the pedal is depressed.

J

K

L

FIG. 7

TO USE CRUISE CONTROL - J (See Fig. 7)

The cruise control feature can be used for forward travel
only.

SYSTEM CHARACTERISTICS
The cruise control should only be used while mowing or

transporting on relatively smooth, straight surfaces. Other
con di tions such as trimming at slow speeds may cause the
cruise control to dis en gage. Do not use the cruise control
on slopes, rough terrian or while trimmimg or turning.

• With forward drive pedal depressed to desired speed,
pull cruise control lever (J) up and hold while lifting
your foot off the pedal, then release the lever.

To disengage the cruise control, depress the brake pedal
or tap on forward drive pedal.

The cutting height range is ap prox i mate ly 1" to 4". The
heights are measured from the ground to the blade tip with
the engine not running. These heights are approximate
and may vary depending upon soil conditions, height of
grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2
inches during the cool season and to over 3 inches
during hot months. For healthier and better looking
lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches
in height should be mowed twice. Make the first cut
relatively high; the second to de sired height.

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are prop er ly ad just ed when they are slight ly
off the ground when mower is at the desired cutting height
in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.

NOTE: Adjust gauge wheels with tractor on a flat level
surface.

• Adjust mower to desired cutting height (See “TO AD­ JUST MOWER CUT TING HEIGHT” in this sec tion of
manual).

• With mower in desired height of cut po si tion, gauge
wheels should be assembled so they are slightly off
the ground. In stall gauge wheel in ap pro pri ate hole.
Tighten se cure ly.

• Repeat for all, installing gauge wheel in same adjust­ment hole.

TO ADJUST MOWER CUT TING HEIGHT
(See Fig. 8)

The po si tion of the at tach ment lift le ver (A) de ter mines the
cut ting height.

A

FIG. 8

• Put attachment lift lever in desired cutting height slot.

FIG.9

10

OPERATION

TO OPERATE MOWER (See Fig. 10)

Y our tractor is equipped with an operator presence sensing
switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged will
shut off the engine. You must remain fully and centrally
positioned in the seat to prevent the engine from hesitat­ing or cutting off when operating your equipment on rough,
rolling terrain or hills.

1. Select desired height of cut with attachment lift lever.

2. Start mower blades by engaging at tach ment clutch
control.

TO STOP MOWER BLADES ­disengage at tach ment clutch con trol.

CAUTION: Do not operate the mower
without either the en tire grass catcher,
on mowers so equipped, or the deflec­tor shield (S) in place.

S

FIG. 10

REVERSE OPERATION SYSTEM (ROS)

Y our tractor is equipped with a Reverse Operation System
(ROS). Any attempt by the operator to travel in the reverse
direction with the attachment clutch engaged will shut off the
engine unless ignition key is placed in the ROS "ON" position.

WARNING: Backing up with the attachment clutch en­gaged while mowing is strongly discouraged. Turning the
ROS "ON", to allow reverse operation with the attachment
clutch engaged, should only be done when the operator
decides it is necessary to reposition the machine with the
attachment engaged. Do not mow in reverse unless

absolutely necessary.

ROS "ON" POSITION ENGINE "ON" POSITION

(NORMAL OPERATING)

TO OPERATE ON HILLS

CAUTION: Do not drive up or down
hills with slopes greater than 15° and
do not drive across any slope.

• Choose the slowest speed before starting up or down
hills.

• Avoid stopping or changing speed on hills.

• If stopping is absolutely necessary, push brake pedal
quickly to brake position and engage parking brake.

• To restart movement, slowly release parking brake
and brake pedal.

• Slowly depress appropriate drive pedal to slowest
set ting.

• Make all turns slowly.

TO TRANSPORT (See Figs. 3 and 11)

When pushing or towing your tractor , be sure to disengage
transmission by placing freewheel control in free wheel ing
po si tion. Free wheel control is located at the rear drawbar
of tractor.

• Raise attachment lift to highest position with at tach ment
lift control.

• Pull freewheel control out and down into the slot and
release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)
MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor . Use an appropriate means of tying
hood to tractor (rope, cord, etc.).

Transmission Engaged

8

2

8

2

0

USING THE REVERSE OPERATION SYSTEM ­Only use if you are certain no children or other bystanders

will enter the mowing area.

• Depress brake pedal all the way down.
With engine running, turn ignition key counterclockwise

•
to ROS "ON" position.

• Look down and behind before and while backing.

• Slowly depress reverse drive pedal to start movement.

• When use of the ROS is no longer needed, turn the
ignition key clockwise to engine "ON" position.

Transmission Disengaged

FIG. 11

11

OPERATION

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the engine
has run and flashes to indicate that the engine or mower
needs servicing. When service is required, the service
reminder will flash for two hours. To service engine and
mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in
any position but "STOP". For accurate reading, be sure
key remains in the "STOP" position when engine is not
running.

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are recommended by and
comply with specifications of the manufacturer of your trac­tor . Use common sense when towing. Too heavy of a load,
while on a slope, is dangerous. Tires can lose traction with
the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the
factory, already filled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for
easier starting (See “OIL VISCOSITY CHART” in the
Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in
this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill. Use
fresh, clean, regular un lead ed gasoline with a minimum of
87 octane. (Use of leaded gasoline will increase carbon
and lead oxide deposits and reduce valve life). Do not
mix oil with gasoline. Purchase fuel in quan ti ties that can
be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.

IMPORTANT: WHEN OPERA TING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE
GAS O LINE TO HELP INSURE GOOD COLD WEATHER
START ING.

CAUTION: Alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract moisture
which leads to sep a ra tion and for ma tion of acids
during storage. Acidic gas can damage the fuel
system of an engine while in storage. T o avoid engine
problems, the fuel system should be emptied before
stor age of 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel next season.
See Storage In struc tions for additional information.
Never use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 3)

When starting the engine for the first time or if the engine
has run out of fuel, it will take extra cranking time to move
fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged
position.

• Sit on seat in operating position, depress brake pedal
and set parking brake.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm and cold starting
procedures below.

• Insert key into ignition and turn key clockwise to “START”
position and release key as soon as engine starts.
Do not run starter continuously for more than fifteen
sec onds per minute. If the engine does not start after
several attempts, move throttle control to fast position,
wait a few minutes and try again. If engine still does
not start, move the throttle control back to the choke
position and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, move the throttle control to the
fast position.

• The attachments and ground drive can now be used. If
the engine does not accept the load, restart the engine
and allow it to warm up for one minute using the choke
as described above.

COLD WEATHER STARTING ( 50° F and below)

• When engine starts, allow engine to run with the
throttle control in the choke position until the engine
runs roughly, then move throttle control to fast posi­tion. This may require an engine warm-up period from
several seconds to several minutes, depending on the
tem per a ture.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather, the trans mis sion
should be warmed up as follows:

• Be sure the tractor is on level ground.

• Release the parking brake and let the brake slowly
return to operating position.

• Allow one minute for transmission to warm up. This
can be done during the engine warm up period.

• The attachments can also be used during the engine
warm-up period after the transmission has been warmed
up.

NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures (below 32 F) the carburetor fuel mixture may
need to be adjusted for best engine performance. See “TO
ADJUST CARBURETOR” in the Service and Adjustments
section of this manual.

12

OPERATION

PURGE TRANSMISSION

CAUTION: Never engage or disengage
freewheel lever while the engine is

run ning.

To ensure proper operation and performance, it is rec om ­mend ed that the transmission be purged before operating
tractor for the first time. This procedure will remove any
trapped air inside the transmission which may have de­ vel oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION
RE QUIRE REMOVAL FOR SERVICE OR REPLACEMENT ,
IT SHOULD BE PURGED AFTER REINSTALLATION
BEFORE OPERATING THE TRACTOR.

• Place tractor safely on a level surface - that is clear
and open - with engine off and parking brake set.

• Disengage transmission by placing freewheel control
in freewheeling position (See “TO TRANSPORT” in
this section of manual).

• Sitting in the tractor seat, start engine. After the en­gine is running, move throttle control to slow position.
Dis en gage parking brake

CAUTION: At any time there may be
movement of the drive wheels.

MOWING TIPS

• Mower should be properly leveled for best mowing
performance. See “TO LEVEL MOWER HOUSING” in
the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim­ ming.

• Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of the
machine. This will result in a more even dis tri bu tion of
clippings and more uniform cutting.

• When mowing large areas, start by turning to the right
so that clippings will discharge away from shrubs,
fences, driveways, etc. After one or two rounds, mow
in the opposite direction making left hand turns until
finished (See Fig. 12).

FIG. 12

• Depress forward drive pedal to full forward position,
hold for five (5) seconds and release pedal. Depress
reverse drive pedal to full reverse position, hold for five
(5) seconds and release pedal. Repeat this procedure
three (3) times.

• Shut- off engine and set parking brake.

• Engage transmission by placing freewheel control in
engaged position (See “TO TRANSPORT” in this sec­ tion of manual).

• Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to half (1/2) speed.
Disengage parking brake.

• Drive tractor forward for approximately five feet then
backwards for five feet. Repeat this driving procedure
three times.

Y our transmission is now purged and now ready for normal
op er a tion.

• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip­ pings. Make first cut relatively high; the second to the
desired height.

• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to
dry before mowing.

• Always operate engine at full throttle when mow-
ing to assure better mowing performance and proper
dis charge of material. Regulate ground speed by
se lect ing a low enough gear to give the mower cut ting
per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the at tach ment being used.

13

MAINTENANCE

MAINTENANCE

SCHEDULE

Check Brake Operation

Check Tire Pressure

T

Check Operator Presence & ROS Systems

R

Check for Loose Fasteners

A

Check/Replace Mower Blades

C

T

Lubrication Chart

0

Check Battery Level

R

Clean Battery and Terminals

Check Transaxle Cooling

Check Mower Levelness

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filter)

Change Engine Oil (without oil filter)

E

Clean Air Filter

N

Clean Air Screen

G

Inspect Muffler/Spark Arrester

I

Replace Oil Filter (If equipped)

N
E

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

BEFORE

EACH

USE

EVERY

8

HOURS

EVERY

25

HOURS

3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.

4

1,2

EVERY

50

HOURS

3

2

2

1,2

EVERY

100

HOURS

1

EVERY

SEASON

,

2

2

2

BEFORE

STORAGE

maint_sch-tractore.ROS.e

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have
been subjected to operator abuse or negligence. T o receive
full value from the warranty , operator must main tain tractor
as instructed in this manual.

Some adjustments will need to be made periodically to
properly maintain your tractor.

At least once a season, check to see if you should make
any of the adjustments described in the Service and
Adjustments section of this manual.

• At least once a year you should replace the spark
plug, clean or replace air filter, and check blades and
belts for wear. A new spark plug and clean air filter
assure proper air-fuel mixture and help your engine
run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

ROS systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

➀ SPINDLE ZERK
➀ FRONT

WHEEL
BEARING
ZERK

➀ SPINDLE ZERK

➀ FRONT

WHEEL
BEARING
ZERK

➁ ENGINE

➀ STEERING

SECTOR GEAR
TEETH

02956

➀ General Purpose Grease

➁ Refer to Maintenance “ENGINE” Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS
WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS
LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL
SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS.
IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONL Y A DRY ,
POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

14

MAINTENANCE

TRACTOR

Always observe safety rules when per form ing any main­ te nance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest
speed in high est gear on a level, dry concrete or paved
surface, then brake must be serviced. (See “TO CHECK
BRAKE” in the Ser vice and Ad just ments section of this
manual).

TIRES

• Maintain proper air pressure in all tires (See PSI on

tires).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent flat tires due
to slow leaks, tire sealant may be purchased from your
local parts dealer. Tire sealant also pre vents tire dry rot
and corrosion.

OPERATOR PRESENCE SYS TEM AND REVERSE OP­ERATION SYSTEM (ROS)

Be sure operator presence and reverse operation sys tems
are work ing properly. If your tractor does not function as
described, repair the problem immediately.

• The engine should not start unless the brake pedal is

fully de pressed, and the attachment clutch con trol is
in the dis en gaged position.

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the op er a tor

to leave the seat without first setting the parking brake
should shut off the engine.

• When the engine is running and the at tach ment clutch

is engaged, any attempt by the operator to leave the
seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

ROS "ON" Position

Engine "ON" Position
(Normal Operating)

BLADE CARE

For best results mower blades must be sharp. Re place
worn, bent or damaged blades.

CAUTION: Use only a replacement

blade approved by the manufacturer of
your tractor

. Using a blade not approved
by the manufacturer of your tractor is
hazardous, could damage your tractor
and void your warranty.

BLADE REMOVAL (See Fig. 13)

• Raise mower to highest position to allow access to
blades.

NOTE: Protect your hands with gloves and/or wrap blade
with heavy cloth.

• Remove blade bolt by turning coun ter clock wise.

• Install new blade with stamped "GRASS SIDE" facing
the ground.

IMPORTANT: To ensure proper as sem bly, center hole in
blade must align with star on mandrel assembly.

• Install and tighten blade bolt securely (45-55 Ft. Lbs.
torque).

IMPORTANT: Special blade bolt is heat treated.

MANDREL
ASSEMBLY

BLADE

CENTER
HOLE

STAR

BLADE BOLT
(SPECIAL)

8

2

8

2

0

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in
the engine "ON" position and the at tach ment clutch
engaged, any attempt by the operator to shift into
reverse should shut off the engine.

• When the engine is running with the ignition switch in
the ROS "ON" position and the at tach ment clutch en­gaged, any attempt by the operator to shift into reverse
should NOT shut off the engine.

FIG. 13

15

MAINTENANCE

DECK WASHOUT PORT (See Fig. 14)

Your tractor’s deck is equipped with a washout port on
its surface as part of its deck wash system. It should be
utilized after each use.

1. Drive the tractor to a level, clear spot on your lawn, near
enough to a water spigot for your garden hose to reach.

IMPORTANT: Make certain the tractor’s discharge chute is
directed AWAY from your house, garage, parked cars, etc.
Remove bagger chute or mulch cover if attached.

2. Make sure the PTO (Blade Engage) is not engaged,
set the parking brake, and stop the engine.

3. Thread the nozzle adapter (packaged with your tractor’s
Operator’s Manual) onto the end of your garden hose.

4. Pull back the lock collar of the nozzle adapter and push
the adapter onto the deck washout port at the left end
of the mower deck. Release the lock collar to lock the
adapter on the nozzle.

Hose

Nozzle Adapter

Washout Port

BATTERY

Y our tractor has a battery charging system which is suf fi cient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.
NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.

TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat­ tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush
until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY" in
the SERVICE AND ADJUSTMENTS section of this
man u al).

Fig. 14

IMPORTANT: Tug hose ensuring connection is secure.

5. Turn the water on.

6. While sitting in the operator’s position on the tractor,
re-start the engine and place the throttle lever in the
Fast "

IMPORTANT: Recheck the area making certain the area
is clear.

7. Move the tractor’s PTO (Blade Engage) to the ON
position. Remain in the operator’s position with the
cutting deck engaged until the deck is cleaned.

8. Move the tractor’s PTO (Blade Engage) to the OFF
position. Turn the ignition key to the STOP position to
turn the tractor’s engine off. Turn the water off.

9. Pull back the lock collar of the nozzle adapter to dis­connect the adapter from the nozzle washout port.

10. Move the tractor to a dry area, preferably a concrete or
paved area. Engage the mower deck PTO to remove ex­cess water and to help dry before putting the tractor away.

" position.

WARNING: A broken or missing washout

fitting could expose you or others to
thrown objects from contact with the blade.

• Replace broken or missing washout fitting

immediately , prior to using mower again.

• Plug any holes in mower with bolts and

locknuts.

V-BELTS

Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not
ad just able. Re place belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean
to assure proper cooling.

Do not attempt to clean fan or transmission while engine
is running or while the transmission is hot. To prevent pos­ si ble damage to seals, do not use high pressure water or
steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and
clean.

• Inspect cooling fins for dirt, grass clippings and other
materials. To prevent damage to seals, do not use
compressed air or high pressure sprayer to clean
cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te ­nance is not required for the life of the transaxle. Should
the transaxle ever leak or require servicing, contact your
near est au tho rized ser vice center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service
classification SG-SL. Select the oil’s SAE viscosity grade
according to your expected operating temperature.

16

MAINTENANCE

SAE VISCOSITY GRADES

SAE 30

5W-30

-20 0 30 40

F

C

-30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

-20 0

-10

32

60

10

20 30 40

100

80

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather , they will result in increased
oil consumption when used above 32°F . Check your engine
oil level more frequently to avoid possible engine damage
from running low on oil.

Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one
year.

Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation. Tighten oil fill
cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 14 and 15)
Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt
to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install
the drain tube onto the fitting.

OIL DRAIN VALVE

CLOSED AND
LOCKED
POSITION

YEL LOW
CAP

02463

DRAIN
TUBE

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent
engine dam age from overheating. Clean with a wire brush
or compressed air to re move dirt and stubborn dried gum
fibers.

AIR FILTER

Your engine will not run properly using a dirty air filter.
Service air cleaner more often under dusty conditions.
See Engine Manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other
oil change if the tractor is used more than 100 hours in
one year.

MUFFLER

Inspect and replace corroded muffler and spark arrester
(if equipped) as it could create a fire hazard and/or dam­age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing
season or after every 100 hours of operation, whichever
occurs first. Spark plug type and gap setting are shown in
“PROD UCT SPECIFICATIONS” section of this manual.

IN-LINE FUEL FILTER (See Fig. 16)

The fuel filter should be replaced once each season. If fuel
filter becomes clogged, ob struct ing fuel flow to car bu re tor,
re place ment is re quired.

• With engine cool, remove filter and plug fuel line sec­ tions.

• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are
properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FIG. 15

• Unlock drain valve by pushing inward and turning
coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the
drain valve by pushing inward and turning clockwise
until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the
bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour
slowly . Do not overfill. For approximate capacity see
“PRODUCT SPECIFICA TIONS” section of this man u al.

• Use gauge on oil fill cap/dipstick for checking level.
Be sure dipstick cap is tightened securely for accurate
reading. Keep oil at “FULL” line on dipstick. Tighten
cap onto the tube securely when finished.

FUEL FILTER

FIG. 16

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign
matter.

• Keep finished surfaces and wheels free of all gasoline,
oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and trans­mission are covered to keep water out. Water in engine or
transmission will shorten the useful life of your tractor . Use
compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower.

17

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST ­MENTS:

• Depress brake pedal fully and set parking brake.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TO REMOVE MOWER (See Fig. 17)

• Place attachment clutch in “DIS EN GAGED” position.

• Lower attachment lift lever to its lowest position.

• Roll belt off engine pulley (M) and belt keepers (G).

• Remove retainer spring (K), slide col lar (L) off and push
housing guide (P) out of brack et.

• Remove clutch cable spring (Q) from idler arm (R).

• Disconnect front link (E) from mower - remove retainer
spring and washer.

• Go to either side of mower and disconnect mower
suspension arm (A) from chassis pin (B) and rear lift
link (C) from rear mower bracket (D) - remove retainer
springs and washers.

CAUTION: AFTER REAR LIFT LINKS
ARE DISCONNECTED, THE ATTACH­MENT LIFT LEVER WILL BE SPRING
LOADED. HAVE A TIGHT GRIP ON LIFT
LEVER WHEN CHANGING POSITION
OF THE LEVER.

• Slide mower out from under right side of tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE
MOWER IS TO BE MOUNTED ON THE TRAC TOR,
REMOVE THE FRONT LINK (E) AND REAR LIFT LIKS
(C) FROM TRACTOR AND HOOK THE CLUTCH SPRING
(Q) INTO THE CABLE GUIDE ON FRONT EDGE OF
LOWER DASH.

TO INSTALL MOWER (See Fig. 17–21)

Be sure tractor is on level surface and engage park ing
brake.

• Lower attachment lift lever to it's lowest position.

CAUTION: LIFT LEVER IS SPRING

OADED. HAVE A TIGHT GRIP ON

L
LIFT LEVER, LOWER IT SLOWLY AND
ENGAGE IN LOWEST POSITION.

NOTE: Be sure mower side suspension arms (A) are point-

ing forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under
tractor.

• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO
CHASSIS - Position hole in arm over pin (B) on outside
of tractor chassis and secure with retainer spring.

• Repeat on opposite side of tractor.

M

G

F

K

P

Q

R

G

A

E

B

C

L

D

FIG. 17

18

A

SERVICE AND ADJUSTMENTS

• ATT ACH FRONT LINK (E) - W ork from left side of trac­tor. Insert rod end of link assembly through front hole
in tractor front suspension bracket (F).

• Insert end of link (E) into hole in front mower bracket
and secure with washer and retainer spring (J).

B

FIG. 18

• ATTACH REAR LIFT LINKS (C) - Lift rear corner of
mower and position slot in link assembly over pin (D)
on rear mower bracket and secure with washer and
retainer spring.

C

D

E

J

F

H

FIG. 20

• Install belt on engine pulley (M), in belt keepers (G).

IMPORT

IN ALL MOWER PULLEY GROOVES.

• Raise attachment lift lever to highest position.

• If necessary, adjust gauge wheels before op er at ing

ANT: CHECK BELT FOR PROPER ROUTING

mower as shown in the Operation section of this
manual.

FIG. 19

K

P

Q

R

M

G

F

G

A

E

B

C

L

D

FIG. 21

19

SERVICE AND ADJUSTMENTS

02948

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on
tires. If tires are over or under inflated, it may affect the
appearance of your lawn and lead you to think the mower
is not adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig. 22)

• With all tires properly inflated and if your lawn appears
unevenly cut, determine which side of mower is cutting
lower.

• With a 3/4" or adjustable wrench, turn lift link adjust­ment nut (A) to the left to lower LH side of mower, or,
to the right to raise LH side of mower.

A

• If adjustment is necessary, see step in Visual Adjust­ment instructions above.

• Recheck measurements, adjust if necessary until both
sides are equal.

FRONT-TO-BACK ADJUSTMENT (See Figs. 24 and 25)
IMPORTANT: Deck must be level side-to-side.

T o obtain the best cutting re sults, the mower blades should
be adjusted so the front tip is 1/8" to 1/2" lower than the
rear tip when the mower is in its highest position.

CAUTION: Blades are sharp. Protect your
hands with gloves and/or wrap blade with
heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing straight forward.
Measure distance (B) to the ground at front and rear tip
of the blade.

• If front tip of blade is not 1/8" to 1/2" lower than the rear
tip, go to the front of tractor.

02548

B

B

Turn nut right
to raise mower

Turn nut left
to lower mower

FIG. 22

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

• Test your adjustment by mowing some uncut grass
and visually checking the appearance. Readjust, if
necessary, until you are satisfied with the results.

PRECISION SIDE-TO-SIDE ADJUSTMENT
(See Fig. 23)

• With all tires properly inflated, park tractor on level
ground or driveway.

CAUTION: Blades are sharp. Protect
your hands with gloves and/or wrap
blade with heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and
measure the distance (A) from bottom edge of blade
to the ground. The distance should be the same on
both sides.

02966

A

A

FIG. 23

FIG. 24

• With an 11/16" or adjustable wrench, loosen jam nut A
several turns to clear adjustment nut B.

• With a 3/4" or adjustable wrench, turn front link adjust­ment nut (B) clockwise (ltighten) to raise the front of
mower , or, counterclockwise (loosen) to lower the front
mower.

B

A

Tighten adjust nut
B to raise mower

02950

Loosen jam nut A first

Loosen adjust
nut B to lower

mower

FIG. 25

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8".

• Recheck measurements, adjust if necessary until front
tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten
jam nut securely against adjustment nut.

20

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER DRIVE BELT
(See Fig. 26)

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. En gage parking
brake.

• Lower attachment lift lever to its lowest position.

• Remove any dirt or grass clippings which may have
accumulated around mandrels and entire upper deck
surface.

• Remove belt from electric clutch pulley (M), both man­drel pulleys (R) and all idler pulleys (S).

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around
idler pulleys (S) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower
pulley grooves.

• Raise attachment lift lever to highest position.

S

M

• Pull belt slack toward rear of trac tor . Carefully remove
belt up wards from trans mis sion input pulley and over
cooling fan blades (F).

• Remove belt downward from engine pulley and around
electric clutch (G).

• Slide belt toward rear of tractor, off the steering plate
(H) and remove from tractor.

BELT INSTALLATION -

• Install new belt from tractor rear to front, over the steer­ing plate (H) and above clutch brake pedal shaft (J).

• Pull belt toward front of tractor and roll belt around
electric clutch and onto engine pulley (G).

• Pull belt toward rear of tractor . Carefully work belt down
around transmission cooling fan and onto the input
pulley (F). Be sure belt is inside the belt keeper.

• Install belt on centerspan idler (E).

• Install belt through stationary idler (C) and clutch ing
idler (D).

• Reinstall anti-rotation link (B) on right side of tractor.
Tighten securely.

• Reconnect clutch harness (A).

• Make sure belt is in all pulley grooves and in side all
belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this
sec tion of manual).

R

R

FIG. 26

TO REPLACE MOTION DRIVE BELT
(See Fig. 27)

Park the tractor on level surface. En gage parking brake.
For as sis tance, there is a belt installation guide decal on
bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See “TO RE MOVE MOWER” in this
section of manual).

NOTE: Observe entire motion drive belt and position of all
belt guides and keepers.

• Disconnect clutch wire harness (A).

• Remove anti-rotation link (B) on right side of tractor.

• Remove belt from stationary idler (C) and clutching
idler (D).

• Remove belt from centerspan idler (E).

G

H

B

A

C

J

D

E

F

02953
electric

FIG. 27

21

SERVICE AND ADJUSTMENTS

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest
speed in high est gear on a level, dry concrete or paved
surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface,
depress brake pedal all the way down and engage
parking brake.

• Disengage transmission by placing freewheel control
in “transmission disengaged” position. Pull freewheel
control out and into the slot and release so it is held in
the disengaged position.

The rear wheels must lock and skid when you try to manu­ally push the tractor forward. If the rear wheels rotate,
then the brake needs to be serviced. Contact a qualified
service center.

FRONT WHEEL TOE-IN/CAM BER

Y our new tractor front wheel toe-in and camber is set at the
factory and is normal. The front wheel toe-in and camber
are not adjustable. If damage has occurred to affect the
factory set front wheel toe-in or camber , contact a qualified
service center.

TO REMOVE WHEEL FOR REPAIRS
(See Fig. 28)

• Block up axle securely.

• Remove axle cover , retaining ring and washers to allow
wheel removal (rear wheel contains a square key - Do
not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub
and axle. Insert square key.

• Replace washers and snap retaining ring securely in
axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due
to slow leaks, tire sealant may be purchased from your
local parts dealer. Tire sealant also prevents tire dry rot
and corrosion.

TO START ENGINE WITH A WEAK BATTERY
(See Fig. 29)

WARNING: Lead-acid batteries gen­ er ate ex plo sive gases. Keep sparks,
flame and smoking ma te ri als away from
bat ter ies. Always wear eye pro tec tion
when around batteries.

If your battery is too weak to start the engine, it should be
recharged. (See "BATTERY" in the MAINTENANCE sec­ tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow
this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12
VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12
VOL T SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO
START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE
(+) terminal of each battery(A-B), taking care not to
short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE
(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good
chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully
charged battery.

• RED cable last from both batteries.

WEAK OR DEAD
BATTERY

FULLY CHARGED
BATTERY

FIG. 29

WASH ERS

RE TAIN ING
RING

AXLE COVER

SQUARE KEY (REAR
WHEEL ONLY)

FIG. 28

22

SERVICE AND ADJUSTMENTS

REPLACING BATTERY (See Fig. 30)

WARNING: Do not short battery ter­ mi nals by allowing a wrench or any
other object to contact both terminals
at the same time. Before connect­ing battery, remove metal bracelets,
wristwatch bands, rings, etc.
Positive terminal must be connected
first to prevent sparking from ac ci ­den tal grounding.

• Lift seat pan to raised position and open battery box
door.

• Disconnect BLACK battery cable first then RED battery
cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as
old battery.

• First connect RED battery cable to positive (+) ter­minal with hex bolt and keps nut as shown. Tighten
securely.

• Connect BL ACK grounding cable to negative (-) ter­ mi nal with remaining hex bolt and keps nut. Tighten
se cure ly.

• Close battery box door.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the
Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 31)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor . Grasp hood at sides, tilt toward
engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD

HEADLIGHT
WIRE
CONNECTOR

Seat Pan

02602

Positive
(Red)
Cable

Terminal
Cover

02603

Keps
Nut

Hex
Bolt

Negative (Black)
Cable

FIG. 30

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the
grill.

• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.

• Close hood.

02778

FIG. 31

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and
ad just ment should not be necessary . If adjustment is nec­ es sary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad­ just ment should not be necessary . If adjustment is neces­sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not
operate properly due to suspected carburetor problems,
take your tractor to an authorized service center for repair
and/or adjustment.

23

STORAGE

Immediately prepare your tractor for storage at the end
of the season or if the tractor will not be used for 30 days
or more.

WARNING: Never store the trac tor with
gas o line in the tank inside a building
where fumes may reach an open flame
or spark. Allow the engine to cool before
storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When
mower is to be stored for a period of time, clean it thor­ oughly, remove all dirt, grease, leaves, etc. Store in a
clean, dry area.

• Clean entire tractor (See “CLEANING” in the Mainte­nance section of this manual).

• Inspect and replace belts, if necessary (See belt re­ place ment instructions in the Service and Adjustments
section of this manual).

• Lubricate as shown in the Maintenance sec tion of this
man ual.

• Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORT ANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH
AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT
ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN A TTRACT MOIS TURE WHICH
LEADS TO SEPARA TION AND FOR MA TION OF ACIDS DURING
STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM
OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run
until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: F uel stabilizer is an acceptable alternative in mini­mizing the formation of fuel gum deposits during stor age.
Add stabilizer to gasoline in fuel tank or storage container .
Always follow the mix ratio found on stabilizer container.
Run engine at least 10 minutes after adding stabilizer to
allow the stabilizer to reach the carburetor. Do not empty
the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine
oil. (See “ENGINE” in the Maintenance section of this
man ual).

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require
re charg ing.

• To help prevent corrosion and power leakage during
long periods of storage, battery cables should be dis­ con nect ed and battery cleaned thoroughly (see “TO
CLEAN BATTERY AND TERMINALS” in the Mainte­nance section of this manual).

• After cleaning, leave cables disconnected and place
cables where they cannot come in contact with battery
terminals.

• If battery is removed from tractor for storage, do not
store battery directly on concrete or damp surfaces.

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into
cylinder(s).

• T urn ignition key to “ST ART” position for a few seconds
to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to
give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE
AND EXHAUST AREAS ARE STILL WARM.

24

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Weak or dead battery. 5. Recharge or replace battery.

6. Dirty air filter. 6. Clean/replace air filter.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Water in fuel. 8. Empty fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.

9. Loose or damaged wiring. 9. Check all wiring.

10. Carburetor out of adjustment. 10. See “To Adjust Carburetor” in Service Adjustments
section.

11. Engine valves out of adjustment. 11. Contact an authorized service center/department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments
section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

Empty fuel tank and refill tank with fresh, clean gasoline.

Engine will not turn over 1. Brake pedal not depressed. 1. Depress brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

Engine clicks but will not 1. Weak or dead battery. 1. Recharge or replace battery.
start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8.

9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments
section.

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Empty fuel tank and refill tank with fresh, clean gasoline.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

25

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine dies when 1. Reverse operation system 1. Turn ignition key to
tractor is shifted (ROS) is not "ON" while ROS "ON" position.
into reverse mower or other attachment See Operation section.

is engaged.

Engine continues to run 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not
when operator leaves seat corrected, contact an authorized service center/
with attachment clutch department.
engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes.
grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction.
rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes.
grass, leaves, and trash around mandrels.

Headlight(s) not working 1. Light switch is “OFF”. 1. Turn light switch “ON”.
(if so equipped) 2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Motion drive belt worn, damaged, or broken. 2. Replace motion drive belt.

3. Air trapped in transmission during shipment 3. Purge transmission.
or servicing.

Engine “backfires” when 1. Engine throttle control not set between half and 1. Move throttle control between half and full speed
turning engine “OFF” full speed (fast) position before stopping engine. (fast) position before stopping engine.

26

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43
SCHEMATIC

SCH13

87

87A

30

RELAY

BATTERY

B

G

L

A

AMMETER

(OPTIONAL)

S

M
A1

A2

BLUE

WHITE

BLACK

BLUE

RED

(DISENGAGED)

C

A

B

BLACK

FUSE

PTO SWITCH

BLACK

BLACK

BLACK

8586

85 86

30

87A

87

BLACK

BLACK /WHITE

RED

H

D

E

SOLENOID

WHITE

RED

BLACK

CLUTCH/BRAKE

(PEDAL UP)

2

3
1

6

JUNCTION

CONNECTOR

CHASSIS

HARNESS

WHITE

BLACK

BLACK
BLACKBLACK

GRAY

BLACK

STARTER

M

M

ELECTRIC CLUTCH

GRAY

REVERSE SWITCH
(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

BLACK

NOTES

IGNITION SWITCH

OFF

RUN/OVERRIDE

H

FC

B

A

E

G

D

PTO SWITCH

(MATING SIDE)

CIRCUITPOSITION
M+G+A1

B+A1
B+A1RUN

B+S+A1START

“MAKE”

L+A2

BLACK

BLUE

ORANGE

SWITCH

3

6

52

41

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

BLUE

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

RED

LIGHT

DASH HARNESS

CONNECTOR

27

IGNITION

UNIT

(OPTIONAL)

HOUR

METER

BLUE

CHARGING SYSTEM OUTPUT
9-15 AMP DC @ 3600 RPM

REGULATOR

BROWN

6

3

5

2

4

1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

BLACK

12V

POWER OUTLET

(OPTIONAL)

STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

HEADLIGHTS

BLACK

BLACK

WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

ELECTRICAL

T21S

With 12V Outlet Option

103

59

With Service Minder Option

4646

26

34

79

40

22

21

81

41

30

27

33

42

43

25

16

90

71

2

29

28

55

101

102

105

28

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

ELECTRICAL

KEY PART
NO. NO. DESCRIPTION

1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Socket Light W/4152J
22 532 00 41-52 Bulb Light
25 532 41 28-95 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key\Chain
34 532 11 07-12 Switch Light / Reset
40 532 40 96-14 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Servicereminder Hrmtr
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
59 532 40 03-03 Outlet 12-Volt
71 532 40 04-49 Harness Ign.
79 532 17 52-42 Socket Asm Bulb Twistlock
81 532 40 96-15 Relay Harness Sealed
90 532 40 07-24 Cover Terminal
101 532 19 83-17 Harness Pigtail
102 532 40 44-54 Harness Pigtail
103 532 40 79-62 Harness 12-Volt Pigtail
105 532 40 75-68 Switch Reverse TT Pedal Control

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

29

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

CHASSIS

178

176

181

176

176

208

210

203

212

130

206

5

204

214

234

177

137

175

234

15

18

130

14

150

4

3

6

6

25

207

211

209

202

205

282

286

162

283

199

284

282

36

182

285

165

194

36

176

194

68

37

236

183

68

130

235

183

228

68

236

194

235

68

180

130

34

189

213

218

68

68

217

chassis-tex_GT Husq_11_r1

230

159

30

159

228

152

52

189

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

CHASSIS

KEY PART
NO. NO. DESCRIPTION

3 532 40 86-06 Trim, Husq.
4 532 40 50-12 Logo
5 532 40 87-01 Dash
6 532 11 04-52 Nut, Push
14 532 41 10-46 Hood
15 532 19 89-07 Lens LH
18 532 40 86-07 Grille/Lens Asm.
25 532 19 89-06 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 41 63-07 Fender
52 873 68 05-00 Nut Lock 5/16-18
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw 10 x .750 BOS Thread
137 532 40 75-90 Bumper Dash
150 532 19 85-12 Air Duct
152 532 19 95-35 Shield Browning
157 817 00 06-12 Screw 3/8-16 x 3/4
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Net Asm.
180 532 19 54-57 Chassis
181 532 40 30-25 Bushing Mtg. Fender Crgo
182 532 40 68-59 Dash Lower
183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
199 532 41 34-85 Plate Deck Lift
202 532 40 30-48 Vent Side Hood RH

KEY PART
NO. NO. DESCRIPTION

203 532 40 30-76 Vent Side Hood LH
204 532 41 66-13 Vent Top Hood
205 532 40 17-09 Skirt Hood Side RH
206 532 40 17-11 Skirt Hood Side LH
207 532 19 71-98 Bezel RH
208 532 19 71-99 Bezel LH
209 532 19 91-30 Insert Hex Top RH
210 532 19 91-31 Insert Hex Top Lh
211 532 19 91-32 Insert Hex Bottom RH
212 532 19 91-33 Insert Hex Bottom LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer Tinner
217 532 40 91-67 Rod Pivot
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastner
230 532 17 01-65 Bolt Shoulder 5/16-18
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 UNC
282 532 41 41-10 Clip Retainer Console
283 532 41 63-16 Console Deck Lift
284 532 41 78-77 Console Shift
285 532 41 63-15 Console Insert RH
286 532 41 63-17 Console Insert LH
287 817 60 04-06 Screw 1/4-20 X 3/8

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

31

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

DRIVE

56

221

213

209

92

160

207

206

125

116

26

221

42

49

64

184

186

187

160

185

189

35

167

188

143

159

160

216

161

52

51

171

163

170

211

226

125

153

125

215

208

80

125

125

197

196

125

214

210

222

51

50

190

52

33

205

drive-tex_K46_pedal_8

51

230

15

183

159

2

73

29

116

99

17

211

125

153

225

116

183

2

205

1

73

230

166

33

32

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

DRIVE

KEY PART
NO. NO. DESCRIPTION

1 5324053-84 Transaxle, TUFFTORQ K46
(Internal parts not available)
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 95-91 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
80 532 41 00-24 Bracket Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 75-09 Spring, Return, Clutch
163 532 40 10-34 Rod Pedal Control
166 532 19 72-90 Nut Push
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan

KEY PART
NO. NO. DESCRIPTION

171 872 11 06-16 Bolt RDHD SQNK 3/8-16UNC x 2
183 532 13 70-57 Spacer Split
184 532 40 31-18 Handle Parking Brake
185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 58-04 Bracket Clutch Anti-Rotation
205 532 12 17-48 Washer
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 95-92 Rod Control Cruise
210 532 40 09-80 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Knob Control Cruise
214 532 41 68-63 Pedal Forward
215 532 40 17-23 Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.
225 532 40 33-19 Keeper Belt Trans.
226 532 40 15-64 Bracket Mount Touque
230 532 18 89-67 Washer Hardened

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

33

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

ENGINE

87

18

21

97

96

20

15

22

1

84

12

11

82

42

31

41

85

62

69

71

45

70

79

81

37

29

SPARK ARRESTER KIT

engine-tex_bs-2cyl_7

28

37

90

2

9

34

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

ENGINE

KEY PART
NO. NO. DESCRIPTION

1 - - - - - - Engine Briggs & Stratton Model

No. 40H777
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 40 00-08 Clutch
12 532 40 50-97 Pulley Engine
15 532 40 74-89 Tank Fuel
18 532 19 77-25 Cap Asm
20 532 17 83-85 Control Throttle
21 817 41 63-58 Screw #10 x .750 BOS Thread
22 532 18 95-91 Choke Control
28 532 40 11-37 Fuel Line
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-in Hinged
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 14 66-29 Heat Shield
69 532 16 53-91 Gasket
70 532 15 99-55 Tube Exhaust LH
71 532 16 05-89 Exhaust Tube RH
79 532 18 39-06 Screw Socket HD 5/16-18 x 1
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr . 5-1.5 Thr
86 532 18 43-62 Nut M8 - 1.25
87 537 17 18-77 Bolt 5/16-18 UNC x 3/4 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer
97 817 67 04-12 Screw

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Engine Power Rating Information

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi­neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod­ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas
engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net
horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust,
charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humid­ity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may sub­stitute an engine of higher rated power for this Series engine.

35

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

STEERING ASSEMBLY

63

64

57

16

28

19

51

13

21

*

45

28

22

60

*

79

PREM 2

26

1

HUSQ SR

26

1

*

57

63

63

59

35

9

67

66

9

7

8

8

7

2

58

61

steering-tex_special_9_r1

68

69

6

4

14

15

70

67

62

14

15

6

5

13

8

13

53

36

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

STEERING ASSEMBLY

KEY PART
NO. NO. DESCRIPTION

1 532 41 64-80 Wheel, Steering
2 532 18 47-06 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 41 59-87 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

37

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

SEAT ASSEMBLY

1

8

8

7

7

41

40

10

seat-tex_7-vgt

KEY PART
NO. NO. DESCRIPTION

43

44

21

6

37

37

2

21

3

KEY PART
NO. NO. DESCRIPTION

1 532 40 66-21 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 uncx 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18

37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

38

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

DECALS

2

5

6

3

8

9

12

4

2

1

KEY PART
NO. NO. DESCRIPTION

1 532 41 16-58 Decal, Operators
2 532 41 57-80 Decal, Hood
3 532 41 82-12 Decal, Emblem Panel SD
4 532 41 84-94 Decal, Engine
5 532 18 09-41 Decal, Customer Respons.
6 532 41 82-69 Decal, Replacement
8 532 17 05-63 Decal Mower Warn Keep Hand away

WHEELS AND TIRES

1

2

6

11

3

4

7

10

5

9

8

KEY PART
NO. NO. DESCRIPTION

9 532 14 50-05 Decal, Battery Dnge/Poi
12 532 16 03-96 Decal, Mower V-Belt Schematic

- - 532 41 82-77 Decal, Deck Air Induct

- - 532 16 69-60 Decal, Bypass

- - 532 41 08-05 Pad, Footrest, LH

- - 532 41 08-06 Pad, Footrest, RH

- - 532 41 83-23 Manual, Owner's (English)

- - 532 41 83-24 Manual, Owner's (French)

KEY PART
NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire R T 20 x 8-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" rear Service

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

wheel_art_1-tex

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

39

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

MOWER DECK

40

1

116

119

117

188

40

189

62

40

145

59

57

56

241

242

200

55

34

30

33

21

68

32

31

69

40

21

119

21

69

117

46

116

21

21

23

69

198

24

3

21

25

26

46

2

147

197

36

189

6

19

46_tex_lt_pred_15

188

6

19

11

15

14

13

29

69

199

69

69

8

27

40

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

MOWER DECK

KEY PART
NO. NO. DESCRIPTION

1 532 41 08-63 Mower Housing
2 532 40 55-06 Cover Mandrel RH
3 532 40 55-07 Cover Mandrel LH
6 532 19 51-86 Arm Suspension
8 532 19 30-03 Bolt/Washer asm 7/16-20 unf
11 532 40 53-80 Blade Mower Hi Lift
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 53-57 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
46 532 13 77-29 Screw
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw Hexwsh Thd 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler (94)
62 874 52 06-36 Bolt 3/8-16 UNC x 2-1/4 Gr. 5
68 532 40 51-43 V-Belt
69 872 14 05-05 Bolt
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Wheel, Gauge
119 819 13 20-12 Washer 13/32 x 1-1/2 x 11 Ga.
145 532 19 31-97 Pulley Idler
147 532 19 72-51 Spring Return
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
197 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
198 532 40 31-49 Baffle Center Front
199 532 40 31-50 Baffle Front RH
200 819 41 35-24 Washer 13/32 x 2 x 10 Ga.
241 532 15 29-27 Screw
242 532 41 55-98 Washout Port

- - 532 19 28-70 Mandrel Assembly (Includes
housing, shaft and shaft hard
ware only-pulley not included)

- - 532 41 82-26 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

41

TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

MOWER LIFT

7

87

87

91

90

3

89

98

10

97

100

2

88

97

91

lift-tex_7

KEY PART
NO. NO. DESCRIPTION

2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift Rh
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock

89

87

KEY PART
NO. NO. DESCRIPTION

91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x 3/4
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Center Lock 3/8-16 UNC

NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

42

15 DEGREES MAX.

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

43

WARRANTY STATEMENT

SECTION 1: LIMITED W

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser to be free from
defects in material and workmanship from the date of purchase for the “Warranty Period” of the product as set forth below:

Lifetime Warranty (Parts and Labor):All tiller tines and trimmer shafts against breakage. Proof of purchase required.
Lifetime Warranty (“PARTS ONLY” after initial warranty expiration): Ignition coils and modules on handheld product.

Proof of purchase required.

WARRANTY SCHEDULE FOR TURF CARE Equipment - Zero Turn Riders

(New warranty applies to units sold after August 1, 2005. Also applies to units factory-equipped with R.O.P.S.

EZ Zero Turn Riders: 3 year consumer warranty or 600 hours of use (when used solely at the owner’s residence.)
EZ & MZ Zero Turn Riders: 1 year commercial warranty or 600 hours of use.
iZ, LZ & BZ Zero Turn Riders:
iZ, LZ & BZ Zero Turn Riders: 5 year commercial warranty or 1,500 hours of use.
3 Year or 1,500 Hour Commercial Use Warranty: spindles on zero turn riders, hydraulic pumps and wheel motors.

Warranty Schedule for Turf Care Walk Behind Units - W, WG & WH Zero Turn Riders - 3 year consumer and commercial
warranty. New warranty applies to units sold after August 1, 2005. Also applies to units factory-equipped with R.O.P.S.

2 Year COMMERCIAL and CONSUMER Warranty: all Husqvarna ground-engaging commercial equipment.
WARRANTY SCHEDULE FOR CONSUMER TURF CARE EQUIPMENT
2 Year Consumer Warranty:Automatic mower, all Residential Zero Turn Riders, all lawn, yard and garden tractors, all

noncommercial walk behind mowers, tillers, snow blowers, electrical products and power-assist collection systems for
noncommercial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated. All consumer
product use must have been limited to the owner’s residence.

WARRANTY SCHEDULE FOR CONSUMER FOREST & GARDEN EQUIPMENT
2 Year Consumer Warranty: all consumer chain saws, trimmers, brushcutters, clearing saws, handheld blowers, backpack

blowers, hedge trimmers, and electrical products for noncommercial, nonprofessional, noninstitutional or nonincome
producing use, except as herein stated. All consumer product use must have been limited to the owner’s residence.

2 Year or 2,000 Hour Powertrain & 1 Year or 1,000 Hour Body Warranty: Husqvarna Utility Vehicles.
1 Year Warranty:Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-professional,

noninstitutional, non-municipality or non-income producing use. All 300 series trimmers, brushcutters, clearing saws,
hovering trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems for
commercial, institutional, professional or income producing purposes or use.
1 Year Conditional Component Warranty: Chain saw crankshafts for commercial/professional use (parts and labor).Saw
must be operated with Husqvarna XP 2 cycle oil.

90 Day Commercial Warranty:

saws, pole pruners, snow throwers, model series 580 & 600 walk-behind mowers, or any Husqvarna product used for
commercial, institutional, professional, municipality or income producing purposes or use except as otherwise provided herein.

Batteries: 1 year prorated limited warranty with 100% replacement during the first 6 months.

ental Warranty: 90 days on all applicable professional equipment reference warranty time period charts

R

located in the back of the Retailer Warranty Policy & Procedure Manual.
Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase for defects in
material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must be returned to Charlotte
with a warranty claim form. All care and maintenance instructions must be followed as stated by the manufacturer on the
care label. The fit of the protective apparel/boot is not covered under warranty.
30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items. Emission control
system components necessary to comply with CARB-TIER II and EPA regulations, except for those components which are
part of engine systems manufactured by third part engine manufacturers for which the purchaser has received a separate
warranty with product at time of purchase.

SECTION 2: HUSQVARNA

Husqvarna will repair or replace defective components without charge for parts or labor if a component fails because of a

defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY

The following items are not covered by this warranty:
(1) Normal customer maintenance items which become worn through normal regular use, including, but not limited to, belts,
blades, blade adapters, bulbs, clutches, clutch drums, filters, guide bars, lubricants, rewind springs, saw chain, spark plugs,

ARRANTY

5 year consumer warranty or 1,500 hours of use.

:

:

Automatic mower, chain saws, 100 series trimmers, power cutters, stump grinders, pole

’S OBLIGA

TIONS UNDER THE WARRANTY

THIS WARRANTY

starter ropes and tiller tines;
(2) Natural discoloration of material due to ultraviolet light;
(3) Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective manufacturer’s
warranty as provided in writing with the product information supplied at the time of purchase; all claims must be sent to the
appropriate manufacturer;
(4) Lawn and garden attachments are covered by a third party which gives a warranty, all claims for warranty should be sent
to the manufacturer,
(5) Commercial or consumer mowing decks with sand abrasion damage.
(6) Emission Control System components necessary to comply with CARB-TIER II and EPA regulations which are
manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS

This warranty shall be inapplicable to defects resulting from the following:
(1) Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust, corrosion, or any
adverse reaction due to incorrect storage or use habits;
(2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished
by Husqvarna;
(3) Alterations or modifications that change the intended use of the product or affects the product’s performance, operation,
safety, or durability, or causes the product to fail to comply with any applicable laws; or:
(4) Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTYIS THE EXCLUSIVE REMEDYOF THE
PURCHASER. HUSQVARNA SHALLNOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPTTO THE EXTENT
PROHIBITED BY APPLICABLE LAW. ANYIMPLIED WARRANTYOF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE WARRANTY PERIOD AS
DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RESERVES THE RIGHTTO CHANGE OR

MPROVE THE DESIGN OF THE PRODUCT WITHOUTNOTICE, AND DOES NO TASSUME OBLIGATION TO UPDATE

I
PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.

AND LIMITA

TIONS

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written in the
maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur, the product should
not be used, but delivered as is to an authorized Husqvarna retailer for evaluation. Proof of purchase, as explained in
section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN W

It is the Owner’s and Retailer’s responsibility to make certain that the Warranty Registration Card is properly filled out and
mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase
in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna retailer in order to obtain warranty service. This proof
must include date purchased, model number, serial number, and complete name and address of the selling retailer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an authorized Husqvarna
retailer in a timely manner, no later than thirty (30) days from date of the operational problem or failure. The product must be
delivered at the owner’s expense. Downtime, pick-up and delivery charges are not covered by this warranty. An authorized
Husqvarna retailer can be normally located through the “Yellow Pages” of the local telephone directory or by calling 1-800­HUSKY62 for a retailer in your area.

ARRANTY

CONSIDERA

TION

HUSQVARNA
7349 Statesville Road
Charlotte, NC 28269 2008

532 41 83-23 Rev. 1 11.30.07 AP Printed in the U.S.A.
