Parts Manual
MANUAL NO. 539107600 REV. 04 (05/12/03)
Models:
968999219 / CZ4815KAA
968999220 / CZ4817KOA
2
INDEX
MAIN FRAME ASSEMBLY .................... 4-7
CONSOLE ASSEMBLY ......................... 8
CASTER ASSEMBLY............................ 9
MOTION CONTROL ASSEMBLY ......... 10-11
MOTION CONTROL LEVERS .............. 12-13
DECK LIFT ASSEMBLY........................ 14-15
IZT ASSEMBLY ..................................... 16-17
KAWASAKI ENGINE ASSEMBLY ........ 18
KOHLER ENGINE ASSEMBLY............. 19
DECAL PLACEMENT ........................... 20
ELECTRICAL COMPONENTS ............. 21
48" DECK ASSEMBLY .......................... 22-23
WIRING SCHEMATIC ........................... 24
©2002 Husqvarna. All Rights Reserved.
Beatrice, NE. Printed in U.S.A.
3
37
MAIN FRAME ASSEMBLY
57
56
20
54
54
19
21
51
41
43
52
49
36
52
52
28
46
35
39
33
18
29
24
32
30
34
26
27
48
10
45
31
11
12
25
13
42
6
23
54
5
40
16
47
38
15
50
45
54
9
54
53
58
59
7
8
54
1
4
3
54
22
54
12
2
17
55
14
23
54
3
44
REF. CASTER ASSEMBLY
(TWO PER UNIT)
4
MAIN FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107967 .......... 1 ......... MAINFRAME W/DECALS
2 ......... 539108045 .......... 1 ......... CASTER AXLE W/BUSHINGS
3 ......... 539101232 .......... 4 ......... BUSHING, FLANGED - PM
4 ......... 539101151 ........... 2 ......... RETAINING RING
5 ......... 539107116 ........... 2 ......... GROMMET
6 ......... 539105974 .......... 1 ......... GROMMET, RUBBER
7 ......... 539107966 .......... 1 ......... SEAT SUPPORT W/DECALS
8 ......... 539107585 .......... 1 ......... FOOT PLATE, FRONT
9 ......... 539107561 .......... 2 ......... SEAT BRACKET
10 ....... 539107565 .......... 1 ......... SUPPORT, REAR
11........ 539105039 .......... 2 ......... STUD PLATE MOUNT
12 ....... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
13 ....... 539107579 .......... 1 ......... FRAME SIDE, RIGHT
14 ....... 539107581 .......... 1 ......... FRAME SIDE, LEFT
15 ....... 539101714 .......... 1 ......... SOLENOID
16 ....... 539102685 .......... 1 ......... CLIP
17 ....... 539107480 .......... 1 ......... STRUT MOUNT
18 ....... 539102845 .......... 8 ......... SPRING, TANK MOUNT
19 ....... 539107547 .......... 2 ......... TIRE ASSEMBLY
........... 539108009 .......... 1 ......... TIRE
........... 539108008 .......... 1 ......... RIM
........... 539912234 .......... 1 ......... VALVE STEM
20 ....... 539101173 ........... 8 ......... NUT, LUG 1/2"
21 ....... 539107575 .......... 1 ......... BUMPER, REAR
22 ....... 539107587 .......... 1 ......... PAN, FLOOR
23 ....... 539102587 .......... 4 ......... STOP, RUBBER
24 ....... 539107804 .......... 1 ......... VALVE, FUEL
25 ....... 539107968 .......... 1 ......... SEAT MOUNT W/DECALS
26 ....... 539107553 .......... 1 ......... PUMP IDLER ARM
27 ....... 539101231 .......... 1 ......... IDLER SPINDLE
28 ....... 539107620 .......... 1 ......... PULLEY, IDLER
29 ....... 539990655 .......... 1 ......... HCS 3/8C X 1 1/2
30 ....... 539101332 .......... 1 ......... HCS 1/2C X 2 3/4
CONTINUED ON PAGES 6 AND 7
5
54
21
51
41
52
37
36
52
46
39
MAIN FRAME ASSEMBLY
25
54
47
9
54
16
18
24
48
10
45
11
42
6
54
57
56
58
7
54
22
54
59
55
20
54
19
43
49
52
28
35
33
29
32
30
34
26
27
31
12
54
13
23
5
40
38
15
50
45
53
12
8
54
1
4
3
17
3
44
REF. CASTER ASSEMBLY
(TWO PER UNIT)
14
23
2
6
MAIN FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
31 ....... 539991034 .......... 4 ......... SCREW, #10-24 X 1/2
32 ....... 539990550 .......... 1 ......... WASHER, 1/2, FLAT
33 ....... 539990546 .......... 1 ......... NUT, 3/8C, CENTER LOCK
34 ....... 539101331 .......... 1 ......... NUT, 1/2C, NYLOC
35 ....... 539101977 .......... 1 ......... SPRING, TRACTION
36 ....... 539102502 .......... 8 ......... STUD, 5/16C
37 ....... 539107598 .......... 1 ......... FUEL CAP
38 ....... 539102759 .......... 3 ......... INSULATOR
39 ....... 539104409 .......... 1 ......... FUEL TANK, LEFT
40 ....... 539990362 .......... 2 ......... SCREW 1/4C X 5/8, SELF TAPPING
41 ....... 539976934 .......... 4 ......... HCS 5/16C X 3/4
42 ....... 539106776 .......... 2 ......... HCS 3/8C X 1/2
43 ....... 539990629 .......... 1 ......... HCS 3/8C X 2 1/4
44 ....... 539107706 .......... 3 ......... HCS 1/2C X 2 1/4
45 ....... 539976978 .......... 4 ......... NUT, 1/4C, NYLOC
46 ....... 539990717 .......... 13 ........ NUT, 5/16C, NYLOC
47 ....... 539990546 .......... 2 ......... NUT, 3/8C, CENTER LOCK
48 ....... 539976979 .......... 9 ......... NUT, 3/8C, NYLOC
49 ....... 539990613 .......... 1 ......... NUT, 3/8C, SERR WASHER
50 ....... 539101331 .......... 3 ......... NUT, 1/2C, NYLOC
51 ....... 539990187 .......... 2 ......... LOCK WASHER, 5/16
52 ....... 539990692 .......... 23 ........ WASHER, 5/16, FLAT
53 ....... 539990550 .......... 3 ......... WASHER, 1/2, FLAT
54 ....... 539107475 .......... 44 ........ BOLT, 5/16-18 X 3/4, THREAD FORMING
55 ....... 539104411 ........... 4 ......... KNOB W/STUD
56 ....... 539107582 .......... 1 ......... SEAT
57 ....... 539104789 .......... 1 ......... DECAL, SMALL CROWN
58 ....... 539990692 .......... 4 ......... WASHER, 5/16, FLAT
59 ....... 539107523 .......... 1 ......... SWITCH, SEAT
7
CONSOLE ASSEMBLY
8
7
9
2
5
4
10
3
6
1
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107593 .......... 1 ......... CONSOLE
2 ......... 539101768 .......... 1 ......... CLUTCH SWITCH
3 ......... 539107583 .......... 1 ......... THROTTLE CABLE
4 ......... 539107589 .......... 1 ......... CONTROL CONSOLE
5 ......... 539990411 ........... 6 ......... SCREW #10-24 X 1/2
6 ......... 539976977 .......... 2 ......... NUT #10-24, NYLOC
7 ......... 539107541 .......... 1 ......... IGNITION SWITCH
8 ......... 539107544 .......... 1 ......... KEY
9 ......... 539102540 .......... 1 ......... HOUR METER
10 ....... 539107957 .......... 1 ......... DECAL, THROTTLE
8
CASTER ASSEMBLY
6
5
7
8
1
3
2
4
ITEM PART NO. QTY. DESCRIPTION
........... 539106993 .......... 1 ......... TIRE (COMPLETE)
1 ......... 539106994 .......... 1 ......... RIM
2 ......... 539106995 .......... 1 ......... TIRE 410/350-5, 4 PLY
3 ......... 539103300 .......... 1 ......... ZERK
4 ......... 539912234 .......... 1 ......... VALVE STEM
5 ......... 539107494 .......... 1 ......... CASTER WELDMENT
6 ......... 539101331 .......... 1 ......... NUT 1/2C, NYLOC
7 ......... 539101907 .......... 1 ......... HCS 1/2C X 5 1/2
8 ......... 539105543 .......... 1 ......... SPACER
9

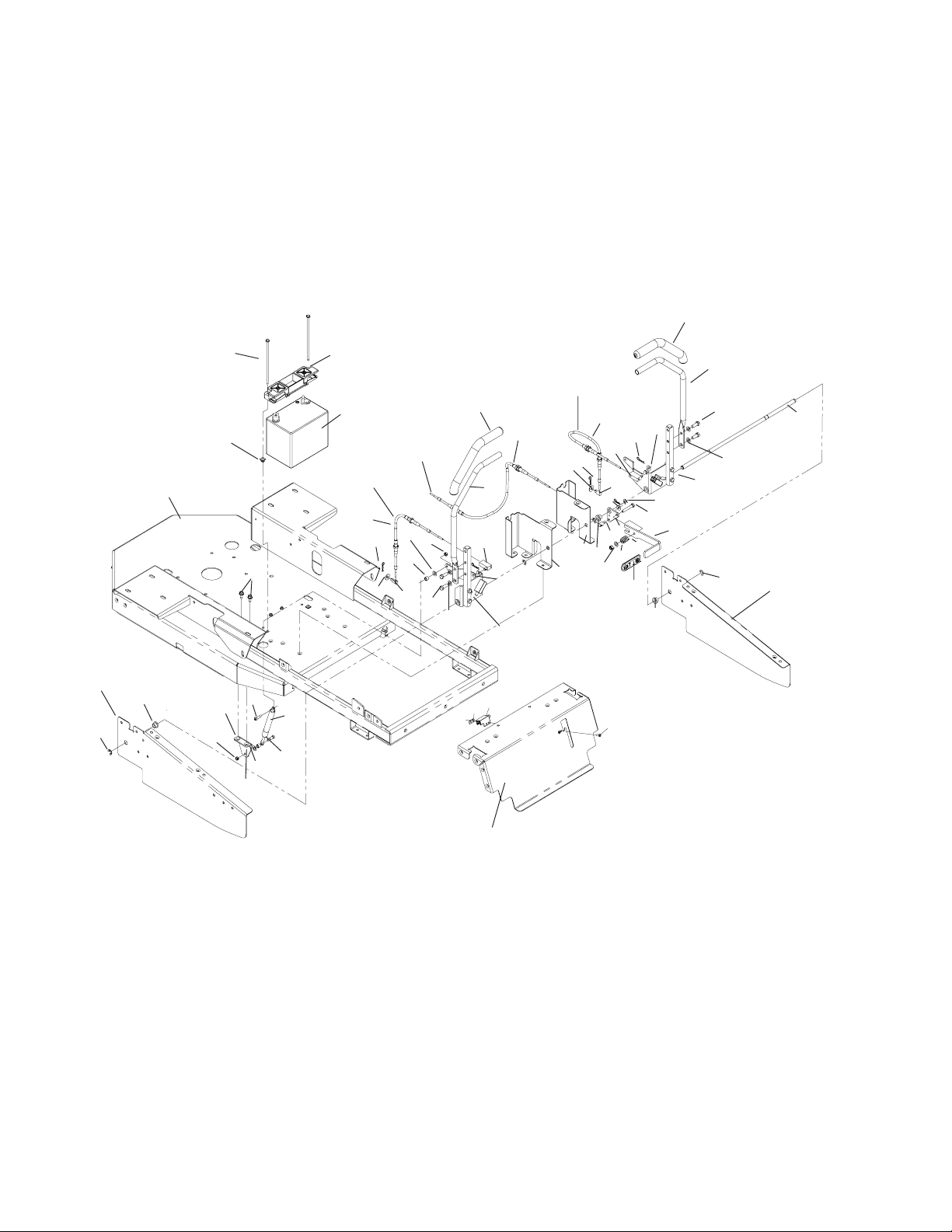

MOTION CONTROL ASSEMBLY
15
REF.
6
17
18
14
21
4
REF. SEE
PAGE 12
TO LEFT IZT
24
4
1
6
28
2
23
20
20
4
12
36
24
27
4
3
25
REF. SEE
PAGE 12
6
26
11
8
9
6
REF.
7
4
5
15
14
REF.
16
19
TO PARK BRAKE
TO RIGHT IZT
22
35
29
24
34
30
4
20
27
36
25
5
33
31
32
13
10
34
31
30
35
10
REF.
MOTION CONTROL ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107528 .......... 1 ......... BATTERY SUPPORT, LEFT
2 ......... 539107530 .......... 1 ......... BATTERY SUPPORT, RIGHT
3 ......... 539107568 .......... 1 ......... CONTROL PIVOT SHAFT
4 ......... 539990692 .......... 24 ........ WASHER, 5/16 FLAT
5 ......... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
6 ......... 539101949 .......... 6 ......... E-RING, 1/2"
7 ......... 539107603 .......... 1 ......... BRAKE LEVER
8 ......... 539107576 .......... 1 ......... UPPER BRAKE LEVER
9 ......... 539976438 .......... 1 ......... SPRING
10 ....... 539101080 .......... 1 ......... SWITCH N.C.
11 ........ 539105036 .......... 1 ......... GRIP, PARK BRAKE
12 ....... 539976952 .......... 2 ......... SCREW, #10-24 X 5/8 MACH.
13 ....... 539102678 .......... 1 ......... TAPPED PLATE
14 ....... 539107526 .......... 2 ......... CONTROL LEVER
15 ....... 539102592 .......... 2 ......... DRIVE LEVER CUSHION
16 ....... 539107629 .......... 2 ......... PUSH NUT, NYLON
17 ....... 539107632 .......... 2 ......... BOLT, 1/4-20 X 7 1/2
18 ....... 539107628 .......... 1 ......... BATTERY HOLD DOWN
19 ....... 539102436 .......... 1 ......... BATTERY, DRY
20 ....... 539107569 .......... 3 ......... CONTROL SWIVEL
21 ....... 539107592 .......... 1 ......... CABLE, BRAKE
22 ....... 539107623 .......... 1 ......... CABLE, RIGHT
23 ....... 539107624 .......... 1 ......... CABLE, LEFT
24 ....... 539976988 .......... 7 ......... COTTER, HAIRPIN
25 ....... 539102593 .......... 4 ......... WASHER, 3/8 SPRING
26 ....... 539976937 .......... 1 ......... HCS 5/16C X 2
27 ....... 539990563 .......... 4 ......... HCS 3/8C X 1
28 ....... 539990717 .......... 13 ........ NUT, 5/16C NYLOC
29 ....... 539107475 .......... 48 ........ BOLT 5/16-18 X 3/4, THREAD FORMING
30 ....... 539102827 .......... 4 ......... SPACER
31 ....... 539102828 .......... 4 ......... BOLT 5/16C X 5/8, SHLD
32 ....... 539108793 .......... 2 ......... DAMPENER
33 ....... 539108072 .......... 2 ......... BRACKET, DAMPENER
34 ....... 539108120 .......... 5 ......... NUT 1/4C, THIN NYLOC
35 ....... 539103547 .......... 4 ......... WASHER
36 ....... 539108663 .......... 2 ......... UPPER CABLE END
11
MOTION CONTROL LEVERS
3
10
11
4
7
3
1
6
7
4
9
1
1
5
2
8
REF.
7
6
1
5
2
12
MOTION CONTROL LEVERS
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539100032 .......... 4 ......... BUSHING, NYLON FLANGED
2 ......... 539101080 .......... 2 ......... SWITCH N.C.
3 ......... 539107596 .......... 2 ......... CONTROL ARM
4 ......... 539990517 .......... 2 ......... WASHER, 5/16 FLAT
5 ......... 539991034 .......... 4 ......... SCREW 10-24 X 1/2, SELF TAPPING
6 ......... 539108046 .......... 4 ......... TAPBOLT 3/8C X 1 1/2
7 ......... 539990546 .......... 4 ......... NUT 3/8C, CENTER LOCK
8 ......... 539107599 .......... 1 ......... CONTROL BRACKET, LEFT
9 ......... 539107597 .......... 1 ......... CONTROL BRACKET, RIGHT
10 ....... 539990563 .......... 4 ......... HCS 3/8C X 1
11 ........ 539102593 .......... 4 ......... WASHER, 3/8, SPRING
13
18
7
17
25
22
9
14
25
17
19
24
15
13
DECK LIFT ASSEMBLY
24
25
24
13
23
2
17 15
25
2
20
3
21
4
24
1
REF.
12
25
24
6
13
REF.
17
25
9
14
19
13
24
8
16
17
25
26
10
5
11
REF.
27
27
26
16
14
27
10
27
26
26
DECK LIFT ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107535 .......... 1 ......... CROSSSHAFT WLDMT.
2 ......... 539104808 .......... 4 ......... PILLOW BLOCK
3 ......... 539104807 .......... 2 ......... REINFORCEMENT BAR
4 ......... 539107538 .......... 1 ......... LIFT ARM WLDMT.
5 ......... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
6 ......... 539107543 .......... 1 ......... FOOT PEDAL WLDMT.
7 ......... 539107542 .......... 1 ......... HEIGHT PLATE
8 ......... 539101949 .......... 6 ......... E-RING, 1/2"
9 ......... 539976988 .......... 5 ......... PIN-HAIR COTTER
10 ....... 539107508 .......... 2 ......... STRUT LINKAGE
11 ........ 539107509 .......... 1 ......... LIFT LINKAGE, LEFT, PRIMARY
12 ....... 539107510 .......... 1 ......... LIFT LINKAGE, RIGHT, PRIMARY
13 ....... 539107703 .......... 4 ......... SWIVEL
14 ....... 539107567 .......... 2 ......... REAR BELLCRANK
15 ....... 539107545 .......... 2 ......... LIFT LINKAGE
16 ....... 539107484 .......... 2 ......... EYE BOLT
17 ....... 539990365 .......... 12 ........ PIN, COTTER, 1/8 X 3/4
18 ....... 539107591 .......... 1 ......... DECAL, CUTTING HEIGHT
19 ....... 539107697 .......... 2 ......... CLEVIS PIN
20 ....... 539107958 .......... 1 ......... FOOT PAD
21 ....... 539991046 .......... 4 ......... HCS 5/16C X 2 1/2
22 ....... 539976941 .......... 2 ......... HCS 3/8C X 1 1/4
23 ....... 539990717 .......... 13 ........ NUT, 5/16C, NYLOC
24 ....... 539976979 .......... 9 ......... NUT, 5/16C, NYLOC
25 ....... 539990517 .......... 8 ......... WASHER, 3/8, FLAT
26 ....... 539990250 .......... 4 ......... WASHER, 1/2 SAE
27 ....... 539990654 .......... 4 ......... COTTER PIN, 5/32 X 1 1/8
15
IZT ASSEMBLY
(Integraded Zeroturn Transaxle)
18
14
15
13
1
8
4
2
12
4
10
16
3
4
3
7
11
9
17
6
5
19
3
3
4
20
2
4
2
5
19
16
IZT ASSEMBLY
(Integraded Zeroturn Transaxle)
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107554 .......... 1 ......... TIE ROD
2 ......... 539991046 .......... 10 ........ HCS 5/16C X 2 1/2
3 ......... 539990717 .......... 11 ........ NUT, 5/16C, NYLOC
4 ......... 539990692 .......... 14........ WASHER, 5/16, FLAT
5 ......... 539108002 .......... 2 ......... HCS 5/16C X 2 1/4, GR. 8
6 ......... 539107605 .......... 1 ......... IZT LEFT
7 ......... 539107606 .......... 1 ......... IZT RIGHT
8 ......... 539107556 .......... 1 ......... IZT SUPPORT
9 ......... 539976988 .......... 2 ......... HAIRPIN COTTER
10 ....... 539107595 .......... 1 ......... BOLT, BRAKE
11 ........ 539100032 .......... 2 ......... BUSHING, NYLON FLANGED
12 ....... 539102796 .......... 1 ......... SPRING
13 ....... 539101949 .......... 2 ......... E-RING, 1/2"
14 ....... 539107708 .......... 1 ......... SPRING-TORSION
15 ....... 539107498 .......... 1 ......... BYPASS LINKAGE, RIGHT
16 ....... 539107488 .......... 1 ......... BRAKE "U" ARM
17 ....... 539107921 .......... 2 ......... RETAINER
18 ....... 539107931 .......... 1 ......... BYPASS LINKAGE, LEFT
19 ....... 539990187 .......... 2 ......... LOCKWASHER 5/16
20 ....... 539107891 .......... 1 ......... CLIP
........... 539107710 .......... 1 ......... IZT PUMP BELT (NOT SHOWN)
17
TURNED SHOULDER
ON PULLEY HUB
MUST FACE
THE CLUTCH
KAWASAKI ENGINE ASSEMBLY
10
11
TO FUEL VALVE
14
15
8
9
13
16
17
6
7
TO FUEL FILTER
12
5
8
2
6
4
1
3
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539105804 .......... 1 ......... CLUTCH 125 FT/LB
2 ......... 539107557 .......... 1 ......... PULLEY
3 ......... 539991120 ........... 1 ......... HCS 7/16F X 2 1/2
4 ......... 539990247 .......... 1 ......... LOCKWASHER, 7/16
5 ......... 539101995 .......... 1 ......... KEY, 1/4" SQ. X 1 1/8"
6 ......... 539107476 .......... 4 ......... BOLT 3/8-16 X 1, THREAD FORMING
........... 539104415 .......... 1 ......... KAWASAKI PIGTAIL (NOT SHOWN)
7 ......... 539107573 .......... 1 ......... CLUTCH TIE DOWN
........... 539105637 .......... 1 ......... CLUTCH HARNESS (NOT SHOWN)
8 ......... 539912222 .......... 2 ......... HOSE CLAMP
9 ......... 539105527 .......... 1 ......... FUEL LINE, 24"
10 ....... 539107955 .......... 1 ......... HCS M6-1.0 X 20
11 ........ 539990598 .......... 1 ......... WASHER, 1/4 FLAT
12 ....... 539107937 .......... 1 ......... OIL DRAIN HOSE
13 ....... 539107892 .......... 1 ......... MUFFLER
14 ....... 539108171 .......... 1 ......... WIRE GUARD
15 ....... 539107475 .......... 3 ......... BOLT, 5/16-18 X 3/4, THREAD FORMING
16 ....... 539990692 .......... 3 ......... WASHER, 5/16
17 ....... 539108266 .......... 1 ......... WASHER, 3/8, INTERNAL TOOTH
........... 539108120 .......... 1 ......... NUT, 1/4C, THIN NYLOC (NOT SHOWN, POSITIVE
..................................................... CABLE TO ENGINE)
18
TURNED SHOULDER
ON PULLEY HUB
MUST FACE
THE CLUTCH
KOHLER ENGINE ASSEMBLY
12
13
TO FUEL VALVE
10
8
7
14
5
9
6
2
6
11
1
TO FUEL FILTER
4
3
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539105804 .......... 1 ......... CLUTCH 125 FT/LB
2 ......... 539107557 .......... 1 ......... PULLEY
3 ......... 539991120 ........... 1 ......... HCS 7/16F X 2 1/2
4 ......... 539990247 .......... 1 ......... LOCKWASHER, 7/16
5 ......... 539101995 .......... 1 ......... KEY, 1/4" SQ. X 1 1/8"
6 ......... 539107476 .......... 4 ......... BOLT 3/8-16 X 1, THREAD FORMING
........... 539107516 .......... 1 ......... KOHLER PIGTAIL (NOT SHOWN)
7 ......... 539105072 .......... 1 ......... ELBOW, 90°, 3/8 NPT
8 ......... 539107517 .......... 1 ......... PIPE, 3/8 NPT X 4.0"
9 ......... 539107573 .......... 1 ......... CLUTCH TIE DOWN
........... 539105637 .......... 1 ......... CLUTCH HARNESS (NOT SHOWN)
10 ....... 539912222 .......... 2 ......... HOSE CLAMP
11 ........ 539104993 .......... 1 ......... FUEL LINE, 14"
12 ....... 539976934 .......... 1 ......... HCS 5/16C X 3/4
..................................................... (GROUND WIRE TO ENGINE)
13 ....... 539990717 .......... 1 ......... NUT, 5/16C, NYLOC
..................................................... (GROUND WIRE TO ENGINE)
........... 539108120 .......... 1 ......... NUT, 1/4C, THIN NYLOC (NOT SHOWN, POSITIVE
..................................................... CABLE TO ENGINE)
14 ....... 539108266 .......... 1 ......... WASHER, 3/8, INTERNAL TOOTH
19
DECAL PLACEMENT
9
4
3
10
6
5
2
7
12
1
7
13
11
8
4
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539977778 .......... 3 ......... ABRASIVE PAD
2 ......... 539107959 .......... 1 ......... DECAL, WARNING
3 ......... 539108385 .......... 1 ......... DECAL, DO NOT TOW
4 ......... 539200732 .......... 2 ......... DECAL, HUSQVARNA
5 ......... 539105745 .......... 1 ......... EURO DECAL, BATTERY WARNING
6 ......... 539101881 .......... 1 ......... DECAL, PROP 65
7 ......... 539103333 .......... 2 ......... DECAL, MOTION CONTROL
8 ......... 539107591 .......... 1 ......... DECAL, CUTTING HEIGHT
9 ......... 539107925 .......... 1 ......... DECAL, SERVICE
10 ....... 539105744 .......... 1 ......... EURO DANGER DECAL, BELT DRIVES
11 ........ 539107890 .......... 2 ......... DECAL, CZ 4815
........... 539107889 .......... 2 ......... DECAL, CZ 4817
12 ....... 539108386 .......... 1 ......... DECAL, DRIVE LEVER
13 ....... 539108179 .......... 1 ......... DECAL, START
20
PARK BRAKE
2
2
LEFT MOTION
CONTROL LEVER
ELECTRICAL COMPONENTS
RIGHT MOTION
CONTROL LEVER
12
ACCESSORY
13
2
11
9
10
1
TO
ENGINE
GROUND
14
5
4
5
3
6
8
7
15
18
17
5
13
TO STARTER ON ENGINE
16
TO KAWASAKI ENGINE
TO KOHLER WIRING HARNESS
TO ELECTRIC CLUTCH
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539102436 .......... 1 ......... BATTERY, DRY
2 ......... 539101080 .......... 3 ......... SWITCH N.C.
3 ......... 539101768 .......... 1 ......... SWITCH, CLUTCH
4 ......... 539101714 .......... 1 ......... SOLENOID
5 ......... 539102759 .......... 3 ......... INSULATOR
6 ......... 539102540 .......... 1 ......... HOUR METER
7 ......... 539107541 .......... 1 ......... SWITCH, IGNITION
8 ......... 539107544 .......... 1 ......... KEY
9 ......... 539102914 .......... 3 ......... RELAY
10 ....... 539102086 .......... 1 ......... FUSE, 20 AMP
11 ........ 539101771 .......... 1 ......... FUSE, 7.5 AMP
12 ....... 539107523 .......... 1 ......... SWITCH, SEAT
13 ....... 539107616 .......... 2 ......... BATTERY CABLE, POSITIVE
14 ....... 539107615 .......... 1 ......... BATTERY CABLE, NEGATIVE
15 ....... 539107566 .......... 1 ......... WIRING HARNESS
16 ....... 539107516 .......... 1 ......... KOHLER PIGTAIL (Cz4817 ONLY)
17 ....... 539104415 .......... 1 ......... KAWASAKI PIGTAIL (Cz4815 ONLY)
18 ....... 539105637 .......... 1 ......... WIRING HARNESS, CLUTCH
21
48" DECK ASSEMBLY
17
26
47
49
11
31
27
9
10
24
22
41
43
8
39
42
38
31
36
37
5
40
23
20
34
29
33
30
23
31
21
15
28
2
18
12
16
4
19
13
32
23
21
44
31
45
46
48
50
35
1
6
7
24
3
14
25
22
48" DECK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107514 .......... 1 ......... DECK WELDMENT, 48"
2 ......... 539108025 .......... 2 ......... BELT SHIELD
3 ......... 539107610 .......... 4 ......... WHEEL, GAUGE
4 ......... 539107614 .......... 1 ......... BAFFLE, VORTEX, MOWER
5 ......... 539108668 .......... 1 ......... TENSION RELIEF LEVER
6 ......... 539107612 .......... 1 ......... ROLLER, NOSE, 48"
7 ......... 539107613 .......... 1 ......... ROD, ROLLER, NOSE, NARROW
8 ......... 539103257 .......... 1 ......... IDLER PULLEY
9 ......... 539103295 .......... 1 ......... IDLER BUSHING
10 ....... 539102243 .......... 1 ......... SUPPORT WASHER
11 ........ 539107620 .......... 1 ......... PULLEY, IDLER
12 ....... 539107631 .......... 4 ......... SCREW, 1/4-20 X 5/8, THDROLL
13 ....... 539107630 .......... 12........ SCREW, WASHER HEAD
14 ....... 539107608 .......... 4 ......... BOLT, SHOULDER
15 ....... 539107604 .......... 1 ......... DISCHARGE CHUTE
16 ....... 539107609 .......... 1 ......... SPRING, TORSION
17 ....... 539107618 .......... 1 ......... ROD, HINGE
18 ....... 539107626 .......... 1 ......... PUSHNUT
19 ....... 539107627 .......... 1 ......... CAP-SLEEVE
20 ....... 539107617 .......... 1 ......... BUSHING, PIVOT, TENSION RELIEF
21 ....... 539990365 .......... 2 ......... COTTER PIN
22 ....... 539990582 .......... 1 ......... HCS 3/8C X 1, SERRATED HEAD
23 ....... 539990717 .......... 5 ......... NUT, 5/16C, NYLOC
24 ....... 539976979 .......... 6 ......... NUT, 3/8C, NYLOC
25 ....... 539990208 .......... 1 ......... RHSNB 5/16C X 1
26 ....... 539990799 .......... 3 ......... BOLT, 5/16C X 5/8, CARRIAGE
27 ....... 539102612 .......... 1 ......... HCS 3/8C X 2 3/4
28 ....... 539990730 .......... 1 ......... HCS 3/8C, 1 3/4
29 ....... 539107803 .......... 1 ......... TENSION RELIEF LINKAGE
30 ....... 539108883 .......... 1 ......... SWIVEL
31 ....... 539990692 .......... 3 ......... WASHER, 5/16, FLAT
32 ....... 539913010 .......... 1 ......... DECAL, CPSC
33 ....... 539990196 .......... 1 ......... NUT, 5/16C
34 ....... 539107709 .......... 1 ......... DECK BELT
35 ....... 539107960 .......... 1 ......... DECAL, BELT ROUTING
36 ....... 539107540 .......... 1 ......... DECK IDLER ARM WLDMT.
37 ....... 539103257 .......... 1 ......... IDLER PULLEY
38 ....... 539101231 .......... 1 ......... IDLER SPINDLE
39 ....... 539103303 .......... 1 ......... PAD
40 ....... 539101977 .......... 1 ......... TRACTION SPRING
41 ....... 539101331 .......... 1 ......... NUT, 1/2C, NYLOC
42 ....... 539101572 .......... 1 ......... HCS 1/2C X 3
43 ....... 539990550 .......... 1 ......... WASHER, 1/2, FLAT
44 ....... 539107518 .......... 3 ......... STRIPPER, ROUND, UNIVERSAL
45 ....... 539107519 .......... 3 ......... BLADE, HIGH LIFT
46 ....... 539107520 .......... 3 ......... WASHER-SPACER
47 ....... 539107521 .......... 3 ......... PULLEY
48 ....... 539107522 .......... 3 ......... BOLT, 7/16, ASSY BLADE
49 ....... 539107590 .......... 3 ......... NUT, 9/16, TOP CENTER LOCK
50 ....... 539107515 .......... 3 ......... CUTTER HOUSING ASM, INCLUDES:
..................................................... BALL BEARINGS, MANDREL ASM,
..................................................... SHAFT ASM W/LOWER BEARING
23
WIRING SCHEMATIC
24
25
Loading...
