Gasoline containing up to 10% ethanol
(E10) is acceptable for use in this
machine. The use of any gasoline
exceeding 10% ethanol (E10) will void
the product warranty.
Operator Manual
EZ4824TF BF / 966659502
Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.
When this product is worn out and no longer
used, it should be returned to the reseller or
other party for recycling.
To implement improvements, specifications and designs can be altered without prior notification.
Note that no legal demands can be placed based on the information contained in these instructions.
Use only original parts for repairs. The use of other parts voids the warranty.
Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modifications to the unit may cause unsafe operations or damage the unit.
SERVICE JOURNAL ...............................................55
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.
WARNING!
Failure to follow cautious operating practices can result in serious injury to the operator
or other persons. The owner must understand these instructions, and must allow only
trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and must not be
under the influence of any mind altering substance.
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
INTRODUCTION
Congratulations
Thank you for purchasing a Husqvarna ride-on
mower. This machine is built for superior efficiency
to rapidly mow primarily large areas. A control panel
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine’s performance.
This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use, service,
maintenance) by all who operate this machine is
important for the safety of the operator and others.
It can also considerably increase the life span of the
machine and increase its resale value.
If you sell your machine, be sure to give the operator’s
manual to the new owner.
The final chapter of this operator manual provides a
Service Journal. Ensure that service and repair work
are documented. A well-kept service journal reduces
service costs for the maintenance and affects the
machine’s resale value. Please contact your dealer for
more information. Take the operator’s manual along
when the machine is taken to your dealer for service.
General
In this operator’s manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.
Continuous dedication to improve our products
require that specifications and design are subject to
change without notice.
Driving and Transport on Public Roads
Check applicable road traffic regulations before
transporting on public roads. If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored. DO NOT operate this machine on public
roadways.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on the towed equipment. Make wide turns to avoid
jack-knifing. Travel slowly and allow extra distance to
stop.
Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.
Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Operating
This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc. The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer. Operating
instructions for the accessories are provided with
delivery. All other types of uses are incorrect. The
manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.
Lawn mowers and all power equipment, can be
potentially dangerous if used improperly. Safety
requires good judgement, careful use in accordance
with these instructions and common sense.
The machine must only be operated, maintained,
and repaired by persons familiar with the
machine’s special characteristics and who are also
knowledgeable about the safety instructions. Use only
approved repair parts to maintain this machine.
Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic
regulations must be followed without fail.
Unauthorized modifications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage.
5
INTRODUCTION
Good Service
Husqvarna’s products are sold all over the world
and only in specialized retail stores with complete
service. This ensures that you as a customer receive
only the best support and service. Before the product
is delivered, the machine has, for example, been
inspected and adjusted by your retailer. See the
certificate in the Service Journal in this operator’s
manual.
When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:
This manual belongs to the machine with the
manufacturing number:
Manufacturing Number
The machine’s manufacturing number can be found on
the printed plate affixed to the engine compartment.
Stated on the plate, from the top are:
• The machine’s type designation (I.D.).
• The manufacturer’s type number (Model).
• The machine’s serial number (Serial no.)
Please have the type designation and serial number
available when ordering spare parts.
The engine’s manufacturing number is stamped on
one of the valve covers.
The plate states:
• The engine’s model.
• The engine’s type.
• Code
Please have these available when ordering spare
parts.
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
EngineTransmission
6
SYMBOLS AND DECALS
These symbols are found on the machine and in the
operator’s manual.
Study them carefully so that you know what they
mean.
Used in this publication to notify the reader of a risk
of personal injury or death, particularly if the reader
should neglect to follow instructions given in the
manual.
Used in this publication to notify the reader of a risk
of material damage, particularly if the reader should
neglect to follow instructions given in the manual.
Used also when there is a potential for misuse or
misassembly.
N
ReverseNeutralFastSlowChokeFuel
Warning!Parking BrakeCE conformity
marking. Only for
European market
Use protective glasses
Noise emissions to the
surroundings.
Australia and
New Zealand only
Use protective gloves
Do not stand here
Electromagnetic
Compatibility (EMC)
Compliance
New Zealand and
Australia only
7
Read Operator’s
Manual
SYMBOLS AND DECALS
Shut off engine and
remove key before
performing any
maintenance
or repair work
Keep a safe
distance from the
machine
Use on slopes no
greater than 10°No passengers
Whole body exposure
to thrown objects
Moving sharp blades under cover
Severing of fingers
and toes
Do not open or remove
safety shields while
engine is running
Battery acid is corrosive, explosive and flammable
Careful backing up,
watch for other people
Warning! Rotating blades,
keep away from the
discharge deck
Careful going forward,
watch for other people
Do not touch parts
8
Safety Instructions
These instructions are for your safety. Read them
carefully.
SAFETY
WARNING!
THIS CUTTING MACHINE IS CAPABLE
OF AMPUTATING HANDS AND FEET
AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING
SAFETY INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR
DEATH.
General Operation
• Read, understand, and follow all instructions on
the machine and in the manual before starting.
• It is recommended that someone be aware that
you are mowing and can provide help in case of
injury or accident.
• Do not put hands or feet near rotating parts or
under the machine. Keep clear of the discharge
opening at all times.
• Only allow responsible adults, who are familiar
with the instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blades.
• Be sure the area is clear of bystanders before
operating. Stop machine if anyone enters the
area.
• Never carry passengers. The machine is only
intended for use by one person.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
• Never direct discharged material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward
the operator. Stop the blades when crossing
gravel surfaces.
• Do not operate machine without the entire grass
catcher, discharge guard, or other safety devices
in place and working
• Slow down before turning.
• Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.
WARNING!
This symbol means that important
safety instructions need to be
emphasized. It concerns your safety.
8011-512
Read the operator’s manual before starting the machine
8011-513
Clear the area of objects before mowing
9
SAFETY
• Disengage blades when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging the
discharge guard.
• Operate machine only in daylight or good artificial
light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck.
• Always wear eye protection when operating
machine.
• Wear proper Personal Protective Equipment
(PPE) while operating this machine, including (at
a minimum) sturdy footwear, eye protection, and
hearing protection. Do not mow in shorts and/or
footwear with open toes.
• Data indicates that operators age 60 years and
above are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.
• Follow the manufacturer’s recommendation for
wheel weights or counterweights.
• Anyone who operates this machine must first read
and understand this Operation Manual. Local laws
may regulate the age of the user.
• Keep machine free of grass, leaves or other
debris buildup which can touch the hot exhaust
or engine parts and burn. Do not allow the mower
deck to plow leaves or other debris, causing
buildup to occur.
• Clean any oil or fuel spillage before operating or
storing the machine.
• Allow machine to cool before storage.
8011-520
Never take passengers
WARNING!
Engine exhaust and certain vehicle
components contain or emit chemicals
considered to cause cancer, birth
defects, or other reproductive system
damage. The engine exhaust contains
carbon monoxide, which is a odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
10
Personal Safety Equipment
WARNING!
When using the machine, approved
personal protective equipment (shown
in illustrations) shall be used. Personal
protective equipment cannot eliminate
the risk of injury but it will reduce the
degree of injury if an accident does
happen. Ask your retailer for help in
choosing the right equipment.
SAFETY
• Make sure that you have first aid equipment close
at hand when using the machine.
• Never use the machine when barefoot.
• Always wear protective shoes or boots, preferably
with steel toe caps.
• Always wear approved protective glasses or a full
visor when assembling or driving.
• Always wear gloves when handling the blades.
• Never wear loose clothing that can get caught in
moving parts.
• Use ear protectors to avoid damage to hearing.
Slope Operation
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution.
If you cannot back up the slope or if you feel uneasy
on it, do not mow it.
• Mow up and down slopes (10 degrees maximum),
not across.
• Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
• Choose a low ground speed so that you will not
have to stop while on the slope.
• Do not mow on wet grass. Tires may lose traction.
• Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.
• Keep movement on the slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause machine to roll over.
• Use extra care while operating machine with
grass catchers or other attachments; they can
affect the stability of the machine.
• Do not use on steep slopes.
8011-670
Personal protective equipment
6003-004
Mow up and down, not side to side
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do not
drive across any slopes.
11
SAFETY
• Do not try to stabilize the machine by putting a
foot on the ground.
• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.
WARNING!
CHILDREN CAN BE INJURED BY
THIS EQUIPMENT. The American
Academy of Pediatrics recommends
that children be a minimum of 16
years of age before operating a riding
lawn mower. Keep children out of the
mowing area and in the watchful care
of a responsible adult other than the
operator.
8011-519
Be extra cautious when driving on slopes
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you last
saw them.
• Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator.
• Be alert and turn machine off if a child enters the
area.
• Before and while backing, look behind and down
for small children.
• Never carry children, even with the blades shut
off. They may fall off and be seriously injured or
interfere with safe machine operation. Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block your
view of a child.
8011-517
Never allow children to operate the machine
12
8011-518
Keep children away from work area
SAFETY
Safe Handling of Gasoline
WARNING!
The engine and the exhaust system
become very hot during operation.
There is risk for burns if touched.
Allow engine and exhaust system to
cool before refueling.
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
• Use only approved gasoline containers.
• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as on a water heater or other appliance.
• Before you begin refueling, minimize the risk of
static electricity by touching a metal surface.
• Never fill containers inside a vehicle or on a truck
or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when filling.
• Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.
• Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling
is complete. Do not use a nozzle lock-open
device.
• If fuel is spilled on clothing, change clothing
immediately.
• Never overfill fuel tank. Replace gas cap and
tighten securely.
• Do not start the engine near spilled fuel.
• Never use gasoline as a cleaning agent.
• If leaks arise in fuel system, engine must not be
started until problem has been resolved.
• Check the fuel level before each use and leave
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overflow.
8011-516
Never fill the fuel tank indoors
WARNING!
The engine must not be started
when the driver’s floor plate or any
protective plate for the mower deck’s
drive belt is removed.
13
SAFETY
General Maintenance
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
• Never tamper with safety devices. Check their
proper operation regularly.
• Keep machine free of grass, leaves, or other
debris buildup. Clean oil or fuel spillage and
remove any fuel-soaked debris. Allow machine to
cool before storing.
• If you strike a foreign object, stop and inspect the
machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the
engine running.
• Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing
them.
• Check brake operation frequently. Adjust and
service as required.
• Maintain or replace safety and instruction labels,
as necessary.
• Do not modify safety equipment. Check regularly
to be sure it works properly. The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices.
• Do not change the settings of governors and
avoid running the engine with overly high engine
speeds. If you run the engine too fast, you risk
damaging the machine components.
• Be very careful when handling battery acid. Acid
on skin can cause serious corrosive burns. If you
spill battery acid on your skin, rinse immediately
with water.
• Acid in the eyes can cause blindness, contact a
doctor immediately.
• Be careful when servicing the battery. Explosive
gases form in the battery. Never perform
maintenance on the battery when smoking or near
open flames or sparks.
• The battery can explode and cause serious injury
or damage.
• Make sure that the equipment is in good condition
and that all nuts and bolts, especially those
fastening the blade attachments, are properly
tightened and torqued.
8011-515
Never drive the machine in an enclosed space
WARNING!
Use protective glasses for
maintenance work.
WARNING!
The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive system
damage. Wash your hands after
handling the battery.
14
SAFETY
Sparking can occur when working with the battery
and the heavy cables of the starter circuit. This can
cause battery explosion, fire or eye injury. Sparking
in this circuit can not occur after the chassis cable
(normally negative, black) is removed from the battery.
WARNING!
Avoid electrical sparking and its
consequences by the following
routines:
• Use protective goggles.
• Ensure that the fuel filler cap is mounted tightly
and no flammable substances are stored in an
open vessel.
• Never work with the starter circuit if there is spilled
fuel.
• Disconnect the chassis cable from the battery first
and reconnect it last.
• Do not make a bridge short circuit across the
starter relay to run the starter.
6003-009
Do not smoke when performing maintenance on the battery.
The battery can explode and cause serious injury/damage.
• Never use the machine indoors or in spaces
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless,
poisonous, and lethal gas.
• Stop to inspect the equipment if you run over or
into anything. If necessary, make repairs before
starting.
• Never make adjustments with the engine running.
• The machine is tested and approved only with the
equipment originally provided or recommended
by the manufacturer. Only use approved repair
parts for the machine.
• The blades are sharp and can cause cuts and
gashes. Wrap the blades or use protective gloves
when handling them.
• Check the parking brake’s functionality regularly.
Adjust and service as necessary.
• The mulch blades should only be used in familiar
areas when higher quality mowing is desired.
• Reduce the risk of fire by removing grass, leaves,
and other debris that may have accumulated on
the machine.
• Allow the machine to cool before putting it in
storage.
• Regularly clean deck and underside of deck,
avoid spraying engine and electrical components
with water.
8009-728
Risk of sparking
8011-514
Regularly clean deck
15
SAFETY
Transport
• The machine is heavy and can cause serious
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.
• Use an approved trailer to transport the
machine. Activate the parking brake, turn off
the fuel supply, and fasten the machine with
approved fastening devices, such as bands,
chains, or straps, when transporting.
• Do not operate this machine on public
roadways.
• Check and abide by local traffic regulations
before transporting the machine on any road.
• Do not tow this machine, it may cause damage
to the drive system.
• Load the unit onto truck or trailer by driving up
ramps of suitable strength using a slow speed.
Do not lift! The machine is not intended to be
lifted by hand.
• When loading or unloading this machine,
do not exceed the maximum recommended
operation angle of 10O.
WARNING!
Use extreme caution when loading the
machine into a truck or trailer using
ramps. There is the possibility of
serious injury or death if the machine
falls off the ramps.
IMPORTANT INFORMATION
The parking brake is not sufficient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on towed equipment.
Make wide turns to avoid jack-knifing. Travel slowly
and allow extra distance to stop. Do not tow on sloped
ground. The weight of the towed equipment may
cause loss of traction and loss of control.
Follow the manufacturer’s recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Spark Arrestor
A spark arrestor for the muffler is available through
any authorized Husqvarna dealer.
WARNING!
Escaping hydraulic oil under pressure
can have sufficient force to penetrate
the skin, causing serious injury.
If injured by escaping fluid, see a
doctor at once. Serious infection
or reaction can develop if proper
medical treatment is not administered
immediately.
WARNING!
This mower is equipped with an
internal combustion engine and
should not be used on or near any
unimproved forested, bush covered
or grassy lands unless the engine's
system is equipped with a spark
arrester meeting applicable local or
state laws (if any). If a spark arrestor
is used, it should be maintained
in effective working order by the
operator.
16
CONTROLS
This operator’s manual describes the Husqvarna Zero
Turn Rider. The rider is fitted with Briggs & Stratton
four-stroke overhead valve engine.
Transmission from the engine is made via a belt-
Control Locations
7
14
driven hydraulic pumps. Using the left and right
steering controls, the flow is regulated and thereby the
direction and speed.
13
2
1
14
9
8
4512
1. Steering control levers
2. Parking brake
3. Throttle control
4. Blade switch
5. Ignition switch
6. Choke control
7. Fuses
610
311
8. Fuel tank cap
9. Fuel shut off valve
10. Deck lift
11. Seat adjustment lever
12. Hour meter
13. Tracking adjustment
14. Bypass linkages
17
CONTROLS
Steering Control Levers
The machine’s speed and direction are continuously
variable using the two steering controls. The steering
controls can be moved forward or backward about
a neutral position. Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward.
When both controls are in the neutral position (N), the
machine stands still.
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.
In order, for example, to turn right while moving
forward, move the right control towards the neutral
position. The rotation of the right wheel is reduced and
the machine turns to the right.
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left. Use extra care when using this maneuver.
If the steering controls are in uneven positions when
standing still or do not fit in the slots for moving the
controls outward, they can be adjusted.
8058-022
Steering controls
WARNING!
The machine can turn very rapidly if
one steering control is moved much
further forward than the other.
18
8011-79122
1. Forward
2. Neutral
3. Neutral slot, Neutral lock
4. Reverse
Motion control lever, right side
CONTROLS
Parking Brake
IMPORTANT INFORMATION
The machine must stand absolutely still when
applying the parking brake. Always set the
parking brake before dismounting. Release the
parking brake before moving the mower.
The parking brake is found on the left of the machine.
Push button and pull the lever backward to activate
the brake and push button and push forward to
release it.
Throttle Control
The throttle control regulates the engine speed and
thereby the rate of rotation of the blades, assuming
the blade switch is pulled out, see Engaging the
Mower Deck.
To increase or decrease the engine speed, the control
is moved forward or back respectively.
Avoid idling the engine for long periods, as there is a
risk of fouling the spark plugs.
USE FULL THROTTLE WHEN MOWING, for best
mower performance and battery charging.
8058-187
Parking brake released
Blade Switch
To engage the mower deck, pull the knob out; the
mower blades are disengaged when the knob is
depressed.
8058-134
Throttle control
8058-134
Blade switch
19
CONTROLS
Ignition Switch
The ignition switch is placed on the control panel and
is used to start and stop the engine.
Choke Control
The choke control is used for cold starts in to provide
the engine with a richer fuel mixture.
For cold starts the control should be pulled out.
8058-134
Ignition switch
Fuses
Fuses are located under the seat of the machine. They
are accessed by tilting the seat forward. They are flat
pin fuses of the same type used in automobiles.
There are two fuses with ratings and functions:
20 Amp Primary fuse
7.5 Amp Mower deck coupling
20
8058-134
Choke control
8011-420
Fuses
CONTROLS
Fuel Tank
Read the safety instructions before refueling. The
machine has one fuel tank, just behind the seat. The
tank capacity is 3.5 gallons (13.25 liters).
Regularly check the gas cap gasket for damage and
keep the cap properly tightened.
The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix). Environmentally
adapted alkylate gasoline can be used. See also
Technical Data concerning ethanol fuel. Methanol fuel
is not allowed. Do not use E85 alcohol based fuel.
Damage to engine and components may occur.
WARNING!
Gasoline is highly flammable. Observe
caution and fill the tank outdoors (see
the safety instruction).
WARNING!
The engine and the exhaust system,
become very hot during operation.
Risk for burns if touched.
Allow engine and exhaust system to
cool before refueling.
WARNING!
Fill to bottom of filler neck. Do not
overfill. Wipe off any spilled oil or fuel.
Do not store, spill or use gasoline near
an open flame.
8058-021
Fuel tank
IMPORTANT INFORMATION
Experience indicates that alcohol blended
fuels (called gasohol, ethanol or methanol) can
attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system should be emptied before storage of
30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel the next
season. See Storage Instructions for additional
information. Never use engine or carburetor
cleaners in the fuel tank or permanent damage
may occur.
When operating in temperatures below 32° F. (0° C.),
use fresh, clean winter grade gasoline to insure good
cold weather starting.
21
CONTROLS
Fuel Shut Off Valve
The fuel shut off valve is located at the left rear of the
seat. The valve is off when the handle tab is turned
perpendicular to the fuel line.
IMPORTANT INFORMATION
Always raise the deck to the highest position
for transport.
Cutting Height Adjuster
The deck cutting height is obtained by pressing the
button and moving the lever forward to the correct
cutting height on the cutting plate. The cutting height
range is from 1½" (38mm) to 4" (102mm) in ½ (13mm)
increments. The heights are measured from the
ground up to the blade tip with the engine not running.
IMPORTANT INFORMATION
To obtain an even cutting height, it is
important that the air pressure in all tires is 15
psi / 103 kPa / 1 bar.
Seat Adjustment Lever
The seat can be adjusted lengthways. When making
adjustments, the lever under the right front side of the
seat is pulled to the side, after which the seat can be
moved backward or forward.
8011-419
Fuel shut off valve in the CLOSED position
8058-019
The mower deck’s lifting lever
22
8061-228
Lengthways adjustment
CONTROLS

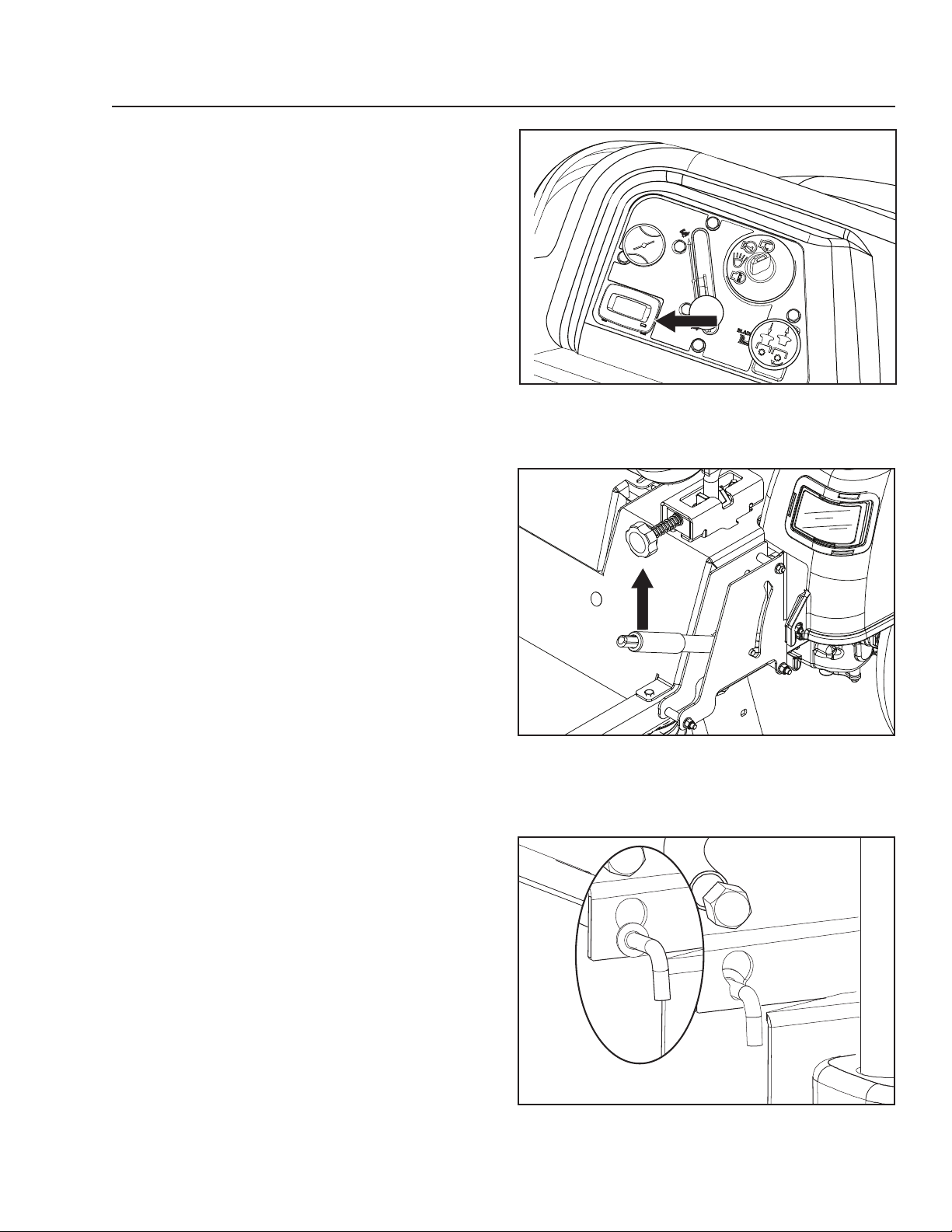

Hour Meter
The hour meter displays the total operating time.
It will flash CHG OIL (Change Oil) at 50 hour intervals.
The flash duration is one hour before and one hour
after the interval. The CHG OIL icon will come on
and shut off automatically. The hour meter cannot be
manually reset.
Tracking Knob
If the mower is not tracking straight, check the tire air
pressures. Recommended air pressure is 15 psi (103
kPa / 1 bar) for all tires. Tracking must be checked on
a flat and level concrete or blacktop surface.
Rotating the tracking knob allows fine tuning
adjustments so the machine tracks straight with the
steering control levers in the full forward position.
Rotate the knob clockwise (as viewed from the
operation position) to increase the speed on the left
lever. Rotate counterclockwise to decrease speed.
8058-134
Hour meter
Bypass Linkages
Transaxle bypass linkages must be engaged when
pushing or pulling the mower. The release levers are
located on each side of the rear of the unit below the
rear engine plate. See Moving Machine By Hand in the
Operation section.
8058-187
Tracking knob
8058-147
Release lever
23
OPERATION
Read the Safety section and following pages, if you
are unfamiliar with the machine.
Training
Due to unique steering capabilities, zero turn mowers
are far more maneuverable than typical riding
mowers.
This section should be reviewed in its entirety prior to
attempting to move the mower under its own power.
When first operating the mower or until becoming
comfortable with controls, use a reduced throttle
speed and reduced ground speed. DO NOT move
control levers to the furthest forward or reverse
positions during initial operation.
First time users should become familiar with the
mower’s movement on a hard surface, such as
concrete or blacktop PRIOR to attempting to operate
on turf. Until the operator becomes comfortable with
the mower controls and zero turning capability, overly
aggressive maneuvers may damage turf.
Steering
To move forward and backward
The direction and speed of the mower’s movements
are effected by the movement of the control lever(s)
on each side of mower. The left control lever controls
the left wheel. The right control lever controls the right
wheel.
First time users should push the mower (see Manual Transport in the Operation section) to an open, flat
area without other people, vehicles or obstacles
nearby. To move the unit under its own power, the
operator must sit in the seat and start the engine (see
Before Starting in the Operation section). Adjust the
engine speed to idle, disengage the parking brake
but do not engage the blades at this time. Rotate
control levers inward. As long as the control levers
have not been moved forward or backwards, the
mower will not move.
Slowly move both control levers forward slightly. This
will allow mower to start moving forward in a straight
line. Pull the control levers back to the neutral position
and the mower should stop moving.
Pull back slightly on control levers, allowing the mower
to move backwards. Push the control levers forward to
the neutral position and mower should stop moving.
To turn to the right
While moving in a forward direction, pull the right lever
back towards the neutral position while maintaining
the position of the left lever, this will slow the rotation
of the right wheel and cause the machine to turn in
that direction.
To turn to the left
While moving in a forward direction pull the left lever
back towards the neutral position while maintaining
the position of the right lever, this will slow the rotation
of the left wheel and cause the machine to turn in that
direction.
To zero turn
While moving in a forward direction, first pull both
control levers back until the mower stops or slows
dramatically.
Then by alternating one lever slightly to the forward
position and the other in the reverse position,
complete the turn.
24
OPERATION
Before Starting
1. Read the sections on Safety and Controls before
starting the machine.
2. Perform the daily maintenance before starting
(see Maintenance Schedule in the Maintenance
section).
3. Check that there is sufficient fuel in the fuel tank.
4. Adjust the seat to the desired position.
5. Set the deck cutting height by inserting the lift pin
into the desired cut height. Resecure the lift pin
with the hairpin.
8050-852
Lengthways adjustment
The following conditions must be fulfilled before the
engine can be started:
• The blade switch must be pressed downward into
the disengaged position.
• The parking brake must be up into the activated
position.
• Both steering controls must be in the locked
(outer) neutral position.
8058-024
Secure selected cutting height
25
OPERATION
Starting the Engine
1. Sit on the seat.
2. Raise the mower deck by pushing the release
button on the top of the lifting lever. Pull the lifting
lever backward to the locked (transport) position.
3. Activate the parking brake by pushing the release
button in and pulling the lever fully upwards.
8058-019
Mower deck lifting lever
4. Disengage the mower blades by pressing the
blade switch downwards.
26
8058-187
Pull parking brake upwards to activate.
8058-148
Blade switch
OPERATION
5. Move the steering controls outward to the locked
(outer) neutral position.
6. Move the throttle to the middle position.
8058-186
Place controls in neutral position
7. If the engine is cold, the choke control should be
pulled up.
8058-148
Set the engine speed
8058-148
Set the choke
27
OPERATION
8. Press in and turn the ignition key to the start
position.
IMPORTANT INFORMATION
Do not run the starter for more than 5 seconds
each time. If the engine does not start, wait
approximately 10 seconds before retrying.
9. When the engine starts, immediately release the
ignition key back to the run position. Push the
choke control in gradually when the engine has
started.
8050-7432
Turn to the start position
WARNING!
Engine exhaust and certain vehicle
components contain or emit chemicals
considered to cause cancer, birth
defects or other reproductive system
damage. The engine exhaust contains
carbon monoxide, which is a odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
10. Set the engine speed with the throttle. Allow the
engine to run at a moderate speed, approximately
mid throttle, for 3-5 minutes before loading it too
heavily. USEFULL THROTTLE WHEN MOWING
(no choke).
8050-7432
Return to run position
28
8058-148
Set the engine speed
OPERATION
Weak Battery
WARNING!
Lead-acid batteries generate
explosive gases. Keep sparks, flame
and smoking materials away from
batteries. Always wear eye protection
when around batteries.
IMPORTANT INFORMATION
Your mower is equipped with a 12-volt
negative grounded system. The other vehicle
must also be a 12-volt negative grounded
system. Do not use your mower to start other
vehicles.
If your battery is too weak to start the engine, it should
be recharged. (See Battery in the Maintenance
section.)
Jumper Cables
1. Connect each end of the RED cable to the
POSITIVE (+) terminal on each battery, taking
care not to short against chassis.
2. Connect one end of the BLACK cable to the
NEGATIVE (-) terminal of the fully charged battery.
3. Connect the other end of the BLACK cable to a
good CHASSIS GROUND on the mower with the
discharged battery, away from the fuel tank and
battery.
To remove cables, reverse order
4. Remove BLACK cable first from chassis and then
from the fully charged battery.
5. Remove RED cable last from both batteries.
8011-642
Jumper cable connection
29
OPERATION
Running
1. Release the parking brake by pushing the button
and moving the lever downward.
NOTE: The mower is equipped with an operator
presence system. When the engine is running,
any attempt by the operator to leave the seat
without first setting the parking brake will shut off
the engine.
2. Move the steering controls to the neutral position
(N).
3. Push the release button on the cutting height lever
and move lever to the pin, release the button.
8058-187
Parking brake released
WARNING!
Make sure that no one is near mower
when engaging blade switch.
Make sure the work area is free from
objects that could be thrown by the
rotating blades.
4. Move throttle control to full throttle.
5. Engage the mower deck by pulling out the blade
switch.
8058-019
Mower deck lifting lever
30
8058-149
Set blade engagement and throttle control
OPERATION
Operating On Hills
Read Driving on Slopes in the Safety section.
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do not
drive across slopes.
• The slowest speed possible should be used
before starting up or down hills.
• Avoid stopping or changing speed on hills.
• If stopping is absolutely necessary, pull drive
levers into the neutral position and push to the
outside of the unit and engage the parking brake.
• To restart movement, release the parking brake.
• Pull the control levers back to the center of the
mower and press forward to regain forward
motion.
• Make all turns slowly.
8058-186
Place controls in neutral position
Parking brake released
8058-187
31
OPERATION
Mowing Tips
• Observe and flag rocks and other fixed objects to
avoid collisions.
• Begin with a high cutting height and reduce it until
the desired mowing result is attained.
The average lawn should be cut to 2½" (64 mm)
during the cool season and over 3" (76 mm)
during the hot months. For healthier and better
looking lawns, mow often after moderate growth.
For best cutting performance, grass over 6" (15
cm) in height should be mowed twice. Make the
first cut relatively high, the second to the desired
height.
• The mowing result will be best with a high engine
speed (the blades rotate rapidly) and low speed
(the rider moves slowly). If the grass is not
too long and dense, the driving speed can be
increased without negatively affecting the mowing
result.
• The finest lawns are obtained by mowing often.
The lawn becomes more even and the grass
clippings more evenly distributed over the mown
area. The total time taken is not increased as a
higher operating speed can be used without poor
mowing results.
• Avoid mowing wet lawns. The mowing result is
poorer because the wheels sink into the soft lawn,
clumps build, and the grass clippings fasten
under the cowling.
• Hose the mower deck underside with water after
each use. When cleaning, the mower deck shall
be raised into the transport position. Make sure
the mower is cooled and the engine is off.
• Use compressed air to clean top surface of the
deck. Avoid flooding water on top surface, engine
and electrical components.
• When the mulching kit is used, it is important that
the mowing interval is frequent.
WARNING!
Clear the lawn of stones and other
objects that can be thrown out by the
blades.
8011-603
Mowing pattern
WARNING!
Never drive the rider on terrain that
slopes more than 10 degrees. Mow
slopes up and down, never side
to side. Avoid sudden directional
changes.
32
OPERATION
Stopping the Engine
1. Move the throttle to the minimum position (tortoise
symbol).
2. Move the steering controls outward.
3. Disengage the mower deck by pressing the blade
switch down.
4. Raise the mower deck by pressing the button on
the lever and pulling backward to the transport
position.
5. When the machine is standing still, activate the
parking brake by pushing the lever button and
pulling the lever upward.
If the engine has been worked hard, allow it to idle
at least 60 seconds to attain a normal operating
temperature before stopping. To prevent fouling
the spark plugs, avoid idling the engine for longer
periods.
8058-134
Disengage the mower deck and move throttle to minimum
6. Turn the ignition key to the stop position.
7. Remove key. Always remove key when leaving the
mower to prevent unauthorized use.
IMPORTANT INFORMATION
Leaving the ignition switch in any other
position than OFF will cause the battery to be
discharged.
8058-019
Mower deck lifting lever
33
OPERATION
Moving Machine by Hand
When pushing or pulling the mower, engage the
bypass linkages. The bypass linkages are located on
the rear of the frame, below the rear engine guard.
1. Raise the deck into the highest cutting
position.
2. Engage the parking brake.
3. Pull the bypass linkages up and out of the
keyhole slots. Release the levers with the
head outside the frame and held in the bypass
position.
4. To reengage the linkages to drive, reverse the
above procedure.
Load the machine into truck or trailer by driving slowly
up the ramps. DO NOT LIFT! The machine is not
intended to be lifted by hand.
WARNING!
Bypass linkages are located close
to the muffler. To prevent burns, the
engine should be shut off and allowed
to cool before the bypass linkage
levers are handled.
8058-032
Left side bypass linkage, engaged
WARNING!
Make no adjustments without:
• the engine stopped,
• the ignition key removed,
• the parking brake activated
WARNING!
Use extreme caution when loading the
machine into a truck or trailer using
ramps. There is the possibility of
serious injury or death if the machine
falls off the ramps.
8058-033
Left side bypass linkage, locked in the bypass position
34
MAINTENANCE
Maintenance Schedule
The following is a list of maintenance procedures that
must be performed on the machine. For those points
not described in this manual, visit an authorized
service workshop. An annual service carried out by
an authorized service workshop is recommended to
maintain your machine in the best possible condition
and to ensure safe operation.
Read Maintenance in the Safety section.
MAINTENANCE
Check the parking brake
Check the engine’s oil level (every refueling)
Check the safety system
Check for fuel and oil leakages
Check/clean the engine’s cooling air intake
Check the mower deck
Check for loose hardware (screws, nuts)
Clean under the mower deck
Start the engine and blades, listen for unusual sounds
Check for damage
Thoroughly clean around the engine
Clean around belts, belt pulleys
Daily
Before After
●
■
●
♦
■
●
●
●
♦
♦
♦
♦
At
least
once
each
year
Maintenance interval
in hours
2550100300
Check the tire pressures
Check battery
Sharpen/Replace mower blades
Clean the engine’s cooling air intake
Clean the air cleaner foam pre-filter
Clean the air cleaner paper filter cartridge
Check/adjust the parking brake
Inspect muffler/spark arrester
1)
First change after 5-8 hours. When operating with a heavy load
or at high ambient temperatures, replace every 50 hours.
2)
In dusty conditions, cleaning and replacement are required
more often.
3)
Performed by authorized service workshop.
2)
2)
2)
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
●
●
●
■■
■■
■■
♦♦
♦♦
35
MAINTENANCE
MAINTENANCE
Check/adjust throttle cable
Check the condition of belts, belt pulleys
Change the engine oil
Replace the engine oil filter
Clean/replace the spark plugs
Replace the fuel filter
Replace the paper air filter
Check the caster wheels (every 200 hours)
Replace the air cleaner foam pre-filter
Check/adjust the mower deck
Check the engine valve clearance
Perform the 300-hour service
1)
2)
2)
3)
3)
At
least
Daily
BeforeAfter2550100300
once
each
year
Maintenance
interval
in hours
■
●●●
■
■■
■■
●●
■■
●
■
●●
■■
♦♦
1)
First change after 5-8 hours. When operating with a heavy load
or at high ambient temperatures, replace every 50 hours.
2)
In dusty conditions, cleaning and replacement are required more
often.
3)
Performed by authorized service workshop.
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
WARNING!
Before performing any service or
adjustment checklist
• Engage the parking brake.
• Place the Blade-switch in the
disengaged position.
• Turn the ignition switch to OFF
position and remove the key.
• Make sure the blades and all
moving parts have completely
stopped.
• Disconnect the spark plug wire
from all spark plugs and place
the wire where it cannot come in
contact with the plug.
36
MAINTENANCE
Battery
The mower is equipped with a maintenance free
battery and does not need servicing. However,
periodic charging of the battery with an automotive
type battery charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• See chart for charging times
CAUTION!
Always wear eye protection when
around batteries.
Cleaning battery and terminals
Corrosion and dirt on the battery and terminals can
cause the battery to lose power.
1. Remove terminal covers.
2. Disconnect BLACK battery cable first, then the
RED battery cable and remove the battery from
the machine.
3. Rinse the battery with plain water and dry.
4. Clean terminals and battery cable ends with wire
brush until shiny.
5. Coat terminals with grease or petroleum jelly
6. Reinstall battery.
Replacing battery
1. Lift seat and rotate forward.
2. Using two ½" wrenches disconnect BLACK
battery cable then RED battery cable.
3. Position deck to lowest setting.
4. From the underside of the frame, remove the
nuts that secure the battery hold-down.
5. Carefully remove the battery from the mower.
6. Install new battery with terminals in the same
position as the old battery.
7. Reinstall battery hold-down and secure with
nuts removed in Step 4.
8. Reconnect RED battery cable to positive (+)
battery terminal with hex bolt and hex nut.
9. Connect BLACK grounding cable to negative
(-) battery terminal with remaining hex bolt and
nut
10. Replace terminal boot cover.
11. Lower seat.
STANDARD
BATTERY
12.6V100%
12.4V75%20 min.35 min.48 min.90 min.
12.2V50%45 min.75 min.95 min.180 min.
12.0V25%65 min.115 min.145 min.280 min.
11.8V0%85 min.150 min.195 min.370 min.
STAT E
OF
CHARGE
*Charging time depends on battery capacity,
condition, age, temperature and efficiency of charger
APPROXIMATE BATTERY CHARGING TIME*
TO FULL CHARGE AT 80OF / 27OC
Maximum Rate at:
50 Amps30 Amps20 Amps10 Amps
- FULL CHARGE -
IMPORTANT INFORMATION
Do not attempt to open or remove caps or
covers. Adding or checking level of electrolyte
is not necessary.
Always use two wrenches for the terminal
screws.
WARNING!
Do not short battery terminals by
allowing a wrench or any other object
to contact both terminals at the same
time. Before connecting battery,
remove metal bracelets, wristwatch
bands, rings, etc.
Positive terminal must be connected
first to prevent sparks from accidental
grounding.
Remove battery hold-down to replace battery
8050-109
37
MAINTENANCE
Safety System
The machine is equipped with a safety system that
prevents starting or driving under the following
conditions.
The engine can only be started when:
1. The mower deck is disengaged.
2. The steering controls are in the outer, locked
neutral position.
3. The parking brake is on.
Make daily inspections to ensure that the safety
system works by attempting to start the engine
when one of the conditions is not met. Change the
conditions and try again.
If the machine starts when one of these conditions
is not met, turn the machine off and repair the safety
system before using the machine again.
Make sure the engine stops when the park brake
is not engaged and the operator leaves the seated
position.
Check that the engine stops if the mower blades are
engaged and the driver temporarily moves off the
drivers seat.
8058-026
Steering controls locked in neutral
IMPORTANT INFORMATION
To be able to drive, the driver must sit in the
seat and release the parking brake before
the steering controls can be moved into the
neutral position, otherwise the engine will
stop.
Parking Brake
Visually check that no damage is found on the lever,
cables, or switch belonging to the parking brake.
Perform a standstill test and check that there is
sufficient braking action.
To adjust the parking brake, contact the Husqvarna
service workshop.
WARNING!
Faulty adjustment will result in
reduced braking ability and can cause
an accident.
IMPORTANT INFORMATION
The machine must be absolutely standing still
when applying the parking brake.
Tire Pressures
All tires should be at 15 psi / 103 kPa / 1 bar.
38
8058-187
Parking brake
MAINTENANCE
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks.
NOTE: The belt will show some small cracks in normal
operation.
The belts are not adjustable. Replace belts if they
begin to slip from wear.
Deck Belt Removal
1. Park on a level surface. Apply parking brake.
2. Lower the deck into the lowest cutting position.
3. Remove bolts from belt shields and remove
shields.
4. Remove any dirt or grass that may have
accumulated around the cutter housings and
entire deck surface.
5. Remove tension on the belt by moving the idler
arm.
6. Carefully slip belt up over the top of the cutter
housing pulleys and remove belt. Rolling belt over
the pulleys may damage the belt.
8058-088
Remove belt shields
Deck Belt Installation
NOTE: For ease in installing the deck belt, refer to
the routing decal on the top of the deck.
1. Wrap the deck belt around the electric clutch
pulley that is located on the engine shaft.
2. Route the belt forward and up onto the deck.
3. Place belt around spring loaded idler pulley.
4. Wrap the belt around the stationary idler pulley
and around the mandrel housings.
5. Push inward on the idler arm and carefully route
belt over stationary idler pulley. Once belt is
properly routed, slowly release idler arm to tension
belt.
6. Double check belt routing to make sure it matches
the routing decal, and the belt does not have any
twist. Correct as needed.
7. Replace belt shields on both mandrel housings
and secure with fasteners.
8011-764
Belt routing
39
MAINTENANCE
Pump Belt
Replacing pump belt
Park the mower on a level surface. Engage the
parking brake.
3
IMPORTANT INFORMATION
Make sure that the fan blades are not damaged
when replacing the pump belt. The fan cooling
can be affected and damage to the pump could
result.
Belt removal
1. Remove the deck belt (see Deck Belt Removal in
this section of the manual).
2. Create slack in the belt by inserting a ½" breaker
bar into the square hole on the spring loaded
idler. Rotate arm to release belt tension.
3. Remove the belt from the engine pulley and pump
pulleys.
Belt installation
1. Wrap the belt around the pump pulleys.
2. Route the belt around the inside of the idler
pulley.
3. Wrap the belt around the engine pulley.
4. Release idler arm to retighten tension.
5. Reinstall the deck belt. (see Deck Belt Installation in this section of the manual).
4
5
2
1
8058-186
1. Spring loaded idler
2. Fixed idler pulley
3. Electric clutch
4. Pump belt
5. Deck belt
Pump belt removal
40
MAINTENANCE
Cutting Blades
To attain the best mowing effect, it is important that
blades are well sharpened and not damaged.
Replace blades that have been bent or cracked when
hitting obstacles.
IMPORTANT INFORMATION
The sharpening of blades should be carried
out by an authorized service workshop.
Let the service workshop decide whether a blade
with large nicks can be repaired/ground or must be
replaced. Balance the blades after sharpening.
Check the blade mounts.
WARNING!
8011-604-1
Check the blades
Blades are sharp. Protect your hands
with gloves and/or wrap blades with
a heavy cloth when handling.
Blade replacement
1. Remove blade bolt by turning counterclockwise.
2. Install new or resharpened blade with stamped
GRASS SIDE facing towards ground/grass
(down) or THIS SIDE UP facing deck and cutter
housing.
3. Install and tighten blade bolt securely.
4. Torque blade bolt to 90 ft/lbs (122 Nm).
IMPORTANT INFORMATION
Special blade bolt is heat treated.
Replace with a Husqvarna bolt if required.
Do not use lower grade hardware than
specified.
1
2
1. Blade
2. Blade bolt (special)
3. Cutter housing
Blade attachment
3
8061-022
41
Adjusting the Mower Deck
MAINTENANCE
Leveling deck
Adjust the deck while the mower is on a level
surface. Make sure the tires are inflated to the correct
pressure. See Technical Data under Transmission. If
tires are under or over inflated, the deck cannot be
properly adjusted.
The deck should be adjusted slightly higher in the
rear.
NOTE: To insure accuracy of leveling procedure,
mower deck drive belt must be installed prior to
leveling deck.
1. Wear heavy gloves. Turn each outer blade tip to
align front to rear with the deck (1) or side-to-side
(2).
2. Measure from the floor surface up to the bottom of
the blade tip on the discharge side of the mower
deck. Record the measurement.
3. Move to the opposite side, check that
measurement is the same. If adjustment is
required—with a ¾" or adjustable wrench, turn
the lift link adjustment nuts on either side counter
clockwise to lower or clockwise to raise. Adjust
until both measurements are equal.
1
2
8058-030
Align blades to begin measurements
4. Turn any blade to align with the deck front-torear. If the front blade tip does not measure 1/8"
to ½" higher in the rear—with a 5/8 or adjustable
wrench, turn the nuts on the front suspension
linkage. Clockwise raises the front of the mower,
counterclockwise will lower the front. Adjust
nuts until rear of mower deck is positioned level
to 1/8" higher in the rear than the side-to-side
measurement.
NOTE: This will place the mower deck in a
standard measurement position. Depending on
the type of grass being mowed or environmental
conditions, additional adjustments may be
required to achieve the desired cut.
42
8058-030
Lift link adjustment nut
8058-031
Deck front adjustment nuts
MAINTENANCE
Anti-Scalp Rollers
Anti-scalp rollers are properly adjusted when they are
just slightly off of the ground when the deck is at the
desired cutting height in the operating position. Antiscalp rollers then keep the deck in the proper position
to help prevent scalping in most terrain conditions.
IMPORTANT INFORMATION
Adjust anti-scalp rollers with the mower on a
flat level surface.
The anti-scalp rollers can be set in three positions:
• Upper position 1½ to 2½" (38 to 64 mm) grass
• Middle position 2½" to 4" (64 to 102 mm) grass
• Lower position 4" to 6" (102 to 128 mm) grass.
The rollers should be approximately ¼" (6.5 mm) from
ground. Do not adjust the rollers to support the deck.
8050-830
Anti-scalp rollers
IMPORTANT INFORMATION
To avoid deck damage, the anti-scalp rollers
must not be adjusted to support the deck.
Caster Wheels
Check every 200 hours. Check that wheels rotate
freely. If wheels do not rotate freely take the unit to
your dealer for service.
Foam filled tires or solid tires will void the warranty.
IMPORTANT INFORMATION
DO NOT add any type of tire liner or foam fill
material to the tires. Excessive loads created
by foam filled tires will cause premature
failures.
Only use O.E.M. specified tires.
Removal and installation
1. Remove nut and caster bolt.
2. Pull the wheel out of the yoke and retain the
spacer for reuse.
3. Install in reverse order.
4. Tighten caster bolt.
Hardware
Check daily. Inspect the entire machine for loose or
missing hardware.
1
2
8011-619-4
1. Caster yoke
2. Caster long spacer
Caster wheels
43
MAINTENANCE
Cleaning
Regular cleaning, especially under the mower deck,
will increase the machine’s life-span. Make it a habit to
clean the machine directly after use (after it is cooled),
before the debris sticks.
Do not spray water on the top of the mower deck. Use
compressed air to clean the top side of mower deck.
Regularly clean the underside of the deck with normal
water pressure. Do not use a high pressure washer or
steam cleaner. Avoid spraying engine and electrical
components with water.
For models fitted with a cleanout port, attach the quick
connect (from the accessory packet) to any garden
hose. After mowing, snap the hose to the cleanout
port and turn on water supply.
Restart the mower and engage the blades to use the
spinning action to wash away debris. Make sure the
hose is away from the mower blades.
Do not rinse hot surfaces with cold water. Let unit cool
before washing.
8058-084
Clean regularly
IMPORTANT INFORMATION
Use protective glasses when
cleaning and washing.
44
LUBRICATION
12/12 Every year
1/52 Every Week
1/365 Every day
Change transmission filter
*
General
Remove the ignition key to prevent unintentional
movements during lubrication.
When lubricating with an oil can, it must be filled with
engine oil.
When lubricating with grease, unless otherwise stated,
use a high grade molybdenum disulphide grease.
For daily use, the machine should be lubricated twice
weekly.
Lubricate with grease gun
Oil change
8050-832
Filter change
Level check
Wipe away excess grease after lubrication.
It is important to avoid getting lubricant on the belts
or the drive surfaces on the belt pulleys. Should this
happen, attempt to clean them with spirits. If the belt
continues to slip after cleaning, it must be replaced.
Gasoline or other petroleum products must not be
used to clean belts.
45
LUBRICATION
Wheel and Deck Zerks
Use only good quality bearing grease.
Grease from well-known brand names (petrochemical
companies, etc.) usually maintains a good quality.
Front Wheel Mount
Lubricate 3-4 strokes with a grease gun on each set of
wheel bearings.
Front Wheel Bearings
Lubricate 3-4 strokes with a grease gun on each set of
wheel bearings.
IMPORTANT INFORMATION
Use minimal lubrication and remove excess
lubricant so that is does not come into contact
with belts or belt pulley drive surfaces.
Deck Spindles
Lower the cutting deck completely.
If a grease gun without rubber hose is used, the foot
plate must be removed.
Lubricate with a grease gun, 2-3 strokes per spindle.
8058-068
Lubricating the front wheels
46
8058-142
Deck spindle
8061-035
Deck outer spindle
LUBRICATION
Transaxle (Transmission) Fluid Change
This transaxle is designed with an external filter for
ease of maintenance. To ensure constant fluid quality
levels and longer life, an oil filter change interval of
every 200 hours is recommended.
The following procedure is performed with the
transaxles installed in the mower and the mower on
level ground. Apply the pump release valve for each
transaxle and set the parking brake.
1. Remove the three ¼" filter guard screws and filter
guard. Clean any loose debris from around the
perimeter of the filter. See illustration.
2. Place an oil drain pan (12" or more diameter and
8 qt. capacity is optimal) beneath the oil filter.
Remove the oil filter from the transaxle.
3. After the oil has drained, wipe the filter base
surface and apply a film of new oil to the gasket of
the replacement filter.
4. Install the new filter by hand, turning it threequarters to one full turn after the filter gasket
contacts the filter base surface.
5. Reinstall the filter guard. Torque screws to
65 in/lbs. each.
6. Repeat steps on the opposite side.
7. Drain old oil filters of all free flowing oil prior to
disposal. Place used oil in appropriate containers
and dispose of it in accordance with laws in your
area.
8. Remove the top port plug (see illustration) from
the left side and right side of the transaxles prior
to filling with oil. This will allow the transaxles to
vent during oil fill.
9. Remove the cap from the transaxles’ expansion
tank located on the vehicle frame.
10. Fill with 20W50 motor oil until oil just appears
at the bottom of each transaxles’ top port
(approximately 2 quarts per transaxle, 4 quarts
total). Install the top port lug into each transaxle
as the oil level reaches the port.
11. Install and torque the top port plugs to 180 in./lbs.
12. Continue to fill the transaxles through the
expansion tank until the FULL COLD line is
reached (this will take approximately 23 additional
ounces).
13. Reinstall the expansion tank cap by hand. Be
careful to not overtighten.
2
3
1
8019-010
1. Filter guard
2. Transaxle filter
3. Top port plug
ZT filter change
1
2
2
8019-012
1. Expansion tank
2. Transaxles
ZT filter change
47
TROUBLESHOOTING
ProblemCause
Engine will not start• Blade switch is engaged.
• Steering controls are not locked in the neutral position
• Parking brake is not activated
• Battery is dead
• Contamination in the carburetor or fuel line.
• Fuel supply is closed or the shutoff valve for the fuel tank is in
the wrong position
• Clogged fuel filter or fuel line
• Ignition system faulty
Starter does not turn the engine over• Battery is dead
• Poor contact of the battery terminal cable connections
• Blown fuse
• Fault in the starter safety circuit. See Safety System in the
Maintenance section
Engine runs rough• Faulty carburetor
• Choke control is pulled out with a warm engine
• Clogged fuel filter or jet
• Clogged ventilation valve on the fuel cap
• Fuel tank nearly empty
• Fouled spark plugs
• Rich fuel mixture or fuel-air mixture.
• Wrong fuel type
• Water in fuel
• Clogged air filter
Engine seems weak• Clogged air filter
• Fouled spark plugs
• Carburetor incorrectly adjusted
• Air trapped in hydraulic system
Machine vibrates• Blades are loose
• Blades are incorrectly balanced
• Engine is loose
• Blades are bent
48
TROUBLESHOOTING
ProblemCause
Engine overheats• Clogged air intake or cooling fins
• Engine overloaded
• Poor ventilation around engine
• Defective engine speed regulator
• Too little or no oil in the engine
• Contamination in the carburetor or fuel line.
• Fouled spark plugs
Battery not charging• Poor contact of the battery terminal cable connections
• Charging lead is disconnected
The machine moves slowly, unevenly, or not at all• Parking brake on
• Bypass valve on pump open
• Drive belt for the transmission slack or has come off
• Air trapped in hydraulic system
Mower deck not engaging• Drive belt for the mower deck has come loose
• Contact for the electromagnetic coupling has loosened
• Blade switch is faulty or has come loose from cable
contact
• Blown fuse
Transaxle leaks oil• Damaged seals, housing, or gaskets
• Air trapped in hydraulic system
Uneven mowing results• Different air pressure in tires on the left and right sides.
• Blades are bent
• Suspending for the mower deck is uneven
• Blades are dull
• Driving speed too high
• Grass is too long
• Grass collected under the mower deck
49
STORAGE
Winter Storage
The machine should be readied for storage at the
end of the mowing season or if it will not be in use for
longer than 30 days. Fuel allowed to stand for long
periods of time (30 days or more) can leave sticky
residues that can plug the carburetor and disrupt
engine function.
Fuel stabilizers are an acceptable option as regards
to the sticky residues that can occur during storage.
Add stabilizer to the fuel in the tank or in the storage
container. Always use the mixing ratios specified by
the manufacturer of the stabilizer. Run the engine for
at least 10 minutes after adding the stabilizer so that
it reaches the carburetor. Do not empty the fuel tank
and the carburetor if you have added stabilizer.
WARNING!
Never store an engine with fuel in the
tank indoors or in poorly ventilated
spaces where fuel vapor can come in
contact with open flames, sparks, or a
pilot light such as in a boiler, hot water
tank, clothes dryer, etc. Handle the
fuel with care. It is very flammable and
can cause serious personal injury and
property damage. Drain the fuel into an
approved container outdoors and far
away from open flame. Store the fuel
away from any open flame or source
of ignition. Never use gasoline for
cleaning. Use a degreaser and warm
water.
To ready the machine for storage:
1. Thoroughly clean the machine, especially under
the mower deck. Touch up damage to the paint
and spray a thin layer of oil on the underside of
the mower deck to avoid corrosion.
2. Inspect the machine for worn or damaged parts
and tighten any nuts or screws that may have
become loose.
3. Change the engine oil; dispose of properly.
4. Empty the fuel tanks or add a fuel stabilizer. Start
the engine and allow it to run until the carburetor
is drained of fuel or the stabilizer has reached the
carburetor.
5. Remove the spark plug and pour about a
tablespoon of engine oil into the cylinder. Turn
over the engine so that the oil is evenly distributed
and then refit the spark plug.
6. Lubricate all grease zerks, joints, and axles.
7. Remove the battery. Clean, charge, and store the
battery in a cool place, but protect it from direct
cold.
8. Store the machine in a clean, dry place and cover
it for extra protection.
Service
When ordering spare parts, please specify the
purchase year, model, type, and serial number.
Always use genuine Husqvarna spare parts.
An annual check-up at an authorized service
workshop is a good way to ensure that the machine
performs its best the following season.
Standard ¼" fasteners 9 ft/lb (12 Nm)
Standard 5/16" fasteners 18 ft/lb (25 Nm)
Standard 3/8" fasteners 33 ft/lb (44 Nm)
Standard 7/16" fasteners 52 ft/lb (70 Nm)
Standard ½" fasteners 80 ft/lb (110 Nm)
w/Flangelock Nut
Metric Standard Hardware
GradeGrade 8.8Grade 10.9Grade 12.9
Sizeft./lbsNmft./lbsNmft./lbsNm
M41.522.232.73.6
M5344.565.27
M65.277.5108.211
M78.21112161520
M813.51818.82521.829
M10243235.24743.558
M1243.55862.28375100
M1470.594100133119159
M16108144147196176235
M18142190202269242323
M20195260275366330440
M22276368390520471628
M24353470498664596794
Shank Size (Diameter in inches, fine or coarse thread)
M275307074749969041205
Accessories
Collection system
52
TECHNICAL DATA
EZ4824T BF \ 966659502
Engine
ManufacturerBriggs & Stratton
TypeEndurance
Power24 hp
LubricationPressure with oil filter
FuelMin 87 octane unleaded
(Max ethanol 10%, Max MTBE 15%)
Fuel tank capacity3½ gallons / 13.25 liters
CoolingAir cooled
Air filterStandard
Alternator12V
StarterElectric
Transmission
TransmissionZT-2800 Hydro Gear
Speed and direction controlsDual levers, foam gripped
Speed forward0-6.5 mph / 0-10.5 km/h
Speed reverse0-3.5 mph / 0-5.6 km/h
BrakesMechanical parking brake
Front caster tires, smooth tread11 x 6-5, 4 ply
Rear tires, turf pneumatic20 x 8-8
Tire pressure15 PSI / 103 kPa / 1 bar
Frame
Cutting Width48" / 122cm
Cutting Height1½ - 4½" / 3.8 - 11.4 cm
Number of Blades3
Blade Length16¼" / 41 cm
Nose RollersYes
Sprung SeatStandard
Hinged Arm RestsStandard
Hour MeterStandard
Blade EngagementElectromagnetic clutch
Deck Construction11 gauge w/ 10 gauge skirts
Productivity2.5 acres /h 10117 m2/h
Dimension
Weight640 lbs / 290 kg
Base Machine Length74½" / 189 cm
Base Machine Height47" / 119 cm
Base Machine Width46½" / 118 cm
Overall Width, Chute Up48½" / 123 cm
Overall Width, Chute Down59¾" / 152 cm
(1,2
(1
The power rating of the engines
indicated is the average net
power output (at specified rpm)
of a typical production engine for
the engine model measured to
SAE standard J1349/ISO1585.
Mass production engines may
differ from this value. Actual
power output for the engine
installed in the final machine will
depend on the operating speed,
environmental conditions and
other variables.
(2
See the engine manufacturer's
owner's manual for engine
specifications
53
CONFORMITY CERTIFICATES
USA requirements
Labels are placed on the engine and/or in the engine
compartment stating that the machine will fulfill the
requirements. This is also applicable to special
requirements for any of the states, (California emission
rules etc.). Do not remove any of these labels.
Certificates can also be supplied with the machine at
delivery or written in the Engine manual. Take care of
them as they are valuable documents.
54
SERVICE JOURNAL
ActionDate, mtr reading, stamp, sign
Delivery Service
Charge the battery.
Adjust the tire pressure of all wheels to 15 PSI (1 bar).
Mount the steering controls in the normal position.
Connect the contact box to the cable for the seat’s safety switch.
Check that the right amount of oil is in the engine.
Adjust the position of the steering controls.
Fill with fuel and open the fuel shut off valve.
Start the engine.
Check that there is drive to both wheels.
Check the mower deck adjustment.
Check:
q
q
q
q
q
q
q
q
q
q
The safety switch for the parking brake.
The safety switch for the mower deck.
The safety switch in the seat.
The safety switch in the steering controls.
Parking brake functionality.
Driving forward.
Driving backward.
Engaging the blades.
Check the idle speed
Check the engine high idle speed
Inform the customer about:
The need and advantages of following the service schedule.
The need and advantages of leaving the machine for
service every 300 hours.
The effects of service and maintaining a service journal
on the machine’s resale value.
Application areas for Mulching.
Fill in the sales papers, etc.Delivery service has
been carried out.
No remaining notes.
Certified:
q
q
q
q
q
q
q
q
q
q
q
q
q
q
55
SERVICE JOURNAL
ActionDate, mtr reading, stamp, sign
After the first 5-8 hours
Change the engine oil.
q
25-Hour Service
Check the engine air filter.
Sharpen/Replace mower blades if required.
Check the tire pressures.
Check battery cables.
Lubricate according to lubrication chart.
Check/clean the engine’s cooling air intake.
Clean the air cleaner’s pre-filter (foam).
q
q
q
q
q
q
q
56
SERVICE JOURNAL
ActionDate, mtr reading, stamp, sign
50-Hour Service
Perform the 25-hour service.
Clean/replace the air cleaner’s filter cartridge (paper filter
(shorter intervals for dusty operating conditions).
