Husqvarna 953210103 User Manual

Oper ator’s manual (EPA)

356BT

356BF

Please r ead the operator’s manual carefully and make sure you

understand the instructions before using the machine.

X-SERIES

EEEEnnnngggglllliiiisssshh

INTR ODUCTION

Dear customer!

Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the ﬁrst motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and construction industry.

Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.

It is our wish that you will be satisﬁed with your product and that it will be your companion for a long time. Think of this operator ′ s manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator ′ s manual, so they will also know how to properly maintain and use it.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

For customer assistance, contact us at our website: www.usa.husqvarna.com

–

English

KEY T O SYMBOLS

Symbols

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the oper ator’s manual carefully and make sure you understand the instructions before using the machine.

Alw ays wear:

• Hearing protection

• Approved eye protection

Glo ves should be worn when necessary.

The blower can forcibly throw objects that can bounce back. This can result in serious eye injuries if the recommended safety equipment is not used.

Other symbols/decals on the mac hine refer to special certiﬁcation requirements for certain markets.

Switch off the engine b y moving the stop switch to the STOP position before carrying out any checks or maintenance.

Alw ays wear protective gloves.

Regular cleaning is required.

Visual chec k.

Protectiv e goggles or a visor must be worn.

The blower operator must make sure that no bystanders or animals come nearer than 15 metres. Whenever several operators are working in the same work area, they should maintain a safe distance of at least 15 metres from one another.

A breathing mask should be used when there is a risk of dust.

English

– 3

Contents

INTR ODUCTION

Dear customer! ............................................................ 2

KEY TO SYMBOLS

Symbols ....................................................................... 3

CONTENTS

Contents ...................................................................... 4

Note the following before starting: ................................ 4

SAFETY INSTR UCTIONS

ersonal protective equipment ..................................... 5

Machine ′ s safety equipment ........................................ 5

Checking, maintaining and servicing the machine ′ s

safety equipment .......................................................... 6

General safety precautions .......................................... 7

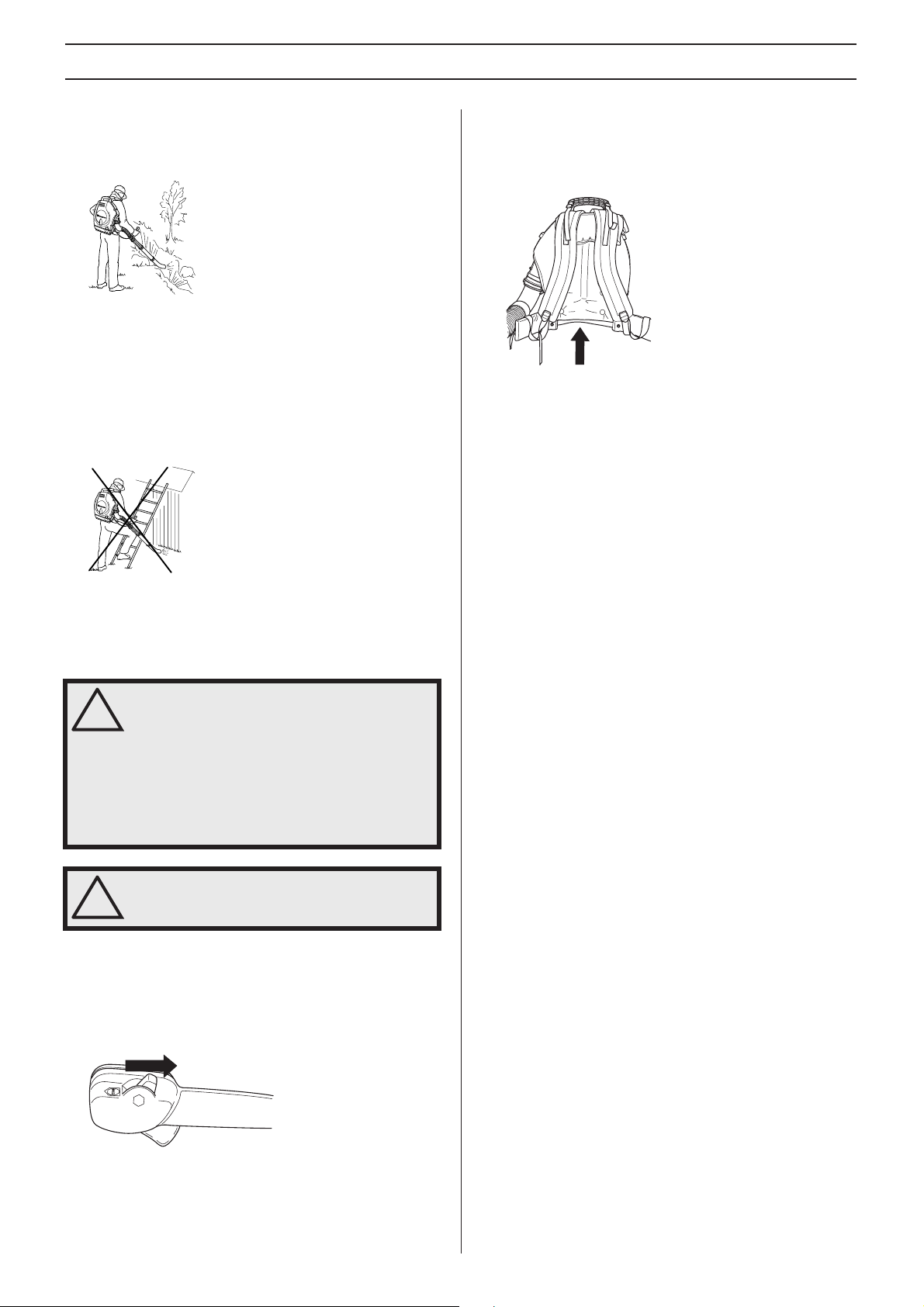

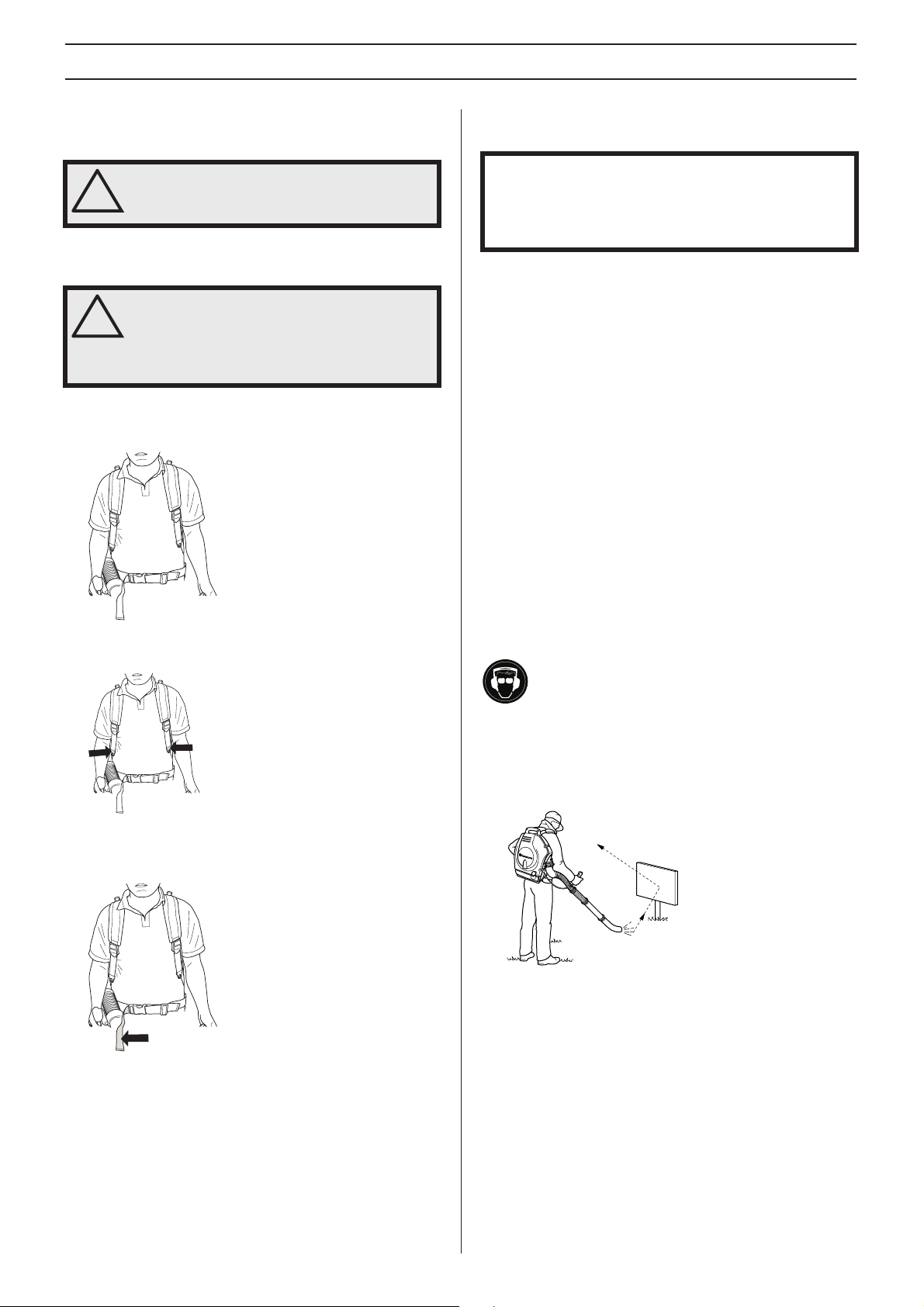

General working instructions ....................................... 8

WHA T IS WHAT?

What is what on the b lower? ........................................ 10

ASSEMBL Y

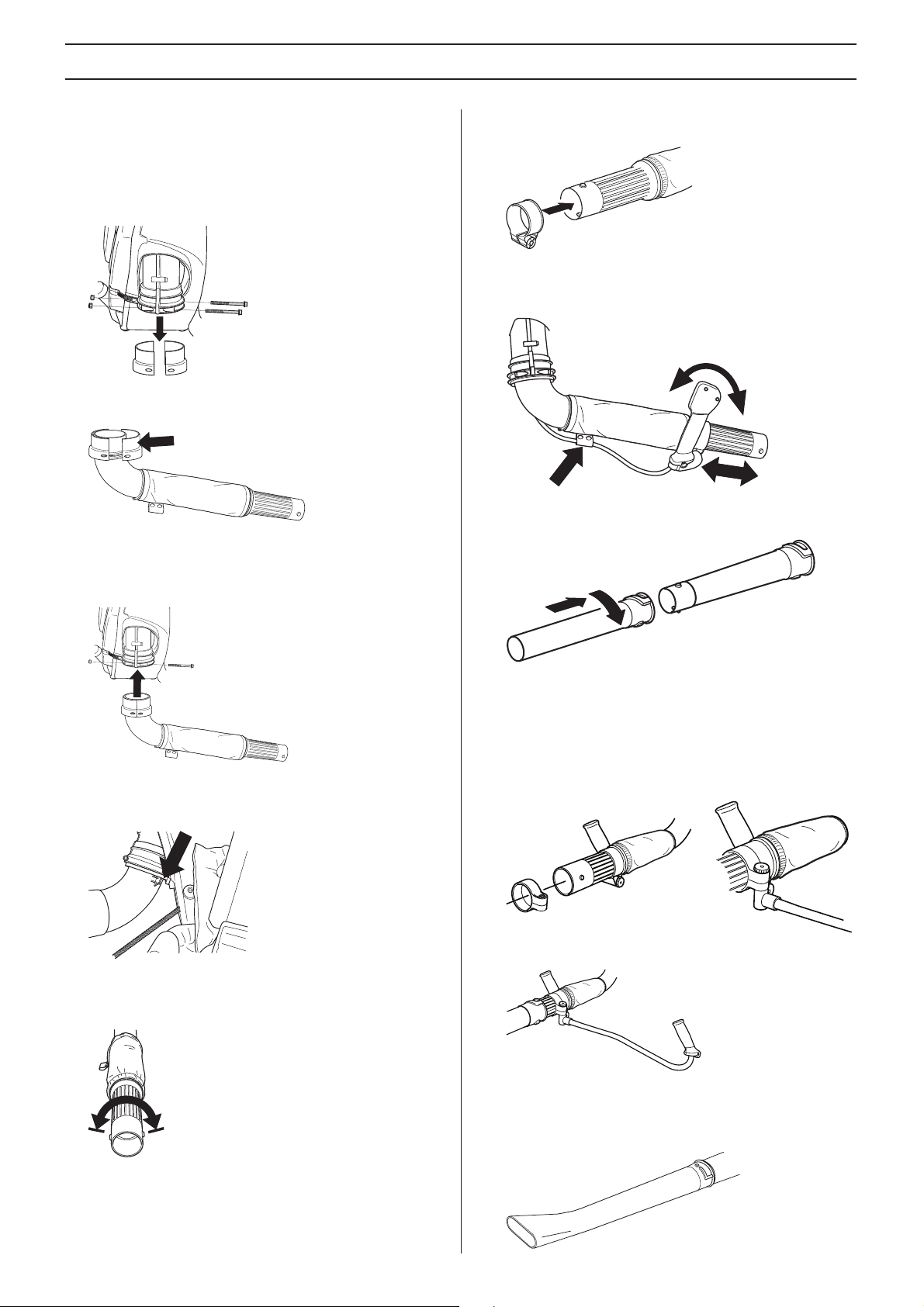

Assemb ling the blow pipe and control handle .............. 11

FUEL HANDLING

Fuel .............................................................................. 12

Fueling ......................................................................... 12

ARTING AND STOPPING

Star ting and stopping ................................................... 13

MAINTENANCE

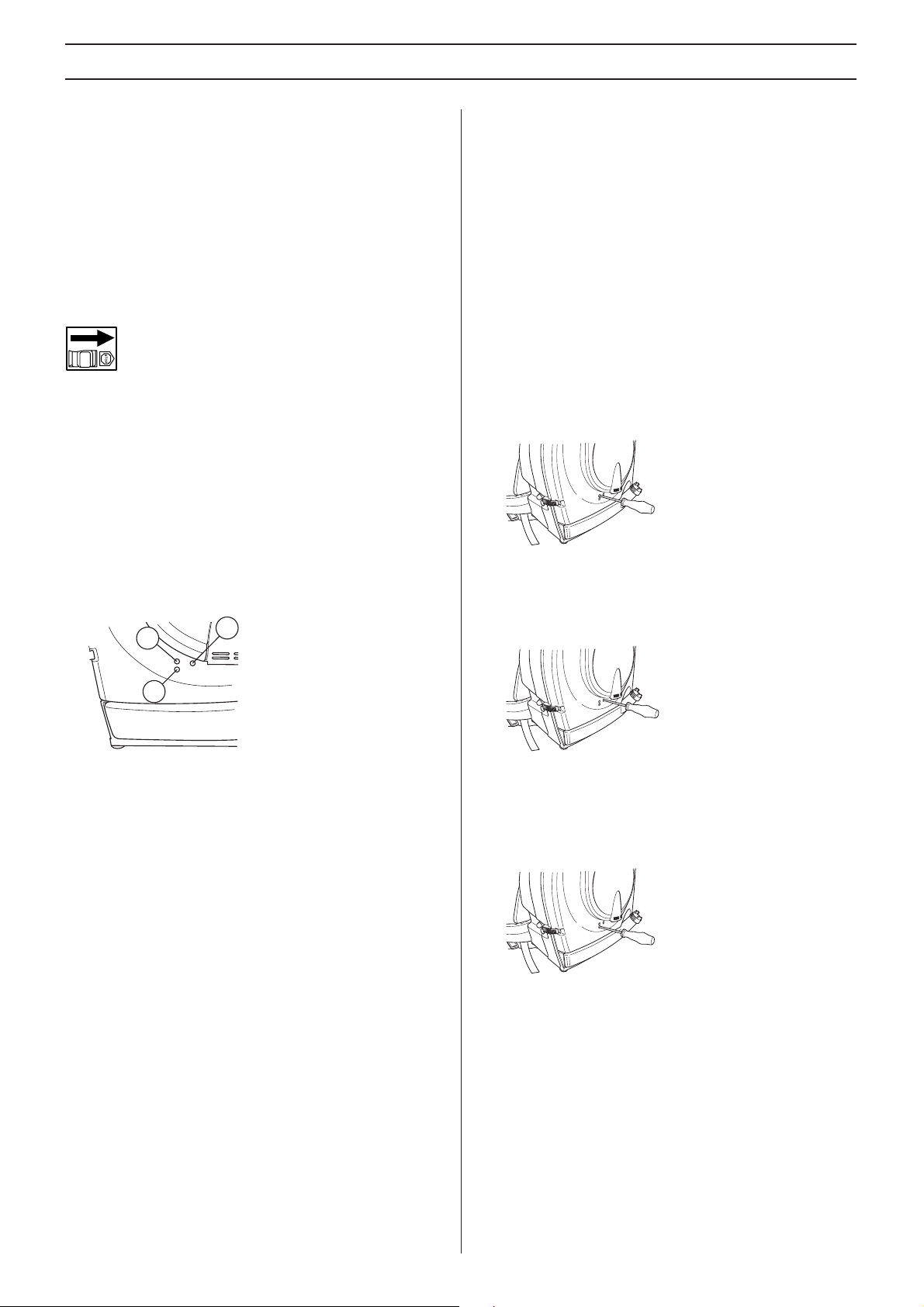

Carb uretor .................................................................... 14

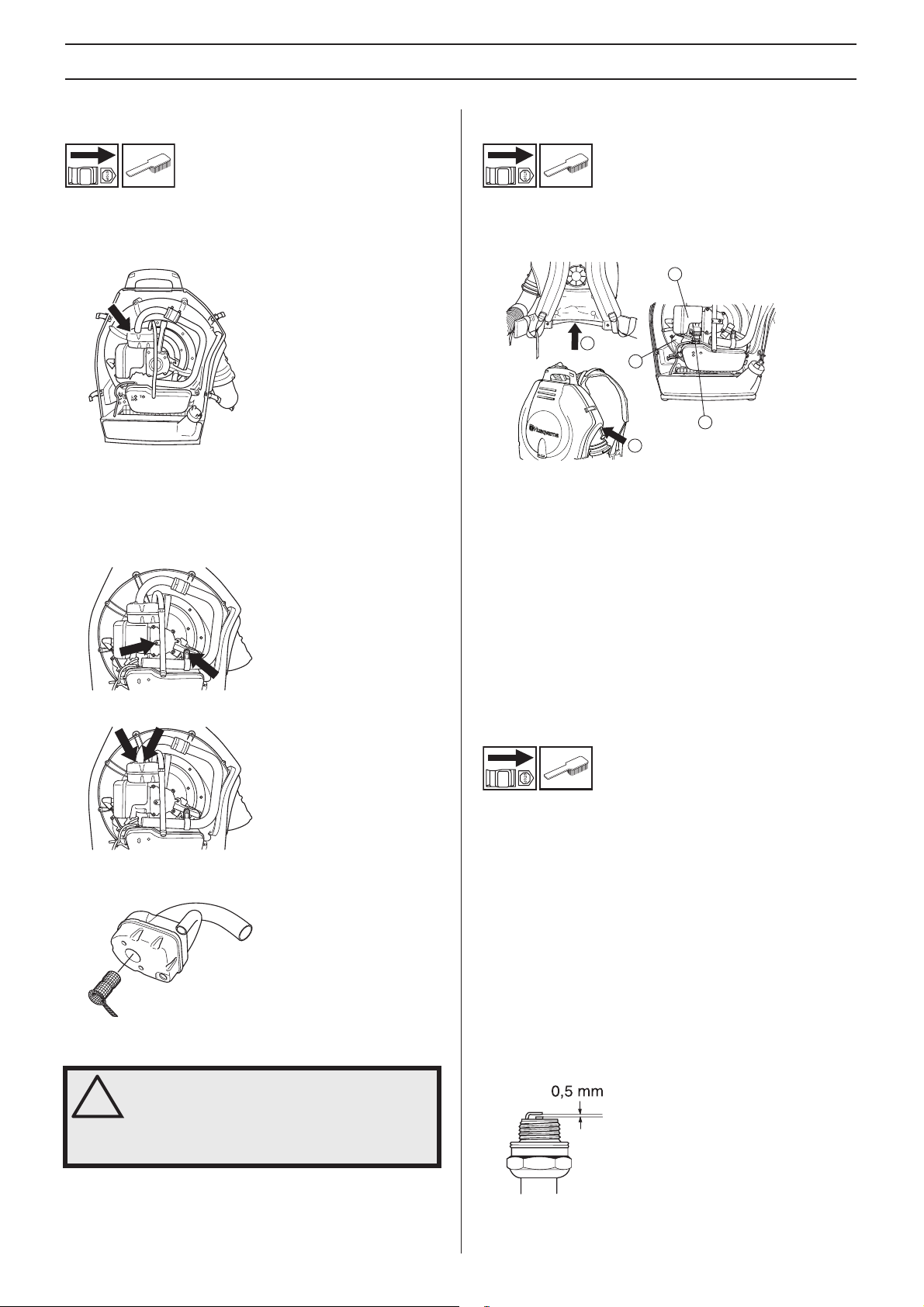

Mufﬂer .......................................................................... 15

Cooling system ............................................................ 15

Spark plug .................................................................... 15

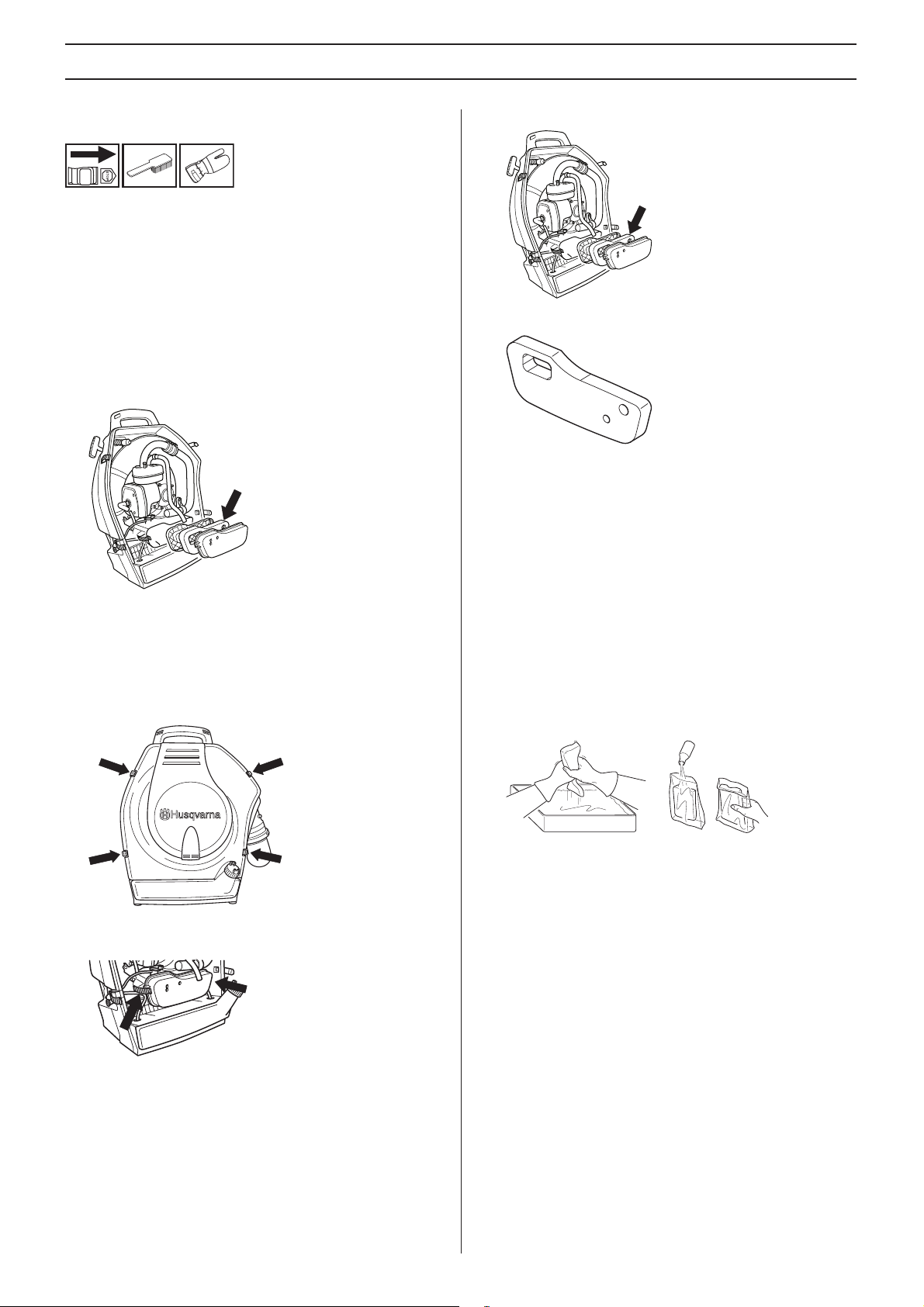

Air ﬁlter ......................................................................... 16

Maintenance schedule ................................................. 17

TECHNICAL D ATA

echnical data .............................................................. 18

FEDERAL EMISSION CONTR OL WARRANTY STATEMENT

OUR WARRANTY RIGHTS AND OBLIGATIONS ..... 19

Note the f ollowing before starting:

Please read the oper ator’s manual carefully.

Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.

ARNING! Under no circumstances may the

design of the machine be modiﬁed without

the permission of the manufacturer. Always use genuine accessories. Non-authorized modiﬁcations and/or accessories can result in serious personal injury or the death of the operator or others.

Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

ARNING! A blower is a dangerous tool if

used carelessly or incorrectly and can cause

serious, even fatal injuries. It is extremely important that you read and understand the contents of this Operator’s manual.

This engine label certiﬁes that the product is certiﬁed in accordance with American exhaust emissions requirements EPA Ph II and CARB Tier II. The Emissions Compliance Period referred to on the emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal and California emisson requirements. Category C = 50 hours, B = 125 hours, and A = 300 hours.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

–

The machine is only designed for blowing lawns, pathways, asphalt roads and the like.

English

SAFETY INSTR UCTIONS

•

ersonal protective equipment

ARNING! You must use approved personal

protective equipment whenever you use the

machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

ARNING! Listen out for warning signals or

shouts when you are wearing hearing

protection. Always remove your hearing protection as soon as the engine stops.

Gloves should be worn when necessary.

• Wear hearing protection that provides adequate noise reduction.

• A breathing mask should be used when there is a risk of dust.

• Always have a ﬁrst aid kit nearby.

Mac hine

This section descr ibes the machine ′ s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the ”What is what?” section to locate where this equipment is positioned on your machine.

′′

s safety equipment

′′

ARNING! Never use a machine that has faulty safety equipment! Carry out the inspection, maintenance and service routines listed in this section.

• Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles. Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries. Blows from branches or objects that are thrown can damage the eyes.

• Wear sturdy, non-slip boots.

• Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.

Stop s witch

Use the stop s witch to switch off the engine.

English

– 5

SAFETY INSTR UCTIONS

•

Vibration damping system

our machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier.

ARNING! Overexposure to vibration can

lead to circulatory damage or nerve damage

in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the ﬁngers, hands or wrists. The risk increases at low temperatures.

Mufﬂ er

The m ufﬂer is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

ARNING! The inside of the mufﬂer contain

chemicals that may be carcinogenic. Avoid

contact with these elements in the event of a damaged mufﬂer.

Chec king, maintaining and servicing

′′

the machine

WARNING! All servicing and repair work on the machine requires special training. This is

especially true of the machine equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

Stop s witch

Start the engine and make sure the engine stops when you move the stop switch to the stop setting.

s safety equipment

′′′′s safety

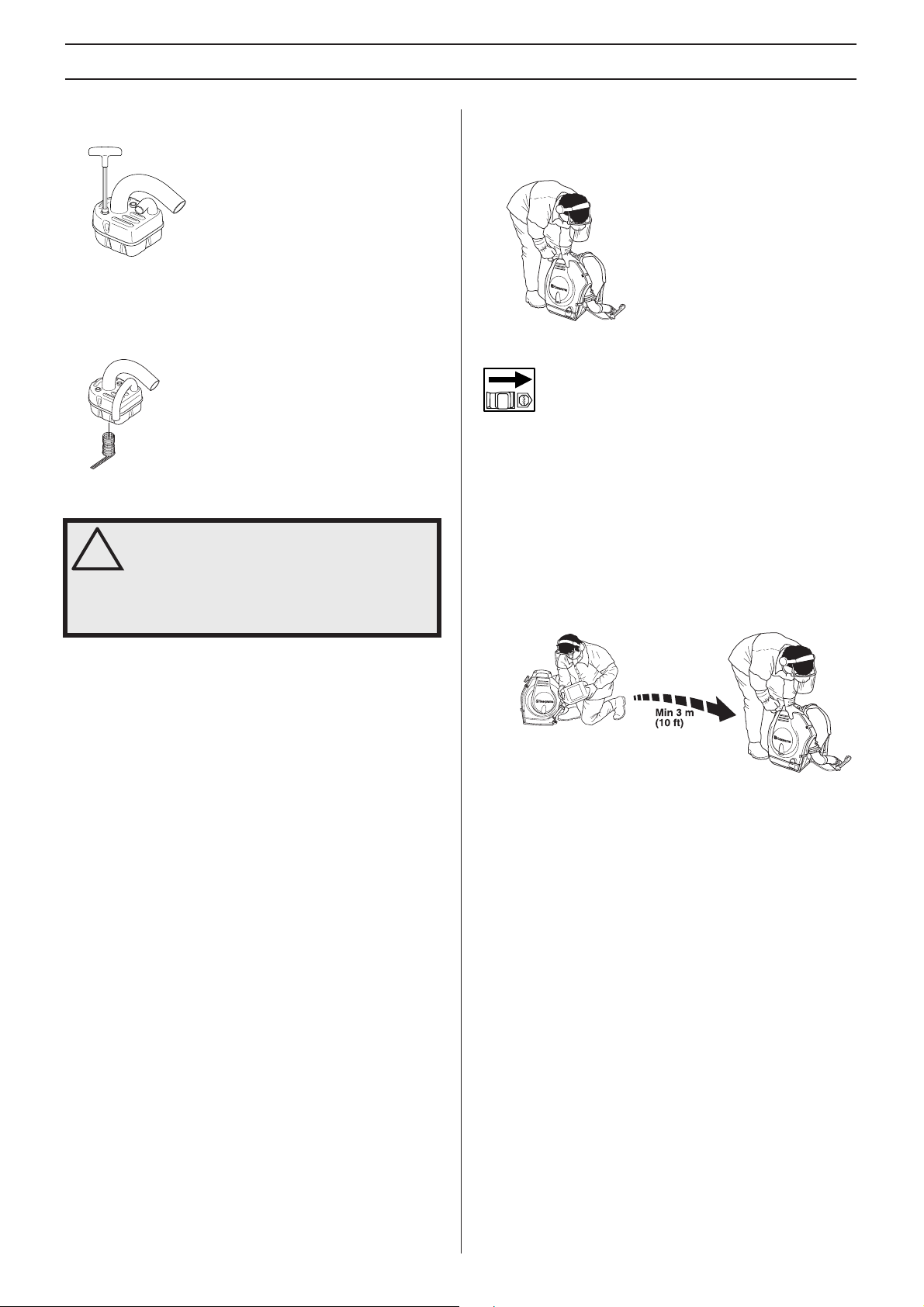

In countries that have a warm and dry climate there is a signiﬁcant risk of ﬁre. Consequently, we have equipped the mufﬂer with a spark arrestor mesh mounted inside the mufﬂer.

For mufﬂers it is very important that you follow the instructions on checking, maintaining and servicing your machine. See instructions under the heading Checking, maintaining and servicing the machine’s safety equipment.

ARNING!

Bear in mind that: Engine exhaust fumes contain carbon monoxide, which can cause carbon monoxide poisoning. For this reason you should not start or run the machine indoors, or anywhere that is poorly ventilated.

The exhaust fumes from the engine are hot and may contain sparks which can start a ﬁre. Never start the machine indoors or near combustible material!

Vibration damping system

Check the vibration damping units regularly for cracks or deformation. Replace them if damaged.

• Check that the vibration damping element is undamaged and securely attached.

Mufﬂ er

Never use a machine that has a faulty mufﬂer.

–

English
