Owner’s Manual
ROTARY LAWN MOWER
6.75 Horsepower
Power-Propelled
22" Multi-Cut
Model No.
917.375820
CAUTION:
Read and follow all
Safety Rules and In struc tions
before operating this equipment
Husqvarna, Charlotte, NC 28269 U.S.A.
Visit our website: www.husqvarna.com
TABLE OF CONTENTS
Warranty...................................................2
Safe ty Rules ..........................................2-4
Prod uct Spec i fi ca tions .............................. 5
Assembly / Pre-Operation ........................6
Op er a tion.............................................7-11
Maintenance Sched ule...........................11
Maintenance......................................11-14
Ser vice and Ad just ments...................14-16
Stor age..............................................16-17
Trou ble shoot ing .................................17-18

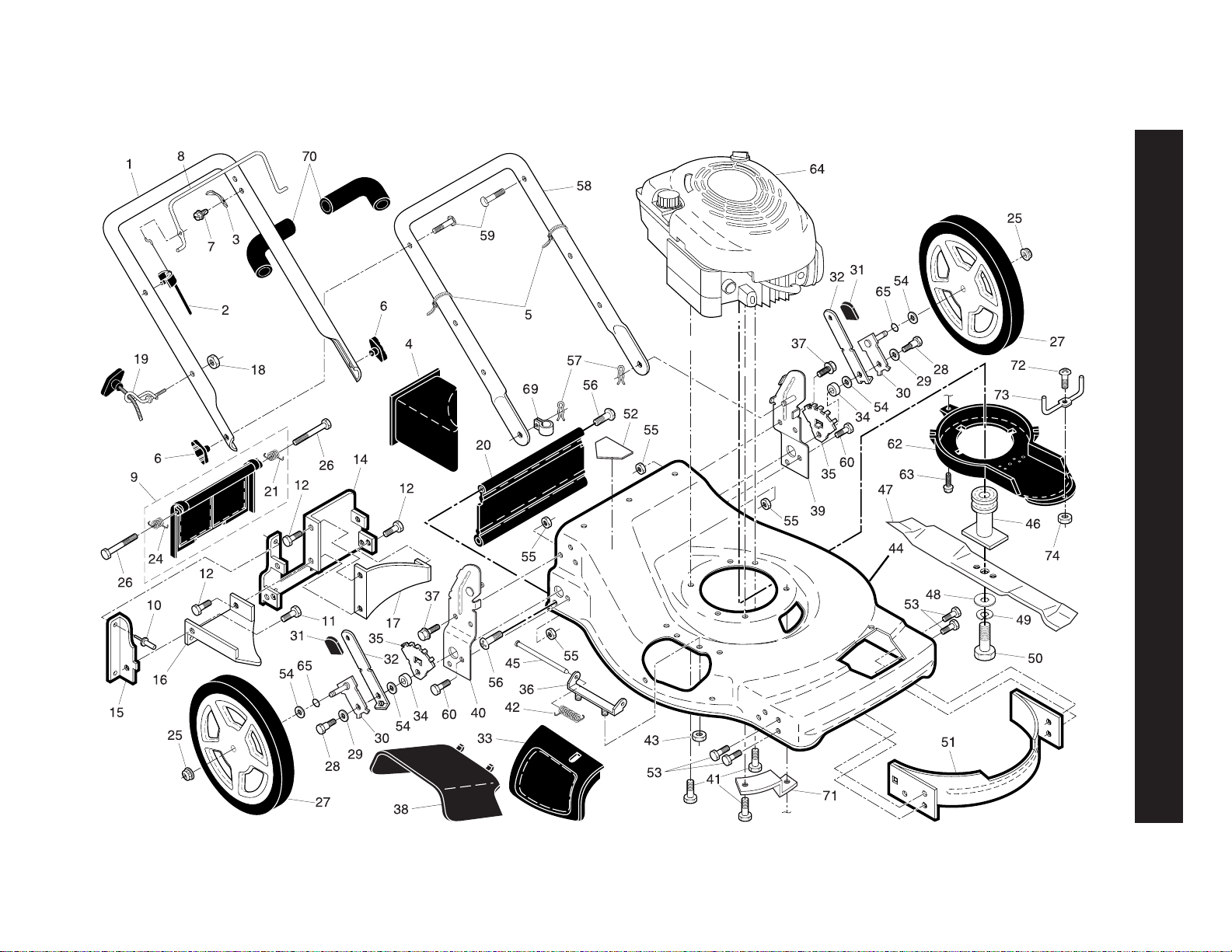

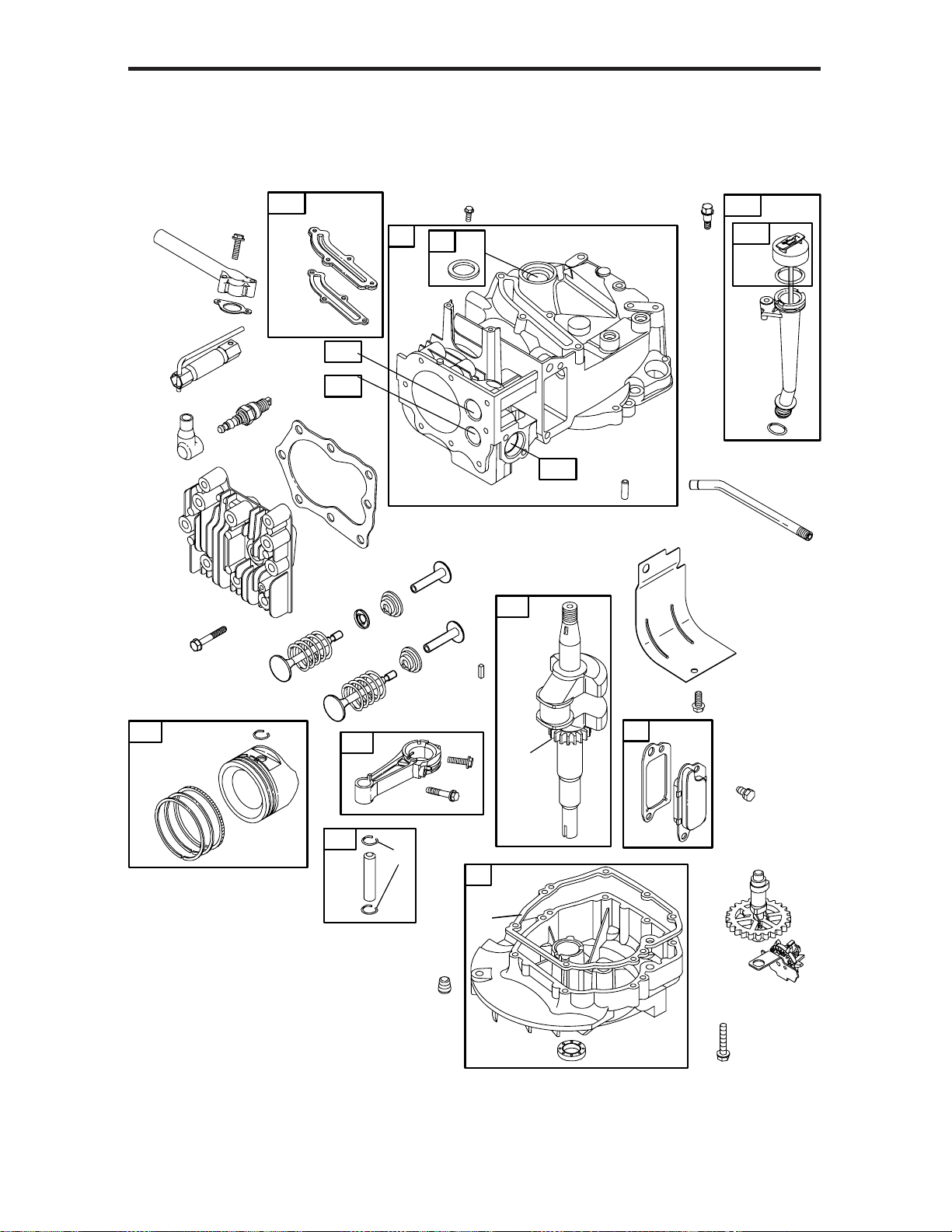

Re pair Parts.......................................36-43
SAFETY RULES
IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob-
jects. Failure to observe the following safety instructions could result in serious injury or death.
Look for this symbol to point out im por tant safety precautions. It means
CAU TION!!! BECOME ALERT!!!
YOUR SAFE TY IS INVOLVED.
WARNING: In order to prevent ac ci den tal
starting when setting up, trans port ing, ad just ing or making repairs, always dis con nect
spark plug wire and place wire where it can not
come in contact with plug.
WARNING: Engine exhaust, some of its
constituents, and certain vehicle com po nents contain or emit chem i cals known to
the State of Cal i for nia to cause can cer and
birth defects or oth er re pro duc tive harm.
WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals known to the State
of Cal i for nia to cause can cer and birth
defects or oth er re pro duc tive harm. Wash
hands after handling.
CAUTION: Muffl er and other engine
parts become extremely
hot during operation and
remain hot after engine
has stopped. To avoid
severe burns on contact,
stay away from these areas.
I. GENERAL OPERATION
• Read, understand, and follow all
in struc tions on the machine and in the
manual(s) before starting. Be thor ough ly
familiar with the controls and the proper
use of the machine before starting.
• Do not put hands or feet near or under
rotating parts. Keep clear of the dis charge opening at all times.
• Only allow responsible individuals, who
are familiar with the in struc tions, to
operate the machine.
• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which
could be picked up and thrown by blade.
• Be sure the area is clear of other people
before mowing. Stop the ma chine if
anyone enters the area.
• Do not operate the mower when bare foot or wearing open sandals. Al ways
wear substantial foot wear.
• Do not pull mower backwards unless absolutely nec es sary. Always look down and behind before and while moving backwards.
• Never direct discharged material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may richochet back toward the operator. Stop the
blade when crossing gravel surfaces.
• Do not operate the mower without
proper guards, plates, grass catcher or
oth er safety protective devices in place.
• See manufacturer’s instructions for
proper operation and installation of
accessories. Only use accessories approved by the manufacturer.
• Stop the blade(s) when crossing grav el
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equip ment, before clean ing
the mower or unclogging the chute.
• Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artifi cial light.
• Do not operate the machine while under
the infl uence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
fi rm hold on the handle; walk, never run.
• Disengage the self-propelled mech a nism or drive clutch on mowers so
equipped before starting the engine.
• If the equipment should start to vi brate
abnormally, stop the engine (motor) and
check immediately for the cause. Vibration is generally a warning of trouble.
• Always wear safety goggles or safe ty glasses with side shields when op er at ing mower.
II. SLOPE OPERATION
Slopes are a major factor related to slip &
fall accidents which can result in severe
injury. All slopes require extra caution. If
you feel uneasy on a slope, do not mow it.
2
DO:
• Mow across the face of slopes: nev er
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the op er a tor is
not alert to the presence of children. Children
are often attracted to the ma chine and the
Never
mowing activity.
will remain where you last saw them.
• Keep children out of the trimming area
and under the watchful care of an oth er
re spon si ble adult.
• Be alert and turn machine off if chil dren
enter the area.
• Before and while walking back wards,
look behind and
• Never allow children to operate machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
assume that children
down
for small chil dren.
IV. SAFE HANDLING OF GASOLINE
Use extreme care in handling gasoline.
Gasoline is extremely fl ammable and the
vapors are explosive.
• Extinguish all cigarettes, cigars, pipes
and other sources of ignition.
• Use only an approved container.
• Never remove gas cap or add fuel with
the engine running. Allow engine to
cool before refueling.
• Never refuel the machine indoors.
• Never store the machine or fuel container where there is an open fl ame, spark
or pilot light such as a water heater or
on other appliances.
• Never fi ll containers inside a vehicle, on
a truck or trailer bed with a plastic liner.
Always place containers on the ground
away from your vehicle before fi lling.
• Remove gas-powered equipment from
the truck or trailer and refuel it on the
ground. If this is not possible, then
refuel such equipment with a portable
container, rather than from a gasoline
dispenser nozzle.
• Keep the nozzle in contact with the rim
of the fuel tank or container opening at
all times until fueling is complete. Do
not use a nozzle lock-open device.
• If fuel is spilled on clothing, change
clothing immediately.
• Never overfi ll fuel tank. Replace gas
cap and tighten securely.
V. GENERAL SERVICE
• Never run machine inside a closed area.
• Never make adjustments or repairs with
the engine (motor) running. Dis con nect the
spark plug wire, and keep the wire away
from the plug to prevent ac ci den tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep equipment in good condition.
• Never tamper with safety devices. Check
their proper operation reg u lar ly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel spillage. Allow machine to cool before storing.
• Stop and inspect the equipment if you
strike an object. Repair, if nec es sary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine is running.
• Grass catcher components are sub ject to
wear, dam age, and de te ri o ra tion, which
could expose moving parts or allow objects
to be thrown. Frequently check com po nents and replace with man u fac tur er’s
recommended parts, when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when ser vic ing them.
• Do not change the engine governor setting or overspeed the engine.
• Maintain or replace safety and instruction labels, as necessary.
WARNING: This lawn mower is equipped with an internal com bus tion engine and
should not be used on or near any un im proved forest-covered, brush-covered or
grass-cov ered land unless the engine’s exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if any). If a spark arrester is used, it
should be maintained in effective working order by the operator.
In the state of California the above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws apply on federal
lands. A spark arrester for the muffl er is available through your nearest Husqvarna or
other authorized service center (See the REPAIR PARTS section of this manual).
3
WARRANTY
SECTION 1: LIMITED WARRANTY
Husqvarna Forest & Garden Company (“Husqvarna”)
warrants Husqvarna product to the original purchaser
to be free from defects in material and workmanship
from the date of purchase for the “Warranty Period” of
the product as set forth below:
2 YEAR NON-COMMERCIAL WARRANTY: Automatic
Mower, Riding lawn mowers, yard and garden tractors,
walk behind mowers, tillers, chain saws, trimmers,
brushcutters, clearing saws, snow blowers, handheld
blowers, backpack blowers, hedge trimmers, electrical products and power-assist collection systems for
non com mer cial, nonprofessional, noninstitutional or
nonincome producing use, except as herein stated.
Emission control system components necessary to
comply with CARB-TIER-II and EPA regulations.
Husqvarna Safety Apparel carries a 90-day warranty
from the date of the customer’s original purchase for
defects in material and workmanship. Normal wear,
tear or abuse is not covered under warranty. Product
must be returned to Charlotte with a warranty claim
form. All care and maintenance instructions must be
followed as stated by the manufacturer on the care label. The fi t of the protective apparel/boot is not covered
under warranty.
SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER
THE WARRANTY
Husqvarna will repair or replace defective components
without charge for parts or labor if a component fails
because of a defect in material or workmanship during
the warranty period.
SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY
The following items are not covered by this warranty:
(1)Normal customer maintenance items which become
worn through normal regular use, including, but
not limited to, belts, blades, blade adapters, bulbs,
fi lters, guide bars, lubricants, rewind springs, saw
chain, spark plugs, starter ropes and tines;
(2) Natural discoloration of material due to ultraviolet
light;
(3) Lawn and garden attachments are covered by a
third party which gives a warranty, all claims for
warranty should be sent to the manufacturer; and
(4)Emission Control System components necessary
to which are manufactured by third party engine
manufacturer.
SECTION 4: EXCEPTIONS AND LIMITATIONS
This warranty shall be inapplicable to defects resulting
from the following:
(1) Accident, abuse, misuse, negligence and neglect,
including stale fuel, dirt, abrasives, moisture, rust,
corrosion, or any adverse reaction due to incorrect
storage or use habits;
(2) Failure to operate or maintain the unit in ac-
cordance with the Owner’s/Operator’s manual or
instruction sheet furnished by Husqvarna;
(3) Alterations or modifi cations that change the
intended use of the product or affects the product’s
performance, operation, safety, or durability, or
causes the product to fail to comply with any applicable laws; or:
(4) Additional damage to parts or components due to
continued use occurring after any of the above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE PUR CHAS ER. HUSQVARNA SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THESE PRODUCTS
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED
IN DURATION TO THE WARRANTY PERIOD AS
DEFINED IN THE LIMITED WARRANTY STATEMENT.
HUSQVARNA RE SERVES THE RIGHT TO CHANGE
OR IMPROVE THE DESIGN OF THE PRODUCT
WITHOUT NO TICE, AND DOES NOT ASSUME
OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD UCTS.
Some states do not allow the exclusion of incidental
or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives
you specifi c legal rights, and you may also have other
rights which vary from state to state.
SECTION 5: CUSTOMER RESPONSIBILITIES
The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as
written in the maintenance section of the Owner’s/
Operator’s manual. Should an operational problem
or failure occur, the product should not be used, but
delivered as is to an authorized Husqvarna dealer for
evaluation. Proof of purchase, as explained in section
6, rests solely with the customer.
SECTION 6: PROCEDURE TO OBTAIN WARRANTY
CONSIDERATION
It is the Owner’s and Dealer’s responsibility to make
certain that the Warranty Registration Card is properly
fi lled out and mailed to Husqvarna Forest & Garden
Company. This card should be mailed within ten (10)
days from the date of purchase in order to confi rm the
warranty and to facilitate post-sale service.
Proof of purchase must be presented to the authorized
Husqvarna dealer in order to obtain warranty service.
This proof must include date purchased, model number, serial number, and complete name and address of
the selling dealer.
To obtain the benefi t of this warranty, the product
believed to be defective must be delivered to an
authorized Husqvarna dealer in a timely manner, no
later than thirty (30) days from date of the operational
problem or failure. The product must be delivered at
the owner’s expense. Pick-up and delivery charges are
not covered by this warranty. An authorized Husqvarna
dealer can be normally located through the “Yellow
Pages” of the local telephone directory or by calling
1-800-HUSKY62 for a dealer in your area.
HUSQVARNA
7349 Statesville Road
Charlotte, NC 28269
531 83 81-23 2002
4
PRODUCT SPECIFICATIONS
Serial Number:
Date of Purchase:
Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular)
Oil Type (API SG–SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F)
Oil Capacity: 20 Ounces
Spark Plug (Gap: .030") Champion J19LM or RJ19LM
Blade Bolt Torque: 35-40 ft. lbs.
• The model and serial numbers will be found on a decal on the rear of the lawn mower
housing. Record both serial number and date of purchase in space provided above.
ACCESSORIES
These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Husqvarna retailers and
service centers. Some of these accessories may not apply to your lawn mower.
5
ASSEMBLY / PRE-OPERATION
Read these instructions and this manual in its entirety before you attempt to assemble or
operate your new lawn mower.
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
Your new lawn mower has been as sem bled at the factory with the exception of those parts
left unassembled for shipping pur pos es. To ensure safe and proper op er a tion of your lawn
mower, all parts and hard ware you assemble must be tight ened securely. Use the correct
tools as nec es sary to ensure proper tightness. All parts such as nuts, wash ers, bolts, etc.,
nec es sary to complete the as sem bly have been placed in the parts bag.
TO REMOVE MOWER FROM CARTON
1. Remove loose parts included with mower.
2. Cut down two end corners of carton
and lay end panel down fl at.
3. Remove all packing materials except
padding be tween upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thor ough ly for additional
loose parts.
HOW TO SET UP YOUR MOW ER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage con trol cables.
1. Raise handles until lower handle sec-
tion locks into place in mowing position.
2. Remove protective padding, raise up-
per handle sec tion into place on lower
handle and tighten both handle knobs.
3. Remove handle padding holding operator
pres ence control bar to upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to “AD JUST HANDLE” in the Service and Adjustments section of this manual.
Operator
presence
control bar
LIFT
UP
MOWING
POSITION
TO ASSEMBLE GRASS CATCH ER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
Frame
handle
Vinyl
bindings
Frame
opening
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be
used as a mulcher. To convert mower to
bagging or discharging, see “TO CON VERT MOWER” in the Operation section
of this manual.
LIFT
UP
Upper
handle
Handle
knob
Lower handle
6
OPERATION

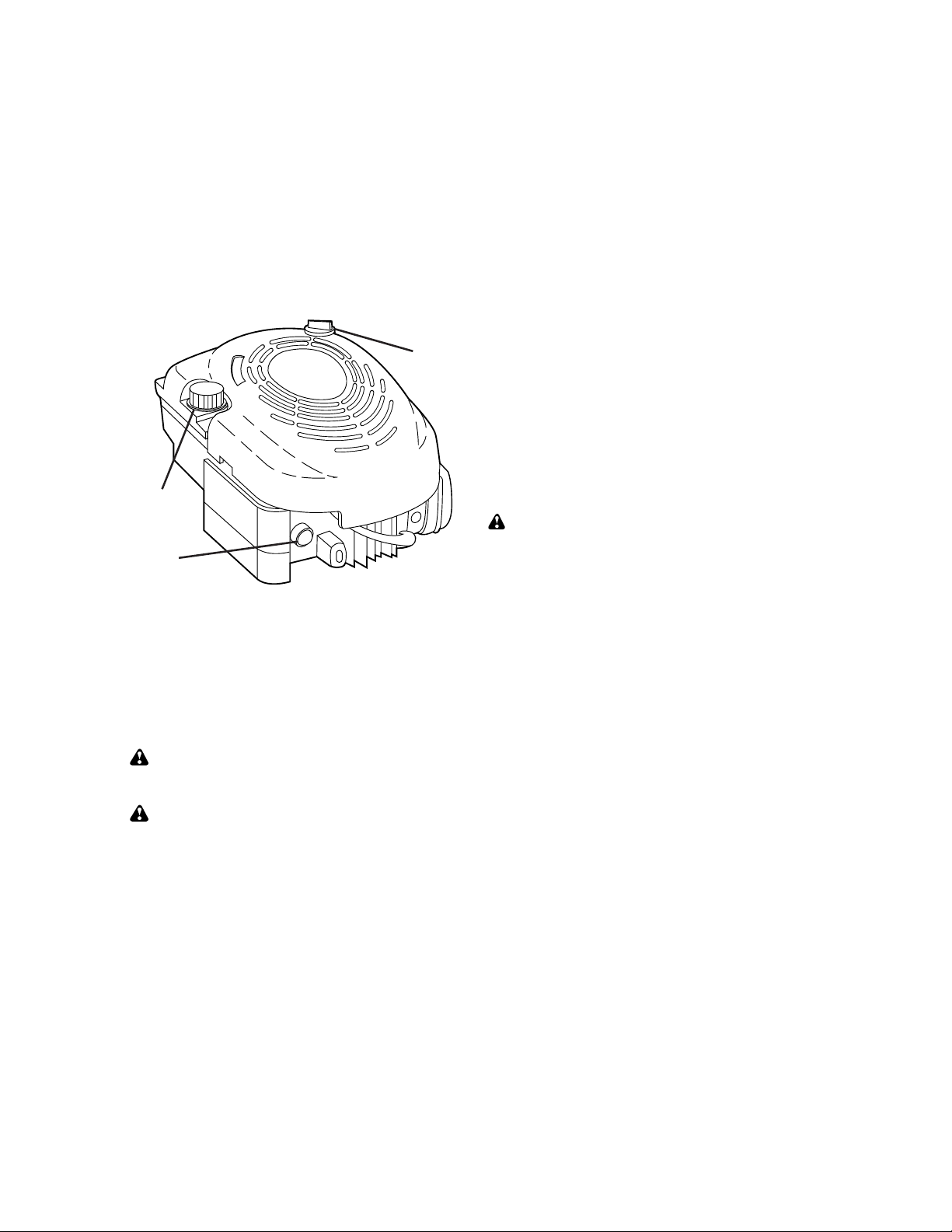

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OP ER AT ING
YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize
yourself with the location of various controls and adjustments. Save this manual for
future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
Drive
control
lever
Starter
handle
Grass
catcher
Gasoline fi ller cap
Operator presence control bar
Handle knob
Engine oil cap with dipstick
Primer
Muffl er
Spark
plug
Air fi lter
Mulcher door
Housing
Drive cover
Wheel adjuster
(on each wheel)
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
MEETS CPSC SAFETY REQUIREMENTS
Our rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Com mis sion. The blade turns when the engine is running.
Operator presence control bar – must
be held down to the handle to start the
engine. Release to stop the engine.
Primer– pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle – used for starting engine.
Mulcher door – allows con ver sion to
discharging or bagging operation.
Drive control lever – used to engage
power-pro pelled forward mo tion of mower.
7
The operation of any lawn
mower can result in foreign
objects thrown into the eyes,
which can result in severe
eye damage. Always wear
safety glasses or eye shields while operating your lawn mower or performing any
ad just ments or repairs. We recommend a
standard safety glasses or wide vision safety
mask worn over spectacles.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
CAUTION: Federal regulations re quire
an engine control to be installed on this
lawn mower in order to minimize the
risk of blade contact injury. Do not un der
any circumstances attempt to de feat the
func tion of the operator con trol. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator pres ence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
DRIVE CONTROL
• Self-propelling is controlled by hold-
ing the operator presence control bar
down to the handle and pulling the drive
control lever rearward to the handle.
The farther toward the handle the lever
is pulled, the faster the unit will travel.
• Forward motion will stop when either
the operator presence control bar or
drive control lever are released. To stop
forward motion without stop ping engine,
re lease the drive control lever only. Hold
op er a tor presence control bar down
against handle to con tin ue mowing
without self-propelling.
NOTE: If after releasing the drive control
the mower will not roll backwards, push
the mower forward slightly to disengage
drive wheels.
• To keep drive control engaged when
turning corners, push down on the
handle to lift the front wheels off the
ground while turning lawn mower.
DRIVE CONTROL ADJUSTMENT
Over time, the drive control system may
become “loose”, resulting in decreased
speed. There is a turnbuckle on the
un der side of the drive control housing to
increase tension on the drive cable. Pro ceed as follows:
1. Turn unit off and disconnect spark plug
wire from spark plug.
2. Turn nut on underside of drive control
to increase drive speed.
3. Operate mower to test drive speed.
Readjust as required.
4. If condition fails to improve after the
above steps (forward speed remains
the same), your drive belt is worn and
should be re placed.
Operator presence control bar
Drive
control
lever
DISENGAGED
DRIVE
CONTROL
Adjustment
turnbuckle
TO
ENGAGE
DRIVE
CONTROL
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower wheels
for high cut, adjust cutting height to suit
your requirements. Me di um position is
best for most lawns.
• To change cutting height, squeeze adjuster lever to ward wheel. Move wheel
up or down to suit your re quire ments. Be
sure all wheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
LEVER BACKWARD
TO LOWER MOWER
LEVER FORWARD TO RAISE MOWER
Plate tab
TO CONVERT MOWER
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging
or discharging:
REAR BAGGING
• Open rear door, remove mulcher plug.
Store mulcher plug in a safe place.
• You can now install the grass catcher or
optional clipping defl ector.
• To convert to mulching or discharging
operation, install mulcher plug into rear
discharge opening of mower.
8
Lever
Mulcher plug
SIDE DIS CHARG ING
• Mulcher plug must be installed into rear
discharge open ing of mower.
• Open mulcher door and install dis charge defl ector under door as shown.
• Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, dis charge defl ector must be
removed and mulcher door closed.
SIMPLE STEPS TO REMEMBER WHEN
CONVERTING YOUR LAWN MOWER
FOR MULCHING -
1. Rear mulcher plug installed.
2. Mulcher door closed.
FOR REAR BAGGING -
1. Rear mulcher plug removed.
2. Grass catcher installed.
3. Mulcher door closed.
FOR SIDE DISCHARGING -
1. Rear mulcher plug installed.
2. Discharge defl ector installed.
CAUTION: Do not run your lawn
mower with out mulcher plug or ap proved
grass catch er in place. Never at tempt to
op er ate the lawn mow er with the rear door
re moved or propped open.
Discharge defl ector
TO EMPTY
GRASS CATCHER
1. Lift up on grass catcher using the
frame han dle.
2. Remove grass catcher with clippings
from under lawn mower han dle.
3. Empty clippings from bag.
NOTE: Do not drag the bag when emptying; it will cause unnecessary wear.
Grass
catcher
frame
handle
Open mulcher door
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. For type and grade of oil to
use, see “EN GINE” in the Maintenance
section of this manual.
CAUTION: DO NOT overfi ll engine with
oil, or it will smoke heavily from the muffl er
on startup.
1. Be sure lawnmower is level.
2. Remove oil dipstick from oil fi ll spout.
3. You receive a container of oil with the
unit. Slowly pour the entire container
down the oil fi ll spout into the engine.
9
NOTE: Initial oil fi ll requires only 18 oz.
due to residual oil in engine from the
manufacturers 100% quality testing. When
changing oil you may need 20 oz.
4. Insert and tighten dipstick.
IMPORTANT:
• Check oil level before each use. Add oil
if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions. See “TO
CHANGE ENGINE OIL” in the Maintenance section of this manual.
Engine
oil cap
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the product and should be considered normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a fi rm push. This step is not
usually necessary when starting an
engine which has already run for a few
minutes.
2. Hold operator presence control bar
down to the han dle and pull starter
handle quickly. Do not allow starter
rope to snap back.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
fl ooding and engine will not start. If you do
fl ood engine, wait a few minutes before
attempting to start and do not repeat
priming steps.
Gasoline
fi ller cap
Primer
ADD GASOLINE
• Fill fuel tank to bottom of tank fi ller neck.
Do not overfi ll. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gasoline.
Purchase fuel in quan ti ties that can be
used within 30 days to assure fuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open fl ame.
CAUTION: Alcohol blended fuels
(called gasohol or using ethanol or methanol) can attract moisture which leads to
separation and for ma tion of acids during
storage. Acidic gas can damage the fuel
system of an engine while in storage. To
avoid engine problems, the fuel system
should be emptied before stor age of 30
days or longer. Empty the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage In struc tions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
MOWING TIPS
CAUTION: Do not use de-thatcher
blade attachments on your mower. Such
attachments are hazardous, will damage
your mower and could void your warranty.
• Under certain conditions, such as very
tall grass, it may be nec es sary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass clippings. It may also be necessary to re duce ground speed and/or run the lawn
mower over the area a sec ond time.
• For extremely heavy cutting, re duce the
width of cut by over lap ping previously
cut path and mow slowly.
• For better grass bagging and most cutting conditions, the engine speed should
be set in the FAST po si tion.
• Pores in cloth grass catchers can become fi lled with dirt and dust with use
and catchers will collect less grass. To
prevent this, reg u lar ly hose catcher off
with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air fl ow and extend
engine life.
TO STOP ENGINE
• To stop engine, release operator presence con trol bar.
10
MULCHING MOWING TIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See “CLEANING” in the
Maintenance section of this manual.
• The special mulching blade will recut
the grass clip pings many times and
reduce them in size so that as they fall
onto the lawn they will disperse into
the grass and not be noticed. Also, the
mulched grass will bio de grade quick ly
to provide nu tri ents for the lawn. Always
mulch with your highest engine (blade)
speed as this will provide the best recutting action of the blades.
• Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
in ter feres with the mulch ing action. The
best time to mow your lawn is the early
afternoon. At this time the grass has
dried, yet the newly cut area will not be
exposed to direct sunlight.
• For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is over grown it
will be nec es sary to raise the height of
cut to reduce pushing effort and to keep
from over load ing the engine and leaving
clumps of mulched grass. For ex tremely
heavy grass, reduce your width of cut
by overlapping previously cut path and
mow slowly.
• Certain types of grass and grass
con di tions may re quire that an area be
mulched a second time to com pletely
hide the clip pings. When doing a sec ond cut, mow across (perpendicular) to
the fi rst cut path.
MAX 1/3
• Change your cutting pattern from week
to week. Mow north to south one week
then change to east to west the next
week. This will help prevent matting and
graining of the lawn.
Check for Loose Fasteners
Clean / Inspect Grass Catcher *
Check Tires
Check Drive Wheels ***
Clean Lawn Mower ****
Clean under Drive Cover ***
Check Drive Belt / Pulleys ***
Check / Sharpen / Replace Blade
Lubrication
Clean and Recharge Battery **
Check Engine Oil level
Change Engine Oil
Clean Air Filter
Inspect Muffler
Replace Spark Plug
Replace Air Filter Paper Cartridge
Empty fuel system or add Stabilizer
(if so equipped)
*
Electric-Start mowers
**
Power-Propelled mowers
***
Use a scraper
****
to clean under deck
MAINTENANCE
BEFORE
EACH
USE
1 - Change more often if operating under a heavy load or in high outdoor temperatures.
2 - Service more often if operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
5 - And after each 5 hours of use.
AFTER
EACH
USE
EVERY
10
HOURS
EVERY
25 HOURS
OR SEASON
EVERY
100
HOURS
BEFORE
STORAGE
11
GENERAL REC OM MEN DA TIONS
The warranty on this lawn mower does not
cover items that have been sub ject ed to
operator abuse or negligence. To receive
full value from the warranty, operator must
maintain unit as in struct ed in this manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
At least once a season, check to see if
you should make any of the adjustments
described in the Service and Ad just ments
section of this manual.
• At least once a year, replace the spark
plug, clean or replace air fi lter element
and check blade for wear. A new spark
plug and clean/new air fi lter element
assure proper air-fuel mix ture and help
your engine run bet ter and last longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated
(See “LU BRI CA TION CHART”).
LUBRICATION CHART
Wheel
➀
adjuster (on
each wheel)
Engine oil
➁
Mulcher
➀
door hinge
pin
Rear door
➀
hinge
Handle bracket mounting pins
➀
LAWN MOWER
Always observe safety rules when per form ing any main te nance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemi cals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
DRIVE WHEELS
Check front drive wheels each time be fore
you mow to be sure they move freely.
The wheels not turning freely means trash,
grass cuttings, etc. are in the drive wheel area
and must be cleaned to free drive wheels.
If necessary to clean the drive wheels, be
sure to clean both front wheels.
1. Remove hubcaps, locknuts & washers.
2. Remove wheels from wheel ad just ers.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. Put wheels back in place.
NOTE: If after cleaning, the drive wheels
do not turn freely, contact a Husqvarna or
other qualifi ed service center.
BLADE CARE
For best results, blade must be kept sharp.
Re place a bent or dam aged blade.
CAUTION: Use only a replacement blade
approved by the manufacturer of your mower.
Using a blade not approved by the manufacturer of your mower is hazardous, could
damage your mower and void your warranty.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.
2. Turn lawn mower on its side. Make
sure air fi lter and carburetor are up.
3. Use a wood block between blade and
mower hous ing to prevent blade from
turning when re mov ing blade bolt.
NOTE: Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade & attaching hard ware
(bolt, lock wash er & hardened wash er).
Spray lubricant
➀
See "ENGINE" in Maintenance section.
➁
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lu bri cants will
attract dust and dirt that will short en the life of
the self-lu bri cat ing bearings. If you feel they
must be lu bri cated, use only a dry, pow dered
graphite type lubricant spar ingly.
TO REPLACE BLADE
1. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
2. Be sure the trailing edge of blade (oppo-
site sharp edge) is up toward the engine.
3. Install the blade bolt with the lock
washer and hardened washer into
12
blade adapter and crankshaft.
4. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. lbs.
IMPORTANT: Blade bolt is heat treated.
If bolt needs replacing, replace only with
approved bolt shown in the Repair Parts
section of this manual.
Blade adapter Key
Lockwasher
Crankshaft
keyway
ENGINE
LUBRICATION
Use only high quality detergent oil rated with
API service classifi cation SG–SL. Select the
oil's SAE viscosity grade according to your
expected operating temperature.
SAE VISCOSITY GRADES
SAE 30
5W-30
-10
32
60
10
20 30 40
100
80
-20 0 30 40
F
C
-30
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
-20 0
Blade
Blade
bolt
Hardened
washer
Trailing edge
Crankshaft
TO SHARPEN BLADE
NOTE: We do not recommend sharp en ing
the blade - but if you do, be sure the blade
is balanced. Care should be taken to keep
the blade balanced. An un bal anced blade will
cause eventual damage to mower or engine.
• The blade can be sharp ened with a fi le
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail into
a beam or wall. Leave about one inch of
the straight nail ex posed. Place center
hole of blade over the head of the nail.
If blade is balanced, it should remain in
a horizontal position. If either end of the
blade moves downward, sharpen the
heavy end until the blade is balanced.
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for dam-
age or de te ri o ra tion. Through normal
use it will wear. If catcher needs replacing, replace only with ap proved replacement catcher shown in the Repair Parts
section of this manual. Give the lawn
mower model number when ordering.
GEAR CASE
• To keep your drive system working
properly, the gear case and area around
the drive should be kept clean and free
of trash build-up. Clean under the drive
cover twice a season.
• The gear case is fi lled with lubricant to the
proper level at the factory. The only time
the lubricant needs attention is if service
has been performed on the gear case.
• If lubricant is required, use only Elf Mul-
tis EP00. Do not substitute.
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils will
result in in creased oil consumption when
used above 32°F. Check your engine oil
level more frequently to avoid possible
engine damage from running low on oil.
Change the oil after every 25 hours of operation orat least once a year if the mower
is not used for 25 hours in one year.
Check the crankcase oil level before
starting the engine and after each fi ve (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to drain
oil, empty fuel tank by running engine until
fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to remove any oil trapped inside of engine.
Container
4. Wipe off any spilled oil from lawn
mower or side of engine.
5. Slowly pour oil down the oil fi ll spout,
stopping every few ounces to check the
oil level with the dipstick.
6. Stop adding oil when you reach the
FULL mark on the dipstick. Wait a
13
minute to allow oil to settle.
7. Continue adding small amounts of oil,
rechecking the dipstick until oil level
settles at FULL. DO NOT overfi ll, or
engine will smoke heavily from the muffl er on startup.
8. Always be sure to retighten oil dipstick
before starting engine.
9. Re con nect spark plug wire to spark plug.
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air fi lter.
Replace the air fi lter cartridge every 100
hours of op er a tion or every season, which ev er occurs fi rst. Service air cleaner more
often under dusty conditions.
Lip
Cartridge
Cover
Back plate
Slot
Cover
tab
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to re move.
2. Carefully remove cartridge.
3. Clean by gently tapping on a fl at surface. If very dirty, replace car tridge.
CAUTION: Pe tro leum solvents, such as
ker o sene, are not to be used to clean car tridge. They may cause de te ri o ra tion of the
cartridge. Do not oil car tridge. Do not use
pres sur ized air to clean or dry car tridge.
4. Install cartridge, then replace cover.
Be sure tabs are aligned with slots in
the back plate. Fasten screw securely.
MUFFLER
Inspect and replace corroded muffl er as it
could create a fi re hazard and/or dam age.
SPARK PLUG
Replace spark plug at the beginning of
each mowing season or after every 100
hours of operation, whichever occurs
fi rst. Spark plug type and gap setting
are shown in the “PROD UCT SPEC I FI CA TIONS” section of this manual.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-grass
and trash. Clean the underside of your
mower after each use.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep fi nished surfaces and wheels free
of all gasoline, oil, etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
elec tri cal system, muffl er, air fi lter and
carburetor are covered to keep water
out. Water in engine can result in shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a season. Scrape underside of cover with putty
knife or similar tool to remove any build-up
of trash or grass on underside of drive cover.
SERVICE AND ADJUSTMENTS
WARNING: To avoid serious injury, before performing any service and adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving parts have completely stopped.
3. Disconnect spark plug wire from spark plug and place wire where it cannot come in
contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See “TO ADJUST CUTTING HEIGHT” in
the Operation sec tion of this manual.
REAR DEFLECTOR
The rear defl ector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower
into the operator mowing position. If the
defl ector becomes dam aged, it should be
replaced.
14
TO REMOVE DRIVE BELT
1. Remove drive cover and belt keeper.
2. Remove belt from gearcase pulley by
push ing down on pulley and rolling belt
off it.
3. Turn lawn mower on its side with air
fi lter and car bu re tor down.
4. Remove blade and debris shield.
5. Remove belt from engine pulley on
crankshaft.
TO REPLACE DRIVE BELT
1. Place new drive belt in the belt retainers of the debris shield.
2. Route the other end of the new drive
belt through hole in housing.
3. Reinstall debris shield and blade.
4. Return mower to upright po si tion.
5. Install new belt on gearcase pulley.
6. Reinstall belt keeper and drive cover.
NOTE: Always use factory approved belt
to assure proper fi t and long life.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
1. Remove upper handle and wire tie(s)
securing cable(s) to lower handle.
2. Remove hairpin cotters from lower
handle bracket mount ing pin.
3. Squeeze lower handle in to remove it
from mounting pins.
4. Turn lower handle over to raise or
lower handle.
5. Squeeze lower handle in and po si tion holes
onto mount ing pins on handle bracket.
6. Reassemble upper handle and all
parts removed from lower handle.
SQUEEZE
TO ADJUST
Lower handle
Belt
keeper
Belt
Drive
cover
PUSH
DOWN
Belt retainers
Drive belt
Mowing
position
Hairpin
cotter
Mounting
pin
Handle
bracket
Mounting pin
Hairpin cotter
Mowing
position
Handle
bracket
HIGH POSITIONLOW POSITION
Debris shield
Lower
handle
R OTAT E
15
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase en gine speed
or it may result in personal injury. If you
believe that engine is running too fast or
too slow, take your mower to a Husqvarna
or other qualifi ed service cen ter for repair
and ad just ment.
CARBURETOR
Your carburetor is not adjustable. If your
engine does not operate properly due
to suspected carburetor problems, take
your lawn mower to a Husqvarna or other
qualifi ed service center for repair and/or
ad just ment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Over speed ing
the engine above the factory high speed
setting can be dangerous. If you think
the engine-governed high speed needs
adjusting, contact a Husqvarna or other
qualifi ed service center, which has proper
equip ment and ex pe ri ence to make any
nec es sary adjustments.
STORAGE
Immediately prepare your lawn mower for storage at the end of the season or if the unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thor oughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
“CLEANING” in the Maintenance section of this manual).
2. Lubricate as shown in the Main te nance
section of this manual.
3. Be sure that all nuts, bolts, screws, and
pins are securely fas tened. Inspect
moving parts for damage, breakage
and wear. Replace if necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your mower handle for storage.
1. Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle bracket,
then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may damage the control cables.
• When setting up your handle from the
storage position, the lower han dle will
automatically lock into mow ing position.
SQUEEZE
TO FOLD
Lower handle
Operator
presence
control bar
FOLD
FORWARD
FOR
STORAGE
MOWING
POSITION
Lower handle
ENGINE
FUEL SYS TEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
fi lter, fuel hose, or tank during storage.
Alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage.
• Empty the fuel tank by starting the engine and letting it run until the fuel lines
and car bu re tor are empty.
• Never use engine or carburetor cleaner
prod ucts in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in min i miz ing the formation of fuel
16
Upper
handle
Handle
knob
gum deposits during stor age. Add stabilizer
to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer
container. Run engine at least 10 min utes
after adding stabilizer to allow the stabilizer to
reach the carburetor. Do not empty the gas
tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See “ENGINE” in
the Maintenance section of this man ual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times to
dis trib ute oil.
4. Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to protect it from dust and dirt.
• Cover your unit with a suitable pro tec tive cover that does not retain mois ture.
Do not use plastic. Plastic cannot
breathe, which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
CAUTION: Never store the lawn mower
with gaso line in the tank in side a build ing
where fumes may reach an open fl ame
or spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING - See appropriate section in manual unless directed
to a Husqvarna or other qualifi ed service center.
PROBLEM CAUSE CORRECTION
Does not start 1. Dirty air fi lter. 1. Clean/replace air fi lter.
2. Out of fuel. 2. Fill fuel tank.
3. Stale fuel. 3. Empty fuel tank and refi ll tank
with fresh, clean gasoline.
4. Water in fuel. 4. Empty fuel tank and refi ll tank
with fresh, clean gasoline.
5. Spark plug wire is 5. Connect wire to plug.
disconnected.
6. Bad spark plug. 6. Replace spark plug.
7. Loose blade or broken 7. Tighten blade bolt or
blade adapter. replace blade adapter.
8. Control bar in released 8. Depress control bar to
position. handle.
9. Control bar defective. 9. Replace control bar.
10.Fuel valve lever (if so 10.Turn fuel valve lever
equipped) in OFF position. to the ON position.
11.Weak battery (if equipped). 11.Charge battery.
12.Disconnected battery 12.Connect battery to engine.
connector (if equipped).
17
TROUBLESHOOTING - See appropriate section in manual unless directed
to a Husqvarna or other qualifi ed service center.
PROBLEM CAUSE CORRECTION
Loss of power 1. Rear of mower housing or 1. Raise cutting height.
blade dragging in grass.
2. Cutting too much grass. 2. Raise cutting height.
3. Dirty air fi lter. 3. Clean/replace air fi lter.
4. Buildup of grass, leaves, 4. Clean underside of mower
and trash under mower. housing.
5. Too much oil in engine. 5. Check oil level.
6. Walking speed too fast. 6. Cut at slower walking speed.
Poor cut – 1. Worn, bent or loose blade. 1. Replace blade. Tighten
uneven blade bolt.
2. Wheel heights uneven. 2. Set all wheels at same
height.
3. Buildup of grass, leaves 3. Clean underside of
and trash under mower. mower housing.
Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten
vibration blade bolt.
2. Bent engine crankshaft. 2. Contact a Husqvarna or
other qualifi ed service center.
Starter rope 1. Engine fl ywheel brake is on 1. Depress control bar to
hard to pull when control bar is released. upper handle before
pulling the starter rope.
2. Bent engine crankshaft. 2. Contact a Husqvarna or
other qualifi ed service center.
3. Blade adapter broken. 3. Replace blade adapter.
4. Blade dragging in grass. 4. Move lawn mower to cut
grass or to hard surface.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
not fi lling 2. Lift on blade worn off. 2. Replace blade.
(If so equipped) 3. Catcher not venting air. 3. Clean grass catcher.
Hard to push 1. Grass is too high or wheel 1. Raise cutting height.
height is too low.
2. Rear of mower housing or 2. Raise rear of mower housing
blade dragging in grass. one (1) setting higher.
3. Grass catcher too full. 3. Empty grass catcher.
4. Handle height position not 4. Adjust handle height to suit.
right for you.
Loss of drive 1. Belt wear. 1. Check/replace drive belt.
or slowing of 2. Belt off of pulley. 2. Check/reinstall drive belt.
drive speed 3. Drive cable worn or broken. 3. Replace drive cable.
4. “Loose” drive control system. 4. Adjust drive control.
18
36
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.375820
REPAIR PARTS
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.375820
KEY PART
NO. NO. DESCRIPTION
1 196403 Upper Handle Assembly
(Includes Foam Grip)
2 183567 Engine Zone Control Cable
3 850733X004 Bracket, Upstop
4 166649 Mulcher Plug
5 66426 Wire Tie
6 189713X418 Handle Knob
7 750634 Screw
8 194580X422 Control Bar
9 193679 Rear Door Assembly
(Includes Springs)
10 128415 Pop Rivet
11 150050 Screw, Self-Tapping
#10-24 x 5/8
37
12 54583 Screw, Hex Head,
Sems 1/4-20 x 1/2
14 195622X479 Back Plate
15 700365X479 Side Baffl e
16 176655X479 Discharge Baffl e
17 140661X479 Rear Baffl e
18 132004 Keps Locknut 1/4-20
19 194788 Rope Guide
20 189008 Rear Skirt
21 170938 Spring, Rear Door, LH
24 170939 Spring, Rear Door, RH
25 145212 Nut, Hex, Flanged
26 184193 Bolt, Rear Door
27 193906X460 Wheel & Tire Assembly, Rear
28 142748 Bolt, Shoulder 3/8-16 x 1
29 61651 Washer, Belleville
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
KEY PART
NO. NO. DESCRIPTION
30 180413X004 Axle Arm Assembly
31 189808X418 Selector Knob
32 198169X004 Selector Spring
33 189917X418 Mulcher Door
34 146630 Spacer
35 700325X007 Wheel Adjusting Bracket
36 175735 Hinge Bracket Assembly
37 150078 Screw, Sems, Thread Cutting
5/16-18 x 3/4
38 402574X418 Discharge Defl ector
39 195915X479 Handle Bracket Assembly, LH
40 195914X479 Handle Bracket Assembly, RH
41 150406 Bolt, Hex Head, Engine 3/8-16
42 193000 Spring, Torsion
43 73800400 Nut, Hex, Nylock
44 197556 Kit, Lawn Mower Housing
(Includes Key #14, 15 and 51)
45 175650 Rod, Hinge
46 194037 Blade Adapter / Pulley
47 141114 Blade, 22"
48 851074 Washer, Hardened
49 850263 Washer, Helical
50 851084 Screw, Machine, Hex Head
3/8-24 x 1-3/8 Grade 8
51 170031 Front Baffl e
52 85463 Danger Decal
53 17600406 Screw
54 88348 Washer, Flat
55 751592 Locknut, Hex 3/8-16
KEY PART
NO. NO. DESCRIPTION
56 88652 Screw, Hinge 1/4-20 x 1-1/4
57 51793 Hairpin Cotter
58 151590X498 Lower Handle
59 191574 Handle Bolt
60 74760612 Bolt, Hex Head 3/8-16 x 3/4
62 199314 Debris Shield
63 192325 Screw, Debris Shield
64 - - - Engine, Briggs & Stratton,
Model No. 125K02-0654-E1
(For engine service and
replacement parts,
call Briggs & Stratton
at 1-800-233-3723)
65 197480 O-Ring
69 197991 Clip, Cable
70 182748 Foam Grip
71 188839X004 Mounting Bracket,
DebrisShield
72 182227 Screw #8
73 197162 Belt Keeper
74 182228 Nut, Hex
- - 161058 Warning Decal (not shown)
- - 402735 Owner’s Manual
Available accessories not included with mower:
- - 71 33623 Gas Can
(2.5 Gallon Container)
- - 71 33500 Fuel Stabilizer
- - 71 33000 SAE 30W Oil
(20 Ounce Bottle)
38
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.375820
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.375820
39
KEY PART
NO. NO. DESCRIPTION
1 404142 Drive Control Assembly (Includes Cable)
2 195745 Cover, Drive Control, Top
3 187353 Pulley
4 190039 Lever, Drive Control
5 195744 Cover, Drive Control, Bottom
6 186198 Screw, Torx Head #8 x 5/8
7 400235X479 Mounting Bracket, Drive Control
8 197195 Cable, Drive Control
9 184987 Cap, Drive Control, Bottom
10 189074 Decal, Drive Control
11 193912X460 Wheel & Tire Assembly
12 12000058 E-Ring
13 750003 Gear, Pinion
14 189403 Dust Cover
15 191017 Pawl, Drive
16 67725 Washer, Flat 3/8
17 191039 Bearing, Wheel Adjuster
18 196401 Selector Knob
23 88652 Screw 1/4-20 x 1-1/4
24 191730 Nut, Hex
25 197163X479 Belt Guide Bracket
26 192325 Screw
27 175262 Pan Head Tapping Screw #10-24 x 2-3/4
28 194407X418 Drive Cover
29 83923 Locknut, Hex
32 194018 Drive Pulley
33 196857 V-Belt
35 195110 Kit, Wheel Adjuster, LH
(Includes Knob and Bearing)
KEY PART
NO. NO. DESCRIPTION
36 191636 Gearcase Assembly, Complete
38 73800400 Locknut, Hex 1/4-20
40 192849 Spring
41 195107 Kit, Wheel Adjuster, RH
(Includes Knob and Bearing)
54 401189 Grassbag Assembly
55 86012 Driveshaft Cover
57 189680 Frame, Grassbag
61 196886 Case, Upper
62 197057 Shaft, Output
63 183508 Seal, Output Shaft
64 183511 Bushing
65 183509 Washer
66 183514 Seal, Worm Shaft
67 183506 Bearing, Ball
68 183499 Gear, 27 Teeth
69 196884 Fixed Dog Clutch
70 183505 Wireform
71 196883 Movable Dog Clutch
72 196882 Fork
73 183513 Screw, Case
74 196881 Case, Lower
75 196880 Seal, Lever
76 196879 Lever
77 196878 Screw, Lever
78 196877 Spring
79 183502 Shaft, Worm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
BRIGGS & STRATTON 4-CYCLE ENGINE
MODEL NUMBER 125K02-0654-E1
50
383
635
584
54
51
337
5
13
34
585
869
870
7
40
868
35
33
40
36
684
1
2
3
871
718
45
16
45
24
306
287
307
847
523
842
525
524
11
25
26
27
28
29
27
32A
15
32
4
12
40
741
20
8
9
10
46
43
22
BRIGGS & STRATTON 4-CYCLE ENGINE
MODEL NUMBER 125K02-0654-E1
633
966
976
163
276
334
745
425
968
445
121 CARBURETOR OVERHAUL KIT
134
137
333
851
356
617
104
127
227
163
562
505
529
443
125
163
127
222
188
365
621
97
633
130
95
617
668
977 CARBURETOR
GASKET SET
163
134
133
975
117
617
137
137
633
276
276
104
923
3
12
621
922
358 ENGINE GASKET SET
20
842
163
617
615
404
524
585
616
51
118
276
209
202
7
668
48
41
BRIGGS & STRATTON 4-CYCLE ENGINE
MODEL NUMBER 125K02-0654-E1
921
1059
972
969
190
670
23
78
187
957
37
455
305
601
332
304
608
55
1211
1210
300
65
592
81
459
456
613
689
597
564
604
363
58
60
1058 OWNER’S MANUAL
1330 REPAIR MANUAL
1329 REPLACEMENT ENGINE
KEY PART
NO. NO. DESCRIPTION
1 697322 Cylinder Assembly
2 399269 Kit-Bushing/Seal
3 299819s • Seal-Oil (Magneto Side)
4 493279 Sump-Engine
5 691160 Head-Cylinder
7 692249 • Gasket-Cylinder Head
8 695250 Breather Assembly
9 699472 Gasket-Breather
10 691125 Screw (Breather Assembly)
11 691781 Tube-Breather
12 692232 • Gasket-Crankcase
13 690912 Screw (Cylinder Head)
15 691680 Plug-Oil Drain
16 691450 Crankshaft
20 399781s • Seal-Oil (PTO Side)
22 691092 Screw (Engine Sump)
23 691987 Flywheel
24 222698s Key-Flywheel
25 790359 Piston Assembly (Std.)
791326 Piston Assembly
(.020" Oversize)
26 790360 Ring Set (Standard)
791324 Ring Set (.020" Oversize)
1036 EMISSIONS LABEL
KEY PART
NO. NO. DESCRIPTION
27 691866 Lock-Piston Pin
28 499423 Pin-Piston
29 499424 Rod-Connecting
32 691664 Screw (Connecting Rod)
32A 695759 Screw (Connecting Rod)
33 262651s Valve-Exhaust
34 262652s Valve-Intake
35 691270 Spring-Valve (Intake)
36 691270 Spring-Valve (Exhaust)
37 694086 Guard-Flywheel
40 692194 Retainer-Valve
43 691997 Slinger-Governor/Oil
45 690548 Tappet-Valve
46 691449 Camshaft
48 498829 Short Block
50 497465 Manifold-Intake
51 272199s • Gasket-Intake
54 691650 Screw (Intake Manifold)
55 691421 Housing-Rewind Starter
58 697316 Rope-Starter (Cut to Fit)
60 281434s Grip-Starter Rope
65 690837 Screw (Rewind Starter)
78 691108 Screw (Flywheel Guard)
42
BRIGGS & STRATTON 4-CYCLE ENGINE
MODEL NUMBER 125K02-0654-E1
KEY PART
NO. NO. DESCRIPTION
81 691740 Lock-Muffl er Screw
95 691636 Screw (Throttle Valve)
97 696565 Shaft-Throttle
104 691242 Ø Pin-Float Hinge
117 498978 Jet-Main (Standard)
118 494870 Jet-Main (High Altitude)
121 498260 Kit-Carburetor Overhaul
125 498170 Carburetor
127 694468 Ø Plug-Welch
130 696564 Valve-Throttle
133 398187 Float-Carburetor
134 398188 Ø Valve-Needle/Seat
137 693981 ؇ Gasket-Float Bowl
163 272653s •Ø‡ Gasket-Air Cleaner
187 791766 Line-Fuel (Cut to Fit)
188 693399 Screw (Control Bracket)
190 690940 Screw (Fuel Tank)
202 691829 Link-Mechanical Governor
209 699056 Spring-Governor
222 791128 Bracket-Control
227 690783 Control Lever-Governor
276 271716 Ø Sealing Washer
287 690940 Screw (Dipstick Tube)
300 692038 Muffl er
304 695892 Housing-Blower
305 691108 Screw (Blower Housing)
306 690450 Shield-Cylinder
307 690345 Screw (Cylinder Shield)
332 690662 Nut (Flywheel)
333 802574 Armature-Magneto
334 691061 Screw (Armature Magneto)
337 802592s Spark Plug
356 692390 Wire-Stop
358 497316 Engine Gasket Set
363 19069 Flywheel Puller
365 692524 Screw (Carburetor)
383 89838 Wrench-Spark Plug
404 690272 Washer (Governor Crank)
425 690670 Screw (Air Cleaner Cover)
443 692523 Screw (Air Cleaner Base)
445 491588s Filter-Air Cleaner Cartridge
455 791960 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505s Pawl-Ratchet
505 691251 Nut (Gov. Control Lever)
523 499621 Dipstick
524 692296 • Seal-Dipstick Tube
525 495265 Tube-Dipstick
529 691923 Grommet
562 691119 Bolt (Gov. Control Lever)
564 698589 Screw (Control Cover)
584 697734 Cover-Breather Passage
585 691879 • Gasket-Breather Passage
KEY PART
NO. NO. DESCRIPTION
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
601 791850 Clamp-Hose
604 698588 Cover-Control
608 497680 Starter-Rewind
613 691340 Screw (Muffl er)
615 690340 Retainer-Governor Shaft
616 698801 Crank-Governor
617 270344s •Ø‡ Seal (Intake Manifold)
621 692310 Switch-Stop
633 691321 ؇ Seal-Throttle Shaft
635 66538 Boot-Spark Plug
668 493823 • Spacer (Includes 2)
670 692294 Spacer-Fuel Tank
684 690345 Screw (Breather Cover)
689 691855 Spring-Friction
718 690959 Pin-Locating
741 691830 Gear-Timing
745 691648 Screw (Brake)
842 691031 • Seal (Dipstick Tube)
847 692047 Assembly-Dipstick/Tube
851 493880s Terminal-Spark Plug
868 697338 Seal-Valve
869 691155 Seat-Valve (Intake)
870 690380 Seat-Valve (Exhaust)
871 262001 Bushing-Guide (Exhaust)
63709 Bushing-Guide (Intake)
921 697343 Cover-Blower Housing
922 692135 Spring-Brake
923 695891 Brake
957 699985 Cap-Fuel Tank
966 792040 Base-Air Cleaner Primer
968 692298 Cover-Air Cleaner
969 690700 Screw (Blower Cover)
972 699374 Tank-Fuel
975 493640 Bowl-Float
976 496115 Primer-Carburetor
977 498261 Set-Carburetor Gasket
1036 792156 Label-Emission
1058 276171 Owner’s Manual
1059 692311 Kit-Screw/Washer
1210 498144 Pulley/Spring (Pulley)
1211 498144 Pulley/Spring (Spring)
1329 125K02-0025 Replacement Engine
1330 272147 Repair Manual
- - 398067 Spark Arrester
(available accessory)
• Included in Engine Gasket Set, Key No. 358
Ø Included in Carb. Overhaul Kit, Key No. 121
‡ Included in Carb. Gasket Set, Key No. 977
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
43
SERVICE NOTES
Get it fixed, at your home or ours!
Your Home
For repair – in your home –ofall major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call or go on-line for the nearest
Sears Parts and Repair Center.
®
Anytime, day or night
Our Ho me
1-800-488-1222
Anytime, day or night (U.S.A. only)
www.sears.com
To purcha se a protection agreement (U.S.A.)
or mai ntenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
(1-888-784-6427)
© Sears Brands, LLC
® Registered Trademark /
® Marca Registrada /
MC
Marque de commerce /MDMarque déposée de Sears Brands, LLC
(U.S.A.)
1-800-361-6665
(Canada)
Au Canada pour service en français:
1-800-LE-FOYER
®
TM
Trademark /SMService Mark of Sears Brands, LLC
TM
Marca de Fábrica /SMMarca de Servicio de Sears Brands, LLC
(1-800-533-6937)
www.sears.ca
MC
402735 01.19.06 BY Printed in U.S.A.
Loading...
