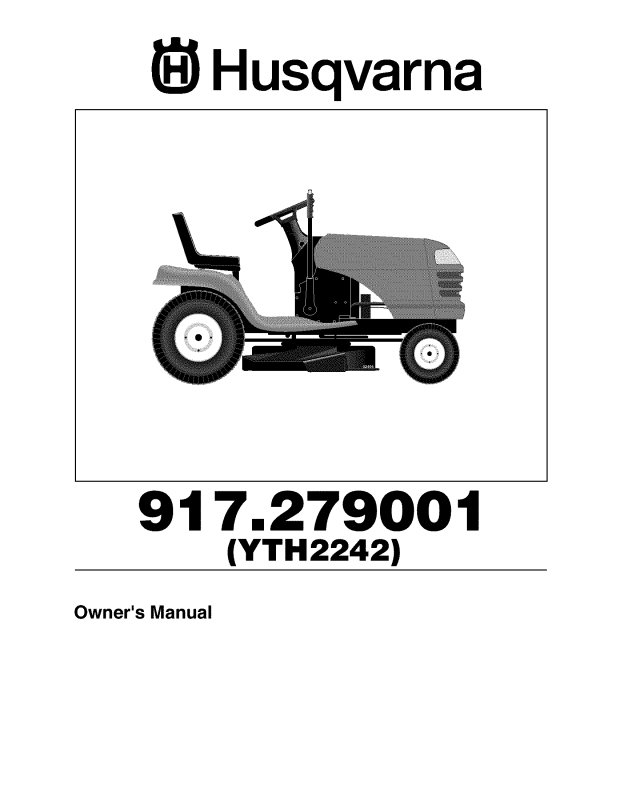

Husqvarna 917279001 Owner’s Manual

Husqvarna

91 7.279001

Owner's Manual

(YTH2242)

SAFETY RULES

_Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the

manual and on the machine before starting.

• Only allow responsible adults, who are familiar withthe
instructions,to operate the machine.

• Clear the area ofobjects such as rocks, toys,wire, etc.,

which couldbe picked up and thrown by the blade.

• Be sure the area is clear of other people before mow-
ing. Stop machine ifanyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

• Be aware ofthe mower discharge direction and do not
point it at anyone. Do not operate the mower without

either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or un-

clogging chute.

• Mow only in daylight orgood artificial light.

• Do notoperate the machine while under the influence

of alcohol or drugs.

• Watch for trafficwhen operating near orcrossing road-

ways.

• Use extra care when loading or unloading the machine
into a trailer or truck.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

• Keep machine free of grass, leaves or other debris
build-up which can touch hot exhaust / engine parts

and burn. Do not allow the mower deck to plow leaves
or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or
storing the machine. Allow machine to cool before

storage.

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-control and
tipover accidents, which can result in severe injury ordeath.
All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will

not have to stop or shift while on the slope.

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers orother attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual

Do not make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. Iftires lose trac-

tion, disengage the blades and proceed slowly straight
down the slope.

DO NOT:

• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments.
The mower could suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could
cause sliding.

• Do not try to stabilize the machine by putting your foot
on the ground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.

• Keep children out of the mowing area and under the
watchful care of another responsible adult.

• Be alert and turn machine off if children enter the
area.

• Before and when backing, look behind and down for
small children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do
not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.

• Never tamper with safety devices. Check their proper
operation regularly.

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage. Allow machine to

cool before storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine

running.

• Grass catcher components are subject to wear, dam-
age, and deterioration, which could expose moving

parts or allow objects to be thrown. Frequently check

components and replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp and can cut. Wrap the blade(s)
or wear gloves, and use extra caution when servicing

them.

• Check brake operation frequently. Adjust and service
as required.

2

SAFETY RULES

_Safe Operation Practices for Ride-On Mowers &

• Be sure the area is clear of other people before mow-
ing. Stop machine if anyone enters the area.

• Never carry passengers or children even with the
blades off.

• Do not mow in reverse unless absolutely necessary.
Always look down and behind before andwhile back-
ing.

• Never carry children.They may fall offand beseriously
injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the
watchful care of another responsible adult.

• Be alert and turn machine off if children enter the
area.

• Before and when backing, look behind and down for
small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could
overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will
not have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.

• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.

WARNING: In order to prevent ac-
cidental starting when setting up,
transporting, adjusting or making re-
pairs, always disconnect spark plug
wire and place wire where it cannot
contact spark plug.

WARNING: Do not coast down a hill I

I

in neutral, you may lose control of the
tractor.

WARNING: Tow only the attachments
that are recommended by and com-

ply with specifications of the manu-
facturer of your tractor. Use common

sense when towing. Operate only at
the lowest possible speed when on a

slope. Too heavy of a load, while on
a slope, is dangerous. Tires can lose
traction with the ground and cause you

to lose control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to ca use cancer and
birth defects or other reproductive harm.

I

I

WARNING

Battery posts, terminals and related accessories

contain lead and leadcompounds, chemicals known
to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands
after handling.

3

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY 4 GALLONS
AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF-SJ): SAE t0W30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 4.0 PINTS

SPARK PLUG: CHAMPION RC12YC

GAP: .030")

GROUND SPEED (MPH): Forward: 0-5.5

Reverse 0-2.4

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 15 AMPS @3600 RPM

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE: U1R

BLADE BOLT TORQUE: 27-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.
It has been designed, engineered and manufactu red to give
you the best possible dependability and performance.

Should you experience any problem you cannot easily
remedy, please contact your nearest authorized service

center. We have competent, well-trained technicians and
the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will
enable you to assemble and maintainyour tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for
and using your tractor.

• Follow the instructions under the "Maintenance" and
"Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal com-
bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-covered
land unless the engine's exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if
any). If a spark arrester is used, it should be maintained

in effective working order by the operator.
In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply

on federal lands.

TABLE OF CONTENTS

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 6-8

OPERATION ............................................................. 9-14

MAINTENANCE SCHEDULE ...................................... 15

MAINTENANCE ...................................................... 15-18

SERVICE AND ADJUSTMENTS ............................ 19-25

STORAGE .................................................................... 26

TROUBLESHOOTING ............................................ 27-28

REPAIR PARTS -TRACTOR .................................. 30-43

4

UNASSEMBLED PARTS

Steering Wheel

Steering

Wheel

Adapter

©

Steering
Wheel

Insert

@

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Gauge Wheel

f

• (4)

o

• Adjusting

$

Bar

O_ (4) Retainer Springs I 0 _]

@

Wheels

(4)

Steering

Boot

__. Ste_ng

"-.. Extension

\\

(1) Large Flat

Washer

Shaft

(1) Locknut

1/4-28

) (4) Clevis Pins

® ®

(4) Locknut 3/8-16

(4) Shoulder Bolt

(1) Oil Drain Tube
For Future Use

Slope Sheet

Key

(4) Washers

3/8 x 3/4 x 14 Ga.

(1) Hex Bolt 1/4-28 x 1-1/4

(1) Locknut

1/2-20

(2) Keys

5

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
Toensure safe and proper operation of your tractor atl parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set willmake assembly easier. Standard
wrench sizes are listed.

(2) 7/16" wrenches Utility knife
(1) 3/4" wrenches Tire pressure gauge

Pliers
When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated
behind the steering wheel).

TO REMOVE TRACTOR FROM
CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons
from carton.

• Cut along dotted lines on all four panels of carton.
Remove end panels and lay side panels flat.

• Check for any additional loose parts or cartons and
remove.

STEERING

WHEEL

ADAPTER

___./INSERT

_._1/2 HEX NUT

LARGE FLAT

@_I_WASHER

J STEERING

EXTENSION SHAFT

BEFORE REMOVING TRACTOR FROM

SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

• Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and install

1/4 hex bolt and Iocknut. Tighten securely.

IMPORTANT:TIGHTEN BOLTAND NUTSECURELYTO10-12
FT.LBS TORQUE.

• Place tabs of steering boot over tab slots in dash and
push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing
straight forward.

• Remove steering wheel adapter from steering wheel
and slide adapter onto steering shaft extension.

• Position steering wheel so cross bars are horizontal
(left to right) and slide inside boot and onto adapter.

• Assemble large flat washer, 1/2 hex nut and tighten
securely.

• Snap steering wheel insert into center of steering
wheel.

• Remove protective materials from tractor hood and
grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
ISTO ROLL OFF SKID.

1_ LOCKNUT

LOWER
STEERING

SHAFT

I \ I

L

\I

I

I

SLOTS

FIG.1

CHECK BATTERY (See Fig. 2)

• Lift hood to raised position.

• If this battery is put into service after month and year
indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in Maintenance section of this manual

for charging instructions).

"_,_,-- ,o- , LABEL

/2 oj'""" Ii

1

6

FIG. 2

ASSEMBLY

INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer securing
seat to cardboard packing and set aside for assembly

of seat to tractor.

• Pivot seat upward and remove from the cardboard pack-
ing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and
pull seat towards rear of tractor.

• Pivot seat and pan forward and assemble adjustment
knob and flat washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached
which allows you to press clutch/brake pedal all the

way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SHOULDER

;EAT PAN

FLAT WASHER

TO DRIVE TRACTOR OFF SKID (See Op-

eration section for location and function of
controls)

_'_WARNING: Before starting, read, understand andfollow

all instructions in the Operation section of this manual. Be
sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

• Be sure all the above assembly steps have been com-
pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "transmission engaged"
position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress clutch/brake
pedal and set the parking brake.

• Place motion control lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever
to its highest position.

• Start the engine. After engine has started, move throttle
control to idle position.

• Release parking brake.

• Slowly move the motion control lever forward and slowly
drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place
motion control lever in neutral position.

• Turn ignition key to "STOP" position.

Continue with the instructions that follow.

ASSEMBLE GAUGE WHEELS TO MOWER
DECK (See Fig. 4)

ADJUSTMENT
KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the
tractor from the skid.

TO ROLLTRACTOR OFF SKID (See Op-
eration section for location and function of

controls)

• Press lift lever plunger and raise attachment lift lever
to its highest position.

• Release parking brake by depressing clutch/brake
pedal.

• Place freewheel control in "transmission disengaged
position" (See "TO TRANSPORT" in the Operation

section of this manual).

• Roll tractor forward off skid.

• Remove banding holding the deflector shield up against
tractor.

The gauge wheels are designed to keep the mower deck
in proper position when operating mower. Be sure they

are properly adjusted to ensure optimum mower perfor-
mance.

• Slide gauge wheel bar down into bracket channel, Be
sure that gauge wheel bar aligning holes are on top.

Assemble gauge wheels as shown using shoulder
bolts, 3/8 washers and 3/8-16 center Iocknuts and

tighten securely.

• Adjust gauge wheels before operating mower. See'TO
ADJUST GAUGE WHEELS" in the Operation section

of this manual.

RETAINER
SPRING

PIN

SHOU_

DER BOLT

ADJUSTING

WHEELGAUGE _3/8-16 CENTER

3/8WASHER LOCKNUT

FIG. 4

7

ASSEMBLY

CHECKTIRE PRESSURE

The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown in "PRODUCT
SPECIFICATIONS" section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly
leveled. See"TO LEVEL MOWER HOUSING"in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed
correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that
the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,/CHECKLIST

BEFORE YOU OPERATEAND ENJOYYOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND SATISFACTION FROM THIS

QUALITY PRODUCT

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.
,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.
,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.
,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.
,/ Be sure brake system is insafe operating condition.
,/ It is important to purge the transmission before oper-

ating your tractor for the first time. Follow proper start-

ing and transmission purging instructions (See "TO

START ENGINE" and "PURGE TRANSMISSION" in

the Operation section of this manual).

8

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

R N H L Ikl _ _-_

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

8 8 8 0

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

LIGHT

®@@@@

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED DANGER, KEEP HANDS

FREE WHEEL

(Automatic Models only)

&

Failure to follow instructions

could result in serious injury or
death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

AND FEET AWAY

&
&

&

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.

CAUTION when used without the alert symbol,
indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or

property damage.

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

9

OPERATION

KNOW YOUR TRACTOR

READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.

ATTACHMENT IGNITION LIGHT
CLUTCH SWITCH

SWITCH SWITCH

HOURMETER

POSITION

LIFTLEVER
PLUNGER

CHOKE ATTACHMENT
CONTROL

CLUTCH/BRAKEPEDAL

THROTTLE
CONTROL

FREEWHEEL CONTROL
CONTROL LEVER

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used to engage the
mower blades, or other attachments mounted to your

tractor.
LIGHT SWITCH POSITION: Turns the headlights on and

off.
THROTTLE CONTROL - Used to control engine speed.

CHOKE CONTROL - Used when starting a cold engine.
CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine.
PARKING BRAKE: Locks clutch/brake pedal into the brake

position.
FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off.

LIFT LEVER

PARKING
BRAKE

OTION

HEIGHT
ADJUSTMENT
KNOB

FIG. 5

HOURMETER - Indicates hours of operation.
MOTION CONTROL LEVER: Selects the speed and

direction of tractor.
ATTACHMENT LIFT LEVER: Used to raise and lower

the mower deck or other attachments mounted to your

tractor.
LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.
IGNITION SWITCH: Used for starting and stopping the

engine.
HEIGHT ADJUSTMENT KNOB -Used to adjust the mower

cutting height.

10

I

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which
can result in severe eye damage. Always wear safety glasses or eye shields while op-

erating your tractor or performing any adjustments or repairs. We recommend a wide
vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 6)

Your tractor is equipped with an operator presence sens-
ing switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking
brake will shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position
and hold.

• Place parking brake lever in "ENGAGED" position and
release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake
will hold tractor secure.

PARKING BRAKE CLUTCH LEVER
"ENGAGED" "ENGAGED" POSITION

POSITION

CHOKE

THROTTLE

LEVER

"BRAKE"

CLUTCH/ IBRAKE

BRAKE PEDAL
"DRIVE" HEIGHT, "DISENGAGED"

POSITION ADJUSTMENT KNOB POSITION

STOPPING (See Fig. 6)

MOWER BLADES -

• To stop mower blades,move attachment clutch switch
to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal into
full "BRAKE" position..

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT
RETURN TO NEUTRAL (N) POSITION WHENTHE CLUTCH/

BRAKE PEDAL IS DEPRESSED.
ENGINE -

• Move throttle control between half and full speed (fast)
position.

NOTE: Failure to move throttle control between half and
full speed (fast) position, before stopping may cause engine

to "backfire".

• Turn ignition key to "OFF" position and remove key.
Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHERTHAN "OFF" WILL CAUSE THE BATTERY

TO BE DISCHARGED, (DEAD).
NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may
cause "browning" of grass. To eliminate this possibility, at-

ways stop engine when stopping tractor on grass areas.

"DISENGAGED" ATTACHMENT

MOTION
LEVER

FIG. 6

CAUTION: Always stop tractor com-
pletely, as described above, before leav-

I

TO USE THROTTLE CONTROL (See Fig. 6)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-
mance.

ing the operator's position; to empty
grass catcher, etc.

TO USE CHOKE CONTROL (See Fig. 6)

Use choke control whenever you are starting a cold engine.
Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push
knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 6)

The direction and speed of movement is controlled by the
motion control lever.

• Start tractor with motion control lever in neutral (N)
position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 6)

The cutting height is controlled by turning the height ad-

justment knob in desired direction.

• Turn knob clockwise ( J_ ) to raise cutting height.

• Turn knob counterclockwise (P_) to lower cutting
height.

The cutting height range is approximately 1-1/2" to 4". The
heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate and
may vary depending upon soil conditions, height of grass

and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2
inches during the cool season and to over 3 inches

during hot months. For healthier and better looking
lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches
in height should be mowed twice. Make the first cut
relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS (See Fig. 7)

Gauge wheels are properly adjusted when they are slightly
off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.

NOTE:Adjust gauge wheels with tractor on a flat level
surface.

11

OPERATION

• Adjust mower to desired cutting height (See "TO AD-
JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• Remove retainer spring and clevis pin which secure
each gauge wheel bar.

• Lower gauge wheels to ground. Raise gauge wheels
slightly to align holes in bracket and gauge wheel bar

and insert clevis pin. Gauge wheels should be slightly
off the ground.

• Replace retainer spring into clevis pin.

• Be sure all gauge wheels are in the same setting.

IMPORTANT:BESURETOREADJUSTGAUGEWHEELS IFYOU
CHANGETHE CUTTING HEIGHT OFTHE MOWER DECK.

RETAINER

CLEVIS PIN

FIG. 7

TO OPERATE MOWER (See Fig. 8)
Yourtractor isequipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged will
shut off the engine.

• Select desired height of cut.

• Lower mower with attachment lift control.

• Start mower blades by engaging attachment clutch
control.

• TO STOP MOWER BLADES - disengage attachment
clutch control.

TO OPERATE ON HILLS

hills with slopes greater than 15° and

WARNING: Do not drive up or down I
do not drive across any slope.

Choose the slowest speed before starting up or down
hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to
slower position.

• If stopping is absolutely necessary, push clutch/brake
pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTIONCONTROLLEVER DOES NOT

RETURNTO NEUTRAL (N) POSITION WHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

• Torestart movement, slowly release parking brake and
clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TO TRANSPORT (See Figs. 5 and 9)

When pushing or towing your tractor, be sure to disengage
transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar
of tractor.

• Raise attachment liftto highest position with attachment
lift control.

• Pull freewheel control out and down into the slot and
release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)
MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc.).

I

CAUTION: Do not operate the mower
without either the entire grass catcher,

on mowers so equipped, or the deflector
shield in place.

ATTACHMENT _ _ATTACHMENT
CLUTCH LEVER /F\_\ JJ/ _ / LIFT LEVER

DISENGAGED,_-_',_ _Fi_ HIGH POSITION

POS,T,ON I

EN&AGEO' SHIELO

FIG. 8

OEFLECTOR

FIG. 9

TOWING CARTS AND OTHER ATTACHMENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-
tor. Use common sense when towing.Too heavy of a load,

while on a slope, is dangerous.Tires can lose traction with
the ground and cause you to lose control of your tractor.

12

OPERATION

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine inyour tractor has been shipped, from the
factory, already filled with summer weight oil.

• Check engine oilwith tractor on level ground.

• Unthread and remove oil fill cap/dipstick; wipe oil off.

Reinsert the dipstickintothetube and rest oilfill cap on
thetube. Do not thread the cap ontothe tube. Remove

and read oil level. If necessary, add oil until "FULl"
mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the
Maintenance section of this manual).

• To change engine oil,see the Maintenance section in
this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill.
Use fresh, clean, regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded gasoline will
increase carbon and lead oxide deposits and reduce

valve life). Do not mix oilwith gasoline. Purchase fuel
in quantities that can be used within 30 days to assure

fuel freshness.

I_lh CAUTION: Wipe off any spilled oil or I

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

CAUTION: Alcohol blended fuels (called gasohol
or using ethanol or methanol) can attract moisture
which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel sys-
tem of an engine while in storage. To avoid engine

problems,the fuel system should be emptied before
storage of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel next season.

See Storage Instructions for additional information.
Never use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 5)

When starting the engine for the first time or ifthe engine
has run out of fuel, it wilt take extra cranking time to move

fuel from the tank to the engine.

• Be sure freewheel control isinthe transmission engaged
position.

• Sit on seat in operating position, depress clutch/brake
pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.
For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting
procedures below.

fuel. Do not store, spill or use gasoline
near an open flame.

u

I

Insert key into ignition and turn key clockwise to
"START" position and release key as soon as engine

starts. Do not run starter continuously for more than
fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait a
few minutes and try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until
the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a
few seconds and then continue to push the control in

slowly.

• The attachments and ground drive can now be used. If
the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke
as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until
the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to
accept small changes in speed and toad, until the choke

control is fully in. If the engine starts to run roughly, pull
the choke control out slightly for a few seconds and

then continue to push the control in slowly. This may
require an engine warm-up period from several seconds

to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP
° Before driving the unit incold weather, the transmission

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral.
Release the parking brake and let the clutch/
brake slowly return to operating position.

• Allow one minute for transmission to warm up.This
can be done during the engine warm up period.

• The attachments can be used during the engine warm-
up period after the transmission has been warmed

up and may require the choke control be pulled out
slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold
temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO
ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

PURGE TRANSMISSION

I & CAUTION: Neverengageordisengage

To ensure proper operation and performance, it is recom-
mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any
trapped air inside the transmission which may have de-

veloped during shipping of your tractor.
IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD
BE PURGEDAFTER REtNSTALLATIONBEFOREOPERATING

THE TRACTOR.

freewheel lever while the engine is run-
ning.

13

OPERATION

• Place tractor safely on level surface with engine off and
parking brake set.

• Disengage transmission by placing freewheel control
in freewheeling position (See"TOTRANSPORT"in this
section of manual).

• Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to slow position. With

motion control lever in neutral (N) position, slowly dis-
engage clutch/brake pedal.

• Move motion control lever to full forward position and
hold for five (5) seconds. Move lever to full reverse
position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there wilt be no movement
of drive wheels. The air is being removed from hydraulic

drive system.

• Move motion control lever to neutral (N) position. Shut-
off engine and set parking brake.

• Engage transmission by placing freewheel control in
driving position (See "TOTRANSPORT" in this section

of manual).

• Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to half (1/2) speed.

With motion control lever in neutral (N) position, slowly
disengage clutch/brake pedal.

• Slowly move motion control lever forward, after the
tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the trac-
tor moves approximately five (5) feet return the mo-

tion control lever to the neutral (N) position. Repeat
this procedure with the motion control lever three (3)

times.

• Your transmission is now purged and now ready for
normal operation.

MOWING TIPS

• Mower should be properly leveled for best mowing per-
formance. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-
ming.

• Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of
clippings and more uniform cutting.

• When mowing large areas, start byturning tothe right so
that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the
opposite direction making left hand turns until finished

(See Fig. 10).

f

1

)

• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the
desired height.

• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mow-
ing to assure better mowing performance and proper
discharge of material. Regulate ground speed by se-

lecting a low enough gear to give the mower cutting
performance as well as the quality of cut desired.

• When operating attachments, select a ground speed
that will suit the terrain and give best performance of

the attachment being used.

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER
HOUSING FREE OF BUILT-UPGRASS AND TRASH. CLEAN

AFTER EACH USE.

• The special mulching blade wilt recut the grass clip-
pings many times and reduce them in size so that as
they fall onto the lawn they will disperse into the grass

and not be noticed. Also, the mulched grass will biode-
grade quickly to provide nutrients for the lawn. Always

mulch with your highest engine (blade) speed as this
will provide the best recutting action of the blades.

• Avoid cutting your lawn when it iswet. Wet grass tends
to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.
At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mower cutting height so
that the mower cuts off only the top one-third of the

grass blades (See Fig. 11). For extremely heavy mulch-
ing, reduce your width of cut on each pass and mow

slowly.

MAX 113

FIG. 11"

• Certain types ofgrass and grass conditions may require
that an area be mulched a second time to completely

hide the clippings. When doing a second cut, mow
across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow
north to south one week then change to east to west the

next week. This will help prevent matting and graining
of the lawn.

FIG. 10

J

14

MAINTENANCE

AS YOU COMPLETE

REG0 RSERV,CE OATES

cC

Check Operator Presence and

T Interlock Systems ll_
R Check for Loose Fasteners _ _5 li_

Sharpen/Replace Mower Blades Q_#'3

T Lubrication Chart K

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling
Check V-Belts

Check Engine Oil Level _ li_
Change Engine Oil (with oil filter) li_'1,2 I1_

E Change Engine Oil (without oil fiRer) 11_,2 I1_

N Clean Air Filter _2

G Clean Air Screen _2

NI Inspect Muffler/Spark

E Replace Oil FiRer (if equipped) li_1,2

Clean Engine Cooling Fins _ 2
Replace Spark Plug I1_

Replace Air Filter Paper Cartridge _2
Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures,

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have
been subjected to operator abuse ornegligence. Toreceive
full value from the warranty, operator must maintain tractor

as instructed in this manual.
Some adjustments will need to be made periodically to

properly maintain your tractor.
All adjustments in the Service and Adjustments section

of this manual should be checked at least once each
season.

• Once a year you should replace the spark plug, clean
or replace air filter, and check blades and belts for wear.

A new spark plug and clean air filter assure proper
air-fuel mixture and help your engine run better and

last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

Arrester

3 - Replace blades more often when mowing in sandy soil.
4 * Not required if equipped with maintenance-tree battery.
5 * Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

ZERK

@FRONTWHEEL

BEARING ZERK

@GENERAL PURPOSE GREASE
@REFER TO MAINTENANCE "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH
HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRICANTS WILL

ATTRACT DUST AND DIRT THAT WILL SHORTEN THE LIFE OF THE
SELF-LUBRICATING BEARINGS. IFYOU FEELTHEY MUST BE LUBRI-

CATED, USE ONLY A DRY, POWDERED GRAPHITE TYPE LUBRICANT
SPARINGLY.

I

i i

i i

ZERK

'@FRONTWHEEL

BEARING ZERK

15

@ENGINE

MAINTENANCE

TRACTOR

Always observe safety rules when performing any main-
tenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance
at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE"in the Service and Adjustments
section of this manual).

TIRES

• Maintain proper air pressure in alltires (See"PRODUCT

SPECIFICATIONS" section of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and
corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-
ing properly. If your tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the clutch/brake
pedal isfully depressed and attachement clutch control

is in the disengaged position.

• When the engine is running, any attempt bythe operator
to leave the seat without first setting the parking brake
should shut off the engine.

• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless
the operator is in the seat.

TRAILING BLADE
EDGE UP'

CENTER
HOLE

MANDREL
ASSEMBLY

LOCKWASHER

BLADE BOLT (GRADE 8)'

*A GRADE 8 HEATTREATED BOLT CAN BE
IDENTIFIED BY SiX LINES ONTHE BOLT HEAD.

STAR

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An un-
balanced blade will cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file or on a grind-
ing wheel. Do not attempt to sharpen while on the
mower.

• To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone balancer. (When using a
cone batancer, follow the instructions supplied with

batancer.)

NOTE: Do not use a nail for balancing blade. The lobes of
the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt
or pin and hold the bolt or pin parallel with the ground.
If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced.

CENTER HOLE

BLADE CARE

For best results mower blades must bekept sharp. Replace
bent or damaged blades.

BLADE REMOVAL (See Fig. 12)

• Raise mower to highest position to allow access to
blades.

• Remove blade bolt, lock washer and flat washer se-
curing blade.

• Install new or resharpened blade with trailing edge up
towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER
HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL
ASSEMBLY.

• Reassemble blade bolt, lock washer and flat washer
in exact order as shown.

• Tighten blade bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.

5/8" BOLT
OR PiN BLADE

FIG. 13

BATTERY
Yourtractorhas a battery chargingsystem whichis sufficient

for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 8-10 amperes for 1 hour.
NOTE: The original equipment battery on your tractor is

maintenance free. Do notattempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.

TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

16

MAINTENANCE

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-
tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush
until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING BATTERY" in
the SERVICE AND ADJUSTMENTS section of this

manual).

V-BELTS
Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.
TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean
to assure proper cooling.

Do not attempt to clean fan or transmission while engine
is running or while the transmission is hot.To prevent pos-
sible damage to seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to besu re fan blades are intact and
clean.

• Inspect cooling fins for dirt, grass clippings and other
materials.To prevent damage to seals, do not use com-
pressed air or high pressure sprayer to clean cooling

fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-
nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your
nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service
classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

F [phone] 100

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 14

Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one
year.

Check the crankcase oil level before starting the engine
and after each eight (8) hours of operation.

TO CHANGE ENGINE OIL (See Figs 14 and 15)
Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil wilt drain more freely when warm.

Catch oil in a suitable container.
Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.
Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

OIL DRAIN VALVE

LOCKED _"-LF._ jd_ _ _ ""---_"-_"_,

POSITION _

LOW--k

\ ,, P _ _- DRAIN

FIG. 15

• Unlock drain valve by pushing inward and turning
counterclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the
drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the
bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour
slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man-
uat.

• Use gauge on oil fill cap/dipstick for checking level.
Insert dipstick into the tube and rest the oil fill cap on

the tube. Do not thread the cap onto the tube when
taking reading. Keep oil at "FULl" line on dipstick.

Tighten cap onto the tube securely when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent
engine damage from overheating. Clean with a wire brush
or compressed air to remove dirt and stubborn dried gum

fibers. See engine manual.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,
cooling fins, and other external surfaces of the engine are

kept clean at att times.
Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and
other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are
reinstalled.

NOTE: Operating the engine with a blocked grass screen,
dirty or plugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

17

MAINTENANCE

AIR FILTER (See Fig. 16)

Your engine will not run properly using adirty air filter. Clean
the foam pre-cteaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of
operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Loosen knob and remove cover.
TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth. Allow it to dry.

• Saturate it in engine oil. Wrap it in clean, absorbent
cloth and squeeze to remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged cartridge.

NOTE: Do not wash the paper cartridge or use pressurized
air, as this will damage the cartridge.

• Remove nut and cartridge plate.

• Reinstall the pre-cleaner (cleaned and oiled) over the
paper cartridge.

• Check rubber seat for damage and proper position
around stud. Replace if necessary.

• Reassemble air cleaner, cartridge plate, and nut.

• Reinstall air cleaner cover and secure by tightening
knob.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other
oil change if the tractor is used more than 100 hours in
one year.

MUFFLER

Inspect and replace corroded muffler and spark arrester
(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing
season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in
"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are
properly positioned.

• Immediately wipe up any spilled gasoline.

FOAM
PRE-CLEANER

CARTRIDGE
PLATE

CARTRIDGE

FIG. 16

RUBBER

SEAL

CLAMP

CLAMP

FUEL
FILTER

FIG. 17

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign
matter.

• Keep finished surfaces and wheels free of all gasoline,
oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or
transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower.

18

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-

Depress clutch/brake pedal fully and set parking brake.

..ENTS:

° Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key to "STOP" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 18)

Mower will be easier to remove from the right side of
tractor.

• Place attachment clutch switch in "DISENGAGED"
position.

• Move attachment lift lever forward to lower mower to
its lowest position.

• Roll belt off electric clutch pulley.

• Disconnect anti-sway bar from chassis bracket by
removing retainer spring.

• Disconnect suspension arms from rear deck brackets
by removing retainer springs.

• Disconnect front links from deck by removing retainer
springs.

• Raise lift lever to raise suspension arms. Slide mower
out from under tractor.

IMPORTANT: Ifan attachment other than the mower deck
is to be mounted on the tractor, remove the front links.

SUSPENSION
ARMS

RETAINER
SPRING

TO INSTALL MOWER (See Fig. 18)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with deflector shield to right
side of tractor.

• Lower lift lever to its lowest position.

• Connect front links to mower deck and secure with
retainer springs..

• Connect suspension arms to rear deck brackets and
secure with retainer springs.

• Connect anti-swaybar to chassis bracket and secure
with retainer spring.

• Install belt into electric clutch pulley groove.

TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked on level ground

or driveway. Make sure tires are properly inflated (See
"PRODUCT SPECIFICATIONS" section of this manual). If

tires are over or underinflated, you will not properly adjust
your mower.

ELECTRIC
CLUTCH

PULLEY

FRONT
LINK

ANTI-SWAY
BAR

RETAINER

SPRINGS
(BOTH SIDES)

RETAINER
SPRINGS
(BOTH SIDES)

SHIELD

FIG. 18

19

SERVICE AND ADJUSTMENTS

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measu re height
from bottom edge of mower to ground. Distance "A"

on both sides of mower should be the same or within

1/4" of each other.

• If adjustment is necessary, make adjustment on one
side of mower only.

• To raise one side of mower, tighten lift link adjustment
nut on that side.

• To lower one side of mower, loosen lift link adjustment
nut on that side.

NOTE: Three fultturns of adjustment nut wilt change mower
height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE _ _L__ _ BOTTOM EDGE
OF MOWER I f_l/_ _J_l L-- OF MOWER

BOTHFRONT LINKS MUST BE EQUALIN LENGTH

TOGROUND TOGROUND

I A"

FIG. 19

NUT

TRUNNION

FIG. 21

NUT"E"

SUSP

LIFT LINK ADJUSTMENT NUT

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)
IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IFTHE

FOLLOWING FRONT-TO-BACK ADJUSTMENT IS NECESSARY,
BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO

MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower housing
should be adjusted so that the front is approximately 1/8"

to 1/2" lower than the rear when the mower is in its high-
est position.

Check adjustment on right side of tractor. Measure distance
"D" directly in front and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjustments, check that
both front links are equal in length.

• If links are not equal in length, adjust one link to same
length as other link.

• To lower front of mower loosen nut "E" on both front
links an equal number of turns.

• When distance "D" is 1/8" to 1/2" lower at front than
rear, tighten nuts "F" against trunnion on both front

links.

• To raise front of mower, loosen nut "F" from trunnion
on both front links. Tighten nut "E" on both front links
an equal number of turns. The two front links must

remain equal in length.

• When distance"D"is 1/8" to 1/2" lower atfront than rear,
tighten nut "F" against trunnion on both front links.

• Recheck side-to-side adjustment.

FRONT LINKS

FIG. 22

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 23)

The mower blade drive belt may be replaced without tools.
Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower from tractor (See "TO REMOVE
MOWER" in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all
belt guides.

• Install mower in reverse order of removal instruc-
tions.

IDLER PULLEYS

MANDREL
PULLEYS

FIG. 23

20

SERVICE AND ADJUSTMENTS

TO CHECK AND ADJUST BRAKE
(See Fig. 24)

Your tractor is equipped with an adjustable brake system
which is mounted onthe right side of the transaxle.

If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved

surface, then brake must be checked and adjusted.
TO CHECK BRAKE

• Park tractor on a level, dry concrete or paved surface,
depress clutch/brake pedal all the way down and en-

gage parking brake.

• Disengage transmission by placing freewhet control
in "transmission disengaged" position. Pull freewheel

control out and into the slot and release so it is held in
the disengaged position.

The rearwheels must lock and skid when you try tomanually
push the tractor forward. Ifthe rear wheels rotate, the brake

needs to be adjusted or the pads need to be replaced.
TO ADJUST BRAKE

• Depress clutch/brake pedal all the way down and en-
gage parking brake.

• Measure distance between brake operating arm and
nut "A" on brake rod.

• If distance is other than 1-9/16", loosen jam nut and
turn nut "A" until distance becomes 1-9/16". Retighten

jam nut against nut "A".

• Engage transmission by placing freewheel control in
"transmission engaged" position.

• Road test tractor for proper stopping distance as stated
above. Readjust if necessary. If stopping distance is

still greater than five (5) feet in highest gear, further
maintenance is necessary. Replace brake pads or

contact a qualified service center.

WITH PARKING BRAKE "ENGAGED"

NUT"A"

BELT REMOVAL -

• Remove mower (See "TO REMOVE MOWER" in this
section of manual).

NOTE: Observe entire motion drive belt and position of all
belt guides and keepers.

• Disconnect clutch wire harness.

• Remove clutch Iocator.

• Remove belt from stationary idler and clutching idler.

• Remove belt downward from engine pulley and around
electric clutch.

• Pull belt slack toward rear of tractor. Carefully remove
belt upwards from transmission input pulley and over

cooling fan blades.

• Remove belt from center span keeper and pull belt
away from tractor.

BELT INSTALLATION -

• Carefully work new belt down around transmission
cooling fan and onto the input pulley.

• Slide belt into the center span keeper.

• Pull belt toward front of tractor and roll belt around
electric clutch and onto engine pulley.

• Install belt through stationary idler and clutching
idler.

• Reinstall clutch Iocator and tighten nut securely.

• Reconnect clutch harness.

• Make sure belt is in all pulley grooves and inside all
belt guides and keepers.

• Install mower (See "TO INSTALL MOWER" in this sec-
tion of manual).

ELECTRIC.------___

CLUTCH

CLUTCHING

IDLER

STATIONARY_
IDLER

ARM

DO NOT TOUCH THIS NUT. IF FURTHER
BRAKE ADJUSTMENT IS NECESSARY CON-

TACTYOUR NEAREST AUTHORIZED SERVICE
CENTER/DEPARTMENT

FIG. 24

TO REPLACE MOTION DRIVE BELT
(See Fig. 25)

Park the tractor on level surface. Engage parking brake.
For assistance, there is a belt installation guide decal on

bottom side of left footrest.

CENTER SPAN

KEEPER

TRANSMISSION
INPUT PULLEY

_J'j_'_ CLUTCH

_ CLUTCHL_CATOR

WIREHARNESS

FIG. 25

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or
replacement, it should be purged after reinstallation and

before operating the tractor. See"PU RGETRANSMISSION"
in the Operation section of this manual.

TRANSAXLE MOTION CONTROL LEVER
NEUTRAL ADJUSTMENT(See Fig. 26)

The motion control lever has been preset at the factory and
adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel,

21

and lightly tighten.

SERVICE AND ADJUSTMENTS

• Start engine and move motion control lever until tractor

does not move forward or backward.

• Hold motion control lever inthat position andturn engine
off.

• While holding motion control lever in place, loosen the
adjustment bolt.

• Move motion control lever to the neutral (N) (lock gate)
position.

• Tighten adjustment bolt securely.

NOTE: Ifadditional clearance isneeded to get toadjustment
bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps
forward or backward while motion control lever is in neutral

position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the
direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satis-
fied.

MOTION NEUTRAL
CONTROL _LOCK GATE

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 27)

• Block up axle securely

• Remove axle cover,retaining ring andwashers toallow

wheel removal (rear wheel contains a square key - Do
not lose)

• Repair tire and reassemble

• On rear wheels only: align grooves inrear wheel hub
and axle Insert square key

• Replace washers and snap retaining ring securely in
axle groove

• Replace axle cover

NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and
corrosion.

WASHERS

/" ADJUSTMENT

BOLT

FIG. 26

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straight forward, remove steer-
ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized
service center/department.

AXLE COVER SQUARE KEY (REAR

WHEEL ONLY)

FIG. 27

22

SERVICE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY REPLACING BATTERY (See Fig. 29)

(See Fig. 28)

WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks,

A

If your battery istoo weak to start the engine, itshould be
recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOURTRACTOR IS EQUIPPED WITH A 12VOLT
SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT
SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START
OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect one end of the RED cable to the POSITIVE
(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.
Connect one end ofthe BLACK cable to the NEGATIVE

(-) terminal (C) of fully charged battery.
Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully
charged battery.
RED cable last from both batteries.

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

A

Lift hood to raised position.

• Remove terminal guard.

• Disconnect BLACK battery cable then RED battery
cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as
old battery.

• Reinstall terminal guard.

• First connect RED battery cable to positive (+) battery
terminal with hex bolt and keps nut as shown.Tighten
securely.

• Connect BLACK grounding cable to negative (-) battery
terminal with remaining hex bolt and keps nut.Tighten

securely

Close terminal access doors.
Close hood.

TERMINAL

ACCESS
DOOR_

WARNING: Do not short battery ter-
minals byallowing a wrench or any other
object to contact both terminals at the

same time. Before connecting battery,
remove metal bracelets, wristwatch

bands, rings, etc.
Positive terminal must be connected

first to prevent sparking from acci-
dental grounding.

KEPS NUT

HEXBO_

WEAK OR DEAD FULLY CHARGED
BATTERY BATTERY

FIG. 28

TERMINAL
GUARD

FIG. 29

(BLACK)
CABLE

POSITIVE
CABLE

23

SERVICE AND ADJUSTMENTS

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulbholder out of the hole inthe backside of the
grill.

• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the
Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY
(See Fig. 30)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward
engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD

HEADLIGHT WIRE
CONNECTOR

FIG. 30

24

SERVICE AND ADJUSTMENTS

ENGINE • Remove air cleaner cover, filter and cartridge plate

to expose carburetor choke (See "AIR FILTER" in the

TO ADJUST THROTTLE CONTROL CABLE Maintenance section of this manual).
(See Fig. 31) • Chokeshould beclosed.lfitisnot, loosencasingclamp

The throttle control has been preset at the factory and screw and move choke cable until choke is completely

adjustment should not be necessary. Check adjustment closed. Tighten casing clamp screw securely.
as described below before loosening cable. If adjustment • Reassemble air cleaner.
is necessary, proceed as follows:

• With engine not running, move throttle control lever to
fast position.

• Check that speed control lever is against stop screw.
If it is not, loosen casing clamp screw and pull throttle

cable until lever is against screw. Tighten clamp screw
securely.

TO ADJUST CHOKE CONTROL

(See Figs. 31 and 32)

The choke control has been preset at the factory and ad-

justment should not be necessary, check adjustment as

described below before loosening cable. If adjustment is
necessary, proceed as follows:

• With engine not running, move choke control (located
on dash panel) to full choke position.

TO ADJUST CARBURETOR

The carburetor has been present at the factory and ad-

justment should not be necessary. However, minor ad-
justment may be required to compensate for differences

in fuel, temperature, altitude or load. Ifthe carburetor does
need adjustment, see engine manual.

High speed stop is factory adjusted. Do not adjust-damage
may result.

CLOSED FOR

FULL CHOKE

STOP

SCREW

CLAMP

SCREW

FIG. 31

THROTTLE
CONTROL

CABLE

CHOKE
CONTROL
CABLE

FIG. 32

IMPORTANT: NEVERTAMPERWITHTHE ENGIN EGOVERNOR,

WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.
OVERSPEEDING THE ENGINE ABOVE THE FACTORY HIGH
SPEED SETTING CAN BE DANGEROUS. IF YOU THINK THE

ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,
CONTACTYOUR NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND
EXPERIENCE TO MAKE ANY NECESSARY ADJUSTMENTS.

FIG. 31

25

STORAGE

Immediately prepare your tractor for storage at the end
of the season or if the tractor will not be used for 30 days
or more.

_ WARNING: Never store the tractor with

gasoline in the tank inside a building
where fumes may reach an open flame
or spark. Allow the engine tocool before
storing in any enclosure.

TRACTOR

Remove mowerfrom tractor for winter storage. When mower
isto be stored for ape riod oftime, clean itthoroughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING" in the Mainte-
nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-
placement instructionsin the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this
manual.

• Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require
recharging.

• To help prevent corrosion and power leakage during
long periods of storage, battery cables should be dis-
connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-
nance section of this manual).

• After cleaning, leave cables disconnected and place
cables where they cannot come in contact with battery
terminals.

• If battery is removed from tractor for storage, do not
store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS
FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH
LEADSTO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM
OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and
carburetor are empty.

• Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-
mizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to
allow the stabilizer to reach the carburetor. Do not drain

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-
gine oil. (See "ENGINE" in the Maintenance section of

this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oilthrough spark plug hole(s) into
cylinder(s).

• Turn ignition key to "START" position for a few seconds
to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline willcause problems.

• If possible, store your tractor indoors and cover it to
give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic

cannot breathe which allowscondensation to form and
willcause your tractor to rust.

IMPORTANT:NEVERCOVERTRACTORWHILE ENGINE AND
EXHAUSTAREAS ARE STILLWARM.

26

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring,

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor" in Service Adjustments
section.

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments
section.

8. Contact an authorized service center/department.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

Engine clicks but will not
start

Loss of power

Excessive vibration

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Set in"Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See"To Adjust Carburetor"in Service Adjustments
section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

27

TROUBLESHOOTING POINTS

PROBLEM

Engine continues to run
when operator leaves

seat with attachment
clutch engaged

Poorcut-uneven

Mower blades will not

rotate

Poor grass discharge

CAUSE

1. Faulty operator-safety presencecontrol system.

1, Worn, bent or loose blade,

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.
4, Bent blade mandrel,

5. Clogged mower deck vent holes from buildup of
grass, leaves, and trash around mandrels.

1, Obstruction in clutch mechanism,

2, Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1, Engine speed too slow.

2. Travel speed too fast,

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.
7, Buildup of grass, leaves and trash under mower,

8. Mower drive belt worn.

9. Blades {mproper{y installed.

10. Improper blades used,

11. Clogged mower deck vent holes from buildup of
grass, leaves, and trash around mandrels.

CORRECTION

1.

Check wiring,switches and connections, If not
corrected, contact an authorized service center/

department,

1. Replace blade. Tighten blade bolt.
2, Level mower deck,

3. Clean underside of mower housing,
4, Replace b{ade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt,
3, Replace idler pulley.

4. Replace b{ade mandrel.

1. Place throttle control in "FAST" position,
2, Shift to slower speed,
3, Allow grass to dry before mowing.

4, Level mower deck,

5. Check tires for proper air pressure,

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing,
8, Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed {nth{s manual.

11. Clean around mandrels to open vent holes.

Headlight(s) not working
(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires"
when turning engine

"OFF"

1, Switch is "OFF'.

2, Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1, Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator,

1, Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken,

3. Air trapped in transmission during shipment
or servicing,

1.

Engine throttle control not set at "SLOW"
position for 30 seconds before stopping engine.

1. Turn switch "ON",

2. Replace bulb(s) or lamp(s).
3, Check/replace light switch,

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.
2, Check/clean allconnections.

3. Replace regulator,
4, Replace alternator.

1. Place freewheel control in"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1.

Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

28

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

SCHEMATIC

_AA_ RED

S BLACK

)G All

IGNITION

SWITCH

4,

BLACK

RED

BATTERY

SOLENOID

I

WHITE

WHITE

C

CLUTCH •

SEATSWITCH

(NOT OCCUPIEE

I
I

I
I

BLUE

FUEL SHUT-OFF SOLENOID CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3600 RPM

/BRAKE

(PEDAL UP)

RED /

BLUE HOUR

FUEL_ (OPTIONAL)

I

i D i

L •

PTO (DISENGAGED)

GREEN

METER

G

I I

I

i F I

RED

ELECTRIC CLUTCH

BLACK

85 86 i

87A

OPERATOR

PRESENCE

RELAY #1

A •
"_ SPARK •

IGNITION _ PLUGS GAP

UNIT _' (2 PLUGS ON

J TWIN CYL. ENGINES)

1/5 AMP DC @ 3600 RPM /(REGULATOR DISCONNECTE£

STARTER

BLACK

I

J

I

d&
qF

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3+ S + A1 NONE

RED 4_ REGULATOR I_LA L_T_O_R_I

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.

Pro SWITCH

POSITION CIRCUIT

OFF C+G,B+H

ON C+F,B+E,A+D

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

29

i|

BROWN

HEADLIGHTS

GFC

[ !6 _!5] H_B

RELAY D A

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

ELECTRICAL

22

s

i/ '_1
I I

42 i

24_

/

I
I

I
I

i i
i i

i i

\ /

{ I

I

40

26

I

L

I

I

I
I

I
I

I
I
I

I

I
I

I

/

J

/

I
I

I
I

I

16 //

\

\ I

\ \\i I

\

\

\

\

/

I

•_ 89

29

46

11

I
I
I
I

I
I

I\ z

/

12

3O

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532144927

2 874760412
8 532124886

10 532145211
11 532150109

12 532145769
16 532176138

21 532175688
22 532004152

24 532178909
26 532175158

27 873510400
28 532145491

29 532160784
30 532175566

33 532140401
40 532186398

42 532154336
46 532169635

48 532140844
50 532174651

51 532140405
55 817490508

81 532109748
89 532169639

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

Battery
Bolt Hex Hd 1/4-20unc X 3/4

Tray Battery

Bolt Brt Frt 1/4-20 x 75 Ainc
Holddown Battery Front Mount

Nut Push Nylon 1/4" Battery Frt
Switch Interlock Push-In

Harness Asm Light W/4152j
Bulb Light #1156

Cable Battery 6 Ga 22" red w/16 wire

Fuse
Nut Kep Hex 1/4-20 Unc

Cable Ground 6 Ga 21" black

Switch Plunger Nc Gray
Switch Ign

Key Ign Molded Generic
Harness Ign.

Cover, Terminal, Red

Meter Hour

Adapter Ammeter

Switch PTO
Ring Retainer PTO

Screw Thdrol 5/16-18 x 1-1/2 Tyt
Relay Asm.

Bracket Snap-In Hourmeter

31

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

CHASSIS AND ENCLOSURES

259

26O

28 261

\

217

F

39

258

90

31

\

\

58

2o9

6O

219

166

23

2O6

37

_3

2_

74 .14

3

2O8

32

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

CHASSIS AND ENCLOSURES

KEY PART
NO. NO. DESCRIPTION

1 532174619
2 532176554
3 817060612

5 532155272
9 532171924

10 872140608

11 532174996

13 532172106

14 817490608

17 532185211

18 532184921
20 532180679

23 532124028
26 873800600
28 532185292

30 532185432
31 532139976

37 817490508
38 532175710

39 532174714
58 532151171

60 872140606
64 532154798

74 873680600
90 532124346

142 532175702

143 532154966

144 532175582

145 532156524

159 532185434

166 532171875
206 532170165
207 817670508

208 817670608
209 817000612

212 532183548
217 532185436

219 817000512
258 532185213

259 532185214
260 532185429

261 532185433

Chassis Stamping
Drawbar

Screw 3/8-16x3/4
Bumper

Dash
Bolt Rdhd Sqnk 3/8-16 Unc x 1

Panel Dash Lh
Panel Dash Rh
Screw Thdrol 3/8-16 x 1/2

Hood
Bumper Hood

Plate Mtg Battery/Fuel Tank
Bushing

Nut Lock w/Insert 3/8-16 UNC
Grille Lens Asm

Fender
Bracket

ScrewThdrol 5/16-18 x 1/2
Bracket Asm Pivot Mower Rear

Bracket Pivot Hood
Duct Air

Bolt RDHD SQNK 3/8-16 x 3/4
Dash Lower Stlt

Nut Crownlock 3/8-16
Nut 1/4

Plate Reinforcement Sttt
Bracket Swaybar Chassis

Bracket Ft Rest

Rod Pivot Chassis Hood

Cupholder YTGT Grey
Screw HwHd Hi-Lo #13-16 x 3/4

Bolt Shoulder 5/16-18 TT
ScrewThdrol 5/16-18 x 1/2 TYTT

Screw Thdrol 3/8-16 x 1/2 Ty-TT
Screw 3/8-16 x 3/4

Insert Lens Reflect

Fuel Window
Screw 5/16-18 x 3/4
Lens RH

Lens LH
Cover Lens

Insert, Grille

NOTE: All component dimensions given in U. S. inches.

1 inch = 25.4 mm

33

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

DRIVE

77

16

52

3O

62

2 !.

16

84

73

34

• 53

55

250

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

DRIVE

KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle, Hydro 314-0510 63 532174607

(Order Parts From Transaxle Manu- 65 810040700
facturer) 66 532154778

8 532165866 Rod Shift Fender Adjust STLT 71 532169183
9 532180505 Clutch 73 532169182

10 876020416 Pin Cotter 1/8 x 1 CAD 74 532137057
14 810040400 Washer Lock Hvy Helical 75 532121749

15 874490544 Bolt Hex 5/16-18 Unc Flghd 76 812000001
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Uric P 77 532123583

17 532126197 Washer 1-1/2 x 15/32 x .250 78 532121748
19 873800600 Nut Lock HexW/Ins 3/8-16 Unc 81 532165596

20 532173937 Bolt Hex 7/16-20 x 4 x Gr.5-1.5 82 532165711
21 532140845 Knob Deluxe 1/2-13 UNC BLK/BLK 83 819171216

22 532169498 Rod, Brake Hydro 84 532169594
23 532178289 Bracket Asm Anti-Rot 89 532166510

24 873350600 Nut Hex Jam 3/8-16 UNC 90 532124346
25 532106888 Spring, Brake Rod 95 532170201

26 819131316 Washer 96 532124788
27 876020412 Pin Cotter 1/8 x 3/4 CAD. 116 872140608

28 532175765 Rod, Parking Brake 120 873900600
29 532071673 Cap, Parking Brake 150 532175456
30 532169592 Bracket, Transaxle 151 819133210
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4 156 532166002

34 532175578 Shaft, Foot Pedal 158 532165589
35 532120183 Bearing, Nylon 159 532183900

36 819211616 Washer 161 872140406
37 532124963 Pin, Roll 162 873680400

38 532179114 Pulley, Composite, Flat 163 874780416
39 874760648 Bolt, Fin, Hex 3/8-16 x 3 164 819091010

41 532175556 Keeper, Belt Idler 165 532165623
47 532127783 Pulley, Idler, V-Groove Plastic 166 532166880

48 532154407 BellcrankClutch Grnd Drv STL 168 532165492
49 532123205 Retainer, Belt Style Spring 169 532165580

50 872110612 Bolt 3/8-16 x 1-1/2 Gr. 5 197 532169613
51 873680600 Nut 198 532169593

52 873680500 Nut Crown Lock 5/16-18 199 532169612
53 532105710 Link, Clutch 200 872140508

55 532105709 Spring, Return, Clutch 202 872110614
56 817060620 Screw 3/8-16 x 1.0 212 532145212

57 532140294 V-Belt, Ground Drive 250 817060612
59 532169691 Keeper, Center Span

61 817120614 Screw 3/8-16 x .875
62 532124872 Cover, Pedal

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Pulley, Engine
Washer Lock Hvy HLCL Spr 7/16

Keeper Belt Engine
Strap Torque Lh Hydro

Strap Torque Rh Hydro
Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.
E-Ring

Key, Square
Washer 25/32 x 1-5/8 x 16 Ga

Shaft Asm Cross Tapered
Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.
Link Transaxle

Console, Shift
Nut Self Thd 1/4

Control Asm. Bypass Hydro
Retainer Spring 1" Zinc/Cad

Bolt 3/8-16 x 1
Nut Lock Fig 3/8-16

Spacer Retainer
Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125
Bracket Shift Mount

Hub Shift
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Unc
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga
Bracket Pivot Lever

Screw 5/16-18 x 5/8
Bolt Shoulder 5/16-18 x .561

Plate Fastening STLT/CRD
Nyliner Snap 5/8" ID

Washer Nyl 7/8 ID x .105 Hyd
Bolt Shoulder 5/16-18 Unc

Bolt Rdhd Sqnk 5/16-18 Unc x 1
Bolt RdHd 3/8-16 Unc x 1-3/4 Gr. 5

Nut Hexflange Lock
Screw 3/8-16 x .75

35

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

STEERING ASSEMBLY

-38

_39

/ / _-i - _ _\

_ 42

J

\

68

t3

65

67

67

67

43

4O

6

15

29

10

34

35

8

36

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

STEERING ASSEMBLY

KEY PART
NO. NO. DESCRIPTION

1 532166627
2 532184706

3 532169840
4 532169839

5 532124931
6 532121748

8 812000029

10 532175121

11 810040600

12 873940800

13 532136518

15 532145212

17 532180641
29 817060612

32 532171888
33 819111216

34 810040500
35 873540500

36 532155099
37 532152927

38 532166626
39 819182411

40 532124701
41 532159945

42 532169634
43 532121749

44 532180640
46 532121232

51 873540400
54 871130420

65 532160367
67 872140618

68 532169827
71 532175146

82 532169835
87 532173966

88 532175118
91 532175553

Wheel Steering
Axle Cast Lt Machined

Spindle Asm LH
Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 X 1-5/8 X 16 Ga

Ring Klip #t5304-75
Link Drag

Washer Lock Hvy Hlcl Spr 3/8

Nut Hex Jam Toplock 1/2-20

Spacer Brg Axle Front

Nut Hex Flange Lock

Shaft Asm Strg
Screw 3/8-16x3/4

Rod Tie

Washer 11/32 x 3/4 x 16 Ga.
Washer Lock Hvy Helical 5/16

Nut Crown Lock 5/16-24Unf
Bushing Strg

Screw

Insert Cap Strg Wh

Washer 9/16 ID x 1-1/20D x 11 Ga.

Lock nut

Adaptor Wheel Strg

Boot Steering Shaft

Washer 25/32 X 1 1/4 X 16 Ga

Extension Steering Shaft LR/LT

Cap Spindle FrTop Blk

Nut Crownlock 1/4-28
Bolt Hex 1/4-28 UNF x 1-1/4 Gr. 8

Spacer Brace Axle

Bolt Rdhd Sq 3/8-16 x 2-1/4

Axle, Brace
Steering Asm

Bracket Susp Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

37

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

SEAT ASSEMBLY

\

\

\

\\\

14_/

/

I
I

I
I

I

17 12

W

22

21

ii

KEY
NO.

1

2
3

4
5

6
7

8
9

10
11

12

PART
NO.

532184992
532140551

871110616
819131610

532145006
873800600

532124181
817000616

819131614
532182493

532166369
532121246

DESCRIPTION

Seat 13
Bracket Pivot Seat 8 720 14

Bolt Fin Hex 3/8-16 x 1 15
Washer Flat 13/32 x 1.0 x 10 Ga. 16

Clip Push-In 17
Nut Hex w/Ins. 3/8-16 Unc 21

Spring Seat Cprsn 2 250 BIk Zi 22
Screw 3/8-16 x 1 24

Washer 13/32 x 1.0 x 14 Ga. 25
Pan Seat

Knob Seat Adj Wingnut
Bracket Mounting Switch

NOTE: All component dimensions given in U.S. inches.

38

KEY
NO.

PART
NO.

532121248
872050412

532134300
532121250

532123976
532171852

873800500
819171912

532127018

1 inch = 25.4 mm

DESCRIPTION

Bushing Snap Blk Ny150 Id
Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split
Spring Cprsn

Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc

Nut Hex LockW/Ins 5/16-18
Washer 17/32 X 1 -3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

DECALS

7 1 12

6

5

KEY PART
NO. NO. DESCRIPTION

1 532180941 Decal Hood Cust. Resp.

2 532145005 Decal Battery
3 532185825 Decal Hood RH

4 532185826 Decal Hood LH
5 532186697 Decal Engine Husq. Logo

6 532156811 Decal Fender Oper
7 532170564 Decal Wheel Steering
9 532176822 Decal Fender Husq

10 532157002 Decal Fender Danger E/F
11 532185827 Decal Engine

3 13 13

15

©

KEY PART
NO. NO.

12 532185835
13 532185815

14 532160396
15 532179128

-- 532171284

-- 532171285

-- 532138311

-- 532169210

-- 532186782

4

10

DESCRIPTION

Decal Hood Replacement
Decal Hoodsides

Decal V-Belt Schematic
Decal Deck "B" 42"

Pad Footrest LH
Pad Footrest RH

Decal Handle Lft Height Adjust
Decal By Pass Lt Hydro

Manual Owner's (English)

WHEELS &TIRES

2 _ 5,8

4,10

11

KEY PART
NO. NO. DESCRIPTION

1 532059192

2 532065139
3 532106222

4 532059904
5 532138336

6 532124957
7 532124959

8 532138337
9 532122082

10 532124926
11 532175039

-- 532144334

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Cap Valve Tire
Stem Valve

Tire FTs 15 X 6 0 - 6 Service
Tube Front (Service Item Only)

Rim Asm 6"front Silver Service
Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel Only)
Rim Asm 8"rear Silver Service

Tire R Ts 20 X 10-8 C Service
Tube Rear (Service Item Only)

Cap Axle BIk 1 50 x 100
Sealant, Tire ( 10 oz. Tube)

39

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

ENGINE

13

101

14

17

32

31 - 33

29

OPTIONAL EQUIPMENT I

Spark Arrester

KEY PART
NO. NO. DESCRIPTION

17

23

KEY
NO.

PART
NO. DESCRIPTION

i

_101

1

532170863

2

817720408

3

4 532149723
5 532146699

6 532146700
8 532171877

10 532146629
13 532186054

14 532148456
16 811050600

17 817060624

23 532169837

Control Throt Fig
Screw Hex Thd Cut 1/4-20x5/8 T

Engine Kohier CV674
(Order Parts from Engine Manu-

facturer)
Muffler Asm Twin Lo-Tone

Exhaust Tube Lh
Exhaust Tube Rh

Bolt 5/16-18uric x 3/4 W/Sems
Shield Browning

Gasket Muffler
Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8
Screw 3/8-16 x 1-1/2

Shield Browning

25 532145996 Choke Control
26 873920600 Nut, Keps 3/8-24 Unf

29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532179022 Tank Fuel

32 532181803 Cap Asm Fuel
33 532123487 Clamp Hose Blk

37 532142158 Line Fuel
38 532181654 Plug Drain Oil

41 532139277 Stem Tank Fuel
45 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4

101 532163305 Nut Flange M8-1.25
112 532124952 Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

40

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

MOWER LIFT

KEY

NO.

2
3

4

5
6

7
8

11
12

13
15

16
17

18
19

20
23

PART
NO.

532159460
532159471

532105767
812000002

819211621
532120183

532125631
532124526

532139865
532139866

532124670
532173288

873350800
532175689

873800800
532139868

532163552
532110807

38

i ii

40

6

19

13

13 _ 31

32 _ 19

32

DESCRIPTION

Wire Asm Inner/Spring W/Plunger
LT

Shaft Asm Lift RH w/Inf
Pin Groove 1 500 Zinc

E Ring #5133-62
Washer 21/32 X 1 X 21 Ga

Bearing Nylon Blk 629 Id
Grip Handle Fluted BIk

Button Plunger Black
Link Lift LH

Link Lift RH
Retainer Spring

Link Front
Nut Jam Hex 1/2-13 Unc

Trunnion

Nut Lock w/Wsh 1/2-13unc
Arm Suspension Rear

Retainer Spring
Nut Special

13

49

3O

6

20

15

KEY PART
NO. NO.

24 819131016
25 532124874

26 532169484

27 532126971
28 873350600

29 532138057

30 532150233
31 532169865

32 873540600
36 532155097

37 532123935
38 817060516

40 819112410
41 532155098

49 532145212
50 532110452

DESCRIPTION

Washer 13/32 X 5/8 X 16 Ga
Spring 2-1/8"

Retainer Clip
Rod Adj Lift Zinc 7.49 Wrk Lg

Nut Hex Jam 3/8-16 Unc
Knob Inf 3/8-16 Unc Blk W/sym

Trunnion Infin Height
Bearing PVT Lift

Nut Crownlock 3/8-24
Indicator Height STLT

Plug Hole BIk 1.485/1.515 Dia.
Screw 5/16-18 x 1

Washer 11/32 x 1-1/2 10 Ga.
Scale Ind. Height Blk.

Nut Hex Flange Lock
Nut, Push Phos & Oil

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

41

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

MOWER DECK

68

40"_37

117

134_

34

5_

, 138

_.145

132 91

\._132

21 H5

_21 _134

116

21

23

24

25

I
I

16

28 _"

2

29

27

18

18

149

5

6

19F 21

_8 _

42

REPAIR PARTS

TRACTOR--MODEL NO. 917.279001 (YTH2242), PRODUCT NO. 954 57 03-83

MOWER DECK

KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 532185438

2 872140506
3 532138017

4 532165460
5 532124670

6 532178024
8 532850857

9 810030600

10 532140296
11 532134149

532139775
532138971

13 532137645
14 532128774

15 532110485
16 532174493

18 872140505
19 532132827

20 532159770
21 873680500

23 532177563
24 532105304

25 532123713
26 532110452

27 532171859
28 819111016

29 532131491
30 532173984

31 532129963
32 532173436

33 532178342
34 872110614

36 532173438
37 819131316

40 873680600
44 532140088

45 532124788
46 532137729

54 532178515

Mower Deck Assembly, 42" 55 532155046
Bolt 56 532122052

Bracket Assembly, Sway Bar, Front 59 532173442
Bracket Sway Bar 42" Deck 61 532174882

Retainer Spring 68 532174883
Bar Sway Deck 91 532180532

Bolt, Hex 3/8-24 x 1.25 Gr. 8 92 873800600
Washer, Lock 94 532132264
Washer, Hardened 95 532180533
(The following blades are available) 113 817060512

Blade, Mulching 42" Std (For mulch- 116 532184219
ing mowers only) 117 532133957

Blade Mulching 42" Premium (For 118 873930600
better wear when mulching) 119 819121414

Blade Mower 42" Hi-Lift (For bag- 129 819131312
ging and discharging) 130 874780616

Shaft Assembly, Mandrel, Vented 131 872140608
Housing, Mandrel, Vented 132 817000612

Bearing, Ball, Mandrel 134 532156941
Stripper 135 532178074

Bolt, Carriage 5/16-18 x 5/8 136 532155986
Bolt, Shoulder 137 872110505
Baffle, Vortex 138 532178075
Nut Crownlock 5/16-18 UNC 139 532178077

Bracket, Deflector 140 532178076
Cap, Sleeve 143 532157109

Spring, Torsion, Deflector 144 532173441
Nut, Push 145 532173437
Shield, Deflector 146 532173443
Washer 11/32 x 5/8 x 16 Ga. 148 532169022

Rod, Hinge 149 532165898
ScrewThdrol Hex 150 819091216

Washer, Spacer 159 872140614
Pulley, Mandrel 182 532179126

Nut, Toplock, Flanged 183 532163552
Bolt 184 819131410

Pulley, Idler, Flat - - 532130794
Washer 13/32 x 13/16 x 16 Gauge

Nut Crownlock 3/8-16 UNC
Guard, Mandrel, L.H. - -

Retainer
Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

532176050

NOTE: All component dimensions given in U.S. inche

1 inch = 25.4 mm

Arm, Idler
Spacer, Retainer

Guard, TUV Idler
Spring Ext Elect Clutch 42" Dck

V-Belt
Bracket Asm Noseroller Lh

Nut Lock Hex w/Ins 3/8-16 UNC
Roller Nose 38"-50"

Bracket Asm Noserolter Rh
Screw 5/16-18 x 3/4 Tap R

Bolt, Shoulder
Wheel, Gauge

Nut, Centerlock 3/8-16
Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x Ga.
Bolt Fin Hex 3/8-16unc x 1 Gr.5

Bolt Rdhd Sqnk 3/8-16unc x 1
Screw 3/8-16 x .75

Pin Head Rivet
Bracket Wheel Gauge LH

Bar Adjusting Gauge Wheel
Bolt Carr. 5/16-18 x 5/8

Bracket wheel Gauge RH
Bracket Asm. Wheel Gauge F RH

Bracket Asm. Wheel Gauge F LH
Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable
Pulley Idler Flat

Bolt Carriage Idler
Spring Return Idler

Retainer Spring Yellow Zinc
Washer 9/32 x 3/4 x 16 Ga.

Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4
Rod Roller Nose

Retainer Spring
Washer 13/32 x 7/8 x 10 Ga.

Mandrel Assembly (Includes Hous-
ing, Shaft and Shaft Hardware Only

- Pulley Not Included)
Replacement Mower, Complete

43

SERVICE NOTES

44

SERVICE NOTES

45

4_
O_

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and

A

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

down the face of slopes, never across the face. Do not mow
slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when
changing direction on slopes.

trunk or other upright structure.

Husqvarna

WARRANTY STATEMENT

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship from the date of purchase for the "Warranty Period _of the

)roduct as set forth below:

)ro._iuJct.=ifeime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held

Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment--zero turn riders, wide area walks,

and ground engaging commercial equipment.

2Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk

behind mowers, tillers, chain saws, trimmers, brushcufters, clearing saws, snow blowers, handheld blowers,
backpack blowers, hedge trimmers, electrical products and power_assist coltection systems for

merciflI, nonorotesstenflI, noninstitationfll or nonincome Droductha use. exceta as her_th stated.

Emission control system components necessary to compIy with CARB*TIER-II and EPA regulations, except
for those components which are part of engine systems manufactured by third party engine manufacturers for
which the purchaser has received a separate warranty with product information supplied at time of purchase.

1 Year Warranty: Power cutters, stump grinder, pote pruners and pole saws for non-commercial, non-oro-

fessional non-thstitetional or non-income producinq use. All trimmers, brushcufters, clearing saws, hovering

trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power_assist collection systems

used for commercist, institutional, orotessionfll or income oroducinQ Durooses or use.
Batteries have a one-year prorated limited warranty with 100% replacement during the first 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners,

snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvarna
product used for commercial, thstitationaI, orofesstenaI, or income DroducinQDurooses or use exceot as oth-

erwise provided herein.

Husqvarna Safety Apparel carries a 90*day warranty from the date of the customer's original purchase for
defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must

be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed
as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not covered under

warrauf_

30 Day Warranty: Replacement parts, accessories including bars and chains, taols and display items.

SECTION 2: HUSQVARNA'S OBLIGATIONS UNDERTHE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor ff a component fails

because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BYTHIS WARRANTY

The following items are not covered by this warranty:

(t)Normal customer maintenance items which become worn through normal regular use, including, but

not limited to, be_ts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective

manufacturer's warranty as provided in writing with the product information supplied at the time of pur-

chase; all c_aims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for war-

runty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB*TIERdl and EPA regulations

which are manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including staIe fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)FaiIure to operate or maintain the unit in accordance with the Owner's/Operator's manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modifications that change the intended use of the product or affects the product's per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable
laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY iNCiDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LiMiTED iN DURATION TO THE

WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT HUSQVARNA RESERVES
THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE, AND DOES

NOT ASSUME OBLiGATiON TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequectial damages, or limitations on how long

an implied warranty lasts, so the above limitations or excIusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

in the maintenance section of the Owner's/Operatar's manual Shoutd an operational problem or failure occur,
the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof ol

purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It isthe Owner's and Dealer's responsibility to make certain that the WarrantyRegistration Card is properly

filted out and mailed to Husqvarna Forest& Garden Company.This cardshould be mailed within ten (10) days
from the dateof purchase in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty service
This proof must include date purchased, model number, serial number, and complete name and address of the
selling dealer.

TOobtain the benefit of this warranty, the product believed to be defective must be deIivered to an authorized

Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational problem o_

failure. The product must be delivered at the owner's expense. Pick*up and delivery charges are not covered
by this warranty. An authorized Husqvarna dealer can be normally located through the "Yellow Pages" of the
local telephone directory or by calling f-800*HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesvine Road

Charlotte, NO 28269

531 83 81-23 2002

532187221 01.27.03 RH Printed in U.S.A.

6 Husqvarna
