Husqvarna 580 R, 580 RS, 580 RSE, 580 RSW, 600 C User Manual
580 R, 580 RS, 580 RSE, 580 RSW, 600 C
Owner’s Manual
606 00 02 98A 11/00
Printed in USA
2
12
11
3
10
9
13
15
ENGLISH
1. Engine Control
2. Ignition Switch (Electric
Start Models)
3. Speed Selector (Selfpropelled)
4. Primer (Briggs Engine)
5. Side Discharge Cover
6. Side Discharge Deflector
7. Cutting Height Levers (2
Rear Wheel Adjusters, 2
Front Wheel Adjusters)
8. Rear Door
9. Adjustable and Folding
Handlebars
10. Grass Bag
11. Recoil Starter Handle
12. Wheel Drive Control
(Self-Propelled)
13. Mulch Plug
14. Throttle Control (Robin
Engines)
15. Handlebar Adjustment
Holes
16. Speed Indicator (Selfpropelled)
CONTROLS AND FEATURES
1
2
14
8
16
7
7
5
4
6
Figure 1
FRANÇAIS
1. Commande moteur
2. Commutateur de contact
(Modèles à démarreur
électrique)
3. Sélecteur de vitesse
4. Poire d’amorçage
5. Plaque de fermeture
latétale
6. Déflecteur de décharge
latérale
7. Leviers de hauteur de
coupe (réglage par les
roues)
8. Trappe arrière
9. Guidon réglable et pliable
10. Sac à herbe
OM0033
WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
11. Poignée du démarreur
manuel
12. Commande de
l’entraînement des roues
(tondeuses autotractées)
13. Déflecteur à paillis Mulch
14. Commande des gaz
(modèle professionnel)
15. Trous de réglage du
guidon
16. Indicateur de vitesse
ESPAÑOL
1. Control del motor
2. Control del arranque
eléctrico (modelos de
arranque eléctrico)
3. Selector de velocidad
4. Cebador
5. Cubierta de la descarga
lateral
6. Deflector de la descarga
lateral
7. Palancas de la altura de
corte (ajustadores de la
rueda)
8. Puerta trasera
9. Manillares ajustables y
plegables
10. Bolsa de recolección del
césped
11. Manilla de arranque de
retroceso
12. Control de la transmisión
de la rueda
(autopropulsión)
13. Tapón Mulch
14. Control del acelerador
(profesional)
15. Agujeros para el ajuste
del manillar
16. Indicador de velocidad
3
TABLE OF CONTENTS
Controls and Features . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

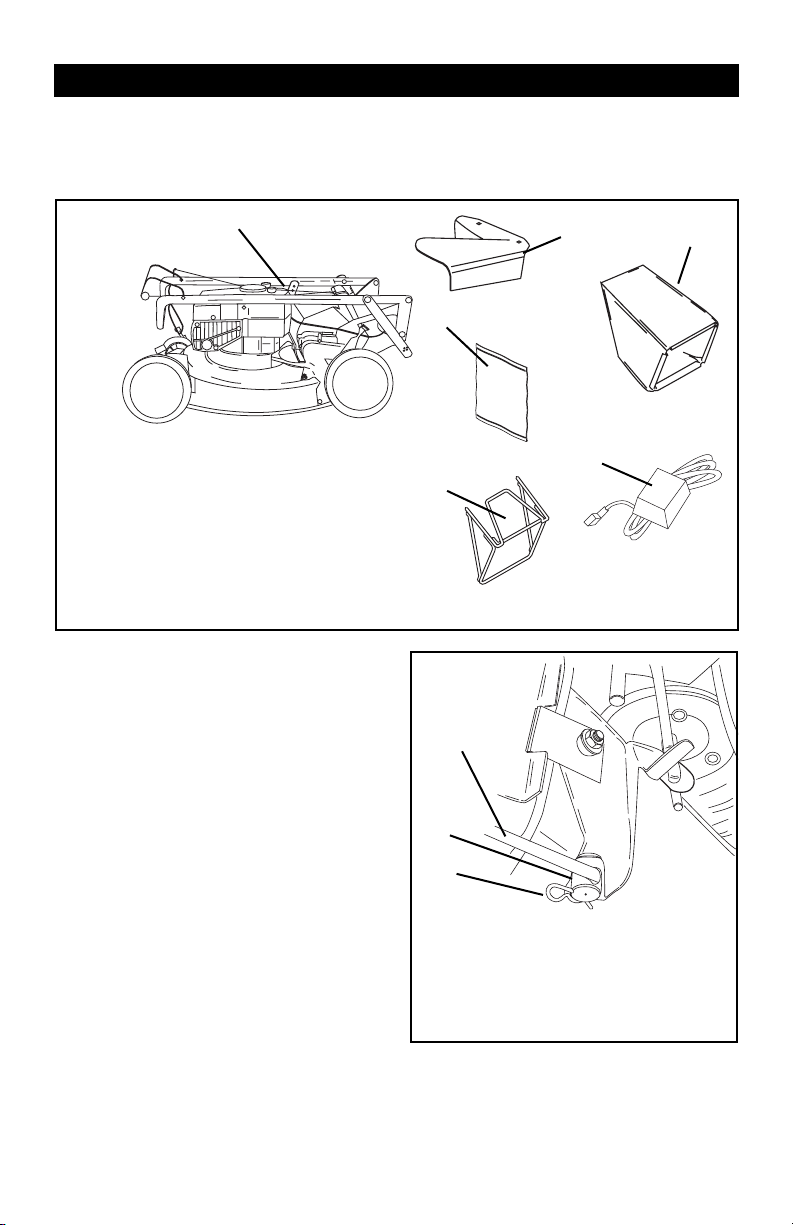

Assembly . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . 14
Service and Adjustments . . . . . . . . . . 18
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . 22
Accessories . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . 23
Warranty. . . . . . . . . . . . . . . . . . . . . . . . 24
INTRODUCTION
THE MANUAL
Before operation of unit, carefully and
completely read your manuals. The contents
will provide you with an understanding of
safety instructions and controls during normal
operation and maintenance.
All reference to left, right, front, or rear are
given from the operation position, facing the
direction of forward travel.
SERVICE AND REPLACEMENT
PARTS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit and engine.
Numbers are located on the product
registration form in the unit literature package.
They are also printed on a serial number label,
located on the frame of your unit (Figure 2).
Serial Number
Label
Figure 2
• Record Unit Model and Serial numbers here
• Record Engine Model & Serial numbers here
OM0400
PRODUCT REGISTRATION
Please fill out and return the Warranty
Registration Card to Husqvarna. This card
activates the warranty. Claims meeting
requirements during limited warranty period
will be honored.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Husqvarna replacement parts. The
replacement of any part on this vehicle with
anything other than a Husqvarna authorized
replacement part may adversely affect the
performance, durability, or safety of this unit
and may void the warranty. Husqvarna
disclaims liability for any claims or damages,
whether warranty, property damage, personal
injury or death arising out of the use of
unauthorized replacement parts.
DEALER DELIVERY
Dealer should:
1. Check to make sure all assembly and
adjustments have been properly
completed.
2. Fill out Original Purchaser Registration
Card and return the card to Husqvarna.
3. Explain Husqvarna Limited Warranty
Policy.
4. Explain recommended lubrication and
maintenance. Advise customer on
adjustments. Remind customer to
change oil in 4 cycle engine crankcase
after first two (2) hours of operation.
5. Instruct customer on controls and
operation of unit. Discuss and
emphasize the Safety Precautions.
Give customer Owner/Operator, Parts,
and Engine manuals. Advise customer
to thoroughly read and understand
them.
GB - 4
DISCLAIMER
Husqvarna reserves the right to discontinue,
make changes to, and add improvements
upon its products at any time without public
notice or obligation.The descriptions and
specifications contained in this manual were in
effect at printing. Equipment described within
this manual may be optional. Some
illustrations may not be applicable to your unit.
SAFETY
SAFETY ALERTS
Look for these symbols to point out
important safety precautions. They
mean:
Attention!
Personal Safety Is Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal
words below are used on decals and in this
manual.
Read and understand all safety messages.
DANGER: IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death or
serious injury.
WARNING: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in death or
serious injury.
CAUTION: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor or
moderate injury. It may also be used
to alert against unsafe practices.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and
others. Understand and follow all safety
messages. Be alert to unsafe conditions and
the possibility of minor, moderate, or serious
injury or death. Learn applicable rules and
laws in your area.
REQUIRED OPERATOR TRAINING
Original purchaser of this unit was instructed
by the seller on safe and proper operation. If
unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any needed
safety training before operation.
NOTATIONS
NOTE: General reference information for
proper operation and maintenance practices.
IMPORTANT: Specific procedures or
information required to prevent damage to unit
or attachment.
GB - 5
OL0910
SAFETY DECALS AND
LOCATIONS
ALWAYS replace missing or damaged Safety
Decals. Refer to Figure 3 for Safety Decal
locations.
3
CAUTION
BAG IS SUBJECT TO WEAR AND
•
DETERIORATION.
CHECK BAG FEQUENTLY, REPLACE WHEN
•
NECESSARY.
USE ORIGINAL BAG TO COMPLY WITH SAFETY
•
SPECIFICATIONS.
PRECAUCION
LA BOLSA ESTA SUJETA A DESGASTE Y
•
DETERIORO.
REVISAR LA BOLSA FREQUENTAMENTE,
•
Y REEPLAZARLA SI ES NECESARIO.
USAR BOLSAS ORIGINAL PARA CUMPLIR CON
•
LAS ESPECIFICACIONES DE SEGURIDAD.
ATTENTION
LE SAC EST SOUMIS À L’USURE ET A LÀ
•
DÉTÉRIORATION.
VÉRIFIER LE SAC FRÉQUEMMENT. LE
•
REMPLACER AU BESOIN.
UTILISER UN BAC D’ORIGINE CONFORME
•
AUX NORME DE SECURITE.
Do not operate mower
unless guards are in
operating position or
bagger is attached.
2
DANGER
KEEP HANDS and FEET AWAY
07742500C
MEETS C.P.S.C. BLADE
SAFETY REQUIREMENTS
Figure 3
DANGER / PELIGRO
1
TO AVOID SERIOUS INJURY OR DEATH
• Read the operator's manual.
• Keep children and others away from unit while operating.
• Never direct discharge toward other people. Thrown
objects can cause injury.
• Do not operate mower unless guards are in operating
position or entire bagger is attached.
• Keep safety devices (guards, shields, switches, etc.) in
place and working.
• Go across slopes, not up and down.
• Look down and behind before and while moving backward.
POUR EVITER LES BLESSURES GRAVES OU LA MORT
• Lire le manuel de l'utilisation.
• Éloigner les enfants et toute autre personne pendant le
fonctionnement de la machine.
• Ne jamais décharger directement en direction de quelqu’un.
Des particules projetées peuvent provoquer des blessures.
• Ne pas utiliser la tondeuse sans garant et sans sac
totalement attaché.
• Maintenez toujours en place tous les elements de securite
(protecteurs, interupteurs, etc.).
• Tondez le long des pentes, jamais de haut en bas ou
inversement.
• Regardez derriere et sur les cotes lorsque vous reculez.
PARA EVITAR DAÑOS SERIOS O LA MUERTE
• Leer el manual del operador.
• Mantenga la unidad alejada de los niños u otras personas
cuando esté en funcionamiento.
• Nunca dirija la descarga hacia otras personas, a que los
objetos lanzados pueden provocar lesiones.
• No poner en funcionamiento la máquina a menos que las
guardas estén en posición de funcionamiento o la
embolsadora entera esté conectada.
• Mantenga artefactos de seguridad (defensas, protectores,
interruptores, etc.) en su lugar y trabajando.
• Transversa pendientes, no subir ni bajar.
• Mire hacia abajo y detras antes y durante retroceso.
C
L
E
D
O
M
ANSI B71.1 - 1998 SAFETY STANDARDS
I
N
D
Y
E
B
P
D
E
I
F
SPONSORED BY
I
T
R
AM
E
GR
RO
P
OUTDOOR POWER EQUIPMENT INSTITUTE
07742400B
E
N
D
E
N
T
L
A
B
O
R
A
T
O
R
Y
OM0434
1. DANGER
TO AVOID SERIOUS INJURY OR DEATH
Read the operator’s manual.
OL1801
Keep children and others away
from unit while operating.
OL4370
Never direct discharge toward
other people. Thrown objects can
cause injury.
Do not operate mower unless
guards are in operating position or
entire bagger is attached.
OL4540
Keep safety devices (guards,
shields, switches, etc.) in place
and working.
OL3030
• Go across slopes, not up and down.
• Look down and behind before and
while moving backwards.
2. DANGER
KEEP HANDS AND FEET AWAY
Do not operate mower unless guards are in
operating position or bagger is attached.
3
. CAUTION!
• Bag is subject to wear and
deterioration.
• Check bag frequently, replace when
necessary.
• Use original bag to comply with safety
specifications.
SAFETY RULES
Operational
Inspect unit and work area before operation.
Clear work area of objects which might be
picked up and thrown. Remove all stones,
sticks, wires, and other foreign objects. Tall
grass can hide obstacles.
Only Trained Adults may operate unit. Training
includes actual operation.
Keep equipment in good condition.
ALWAYS keep discharge cover in place.
NEVER operate the engine with the Rear
Door open unless the Grass Bag is in place.
When mulching, the Side Discharge Opening
Cover must be installed and the Rear Door
fully closed whenever the engine is operating.
GB - 6
DO NOT pull mower backwards unless
absolutely necessary. Look down and back
before and while moving backwards.
DO NOT start the engine or operate mower
unless either the Side Discharge Opening
Cover or the Side Discharge Deflector is
installed.
Keep the area of operation clear of all
persons, children and pets.
ALWAYS clear area before operation to avoid
thrown objects.
Stop mower if anyone enters the area.
Keep safety devices or guards in place and
functioning properly. NEVER modify or
remove safety devices.
ALWAYS keep hands away from all rotating
parts during operation.
Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening
and mower pan at all times. NEVER open the
Rear Door without the Grass Bag in place
when the engine is operating.
ALWAYS keep feet and hands away from all
rotating parts during operation. Rotating parts
can cut off body parts.
DO NOT mow at too fast a rate. DO NOT
change engine governor setting or over-speed
the engine.
ALWAYS operate unit when there is good
visibility and light.
Use extra care when approaching blind
corners, shrubs, trees, or other objects which
may obscure vision.
ALWAYS be sure of your footing.
Do not operate mower in wet grass. Always be
sure of your footing. Keep a firm hold on
handlebar. Walk, never run.
If equipment vibrates abnormally, stop engine
at once, wait for moving parts to stop and
remove wire from spark plug. Repair any
damage before restarting unit.
Avoid uneven work areas and any rough
terrain.
Be familiar with area of operation. Stay alert
for holes, rocks, roots, and hidden hazards in
area of operation. Keep away from drop-offs,
ditches or embankments. Operator could lose
footing or balance.
DO NOT operate on steep slopes.
NEVER leave unit unattended on a slope.
Chock wheels if parking on a slope.
Mow across the face of slopes, never up and
down. Be especially cautious when changing
direction on slopes.
Remove key when parking (electric start
models).
Take all possible precautions when leaving
unit unattended.
ALWAYS shut off engine, remove key (electric
start models) and remove spark plug wire to
prevent accidental starting or unauthorized
use.
Personal
Keep children out of work area and under the
watchful care of an adult.
NEVER allow children to operate mower.
Turn the mower off if children enter the area.
NEVER direct discharge toward bystanders.
The operator is responsible for the safety of
bystanders.
Wear adequate safety gear, protective gloves
and footwear.
Wear sturdy footwear. DO NOT operate
mower barefoot or when wearing open
sandals or canvas shoes.
Always wear safety goggles or safety glasses
with side shields when operating mower.
NEVER wear loose clothing, jewelry or long
hair that may get caught in rotating parts.
Protect eyes, face and head from objects that
may be thrown from unit.
NEVER operate after or during the use of
medication, drugs or alcohol. Complete and
unimpaired attention is required when
operating unit.
ALWAYS stand clear of discharge when
operating unit.
Do not operate mower on gravel or on loose
material such as sand. Stop mower when
crossing gravel drives, walks, or roads.
Objects may be picked up and thrown, causing
damage or injury.
DO NOT touch parts which are hot. Allow
parts to cool.
Moving parts can cut or amputate fingers or a
hand. Wrap blade(s) or wear gloves to service.
ALWAYS keep hands away from all pinch
points.
Fumes from the engine exhaust can cause
death or serious injury. DO NOT run engine in
an enclosed area.
Service and Adjustments
NEVER attempt to make any adjustments to
unit while engine is running. Stop engine,
remove key (electric start models) and wait for
all moving parts to stop before servicing
(except where specifically recommended).
GB - 7
DO NOT make cutting height wheel
adjustments while the engine is running.
On self-propelled models, releasing wheel
drive control must stop mower’s forward
movement. If this feature fails to operate,
disconnect spark plug wire and repair before
using unit. Wheel drive must be disengaged
when starting engine.
Fuel is highly flammable and its vapors can
explode. ONLY use approved fuel containers.
• NO Smoking!
• NO Sparks!
• NO Flames!
• Allow engine to cool before filling fuel
tank.
Check fuel supply before starting engine.
DO NOT fill gasoline tank indoors, when
engine is running, or while engine is still hot.
Allow engine to cool several minutes before
removing fuel cap.
Replace gasoline tank cap securely and clean
up any spilled fuel before starting engine.
Stop engine, wait for moving parts to stop,
remove ignition wire and secure away from
spark plug before attempting to: unclog, repair,
adjust, inspect or clean unit.
To reduce fire hazard and overheating, keep
equipment free of grass, leaves, debris or
excessive lubricants.
Battery (electric start models)
Avoid Electric Shock. DO NOT remove wire
from spark plug while engine is running. Do
not put battery in fire or mutilate.
Explosive Gases! Poisonous battery fluid
contains sulfuric acid. Contact with skin, eyes
or clothing can cause severe chemical burns.
No flames, No sparks, No smoking, near
battery.
ALWAYS wear safety glasses and protective
gear near battery.
ALWAYS KEEP BATTERIES OUT OF REACH
of children.
Maintenance
Follow engine manufacturer’s safety
instructions when servicing engine.
Keep all nuts, bolts, and screws tight and be
sure equipment is in safe working condition.
Check all hardware at regular intervals,
especially blade attachment bolts.
Use only replacement parts designed for your
unit. See your Husqvarna Dealer.
Worn out mufflers are more than just a noise
nuisance and should be replaced immediately.
Continued use could result in fire or explosion.
ALWAYS block wheels and know all jack
stands are strong and secure and will hold
weight of unit during maintenance.
Check grass bag for wear, damage, and/or
deterioration. Replace only with Husqvarna
original equipment replacement part for safety.
Storage
Allow engine to cool before storing in any
enclosure.
Refer to Storage Section of this Owner’s
Manual for important instructions if unit is to
be stored for extended periods.
ALWAYS clean unit before extended storage.
See engine manual for proper storage.
DO NOT store unit inside a building with fuel in
the fuel tank where any ignition sources are
present.
Safety Interlock System
Engine/Blade Control feature on mower will
cause engine and blade to stop whenever
operator releases control on handlebar. If
feature fails to operate, disconnect spark plug
wire and adjust or have it repaired before
using unit.
Accessories
Use only accessories which have been
approved by Husqvarna and are properly
installed.
Spark Arrestor
This product is equipped with an internal
combustion engine. DO NOT use on or near
any unimproved, forest or brush covered land
unless the exhaust system is equipped with a
spark arrestor meeting applicable local, state
or federal laws. A spark arrestor, if used, must
be maintained in effective working order by the
operator. See your Husqvarna Dealer or
engine manufacturer’s service center.
GB - 8
Loading...
