Please read these instructions carefully and make
sure you understand them before using this unit.
Avant d’utiliser cet appareil, veuillez lire attentivement les instructions et assurez--vous de les avoir
comprises.
Lesen Sie diese Hinweise zur Handhabung des
Geräts aufmerksam durch. Verwenden Sie es erst,
wenn Sie sicher sind, daß Sie alle Anweisungen
verstanden haben.
Lea atentamente las instrucciones y asegúrese de
entenderlas antes de utilizar este unidad.
Leggere attentamente queste istruzioni eaccertarsi
di averle comprese prima di usare l’unità.
Lees deze instructies zorgvuldig en wees er zeker
van dat u ze begrijpt alvorens dit apparaat te gebruiken.
ESPANOL
ITALIANO
NEDERLANDS
530163628
1/8/03
IDENTIFICATION (WHAT IS WHAT?)
Fuel tank
ON/OFF
Switch
Starter
Handle
Choke
Assist handle
Tube
Throttle
Assist handle adjustment
Shield
Muffler
Primer Bulb
IDENTIFICATION OF SYMBOLS
Manual
Wrench
Trimmer
head
WARNING!
A.
serious or even fatal injury.
B. Read and understand the instruction manual before using the trimmer.
C. Never use blades with this tool.
WARNING!
D.
injured. Always wear eye protection.
E. Always use:
Ear protection
Protective glasses or visor
F. Assist handle to be positioned only below the arrow.
G. The operator of the machine must insure that no one comes within a 15 meter radius
while working. When several operators are working within the same area a safety dis-
tance of at least 15 meters must be observed.
H. Use unleaded or quality leaded petrol and two--stroke oil mixed at a ratio of 2.5%.
I. Engine ON/OFF Switch.
J. Sound power level
K. Max speed of output axle, rpm
This trimmer can be dangerous! Careless or improper use can cause
The trimmer line can throw objects violently. You can be blinded or
2
SAFETY RULES
WARNING:
appliances, basic safety precautions should always be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator is
responsible for following instructions and warnings on unit and in manual. Read entire instruction manual before using unit! Be thoroughly familiarwiththe controls and the properuse of the
unit. Restrict the use of this unit to persons who
read, understand, and follow instructions and
warnings on unit and in manual. Never allow
children to operate this unit.
INSTRUCTION
MANUAL
DANGER:
flailing devices. This unit is designed for line
trimmer use only.Use of any other accessories
or attachments will increase the risk of injury.
WARNING:
jects violently. Youand others can be blinded/
injured. Wear safety glasses and leg protection. Keep body parts clear of rotating line.
Safety Glasses or similar eye protection
Boots
Keep children, bystanders, and animals 15 meters away. If approached stop unit immediately.
If situations occur which are not covered in
this manual, use care and good judgement. If
youneedassistance, contact yourauthorized
service dealer.
OPERATOR SAFETY
S
Dress properly.Always wear safety
glasses or similar eye protection when operating, or performing maintenance, on
your unit (safety glasses are available).
Eye protection should be marked Z87.
S
Always wear face or dust mask if operation
is dusty.
S
Always wear heavy, long pants, long
sleeves, boots, and gloves. Wearing safety
leg guards is recommended.
When using gardening
SAFETY INFORMATION
ON THE UNIT
Never use blades, wire, or
Trimmer line throws ob-
Hazard Zone
15 meters
S
Always wear foot protection. Do not go
barefoot or wear sandals. Stay clear of
spinning line.
S
Secure hair above shoulder length. Secure
or remove loose clothing or clothing with
loosely hanging ties, straps, tassels, etc.
They can be caught in moving parts.
S
Being fully covered also helps protect you
from debris and pieces of toxic plants
thrown by spinning line.
S
Stay Alert. Do not operate this unit when you
are tired, ill, upset or under the influence of alcohol, drugs, or medication. Watch what you
are doing; use common sense.
S
Wear hearing protection.
S
Never start or run inside a closed room or
building. Breathing exhaust fumes can kill.
S
Keep handles free of oil and fuel.
UNIT / MAINTENANCE SAFETY
S
Disconnect the spark plug before performing
maintenance except carburetor adjustments.
S
Look for and replace damaged or loose
parts before each use. Look for and repair
fuel leaks before use. Keep in good working
condition.
S
Replace trimmer head parts that are
chipped, cracked, broken, or damaged in
any other way before using the unit.
S
Maintain unit according to recommended
procedures. Keep cutting line at proper
length.
S
Use only 2 mm diameter Husqvarna!
brand line. Never use wire, rope, string,
etc.
S
Install required shield properly before using
the unit. Use only specified trimmer head;
make sure it is properly installed and securely fastened.
S
Make sure unit is assembled correctly as
shown in this manual.
S
Make carburetor adjustments with lower
end supported to prevent line from contacting any object.
S
Keep others away when making carburetor
adjustments.
S
Use only recommended Husqvarna! accessories and replacement parts.
S
Have all maintenance and service not explained in this manual performed by an authorized service dealer.
FUEL SAFETY
S
Mix and pour fuel outdoors.
S
Keep away from sparks or flames.
S
Use a container approved for fuel.
S
Do not smoke orallow smoking near fuel or
the unit.
S
Avoidspilling fuel or oil. Wipe up all fuel spills.
S
Move at least 3 meters away from fueling
site before starting engine.
S
Stop engine and allow to cool before removing fuel cap.
S
Always store gasoline in a container approved for flammable liquids.
3
CUTTING SAFETY
WARNING:
each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage the trimmer head and be thrown
causing serious injury.
S
Use only for trimming, scalping, mowing
and sweeping. Do not use for edging, pruning or hedge trimming.
S
Keep firm footing and balance. Do not overreach.
S
Keep all parts of your body away from muffler and spinning line. Keep engine below
waist level. A hot muffler can cause serious
burns.
S
Cut from your right to your left. Cutting on
left side of the shield will throw debris away
from the operator.
S
Use only in daylight or good artificial light.
S
Use only for jobs explained in this manual.
Inspect the area before
TRANSPORTING AND STORAGE
S
Allow the engine to cool; secure unit before
storing or transporting in vehicle.
S
Empty fuel tank before storing or transporting the unit. Use up fuel left in the carburetor
by starting engine and letting it run until it
stops.
ASSEMBLY
S
Store unit and fuel in an area where fuel vapors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.
S
Store unit so line limiter cannot accidentally
cause injury. Unit can be hung by the tube.
S
Store the unit out of the reach of children
SPECIAL NOTICE:
tions through prolonged use of gasoline powered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather has been linked toblood vessel damage in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seekmedical attention. An anti-vibration system does
not guarantee the avoidance of these problems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condition of this tool.
Exposure to vibra-
WARNING:
ly assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
Make sure unit is proper-
ADJUSTING THE HANDLE
WARNING:
dle, be sure it remains between the throttle
trigger and the safety label. Assist handle
must be positioned only below the arrow.
1. Loosen handle by turning T--handle/
screw counterclockwise.
2. Rotate the handle on the tube to an upright position.
3. Adjust handle to a comfortable position
between the throttle trigger and the safety
label on the tube.
4. Retighten handle by turning T--handle/
screw clockwise.
When adjusting the han-
ATTACHING THE SHIELD
WARNING:
erly installed. The shield provides partial
protection from the risk of thrown objects to
the operator and others and is equipped with
a line limiter which cuts excess line. The line
limiter (on underside of shield) is sharp and
can cut you.
1. Remove nut from shield.
2. Insert bracket into slot on shield.
3. Pivot shield until bolt passes through hole
in bracket.
4. Reinstall nut and tighten securely with
wrench (provided).
Shield
Line Limiter Blade
4
The shield must be prop-
Slot
Bracket
Nut
OPERATION
WARNING:
information in the safety rules before you begin. If you do not understand the safety rules,
do not attempt to fuel your unit. Contact an
authorized service dealer.
Be sure to read the fuel
FUELING ENGINE
WARNING:
when refueling.
This engine is certified to operate on un-
leaded gasoline. Before operation, gasoline
must be mixed with a good quality 2-cycle aircooled engine oil mixed at a ratio of 40:1
(2.5%). A 40:1 ratio is obtained by mixing 5
liters of unleaded gasoline with 0,125 liter of
oil. DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on oil
container. Once oil is added to gasoline,
shake container momentarily to assure that
the fuel is thoroughly mixed. Always readand
follow the safety rules relating to fuel before
fueling your unit.
Remove fuel cap slowly
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during storage. Acidic gas can damage the fuel system
of an engine while in storage. Toavoid engine
problems, empty the fuel system before storage for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season. Never use engine or carburetor
cleaner products in the fueltank or permanent
damage may occur.
HOW TO STOP YOUR UNIT
S
To stop the engine, move the ON/OFF
switch to the OFF position.
HOW TO START YOUR UNIT
WARNING:
turn while starting the engine. Avoid any contact with the muffler. A hot muffler can cause
serious burns.
The trimmer head will
ST ARTING A COLD ENGINE (or a
warm engine after running out of fuel)
Starting Position
Starter Handle
Choke
Lever
Primer Bulb
1. Set unit on a flat surface.
2. Move ON/OFF switch to the ON position.
3. Slowly press the primer bulb 6 times.
4. Move choke lever to FULL CHOKE position.
5. Squeeze and hold trigger through all re-maining steps.
6. Pull starter rope handle sharply until engine sounds as if it is trying to start, but do
not pull rope more than 6 times.
7. As soon as engine sounds as if it is trying
to start, move choke lever to HALF
CHOKE.
8. Pull starter rope sharply until engine runs,
but no more than 6 pulls. If the engine
doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever
to the FULL CHOKE position and press
theprimer bulb 6 times. Squeeze and hold
the throttle trigger and pull the starter rope
2more times. Move the choke lever to the
HALF CHOKE position and pull the starter rope until the engine runs, but no more
than 6 pulls.
doesn’t start, it is probably flooded. Proceed to STARTING A FLOODED ENGINE.
9. Once the engine starts, allow it to run 10
seconds, then move the choke lever to
OFF CHOKE. Allow the unit to run for 30
more seconds at OFF CHOKE before releasing the throttle trigger.
gine dies with the choke lever in the OFF
CHOKE position, move the choke lever to
the HALF CHOKE position and pull the
rope until engine runs, but no more than 6
pulls.
NOTE:
Muffler
If engine still
NOTE:
If en-
STARTING A WARM ENGINE
1. Move ON/OFF switch to the ON position.
2. Move the choke lever to the HALF
CHOKE position.
3. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.
4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
5. Allow engine to run 15 seconds, then
move the choke lever to the OFF CHOKE
position.
5
NOTE:
rope 5more pulls. If engine still does not run,it
is probably flooded.
If engine has not started, pull starter
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of excessfuel. This couldrequire pulling the starter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to TROUBLESHOOTING TABLE.
OPERATING INSTRUCTIONS
OPERATING POSITION
ALWAYS WEAR:
Hearing
Protection
Long Pants
Heavy Shoes
Cut from your right to your left.
WARNING:
tion and hearing protection. Never lean over
the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and
cause blindness or other serious injury.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration. The cutting line will last longer and will
be less likely to “weld” onto the spool.
Always release the throttle triggerand allow the
engine to return to idle speed when not cutting.
To stop engine:
S
Release the throttle trigger.
S
Move the ON/OFF switch to the OFF position.
TRIMMER LINE ADVANCE
Advance line by tapping the bottom of the cutting head lightly on the ground while engine is
running at full speed. The metal line limiter
blade attached to the guard will cut the line to
the proper length.
WARNING:
round line. Other sizes and shapes of line will
notadvance properly and willresult inimproper cutting head function orcan cause serious
injury. Do not use other materials such as
wire, string, rope, etc. Wire can break off during cutting and become a dangerous missile
that can cause serious injury.
Eye Protection
Always wear eye protec-
Use only 2 mm diameter
CUTTING METHODS
WARNING:
do not crowd the line when cutting around
hard objects (rock, gravel, fence posts, etc.),
whichcan damage the trimmer head, become
entangled in the line, or be thrown causing a
serious hazard.
S
The tip of the line does the cutting. You will
achieve the best performance and minimum line wear by not crowding the line into
the cutting area. The right and wrong ways
are shown below.
Tip of the Line
Does The Cutting
RightWrong
S
The line will easily remove grass and
weedsfrom around walls, fences, treesand
flower beds, but it also can cut the tender
bark of trees or shrubs and scar fences.
S
For trimming or scalping, use less than full
throttle to increase line life and decrease
head wear, especially:
S
During light duty cutting.
S
Near objects around which the line canwrap such as small posts, trees or fence
wire.
S
Formowing or sweeping, use full throttle for
a good clean job.
TRIMMING -- Hold the bottom of the trimmer
head about 80 mm above the ground and at
an angle. Allow only the tip of the line tomake
contact. Do not force trimmer line into work
area.
Trimming
3in.(8cm)
Above Ground
SCALPING -- The scalping technique removes unwanted vegetation. Hold the bottom
of the trimmer head about 80 mm above the
ground and at an angle. Allow the tip of theline
to strike the ground around trees, posts,
monuments, etc. This technique increases
line wear.
Scalping
Useminimum speed and
Line Crowded Into
Work Area
6
MOWING -- Yourtrimmer is ideal for mowing
in places conventional lawn mowers cannot
reach. In the mowing position, keep the line
parallel to the ground. Avoid pressing the
head into the ground as this can scalp the
ground and damage the tool.
Mowing
MAINTENANCE
SWEEPING -- The fanning action of the rotating line can be used for a quick and easy
clean up. Keep the line parallel to and above
the surfaces being swept and move the tool
from side to side.
Sweeping
WARNING:
plug before performing maintenance except
for carburetor adjustments.
Disconnect the spark
CHECK FOR LOOSE
FASTENERS AND PARTS
S
Spark Plug Boot
S
Air Filter
S
Housing Screws
S
Assist Handle Screw
S
Debris Shield
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
S
ON/OFF Switch -- Ensure ON/OFF functions properly by moving the switch to the
OFF position. Make sure engine stops;
then restart engine and continue.
S
Fuel Tank -- Discontinue use of unit if fuel
tank shows signs of damage or leaks.
S
Debris Shield -- Discontinue use of unit if
debris shield is damaged.
INSPECT AND CLEAN UNIT AND
LABELS
S
After each use, inspect complete unit for
loose or damaged parts. Clean the unit and
labels using a damp cloth with a mild detergent.
S
Wipe off unit with a clean dry cloth.
CLEAN AIR FILTER
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.
2. Remove parts as illustrated.
NOTE:
flammable solvent toavoid creating a fire hazard or producing harmful evaporative emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Add a few drops of oil to the filter; squeeze
6. Replace parts.
Donot clean filter in gasoline or other
the filter to distribute oil.
Air Filter
Air Filter
Cover
Screws
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0,6 mm. Ignition timing is
fixed and nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder anddiscard.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 19 mm
socket wrench.
4. Reinstall the spark plug boot.
7

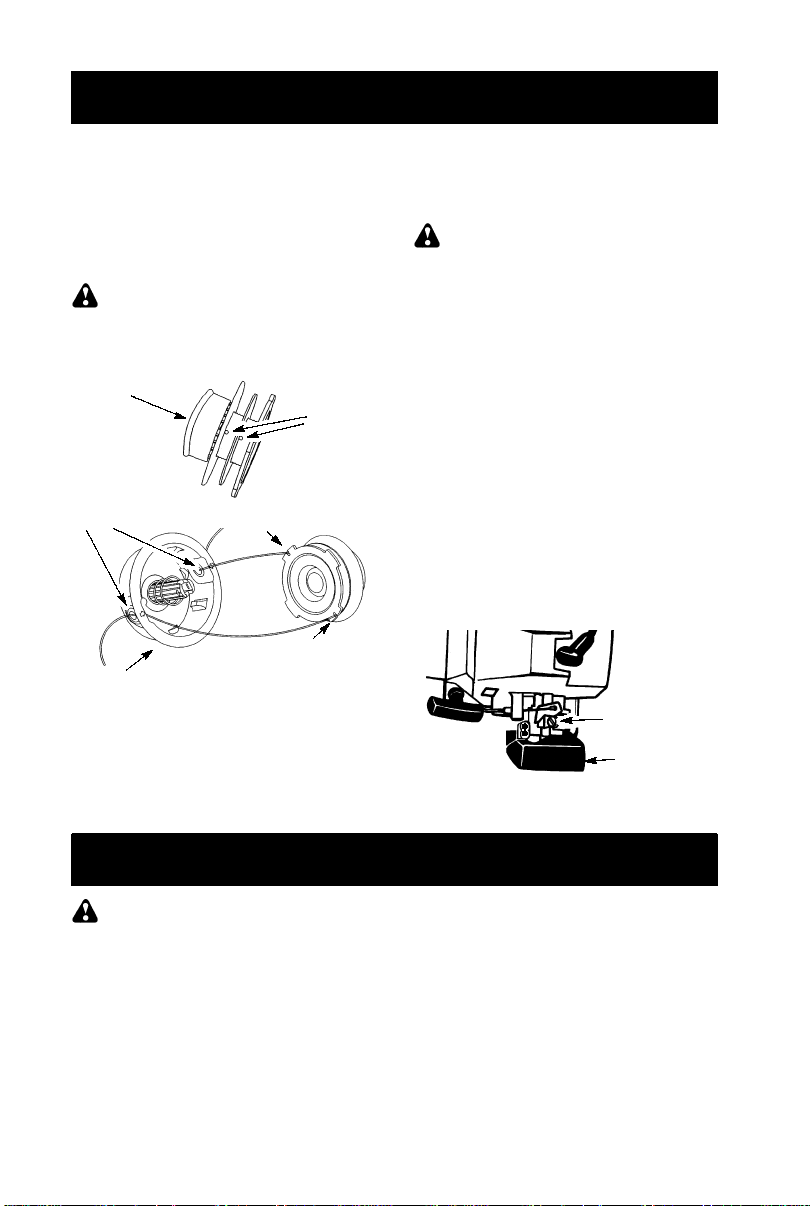

SERVICE AND ADJUSTMENTS
REPLACING THE LINE
1. Move the ON/OFF switch to the OFF
position.
2. Disconnect the spark plug lead wire.
3. Remove spool byfirmly pulling ontapbutton. Clean entire surface of hub and
spool. Replace with apre-wound spool, or
cut two lengths of 4 meters of 2 mm diameter line.
WARNING:
string, etc., which can break off and become a
dangerous missile.
4. Insert ends of the line about 1 cm into the
small hole on the inside of spool.
Spool
Line exit holes
Hub
5. Wind the line evenly and tightly onto the
spool. Wind in the direction of the arrows
found on the spool.
6. Push the line into the notches, leaving 7 -12 cm unwound.
7. Insert the line into the the exit holes in the
hub as shown in the illustration.
8. Align the notches with the line exit holes.
Never use wire, rope,
Small
Holes
Line in Notch
Line in Notch
9. Push spool into hub until it snaps into
place.
10. Pull the lines extending outside of the hub
to release them from the notches.
CARBURETOR ADJUSTMENT
WARNING:
making idle speed adjustments. The trimmer
head will be spinning during this procedure.
Wear your protective equipment and observe
all safety precautions.
The carburetor has been carefully set at the
factory. Adjustments may be necessary ifyou
notice any of the following conditions:
S
Engine will not idle when the throttle is re-
leased.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making adjustments. Keep all parts of your body away
from the cutting attachment and muffler.
Keep others away when
Idle Speed Adjustment
Allow engine to idle. Adjust speed until engine
runs without stalling (idle speed too slow).
S
Turn idle speed screw clockwise to in-
crease engine speed if engine stalls ordies.
S
Turn idle speed screw counterclockwise to
decrease engine speed.
Idle Speed
Screw
Air Filter
Cover
If you require further assistance or areunsure
about performing this procedure, contact an
authorized service dealer.
STORAGE
WARNING:
steps after each use:
S
Allow engine to cool before storing ortransporting.
S
Store unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
S
Empty fuel tank before storing or transporting the unit.
S
Store unit and fuel well out of the reach of
children.
S
Store unit with all guards in place. Position
unit so that any sharp object cannot accidentally cause injury.
Perform the following
SEASONAL STORAGE
Prepare unit for storage at end of season orif
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
S
Clean the entire unit before lengthy stor-
age.
S
Store in a clean dry area.
S
Lightly oil external metal surfaces.
ENGINE
S
Remove spark plug and pour 1 teaspoon of
40:1, 2-cycleengine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
S
Replace spark plug with new one of recom-
mended type and heat range.
8
S
Clean air filter.
S
Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
S
At the beginning of the next season, use
only fresh fuel having theproper gasoline to
oil ratio.
OTHER
S
Do not store gasoline from one season to
another.
S
Replace your gasoline can if it starts to rust.
TROUBLESHOOTING TABLE
WARNING:
recommended remedies below except remedies that require operation of the unit.
Always stop unit and disconnect spark plug before performing all of the
TROUBLECAUSEREMEDY
Engine will not
start.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Engine runs
hot.
1. ON/OFF switch in OFF
position.
2. Engine flooded.
3. Fuel tank empty.
4. Spark plug not firing.
5. Fuel not reaching
carburetor.
6. Carburetor requires
adjustment.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
5. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
1. Move ON/OFF switch to ON position.
2. See “Starting a Flooded Engine” in
Operation Section.
3. Fill tank with correct fuel mixture.
4. Install new spark plug.
5. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
6. Contact an authorized service dealer.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
1. Empty fuel tank and refill with
correct fuel mixture.
2. Replace with correct spark plug.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
9
DECLARATION OF CONFORMITY
relating to 2000/14/EC
EU Declaration of Conformity relating to 2000/14/EC
Poulan/Weed Eater Division, Electrolux Home Products, Inc.,
We,
75501, USA, Tél. : +1 903 223 4100, declare under sole responsibility that the
model 24C grass trimmer
and from serial numbers 2002--319N00001 and onwards, conforms to the provisions ofthe
DIRECTIVE. The cutting width is 431 mm. The measured sound power is 108,4 dB and
the guaranteed sound power is 112 dB.
Texarkana 02--11--1
wasassessed in accordance with Annex V of the DIRECTIVE
5
Michael S. Bounds, Director
Product Safety and Standards
Texarkana, TX,
Husqvarna
DECLARATION OF CONFORMITY
relating to 98/37/EC
EU Declaration of Conformity
Europe)
Poulan/Weed Eater Division, Electrolux Home Products, Inc.,
We,
75501, USA, Tél. : +1 903 223 4100, Declare under sole responsibility that
model 24C grass trimmer
the provisions of the DIRECTIVES:
(electromagnetic compatibility),including amendments and is in conformity with the
following standards:
SMP,The Swedish Machinery Testing Institute,
Sweden, has carried out voluntary type approval. The certificate(s) are numbered:
SEC/97/552
Texarkana 02--11--15
.
EN 292--2, EN ISO 11806
(Directive 98/37/EC, Annex II, A) (Only applies to
Texarkana, TX,
from serial numbers 2002--319N00001 and onwards, follows
98/37/EC
(machinery) and
CISPR 12.
and
Fyrisborgsgatan 3 S--754 50 Uppsala,
Husqvarna
89/336/EEC
Michael S. Bounds, Director
Safety and Standards
10
TECHNICAL DATA SHEET
M
ODEL: 24C
ENGINE
Displacement, cm
Maximum engine power, measured in
accordance with ISO 8893, kW0,7
ENGINE ROTATIONAL SPEEDS
At maximum engine power8000
Recommended maximum speed8000
Recommended speed idling4000
FUEL AND LUBRICATION SYSTEM
Fuel tank volume capacity, cm
Fuel consumption at maximum engine power,
measured in accordance with ISO 8893, g/h407
Specified fuel consumption at max. engine power,
measured in accordance with ISO 8893, g/kWh768
WEIGHT
Without cutting attachment or shield, empty tank, kg3,7
CUTTING ATTACHMENT
Cutting head assembly, part number#530095846
NOISE LEVELS (Octave Band Analysis 100--10000hz 1/3 Octave)
SOUND PRESSURE LEVELS measured in accordance with ISO 7917
Idling, dB(A)81
Racing, dB (A)96
SOUND POWER LEVELS measured in accordance with ISO 10884
Idling. dB(A)91
Racing, dB(A)108
VIBRATION LEVELS
FRONT HANDLE
Idling, m/s
Racing, m/s
REAR HANDLE
Idling, m/s
Racing, m/s
3
3
25
450
measured in accordance with ISO 7916
2
2
2
2
7,8
4,4
14,3
6,0
YEAR OF CONSTRUCTION:
MANUFACTURER’S ADDRESS:
2003
Husqvarna
SE--561 82 Huskvarna
Huskvarna, Sweden
11
We hope you find the links below useful. For further gardening information visit
