225E
Operator’s manual (CARB, EPA)
Read through the Operator‘s manual carefully and
understand the content before using the machine.
101 89 19-95
Page 2
SYMBOL EXPLANATION
Symbols
10000 rpm
max
WARNING! The edger can be
dangerous!
Careless or incorrect use can result
in serious or fatal injury to the
operator or others.
Read through the Operator‘s
Manual carefully and understand
the content before using the
machine.
Always use
• A protective helmet where there is
a risk of falling objects
• Ear protection
• Approved eye protection
• Max. speed of output axle, rpm
• Always wear approved protective
gloves.
• Use anti-slip and stable boots.
Checks and/or maintenance should
be carried out with the engine
switched off, with the stop switch in
the STOP position.
Always wear approved protective
gloves.
• This product is in accordance with
applicable CE directives.
• Beware of thrown objects and
ricochets.
• Warning for rotating blade.
Keep hands and feet clear.
• Warning! The blade continues to
rotate even after the engine has
stopped.
When the engine has stopped, stop
the blade from rotating by letting
the blade come in contact with the
ground.
Regular cleaning required.
Ocular control.
Approved eye protection must
always be used.
2 – English
15 m
50FT
15 m
50FT
Indicates the direction of rotation.
• The operator of the machine must
ensure that no persons or animals
comes within a 15 metre radius
while working.
Page 3
CONTENTS
Before using a new machine
• Read the Operator‘s Manual carefully.
• Check the assembly and adjustment of the cutting equipment.
See page 13.
• Start the machine and check the carburetor settings.
See page 16-17.
IMPORTANT! A too lean carburetor adjustment significantly
increases the risk of an engine breakdown.
Insufficient care of the air filter will cause deposits on the spark
plug resulting in starting difficulties.
Maintenance, replacement, or repair of the emission
control devices and systems may be performed by any
nonroad engine repair establishment or individual.
WARNING!
Under no circumstances may the design of
!
the machine be modified without the permission of the manufacturer. Always use genuine
accessories. Non-authorised modifications
and/or accessories can result in serious
personal injury or the death of the operator or
others.
Your warranty does not cover damage or
liability caused by the use of non-authorized
accessories or replacement parts.
List of contents
SYMBOL EXPLANATION
Symbols............................................................................... 2
CONTENTS
Before using a new machine ............................................... 3
List of contents .................................................................... 3
SAFETY INSTRUCTIONS
Personal protective equipment............................................ 4
The machine‘s safety equipment......................................... 4
Control, maintenance and service of the machine‘s safety
equipment............................................................................ 6
Cutting equipment ............................................................... 7
General safety instructions.................................................. 8
General working instructions ............................................. 10
Basic working techniques.................................................. 10
WHAT IS WHAT?
What is what on the edger?............................................... 12
ASSEMBLY
Assembling the loop handlebar ......................................... 13
Assembling the angle gear................................................ 13
Assembling the blade ........................................................ 13
FUEL HANDLING
Fuel mixture....................................................................... 14
Fuelling.............................................................................. 14
ST ART AND STOP
Control before starting....................................................... 15
Start and stop .................................................................... 15
MAINTENANCE
Carburetor ......................................................................... 16
Muffler with catalytic converter .......................................... 18
Cooling system.................................................................. 18
Air filter .............................................................................. 18
Spark plug ......................................................................... 19
Angle gear ......................................................................... 19
Lubricating the flexible drive axle ...................................... 19
Adjusting the edger‘s cutting depth ................................... 19
Maintenance schedule ...................................................... 20
TECHNICAL DATA
225E .................................................................................. 21
FEDERAL AND CALIFORNIA EMISSION
CONTROL WARRANTY STATEMENT
Your warranty rights and obligations ................................. 22
English – 3
Page 4
SAFETY INSTRUCTIONS
Personal protective equipment
IMPORTANT INFORMATION
• An edger used incorrectly or carelessly can become a
dangerous tool, that can cause serious or fatal injury
to the operator or others. It is extremely important that
you read and understand the content of this manual.
• When using an edger, personal protective equipment
approved by the appropriate authorities must be used.
Personal protective equipment does not eliminate the
risk of accidents, however, it can reduce the effects of
an injury in the event of an accident. Ask your dealer
for help when choosing protective equipment.
GLOVES
Gloves should be worn when
necessary, e.g., when assembling cutting equipment.
EAR PROTECTION
Ear protection offering sufficient dampening effect should
be used.
EYE PROTECTION
Blows from branches or
objects thrown by the rotating
cutting equipment can damage
the eyes.
The machine‘s safety equipment
This section describes the machine‘s safety equipment, its
function and how checks and maintenance are carried out to
ensure that it operates correctly. (See the chapter
to locate where this equipment is positioned on your
what“
machine.)
WARNING!
Never use a machine with defective safety
!
equipment. Follow the control, maintenance
and service instructions described in this
section.
1. Throttle trigger
lock
The throttle trigger lock is
designed to prevent the throttle
from accidentally being
engaged. When the trigger
lock (A) is pressed into the
handle (= when you hold the
handle) the throttle (B) is
released. When the grip on the
handle is released the throttle
and the throttle trigger lock
return to their original positions. This takes place via two
independent return spring
systems. This means that the
throttle is automatically locked
in its “idling“ position.
“What is
A
B
BOOTS
Use anti-slip and stable boots.
CLOTHING
Wear clothes made of a strong
fabric and avoid loose clothing
that can catch on shrubs and
branches.
FIRST AID KIT
A first aid kit should be carried
by operators of edgers.
2. Stop switch
The stop switch should be
used to stop the engine.
"
3. Cutting
attachment guard
This guard is intended to
prevent objects from being
thrown towards the operator
and to protect the operator
from unintentionel contact with
the cutting attachment.
4 – English
Page 5
SAFETY INSTRUCTIONS
4. Vibration damping
system
Your machine is equipped with
a vibration damping system,
which is designed to give as
vibration-free and comfortable
use as possible.
The use of incorrect cutting
equipment increases the level
of vibration.
The machine‘s vibration
damping system reduces the
transfer of vibrations between
the engine unit/ cutting equipment and the machine‘s
handles. The engine body
including the cutting equipment
is suspended on the handlebar
system via a vibration damping
element.
5. Muffler
The muffler is designed to give
the lowest possible noise level
and to direct the engine‘s
exhaust fumes away from the
operator. Muffler fitted with
catalytic converter is also
designed to reduce harmful
exhaust components.
In countries that have a warm
and dry climate the risk of fire
is obvious. We have therefore
fitted certain mufflers with a
spark arrest screen. Make sure
that your muffler is fitted with
this kind of screen.
It is extremely important that
the instructions for checking,
maintaining and servicing the
muffler are followed. (see the
section
and service of the machine‘s
safety equipment“
“Control, maintenance
).
!
WARNING!
Over exposure to vibrations can result in
blood-vessel or nerve injury to persons
suffering with blood circulation problems.
Seek medical attention if you experience
physical symptoms that can be related to
over exposure to vibrations. Examples of
such symptoms are “numbness“, lack of
feeling, “tickling“, “pricking“, “pain“ lack of
or a reduction in normal strength, changes in
the colour of the skin or its surfaces. These
symptoms normally appear in the fingers,
hands or wrists.
WARNING!
The exhaust fumes from the engine are hot
!
!
and may contain sparks which can start a fire.
Never start the machine indoors or near
combustible material!
WARNING!
Mufflers fitted with catalytic converters
become extremely hot during use and after
stopping. This also applies at idling speeds.
Contact can result in burns to the skin. Be
observant to the risk of fire!
6. Cutting equipment
The blade is designed and
machined for coping with the
wear that cutting the edges of
lawns involves.
7. Locking nut
The locking nut secures the
cutting equipment on the
output shaft.
English – 5
Page 6
SAFETY INSTRUCTIONS
Control, maintenance and service of
the machine‘s safety equipment
IMPORTANT INFORMATION
• All service and repairs to the machine require special
training.
• This applies especially to the machine‘s safety equipment. If the machine does not meet any of the controls
listed below you should contact your service workshop.
• The purchase of one of our products guarantees that
professional repair and servicing will be carried out on
it. If the point of purchase is not one of our servicing
dealers, please ask for details of the closest service
workshop.
1. Throttle trigger
lock
• Check that the throttle is
locked in the “idling position“
when the throttle trigger lock
is in its original position.
• Press in the throttle trigger
lock and make sure it returns
to its original position when
released.
3. Cutting
attachment guard
• Ensure that the guard is
undamaged and not cracked.
• Replace the guard if it has
been exposed to impact or is
cracked.
• Always use the prescribed
blade an guard combination,
see chapter
"Technical data"
4. Vibration damping
system
• Check the vibration damping
element regularly for material
cracks and distortion.
• Check that the vibration
damping element is securely
attached between the engine
unit and the handlebar unit.
.
• Ensure that the throttle and
throttle trigger lock move
easily and that their return
spring systems function.
"Start"
• See section
machine and apply full
throttle. Release the throttle
and check that the cutting
equipment stops and remains
at a standstill. If the cutting
equipment rotates with the
throttle in the idling position
then the carburetor‘s idling
setting must be checked. See
chapter
“Maintenance“.
. Start the
2. Stop switch
#
5. Muffler
1. Never use a machine that
has a defective muffler.
2. Check regularly that the
muffler is secure.
3. If your muffler is fitted with
a spark arrest screen then
it should be cleaned
regularly. A blocked
screen leads to the engine
overheating with serious
damage as a result. Never
use a muffler with a
defective spark arrest
screen.
• Start the engine and make
sure that the engine stops
when the stop switch is
moved to the stop position.
6 – English
Page 7
SAFETY INSTRUCTIONS
6. Cutting equipment
Two basic rules:
1) Only use the cutting and
guard equipment we
recommend! See chapter
“Technical data“.
2) Check the cutting equipment with regard to
damage and crack
formation. Damaged
cutting equipment should
always be replaced.
7. Locking nut
• Protect your hand from injury
when assembling, use the
blade guard as protection
when tightening with a socket
spanner. Tighten the nut by
turning against the direction
of rotation. Loosen the nut by
turning in the direction of
rotation. (NOTE! the nut has
a left-hand thread).
• Tighten the nut using a
socket spanner, 35 - 50 Nm
(3.5 - 5 kpm).
NOTE!
The locking nut‘s nylon lock must not be so worn that it can
be turned by hand. The lock shall hold at least 1.5 Nm. The
nut should be replaced after it has been put on approx. 10
times.
!
WARNING!
Always stop the engine before starting work
on any part of the cutting equipment. This
continues to rotate even after the throttle has
been released. Ensure that the cutting equipment has stopped completely and remove the
cable from the spark plug before you start to
work on it.
!
WARNING!
Never use a machine with defective safety
equipment. The safety equipment should
be maintained as described in this section.
If your machine does not meet any of these
controls you should contact your service
workshop.
English – 7
Page 8
SAFETY INSTRUCTIONS
General safety instructions
IMPORTANT INFORMATION
• The machine is only designed for cutting the edges of
lawns.
• The only accessories to be used with the engine unit
as a drive source are the cutting units we recommend
in the chapter
• The operator is responsible for incidents and risks
occurring to people and property.
• Never use the machine if you are tired, if you have
consumed alcohol, or if you are taking medicines that
can affect your sight, your judgement or the control of
your body.
• Do not operate when it's dark.
• Use personal protective equipment. See the section
“Personal protective equipment“.
• Never use a machine that has been modified so that it
no longer corresponds with the original design.
• Never use a machine that is faulty. Follow the maintenance, control and service instructions in this
Operator‘s Manual.
Some maintenance and service actions should be
carried out by trained and qualified specialists. See the
chapter
“Technical data“
“Maintenance“
.
.
Safety instructions before starting work
• Inspect the working area. Remove loose objects such as
stones, broken glass, nails, steel wire, string, etc. that can be
thrown or become entangled in the blade or blade guard.
• Keep unauthorised persons at a distance. Children, animals,
onlookers and helpers should be outside the safety zone of 15
meters (50 feet). Stop the machine immediately if anyone
approaches.
• Check the entire machine before starting work. Replace
damaged parts. Check for fuel leakage and that all safety
guards and covers are complete and fastened securely.
Check all nuts and bolts.
• Check the blade for cracks or
any other damage.
• Ensure the blade guard is
mounted and not damaged.
WARNING!
Faulty cutting equipment increases the risk of
!
accidents.
Personal protection
• Always wear boots, and the
other safety equipment
described in the section
”Personal protective
equipment”
• Always wear working clothes
and heavy-duty, long
trousers.
• Never wear loose fitting
clothes or jewellery.
• Persons with long hair
should, for personal safety,
put their hair up.
.
Safety instructions regarding the
surroundings
• Check that the blade and blade guard are correctly secured.
• When adjusting the carburetor make sure the blade is held
against the ground and that no one is in the immediate vicinity.
• Make sure the blade does not rotate when idling.
• Make sure the handle and safety features are in order. Never
use a machine that has parts missing or has been changed in
relation to the specification.
• Only use the machine for the purpose it was intended for.
• Never allow children to use the machine.
• Ensure no one comes closer than 15 metres when working.
• Never allow anyone else to use the machine without first
ensuring that they have understood the contents of the
Operator’s Manual.
8 – English
Page 9
SAFETY INSTRUCTIONS
Start
WARNING!
When the engine starts with the choke lever
!
• The complete clutch cover
with shaft must be fitted
before the machine is started,
otherwise the clutch can
become loose and cause
personal injury.
• Never start the machine
indoors. Bear in mind the
dangers of inhaling the
engine‘s exhaust fumes.
• Observe your surroundings
and make sure that there is
no risk of people or animals
coming into contact with the
cutting equipment.
• Place the machine on the
ground, make sure the blade
is free from branches and
stones. Press the machine
body against the ground
using your left hand (NOTE!
Do not use your foot). Grip
the starter handle with your
right hand and pull the starter
cord.
in the choke or starter throttle position the
cutting tool (blade or trimmer) starts to rotate
immediately.
Fuel safety
• Never fill the machine while
the engine is running. Always
stop the engine and let it cool
for a few minutes before
refuelling.
• Provide good ventilation
when filling or mixing fuel
(petrol and 2-stroke oil).
• Move the machine at least 3
m from the filling position
before starting.
• Never start the machine:
a) If you have spilt fuel on it.
Wipe up all spillage.
b) If you have spilt fuel on
yourself or your clothes.
Change your clothes.
c) If there is a fuel leak. Make
regular checks for leakage
from the fuel cap and the
fuel supply pipes.
Transport and storage
• Store and transport the machine and fuel so that any leakage
or fumes do not risk coming into contact with sparks or naked
flames. For example, electric machines, electric motors,
electrical switches/power switches, heaters or the like.
• When storing and transporting fuel approved containers
intended for this purpose must be used.
• When storing the machine for long periods the fuel tank must
be emptied. Contact your local petrol station to find out how to
dispose of excess fuel.
• The engine must be cooling off before storage or packaging.
WARNING!
Exercise great care when handling fuel. Bear
!
in mind the risk of fire, explosions and
inhaling fumes.
English – 9
Page 10
SAFETY INSTRUCTIONS
General working instructions Basic working techniques
IMPORTANT INFORMATION
• This section takes up the basic safety precautions for
working with the edger.
• If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact your
dealer or your service workshop.
• Avoid all usage which you consider to be beyond your
capability.
Basic safety precautions
1. Observe your surroundings:
• To ensure that people, animals or other things cannot affect
your control of the machine.
• To ensure that the above mentioned do not come into contact
with the cutting equipment or objects that can be thrown by
the cutting equipment.
• NOTE! Never use a machine without the possibility of calling
for help in the event of an accident.
Safety instruction while working
• Always make sure you have
a safe and firm foothold.
• Always hold the machine with
both hands. Hold the
machine to the right of the
body.
• Make sure hands and feet do
not come into contact with the
blade when the engine is
running.
• When the engine is switched
off keep hands and feet well
away from the blade until it
has stopped.
• Always cut edges at full
throttle.
2. Avoid usage in
unfavourable weather
conditions. For example,
thick fog, heavy rain,
strong winds or extreme
cold, etc. To work in bad
weather conditions is tiring
and can create dangerous
circumstances, e.g.
slippery surfaces.
3. Make sure you can walk
and stand safely. Look out
for any obstacles with
unexpected movement
(roots, stones, branches,
pits, ditches, etc.). Take
great care when working
on sloping ground.
4. The engine should be
switched off before
moving.
5. Never put the machine down with the engine running
unless you have good sight of it.
• Always keep the blade close to the ground.
• Always drop to idling speed after each working operation.
Longer periods running at full throttle without loading the
engine (that is without resistance, which the engine feels from
the cutting equipment when trimming) can lead to serious
engine damage.
• Be especially careful when pulling the edger towards you
during work.
• If heavy vibrations occur, stop the engine. Remove the spark
plug cable from the spark plug. Check that the machine is not
damaged. Repair any damage.
WARNING!
Sometimes grass can collect in the blade
!
!
guard and blade. Always stop the engine
when cleaning.
WARNING!
Beware of thrown objects. Always wear eye
protection. Never lean over the blade guard.
Stones rubbish etc. can be thrown up into the
eyes resulting in blindness or other serious
injury.
Keep unauthorised persons at a distance.
Children, animals, onlookers and helpers
should be outside the safety zone of 15
meters (50 feet). Stop the machine immediately if anyone approaches.
10 – English
Page 11
SAFETY INSTRUCTIONS
Safety instructions after completing work
• Ensure the blade has
stopped before cleaning,
carrying out repairs or an
inspection. Remove the spark
plug cable from the spark
plug.
• Wear heavy-duty gloves
when carrying out repairs on
the edger.
• Store the machine out of
reach of children.
• Only use original spare parts
with repair.
English – 11
Page 12
WHAT IS WHAT?
1
4
21
21
21
4
20
1
What is what on the edger?
1. Blade
2. Grease filler cap
3. Angle gear
4. Blade guard
5. Shaft
6. Loop handlebar
7. Throttle
8. Stop switch
9. Throttle trigger lock
10. Suspension for harness
26
24
15. Air filter cover
16. Clutch cover
17. Handlebar adjustment
18. Locking nut
19. Support flange
20. Drive disc
21 Locking handle
22. Socket spanner
23. Operator‘s Manual
24. Locking pin
11. Cylinder cover
12. Starter handle
13. Fuel tank
14. Choke
12 – English
25. Allen key
26. Carburetor screwdriver
Page 13
ASSEMBLY
Assembling the loop handlebar
• Unscrew the handle and
plastic cover from the
handlebar bracket.
• Place the loop handlebar with
the handlebar holder on the
handlebar bracket. Fit the
handle and plastic cover. Do
not tighten too tight.
Assembling the blade
Fit the blade as follows:
1. Fit the drive disc (A) on the
outgoing shaft. Make sure
that the edge that fits in
the hole of the blade is
facing outward.
2. Block the blade rotation by
inserting locking pin in the
hole behind the blade
guard engaging it in the
corresponding hole in the
drive disc.
3. Fit the blade (B) on the
drive disc.
4. Fit the support
flange (C). The support
flange must be fitted with
its outer edge hard up
against the blade.
5. Fit the locknut (D). NOTE!
The locknut has left-hand
threads. The tightening
torque of the locknut is 35
– 50 Nm.
A
B
C
D
Assembling the angle gear
• Assemble the angle gear
back on the supporting tube.
Turn the blade so that the
drive shaft engages in the
angle gear.
• Position the angle gear so
that its slot is aligned with the
line on the supporting tube.
• Firmly tighten the screw.
6. Remove the locking pin.
NOTE! Do not forget to remove the locking pin before using
the machine.
WARNING!
Under no circumstances may the edge cutter
!
blade be used without the blade guard fitted.
English – 13
Page 14

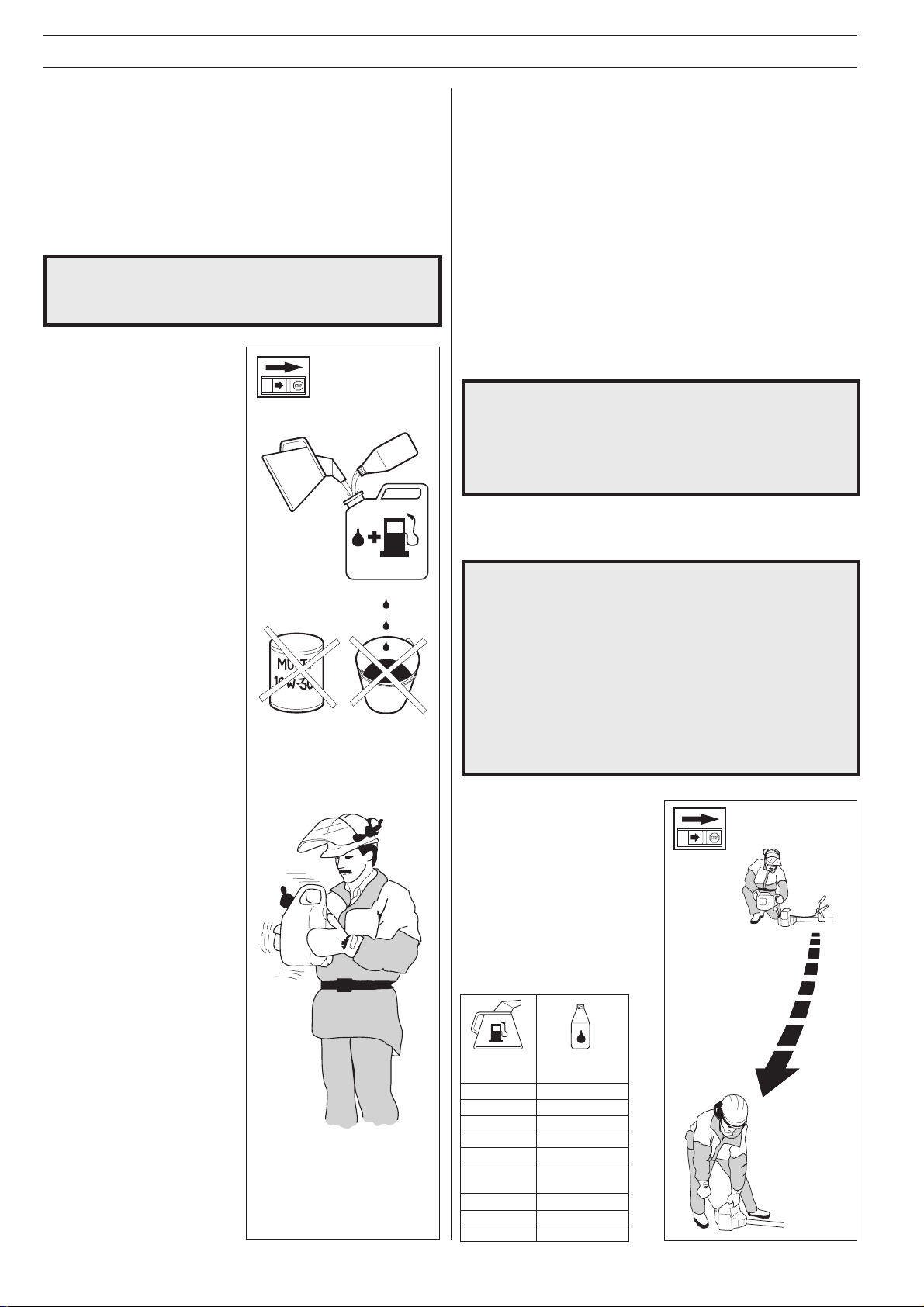

FUEL HANDLING
Fuel mixture
NOTE!
The edger is fitted with two-stroke engines and must always be
run on a mixture of gasoline and two-stroke oil. To ensure the
correct mixture proportions it is important to measure the
quantity of oil accurately. When mixing small amounts of fuel
small discrepancies in the amount of oil has a great bearing on
the proportions of the fuel mixture.
WARNING!
Always provide good ventilation when han-
!
Gasoline
NOTE!
Always use high grade
unleaded oil mixed gasoline
(minimum 87 RON). Leaded
fuel will destroy the catalytic
converter and it will no longer
serve its purpose.
• This engine is certified to
operate on unleaded
gasoline.
dling fuel.
Mixture
• Always mix gasoline and oil in a clean container intended for
fuel.
• Always start by filling half the quantity of gasoline required.
Then add the entire oil quantity. Mix (shake) the fuel mixture.
Fill the remaining quantity of gasoline.
• Mix (shake) the fuel mixture carefully before filling in the
machine‘s fuel tank.
• Do not mix more than max. one month’s supply of fuel.
• If the clearing saw is not used for a long period of time, the
fuel tank should be emptied and cleaned.
• This engine is certified to operate on unleaded gasoline.
WARNING!
!
The catalytic converter muffler gets very hot
during and after use. This also applies during
idling. Be aware of the fire hazard, especially
when handling the saw near flammable
substances or vapours.
Fuelling
• The lowest recommended
octane rating is 87. If you run
the engine on lower octane
rating than 87 so-called
“knocking“ can occur. This
leads to an increased engine
temperature, which can result
in a serious engine
breakdown.
• When working at continuous
high revs a higher octane
rating is recommended.
Two-stroke oil
• For the best results use
HUSQVARNA two-stroke oil,
which has been specially
developed for two-stroke
engines.
Mixing ratio 1:50 (2%).
• Never use two-stroke oil
intended for water cooled
outboard motors, so-called
outboard motor oil.
WARNING!
The following precautions reduce the risk of
!
• Clean around the fuel
cap. Contamination in the
tank can disrupt
operations.
• Ensure that the fuel is
well mixed by shaking the
container before filling the
tank.
fire:
Do not smoke or place any sources of heat in
the vicinity of the fuel. Never refuel when the
engine is running. Always stop the engine and
let it cool for a few minutes before refuelling.
Open the fuel cap slowly when fuelling so that
any over pressure is released slowly. Tighten
the fuel cap carefully after refuelling. Always
move the machine from the fuelling place
before starting.
• Never use oil intended of
four-stroke engines.
14 – English
Gasoline
Lit. Lit.
5
10
15
20
US
gallon
1
2 1/2
5
Oil
2%(1:50)
0,10
0,20
0,30
0,40
US
fl. oz.
2 1/2
6 1/2
12 7/8
Page 15
ST ART AND STOP
Control before starting
For reasons of safety follow
these recommendations!
• Check that the support flange
is not cracked due to fatigue
or due to being tightened too
much. Replace the support
flange if it is cracked.
• Ensure that the nut has not
lost its tightening capacity
The nut lock shall have a
locking torque of at least
1.5Nm. The nut‘s tightening
torque shall be 35-50 Nm.
• Check that the blade and the
blade guard are not damaged
or cracked. Replace the
blade or blade guard if it has
been exposed to impact or if
it is cracked.
Cold engine
IGNITION:
Set the stop switch to the start
position.
CHOKE:
Set the choke control in the
choke position.
Warm engine
Use the same starting procedure as for the cold engine, but
do not set the choke control in
the choke position. The start
throttle position is obtained by
setting the choke control in the
choke position and then
returning it to its original
position.
Stop
The engine is stopped by
switching off the ignition.
Start and stop
WARNING!
The complete clutch cover with shaft must be
!
fitted before the machine is started, otherwise
the clutch can become loose and cause
personal injury.
Always move the machine from the filling
position before starting. Place the machine
on a flat surface. Make sure the blade cannot
come into contact with any object. Make sure
that no unauthorised persons are in the
working area, otherwise there is a risk of
serious personal injury. The safety distance
is 15 metres.
WARNING!
!
Start
Press the machine body
against the ground using your
left hand (NOTE! Do not use
your foot). Grip the starter
handle with your right hand
and slowly pull the starter cord
out until you feel some resistance, (the starter hooks grip)
then pull the cord quickly and
powerfully .
Immediately press the choke
control in when the engine fires
and repeat until the engine
starts. When the engine starts,
quickly apply full throttle and
the start throttle will automatically disengage.
NOTE! Do not pull the starter
cord out completely and do not
release the starter cord from
the fully extended position.
This can damage the machine.
When the engine starts with the choke lever in
the choke or starter throttle position the
cutting tool (blade or trimmer) starts to rotate
immediately.
English – 15
Page 16
MAINTENANCE
Carburetor
Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions.
After your unit has been run 8-10 tanks of fuel the engine
has broken in. To ensure that your unit is at peak performance and producing the least amount of harmful emissions after break in, have your authorized servicing dealer,
who has a revolution counter at his disposal, to adjust your
carburetor for optimum operating conditions.
WARNING!
The complete clutch cover with shaft must
!
Operation
• The carburetor governs the
engine‘s speed via the
throttle. Air/fuel is mixed in
the carburetor. The air/fuel
mixture is adjustable. To take
advantage of the engine‘s
optimal output the adjustment
must be correct.
• The setting of the carburetor
means that the engine is
adapted to local conditions,
for example, the climate,
altitude, petrol and the type of
2-stroke oil.
• The carburetor is equipped
with three adjustment
possibilities:
L = Low speed needle
H = High speed needle
T = Idle speed adjuster
screw
• The fuel quantity in relation to
the air flow permitted by the
throttle opening is adjusted
using the L and H-needles.
Turning the needles
clockwise gives a leaner fuel
mixture (less fuel) and turning
them anti-clockwise gives a richer fuel mixture (more fuel). A
leaner mixture gives high revs while a richer mixture give less
revs.
• The T-screw regulates the position of the throttle while the
engine is idling. Turning the screw clockwise gives a higher
idling speed while turning it anti-clockwise gives a lower idling
speed.
be fitted before the machine is started,
otherwise the clutch can become loose
and cause personal injury.
Basic setting
• The carburetor is set to its basic setting when test run at the
factory. The basic setting should be kept during the machine‘s
first working hours. Thereafter the carburetor should be finely
adjusted. Fine adjustment should be carried out by a skilled
technician.
NOTE! If the cutting attachment rotates/moves while the engine
is idling the T-screw should be turned anti-clockwise until the
cutting attachment stops.
Rec. idling speed 2700 rpm.
Recommended max. speed 11 000-12 000 rpm.
WARNING!
If the idling speed cannot be adjusted so
!
that the cutting attachment stops, contact
your service workshop. Do not use the
machine until it has been correctly adjusted
or repaired.
Fine adjustment
• When the machine has been ”run-in” the carburetor should be
finely adjusted. The fine adjustment should be carried out
by qualified person. First adjust the L-jet, then the idling
screw T and then the H-jet.
Conditions
• Before any adjustments are made the airfilter should be clean
and the airfilter cover fitted. Adjusting the carburetor while a
dirty airfilter is in use will result in a leaner mixture when the
filter is finally cleaned. This can give rise to serious engine
damage.
• Carefully turn the L and H needle to the mid point between
fully turned in and fully turned out.
• Do not attempt to adjust the needles beyond the stops as
damage can occur.
• Now start the machine according to the starting instructions
and run it warm for 10 minutes.
NOTE! If the cutting attachment rotates/moves the T screw
should be turned anti-clockwise until the cutting attachment
stops.
Low speed needle L
Try to find the highest idling
speed, turning the low speed
needle L clockwise respectively counter-clockwise. When
the highest speed has been
found, turn the low speed
needle L 1/4 turn counterclockwise.
NOTE! If the cutting attachment rotates/moves in the
idling position, turn the idling
speed screw T counterclockwise until the cutting
attachment stops.
+ 1/4
16 – English
L
Page 17
MAINTENANCE
Final setting of the idling speed T
Adjust the idling speed with the
screw T, if it is necessary to
readjust. First turn the idle
speed adjusting screw T
clockwise until the cutting
attachment starts to rotate/
move.
Then turn, counter-clockwise
until the cutting attachment
stops. A correctly adjusted idle
speed setting occurs when the
engine runs smoothly in every
position. It should also be good
margin to the rpm when the
cutting attachment starts to
rotate/move.
CAUTION! Contact your
servicing dealer, if the idle
speed setting cannot be
adjusted so that the cutting
attachment stops. Do not use
the machine until it has been
properly adjusted or repaired.
Correctly adjusted carburetor
A correctly adjusted carburetor means that the machine
accelerates without hesitation and the machine 4-cycles a
little at max speed. Furthermore, the cutting attachment
must not rotate/move at idling. A too lean adjusted low
speed needle L may cause starting difficulties and bad
acceleration.
A too lean adjusted high speed needle H gives lower power
= less capacity, bad acceleration and/or damage to the
engine.
A too rich adjustment of the two speed needles L and H
gives acceleration problems or too low working speed.
High speed needle H
The high speed needle H
influences the power, speed,
temperature and fuel consumption of the machine. A too
lean adjusted high speed
needle H (high speed needle H
closed too much) gives
overrevs and damages the
engine. Do not let the machine
run at full speed for more than
10 seconds.
Turn the high speed needle
very slowly clockwise until
engine speed is reduced.
Thereafter turn the high speed
needle very slowly counterclockwise and stop when the
engine begins to run roughly.
Then turn the high speed
needle slowly the minimum
amount clockwise until the
engine runs smoothly.
The high speed needle H is
correctly set when the machine
”4-cycles” a little. If the machine ”whistles” the setting is
too lean. If there is too much
smoky exhaust gas at the
same time as the machine ”4cycles” much, the setting is too
rich.
H
NOTE! For optimum setting of the carburetor, contact a
qualified servicing dealer who has a revolution counter at
his disposal.
English – 17
Page 18
MAINTENANCE
Muffler with catalytic converter
A muffler fitted with a catalytic converter reduces the extent of
the following substances in the exhaust fumes:
• Hydrocarbons (HC). Some hydrocarbons in gasoline and the
exhaust are carcinogenic.
• Nitric oxides (NO). Irritating for the breathing air-ways.
• Aldehydes. The most common formaldehyde, is carcinogenic
and causes hypersensitiveness.
NOTE! The level of carbon monoxide is not reduced. This is an
odourless and extremely poisonous substance. Therefore avoid
exposure without good air circulation.
The muffler is also designed to
dampen the noise level and to
direct the exhaust fumes away
from the user. The exhaust
fumes are hot and can contain
sparks, which can result in fire
if the exhaust fumes are
directed towards a dry or
inflammable material. Some
mufflers are fitted with a
special spark arrest screen. If
your machine is fitted with this
type of muffler then the screen
should be cleaned at least
once a week. This is done
using a wire brush. If the
screen is damaged in any
way it should be replaced. If
the screen is blocked this will
result in engine overheating
and damage to the cylinder
and piston.
NOTE!
Never use a machine with a
defective muffler.
Cooling system
To maintain as low operating
temperature as possible the
engine is equipped with a
cooling system.
The cooling system consists
of:
1. An air intake on the starter
unit.
2. Cooling fins on the
flywheel.
3. Cooling fins on the
cylinder
4. Cylinder cover (leads cold
air onto the cylinder).
Clean the cooling system using
a brush at least once a week,
in difficult conditions more
often.
A dirty or blocked cooling
system leads to the engine
overheating resulting in
damage to the cylinder and
piston.
Air filter
The air filter should be cleaned
regularly removing dust and
dirt to avoid:
• carburetor malfunction
• starting problems
• reduced engine power
• unnecessary wear to engine
parts
• abnormal fuel consumption
Clean the filter after every 25
hours or more regularly if
operating conditions are
exceptionally dusty.
4
3
2
1
!
!
18 – English
WARNING!
Mufflers fitted with catalytic converters
become extremely hot during use and after
stopping. This also applies at idling speeds.
Contact can result in burns to the skin. Be
observant to the risk of fire!
WARNING!
The coating on/in the catalytic element can be
hazardous to health if consumed. Wear
gloves when carrying out service work on the
catalytic converter.
Cleaning the air filter
Dismantle the air filter cover
and remove the air filter. Wash
in clean, warm soapy water.
Ensure that the filter is dry
before refitting. An air filter
used for a long period of time
can never be cleaned completely. Therefore it is necessary to replace the filter from
time to time with a new filter. A
damaged air filter must always
be replaced.
Page 19
MAINTENANCE
Spark plug
The condition of the spark
plug is affected by:
• An incorrect carburetor
setting.
• An incorrect fuel mixture
(too much or faulty oil).
• A dirty air filter.
These factors cause
deposits on the spark plug
electrode that may result
in malfunction or starting
difficulties.
If the machine is low on power, difficult to start or runs
poorly while idling always check the spark plug first.
If the spark plug is dirty, clean it and at the same time check
that the electrode gap is 0.5 mm. The spark plug should be
changed after about one month of operation or earlier if necessary.
NOTE! Always use the recommended type of spark plug. An
incorrect spark plug can damage the cylinder/piston.
0,5 mm
Lubricating the flexible drive axle
Inside the edger‘s drive shaft
is a flexible drive axle. The
flexible drive axle should be
regularly lubricated after 30
hours of operation. Loosen
the two screws on the angle
gear and remove it. The
flexible drive axle is easily
removed from the shaft by
taking a firm grip on the axle
end. Lubricate the flexible
drive axle over its entire
length and reinsert it in the
shaft. Turn the axle while
inserting it so that it correctly
engages in the clutch.
Replace the angle gear on
the drive axle shaft and
tighten the two screws.
Adjusting the edger‘s cutting depth
Angle gear
The angle gear is filled with a
sufficient quantity of grease at
the factory. However, before
using the machine you should
check that the angle gear is
filled to 3/4 with grease. Use
HUSQVARNA special grease.
Normally, the grease does not
need to be changed except
when repairs are carried out.
The cutting depth should be
adjusted before starting work.
• Loosen the locking handle (A)
and rotate the guard by
moving the locking handle
backwards or forwards. If the
locking handle is moved
forwards (from the machine)
the cutting depth is
increased. If the locking
handle is moved backwards
(towards the machine) the
cutting depth is reduced.
• Adjust the cutting depth.
• Lock the locking
handle.
A
!
WARNING!
Always bear the machine on the right side of
the body. Always wear protective glasses,
long trousers and heavy-duty shoes when
using the machine. Observe your surroundings, ensure people and animals do not come
in the immediate vicinity or can be hit by
thrown objects. Apply full throttle before the
blade starts to work on the soil.
English – 19
Page 20
MAINTENANCE
NOTE: Use only HUSQVARNA replacement parts. Use of other
brands of replacement parts can cause damage to your unit or
injury to the operator or others. Your warranty does not cover
damage or liability caused by the use of accessories and/or
attachments not specifically recommended by HUSQVARNA.
Maintenance schedule
Below you will find some general maintenance instructions.
Daily maintenance
• Check throttle trigger and throttle trigger lockout function.
• Check stop switch function.
• Check that blade does not rotate at idling.
• Clean the exterior of the edger.
• Check the guard for damage or cracks.
• Change the guard in case of impacts or cracks.
• Check the blade for cracks and chips or damage. Replace if
necessary.
• A non-balanced blade induces heavy vibrations that may
damage the edger.
• Check that the locking nut is sufficiently tightened.
• Check that nuts and screws are sufficiently tightened.
Weekly maintenance
• Check the starter, especially cord and return spring.
• Clean the carburetor area.
• Clean the exterior of the spark plug.
• Remove it and check the electrode gap.
• Adjust it to 0,5 mm (.020"), or change the spark plug.
• Clean the cooling fins on the cylinder and check that the air
intake at the starter is not clogged.
• Check that the angle gear is filled with grease up to 3/4. Use
special grease.
• Clean the air filter.
• Clean the spark arrester screen at muffler. Replace if
damaged.
Monthly maintenance
• Rinse the fuel tank with gasoline.
• Clean the exterior of the carburetor and the space around it.
• Clean the fan and the space around it.
• Check fuel hose for cracks or other damage. Change if
necessary.
• Change fuel filter in fuel tank.
• Check clutch, clutch spring and clutch drum for wear. Change
if necessary.
• Check electrical wires and connections.
• Change the spark plug.
• Change the airfilter.
20 – English
Page 21
TECHNICAL DATA
Technical data
Engine
Cylinder capacity, cu. in/cm
Cylinder bore, inch/mm
Stroke length, inch/mm
Recommended max. speed, rpm
Max. speed, should not be exceeded, rpm
Idling speed, rpm
Speed of output axle, rpm
Max. engine output, acc. to ISO 8893
Ignition system
Manufacturer/type of ignition system
Spark plug
Electrode gap, inch/mm
Fuel lubrication system
Manufacturer/type of carburetor
Fuel tank capacity, US pint/litres
Weight
Weight without fuel and cutting tool, Lbs/kg
Noise levels
Equivalent noise pressure levels at
the user‘s ear, measured according
to prEN 31806 and ISO 7917, dB(A).
Blade:
Equivalent noise power levels
measured according to prEN 31806
and ISO 10884, dB(A).
Blade:
Vibration levels
Vibration levels on the handles measured
according to prEN 31806 and ISO 7916, m/s
Blade, idling rear/front handles:
Blade max. speed rear/front handles:
Cutting equipment
Blade
Blade guard
3
225E
1,55/25,4
1,34/34
1,10/28
11 000-12 000
14 000
2.700
10 000
0,9 kW/9.000 rpm
Walbro MB/CD
Champion RCJ 7Y
0.02/0,5
Walbro WT
1,06/0,5
13,4/ 6,1
95
105
2
2,3/3,4
6,3/3,8
531 00 40-01
503 84 83-01
English – 21
Page 22
FEDERAL AND CALIFORNIA EMISSION CONTROL WARRANTY ST ATEMENT
YOUR WARRANTY RIGHTS AND
OBLIGATIONS
The EPA (U.S. Environmental Protection Agency), Carb
(California Air Resources Board) and Husqvarna Forest &
Garden are pleased to explain the emissions control system
warranty on your 1997 and later Lawn and Garden Equipment
Engine. In U.S., new utility and lawn and garden equipment
engines must be designed, built and equipped to meet the
federal and California stringent anti-smog standards.
Husqvarna Forest & Garden must warrant the emission control
system on your Lawn and Garden Equipment Engine for the
periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your unit.
Your emission control system includes Parts such as the
carburetor and the ignition system.
Where a warrantable condition exists, Husqvarna Forest &
Garden will repair your Lawn and Garden Equipment Engine at
no cost to you. Expenses covered under warranty include
diagnosis, parts and labor.
MANUFACTURER’S WARRANTY
COVERAGE
The 1997 and later utility and lawn and garden equipment
engines are warranted for two years. If any emission related
part on your engine (as listed above) is defective, the part will
be repaired or replaced by Husqvarna Forest & Garden.
OWNER’S WARRANTY RESPONSIBILITIES
As the Lawn and Garden Equipment Engine owner, you are
responsible for the performance of the required maintenance
listed in your Owner’s Manual. Husqvarna Forest & Garden
recommends that you retain all receipts covering maintenance
on your Lawn and Garden Equipment Engine, but Husqvarna
Forest & Garden cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all
scheduled maintenance.
As the Lawn and Garden Equipment Engine owner, you should,
however, be aware that Husqvarna Forest & Garden may deny
you warranty coverage if your Lawn and Garden Equipment
Engine or a part of it has failed due to abuse, neglect, improper
maintenance, unapproved modifications or the use of parts not
made or approved by the original equipment manufacturer.
You are responsible for presenting your Lawn and Garden
Equipment Engine to a Husqvarna Forest & Garden authorized
servicing dealer as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of time,
not to exceed 30 days.
If you have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at 1-800487-5963.
WARRANTY COMMENCEMENT DATE
The warranty period begins on the date Lawn and Garden
Equipment Engine is delivered.
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the initial owner and
each subsequent purchaser that the engine is free from defects
in materials and workmanship which cause the failure of a
warranted part for a period of two years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS
Repair or replacement of any warranted part will be performed
at no charge to the owner at an approved Husqvarna Forest &
Garden servicing dealer. If you have any questions regarding
your warranty rights and responsibilities, you should contact
your nearest authorized servicing dealer or call Husqvarna
Forest & Garden at 1-800-487-5963.
WARRANTY PERIOD
Any warranted part which is not scheduled for replacement as
required maintenance, or which is scheduled only for regular
inspection to the effect of ”repair or replace as necessary” shall
be warranted for 2 years. Any warranted part which is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part.
DIAGNOSIS
The owner shall not be charged for diagnostic labor which leads
to the determination that a warranted part is defective, if the
diagnostic work is performed at an approved Husqvarna Forest
& Garden servicing dealer.
CONSEQUENTIAL DAMAGES
Husqvarna Forest & Garden may be liable for damages to other
engine components caused by the failure of a warranted part
still under warranty.
WHAT IS NOT COVERED
All failures caused by abuse, neglect or improper maintenance
are not covered.
ADD -ON OR MODIFIED PARTS
The use of add-on or modified parts can be grounds for disallowing a warranty claim. Husqvarna Forest & Garden is not
liable to cover failures of warranted parts caused by the use of
add-on or modified parts.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at 1-800487-5963.
WHERE TO GET WARRANTY SERVICE
Warranty services or repairs shall be provided at all Husqvarna
Forest & Garden authorized servicing dealers.
MAINTENANCE, REPLACEMENT AND
REPAIR OF EMISSION-RELATED PARTS
Any Husqvarna Forest & Garden approved replacement part
used in the performance of any warranty maintenance or
repairs on emission-related parts, will be provided without
charge to the owner if the part is under warranty.
EMISSION CONTROL WARRANTY PARTS
LIST
1.Carburetor and internal parts
2.Intake pipe, airfilter holder and carburetor bolts.
3.Airfilter and fuelfilter covered up to maintainance schedule.
4.Ignition System
a) Spark Plug, covered up to maintenance schedule
b) Ignition Module
5.Muffler with catalytic converter
MAINTENANCE STATEMENT
The owner is responsible for the performance of all required
maintenance, as defined in the operator’s manual.
22 – English
´*2{•¶5$¨
Page 23
NOTES
English – 23
Page 24
24 – English
´*2{•¶5$¨
Loading...
