Owner's Manual

IMPORTANT

Safe Operation Practices for Walk-Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

Look for this symbol to point out important safety precautions. It means CAUTION!!! BE COME ALERT!!! YOUR SAFETY IS IN VOLVED.

WARNING: Always disconnect spark plug wire and place it where it can not contact plug in order to pre vent ac cidental start ing when setting up, transporting, ad justing or making re pairs.

WARNING: This snow thrower is for use on sidewalks, driveways and other ground level surfaces. Caution should be exercised while using on sloping surfaces. Do not use snow thrower on surfaces above ground level such as roofs of residences, garages, porch es or other such structures or buildings.

Training

1. Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.

3. Keep the area of operation clear of all persons, particularly small children.

4. Exercise caution to avoid slipping or falling, especially when operating the snow thrower in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before starting the engine (motor).

3. Do not operate the equipment without wearing adequate winter garments. Avoid loose ﬁ tting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.

4. Handle fuel with care; it is highly ﬂ ammable (a) Use an approved fuel container. (b) Never add fuel to a running engine or hot en-

gine.

fuel tank indoors.

(d) Never ﬁ ll containers inside a vehicle or on a truck or

trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle, before ﬁ lling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

WARNING: Snow throwers have exposed rotating parts, which can cause severe injury from contact, or from material thrown from the discharge chute. Keep the area of operation clear of all persons, small children and pets at all times including startup.

CAUTION: Mufﬂ er and other engine parts become extremely hot during operation and remain hot after engine has stopped. To avoid severe burns on contact, stay away from these areas.

WARNING: Engine exhaust, some of its con stituents, and certain vehicle components contain or emit chem icals known to the State of Cal ifornia to cause can cer and birth defects or other re productive harm.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refueling is complete. Do not use a nozzle lock-open device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

5. Use extension cords and receptacles as speciﬁ ed by the manufacturer for all units with electric drive motors or electric starting motors.

6. Adjust the collector housing height to clear gravel or crushed rock surface.

7. Never attempt to make any adjustments while the engine (motor) is running (except when speciﬁ cally recommended by manufacturer).

8. Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.

Operation

1. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or trafﬁ c.

3. After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, disconnect the cord on electric motors, thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

5. Stop the engine (motor) whenever you leave the operating position, before unclogging the collector/impeller housing or discharge chute, and when making any

repairs, adjustments or inspections.

6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.

7. Do not run the engine indoors, except when starting the engine and for transporting the snow thrower in or out of the building. Open the outside doors; exhaust fumes are dangerous.

8. Exercise extreme caution when operating on slopes.

9. Never operate the snow thrower without proper guards, and other safety protective devices in place and working.

10. Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.

11. Do not overload the machine capacity by attempting to clear snow at too fast a rate.

12. Never operate the machine at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.

13. Disengage power to the collector/impeller when snow thrower is transported or not in use.

14. Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counterweights, or cabs).

15. Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a ﬁ rm hold on the handles. Walk; never run.

16. Never touch a hot engine or mufﬂ er.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snow throwers. Never use your hand to clean out the discharge chute. To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

2. Never store the machine with fuel in the fuel tank inside a building where ignition sources are present such as hot water heaters, space heaters, or clothes dryers. Allow the engine to cool before storing in any enclosure.

3. Always refer to operator’s manual for important details if the snow thrower is to be stored for an extended period.

4. Maintain or replace safety and instruction labels, as necessary.

5. Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.

CONGRATULATIONS on your purchase of a new snow thrower. It has been designed, engineered and man ufactured to give best possible dependability and per formance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/department. We have competent, well-trained technicians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will enable you to assemble and maintain your snow thrower properly. Always observe the “SAFETY RULES”.

SERIAL NUMBER: ___________________________

DATE OF PURCHASE: _______________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND ON A DECAL ATTACHED TO THE REAR OF THE SNOW THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 3.0 Quarts (3,4 Liters) and Type: Unleaded Regular only

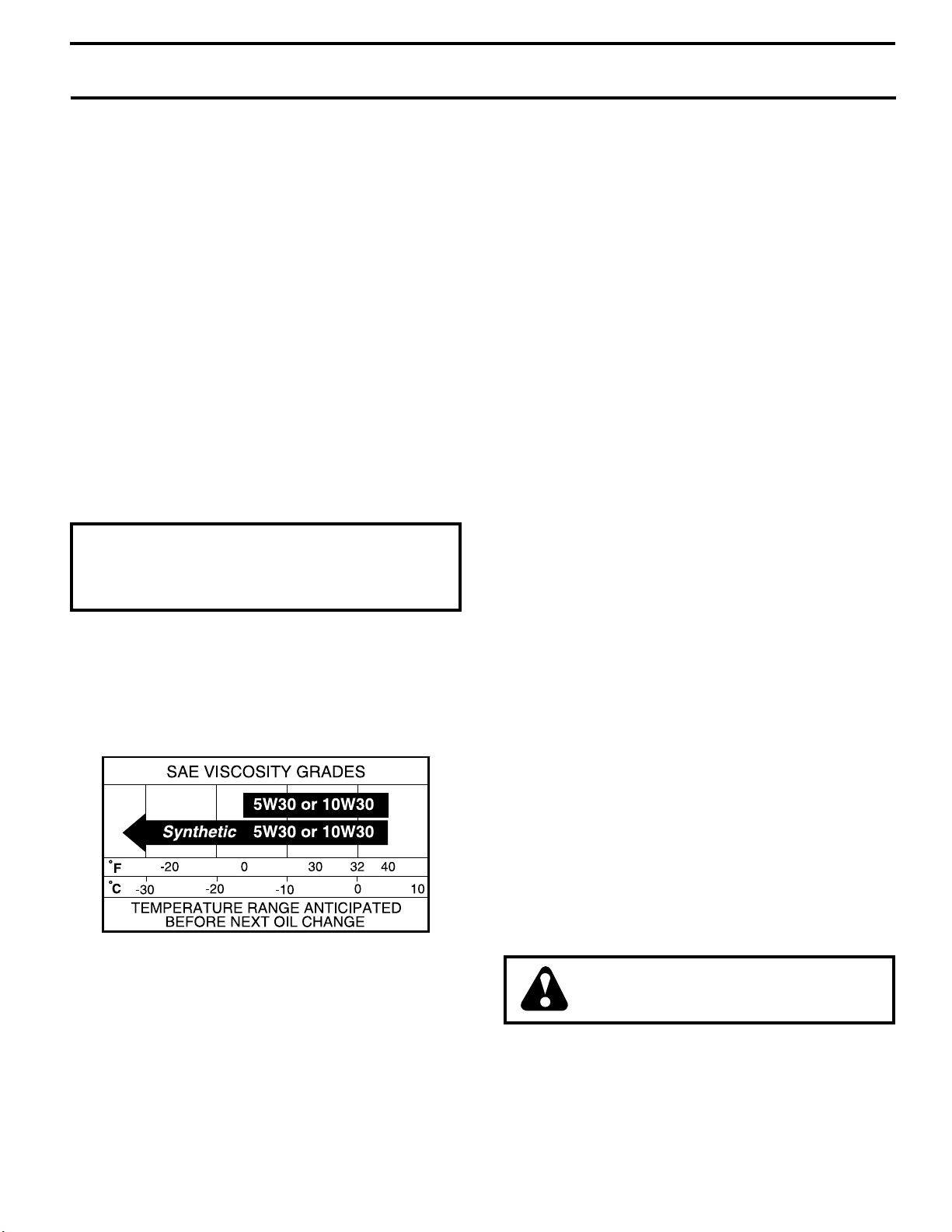

Oil Type SAE 5W-30 or 10W-30 (API SG–SL): (0°F to +40°F / –18°C to +5°C)

Synthetic SAE 5W-30 or 10W-30

(below 0°F / –18°C)

Oil Capacity: 28 Ounces (0,8 Liters)

Spark Plug: Champion RC12YC Gap: 0.030" (0,072 mm)

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your snow thrower.

• Follow the instructions under “Maintenance” and “Storage” sec tions of this own er’s manual.

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS...................................... 3

CUSTOMER RESPONSIBILITIES................................ 3

WARRANTY................................................................ 32

ASSEMBLY / PRE-OPERATION............................... 5-7

OPERATION ............................................................ 8-13

MAINTENANCE..................................................... 14-15

MAINTENANCE SCHEDULE ..................................... 14

SERVICE AND AD JUSTMENTS ........................... 16-18

STORAGE................................................................... 18

TROUBLESHOOTING................................................ 19

REPAIR PARTS ..................................................... 20-31

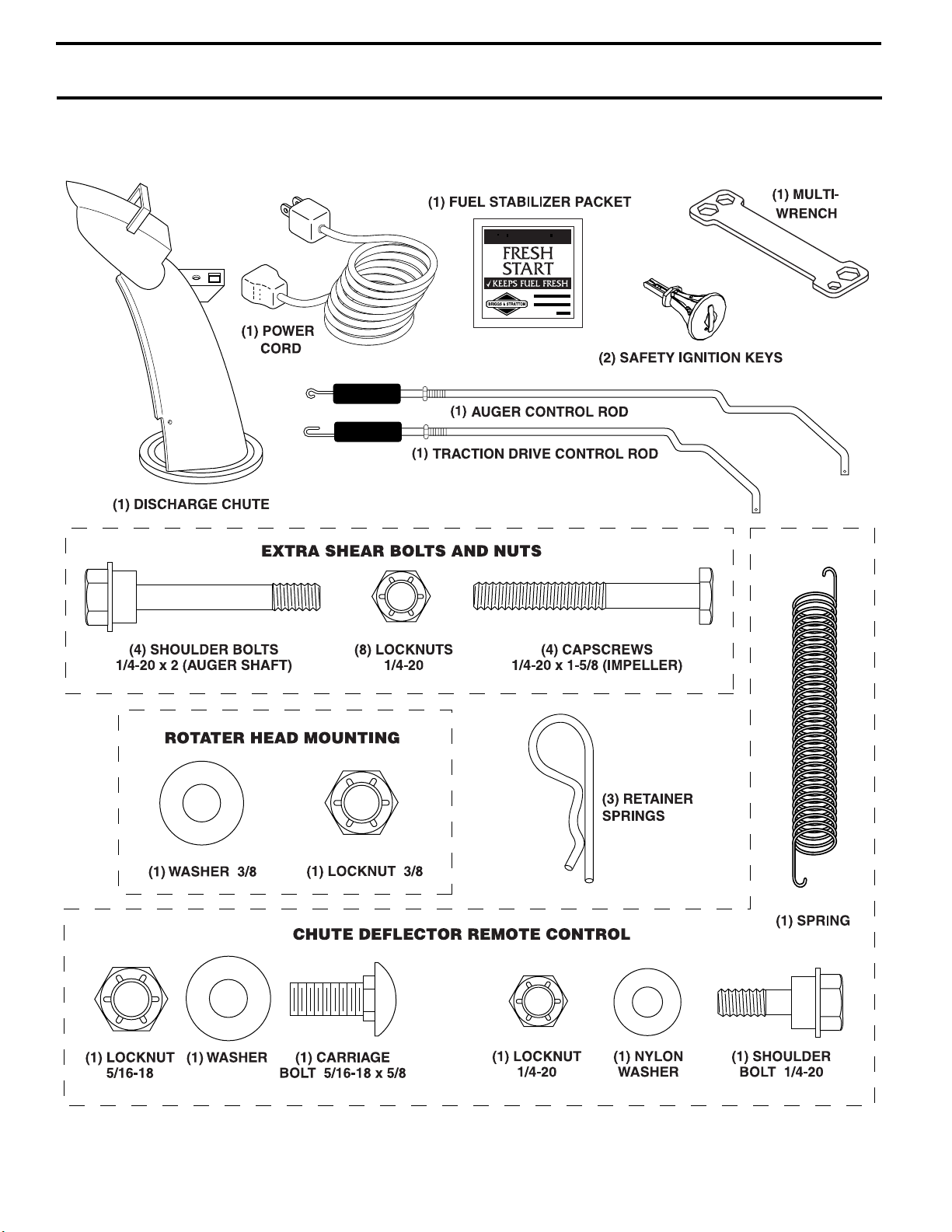

PARTS PACKED SEPARATELY IN CARTON

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Reading the entire manual will familiarize you with the unit, which will assist you in assembly, operation and maintenance of the product.

Your new snow thrower has been as sembled at the factory with the ex ception of those parts left unassembled for shipping purposes. All parts such as nuts, washers, bolts, etc., necessary to com plete the as sembly have been placed in the parts bag. To ensure safe and proper operation of your snow thrower, all parts and hard ware you assemble must be tightened securely. Use the correct tools as nec essary to ensure proper tightness.

REMOVE SNOW THROWER FROM CAR TON

1. Remove all accessible loose parts and parts boxes from carton.

2. Cut down all four corners of carton and lay panels ﬂ at.

3. Remove the two (2) screws securing the auger housing to the pallet.

4. Remove all packing materials ex cept plastic tie holding speed control rod to lower handle.

5. Remove the two (2) plastic ties securing the upper handle to the pallet.

6. Remove snow thrower from carton and check carton thoroughly for ad ditional loose parts.

HOW TO SET UP YOUR SNOW THROWER

TOOL BOX (See Fig. 10)

A toolbox is provided on your snow thrower. The toolbox is located on top of the belt cover. Store the extra shear bolts, nuts and multi-wrench provided in parts bag in the toolbox.

NOTE: The multi-wrench may be used for assembly of the chute rotator head to snow thrower and making ad justments to the skid plates.

UPPER HANDLE

HANDLE KNOB

LOWER HANDLE

SPEED CONTROL ROD

PLASTIC TIE

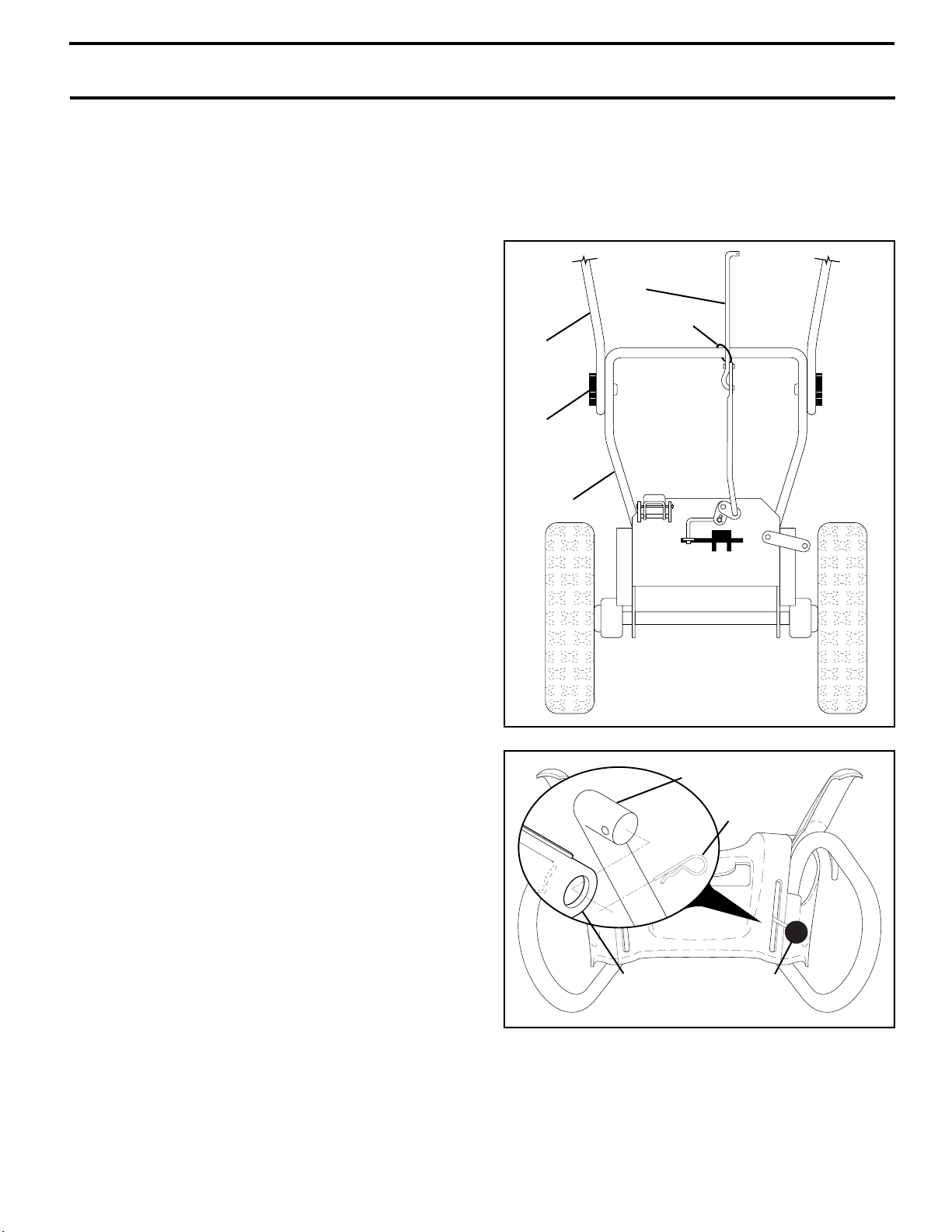

UNFOLD UPPER HANDLE

1. Raise upper handle to the operating position and tight en handle knobs securely.

INSTALL SPEED CONTROL ROD (See Figs. 1 and 2)

1. Remove plastic tie securing rod to lower handle.

2. Insert rod into speed control bracket and secure with retainer spring.

SPEED CONTROL BRACKET

FIG. 1

SPEED CON TROL ROD

RETAINER SPRING

SPEED

CONTROL

LEVER

FIG. 2

ASSEMBLY / PRE-OPERATION

INSTALL TRACTION DRIVE CONTROL ROD (See Figs. 3 and 4)

The traction drive control rod has the long loop on the end of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into pivot bracket with loop opening down as shown.

2. With top end of rod positioned under left side of control panel, push rod down and insert top end of rod into hole in drive control bracket. Secure with retainer spring.

TRACTION DRIVE

CONTROL ROD

RUBBER

SLEEVE

INSTALL AUGER CONTROL ROD (See Figs. 5 and 6)

The auger control rod has the short loop on the end of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into control arm with loop opening up as shown.

2. With top end of rod positioned under right side of control panel, push down on rod and insert end of rod into hole in auger control bracket. Secure with retainer spring.

AUGER CONTROL ROD

RUBBER SLEEVE

CONTROL ARM

PIVOT BRACKET

FIG. 3

TRACTION DRIVE CONTROL LEVER

DRIVE CONTROL BRACKET

LOOP OPENING DOWN

RETAINER

SPRING

TRACTION DRIVE CONTROL ROD

LOOP

OPENING

FIG. 5

AUGER CONTROL ROD

RETAINER SPRING

AUGER

CONTROL

LEVER

AUGER CONTROL BRACKET

FIG. 4

FIG. 6

ASSEMBLY / PRE-OPERATION

INSTALL DISCHARGE CHUTE / CHUTE ROTATER HEAD (See Fig. 7)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotater head.

1. Place discharge chute assembly on top of chute base with discharge opening toward front of snow thrower.

2. Position chute rotater head over chute bracket. If necessary, rotate chute assembly to align square and pin on un derside of chute rotater head with holes in chute bracket.

3. With chute rotater head and chute bracket aligned, position chute rotater head on pin and threaded stud of mounting bracket.

4. Install 3/8 washer and locknut on threaded stud and tighten securely.

CHUTE ROTATER HEAD

3/8 LOCKNUT

3/8 WASHER

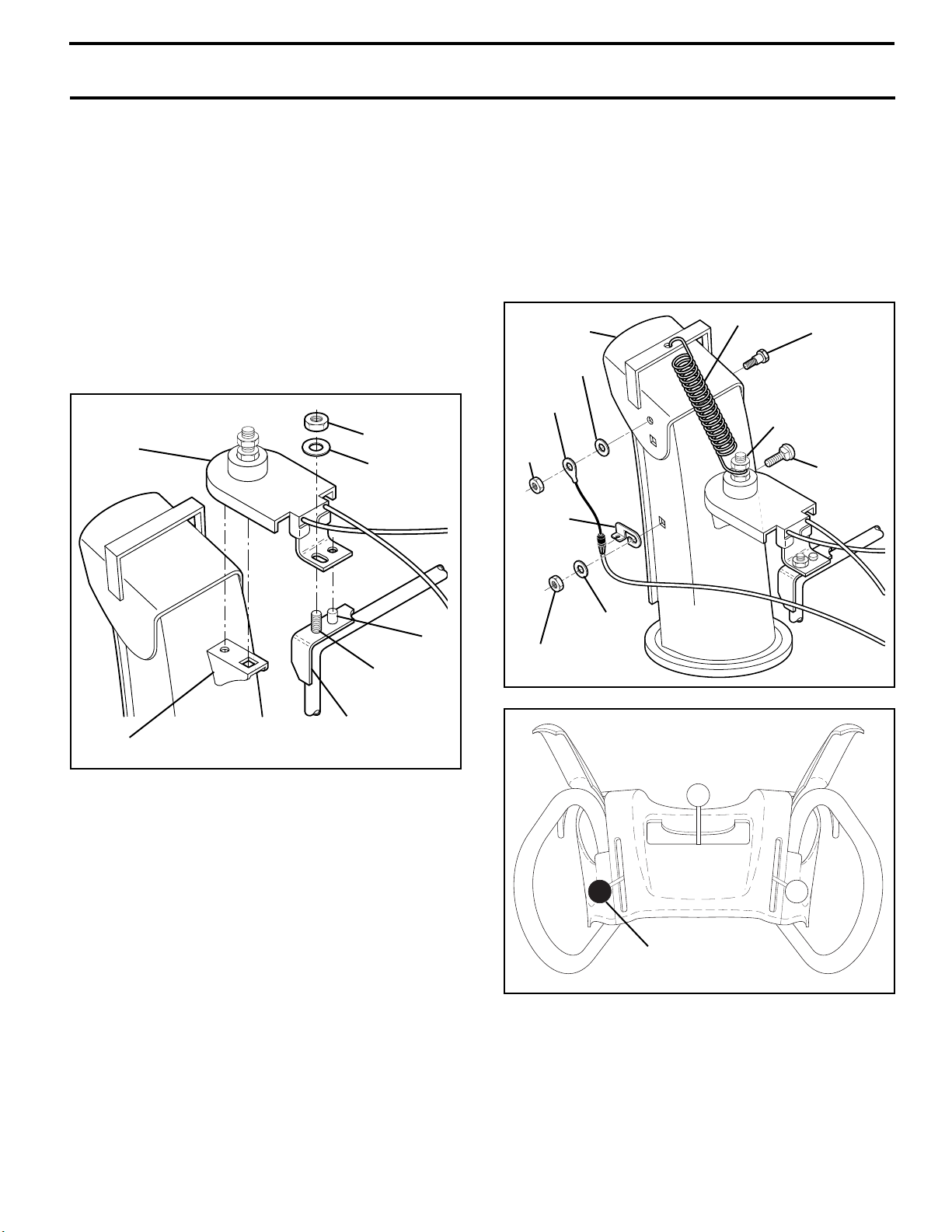

INSTALL CHUTE DEFLECTOR REMOTE CONTROL (See Figs. 8 and 9)

1. Install remote cable bracket to discharge chute with 5/16-18 carriage bolt, 5/16 ﬂ at washer and 5/16-18 locknut as shown. Tighten securely.

2. Install remote cable eyelet to chute deﬂ ector with 1/4-20 shoulder bolt, nylon friction washer and 1/4-20 locknut as shown. Tighten securely.

3. Install spring hooks between hex nuts on chute rotater head and into hole in chute deﬂ ector as shown.

DEFLECTOR

NYLON WASHER

CABLE EYELET

1/4-20 LOCKNUT

REMOTE CABLE BRACKET

SPRINGCHUTE

HOOK BE TWEEN

ROTATER HEAD

1/4-20

SHOULDER

BOLT

HEX NUTS

ON CHUTE

5/16-18

CARRIAGE

BOLT

CHUTE BRACKET

ALIGN BEFORE

TIGHTENING LOCKNUT

FIG. 7

THREADED

STUD

ROTATER HEAD

MOUNTING

BRACKET

FLAT

WASHER

5/16-18 LOCKNUT

FIG. 8

CHUTE DEFLECTOR CONTROL LEVER

FIG. 9

CHECK TIRE PRESSURE

The tires on your snow thrower were overinﬂ ated at the factory for shipping purposes. Correct and equal tire pres sure is important for best snow throwing performance.

• Reduce tire pressure to 14-17 PSI.

OPERATION

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

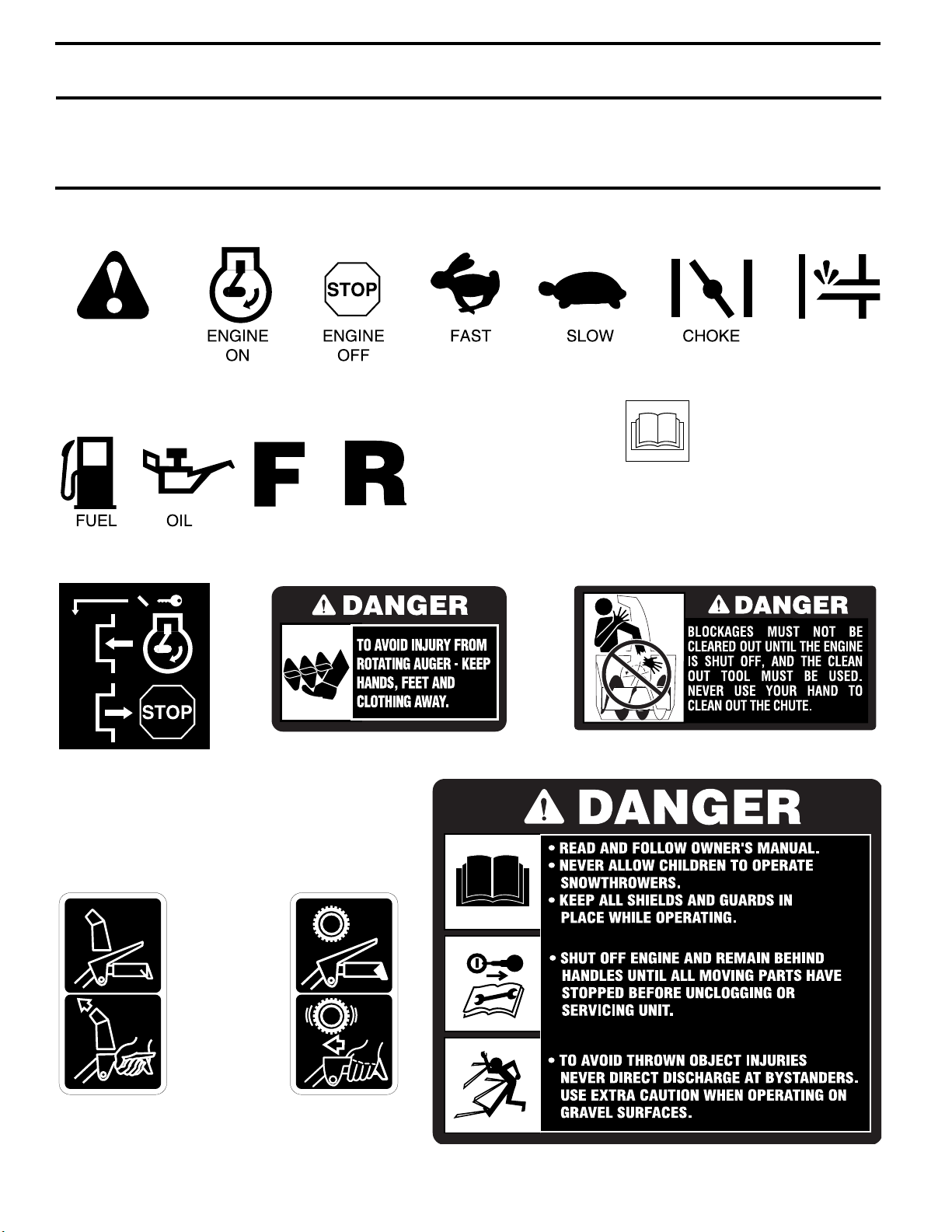

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand their meaning.

DANGER

OR WARNING

IGNITION KEY.

INSERT TO START

AND RUN,

PULL OUT TO STOP.

FORWARD

REVERSE

PRIMER

READ AND FOLLOW ALL SAFETY INFORMATION

AND INSTRUCTIONS BEFORE USE OF THIS PRODUCT.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

SNOW

DISCHARGE

DISENGAGED

ENGAGED

TRACTION

DRIVE CONTROL

OPERATION

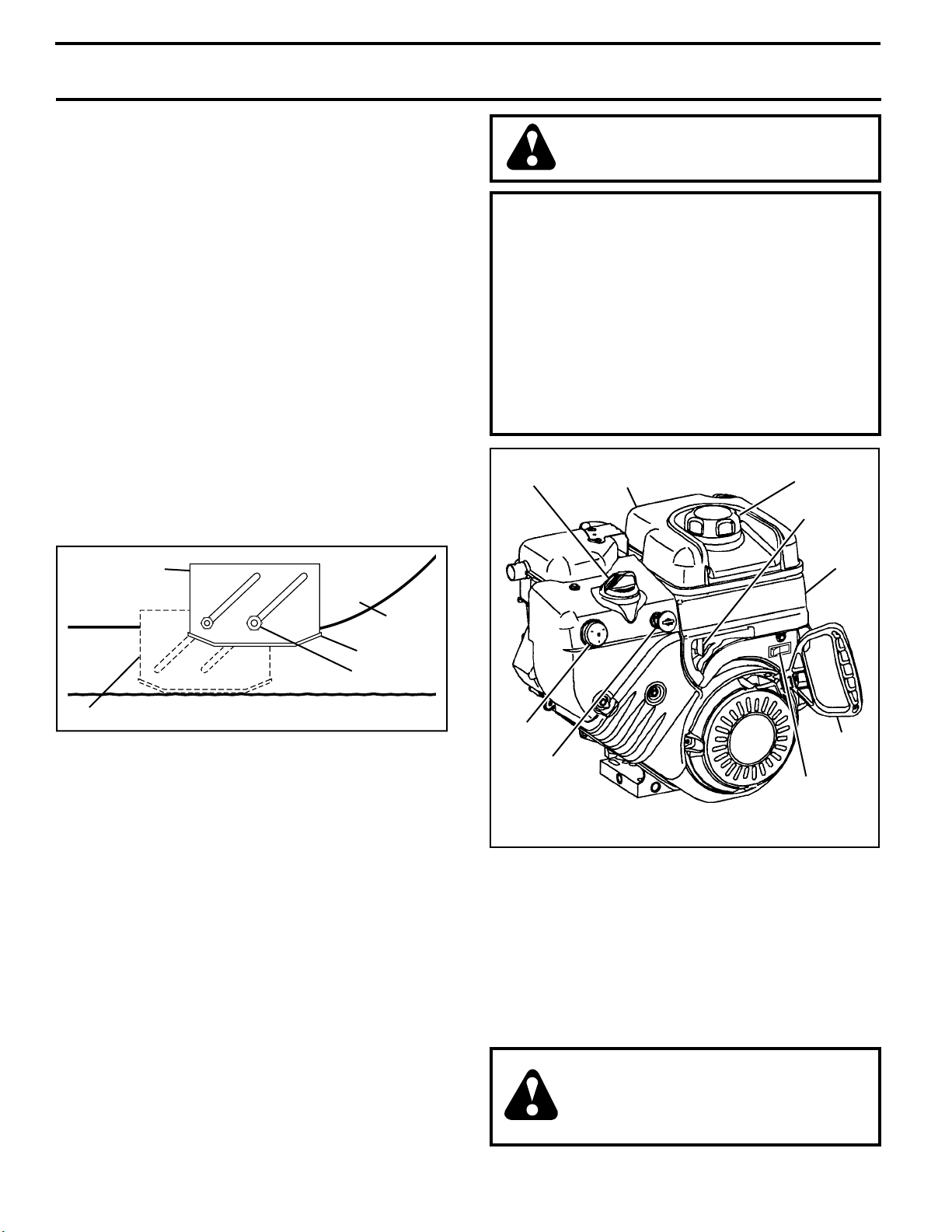

GASOLINE FILLER CAP

MUFFLER

CHOKE CONTROL

PRIMER

SAFETY IGNITION KEY

NOTE: ITEMS ABOVE

ARE SHOWN IN THEIR TYPICAL

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY VARY

WITH THE ENGINE

ON YOUR UNIT.

FUEL SHUT-OFF VALV E

ON / OFF SWITCH

START BUTTON

DISCHARGE

CHUTE

CLEAN-OUT TOOL

ELECTRIC

RECOIL

(AUXILIARY)

STARTER

HANDLE

DEFLECTOR

AUGER CONTROL LEVER

CHUTE

DISCHARGE CHUTE CONTROL LEVER

DRIVE SPEED CONTROL LEVER

DEFLECTOR REMOTE

CONTROL LEVER

TRACTION

DRIVE

CONTROL

LEVER

LH TURN

TRIGGER

LIGHT

HANDLE

KNOB

MUFFLER

TOOLBOX

AUGERS

FIG. 10

MEETS A.N.S.I. SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute.

Toolbox - used to store spare shear bolts, locknuts and wrench.

Safety ignition key - must be inserted for the engine to start and run. Remove when snow thrower is not in use.

Electric start button - used for starting the engine.

Recoil (auxiliary) starter handle - used for start ing en gine.

Primer - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

ON / OFF switch - used to STOP the engine.

Drive speed control lever - used to select forward or

reverse motion and speed of snow thrower.

Choke control - used for starting a cold engine.

Traction drive control lever - used to engage power-pro-

pelled for ward or reverse motion of snow thrower.

LH and RH turn triggers - used to steer the snow thrower.

Deﬂ ector remote control lever - used to change the

distance the snow is thrown.

Auger control lever - used to engage auger motion (throw snow).

Discharge chute control lever - used to change the direction the snow is thrown.

Skid plate - used to adjust height of scraper bar from the ground.

SKID PLATE

OPERATION

The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating

your snow thrower or performing any ad justments or repairs. We recommend standard safe ty glasses or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow.

ENGINE

1. Move ON / OFF switch to “OFF” position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine.

TO USE FUEL SHUT-OFF VALVE (See Fig. 11)

The fuel shut-off valve is located beneath the fuel tank on the engine. Always op erate the snow thrower with the fuel shut-off valve in the OPEN position.

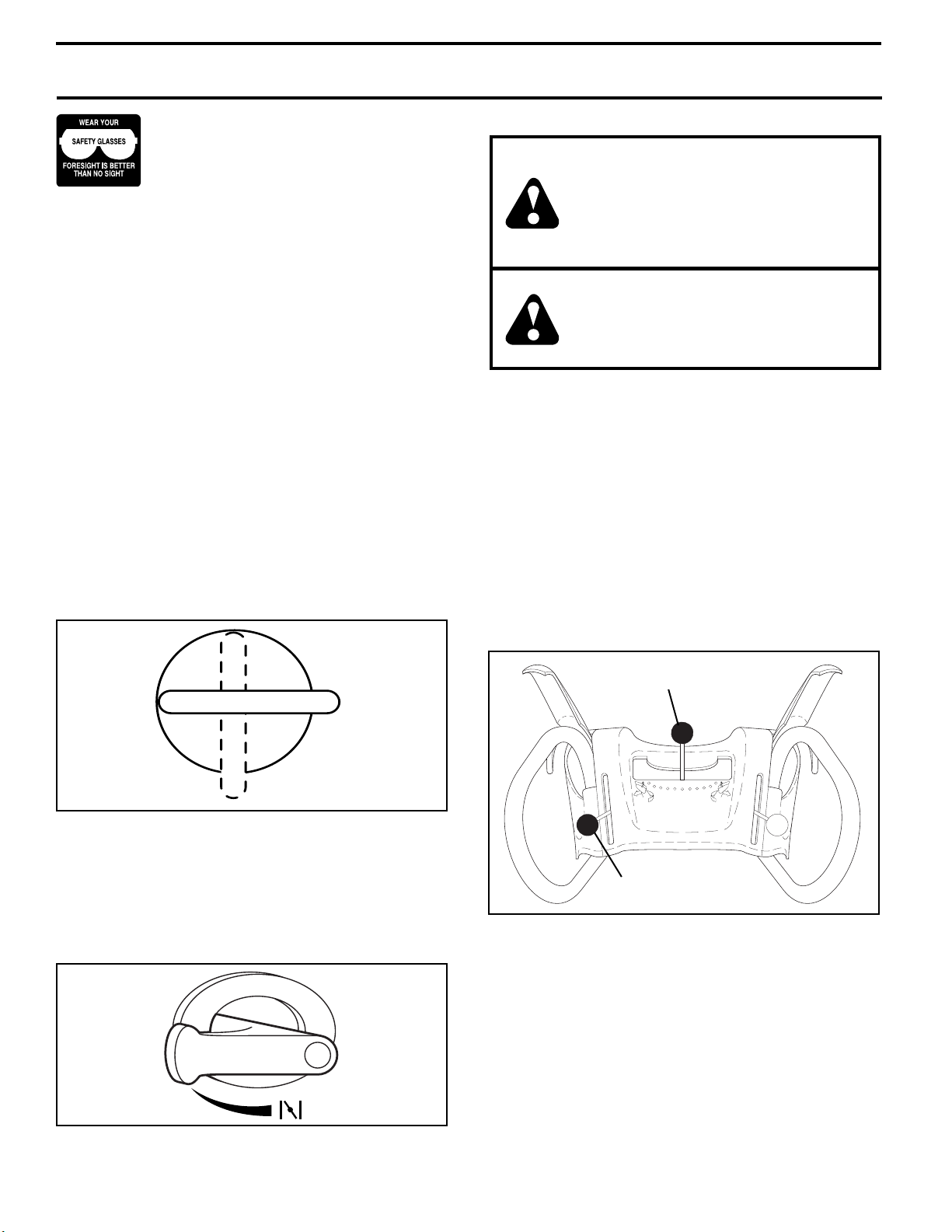

TO CONTROL SNOW DISCHARGE (See Fig. 13)

WARNING: If the discharge chute or auger become clogged, shut-off en gine and wait for all moving parts to stop. Use the clean-out tool, NOT YOUR HANDS, to un clog the chute and/or auger.

The DIRECTION in which snow is to be thrown is controlled by the discharge chute control lever.

• To change the discharge chute position, press downward on discharge chute control lever and move lever left or right until chute is in desired position. Be sure lever springs back and locks into desired position.

The DISTANCE that snow is thrown is controlled by the position of the chute deﬂ ector. Set the deﬂ ector low to throw snow a short distance; set the deﬂ ector higher to throw snow farther.

• Press downward on chute deﬂ ector control lever and move lever forward to lower the deﬂ ector and decrease the distance. Move lever back to raise the deﬂ ector and increase the distance. Be sure lever springs back and locks into desired position.

OPEN

OFF

FIG. 11

TO USE CHOKE CON TROL (See Fig. 12)

The choke con trol is located on the en gine. Use the choke control when ever you are starting a cold en gine. Do not use to start a warm en gine.

• To engage choke, turn knob counterclockwise. Slowly turn knob clockwise to disengage.

FULLOFF

DISCHARGE CHUTE

CONTROL LEVER

CHUTE DEFLECTOR

REMOTE CONTROL LEVER

FIG. 13

FIG. 12

OPERATION

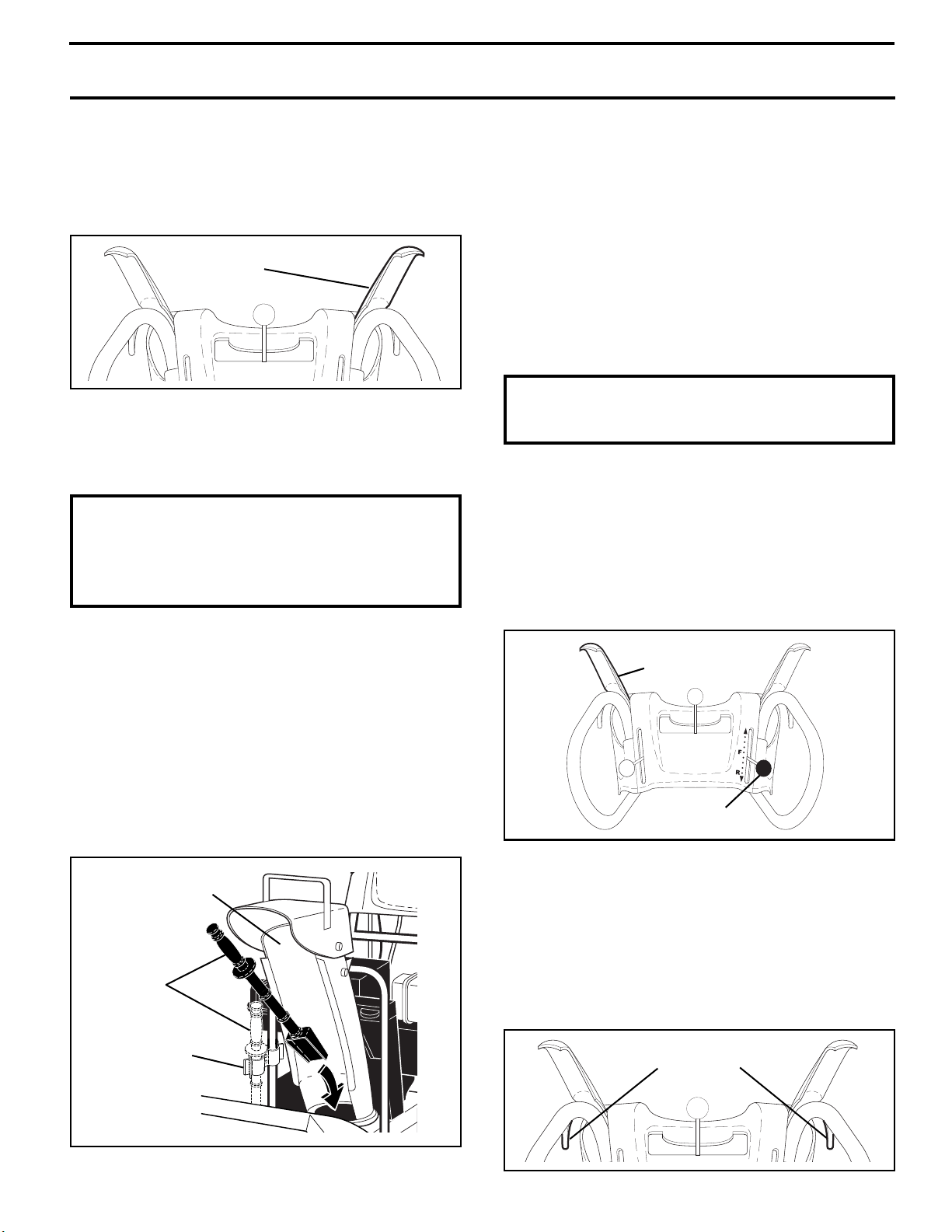

TO THROW SNOW (See Fig. 14)

The auger rotation is controlled by the auger control lever located on the right side handle.

• Squeeze auger control lever to handle to engage the auger and throw snow.

• Release the auger control lever to stop throwing snow.

AUGER CONTROL LEVER

FIG. 14

USING THE CLEAN-OUT TOOL (See Fig. 15)

In certain snow conditions, the discharge chute may become clogged with ice and snow. Use the clean-out tool to dislodge this blockage.

When cleaning, repairing, or in specting, make certain all controls are disengaged and the auger/impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the spark plug to prevent accidental starting.

• Release the auger control lever and shut off the engine.

• Remove the clean-out tool from it's mounting clip. Grasp the tool ﬁ rmly by the handle and push and twist the tool into the discharge chute to dislodge the blockage.

After the packed snow has been dislodged, return the cleanout tool to it's mounting clip by pushing it into the clip.

• Make sure the discharge chute is pointed in a safe direction (no vehicles, buildings, people, or other objects are in the direction of discharge) before restarting the engine.

• Restart the engine, then squeeze the auger control lever to the handle to clear snow from the auger housing and the discharge chute.

DISCHARGE CHUTE

CLEAN-OUT TOOL

TO MOVE FORWARD AND BACKWARD (See Fig. 16)

SELF-PROPELLING, forward and reverse movement of the snow thrower, is controlled by the traction drive control lever located on the left side handle.

• Squeeze traction drive control lever to handle to en gage the drive system.

• Release traction drive control lever to stop the forward or reverse movement of the snow thrower.

SPEED and DIRECTION are controlled by the drive speed control lever.

• Press downward on the speed control lever and move lever to de sired po sition BE FORE engaging the traction drive control lever. Be sure lever springs back and locks into desired position.

CAUTION: Do not move speed con trol le ver when traction drive control lever is en gaged. Damage to the snow thrower can result.

• Slower speeds are for heavier snow and faster speeds are for light snow and transporting the snow thrower. It is recommended that you use a slower speed until you are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers are engaged, the traction drive control lever will lock the auger control lever in the engaged position. This will allow you to release your right hand from the handle and adjust the discharge chute direction without interrupting the snow throwing process.

TRACTION DRIVE CONTROL LEVER

DRIVE SPEED CONTROL LEVER

FIG. 16

POWER STEERING OPERATION (See Fig. 17)

Steering triggers are used to assist in steering your snow thrower. The triggers are located on the underside of each handle. When a trigger is squeezed, it disengages the drive wheel on that side of snow thrower and allows it to turn in that direction.

• To turn left – squeeze left side trigger.

• To turn right – squeeze right side trigger.

MOUNTING CLIP

FIG. 15

LH TURN TRIGGER

RH TURN TRIGGER

FIG. 17

OPERATION

TO ADJUST SKID PLATES (See Fig. 18)

NOTE: The wrench provided in your parts bag may be used

to adjust the skid plates.

Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface. Adjust skid plates evenly to proper height for current surface conditions. For removal of snow in normal con ditions, such as a paved driveway or side walk, place skid plates in the highest position (lowest scraper clearance) to give a 1/8" clearance between the scraper bar and the ground. Use a middle position if the surface to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower over gravel or rocky surfaces. Objects such as gravel, rocks or other debris, can easily be picked up and thrown by the impeller, which can cause serious personal injury, property damage or damage to the snow thrower.

• If snow thrower must be operated over gravel surface, use extra caution and be sure skid plates are adjusted to lowest (highest scraper clear ance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the rear 1/2" hex nut only, then moving skid plate to desired position. Be sure both plates are adjusted evenly. Tighten securely.

HIGH POSITION (LOW GROUND CLEARANCE)

AUGER

HOUSING

SKID PLATE

1/2" HEX NUT

WARNING: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open ﬂ ame.

CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids dur ing storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied be fore stor age of 30 days or longer. Empty the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage In structions for ad ditional information. Never use engine or car buretor cleaner products in the fuel tank or per manent damage may occur.

CHOKE CONTROL

ENGINE OIL FILL CAP / DIPSTICK

GASOLINE

FILLER CAP

FUEL SHUT-

OFF VALVE

STARTER

BUTTON

LOW POSITION (HIGH GROUND CLEAR ANCE)

FIG. 18

SCRAPER BAR

The scraper bar is not adjustable, but is reversible. After considerable use it may become worn. When it has worn almost to the edge of the housing, it can be reversed, providing additional service before requiring replacement. Replace a dam aged or worn scrap er bar.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 19)

The engine on your snow thrower has been shipped, from the factory, already ﬁ lled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil ﬁ ll cap/dipstick and wipe clean, reinsert the dipstick and screw tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overﬁ ll.

• To change engine oil, see “TO CHANGE ENGINE OIL” in the Main tenance sec tion of this manual.

ADD GASOLINE (See Fig. 19)

• Fill fuel tank to bottom of tank ﬁ ller neck. Do not overﬁ ll. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quan tities that can be used within 30 days to assure fuel freshness.

PRIMER

SAFETY IGNITION KEY

NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FIG. 19

STARTER

HANDLE

ON / OFF SWITCH

TO START ENGINE

• Be sure fuel shut-off valve is in the “OPEN” position.

Your snow thrower engine is equipped with both a 120 Volt A.C. electric starter and a recoil starter. The electric starter is equipped with a three-wire power cord and plug and is designed to operate on 120 Volt A.C. household current.

• Be sure your house is a 120 Volt A.C. three-wire grounded system. If you are uncertain, consult a licensed electrician.

WARNING: Do not use the electric starter if your house is not a 120 Volt A.C. three-wire grounded system. Serious per sonal injury or damage to your snow thrower could result.

RECOIL

OPERATION

COLD START - ELECTRIC STARTER

1. Insert safety ignition key (packed separately in parts bag) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place ON / OFF switch in “ON” position.

3. Rotate choke control to “FULL” position.

4. Connect the power cord to the engine.

5. Plug the other end of the power cord into a three-hole grounded 120 Volt A.C. receptacle.

NOTE: Do not use primer when start ing en gine with the electric starter.

6. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than ﬁ ve continuous seconds between each time you try to start. Wait 5 to 10 seconds between each attempt.

7. When the engine starts, release the starter button and slowly move the choke control to the “OFF” position.

8. Disconnect the power cord from the receptacle ﬁ rst, then from the engine.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - ELECTRIC STARTER

Follow the steps above, keeping the choke control in the “OFF” position.

COLD START - RECOIL STARTER

1. Insert safety ignition key (packed separately in parts bag) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place ON / OFF switch in “ON” position.

3. Rotate choke control to “FULL” position.

4. Push the primer four (4) times if the temperature is below 15°F, or two (2) times if temperature is between 15° and 50°F. If temperature is above 50°F, priming is not nec essary.

NOTE: Over priming may cause ﬂ ooding, preventing the engine from starting. If you do ﬂ ood the engine, wait a few minutes be fore at tempting to start and DO NOT push the primer.

5. Pull recoil starter handle quickly. Do not allow starter rope to snap back.

6. When the engine starts, release the recoil starter han dle and slowly move the choke control to the “OFF” position.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - RECOIL STARTER

Follow the steps above, keeping the choke in the “OFF” position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any moisture on the engine.

To avoid possible freeze-up of the starter, proceed as follows:

ELECTRIC STARTER

1. Connect the power cord to the engine.

2. Plug the other end of the power cord into a three-hole grounded 120 Volt A.C. receptacle.

3. While the engine is running, push starter button and spin the starter for several seconds.

NOTE: The unusual sound made while starter is spinning will not harm the engine or starter.

4. Disconnect the power cord from the receptacle ﬁ rst, then from the engine.

RECOIL STARTER

1. While the engine is running, pull the recoil starter handle with rapid, full arm strokes three or four times.

NOTE: The unusual sound made while pulling the recoil starter handle will not harm the engine or starter.

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine, proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back against the starter.

If the engine still fails to start, repeat the above steps or use the electric starter.

SNOW THROWING TIPS

• Go slower in deep, freezing or heavy wet snow. Use the drive speed control, NOT the ON / OFF switch, to adjust speed.

• It is easier and more efﬁ cient to remove snow im mediately after it falls.

• The best time to remove snow is the early morning. At this time the snow is usually dry and has not been exposed to the direct sun and warming tem peratures.

• Slightly overlap each successive path to ensure all snow will be removed.

• Throw snow downwind whenever possible.

• Ad just the skid plates to proper height for current snow conditions. See “TO ADJUST SKID PLATES” in this section of this manual.

• For extremely heavy snow, re duce the width of snow removal by over lapping previous path and moving slowly.

• Keep engine clean and clear of snow during use. This will help air ﬂ ow and extend engine life.

• After snow-throwing is completed, allow engine to run for a few minutes to melt snow and ice off the engine.

• Clean the entire snow thrower thoroughly after each use and wipe dry so it is ready for next use.

WARNING: Do not operate snow thrower if weather conditions im pair visibility. Throwing snow dur ing a heavy, windy snowstorm can blind you and be hazardous to the safe operation of the snow thrower.

MAINTENANCE

The warranty on this snow thrower does not cover items that have been sub jected to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in structed in this manual. Some ad justments will need to be made periodically to properly maintain your snow thrower.

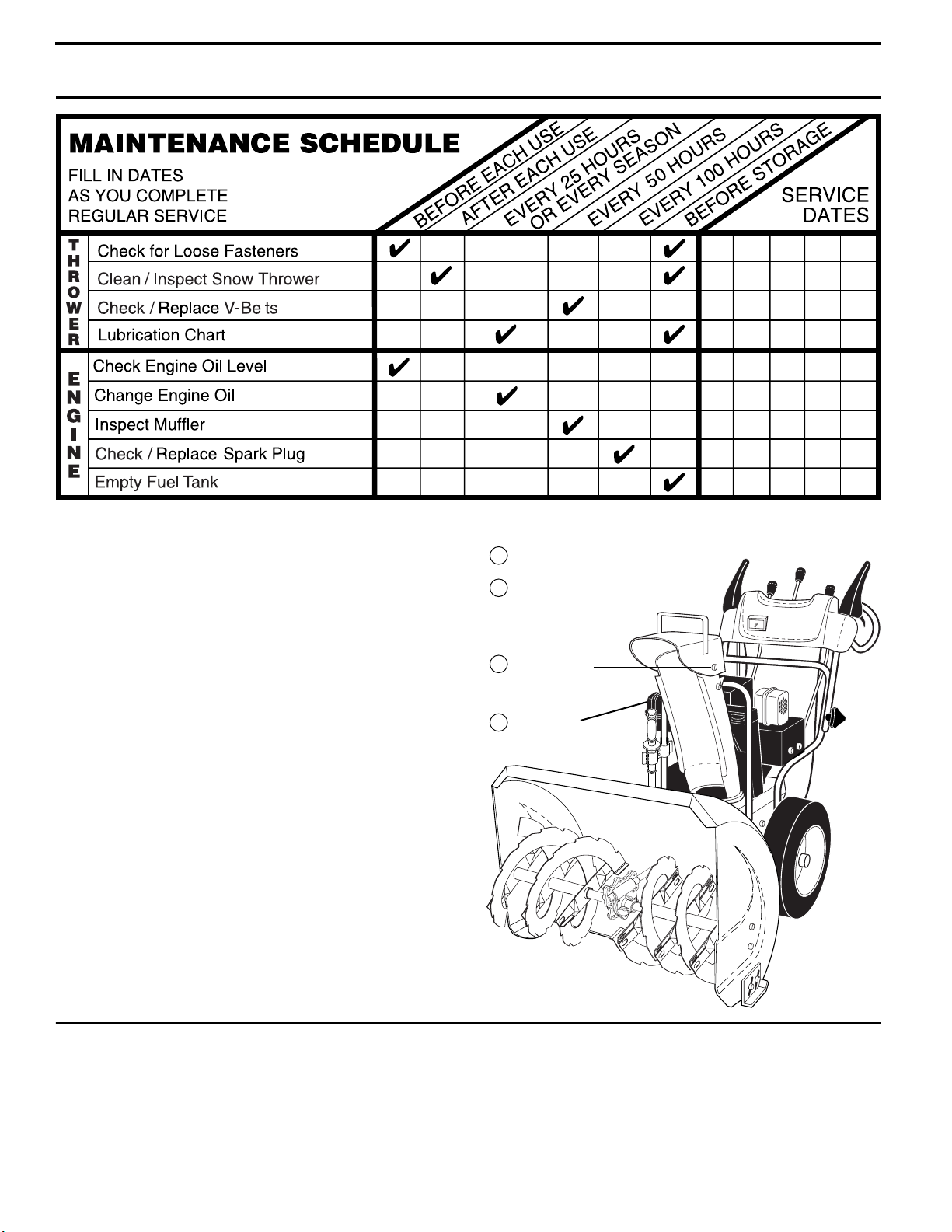

At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year, you should replace the spark plug and check belts for wear. A new spark plug will help your engine run better and last longer.

• Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM) parts to service this unit. Failure to do so can cause the unit to malfunction and pose a risk of injury to the operator.

LUBRICATION CHARTGENERAL REC OMMENDA TIONS

1 SAE 30 Motor Oil

2 See “ENGINE” in

Maintenance section

1 Pivot points

2 Engine oil

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3. Check controls to be sure they are functioning properly.

LUBRICATION

Keep your snow thrower well lubricated (See “LU BRICA TION CHART”).

SNOW THROWER

Always observe the safety rules when performing any maintenance.

TIRES

• Maintain proper air pressure in both tires (14–17 PSI).

• Keep tires free of gasoline and oil, which can harm rubber.

NOTE: To seal tire punctures and prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

MAINTENANCE

V-BELTS

Check V-belts for deterioration and wear after every 50 hours of operation and replace if necessary. The belts are not ad justable. Replace belts if they begin to slip from wear. (See “TO REMOVE BELT COVER” in the Service and Adjustments section of this manual).

The V-belts on your snow thrower are of special con struction and should be replaced by original equipment man ufacturer (OEM) belts avail able from your nearest dealer. Using other than OEM belts can cause personal injury or damage to the snow thrower.

AUGER GEAR CASE

• The gear case was ﬁ lled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate the drive components inside the snow thrower. The sprockets, hex shafts, drive disc and friction wheel require no lubrication. The bearings and bushings are lifetime lubricated and require no maintenance.

CAUTION: Any lubricating of the above com ponents can cause contamination of the friction wheel and damage to the drive system of your snow thrower.

ENGINE

See engine manual.

LUBRICATION

Use only high quality detergent oil rated with API service classiﬁ cation SG–SL. Select the oil's SAE viscosity grade according to your expected operating temperature.

TO CHANGE ENGINE OIL

Determine temperature range anticipated before next oil change. All oil must meet API service classiﬁ cation SG–SL.

• Be sure snow thrower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

NOTE: The left side wheel may be removed from snow thrower for easier access to the oil drain plug and placement of a suitable container. The unit tilted, resting on the frame with the left wheel removed, will help drain any oil trapped inside the engine. (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

1. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

6. Install left wheel (if removed for draining oil). Be sure to install klick pin into proper hole in wheel axle (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

7. Remove oil ﬁ ll cap/dipstick. Be careful not to allow dirt to enter the engine.

8. Reﬁ ll engine with oil through oil dipstick tube. Pour slowly. Do not overﬁ ll. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man ual.

9. Use gauge on oil ﬁ ll cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at “FULL” line on dipstick.

10. Wipe off any spilled oil.

MUFFLER

Inspect and replace corroded mufﬂ er as it could cre ate a ﬁ re haz ard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of each season or after every 100 hours of operation, whichever occurs ﬁ rst. Spark plug type and gap setting are shown in the “PROD UCT SPECIFICA TIONS” section of this manual.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the snow thrower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each ﬁ ve (5) hours of continuous use. Tighten oil ﬁ ll cap / dipstick securely each time you check the oil level.

CLEANING

IMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash. Clean the outside of your snow thrower after each use.

WARNING: Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

• Keep ﬁ nished surfaces/wheels free of gasoline, oil, etc.

• We do not recommend using a garden hose to clean your snow thrower unless the electrical system, mufﬂ er and carburetor are covered to keep water out. Water in engine can result in shortened engine life.

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury, before performing any service or ad justments:

1. Be sure throttle is in STOP position.

2. Remove safety ignition key.

3. Make sure the augers and all mov ing parts have completely stopped.

4. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See “TO ADJUST SKID PLATES” and “SCRAPER BAR” in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deﬂ ector, attached to the top of the discharge chute, is provided to direct discharging snow away from the operator. If the deﬂ ector becomes damaged, it should be re placed.

WARNING: To avoid serious injury, never operate your snow thrower with the deﬂ ector removed or damaged.

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

3. Align holes in impeller hub with holes in impeller shaft and install two (2) new 1/4-20 x 1-5/8" capscrew/shear bolts. Install 1/4-20 locknuts and tighten securely.

CAUTION: Do not substitute. Use only original equipment capscrew/shear bolts as sup plied with your snow thrower.

4. Connect spark plug wire to spark plug.

1/4-20 LOCKNUT

1/4-20 x 1-5/8 CAPSCREW / SHEAR BOLT

IMPELLER HUB

IMPELLER

SHAFT

1/4-20 x 2

SHOULDER /

SHEAR BOLT

• To change direction and/or distance snow is dis charged, see “TO CONTROL SNOW DISCHARGE” in the Operation section of this manual.

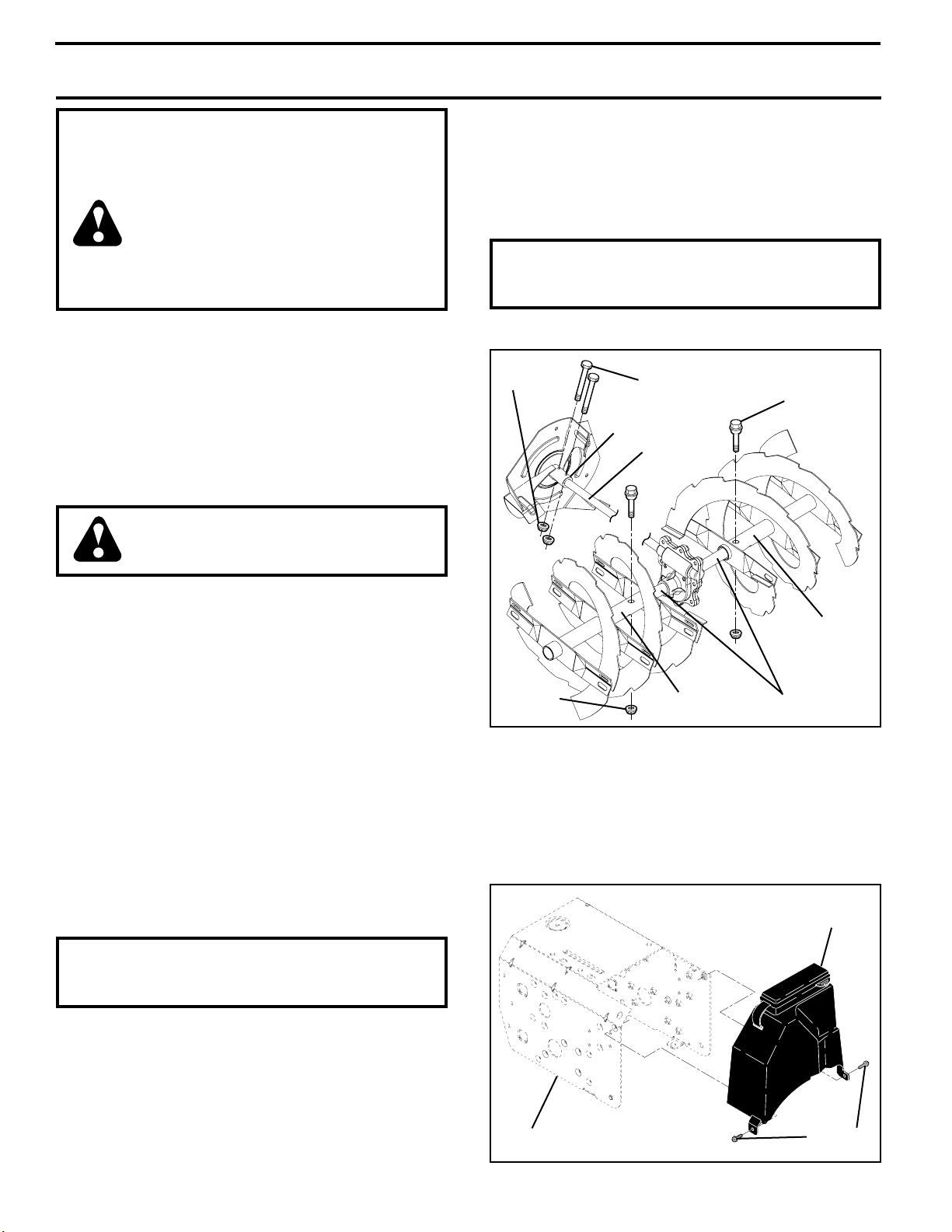

SHEAR BOLTS (See Fig. 20)

AUGER SHEAR BOLTS

Both right and left-hand augers are secured to the auger shaft with a shoulder/shear bolt and hex nut. Should a foreign object or ice become lodged in the augers, the shear bolts are designed to break, preventing damage to any other com ponents. If one or both augers do not turn when auger control lever is engaged, check to see if one or both of the bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

3. Align hole in auger hub with hole in auger shaft and install a new 1/4-20 x 2" shoulder/shear bolt. Install 1/4-20 lock nut and tighten securely.

CAUTION: Do not sub stitute. Use only original equipment shear bolts as sup plied with your snow thrower.

4. Connect spark plug wire to spark plug.

IMPELLER SHEAR BOLTS

The impeller is secured to the impeller shaft with two (2) capscrew/shear bolts and hex nuts. Should a foreign object or ice become lodged in the impeller, the capscrews are designed to break, preventing damage to any other components. If impeller does not turn when auger control lever is engaged, check to see if the capscrews have sheared. To replace the capscrew/shear bolts:

1/4-20 LOCKNUT

AUGER HUB

FIG. 20

AUGER SHAFT

TO REMOVE BELT COVER (See Fig. 21)

1. Remove the two (2) screws securing belt cover to frame.

2. Remove belt cover.

• Replace belt cover by installing cover and screws and tighten securely.

SCREWSFRAME

FIG. 21

AUGER

HUB

BELT

COVER

SERVICE AND ADJUSTMENTS

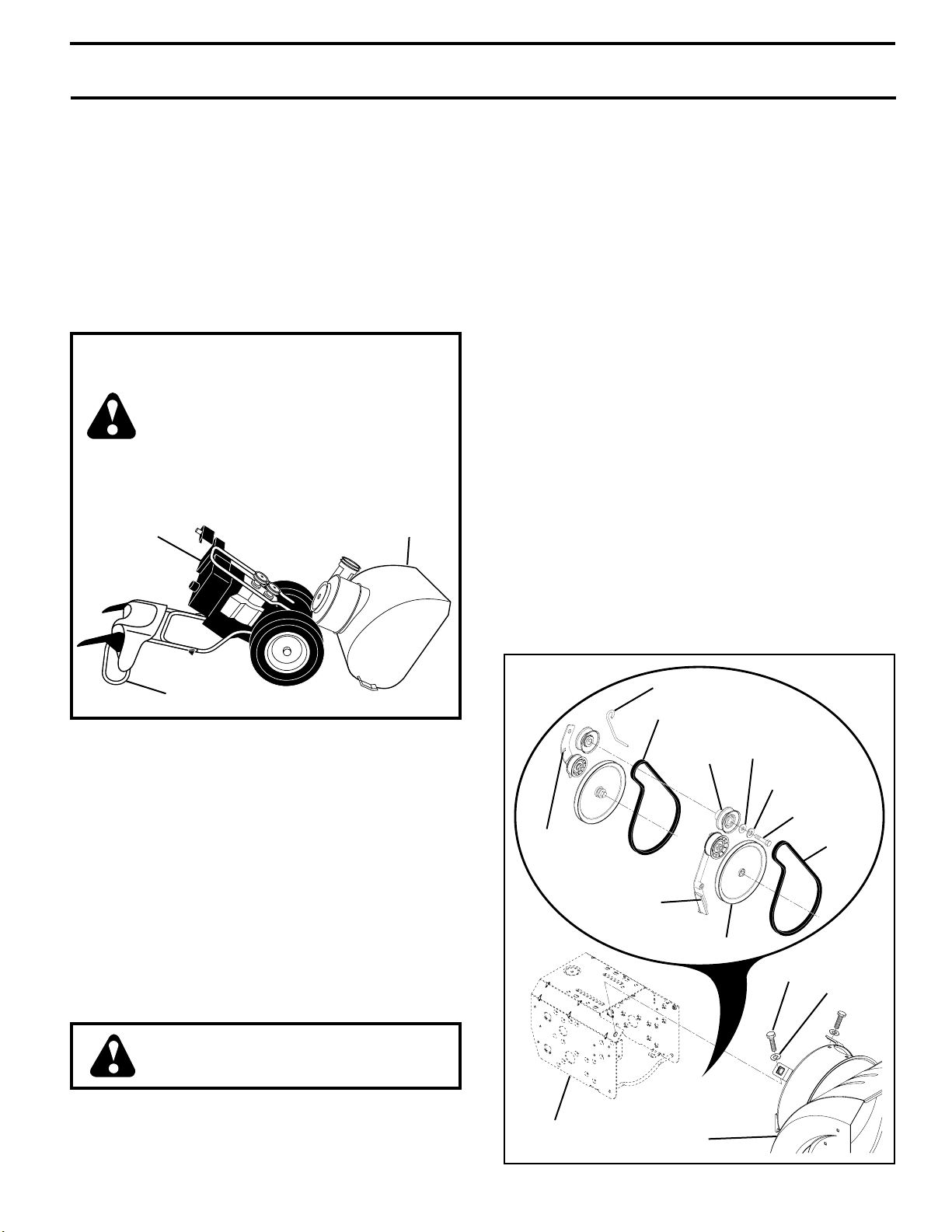

TO REPLACE BELTS (See Fig. 22)

The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a qualiﬁ ed service center.

NOTE: It is recommended that both the auger and traction drive belt be replaced at the same time.

WARNING: Belt replacement requires separation of the snow thrower. While separating the auger housing from the frame assembly, it is important that an assistant stand in the operating po sition and hold the snow thrower han dles. Serious personal injury and/or damage to the unit could occur if the snow thrower should fall during the belt chang ing process.

FRAME ASSEMBLY

AUGER

HOUSING

HINT: Insert a 3/8" drive ratchet (in the “ON” position) into

the square hole in idler arm and rotate ratchet clockwise to relieve tension.

8. With tension relieved on idler, install new traction drive belt around pulleys and inside belt keepers.

9. Place auger belt around and inside the groove of auger pulley only.

10. While your assistant slowly raises handles to rejoin the auger hous ing and frame assembly, pull up on the auger belt and squeeze sides together above pulley so belt is fully seated in groove of pulley.

11. Bring snow thrower completely together and check carefully for proper routing of belts. If auger belt has become dislodged from the pulley (by catching the idler arm bracket while bringing snow thrower together), separate the snow thrower and re peat step 10. Belt must be fully seated in pulley groove when bring ing the snow thrower together.

12. Install the two (2) hex bolts and lock washers and tighten securely.

13. INSTALL ENGINE PULLEY - Place belt in pulley groove and slide pulley on crankshaft. Install ﬂ at washer, lockwasher and bolt and tighten securely (30-35 ft. lbs. torque). Make sure belt is inside belt keeper.

14. INSTALL BELT COVER and two (2) screws. Tighten securely.

15. INSTALL DISCHARGE CHUTE – See “INSTALL DISCHARGE CHUTE / CHUTE ROTATER HEAD” in the Assembly / Pre-Operation section of this manual.

HANDLES

1. REMOVE GASOLINE FROM FUEL TANK - Drain gasoline from fuel tank into a suitable container, out doors, away from ﬁ re or ﬂ ame. Wipe up any spilled gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen locknut securing chute rotator head to mounting bracket only enough to allow chute rotator head to be raised and discharge chute to be removed from snow thrower.

3. REMOVE BELT COVER - See “TO REMOVE BELT COVER” in this section of this manual.

4. REMOVE ENGINE PULLEY - Remove bolt, lock washer and ﬂ at washer securing pulley to engine crankshaft. Remove outside (auger) pulley only from crank shaft.

5. SEPARATE SNOW THROWER - With your assistant standing in the operating position holding the handles, remove the two (2) bolts and lock washers holding auger housing and frame together.

WARNING: As the last bolt is removed, have your assistant carefully lower the handles down to the ground.

6. REMOVE AUGER BELT from around pulley.

7. RELIEVE TENSION ON TRACTION DRIVE BELT IDLER and remove traction drive belt from around pulleys.

IDLER ARM

SQUARE

HOLE

FRAME

TRACTION DRIVE BELT

CLUTCHING IDLER ARM BRACKET

AUGER HOUSING

BELT KEEPER

ENGINE PULLEY

AUGER PULLEY

FIG. 22

FLAT WASHER

LOCKWASHER

BOLT

AUGER

BOLT

WASHER

BELT

LOCK

TO REMOVE WHEELS (See Fig. 23)

• Remove the klik pin and remove wheel from axle.

IMPORTANT: When installing wheel, be sure to use the axle hole closest to the end of the shaft – hole in the wheel hub (if equipped). Inner hole in axle and hole in wheel hub are not used for your model snow thrower.

KLIK PIN (INSTALL IN OUTER HOLE OF AXLE ONLY)

WHEEL

FIG. 23

do not

use the

OUTER HOLE

AXLE

WHEEL HUB

STORAGE

NOTE: To seal punctures or prevent ﬂ at tires due to slow

leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and cor rosion.

ENGINE

See engine manual.

CARBURETOR

Your carburetor is not adjustable. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). If your engine does not operate properly due to suspected carburetor problems, take your snow thrower to a qualiﬁ ed service center.

ENGINE SPEED

Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous and will void the warranty. If you think the engine-governed high speed needs adjusting, contact a qualiﬁ ed service center, which has proper equipment and experience to make any necessary ad justments.

Immediately prepare your snow thrower for storage at the end of the season or if the unit will not be used for 30 days or more.

WARNING: Never store the snow thrower with gaso line in the tank in side a build ing where fumes may reach an open ﬂ ame, spark or pilot light as on a furnace, water heater, clothes dryer or gas ap pliance. Allow the engine to cool before storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time, clean it thor oughly, re move all dirt, grease, leaves, etc. Store in a clean, dry area.

1. Clean entire snow thrower (See “CLEANING” in the Maintenance section of this manual).

2. Inspect and replace belts, if necessary (See “TO REPLACE BELTS” in the Service and Adjustments sec tion of this manual).

3. Lubricate as shown in the Main tenance sec tion of this manual.

4. Be sure that all nuts, bolts, screws, and pins are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if nec essary.

5. Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE

See engine manual.

FUEL SYS TEM IMPORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor, fuel hose, or tank during storage. Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

• Empty the fuel tank by starting the engine and letting it run until the fuel lines and car buretor are empty.

• Never use engine or carburetor cleaner prod ucts in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 min utes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through spark plug hole into cylinder.

3. Pull recoil starter handle slowly a few times to dis tribute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your snow thrower indoors and cover it to protect it from dust and dirt.

• Cover your snow thrower with a suitable pro tective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe, which allows con densation to form and will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/ exhaust area is still warm.

TROUBLESHOOTING

See appropriate section in manual unless directed to an authorized service centre/department.

PROBLEM CAUSE CORRECTION

Does not start 1. Fuel shut-off valve (if so 1. Turn fuel shut-off valve to OPEN position.

equipped) in OFF position.

2. Safety ignition key 2. Insert safety ignition key. is not inserted.

3. Out of fuel. 3. Fill fuel tank with fresh, clean gasoline.

4. Throttle in STOP position 4. Move throttle to FAST position (or ON/OFF switch is OFF). (or ON/OFF switch to ON position).

5. Choke in OFF position. 5. Move to FULL position.

6. Primer not depressed. 6. Prime as instructed in the Operation section of this manual.

7. Engine is ﬂ ooded. 7. Wait a few minutes before restarting, DO NOT prime.

8. Spark plug wire is 8. Connect wire to spark plug. disconnected.

9. Bad spark plug. 9. Replace spark plug.

10. Stale fuel. 10. Empty fuel tank & carburetor, reﬁ ll with fresh, clean gasoline.

11. Water in fuel. 11. Empty fuel tank & carburetor, reﬁ ll with fresh, clean gasoline.

Loss of power 1. Spark plug wire loose. 1. Reconnect spark plug wire.

2. Throwing too much snow. 2. Reduce speed and width of swath.

3. Fuel tank cap is covered 3. Remove ice and snow on and around fuel tank cap. with ice or snow.

4. Dirty or clogged mufﬂ er. 4. Clean or replace mufﬂ er.

Engine idles or 1. Choke is in FULL position. 1. Move choke to OFF position. runs roughly 2. Blockage in fuel line. 2. Clean fuel line.

3. Stale fuel. 3. Empty fuel tank & carburetor, reﬁ ll with fresh, clean gasoline.

4. Water in fuel. 4. Empty fuel tank & carburetor, reﬁ ll with fresh, clean gasoline.

5. Carburetor is in need of 5. Contact an authorized service centre/department. adjustment or overhaul.

Excessive 1. Loose parts or damaged 1. Tighten all fasteners. Replace damaged parts. If vibration vibration augers or impeller. remains, contact an authorized service centre/department.

Recoil starter 1. Frozen recoil starter. 1. See “IF RECOIL STARTER HAS FROZEN” is hard to pull in the Operation section of this manual.

Loss of traction 1. Drive belt is worn. 1. Check / replace drive belt. drive / slowing 2. Drive belt is off of pulley. 2. Check / reinstall drive belt. of drive speed 3. Friction drive wheel is worn. 3. Contact an authorized service centre/department.

Loss of snow 1. Auger belt is off of pulley. 1. Check / reinstall auger belt. discharge or 2. Auger belt is worn. 2. Check / replace auger belt. slowing of 3. Clogged discharge chute. 3. Clean snow chute. snow discharge 4. Augers / impeller jammed. 4. Remove debris or foreign object from augers / impeller.

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

4 532 19 10-79 Pulley, Impeller 5 532 18 89-09 Bearing Assembly, Flange 6 532 15 53-77 Nut, Hex Flange 5/16-18 7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8 8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8 9 532 17 88-20 Nut, Cage 3/8-16

10 532 18 81-91 Housing, Auger

11 532 18 40-98 Bar, Scraper

12 532 18 40-95 Bracket, Corner Discharge 13 532 17 53-22 Base, Discharge Chute 14 819 11 15-07 Washer, Flat 15 810 04 05-00 Washer, Lock 5/16 16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4 18 532 17 95-82 Screw, Hex Head 5/16 x 1 19 873 80 04-00 Nut, Hex Lock 1/4-20 20 873 80 05-00 Nut, Hex Lock 5/16-18 21 532 15 54-15 Washer, Flat 5/16 22 532 18 40-94 Skid Plate, RH 23 532 17 92-46 Washer, Nylon, Friction 24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4 25 532 18 56-00 Bolt, Shoulder 1/4-20 26 532 18 81-70 Bearing Retainer, Plastic 27 532 17 46-97 Washer, Thrust, 1" 28 532 19 20-90 Bolt, Shear 29 532 18 40-93 Skid Plate, LH 30 532 19 95-30 Auger Assembly, RH 31 532 19 95-29 Auger Assembly, LH 32 532 17 46-99 O-Ring 33 532 17 47-00 Bushing, Flange 3/4 34 532 17 46-81 Washer, Thrust 3/4 35 532 17 46-84 Bearing, Thrust 3/4 36 532 17 46-60 Shaft, Impeller 37 532 17 46-83 Washer, Thrust 5/8 38 532 17 46-86 Bushing, Flange 5/8 39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4 40 532 08 64-47 Plug, Case 41 532 17 46-88 Housing, Gearbox, RH 42 532 17 46-98 Seal, Oil 43 532 17 47-01 Bushing, Flange, 1" 44 532 18 92-82 Key, Square 1/4 x 1/4 x 7/8 45 532 17 46-59 Gear, Worm 46 532 17 46-57 Shaft, Auger 47 532 17 46-87 Housing, Gearbox, LH 48 532 18 41-05 Impeller Assembly 49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8 50 532 17 53-11 Gasket, Gearbox 51 532 18 42-05 Pin, Roll 3/16 x 1-1/8 53 532 18 79-25 Bearing, Auger 54 532 05 38-47 Washer, Flat 1/4 55 532 18 82-43 Kit, Shear (Contains 6 each of Key Numbers 19 and 28) 56 532 18 06-84 Multi-Wrench 57 532 17 88-78 Gearbox Assembly

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

1 532 18 33-34 Knob, Lever 2 817 50 10-10 Screw #10-24 x 5/8 3 532 19 84-75 Control Assembly, Deﬂ ector 4 873 80 06-00 Nut, Lock 3/8-16 5 819 13 13-16 Washer, Flat 3/8 6 532 19 84-73 Control Assembly, Chute Rotater 7 532 18 40-89 Support, Pivot 8 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4 9 532 18 45-05 Spring, Deﬂ ector

10 532 17 98-29 Bolt, Shoulder

11 532 17 92-46 Washer, Flat 1/4

12 873 80 04-00 Nut, Lock 1/4-20 13 872 25 05-05 Bolt, Carriage 5/16-18 14 873 80 05-00 Nut, Lock 5/16-18 15 532 18 41-12 Chute Assembly 16 532 18 41-13 Deﬂ ector Assembly 17 532 17 91-45 Seal, Deﬂ ector 18 532 12 84-15 Rivet, Blind 19 532 18 33-33 Knob, Speed Control Lever 20 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4 21 532 15 54-15 Washer, Flat 5/16 22 874 04 10-24 Screw #10-24 x 1-1/2 23 532 19 24-49 Control Assembly, Power Steering 25 532 15 53-77 Nut, Lock 5/16-18 26 532 19 84-74 Lever Assembly, Speed Control 27 532 16 96-75 Retainer, Hairpin 28 532 18 04-45 Rod, Upper, Speed Control 29 532 18 77-16 Rod, Lower, Speed Control 30 532 19 27-10 Clamp, Clean-Out Tool 31 532 19 21-99 Tool, Clean-Out

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

REPAIR PARTS HANDLES

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

REPAIR PARTS HANDLES

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

1 532 18 41-10 Lever, Auger Control, RH 2 532 18 41-09 Lever, Traction Drive Control, LH 3 532 19 96-39 Nut, Cage 1/4-20 4 532 17 88-88 Bushing, Flange 5 532 16 96-75 Retainer, Hairpin 6 532 19 96-40 Screw, Hex Head 7 532 17 86-52 Rod, Interlock 8 532 19 95-76 Arm, Impeller Rod 9 532 19 95-75 Arm, Traction Rod

10 532 19 95-31 Panel, Control

11 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2

12 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4 13 532 18 41-07 Handle Tube, LH 14 532 18 41-08 Handle Tube, RH 15 873 80 05-00 Nut, Lock 5/16-18 16 819 13 13-16 Washer, Flat 3/8 17 532 17 88-99 Knob, Handle 18 532 18 04-80 Rod, Auger Control 19 532 18 04-81 Rod, Traction Control 22 872 12 06-18 Bolt, Carriage 3/8-16 x 2-1/4 23 532 18 40-87 Handle Tube, Lower 24 532 18 04-47 Sleeve, Spring 25 532 18 09-26 Spring, Traction Drive 26 532 17 86-69 Spring, Auger Control 27 871 21 06-16 Screw, Hex Head 3/8-16 x 1 28 532 17 53-31 Bushing, Pivot Lever 29 532 19 30-72 Screw, Headlight Ground Wire to Blower Housing 30 532 18 29-06 Console, Panel 31 532 17 52-62 Screw, Hex Head, Tapping #10-24 x 1-1/4 32 532 18 44-71 Screw, Hex Head, Tapping #10-24 x 1/2 33 532 19 95-77 Latch, Interlock 34 532 18 35-18 Bolt, Shoulder 35 532 06 80-38 Nut, Lock 1/4-20 36 532 17 88-31 Spring, Torsion 37 532 19 38-85 Spring, Interlock 38 532 17 86-66 Headlight, Halogen (Includes Bulb)

532 40 16-20 Bulb, Halogen

39 532 17 86-68 Bezel, Headlight 40 532 18 09-64 Harness, Headlight (Halogen) 41 532 17 88-90 Nut, Cage 3/8-16 42 532 19 95-78 Lever, Interlock 43 532 19 63-37 Rod, Latch, Interlock 44 532 19 63-38 Rod, Arm, Interlock 45 532 70 02-79 Clip 46 532 17 92-46 Washer, Friction

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

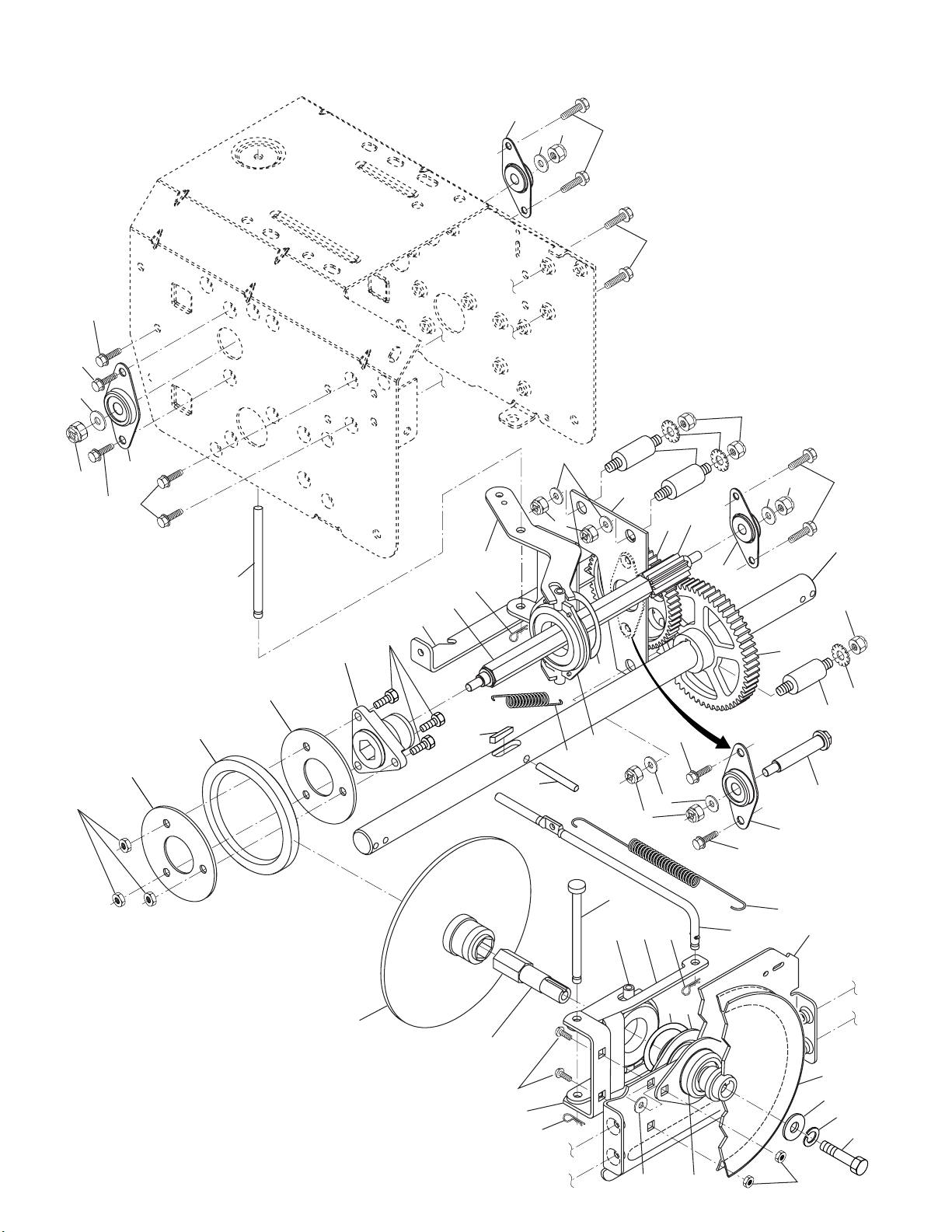

REPAIR PARTS DRIVE

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

REPAIR PARTS DRIVE

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

1 532 14 63-15 Screw, Hex Head 5/16-18 x 3/4 2 873 80 05-00 Nut, Lock 5/16-18 3 532 15 54-15 Washer, Flat 4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2 5 532 18 00-17 Bearing, Flange 6 532 18 01-34 Shaft, Auxiliary 7 532 17 92-70 Spacer, Plate 8 532 19 29-07 Plate, Auxiliary 9 532 18 00-82 Gear, Intermediate (12/58)

10 532 18 00-65 Gear, Pinion

11 532 18 77-14 Rod, Clutch

12 532 18 00-66 Shaft, Long, Hex 13 532 17 88-07 Pin, Pivot 14 532 18 40-80 Lever, Shifter / Wheel 15 532 17 53-44 Trunnion Bearing Assembly 16 532 18 78-57 Bracket, Pivot, Shift 17 532 17 98-31 Ring, Rubber Wheel 18 532 19 95-09 Plate, Rubber Wheel 19 873 93 05-00 Nut, Lock 5/16-18 20 532 17 86-13 Hub, Rubber Wheel 21 874 76 05-14 Screw, Hex Head 5/16-18 x 7/8 22 532 08 51-79 Retainer, Hairpin 23 532 18 01-35 Spring, Bias 24 532 18 00-81 Gear, Axle (58 Teeth) 25 532 17 86-95 Pin, Pivot Lever 26 532 19 77-63 Plate Assembly, Drive 27 532 17 86-21 Shaft, Axle 28 532 19 77-64 Shaft, Short Hex 29 532 18 40-77 Lever, Shifter Plate 30 532 18 40-76 Bracket, Shifter Support 31 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8 32 532 18 92-82 Key, Square 33 532 18 89-09 Bearing, Flange 34 532 18 40-75 Plate, Drive Mounting 35 532 18 25-04 Spacer, Bearing 36 532 19 10-80 Pulley, Traction Drive 37 532 15 53-77 Nut, Lock 5/16-18 38 819 11 15-07 Washer, Flat 39 810 04 05-00 Washer, Lock 5/16 40 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4 41 812 00 00-12 Ring, Retaining 42 811 05 05-00 Washer, Lock, External Tooth 5/16 43 532 17 90-95 Spring, Return 44 532 18 42-06 Pin, Roll

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

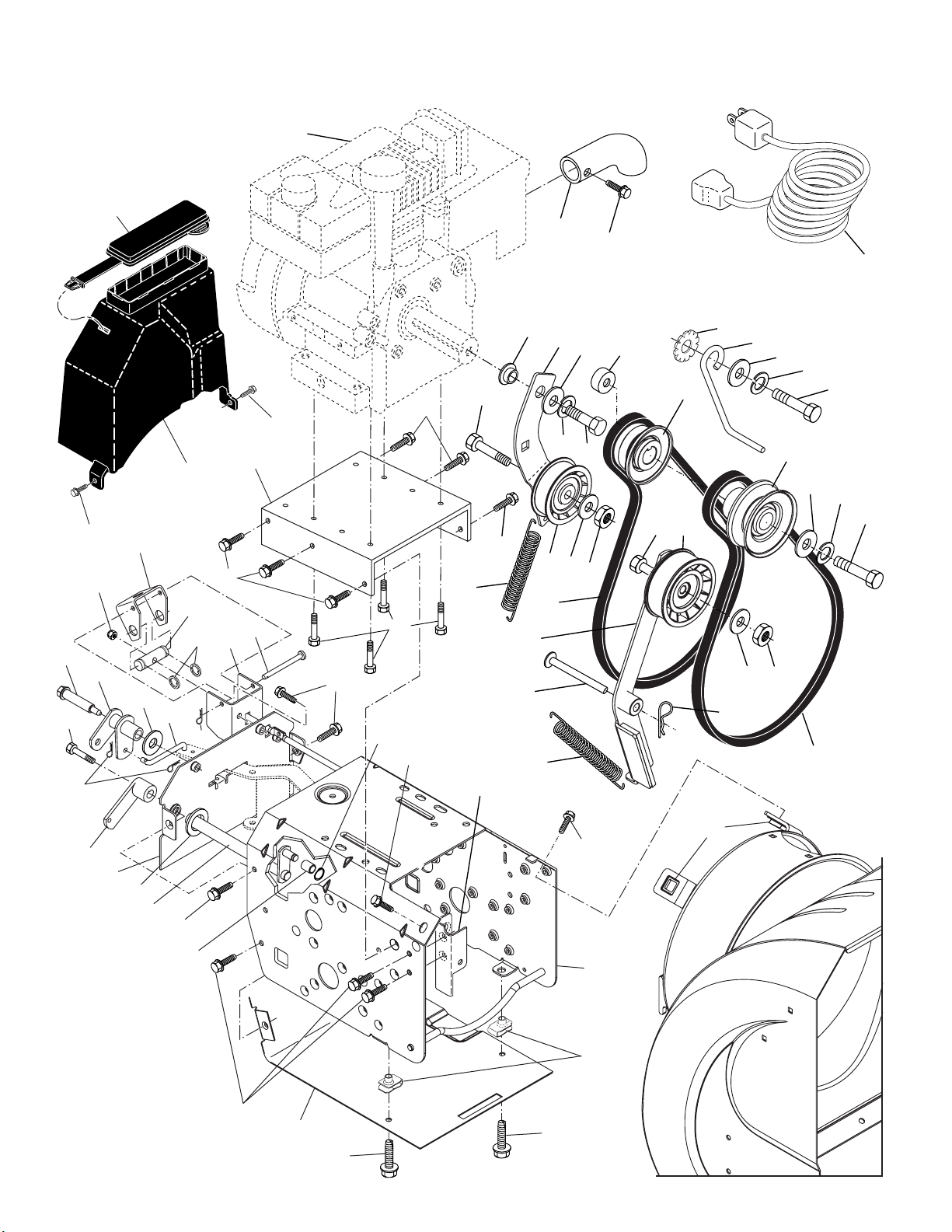

REPAIR PARTS CHASSIS / ENGINE / PULLEYS

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

REPAIR PARTS CHASSIS / ENGINE / PULLEYS

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

1 532 18 10-44 Spring, Traction Idler 2 532 18 05-22 Pulley, Idler (2-1/4) 3 - - - Engine, Briggs & Stratton,

Model Number 20E114 (For engine service and replacement parts, call Briggs & Stratton

at 1-800-233-3723) 4 874 78 05-20 Screw, Hex Head 5/16-18 x 1-1/4 5 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4 6 532 05 92-89 Washer, Flat 7 873 93 05-00 Nut, Jam, Lock 5/16-18 8 532 17 53-30 Pin, Idler Pivot 9 532 17 90-92 V-Belt, Traction Drive

10 810 04 05-00 Washer, Lock 5/16

11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2

12 532 17 92-59 Impeller Arm / Pad Assembly 13 532 08 51-79 Retainer, Hairpin 14 532 17 88-28 Spring, Brake 15 532 18 35-33 V-Belt, Impeller Drive 16 532 19 23-06 Screw, Hex Head 3/8-16 x 1-1/4 17 532 18 48-04 Arm, Idler 18 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2 19 532 17 53-31 Bushing, Idler Pivot 20 532 18 05-23 Pulley, Idler (2-3/4) 21 874 61 05-16 Screw, Hex Head 5/16-18 x 1 22 532 17 93-71 Spacer, Engine Pulley 23 532 18 04-78 Pulley, Engine, Traction Drive 24 532 17 91-57 Pulley, Engine, Impeller Drive 25 532 06 27-35 Washer, Flat 3/8 26 532 85 02-63 Washer, Lock, Helical 3/8 27 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8 28 532 15 54-52 Guide, Belt

KEY PART NO. NO. DESCRIPTION

29 532 19 22-13 Belt Cover Assembly

(Includes Toolbox Cover) 30 532 17 88-30 Cover, Toolbox 31 817 49 04-08 Screw, Hex Head 1/4-20 x 1/2 32 532 17 92-56 Bolt, Shoulder 5/16-18 33 532 18 78-53 Bellcrank Shifter 34 532 18 04-01 Screw, Hex Head 1/4-28 x 3/4 35 532 19 57-67 Arm, Auger Control 36 873 80 05-00 Nut, Lock 5/16-18 37 532 18 40-86 Bellcrank 38 532 18 71-01 Link, Speed Control 39 532 19 21-10 Trunnion, Pivot Bracket 40 532 17 88-20 Nut, Cage 3/8-16 41 532 70 02-79 Hairpin, Cotter 3/32 x 1/2 42 532 17 90-65 Pin, Pivot Bracket 43 532 18 40-85 Bracket, Bellcrank 44 871 21 06-16 Screw, Hex Head 45 532 18 40-74 Pivot Bracket, Impeller Idler Arm 46 532 18 40-84 Pan, Frame Bottom 47 871 02 05-12 Screw, Hex Head 5/16-18 x 3/4 48 532 18 11-56 Nut, Speed 5/16-18 49 532 40 39-09 Frame Assembly 50 532 18 80-02 Plate, Frame End 51 532 19 95-14 Shaft, Auger Control 52 532 05 70-79 Washer, Hardened 53 532 19 22-75 Roller 54 532 19 21-47 Ring, Crescent 55 812 00 00-02 E-Ring 56 532 40 39-08 Plate, Enging Mounting 57 811 05 05-00 Washer, Lock, External Tooth 5/16 58 532 19 30-70 Power Cord 59 532 19 97-25 Deﬂ ector, Mufﬂ er 60 532 19 97-26 Screw

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

REPAIR PARTS WHEELS / DECALS

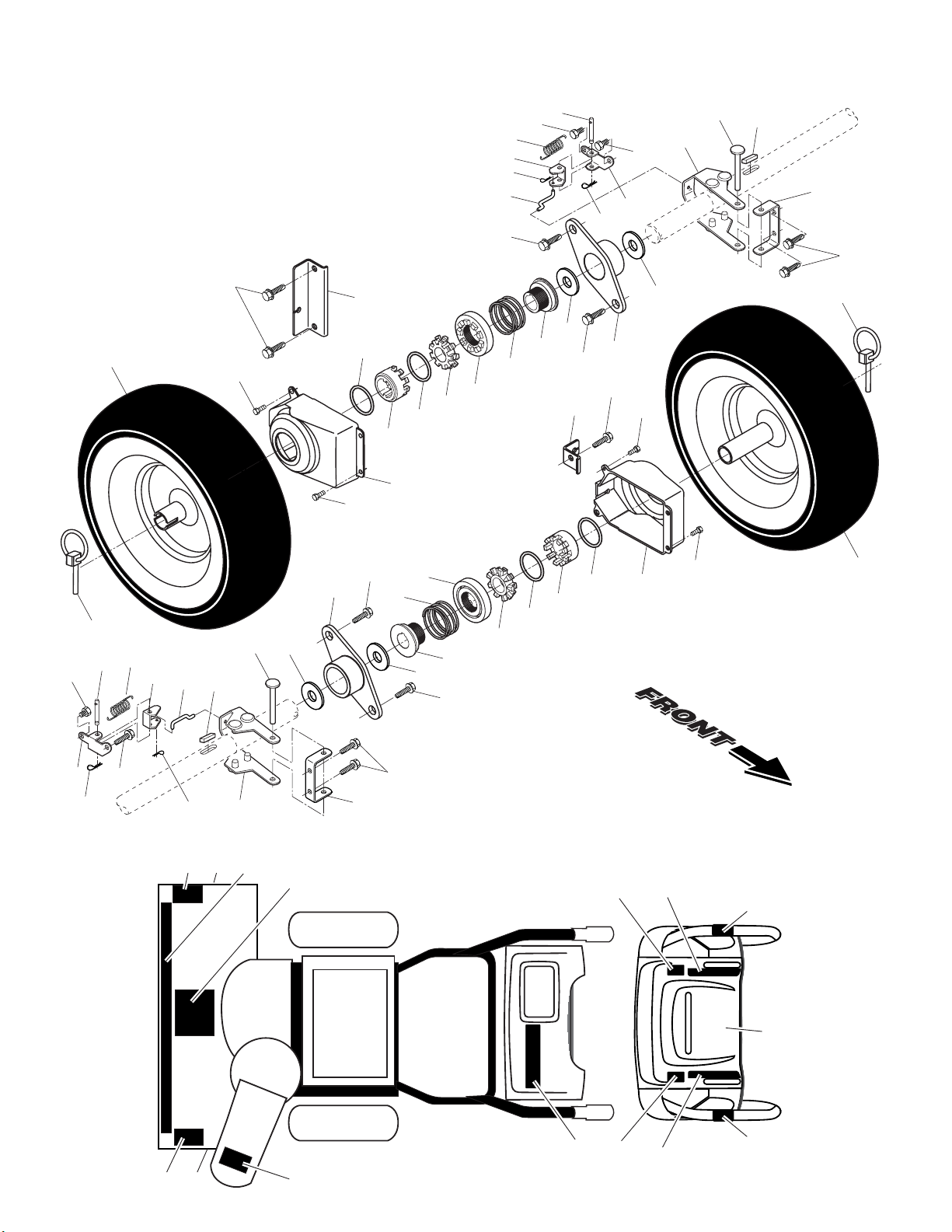

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

30 15 32

113

REPAIR PARTS WHEELS / DECALS

SNOW THROWER - MODEL NO. 10530SBEB (96193001300), PRODUCT NO. 961 93 00-13

KEY PART NO. NO. DESCRIPTION

1 532 19 95-01 Wheel Assembly, 12", Power Steering, LH 2 532 15 54-43 Pin, Klik 1/4 3 532 19 21-09 Cover, Power Steering 4 532 18 44-71 Bolt, Shoulder #10-24 x 5/8 7 871 21 06-16 Capscrew, Hex Head, Flanged 3/8-16 x 1 8 532 18 78-59 Bracket, Steering Cable, RH 9 532 18 78-58 Bracket, Steering Cable, LH

10 817 60 04-06 Screw, Hex Head 1/4-20 x 3/8

11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2

12 532 19 57-49 Link, Steering Lever 13 532 19 95-19 Yoke, Steering 14 532 18 20-15 Pin, Steering Lever 15 532 19 95-18 Bellcrank 16 532 19 95-12 Bracket Assembly, LH Steering 17 532 19 95-11 Bracket Assembly, RH Steering 18 532 18 18-47 Pin, Steering Bellcrank 19 532 08 51-79 Retainer, Hairpin 20 532 18 41-97 Bracket, Steering 21 532 19 21-26 Driver, Wheel 22 532 18 24-66 Ring, Wire Retainer 23 532 18 76-22 Lobe, Wheel 24 532 19 49-41 Slide, Clutch 25 532 17 91-39 Spring, Clutch Slide 26 532 19 49-40 Lobe, Axle 27 532 18 92-82 Key, Square 28 532 17 46-97 Washer, Thrust (1") 29 532 17 98-30 Bearing, Axle 30 532 19 38-85 Spring, Return 31 532 19 95-02 Wheel Assembly, 12", Power Steering, RH 32 532 70 02-79 Clip, Retainer 33 812 00 00-45 Ring, Retaining 34 532 14 63-15 Screw, Hex Head 5/16-18 x 5/8

KEY PART NO. NO. DESCRIPTION

1 532 18 10-38 Decal, Danger 2 532 19 13-78 Decal, Husqvarna 3 532 18 10-34 Decal, Danger, Deﬂ ector 4 532 18 10-41 Decal, Danger 5 532 19 87-38 Decal, Husqvarna, 10530SBEB 6 532 18 10-32 Decal, Instruction 7 532 15 57-98 Decal, Traction Lever 8 532 15 58-00 Decal, Auger Lever 9 532 18 10-36 Decal, Speed Control

10 532 18 37-29 Decal, Remote Deﬂ ector

11 532 18 39-07 Decal, LH Trigger

12 532 18 39-05 Decal, RH Trigger 13 532 15 57-94 Decal, Husqvarna, Crown

- - 532 40 37-62 Owner’s Manual

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

l or instruc-

TICE,

REMEDY OF

UCTS.

NT. HUSQVARNA RE-

on. Proof

I T A

s are

ry charge

531 83 81-23 2002

, dirt, abrasives, moisture, rust,

t or affects the product’s per-

e product to fail to comply with any applicable

IONS

MITAT

I L

D N

A S

EPT

operation, safety, or durability, or causes th

WARRANTY STATEMENT

ON 4: EXC

I CT SE

to operate or maintain the unit in accordance with the Owner’s/Operator’s manua

tion sheet furnished by Husqvarna;

formance,

(3)Alterations or modiﬁ cations that change the intended use of the produc

(2)Failure

corrosion, or any adverse reaction due to incorrect storage or use habits;

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel

This warranty shall be inapplicable to defects resulting from the following:

STATEME

NTY

IMPLIED WARRANTY OF MERCHANTABIL-

r rights which vary from state to state.

and general upkeep as written

CONSID TY

A S IE IT IL

ONSIB SP

RE R E

OBTAI N

R U

sqvarna Forest & Garden Company. This card should be mailed within ten (10) days

STOM

ER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

ON 5: CU

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRA

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

THE PUR CHAS

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NO

I CT

in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure occur,

The product must exhibit reasonable care, maintenance, operation, storage

you speciﬁ c legal rights, and you may also have othe

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

ON 6: PROCED

I CT

problem or failure. The product must be delivered at the owner’s expense. Pick-up and delive

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

To obtain the beneﬁ t of this warranty, the product believed to be defective must be delivered to an au-

of the selling dealer.

vice. This proof must include date purchased, model number, serial number, and complete name and address

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty ser-

from the date of purchase in order to conﬁ rm the warranty and to facilitate post-sale service.

ﬁ lled out and mailed to Hu

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly

of purchase, as explained in section 6, rests solely with the customer.

the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluati

A N R A

V SQ

tatesville Ro

U H

harlotte, NC 28269 C

7349 S

Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow

Y T

N A R R A

W D E

MIT

ON 1: L

I T

C E

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original pur-

held prod uct.

Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand

Period” of the product as set forth below:

chaser to be free from defects in material and workmanship from the date of purchase for the “Warranty

walks, and ground engaging commercial equipment.

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

n systems for

component

TY N A R R A

W E

TH ER

Y T

N A R R A

W IS

. All trimmers, brushcutters, clearing saws, hover-

TIONS UND A

IG L

Automatic Mower, Riding lawn mowers, yard and garden tractors

90-day warranty from the date of the customer’s original purchase

terial and workmanship. Normal wear, tear or abuse is not covered under warranty. Prod-

’S OB A N R A

QV S

Replacement parts, accessories including bars and chains, tools and display items.

ON 2: HU

I CT SE

30 Day Warranty:

covered under warranty.

be followed as stated by the manufacturer on the care label. The ﬁ t of the protective apparel/boot is not

uct must be returned to Charlotte with a warranty claim form. All care and maintenance instructions must

for defects in

Husqvarna Safety Apparel carries a

except as otherwise provided herein

Husqvarna product used for commercial, institutional, professional, or income producing purposes or use

ers, snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole prun-

Batteries have a one-year prorated limited warranty with 100% replacement during the ﬁ rst 6 months.

systems used for commercial, institutional, professional or income producing purposes or use

ing trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection

fessional, non-institutional or non-income producing use

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-pro-

time of purchase.

facturers for which the purchaser has received a separate warranty with product information supplied at

except for those components which are part of engine systems manufactured by third party engine manu-

Emission control system components necessary to comply with CARB-TIER-II and EPA regulations,

noncommercial, nonprofessional, noninstitutional or nonincome producing use, except as herein stated

blowers, backpack blowers, hedge trimmers, electrical products and power-assist collectio

walk behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld

2 Year NON-COMMERCIAL Warranty:

BY ED

MS NOT COVER E

ON 3: IT

I CT

chain, spark plugs, starter ropes and tines;

not limited to, belts, blades, blade adapters, bulbs, ﬁ lters, guide bars, lubricants, rewind springs, saw

(1)Normal customer maintenance items which become worn through normal regular use, including, but

The following items are not covered by this warranty:

fails because of a defect in material or workmanship during the warranty period.

Husqvarna will repair or replace defective components without charge for parts or labor if a

all claims for war-

which are manufactured by third party engine manufacturer.

(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations

ranty should be sent to the manufacturer; and

(4)Lawn and garden attachments are covered by a third party which gives a warranty,

chase; all claims must be sent to the appropriate manufacturer;

manufacturer’s warranty as provided in writing with the product information supplied at the time of pur-

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective

(2)Natural discoloration of material due to ultraviolet light;

532 40 37-62 Rev. 3 06.06.06 BY Printed in U.S.A.

Husqvarna 10530SBEB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

OPERATION

MAINTENANCE

STORAGE

TROUBLESHOOTING

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

REPAIR PARTS HANDLES

REPAIR PARTS DRIVE

REPAIR PARTS CHASSIS / ENGINE / PULLEYS

REPAIR PARTS WHEELS / DECALS
