Rider 1030 BioCUp
Rider 1200
Operator s manual
Please read these instructions carefully and make sure
you understand them before using the machine.
101 89 37-26
Page 2
I il'l I %Ji
Operator’s Manual for
Rider 1030 BioClip and Rider 1200
Safety instructions................................................2
Safety rules for USA........................................2
Expianation of symbois
Safety instructions
General use.....................................................5
Driving on slopes.............................................6
Children...........................................................7
Maintenance....................................................7
Presentation
Location of the controls...................................9
Throttle control................................................10
Choke lever
Speed limiter...................................................10
Cutting unit
Lift lever for cutting unit..................................11
Lever for adjustment of cutting height
Parking brake
Seat
Fuelling...........................................................12
Driving..................................................................13
Before starting
Starting the engine
Driving the machine
Cutting tips
Stopping the engine
Disengage lever............................................. 16
Maintenance
Maintenance schedule
Dismantling of the machine hoods
.........................................................
....................................................
.....................................................
................................................................
.................................................... 15
........................................................
........................................
................................................
...........
.................................................
................................................
.........................................
.......................................
.......................................
...................................
.................
4
5
9
10
11
12
12
12
13
13
14
16
17
17
18
Checking the engine’s oil level
Checking the engine’s cooling air intake.......19
Checking the fuel pump’s air filter
Checking the transmission’s air intake..........20
Checking the transmission’s oil level
Checking and adjusting the steering wires .... 21
Checking and adjusting the brakes
Checking the battery acid level
Checking the safety system
Replacement of air filter
Checking and adjustment of cutting unit’s
ground pressure
Checking and adjusting the parallelism
of the cutting unit
Dismantling the cutting unit
Checking the blades......................................26
Changing the oil
Replacement of the oil filter
Lubrication.....................................................28
General lubrication
Checking and adjustment of throttle wire
Checking the tyre pressure
Replacement of fuel filter
Trouble shooting schedule.................................31
Storage...............................................................32
Winter storage
Service
Wiring diagram
Technicai data
..........................................................
............................................
...........................................
............................................
........................................
...............................................
...................................................
....................................................
......................
........
........
............
...............
.....................
..........................
................................
...........................
..........................
......
...........................
..............................
19
19
20
22
22
22
23
24
25
26
27
28
28
29
30
30
32
32
33
34
IMPORTANT iNFORMATiON
Read through these instructions carefuiiy
so that you know how to use and maintain
the machine before using it.
For servicing other than described in this
manual contact an authorised dealer for
parts and service.
A WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, hirth
defects or other reproductive harm.
English - 1
Page 3
A 1. Safety rules for USA A
Safe operation practices for ride-on mowers
IMPORTANT!
This cutting machine is capabie of amputating hands and feet and throwing objects. Faiiure to ob
serve the foiiowing safety instructions couid resuit in serious injury or death.
I. Generai operation
1. Read, understand and follow all instructions in
the manual and on the machine before start
ing.
2. Only allow responsible adults, who are familiar
with the instructions, to operate the machine.
3. Clear the area of objects such as rocks, toys,
wire, etc., which could be picked up and
thrown by the blade.
4. Be sure the area is clear of other people
before mowing. Stop the machine if anyone
enters the area.
5. Never carry passengers.
6. Do not mow in reverse unless absolutely
necessary. Always look down and behind
before and while backing.
7. Be aware of the mower discharge direction
and do not point it at anyone. Do not operate
the mower without either the entire grass
catcher or the guard in place.
8. Slow down before turning.
9. Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine and remove keys before dismounting.
10. Turn off blades when not mowing.
II. Stop engine before removing grass catcher or
unclogging chute.
12. Mow only in daylight or good artificial light.
13. Do not operate the machine while under the
influence of alcohol or drugs.
14. Watch for traffic when operating near or
crossing roadways.
15. Use extra care when loading or unloading the
machine into a trailer or truck.
11. Slope operation
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope or If you feel uneasy
on it, do not mow it.
DO
Mow up and down slopes, not across.
Remove obstacles such as rocks, tree limbs,
etc.
Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.
Use slow speed. Choose a low gear so that
you will not have to stop or shift while on the
slope.
Follow the manufacturer’s recommendations for
wheel weights or counterweights to improve
stability.
Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
Keep all movement on the slopes slow and
gradual. Do not make sudden changes in
speed or direction.
Avoid starting or stopping on a slope. If tires
lose traction, disengage the blades and pro
ceed slowly straight down the slope.
DO NOT
Do not turn on slopes unless necessary and
then, turn slowly and gradually downhill, if
possible.
Do not mow near drop-offs, ditches or
embandments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or
ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction
could cause sliding.
Do not try to stabilize the machine by putting
your foot on the ground.
Do not use grass catcher on steep slopes.
III. Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
A/ever assume that children will remain where you
last saw them.
1. Keep children out of the mowing area and
under the watchful care of another responsible
adult.
2. Be alert and turn machine off if children enter
the area.
3. Before and when backing, look behind and
down for small children.
4. Never carry children. They may fall off and be
seriously injured or interfere with safe machine
operation.
5. Never allow children to operate the machine.
6. Use extra care when approaching blind cor
ners, shrubs, trees or other objects that may
obscure vision.
2 - English
Page 4
i^f^r L. I I I riWW I IWI'«W
IV. Service
Use extra care in handling gasoline and other
1.
fuels. They are flammable and vapours are
explosive.
a) Use only an approved container.
b) Never remove gas cap or add fuel with the
engine running. Allow engine to cool before
refuelling. Do not smoke.
c) Never refuel the machine indoors.
d) Never store the machine or fuel container
inside where there is an open flame, such as
in a water heater.
Never run a machine inside a closed area.
2.
Keep nuts and bolts, especially blade attach
3.
ment bolts, tight and keep equipment in good
condition.
4. Never tamper with safety devices. Check their
proper operation regularly.
Danger, keep hands and feet away
Keep machine free of grass, leaves or other
5.
debris build-up. Clean up oil or fuel spillage.
Allow machine to cool before storing.
Stop and inspect the equipment if you strike an
6.
object. Repair, if necessary, before restarting.
7. Never make adjustments or repairs with the
engine running.
Grass catcher components are subject to wear,
8.
damage and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace with
manufacturer’s recommended parts, when
necessary.
Mower blades are sharp and can cut. Wrap the
9.
blade(s) or wear gloves and use extra caution
when servicing them.
10. Check brake operation frequently. Adjust and
service as required.
English -
Page 5
These symbols are on the machine and in the instructions.
Study them carefully so that you know what they mean.
Read the instructions.
R N
Reverse Neutral
Fast
Slow Engine off Battery
© a i\i II
stop! start
Oil pressure Cutting height Backwards
Use hearing protection
Sound level Warning! Rotating blades Warning! Risk that the machine can tip over Never drive across a slope
Clutch in
Clutch out Parking brake
Forwards
Ignition
O
Choke
Fuel
1= I?
Hydrostatic freewheel
(©) o A
Brake
Warning
European standard for
machine safety
4 - English
Never use the machine if persons,
especially children, or animals,
are in the vicinity
Never carry passengers on the Keep hands and feet away
machine or equipment from under the hood when
Starting instructions
Read the instructions
Check the engine’s oil level
Check the hydrostat’s oil level
Lift up the cutting unit
Put the gear shift/hydrostat pedal in
neutral
Brake
If the engine is cold use the choke
Start the engine
Release the parking brake before
driving
O
Drive very slowly
without the cutting unit
the engine is running
Speed limiter pedal forwards
Neutral
Speed limiter pedal reverse
Switch off the engine and take off
the ignition cable before repairs or
maintenance
1“7
Page 6
These instructions are for your safety. Read them carefully.
This symbol implies that important safety rules are applicable. This is for your safety
and the operating reliability of the machine.
General use:
Make yourself familiar with the controls and how
to stop quickly.
Read all the instructions in Operator’s Manual
and on the machine before starting it. Make sure
you understand them, and then follow them.
Only allow adults who are familiar with the
machine to use it.
Wear approved safety glasses or a visor during
assembly and driving.
Never use the machine barefoot. Always wear
heavy-duty shoes, preferably toe-capped.
Never wear loose fitting clothes which can fasten
in moving parting.
I B I 1I IWI'«W
Read the instructions before starting the machine.
Clear the area of objects such as stones, toys,
and wires, etc. which can be caught up by the
blades and thrown out.
Check that there are no other persons in the
area before starting to cut.
Stop the machine if anyone comes into the work
area.
Never carry passengers.
Do not cut backwards unless absolutely neces
sary.
Always look down and behind before and during
reversing.
Keep an eye on the ejected grass and do not
direct it towards anyone.
Slow down before turning.
Never leave the machine unattended when the
engine is running. Always switch off the blades,
pull on the parking brake, stop the engine and
take out the keys before leaving the machine.
Switch off the blades when you are not cutting.
Clear the area from stones etc. before cutting.
Only cut In daylight or good artificial lighting.
Never use the machine when you have con
sumed alcohol, drugs, or certain medicines.
|\ WARNING!
^ This machine can cut off hands and feet, and eject objects. Faiiure to foiiow
the safety instructions can lead to severe injury.
Never carry passengers.
English - 5
Page 7
Watch out for traffic when working close to a
road, or crossing one.
Be careful when rounding a fixed object so that
the blades do not hit it. Never drive intentionally
over a foreign object.
The machine is heavy and can cause very
severe crush injuries. Be extra careful when
loading it on a trailer or truck.
Be careful when pulling a load or using heavy
equipment.
a. Only use approved tow hooks.
b. Limit the load to what you can manage safely.
c. Do not make sharp turns. Be careful when
reversing.
d. Use counterweights or wheel weights when
indicated in the instructions.
Driving on siopes
Driving on slopes is one of the situations where
there is the most serious risk that the driver can
loose control or that the machine tips over, which
can cause severe injuries or be fatal. All slopes
require extra care. If you cannot reverse up the
slope or if you feel uncertain avoid cutting it.
Do as follows:
• Remove obstacles such as stones and branches
etc.
• Cut upwards and downwards, not sideways.
• Look out for and avoid driving over furrows,
holes or mounds. On uneven surfaces it is
easier for the machine to tip over. High grass
can conceal obstacles.
• Drive slowly. Select a low gear to avoid having to
stop and changing gear. It is also easier to use
the gear to brake in a low gear.
• Follow the manufacturer’s recommendations on
wheel weights or counterweights to increase
stability.
• Be extra careful with the grass collector or other
equipment which can alter the stability of the
machine.
• Always drive smoothly and slowly on slopes.
Avoid sudden changes of speed or direction.
• Avoid starting or stopping on a slope. If the tyres
begin to skid switch off the blades and drive
slowly down the slope.
Be extra careful when driving on slopes.
Cut slopes upwards and downwards, not sideways.
- English
Page 8
I ■ 11^^ I ri\J>W I
Do not do the following:
Avoid unnecessary turns on slopes, and if
turning is necessary turn slowly and gradually,
downwards if possible.
Do not cut close to edges, ditches or banks. The
machine can suddenly tip over if a wheel goes
over the edge of a drop or a ditch, or if a bank
giveaway.
Do not cut wet grass. It is slippery and the tyres
can loose their grip so that the machine slides.
Do not try to stabilise the machine by placing
one foot on the ground.
Children
Tragic accidents can occur if the driver does not pay
attention to children in the vicinity. Children are
often attracted to the machine and the work of
mowing. Never assume that children stay where
you last saw them.
Keep children away from the mowing area.
Keep children away from the mowing area and
under the supervision of another adult.
Be on your guard and switch off the machine if
children come into the work area.
Before and during reversing look behind and
down for small children.
Never allow children to ride on the machine.
They can fall off and become seriously injured or
obstruct an otherwise safe manoeuvre of the
machine.
Never allow children to steer the machine.
Be extra careful close to corners, bushes, trees
or other objects which obstruct your view.
Maintenance
Petrol and petrol fumes are toxic and highly
inflammable. Be extra careful when handling
petrol.
a. Store the fuel in containers approved for this
purpose.
Never allow children to drive the machine.
b. Never fill up the machine with petrol when the
engine is running. Let the engine cool before
filling up with petrol. Do not smoke, or fill up with
fuel in the vicinity of naked flames or sparks.
c. Never fill up with fuel indoors.
d. If leakage has occurred in the fuel system the
engine must not be started until this is rectified.
e. Never store the machine or fuel containers
indoors if there are naked flames, such as in a
boiler room or where there is electrical equip
ment which can emit sparks.
Never fill up with fuel indoors.
English - 7
Page 9
Check the fuel level each time before using the
machine, and leave space for the fuel to expand
since the heat from the engine and hot sun can
cause the fuel to run over.
Avoid overfilling. If petrol has been spilt on the
machine wipe it up and wait until it has evapor
ated before starting the engine. If petrol is spilt
on clothes, change them.
Be extra careful when handling battery acid.
Spilling acid on the skin can cause severe burn
injuries. Rinse immediately with water. If acid
gets into the eyes this can cause blindness.
Contact a doctor.
Be careful with the maintenance of the battery.
Explosive gas is formed in the battery. Never
handle the battery when smoking or in the
vicinity of naked flames or sparks. Otherwise the
battery can explode and cause severe injuries.
Never drive the machine in an enclosed space.
The exhaust fumes contain carbon monoxide, an
odourless, toxic and fatal gas.
Make sure that bolts and nuts, especially attach
ment bolts for the blade units are properly tight
ened and that the equipment is in good order.
Never smoke in the vicinity of the battery or the fuel.
Never alter the safety devices. Check regularly
that they function. The machine must not be
driven with defective or unmounted safety de
vices.
Do not alter the setting of the governor and do
not race the engine.
Reduce the fire risk. Keep the machine clean
from grass, leaves and other refuse which
fastens in it. Allow the machine to cool before
placing it in the storage area.
Stop and inspect the equipment if you drive over
an object. If necessary repair the machine before
starting.
Never make adjustments with the engine run
ning.
The parts on the grass collector can become
worn, damaged and aged, so that moving parts
are exposed or so that an object can be thrown
out. Check the parts regularly and if necessary
replace them with spare parts recommended by
the manufacturer.
The machine is tested for safety and approved
only for equipment supplied or recommended by
the manufacturer.
Never drive the machine in an enclosed space.
Clean the machine regularly from grass, leaves and
other waste.
8 - English
The blades are sharp and can cause cutting
injuries. Wrap over the blades or use protective
gloves when handling them.
Check the functioning of the brakes regularly.
Adjust and maintain them as necessary.
Page 10
Presentation
These instructions describe two machine models,
Rider 1030 Bioclip and Rider 1200.
Rider 1030 Bioclip and Rider 1200 are fitted with
Vanguard V-Twin engines from Briggs & Stratton of
18h.p.
The cutting unit on Rider 1200 has rear ejection
with a moving width of 1200 mm.
The power transmission from the engine is handled
by a hydrostatic gearbox which enables stepless
variation of the speed with the foot pedals.
There is one pedal for driving forward and one for
reversing.
Rider 1030 has a cutting unit with Bioclip function
and a mowing width of 1030 mm.
Location of the controls
1.
Ignition lock
2.
Choke lever
3.
Throttle control 10. Lock button for parking brake
4.
Counter 11.
5.
Lever for adjustment of cutting height
6. Lifting lever for cutting unit with lock button 13. Main lock
7.
Speed limiter for reversing
Speed limiter for driving forward
8.
Brake pedal
9.
Lever for adjustment of seat
12. Fuel tank cap
14.
Lever to disengage the drive
Page 11
Throttle control
The throttle control regulates the engine speed, and
thereby also the rotation speed of the blades.
To increase or reduce the engine speed the control
is moved forwards or backwards.
Choke lever
The choke lever is used for cold
the engine a richer fuel mixture.
For cold starting the lever is mo'
its end position.
Speed limiter
The speed of the machine is steplessly regulated
with two pedals. Pedal (1) is used to drive forwards,
and pedal (2) to reverse.
1 0 - English
Page 12
ni
The cutting unit on Rider 1200 has rear ejection, i.e.
the grass cuttings are thrown out behind the cutting
unit.
.IH liHii iVi/i^i
Lift lever for cutting unit
The lift lever is used to set the cutting unit in
transport or mowing position.
1. Pull back the lever to the locked position for
transport.
The cutting unit will lift up and the blades stop
rotating.
Press in the lock button and move the lever
forwards for the mowing position.
The unit will lower down and the blades start to
rotate.
3. The lever can also be used to temporarily
regulate the cutting height, e.g. for a small
mound in the lawn.
-11
Page 13
Lever for adjustment of the cutting
height

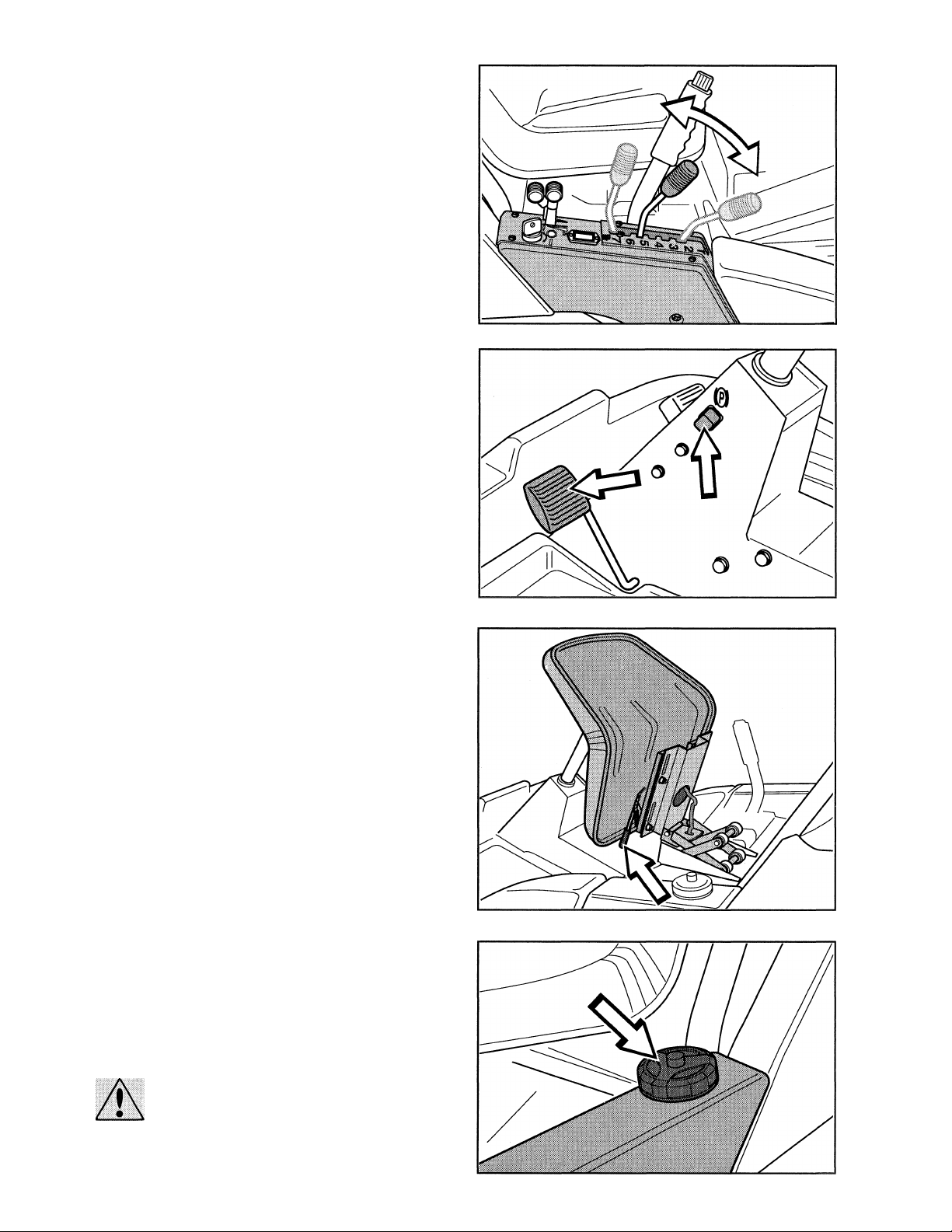

The cutting height can be adjusted to 7 different
positions with the cutting height lever.
To achieve an even cutting height it is important that
the tyre pressures are the same on the front wheels
(60 kPa).
Parking brake
The parking brake is applied as follows:
1. Push down the brake pedal.
2. Push in the lock button on the steering column.
3. Release the brake pedal while holding the button
pressed.
The parking brake lock disengages automatically
when the brake pedal is pressed.
Seat
The seat has a jointed attachment on the front edge
and can be tipped fonward.
The seat can also be adjusted lengthways.
To adjust move the lever under the front edge of the
seat to the left, so that the seat can be moved
forward or backwards to the required position.
Fueiiing
The engine should be run on at least 92 octane
leaded or unleaded petrol (not oil mixed). For USA
and Canada at least 87 octane leaded or unleaded
petrol (not oil mixed).
12 - English
WARNING!
Petrol is highly inflammable. Observe
care and fuel outdoors (see safety
instructions).
Page 14
L/ni viMv;i
Before starting
• Read the safety instructions and information on
the location and function of the controls before
starting (see pages 5-12).
• Conduct daily maintenance before starting (see
maintenance schedule on page 17).
• Adjust the seat to the required position.
Starting the engine
1. Lift up the cutting unit by pulling the lever back
wards to locked position (transport position) and
apply the parking brake.
2. Move the throttle control to the middle position.
3. If the engine is cold move the choke lever
backwards to its end position.
4. Turn the ignition key to the start position.
Page 15
5. When the engine starts release the ignition key
immediately back to neutral position.
IMPORTANT INFORMATION
Do not run the starter for more than about
5 seconds at a time. If the engine does not
start, wait about 10 seconds before trying
again.
6. Push the choke lever gradually forward when the
engine has started.
7. Set the required engine speed with the throttle
control.
WARNING!
Never run the engine indoors, in en
!
closed or poorly ventilated areas. The
exhaust fumes contain toxic carbon
monoxide.
Driving the machine
1. Release the parking brake by pressing the brake
pedal.
2. Carefully press down one of the pedals until the
required speed is obtained.
To drive forward press down pedal (1), or to
reverse pedal (2).
14 - English
Page 16
L/mi V ii^vsi
3. Select the required cutting height (1-7) with the
cutting height lever.
4. Push in the lock button on the lift lever and lower
down the cutting unit.
Cutting tips
WARNING!
Clear the lawn from stones and other
objects which can be thrown out by
the blades.
Localise and mark stones and other fixed
objects to avoid collision.
Start with a high cutting height and reduce down
until the required mowing results are obtained.
The mowing results are best with a high engine
speed (fast rotating blades) and low driving
speed (slow moving machine). If the grass is not
too high and thick the driving speed can be
increased or the engine speed reduced without
noticeably affecting the mowing results.
The best lawns are achieved if the grass is cut
often. Mowing becomes more uniform and the
grass cuttings become more evenly distributed
over the surface.
The total time consumption is not greater since it
is possible to select a higher driving speed
without inferior mowing results.
1
J
Avoid mowing a wet lawn. The mowing results
are inferior since the wheels sink down into the
soft lawn.
Hose down the cutting unit with water under
neath each time it is used.
J
Mowing pattern
-15
Page 17
WARNfNQi
Never drive the machine on ground
at an angle of more than 15°. Mow
slopes upwards and downwards,
never across. Avoid sudden changes
in direction.
Stopping the engine
Preferably allow the engine to idle for a minute to
obtain normal working temperature before stopping
it if it has been working hard.
1. Lift up the cutting unit by pulling the lever back
to the locked position.
2. Move the throttle control to the MIN. position.
Turn the ignition key to the STOP.
Disengage iever
To move the machine when the engine is switched
off the disengage lever must be pulled backwards.
16 - English
Page 18
Maintenance schedule
The following is a list of the maintenance which should be conducted on the machine. For the items which
are not described in these instructions ao to an authorised service workshop.
Maintenance Page
Check the engine’s oil level
Check the engine’s cooling air inlet
Check the fuel pump’s air filter
Check the transmission’s air inlet
Check the transmission’s oil level
Check the steering wires
Check the brakes
Check the battery
Check the safety system
Check screws and nuts
Check for fuel and oil leakage
Clean the air filter’s pre-filter (foam plastic)
Check the cutting unit
Check the tyre pressures (60 kPa)
Adjust the brakes
Check the V-belts
19 •
19 •
19 •
20
20
21
22
22
22 •
-
-
23
24
30
22
-
Daily
main-
tenance
before start
•
•
•
•
•
O
o
Maintenance interval
in hours
100
25
50
•
•
•
•
O
300
Change the engine oil
Lubricate joints and shafts®*
Check and adjust the throttle wire
Replace the air filter’s pre-filter and paper filter®*
Replace the oil filter
Replace the fuel filter
Replace the plugs
Clean the engine’s and the hydrostat’s cooling flanges®'**
Check the valve clearance'**
Check the valves and seats'**
First change after 8 hours. During dusty conditions cleaning and replacement should be more frequent. For daily use of the
machine iubrication should be conducted twice a week. Conducted by authorised service workshop.
27
28 •
29 •
23 •
28 •
30 •
- o
-
-
-
• = Described in these instructions.
O = Not described in these instructions.
WARNING!
No service procedures must be conducted on the engine or cutting unit unless;
•
o
o
o
• The engine is switched off. • The parking brake is applied.
• The Ignition key is removed, . The cutting unit is disengaged.
• The ignition cables are removed from the plugs.
.17
Page 19
Dismantling of the machine hoods
Engine hood
Release the two rubber straps on the rear edge of
the engine hood and lift off the hood.
Front hood
Dismantle the screws (1,2 and 3) and lift off the
front hood.
Right-hand fender
Dismantle the foot-plate (1), screws (2 and 3), and
lift off the fender.
Left-hand fender
Dismantle the screws (1 and 2), and lift off the
fender.
18 - English
Page 20
Check the engine’s oil level
Check the oil level in the engine when the machine
is horizontal.
Dismantle the engine hood as per the description
on page 18.
Take out the dip stick, wipe off the oil, and insert
again.
The dip stick must be fully screwed down.
Now take out the dip stick again and check the oil
level.
The oil level should lie between the markings on dip
stick. If the level approaches the ADD mark, top up
with oil to the FULL mark on the dip stick.
The oil is filled in the same hole as the dip stick is
in.
Use engine oil SAE 30 or SAE 10W-30, class CDCF (over 0°). Use engine oil SAE 5W-30, class
CD-CF (below 0°).
The total oil volume in the engine is 1.3 litres.
Check the engine’s cooling air intake
Dismantle the engine hood as described on page
18.
Check that the cooling intake is free from leaves,
grass and dirt.
If the cooling intake is blocked this will interfere with
the cooling of the engine, which can damage the
engine.
Checking of the fuel pump’s air filter
Check regularly that the fuel pump’s air filter is free
from dirt.
The filter can when necessary be cleaned with a
brush.
English -19
Page 21
Check the transmission’s air intake
Check that the transmission’s air intake in not
blocked.
Check the transmission’s oii ievei
1. Check the transmission’s oil level by looking
through the mesh on the air intake. The oil level
should lie between the MIN and MAX markings
on the oil canister at 20° C.
If oil needs to be added the transmission cover
must be dismantled first. Release the two
screws (one on each side) and then lift off the
transmission cover.
2. Screw off the oil canister cap and top up with
engine oil SAE 10W/30, class CD-CF, until the
oil level reaches the MAX marking. Screw the
oil canister cap back on, and fit the transmission
cover.
20 - English
Page 22
Checking and adjustment of the steering wires
The steering is controlled by means of wires.
These can in time become slack, which implies that
the adjustment of the steering becomes altered.
Check and adjust the steering as follows:
1. Dismantle the frame-plate by releasing the
screws (two on each side).
2. Check the tension of the steering wires by
pushing them together (at the arrows).
It should be possible to push them together so
that the distance between them is half as much,
without using unnecessary force.
3. When necessary the wires can be tensioned by
tightening the adjusting nuts (one on each side
of the machine).
Do not tension the wires too tightly, they should
only be tightened up to the steering rim.
Check the wire tension on completion of the
adjustment as per item 2.
Page 23
Checking and adjusting the brake
Check that the brake is correctly adjusted by
placing the machine on a slight downward slope
and applying the brake.
If the machine does not stand still the brake should
be adjusted.
The brake is adjusted as follows;
1. Release the lock nuts (A).
2. Tension the wire with the adjusting screw (B)
until the play in the wire is taken up.
3. Tighten the lock nuts (A).
4. On completion of the adjustment the brake
should be checked again.
A
/ » \ Poorly adjusted brakes can
WARNING!
result in reduced braking power.
Check the level of the battery acid
Check that the level of the battery acid lies be
tween the markings. Top up the cells with distilled
water only.
WARNING!
A
External:
Internal:
Eyes:
Procedures on contact with acid
Rinse well with plenty of water.
Drink large quantities of water or
milk. Contact a doctor as soon as
possible.
Rinse well with plenty of water.
Contact a doctor as soon as pos
sible.
Batteries emit expiosive gas. Sparks, flames
and cigarettes must absolutely not be
brought Into the vicinity of the battery.
Check the safety system
The machine is equipped with a safety system
which prevents starting or driving the machine
unless someone is sitting in the seat. Check daily
that the safety system functions.
22 - English
Page 24
■ EMM
Replacing the air filter
If the engine seems to lack power or does not run
smoothly this may be because the air filter is
dogged.
It is therefore important to replace the air filter at
regular intervals (see maintenance schedule on
page 17 for correct service interval).
The air filter is replaced as follows;
1. Dismantle the engine hood as described on
page 18.
2. Fold out the two snap-locks and lift off the cover
on the air filter housing.
3. Release and remove the wing-nut in the centre
of the air filter and lift off the paper filter with pre
filter.
4. Pull off the foam plastic pre-filter from the paper
filter and wash clean in mild detergent.
Squeeze it dry in a clean cloth.
Drench it with new engine oil. Wrap the filter in
an absorbent cloth and squeeze out excess oil.
If the paper filter is heavily soiled it should be
replaced.
IMPORTANT INFORMATION
Do not use compressed air to clean the
paper filter.
Fit the air filter as follows:
Push the pre-filter over the paper filter.
Fit the paper filter with pre-filter in the air filter
housing and tighten the wing-nut in the centre.
Replace the cover over the air filter housing and
clamp the two snap-locks tight.
English - 23
Page 25
Checking and adjustment of the cutting unit’s ground pressure
To achieve the best cutting results the cutting unit
should follow the underlying surface without
pressing too hard against it.
The pressure is adjusted with a screw on each side
of the machine.
Adjusting of the cutting unit’s ground pressure is
conducted as follows:
1. Place a set of bathroom scales under the cutting
unit’s frame (front edge) so that it rests on the
scales. If necessary a block can be placed
between the frame and scales so that the sup
port wheels do not bear any weight.
2. Adjust the unit’s ground pressure by screwing in
or out the adjusting screws located behind the
front wheels on both sides.
The ground pressure should be between 12 and
15 kg.
24 - English
Page 26

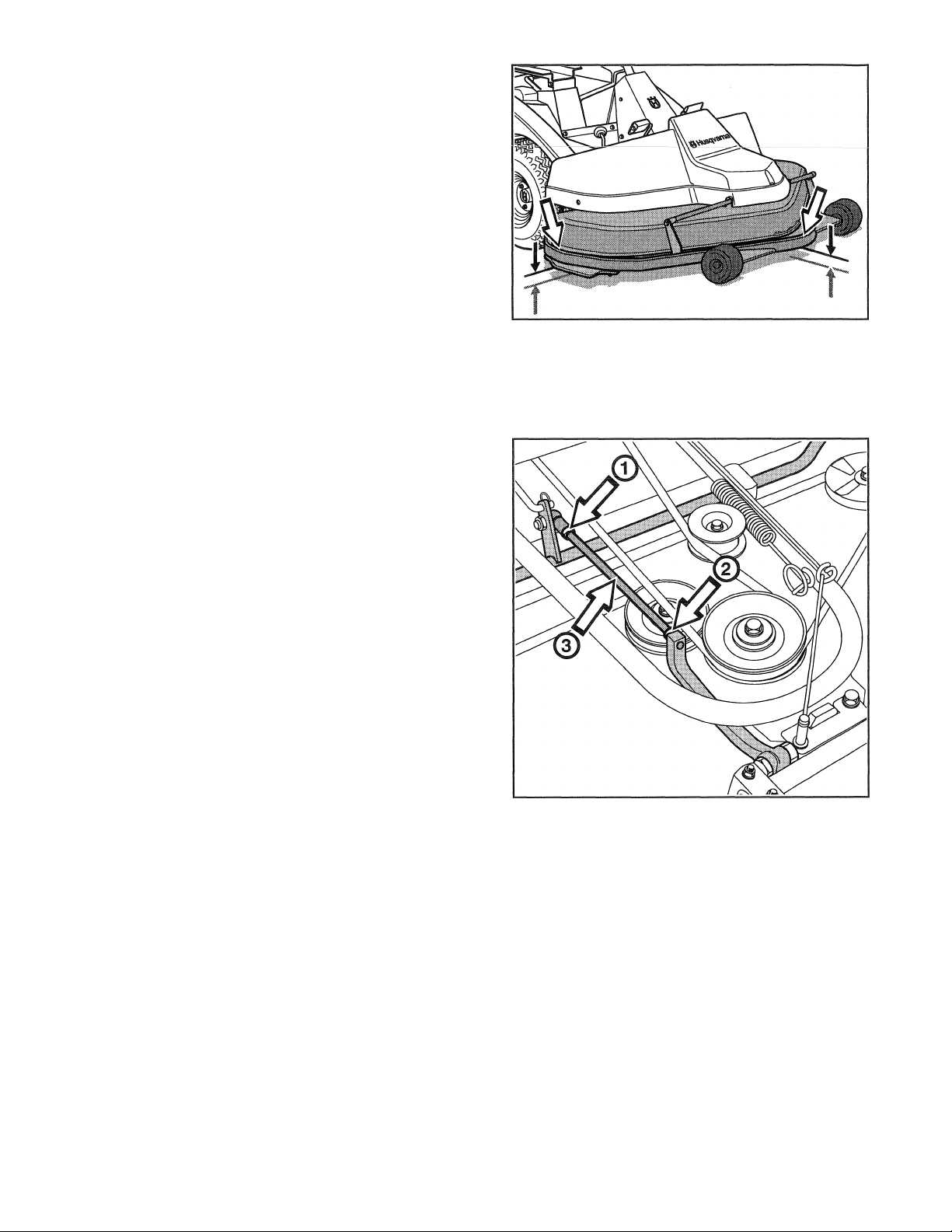

Checking and adjusting the cutting unit’s parallelism
To achieve good mowing results it is important that
the unit is parallel with the ground.
Check this as follows:
1. Place the machine on a level surface.
2. Measure the distance between the ground and
the edge of the unit, at the front and back of the
hood.
If the values are the same the cutting unit is
parallel.
If the cutting unit needs adjusting, do as follows:
1. Dismantle the front hood and right-hand and lefthand fenders as described on page 18.
2. Release the lock-nuts (1) and (2). Note that the
strut ends are right and left threaded.
3. Place a wrench over the bevel (3) in the middle
of the strut and screw the strut forwards to raise
the front edge of the hood, or backwards to
lower it.
4. Tighten the lock nuts after the adjustment.
5. On completion of the adjustment the unit’s
parallelism should be re-checked.
Fit the left-hand and right-hand fenders and the
front hood.
English - 25
Page 27
Dismantling the cutting unit
The cutting unit can be released from the machine
for cleaning or checking of the blades and screws.
Dismantle the cutting unit as follows:
1. Dismantle the front hood as described on page
18.
2. Dismantle the pull-rod (1). A tool can be used
when the needle spring is removed to carefully
bend out the pull-rod from its holder.
3. Relieve the tensioning pulley (2) by disconnect
ing the spring (3).
4. Fold the lock plate (5) forwards and press down
the front edge of the unit so that it releases from
the unit frame (4).
5. Push the unit backwards and dismantle the drive
belt, and then pull the unit forwards so that the
back end releases from the unit frame.
Fitting of the cutting unit takes place in the reverse
order to dismantling.
Checking the blades
To achieve the best mowing results it is important
that the blades are undamaged and well-
sharpened.
Check that the blades’ attachment screws are tight,
(45-60 Nm, 33-44 Ib.ft)
IMPORTANT INFORMATION
Replacing or sharpening the blades
should be conducted by an authorised
service workshop.
WARNING!
Wear protective glasses when dis
mantling the cutting unit. The spring
which tensions up the belt can go
off and cause personal injury.
26 - English
IMPORTANT INFORMATION
The Bioclip unit should always have the
blades in the relative positions shown in
the diagram, with a 90° angle between the
blades. Otherwise the biades can go
against each other and cause serious
damage to the unit.
Page 28
Changing the oil
The oi! should be changed for the first time after 8
hours of running time. Thereafter it should be
changed every 50 hours of running time. If the
engine is run hard or during high temperatures the
oil should be changed every 25 running hours.
WARNING!
Engine oil can be very hot if it is
drained off directly after the engine
is stopped. Therefore allow the
engine to cool down first.
Change the oil as follows:
1. Dismantle the engine hood as described on
page 18.
2. Place a receptacle under the engine’s drain
plug.
3. Remove the dip stick. Remove the drain plug on
the left-hand side of the engine.
4. Let the oil run out into the receptacle.
5. Fit the oil plug and tighten well.
6. Fill up with oil to the FULL mark on the dip stick.
Use engine oil SAE 30 or SAE 10W-30, class
CD-CF (over 0°). Use engine oil SAE 5W-30,
class CD-CF (below 0°).
The total oil volume in the engine is 1.3 litres.
7. Run the engine warm and then check that there
is no leakage from the oil plug.
The oil is filled in the same hole as the dip stick.
IMPORTANT INFORMATION
Used engine oil is hazardous to health
and must by law not be poured out on the
ground or in the nature, but shali be
handed in to a workshop or speciai
environmental station. Avoid skin contact,
wash with soap and water in the event of
spillage.
■FULL
English - 27
Page 29
Replacement of the oil filter
1. Dismantle the engine hood as described on
page 18.
2. Drain off the engine oil according to the work
description “Changing of engine oil” on page 27.
3. Dismantle the oil filter. If necessary use a filter
extractor.
4. Apply new, clean engine oil on the seal for the
new filter.
5. Fit the filter and tighten by hand.
6. Run the engine warm and check that there is no
leakage round the oil filter seal.
Lubrication
The following three lubrication points shall be
lubricated regularly with graphite grease of good
quality.
In the event of daily use lubrication should be
conducted twice a week.
General lubrication
All joints and bearings are lubricated on
manufacture with molybdenum sulphide grease.
Re-grease with same type of grease.
Lubricate the steering and controi wires with engine
oil.
Conduct this lubrication regularly: during daily use
of the machine it should be lubricated twice a week.
28 - English
Page 30
Checking and adjustment of the throttle wire
Check that the engine responds to the throttle
control and that the correct engine speed is
achieved at full throttle.
If necessary the following adjustment can be made;
1. Release the clamping screw and push the
throttle control to full throttle position.
2. Pull the throttle wire’s outer casing to the right
and tighten the clamping screw.
English -29
Page 31
Checking the tyre pressure
The tyre pressure should be 60 kPa (0.6 kp/cm^)
all round.
To Improve driving the pressure on the rear tyres
can be reduced to 40 kPa (0.4 kp/cm^).
The maximum tyre pressure is 100 kPa (1.0 kp/cm^).
IMPORTANT INFORMATION
Different tyre pressures on the front tyres
will result in the blades cutting the grass at
different heights.
Replacement of the fuel filter
Replace the fuel filter every 100 running hours
(once per season) or more frequently if it is clogged.
Replace the filter as follows;
1. Dismantle the engine hood as described on page
18.
2. Move the hose clips away from the filter. Use a
pair of flat pliers.
3. Pull off the filter from the hose ends.
4. Press in the new filter on the hose ends. If
necessary soap solution can be applied on the
filter ends to simplify fitting.
5. Push the hose clips back on the filter and
tighten.
30 - English
Page 32
Problem
Procedure
Engine will not start.
Starter does not pull round engine.
Engine does not run smoothly.
Engine seems to have no power.
Fuel tank empty.
Plugs defective.
Plug connections defective.
Dirt in carburettor or fuel pipe.
Battery flat.
Bad contact between cables and battery terminals.
Lift lever for cutting unit in wrong position.
Main fuse blown. The fuse is located in front of the
battery under the battery cover.
Ignition lock faulty.
Gear shift/hydrostat pedal not in neutral.
Plugs defective.
Carburettor incorrectly set.
Air filter clogged.
Fuel tank vent blocked.
Ignition setting defective.
Dirt in fuel pipe.
Air filter clogged.
Plug defective.
Dirt in carburettor or fuel pipe.
Carburettor incorrectly set.
Engine overheats.
Battery does not charge.
Machine vibrates.
Uneven mowing.
Engine overloaded.
Air intake or cooling flanges blocked.
Fan damaged.
Too little or no oil in engine.
Ignition defective.
Plugs defective.
One or more cells in the battery faulty.
Bad contact between battery terminals and cables.
Blades are loose.
Engine is loose.
Imbalance on one or more blades, resulting from
damage or inferior balancing after sharpening.
Blades blunt.
Cutting unit set skew.
Long or wet grass.
Grass blockage under hood.
Different tyre pressures on right and left sides.
Over-speeding
Drive belts slipping.
English - 31
Page 33
Winter storage
At the end of the season the machine should
immediately be put in order for storage, also if it is
going to stand idle for more than 30 days. Fuel
which is left to stand for long periods (30 days or
more) can leave tacky deposits which can block the
carburettor and interfere with the engine.
Fuel stabiliser is an acceptable alternative to avoid
tacky deposits during storage. If alkylate petrol
(Aspen) is used stabiliser is not necessary since
this fuel is stable. However, one should avoid
changing from standard to alkylate petrol since
sensitive rubber parts can harden. Add stabiliser to
the fuel in the tank or the storage container. Always
use the mixing ratios indicated by the manufacturer.
Run the engine for at least 10 minutes after adding
the stabiliser so that it will reach the carburettor. Do
not empty the fuel tank and carburettor if stabiliser
has been added.
WARNING!
Never place an engine with fuel in
the tank indoors or in poorly venti
lated areas where petrol fumes can
come into contact with naked
flames, sparks or pilot flames in
boilers, hot water heaters, or drying
cabinets, etc. It is highly inflammable
and negligent usage can cause
severe person injury and material
damage. Drain off the fuel in an
approved container outdoors and
well clear of naked flames. Never use
petrol for cleaning purposes. Use
degreasing agents and hot water
instead.
To put the machine in order for storage follow these
instructions:
1. Carefully clean the machine, especially under
the cutting unit. Touch-up paint damage to avoid
rust.
2. Inspect the machine for worn or damaged parts
and tighten loose screws and nuts.
3. Change the oil, and take care of the waste oil.
4. Empty the fuel tank. Start the engine and run it
until the carburettor is emptied of fuel.
5. Remove the plugs and pour in a tablespoon of
engine oil in each cylinder. Pull round the engine
to distribute the oil and screw the plugs back on.
6. Grease all grease nipples, joints and axles.
7. Remove the battery. Clean it, charge it, and
store it in a cool place. Protect the battery from
low temperatures (below freezing point).
8. Store the machine in a clean and dry place and
cover it over for extra protection.
Service
When ordering spare parts state the purchase year,
model, type, and serial number.
Always use genuine parts.
Annual inspection or trimming by an authorised
service workshop is a good way of getting the best
out of your machine the next season.
32 - English
Page 34
Pos .
OFF
ON
STA RT
K -
Con .
G + M
B + S '
B + S ' + S
1.
Brake switch, hydrostat
2. Microswitch, cutting unit
Microswitch, seat
3.
4. Ignition lock
5. Counter
Start relay
6.
7. Engine
Explanation of colour abbreviations in wiring diagram.
R = Red
B = Blue
W = White
BL= Black
Y = Yellow
BR = Brown
English - 33
Page 35
Rider 1030 Bioclip, Rider 1200
Dimensions
Length
Width
Height
Unladen weight
Wheel base 855 mm
Track
Tyre size
Tyre pressure, front & rear
Max. gradient
Engine
Manufacture Briggs & Stratton
Power
Displacement 570 cm«
Fuel
USA & Canada
Tank volume
Oil
Oil volume
Start Electric starter
Rider 1030 Bioclip
2300 mm
1120 mm
1085 mm
300 kg
710 mm
18x7.50x8
60 kPa (0.6 kp/cm®)
15°
Vanguard V-Twin
model 350777,
type 1123, trim A1
13.7/18 kW/h.p.
Min. 92 octane leaded or unleaded
Min. 87 octane leaded or unleaded
10 litres
SAE 30 or SAE 10W/30,
class CD-CF
1.3 litres
Rider 1200
2300 mm
1280 mm
1085 mm
300 kg
855 mm
710 mm
18x7.50x8
60 kPa (0.6 kp/cm«)
15°
Briggs & Stratton
Vanguard V-Twin
model 350777,
type 1123, trim A1
13.7/18 kW/h.p.
570 cm«
Min. 92 octane leaded or unleaded
Min. 87 octane leaded or unleaded
10 litres
SAE 30 or SAE 10W/30,
class CD-CF
1.3 litres
Electric starter
Eiectricai system
Type
Battery
Spark plug
Transmission
Manufacture
Oil
Cutting unit
Type
Cutting width
Cutting heights
Blade diameter 410 mm
Sound level
We reserve the right to change technical specifications without prior notice.
12 V, negative grounded
12 V, 24 Ah
Champion RC12YC,
electrode gap = 0.7-0.8 mm
Kanzaki К 61
SAE 10W/30, class CD-CF
3-blade unit with Bioclip function
1030 mm
7 pos. 45-80 mm
100dB(A)
12 V, negative grounded
12 V. 24 Ah
Champion RC12YC,
electrode gap = 0.7-0.8 mm
Kanzaki K 61
SAE 10W/30, class CD-CF
3-blade unit with rear ejection
1200 mm
7 pos. 40-100 mm
440 mm
lOOdB(A)
34 - English
Note that no legal claims are valid on the basis of information in this manual.
Use only genuine parts for repairs. The warranty is not valid if non genuine parts are used.
Loading...
