PART NO. 5772
5772 Colorado w mini-#DB8D5.doc
Rev: 0
CHEVROLET/GMC COLORADO/CANYON WITH MINI-FLARES REAR MUD GUARD
INSTALLATION INSTRUCTIONS
Install Paint Protection Film before mud guards (see other side)
Please read instructions thoroughly before installation.
Tools Required
• 1/8” drill bit / Drill
• Center punch / Hammer
• Short Phillips screwdriver or drill attachment
Package Contents
• Driver & passenger side rear mud guard
• #10 screw (6)
• Washers (6)
• U-clip (4)
• Paint Protection Film (1 set)
• Instruction sheet
NOTE: It may be necessary to remove the wheels depending on the tools being used for installation.
1. Clean and degrease the mud guard location area on the fender before installation.

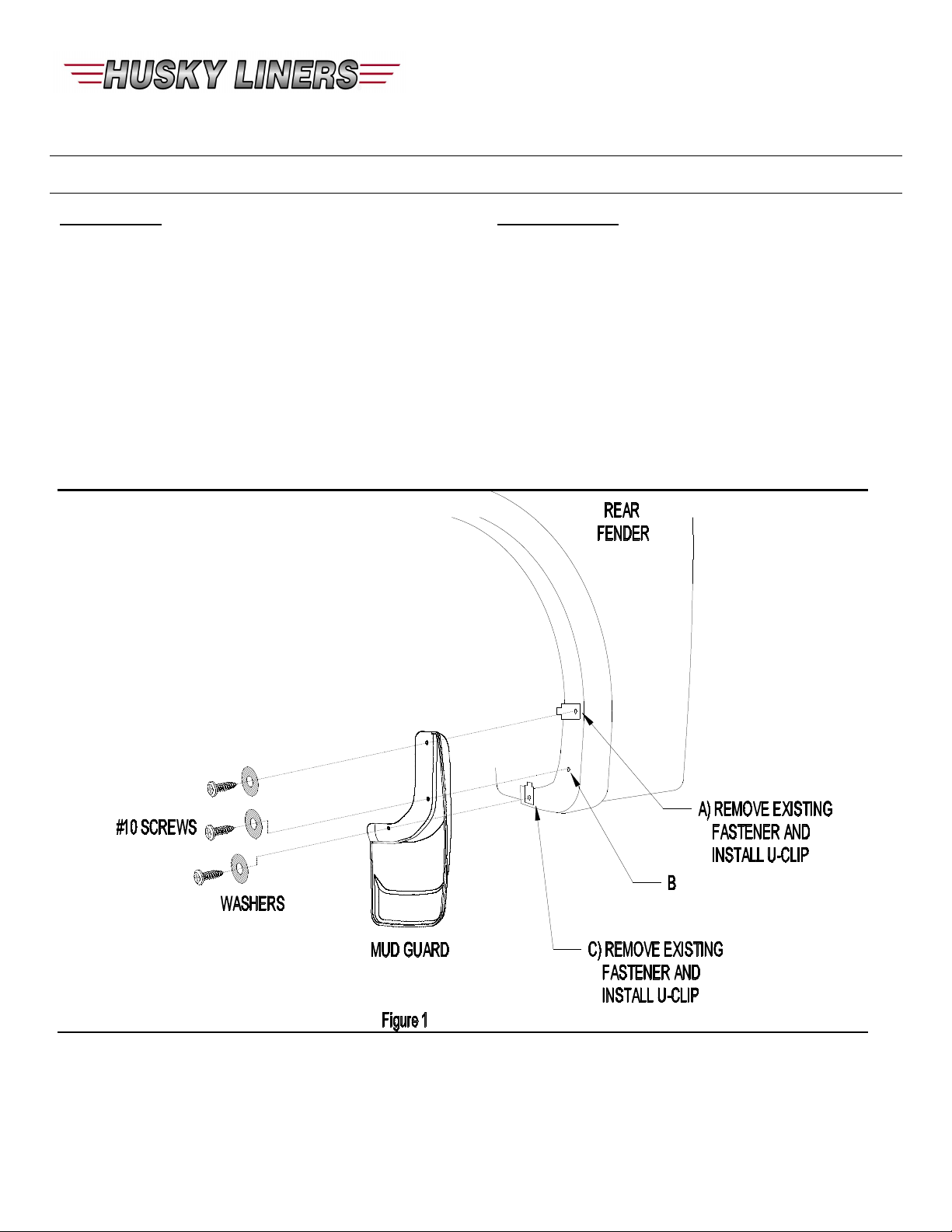

2. Remove existing fasteners and install U-clips at locations A and C (Figure 1).
3. Install mud guard to rear fender with #10 screws and washers at locations A and C (Figure 1). Check mud guard fit and adjust
accordingly before tightening.
4. Using mud guard as a template, mark and drill an 1/8” hole at location B.
5. Install #10 screw and washer at location B.
PAINTING INSTRUCTIONS
1. Clean mud guard with a soap and water solution to remove dirt and other contaminates.
2. Sand painting surface with 320 grit sand paper.
3. Apply a coating of flexible primer-adhesion promoter.
4. Apply a flexible paint as directed by the paint manufacturer.
PART NO. 5772
5772 Colorado w mini-#DB8D5.doc
Rev: 0
PAINT PROTECTION FILM
INSTALLATION INSTRUCTIONS
NOTE: The Paint Protection Film is a precut template of film used to protect the mud guard mounting surfaces of your
fenders against wear. The templates (left and right side) can be removed from the backing liner by folding the
liner at the center cut of the template, separating the film sides and peeling the film templates from the backing
liner.

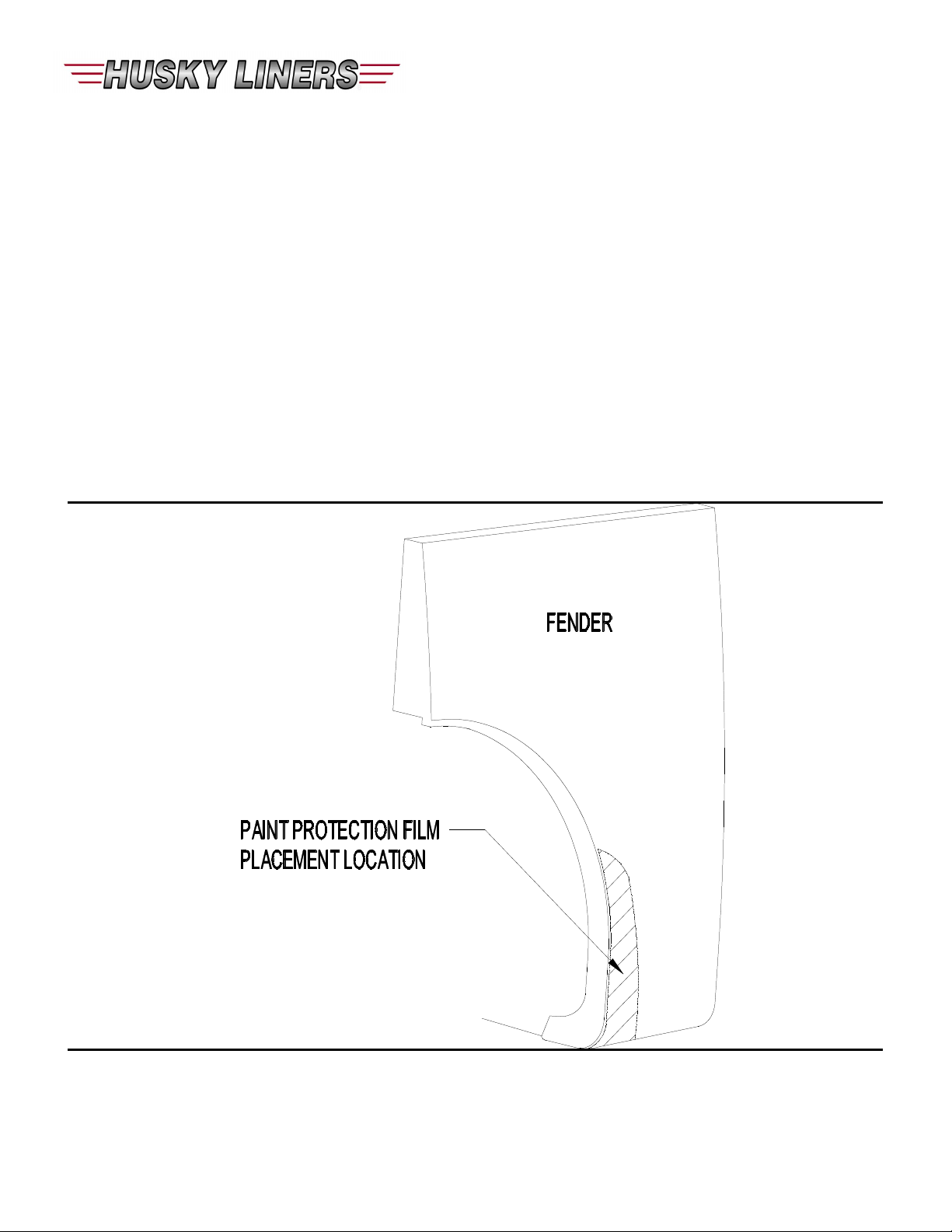

1. Position mud guard on fender to indicate placement location of paint protection film.
2. Clean the placement area of fender with a clean cotton cloth and a petroleum distillate based cleaner
such as DuPonts Prep-Sol Brand Solvent Cleaner or 3M Brand Adhesive Cleaner and dry.
3. Mix a wetting solution of 1 pint of water with 4 drops of liquid dishwashing detergent.
4. Mark correct position of film by placing mud guard against fender.
5. Remove protection film from liner and flood adhesive side of film with wetting solution (use a spray bottle
or sponge).
6. Thoroughly wet film placement location of fender with wetting solution.
7. Position the adhesive side of film on fender and flood with wetting solution.
8. Check location of film with mud guard and reposition as necessary.
9. Using a sponge, squeegee any air bubbles and wrinkles from film.
10. Allow film to dry before installing mud guard.
