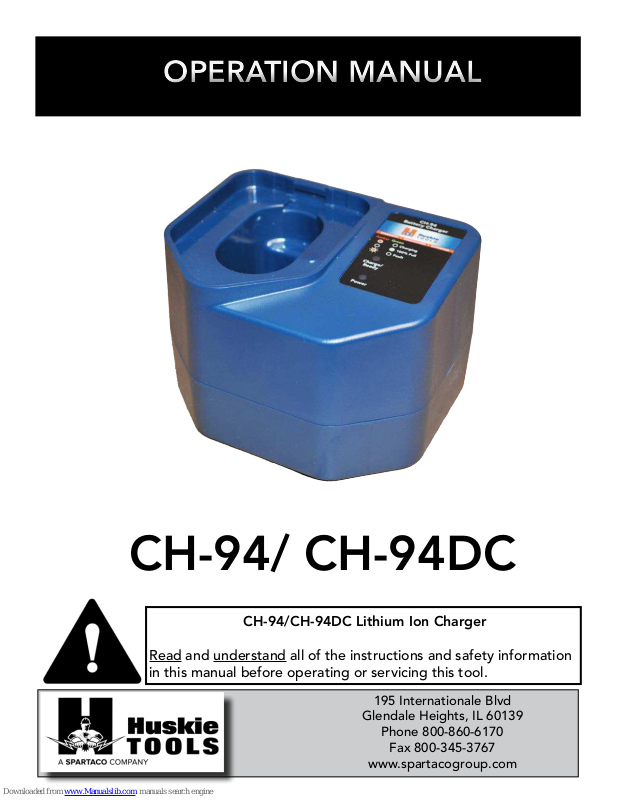

OPERATION MANUALOPERATION MANUAL
CH-94/ CH-94DC
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
CH-94/CH-94DC Lithium Ion Charger
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
REGISTRATION/ TABLE OF CONTENTS
THANK YOU...
for purchasing a Huskie Tools product. Our
mission is to supply the finest steel cable
connecting and cutting tools and cable-related
products to the transmission and distribution
markets. Huskie Tools products represents the
state-of-the-art tools and are dependable & safe.
Trust, integrity, teamwork and mutual respect these words are something we take to heart here
at Huskie Tools.
Please take the time to read this manual carefully
to learn how to correctly operate and maintain
your tool.
Table of Contents
Registration/ Contents............................. 2
Features....................................................... 3
Parts............................................................. 4
Power Supply Connections...................... 5
TroubleShooting Guide............................. 6
Operating Instructions............................ 7
Safety............................................................8
NOTE:
The NEW CH-94 is a direct replacement
for the CH-90 Tri-Chem charger.
This charger is for Huskie Lithium Ion
batteries only.
Will NOT charge old Ni-MH & Ni-Cd
batteries.
Warranty......................................................9
www.spartacogroup.com 800-860-6170
2
FEATURES
The NEW CH-94 is a direct replacement for the CH-90 Tri-Chem charger.
This charger is for Huskie Lithium Ion batteries only.
Will NOT charge old Ni-MH & Ni-Cd batteries.
Features
• Charge control inside each charger.
• Power supply: Single Unit Charger: 24V @ 2.5 Amp International switching power
supply.
• Li-Ion:
Minimum current
Timeout
• Agency approvals: UL/CUL
• Fault indicators for open or shorted cells and temperature faults.
• More control for next generation products.
Power supply:
240T1A250, input rated 100-240 Vac, 50/60 Hz, 1.8A; output rated 24 Vdc, 2.5A, 60W
max.
POWERTRON ELECTRONICS CORP (E248122), model PA1060-
Operating Temperature Ranges
CAUTION
Do not charge a battery that is below 32°F (0°C). Allow the
battery to warm up to room temperature before charging.
The operating temperature of the charger is 32°F (0°C) - 113°F (45°C). For best
results, charge batteries at room temperature 68°F -77°F (20°C - 25°C). Batteries
charged in conditions above or below room temperature will exhibit battery cycle life
and capacity below their rated values. This also applies to the temperature of the
battery itself. Allow batteries to adjust to room temperature before charging.
www.spartacogroup.com 800-860-6170
3
CH-94/CH-94DC
1. Single Unit Charger
2. AC Power Cord with Power
Supply
2*
PARTS
1
*Available in 110V or 220V AC
www.spartacogroup.com 800-860-6170
4
POWER SUPPLY CONNECTION
The power supply uses a nominal 110 or 220 volt circuit. The power supply
manages and conditions the power input to the charger. The power supply does
not use a resettable or replaceable fuse. If a power surge occurs the power supply
temporarily interrupts the current supply until the condition is corrected. If the power
light on the power supply fails to light, an extreme surge may have occurred and the
power supply may trigger an internal fuse that must be serviced by the manufacturer.
Return the power supply for repair or replacement immediately.
WARNING
Never alter an AC cord or its plug. If it does not fit into your outlet, have a proper
outlet installed by a qualified electrician. An improper connection can cause an
electric shock. To reduce the risk of electric shock, the charger must be grounded.
WARNING
Before using an adapter, ensure that the outlet box is grounded. If you are not
sure the box is grounded, have it checked and repaired, if necessary, by a qualified
electrician.
A temporary adapter can be used to connect the grounding plug to a propely grounded two-prong outlet. A 110-volt adapter is shown below. Connect the grounding
plug on the adapter to the outlet box using the cover plate screw. Use the temporary
adapter only until a properly grounded, three-prong outlet can be installed by a qualified electrician.
Adapter
Grounding Pin
Metal Screw
www.spartacogroup.com 800-860-6170
Cover of Grounded
Outlet Box
5
TROUBLESHOOTING GUIDE
Symptom/Situation Probable Cause Corrective Action
Power indicator (charger) is not
lit/displayed. (All stations)
AC power supply cord not connected to wall outlet.
Power supply cord not
connected to battery charger.
Check power supply
connections.
Power indicator (charger) is not
lit/displayed. (Single Station/
Fault)
Battery Rejected indicator is displayed. (Amber flashing)
Station goes to ready in a short
period of time (5-15 minutes).
Bad power supply.
Bad fuse.
Bad docking station, charger.
Faulty LED.
Faulty condition identified.
Over discharge of battery.
Defective Battery.
Battery is fully charged.
Faulty battery.
New Battery.
Replace power supply.
Replace fuse.
Do not use station.
Return for repair.
Try another charger.
Remove battery from
charger and reinsert.
Re-seat docking station.
Allow to sit in charger for
15 minutes, then reinsert.
Replace battery.
Try conditioning battery.
Replace battery.
Remove battery from charger
and reinsert.
Station will not go into Charge
mode. (Amber solid indicator)
Battery becomes hot Defective battery. Immediately remove battery
Power supply shuts down
temporarily.
www.spartacogroup.com 800-860-6170
Charger not seated correctly.
Bad charger.
Defective battery.
Faulty LED.
Power line surge. Power will automatically reset.
6
Re-seat charger.
Replace charger.
Replace battery.
Send in for repair.
from charger and replace.
OPERATING INSTRUCTIONS
Battery Status Display
Power:
• Solid green when power is available, but the battery is not inserted.
Ready:
• Solid green when battery has been 100% fully charged.
Charge / Fault:
• Solid amber when battery is charging.
• Fast flashing amber (2 per second) if battery is rejected due to a fault condition.
Charging the Battery
Insert the battery into its appropriate charger. When the battery is inserted, the
charging system begins the rapid charge cycle. When the charge cycle is completed,
the “READY” indicator turns solid green, and the battery is fully charged. To attain
100% of its capacity, the battery should remain in the charger until the indicator is solid
green. A charged battery may be stored in the charger indefinitely.
www.spartacogroup.com 800-860-6170
7
Safety Alert Symbol:
is safety alert symbol indicates a potential
personal injury hazard; it is not used for messages
related to property damage only.
Electric Shock hazard:
SAFETY
Wear eye protection:
When operating this tool,
failure to wear eye
protection could result in
serious eye injury from ying
debris.
Pinch Point Hazard:
Compression Dies at high
force can cause severe
personal injury. Keep all
body parts away from
moving parts of the tool
while operating.
Use proper personal protective equipment when
using this unit on or near energized electrical lines.
WARNING
To reduce risk of injury, use this charger only with authorized products. Other
batteries or adapters may cause personal injury and/or damage.
• Do not expose the charger to rain, snow or direct sunlight.
• Use the charger at room temperature 68°F (20°C) to 77°F (25°C).
• Place the charger in a well-ventilated area free of foreign objects/matter.
• To reduce risk of electric shock, unplug the charger from the outlet before
cleaning or changing adapters.
• Dispose of used batteries in accordance with local hazardous material laws.
• Do not disassemble, incinerate, modify or short circuit batteries, charger or
related components.
www.spartacogroup.com 800-860-6170
8
WARRANTY
Warranty
Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back
its tools as we do.
All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products
carry a 1 year warranty. The BP-80 & BP-84 batteries carry a 5 year warranty from the date stamped on the battery. The
BP-82 battery carries a 1 year warranty.
PRODUCT WARRANTY
REC-Series battery operated products 5 Years
ECO-Series battery operated products 1 Years
Batteries (BP-80, BP-84) 5 years/ (BP-82) 1 year
Chargers (CH-90, CH-94) 5 Years
The warranty does not cover any damages incurred from a Huskie tool including damages to property, bodily injuries
and lost wages resulting from such injuries. This warranty solely covers the repair or replacement of tools supplied by
Huskie. These remedies are exclusive, and the total liability of Huskie Tools, LLC whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the tool. In no event shall
Huskie Tools, LLC be liable for consequential, incidental or special damages.
HUSKIE TOOLS, LLC MAKES NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED.
Huskie reserves the right to determine all warranty claims. Huskie will not warranty tools containing parts or batteries not
originally supplied by Huskie. Failure due to misuse, improper maintenance, misapplication, not following instructions or
warnings, abuse or repairs attempted by anyone other than Huskie Tools, LLC, or an authorized service center renders
this warranty null and void.
Repair and Warranty Claims
All claims must be sent to Huskie for inspection and authorization. A Return Goods Authorization (RGA) is required
before shipping tools to Huskie. Secure the authorization by telephoning or writing to Huskie’s main oce with details
of the claim. Non-warranty repairs are handled using the same procedure. Repairs exceeding 50 percent of the cost of a
new tool will be advised before repairs are made.
Payment Terms
Upon credit approval Huskie’s standard payment terms are net-30 days. Visa, Mastercard, Discover and American
Express are also accepted.
Freight
All Huskie tools are FOB, Glendale Heights, Illinois. Goods will be shipped pre-paid and added, unless otherwise
specified. Freight shipments over $17,000 are pre-paid.
Quotations
Special quantity quotations should be phoned in to discuss the scope of your tool requests.
Complete Support Services
Our customers have direct access to us for training, service, and problem solving. As specialists in tools, we maintain
a trained repair sta and a large stock of parts. This contrasts with many tool suppliers who carry tools as a sideline
without oering support services. Here are some reasons why our customers love to do business with us:
• Quick delivery
• We maintain inventory at our headquarters.
• Training and troubleshooting services.
• Fast repair service.
• Design and engineering service for special tool needs.
www.spartacogroup.com 800-860-6170
9
