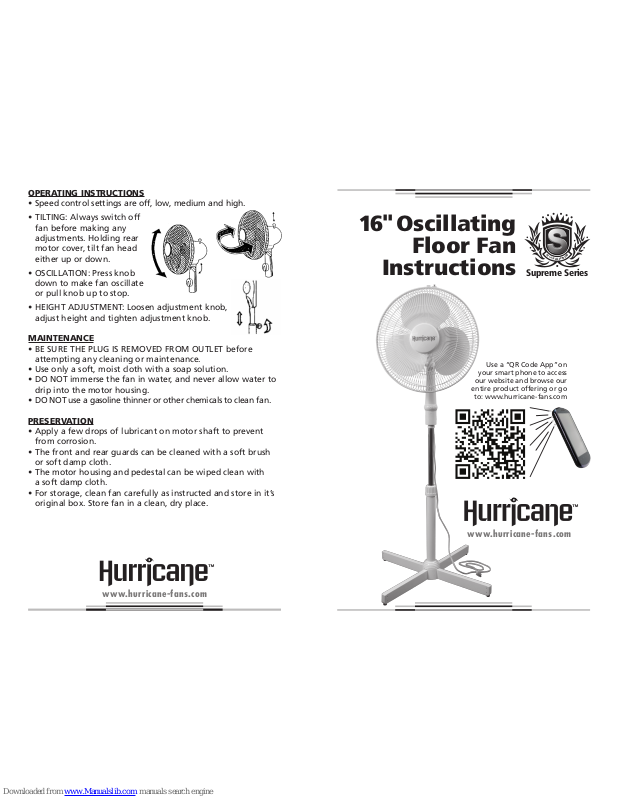

Hurricane Supreme Instructions Manual

16" Oscillating

Floor Fan

Instructions

Supreme Series

D

E

L

A

S

E

R

I

E

S

U

P

R

E

M

O

OPERATING INSTRUCTIONS

• Speed control settings are off, low, medium and high.

• TILTING: Always switch off
fan before making any
adjustments. Holding rear
motor cover, tilt fan head
either up or down.

• OSCILLATION: Press knob
down to make fan oscillate
or pull knob up to stop.

• HEIGHT ADJUSTMENT: Loosen adjustment knob,
adjust height and tighten adjustment knob.

MAINTENANCE

• BE SURE THE PLUG IS REMOVED FROM OUTLET before
attempting any cleaning or maintenance.

• Use only a soft, moist cloth with a soap solution.

• DO NOT immerse the fan in water, and never allow water to
drip into the motor housing.

• DO NOT use a gasoline thinner or other chemicals to clean fan.

PRESERVATION

• Apply a few drops of lubricant on motor shaft to prevent
from corrosion.

• The front and rear guards can be cleaned with a soft brush
or soft damp cloth.

• The motor housing and pedestal can be wiped clean with
a soft damp cloth.

• For storage, clean fan carefully as instructed and store in it’s
original box. Store fan in a clean, dry place.

www.hurricane-fans.com

™

www.hurricane-fans.com

™

Use a “QR Code App” on

your smart phone to access

our website and browse our

entire product offering or go

to: www.hurricane-fans.com

Follow these safety precautions carefully.

1. Use fan only as directed in these instructions. Failure to do

so may cause fire electrical shock or injury.

2. Intended for household use, not commercial or

industrial.

3. DO NOT immerse unit , plug or cord in water or spray with

liquids.

4. DO NOT leave children unsupervised around any

appliance.

5. Unplug fan from outlet when not in use, when

moving fan or before cleaning.

6. Avoid contact with moving parts.

7. DO NOT operate in the presence of explosive and/or

flammable fumes.

8. DO NOT place fan or any parts near an open flame,

cooking or other heating appliance.

9. DO NOT operate fan with a damaged cord, plug, after

the fan malfunctions or after the fan has been dropped/
damaged in any manner.

10. DO NOT use outdoors.

11. DO NOT let cord hang over the edge of a table/

counter or let it touch hot surfaces.

12. To disconnect, grip plug and pull from wall outlet.

NEVER YANK ON CORD.

13. Always use on a dry level surface.

14. DO NOT hang or mount fan on ceiling.

15. DO NOT operate without fan grills properly in place.

16. To reduce risk of shock, the polarized plug is intended to fit

in a polarized outlet only one way. (One blade is wider than
the other). If the plug does not fit in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. DO
NOT defeat the purpose of this safety feature.

Save these important safety instructions.

WARNING: To reduce the risk of fire, electrical shock and/or
injury to persons-DO NOT use in a window.

WARNING: DO NOT use this fan with any solid state speed
control device.

FAN SETUP

• Remove screws from
frames and insert
upper frame into
bottom frame.

• Place support tube
onto frames and
fasten four screws
through tube to
frames. Make sure all
screws are tightened.

• Remove blade cap and guard lock nut from motor shaft.

• Fit rear guard, by positioning on location pins. Secure guard
to motor body with guard lock nut.

• Push the blade onto the motor shaft by matching the slots
on the base of the blade with the shaft pin. Secure the blade
with the blade cap. The blade cap must be tightened in an
anti-clockwise direction by turning it . Check that the fan
blade rotates freely by turning with your hand.

• Open the securing clip at the bottom of the front guard and
loosen the clip screw. Position the top clip on the uppermost
part of the rear guard. Push the top clip down and press rim
of the front guard onto the rear guard. Close the bottom clip
and tighten the screw.
