Hunter Fan Type 3 User Manual

For Your Records and Warranty Assistance
Type 3 ModelsType 3 ModelsType 3 Models
__________________________________________ Model Name
__________________________________________ Model No.
__________________________________________ Date Purchased
__________________________________________ Where Purchased
Owner’s Guide and Installation Manual
English Español
Form# 45066-01 20100303 ©2010 Hunter Fan Co.
Table Of Contents
Preparing the Fan Site . . . . . . . . . . . . . . . . . 3
1 • Getting Ready. . . . . . . . . . . . . . . . . . . . . . 6
2 • Installing the Hanger Bracket . . . . . . . 7
3 • Assembling the Top Housing . . . . . . . 8
4 • Assembling and Hanging the Fan . . . 9
5 • Setting the Remote Wall Control and
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 • Wiring the Fan . . . . . . . . . . . . . . . . . . . . . 12
7 • Installing the Canopy and Canopy
Trim Ring . . . . . . . . . . . . . . . . . . . . . . . . . 13
8 • Assembling the Blades . . . . . . . . . . . . . 14
9 • Completing Your Installation With
a Light Fixture. . . . . . . . . . . . . . . . . . . . . 15
10 • Installing the Wall Control . . . . . . . . 18
11 • Operating the Remote Control
and Mounting the Holder . . . . . . . . . 19
12 • Operating and Cleaning Your
Ceiling Fan. . . . . . . . . . . . . . . . . . . . . . . . 20
13 • Troubleshooting . . . . . . . . . . . . . . . . . . 21
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that will provide comfort and performance for many years. is installation and operation manual gives you complete instructions for installing and operating your fan.
We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance, record information from the carton and Hunter nameplate label (located on the top of the fan motor housing).
Cautions and Warnings
READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan, disconnect the power by turning o the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the o position, securely fasten a prominent warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
• To reduce the risk of personal injury, do not bend the blade attachment system when installing, balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed controls.
© 2010 Hunter Fan Company
2
45066-01 • 03/03/10 • Hunter Fan Company
Preparing the Fan Site
Step 1 - Choose the Fan Site
Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum eciency, and energy savings.
Choose a fan site where:
• No object can come in contact with the rotating fan blades during normal operation.
• e fan blades are at least 7 feet above the oor and the ceiling is at least 8 feet high.
• e fan blades have no obstructions to airow, such as walls or posts, within 30 inches of the fan blade tips.
• e fan is directly below a joist or support brace that will hold the outlet box and the full weight of the fan.
30” From Wall or Nearest Obstruction
7’ Minimum Blades to Floor
8’ Minimum
Ceiling Height
Checklist for Existing Fan Site
If you want to use an existing fan site, complete the following checklist to determine if the site is acceptable and safe for your new Hunter fan. If you cannot check o every item, prepare a new fan site as described on this page.
Fan Support System
Fan attaches directly to building structure.
• Fan support system will hold full weight of the fan and light kit.
Ceiling Hole
• e outlet box clearance hole is directly below the joist or support brace.
Outlet Box
• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as
specied by the support brace manufacturer).
• e outlet box is secured to the joist or support brace by wood screws
and washers through the inner holes of outlet box.
• e outer holes of the outlet box are aligned with joist or support brace.
• e bottom of the outlet box is recessed a minimum of 1/16” into
ceiling.
Wiring
• e electrical cable is secured to outlet box by an approved connector.
• Six inches of lead wires extend from outlet box. If your existing fan site is suitable, skip ahead to Section 2 • Installing the
Ceiling Plate.
3
Fan Support System
Fan Support System
Suitable Existing Fan Site
Outlet Box
Wiring
45066-01 • 03/03/10 • Hunter Fan Company
Preparing the Fan Site (continued)
Step 2 - Cut the Ceiling Hole
2-1. Locate the site for the ceiling hole directly below the joist or support brace that
will hold the outlet box and fan.
2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use
the hole to install the support brace and outlet box.
Step 3 - Install a Support Brace, If Necessary
Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,
determine if it is positioned to allow you to recess the outlet box a minimum of 1/16” into the ceiling. If NOT, install a support brace as follows:
3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to
recess the bottom of the outlet box a minimum of 1/16” into the ceiling.
3-2. Check the support brace to ensure it will support the full weight of the fan and
light kit.
Step 4 - Install the Outlet Box
4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”
wood screws and washers, available from any hardware store or electrical supply house.
4-2. Orient the outlet box so that both the inner and outer holes in the box align
with the joist or support brace.
4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)
through the inner holes of the outlet box.
4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”
wood screws and washers.  e bottom of the outlet box must be recessed a minimum of 1/16” into the ceiling.
Step 5 - Prepare the Wiring
5-1. Make sure the circuit breakers to the fan supply line leads and associated wall
switch location are turned o . If you cannot lock the circuit breakers in the o position, securely fasten a prominent warning device, such as a tag, to the service panel.
5-2. read the fan supply line through the outlet box so that the fan supply line
extends at least 6” beyond the box.
5-3. Attach the fan supply line to the outlet box with an approved connector,
available at any hardware store or electrical supply house.
5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA
70.
You have now successfully prepared your ceiling fan site. For instructions to install your ceiling fan, go to your fan manual and continue with Section 2 • Installing the
Ceiling Plate.
Steps 2 – 3
Step 4
Step 5
CAUTION: All wiring must be in
accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
4
45066-01 • 03/03/10 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Support Brace
Standard Mounting Style
Standard Mounting hangs from the ceiling by a downrod (included).
Support Brace
Ceiling Outlet Box
Angled Mounting Style
Ceiling Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum installation exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Prole, Standard, or Angled mounting. e steps in this manual include instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted or remote speed control. To install and use the accessories, follow the instructions included with each product. For quiet and optimum performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase Hunter extension downrods. All Hunter fans use sturdy 3/4” diameter pipe to assure stability and wobble-free performance.
8
Low Prole Mounting Style
Support Brace
Ceiling Outlet Box
CAUTION: To
reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
Angled Mounting recommended for a vaulted or angled ceiling
45066-01 • 03/03/10 • Hunter Fan Company
Low Profile Mounting ts close to the ceiling, recommended for ceilings less than 8 feet high
5
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to the included Parts Guide. Check for any shipping damage to the motor or fan blades. If any parts are missing or damaged, contact your Hunter dealer or call Hunter Technical Support Department at 888-830-1326. (In Canada, call 866-268-1936).
Installing Multiple Fans?
If you are installing more than one fan, keep the fan blades and blade irons (if applicable) in sets, as they were shipped.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum eciency, and energy savings.
6
45066-01 • 03/03/10 • Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64” in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment use slotted holes directly across from each other. If you are installing the fan on an ANGLED ceiling, be sure to orient the hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Isolator
Hanger
Bracket
3” Screw
Flat Washer
Ceiling Peak Ceiling Peak
Large
Opening
LEFT RIGHT
Step 2-3 (Angled Ceiling Only)
7
45066-01 • 03/03/10 • Hunter Fan Company
OR
Steps 2-2 – 2-4
Large Opening
3 • Assembling the Top Housing
3-1. To assemble the housing to the hanger adapter, align the three
raised tabs on the hanger adapter with the three narrow notches in the top housing. Make certain the housing sits at on the adapter.
3-2. Install three (3) assembly screws and washers and tighten them
securely.
Steps 3-1 – 3-2
Top Housing
Washer
Assembly Screw
Hanger Adapter
8
45066-01 • 03/03/10 • Hunter Fan Company
4 • Assembling and Hanging the Fan
You can assemble your fan for standard or angled mounting as shown in steps 4-1 – 4-3. For low profile mounting (ceilings less than 8 feet high), go to steps 4-6 – 4-9 on the next page.
4-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they rest on the fan assembly.
4-2. Feed the wires from the fan through the downrod. Note: Make sure all the wires are on the same side of the metal
dowel pin inside the dowrod.
4-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully installed, 2-3 threads on the pipe will still be visible; this is normal. Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
4-4. Raise the fan and place the ball into the hanger bracket. 4-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 5 • Setting the remote wall control and receiver.
Steps 4-1 – 4-3
Downrod
Canopy
Canopy Trim Ring
Adapter
Setscrew
Steps 4-4 –4-5
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Indent
9
45066-01 • 03/03/10 • Hunter Fan Company
4 • Assembling and Hanging the Fan (Low Profile Only)
You can assemble your fan for standard or angled mounting as shown in steps 4-1 – 4-3 on the previous page. For low profile mounting (ceilings less than 8 feet high), see steps 4-6 – 4-10 on this page.
4-6. Remove the screws from the hanger ball bracket. 4-7. Place the low prole washer from the parts sack into the canopy. 4-8. Place the canopy trim ring and canopy with washer on top of the
fan assembly.
4-9. Align the screw holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 3/4” screws.
4-10. Raise the fan and place the hook on the hanger bracket through
the round hole in the rim of the canopy.
Step 4-6
(Not Actual Size)
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Low Prole Washer
Adapter
#8-32 x 3/4” Screw
Steps 4-8 – 4-9
Step 4-7 (Detail)
Low Prole Washer
Canopy Trim Ring
Step 4-10
10
45066-01 • 03/03/10 • Hunter Fan Company
5 • Setting the Remote Wall Control and Receiver
Setting DIP switches
When two or more fans are located near each other, you may desire to have the receiver/transmitter for each fan set to a dierent code, so that the operation of one fan does not aect the operation of the other fans.
e DIP switches for the receiver are located on the at surface of the receiver. e DIP switches for the transmitter are in the the battery compartment.
5-1. Press inward on each side of the wall control to remove the face
cover. Set the dip switches to match the dip switches in the receiver.
Receiver DIP switches
Face Cover
IMPORTANT! Before you change the DIP switch settings, make
sure the battery is not connected to the transmitter.
Change the position of the DIP switches in the remote transmitter
and the receiver. Make sure that the DIP switches match in the remote receiver and transmitter. If they don’t match, the
transmitter will not function. 5-2. Install a 12 Volt alkaline battery (A23, MN21, or equivalent). 5-3. Replace the face cover.
CAUTION: e remote control device
complies with part 15 of the FCC rules. Changes or modications not expressly approved by Hunter Fan Company could void your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference that may cause undesired operation.
WARNING: Use only the Hunter Fan
speed control supplied with this fan.
Example DIP Switch Settings
Receiver 1
DIP Switches
Set to 0111
Wall Control 1
DIP Switches
Set to 0111
Receiver 2
DIP Switches
Set to 0100
Wall Control 2
DIP Switches
Set to 0100
Press Inward
Wall Control DIP Switches
Battery
Face Cover
11
45066-01 • 03/03/10 • Hunter Fan Company

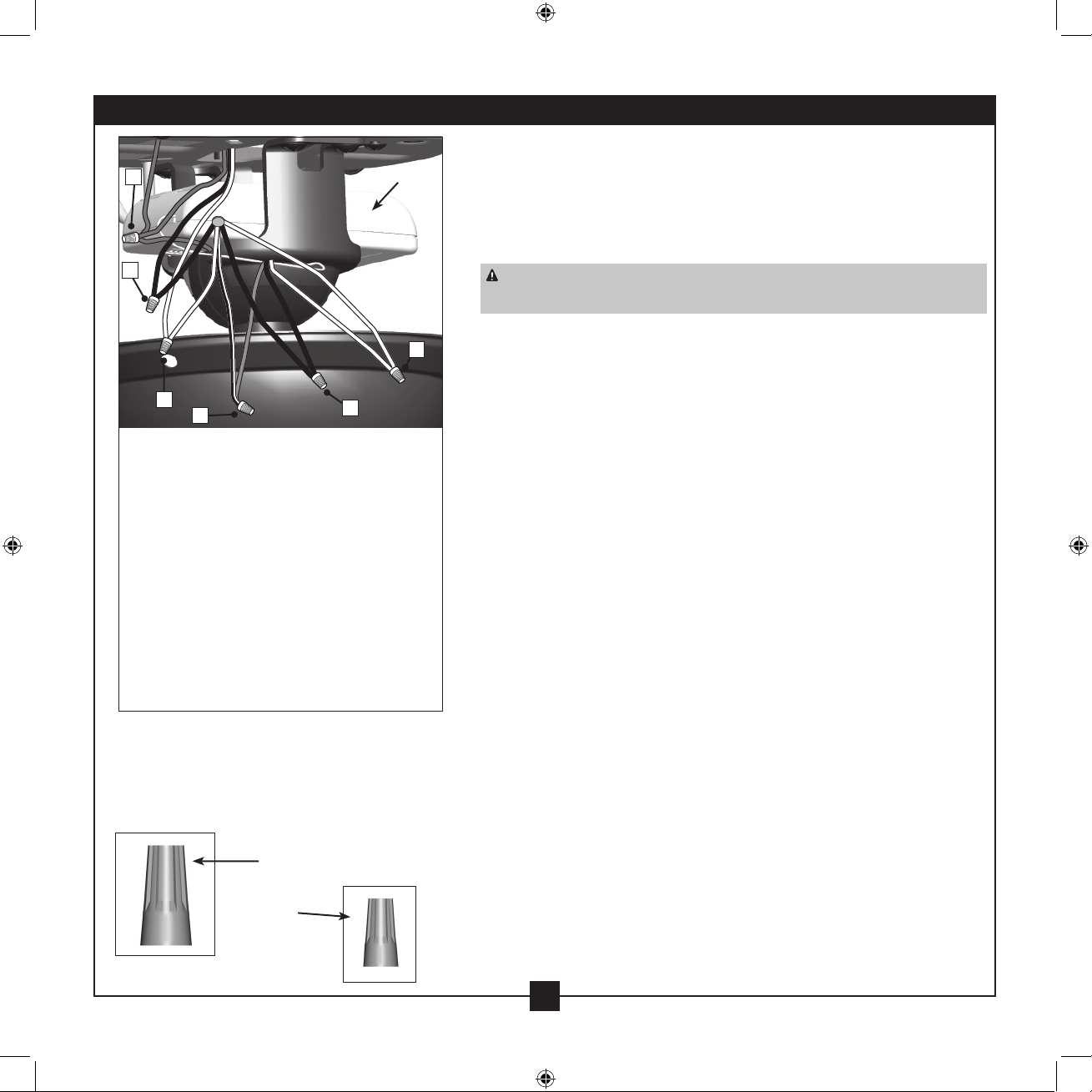

6 • Wiring the Fan
A
B
C
D
Step 6-3 A • Ground/Green
Step 6-4 B • Ceiling Black
• Receiver Black: “LIVE IN” C • Ceiling White
• Receiver White: “NEUTRAL IN”
Step 6-5 D • Fan Black/White
• Receiver Red: “LIGHT OUT” E • Fan Black
• Receiver Black: “FAN OUT” F • Receiver White: “COMMON OUT”
• Fan White
Receiver
F
E
Steps 6-3 – 6-5
All wiring must be in accordance with
national and local electrical codes and
ANSI/NFPA 70. If you are unfamiliar with
wiring, use a qualied electrician.
Large Wire Connector
Small Wire Connector
6-1. Before attempting installation, make sure the power is still o.
6-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For all these connections use the wire connectors provided.
CAUTION: Be sure no bare wire or wire strands are visible after making
connections.
6-3. Using a large wire connector, connect the ground wire from the
ceiling to the green wire from the ceiling plate and the green ground wire from the downrod.
6-4. Using the large wire connectors, connect the white wire and the
black wire from the ceiling as follows:
e white (common) power wire from the ceiling to the white wire from the receiver (marked on red tag “NEUTRAL IN”)
• e black power wire from the ceiling to the black wire from the receiver (marked on red tag “LIVE IN”)
6-5. Using the small wire connectors, connect the wires from the fan as
follows:
• e black/white wire from the fan to the red wire from the receiver (marked on white tag “LIGHT OUT”)
• e black wire from the fan to the black wire from the receiver (marked on white tag “FAN OUT”)
• e white wire from the fan to the white wire from the receiver (marked on white tag “COMMON OUT”)
6-6. Check each connection to make sure no bare wire or wire strands
are visible. Turn the splices upward and push them carefully back through the ceiling plate into the outlet box.
6-7. Spread the wires apart, with the ground wires on one side of the
outlet box and the ungrounded wires on the other side of the outlet box.
6-8. Position the receiver in the canopy so that the antenna is close to
the edge of the ceiling plate for clear reception.
12
45066-01 • 03/03/10 • Hunter Fan Company
7 • Installing the Canopy and Canopy Trim Ring
7-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
7-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
7-3. Twist canopy clockwise to secure.
7-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
7-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
7-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring, follow these steps:
1. Twist canopy trim ring counter clockwise until it releases from canopy.
Steps 7-1 – 7-2
Canopy
Hanger Bracket
Canopy Trim
Ring
Step 7-4
Canopy
Step 7-5
Screw
13
45066-01 • 03/03/10 • Hunter Fan Company
Step 7-3
8 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan).
8-1. Install the grommets into the blades by hand.
8-2. Place each blade between a blade iron and medallion. Install three
blade assembly screws to attach the medallion to the blade iron. Repeat for all blades.
8-3. For each blade, insert one blade iron armature screw through the
blade iron, and attach lightly to the fan. Insert the second blade iron armature screw, then securely tighten both screws.
Blade Assembly
Screw
Blade Iron Armature Screw
Step 8-1 (Detail)
Grommet
Steps 8-2 – 8-3
14
45066-01 • 03/03/10 • Hunter Fan Company
9 • Completing Your Installation With a Light Fixture
Your Hunter fan comes with an integrated light xture assembly.
WARNING: Use only the light xture supplied with this fan model.
9-1. To attach the light kit top housing, partially install two housing
assembly screws into the light kit mounting plate.
9-2. Feed the upper plug connector through the center opening of the
light kit top housing.
9-3. Align the keyhole slots in the housing with the housing assembly
screws.
9-4. Turn the light kit top housing counterclockwise until the housing
assembly screws are rmly situated in the narrow ends of the keyhole slots. Install the remaining screw into the housing. Tighten all three screws rmly.
CAUTION: Make sure the light kit top housing is securely
attached to the light kit mounting plate. Failure to properly attach and tighten all three assembly screws could result in the light kit top
housing and light xture falling.
Steps 9-1 – 9-3
Light Kit
Mounting
Plate
Upper Plug
Connector
Light
Kit Top
Housing
15
45066-01 • 03/03/10 • Hunter Fan Company
Housing Assembly Screw
9 • Completing Your Installation With a Light Fixture (Continued)
9-5. To attach the light kit, connect the upper plug connector from the
motor to the lower plug connector in the light kit.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before connecting them. Incorrect connection could cause improper operation and damage to the product.
9-6. Place the light kit over the light kit top housing. Align the holes
in the light kit top housing with the light kit. Attach the light kit to the light kit top housing with three housing assembly screws. Tighten all three screws rmly.
Plug
Connector
Housing Assembly Screw
Note: In compliance with U.S. Federal energy regulations, this
ceiling fan contains a wattage saver that restricts the light kit to a maximum of 190 Watts. Exceeding that limit or the specications on the light sockets may result in re hazard or improper operation. If lights do not appear to be operating properly, see the troubleshooting section
Steps 9-5 – 9-6
Light Kit
Plug Connector Detail
Housing Assembly Screw
16
45066-01 • 03/03/10 • Hunter Fan Company
9 • Completing Your Installation With a Light Fixture (Continued)
Installing the Glass Bowl
9-7. First install B10 candelabra bulbs (60
Watt Maximum) into the sockets.
9-8. Lift the glass bowl up to the light kit top
housing. Align the three tabs in the glass bowl with the three slots in the light kit top housing.
9-9. Rotate the glass bowl until the screw
holes in the light kit top housing line up with the screw holes in the light kit.
9-10. Secure the glass bowl with three
decorative screws.
Slot
Decorative
Screw
Tab
Glass Bowl
Decorative
Screw
Steps 9-8 – 9-10
17
45066-01 • 03/03/10 • Hunter Fan Company
10 • Installing the Wall Control
10-1. Disconnect the existing switch and remove it
from the electrical box. Set the screws aside for reuse.
10-2. Connect each wire from the wall to a lead from
the control. Use 2 of the wire connectors supplied to make the connections. Refer to Figure 1.
10-3. Connect the ground wire from the control to the
earth/ground wire from the wall. Refer to Figure 1.
10-4. Gently push the wires and wall control into the
electrical box. Attach the control to the switch box with the two screws provided.
10-5. Install a rocker-style faceplate (not included) with
the screws removed in Step 1.
10-6. Restore power at main electrical panel.
Step 10-1
ON/OFF
18
45066-01 • 03/03/10 • Hunter Fan Company
Figure 1
11 • Operating the Remote Control and Mounting the Holder
11-1. e wall control has individual buttons
for setting fan speed and light intensity. Refer to the gure on the right.
Note: For best operation, start the fan
by pressing high, then select your desired speed.
11-2. e light button turns the light. Push the
light button again to turn o the light.
Fan Light
11-3 To operate fan and light, push the on/
o switch to the position and press the desired button on the wall control keypad.
Fan Speed
Low
Fan Speed
High
ON/OFF
Fan O
Fan Speed
Medium
19
45066-01 • 03/03/10 • Hunter Fan Company
12 • Operating and Cleaning Your Ceiling Fan
In warm weather, use downward air ow pattern
12-1. Ceiling fans work best by blowing air downward
(counterclockwise blade rotation) in warm weather to cool the room with a direct breeze. In cold weather, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft.
12-2. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier dust. Remove surface smudges or accumulated dirt and dust using a mild detergent and a slightly dampened cloth. You may use an artistic agent, but never abrasive cleaning agents as they will damage the nish.
12-3. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added protection and beauty. Clean painted and high-gloss blades in the same manner as the fan nish.
To Change Airow Direction
Turn the fan o and let it come to a complete stop. Press the reversing switch on the fan. (You will need to remove the light kit glass to do so.) Restart fan.
In cold weather, use upward air ow pattern
45066-01 • 03/03/10 • Hunter Fan Company
Reversing Switch
20
13 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the fan section.
3. Check the plug connection in the light xture.
4. Remove the shipping bumpers.
5. Make sure the receiver and remote are set to the same jumper settings.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure wattage of light bulbs installed match the specications on the light socket.
Problem: If the light on this fan shuts off suddenly.
1. Turn the power to the fan o at the wall switch.
Wait 30 seconds, then resume power to the fan.
If you need parts or service assistance, please call 888-830-1326 (In Canada, call 866-268-1936) or visit us at our Web site at http://www.hunterfan.com.
Hunter Fan Company 7130 Goodlett Farms Pkwy. #400 Memphis, Tennessee 38016
21
45066-01 • 03/03/10 • Hunter Fan Company
Loading...
