Owner’s Guide and Installation Manual
English Español
Form# 45013-01
20110616
©2011 Hunter Fan Co.
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Hanger Bracket . . . . . . . 5
3 • Assembling and Hanging the Fan ...6
4 •Wiring the Fan......................7
5 • Installing the Canopy and Canopy
Trim Ring .........................8
6 • Assembling the Blades .............9
7 • Completing Your Installation With
or Without a Bowl Light
Fixture . . . . . . . . . . . . . . . . . . . . . . . . . . .10
8 • Operating and Cleaning Your Ceiling
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
9 • Troubleshooting . . . . . . . . . . . . . . . . . . 15
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
© 2008 Hunter Fan Company
2
45013-01 • 06/16/11 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 2-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of two ways, depending on ceiling height and your preference: Standard
or Angled mounting. e steps in this manual include instructions for
both Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
8
CAUTION: To reduce the risk of personal
injury, attach the fan directly to the support
structure of the building according to these
instructions, and use only the hardware
supplied.
Angled Mounting recommended for a
vaulted or angled ceiling
45013-01 • 06/16/11 • Hunter Fan Company
3
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
4
45013-01 • 06/16/11 • Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed mounting isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an ANGLED ceiling, be sure to orient the
hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Isolator
Hanger
Bracket
3” Screw
Flat Washer
Ceiling Peak Ceiling Peak
Large
Opening
LEFT RIGHT
Step 2-3 (Angled Ceiling Only)
5
45013-01 • 06/16/11 • Hunter Fan Company
OR
Steps 2-2 – 2-4
Large
Opening
3 • Assembling and Hanging the Fan
You can assemble your fan for standard or angled mounting as shown
in steps 3-1 – 3-3.
3-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they
rest on the fan assembly.
3-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the dowrod.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-4. Raise the fan and place the ball into the hanger bracket.
3-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 4 • Wiring the Fan.
Steps 3-1 – 3-3
Adapter
Steps 3-4 – 3-5
Downrod
Canopy
Canopy
Trim
Ring
Set Screw
Indent
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
6
45013-01 • 06/16/11 • Hunter Fan Company
4 •Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
Wire
Connector
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the wire connectors upward and push them carefully back
through the ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
7
45013-01 • 06/16/11 • Hunter Fan Company

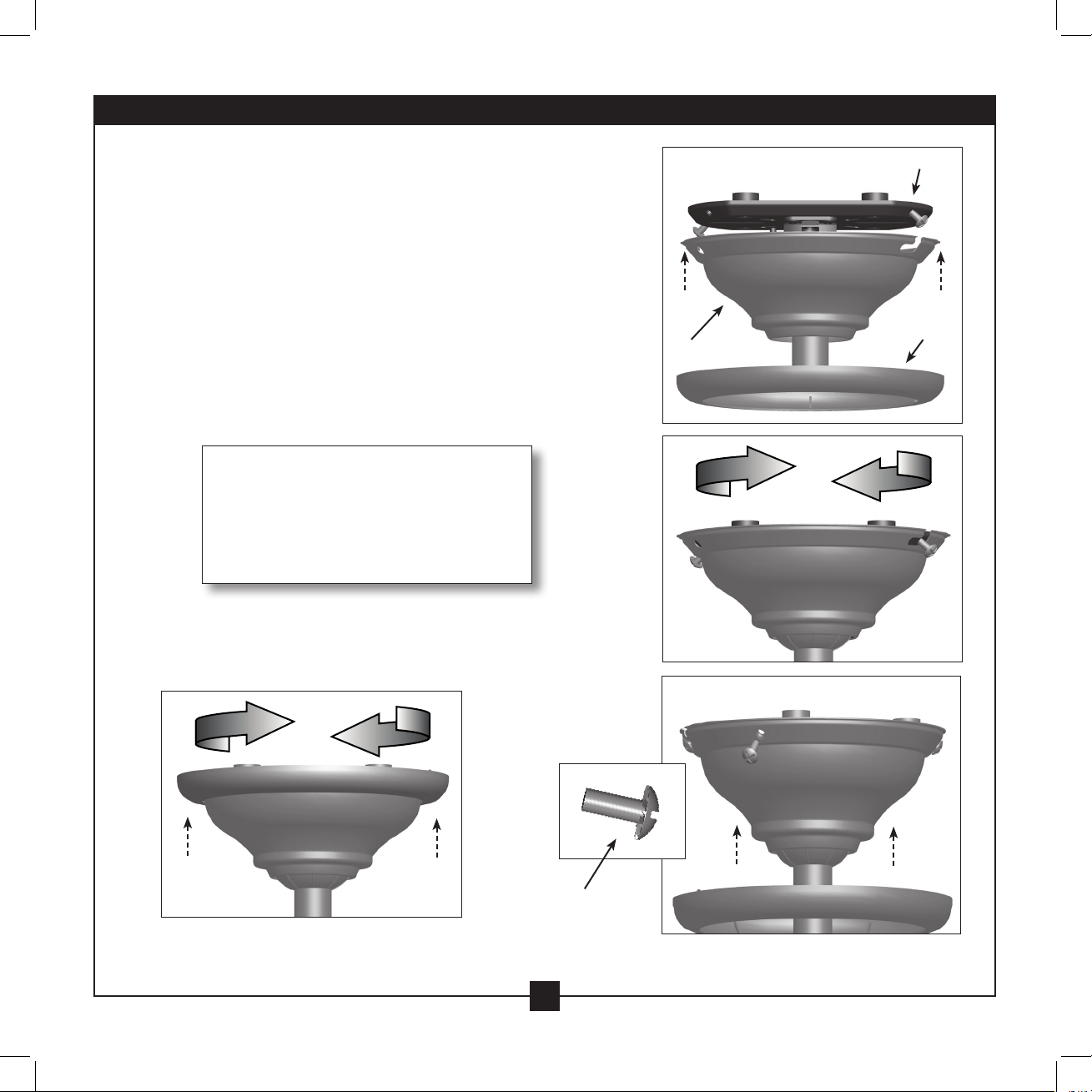

5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
5-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring, follow these steps:
1. Twist canopy trim ring counter
clockwise until it releases from
canopy.
Steps 5-1 – 5-2
Canopy
Hanger Bracket
Canopy Trim
Ring
Step 5-4
Step 5-5
Canopy
Screw
8
45013-01 • 06/16/11 • Hunter Fan Company
Step 5-3
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Install the grommets into the blades by hand.
6-2. Place each blade between a blade iron and medallion. Install three
blade screws to attach the medallion to the blade iron. Repeat for
all blades.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Use with grommet
Screws
Step 6-1 (Detail)
Grommet
Steps 6-2 – 6-4
Use without grommet
Blade
Mounting
Screw
45013-01 • 06/16/11 • Hunter Fan Company
9
7 • Completing Your Installation With or Without a Bowl Light Fixture
Your Hunter fan comes with an integrated light xture assembly and
an optional switch housing cap and plug button. is feature gives
you the option of installing the fan with OR without the included light
xture. e steps below direct you whether or not you are installing a
light xture.
WARNING: Use only the light xture supplied with this fan model.

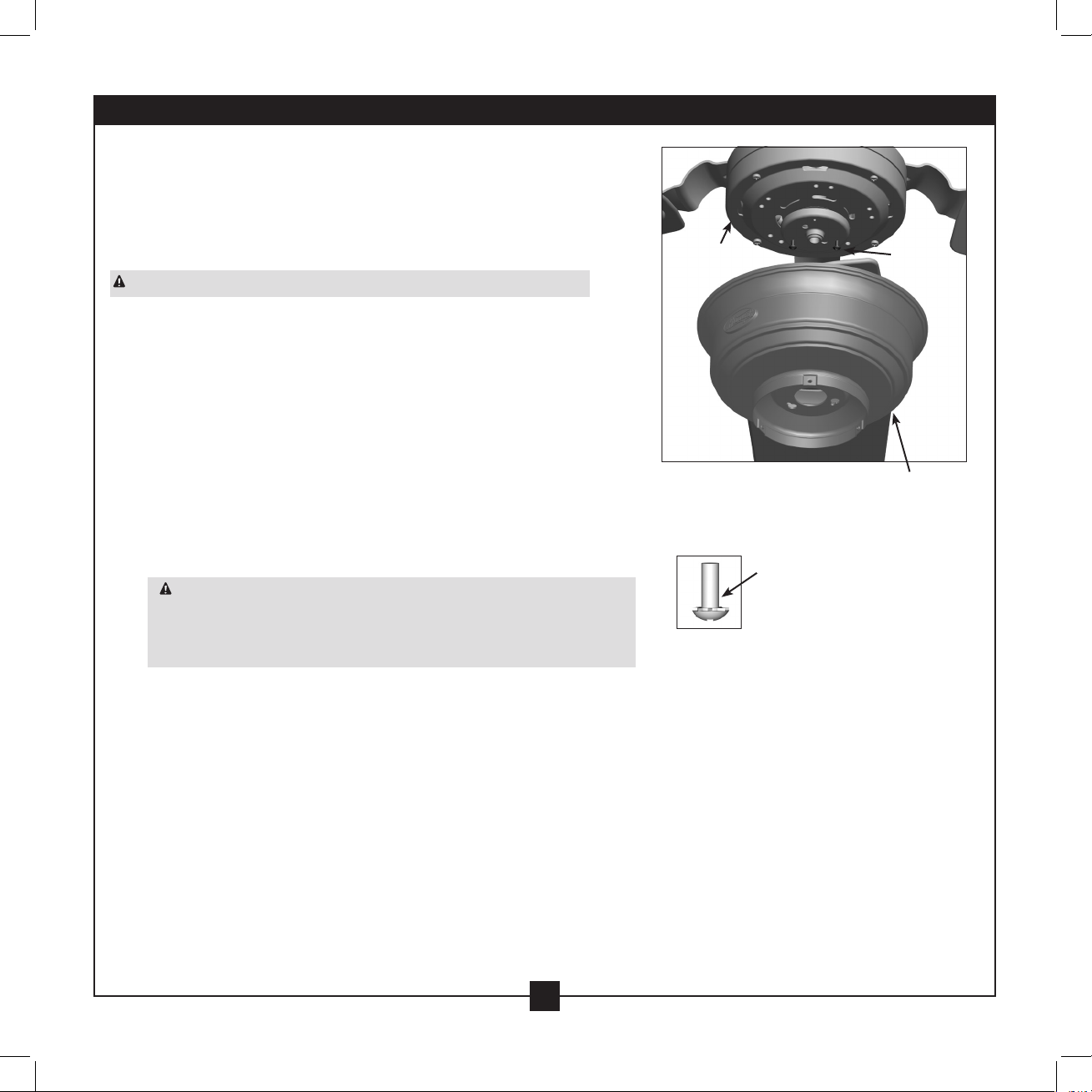

7-1. To attach the lower motor housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light xture falling.
Switch Housing
Mounting Plate
Steps 7-1 – 7-3
Housing
Assembly
Screw
Lower
Motor
Housing
Housing
Assembly
Screw
7-5. If you want to install the light xture, proceed with step 7-6
now.
If you do not want to install the light xture, you need to
uninstall it now. See “Uninstalling the Light Fixture” in Step 7-17.
Once you have uninstalled the light xture, continue with Step
7-6.
10
45013-01 • 06/16/11 • Hunter Fan Company
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
CAUTION: e light source is designed for this specic
application and can overheat if serviced by untrained personnel.
If any servicing is required, the product should be returned to an
authorized service facility for examination or repair.
7-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in
the lower switch housing assembly.
Note: Both plug connectors are polarized and will only t
together one way. Make sure the connectors are properly
aligned before connecting them. Incorrect connection could
cause improper operation and damage to the product.
7-7. Place the lower switch housing assembly over the upper
switch housing. Align the side screw holes in the upper and
lower switch housings. Attach the lower switch housing
to the upper switch housing with three housing assembly
screws.
Steps 7-6 – 7-7
Lower Switch
Housing
Plug
Connector
Detail
Connector
Plug
11
45013-01 • 06/16/11 • Hunter Fan Company
Housing
Assembly Screw
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

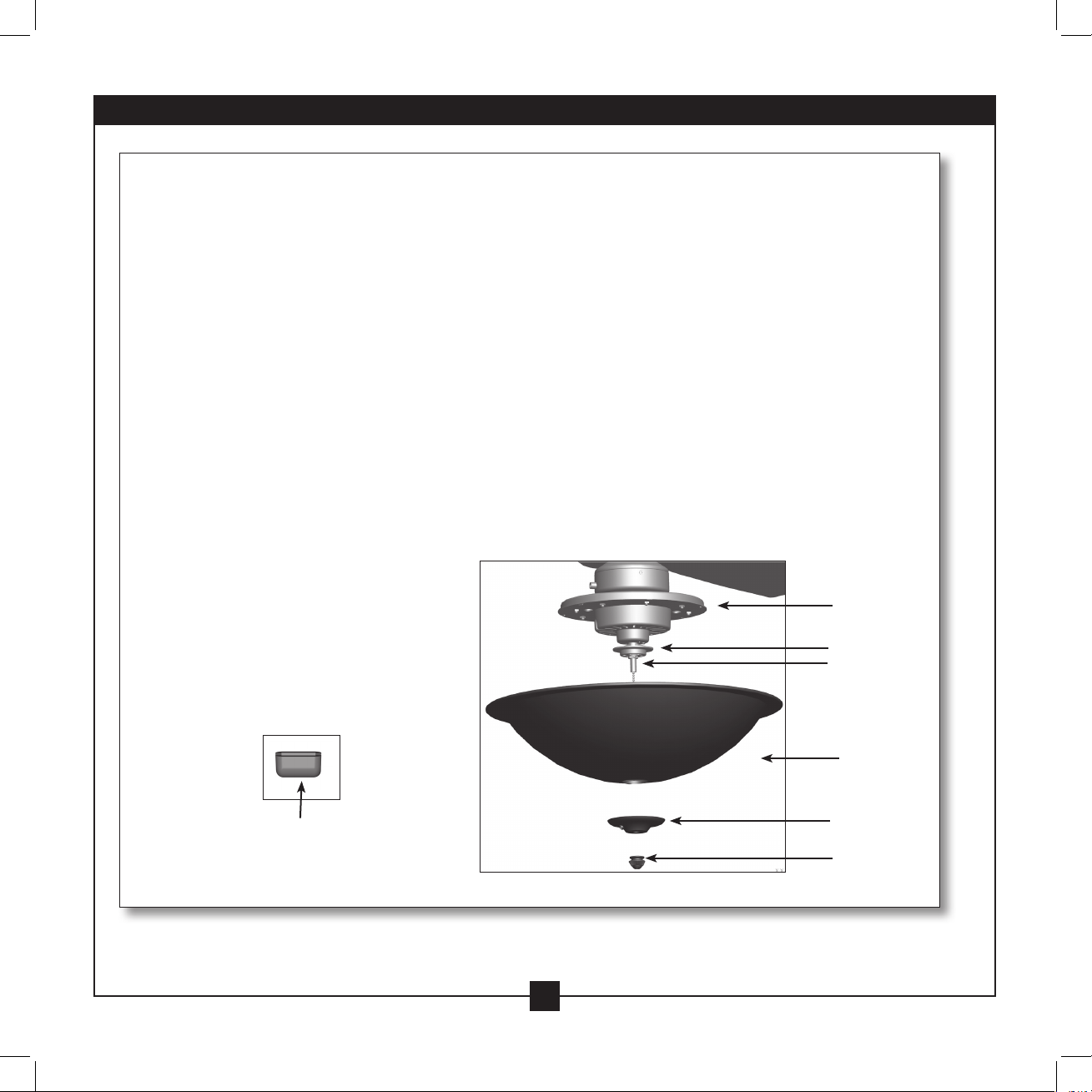

Installing the Glass Bowl
7-8. Attach the extra pull chain (included) to the fan pull chain
using the plastic breakaway connector. (You may nd the plastic
breakaway connector on the end of the extra chain.)
7-9. read the fan pull chain through the hole in the light kit. en,
thread the fan pull chain through the hole in the metal disc.
7-10. read the light and fan pull chains through the hole in the center
of the glass bowl. en, thread the light pull chain throught the
hole in the center of the cover plate.
7-11. read the fan pull chain through the grommet hole on the side of
the cover plate.
7-12. Place the cover plate up against the glass bowl. Align the holes in
the cover plate and glass bowl.
7-13. read the light pull chain through the nial and screw the nial
onto the threaded rod end until tight.
Breakaway
Connector
Steps 7-9 – 7-13
12
45013-01 • 06/16/11 • Hunter Fan Company
Light Kit
Metal Disc
readed Rod
Glass Bowl
Cover Plate
Finial
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
7-14. To uninstall the light xture, rst disconnect the plug connectors
between the black wire and the black/white wire.
7-15. Disconnect the plug connectors between the two white
wires.
7-16. Uninstall the nut and washer from the end of the light
xture inside the lower switch housing.
7-17. Unscrew the threaded rod of the light xture from the
lower switch housing.
7-18. Remove the light xture from the lower switch housing
pulling disconnected wires through the hole in the
center of the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through rst, and then pull the other
plug connector (female) through the hole.
7-19. Install the dummy terminals (included in the sack parts)
on the two disconnected wires in the lower switch
housing.
7-20. Install the switch housing cap and plug button to the
lower switch housing.
7-21. Once you have uninstalled the light xture, continue
with step 7-6.
Lower Switch
Housing
Steps 7-16 – 7-18
Plug
Connectors
readed Rod
Male Dummy
Term i nal
Female Dummy
Term i nal
45013-01 • 06/16/11 • Hunter Fan Company
Cap
Plug Button
Step 7-20
13
8 • Operating and Cleaning Your Ceiling Fan
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-4. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-5. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
14
45013-01 • 06/16/11 • Hunter Fan Company
9 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
15
45013-01 • 06/16/11 • Hunter Fan Company
Loading...
