Hunter Fan M3559-01 User Manual

Download

Page 1

30 inches

7 feet

Ladder

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Hanging the Fan

Switch Housing

Tools Needed

PAG E

Wiring

Light Kit

Ceiling Plate

PAG E

Canopy

PAG E

Maintenance,

Operation & Cleaning

Top Housing

PAG E

Blades

PAG E

Troubleshooting

PAG E

M3559-01 • 11/12/14 • © Hunter Fan Company

PAG E

Page 2

What to Expect with Your Installation

www.HunterFan.com

1.888.830.1326

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

If you are unfamiliar

with wiring, use a qualied electrician.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

Assess location

7 feet

from bottom

edge of blade

to the oor

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning

off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects

in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar

with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 3

Tools Needed

Ladder ScrewdriversWire Strippers

www.HunterFan.com

1.888.830.1326

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 4

Ceiling Plate

Turn Power

OFF

Bumper

www.HunterFan.com

1.888.830.1326

Make sure all four (4) bumpers

are still attached.

To avoid possible electrical shock, before installing your fan,

disconnect the power by turning off the circuit breakers to the

outlet box associated with the wall switch location.

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling plate with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70

M3559-01 • 11/12/14 • © Hunter Fan Company

lbs) or less.

Refer to warning w.1 on pg. 2

Page 5

Top Housing

www.HunterFan.com

1.888.830.1326

Thread the wires through the

top housing.

Top Housing

Adapter

Place the top housing onto the

motor housing so that the holes

in the top housing lineup with

the holes in the motor housing

and the adapter.

Trim Ring

Rest the trim ring on the top

housing.

Canopy

Adapter

Place the canopy on the top

housing. Ensure all four screw

holes line up with the screw

holes in both the top housing

and the adapter.

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 6

Top Housing (continued)

www.HunterFan.com

1.888.830.1326

Top Housing

Screws

Grounding

Screw

Install the top housing screws. Install

the grounding screw in the smaller

screw hole. These screws can be found

in the hardware bag.

3/8”

8”

(not to scale)

The wires can be cut, but leave at

least 8” extending from the top of

the canopy.

8” 3/8”

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 7

Hanging the Fan

www.HunterFan.com

1.888.830.1326

Ceiling Plate Hook

Raise the fan and align the slots in the

canopy with the hooks on the ceiling plate.

Note: To hang the fan, you must tilt the

canopy to an almost vertical position so that

the canopy slots sit on the ceiling plate hooks.

Ceiling Plate Hook

Place the slots over the ceiling plate

hooks to hang the fan.

M3559-01 • 11/12/14 • © Hunter Fan Company

Note: Fan style may vary.

Page 8

Wiring

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Using an orange

wire connector from

the hardware

bag, connect the

grounding wires

(green, green/

yellow stripe, or bare

copper) coming

from the ceiling and

ceiling plate.

Note: To connect the wires,

www.HunterFan.com

1.888.830.1326

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

(Grounded)

(Ungrounded)

For Dual Switches

Using the orange wire

For a Single Switch

GreenGrounding

Using the orange wire

connectors from the

hardware bag, connect the

black wire (ungrounded) from the ceiling to the black and the blue wires from the

fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

White

Black

Blue

connectors from the

hardware bag, connect

the white wire (grounded)

from the ceiling to the

white wire from the fan.

Connect the black wire (ungrounded) from the ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 9

Canopy

Screw

Holes

Canopy

Screw

www.HunterFan.com

Ceiling

Plate Hooks

Canopy

1.888.830.1326

Screw

Swing the fan up to align the canopy

screw holes with the mounting holes on

the ceiling plate.

Note: The slots in the canopy must

remain engaged while swinging the

canopy for alignment.

Hold the canopy up with the screw holes

aligned. Partially install two canopy

screws, found in the hardware bag, into

the holes opposite the ceiling plate hooks.

M3559-01 • 11/12/14 • © Hunter Fan Company

Partially install a canopy screw, found

in the hardware bag, between the

ceiling plate hooks. When all the holes

are properly aligned, securely tighten all

three canopy screws.

Page 10

Canopy (continued)

Canopy

Trim Ring

www.HunterFan.com

1.888.830.1326

Using both hands, push the canopy trim ring up

to the top of the canopy. The canopy trim ring will

snap and lock into place.

Note: Should you need to remove the trim ring,

press rmly on opposite sides of the trim ring. The

tabs will ex out releasing the canopy trim ring.

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 11

Blades

www.HunterFan.com

1.888.830.1326

Secure each blade to a blade iron as shown

using the blade nuts, found in the hardware

bag, and the blade assembly screws, found in

the hardware bag.

Lightly attach the blade irons to the motor with

the blade iron armature screws, found in the

hardware bag, then securely tighten after all

screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning agents may damage the nishes.

M3559-01 • 11/12/14 • © Hunter Fan Company

Page 12

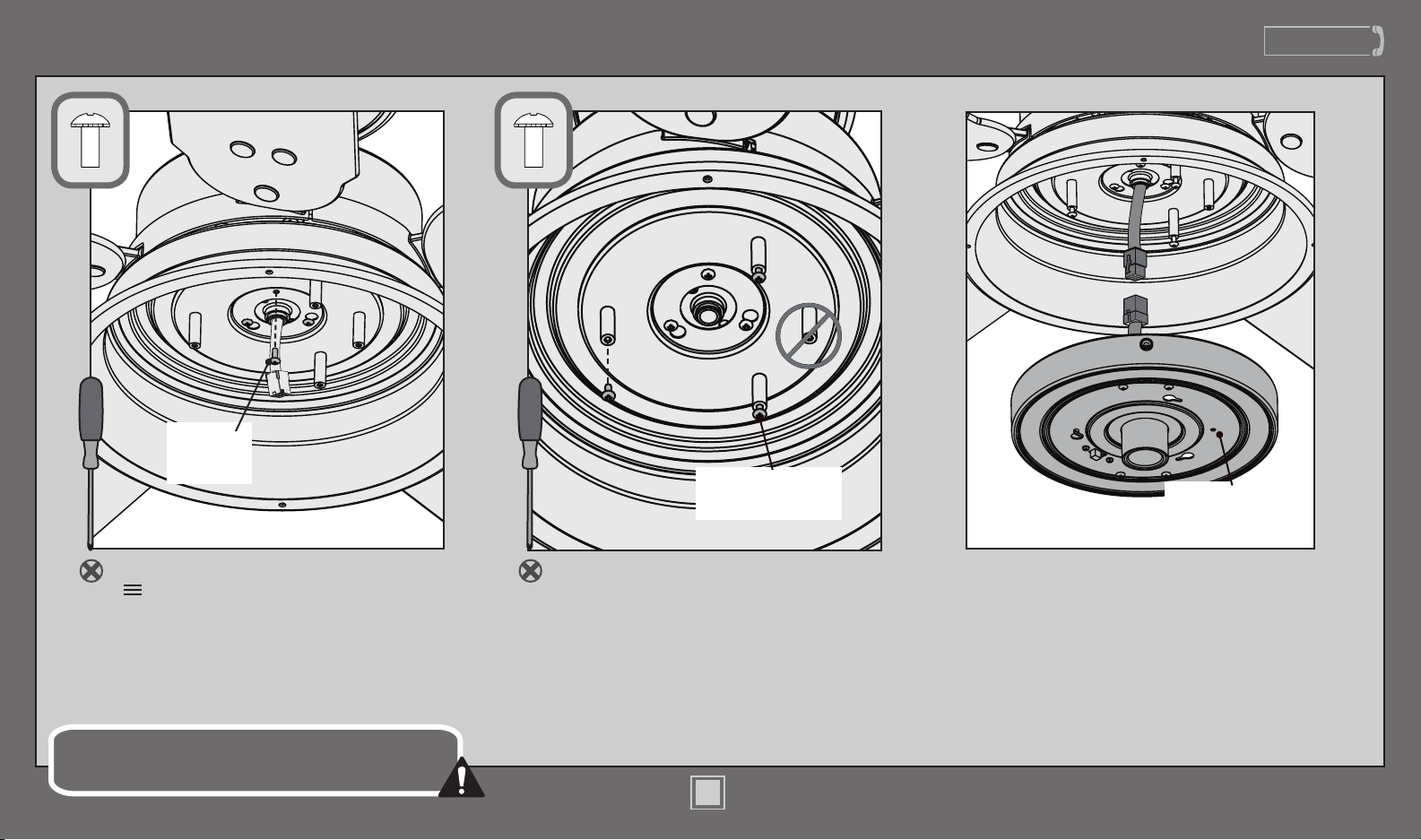

Switch Housing

www.HunterFan.com

1.888.830.1326

Remove the pre-installed screw and red

label from the switch housing.

SAVE THE SCREW.

Note: The screw was installed for

shipping purposes only.

Screw two (2) housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

M3559-01 • 11/12/14 • © Hunter Fan Company

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws

and twist counterclockwise.

Page 13

Switch Housing (continued)

Switch Housing Screw

Switch Housing

Screw

www.HunterFan.com

Lower Switch

Housing

1.888.830.1326

Insert the third screw, found in the

hardware bag, into place and then

tighten all three (3) screws.

Make sure the upper switch housing is securely attached

to the mounting plate. Failure to properly secure all 3 assembly

screws could result in the switch housing xture falling.

To attach the lower switch housing,

partially install three switch housing screws

into the standoffs as shown, leaving the

circled standoff empty.

Connect the plugs from the upper and

lower switch housings. Make sure to line up

the colored markings on the connectors.

Page 14

Switch Housing (continued)

Lower Switch

Housing

www.HunterFan.com

Plate Screw

1.888.830.1326

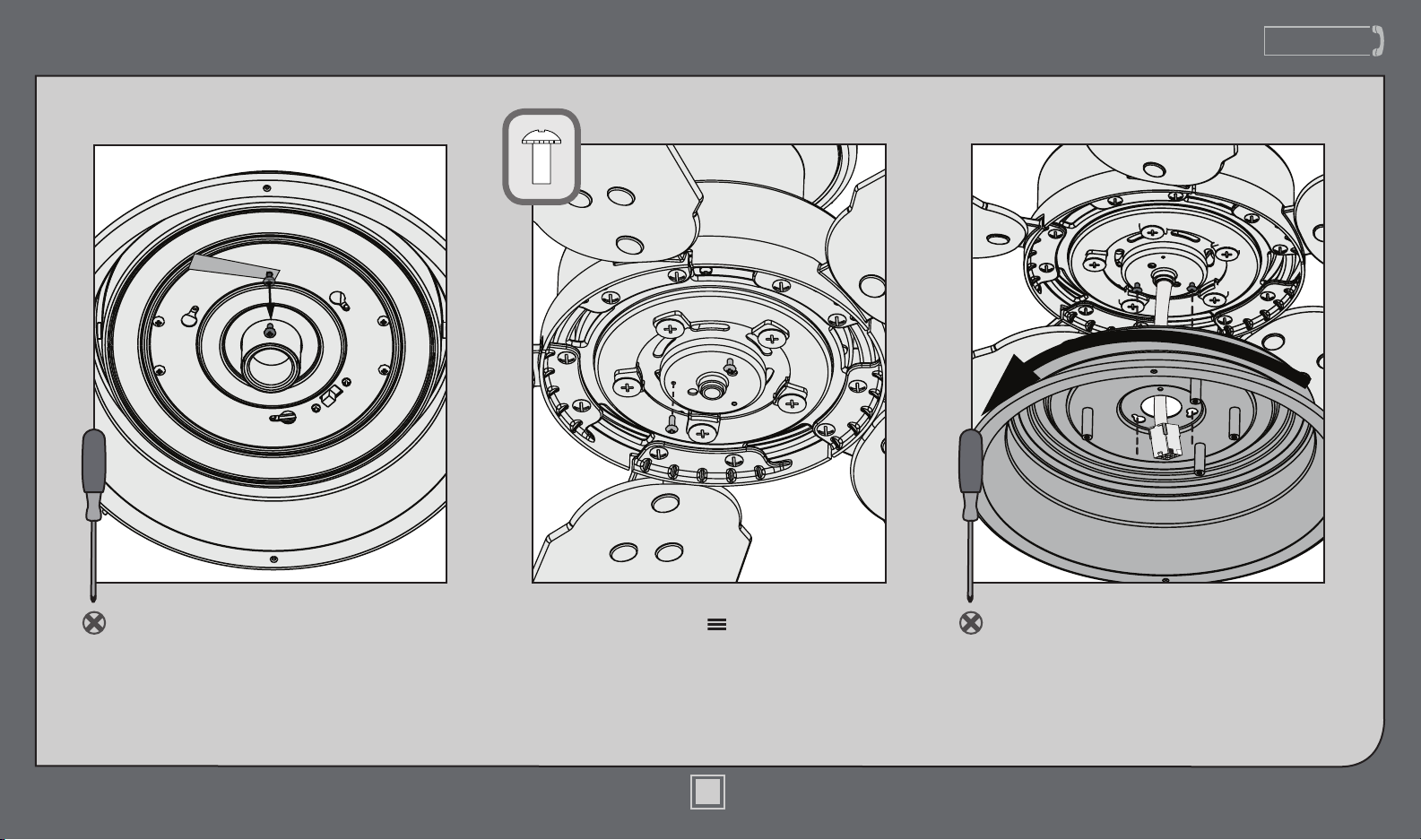

Align the keyhole slots in the lower

switch housing with the stand off screws.

Turn the housing counterclockwise until

the standoff screws are rmly situated in

the narrow end of the keyhole slots.

Remember the screw you saved? Install

it back into the housing. Tighten all four

screws rmly.

Remove the two pre-installed plate

screws from the switch housing.

Save the screws

Page 15

Light Kit

www.HunterFan.com

1.888.830.1326

Hood

Cover Plate

Plate Screw

Lift the cover plate, aligning the screw

holes with the screw holes in the switch

housing. Install the plate screws to secure

the cover plate to the switch housing.

Bulb

Install one E-26 60-watt light bulb.

When necessary, replace with bulb of

the same wattage.

Wire Basket

Align the holes in the wire basket and the hood with the holes on the rim of the upper switch housing. Install four switch

housing screws, found in the hardware

bag, through wire basket and hood into

the upper switch housing.

Make sure the light kit is securely attached to the upper

switch housing. Failure to properly secure all three assembly

screws could result in the light xture falling.

Page 16

Light Kit (continued)

Light Pull Chain

Fan Pull

Chain

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

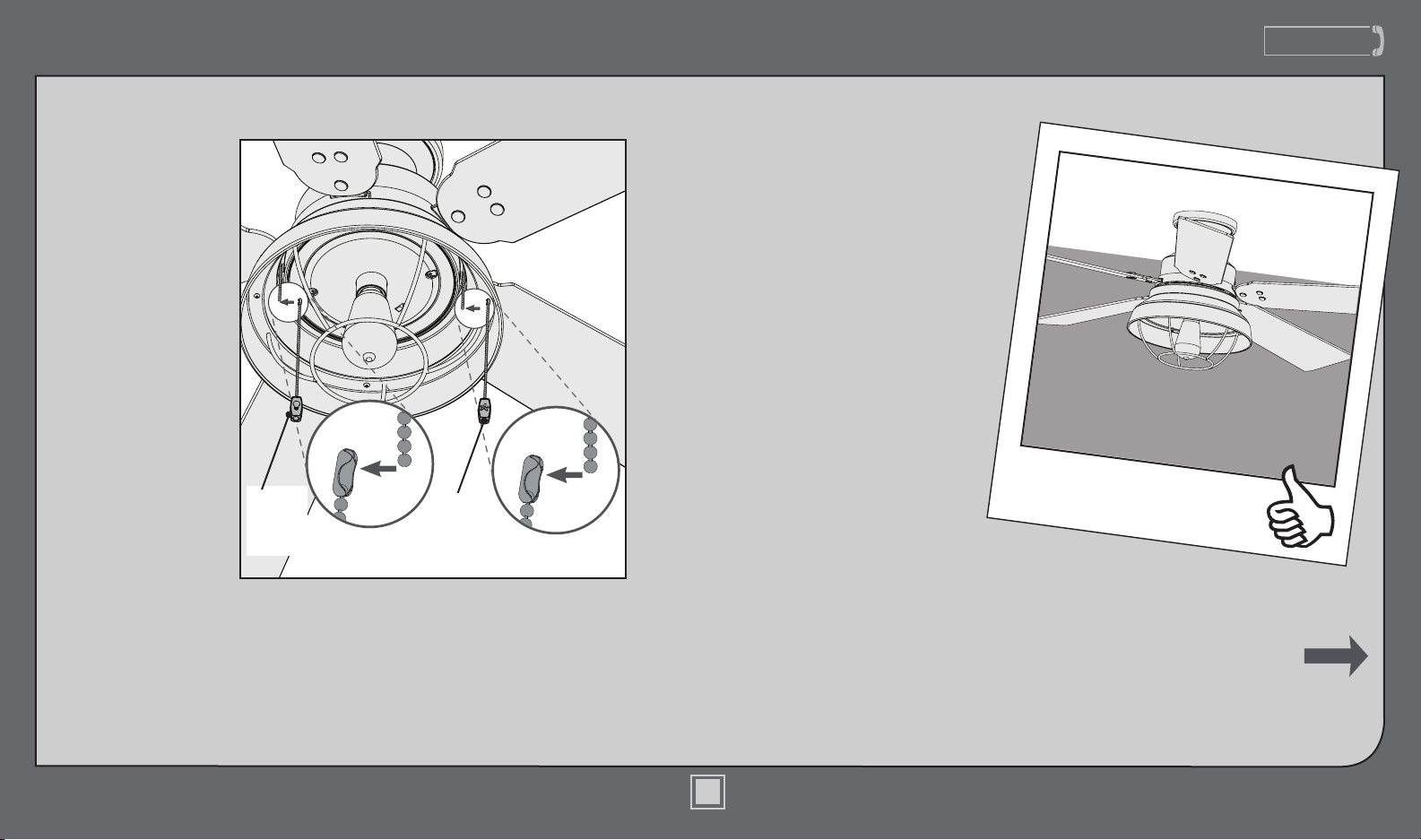

Connect the appropriate pull chain

pendant to each of the short chains

coming from the switch housing.

See next page for fan operation instructions.

Page 17

Maintenance, Operation, & Cleaning

Fan Pull Chain

Light Pull Chain

Turn Power

Reverse

Switch

www.HunterFan.com

1.888.830.1326

The fan pull chain controls the

speed: from high to off.

The light pull chain controls the

light xture: on and off.

To switch the direction of air

ow, move the reverse switch to

the opposite position.

Cleaning the fan - Use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

Page 18

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy

and check all the connections according to the wiring diagram on page 8.

• Check the plug connection in the switch housing.

Excessive wobbling

• Make sure the blades are securely attached to the blade irons according to the blade assembly instructions provided.

• Use the provided balancing kit and instructions to balance the fan.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Noisy operation

• Check to see if any of the blades

are cracked. If so, replace all of

the blades.
