Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Blades Switch Housing Light Kit

What to Expect with

Your Installation

Tools Needed

PAG E

DownrodPreparation

PAG E

Remote Control

Mounting Options

PAG E

Wiring Canopy

PAG E

Operation,

Maintenance & Cleaning

Ceiling Bracket

PAG E

Troubleshooting

PAG E

M0099-01 • 05/06/14 • © Hunter Fan Company

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

7 feet

to the oor

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

Check box to see fan weight

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M0099-01 • 05/06/14 • © Hunter Fan Company

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M0099-01 • 05/06/14 • © Hunter Fan Company

Screwdrivers

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M0099-01 • 05/06/14 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M0099-01 • 05/06/14 • © Hunter Fan Company

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Preparation

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

Remove the shipping blocks from the motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

www.HunterFan.com

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-

controlled fans?” for more information.

1.888.830.1326

M0099-01 • 05/06/14 • © Hunter Fan Company

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

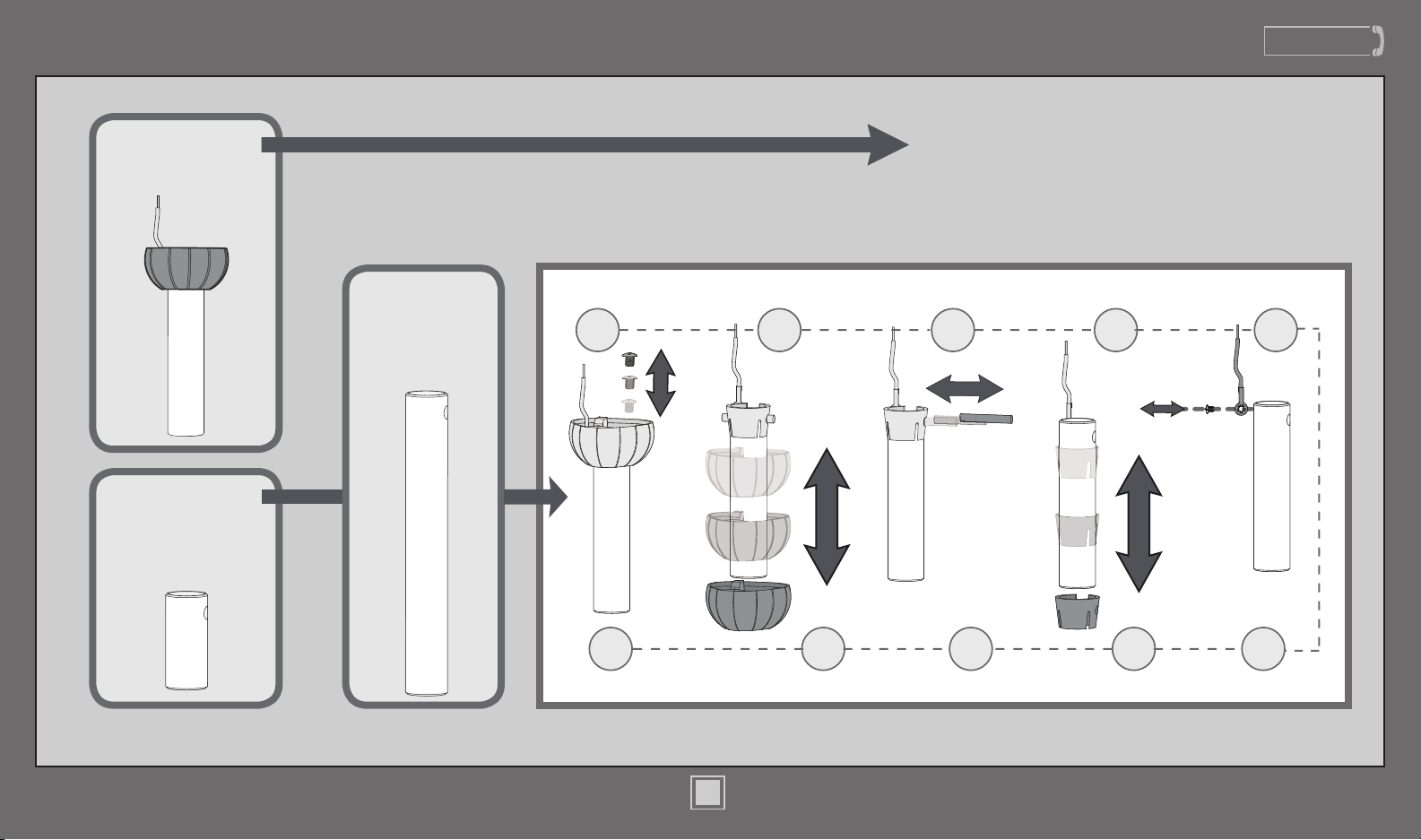

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

M0099-01 • 05/06/14 • © Hunter Fan Company

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

M0099-01 • 05/06/14 • © Hunter Fan Company

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M0099-01 • 05/06/14 • © Hunter Fan Company

Wiring

Using an orange wire

connector from the hardware bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

stripe (grounding)

green/yellow stripe

stripe

Note: To connect the

www.HunterFan.com

1.888.830.1326

wires, hold the bare

metal leads together and

green/yellow

place a wire connector

over them, then twist

clockwise until tight.

Using the orange

wire connectors

from the remote

control hardware bag, connect the blue wire from the receiver

to the blue wire (or possibly black with

white stripe wire) from

the fan. Connect the yellow wire from the receiver to the black

wire from the fan.

blue

yellow

Using the orange wire

connectors from

(ungrounded)

black

white (grounded)

the hardware bag,

connect the black wire

(ungrounded) from

white

the ceiling to the black

black

blue

wire from the receiver.

Connect the white

black

white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M0099-01 • 05/06/14 • © Hunter Fan Company

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M0099-01 • 05/06/14 • © Hunter Fan Company

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Blades

Insert grommets found in the hardware

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them for this step.

www.HunterFan.com

1.888.830.1326

bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag.

Lightly attach the blade irons to the motor with the blade iron armature

screws, then securely tighten after both

screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

M0099-01 • 05/06/14 • © Hunter Fan Company

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

M0099-01 • 05/06/14 • © Hunter Fan Company

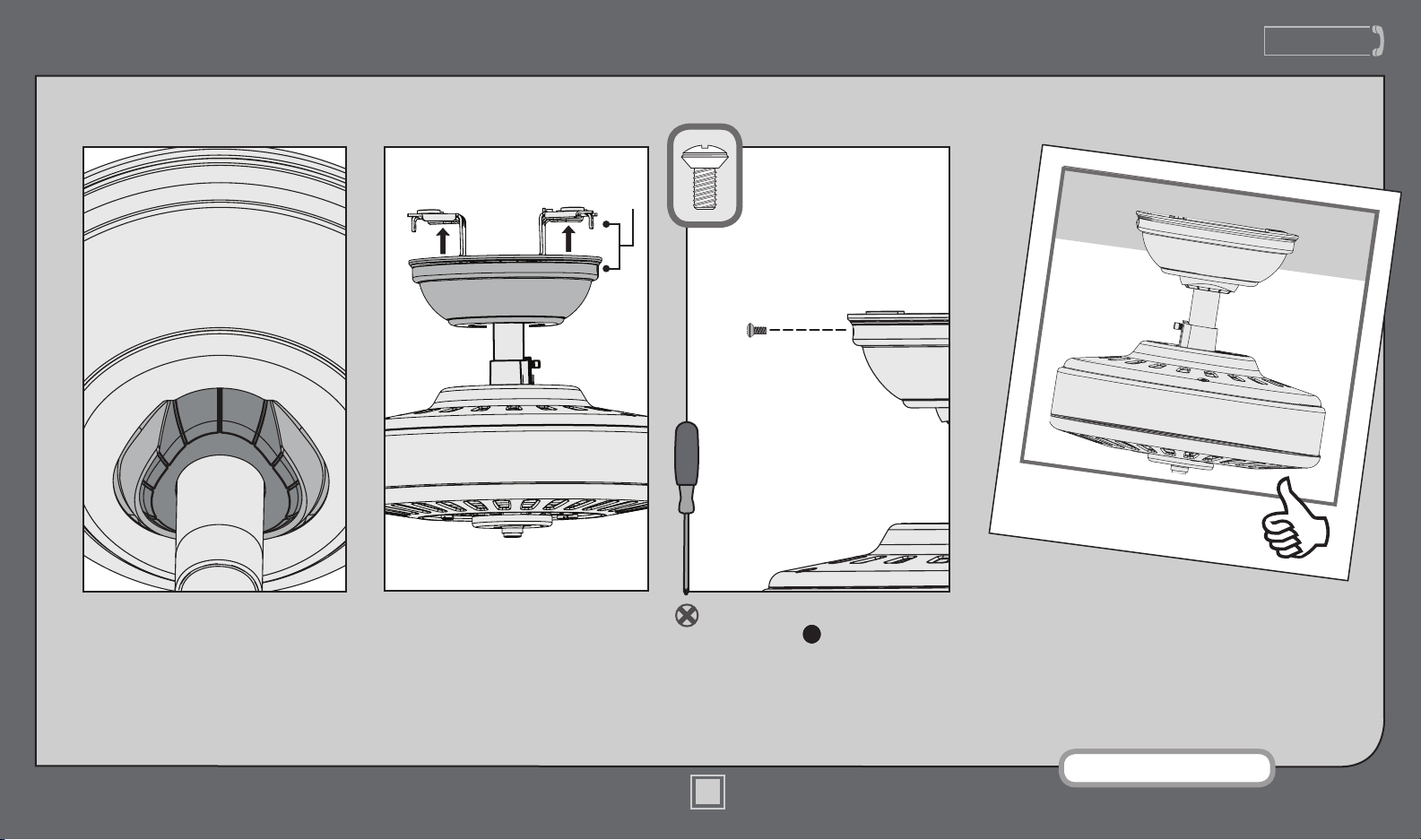

Insert the third screw, found in

the hardware bag, into place and then

tighten all three screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Light Kit

www.HunterFan.com

1.888.830.1326

Switch Housing Screw

Partially install two of the switch housing

screws found in the hardware bag.

Connect the plugs from the upper and lower

switch housings. Make sure to line up the

colored markings on the connectors.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click

“How do I install my fan without the light kit?”

Switch Housing

Notch

Screw

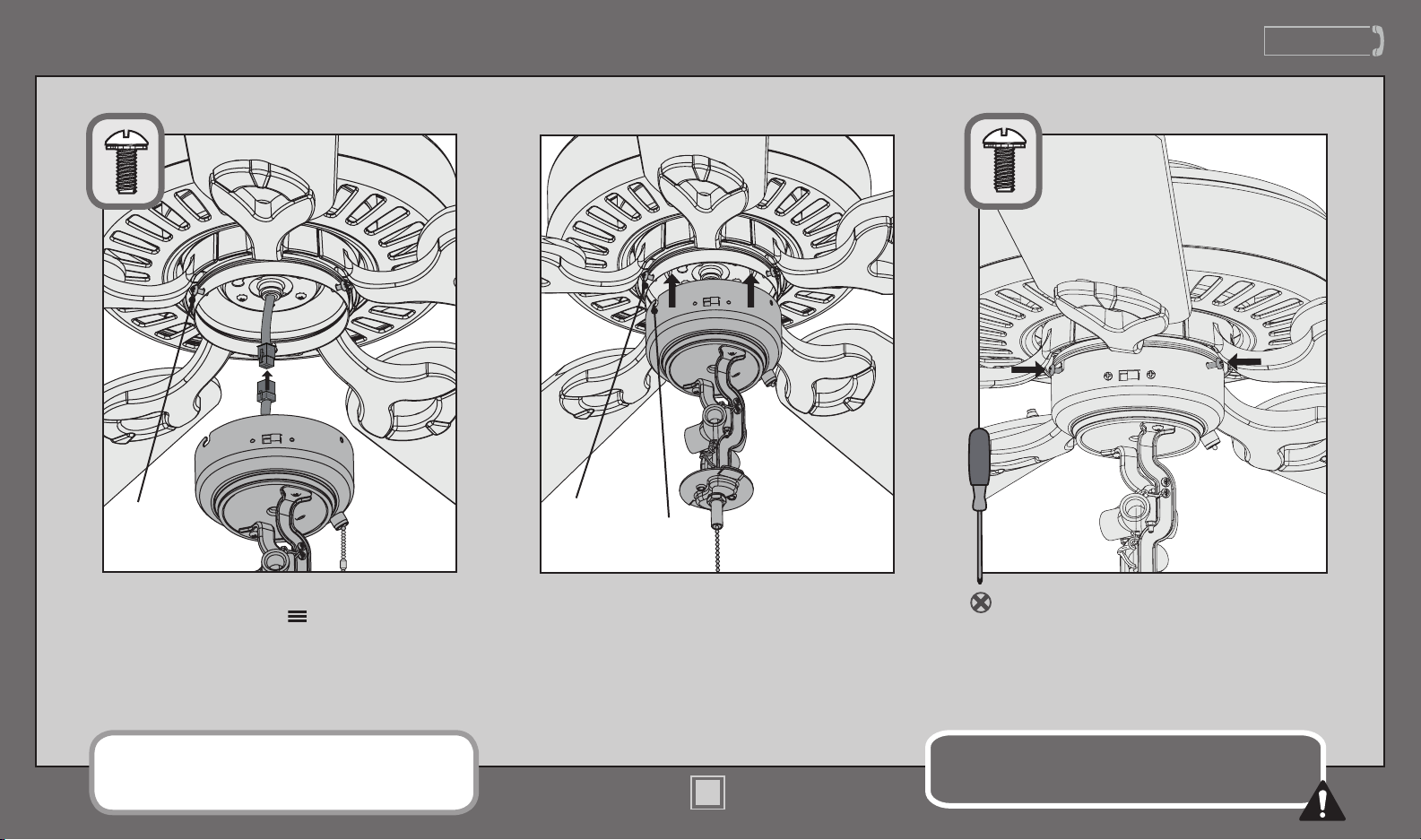

Align the notches in the sides of the lower

switch housing with the upper switch

housing screws. Lift the lower switch housing.

Twist the lower switch housing clockwise to

lock into place. Then thread the fan pull chain

through the hole in the light kit.

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Light Kit (continued)

www.HunterFan.com

1.888.830.1326

Install a bulb into each of

the sockets. When necessary,

replace with bulbs of the same

type and wattage.

Note: Globe style and number of

lights may vary.

Metal Plate

Globe

Globe Keeper

Finial Cap

Finial

Press the globe and globe keeper

ush against the metal plate. Thread

the light pull chain through the hole

in the center of the nial cap and

thread the fan pull chain through the

hole in the side of the cap. Finally,

thread only the light pull chain

through the hole in the nial and

screw the nial onto the threaded rod.

Light Pull

Chain

Connect the appropriate pull chain pendant to each of the

short chains coming from the

nial and nial cap.

Fan

Pull

CONGRATULATIONS!

YOU’RE DONE!

See next page for remote operation instructions.

Note: In compliance with US federal energy regulations, this ceiling fan

contains a device that restricts its light output. Exceeding the wattage

limit marked on the MAX wattage sticker afxed to the light socket(s)

may result in re hazard or improper operation.

Remote Control

Battery Door

Phillips Head Screw

To access the battery compartment, remove the small Phillips head screw that secures the battery door to the transmitter assembly. The

battery should be installed with the positive

(+) side up. Replace with a CR2032 battery

when necessary.

If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few

extra steps to prevent interference or faulty operation of

your remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-controlled fans?”

for more information.

Turn Power

www.HunterFan.com

Fan OFF

Note: The remote must be paired before

the fan will operate.

Within 3 minutes of restoring power to

the fan, press both the Fan OFF button and

the Fan ON button for at least 4 seconds.

Your fan will turn on to indicate successful

syncing. If it does not, turn off power to

your fan, wait 1 minute then try again. If

using the transmitter with multiple fans,

repeat this process for each fan.

Fan ON

1.888.830.1326

Operation, Maintenance, & Cleaning

Fan Control

Light Control

Fan Operation:

Press and quickly release the ON or OFF button on the

remote control to turn the fan OFF or ON.

To change the fan speed, slowly pull the fan pull-chain

switch to select the desired speed.

Light Operation:

Press and quickly release the ON or OFF button on the

remote control to turn the light OFF or ON. (Light will

come on at maximum brightness.)

www.HunterFan.com

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

1.888.830.1326

Operation, Maintenance, & Cleaning (continued)

Metal Plate

Globe

Globe Keeper

www.HunterFan.com

1.888.830.1326

Finial Cap

Finial

Changing the bulbs - unscrew the

nial and remove it from the threaded

rod. Remove the nial cap and unscrew

the globe keeper while supporting the

globe with your other hand. Carefully

remove the globe. Unscrew bulbs and

replace with bulbs of same type and

wattage. Reinstall the globe assembly.

Reverse

Switch

Changing the direction of air

ow - move the reverse switch

to the opposite position.

Cleaning the fan - use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

For questions regarding removing a light kit, call

customer service 1-888-830-1326.

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Hunter Fan M0099-01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
