Hunter Fan M0028-01 User Manual
30 inches
7 feet
Ladder
Table of Contents
www.HunterFan.com
1.888.830.1326
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
What to Expect with
Your Installation
2
Hanging the Fan
6

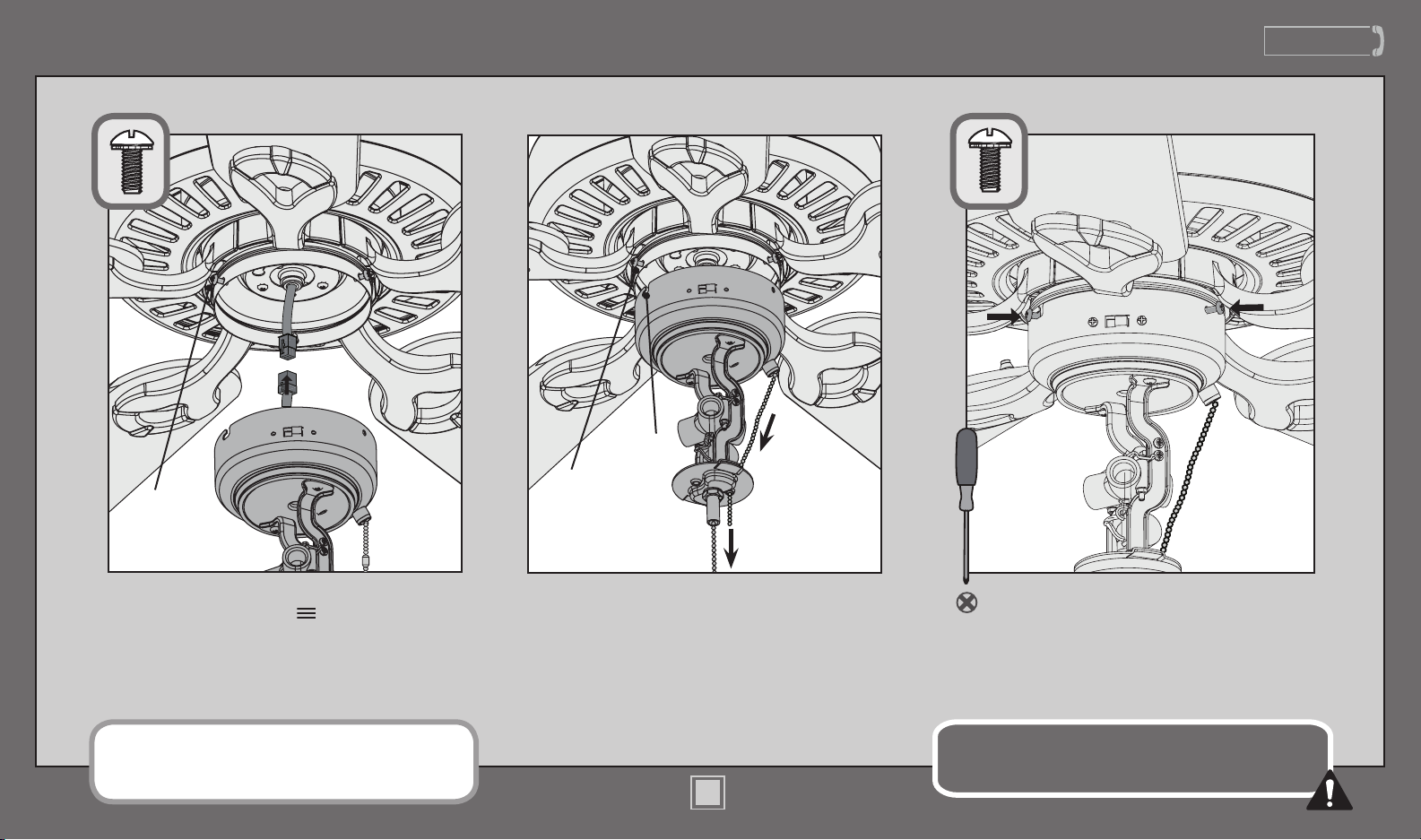

Switch Housing
Tools Needed
PAG E
PAG E
Wiring
Ceiling Bracket
PAG E
3
Motor Housing
PAG E
7
Maintenance,
Operation & Cleaning
4
8
Preparation
PAG E
PAG E
5
Blades
PAG E
PAG E
9
TroubleshootingLight Kit
?
?
PAG E
10
PAG E
11
1
M0028-01 • 06/25/15 • © 2012–2015 Hunter Fan Company
13
PAG E
?
PAG E
14
What to Expect with Your Installation
www.HunterFan.com
1.888.830.1326
Must be able to
secure the fan to
building structure or
fan-rated outlet box
You may need a
friend to help you.
Check box to see
fan weight
If you are unfamiliar
with wiring, use a
qualied electrician.
Know your wiring
30 inches
from blade tip
to nearest wall
or obstruction
Assess location
7 feet
from bottom
edge of blade
to the oor
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
CAUTIONS
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
2
M0028-01 • 06/25/15 • © 2012–2015 Hunter Fan Company
Tools Needed
www.HunterFan.com
1.888.830.1326
Ladder
Screwdrivers
If mounting to a support structure, you will also need these tools.
Power Drill
(optional)
3
M0028-01 • 06/25/15 • © 2012–2015 Hunter Fan Company
9/64” Drill Bit
(optional)
Ceiling Bracket
Turn Power
Bumper
www.HunterFan.com
1.888.830.1326
OFF
To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box associated with the wall switch location.
Make sure all four bumpers are still attached.
4
M0028-01 • 06/25/15 • © 2012–2015 Hunter Fan Company
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Refer to warning w.1 on pg. 2
Ceiling Bracket (continued)
Preparation
www.HunterFan.com
www.HunterFan.com
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
1.888.830.1326
1.888.830.1326
5
M0028-01 • 06/25/15 • © 2012–2015 Hunter Fan Company
