Page 1
For Your Records and
Warranty Assistance
For reference, also attach your
receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Type 7 ModelsType 7 ModelsType 7 Models
Owner’s Guide and Installation Manual
English Español
Form# 45084-01
20120117
©2012 Hunter Fan Co.
Page 2
Table Of Contents
1 • Getting Ready......................6
2 • Installing the Hanger Bracket .......7
3 • Assembling and Hanging the Fan ...8
5 •Wiring the Fan......................10
6 • Installing the Canopy and Canopy Trim
Ring ..............................11
7 • Assembling the Blades..............12
8 • Installing the Switch Housing .......13
9 • Assembling the Remote Control and
Mounting the Cradle ..............14
10 • Operating and Cleaning Your Ceiling
Fan ...............................15
11 • Troubleshooting ..................16
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls, which are solid state.
• is product conforms to UL STD 507 and is certied to STD C22.2
No.113
• Wash your hands after your fan installation is complete.
© 2012 Hunter Fan Company
2
45084-01 • 01/17/12 • Hunter Fan Company
Page 3
Preparing the Fan Site
Step 1 - Choose the Fan Site
Proper ceiling fan location and attachment to the building
structure are essential for safety, reliable operation, maximum
eciency, and energy savings.
Choose a fan site where:
• No object can come in contact with the rotating fan blades during
normal operation.
• e fan blades are at least 7 feet above the oor and the ceiling is
at least 9 feet high.
• e fan blades have no obstructions to airow, such as walls or
posts, within 30 inches of the fan blade tips.
• e fan is directly below a joist or support brace that will hold the
outlet box and the full weight of the fan.
30” From
Wall or
Nearest
Obstruction
7’ Minimum
Blades to
Floor
9’ Minimum
Ceiling
Height
Checklist for Existing Fan Site
If you want to use an existing fan site, complete the following checklist to
determine if the site is acceptable and safe for your new Hunter fan. If you
cannot check o every item, prepare a new fan site as described on this
page.
Fan Support System
• Fan attaches directly to building structure.
• Fan support system will hold full weight of the fan and light kit.
Ceiling Hole
• e outlet box clearance hole is directly below the joist or support brace.
Outlet Box
• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as
specied by the support brace manufacturer).
• e outlet box is secured to the joist or support brace by wood screws
and washers through the inner holes of outlet box.
• e outer holes of the outlet box are aligned with joist or support brace.
• e bottom of the outlet box is recessed a minimum of 1/16” into
ceiling.
Wiring
• e electrical cable is secured to outlet box by an approved connector.
• Six inches of lead wires extend from outlet box.
If your existing fan site is suitable, skip ahead to Section 2 • Installing the
Ceiling Plate.
3
Fan Support
System
Fan Support
System
Suitable Existing Fan Site
Outlet Box
Wiring
45084-01 • 01/17/12 • Hunter Fan Company
Page 4
Preparing the Fan Site (continued)
Step 2 - Cut the Ceiling Hole
2-1. Locate the site for the ceiling hole directly below the joist or support brace that
will hold the outlet box and fan.
2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use
the hole to install the support brace and outlet box.
Step 3 - Install a Support Brace, If Necessary
Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,
determine if it is positioned to allow you to recess the outlet box a minimum of
1/16” into the ceiling. If NOT, install a support brace as follows:
3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to
recess the bottom of the outlet box a minimum of 1/16” into the ceiling.
3-2. Check the support brace to ensure it will support the full weight of the fan and
light kit.
Step 4 - Install the Outlet Box
4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”
wood screws and washers, available from any hardware store or electrical supply
house.
4-2. Orient the outlet box so that both the inner and outer holes in the box align
with the joist or support brace.
4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)
through the inner holes of the outlet box.
4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”
wood screws and washers. e bottom of the outlet box must be recessed a
minimum of 1/16” into the ceiling.
Step 5 - Prepare the Wiring
5-1. Make sure the circuit breakers to the fan supply line leads and associated wall
switch location are turned o . If you cannot lock the circuit breakers in the
o position, securely fasten a prominent warning device, such as a tag, to the
service panel.
5-2. read the fan supply line through the outlet box so that the fan supply line
extends at least 6” beyond the box.
5-3. Attach the fan supply line to the outlet box with an approved connector,
available at any hardware store or electrical supply house.
5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA
70.
You have now successfully prepared your ceiling fan site. For instructions to install
your ceiling fan, go to your fan manual and continue with Section 2 • Installing the
Ceiling Plate.
Steps 2 – 3
Step 4
Step 5
CAUTION: All wiring must be in
accordance with national and local
electrical codes and ANSI/NFPA 70. If
you are unfamiliar with wiring, use a
qualied electrician.
4
45084-01 • 01/17/12 • Hunter Fan Company
Page 5
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 2-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of two ways, depending on ceiling height and your preference: Standard
or Angled mounting. e steps in this manual include instructions for
both Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 9 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
9
CAUTION: To reduce the risk of personal
injury, attach the fan directly to the support
structure of the building according to these
instructions, and use only the hardware
supplied.
Angled Mounting recommended for a
vaulted or angled ceiling
45084-01 • 01/17/12 • Hunter Fan Company
5
Page 6
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Keyhole saw
• 2’ x 4’ support brace
• UL-approved octagonal 4” x 1-1/2” outlet box
• Two #8 x 1-1/2” wood screws and washers
• Approved connector for electrical wire
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 866-268-1936).
6
45084-01 • 01/17/12 • Hunter Fan Company
Page 7

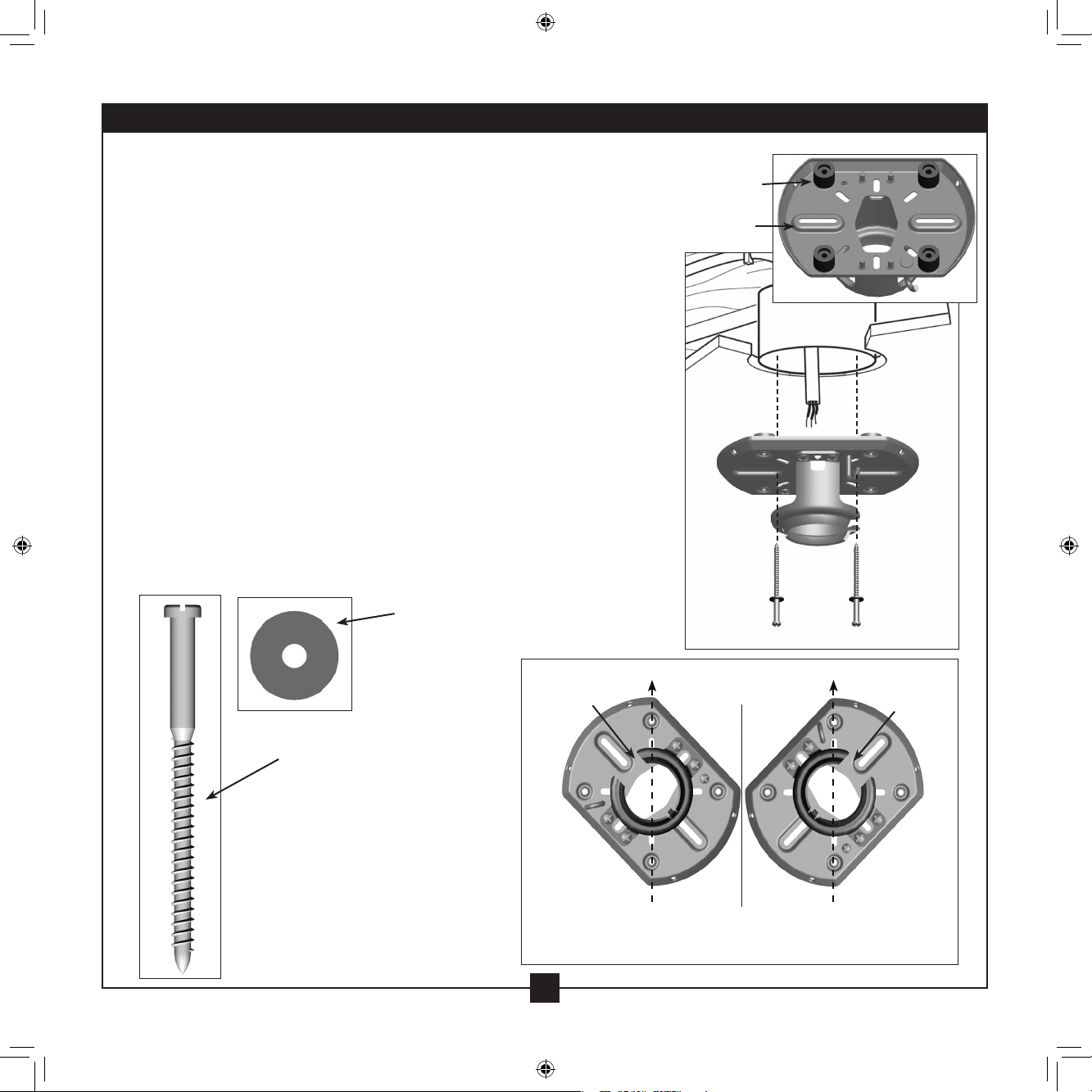

2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an ANGLED ceiling, be sure to orient the
hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Isolator
Hanger
Bracket
3” Screw
Flat Washer
Ceiling Peak Ceiling Peak
Large
Opening
LEFT RIGHT
Step 2-3 (Angled Ceiling Only)
7
45084-01 • 01/17/12 • Hunter Fan Company
OR
Steps 2-2 – 2-4
Large
Opening
Page 8

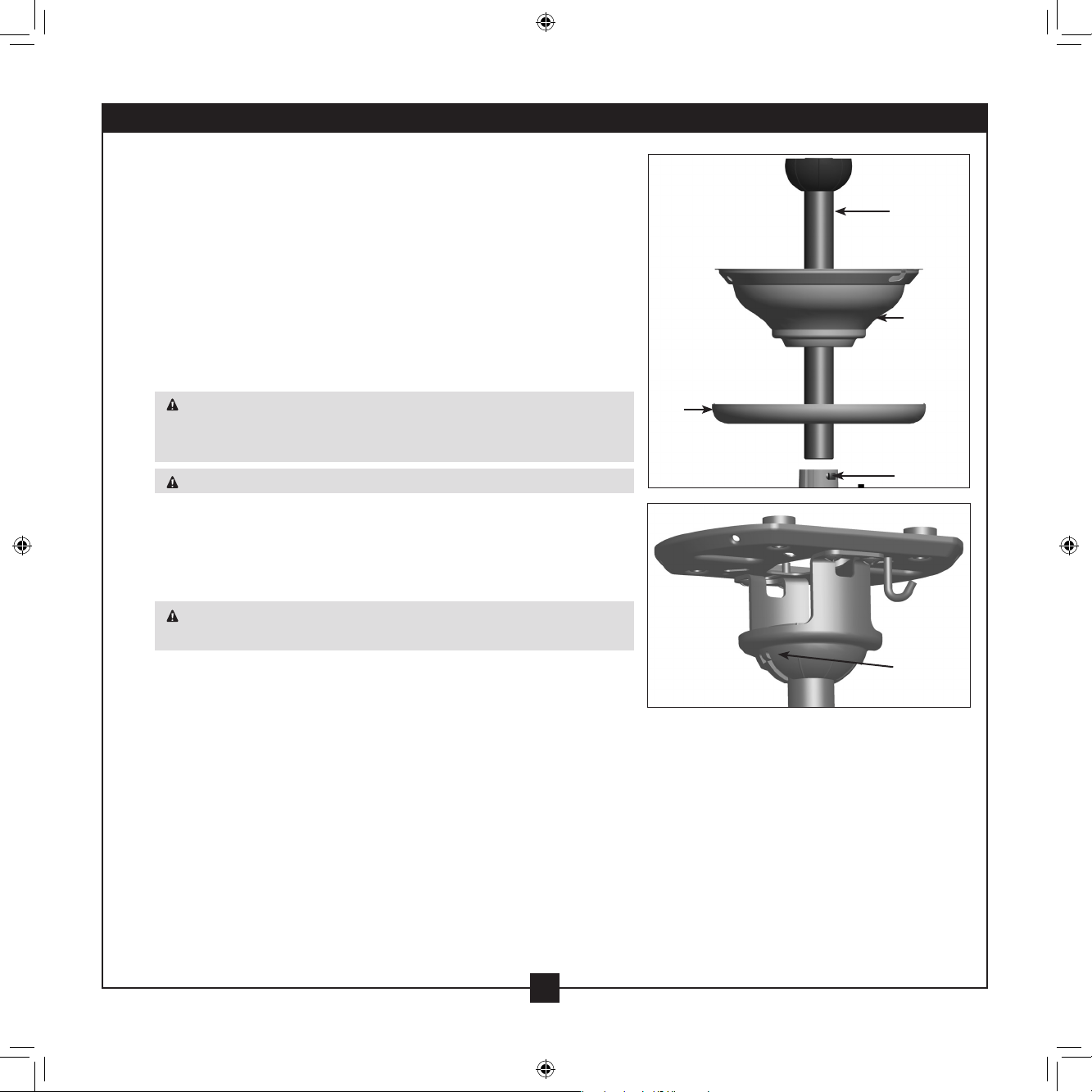

3 • Assembling and Hanging the Fan
3-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they
rest on the fan assembly.
3-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the downrod.
3-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-4. Raise the fan and place the ball into the hanger bracket.
3-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-1 – 3-3
Downrod
Canopy
Canopy
Trim
Ring
Setscrew
Steps 3-4 – 3-5
8
45084-01 • 01/17/12 • Hunter Fan Company
Indent
Page 9

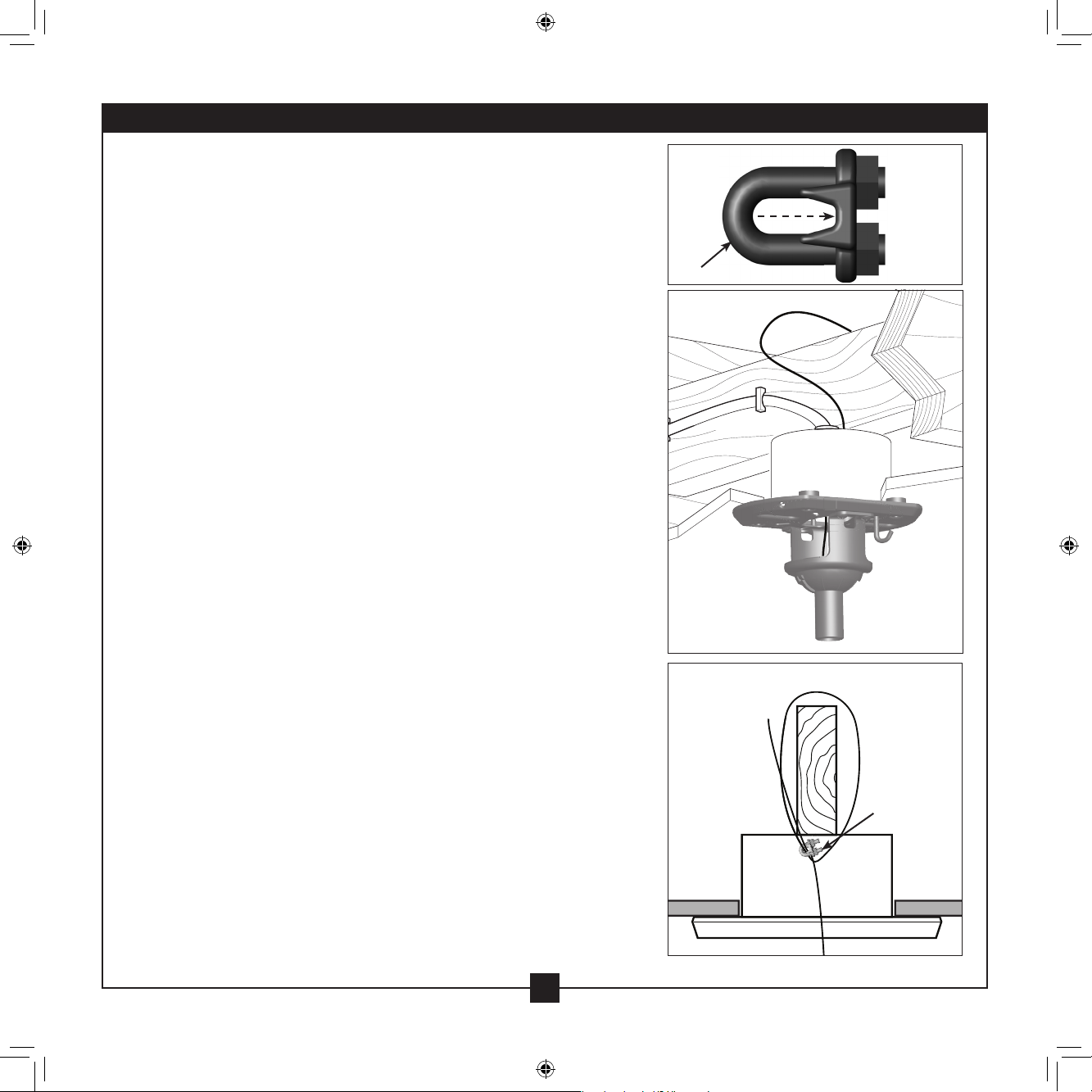

4 • Securing Fan to Secondary Support System
4-1. Loosen the two nuts on the wire clamp. Slide the clamp open.
4-2. Insert the end of the braided cable through the ceiling plate and
one of the holes in the outlet box into the ceiling.
4-3. Access the support brace in the ceiling. You may not be able to do
this from below the ceiling, depending on your installation site.
4-4. read the end of the cable up through the wire clamp.
4-5. Wrap the braided cable around the support brace once, creating a
complete circle. read the end of the cable through the bottom
of the clamp again so the excess cable hangs out the top.
4-6. Close the clamp by securely tightening the nuts.
4-7. Coil up the excess cable.
4-8. Return to the fan so you can complete the fan wiring.
Step 4-1
Wire Clamp
Step 4-2
9
45084-01 • 01/17/12 • Hunter Fan Company
Steps 4-3 – 4-7
Wire Clamp
Page 10

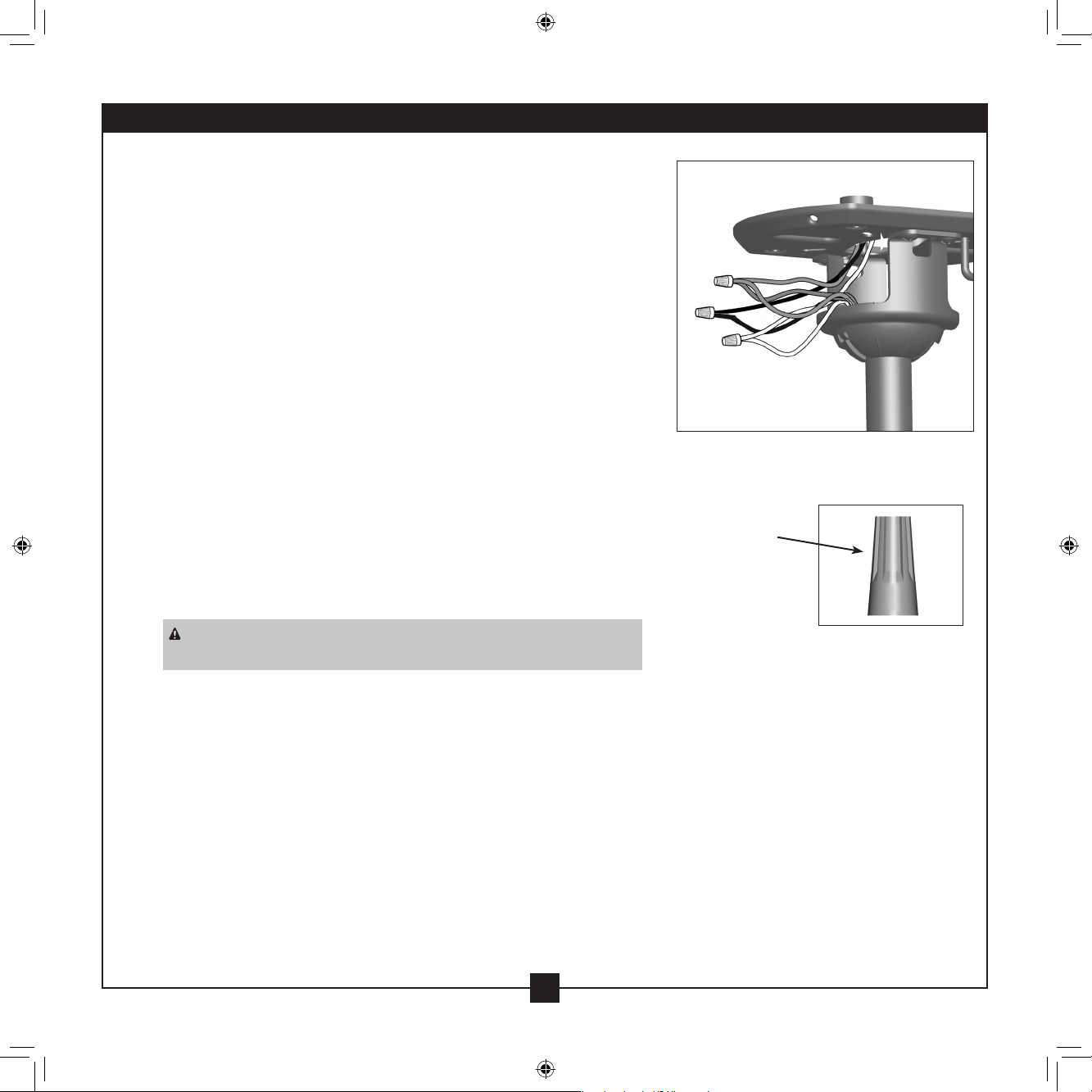

5 •Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
5-1. Before attempting installation, make sure the power is still o.
5-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
5-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire (grounding) from the fan, or the green
ground wire on the low prole washer if you chose the low prole
option.
5-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
5-5. Connect the black wire (ungrounded) from the ceiling to the
black (ungrounded) and the black wire with a white stripe
(ungrounded) from the fan .
Wire
Connector
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-6. Turn the wire connectors upward and push them carefully back
through the ceiling plate into the outlet box.
5-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
10
45084-01 • 01/17/12 • Hunter Fan Company
Page 11
6 • Installing the Canopy and Canopy Trim Ring
6-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
6-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
6-3. Twist canopy clockwise to secure.
6-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
6-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
6-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring:
1. Twist canopy trim ring counter
clockwise until it releases from
canopy.
Steps 6-1 – 6-2
Canopy
Hanger Bracket
Canopy Trim
Ring
Step 6-4
Step 6-5
Canopy
Screw
11
45084-01 • 01/17/12 • Hunter Fan Company
Step 6-3
Page 12
7 • Assembling the Blades
You have the option of installing three blades or six blades on
your fan. Install one blade iron for three blades and two blade
irons for six.
7-1. Remove the blade mounting screws and rubber shipping
bumpers from the motor.
7-2. Attach a blade iron to the fan with three blade mounting
screws. e blade mounting screws should be installed
inside the holes in the centers of the three arms of the blade
iron.
7-3. If you want to install six blades instead of three, install the
second blade iron using three blade mounting screws.
7-4. Using the provided Allen wrench, attach each blade to the
blade iron(s) using three decorative screws as shown.
Step 7-1
Blade Mounting
Screw
Note: e blades on this fan have been treated with Hunter’s
Dust Armor protection, making the blades less likely to attract
dust and dirt. Use a dry or slightly damp lint free cloth to clean
the blades. Do not use a furniture polish or any other cleaners
that leave any residue, as they will damage the protective Dust
Armor on the blades.
Allen Wrench
12
Allen Wrench
Step 7-2
Blade Mounting
Screw
Step 7-4Step 7-3
Decorative
Screw
45084-01 • 01/17/12 • Hunter Fan Company
Page 13

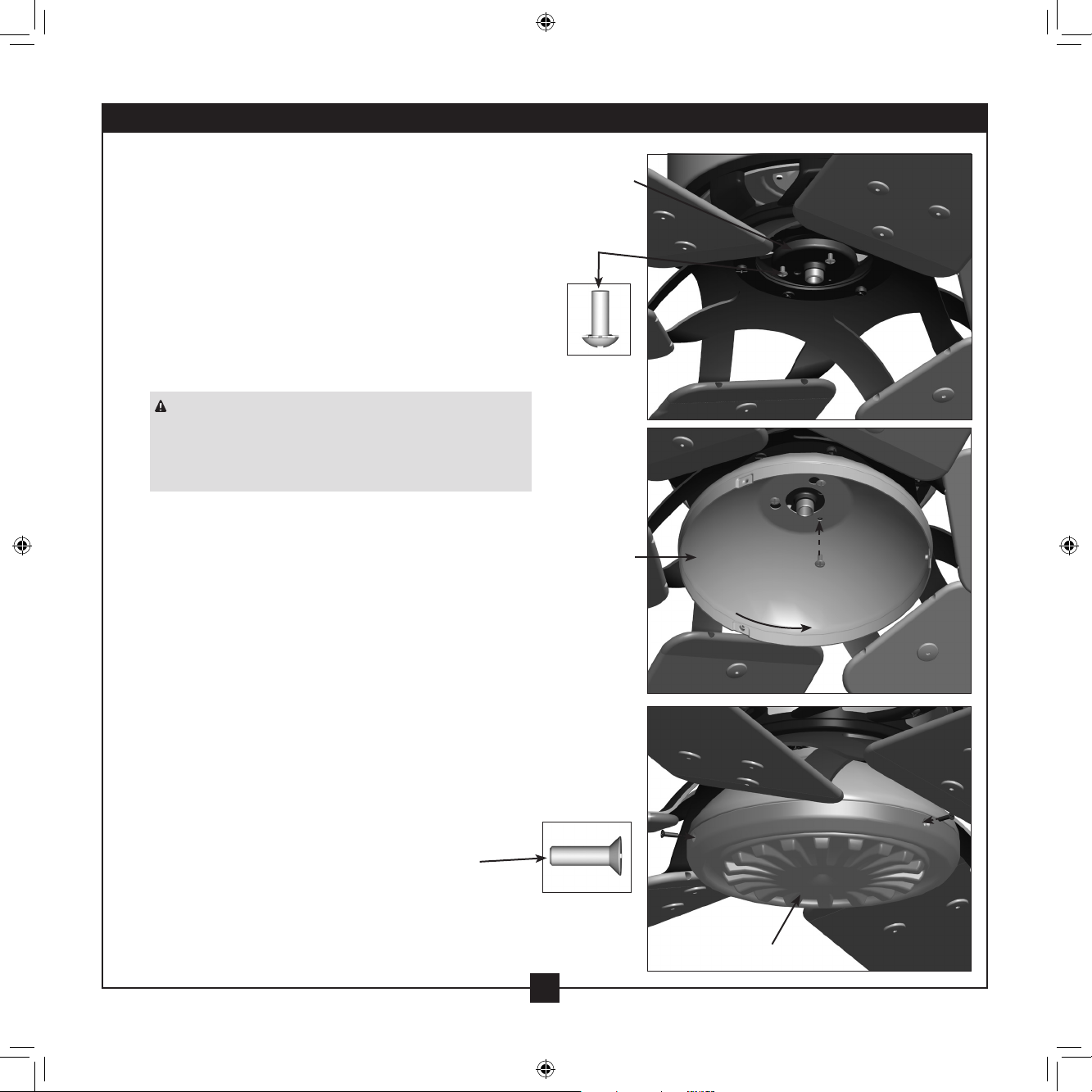

8 • Installing the Switch Housing
8-1. To attach the upper switch housing, partially install
#6-32 machine screws into the switch housing
mounting plate.
8-2. Align the keyhole slots in the housing with the
machine screws.
8-3. Turn the housing counterclockwise until the
machine assembly screws are rmly situated in
the narrow end of the keyhole slots. Install the
remaining screw into the housing. Tighten all three
screws rmly.
Step 8-1
Mounting
Plate
#6-32
MachineScrew
CAUTION: Make sure the upper switch housing is
securely attached to the switch housing mounting plate.
Failure to properly attach and tighten all three assembly
screws could result in the switch housing xture falling.
8-4. Place the lower switch housing assembly over the
upper switch housing. Align the side screw holes in
the upper and lower switch housings. Attach the
lower switch housing to the upper switch housing
with three housing assembly screws.
Note: is fan is not compatible with any light kit.
Switch
Housing
Assembly
Screw
Upper
Switch
Housing
Step 8-4
Step 8-3
Lower
Switch
Housing
13
45084-01 • 01/17/12 • Hunter Fan Company
Page 14

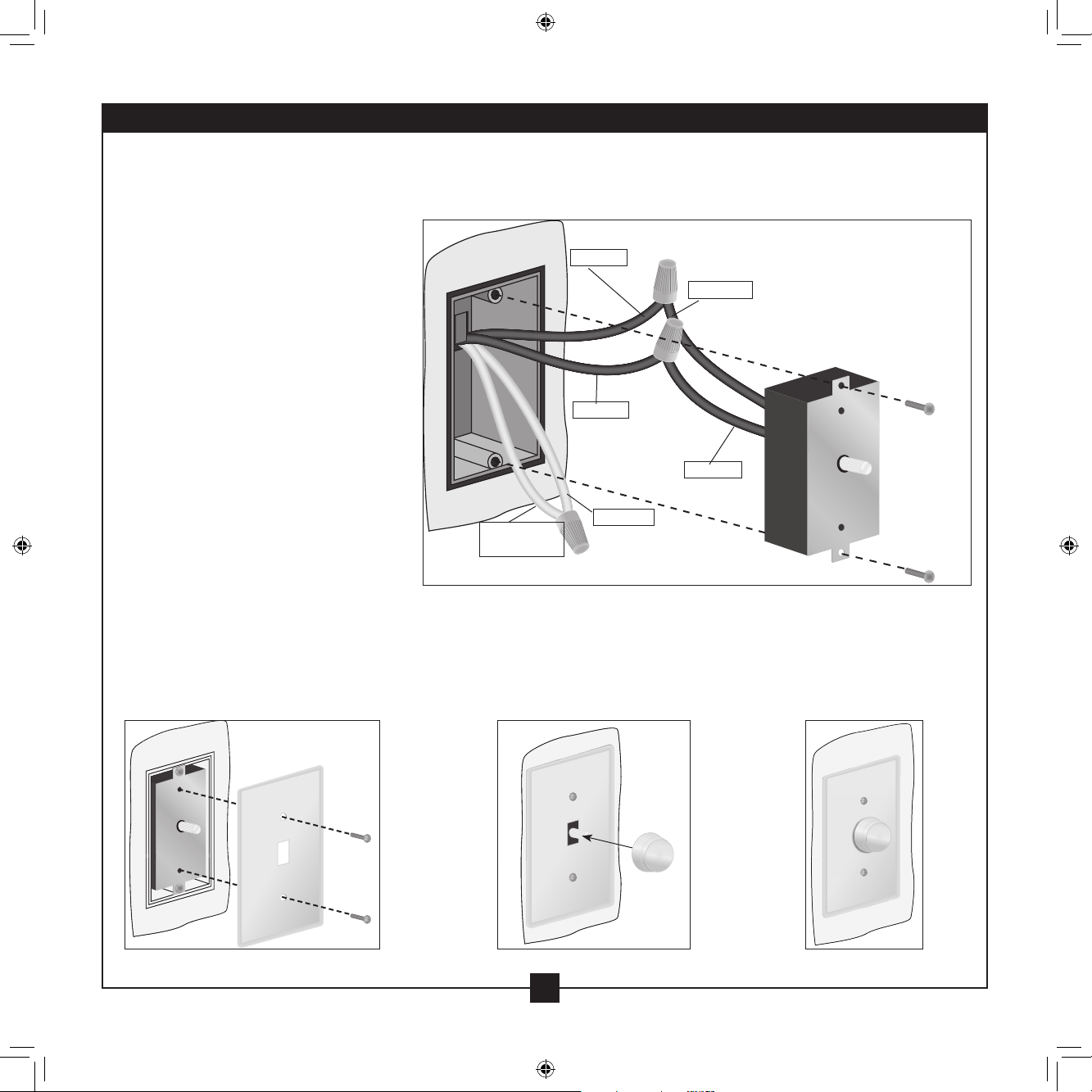

9 • Assembling the Remote Control and Mounting the Cradle
After removing the control from the box, shut o power to the room you will be working in at the breaker box.
Caution: Do not restore power until all work is complete.
9-1. Pull the knob o of the speed
control unit and remove your existing
switch from the switch box.
Black
Black
Steps 9-1 – 9-4
9-2. Connect each black lead from the
speed control to a black lead from the
switch box with a wire connector.
Note: If two white wires are present in
your switch box, connect them to each
Black
other if not already and secure with a
wire connector.
9-3. Carefully tuck the wires back into
Black
the switch box and slide the back of the
speed control into the switch box as well.
White
White
9-4. Line the two screw holes on the
control’s metal tabs with those on the
switch box and attach using the two at head screws that came with the switch box.
9-5. Mount the faceplate (not included) to the control with two #6-32 screws that you removed earlier from the
faceplate.
9-6. Attach the knob onto the post on the speed control and turn to the left for the OFF position.
Step 9-5
Step 9-6
14
45084-01 • 01/17/12 • Hunter Fan Company
Page 15

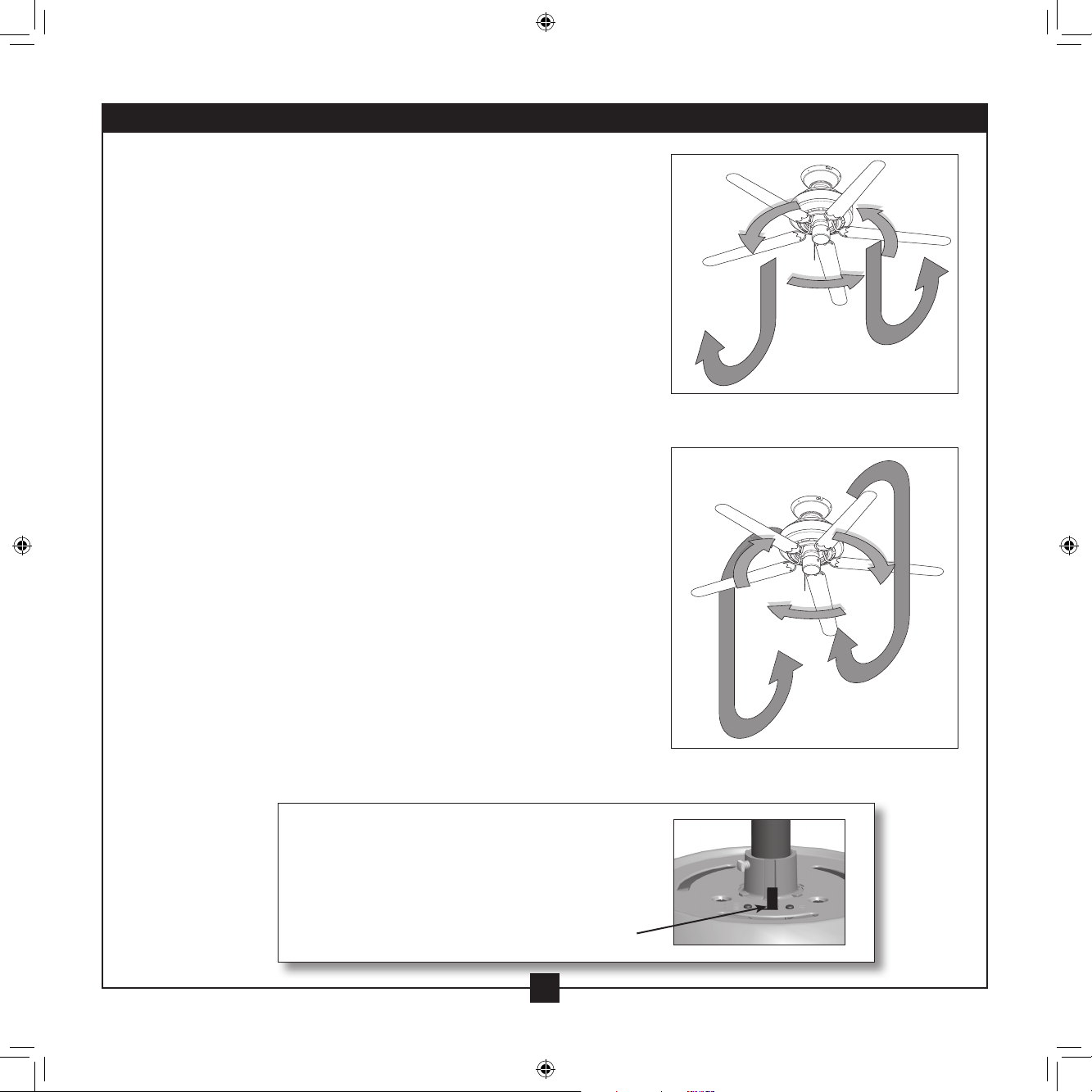

10 • Operating and Cleaning Your Ceiling Fan
10-1. Turn on electrical power to the fan.
10-2. e knob on the wall control unit controls power to the fan. e
fan has three speed settings in sequence: High, Low and O.
10-3. Ceiling fans work best by blowing air downward
(counterclockwise blade rotation) in warm weather to cool the
room with a direct breeze. In winter, having the fan draw air
upward (clockwise blade rotation) will distribute the warmer air
trapped at the ceiling around the room without causing a draft.
10-4. e blades on this fan have been treated with Hunter’s Dust
Armor protection, making the blades less likely to attract dust
and dirt. Use a dry or slightly damp lint free cloth to clean the
blades. Do not use a furniture polish or any other cleaners that
leave any residue, as they will damage the protective Dust Armor
on the blades.
10-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may
use an artistic agent, but never abrasive cleaning agents as they
will damage the nish.
In warm weather, use
downward air ow pattern
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
15
45084-01 • 01/17/12 • Hunter Fan Company
In cold weather, use upward
air ow pattern
Page 16
11 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 (In Canada, call 1-866-268-1936) or
visit us at our website at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
16
45084-01 • 01/17/12 • Hunter Fan Company
Loading...
