Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate..........................5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan.................................................. 7
5 • Installing the Canopy.................................... 8
6 • Assembling the Blades .................................9
7 • Completing Your Installation With
or Without a Light Fixture....................... 10
8 • Operating and Cleaning
Your Ceiling Fan ............................................13
9 • Troubleshooting ........................................... 14
Welcome
© 2005 Hunter Fan Company
3
42400-01 • 09/26/05 Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Pro le, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Pro le Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
4
Hunter Fan Company 42400-01 • 09/26/05
5
42400-01 • 09/26/05 Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
1 • Getting Ready
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.
5
42400-01 • 09/26/05 Hunter Fan Company
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with two neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-5. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the ceiling plate into the pilot
holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Screw
Steps 2-3 – 2-5
2 • Installing the Ceiling Plate
For Angled Ceilings: Be sure to orient
the ceiling plate so that the two tabs
are pointing towards the ceiling peak.
Ceiling
Plate
Towards
Ceiling Peak
6
Hunter Fan Company 42400-01 • 09/26/05
7
42400-01 • 09/26/05 Hunter Fan Company

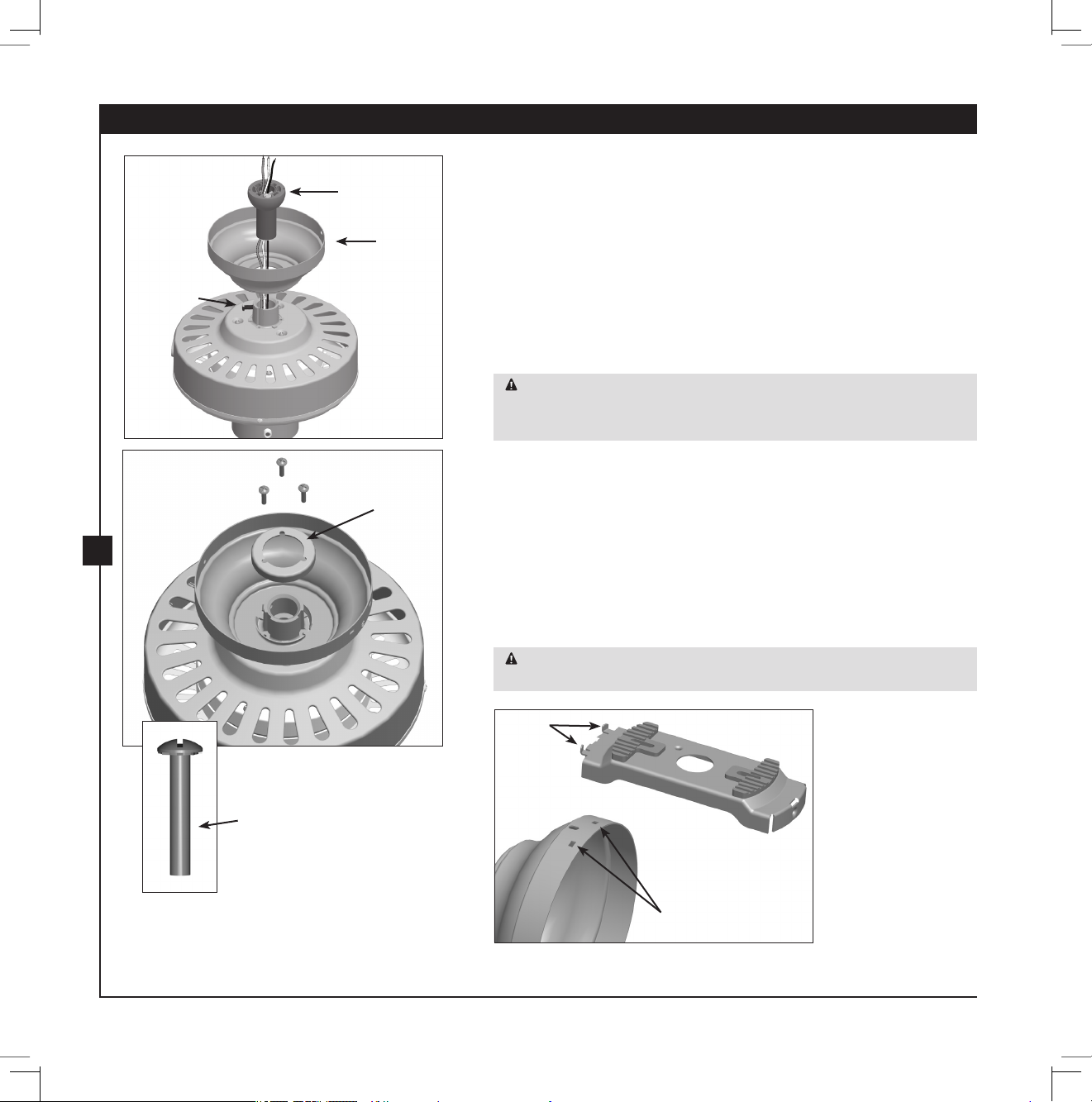

Steps 3-1 – 3-2
Steps 3-3 – 3-4
3 • Assembling and Hanging the Fan
Low Prole
Washer
Downrod
Canopy
Set Screw
#8-32 x 1” Screw
Step 3-5
Canopy Slots
You can assemble your fan for standard mounting (steps 3-1 – 3-2) or
for low prole mounting (steps 3-3 – 3-4).
3-1. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy. Feed the wires from the fan
through the downrod.
3-2. Loosen the set screw on the adapter to install the pipe and ball
assembly. Note: When the pipe and ball assembly is fully installed,
2-3 threads on the pipe will still be visible; this is normal. Securely
retighten the set screw with a wrench or pliers. Skip to Step 3-5.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-3. Place the low prole washer into the canopy. Be sure the green
ground wire is pointing up toward the ceiling.
Note: For low prole mounting, the downrod is replaced with the
low prole washer. See Steps 3-3 – 3-4.
3-4. Align the holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 1” screws.
3-5. Raise the fan and align the slots in the canopy with the tabs on the
ceiling plate. Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Ceiling
Plate
Tabs
7
42400-01 • 09/26/05 Hunter Fan Company

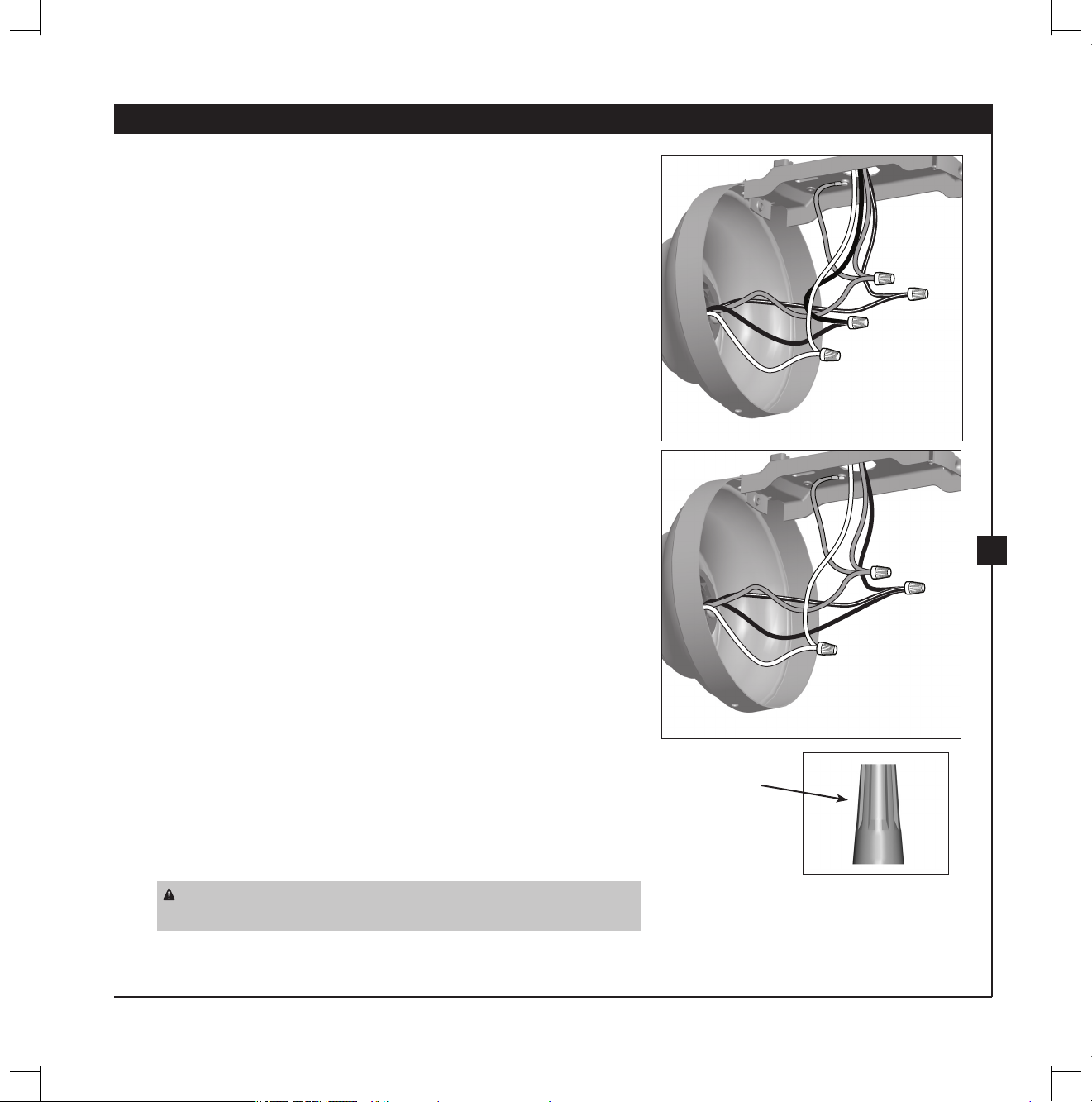

4 • Wiring the Fan
Wire Nut
Step 4-3
Step 4-4
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
Wall switches are not included. Select an acceptable general-use switch in
accordance with national and local electrical codes.
4-1. Disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location.
4-2. Decide how you want to set up the fan and light controls. You can
control the fan and/or lights together or separately using one or two
wall switches. Follow Step 4-3 OR Step 4-4, depending on what you
decide.
Note: If you are not installing a light kit, follow step 4-4.
4-3. If you want to, you can control the fan and light separately using two
wall switches, connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the ceiling plate and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black wire from the fan
• e black/white wire from the fan to the wire for the wall switch
4-4. Alternatively, you can control both fan and light with one switch. To
do so connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the ceiling plate and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black and the black/white
wire from the fan
4-5. To connect the wires, hold the bare metal leads together and place a
wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Push all wires and wire nuts back into the ceiling plate.
8
Hunter Fan Company 42400-01 • 09/26/05
9
42400-01 • 09/26/05 Hunter Fan Company

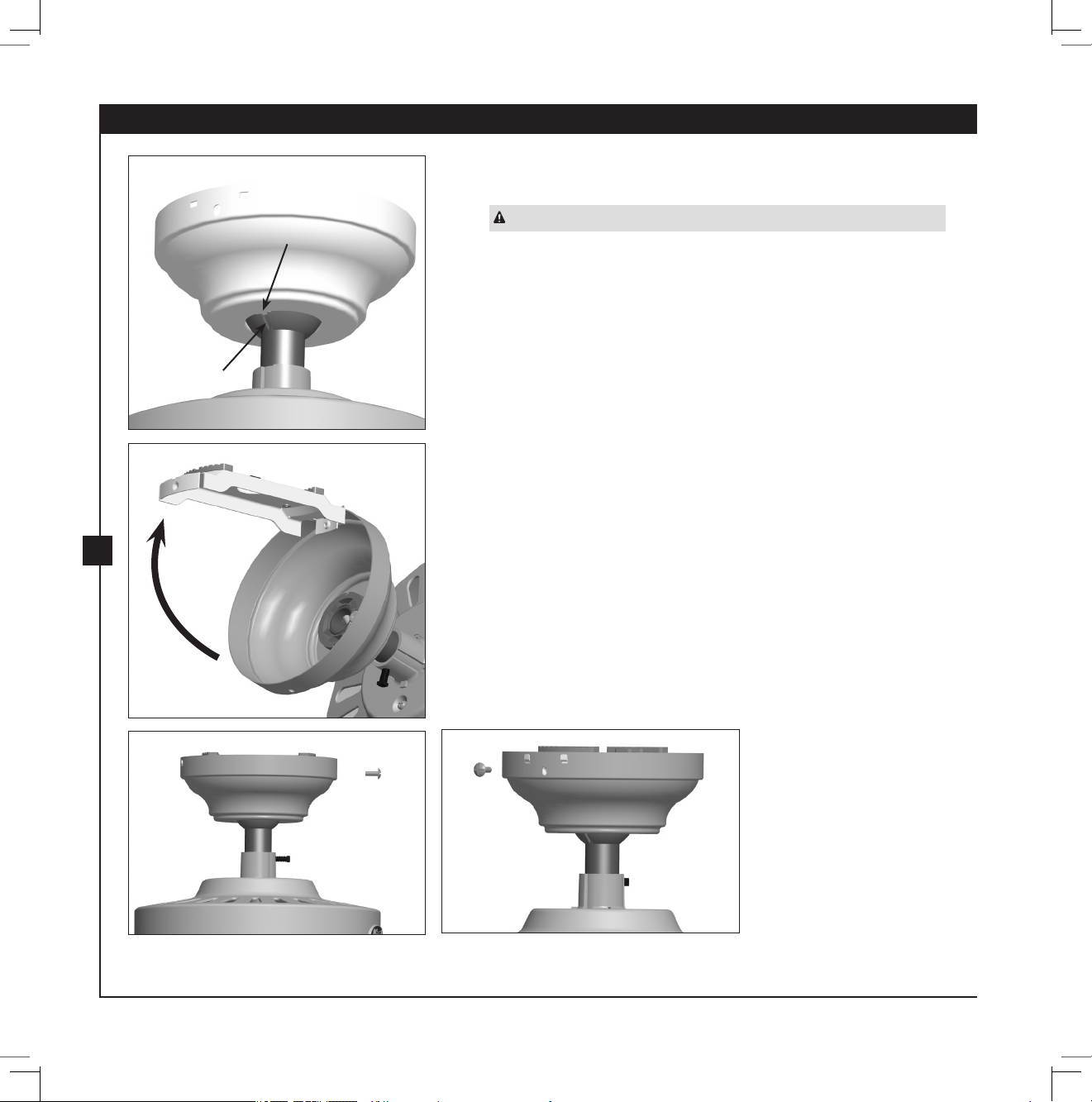

5 • Installing the Canopy
5-1. Rotate the hanger ball so the tab in the canopy is secure in the
groove in the hanger ball.
WARNING: Failure to complete this step could cause fan to fall.
5-2. Lift the fan and align the canopy screw holes with the mounting
holes on the ceiling plate.
5-3. Partially install a canopy screw into the side opposite the ceiling
plate tabs.
5-4. Partially install another canopy screw into the hole between the
two ceiling plate tabs. Securely tighten both screws.
Step 5-1
Step 5-2
Groove
Tab
Step 5-3
Step 5-4
9
42400-01 • 09/26/05 Hunter Fan Company

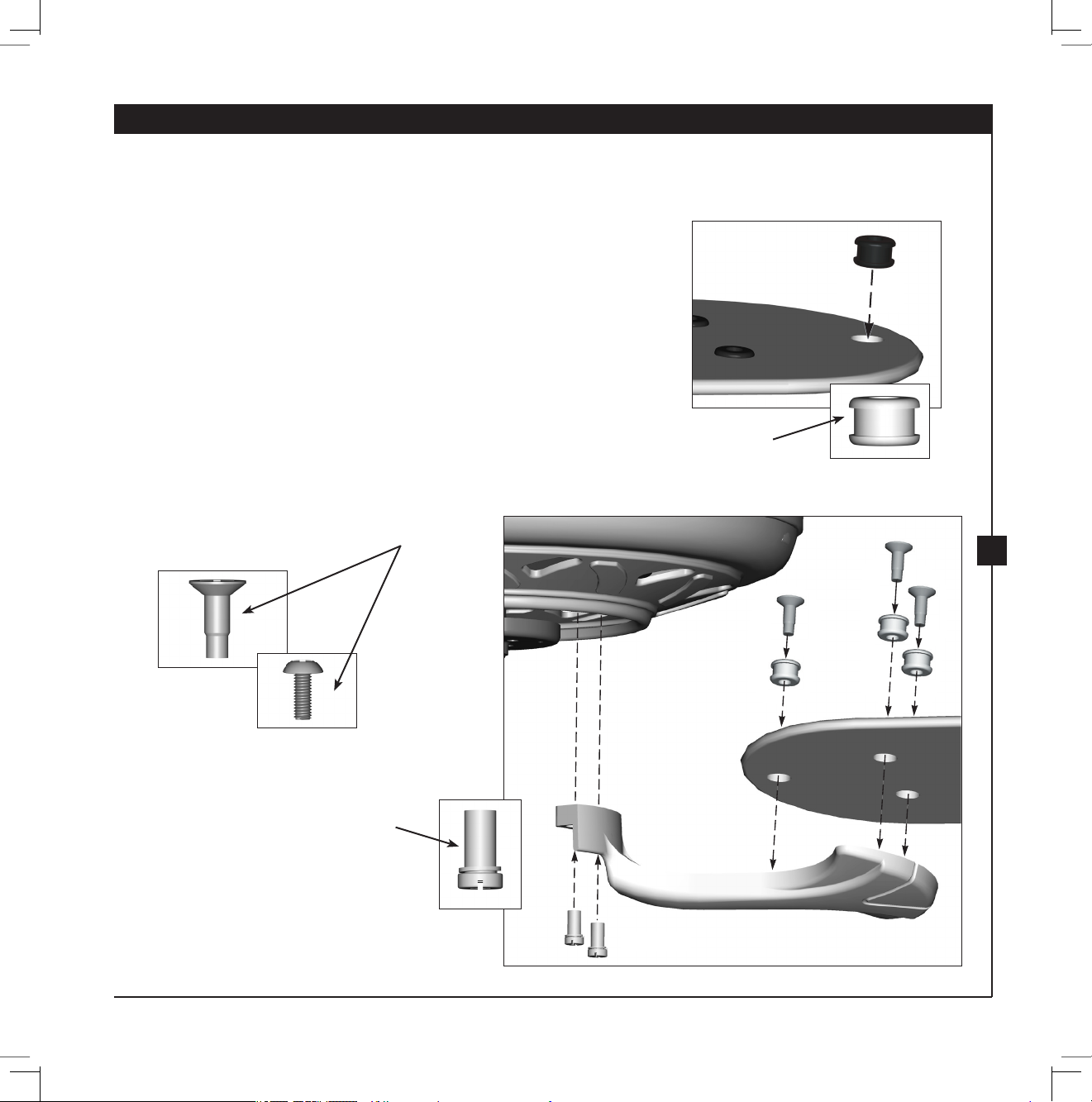

6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks during shipment.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Grommet
Blade Assembly
Screws
Use with grommet
Use without grommet
Blade Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
10
Hunter Fan Company 42400-01 • 09/26/05
11
42400-01 • 09/26/05 Hunter Fan Company
7 • Completing Your Installation With or Without a Light Fixture
Your Hunter fan comes with an integrated light xture assembly and an
optional switch housing cap and plug button. is feature gives you the
option of installing the fan with OR without the included light xture.
e steps below direct you whether or not you are installing a light
xture.
WARNING: Use only the light xture supplied with this fan model.
7-1. If you want to install the light xture, proceed with step 7-2
now.
If you do not want to install the light xture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on page 11.
Once you have uninstalled the light xture, continue with step
7-2.

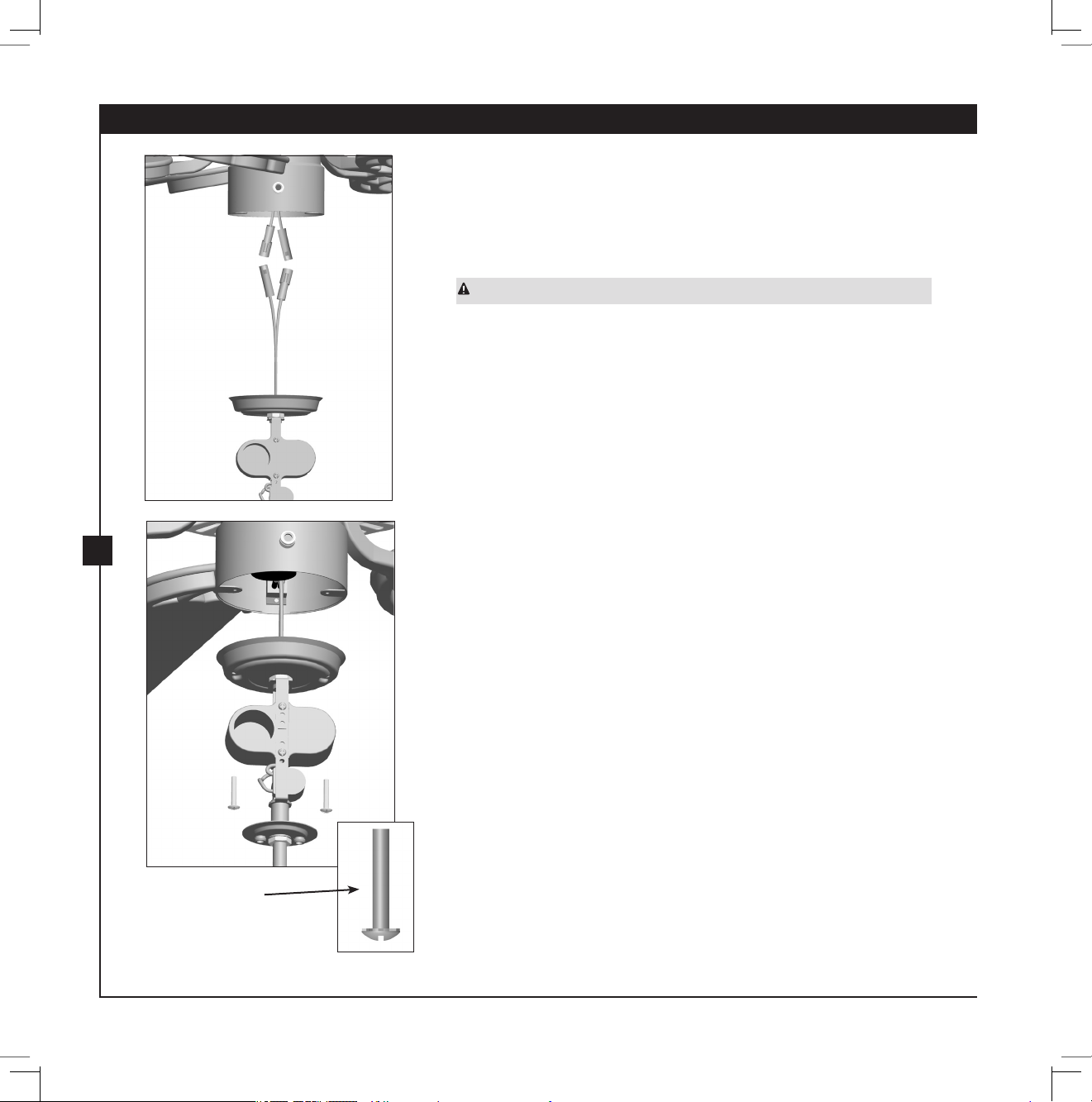

7-2. To attach the lower switch housing, connect the upper plug
connectors from the motor to the lower plug connectors in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-3. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with two #6-32 x 7/8” housing assembly screws.
If you are not installing the light xture, your installation is
complete. Otherwise, proceed with step 7-4.
7-4. e last installation step when installing the light xture is to
install the glass bowl. See “Installing the Glass Bowl” on page 12 for
instructions.
Housing
Assembly Screw
Step 7-3
Step 7-2
11
42400-01 • 09/26/05 Hunter Fan Company

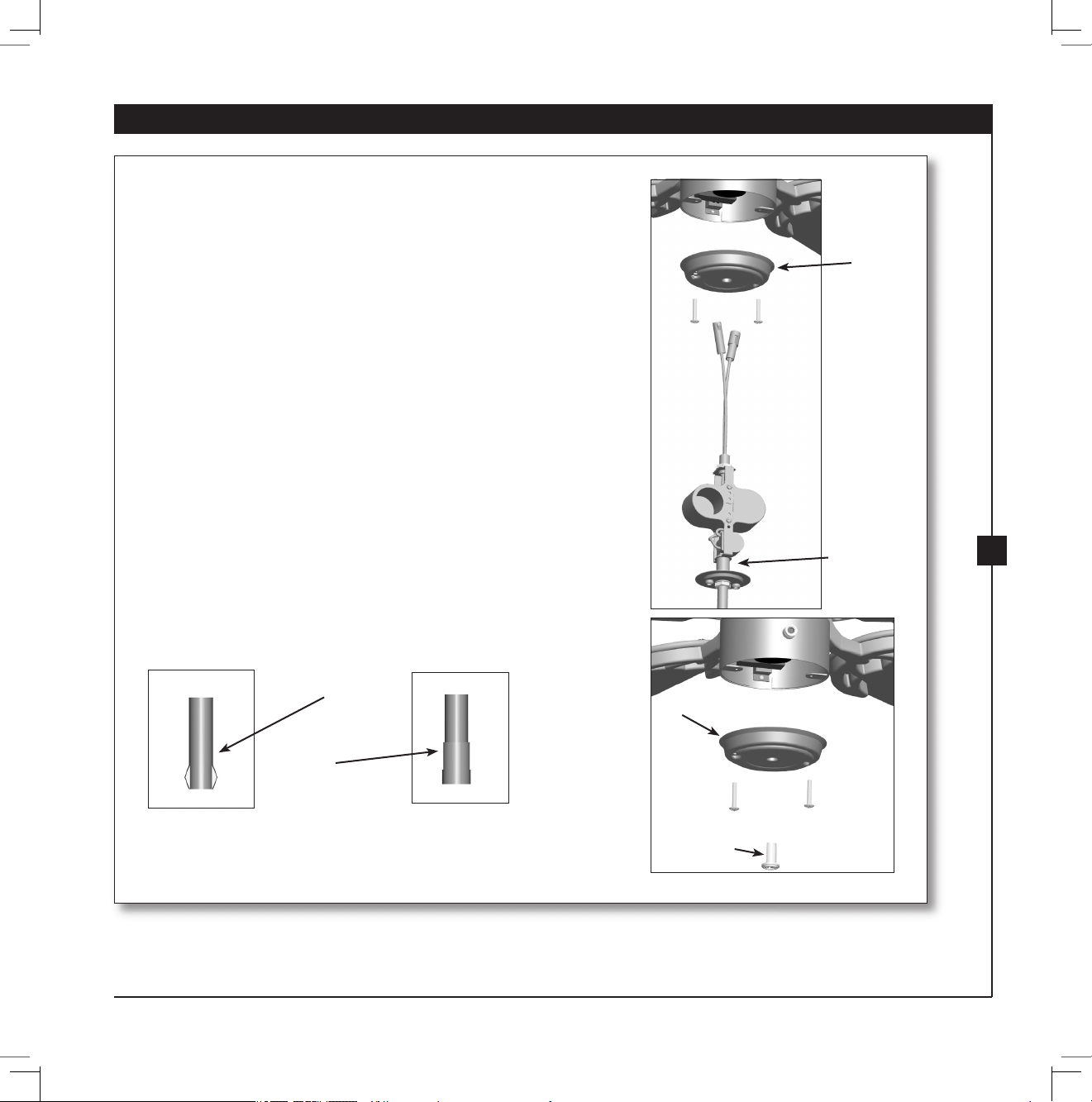

Uninstalling the Light Fixture
1. To uninstall the light xture, rst disconnect the plug connectors
between the black wire and the black/white wire.
2. Disconnect the plug connectors between the two white wires.
3. Uninstall the nut and washer from the end of the light xture
inside the lower switch housing.
4. Unscrew the threaded rod of the light xture from the lower
switch housing.
5. Remove the light xture from the lower switch housing pulling
disconnected wires through the hole in the center of the lower
switch housing.
Note: When removing the wires, pull the thin plug connector
(male) through rst, and then pull the other plug connector
(female) through the hole.
6. Install the dummy terminals (included in the sack parts) on the
two disconnected wires in the lower switch housing.
7. Install the switch housing cap and plug button to the lower
switch housing.
Lower Switch
Housing
readed Rod
Steps 3 – 5
Male Dummy
Terminal
Female Dummy
Terminal
Step 7
Cap
Plug Button
12
Hunter Fan Company 42400-01 • 09/26/05
13
42400-01 • 09/26/05 Hunter Fan Company
7 • Completing Your Installation With or Without a Light Fixture (Continued)

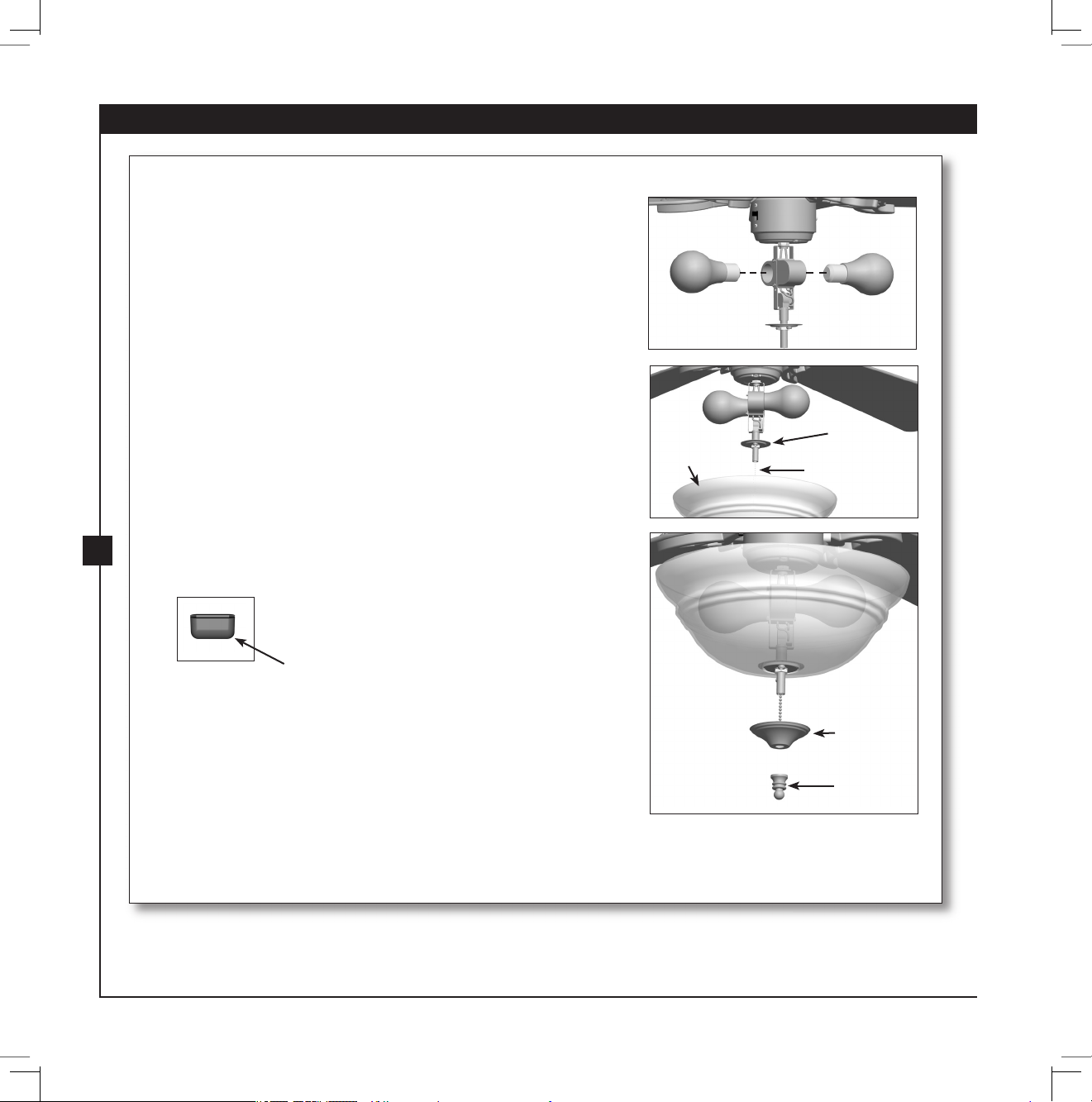

Installing the Glass Bowl
1. First install two medium base (A19) incandescent bulbs (60
Watt maximum each).
2. Attach the extra pull chain (included) to the fan pull chain
using the plastic breakaway connector. (You may nd the
plastic breakaway connector on the end of the extra chain.)
3. read the fan pull chain through the hole in the metal disk.
en, thread the fan pull chain through the hole in the center
of the glass bowl.
4. read the light pull chain through the hole in the center of
the glass bowl.
5. Place the cover plate up against the glass bowl. Align the holes
in the cover plate and glass bowl.
6. read the fan pull chain and light pull chain through the
appropriate holes in the cover plate.
7. read the light pull chain through the nial and screw the
nial onto the threaded rod end until tight.
Breakaway
Connector
Metal Disk
Light Pull Chain
Glass Bowl
Cover Plate
Finial
13
42400-01 • 09/26/05 Hunter Fan Company
8 • Operating and Cleaning Your Ceiling Fan
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O .
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls power to the light. e pull chain has
two settings: On and O .
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.

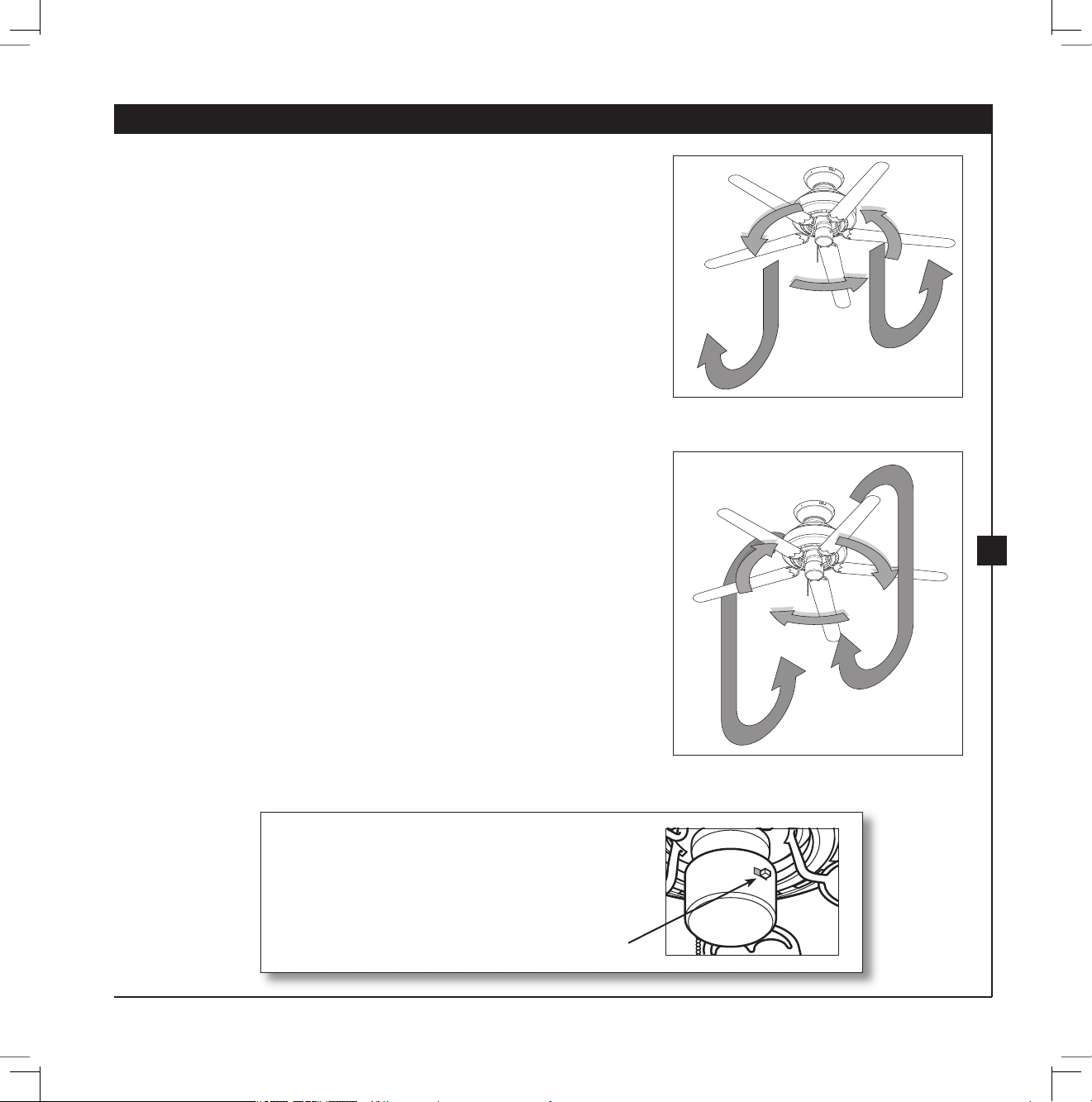

In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
To Change Air ow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
14
Hunter Fan Company 42400-01 • 09/26/05
9 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
3. Turn power o , support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
Loading...
