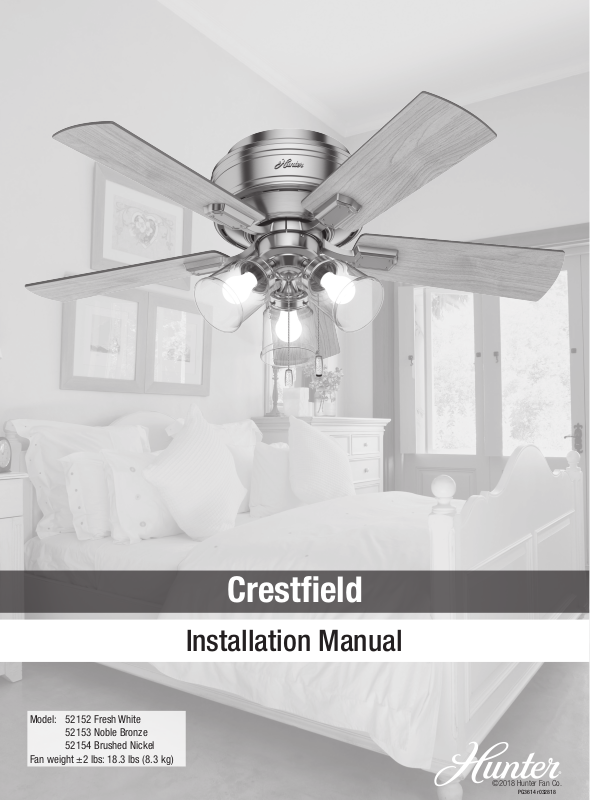

Model: 52152 Fresh White
52153 Noble Bronze
52154 Brushed Nickel
Fan weight ±2 lbs: 18.3 lbs (8.3 kg)
Cresteld
Installation Manual
©2018 Hunter Fan Co.
PG3614 r032818
1886
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This
Congratulations on purchasing your new Hunter® ceiling fan!
Here are the tools you’ll need to complete your installation:
1886
WARNING
instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and
appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction
Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical
sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.
READ and SAVE These Instructions
Warning
.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ladder
Screwdriver
This product conforms to UL Standard 507.
Certied to CSA Standard C22.2 No. 113
OPTIONAL
If mounting to a support structure, you will also need these tools.
9/64” Drill BitDrill
Pliers
1
Wire Strippers
1886
We recommend that you pull everything out of the box and lay it out. We have
Here is what comes in your box:
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
bag
Washer
x2
For installing the hanger bracket and wiring the fan
Blades
x5
Wire Nut
x4
Wood Screw
Locking
Screw
x2
x2
Ceiling Bracket
bag
For installing the housing
Motor
Motor Housing
Motor Housing
Screw
x4
For installing the blades
bag
For your convenience,
you may receive extra fasteners. Pullchains
Spare Parts
Blade Arm
x5
Blade Arm Screw
x10
Note:
Fan style may vary.
Upper Switch Housing
bag
Lower Switch Housing
x3
bag
Glass
Light Kit Screw
x3
x3
Switch Housing
Screw
Bulb
x3
For installing the light xture
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
M0211-01 r040218
2
