Hunter Fan HTF3509 Install Guide

Bennett Collection

Model: 50279 Matte Fresh White
54187 Matte Black
54188 Brushed Nickel
Weight ±2 lbs: 23.6 lbs(10.7 kg)

Installation Manual

©2019 Hunter Fan Co.

M3643-01 r062519

1886

1886

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This

Here is what comes in your box:

Congratulations on purchasing your new Hunter® ceiling fan!

Here are the tools you’ll need to complete your installation:

instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and
appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction
Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical
sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.

Read and Save These Instructions

This product conforms to UL Standard 507.

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs
(31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall
switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

2

OPTIONAL

If mounting to a support structure, you will also need these tools.

Ladder

Pliers

Screwdriver

Wire Strippers

9/64” Drill BitDrill

1886

We recommend that you pull everything out of the box and lay it out. We have

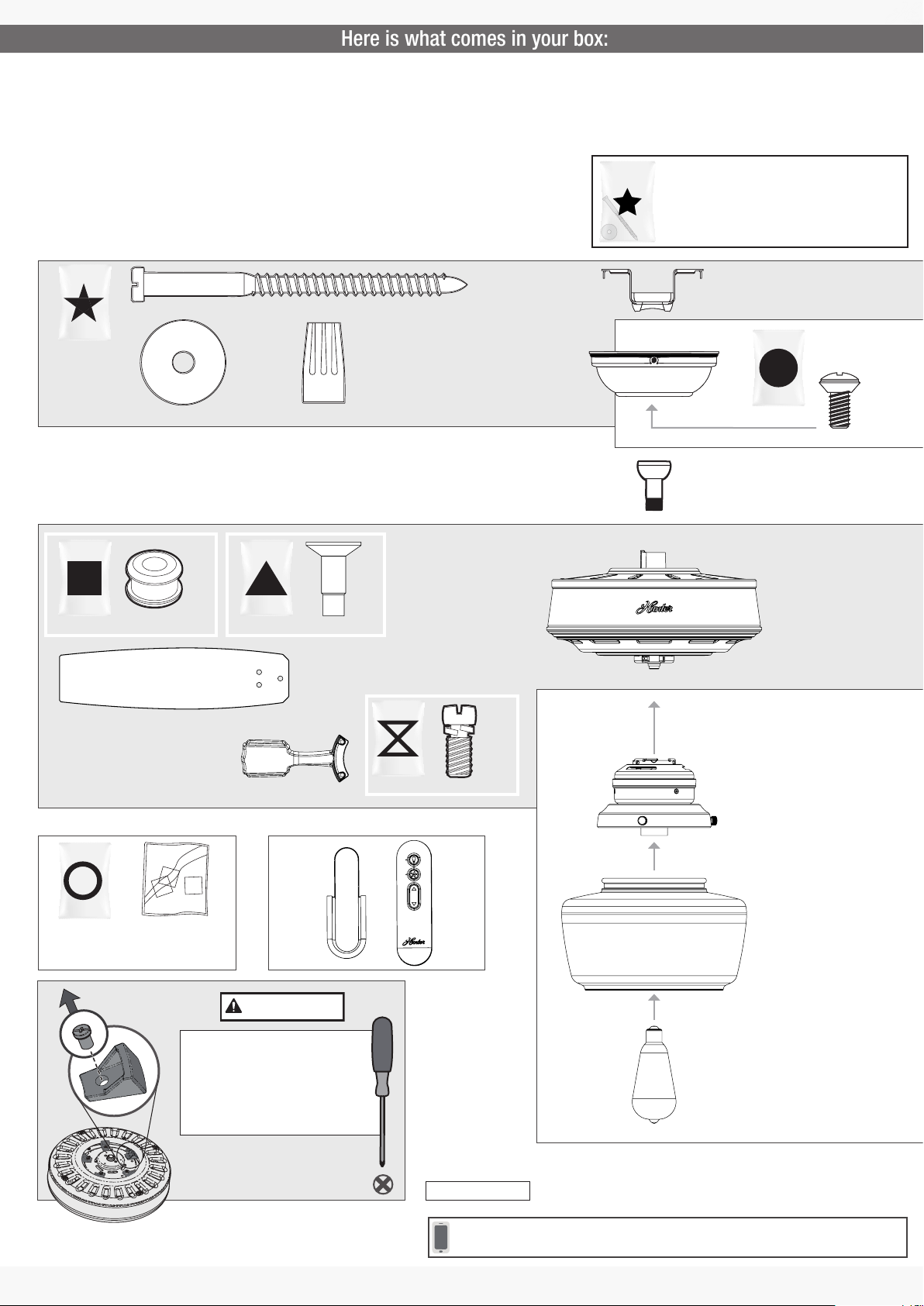

Here is what comes in your box:

grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

Hunter Pro Tip:

Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.

bag

Washer

x2

For installing the hanger bracket and wiring the fan

bag bag

Blade

Grommet

x5

x15 x15

Blade Screw

Wood Screw

Wire Nut

x4

x2

Ceiling Bracket

Canopy

Downrod

bag

For installing the canopy

Motor

Canopy Screw

x2

For installing the blades

D

I

S

C

Spare Parts

A

R

D

bag

For your convenience,
you may receive extra fasteners.

E

E

P

K

!

Blade Arm

x5

Remote

IMPORTANT

Remove the shipping blocks from the
motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.

bag

Note:

x10

Blade Arm Screw

Fan style may vary.

Light Fixture

Glass

Bulb

x1

For installing the light kit

Find a part that is missing or damaged?

Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

3

1886

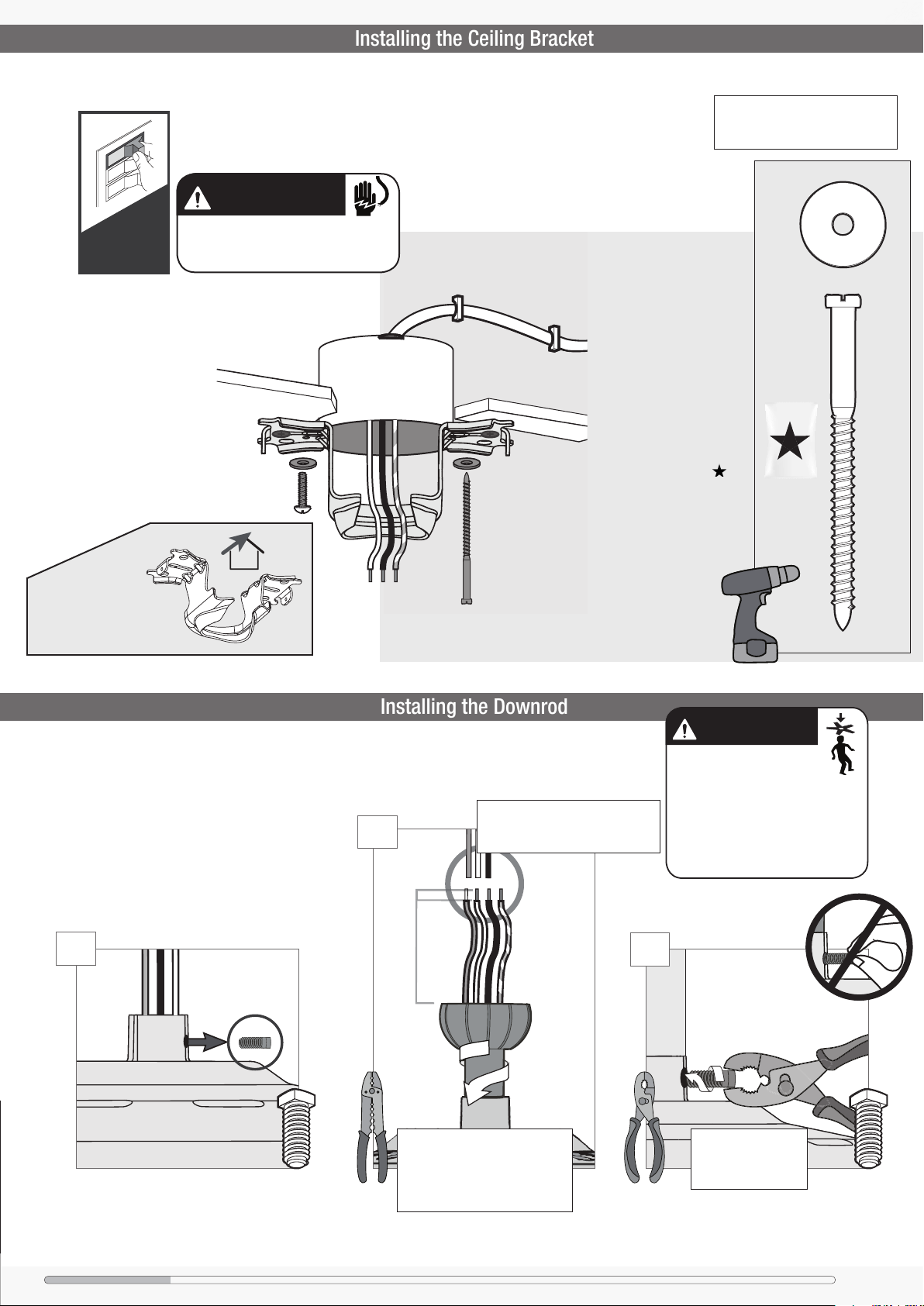

Installing the Ceiling Bracket

Installing the Downrod

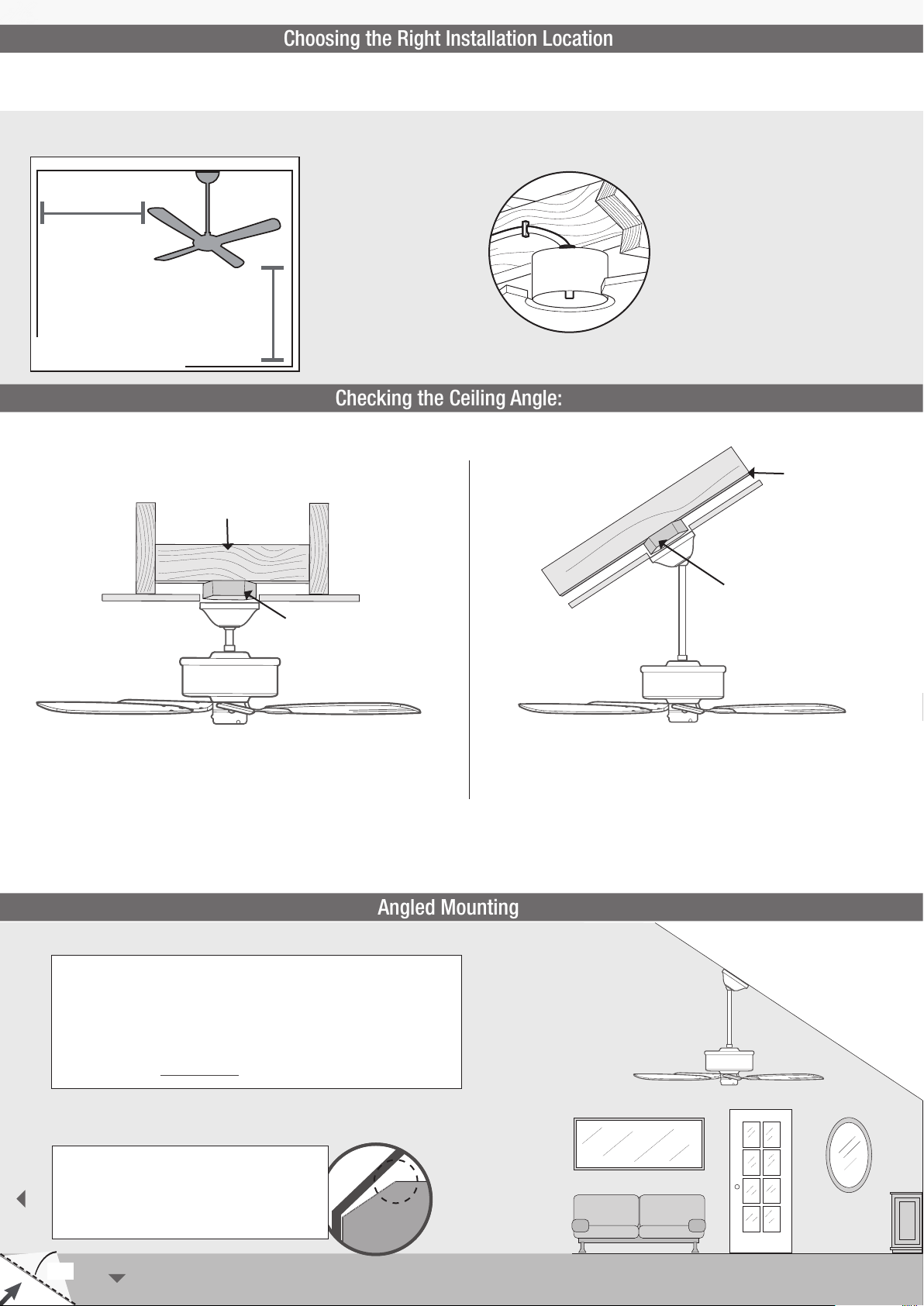

Choosing the Right Installation Location

Checking the Ceiling Angle:

Angled Mounting

You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.

Check the room dimensions: Check the outlet box:

30 inches

from blade tip to
nearest wall or
obstruction

7 feet

from bottom edge

of blade to the

oor

Standard Mounting

Support Structure

Outlet Box

(required)

Ceiling

You must be able to
secure the fan to building
structure or fan-rated
outlet box.

Support
Structure

Angled Mounting

Ceiling

Outlet Box

(required)

If you have a at ceiling:

Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.

A little more information on Angled Mounting:

For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.

Hunter Pro Tip:

Determining if you need an Angled Mounting Kit:

Fold on the dotted line. Place against edge againts
the wall. Slide towards the ceiling.

If the guide touches the wall but not the ceiling, you
need an angled mounting kit.

CEILING

If you have an angled or vaulted ceiling:

1. You will need a longer downrod. (sold separately at HunterFan.com)

2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)

4

34°

WALL

1886

Installing the Ceiling Bracket

Installing the Downrod

You have two options for installation. Pick which one works best for your location.

WARNING

WARNING

Do this rst!

To avoid possible electrical shock, before

Turn Power

OFF

installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

Option 1:
Machine Screws

Use machine screws (pro­vided with outlet box) when
securing to existing ceiling
fan-rated outlet box. Make
sure it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.

MOUNTING TIP

Hunter Pro Tip:

The machine screws are the ones
that came with your outlet box.

Option 2:

Wood Screws

Use wood screws (included)
when securing to support
structure with approved
electrical outlet box. Drill
9/64” pilot holes in support
structure to aid in securing
ceiling bracket with
hardware found in the
hardware bag.

Washer

x2

bag

ANGLED

For angled ceilings,
point opening
toward peak.

Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.

1

STEP

2

STEP

3/8”

x2

Wood Screw

FAN FALL HAZARD

Hunter Pro Tip:

The ground wire attached to the
downrod is approximately 8 inches.

T

U

C

8”

(not to scale)

P

I

R

T

S

&

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.

3

STEP

E

E

P

K

!

Hand tighten the downrod (at least
4-5 full turns) until it stops. Trim
the wires coming from the fan so
that 8-inches remain coming from
the top of the downrod.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

Tighten the setscrew
with pliers. DO NOT

HAND TIGHTEN.

5

1886

Wiring the Fan

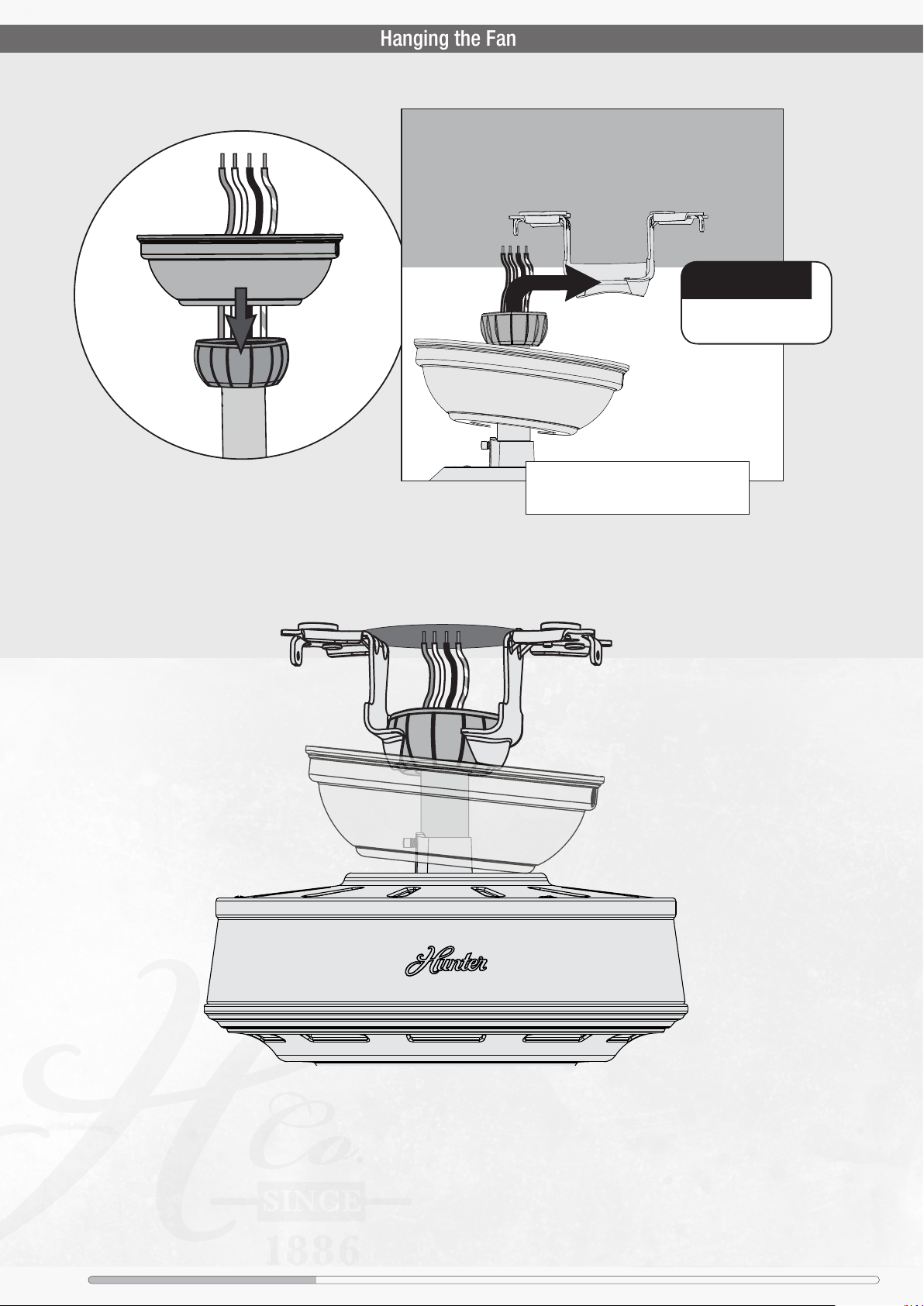

Hanging the Fan

S

NOTICE

l

i

d

e

c

a

n

o

p

y

o

v

e

r

d

o

w

n

r

o

d

a

n

d

w

i

r

e

s

.

Progress Check:

Your fan should look like this.

To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.

DO NOT PICK THE FAN UP BY THE CANOPY
OR WIRES. Place the downrod ball into the

slot in the ceiling bracket.

6

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

1886

We know wiring is hard. Let’s make it easier.

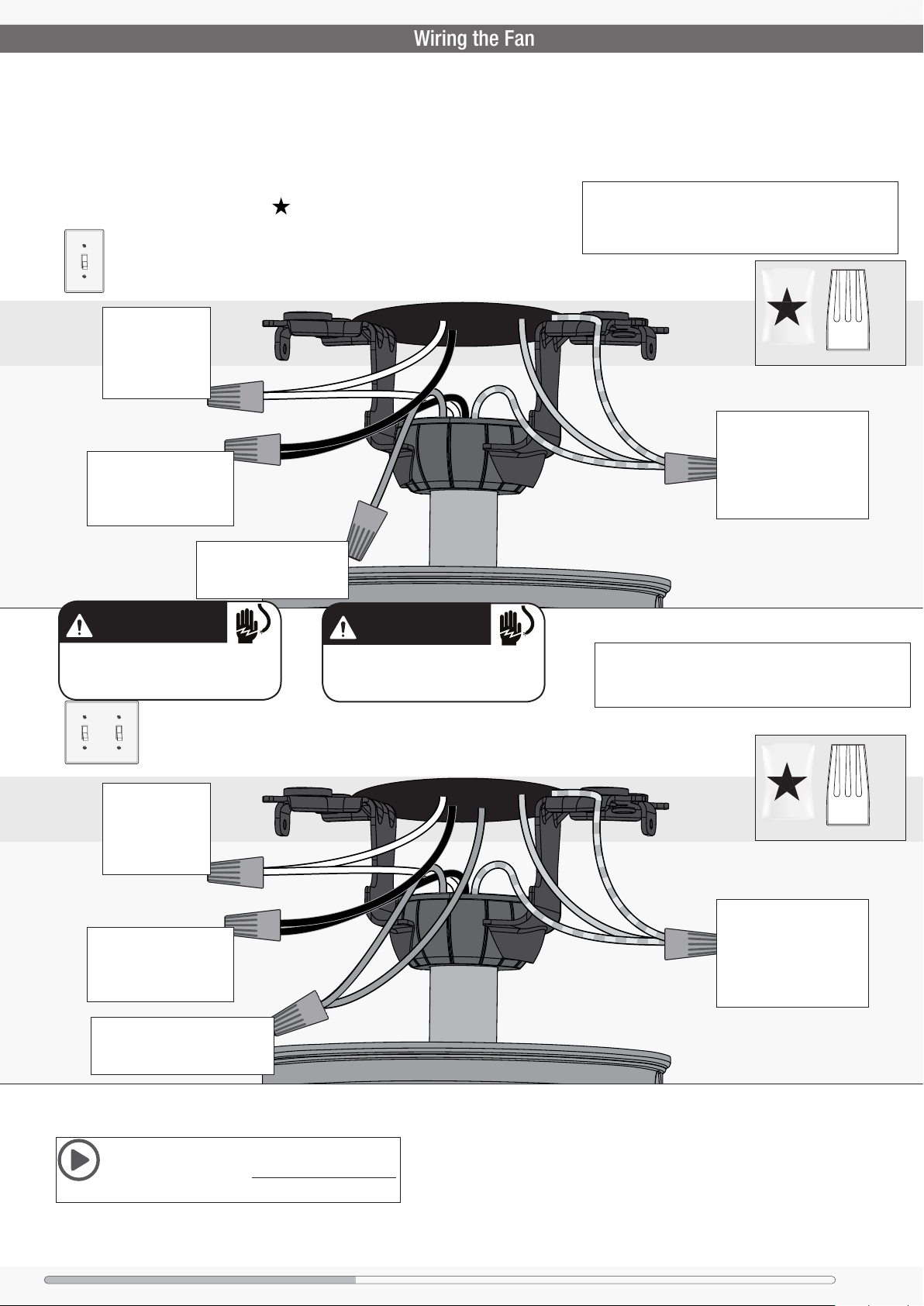

Wiring the Fan

WARNING

WARNING

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.

You are going to need these:

4 Wire Nuts (these are in the bag)

Have a single switch?

Follow these steps:

Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.

Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.

Cap the blue wire from the
fan.

for single switch wiring.

You will not need it

Grounded

White

Ungrounded

Black

Blue

Hunter Pro Tip:

Here is how to connect the wires:

Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.

Give it a gentle pull to make sure none of the wires are loose.

G

r

e

e

n

/

Y

e

l

Grounding

Green/Yellow Stripe

l

o

w

S

t

r

i

p

e

Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.

bag

x4

Wire Nut

The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.

Have dual switches?

Follow these steps:

Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.

Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.

Connect the second ungrounded
(light) wire from the ceiling to
the blue wire from the fan.

White

Ungrounded

Black

All wiring must be in accordance with
national and local electrical codes ANSI/NFPA

70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.

Grounded

Blue

Ungrounded (light)

Hunter Pro Tip:

Have extra wiring?

Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Make sure that the
wires are still attached to the wire nuts.

G

r

e

e

n

/

Y

e

l

Grounding

Green/Yellow Stripe

l

o

w

S

t

r

i

p

e

Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.

bag

x4

Wire Nut

Need a little more help* with wiring?

Visit our wiring video at: http://bit.ly/WireYourFan

*Fan style and features shown may vary.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

7

1886

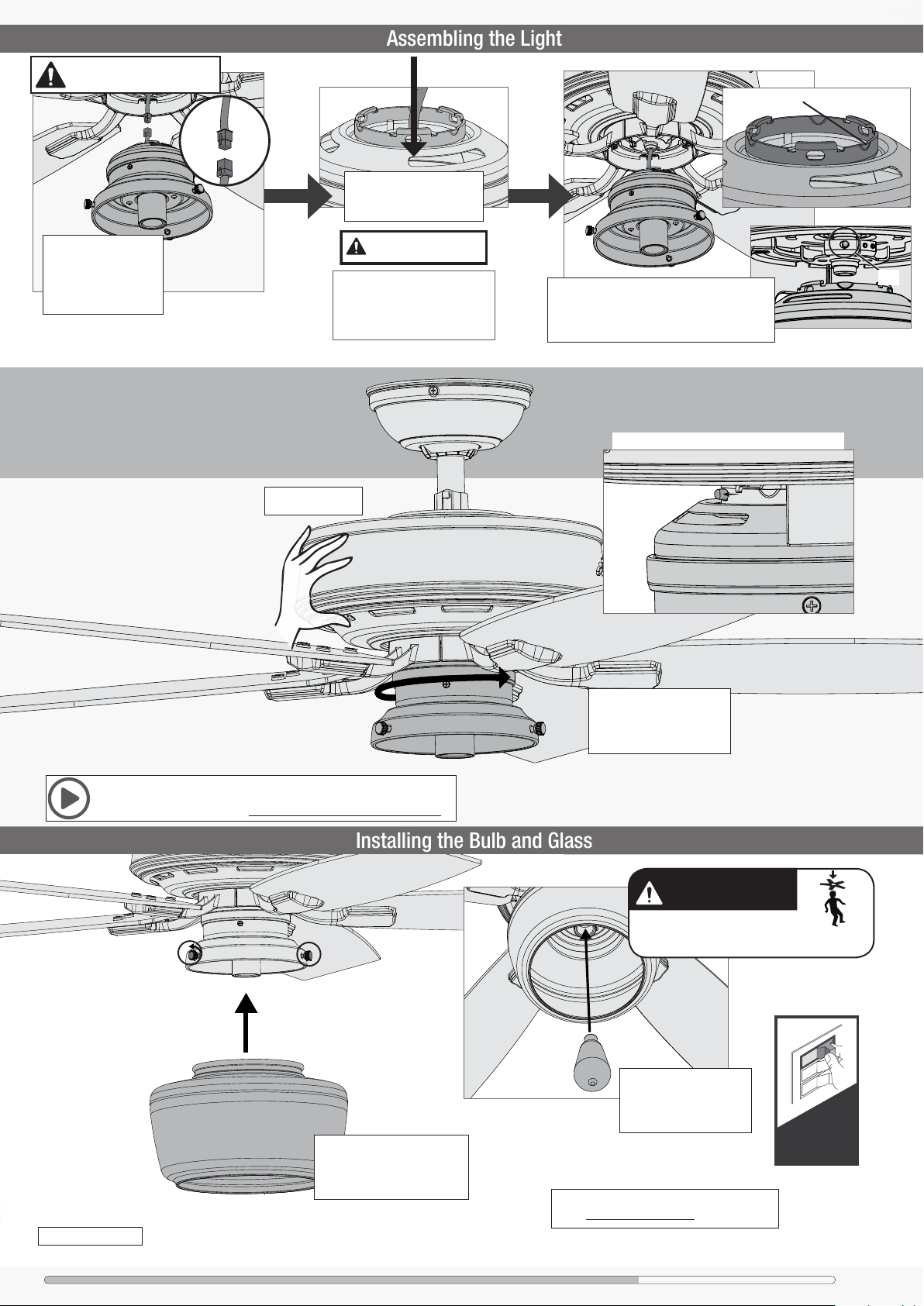

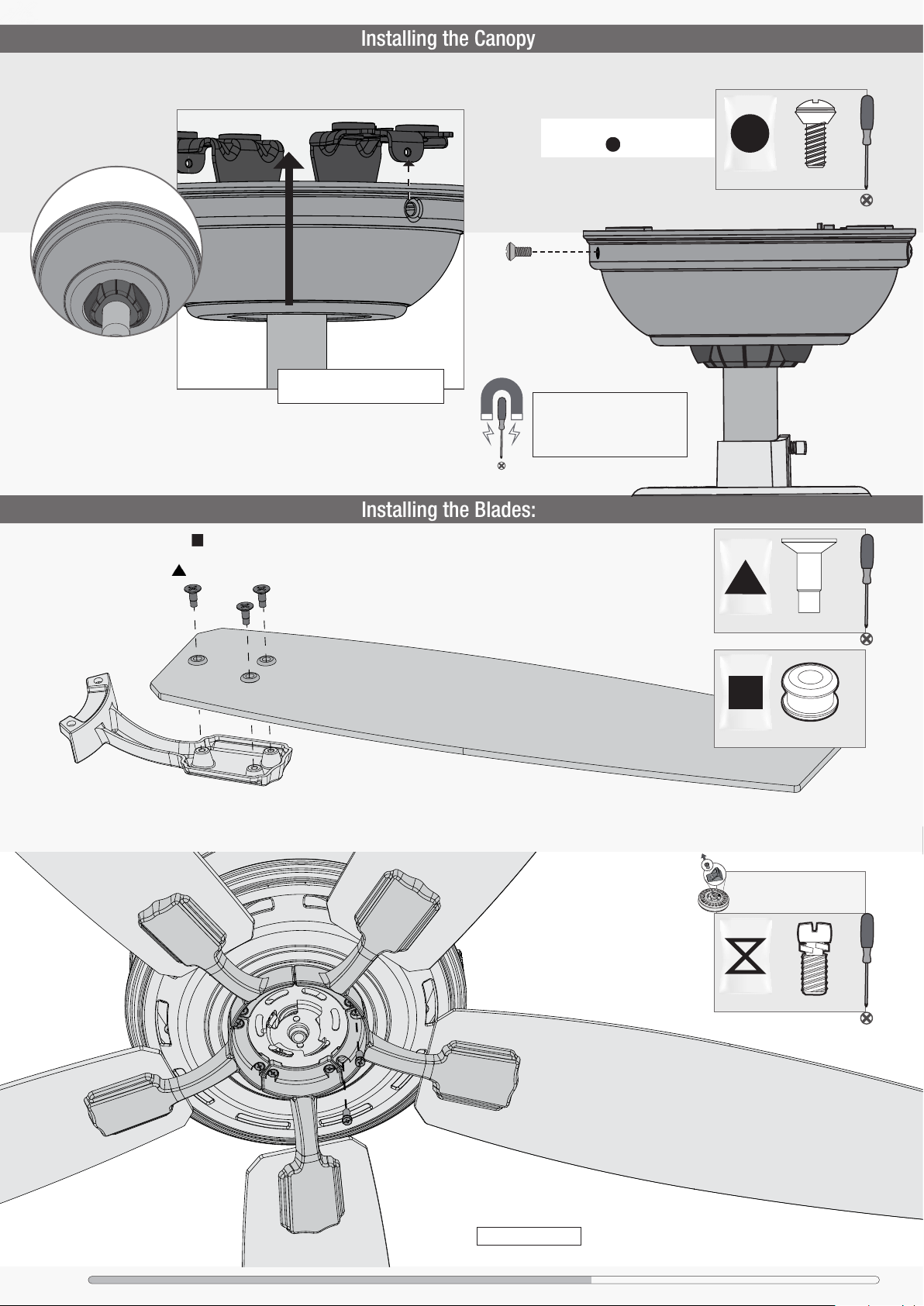

Installing the Canopy

Installing the Blades:

Insert the two canopy screws

Installing the Bulb and Glass

Assembling the Light

found in the hardware bag.

x2

Canopy Screw

bag

F

i

t
t

h

e

c

a

n

o

p

y

i

n

p

l

a

c

e

a

s

s

h

.

o

n

w

Lift the canopy into place so that
the screw holes are aligned.

Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.

Repeat x5

Hunter Pro Tip:

Let the tool do the work!

A magnetic screwdriver will
give you more visibility when
securing the canopy.

bag

bag

x15

Blade Screw

x15

Grommet

8

E

E

P

K

!

D

I

S

C

A

R

D

Remember the screws that you
kept after removing the shipping
blocks? You need them here.

Lightly attach the blade arms to the motor with
the blade arm screws, then securely tighten
after both screws are attached.

Blade Arm Screw

bag

Repeat x5

Note:

Fan style may vary.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

x10

1886

Installing the Bulb and Glass

Assembling the Light

Remove the cardboard plug

WARNING

guard before proceeding!

Notch

Push the connector and
excess wire into the hole at
the top of the light xture.

Connect the plugs from
the fan and light xture.
Make sure to line up
the colored markings
on the connectors.

The connector and excess wiring
must be pushed into the light
xture in order to successfully
mount the light xture to the fan.

HOLD HERE

IMPORTANT

Raise the light kit to the bottom of the fan.
Align the notch on the mounting ring on the
top of the light kit with the pin in the mounting
bracket on the bottom of the fan.

Some components not shown for visual clarity.

Pin

Need a little more help with assembling this light?

Visit our light kit video at: http://bit.ly/HunterQuickConnect

Note:

Fan style may vary.

Lift the glass and attach it to
the light xture using the three
thumbscrews. Tighten all three
screws securely by hand.

Give the xture a gentle,
clockwise turn to ensure the
xture is secure and that the
locking pin has engaged.

GLASS FALL HAZARD

To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.

Install the included bulb
into the socket. When
necessary, replace with
bulb of same wattage.

Hunter Pro Tip:

Want to install your fan without a light kit?

Go to support.hunterfan.com

Turn Power

ON

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

9

1886

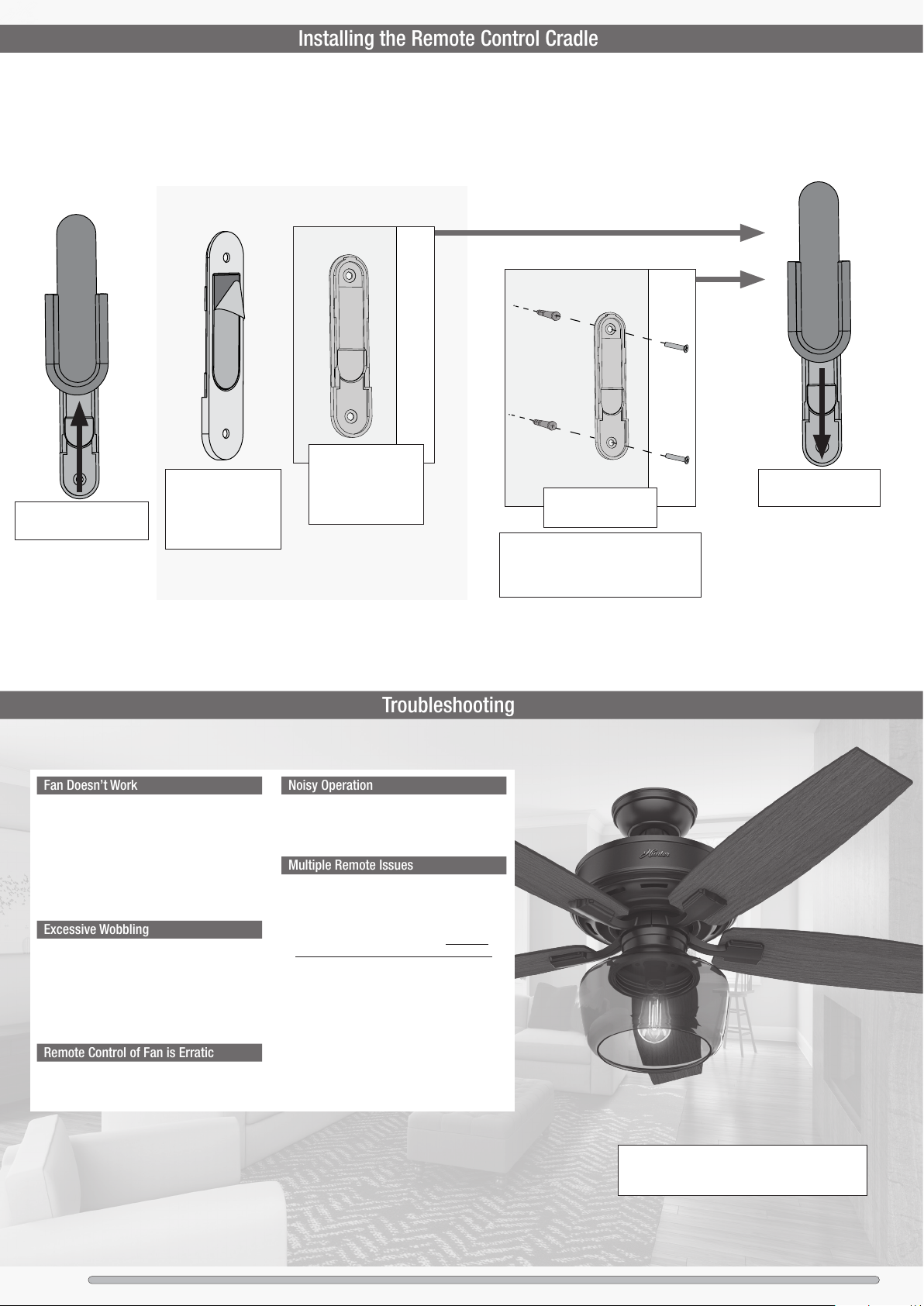

Installing the Remote Control Cradle

You have two options for installing the remote cradle.

Troubleshooting

Fan Doesn’t Work

Excessive Wobbling

Remote Control of Fan is Erratic

Noisy Operation

Multiple Remote Issues

Choose which path works best for you.

Option 1: Using Adhesive Strip

Press the cradle
bracket against the
wall and hold rmly
for 30 seconds.

Remove the cradle from
the cradle bracket.

Separate the lining
from the back of the
adhesive strip on
the cradle bracket.

Option 2: Using Screws

Choose your cradle
installation location.

If you are installing into drywall, drill two
9/64 width holes using the cradle bracket
as a guide. Gently hammer the included
drywall anchors into the pre-drilled holes.

Slide the cradle onto
the mounted bracket.

• Make sure power switch is on.

• Check the circuit breaker to ensure the power is
turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen
the canopy and check all the connections according
to the wiring diagram.

• Make sure the blades are properly installed on the
blade iron posts.

• Turn the power off, support the fan carefully, and
check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to
balance the fan.

• Make sure the battery is installed correctly.

• Install a fresh battery.

• Make sure the blades are properly installed.

• Check to see if any of the blades are cracked. If so,
replace all of the blades.

• If you have multiple remotes or multiple remote­controlled fans installed on the same circuit breaker
and you are experiencing interference or faulty
operation of your remote controls, please go to
www.HunterFan.com/FAQs and click “How do I
properly install multiple remote-controlled fans?” for
information on how to correct this issue.

Hunter Pro Tip:

Cleaning the Fan

Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.

10

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting

1886

Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter

Limited Lifetime Warranty

Downrod

WARNING

ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original

purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/

1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

What Does This Warranty Cover?

Motor — Limited Lifetime Warranty

If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.

Other — One-Year Limited Warranty

Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*

Light Kits — Warranty May Vary

Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:

• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*

* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.

What Does This Warranty NOT Cover?

Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

How Does State Law Affect Warranty Coverage?

This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAYS follow the downrod assembly

instructions exactly.

If you need a different downrod length follow these steps:

• VERIFY the downrod is assembled correctly

by rmly pulling on the hanger ball.

Follow steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Follow steps 6-10 to reassemble with new downrod

678910

11
