Hunter Fan HTF2201 Installation Guide

Download

30 inches

7 feet

Ladder

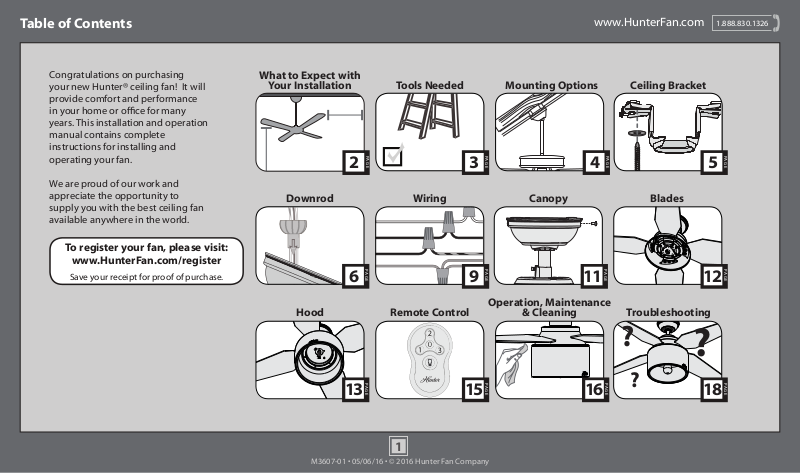

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

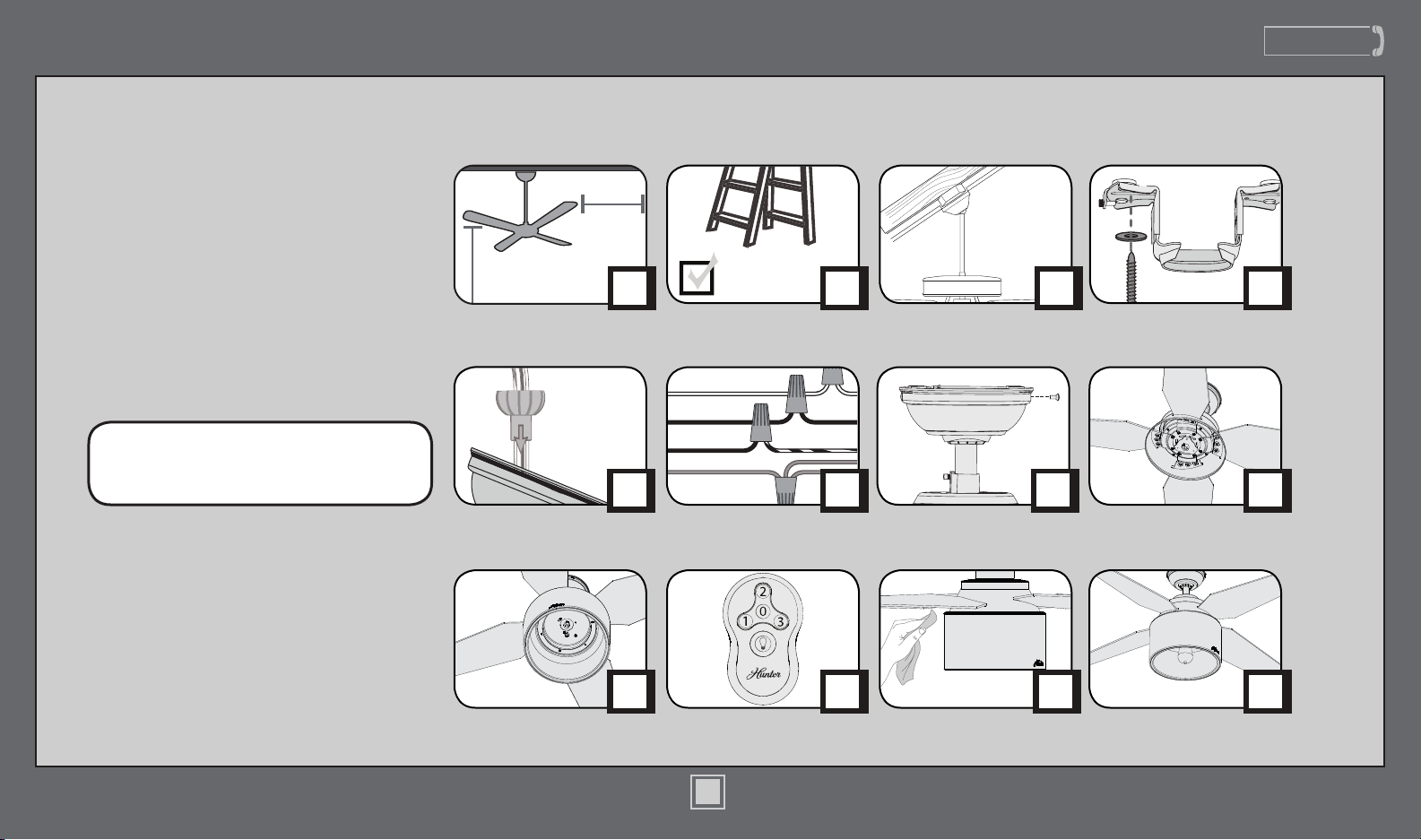

What to Expect with

Your Installation

Hood

Tools Needed

PAG E

Remote Control

Mounting Options

PAG E

Wiring CanopyDownrod

PAG E

Operation, Maintenance

& Cleaning

Ceiling Bracket

PAG E

Blades

PAG E

Troubleshooting

PAG E

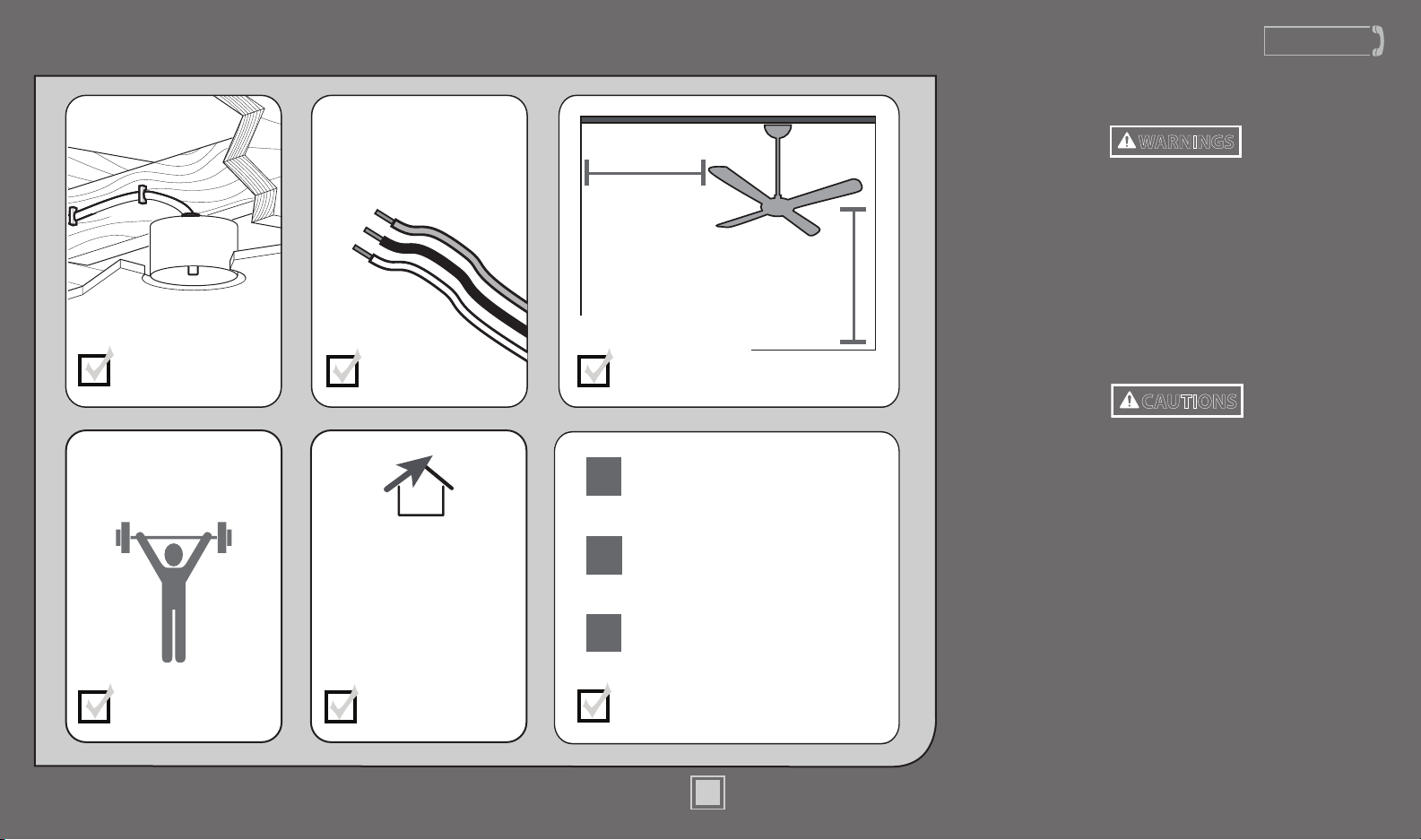

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

7 feet

from bottom

edge of blade

to the oor

Assess location

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

www.HunterFan.com

1.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury,

mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when

installing the blade brackets, balancing the blades, or cleaning the fan. Do not

insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes

ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: modications not approved by the party responsible for compliance

could void user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

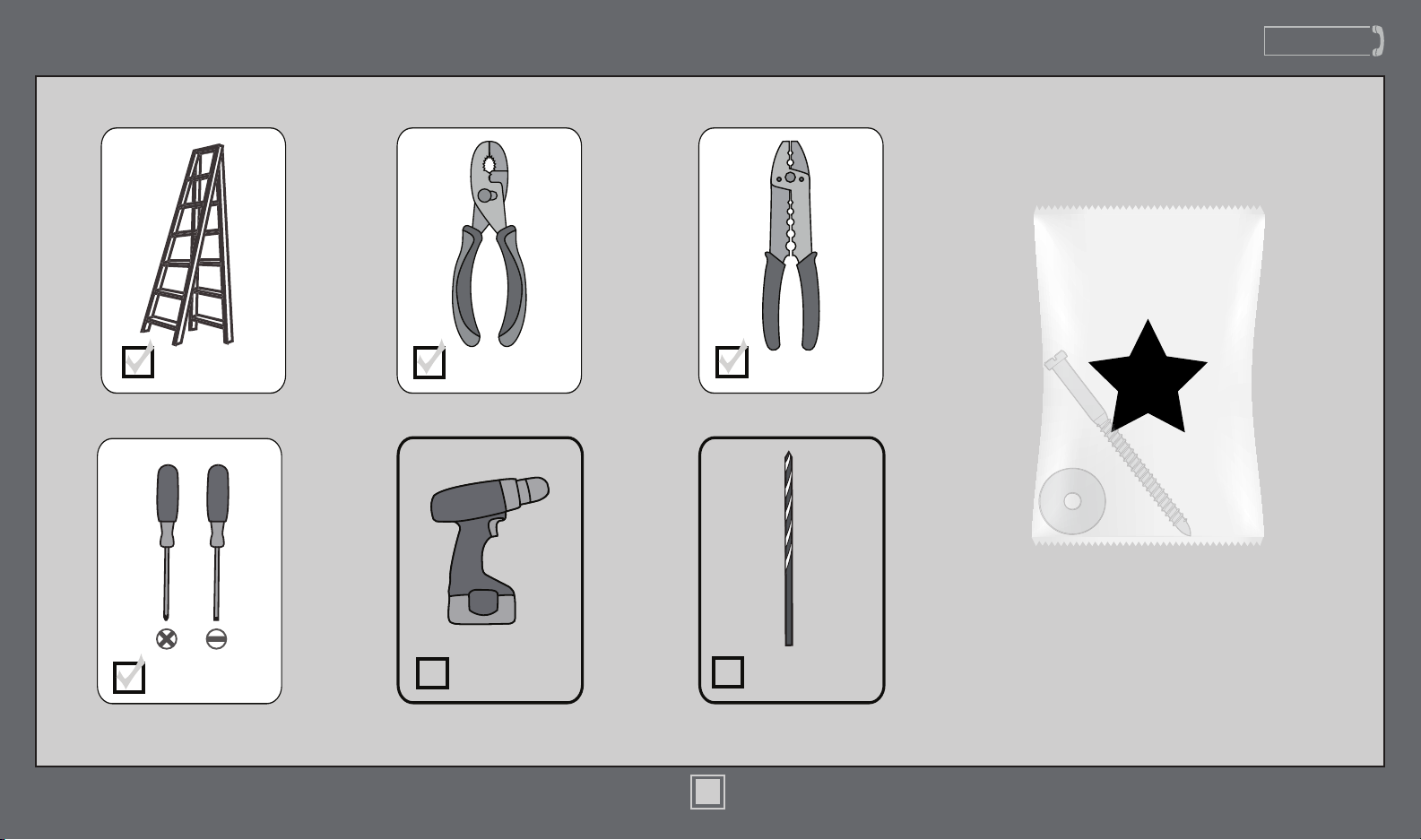

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Screwdrivers

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

Do not discard the hardware bags or mix

parts from different bags. Make note of

the symbol printed on each hardware

bag. The symbols can be used to identify

the appropriate hardware for each step.

CEILING

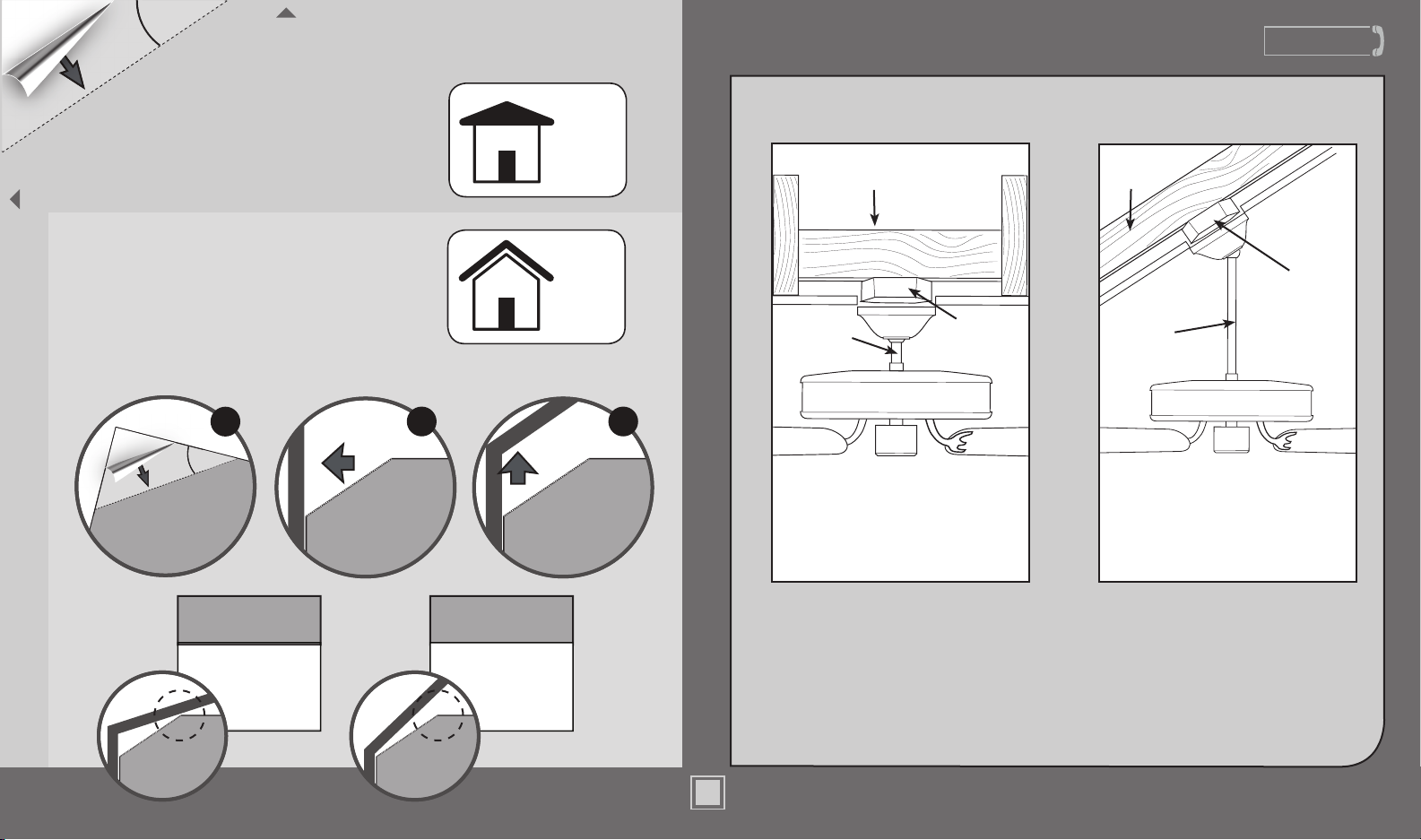

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

to hang the fan from a at ceiling.

Use Standard Mounting

or Low-Prole Mounting

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

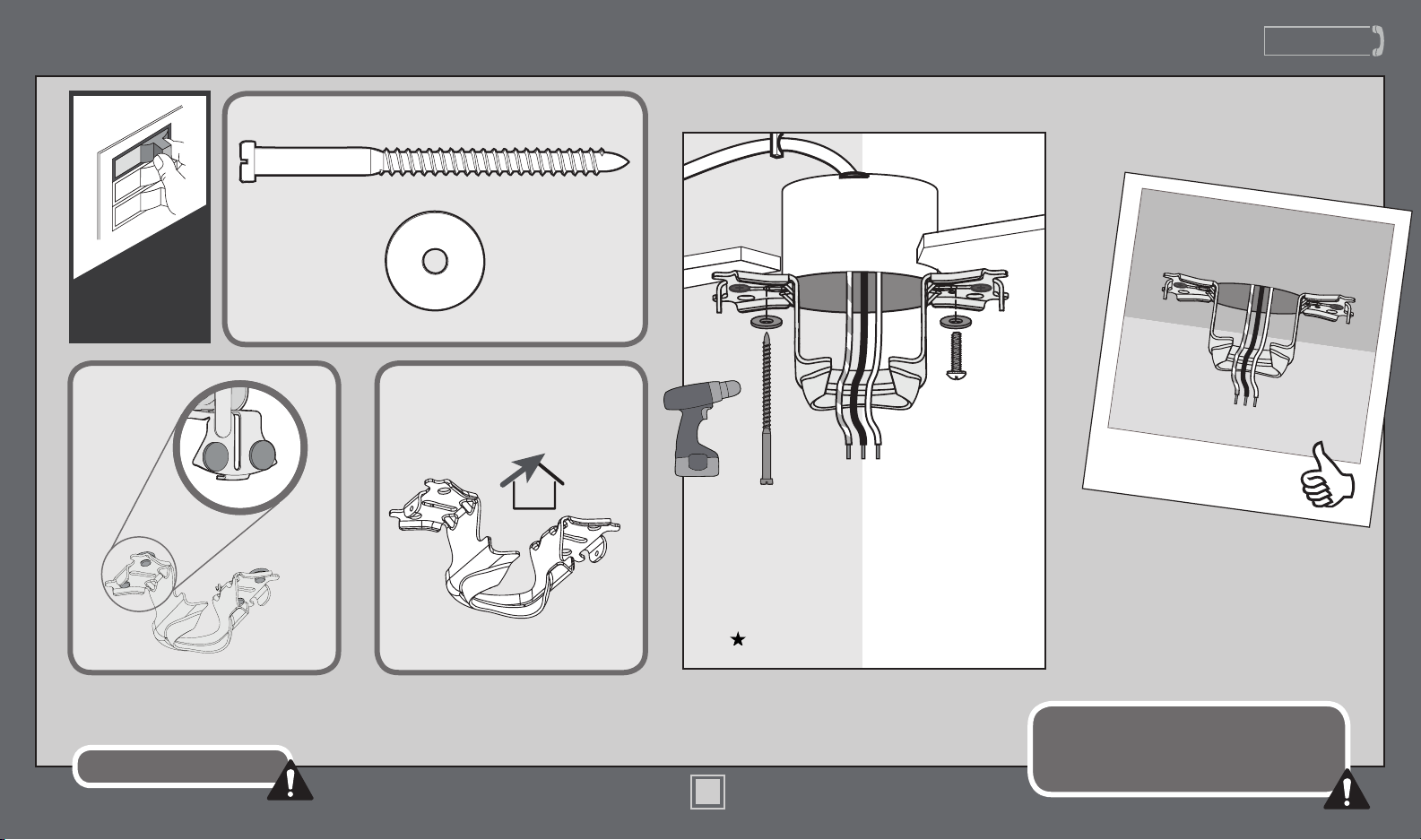

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

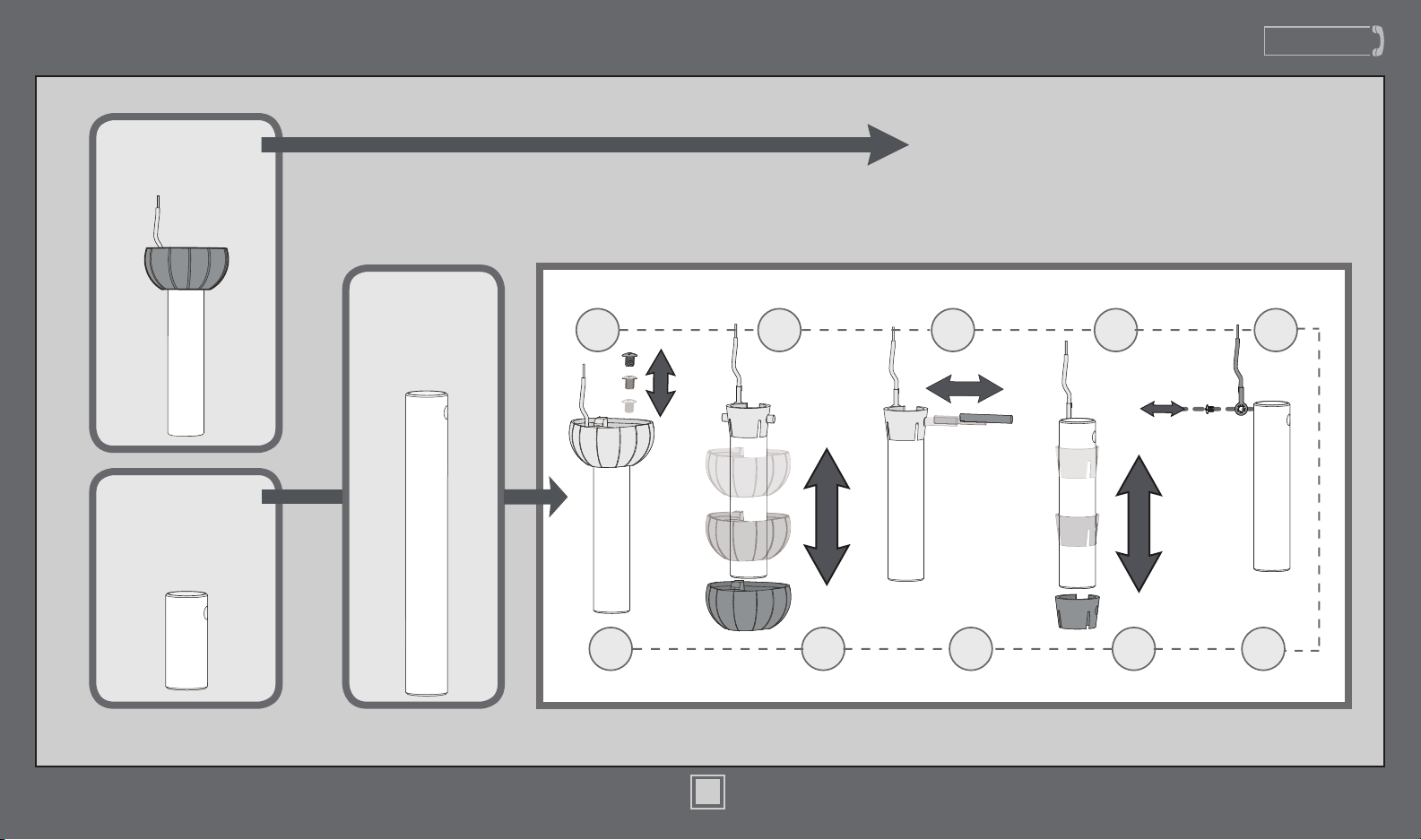

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

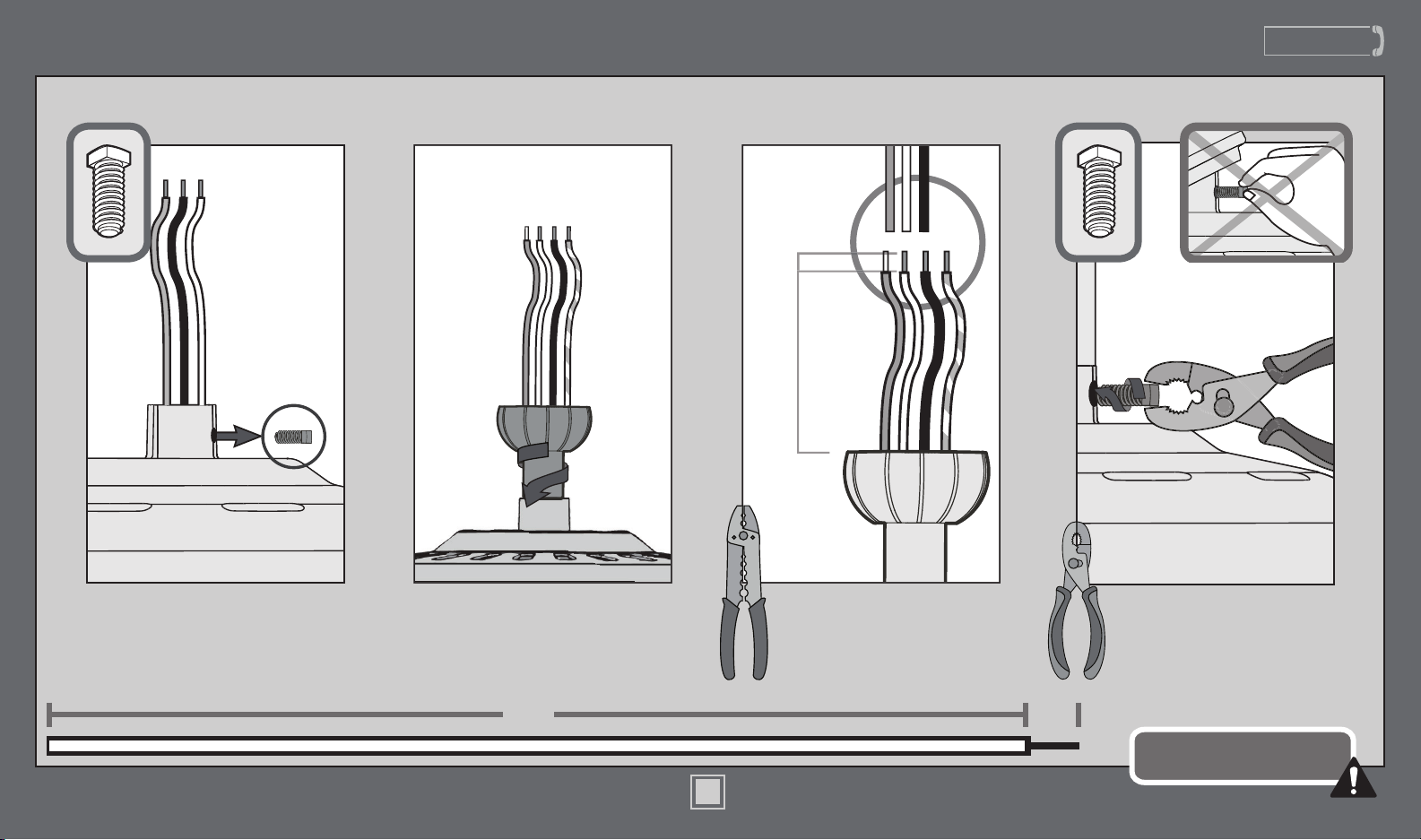

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

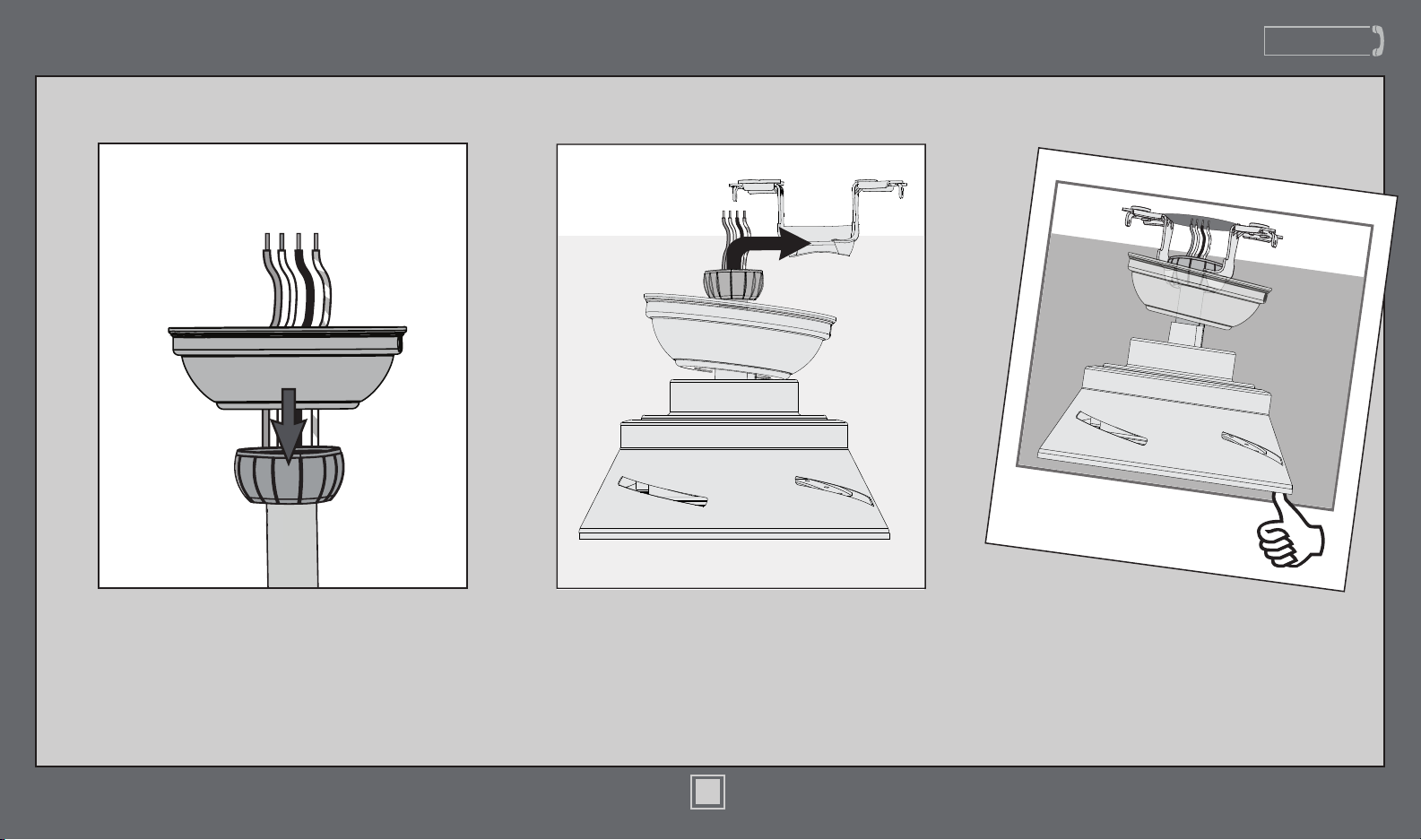

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Wiring

Receiver

Note: To connect the wires, hold the bare metal leads together and place a wire connector over them,

then twist clockwise until tight.

www.HunterFan.com

1.888.830.1326

Place the receiver on top of the downrod

assembly as shown.

Tip: If you have difculty tting the receiver

into place, make sure you have cut the excess

wires from the fan. See the Downrod section

for more details.

Refer to CAUTION c.1 on pg. 2

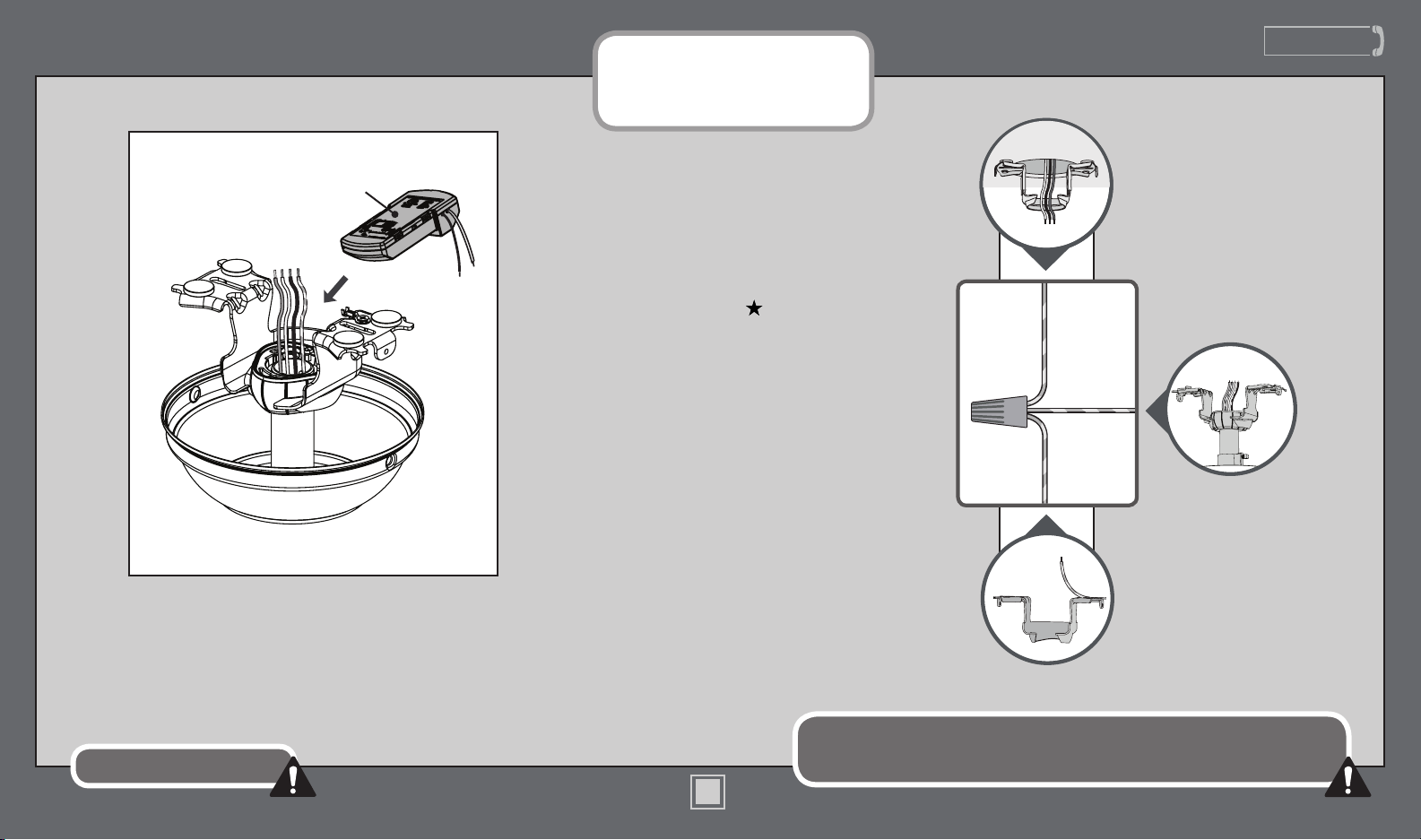

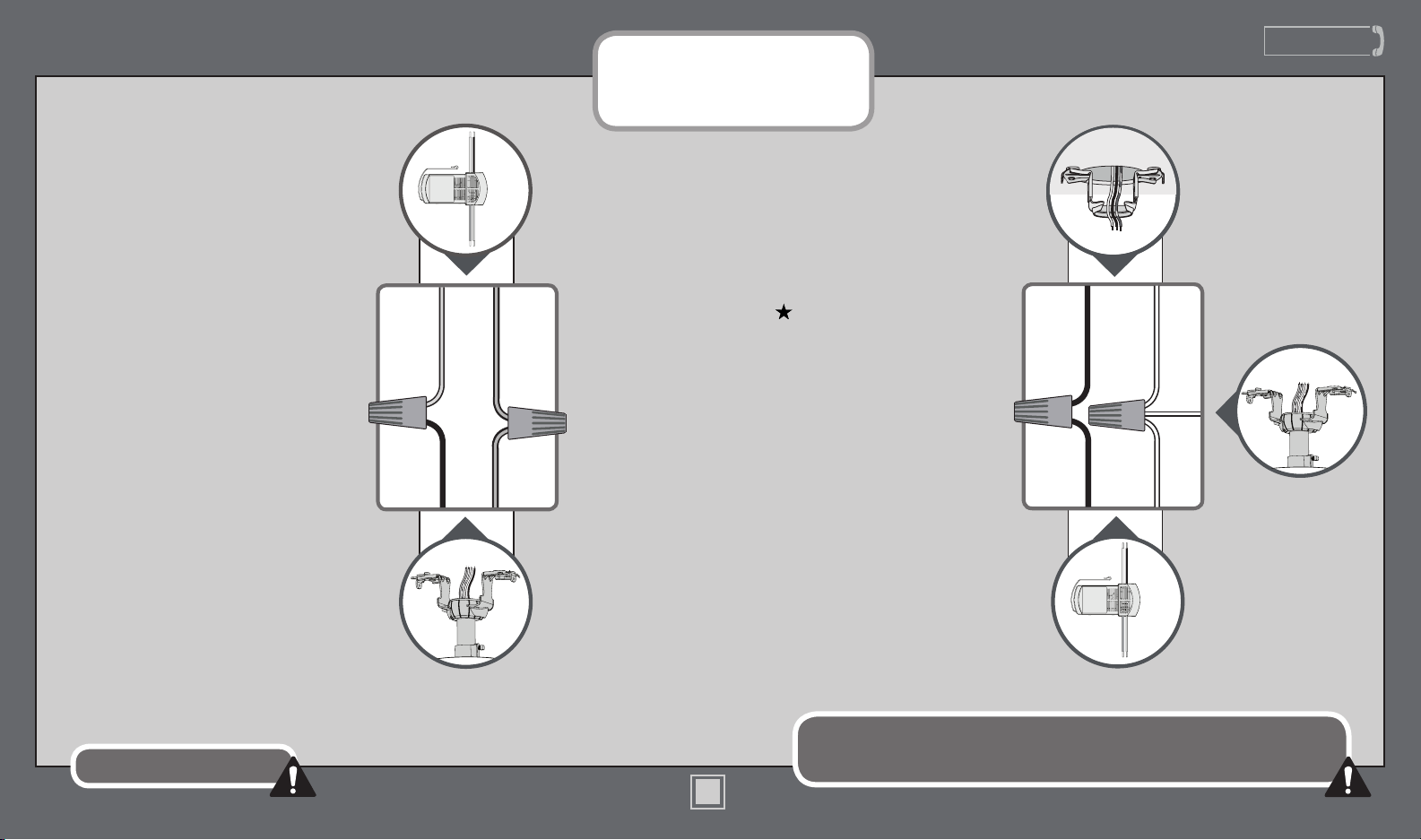

Using an orange wire connector from the hardware bag:

Connect the 3 grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and ceiling bracket.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

green/yellow

stripe (grounding)

green/yellow stripe

green/yellow

stripe

Wiring (continued)

Note: If you have a dual switch,

www.HunterFan.com

1.888.830.1326

please cap the secondary power

wire from the ceiling. This will

result in one unused switch.

Using the orange wire connectors from the remote control hardware bag:

• Connect the yellow wire from the receiver to the black wire from the fan.

• Connect the blue wire from the receiver to the blue wire (or possibly black with white stripe wire) from the fan.

Refer to CAUTION c.1 on pg. 2

yellow

black

blue

Using the orange wire connectors

black

(ungrounded)

white (grounded)

from the hardware bag:

• Connect the black (ungrounded)

wire from the ceiling to the black wire from the receiver.

white

blue

• Connect the white (grounded) wire from the ceiling to both the white wire from the receiver and

black

the white wire from the fan.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

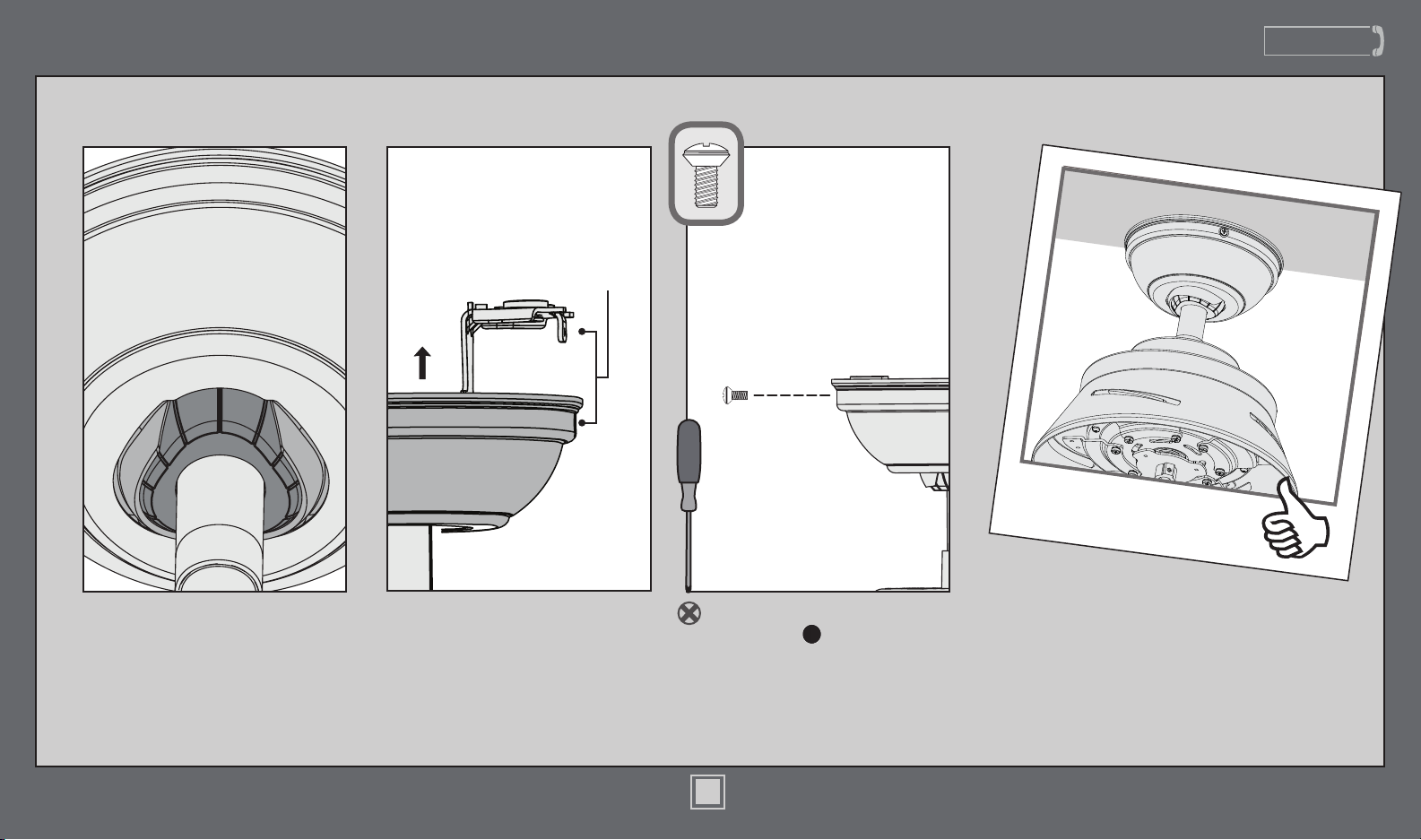

Canopy

Screw Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Blades

www.HunterFan.com

1.888.830.1326

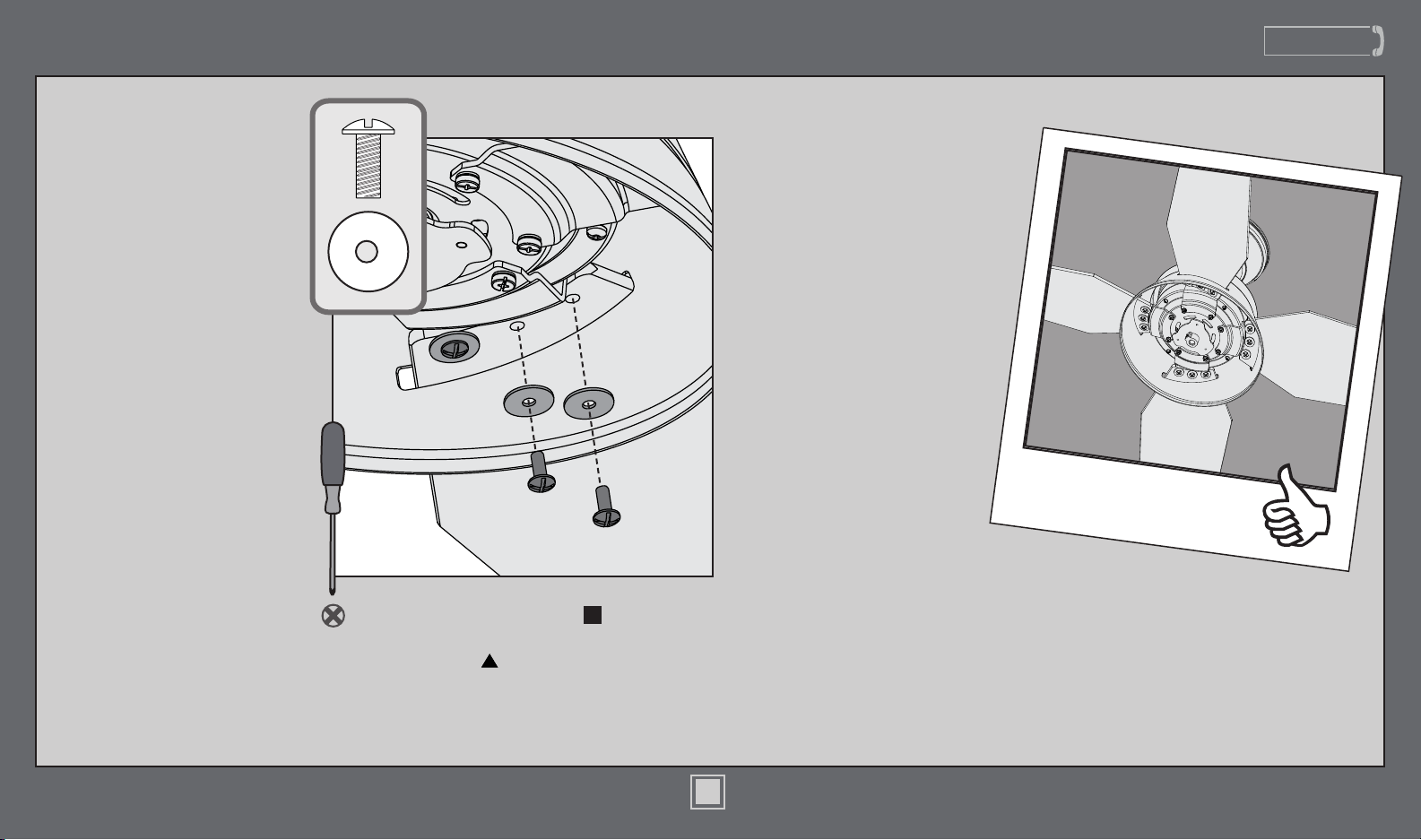

Attach each blade to a blade iron using three

blade washers, found in the hardware

bag, and three blade assembly screws, found

in the hardware bag.

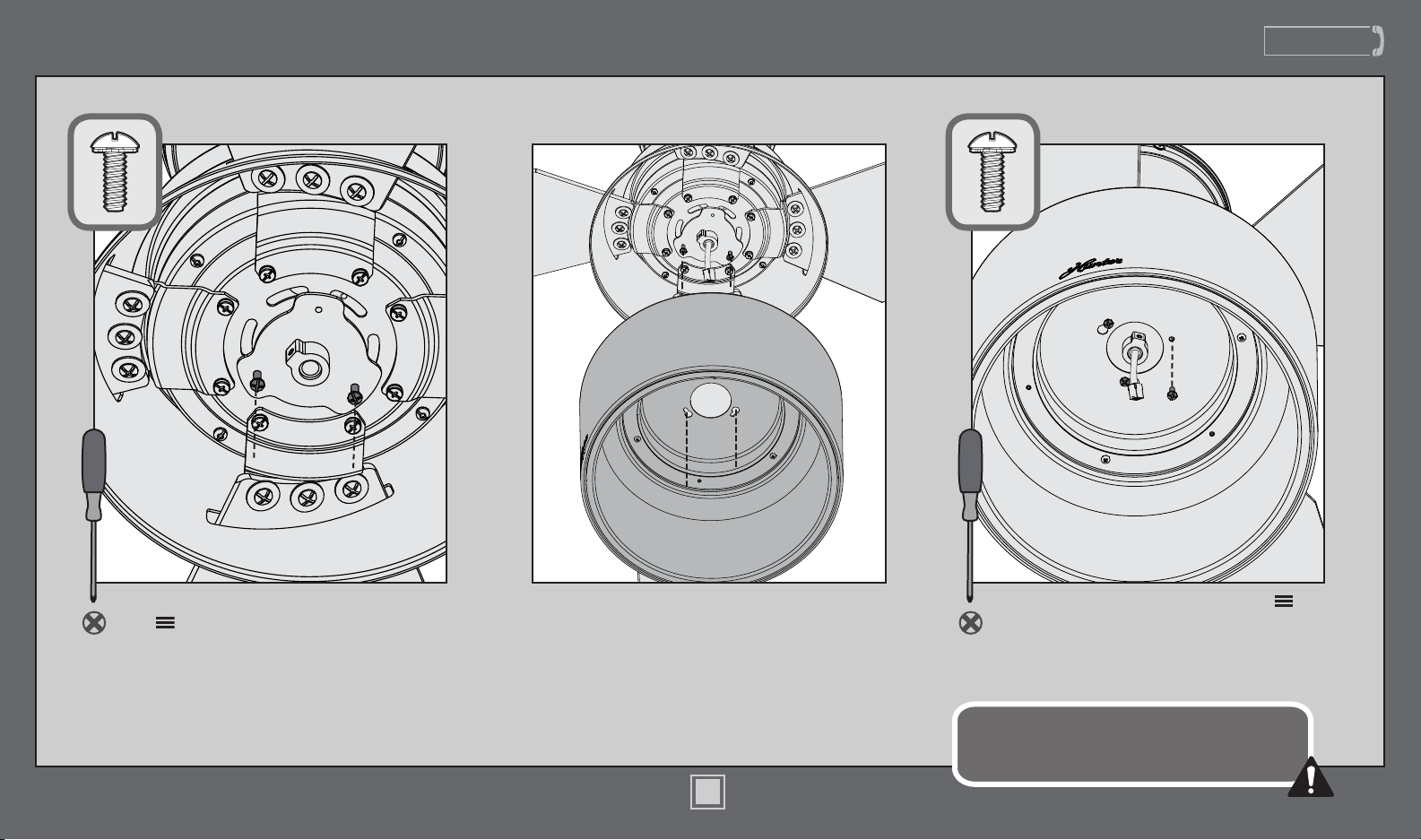

Hood

www.HunterFan.com

1.888.830.1326

Screw two housing assembly screws from

the hardware bag halfway into the

motor housing. It does not matter which

two screw holes you choose.

Feed the wire plug through the center

hole of the hood, then wrap keyhole

slots around the screws and twist

counterclockwise.

Insert the third screw, found in the

hardware bag, into place and then tighten

all three screws.

Make sure the hood is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing

xture falling.

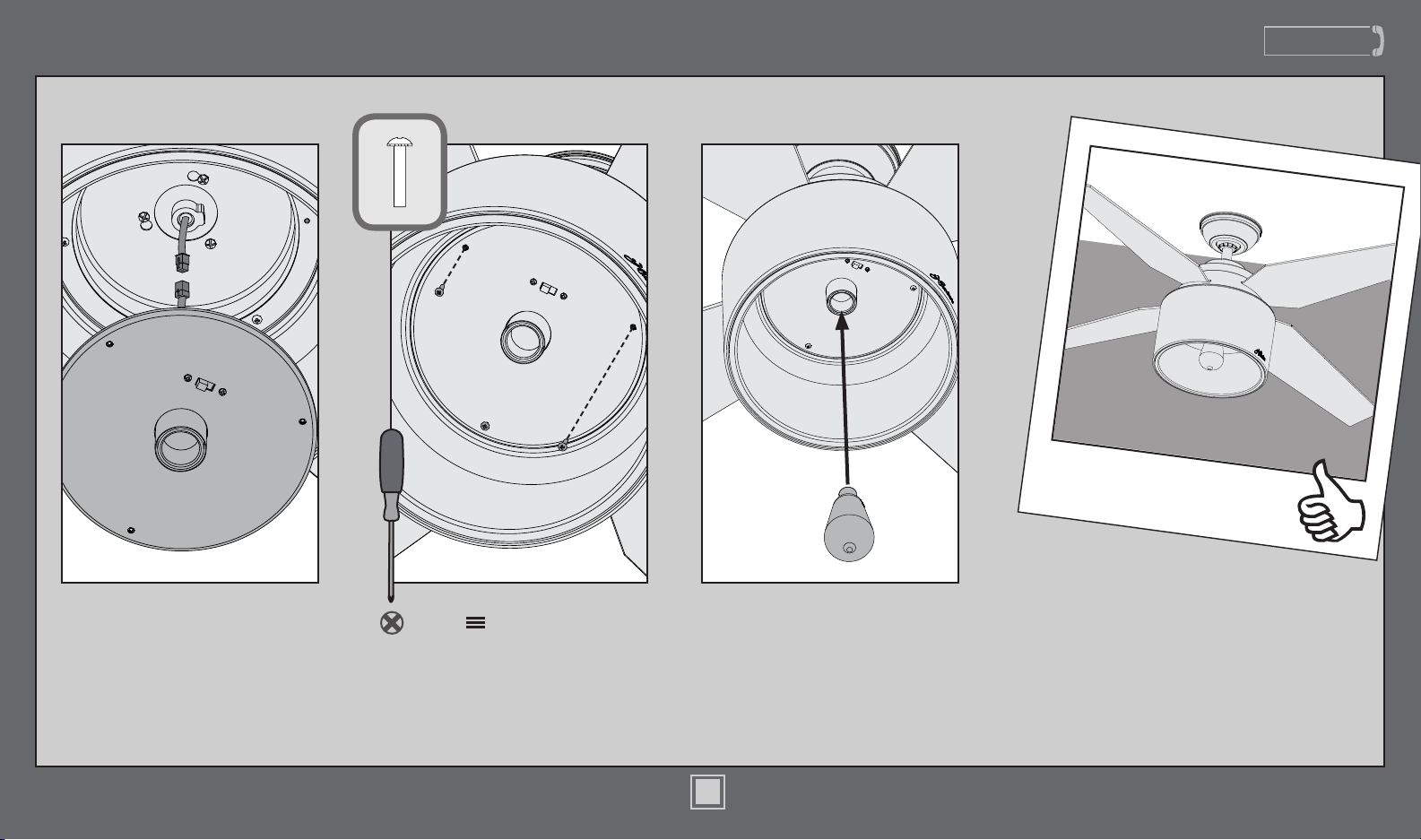

Hood (continued)

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

Connect the plugs from the

fan and lower switch housing.

Make sure to line up the colored

markings on the connectors.

Insert the longer screws, found

in the hardware bag, into

place and then tighten all three

screws.

Install the bulb into the socket.

When necessary, replace with

bulb of the same type and

wattage.

Remote Control

www.HunterFan.com

1.888.830.1326

Battery Door

Phillips Head Screw

To access the battery compartment,

remove the small Phillips head screw that

secures the battery door to the transmitter

assembly. The battery should be installed

with the positive (+) side up. Replace with a

CR2032 battery when necessary.

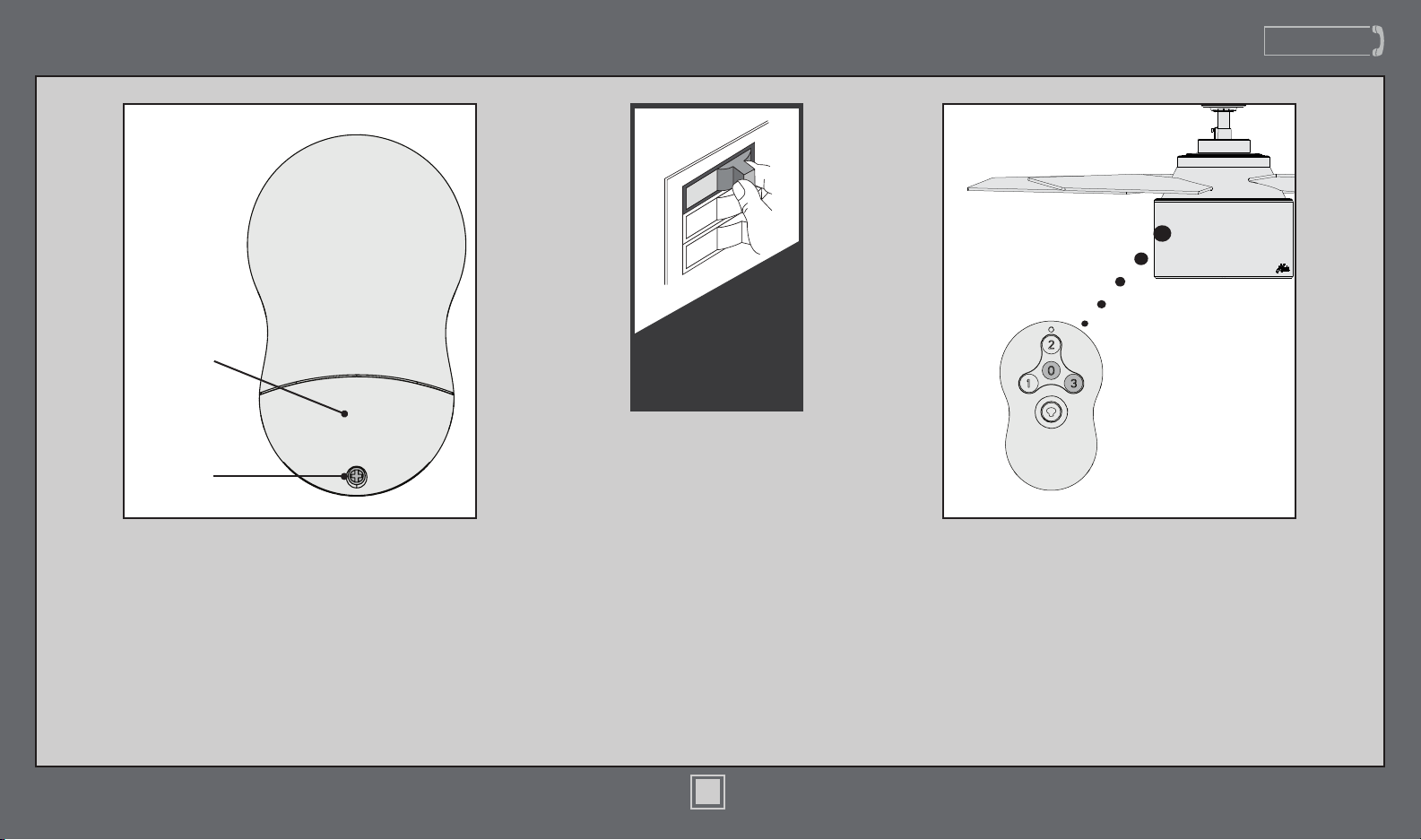

Turn Power

The remote transmitter should already be paired

to the receiver and ready to use.

Note: If your need to pair your remote, turn fan

power off and back on at the wall switch. Within 3

minutes, press and hold both the Fan Off button

and the High button for 4 seconds to pair the remote. To prevent faulty operation, please

ensure all other ceiling fans within range are

turned off at the wall switch while pairing.

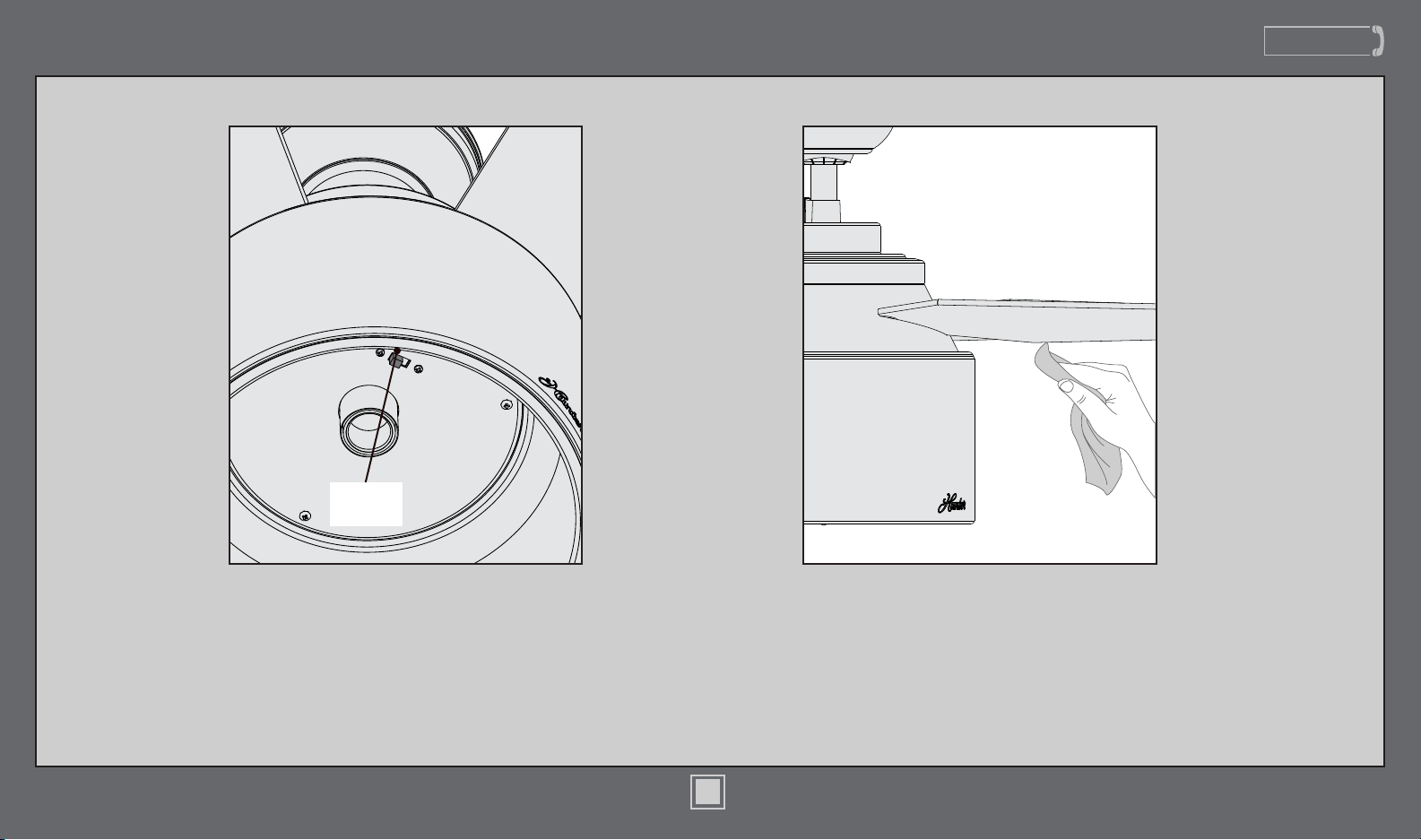

Operation, Maintenance, & Cleaning

Medium

Speed

Fan Off

Low Speed

High

Speed

Light

Removed Tabs

Switch Cover Plate

Rocker- Style Plate

www.HunterFan.com

1.888.830.1326

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual

conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

To turn on fan, press a fan speed button. Speeds

range from off (0) to high (3). Quickly press the

Light button to turn the lights off and on.

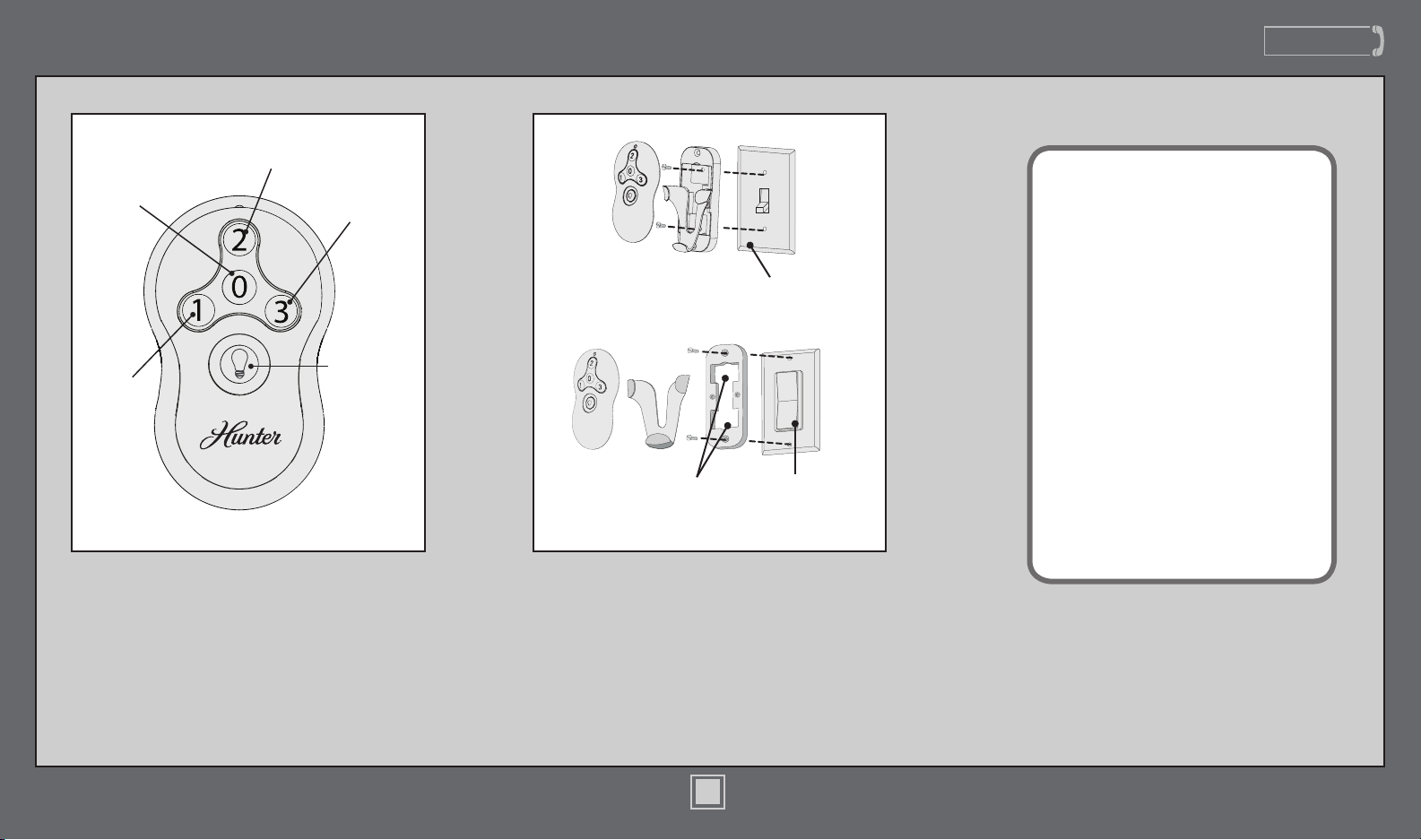

To install the transmitter cradle, remove the

two screws holding the switch cover plate. Do

not remove the cover plate. Orient the cradle

by lining up the two mounting holes with

those on the cover plate. Insert and tighten

the screws. Do not over tighten.

Note: For rocker-style cover plates, break off

the tabs by pushing outward.

Operation, Maintenance, & Cleaning (continued)

Reverse

Switch

www.HunterFan.com

1.888.830.1326

To switch the direction of air ow, move the

reverse switch to the opposite position.

For cleaning the fan, use soft brushes or

cloths to prevent scratching. Cleaning

products may damage the nishes.

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on pages 9-10.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.

Hunter Fan HTF2201 Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
