Marine II Outdoor
Marine II Outdoor
Marine II Outdoor
Light Kit
Light Kit
Light Kit
Owner’s Guide and Installation Manual
Manual De Propietario
English Español
Form# 43552-01
20140415
©2014 Hunter Fan Co.
Table Of Contents
1 • Installing the Light Kit on a
Removable Switch Housing . . . . . . . 4
2 • Installing the Light Kit on a Non-
Removable Switch Housing........5
3 • Installing the Light Kit on the Hunter
Original .........................7
4 • Installing the Light Kit on a Fan with
a Removable Switch Housing Cap..8
5 • Installing the Bulbs, Chain, and
Globe .............................9
Welcome
Your new Hunter® light kit is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your light kit.
We are proud of our work. We appreciate the opportunity to supply
you with the best products available anywhere in the world.
Before installing your light kit, for your records and warranty assistance,
record information from the carton and Hunter nameplate label.
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, install this light fixture only on
Hunter® fan types A through Z. Note: e fan type can be found on
the ceiling fan package or on the nameplate label located on top of
the motor housing of the ceiling fan.
• To avoid possible electrical shock, before installing light fixtures,
disconnect the power by turning off the circuit breakers both to
the outlet box and to its associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a
prominent warning device, such as a tag, to the service panel.
• Connect house wiring to the fan before attaching the light fixture to
the fan.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
6 • Troubleshooting....................10
© 2014 Hunter Fan Company
2
43552-01 • 04/15/14 • Hunter Fan Company
Installation Methods of Hunter® Ceiling Fans Type A-Z
Your ® light kit can be installed in one of three
ways. e steps in this manual include instructions for
all three installation methods: Installation on fans with
removeable switch housings, fans with non-removeable
switch housings, and e Hunter Original.
Preparing the Light Kit:
Removable Switch Housing
1. Disconnect power by turning off the circuit breakers
both to the outlet box and to its associated wall switch
location.
Non-removable Switch Housing
e Hunter Original
Removable Switch Housing Cap
3
43552-01 • 04/15/14 • Hunter Fan Company
1 • Installing the Light Kit on Fans With Removable Switch Housings
1. Unscrew the three screws from the upper switch housing. Disconnect the
9-pin plug connectors. Remove the lower switch housing.
2. Push the plug button from inside the lower switch housing to remove the
plug button and switch housing cap.
NOTE: Save the plug button and switch housing cap should you choose to
remove the light fixture in the future.
3.
To attach the light kit, partially install two #6-32 screws
on the red tag
into the switch housing.
4. Align the keyhole slots in the light kit with the #6-32 screws.
5. Turn the mounting plate counterclockwise until the housing assembly screws
are firmly situated in the narrow end of the keyhole slots. Tighten screws
firmly.
6. Feed the two wires from the light kit through the center hole in the lower
switch housing.
7. To secure the light kit fitter, thread the nut and washer onto the rod from the
light kit. Tighten the nut and washer you previously threaded onto the rod
from the light kit.
8. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” To connect the wires, hold
the bare metal leads together and place a wire connector over them, then
twist the wire connector clockwise until tight.Connect the black wire with
a white stripe from the switch housing to the black wire from the light kit.
Connect the white wire from the switch housing to the white wire from the
light kit. Secure all wire connections using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
9. Go to the instructions for installing the bulbs and globe.
and the lock washers
Screw
Steps 1-2
Removable Switch Housing
9-Pin Plug
Connector
Lower Switch
Housing
Plug Button
WARNING: Improper
installation could
cause the light fixture
to fall.
Steps 6-7
Wires
Threaded
Washer
Nut
Rod
4
43552-01 • 04/15/14 • Hunter Fan Company
Steps 3-5
#6-32
Screw
Switch
Housing
Light Kit
Fitter

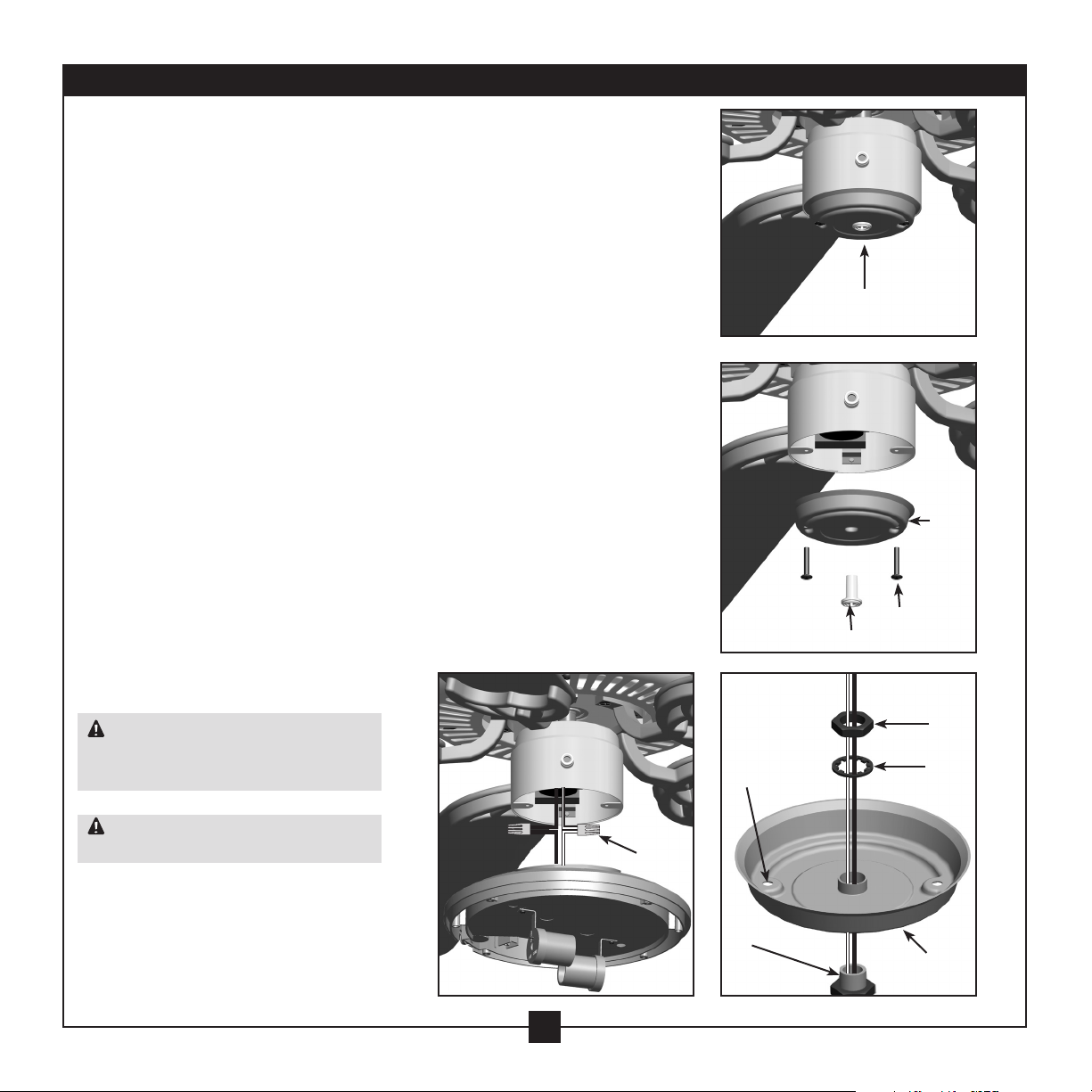

2 • Installing the Light Kit on Fans With Non-Removable Switch Housing
1. Uninstall the two attachment screws from the switch housing cover.
2. Remove the plug or screw from the center of the switch housing cover.
3. read the switch housing cover onto the upper light housing. Align the
screw holes in the upper light housing with the screw holes in the switch
housing cover. Install the nut and washer onto the threaded rod from the
light kit to secure the switch housing cover.
4. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black with a white stripe.
5. Feed the two wires from the switch housing through the threaded rod in
the upper light housing.
6. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors.
7. Align the threaded screw holes in the switch housing cover with the
threaded holes in the switch housing. Attach the switch housing cover
and light fixture to the switch housing using the included attachment
screws.
Steps 1-2
Non-Removable Switch
Housing
Attachment
Plug
Switch
Housing
Cover
Screw
CAUTION: Be sure no bare metal
wires or wire strands are visible
after making the connections.
WARNING: Improper installation
could cause the light fixture to fall.
Wires
and Wire
connectors
Step 6
5
43552-01 • 04/15/14 • Hunter Fan Company
Screw
Hole
Threaded
Rod
Step 3
Nut
Washer
Switch
Housing
Steps 3-5
Cover
2 • Installing the Light Kit on a Non-Removable Switch Housing (cont.)
8. Attach the light fixture to the switch housing with the two
screws included with the light fixture, aligning the holes in the
light fixture, switch housing cover, and switch housing.
9. Securely tighten the two screws.
10. Go to the instructions for Installing the Bulbs, Chains, and
Globe.
Attachment
Screw
Step 8
6
43552-01 • 04/15/14 • Hunter Fan Company

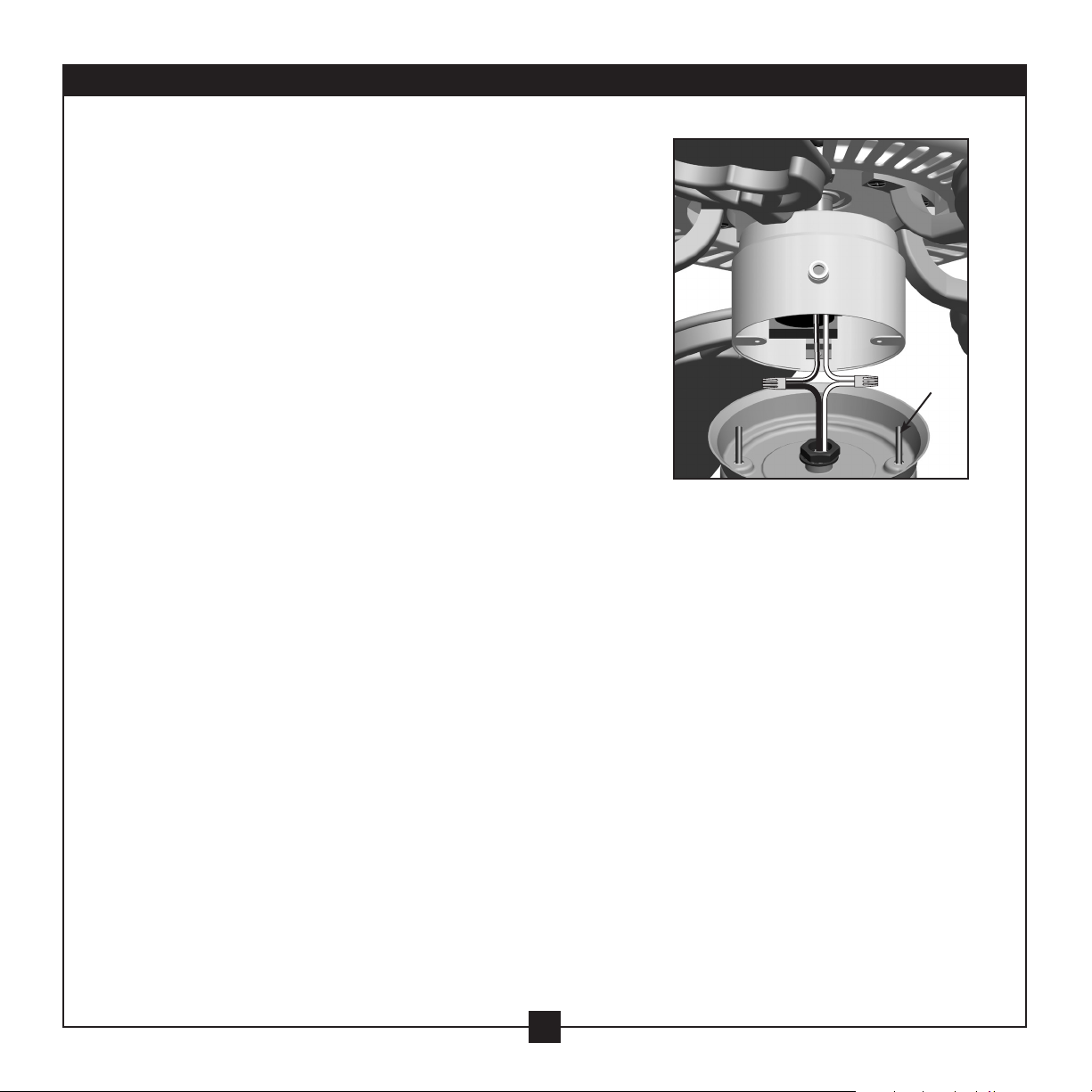

3 • Installing the Light Kit on the Hunter Original
1. Uninstall the two screws from the switch housing plate.
NOTE: Save the switch housing cap should you choose to remove the light
fixture in the future.
2. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black wire with a white stripe. read the two wires through
the hole in the center of the light fixture.
3. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
4. Attach the light fixture to the switch housing with the two screws included
with the light fixture, aligning the holes in the fixture and switch housing.
5. Securely tighten the two screws.
6. Go to the instructions for Installing the Bulbs, and Globe.
Screw
Step 1
Hunter Original
Switch
Housing
Plate
WARNING: Improper installation
could cause the light fixture to
fall, or result in electrical shock or
personal injury.
7
43552-01 • 04/15/14 • Hunter Fan Company
Steps 3-5
Screw and
Washer

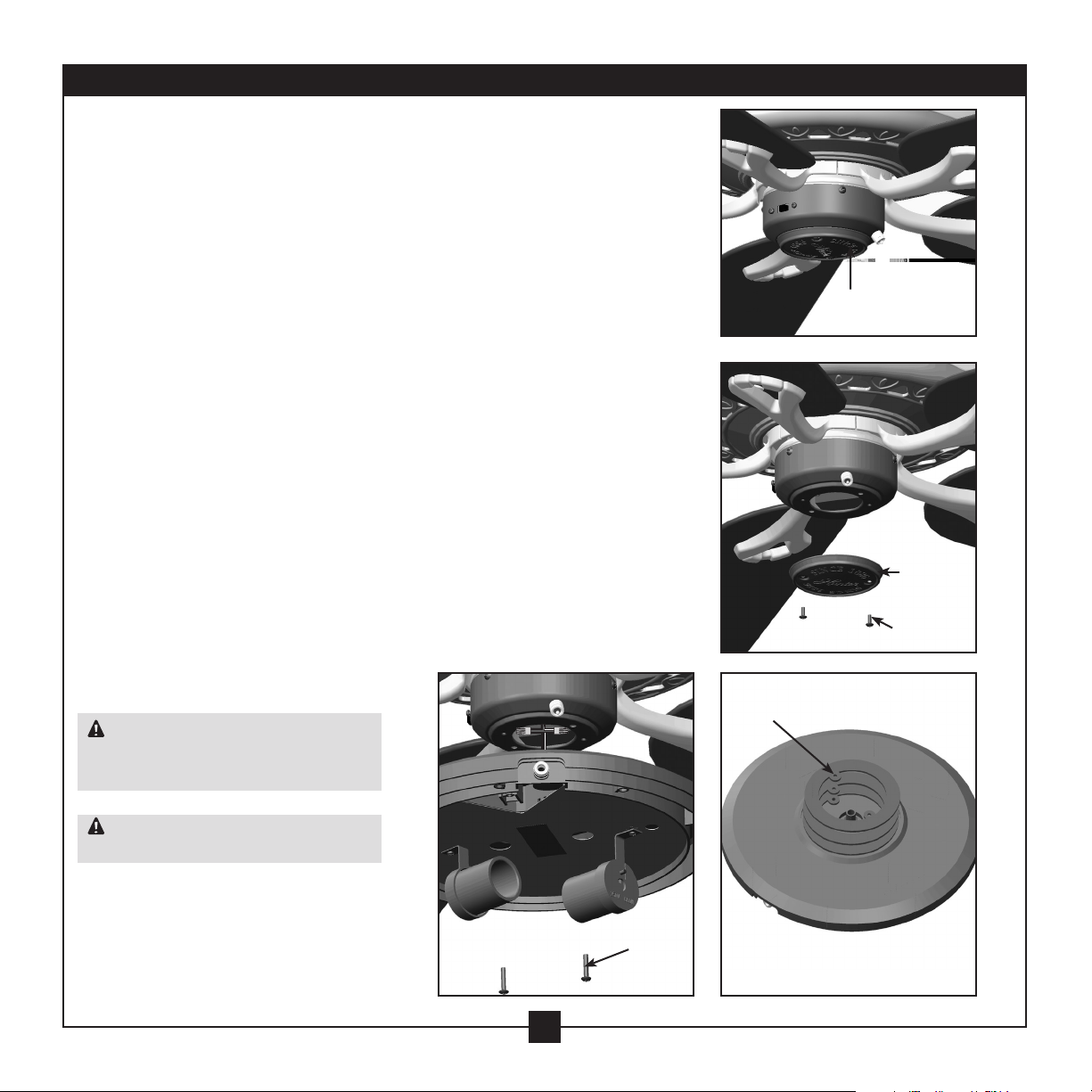

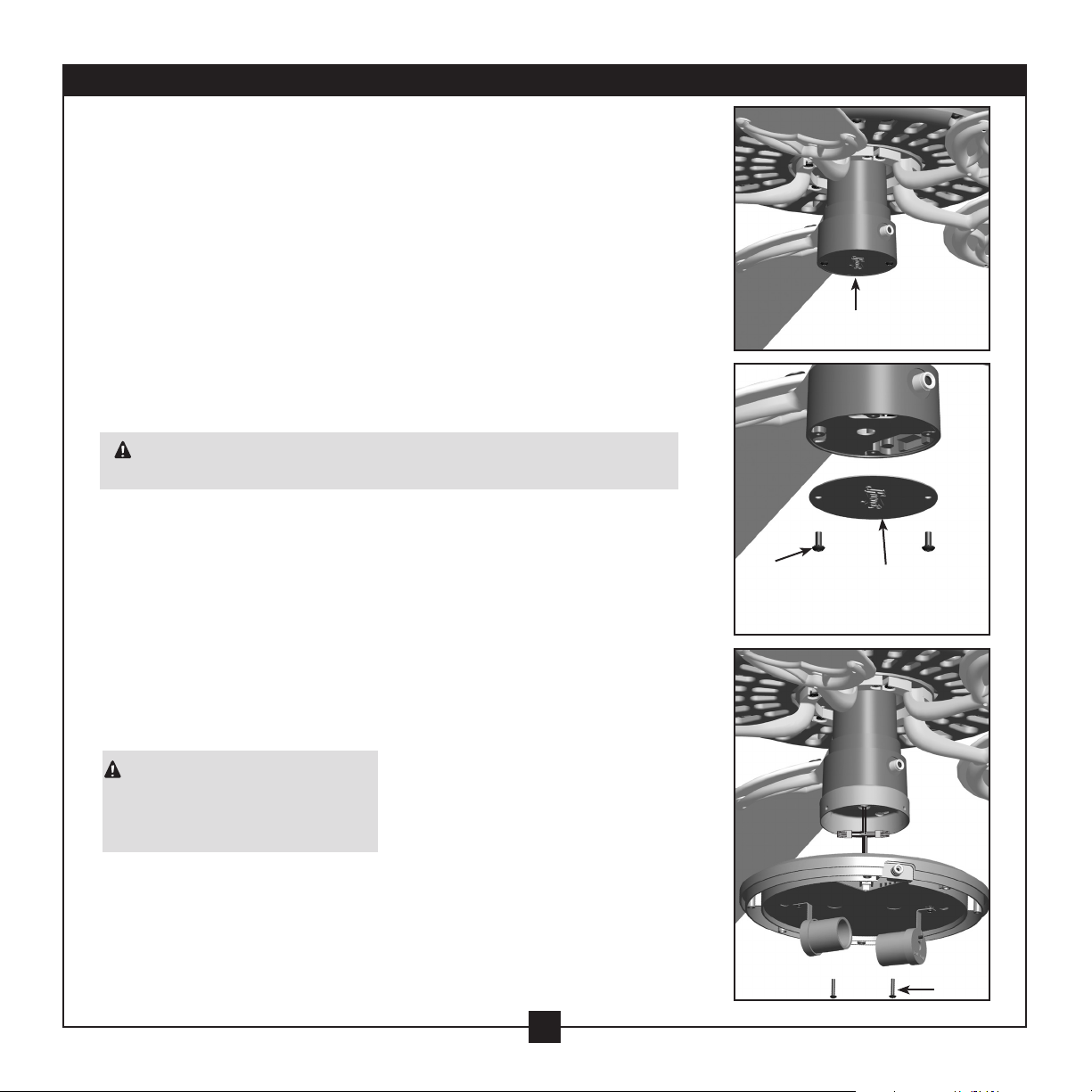

4 • Installing the Light Kit on a Fan with a Removable Switch Housing Cap
1. Uninstall the two attachment screws from the switch housing cap.
2. Align the screw holes in the included two additional gaskets with the
screw holes on the top of the light kit.
3. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is blue.
4. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the blue from the switch housing to the black wire from the
light kit. Connect the white wire from the switch housing to the white
wire from the light kit. Secure all wire connections using wire connectors.
5. Align the threaded screw holes in the switch housing cover with the
threaded holes in the switch housing. Attach light fixture to the switch
housing using the included attachment screws.
Removable Switch
Housing Cap
Switch
Housing
Cap
CAUTION: Be sure no bare metal
wires or wire strands are visible
after making the connections.
WARNING: Improper installation
could cause the light fixture to fall.
Attachment
Screws
Step 5
8
43552-01 • 04/15/14 • Hunter Fan Company
Gasket
Step 2
Step 1
Attachment
Screw

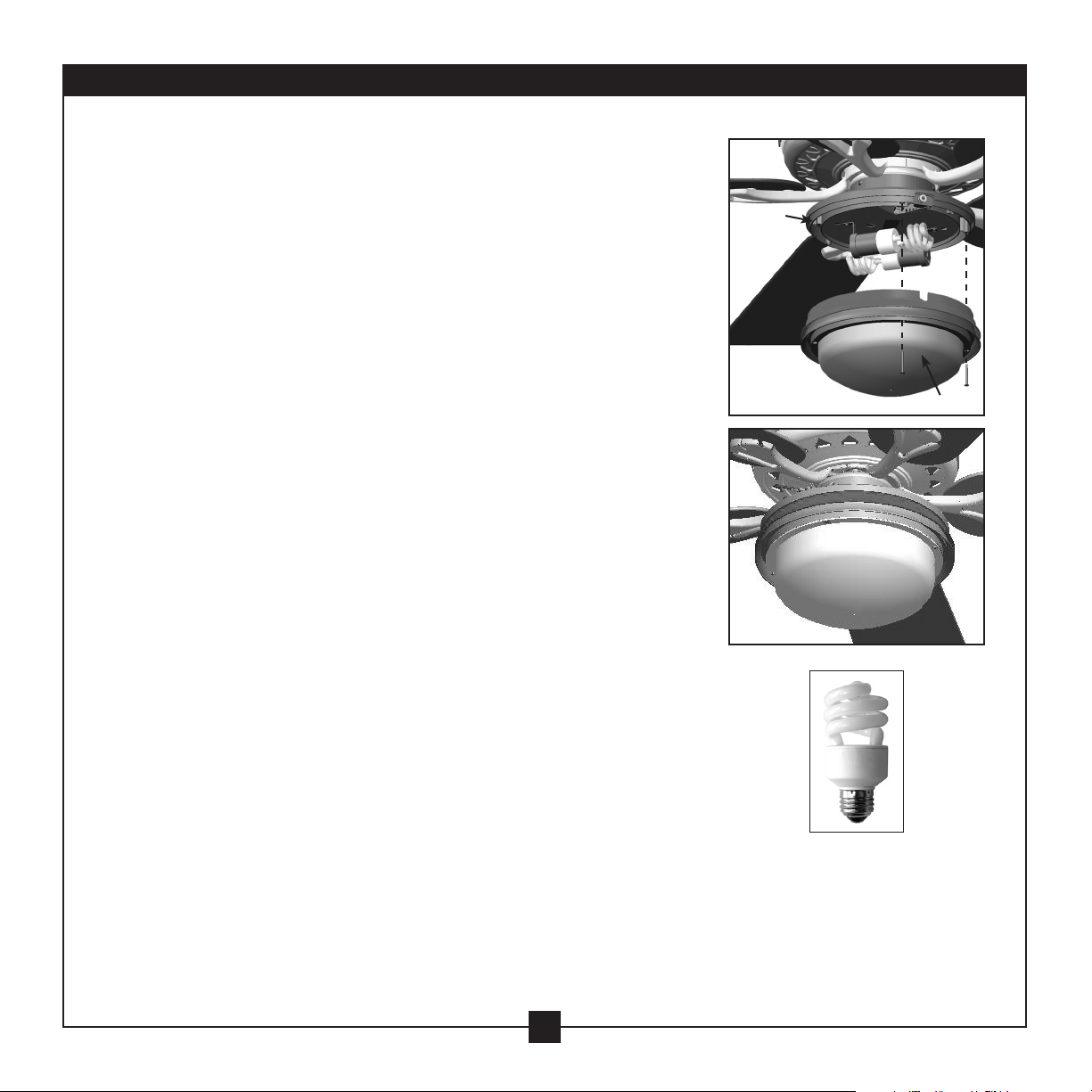

5 • Installing the Bulbs, Chain, and Globe
1. Install the included CFL medium-based bulbs.
2. Align the screw holes in the globe assembly with the screw holes in the
light kit mounting plate. Make sure that the U-shaped hole in the globe
assembly aligns with the pull chain assembly.
3. Attach the globe assembly to the light kit mounting plate using the preinstalled screws. Tighten the screws securely to the light kit mounting
plate.
4. e installation is complete and you can restore power to the ceiling
fan.
Light Kit
Mounting
Plate
Globe Assembly
9
43552-01 • 04/15/14 • Hunter Fan Company
CFL Bulb (included)
6 • Troubleshooting
Troubleshooting
Light does not come on.
1. Make sure bulbs are installed properly.
2. Make sure breakers or fuses are on.
3. Verify that the light power lead is connected at the ceiling. Refer to
your ceiling fan manual for locating assembly and wiring.
Glass rattles.
1. Make sure the plastic globe is secure.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.HunterFan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis, Tennessee 38016
is Light Fixture Weighs 6 lbs. Printed in China
10
43552-01 • 04/15/14 • Hunter Fan Company
