BEFORE YOU BEGIN
Read entire installation instructions carefully before
beginning installation and save these instructions.
Switch
Housing
Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s
switch housing. Begin on page 3 where you will choose the type of switch housing that
most closely resembles the one on your fan. From there, you will be directed to the set of
assembly instructions that are appropriate for installing the light kit to your fan.
READ AND SAVE THESE INSTRUCTIONS
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or personal injury,
mount fan directly from building structure and/or an outlet box marked
acceptable for fan support of 70 lbs. (31.8 kg) and use the mounting screws
provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your
fan, disconnect the power by turning off the circuit breakers to the outlet
box and associated wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent warning device,
such as a tag, to the service panel.
CAUTIONS
c.1 - All wiring must be in accordance with national and local electrical codes
ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
2
MA016-01 • 01/09/14
Turn Power
OFF
Page 3
1.888.830.1326
WHICH ASSEMBLY METHOD WILL I USE?
Choose one of the four images below that most closely resembles the switch
housing on your fan; then follow the instructions under the image.
Cap
Screw
If your fan’s switch housing cap
resembles this one, remove the cap
screws with a Phillips head screwdriver.
Then follow the TYPE-A ASSEMBLY
INSTRUCTIONS on pages 4-5.
Switch
Housing
Screw
Switch
Housing
Cap
Plug
Button
Switch
Housing
Screw
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the two cap screws from the
inside of the switch housing. Reinstall
the switch housing. Tighten the switch
housing screws. Then follow the TYPE-A
ASSEMBLY INSTRUCTIONS on pages 4-5.
Plug
Button
Switch
Housing
Cap
Switch
Housing
Screw
If your fan’s switch housing cap
resembles this one, remove the whole
switch housing by removing the switch
housing screws with a Phillips head
screwdriver. Remove the plug button.
Then follow the TYPE-B ASSEMBLY
INSTRUCTIONS on pages 6-7.
MA016-01 • 01/09/14
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the plug button using a standard
screwdriver. Then follow the TYPE-C
ASSEMBLY INSTRUCTIONS on pages 8-9.
3
Page 4

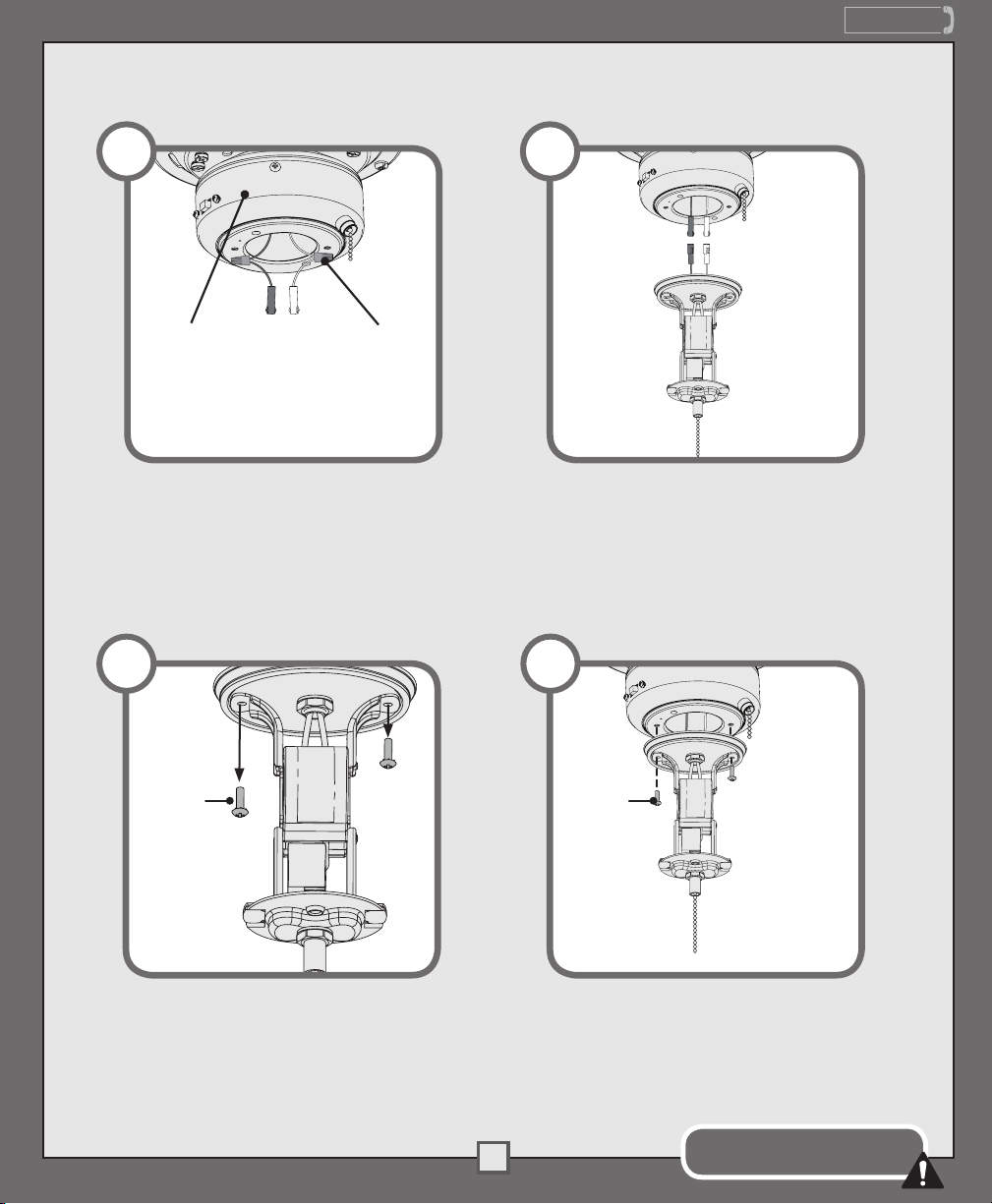

TYPE-A ASSEMBLY INSTRUCTIONS
1 2
1.888.830.1326
Switch
Housing
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Wire
Connector
3
Light Kit
Screw
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
4
Light Kit
Screw
Remove the light kit screws attaching the
light kit cap to the light xture.
MA016-01 • 01/09/14
4
Attach the light kit to the switch housing
by re-installing the light kit screws
through the xture and light kit cap into
the switch housing.
Do not allow the light kit to hang
only by the wire connections!
Page 5

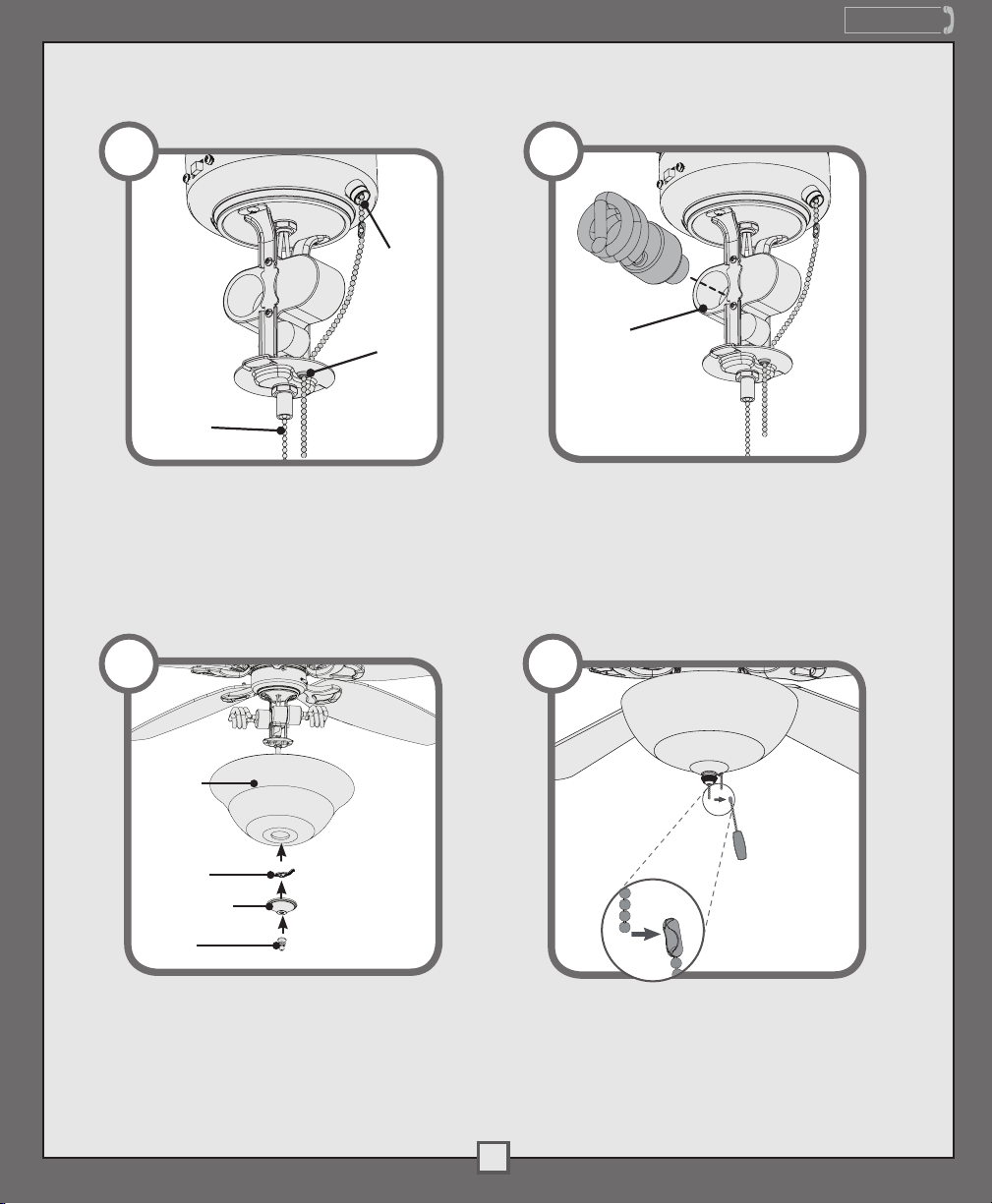

TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED)
1.888.830.1326
5
Fan Pull
Chain
Grommeted
Light Pull
Chain
If necessary, attach the extension chain
provided to the fan pull chain coming
from the switch housing. Then feed the
end of the extension chain through the
grommeted hole in the light kit.
7
6
Socket
Hole
Installing the bulb - Install a bulb into each
socket. When necessary, replace bulbs with
bulbs of same type and wattage.
8
Globe
Globe
Keeper
Finial Cap
Finial
Installing the globe - Press the globe and
globe keeper ush against the metal plate.
Thread the light pull chain through the hole
in the center of the nial cap and thread the
fan pull chain through the hole in the side
of the cap. Finally, thread only the light pull
chain through the hole in the nial and screw
the nial onto the threaded rod.
MA016-01 • 01/09/14
Installing the Pull chain pendant -
Attach the pull chain pendants to the
end of the short chains coming from the
switch housing and the light kit. Turn on
power. Your installation is complete!
5
Page 6

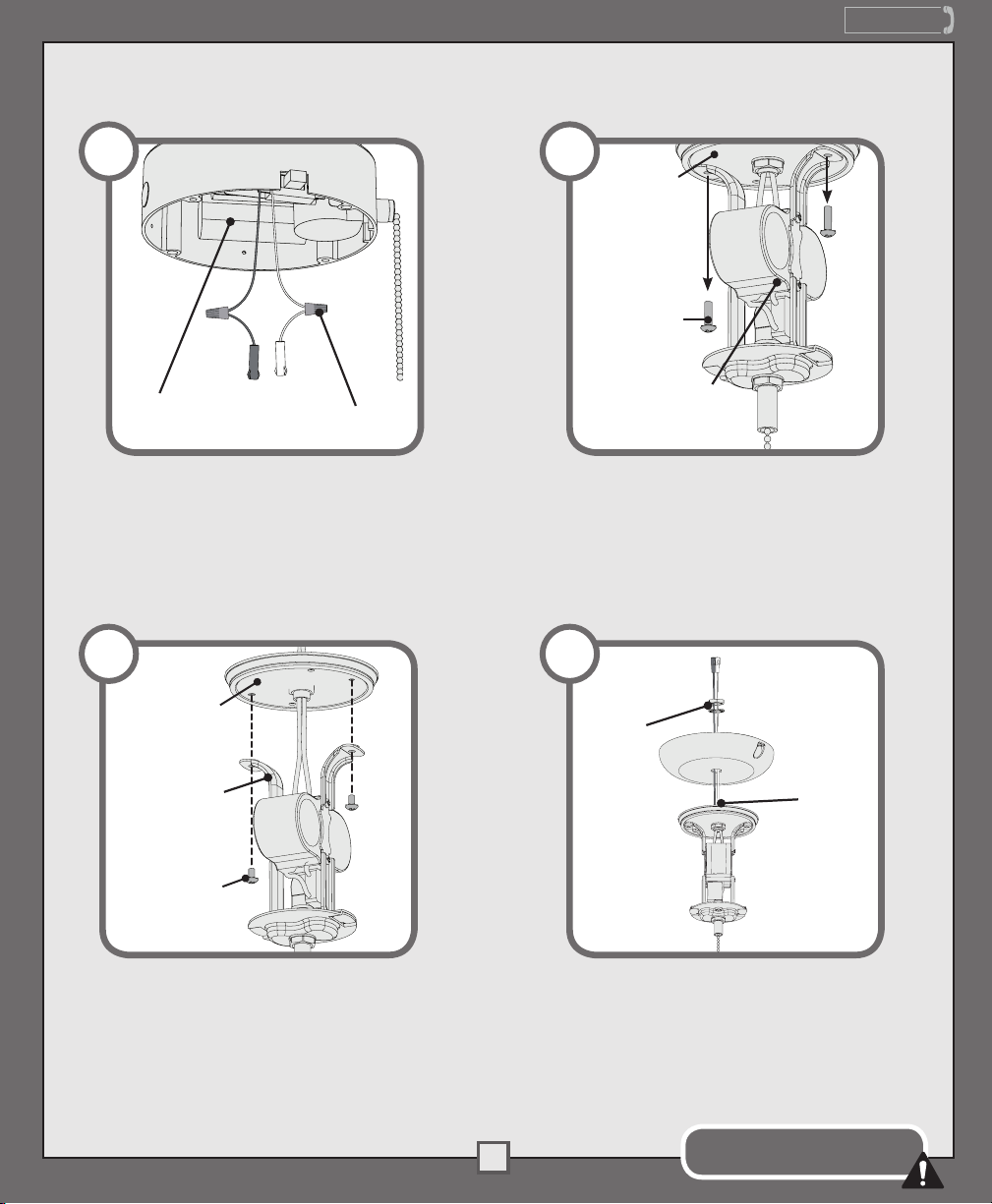

TYPE-B ASSEMBLY INSTRUCTIONS
1.888.830.1326
1
Switch
Housing
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Wire
Connector
3
2
Light Kit
Screw
Remove the light kit screws attaching the
light kit cap to the light xture.
4
Switch
Housing
Light Kit
Screw
Feed the light kit wires through the
center hole in the switch housing. Then
attach the switch housing to the light kit
by installing the light kit screws into the
bottom of the switch housing.
MA016-01 • 01/09/14
6
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
Do not allow the light kit to hang
only by the wire connections!
Page 7

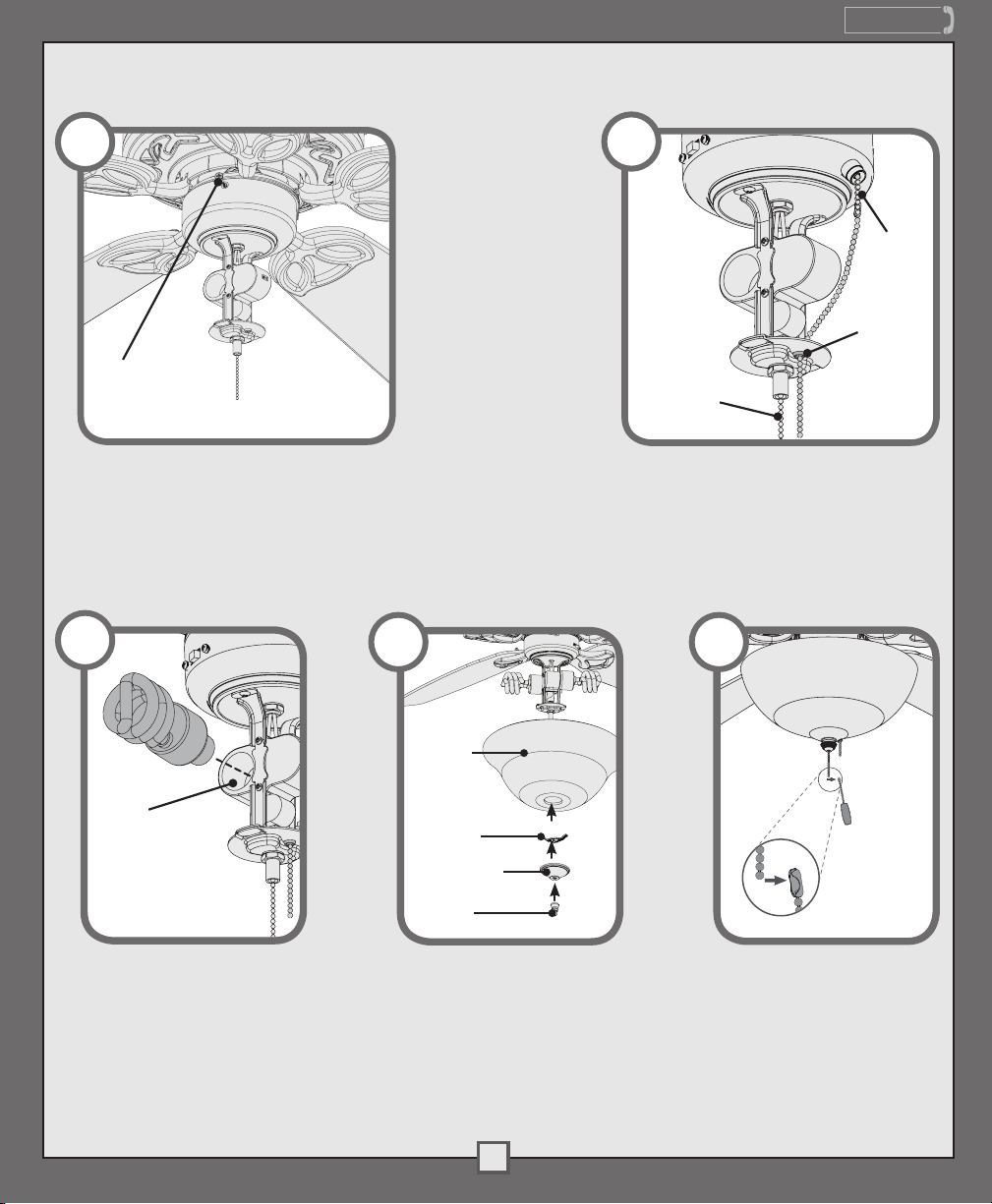

TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED)
1.888.830.1326
5
Switch
Housing
Screw
Lift the light kit assembly up so that the
screw holes in the lower switch housing
line up with the holes in the upper switch
housing. Install the switch housing
screws and tighten securely.
7
6
Fan Pull
Chain
Grommeted
Hole
Light Pull
Chain
If necessary, attach the extension chain
provided to the fan pull chain coming
from the switch housing. Then feed the
end of the extension chain through the
grommeted hole in the light kit.
8 9
Socket
Installing the bulb - Install a
bulb into each socket. When
necessary, replace bulbs
with bulbs of same type and
wattage.
Globe
Globe
Keeper
Finial Cap
Finial
Installing the globe - Press the globe
and globe keeper ush against the metal
plate. Thread the light pull chain through
the hole in the center of the nial cap
and thread the fan pull chain through
the hole in the side of the cap. Finally,
thread only the light pull chain through
the hole in the nial and screw the nial
onto the threaded rod.
7
MA016-01 • 01/09/14
Installing the pull chain
pendant - Attach the pull
chain pendants to the end of
the short chains coming from
the switch housing and the
light kit. Turn power on. Your
installation is complete.
Page 8

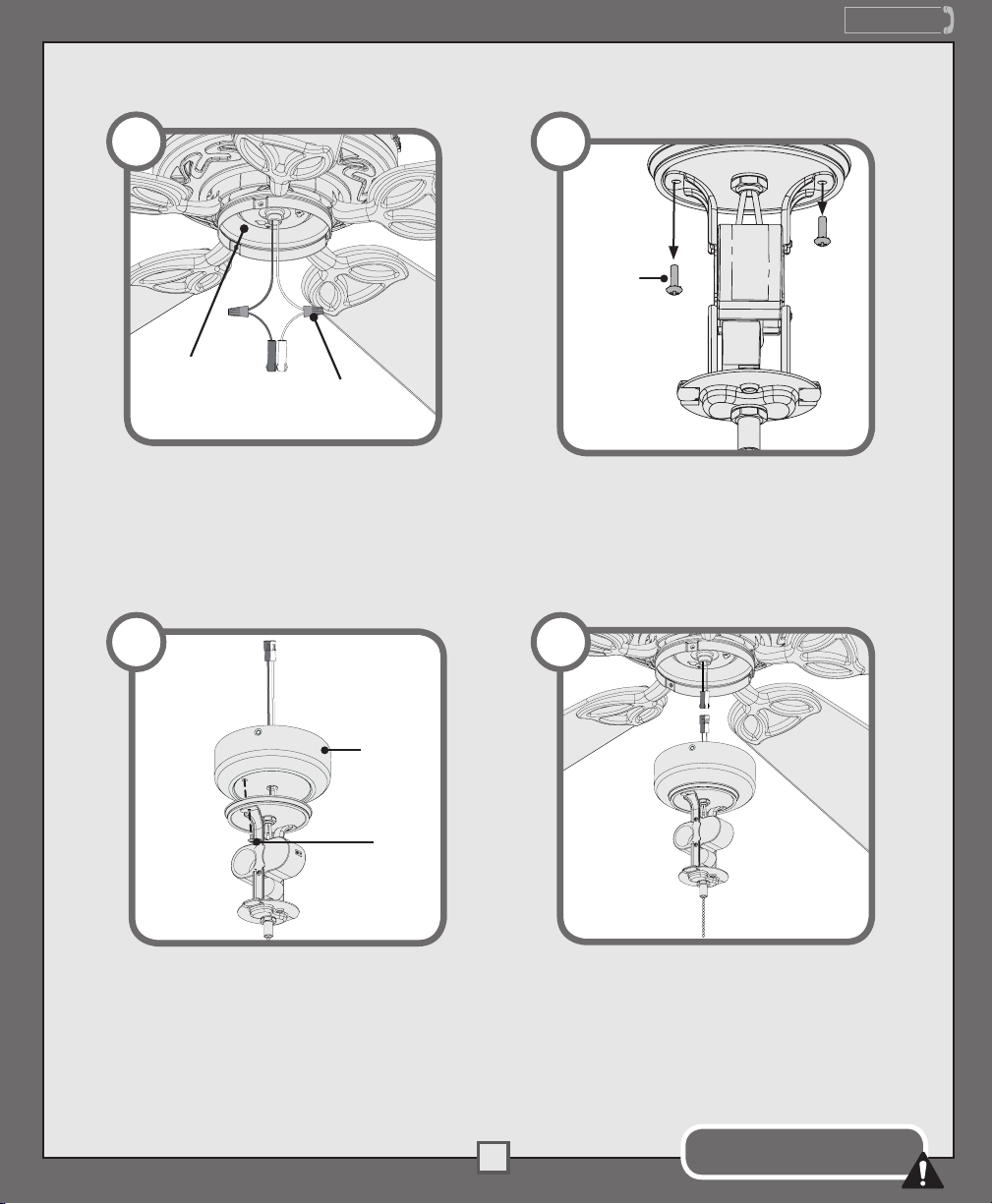

TYPE-C ASSEMBLY INSTRUCTIONS
1.888.830.1326
1
Switch
Housing
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Wire
Connector
3
Light
Kit Cap
2
Light
Kit Cap
Light Kit
Screw
Light
Fixture
Remove the screws attaching the light kit
cap to the light xture. Discard the screws.
4
Washer
and Nut
Light
Fixture
Light Kit
Screw
Install the shorter light kit screws, found
in the hardware bag, through the light
xture and into the light kit cap.
8
MA016-01 • 01/09/14
Threaded
Rod
Feed the wires through the switch
housing cap, washer, and nut. Then
install the switch housing cap by twisting
clockwise onto the threaded rod. Install
the washer and nut onto threaded rod
and tighten securely.
Do not allow the light kit to hang
only by the wire connections!
Page 9

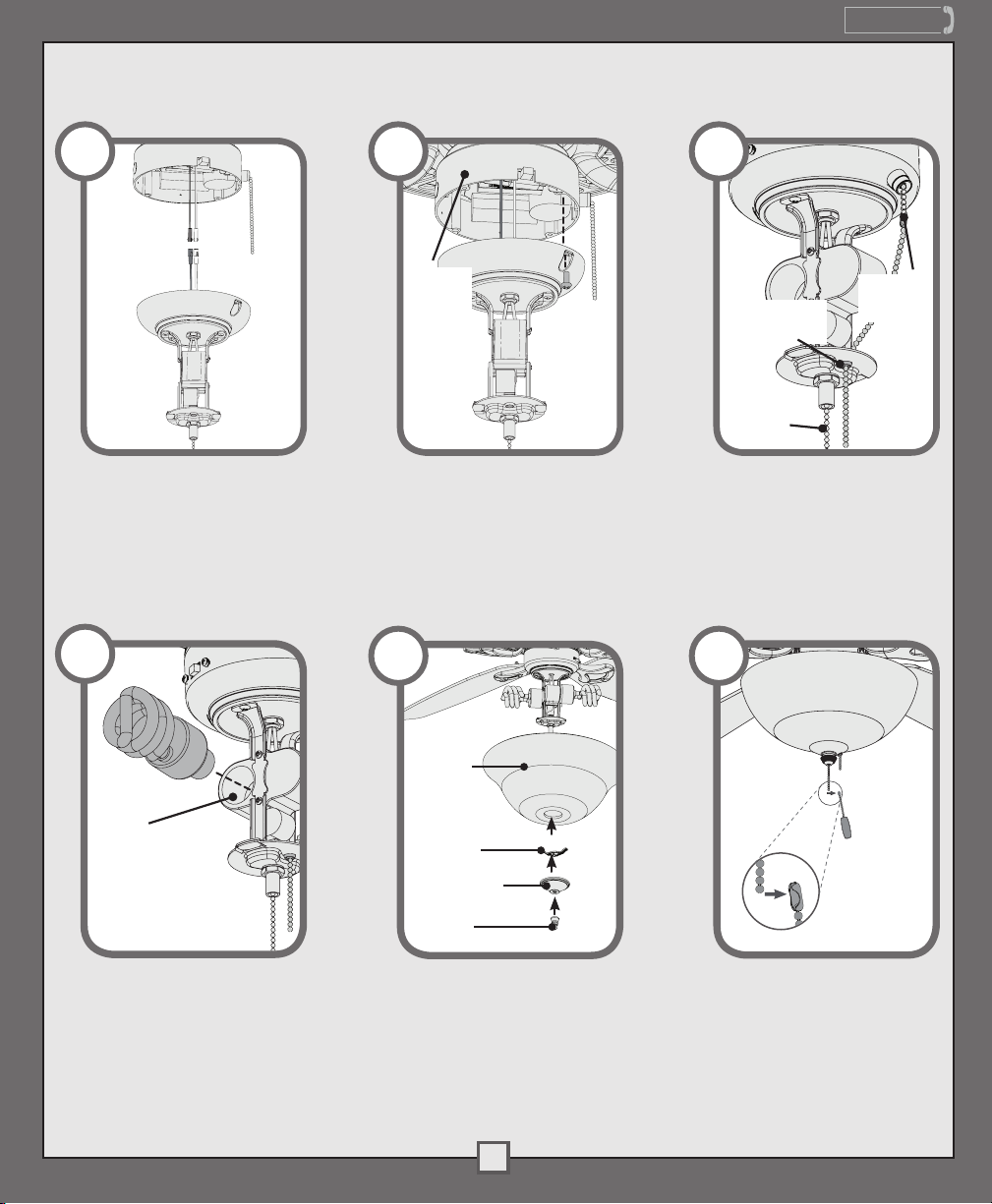

TYPE-C ASSEMBLY INSTRUCTIONS (CONTINUED)
75 6
1.888.830.1326
Using the single pin
connectors, connect the black
or blue wire from the fan to the
black wire from the light kit.
Connect the white wire from
the fan to the white wire from
the light kit.
8
Socket
Upper
Switch
Housing
Lift the light kit assembly up
so that the screw holes in the
lower switch housing line up
with the holes in the upper
switch housing. Install the
switch housing screws and
tighten securely.
9
Globe
Globe
Keeper
Finial Cap
Fan Pull
Grommeted
Hole
Chain
Light Pull
Chain
If necessary, attach the
extension chain provided to
the fan pull chain coming from
the switch housing. Then feed
the end of the extension chain
through the grommeted hole
in the light kit.
10
Installing the bulb - Install a
bulb into each socket. When
necessary, replace bulbs
with bulbs of same type and
wattage.
Finial
Installing the globe - Press the globe
and globe keeper ush against the metal
plate. Thread the light pull chain through
the hole in the center of the nial cap
and thread the fan pull chain through
the hole in the side of the cap. Finally,
thread only the light pull chain through
the hole in the nial and screw the nial
onto the threaded rod.
9
MA016-01 • 01/09/14
Installing the pull chain
pendant - Attach the pull
chain pendants to the end of
the short chains coming from
the switch housing and the
light kit. Turn power on. Your
installation is complete.
Page 10
TROUBLESHOOTING
Lights don’t come on.
• Make sure that the bulbs are properly installed.
• Make sure power switch is on.
• Pull the pull chain to make sure it is on.
• Check the circuit breaker to ensure the power is turned on.
• Check the pin connections in the light kit.
• Refer to the fan manual for locating the fan’s wiring. Verify that the light and power
wires are correctly connected to the ceiling and the light kit.
ONE YEAR WARRANTY
1.888.830.1326
This product is warranted to the original purchaser by Casablanca Fan Company/
Hunter Fan Company against defects in material and workmanship for one (1)
year from date of purchase. During the warranty period, we will repair or, at our
option, replace a defective product at no charge. For information on how to obtain
service, contact the Casablanca/Hunter Service Department by calling our toll-
free number at 888-830-1326. Damage to the product caused by mishandling,
improper installation or modication is not covered by this warranty. This warranty
is given in lieu of all other warranties expressed or implied. Some states do not allow
limitations of time on an implied warranty, therefore the above limitations may not
apply in every case. This warranty states specic legal rights which may vary from
state to state.
If you have problems installing or operating your light kit, do not return this product
to the dealer. Call our Consumer Affairs Hotline.
888-830-1326
10
MA016-01 • 01/09/14
Loading...
