Hunter Fan HTF10555 Installation & Assembly

Model: 51179 Matte Silver
51180 Matte Black
Fan weight ±2 lbs: 22.3 lbs (10.1 kg)

Kennicott

Installation Manual

©2021 Hunter Fan Co.

PG4002 r052021

Congratulations on purchasing your new Hunter® ceiling fan!

Here are the tools you’ll need to complete your installation:

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This

WARNING

instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and
appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction
Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical
sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.

READ and SAVE These Instructions

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the

mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you

cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.

Ladder

Screwdriver

This product conforms to UL Standard 507.

OPTIONAL

If mounting to a support structure, you will also need these tools.

9/64” Drill BitDrill

Pliers

1

© 2021 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400

Wire Strippers

Memphis TN 38016

1886

We recommend that you pull everything out of the box and lay it out. We have

Here is what comes in your box:

grouped the drawn components below with the hardware you’ll need for those

parts. The screws below are drawn to scale to make it easier to identify what

piece of hardware is needed to install each component.

Hunter Pro Tip:

Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.

bag

Washer

x2

For installing the hanger bracket and wiring the fan

x12 x12

bag bag

Blade

x6

Wood Screw

Wire Nut

x2

x4

Blade ScrewBlade Washer

Ceiling Bracket

Canopy

Downrod

bag

For installing the canopy

Motor

bag

Lower Switch Housing Cap

Canopy Screw

x2

x4Housing Screw

For installing the blades

Wall Control and Extra Downrod

bag

For your convenience,
you may receive extra fasteners.

Spare Parts

Note:

Fan style may vary.

Find a part that is missing or damaged?

Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

M3751-01 r082620

2

1886

1886

Choosing the Right Installation Location

Checking the Ceiling Angle:

Angled Mounting

You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.

Installing the Ceiling Bracket

Installing the Downrod

Check the room dimensions: Check the outlet box:

30 inches

from blade tip to
nearest wall or
obstruction

7 feet

from bottom edge

of blade to the

oor

Standard Mounting

Support Structure

Outlet Box

(required)

Ceiling

You must be able to
secure the fan to building
structure or fan-rated
outlet box.

Support
Structure

Angled Mounting

Ceiling

Outlet Box

(required)

If you have a at ceiling:

Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.

A little more information on Angled Mounting:

For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.

Hunter Pro Tip:

Determining if you need an Angled Mounting Kit:

Fold on the dotted line. Place edge against the wall.
Slide towards the ceiling.

If the guide touches the wall but not the ceiling, you
need an angled mounting kit.

WALL

If you have an angled or vaulted ceiling:

1. You will need a longer downrod. (sold separately at HunterFan.com)

2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)

3

34°

CEILING

1886

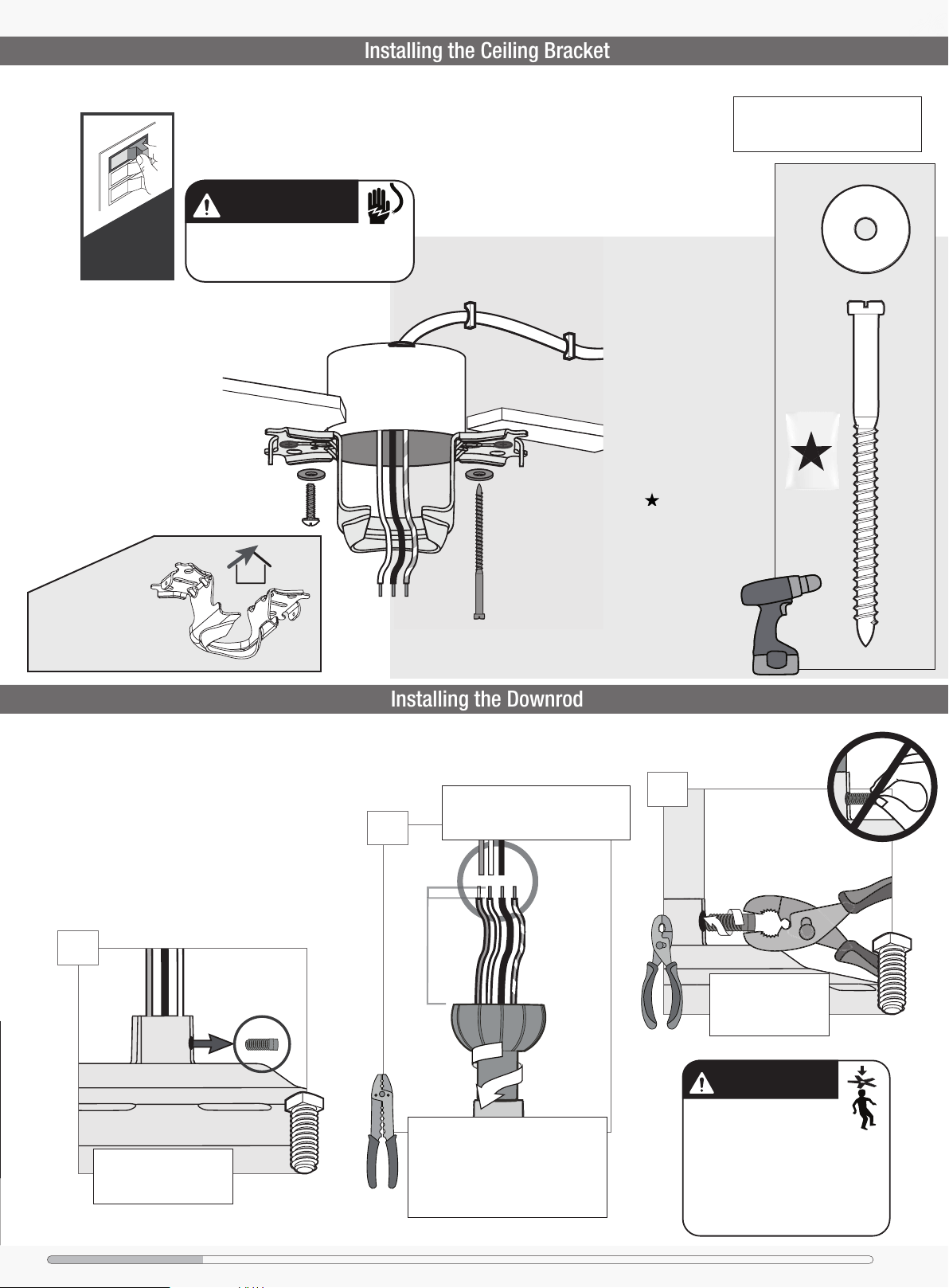

Installing the Ceiling Bracket

You have two options for installation. Pick which one works best for your location. Remove any existing

Installing the Downrod

WARNING

WARNING

bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.

Do this rst!

Hunter Pro Tip:

The machine screws are the ones
that came with your outlet box.

Turn Power

OFF

Option 1:
Machine Screws

Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of

31.8 kg (70 lbs) or less.

ANGLED

For angled ceilings,
point opening
toward peak.

To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

MOUNTING TIP

Option 2:

Wood Screws

Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.

Washer

x2

bag

x2

Wood Screw

Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.

Hunter Pro Tip:

The ground wire attached to the
downrod is approximately 8 inches.

T

U

C

8”

(not to scale)

Pass all wires to one side of horizontal
bar in downrod assembly. Hand tighten
the downrod (at least 4–5 full turns)
until it stops. Trim the wires coming
from the fan so that 8-inches remain
coming from the top of the downrod.

P

I

R

T

S

&

1

STEP

Remove the pre-installed
setscrew so that the
downrod can be inserted.

2

STEP

3/8”

E

E

P

K

!

3

STEP

Tighten the setscrew
with pliers. DO NOT

HAND TIGHTEN.

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Wall Control

4

1886

1886

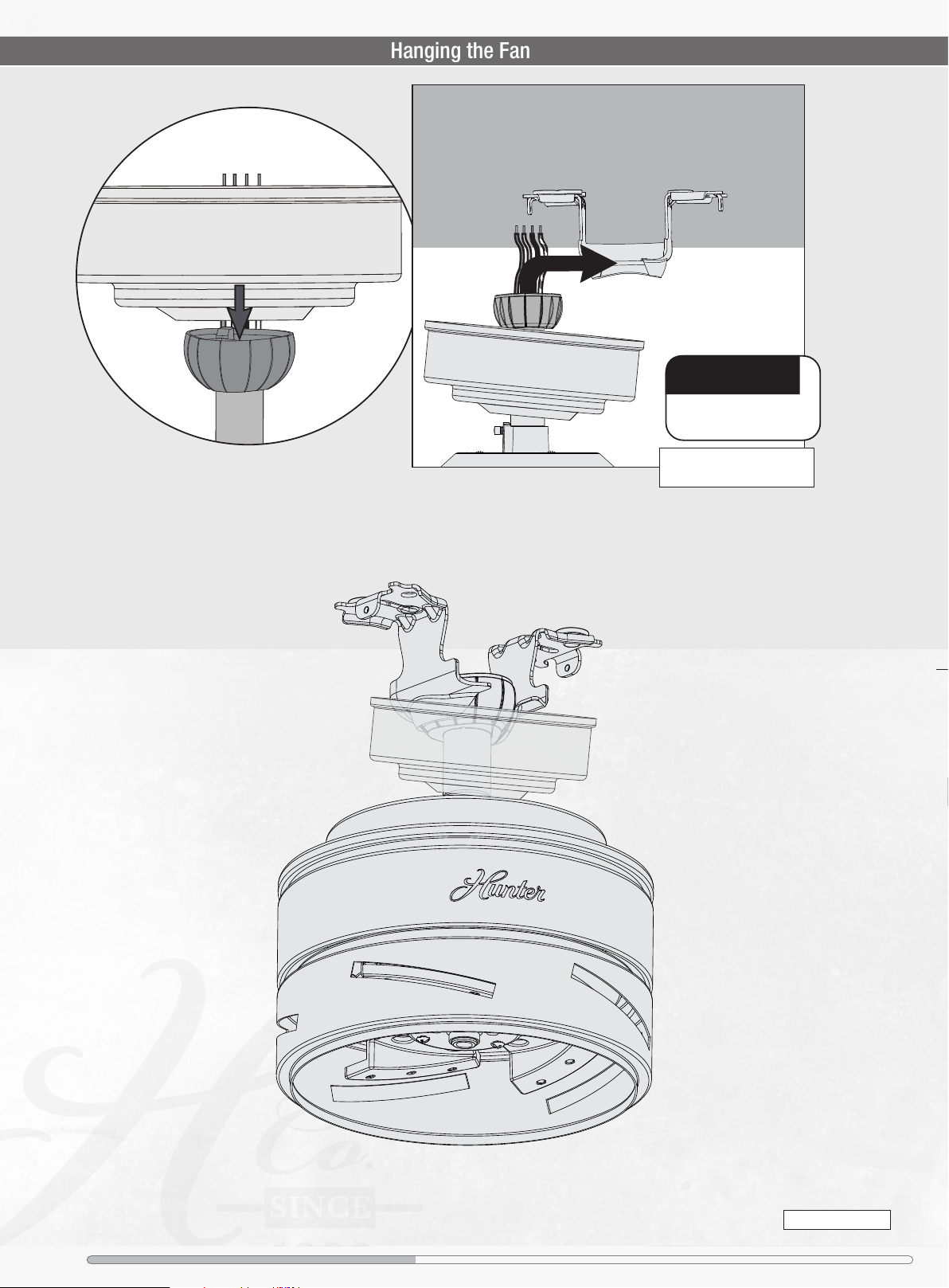

Hanging the Fan

S

NOTICE

Wiring the Fan

Installing the Canopy

l

i

d

e

c

a

n

o

p

y

o

v

e

r

d

o

w

n

r

o

d

a

n

d

w

i

r

e

s

.

Progress Check:

Your fan should look like this.

To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.

Place the downrod ball into
the slot in the ceiling bracket.

5

Note:

Fan style may vary.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Wall Control

1886

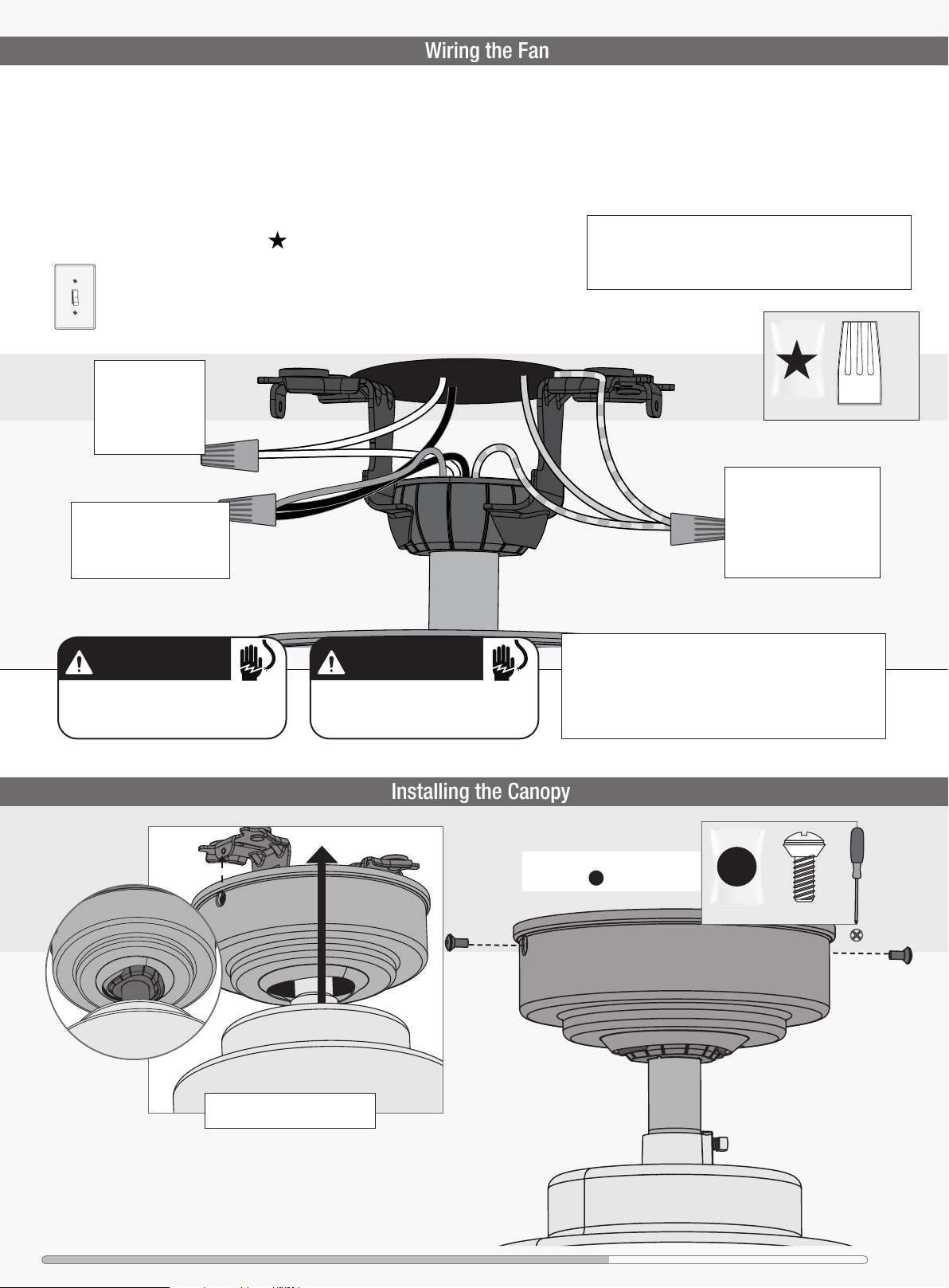

Wiring the Fan

We know wiring is hard. Let’s make it easier.

WARNING

Installing the Canopy

WARNING

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.

You are going to need these:

4 Wire Nuts (these are in the bag)

Have a single switch?

Follow these steps:

Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.

Connect the black wire
(ungrounded) from the
ceiling to the black and the
blue wires from the fan.

The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.

Grounded

White

Black

Blue

All wiring must be in accordance with
national and local electrical codes ANSI/NFPA

70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.

Hunter Pro Tip:

Here is how to connect the wires:

Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.

Give it a gentle pull to make sure none of the wires are loose.

Grounding

G

r

e

e

n

/

Y

e

l

l

o

w

S

t

r

i

p

e

Connect the three
grounding wires (green,

bag

Wire Nut

green/yellow stripe, or

Green/Yellow Stripe

bare copper) coming from
the ceiling, downrod, and
hanging bracket.

Hunter Pro Tip:

Have extra wiring?

Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Spread the wires apart,
with the grounded wires on one side of the outlet box and the
ungrounded wires on the other side of the outlet box. Make
sure that the wires are still attached to the wire nuts.

x4

Insert the two canopy screws
found in the hardware bag.

x2

Canopy Screw

bag

F

i

t
t

h

e

c

a

n

o

p

y

i

n

p

l

a

c

e

a

s

s

h

.

o

n

w

Lift the canopy into place so that
the screw holes are aligned.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Wall Control

6

1886

1886

Installing the Cap

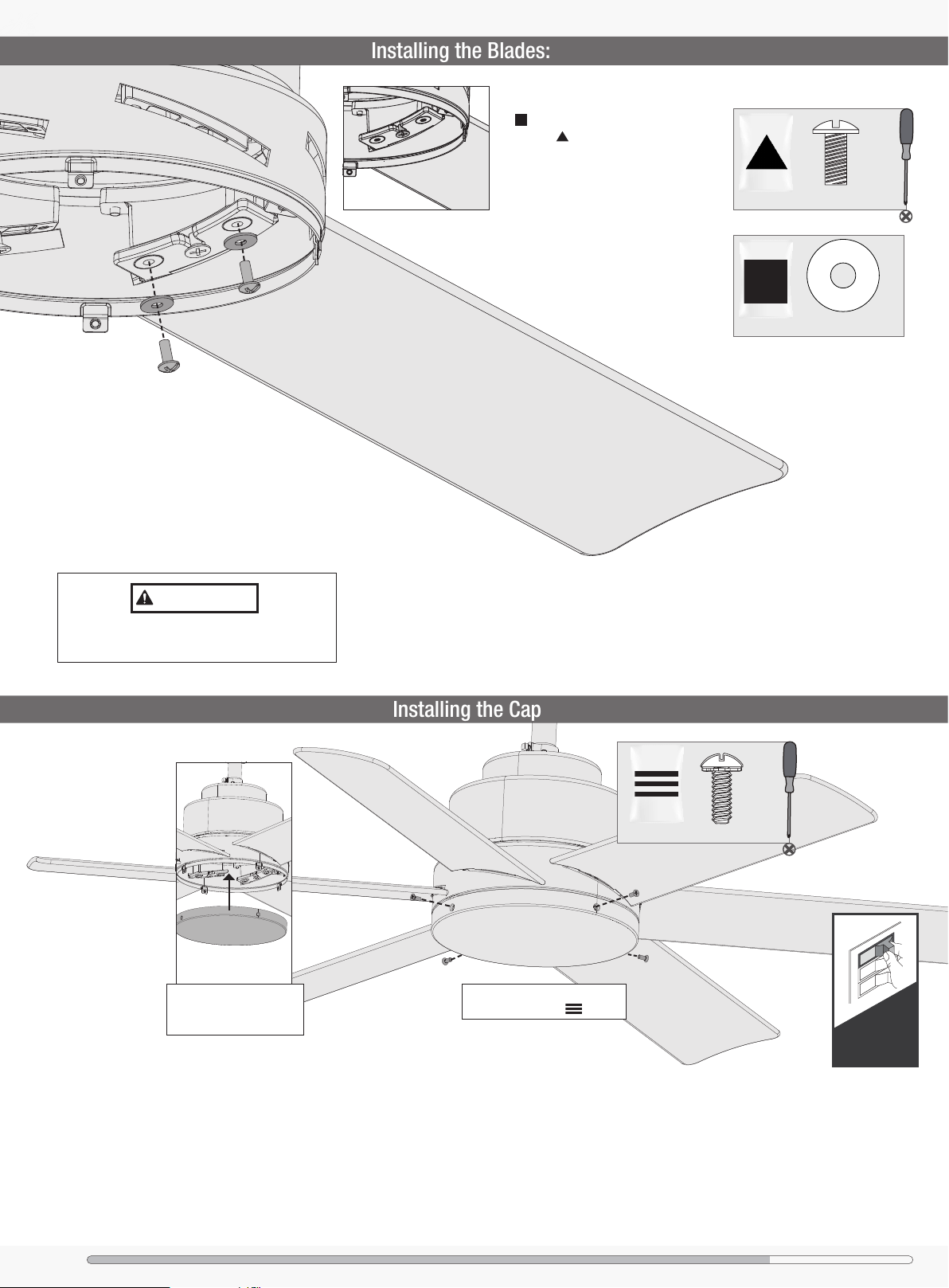

Installing the Blades:

Insert the blade into the blade slot around the

Installing Wall Control

center screw. Put the blade washers found in
the hardware bag onto the blade screws
found in the hardware bag. Then install
the blade screws to secure each blade to
the fan.

Repeat x6

bag

x12

Blade Screw

IMPORTANT

NOTE: Follow the instructions on the blade. Installing it
incorrectly could result in your fan not functioning.

bag

Blade Washer

x12

Lift the cap and align cap
holes with the extend tabs
of the fan housing.

Insert the housing screws found
in the hardware bag

bag

4 of 4

Housing Screw

Turn Power

ON

7

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Wall Control

1886

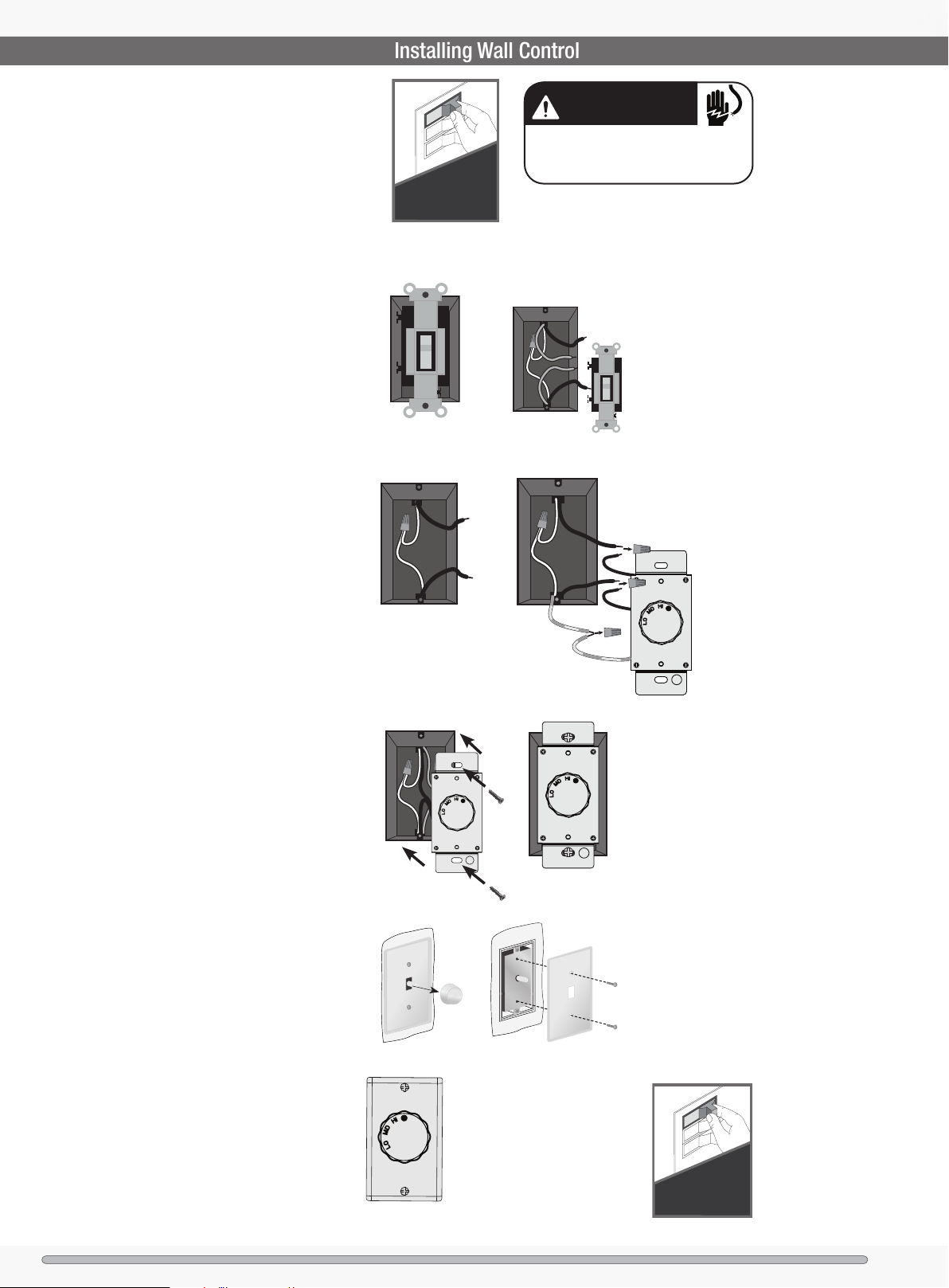

Installing Wall Control

OFF

Turning off the power

ON

WARNING

1

Ensure the power is OFF at the outlet box
and wall switch location before proceeding
with installation.

To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

Turn Power

OFF

Preparing the Wall Switch

2

After removing the switch plate cover,
remove all wiring from the switch.

Wiring the Wall Control

3

Using the wire connectors, connect each
black wire from the wall control to a
black wire from the switch box. Connect
the green with yellow stripe wire to the
grounding wire from the switch box.

Note: If two white wires are present in the
switch box, connect them to each other if
they are not already connected.

Installing the Wall Control

4

Insert the wall control into the outlet
box and secure the two metal tabs to
the tabs on the switch box using the
two at head screws that came with the
switch box.

1.

1.

1.

2.

2.

2.

Installing the Wall Plate

5

Remove the knob from the wall
control and mount the faceplate (not
included) to the wall control using the
two #6-32 screws you removed earlier
from the faceplate.

Installing the Wall Plate (CONT)

6

Reattach the knob onto the wall
control and turn it to the left for the
OFF position.

1.

2.

Turning

7

on the
power

Turn Power

ON

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Wall Control

8

1886

1886

Troubleshooting

Fan Doesn’t Work

Excessive Wobbling

Noisy Operation

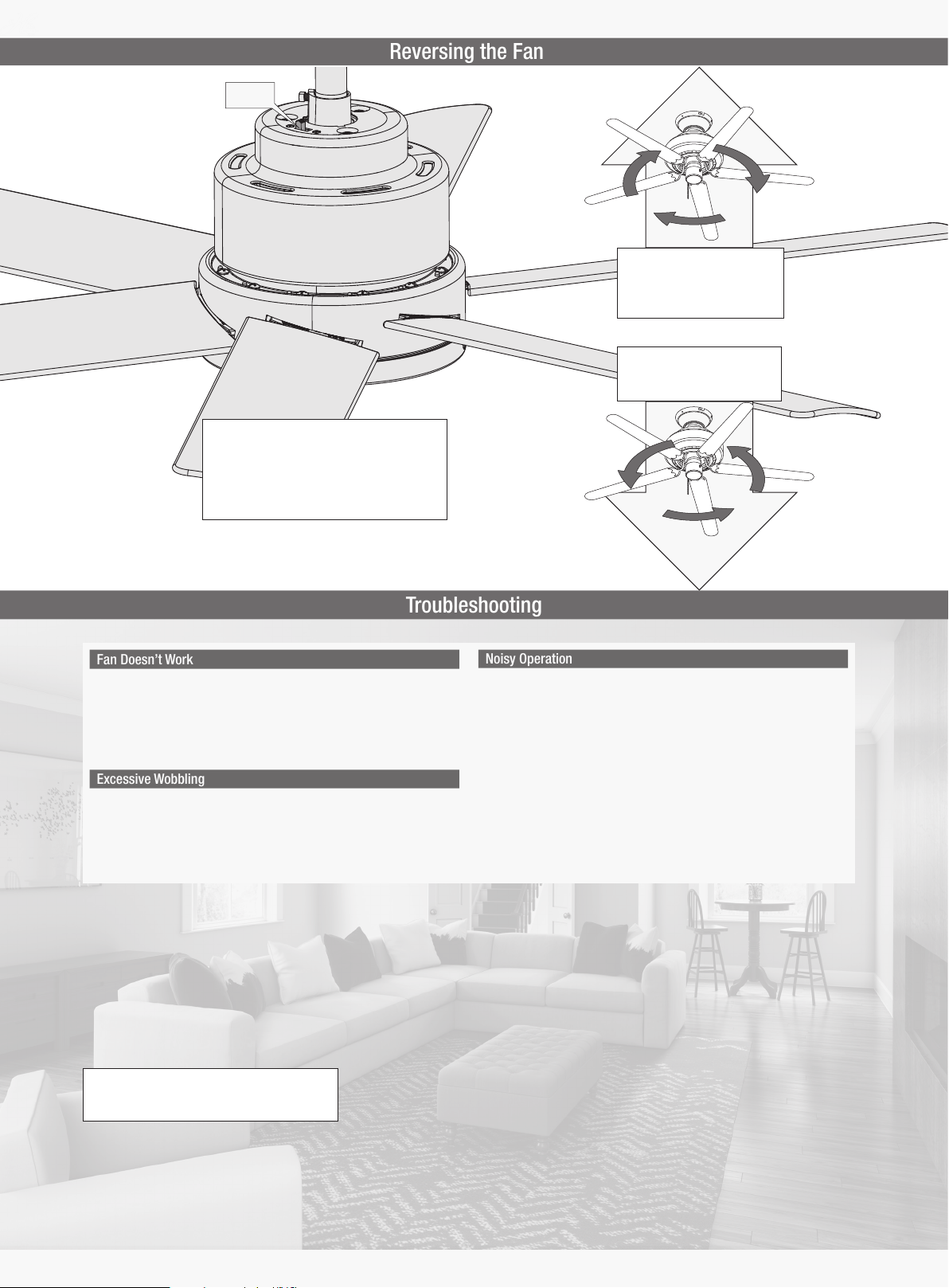

Reversing the Fan

Reverse
Switch

Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft
(clockwise rotation). To change the direction
of air ow, turn the fan off and let it come to a
complete stop. Slide the reversing switch to the
opposite position. Restart the fan.

Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.

Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.

• Push the motor reversing switch rmly left or right to ensure that it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the
connections according to the wiring diagram.

• Make sure the blades are properly installed on the blade iron posts.

• Turn the power off, support the fan carefully, and check that the hanger ball is
properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Hunter Pro Tip:

Cleaning the Fan

Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.

• Make sure the blades are properly installed.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

9

1886

Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter

Limited Lifetime Warranty

Downrod

WARNING

ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original

purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/

1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

What Does This Warranty Cover?

Motor — Limited Lifetime Warranty

If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.

Other — One-Year Limited Warranty

Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*

Light Kits — Warranty May Vary

Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:

• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*

* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.

What Does This Warranty NOT Cover?

Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

How Does State Law Affect Warranty Coverage?

This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.

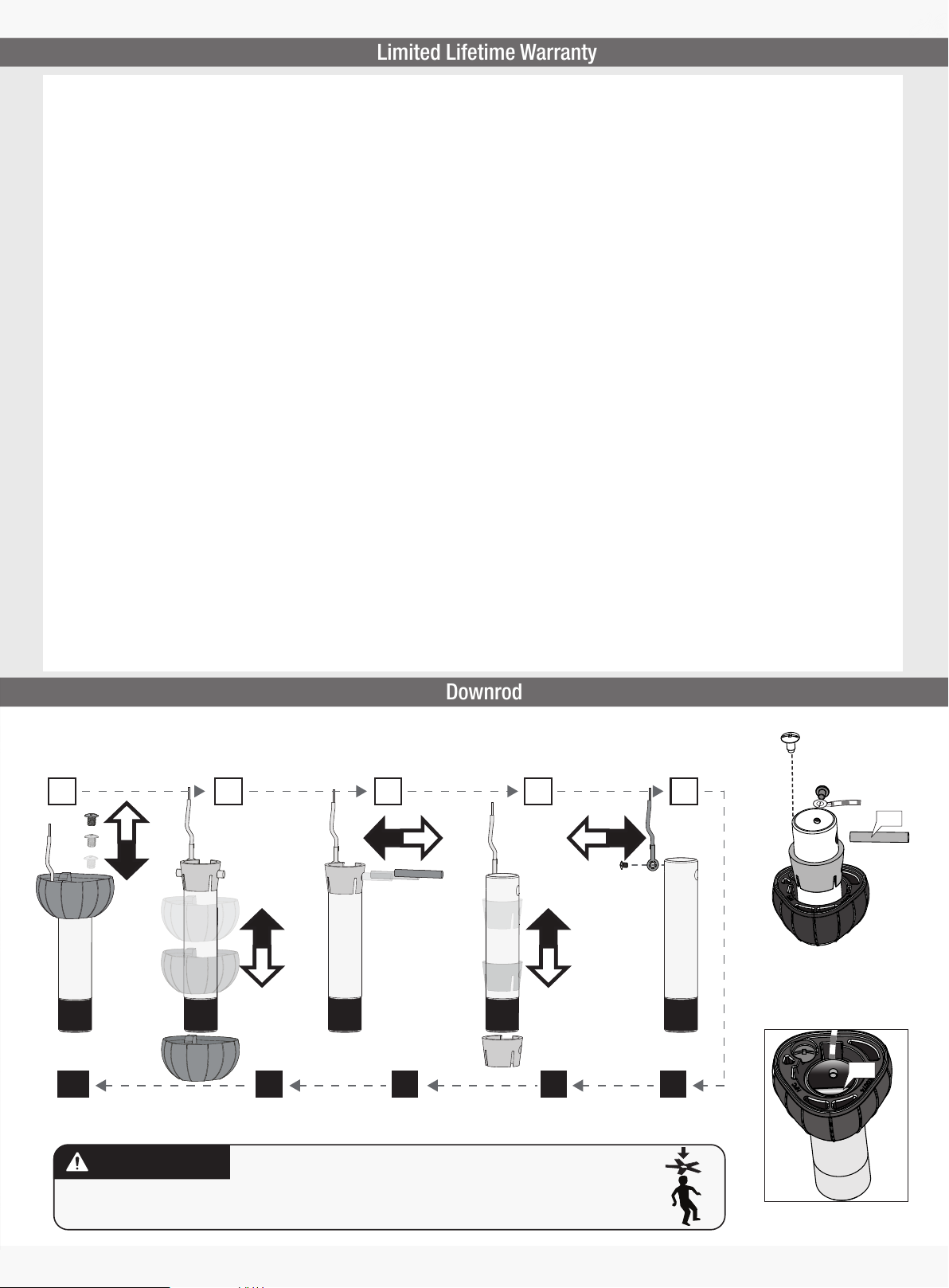

If you need a different downrod length follow these steps:

Follow steps 1-5 to remove standard downrod pipe

1 2 3 4 5

1

10

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

9

2

Follow steps 6-10 to reassemble with new downrod

• A LWAYS follow the

downrod assembly
instructions exactly.

8 3

• VERIFY the downrod
is assembled correctly
by rmly pulling on the
hanger ball.

65

7

4

• Pin must be reinserted
to secure downrod
assembly.

Pin

Here is another view of
the downrod assembly
unassembled.

Pin

678910

Assembled downrod
should look like this

10
