Model: 53997 Matte White
50008 Matte Silver
Fan weight ±2 lbs: 22.9 lbs (10.4 kg)
Lakemont
Installation Manual
©2020 Hunter Fan Co.
PG3854 r012120
1886
Congratulations on purchasing your new Hunter® ceiling fan!
Here are the tools you’ll need to complete your installation:
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
WARNING
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.
READ and SAVE These Instructions
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ladder
This product conforms to UL Standard 507.
OPTIONAL
If mounting to a support structure, you will also need these tools.
Screwdriver
9/64” Drill BitDrill
Pliers
1
© 2020 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Wire Strippers
Memphis TN 38016
1886
We recommend that you pull everything out of the box and lay it out. We have
Here is what comes in your box:
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
bag
Washer
x2
For installing the hanger bracket and wiring the fan
x9 x9
Blade Washer
bag bag
Blade Screw
Wood Screw
Wire Nut
x4
bag
x2
x5
Blade Iron Screw
Ceiling Bracket
Canopy
Downrod
Motor
bag
For installing the canopy
Canopy Screw
x2
For installing the blades
Remote Control Remote Cradle
Remote Components
Blade
x3
bag
For your convenience,
you may receive extra fasteners.
Downrod
Note:
Fan style may vary.
Spare Parts
Blade Iron
Upper Swith Housing
LED Module
Glass
bag
For installing the light kit
x6
Light Kit Screw
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
M3784-01 r021120
2
1886
1886
Choosing the Right Installation Location
Checking the Ceiling Angle:
Angled Mounting
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Installing the Ceiling Bracket
Installing the Downrod
Check the room dimensions: Check the outlet box:
30 in
from blade tip to
nearest wall or
obstruction
7 ft
from bottom edge
of blade to the
oor
Standard Mounting
Support Structure
Outlet Box
(required)
Ceiling
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
Support
Structure
Angled Mounting
Ceiling
Outlet Box
(required)
If you have a at ceiling:
Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.
A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.
Hunter Pro Tip:
Determining if you need an Angled Mounting Kit:
Fold on the dotted line. Place edge against the wall.
WALL
Slide towards the ceiling.
If the guide touches the wall but not the ceiling, you
need an angled mounting kit.
If you have an angled or vaulted ceiling:
1. You will need a longer downrod. (Sold separately at HunterFan.com)
2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)
3
34°
CEILING
1886

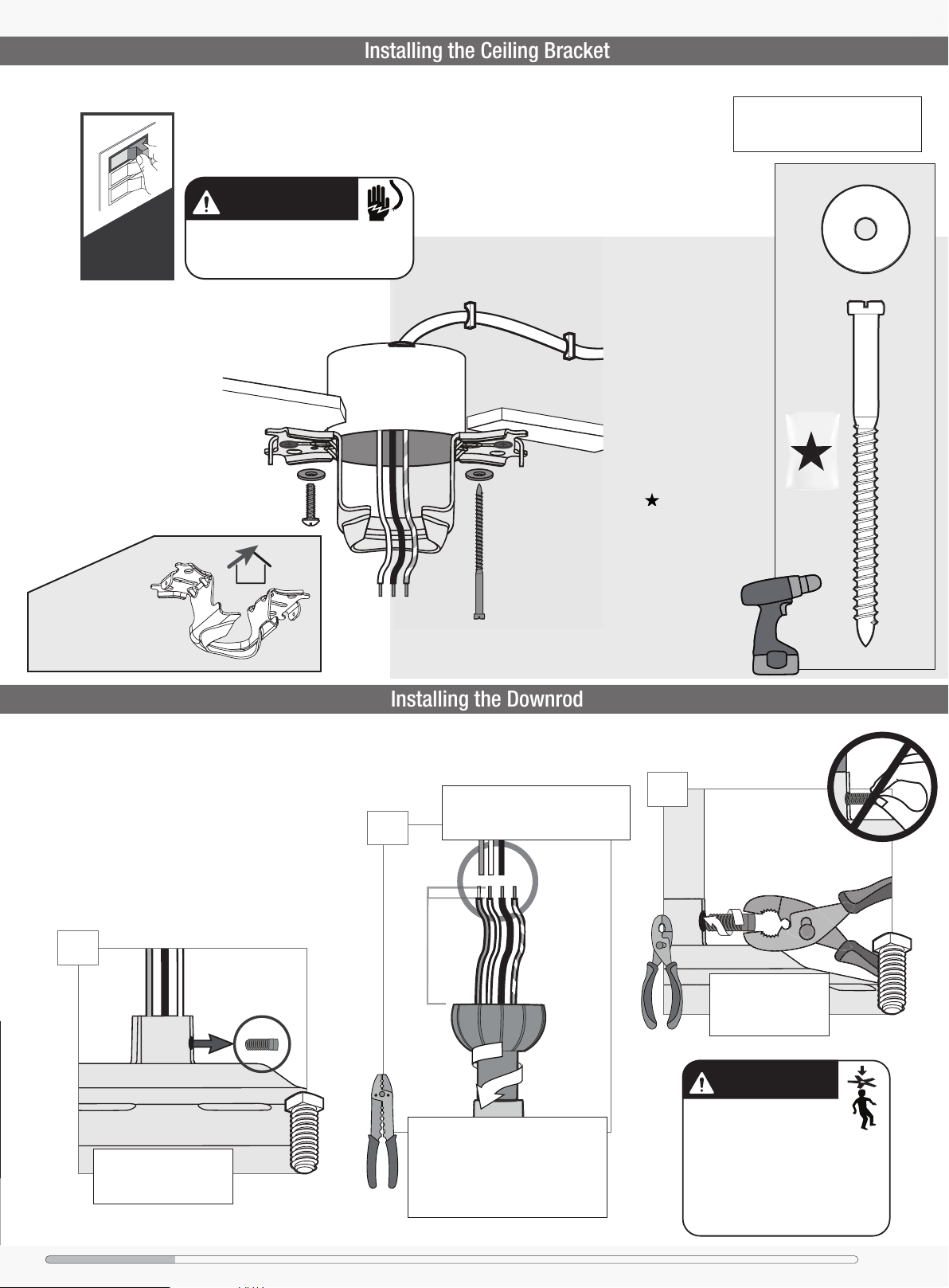

Installing the Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing
Installing the Downrod
WARNING
WARNING
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Do this rst!
To avoid possible electrical shock, before
Turn Power
OFF
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Hunter Pro Tip:
The machine screws are the ones
that came with your outlet box.
x2
Washer
Option 1:
Machine Screws
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg / 70 lb or less.
ANGLED
For angled ceilings,
point opening
toward peak.

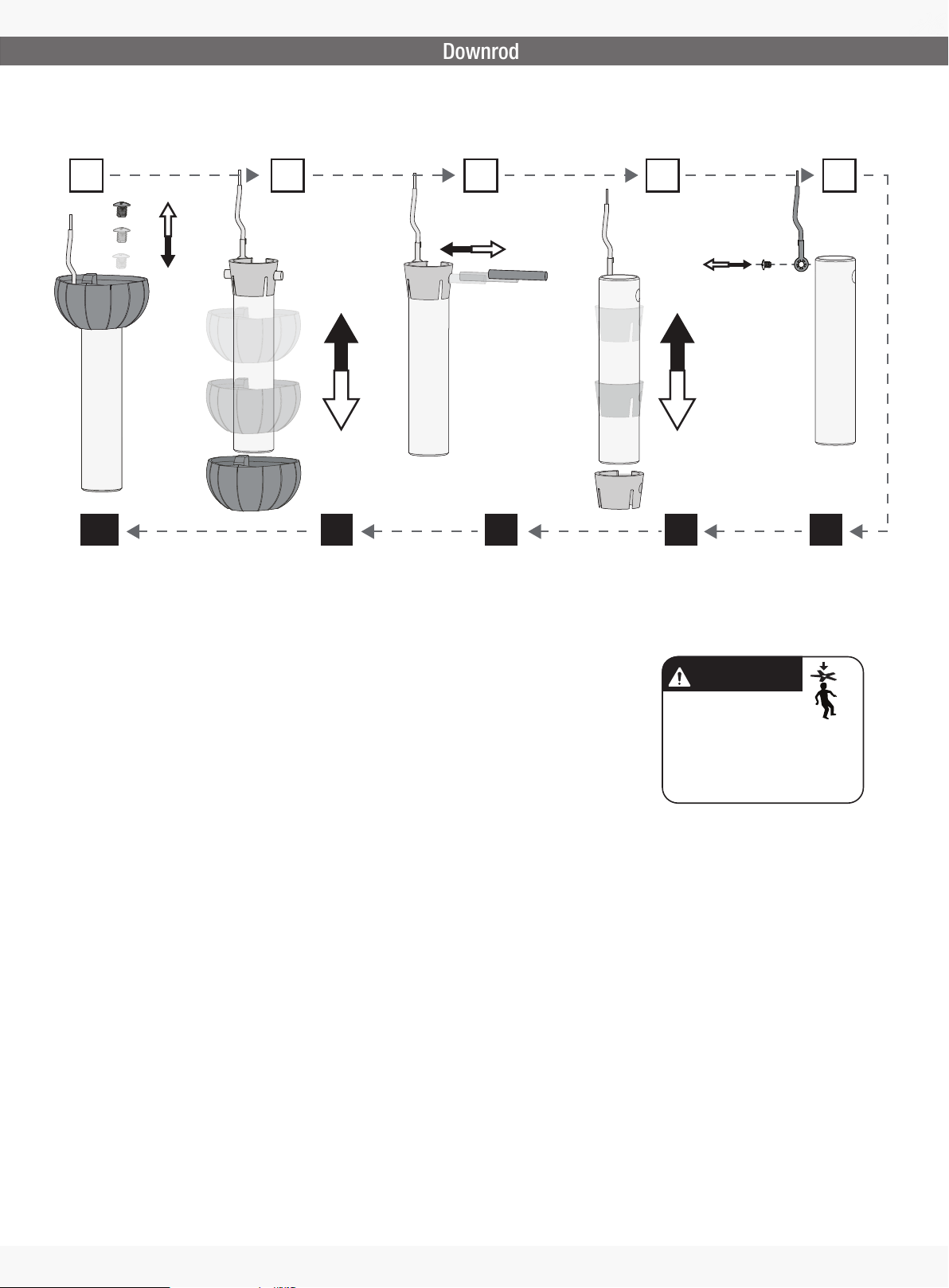

Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
MOUNTING TIP
2
STEP
3/8 in
3/8”
Hunter Pro Tip:
The ground wire attached to the
downrod is approximately 8 inches.
T
U
C
P
I
R
T
S
&
Option 2:
Wood Screws
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64 in pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
3
STEP
bag
x2
Wood Screw
8 in
1
STEP
E
E
P
K
!
Remove the pre-installed
setscrew so that the
downrod can be inserted.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
8”
(not to scale)
Pass all wires to one side of horizontal
bar in downrod assembly. Hand tighten
the downrod (at least 4–5 full turns)
until it stops. Trim the wires coming
from the fan so that 8 in remain
coming from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• A LWAY S tighten setscrew with pliers.
• DO NOT hand tighten setscrew.
• CHECK the setscrew is tight using pliers
each time you change fan direction.
4
1886
1886

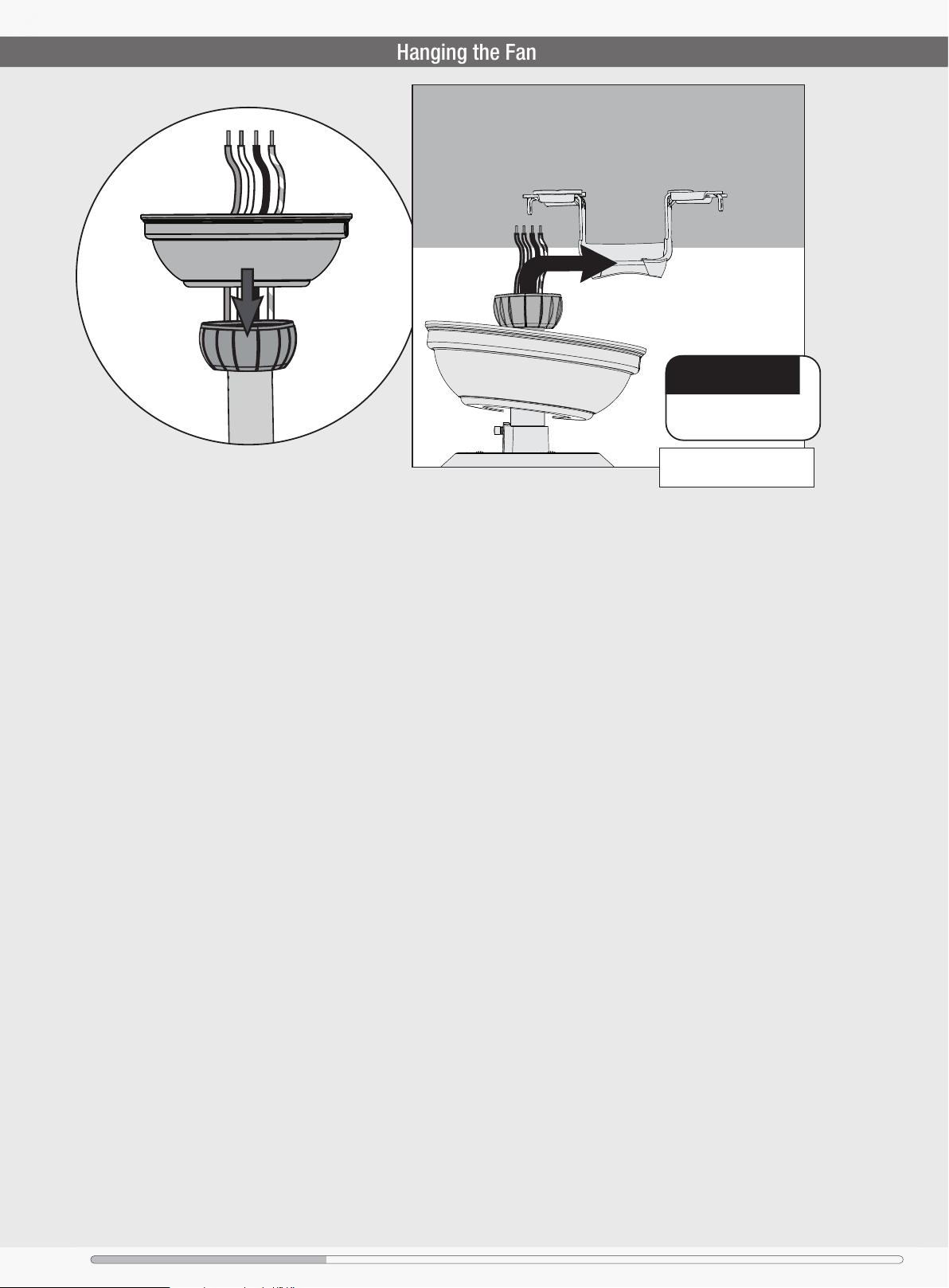

Hanging the Fan
S
NOTICE
Wiring the Fan
l
i
d
e
c
a
n
o
p
y
o
v
e
r
d
o
w
n
r
o
d
a
n
d
w
i
r
e
s
.
To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.
Place the downrod ball into
the slot in the ceiling bracket.
5
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
1886

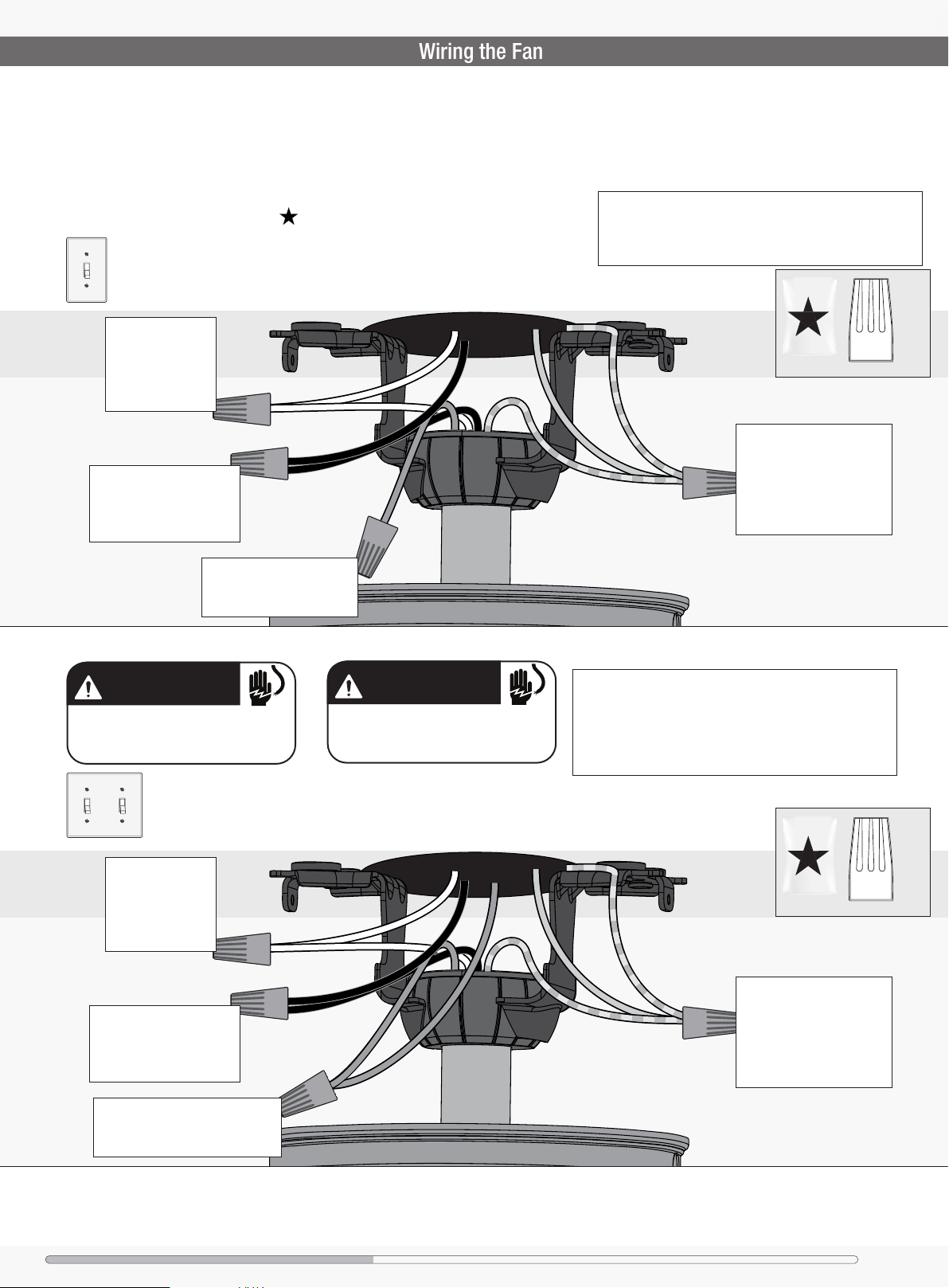

Wiring the Fan
We know wiring is hard. Let’s make it easier.
WARNING
WARNING
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.
You are going to need these:
4 Wire Nuts (these are in the bag)
Have a single switch?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Cap the blue wire from the
fan.
for single switch wiring.
You will not need it
Grounded
White
Ungrounded
Black
Blue
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
G
r
e
e
n
/
Y
e
l
Grounding
Green/Yellow Stripe
l
o
w
S
t
r
i
p
e
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
bag
x4
Wire Nut
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.
Have dual switches?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
White
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Connect the second ungrounded
(light) wire from the ceiling to
the blue wire from the fan.
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.
Grounded
Ungrounded
Black
Blue
Ungrounded (light)
Hunter Pro Tip:
Have extra wiring?
Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Spread the wires apart,
with the grounded wires on one side of the outlet box and the
ungrounded wires on the other side of the outlet box. Make
sure that the wires are still attached to the wire nuts.
G
r
e
e
n
/
Y
e
l
Grounding
Green/Yellow Stripe
l
o
w
S
t
r
i
bag
p
e
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Wire Nut
x4
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
6
1886
1886

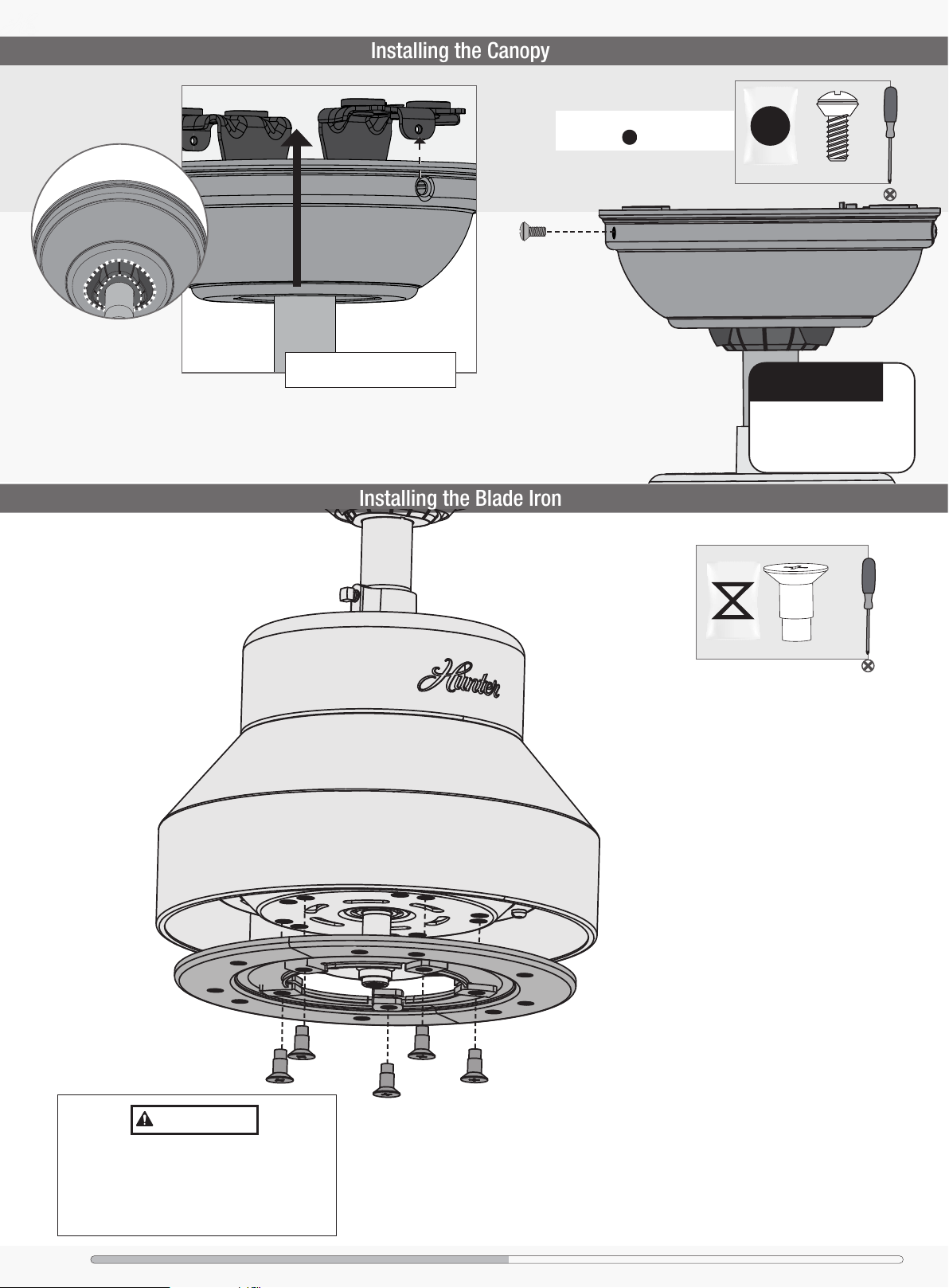

Installing the Canopy
Installing the Blade Iron
Insert the two canopy screws
NOTICE
found in the hardware bag.
x2
Canopy Screw
bag
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
.
o
n
w
Lift the canopy into place so that
the screw holes are aligned.
If screw holes do not align
properly then rotate the canopy
180 degrees. Hanger ball shape
must match canopy opening for
correct canopy installation.
bag
There are ve pairs of holes in the fan. Lift the blade
iron into position. Align the grommeted holes in the
blade iron with the holes on the fan. It does not matter
which hole you choose. Install the blade iron screws
found in the hardware bag to secure the blade iron to
the fan.
x5
Blade Iron Screw
NOTE: Make sure blade iron is installed to the right
holes. Installing it incorrectly could result in your fan
not functioning.
7
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
IMPORTANT
1886

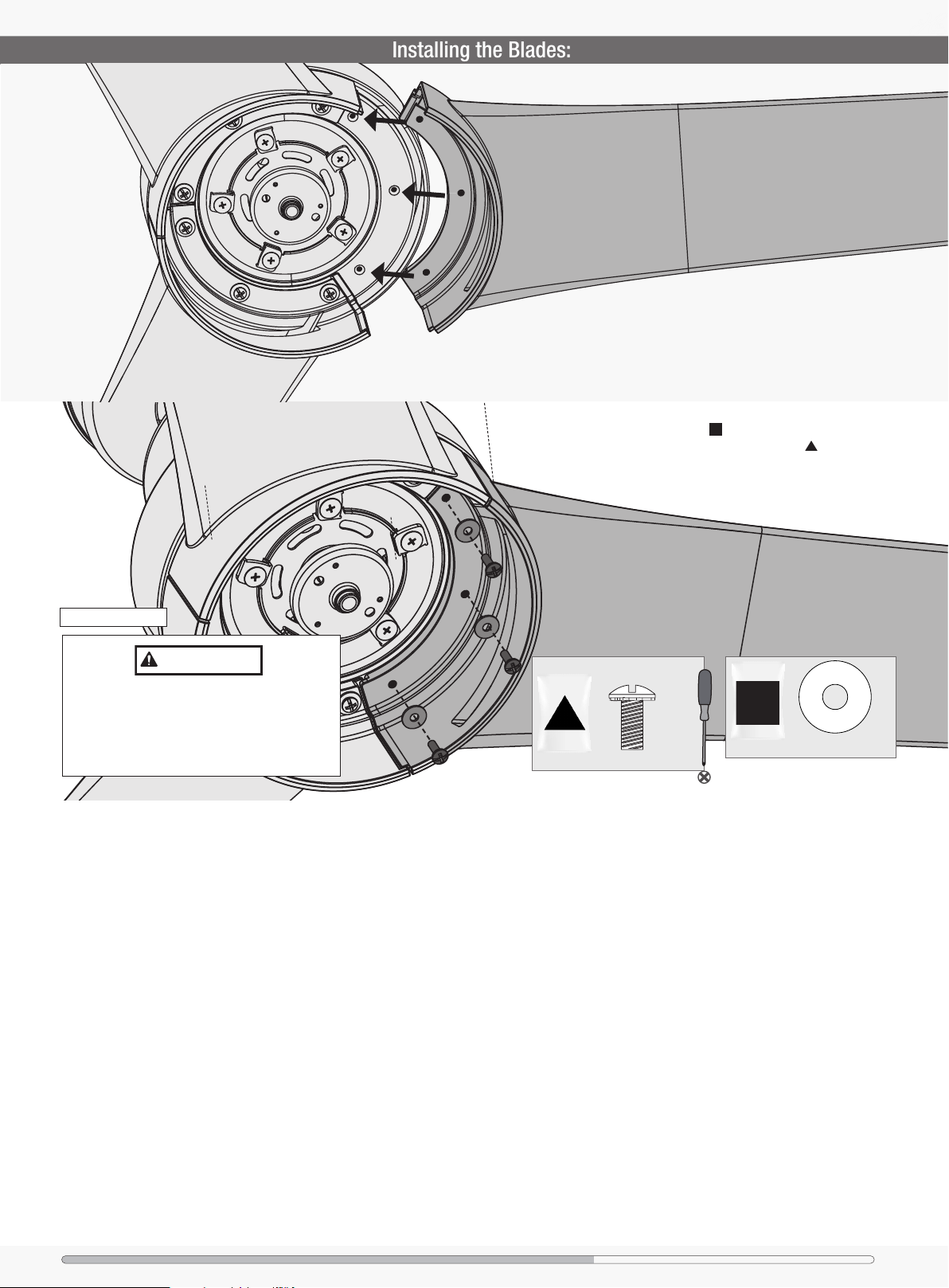

Installing the Blades:
Note:
Fan style may vary.
IMPORTANT
NOTE: Follow the instructions on the blade. Installing
it incorrectly could result in your fan not functioning.
Remove instructional label after installation.
bag
Slide the blades into position. Ensure
that the blades do not overlap one
another. Align the holes in the blade
arms with the holes on the fan.
Repeat x3
Put the blade washers found in the
hardware bag onto the blade
screws found in the hardware
bag. Then install the blade screws
to secure each blade to the fan.
Repeat x3
x9
Blade Screw
bag
Blade Washer
x9
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
8
1886
1886
Installing the Glass
WARNING

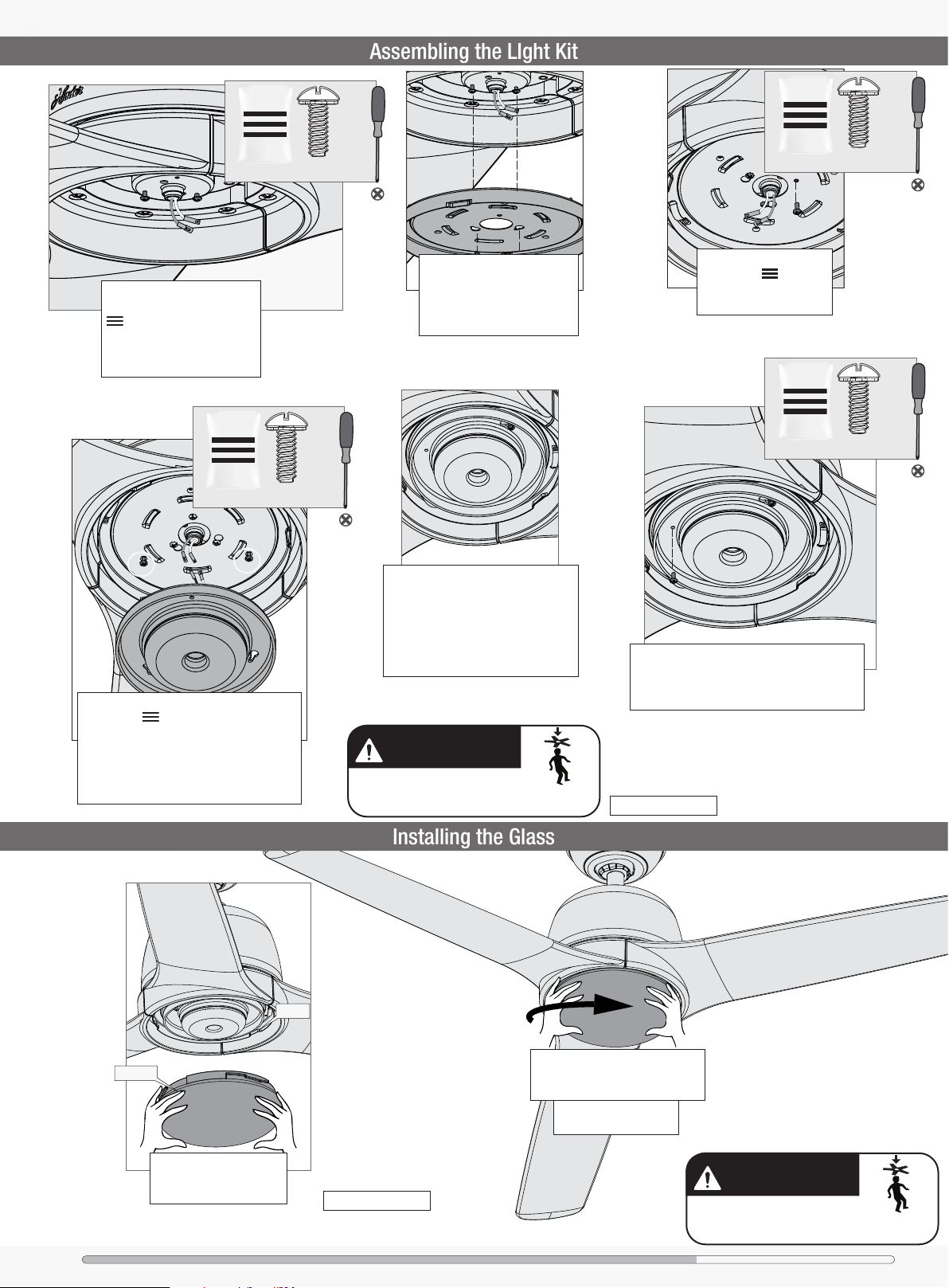

Assembling the LIght Kit
WARNING
bag
2 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
Light Kit Screw
bag
Partially install two of the light kit screws
found in the bag. It does not matter
which two screw holes you choose. Connect
the single-pin connectors from the LED
assembly to the connectors from the fan.
Connect the white wires together. Connect
the blue and black wires together.
2 of 6
Feed the wire plug through the
center hole of the upper switch
housing, then wrap keyhole
slots around the screws and
twist counterclockwise.
Align the keyhole slots in the light kit
housing with the two screws. Make
sure all the wires from the fan and the
light kit are snug inside the center of
the light kit, not pinched in between
the upper switch housing and the light
kit or hanging out of the sides.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
Insert the third screw,
found in the hardware
bag, into place and then
tighten all three screws.
bag
Turn the light kit counterclockwise until the
light kit screws are rmly situated in the
narrow end of the keyhole slots. Install the third
screw and tighten all three screws securely.
Note:
Fan style may vary.
1 of 6
Light Kit Screw
Tab
Notch
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
9
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
Note:
Fan style may vary.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
NOTE: Check to ensure
proper engagement.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
1886

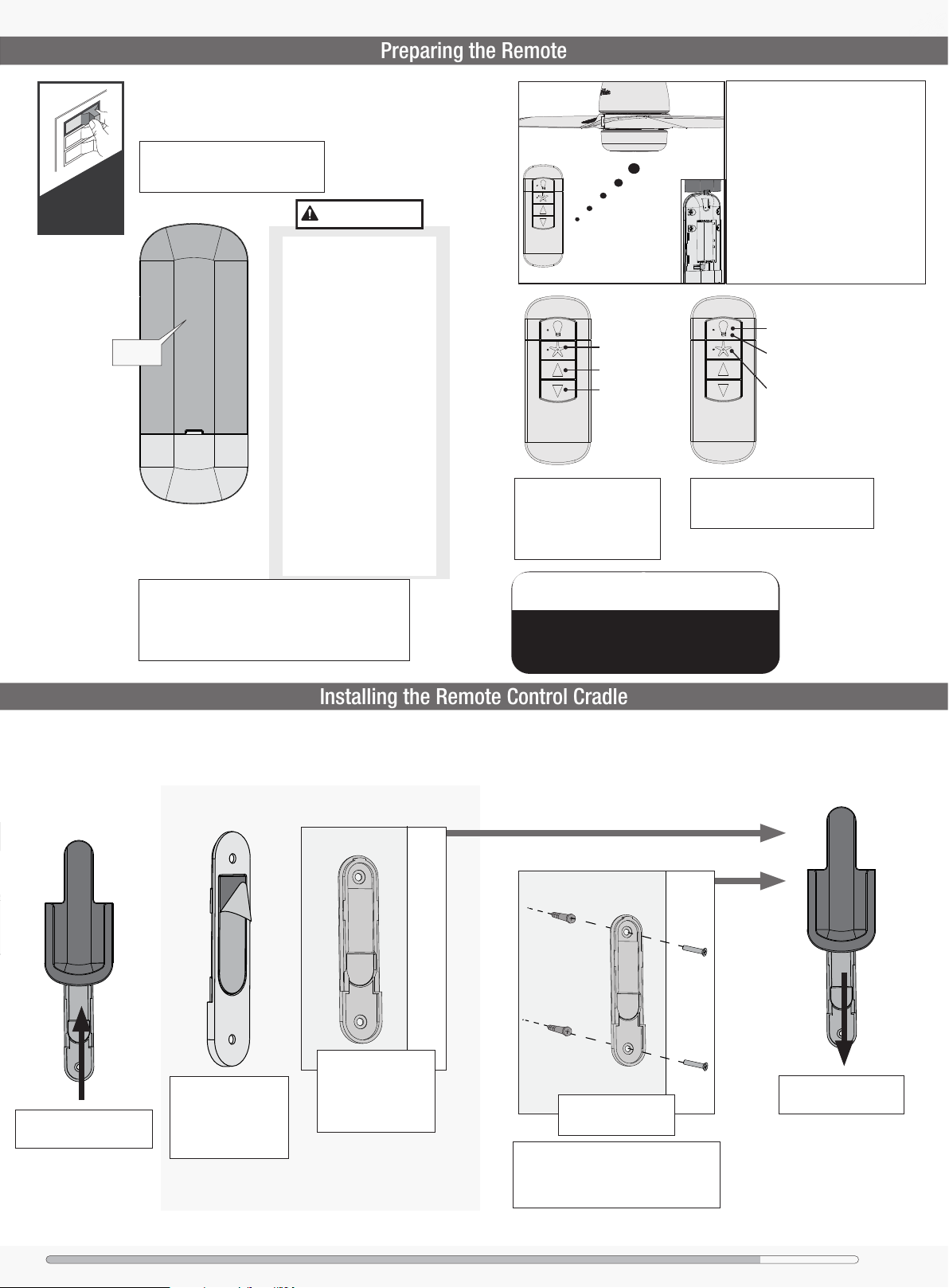

Preparing the Remote
Installing the Remote Control Cradle
Turn Power
NOTICE
ON
For your convenience, a remote function card
is packed in with your remote.
To access the battery compartment,
remove the the battery door to the
transmitter assembly.
IMPORTANT
• Always purchase the
correct size and grade of
battery most suitable for
the intended use.
• Replace all batteries of a
Battery
Door
set at the same time.
• Clean the battery contacts
and also those of the
device prior to battery
installation.
• Ensure the batteries are
installed correctly with
regard to polarity (+ and -).
• Remove batteries from
equipment which is not to
be used for an extended
period of time.
• Remove used batteries
promptly.
Fan On/Off
Fan Speed Up
Fan Speed
Down
The Fan On/Off button turns
the fan on or off. Adjust the
fan speed using the “Fan
Speed Up” or “Fan Speed
Down” directional buttons.
The remote transmitter is already
paired to the receiver and ready to use.
Dimming mode is off by default.
Note: If you need to pair your remote,
turn fan power off and back on at the
wall switch. Within 3 minutes, press
and release the “PAIR” button on the
back of the remote. Do not hold down
the button. To prevent faulty operation,
please ensure all other ceiling fans
within range are turned off at the wall
switch while pairing.
Quick Press:
Light On/Off
Long Press:
Light Dimming
Long Press:
Reverse
Quickly press the Light button to turn
the lights off and on. Hold the Light
button to raise and dim the light level.
Install two AAA batteries, found in the remote control
hardware bag, into the transmitter. Clean the battery
contacts prior to installing the batteries. Please contact
your local battery recycling center for proper battery
disposal information.
You have two options for installing the remote cradle.
Choose which path works best for you.
Option 1: Using Adhesive Strip
: DIMMING MODE
To enable dimming, your remote must be set to
Dimming Mode. To toggle Dimming Mode on or off,
long press the “Fan Speed Up” button and “Fan
Speed Down” button.
Option 2: Using Screws
Press the cradle
Separate the lining
from the back of the
Remove the cradle from
the cradle bracket.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
adhesive strip on
the cradle bracket.
bracket against the
wall and hold rmly
for 30 seconds.
Choose your cradle
installation location.
If you are installing into drywall, drill two
9/64 width holes using the cradle bracket
as a guide. Gently hammer the included
drywall anchors into the pre-drilled holes.
Slide the cradle onto
the mounted bracket.
10
1886
1886
Troubleshooting
Fan Doesn’t Work
• Make sure power switch is on.
Excessive Wobbling
Remote Control of Fan is Erratic
Remote Only Works Close to Fan
Noisy Operation
Multiple Remote Issues
Limited Lifetime Warranty
• Push the motor reversing switch rmly left or right to ensure that it is
engaged.
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy and
check all the connections according to the wiring diagram.
• Check the plug connection in the switch housing.
• Make sure the blades are properly installed on the blade iron posts.
• Turn the power off, support the fan carefully, and check that the hanger
ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.
• Make sure the battery is installed correctly.
• Install a fresh battery.
Hunter Pro Tip:
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
• Change battery.
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of the
blades.
• If you have multiple remotes or multiple remote-controlled fans installed
on the same circuit breaker and you are experiencing interference or
faulty operation of your remote controls, please go to
www.HunterFan.com/FAQs and click “How do I properly install multiple
remote-controlled fans?” for information on how to correct this issue.
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
11
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Remote Troubleshooting
1886
Downrod
If you need a different downrod length follow these steps:
WARNING
Follow steps 1-5 to remove standard downrod pipe
1 2 3 4 5
Follow steps 6-10 to reassemble with new downrod
678910
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• A LWAYS follow the downrod assembly
instructions exactly.
• VERIFY the downrod is assembled correctly
by rmly pulling on the hanger ball.
12
Loading...
