Hunter Fan HTF10310 Installation & Assembly

Model: 50363 Brushed Nickel 50362 Fresh White Fan weight ±2 lbs: 22.3 lbs (10.1 kg)
Timpani
Installation Manual
©2020 Hunter Fan Co.
PG3837 r022020
Congratulations on purchasing your new Hunter® ceiling fan!
Here are the tools you’ll need to complete your installation:
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
WARNING
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us at HunterFan.com.
READ and SAVE These Instructions
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch. w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ladder
This product conforms to UL Standard 507.
OPTIONAL
If mounting to a support structure, you will also need these tools.
Screwdriver
9/64” Drill BitDrill
Pliers
1
© 2020 Hunter Fan Company 7130 Goodlett Farms Pkwy, Suite 400
Wire Strippers
Memphis TN 38016
1886
We recommend that you pull everything out of the box and lay it out. We have
Here is what comes in your box:
grouped the drawn components below with the hardware you’ll need for those parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
Wood Screw
x2
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from different bags. Make note of the symbol printed on each hardware bag. The symbols can be used to identify the appropriate hardware for each step.
Ceiling Bracket
bag
Washer
x2
For installing the hanger bracket and wiring the fan
x12
bag bag
For installing the blades
BladeWasher
Blade
x4
x12
Blade Screw
WIre Nut
x4
Trim Ring
Canopy
Top Housing
bag
Upper Motor Housing
Motor
Grounding
Canopy Screws
For installing the canopy
x3
Screw
x1
Screw
x3
bag
For your convenience, you may receive extra fasteners. Pullchains
M3774-01 r012820
Spare Parts
bag
Note:
Fan style may vary.
x3 x2
Light Kit Screw
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
x6
Short Light
Kit Screw
Light Kit Assembly
Switch Housing Plate
Bulb
x2
Glass
For installing the light xture
2
1886
1886

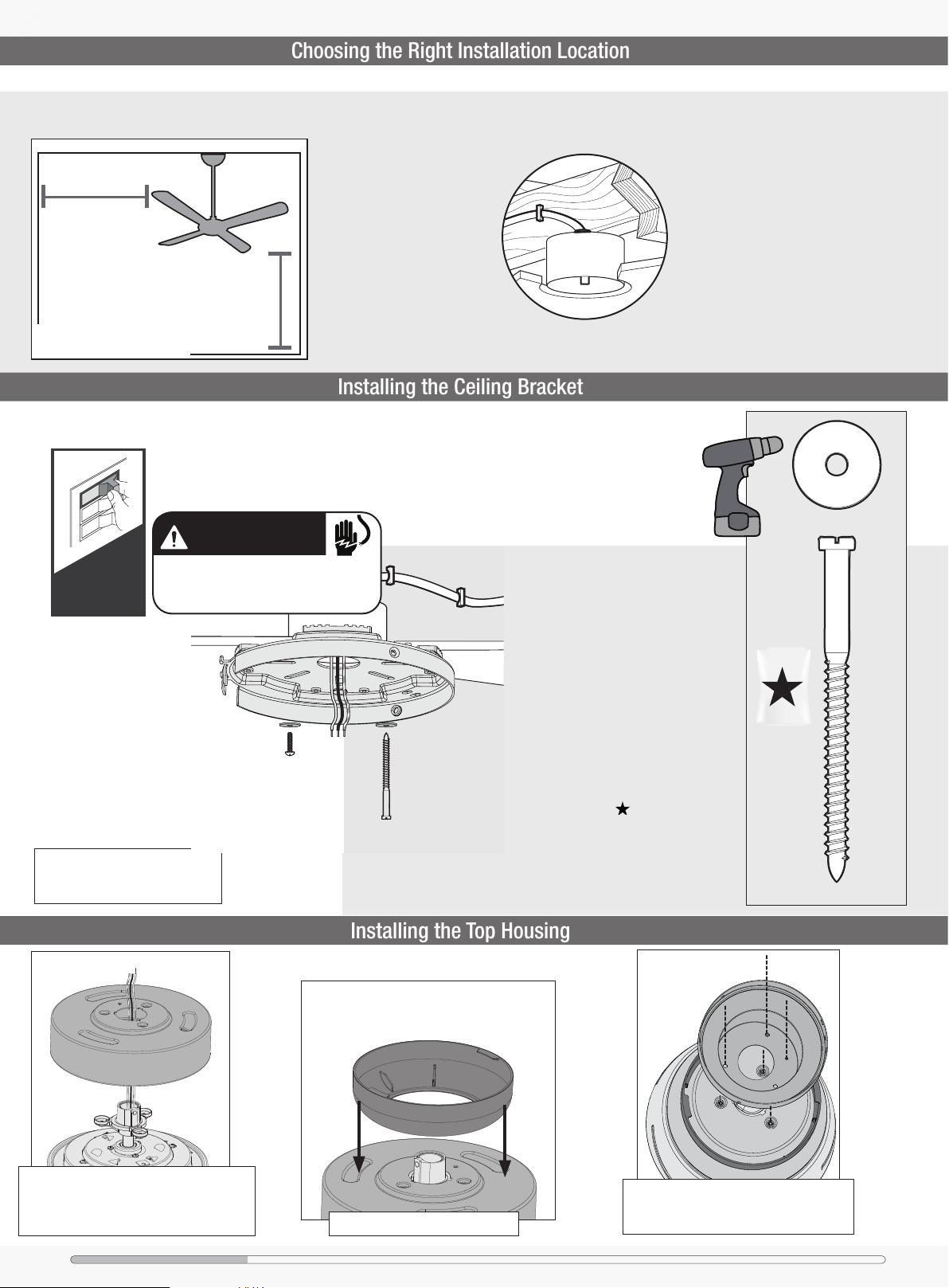

Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Installing the Ceiling Bracket
Installing the Top Housing
WARNING
Check the room dimensions: Check the outlet box:
30 inches
from blade tip to nearest wall or obstruction
7 feet
from bottom edge
of blade to the
oor
You must be able to secure the fan to building structure or fan-rated outlet box.
You have two options for installation. Pick which one works best for your location. Remove any existing bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Do this rst!
To avoid possible electrical shock, before
Turn Power
OFF
Option 1: Machine Screws
Use machine screws (provided with outlet box) and washers when securing to existing ceiling fan-rated outlet box. Make sure it is securely installed and is acceptable for fan support of
31.8 kg (70 lbs) or less.
installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.
Option 2:
Wood Screws
Use wood screws and washers (included) when securing to support structure with approved electrical outlet box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket with hardware found in the hardware bag.
Washer
x2
bag
Hunter Pro Tip:
The machine screws are the ones that came with your outlet box.
Thread the wires through the top housing. Place the top housing onto the motor housing so that the holes in the top housing lineup with the holes in the motor housing and the adapter.
3
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Rest the trim ring on the top housing.
Place the canopy on the top housing. Ensure all four screw holes line up with the screw holes in both the top housing and the adapter.
Wood Screw
x2
1886

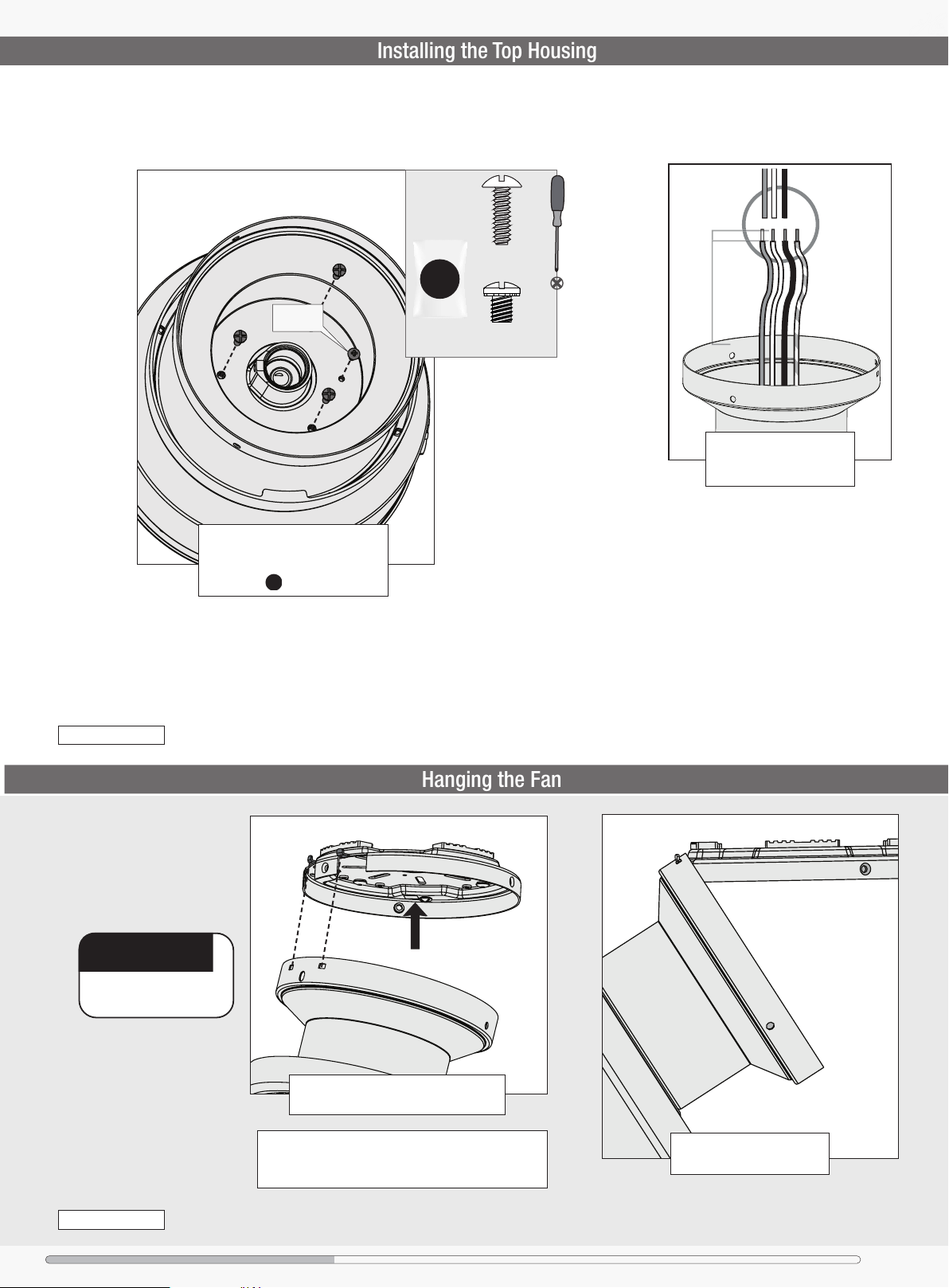

Installing the Top Housing
Grounding
Hanging the Fan
NOTICE
Screw
Install the top housing screws. Install the grounding screw in the smaller screw hole. These screws can be
found in the hardware bag.
bag
x3
Top Housing
Screw
Grounding
Screw
T
U
C
3/8”
8”
(not to scale)
The wires can be cut, but leave at least 8” extending from the top of the canopy.
P
I
R
T
S
&
Note:
Fan style may vary.
To prevent damage to fan, ALWAYS lift holding the fan housing.
Note:
Fan style may vary.
Raise the fan and align the slots in the canopy with the hooks on the ceiling plate.
Note: To hang the fan, you must tilt the canopy to an almost vertical position so that the canopy slots sit on the ceiling plate hooks.
Place the slots over the ceiling plate hooks to hang the fan.
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
4
1886
1886

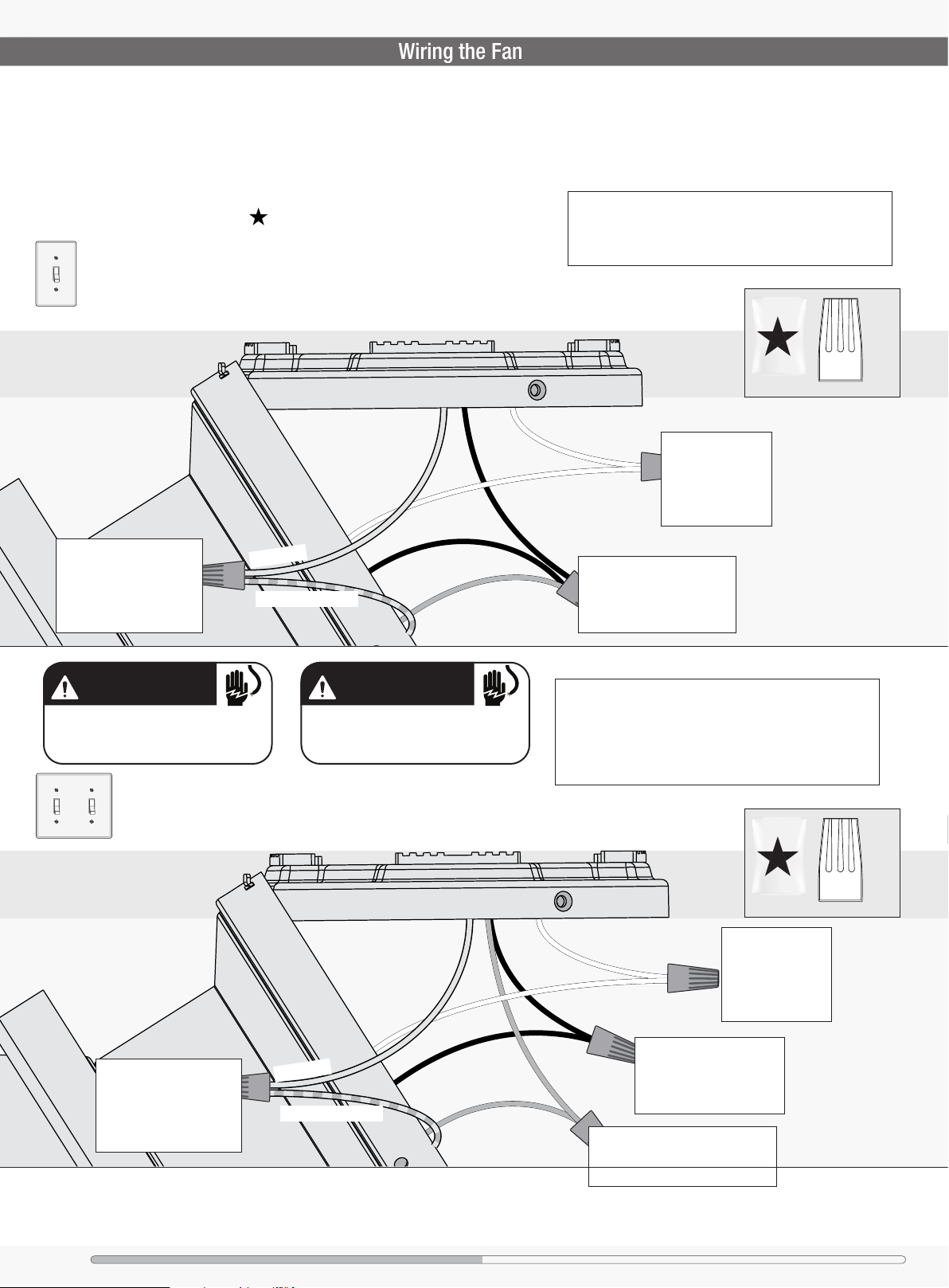

We know wiring is hard. Let’s make it easier.
Wiring the Fan
WARNING
Installing the Blades
WARNING
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.
You are going to need these:
4 Wire Nuts (these are in the bag)
Have a single switch?
Follow these steps:
Connect the grounding wires (green, green/ yellow stripe, or bare copper) coming from the ceiling and ceiling plate.
Grounding
Green/Yellow Stripe
Black
Grounded
Ungrounded
Blue
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
Connect the white
White
Connect the black wire (ungrounded) from the ceiling to the black and the blue wires from the fan.
(grounded) wire from the ceiling to the white wire from the fan.
bag
Wire Nut
x4
The ceiling fan must be grounded. If the ground wire for the installation site is not present, immediately STOP installation and consult a qualied electrician.
Have dual switches?
Follow these steps:
Connect the grounding wires (green, green/ yellow stripe, or bare copper) coming from the ceiling and ceiling plate.
All wiring must be in accordance with national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in doubt, consult a qualied electrician.
Grounding
Green/Yellow Stripe
Hunter Pro Tip:
Have extra wiring?
Turn the wires upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box. Make sure that the wires are still attached to the wire nuts.
bag
Grounded
Ungrounded
Black
Ungrounded (light)
Blue
White
Connect the black (ungrounded) wire from the ceiling to the black wire from the fan.
Connect the second ungrounded (light) wire from the ceiling to the blue wire from the fan.
Connect the white (grounded) wire from the ceiling to the white wire from the fan.
x4
Wire Nut
5
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
1886

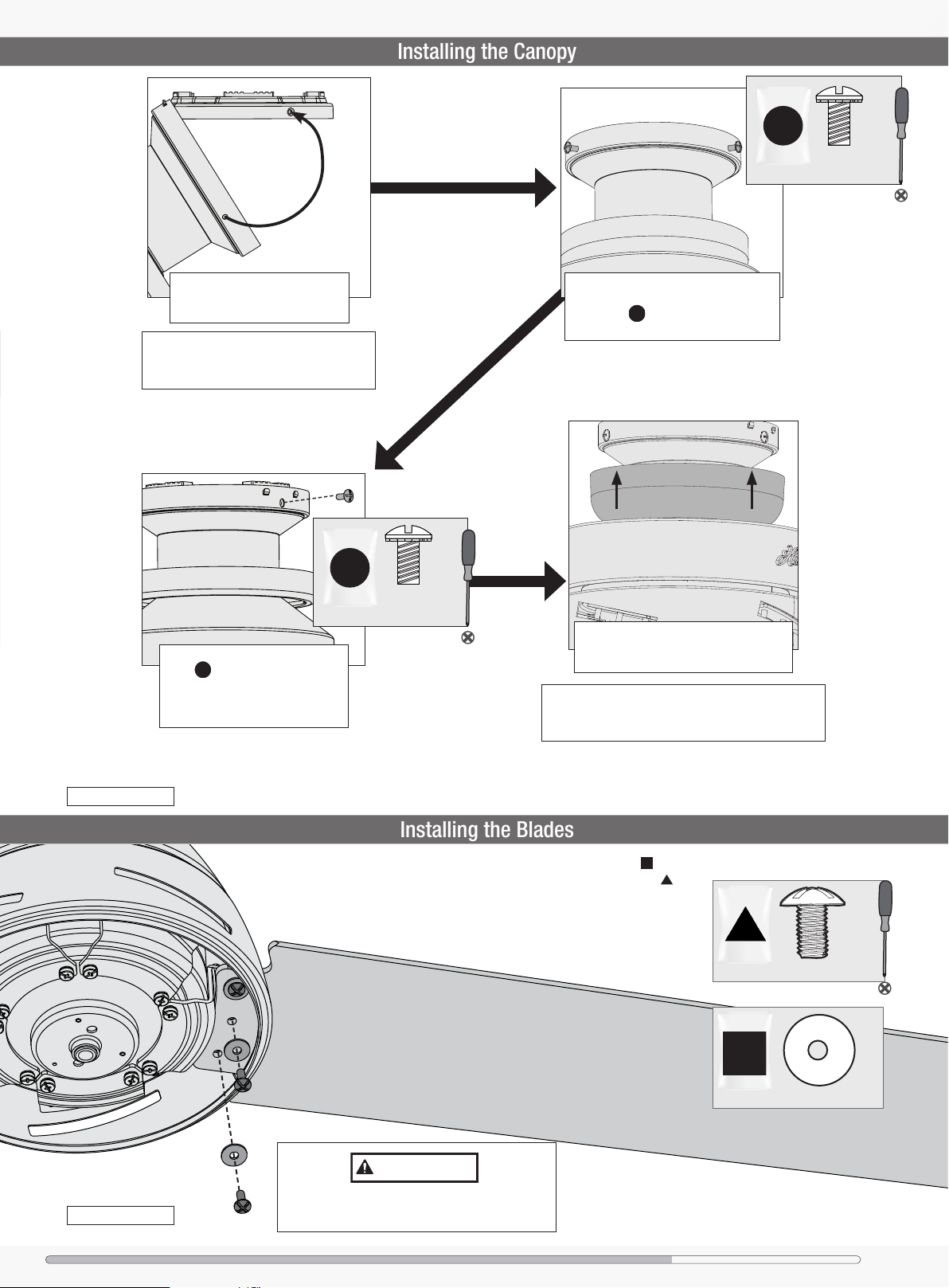

Installing the Canopy
Installing the Blades
bag
2 of 3
Canopy Screws
Swing the fan up to align the canopy screw holes with the mounting holes on the ceiling plate.
Note: The slots in the canopy must remain engaged while swinging the canopy for alignment.
Partially install a canopy screw, found in the hardware bag, between
the ceiling plate hooks. When all the holes are properly aligned, securely tighten all three canopy screws.
bag
Hold the canopy up with the screw holes aligned. Partially install two canopy screws,
found in the hardware bag, into the holes opposite the ceiling plate hooks.
3 of 3
Canopy Screws
Using both hands, push the canopy trim ring up to the top of the canopy. The canopy trim ring will snap and lock into place.
Note: Should you need to remove the trim ring, press rmly on opposite sides of the trim ring. The tabs will ex out releasing the canopy trim ring.
Note:
Fan style may vary.
Note:
Fan style may vary.
Put the blade washers found in the hardware bag onto the blade screws found in the hardware bag. Then install the blade screws to secure each blade to the fan.
Repeat x4
IMPORTANT
NOTE: Follow the instructions on the blade. Installing it incorrectly could result in your fan not functioning.
bag
bag
x12
Blade Screw
x12
Blade Washer
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
6
1886
1886

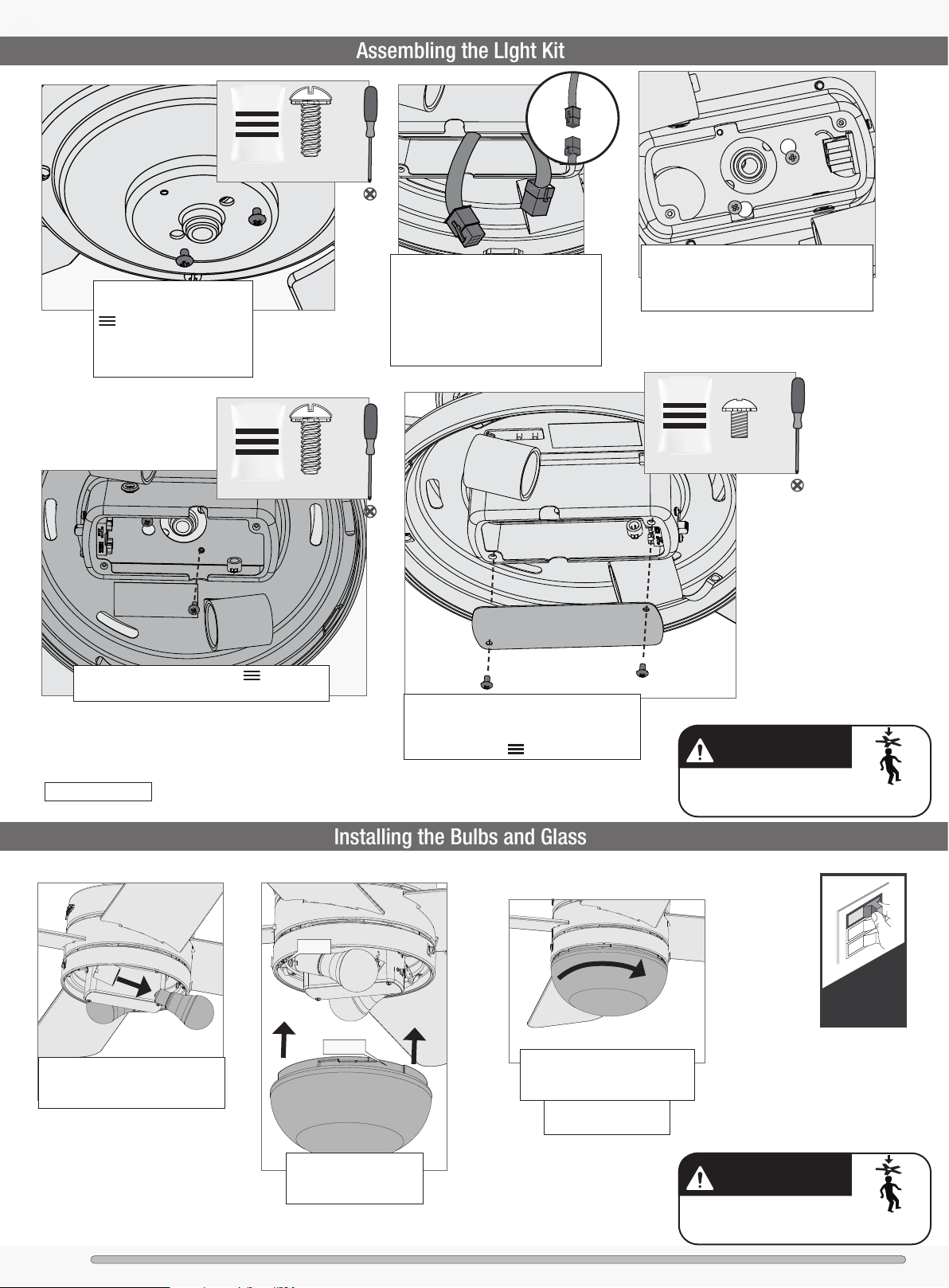

Installing the Bulbs and Glass
Assembling the LIght Kit
WARNING
WARNING
bag
2 of 3
Light Kit Screw
Partially install two light kit assembly screws, found in the
hardware bag, halfway into the motor housing as shown. It does not matter which two screw holes you choose.
Insert the third screw, found in the hardware bag, in place and rmly tighten all the three screws.
Note:
Fan style may vary.
bag
3 of 3
Light Kit Screw
Feed the 9-pin plug connector coming from the bottom of the motor housing through the center hole in the light kit assembly. Connect it to the plug connector found in the switch housing area of the light kit assembly. Make sure to line up the colored markings on the connectors.
Carefully push all switch housing components into the switch housing, then install the switch housing plate using two short light kit assembly screws, found in the hardware bag.
Align the keyhole slots in the top of the light kit assembly with the partially installed assembly screws. Wrap the keyhole slots around the screws and twist counterclockwise.
2 of 2
Short Light Kit
bag
FAN FALL HAZARD
Make sure all screws are tight to secure the light xture.
Screw
Install the included bulbs into the sockets. When necessary, replace with bulbs of same wattage.
7
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Tab
Notch
Lift the globe and align the notches in the globe with the tabs in the light kit.
Turn Power
ON
Attach the globe by lifting and turning clockwise one third of a full turn of the glass until it stops.
NOTE: Check to ensure proper engagement.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make sure that glass is properly secured.
1886

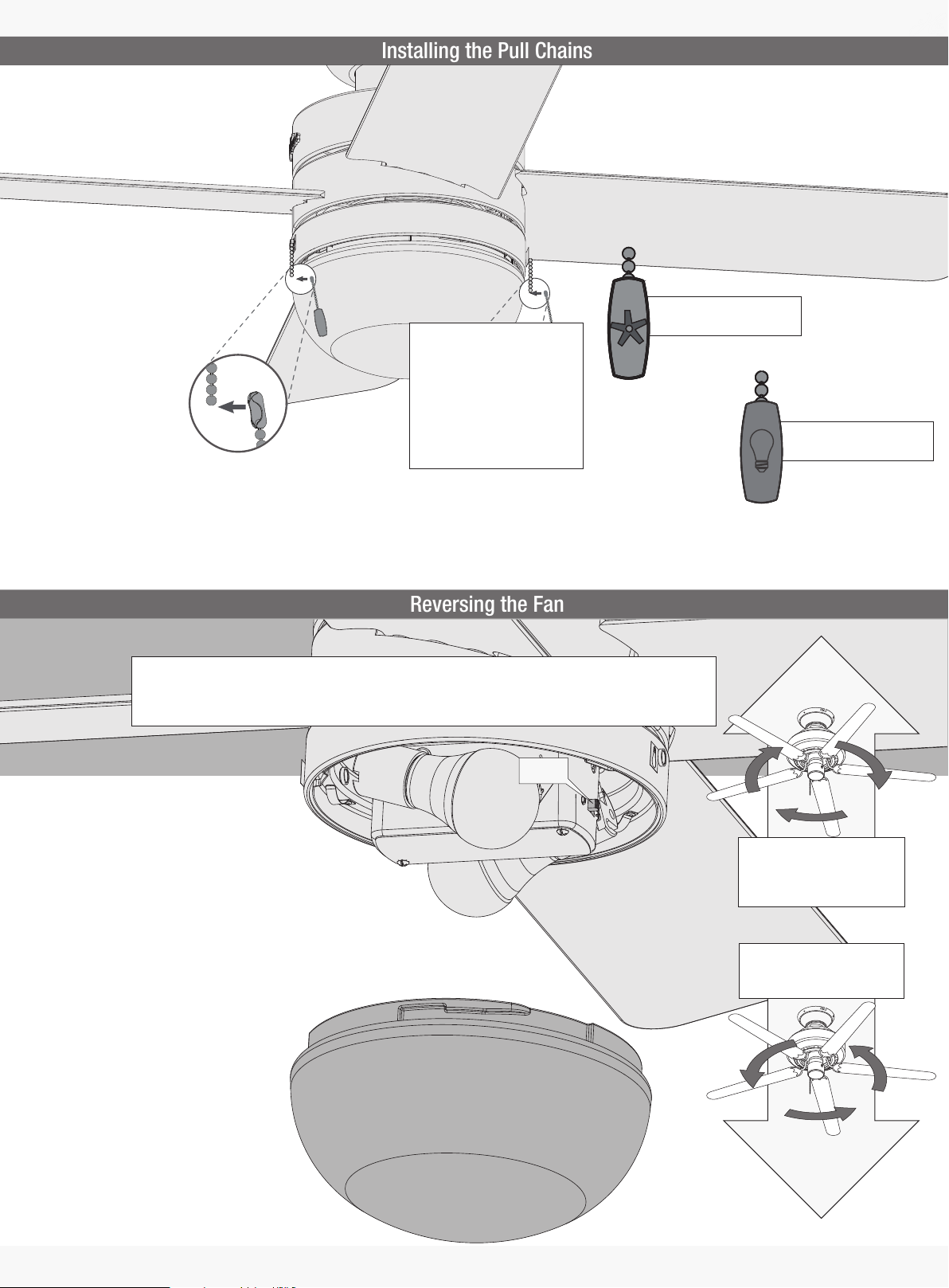

Reversing the Fan
The fan pull chain controls
Installing the Pull Chains
Remove and discard the plastic connectors from the ends of the short pull chain. Feed the pull chains from the fan switch and the light switch down through the holes in the upper switch housing as shown. Attach the pull chain
Repeat x2
Ceiling fans work in two directions: downdraft (counterclockwise rotation) and updraft (clockwise rotation). To change the direction of air ow, turn the fan off and let it come to a complete stop. Unscrew the nial and remove it from the threaded rod. Remove the nial cap and unscrew the globe keeper while supporting the inner glass with your other hand. Carefully remove the inner glass. Move the reverse switch to the opposite position. Reinstall the inner glass assembly.
pendants to the light and fan pull chains.
Reverse Switch
the speed: from high to off.
The light pull chain controls the light xture: on and off.
Updraft (clockwise rotation) creates a more indirect airow. Updraft airow is great for moving warm air downward.
Downdraft (counterclockwise rotation) creates a direct breeze and maximum cooling effect.
8
1886
1886
Troubleshooting
Fan Doesn’t Work
• Make sure power switch is on.
Excessive Wobbling
Noisy Operation
Limited Lifetime Warranty
• Pull the pull chain to make sure it is on.
• Push the motor reversing switch rmly left or right to ensure that it is engaged.
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram.
• Check the plug connection in the switch housing.
• Make sure the blades are properly installed on the blade iron posts.
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of the blades.
Hunter Pro Tip:
Cleaning the Fan
Use soft brushes or cloths to prevent scratching. Cleaning products may damage the nishes.
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter ceiling fan. This document can be found at www.HunterFan.com. Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service, contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a defect in material or workmanship, as determined solely by Hunter, Hunter will provide you with a replacement fan free of charge.* The foregoing limited warranty applies only to the motor itself and does not apply to electronic controls – such as remote control transmitters, remote control receivers, or capacitors – used in conjunction with the motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling fan fails at any time within one year of the date of purchase due to a defect in material or workmanship, as determined solely by Hunter, Hunter will provide a replacement part free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for additional warranty coverage if your fan includes one of the following:
LED Light Kits — Three-Year Limited Warranty If your LED light kit module (not including glass components) or LED bulb fails at any time within three years of the date of purchase due to a defect in material or workmanship, as determined solely by Hunter, Hunter will provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor (including electrician’s fees) required to install, remove, or replace a fan or any fan parts. There is no warranty for light bulbs (except where otherwise noted); remote control batteries; fans purchased or installed outside the United States; fans owned by someone other than the original purchaser; fans for which proof of purchase has not been established; fans purchased from an unauthorized dealer; ordinary wear and tear; minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any of the following: improper installation, misuse, abuse, improper care, failure to follow Hunter instructions, accidental damage caused by the fan owner or related parties, modications to the fan, improper or incorrectly performed maintenance or repair, improper voltage supply or power surge, use of improper parts or accessories, failure to provide maintenance to the fan, or acts of God (e.g. ood). ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN. HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary from state to state.
9
Loading...
