Hunter Fan HTF10265 Installation & Assembly

Download

Page 1

30 inches

7 feet

Ladder

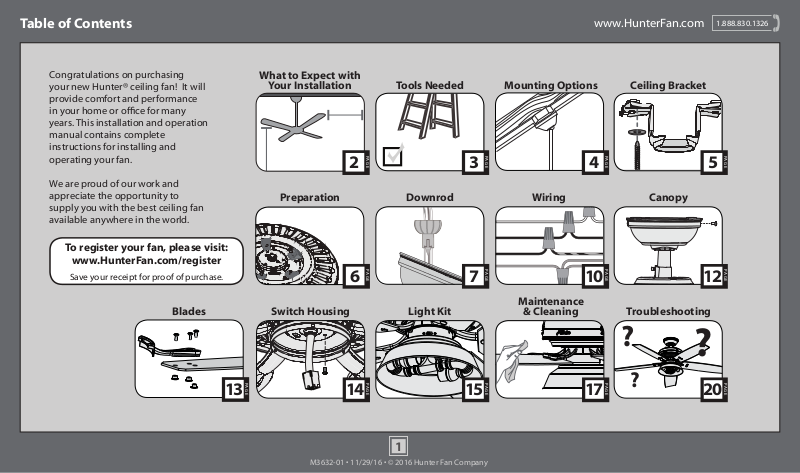

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Blades Troubleshooting

What to Expect with

Your Installation

Tools Needed

PAG E

Preparation

PAG E

Downrod

Switch Housing Light Kit

Mounting Options

PAG E

Wiring Canopy

PAG E

Maintenance

& Cleaning

Ceiling Bracket

PAG E

Page 2

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

7 feet

from bottom

edge of blade

to the oor

Assess location

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

www.HunterFan.com

1.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury,

mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when

installing the blade brackets, balancing the blades, or cleaning the fan. Do not

insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes

ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: modications not approved by the party responsible for compliance

could void user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Screwdrivers

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

.36 cm / 9/64 in.

Drill Bit

(optional)

Do not discard the hardware bags or mix

parts from different bags. Make note of

the symbol printed on each hardware

bag. The symbols can be used to identify

the appropriate hardware for each step.

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

to hang the fan from a at ceiling.

Use Standard Mounting

or Low-Prole Mounting

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

www.HunterFan.com

For angled ceilings, point

opening toward peak.

1.888.830.1326

Make sure all four bumpers are

still attached.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Use wood screws (included) when securing to support structure with

approved electrical outlet box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Refer to warning w.1 on pg. 2

Page 6

Ceiling Bracket (continued)

Preparation

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

1.888.830.1326

www.HunterFan.com

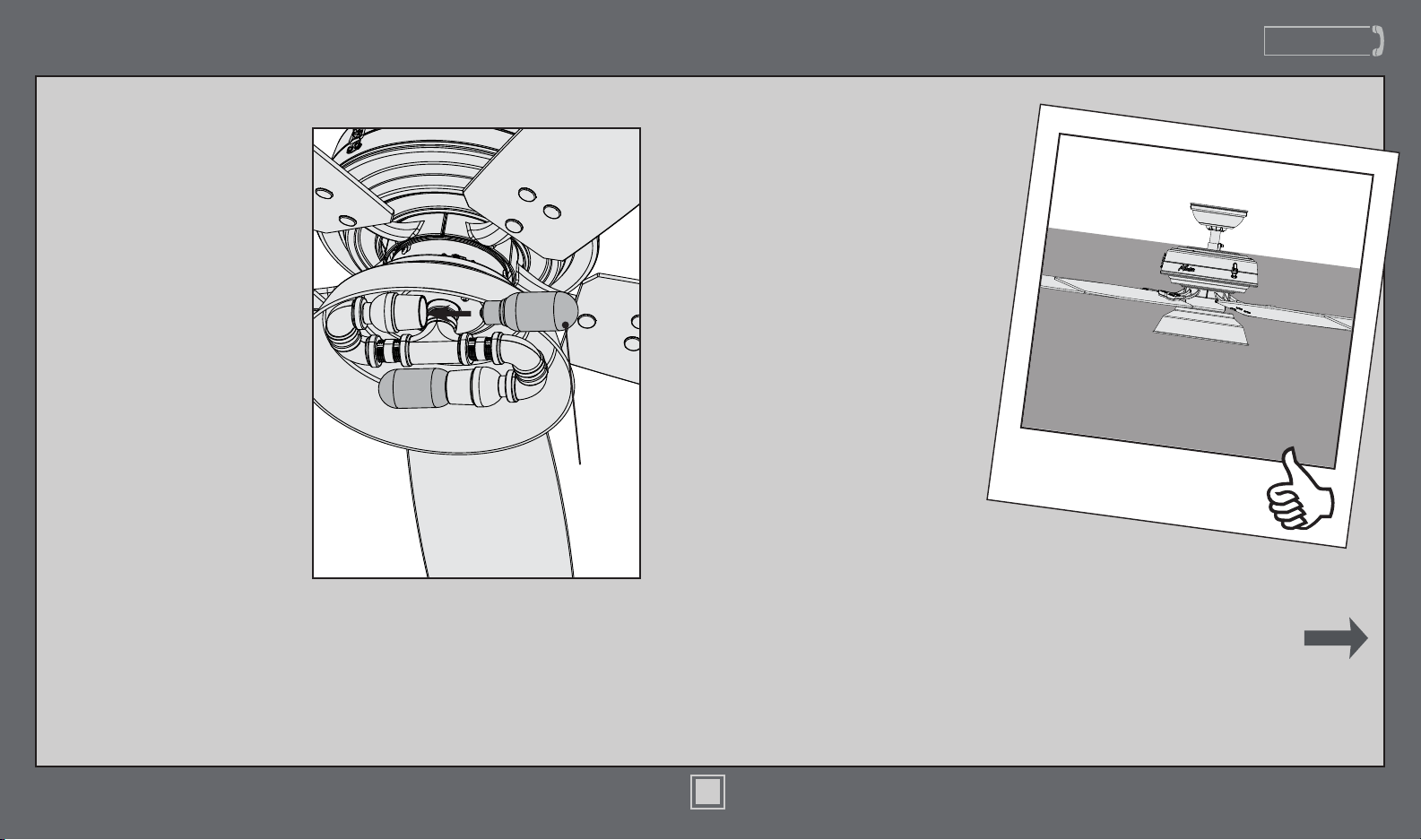

Remove the shipping blocks from the motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

Page 7

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

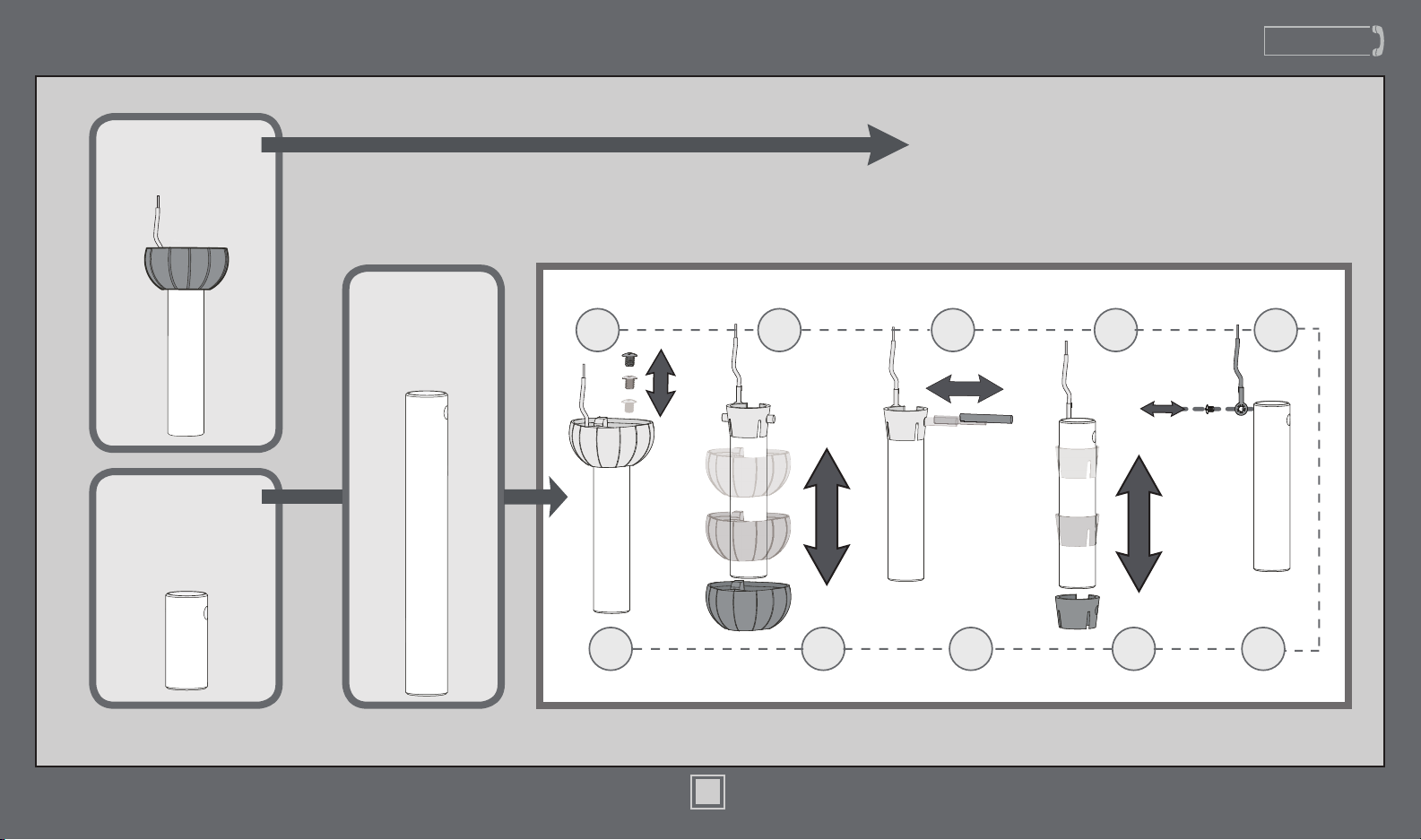

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

Page 8

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

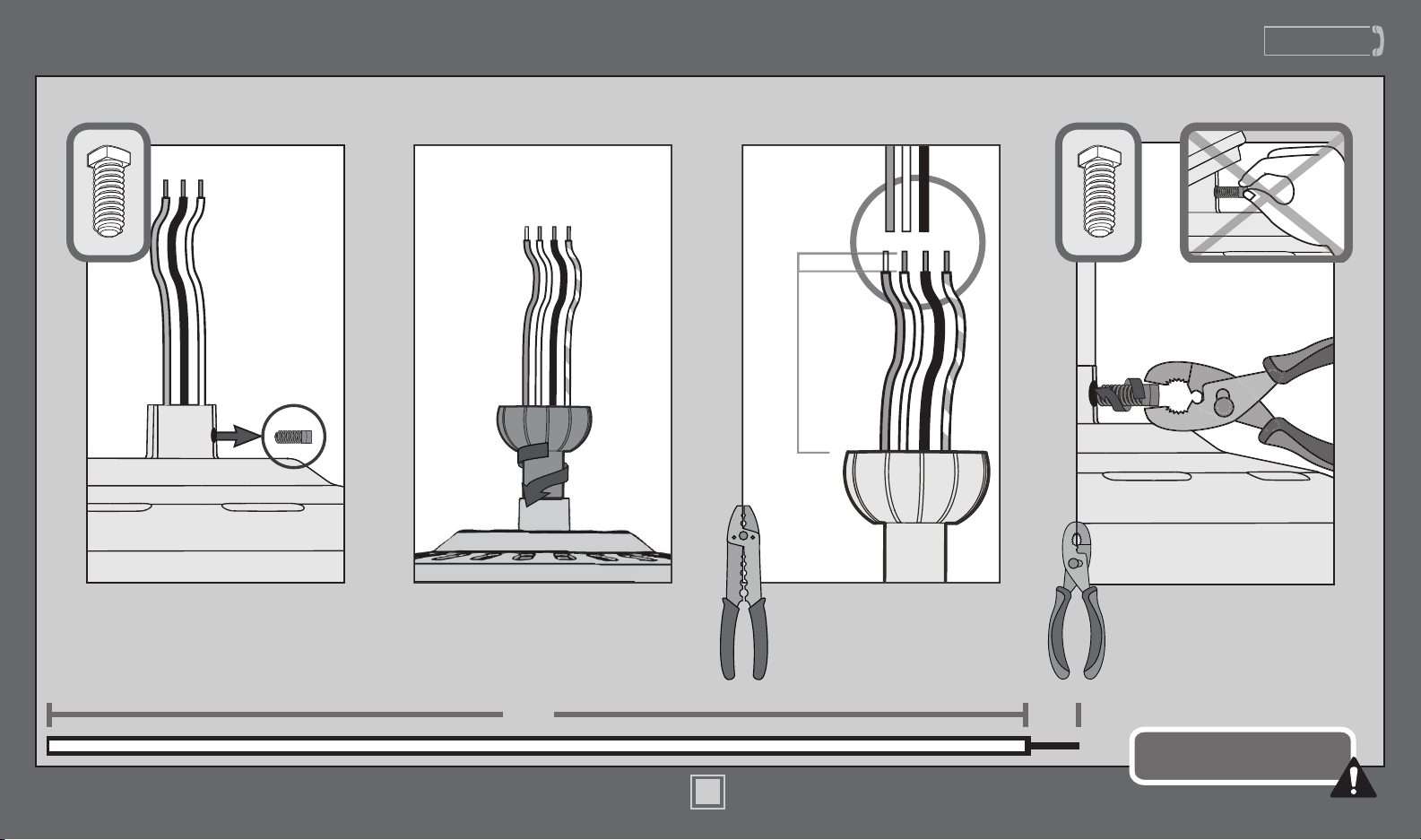

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 9

Downrod (continued)

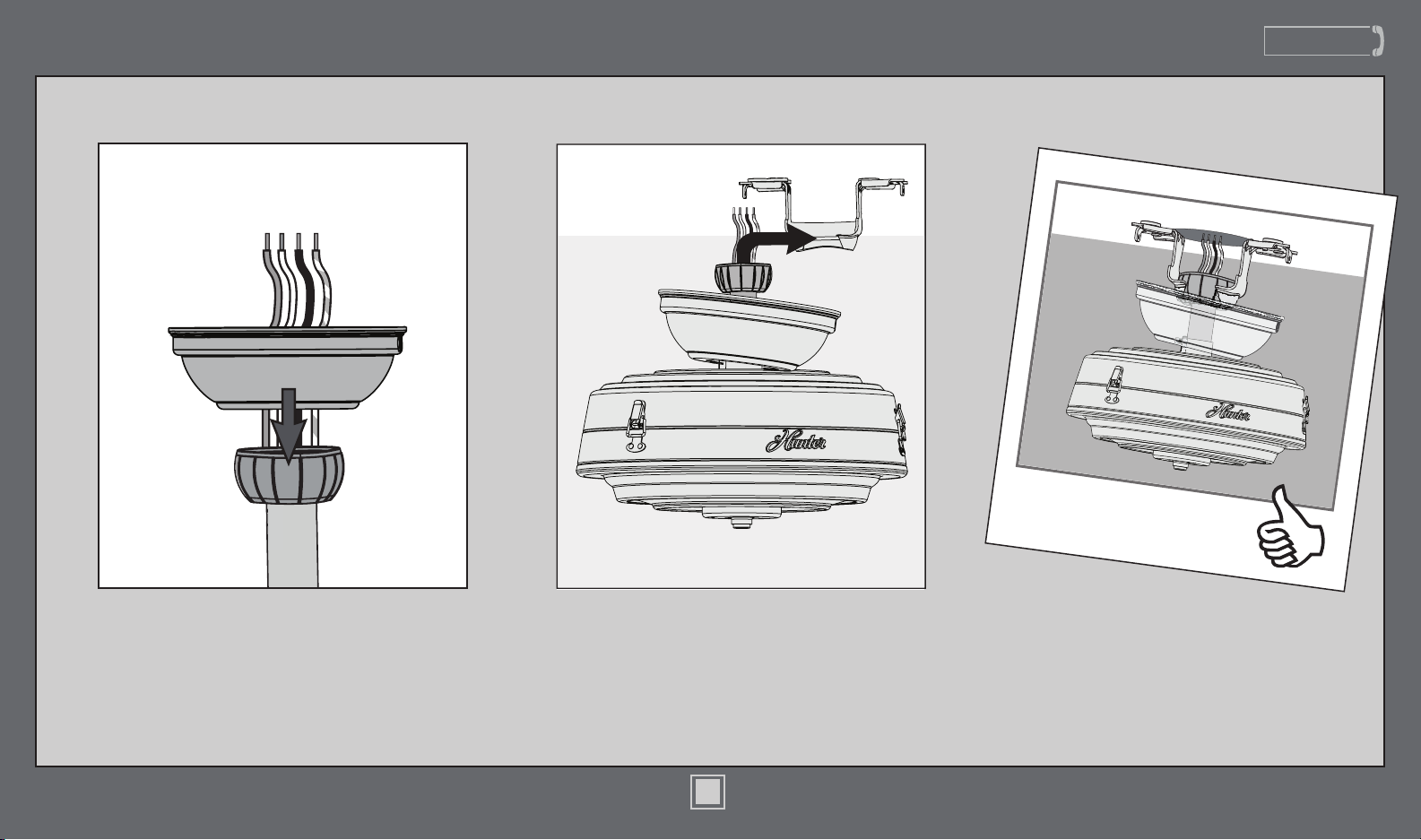

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through

www.HunterFan.com

1.888.830.1326

the canopy. Let the canopy sit loosely

on top of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Page 10

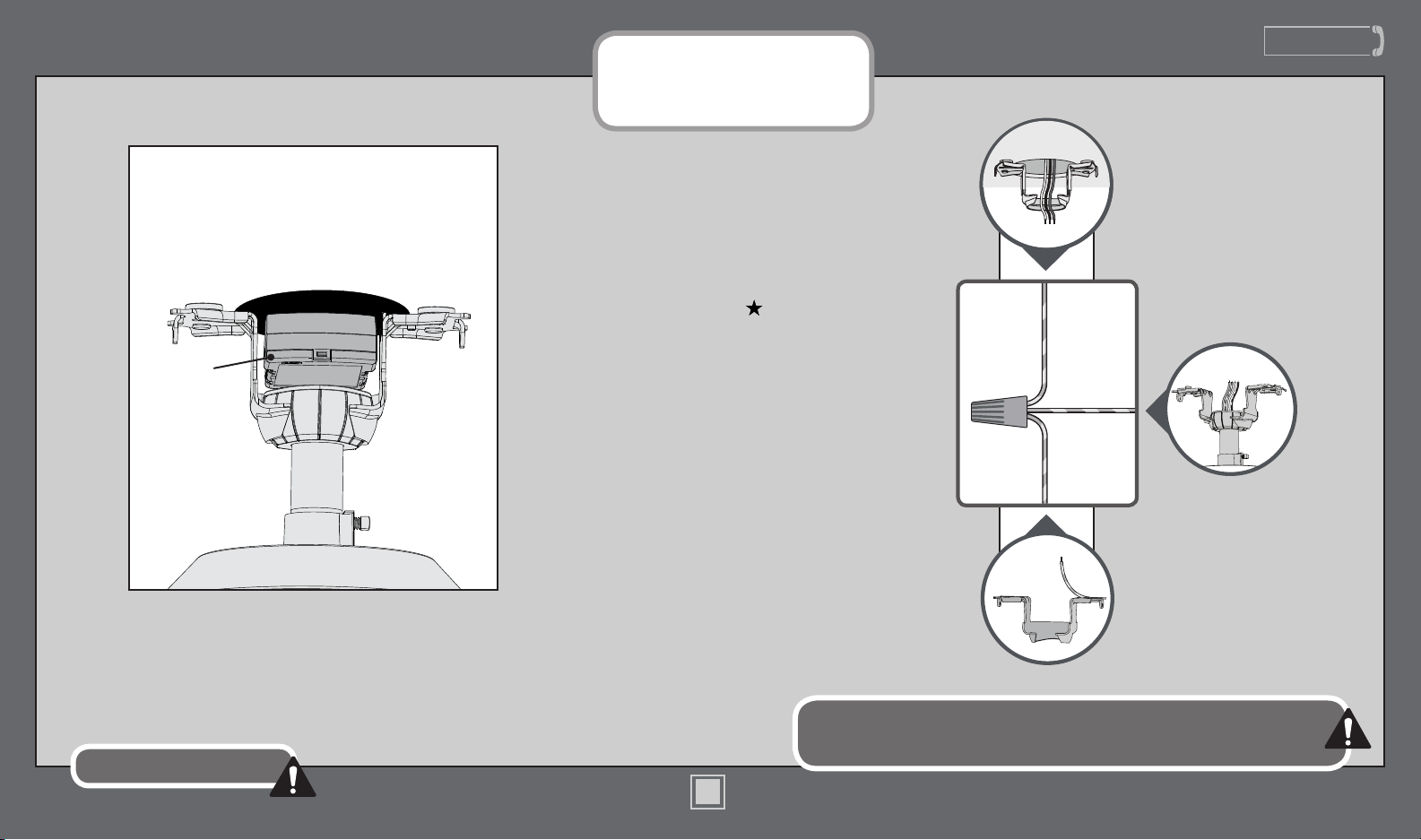

Wiring

Note: To connect the wires, hold

the bare metal leads together and place a wire connector over them,

then twist clockwise until tight.

www.HunterFan.com

1.888.830.1326

Receiver

Place the receiver on top of the

downrod assembly as shown.

Refer to CAUTION c.1 on pg. 2

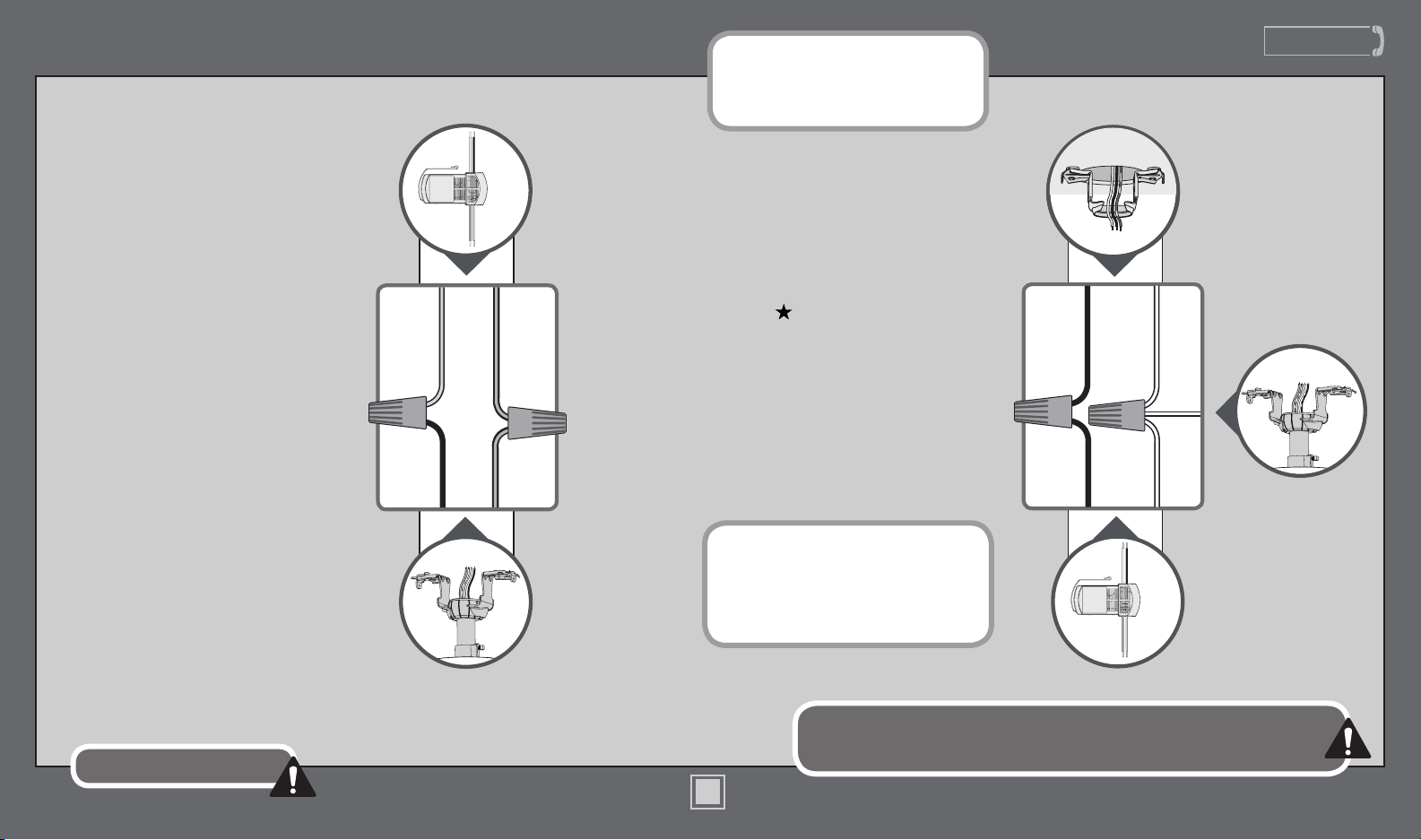

Using an orange wire connector from the hardware bag:

Connect the 3 grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and ceiling bracket.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

green/yellow

stripe (grounding)

green/yellow stripe

green/yellow

stripe

Page 11

Wiring (continued)

Note: If you have a dual switch,

www.HunterFan.com

1.888.830.1326

please cap the secondary power

wire from the ceiling. This will

result in one unused switch.

Using the orange wire connectors from the remote control hardware bag:

• Connect the yellow wire from the receiver to the black wire from the fan.

• Connect the blue wire from the receiver to the blue wire (or possibly black with white stripe wire) from the fan.

Refer to CAUTION c.1 on pg. 2

yellow

black

blue

Using the orange wire connectors

black

(ungrounded)

white (grounded)

from the hardware bag:

• Connect the black (ungrounded)

wire from the ceiling to the black wire from the receiver.

white

blue

• Connect the white (grounded) wire from the ceiling to both the white wire from the receiver and

black

the white wire from the fan.

Note: The Avia ceiling fan is

designed to be operated by the

included remote. Keep your

switches in the “On” position to

ensure proper functionality.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Page 12

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

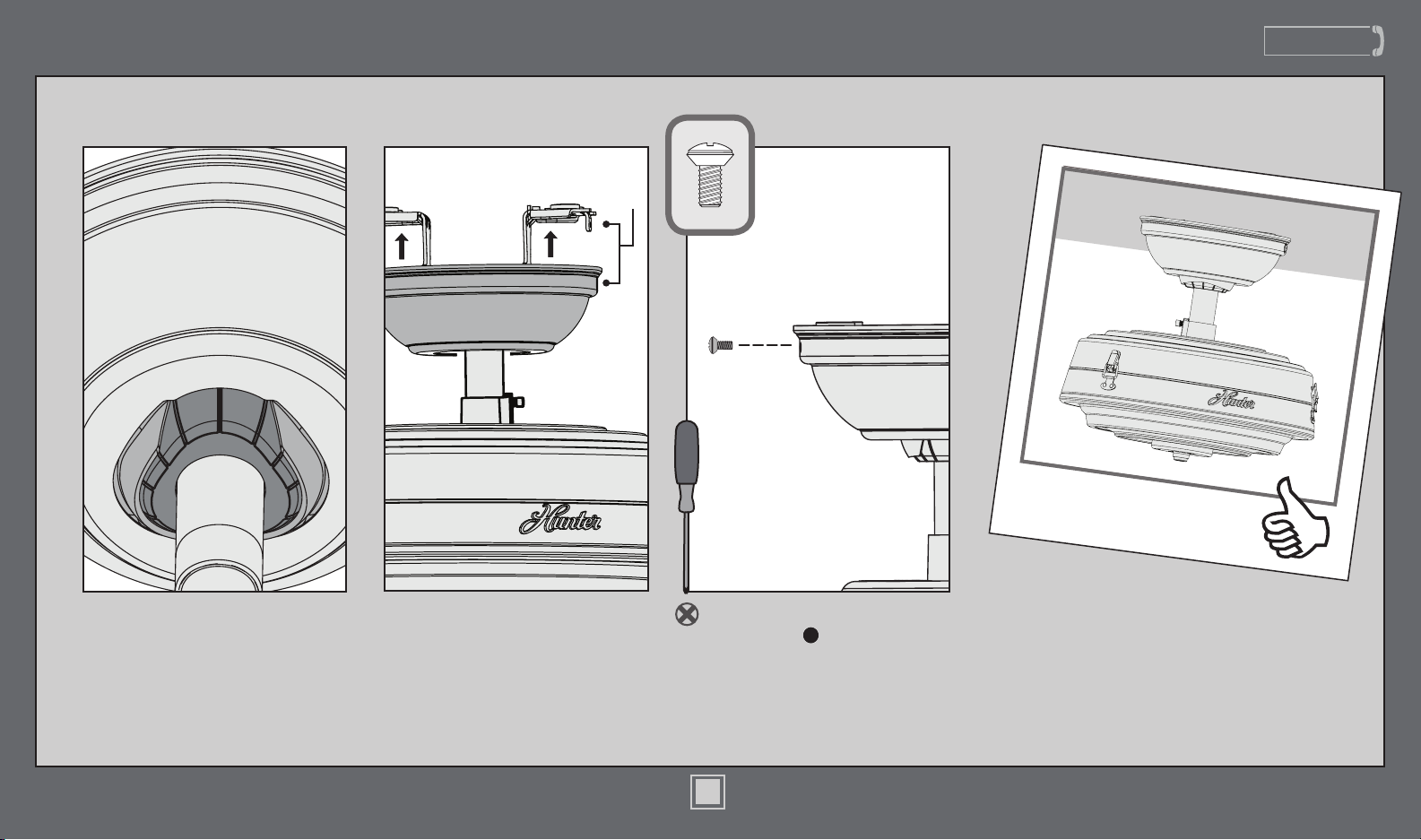

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Page 13

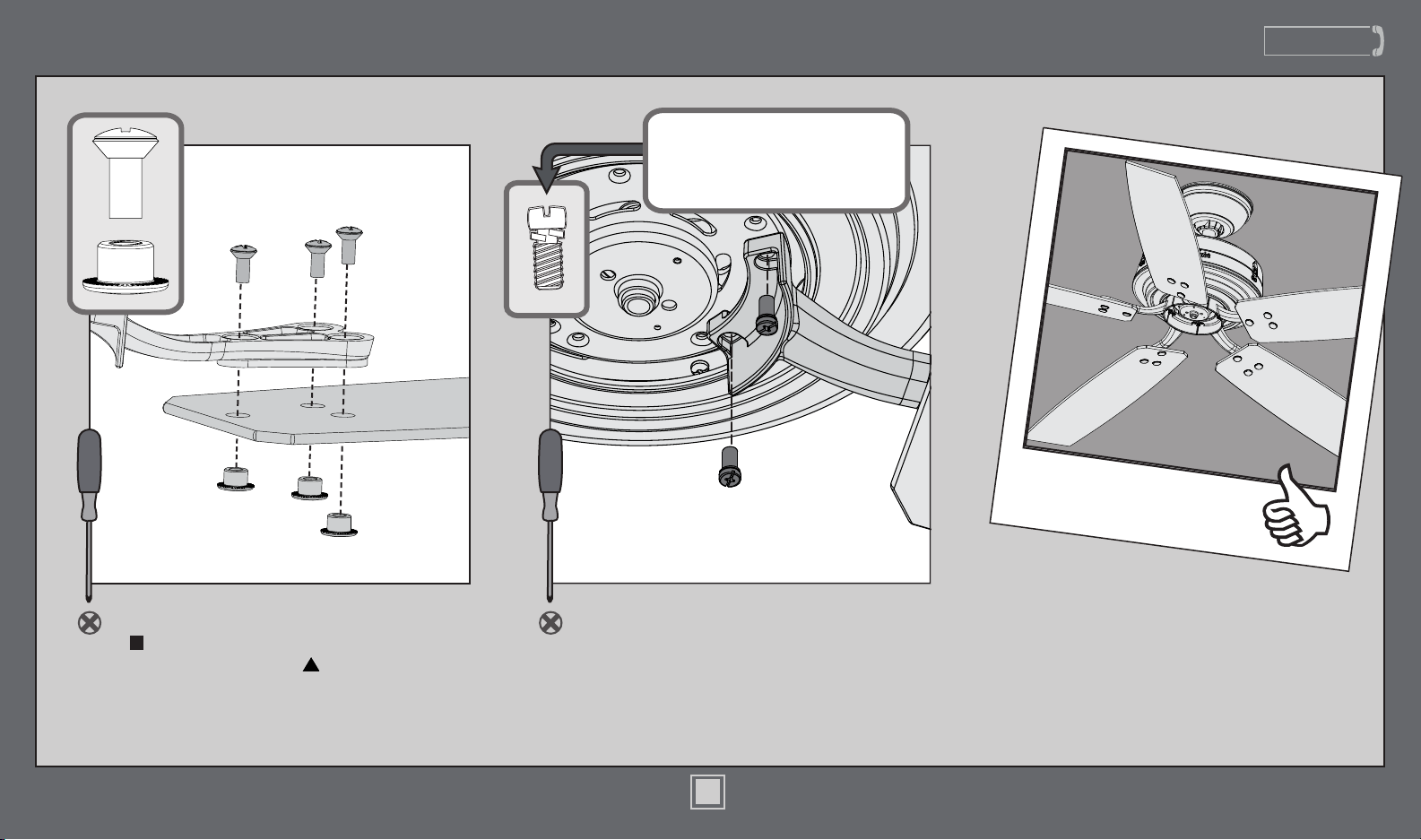

Blades

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them for this step.

www.HunterFan.com

1.888.830.1326

Secure each blade to a blade iron as

shown using the blade nuts, found in the

hardware bag, and the blade assembly screws, found in the hardware bag.

Lightly attach each blade iron to the

motor housing with the blade iron

armature screws. Securely tighten after

both screws are attached.

Page 14

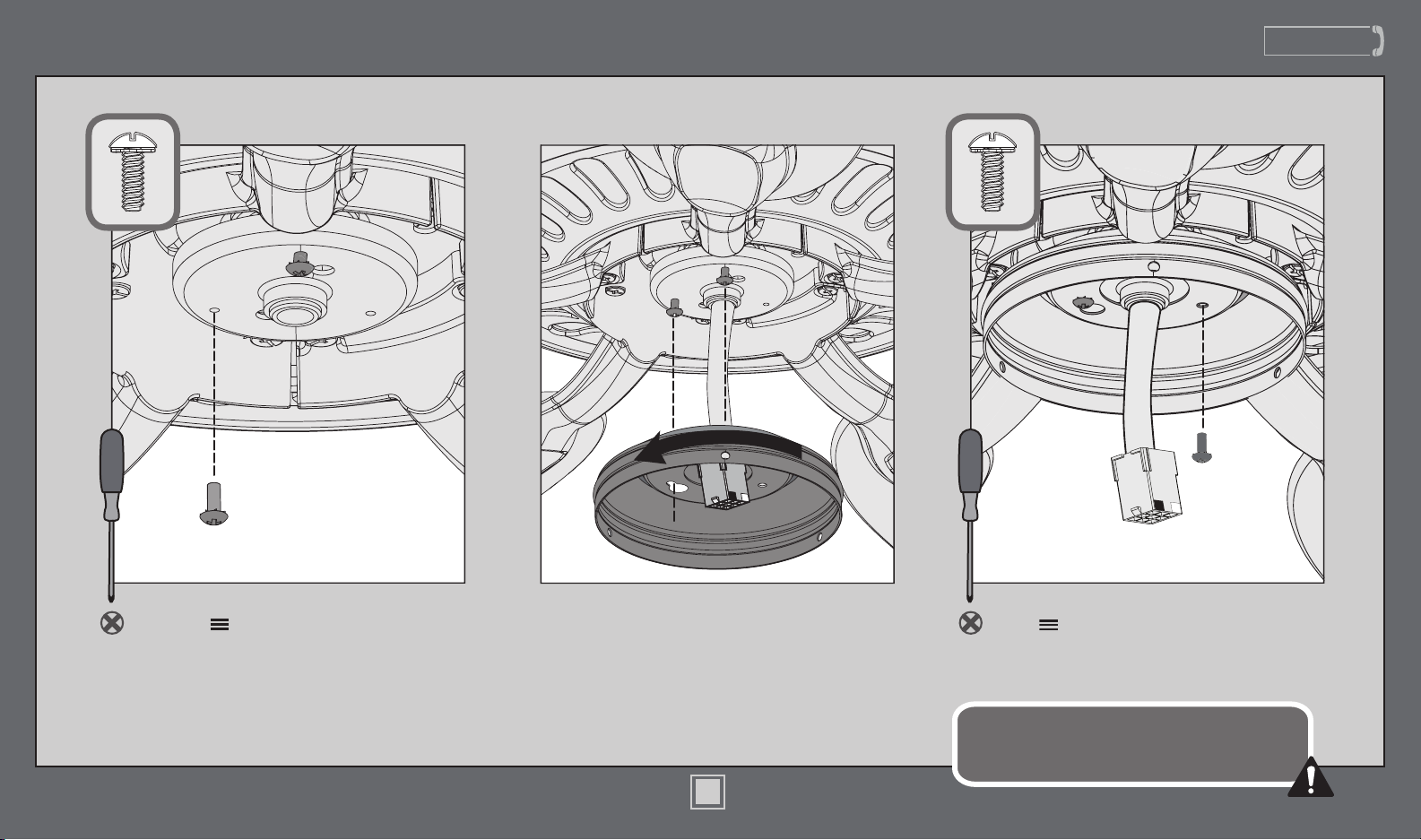

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all three assembly screws could result in the

switch housing xture falling.

Page 15

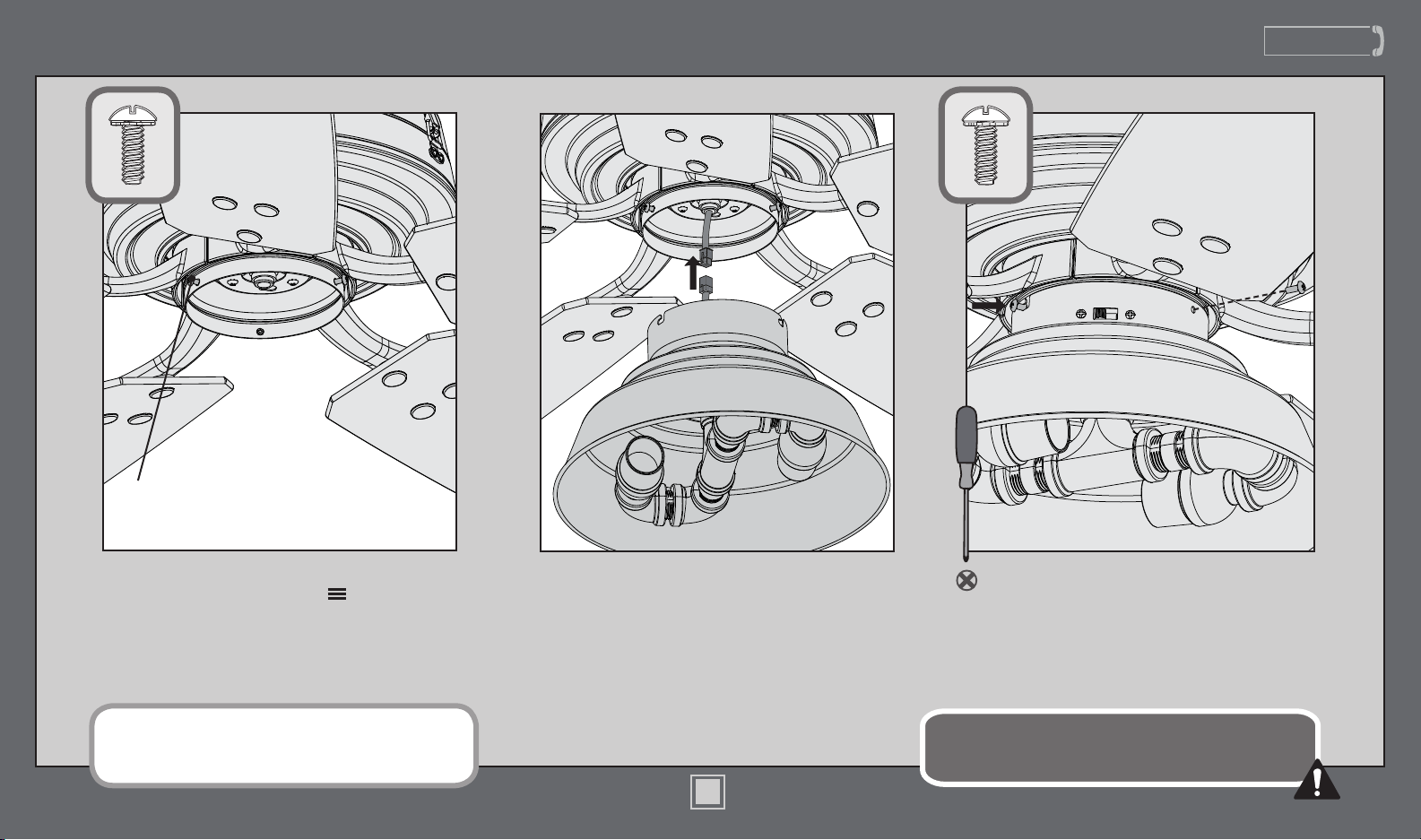

Light Kit

Switch Housing Screw

www.HunterFan.com

1.888.830.1326

Partially install two of the switch housing

screws found in the bag.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click

“How do I install my fan without the light kit?”

Connect the plugs from the upper and lower

switch housings. Make sure to line up the

colored markings on the connectors. Align

the notches in the sides of the lower switch

housing with the upper switch housing screws. Lift the lower switch housing. Twist the lower switch housing clockwise to lock

into place. Then thread the fan pull chain

through the hole in the light kit.

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Page 16

Light Kit (continued)

Bulb

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

Install a bulb into each of the sockets.

When necessary, replace with bulbs of

the same type and wattage.

See next page for fan operation instructions.

Page 17

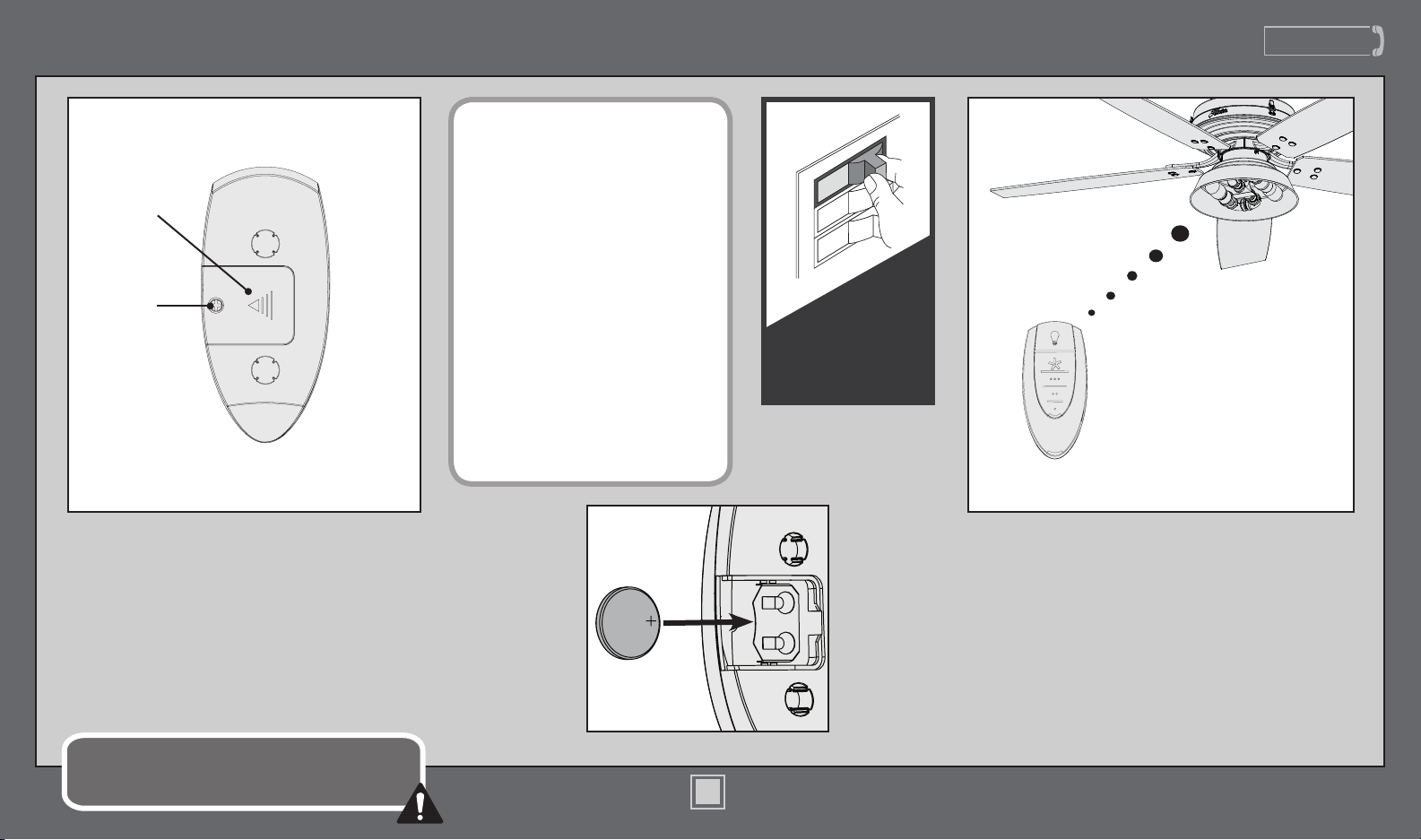

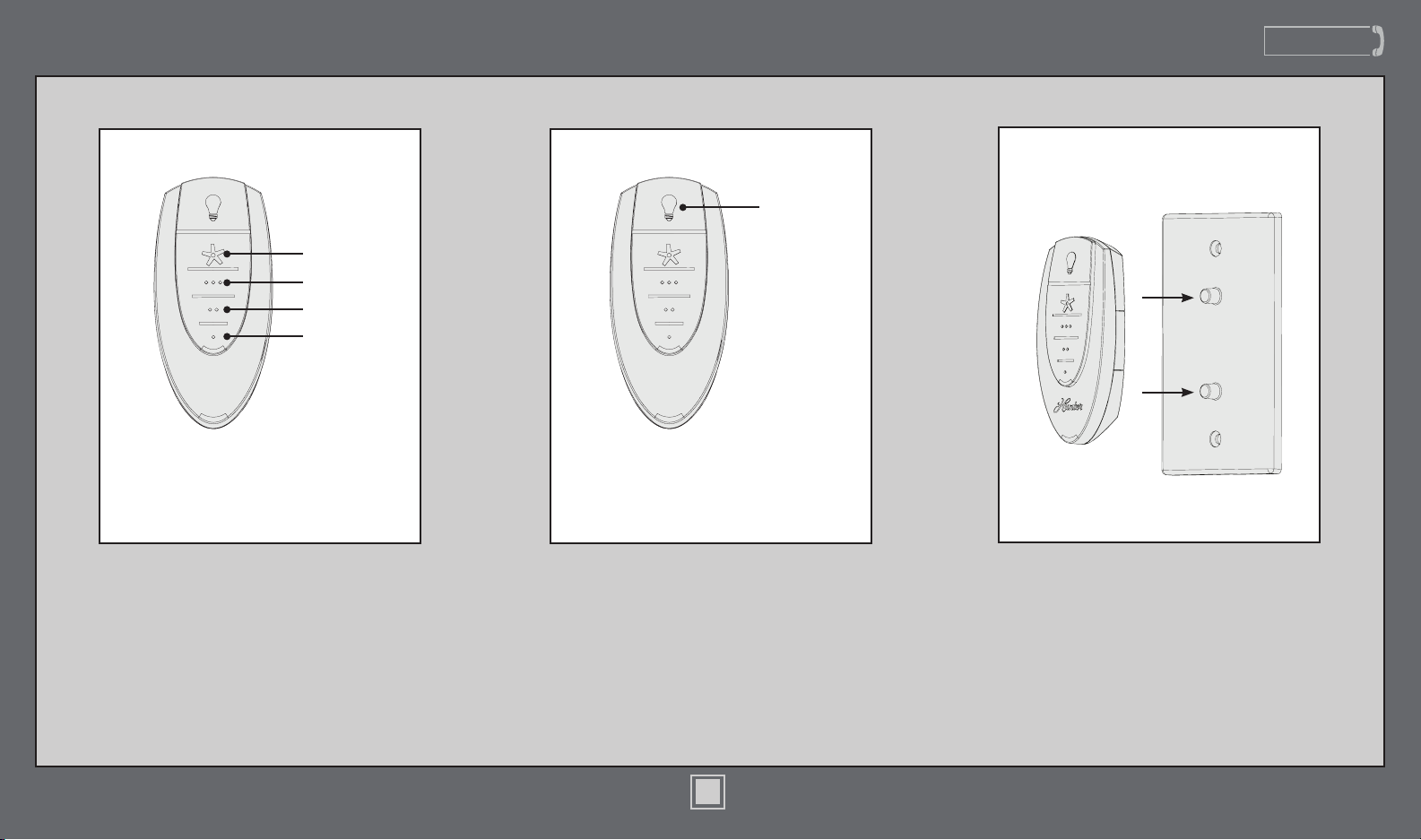

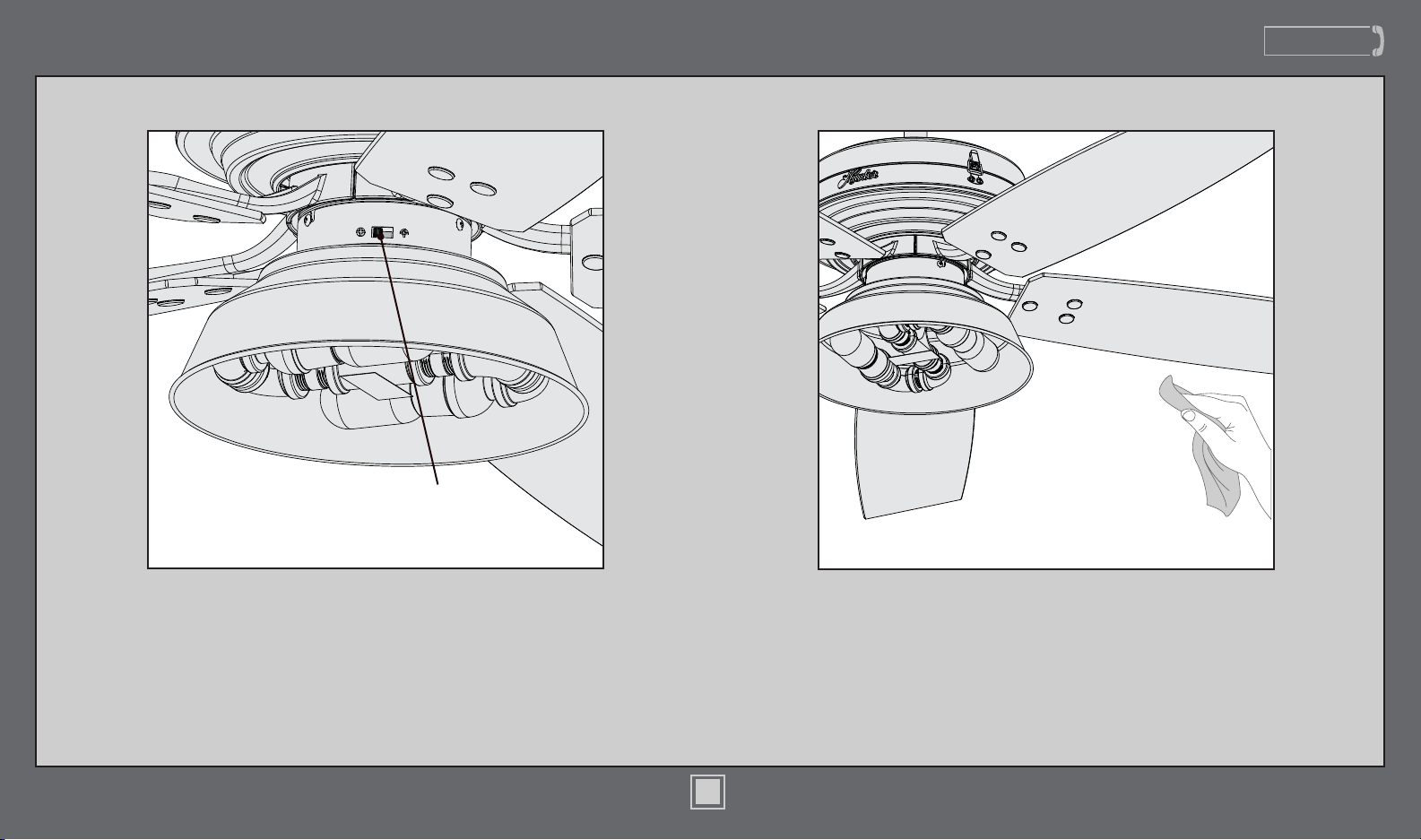

Operation, Maintenance, & Cleaning

Battery Door

Phillips Head Screw

CAUTION:

• Always purchase the correct size and grade of battery most suitable for the intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed correctly with regard to polarity (+ and -).

• Remove batteries from equipment which is not to be used for an extended period of time.

• Remove used batteries promptly.

Turn Power

www.HunterFan.com

1.888.830.1326

To access the battery compartment, remove the

small Phillips head screw that secures the battery

door to the transmitter assembly. Install one

3-Volt, CR2032 battery, found in the remote control

hardware bag, into the transmitter. Clean the battery

contacts and also those of the device prior to battery

installation. The battery should be installed with the

positive (+) side up. Please contact your local battery

recycling center for proper battery disposal information.

This product contains a button battery. If swallowed,

it could cause severe injury or death in just two hours.

Seek medical attention immediately.

The remote transmitter is already paired to the

receiver and ready to use.

Note: If your need to pair your remote, turn fan

power off and back on at the wall switch. Within 3

minutes, press and hold both the Fan Off button

and the High button for 4 seconds to pair the remote. To prevent faulty operation, please

ensure all other ceiling fans within range are

turned off at the wall switch while pairing.

Page 18

Operation, Maintenance, & Cleaning (continued)

Fan Off

High Medium Low

Light

www.HunterFan.com

1.888.830.1326

The Fan Off button only turns the

fan off. To turn the fan on, press

one of the fan speed buttons.

High

Medium

Low

ooo

Quickly press the Light button to turn

the lights off and on. Hold the Light

button to raise and dim the light level.

Dimming Mode: To enable dimming,

your remote must be set to Dimming

Mode. To toggle Dimming Mode on

or off, hold down the Fan Off button

while pressing the Light button twice.

Your remote comes with a wall

plate that has two posts on which

to mount your remote transmitter

when not in use.

Page 19

Operation, Maintenance, & Cleaning (continued)

Reverse

Switch

www.HunterFan.com

1.888.830.1326

Changing the direction of air ow - move the

reverse switch to the opposite position.

Cleaning the fan - use soft brushes or cloths to prevent

scratching. Cleaning products may damage the nishes.

Page 20

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on pages 9-10.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Noisy operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Hunter Fan HTF10265 Installation & Assembly

Specifications and Main Features

Frequently Asked Questions

User Manual
