Hunter Fan HTF10264 Installation & Assembly

Download

Page 1

30 inches

7 feet

Ladder

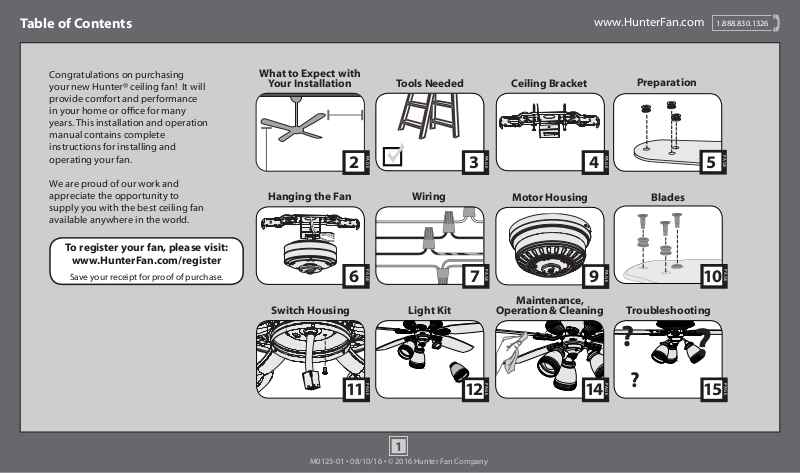

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Hanging the Fan

Switch Housing

Tools Needed

PAG E

Wiring

Ceiling Bracket

PAG E

Motor Housing

PAG E

Maintenance,

Operation & Cleaning

Preparation

PAG E

Blades

PAG E

TroubleshootingLight Kit

PAG E

Page 2

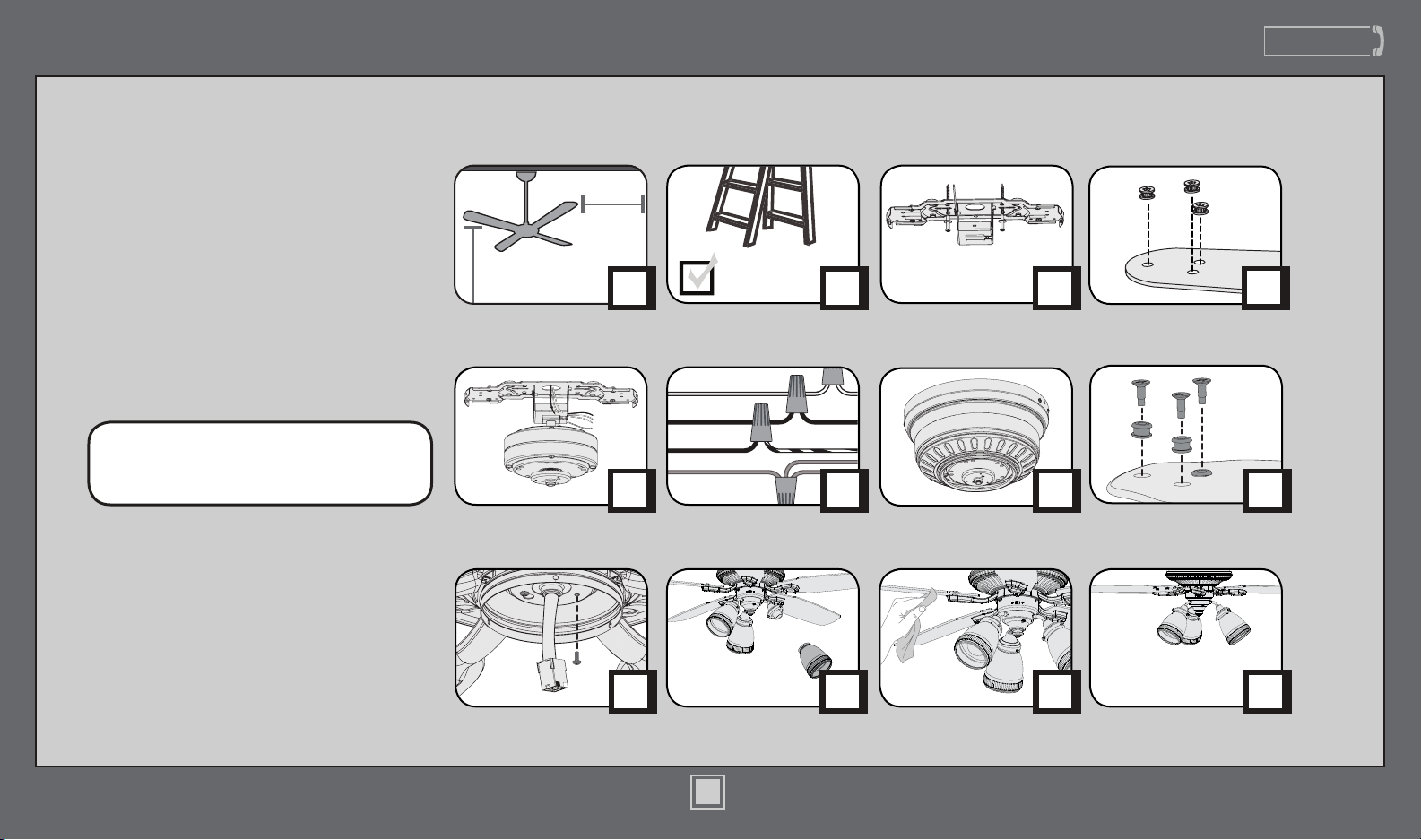

What to Expect with Your Installation

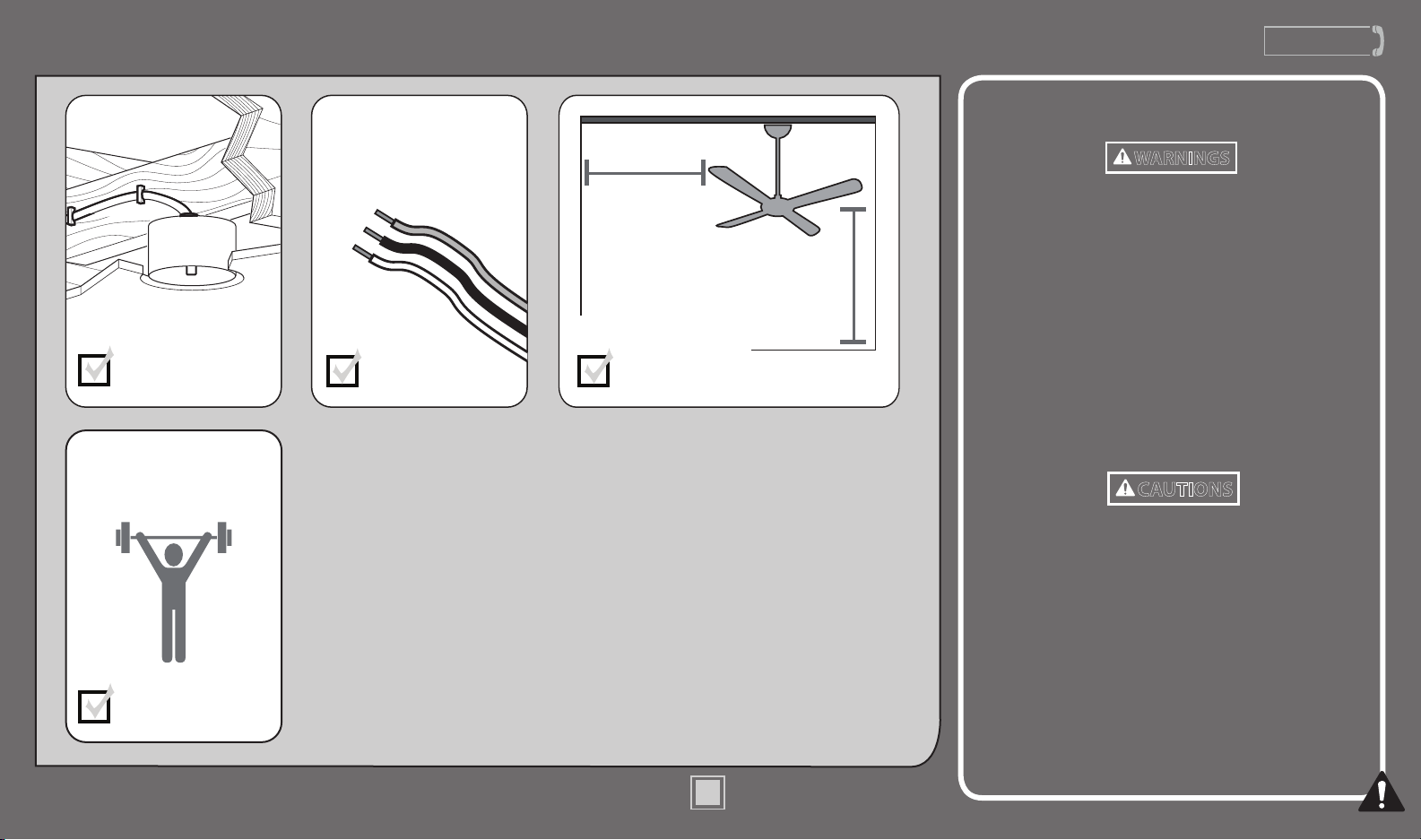

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

Assess location

7 feet

from bottom

edge of blade

to the oor

www.HunterFan.com

1.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment, ships at sea, or other critical navigation or communications equipment operating between 0.45-30 MHz.

This device complies with Part 18 of the FCC Rules.

Check box to see fan weight

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

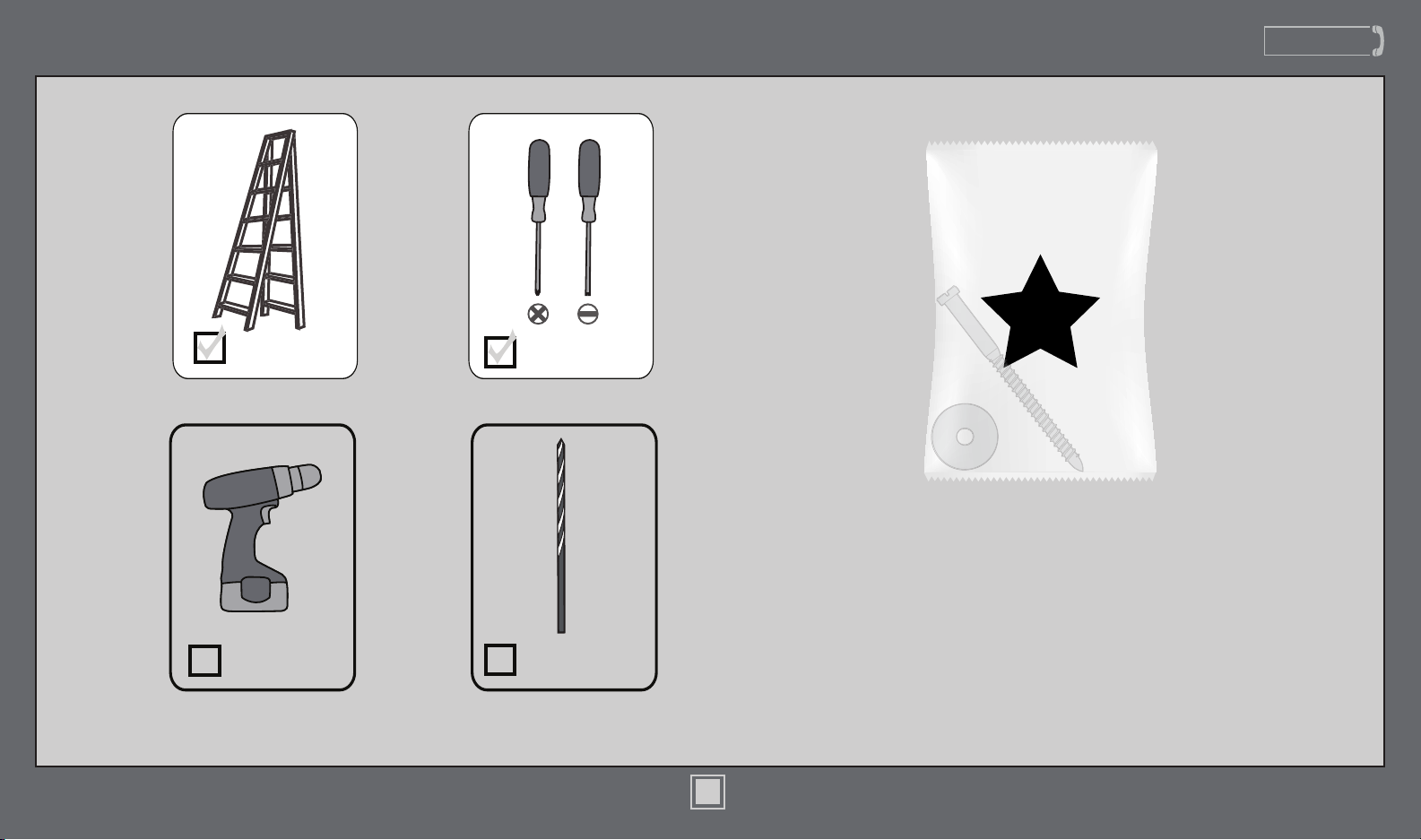

Ladder

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

Screwdrivers

9/64” Drill Bit

(optional)

Do not discard the hardware bags or mix

parts from different bags. Make note of

the symbol printed on each hardware

bag. The symbols can be used to identify

the appropriate hardware for each step.

Page 4

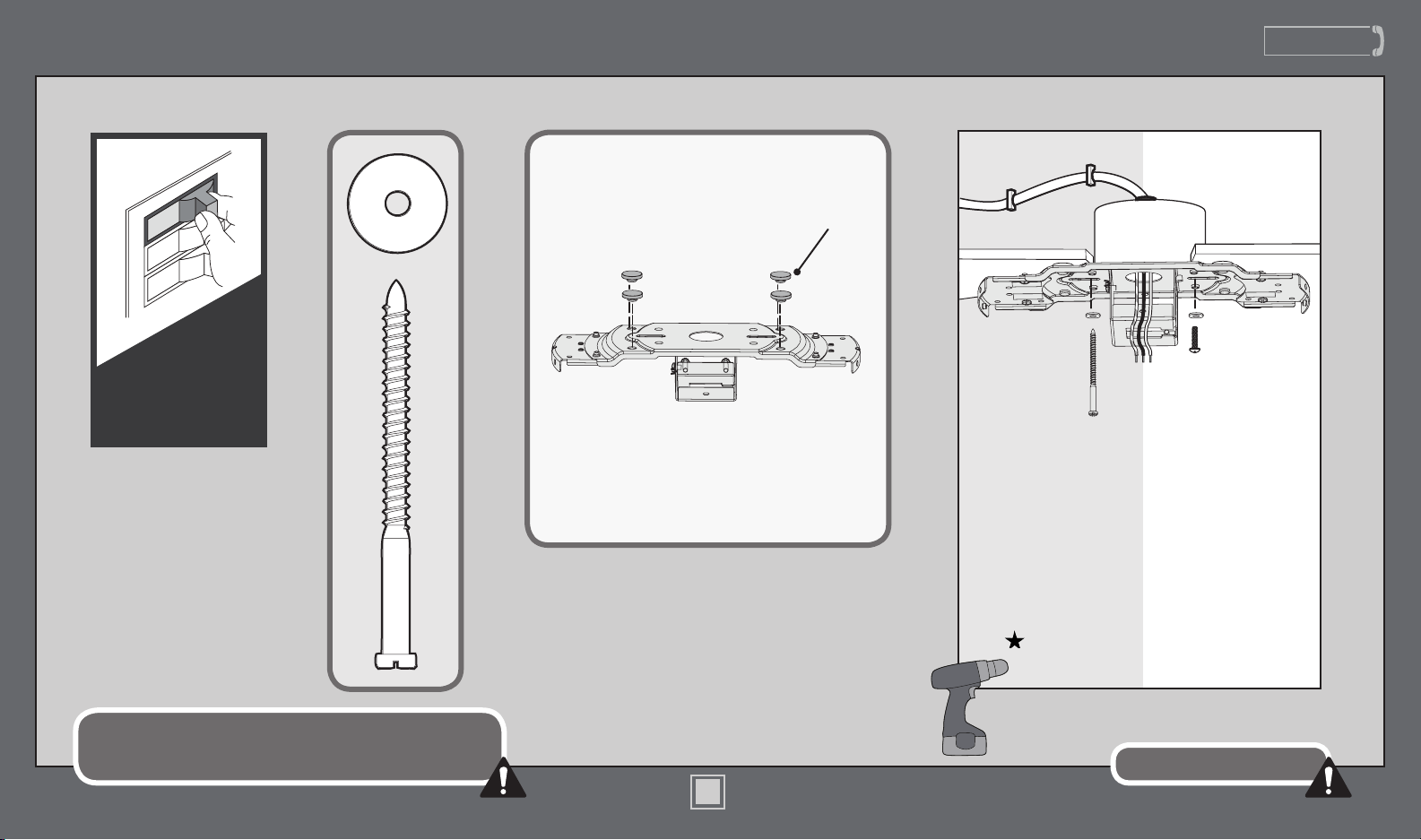

Ceiling Bracket

Turn Power

Bumper

www.HunterFan.com

1.888.830.1326

OFF

To avoid possible electrical shock, before installing your fan,

disconnect the power by turning off the circuit breakers to the

outlet box associated with the wall switch location.

Make sure all four bumpers are still attached.

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

Refer to warning w.1 on pg. 2

Page 5

Ceiling Bracket (continued)

Preparation

www.HunterFan.com

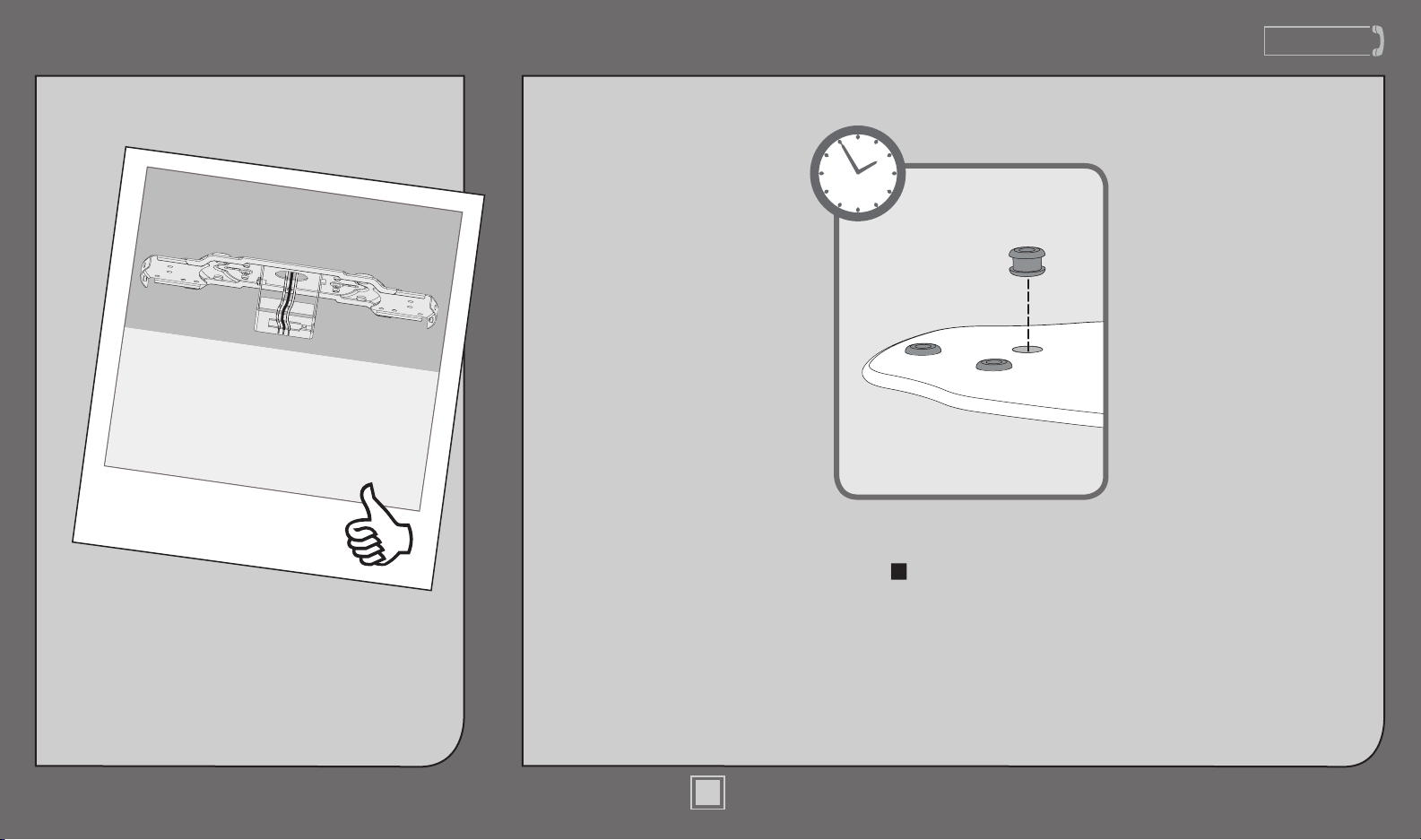

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

1.888.830.1326

Page 6

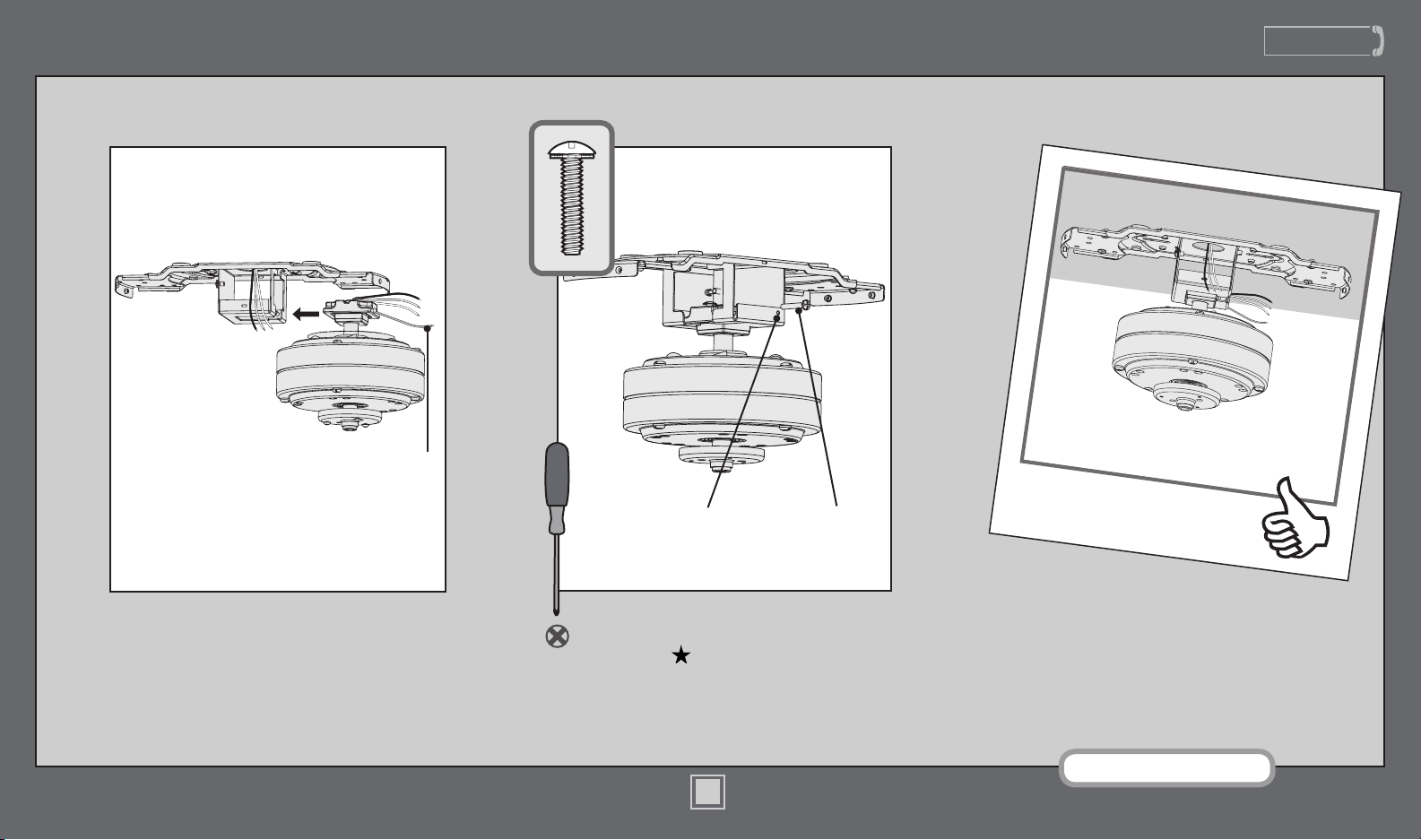

Hanging the Fan

Ground

Wire

www.HunterFan.com

1.888.830.1326

While holding the wires out of the way, lift

the motor assembly and place the square

hanger into the opening in the ceiling

bracket. Be sure the ground wire attached

to the hanger faces out of the large

opening in the ceiling bracket.

Screw Hole

Once the motor is in the ceiling

bracket, use the two locking screws

found in the hardware bag to secure

the motor to the ceiling bracket.

Locking

Screw

Note: Fan style may vary.

Page 7

Wiring: Single Switch

www.HunterFan.com

1.888.830.1326

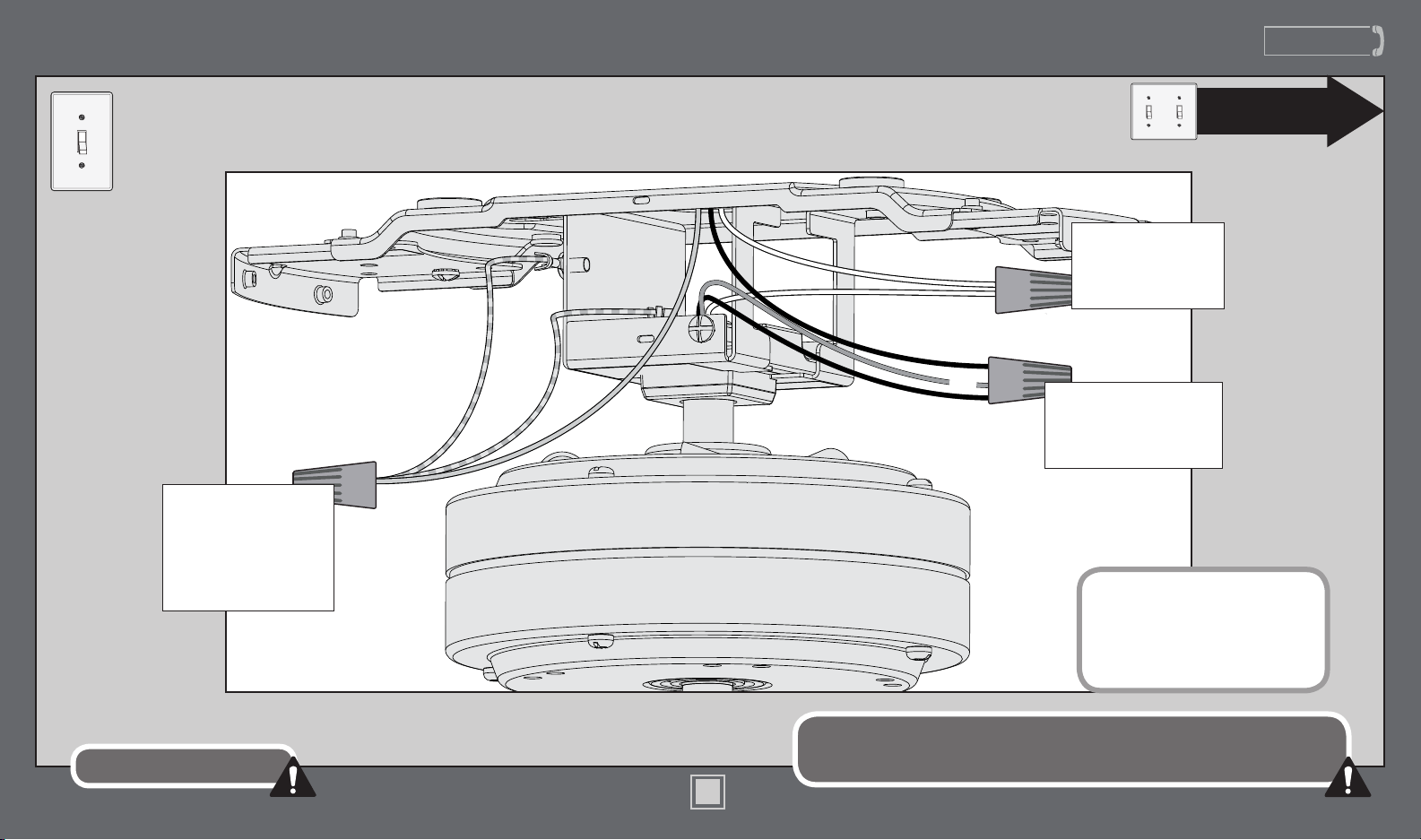

Have a single switch?

Follow these steps:

Connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

Grounding

Dual Switch Instructions

Connect the white

Grounded

White

Ungrounded

Blue

Black

(grounded) wire from the ceiling to the white wire from the fan.

Connect the black wire (ungrounded) from the ceiling to the black and the blue wires from the fan.

Note: To connect the wires,

hold the bare metal leads together and place a wire

connector over them, then

twist clockwise until tight.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Page 8

Wiring: Dual Switch

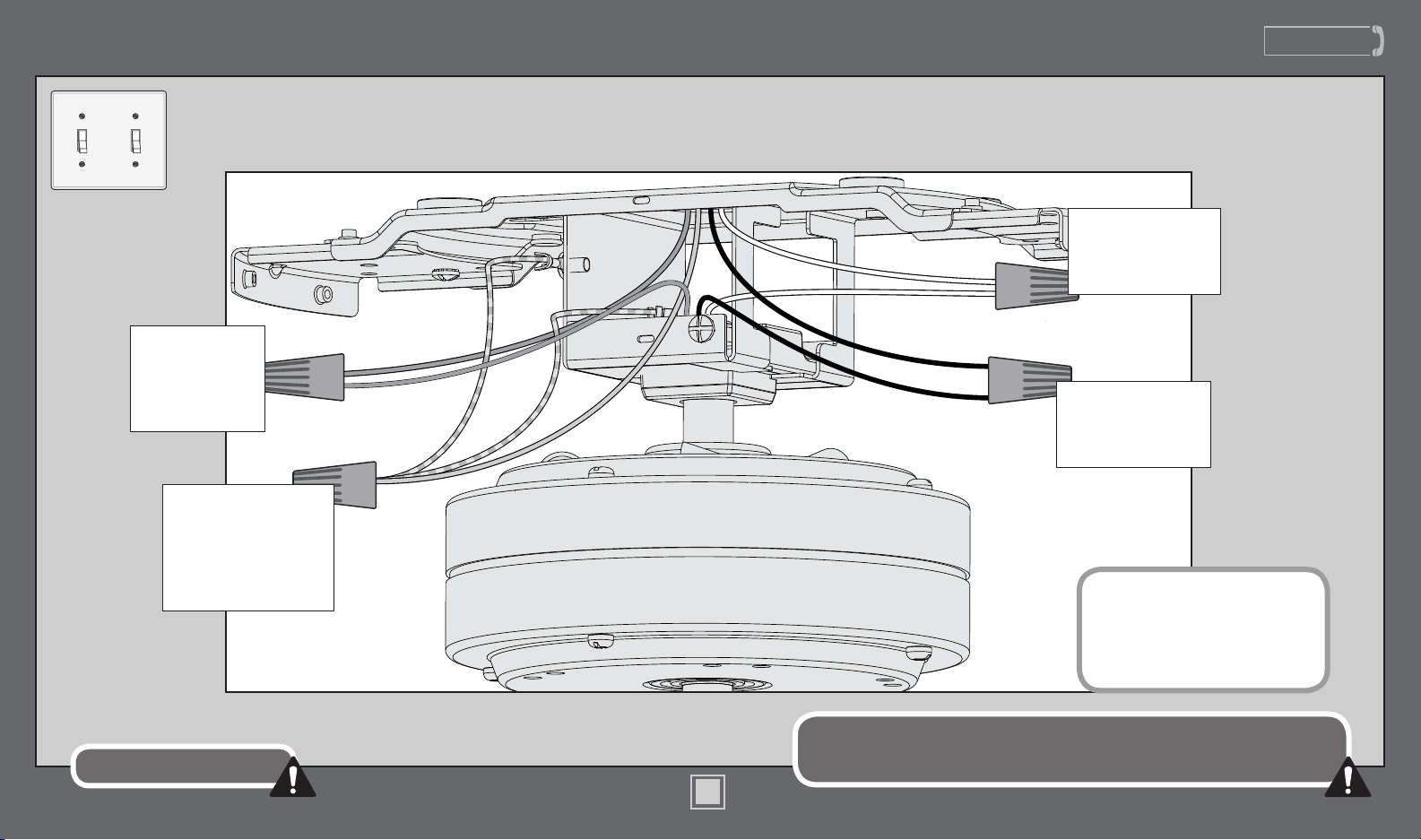

Have dual switches?

Follow these steps:

Grounded

White

www.HunterFan.com

Connect the white (grounded) wire from the ceiling to the white wire from the fan.

1.888.830.1326

Connect the second ungrounded (light) wire from the celing to the blue wire from the fan.

Connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

Refer to CAUTION c.1 on pg. 2

Ungrounded (light)

Blue

Grounding

Ungrounded

Black

Connect the black wire (ungrounded) from the ceiling to the black wire from the fan.

Note: To connect the wires,

hold the bare metal leads together and place a wire

connector over them, then

twist clockwise until tight.

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Page 9

Motor Housing

Indentation

Notch

Screw

Holes

Motor

Housing

Screw

www.HunterFan.com

1.888.830.1326

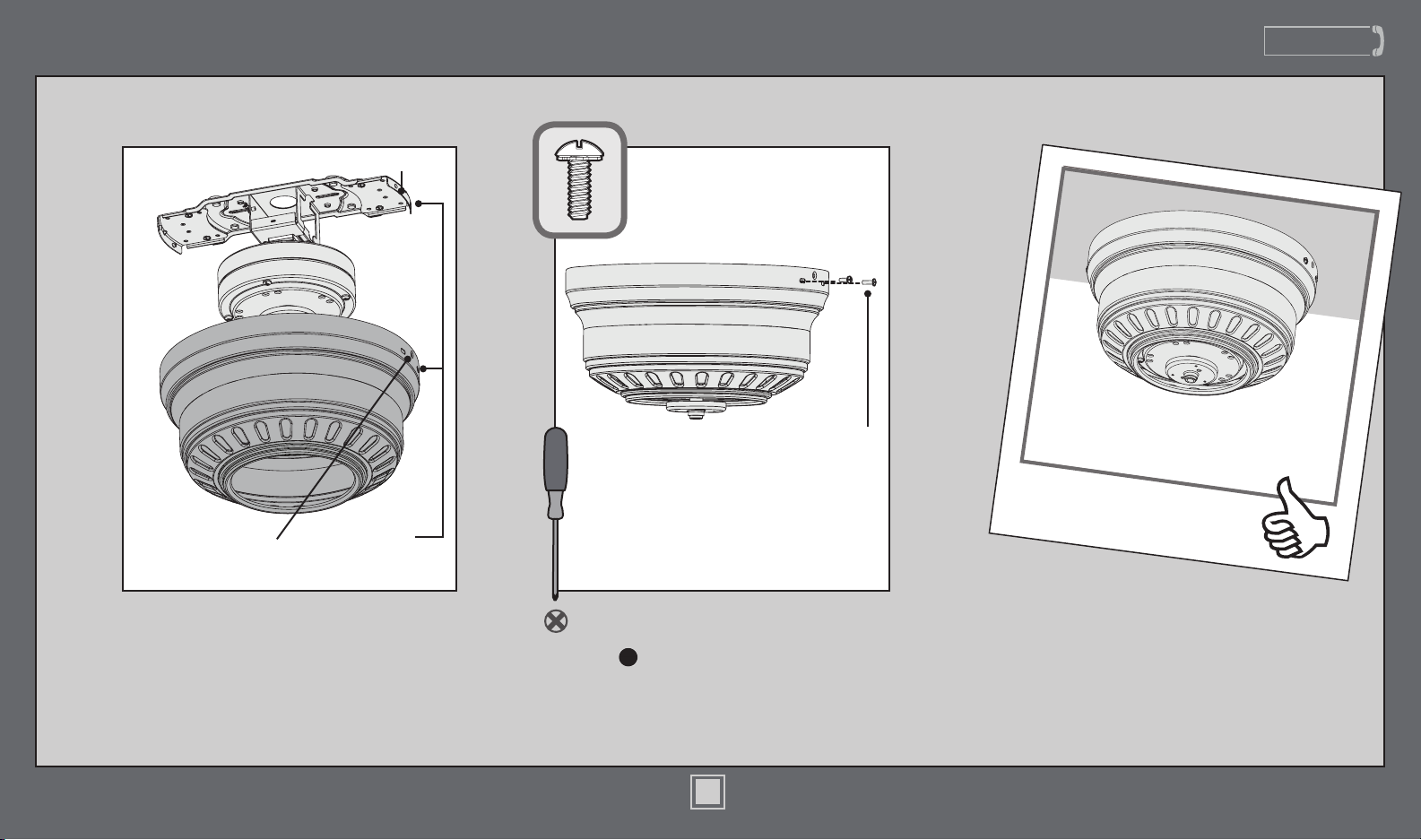

Raise the motor housing up over the motor and ceiling bracket. Turn the motor housing so the screw holes align and the indentation

in the housing locks into place with the notch

in the ceiling bracket. The motor housing is

not secured until the next step is complete.

Do not leave unattended.

With a Phillips head screwdriver, install

the four motor housing screws found

in the hardware bag. Tighten all four

screws securely.

Page 10

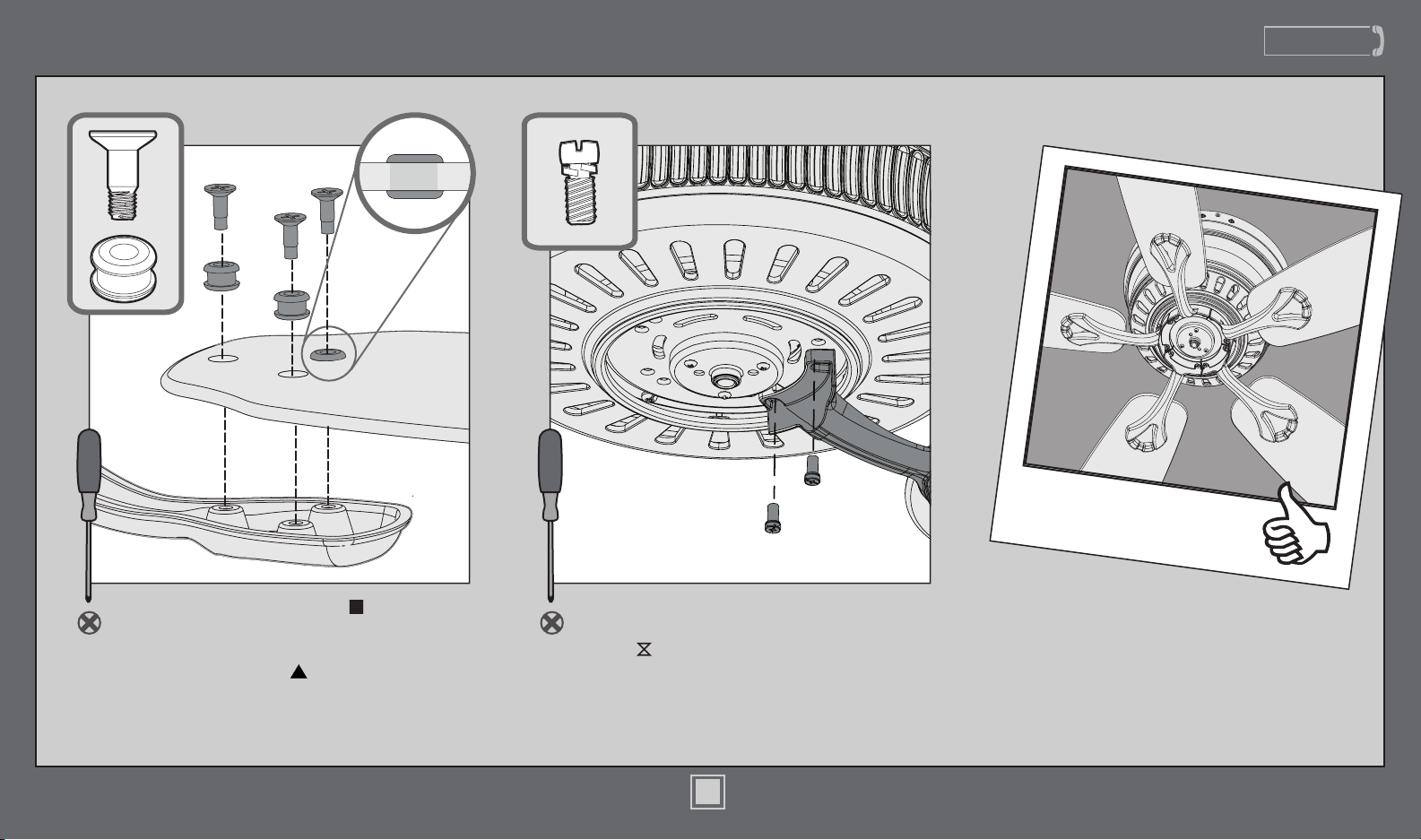

Blades

Insert grommets found in the hardware

Lightly attach the blade irons to the

www.HunterFan.com

1.888.830.1326

bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag.

motor with screws found in

the hardware bag, then securely

tighten after both screws are attached.

Page 11

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw two housing assembly screws from

the hardware bag halfway into the

motor housing. It does not matter which

two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all three assembly screws could result in the

switch housing xture falling.

Page 12

Light Kit

Switch Housing Screw

Notch

www.HunterFan.com

1.888.830.1326

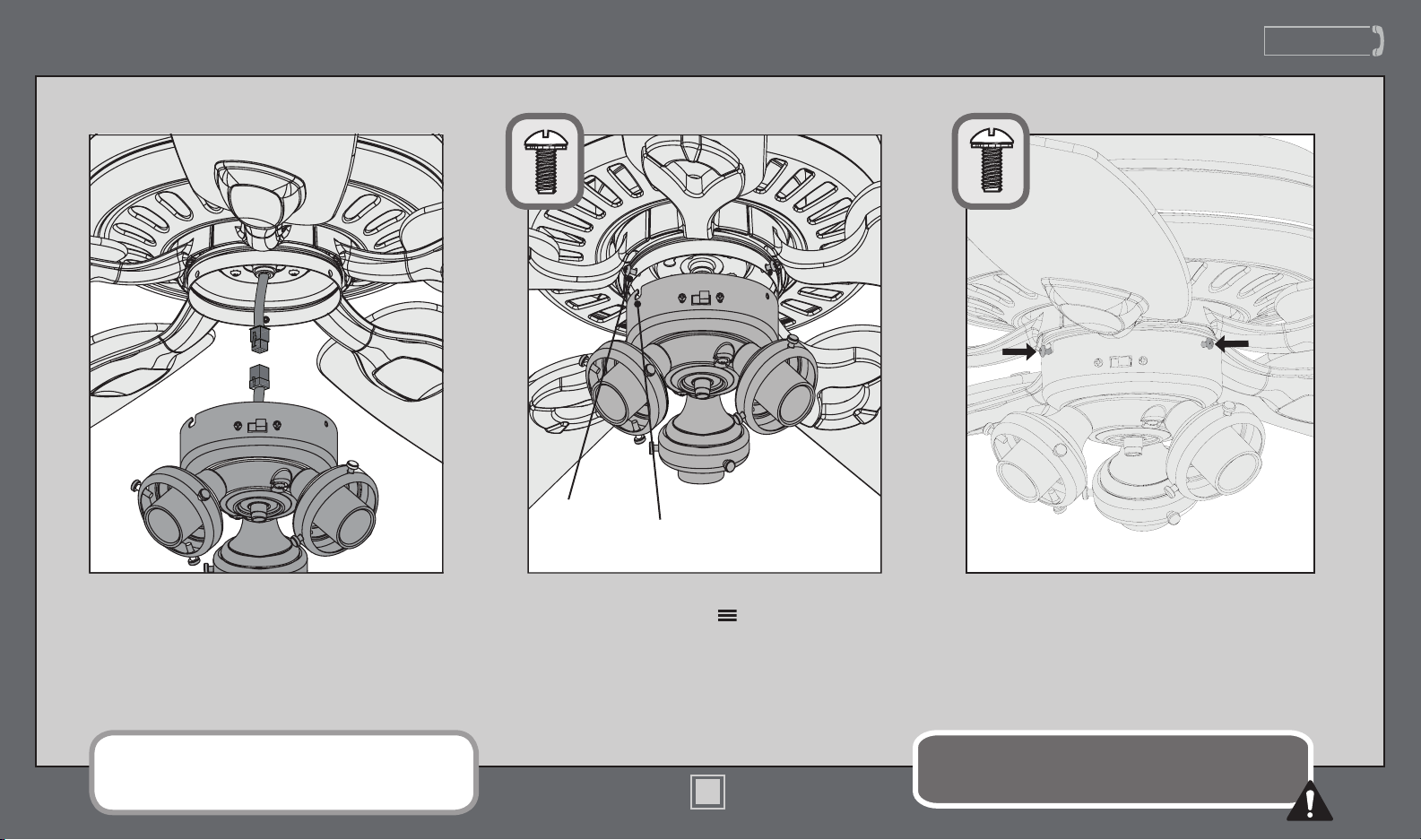

Connect the plugs from the upper and

lower switch housings. Make sure to line

up the colored markings on

the connectors.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click

“How do I install my fan without the light kit?”

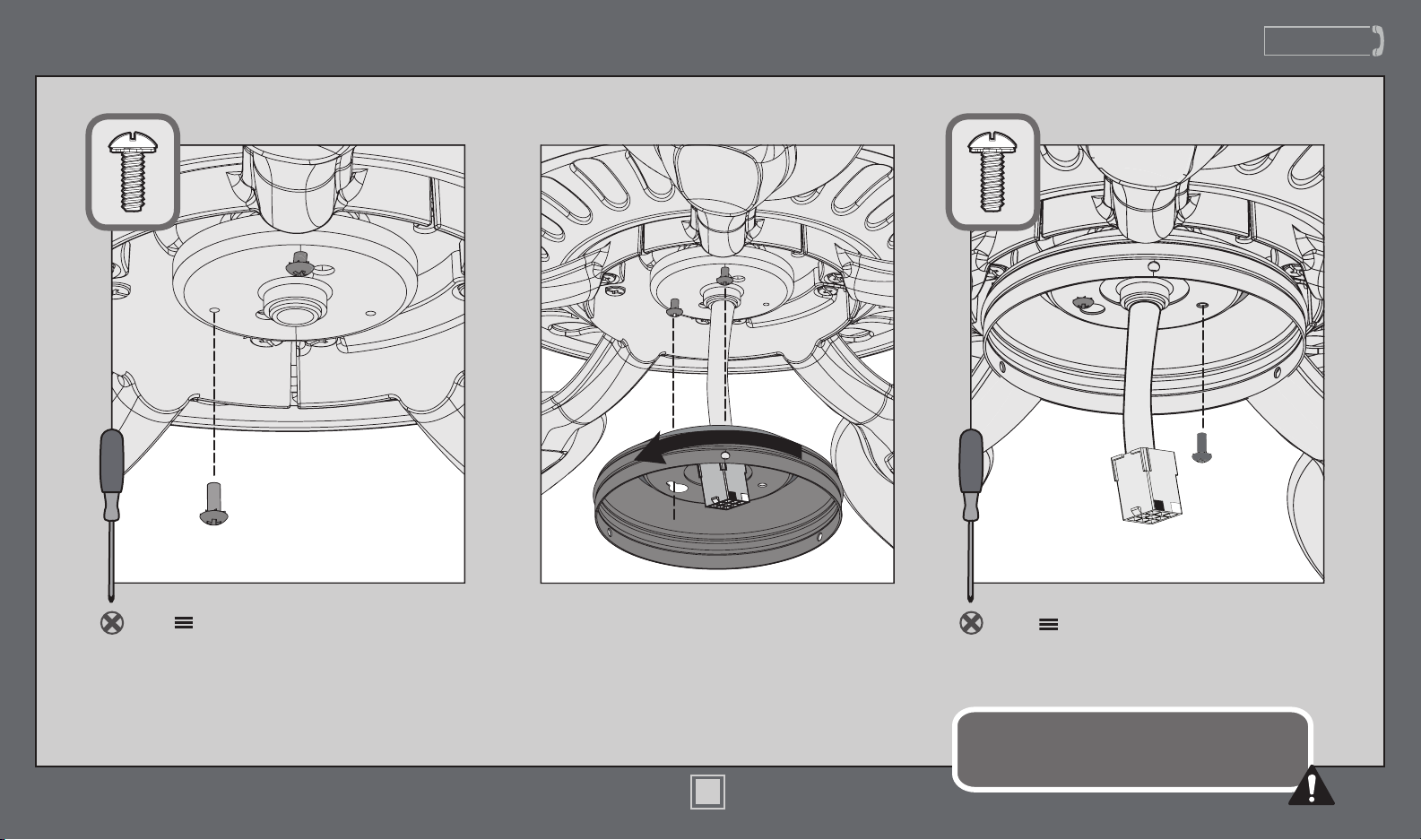

Partially install two of the switch housing

screws found in the bag. Align the notches in the sides of the lower switch housing with the upper switch housing

screws. Twist the lower switch housing

clockwise to lock into place.

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Page 13

Light Kit (continued)

Light Pull Chain

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

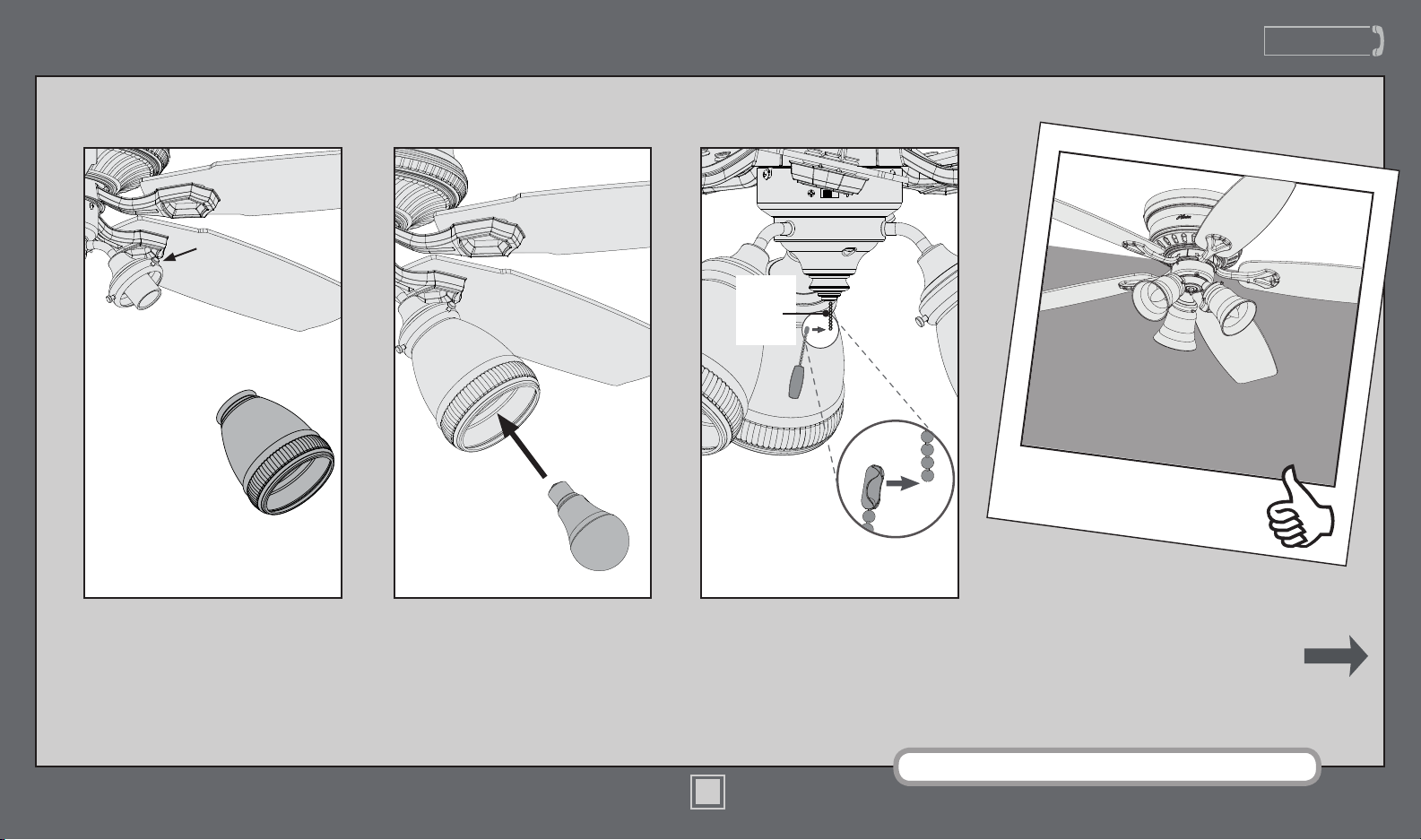

To install the shade, rst loosen

the thumb screws. Raise the

shade to the light xture. Tighten

all thumbscrews securely.

Install a bulb into each of the

sockets. When necessary, replace

with bulbs of the same wattage.

Connect the appropriate pull chain pendant to each of the

short chains coming from the

switch housing.

See next page for fan operation instructions.

Note: Glass shade style and number of lights may vary.

Page 14

Maintenance, Operation & Cleaning

Turn Power

Reverse Switch

www.HunterFan.com

1.888.830.1326

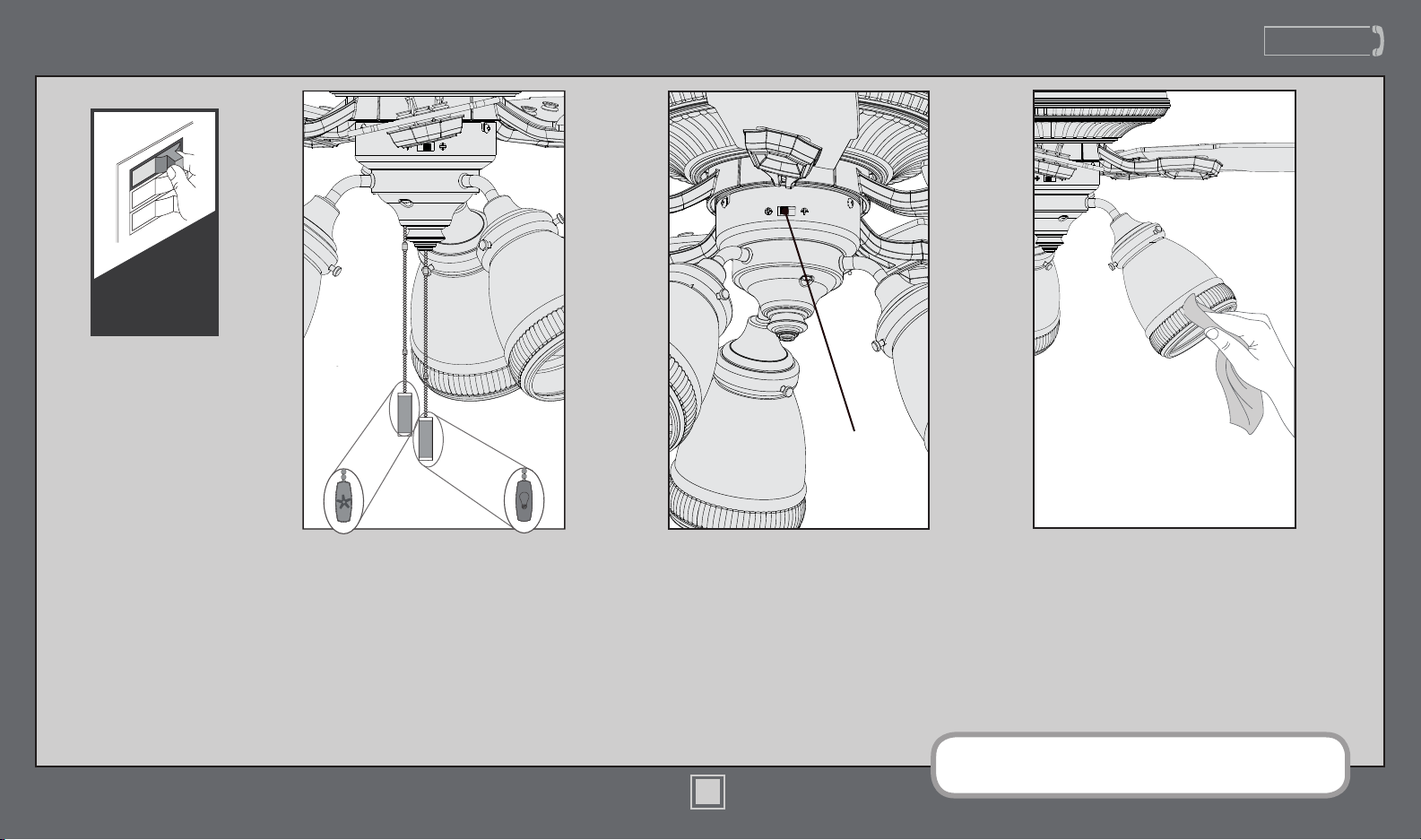

The fan pull chain controls the speed: from

high to off. The light pull chain controls the

light xture: on and off.

Soft light feature - With the light on, pull

and hold the light pull chain until the

desired light level is achieved. The light

level will remain in the fan’s memory until

it is changed. When necessary, replace with

bulbs of the same type and wattage.

To switch the direction of air

ow, move the reverse switch to

the opposite position.

For cleaning the fan, use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

For questions regarding removing a light kit, call

customer service 1-888-830-1326.

Page 15

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 7-8.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.
