Hunter Fan HTF10235 Installation & Assembly

Model: 50896 New Bronze
50904 Matte Silver
50905 Fresh White
Fan weight ±2 lbs: 14.1 lbs (6.4 kg)

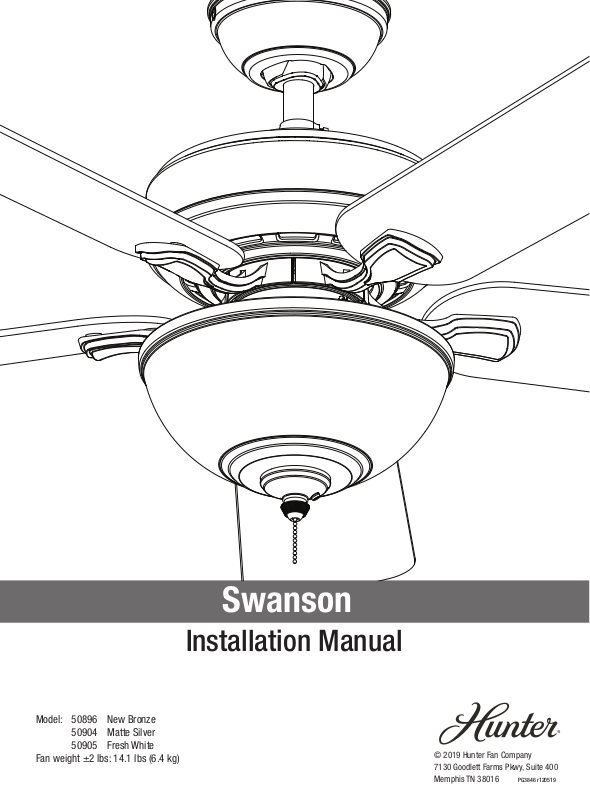

Swanson

Installation Manual

© 2019 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016

PG3846 r120519

Congratulations on purchasing your new Hunter® ceiling fan!

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains

WARNING

Limited Lifetime Warranty

complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.

READ and SAVE These Instructions

This product conforms to UL Standard 507.

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original

purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/

1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

What Does This Warranty Cover?

Motor — Limited Lifetime Warranty

If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.

Other — One-Year Limited Warranty

Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*

Light Kits — Warranty May Vary

Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:

• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect

* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.

Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.

in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*

What Does This Warranty NOT Cover?

How Does State Law Affect Warranty Coverage?

1

Quick Install Guide

Preparation

Assembly Instructions

WARNING

WARNING

Ladder

Here are the tools you’ll need to

complete your installation:

NOTICE

Screwdriver Pliers Wire Strippers

OPTIONAL

If mounting to a support structure, you will also need
these tools.

Drill

9/64” Drill Bit

30 inches

from blade tip to
nearest wall or
obstruction

Turn Power

OFF

7 feet

from bottom

edge of blade to

the oor

To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

You must
be able to
secure the
fan to building
structure or
fan-rated
outlet box.

E

E

P

K

!

D

I

S

C

A

R

D

Remove the
shipping blocks
from the motor.
Save the screws.
They will be
needed for blade
iron installation.

OPTION 1: Machine Screws

1

STEP

Use machine screws (provided
with outlet box) and washers

when securing to existing ceiling
fan-rated outlet box. Make sure

bag

For installing the hanger bracket and wiring the fan

it is securely installed and is
acceptable for fan support of

31.8 kg (70 lbs) or less.

bag

bag

OPTION 2: Wood Screws

Use wood screws and washers
(included) when securing to support
structure with approved electrical
outlet box. Drill 9/64” pilot holes in
support structure to aid in securing
ceiling bracket with hardware found
in the hardware bag.

x2

4

STEP

8

STEP

x15

7

STEP

To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.

x15

x4

x2

Place the downrod ball into
the slot in the ceiling bracket.

5

STEP

See back
for wiring

STEP

1

STEP

3

STEP

x2

bag

For installing
the canopy

6

2

STEP

STEP

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAYS tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

10

STEP

each time you change fan direction.

11

x3

For installing the blades

x5

9

STEP

You will nd these screws in
the motor’s shipping blocks.

Connect the fan pull chain pendant to the

16

short chain coming from the switch housing.

STEP

x3

13

STEP

12

STEP

14

STEP

15

STEP

M3780-01 r121019 © 2019 Hunter Fan Company

Install a bulb into each

of the sockets. When

necessary, replace with

x2

bulbs of the same type

and wattage.

For installing the light kit

bag

Wiring Instructions

Down Rod

Troubleshooting

WARNING

5

WARNING

WARNING

Fan Doesn’t Work

Excessive Wobbling

Noisy Operation

STEP

Single switch:

G

r

e

Grounded

White

Blue

Black

The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.

All wiring must be in accordance with
national and local electrical codes ANSI/NFPA

70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.

1. Connect the three grounding wires (green, green/yellow stripe, or bare copper)
coming from the ceiling, downrod, and hanging bracket.

2. Connect the white (grounded) wire from the ceiling to the white wire from the fan.

3. Connect the black (ungrounded) wire from the ceiling to the black wire and blue
wire from the fan.

e

n

/

Y

e

l

l

Grounding

o

w

S

t

Green/Yellow Stripe

r

i

p

e

Grounded

White

Ungrounded

Black

1. Connect the three grounding wires (green, green/yellow stripe, or bare
copper) coming from the ceiling, downrod, and hanging bracket.

2. Connect the white (grounded) wire from the ceiling to the white wire from
the fan.

3. Connect the black (ungrounded) wire from the ceiling to the black wire from

Dual switches:

Blue

Ungrounded (light)

G

r

e
e

n

/

Y

e

l

l

Grounding

o

w

S

t

Green/Yellow Stripe

r

i

p

e

the fan.

4. Connect the second ungrounded (light) wire from the celing to the blue wire
from the fan.

Note: To connect the wires, hold the bare metal leads together and place a wire connector over them, then twist clockwise until tight. Turn the splices upward and push them carefully
back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the
outlet box.

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Push the motor reversing switch rmly left or right to ensure that it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections
according to the wiring diagram.

• Check the plug connection in the switch housing.

If you need a different downrod length follow these steps:

Follow steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Follow steps 6-10 to reassemble with new downrod

• Make sure the blades are properly installed on the blade iron posts.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

• Make sure the blades are properly installed.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

678910

• A LWAYS follow the downrod assembly

instructions exactly.

• VERIFY the downrod is assembled correctly

by rmly pulling on the hanger ball.
