Model: 59416 Brushed Nickel
Fan weight ±2 lbs: 19.4 lbs (8.8 kg)
Avia
Installation Manual
©2018 Hunter Fan Co.
PG3625 r032618
1886
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This
Congratulations on purchasing your new Hunter® ceiling fan!
Here are the tools you’ll need to complete your installation:
1886
WARNING
instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and
appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction
Manual, keep your smartphone or tablet nearby. We have added video links to help you through the more technical
sections. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.
READ and SAVE These Instructions
Warning
.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ladder
Screwdriver
This product conforms to UL Standard 507.
Certied to CSA Standard C22.2 No. 113
OPTIONAL
If mounting to a support structure, you will also need these tools.
9/64” Drill BitDrill
Pliers
1
Wire Strippers
1886
We recommend that you pull everything out of the box and lay it out. We have

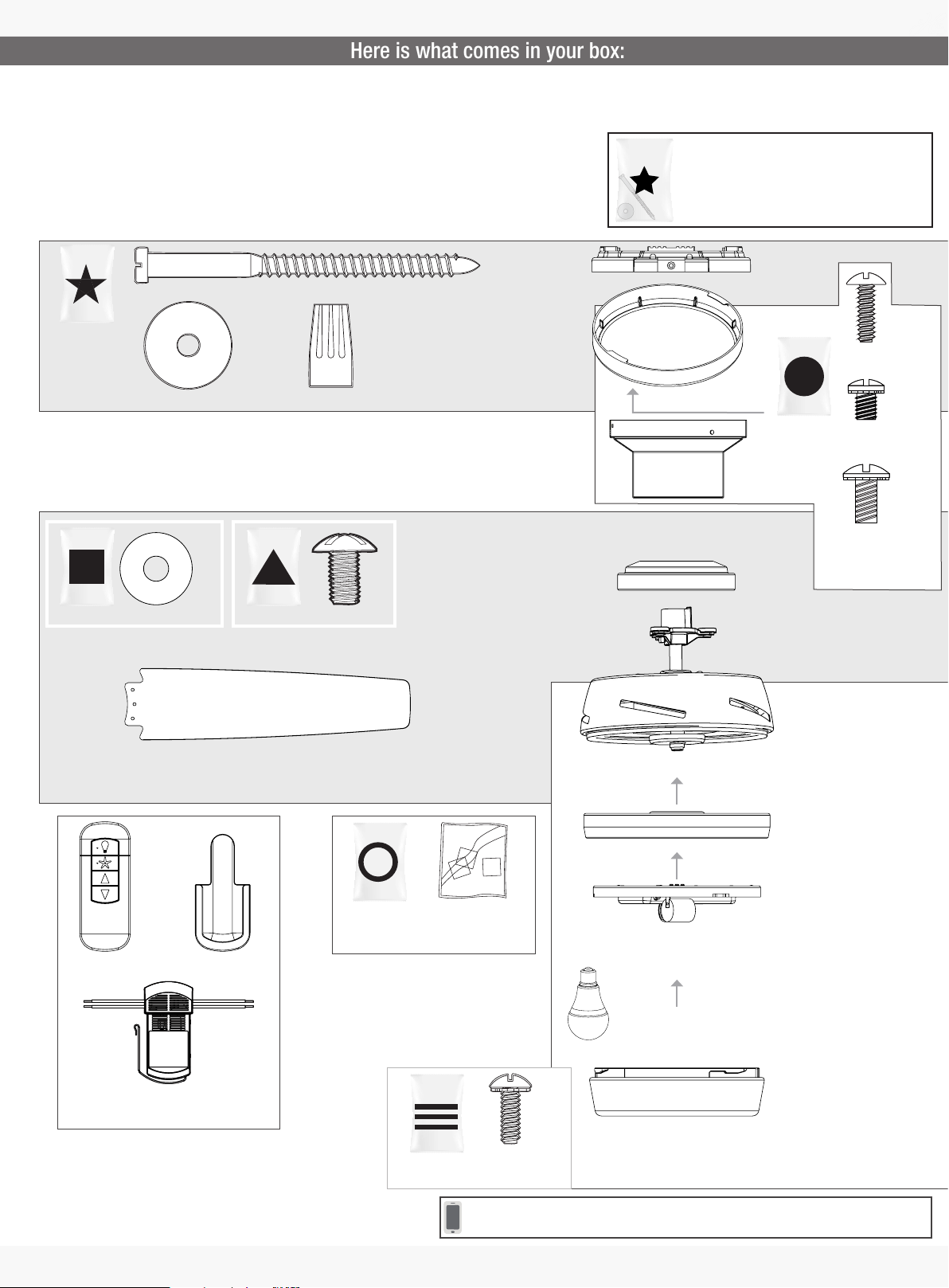

Here is what comes in your box:
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
Wood Screw
x2
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
Ceiling Bracket
bag
Washer
x2
For installing the hanger bracket and wiring the fan
x15 x15
bag bag
For installing the blades
BladeWasher
Blade
x5
Blade Screw
WIre Nut
x4
Top Housing
Trim Ring
Canopy
Top Housing
Screw
bag
Motor
Grounding
Screw
Canopy
Screws
For installing the canopy
x3
x1
x3
Remote Control
Remote Components
M3678-01 r032818
Remote Cradle
Remote Receiver
bag
For your convenience,
you may receive extra fasteners.
Spare Parts
x6
bag
Light Kit Screw
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Upper Switch Housing
Light Kit Assembly
Bulb
x2
Glass
For installing the light xture
2
1886
1886

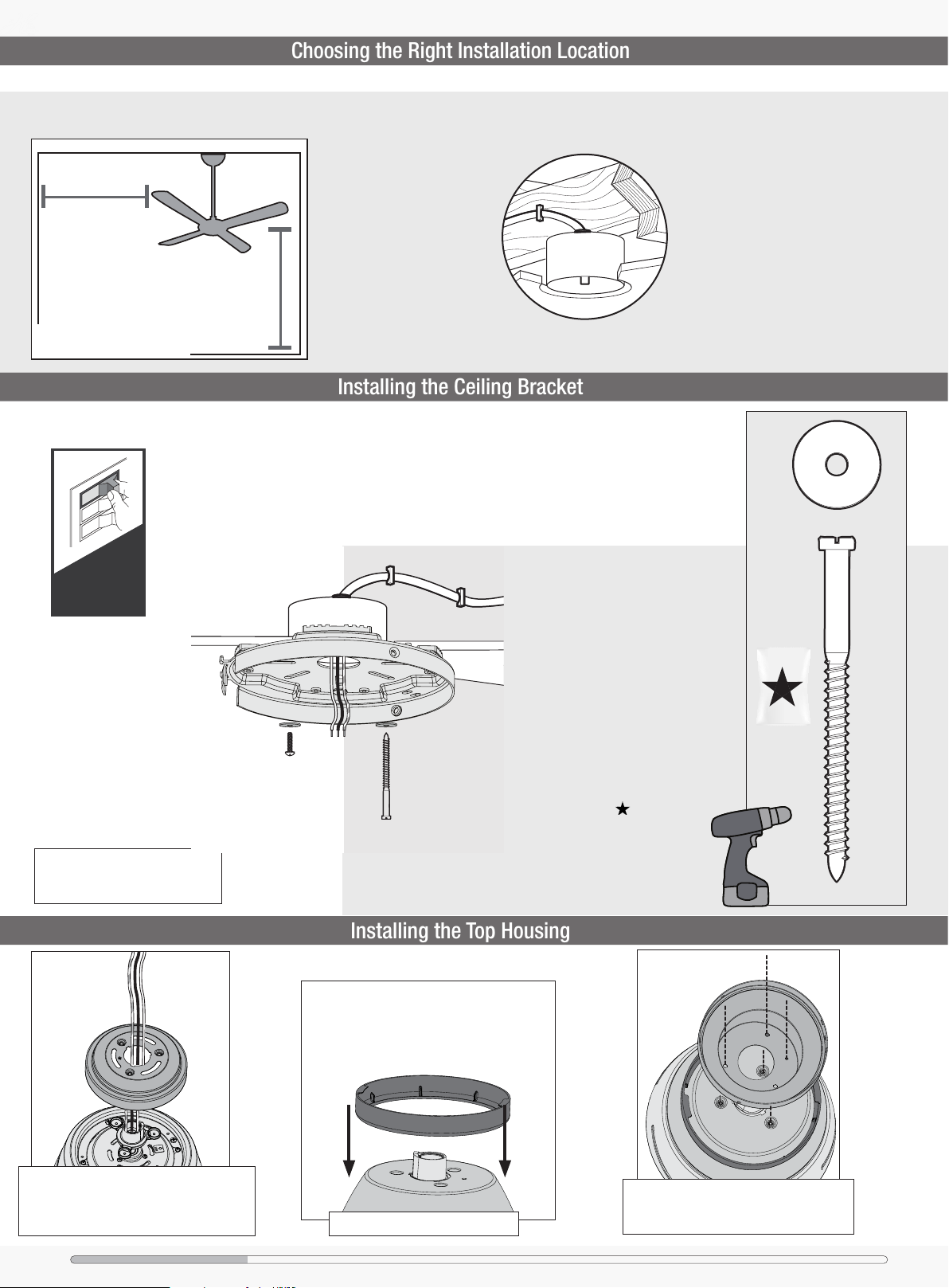

Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Installing the Ceiling Bracket
Installing the Top Housing
Check the room dimensions: Check the outlet box:
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Do this rst!
Turn Power
OFF
Option 1:
Machine Screws
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Washer
x2
bag
Hunter Pro Tip:
The machine screws are the ones
that came with your outlet box.
Thread the wires through the top housing.
Place the top housing onto the motor housing
so that the holes in the top housing lineup with
the holes in the motor housing and the adapter.
3
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
Rest the trim ring on the top housing.
Place the canopy on the top housing. Ensure
all four screw holes line up with the screw
holes in both the top housing and the adapter.
Wood Screw
x2
1886

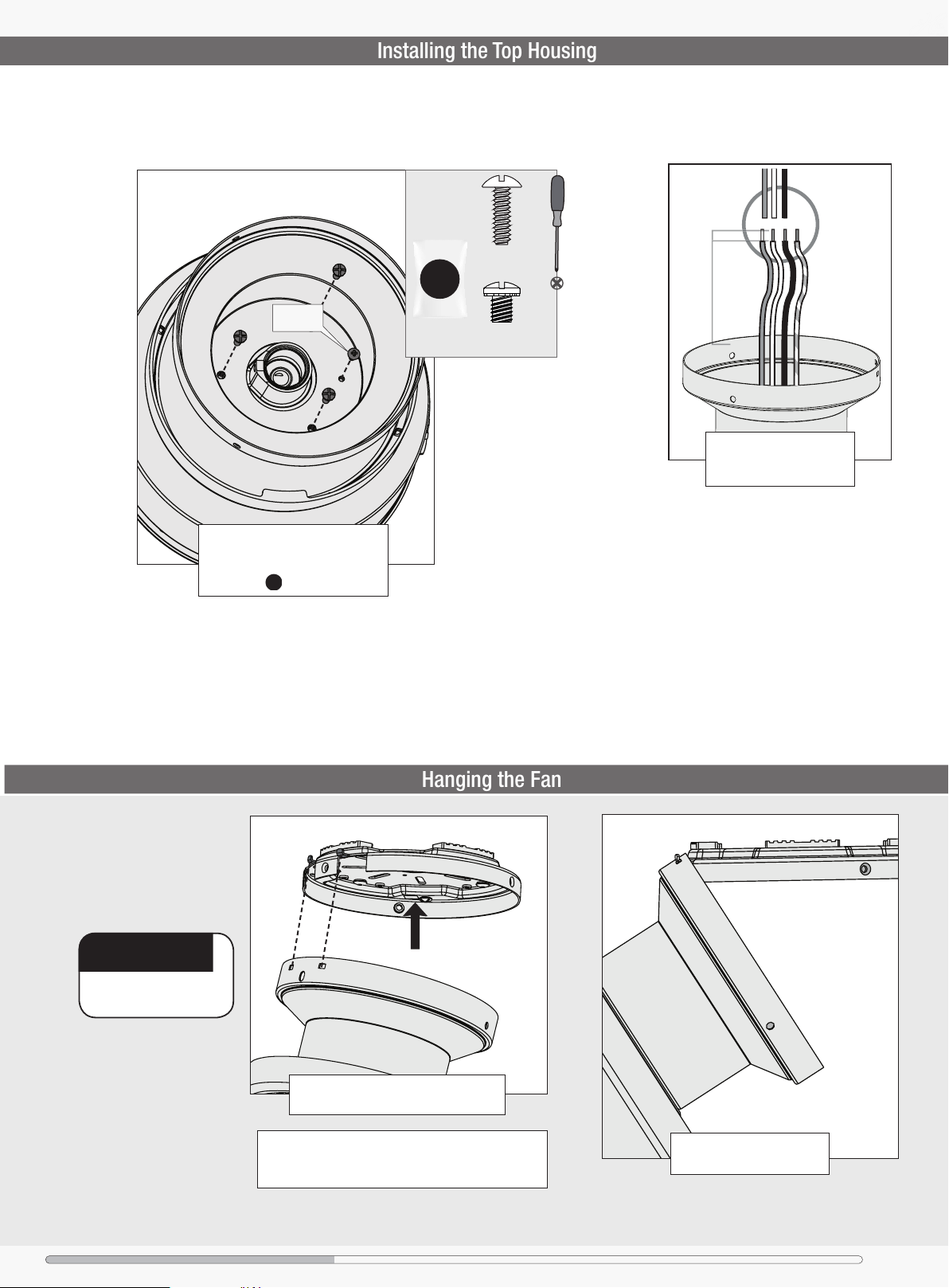

Installing the Top Housing
Grounding
Hanging the Fan
NOTICE
Screw
Install the top housing screws. Install
the grounding screw in the smaller
screw hole. These screws can be
found in the hardware bag.
bag
x3
Top Housing
Screw
x1
Grounding
Screw
T
U
C
3/8”
8”
(not to scale)
The wires can be cut, but
leave at least 8” extending
from the top of the canopy.
P
I
R
T
S
&
To prevent damage to fan,
ALWAYS lift holding the fan
housing.
Raise the fan and align the slots in the
canopy with the hooks on the ceiling plate.
Note: To hang the fan, you must tilt the canopy to
an almost vertical position so that the canopy slots
Place the slots over the ceiling
plate hooks to hang the fan.
sit on the ceiling plate hooks.
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
4
1886
1886
We know wiring is hard. Let’s make it easier.

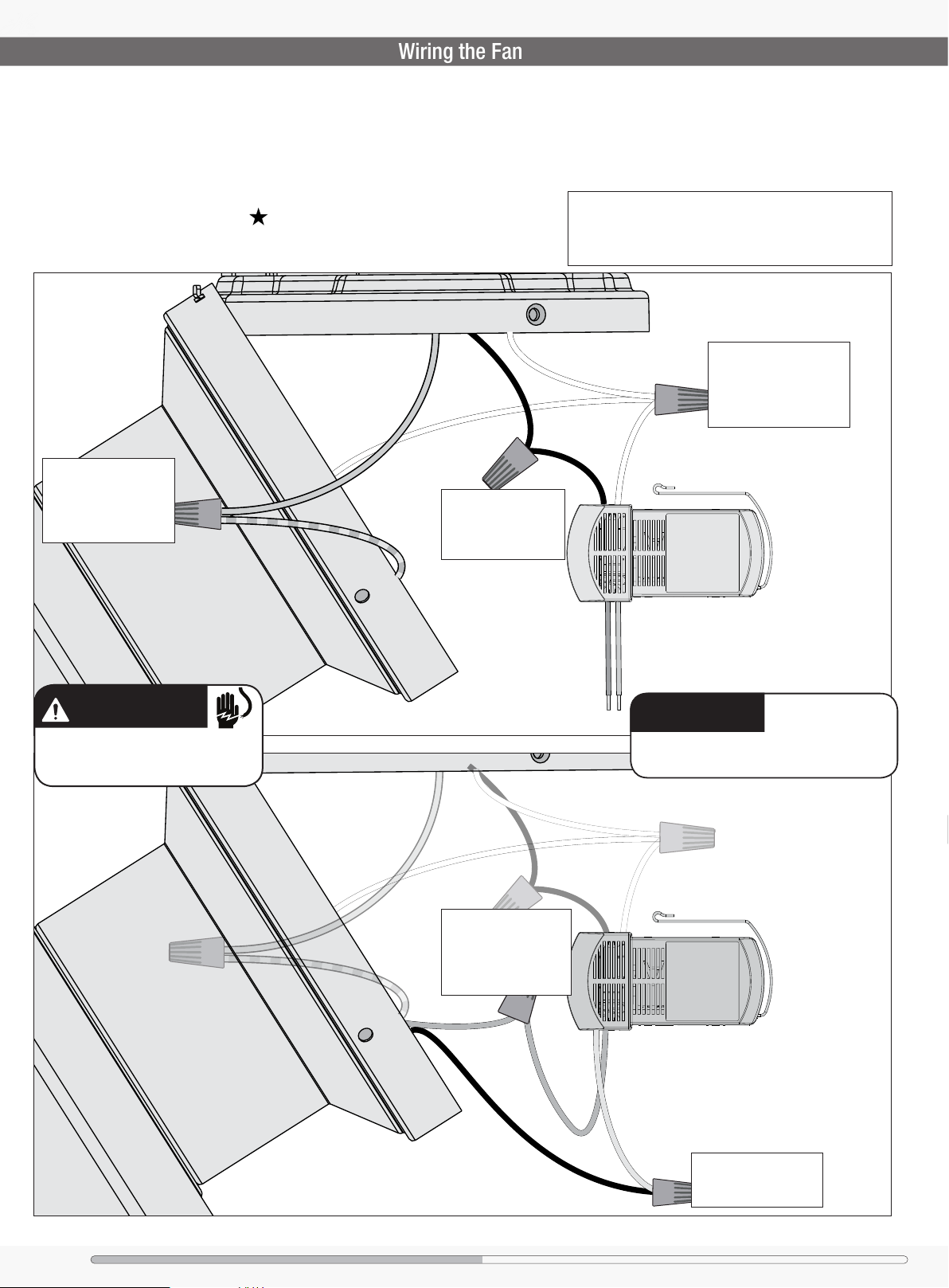

Wiring the Fan
Installing the Blades
NOTICE
WARNING
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.
You are going to need these:
4 Wire Nuts (these are in the bag)
Connect the 2 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling and ceiling plate.
Ungrounded
Connect the black wire
(ungrounded) from the
ceiling to the black
wire from the receiver.
Grounded
Black
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
Connect the white wire
(grounded) from the ceiling
to both the white wire from
White
White
the receiver and the white
wire from the fan.
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.
Connect the blue wire
from the receiver to the
blue wire (or possibly
black with white stripe
wire) from the fan.
Blue
Blue
The Avia ceiling fan is designed to be operated by
the included remote. Keep your switches in the “On”
position to ensure proper functionality.
Yellow
Connect the yellow wire
from the receiver to the
Black
black wire from the fan.
5
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
1886

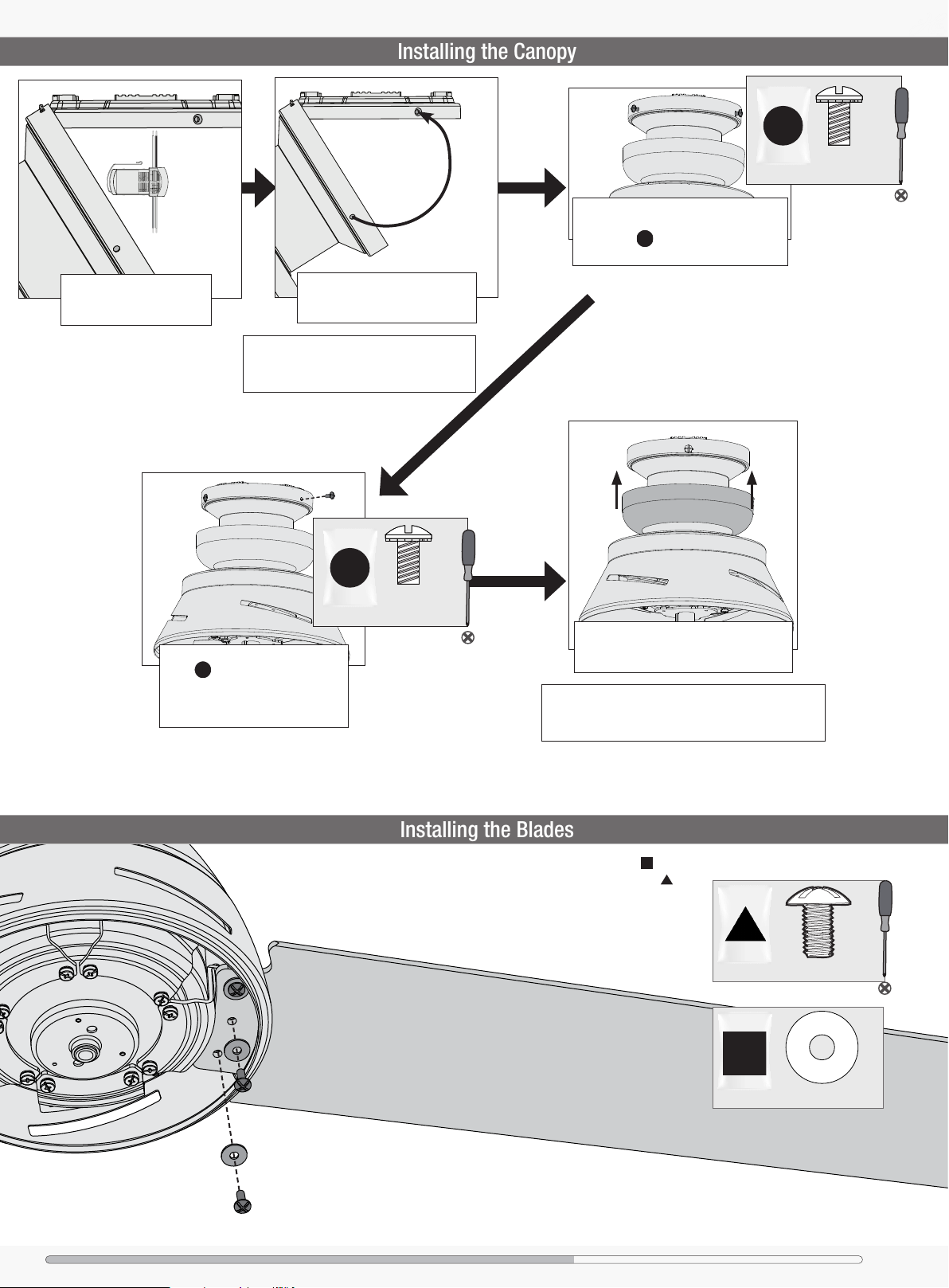

Installing the Canopy
Installing the Blades
Place the receiver inside the
canopy. Ensure the wires
remain connected.
Partially install a canopy screw, found
in the hardware bag, between
the ceiling plate hooks. When all the
holes are properly aligned, securely
tighten all three canopy screws.
Swing the fan up to align the
canopy screw holes with the
mounting holes on the ceiling plate.
Note: The slots in the canopy must
remain engaged while swinging the
canopy for alignment.
1 of 3
bag
Canopy
Screws
bag
Hold the canopy up with the screw holes
aligned. Partially install two canopy screws,
found in the hardware bag, into the
holes opposite the ceiling plate hooks.
Using both hands, push the canopy trim
ring up to the top of the canopy. The canopy
trim ring will snap and lock into place.
Note: Should you need to remove the trim ring,
press rmly on opposite sides of the trim ring. The
tabs will ex out releasing the canopy trim ring.
2 of 3
Canopy
Screws
Put the blade washers found in the hardware
bag onto the blade screws found in the
hardware bag. Then install the blade screws to
secure each blade to the fan.
Repeat x5
bag
Blade Screw
x15
x15
bag
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
Blade Washer
6
1886
1886

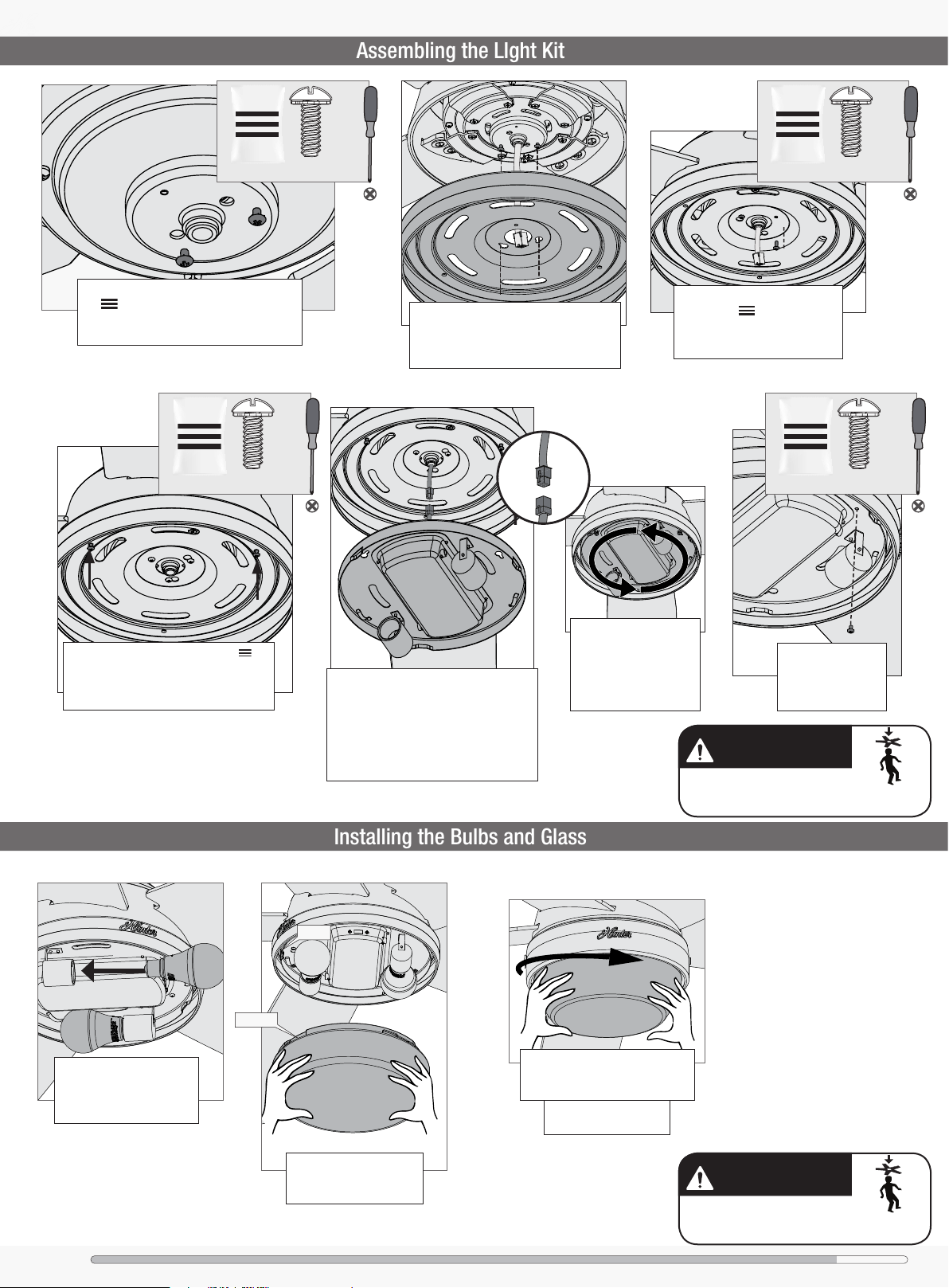

Installing the Bulbs and Glass
Assembling the LIght Kit
WARNING
WARNING
bag
2 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
Partially install two light kit screws, found in
the hardware bag, halfway into the light
kit adapter plate as shown. It does not matter
which two screw holes you choose.
Light Kit Screw
bag
Screw two light kit screws from the
hardware bag halfway into the upper
switch housing. It does not matter which
two screw holes you choose.
2 of 6
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Connect the 9-pin plug connector from
the motor housing to the plug connector
from the light kit assembly. Make sure
to line up the colored markings on the
connectors.
Lift the switch housing
assembly and wrap
keyhole slots around
the screws and twist
counterclockwise.
Insert a third light kit screw,
found in the hardware bag,
into place and then tighten all
three screws.
bag
Install a third light
kit screw. Tighten
all three screws
securely.
1 of 6
Light Kit Screw
Install the included LED
bulbs into the sockets.
When necessary, replace
with bulbs of same wattage.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
Tab
Notch
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
NOTE: Check to ensure
proper engagement.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
7
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
1886

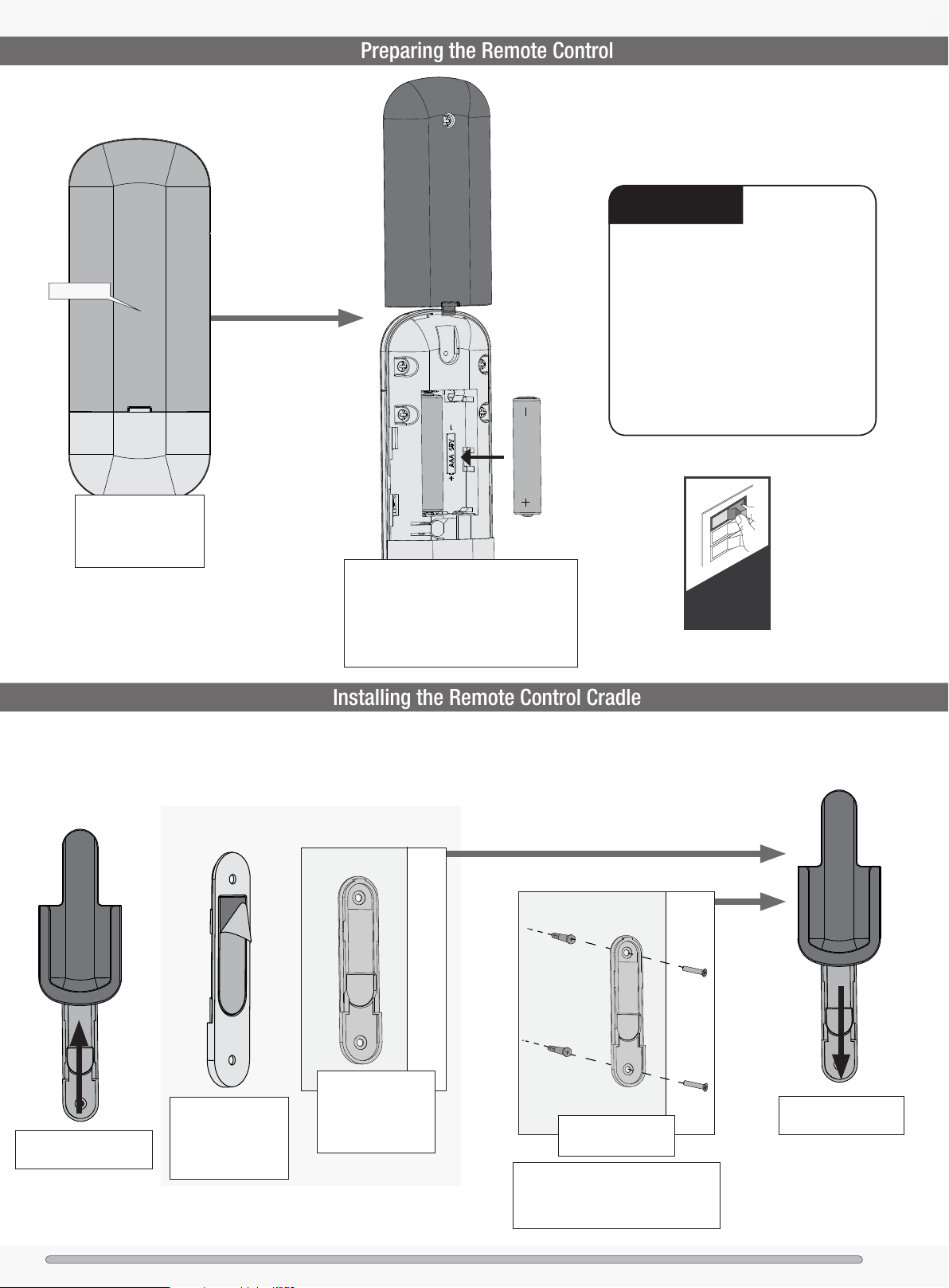

Preparing the Remote Control
The remote control is already
Installing the Remote Control Cradle
NOTICE
paired for use.
Battery Door
To access the battery
compartment, remove
the battery door to the
transmitter assembly.
Install two AAA batteries, found in the
remote control hardware bag, into the
transmitter. Clean the battery contacts
prior to installing the batteries. Please
contact your local battery recycling center
for proper battery disposal information.
• Always purchase the correct size and grade of
battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the
device prior to battery installation.
• Ensure the batteries are installed correctly with
regard to polarity (+ and -).
• Remove batteries from equipment which is not to
be used for an extended period of time.
• Remove used batteries promptly.
Turn Power
ON
You have two options for installing the remote cradle.
Choose which path works best for you.
Option 1: Using Adhesive Strip
Press the cradle
bracket against the
wall and hold rmly
for 30 seconds.
Remove the cradle from
the cradle bracket.
Separate the lining
from the back of the
adhesive strip on
the cradle bracket.
Option 2: Using Screws
Choose your cradle
installation location.
If you are installing into drywall, drill two
9/64 width holes using the cradle bracket
as a guide. Gently hammer the included
drywall anchors into the pre-drilled holes.
Slide the cradle onto
the mounted bracket.
Ceiling Bracket Top housing Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Remote
8
1886
1886

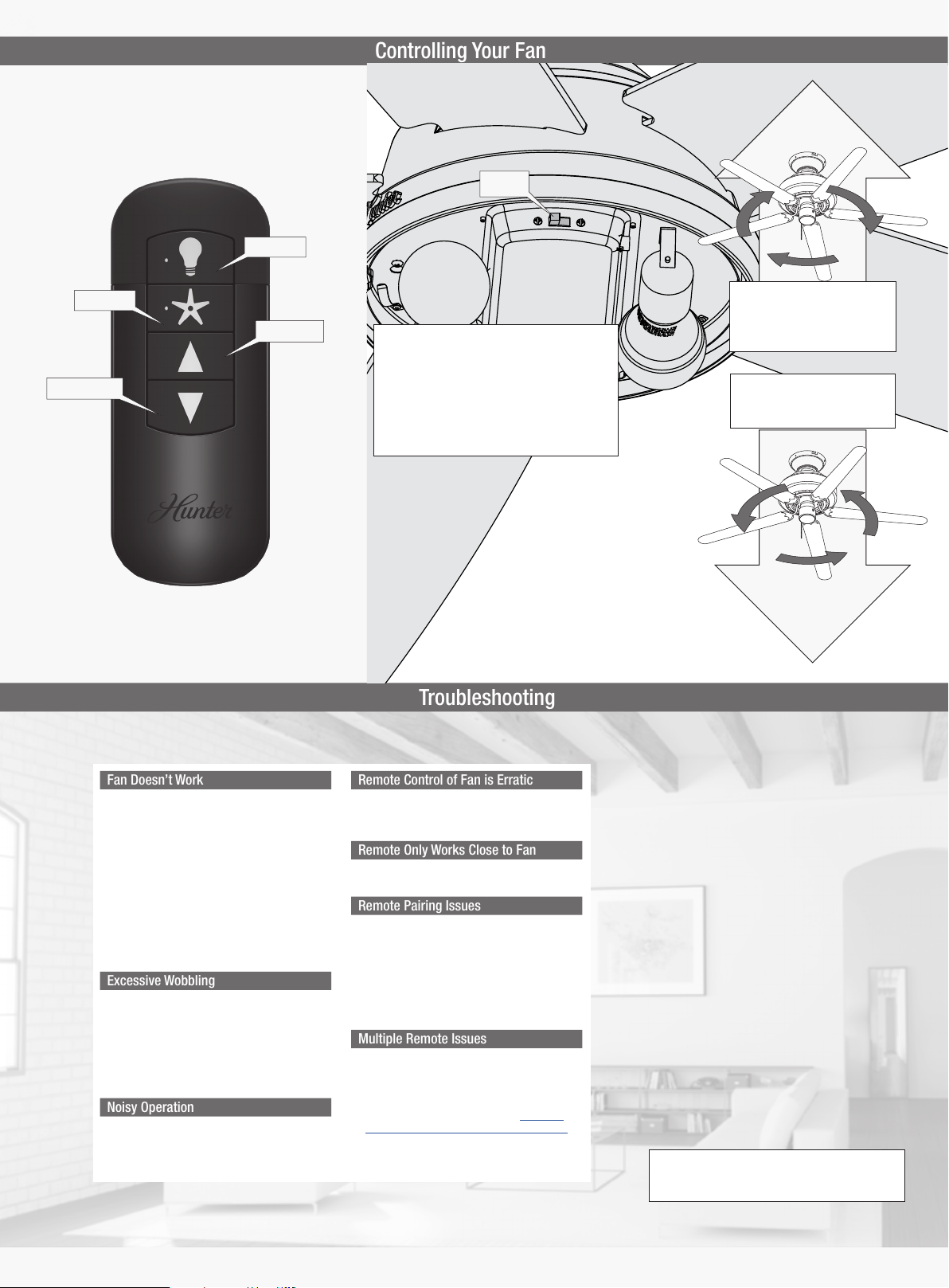

Controlling Your Fan
For your convenience, a
Troubleshooting
Fan Doesn’t Work
Excessive Wobbling
Noisy Operation
Remote Control of Fan is Erratic
Remote Only Works Close to Fan
Remote Pairing Issues
Multiple Remote Issues
remote function card is
packed in with your remote.
Light On/Off
Reverse
Switch
Fan On/Off
Fan Speed Down
Fan Speed Up
Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft
(clockwise rotation). To change the direction
of air ow, turn the fan off and let it come to a
complete stop. The reversing switch is located
inside the light xture. It can only be accessed
when the glass is removed. Slide the reversing
switch to the opposite position. Restart the fan.
Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.
Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.
• Make sure power switch is on.
• Push the motor reversing switch rmly left or right to
ensure that it is engaged.
• Check the circuit breaker to ensure the power is
turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen
the canopy and check all the connections according
to the wiring diagram.
• Check the plug connection in the switch housing.
• Make sure the blades are properly installed on the
blade iron posts.
• Turn the power off, support the fan carefully, and
check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to
balance the fan.
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so,
replace all of the blades.
• Make sure the battery is installed correctly.
• Install a fresh battery.
• Change battery.
1. To prevent faulty operation, please ensure all other
ceiling fans within range are turned off at the wall
switch while pairing.
2. If your need to pair your remote, turn fan power off
and back on at the wall switch. Within 3 minutes,
press and hold both the Fan Off button and the High
button for 4 seconds to pair the remote.
• If you have multiple remotes or multiple remotecontrolled fans installed on the same circuit breaker
and you are experiencing interference or faulty
operation of your remote controls, please go to
www.HunterFan.com/FAQs and click “How do I
properly install multiple remote-controlled fans?” for
information on how to correct this issue.
Hunter Pro Tip:
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
9
1886
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
Limited Lifetime Warranty
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
• ENERGY STAR® Rated Light Kits — Three-Year Limited Warranty
If your ENERGY STAR rated light kit (not including glass components) fails
at any time within three years of the date of purchase due to a defect in
material or workmanship, as determined solely by Hunter, Hunter will provide
a replacement light kit free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
10
Loading...
