Hunter Fan HTF10133 Installation & Assembly

Model: 59470 Fresh White
59471 Matte Black
59472 Matte Silver
Fan weight ±2 lbs: 23.4 lbs (10.6 kg)

Family Name

Installation Manual

©2019 Hunter Fan Co.

PG3765 r041119

1886

Congratulations on purchasing your new Hunter® ceiling fan!

Here are the tools you’ll need to complete your installation:

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains

WARNING

complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.

READ and SAVE These Instructions

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.
w.5 - Chemical burn hazard. Keep batteries away from children. This remote contains a lithium button cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body,

it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using
the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Dispose of cells properly and keep away from children. Even used cells may cause injury.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This product conforms to UL Standard 507.

OPTIONAL

If mounting to a support structure, you will also need these tools.

Ladder

Pliers

1

Screwdriver

Wire Strippers

9/64” Drill BitDrill

1886

We recommend that you pull everything out of the box and lay it out. We have

Here is what comes in your box:

grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

Hunter Pro Tip:

Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.

bag

Washer

x2

For installing the hanger bracket and wiring the fan

x6

bag

Blade Screw

Wood Screw

Wire Nut

x4

x2

Ceiling Gasket

Ceiling Plate

Ceiling Bracket

Canopy

Downrod

Adapter Cover

x4

bag

bag

For installing the canopy

Motor

Ceiling Plate
Screw

Flange Nut

x4

x2

For installing the blades

Wall Control and Extra Downrod

bag

For your convenience,
you may receive extra fasteners.

Spare Parts

Blade

x3

Remote Receiver

Note: Fan style may vary.

Gasket

Upper Switch Housing

Lower Switch Housing

Globe

bag

x3

Light Kit Screw

x3

Short Light Kit

Screw

M3742-01 r052819

Find a part that is missing or damaged?

Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

2

1886

1886

Preparing the Ceiling Bracket

Installing the Ceiling Bracket

Choosing the Right Installation Location

Checking the Ceiling Angle:

Angled Mounting

You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.

Check the room dimensions: Check the outlet box:

30 inches

from blade tip to
nearest wall or
obstruction

7 feet

from bottom edge

of blade to the

oor

Standard Mounting

Support Structure

Outlet Box

(required)

Ceiling

You must be able to
secure the fan to building
structure or fan-rated
outlet box.

Support
Structure

Angled Mounting

Ceiling

Outlet Box

(required)

If you have a at ceiling:

Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.

A little more information on Angled Mounting:

For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.

Hunter Pro Tip:

Determining if you need an Angled Mounting Kit:

Fold on the dotted line. Place against edge againts
the wall. Slide towards the ceiling.

If the guide touches the wall but not the ceiling, you
need an angled mounting kit.

CEILING

If you have an angled or vaulted ceiling:

1. You will need a longer downrod. (sold separately at HunterFan.com)

2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)

3

34°

WALL

1886

Preparing the Ceiling Bracket

Installing the Ceiling Bracket

1

STEP

Turn Power

OFF

Do this rst!

To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet box
associated with the wall switch location.

2

STEP

bag

x4

Canopy Plate Screw

x4

Flange Nuts

STEP

3

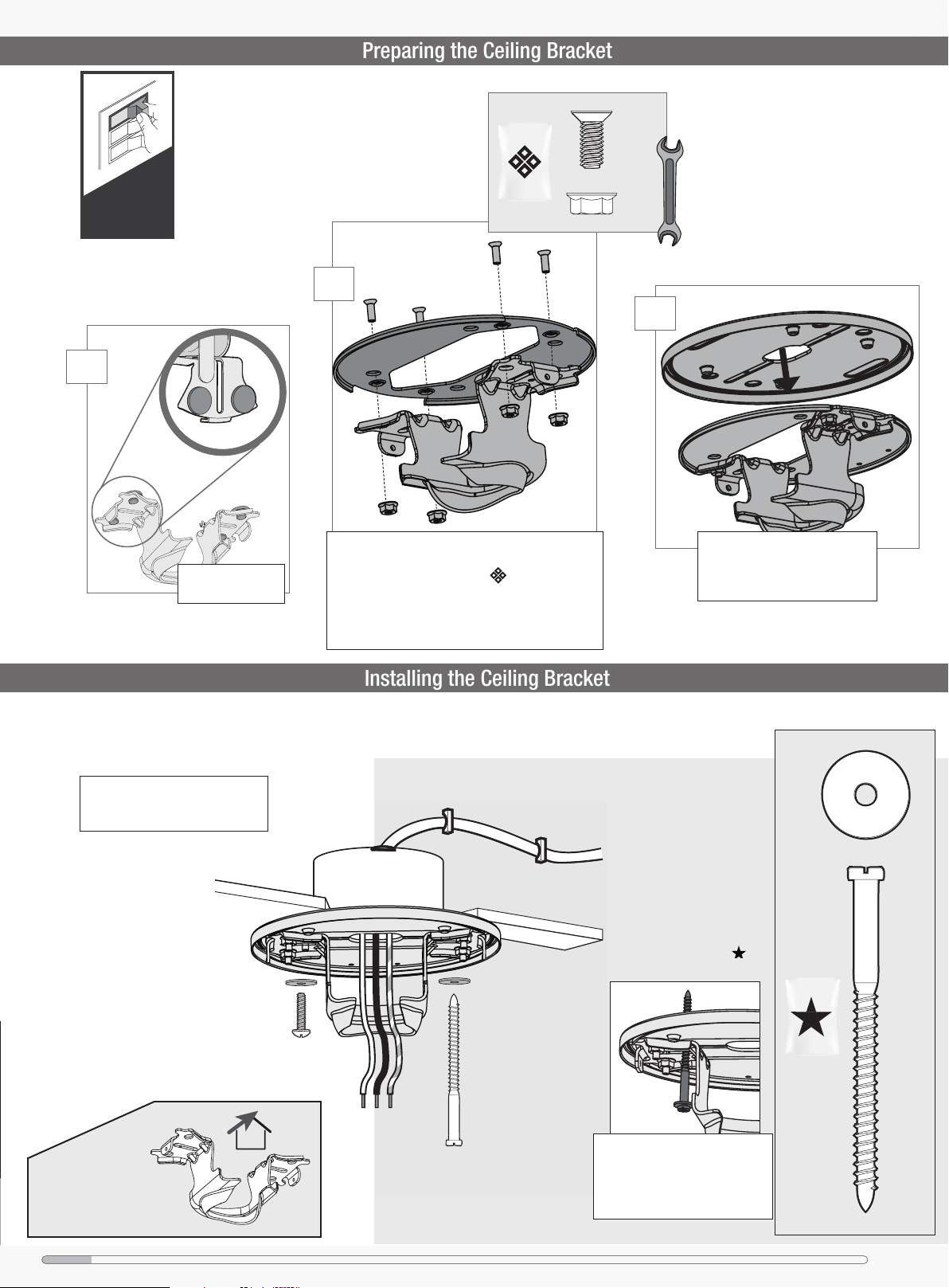

Align the tapered mounting holes in the ceiling plate

with the holes in the ceiling bracket. Install the four
Remove all four
mounting isolators.

ceiling plate screws found in the hardware bag and

secure with the ange nuts using an 11/32” wrench.

Hold the ceiling bracket assembly up to the outlet box

and mark the screw locations. To mount to support

structure, also mark the ceiling for drilling pilot holes.

You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.

Hunter Pro Tip:

The machine screws are the ones
that came with your outlet box.

Option 1:
Machine Screws

Use machine screws (pro­vided with outlet box) when
securing to existing ceiling
fan-rated outlet box. Make
sure it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.

Option 2:

Wood Screws

Use wood screws (included)
when securing to support
structure with approved
electrical outlet box. Drill
9/64” pilot holes in support
structure to aid in securing
ceiling bracket with
hardware found in the
hardware bag.

MOUNTING TIP

Install the ceiling plate gasket onto
the ceiling plate. The four holes in
the ceiling plate should lineup with
the four posts in the gasket.

x2

Washer

bag

ANGLED

For angled ceilings,
point opening
toward peak.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

Use the wood screw to poke holes
through the rubber gasket in
order to install the ceiling bracket
assembly to your support structure
or ceiling fan-rated outlet box.

x2

Wood Screw

4

1886

1886

Hanging the Fan

NOTICE

Wiring the Fan

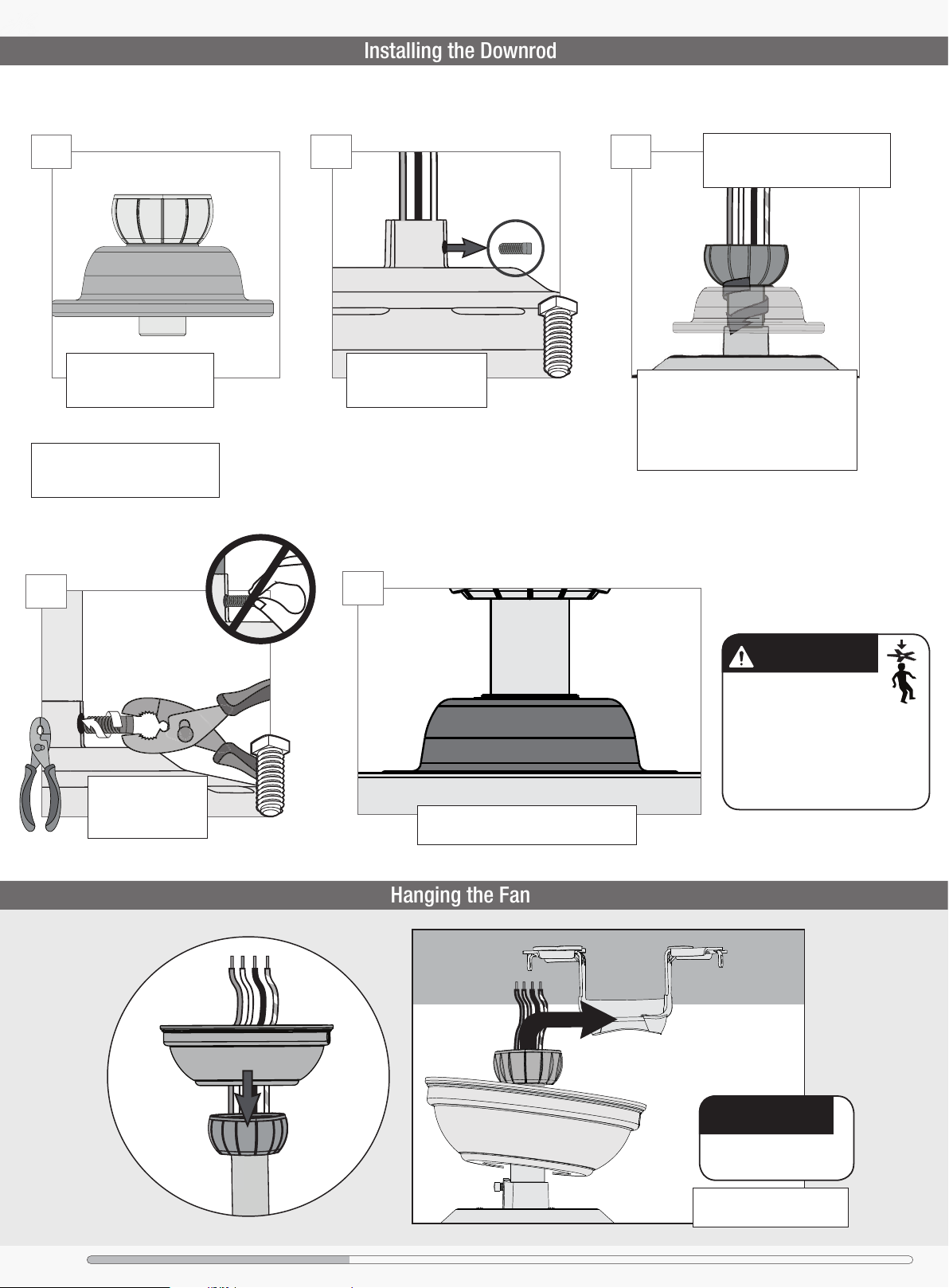

Follow below if you are using the downrod that came pre-assembled in your box. Need to

Installing the Downrod

WARNING

install a longer or shorter downrod? Check out the guide at the end of this manual.

Hunter Pro Tip:

1

STEP

Slide the adapter cover onto
the downrod until it rests
against the hanger ball.

Hunter Pro Tip:

The adapter cover is not used for
low-prole mounting.

4

STEP

2

STEP

Remove the pre-installed
setscrew so that the
downrod can be inserted.

5

STEP

3

STEP

E

E

P

K

!

Pass all wires to one side of horizontal bar
in downrod assembly. Hand tighten the
downrod (at least 4–5 full turns) until it
stops. Trim the wires coming from the fan
so that 8-inches remain coming from the
top of the downrod.

The ground wire attached to the
downrod is approximately 8 inches.

Tighten the setscrew
with pliers. DO NOT

HAND TIGHTEN.

S

l

i

d

e

c

a

n

o

p

y

o

v

e

r

d

o

w

n

r

o

d

a

n

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.
Lower the adapter cover until it rests ush
against the motor housing.

To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.

d

w

i

r

e

s

.

Place the downrod ball into
the slot in the ceiling bracket.

5

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

1886

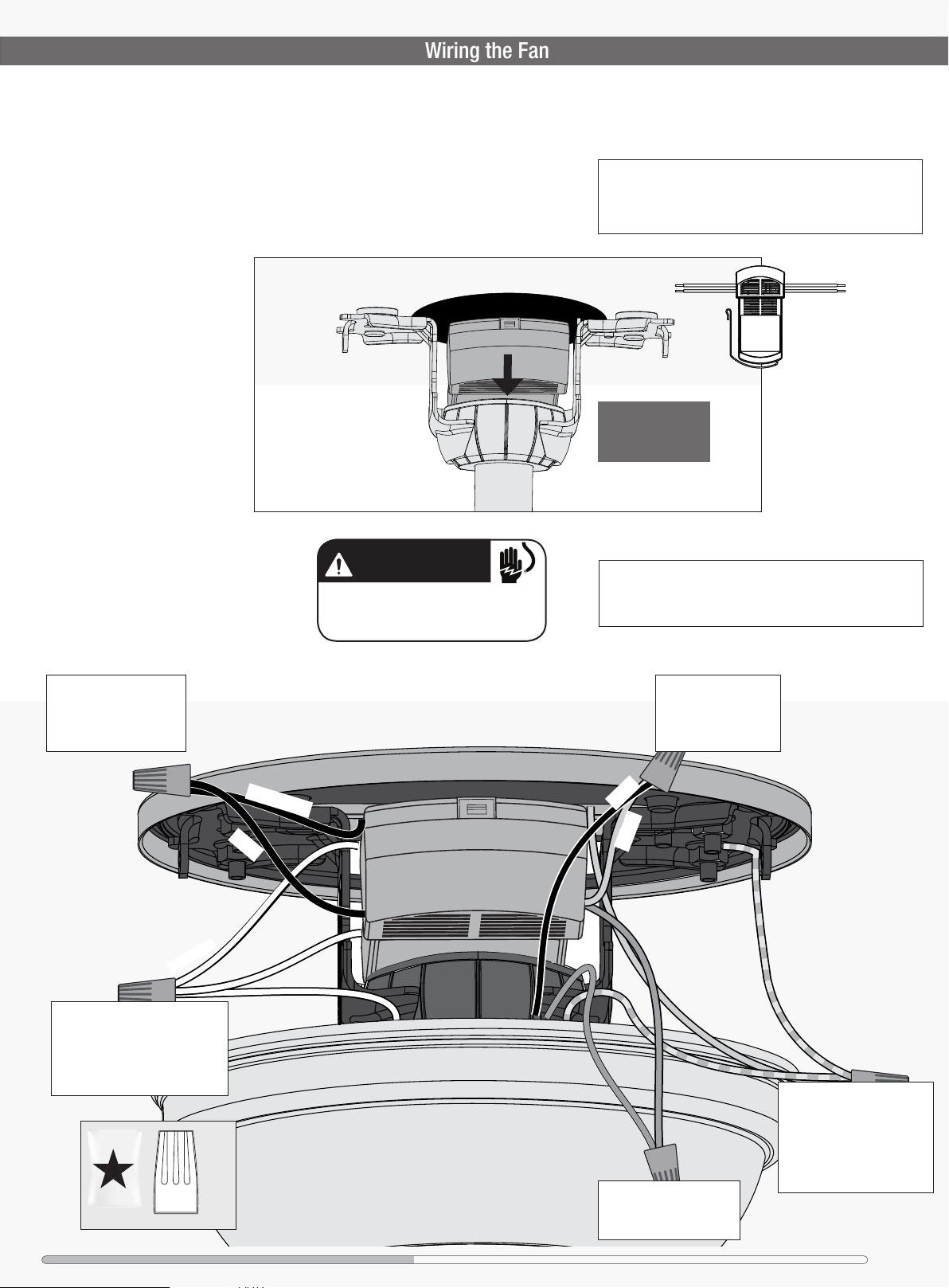

We know wiring is hard. Let’s make it easier.

Wiring the Fan

WARNING

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.

Hunter Pro Tip:

Here is how to connect the wires:

Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.

Give it a gentle pull to make sure none of the wires are loose.

Slide the remote
receiver onto the
top of the bracket.

Hunter Pro Tip:

Have extra wiring?

All wiring must be in accordance with
national and local electrical codes ANSI/NFPA

70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.

Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Make sure that the
wires are still attached to the wire nuts.

Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the receiver.

Grounded

Connect the white (grounded)
wire from the ceiling to both
the white wire from the
receiver and the white wire
from the fan.

bag

Wire Nut

x4

Ungrounded

Black

White

White

Connect the yellow
wire from the
receiver to the black
wire from the fan.

Black

Yellow

Grounding

Green/Yellow Stripe

Blue

Blue

Blue

Blue

Connect the blue wire
from the receiver to the
blue wire from the fan.

G

r

e

e

n

/

Y

e

l

l

o

w

S

t

r

i

p

e

Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

6

1886

1886

Installing the Blades:

Installing the Canopy

F

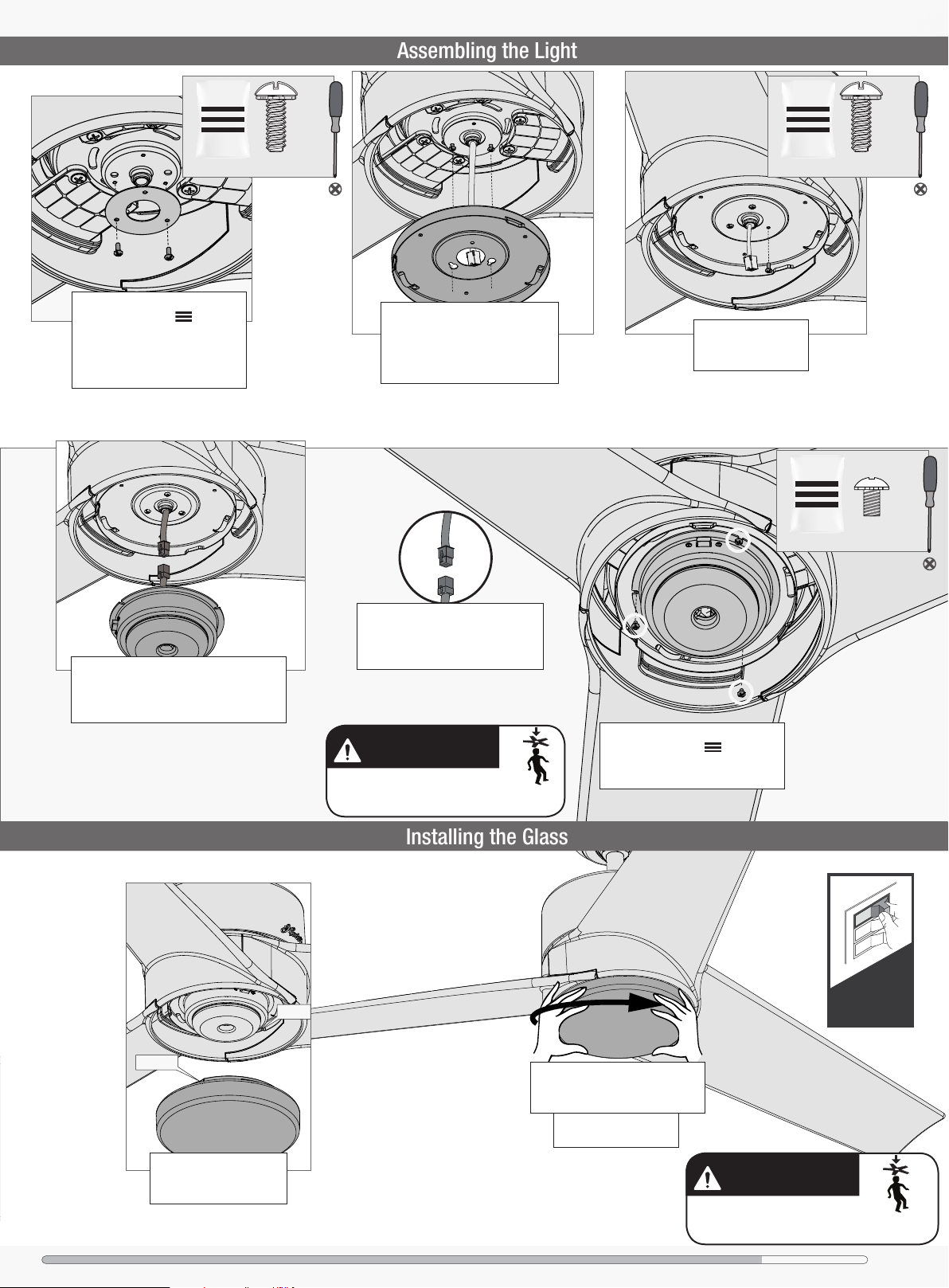

Assembling the Light

Installing the Glass

i

t
t

h

e

c

a

n

o

p

y

i

n

p

l

a

c

e

a

s

s

h

.

o

n

w

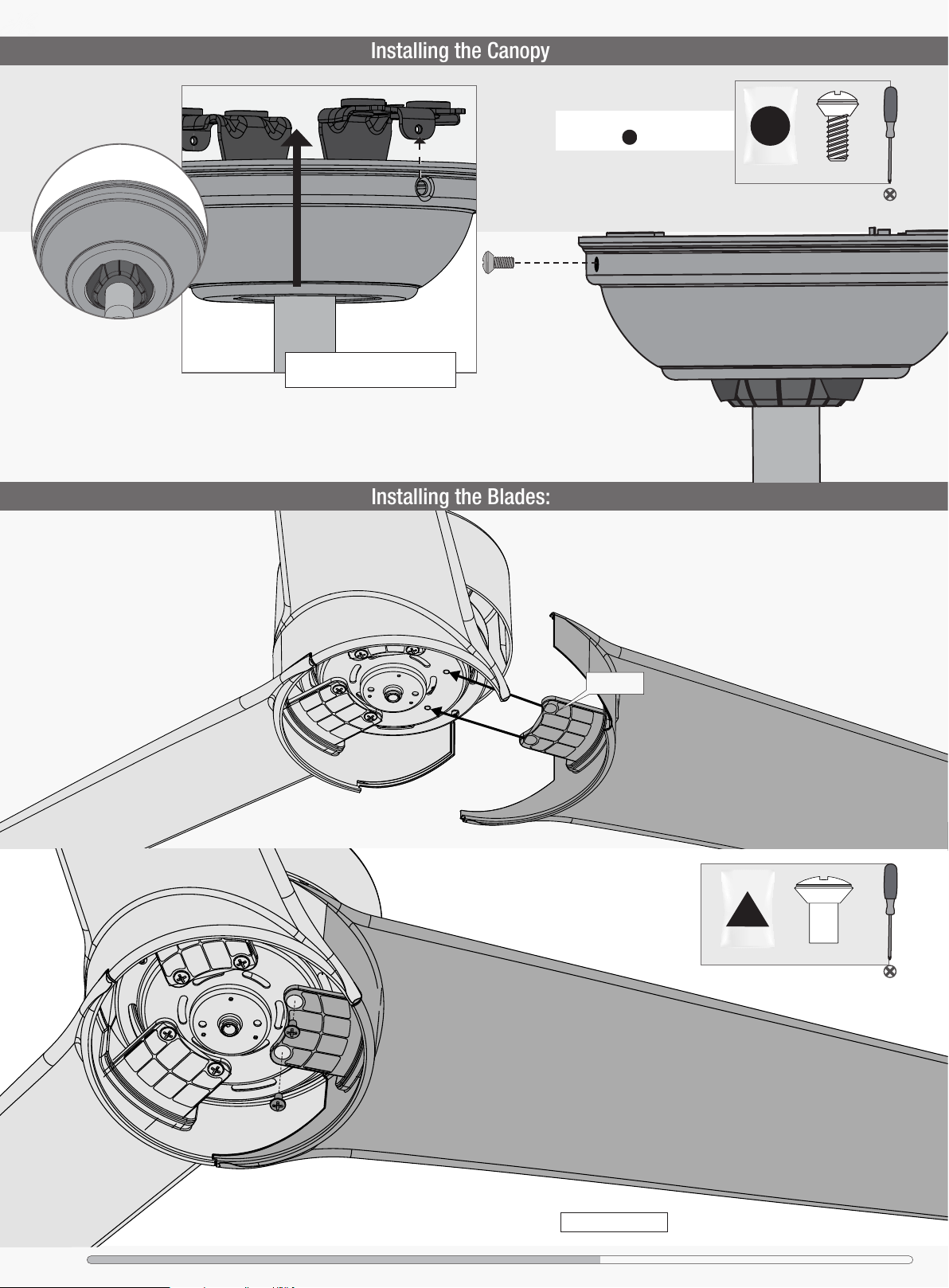

Slide the blades into position. Ensure
that the blades do not overlap one
another. Align the holes in the blade
arms with the holes on the fan.

Lift the canopy into place so that
the screw holes are aligned.

Insert the two canopy screws
found in the hardware bag.

bag

x2

Canopy Screw

Repeat x3

Blade Arm

Lightly attach the blade arms to the motor with
the blade arm screws, then securely tighten
after both screws are attached.

bag

Blade Arm Screw

Repeat x3

x6

7

Note:

Fan style may vary.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

1886

Assembling the Light

Installing the Glass

WARNING

WARNING

bag

2 of 3

Light Kit Screw

bag

1 of 3

Light Kit Screw

Partially install two light kit
screws, found in the hardware
bag, through the gasket halfway
into the motor housing as shown.
It does not matter which two
screw holes you choose.

Raise the LED assembly to the upper
switch housing . Align the screw holes in
the LED assembly with the screw holes in
the upper switch housing.

Align the keyhole slots in the top of
the upper switch housing with the
partially installed light kit screws.
Wrap the keyhole slots around the
screws and twist counterclockwise

Connect the plugs from the upper
switch housing and the LED
assembly. Make sure to line up the
colored markings on the connectors.

FAN FALL HAZARD

Make sure all screws are tight to secure
the light xture.

Install the third screw.
Tighten all three
screws securely.

Using the three Short Light Kit
Screws, found in the hardware
bag, mount the lower switch
housing to the upper switch housing.

bag

3 of 3

Short Light Kit

Screw

Tab

Notch

Lift the globe and align the
notches in the globe with
the tabs in the light kit.

Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.

NOTE: Check to ensure
proper engagement.

GLASS FALL HAZARD

To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

Turn Power

ON

8

1886

1886

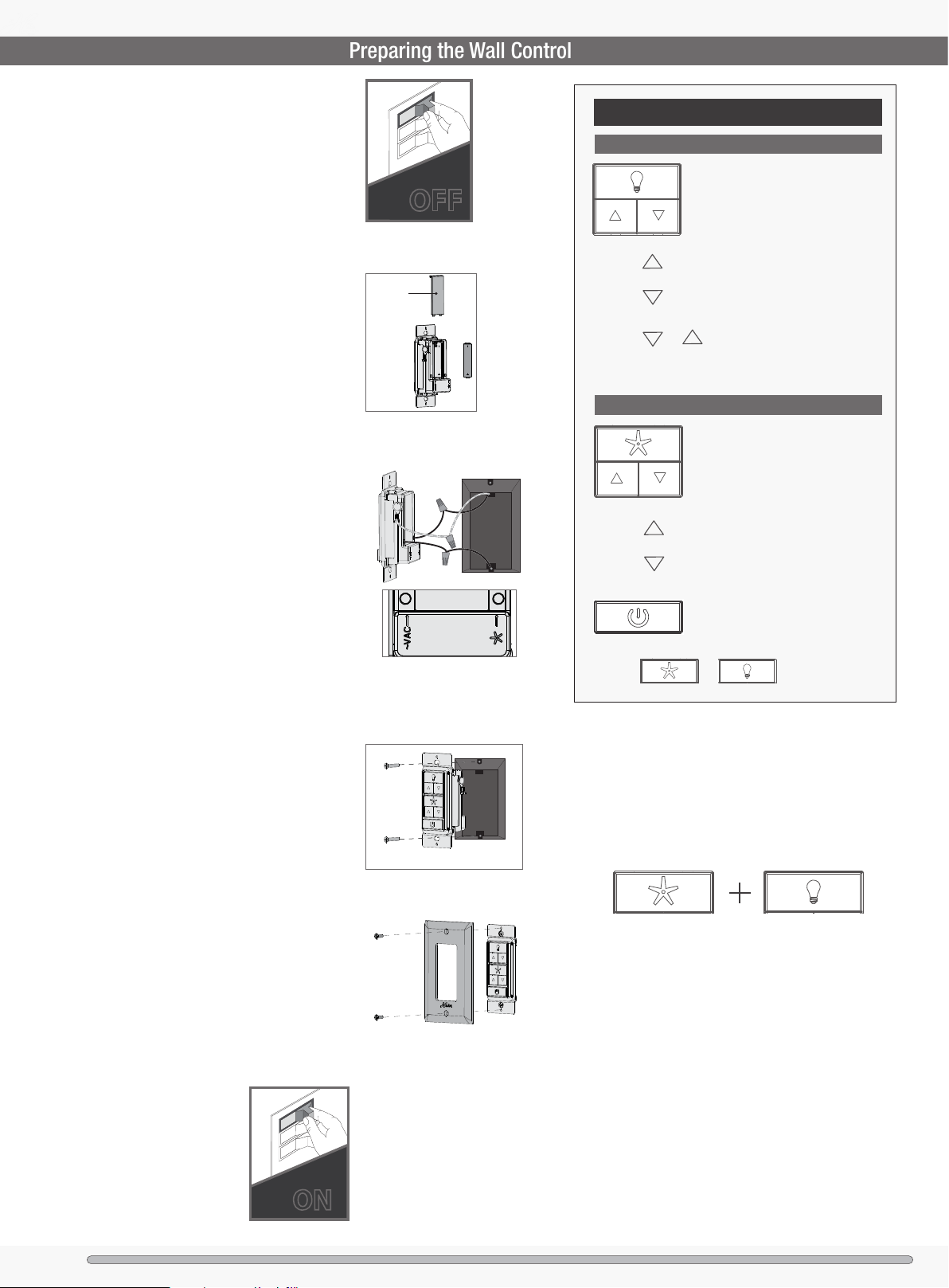

Preparing the Wall Control

Turning off the power

1

Ensure the power is OFF at the outlet box
and wall switch location before proceeding
with installation.

KEY PRESS FUNCTION

LIGHT FUNCTIONS

Installing the battery

2

To access the battery compartment, slide
the battery door up.

Replace the used battery with two AAA
batteries when needed.

Wiring the Wall Control

3

Connect the grounding wire from the wall
control to the ground control from the
switch box using the provided wire nuts.

Connect the “LIVE IN” from the switch
box to the “~VAC” from the wall control
using the provided wire nuts.

Connect the “LIVE OUT” from the switch
box to the “FAN” out from the wall control
using the provided wire nuts.

Push all wires into the switch box.

Turn Power

Battery
Door

OFF

Long
Press
Long
Press

Long
Press

Long
Press
Long
Press

Long
Press

+

FAN FUNCTIONS

+

Light On/Off

Light Dimming
Control

Light High

Light Low

Dimming Mode
On/Off

Fan On/Off

Fan Speed
Control

Fan High

Fan Low

Power On/Off

Pair Function

Installing the Wall Control

4

Install the longer screws through the
slots in the wall control into the switch
box screw holes.

Installing the Wall Plate

5

Install the shorter screws through the
wall control plate and into the screw
holes in the wall control.

Turning on the power

6

Turn Power

ON

The remote transmitter is already paired to the

7

receiver and ready to use. If you need to pair
your remote, cycle power to the fan by turning
power off and back on at the wall switch (or
circuit breaker if necessary). Within three
minutes, do the following:

Reference the included remote function

8

card for information on how to use your
wall control!

9

Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

1886

Troubleshooting

Fan Doesn’t Work

Excessive Wobbling

Noisy Operation

Reversing the Fan

Ceiling fans work in two directions: downdraft (counterclockwise
rotation) and updraft (clockwise rotation). To change the direction
of air ow, turn the fan off and let it come to a complete stop.
Slide the reversing switch to the opposite position. Restart the fan.

Reverse
Switch

Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.

Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.

Note: Fan style may vary.

• Make sure power switch is on.

• Check the circuit breaker to ensure the power is
turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen
the canopy and check all the connections according
to the wiring diagram.

• Make sure the blades are properly installed on the
blade iron posts.

• Turn the power off, support the fan carefully, and
check that the hanger ball is properly seated.

• Make sure the blades are properly installed.

• Check to see if any of the blades are cracked. If so,
replace all of the blades.

Hunter Pro Tip:

Cleaning the Fan

Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.

10

1886

1886

Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter

Limited Lifetime Warranty

Downrod

WARNING

ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original

purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/

1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

What Does This Warranty Cover?

Motor — Limited Lifetime Warranty

If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.

Other — One-Year Limited Warranty

Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*

Light Kits — Warranty May Vary

Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:

• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*

* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.

What Does This Warranty NOT Cover?

Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

How Does State Law Affect Warranty Coverage?

This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.

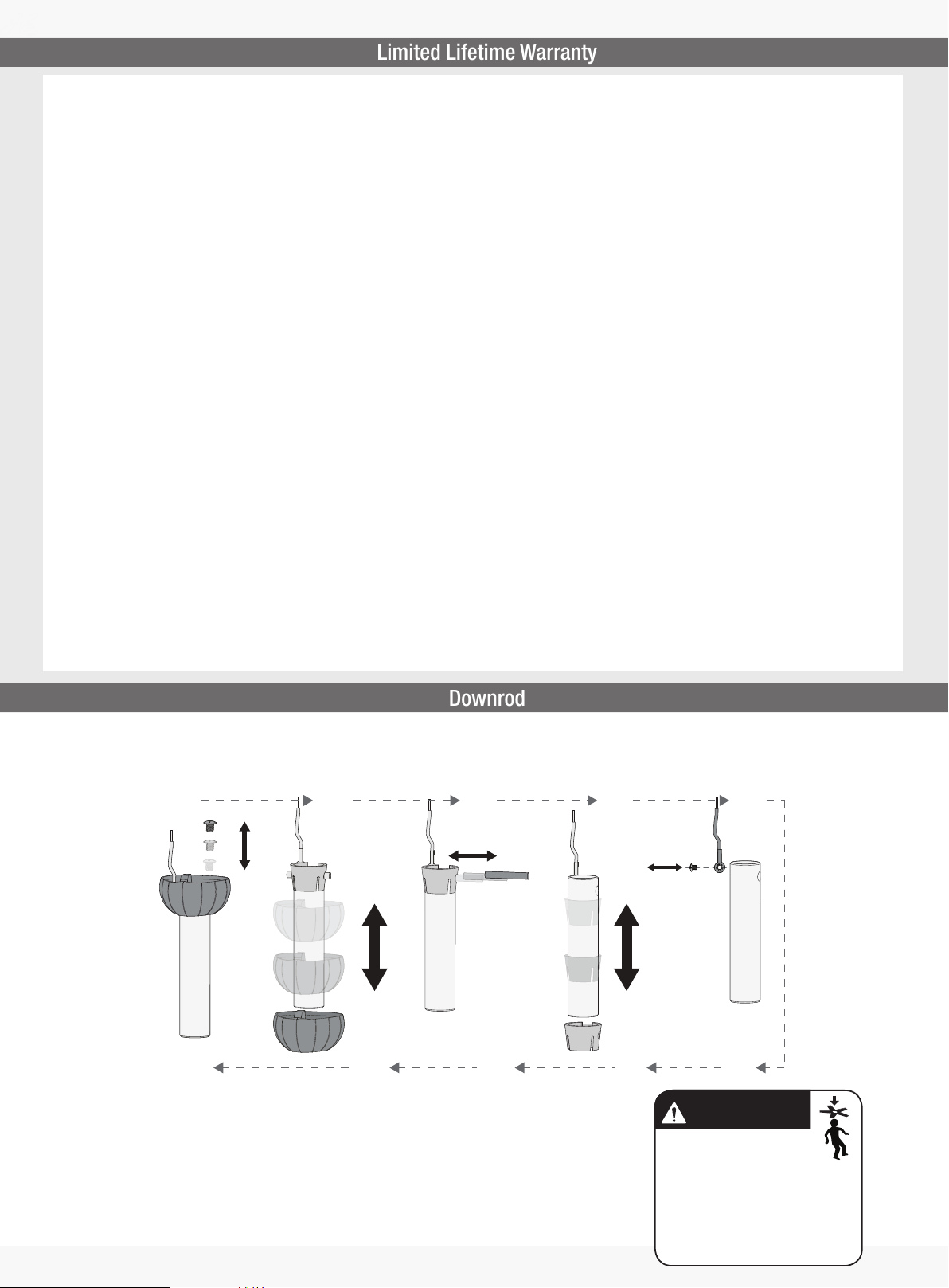

If you need a different downrod length follow these steps:

Follow steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Follow steps 6-10 to reassemble with new downrod

11

678910

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.
