Model: 50390 Matte Silver
50391 Natural Iron
Fan weight ±2 lbs: 23.6 lbs (10.7 kg)
Port Royale
Installation Manual
©2019 Hunter Fan Co.
PG3795 r071819
1886
Congratulations on purchasing your new Hunter® ceiling fan!
Here are the tools you’ll need to complete your installation:
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
WARNING
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.
READ and SAVE These Instructions
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ladder
This product conforms to UL Standard 507.
OPTIONAL
If mounting to a support structure, you will also need these tools.
Screwdriver
9/64” Drill BitDrill
Pliers
1
© 2019 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Wire Strippers
Memphis TN 38016
1886
We recommend that you pull everything out of the box and lay it out. We have
Here is what comes in your box:
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
bag
Washer
x2
For installing the hanger bracket and wiring the fan
Blade Washer
bag bag
Blade
x4
For installing the blades
Blade Arm
x4
x12
Wood Screw
Wire Nut
x4
bag
x2
x12
Blade Screw
x8
Blade Arm Screw
Ceiling Bracket
Canopy
Downrod
bag
For installing the canopy
Motor
Canopy Screw
x2

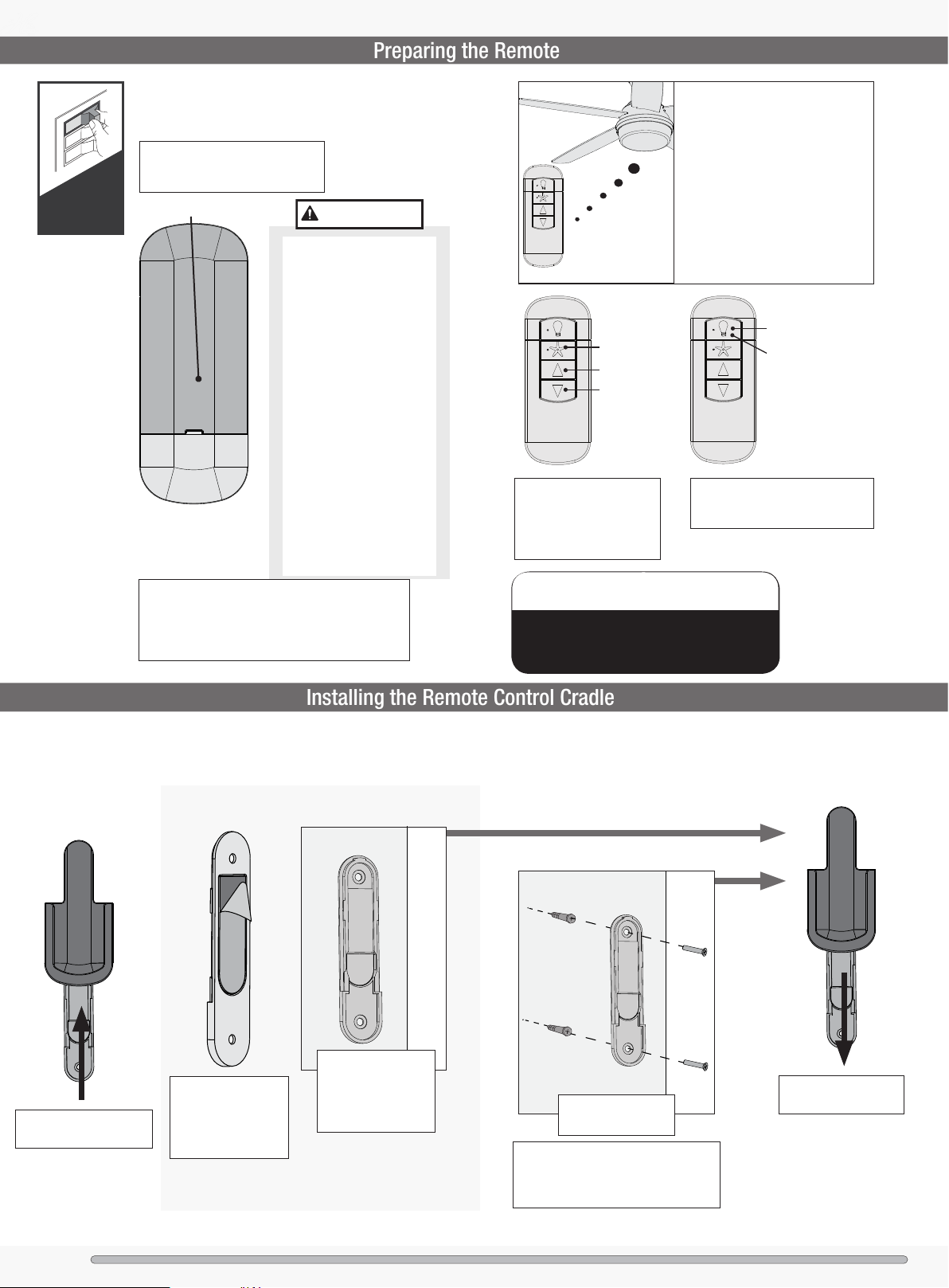

Remote Control
Remote Receiver
Remote Components
bag
For your convenience,
you may receive extra fasteners.
Spare Parts
Remote Cradle
x3
Switch Housing
Assembly Screw
bag
x3
Light Kit Assembly Screw
x3
Cage Assembly Screw
Bulb
x1
Downrod
Note:
Fan style may vary.
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit
us at HunterFan.com or call us at 1.888.830.1326.
Monday - Friday 8am - 6pm CST. Saturday 11am - 4pm
CST (English or Español)

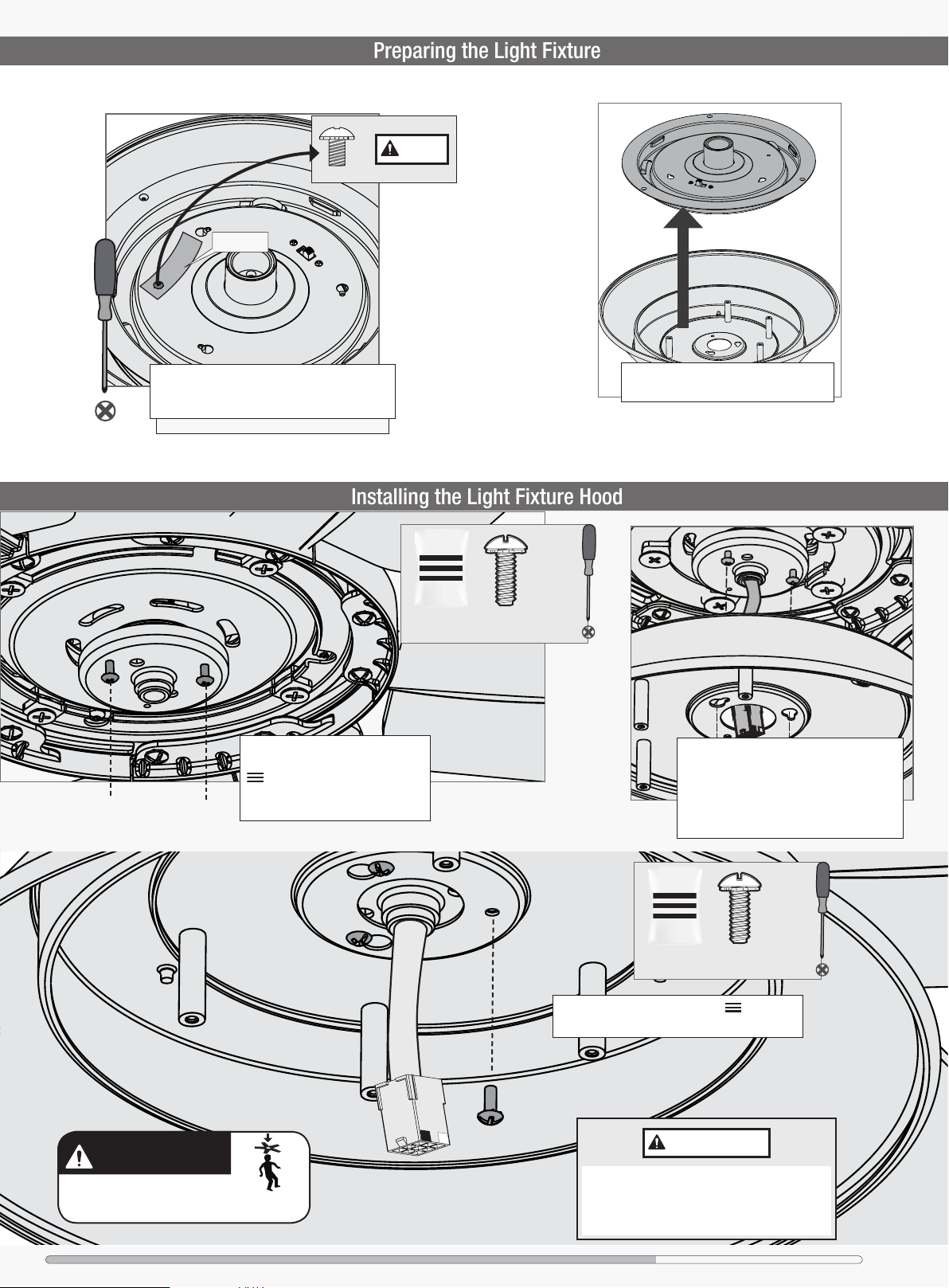

Light Kit Hood

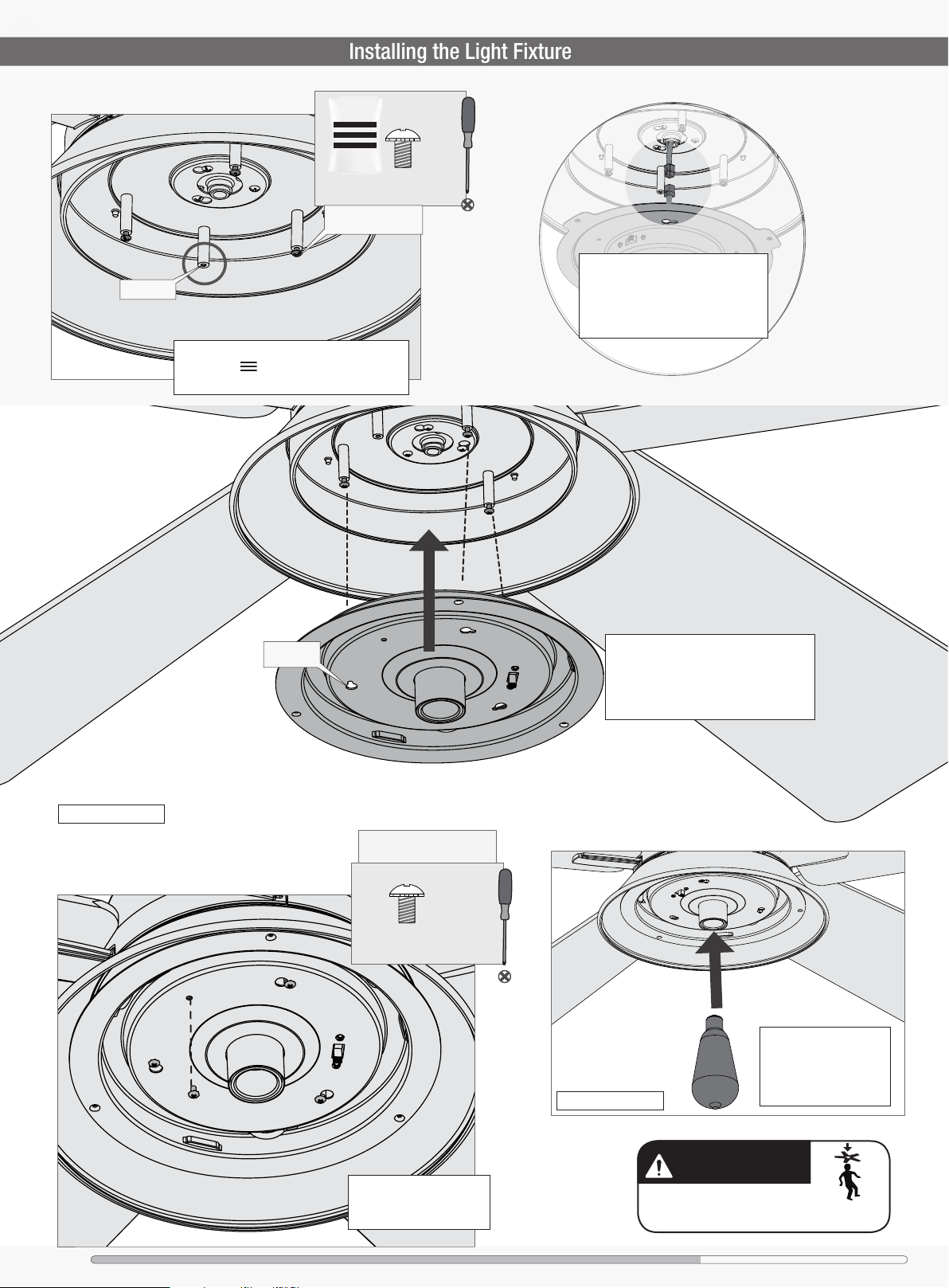

Light Kit Assembly
Globe

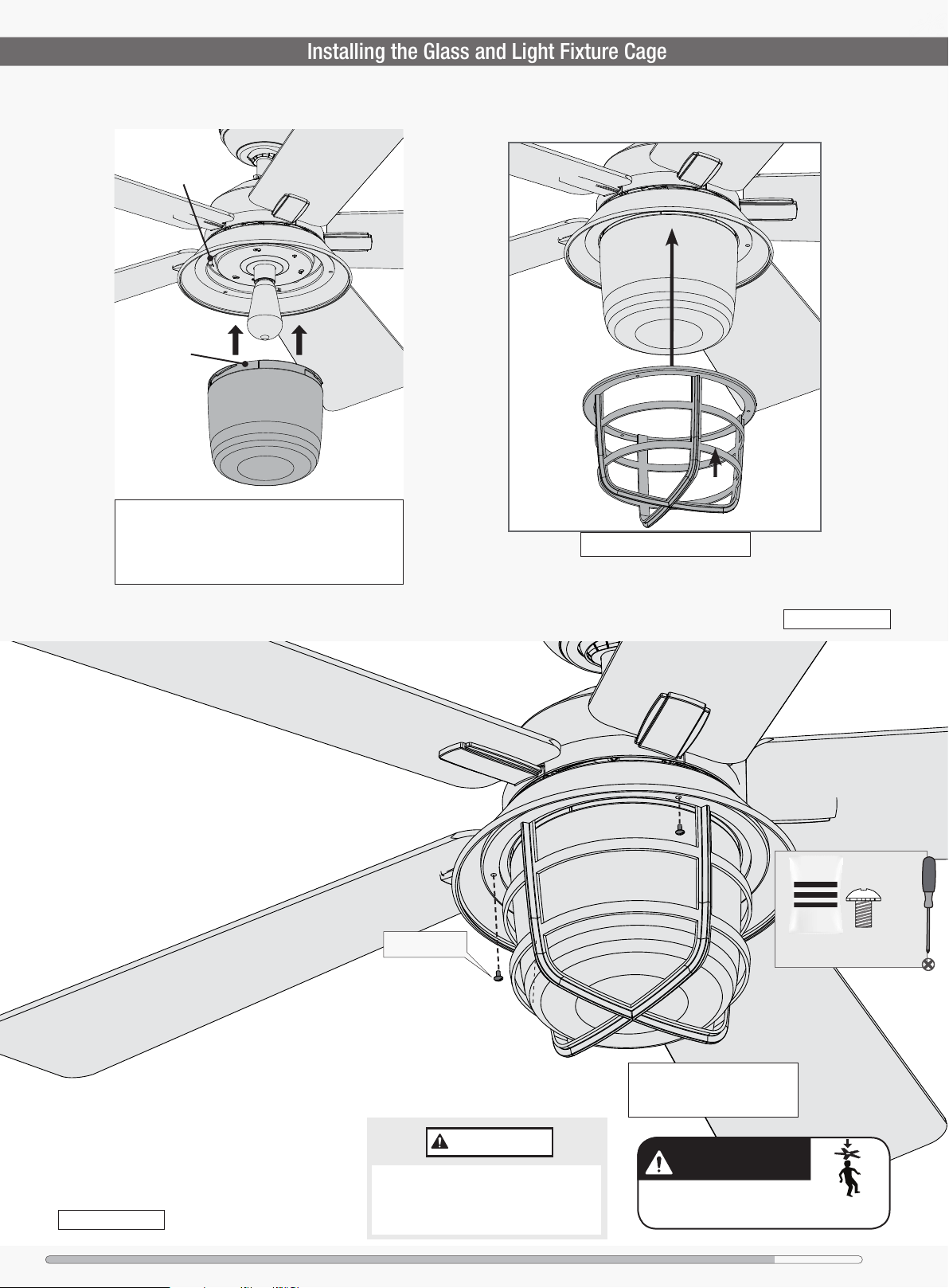

Cage
For installing the light xture
M3759-01 r071819
2
1886
1886
Choosing the Right Installation Location
Checking the Ceiling Angle:
Angled Mounting
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Installing the Ceiling Bracket
Installing the Downrod
Check the room dimensions: Check the outlet box:
30 in
from blade tip to
nearest wall or
obstruction
7 ft
from bottom edge
of blade to the
oor
Standard Mounting
Support Structure
Outlet Box
(required)
Ceiling
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
Support
Structure
Angled Mounting
Ceiling
Outlet Box
(required)
If you have a at ceiling:
Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.
A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.
Hunter Pro Tip:
Determining if you need an Angled Mounting Kit:
Fold on the dotted line. Place against edge against
the wall. Slide towards the ceiling.
If the guide touches the wall but not the ceiling, you
need an angled mounting kit.
CEILING
If you have an angled or vaulted ceiling:
1. You will need a longer downrod. (Sold separately at HunterFan.com)
2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)
3
34°
WALL
1886
Installing the Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing
Installing the Downrod
WARNING
WARNING
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Do this rst!
To avoid possible electrical shock, before
Turn Power
OFF
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Hunter Pro Tip:
The machine screws are the ones
that came with your outlet box.
x2
Washer
Option 1:
Machine Screws
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg / 70 lb or less.
ANGLED
For angled ceilings,
point opening
toward peak.

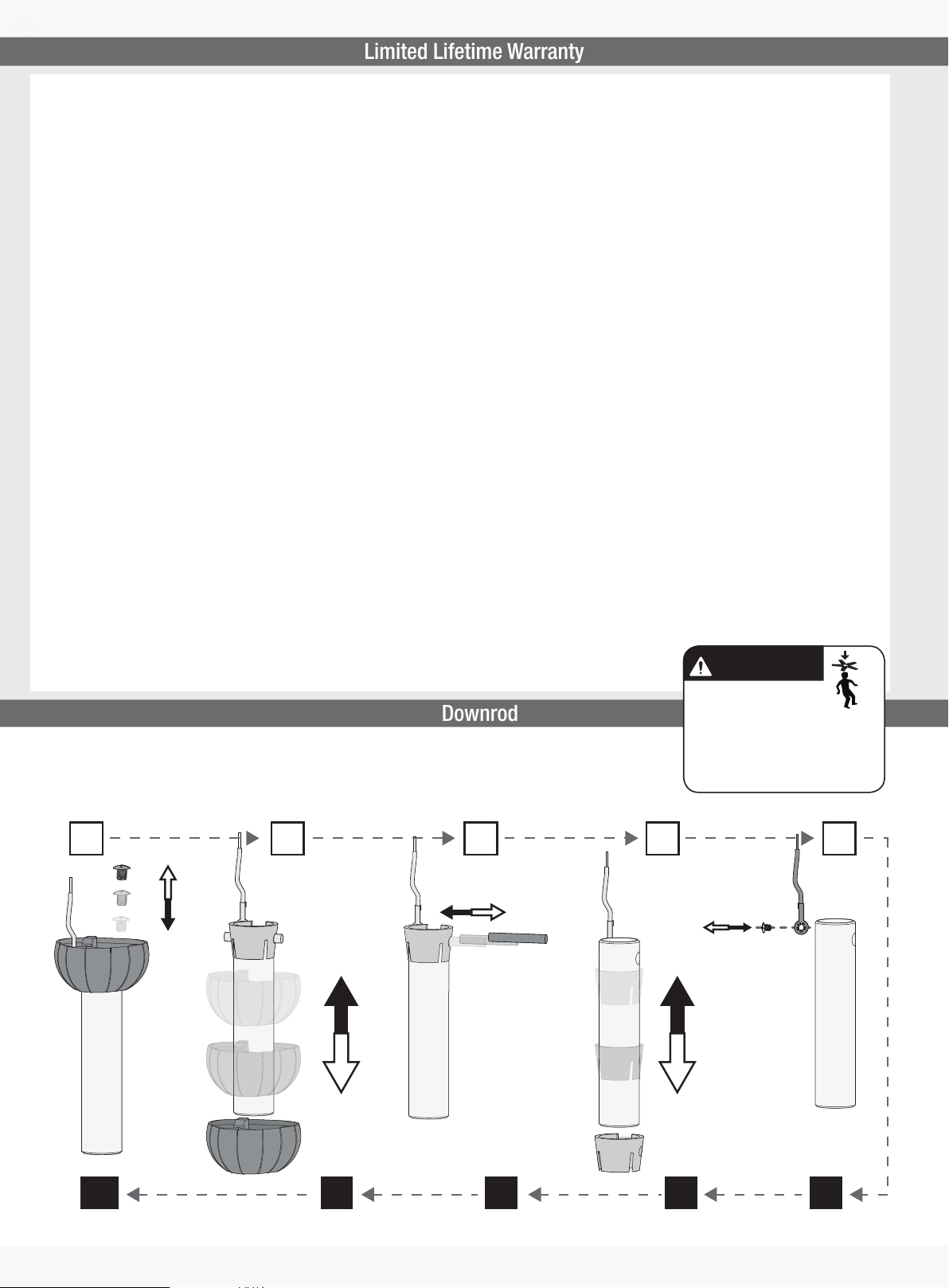

Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
MOUNTING TIP
2
STEP
3/8 in
3/8”
Hunter Pro Tip:
The ground wire attached to the
downrod is approximately 8 inches.
T
U
C
P
I
R
T
S
&
Option 2:
Wood Screws
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64 in pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
3
STEP
bag
x2
Wood Screw
8 in
1
STEP
E
E
P
K
!
Remove the pre-installed
setscrew so that the
downrod can be inserted.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Cage Remote Cradle
8”
(not to scale)
Pass all wires to one side of horizontal
bar in downrod assembly. Hand tighten
the downrod (at least 4–5 full turns)
until it stops. Trim the wires coming
from the fan so that 8 in remain
coming from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• A LWAY S tighten setscrew with pliers.
• DO NOT hand tighten setscrew.
• CHECK the setscrew is tight using pliers
each time you change fan direction.
4
